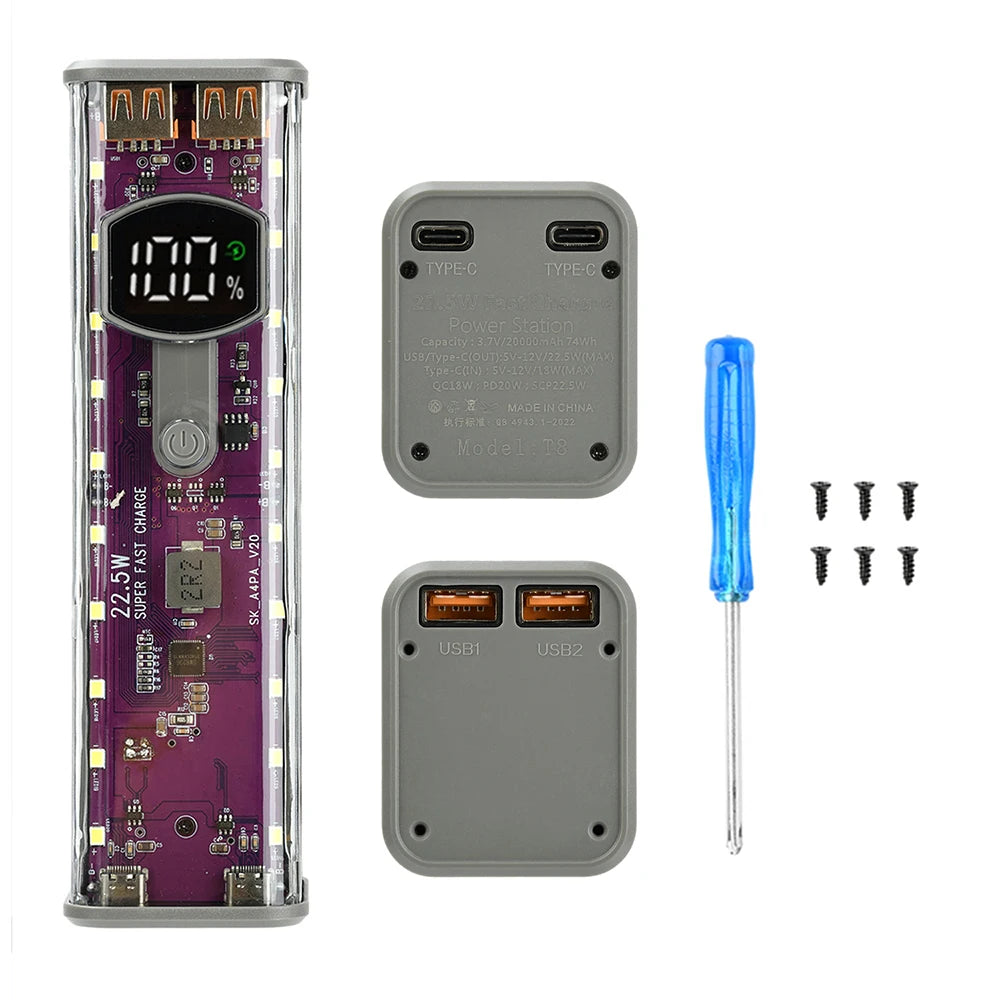

SPECIFICATIONS

Brand Name: Voktta

Choice: yes

Condition: New

Dissipation Power: 22.5W

High-concerned chemical: None

Origin: Mainland China

Package: TQFP

Quantity: 1

Type: Voltage Regulator

is_customized: Yes

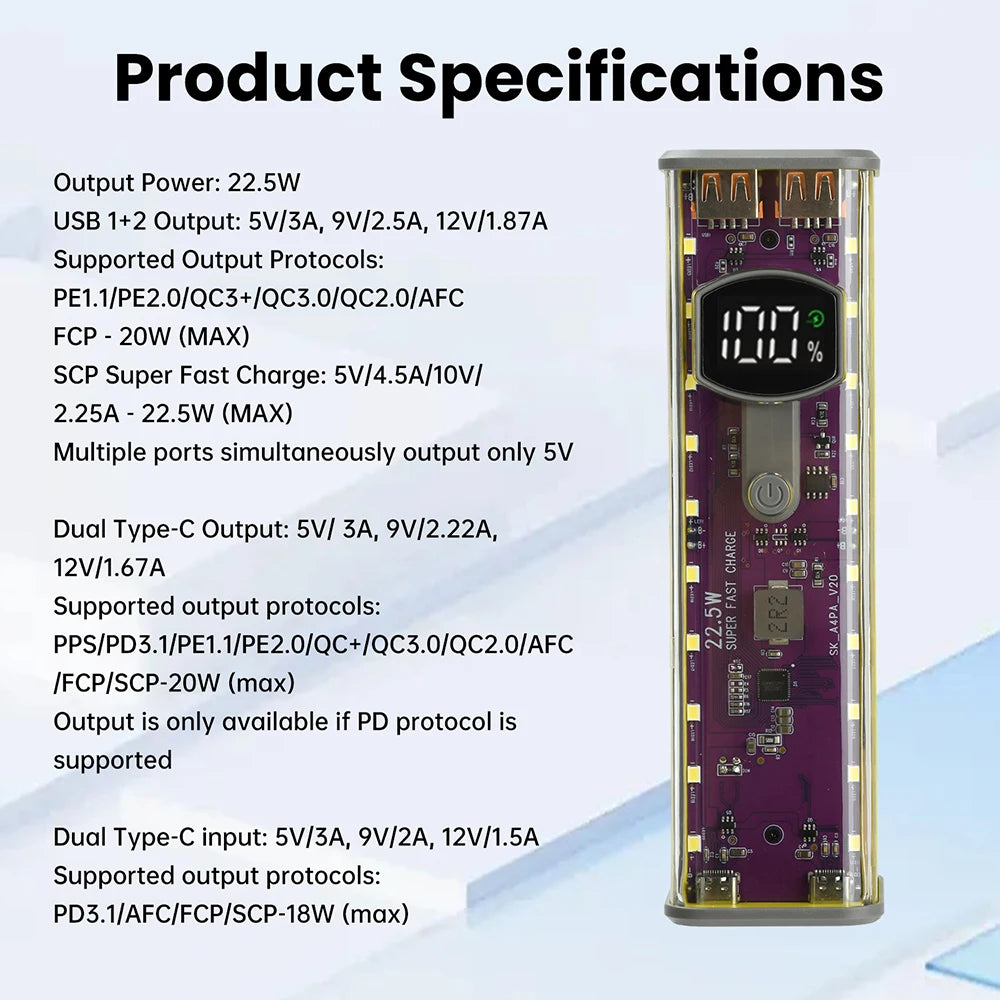

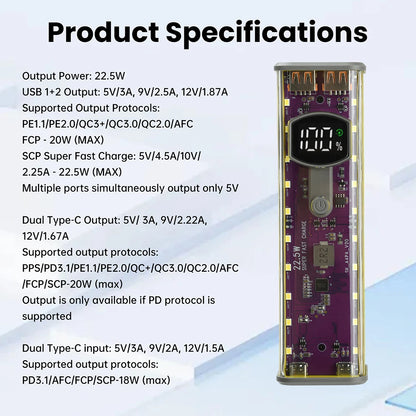

Output Power: 22.5W

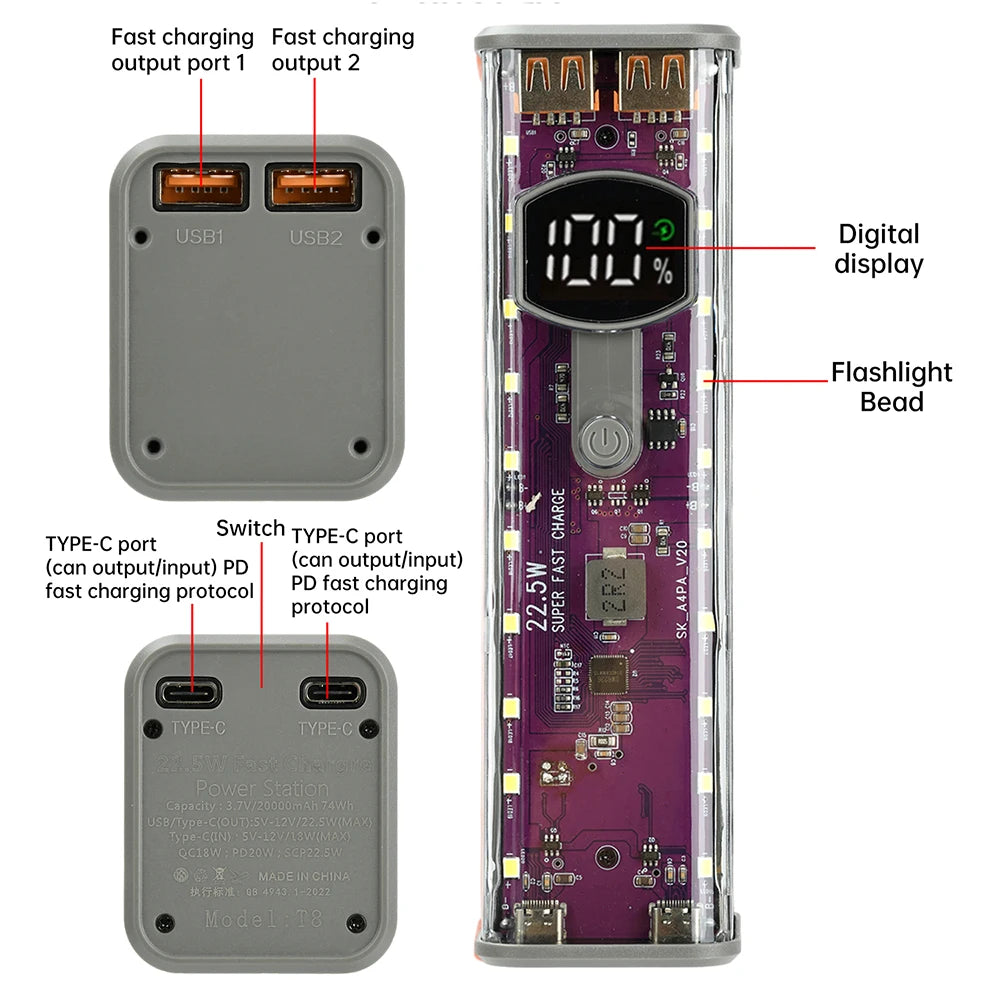

USB1+2 Output: 5V/3A, 9V/2.5A, 12V/1.87A
Supported Output Protocols: PE1.1/PE2.0/QC3+/QC3.0/QC2.0/AFC/FCP-20W (MAX)
SCP Super Fast Charging: 5V4.5A/10V2.25A-22.5W (MAX)
Multi-port simultaneous output limited to 5V

Dual Type-C Output: 5V/3A, 9V/2.22A, 12V/1.67A
Supported Output Protocols: PPS/PD3.1/PE1.1/PE2.0/QC+/QC3.0/QC2.0/AFC/FCP/SCP-20W (MAX)
Output requires PD protocol support

Dual Type-C Input: 5V/3A, 9V/2A, 12V/1.5A
Supported Output Protocols: PD3.1/AFC/FCP/SCP-18W (MAX)

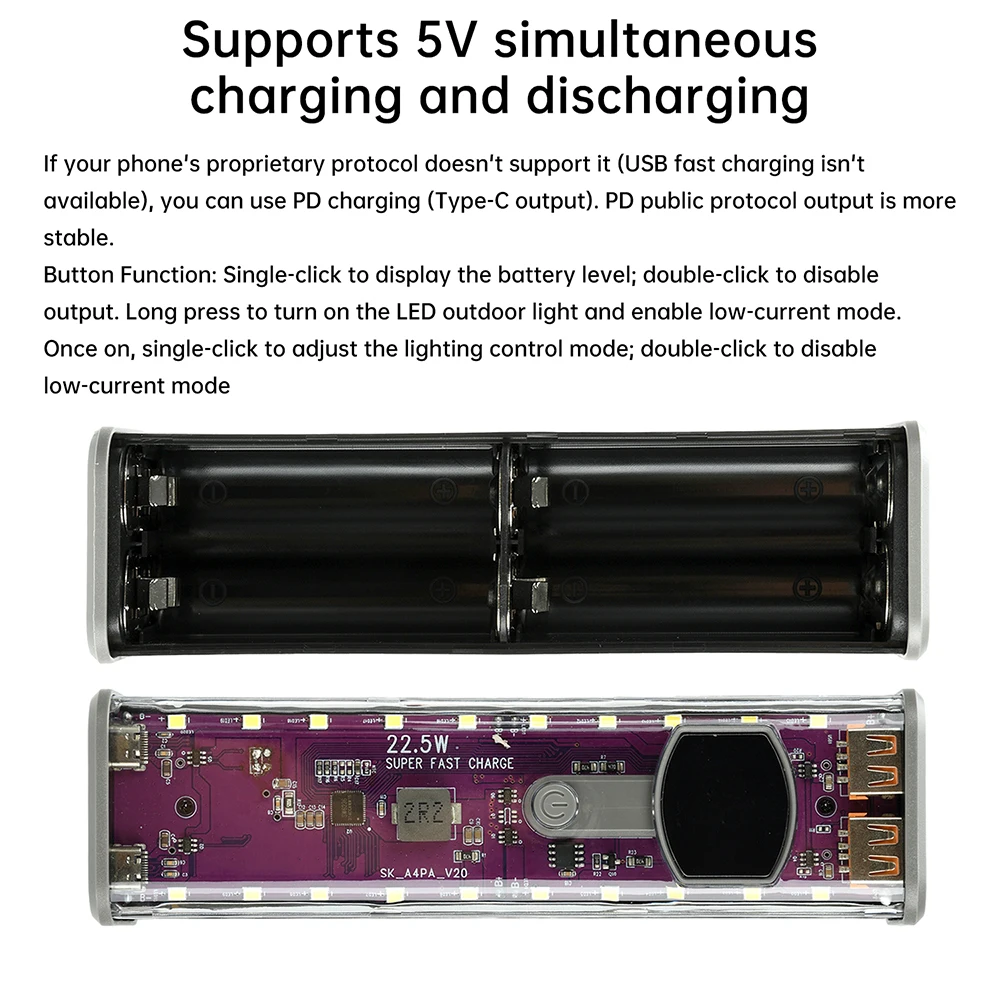

Supports 5V simultaneous charging and discharging

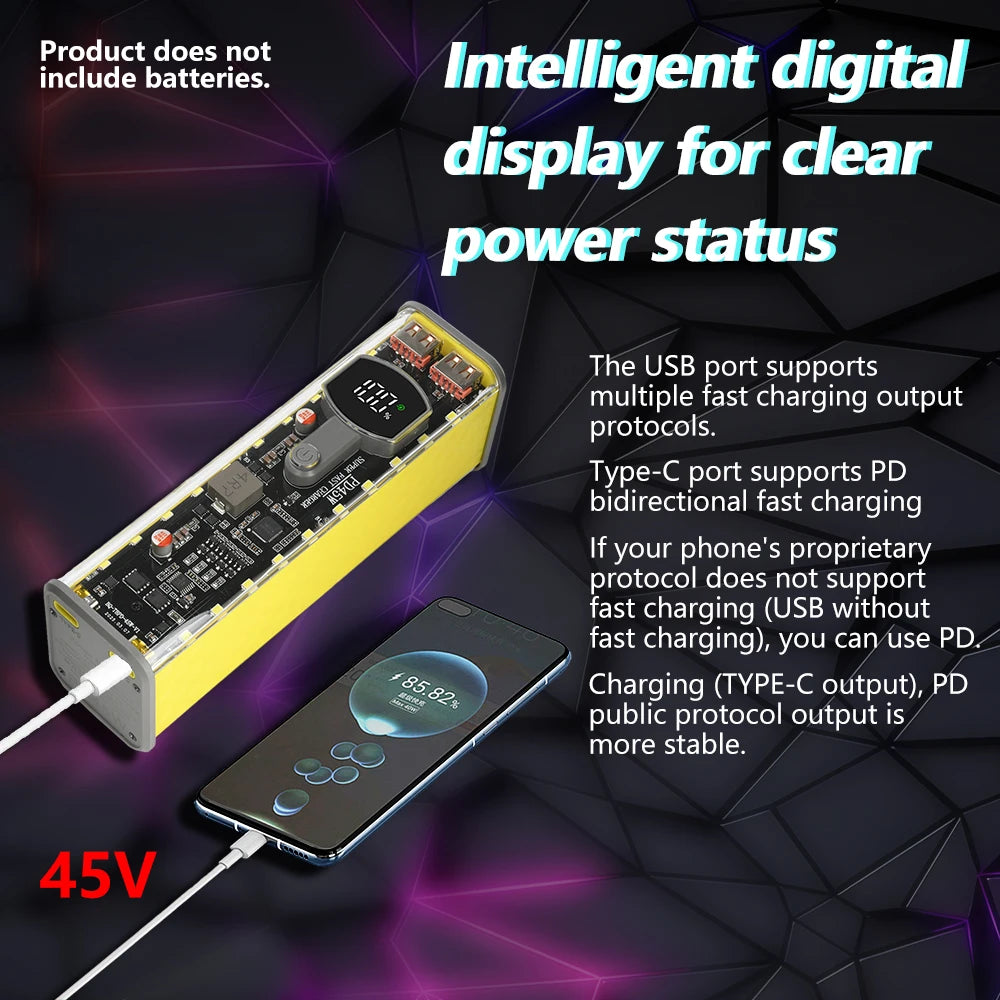

If proprietary phone protocols are unsupported (USB lacks fast charging), use PD charging (TYPE-C output) for more stable output via PD public protocols

Button functions:

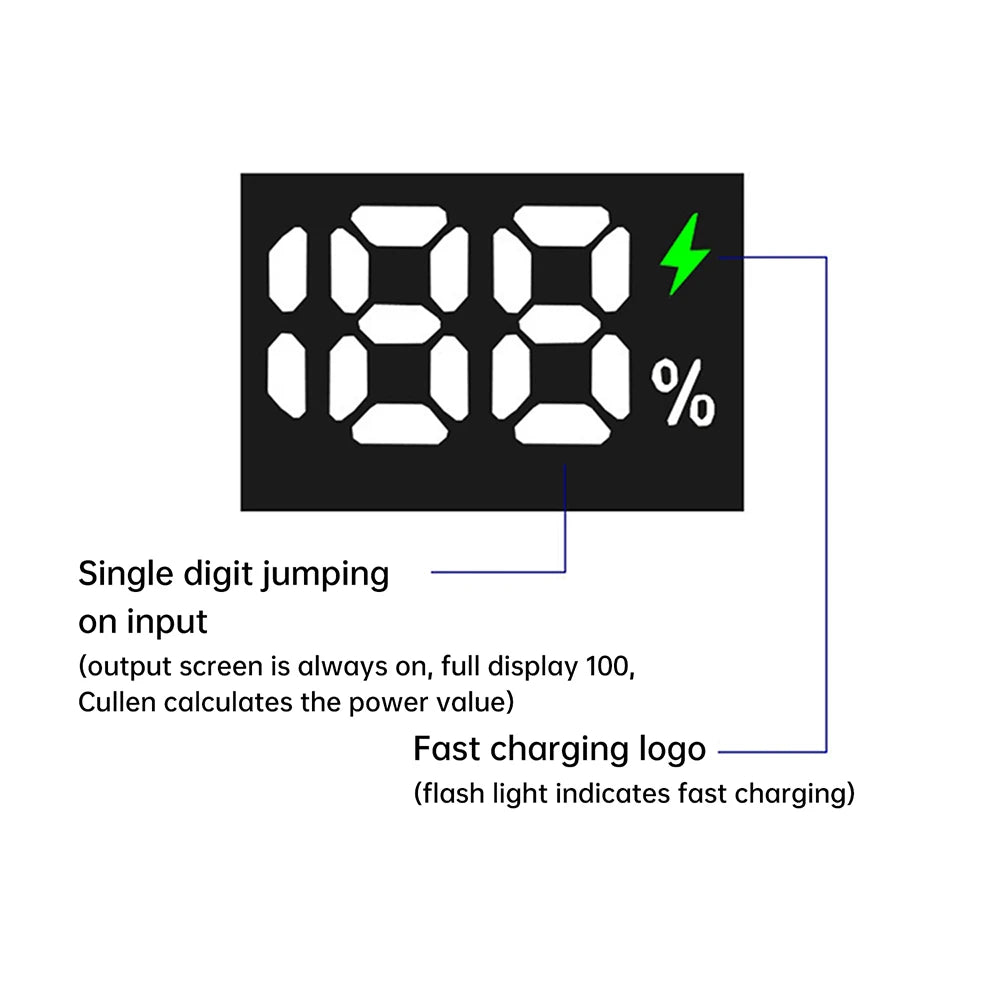

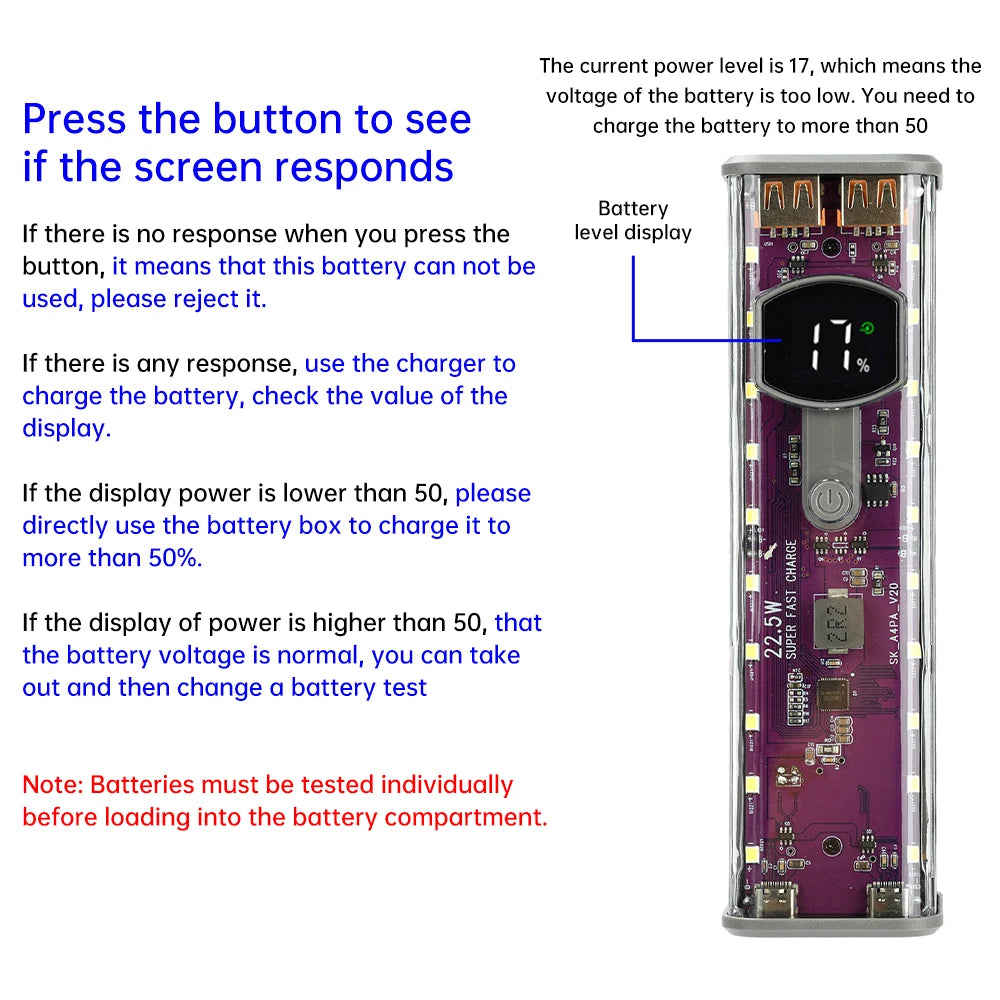

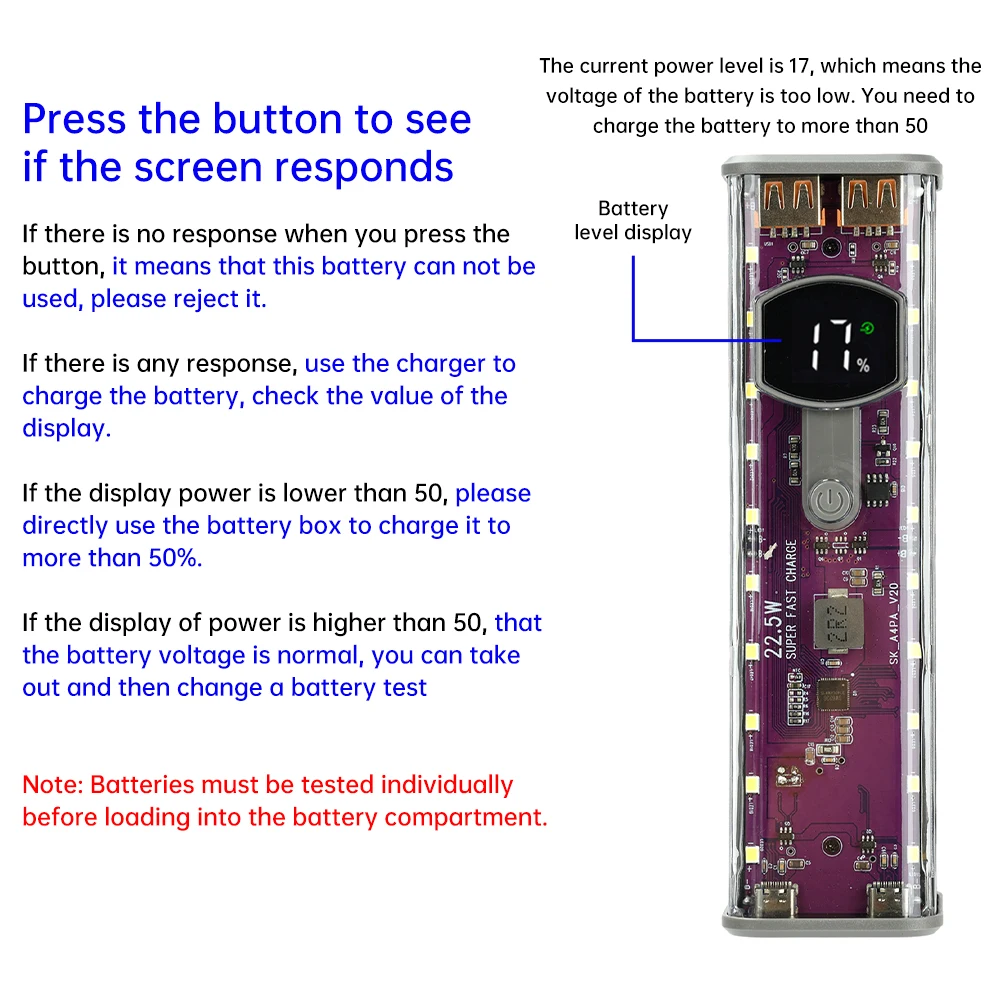

Single click displays battery level; double click disables output.

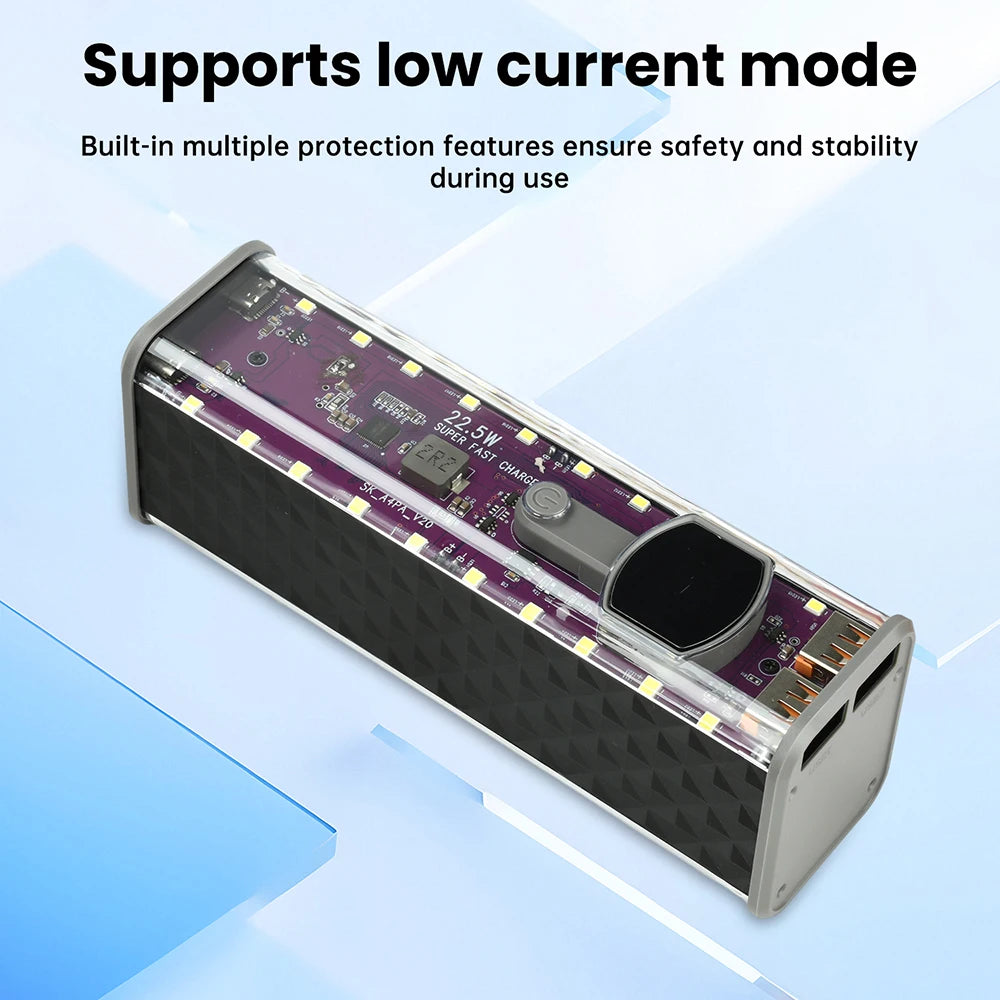

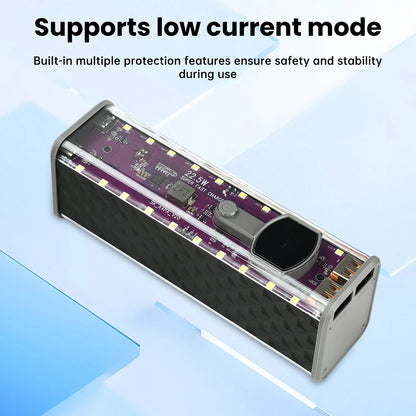

Long press activates LED outdoor light and low-current mode.
After activation:
Single click adjusts light control mode; double click disables low-current mode.

Important Notes

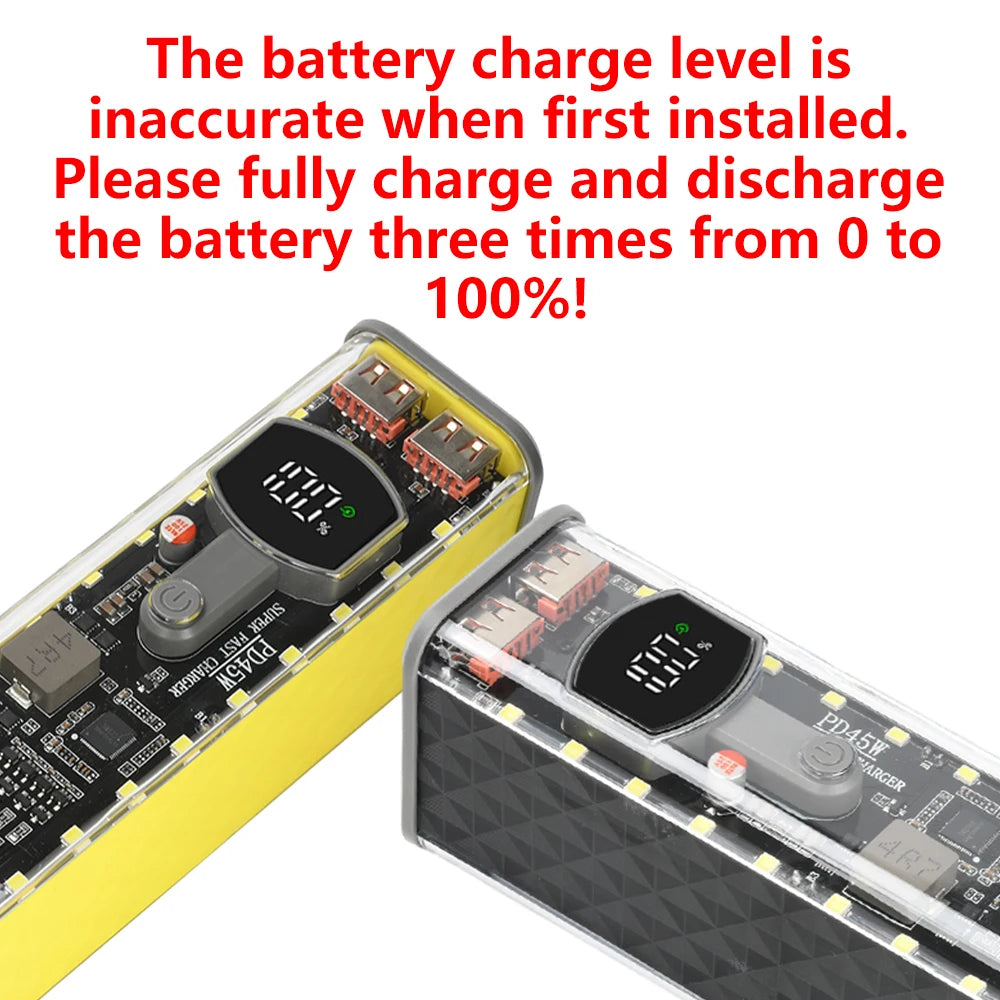

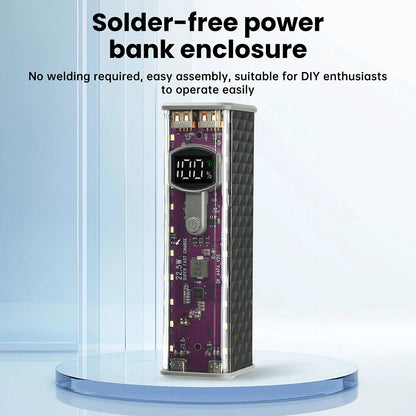

1. After assembly, activate the power bank by charging it with a charger.
2. After activation, fully discharge the power bank first, then charge for approximately 20 hours to fully balance the battery.

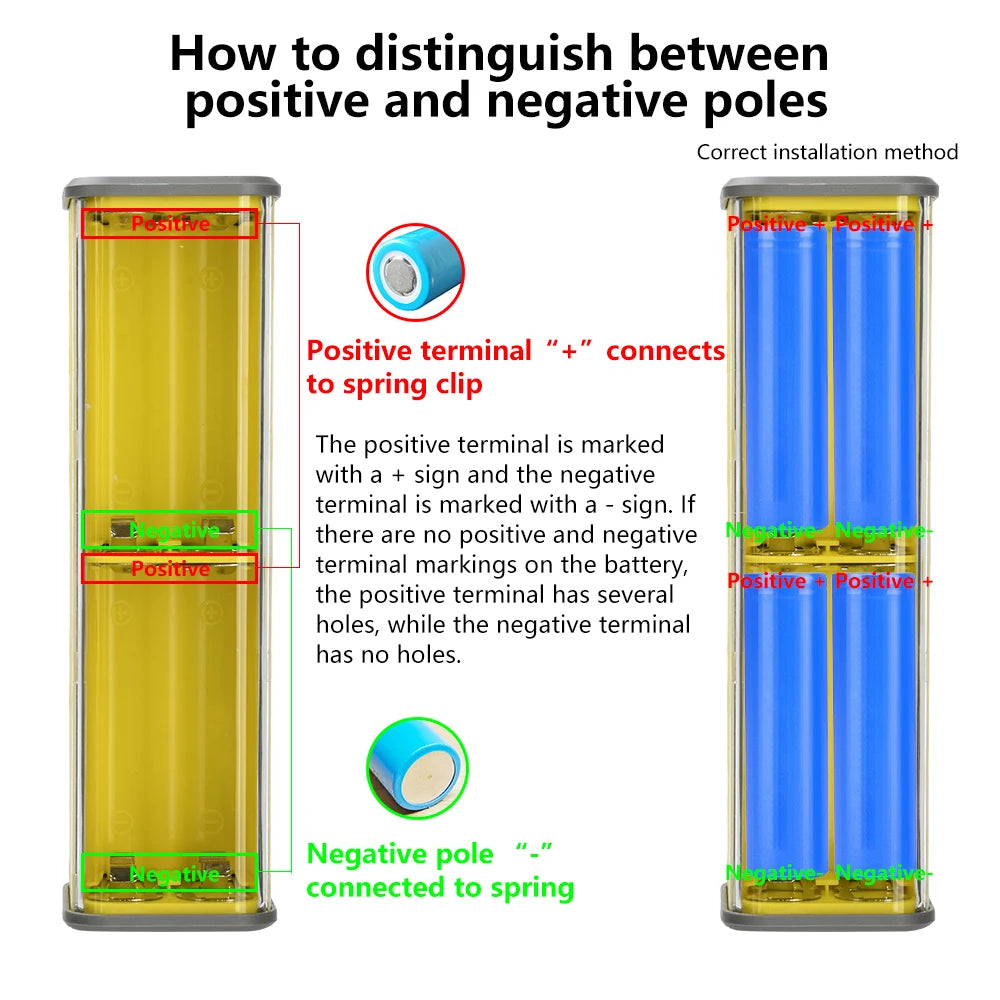

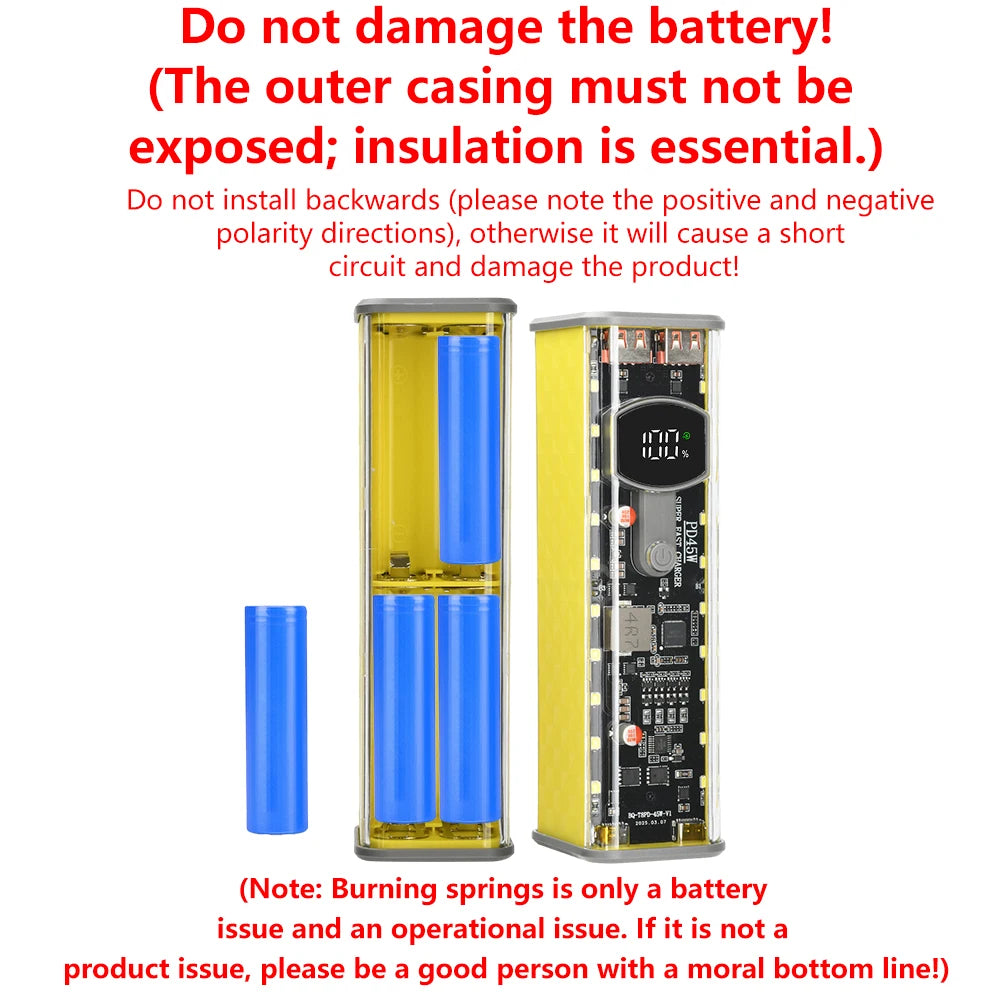

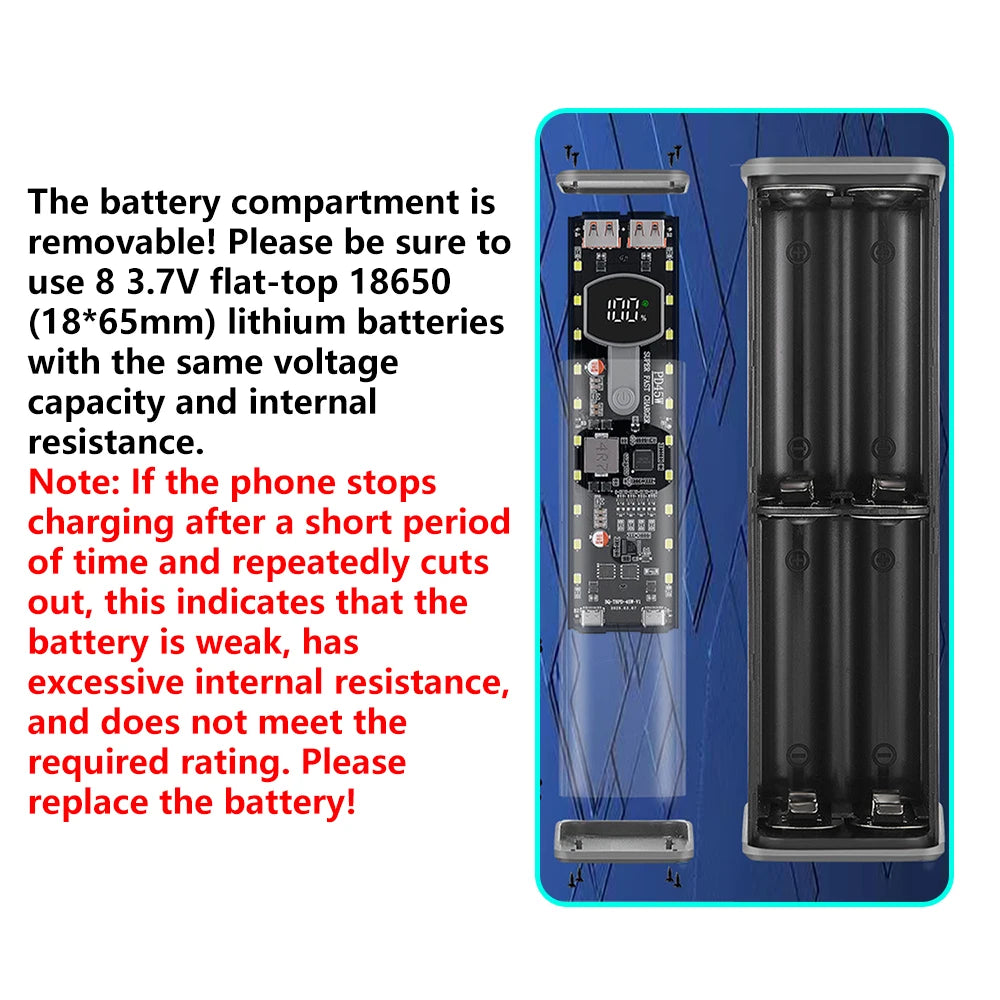

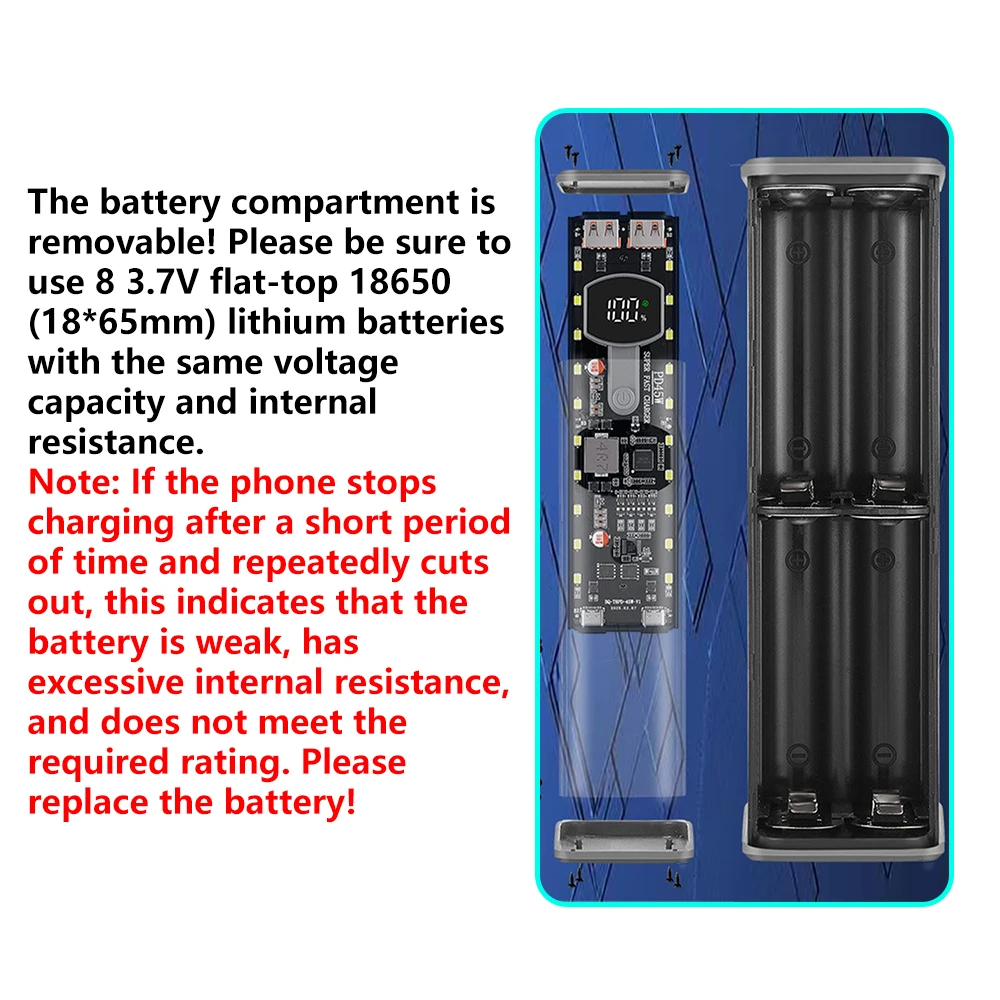

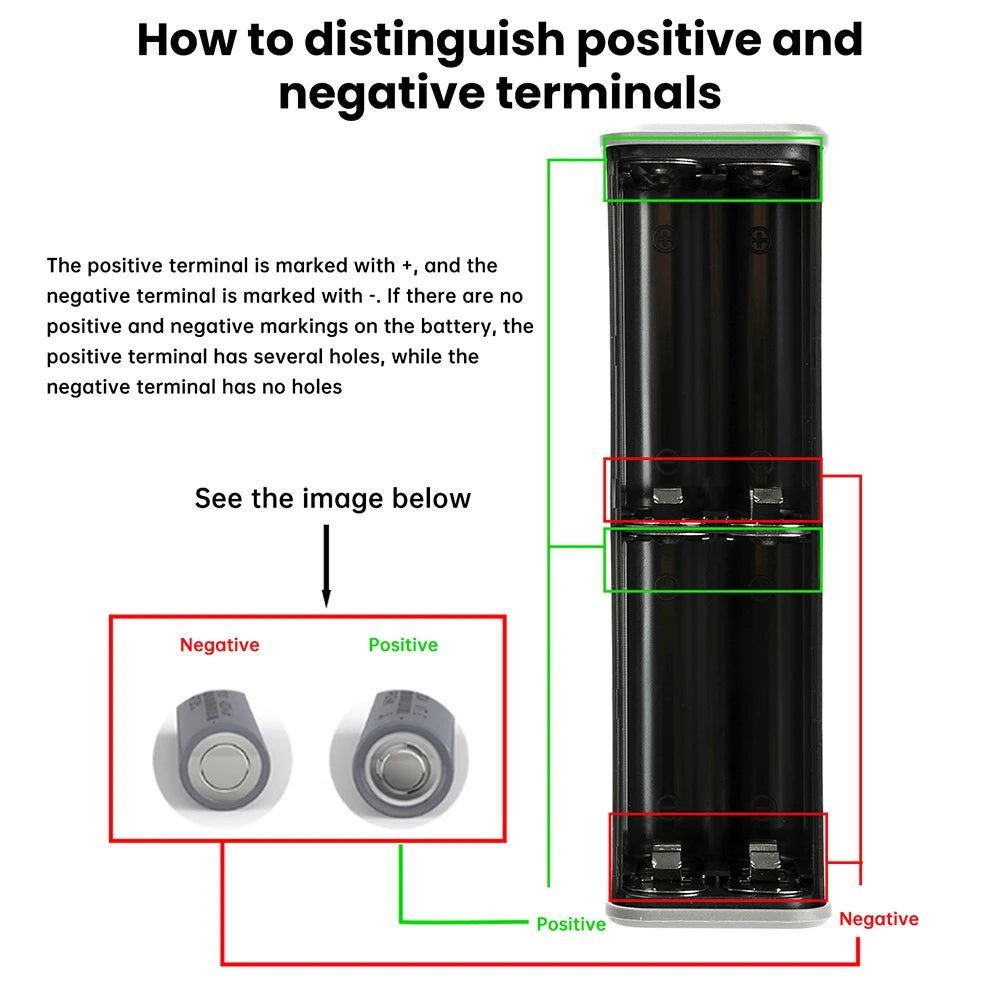

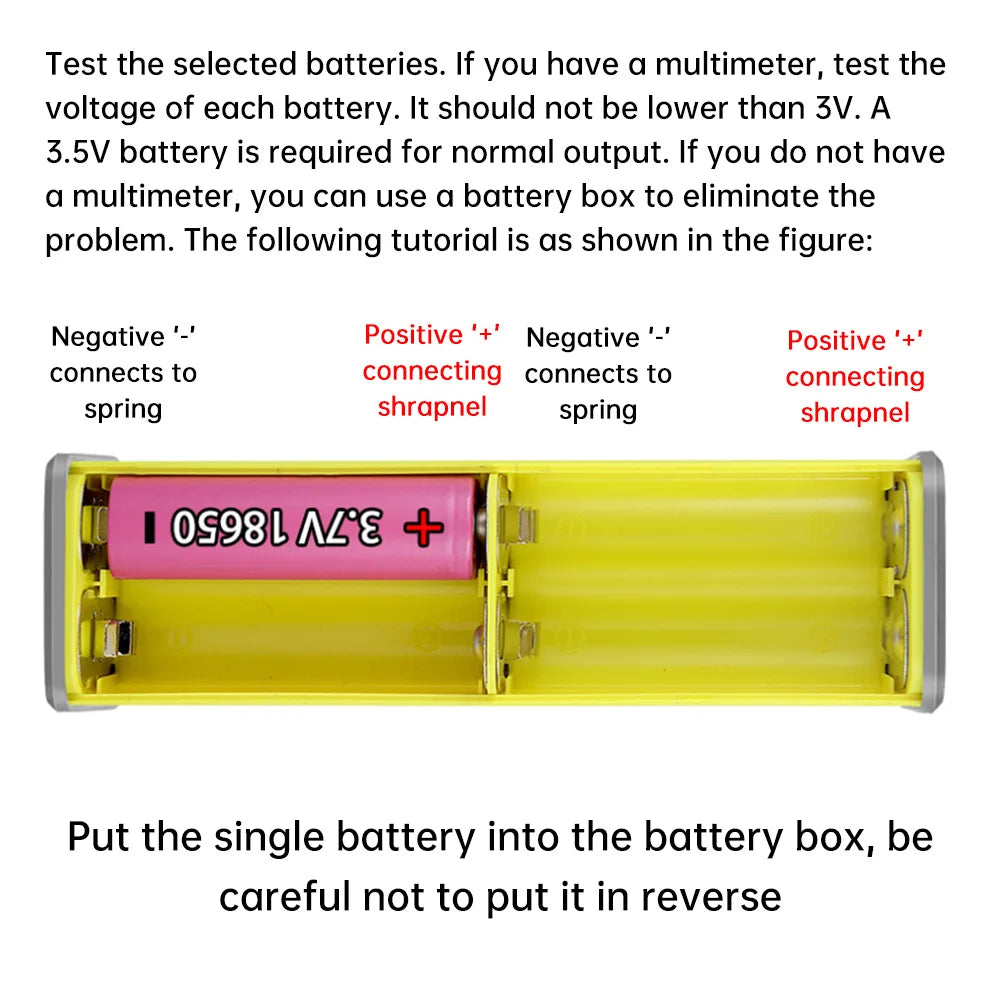

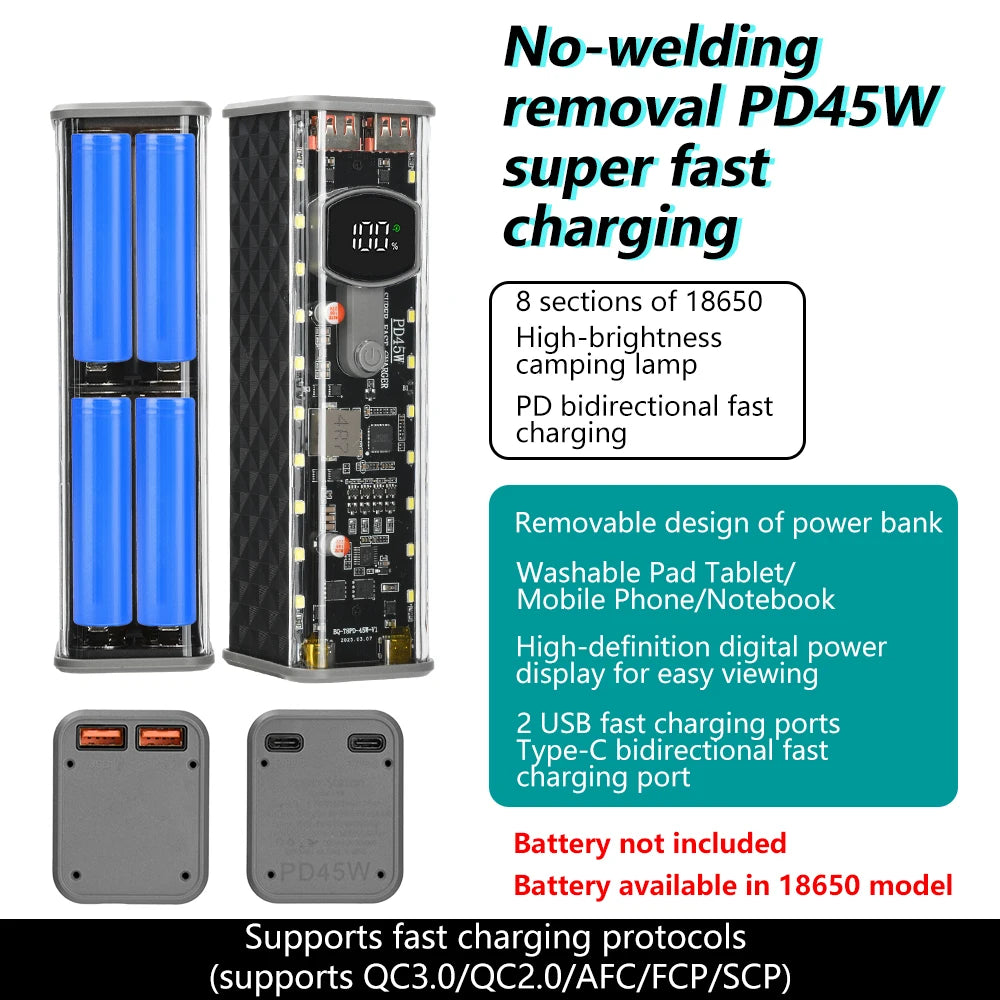

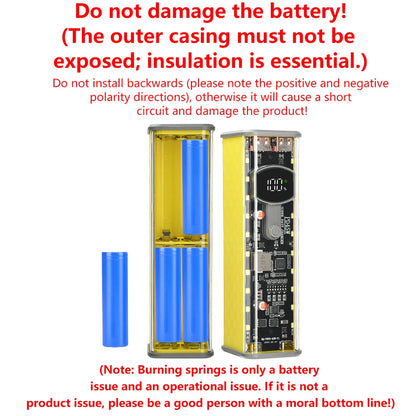

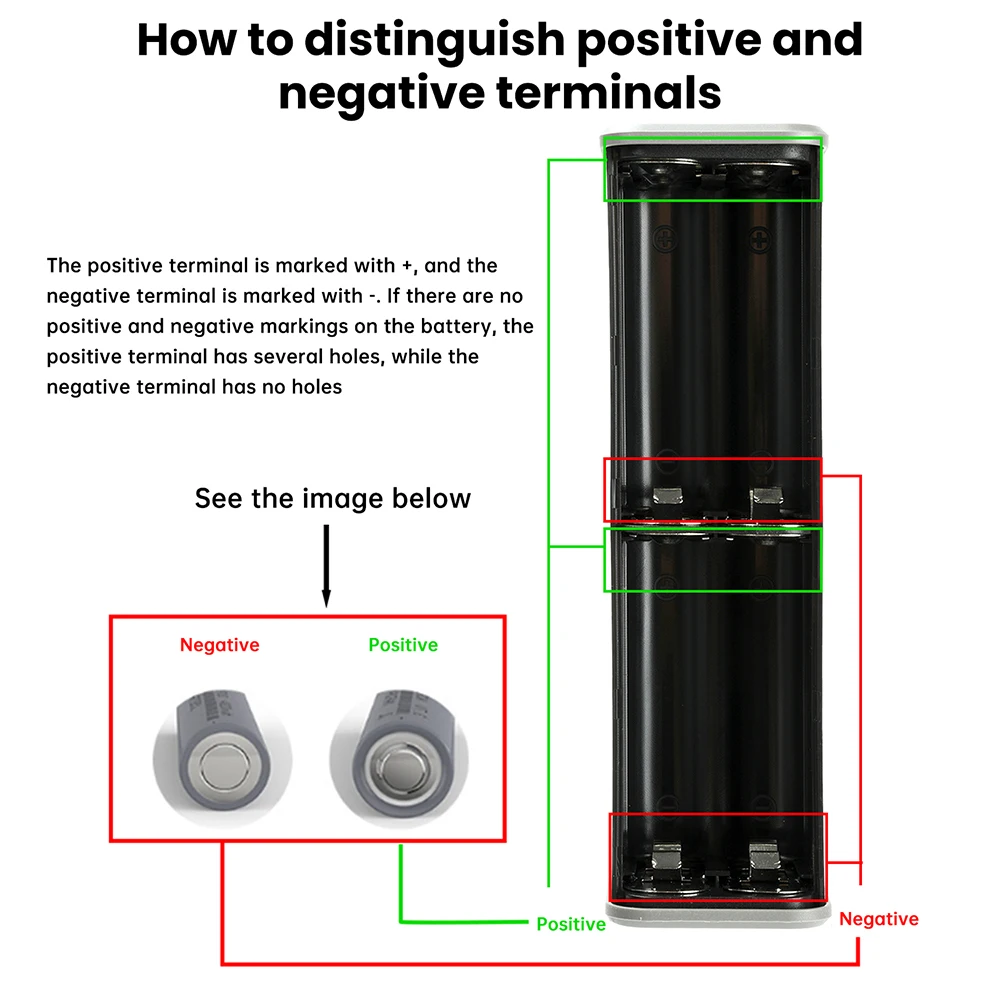

3. Only use flat-top 18650 batteries without protection boards. Batteries must be in good condition with undamaged positive terminals. If the positive terminal is damaged (e.g., peeling), it must be insulated. Do not use pointed-top batteries or batteries with protection boards.

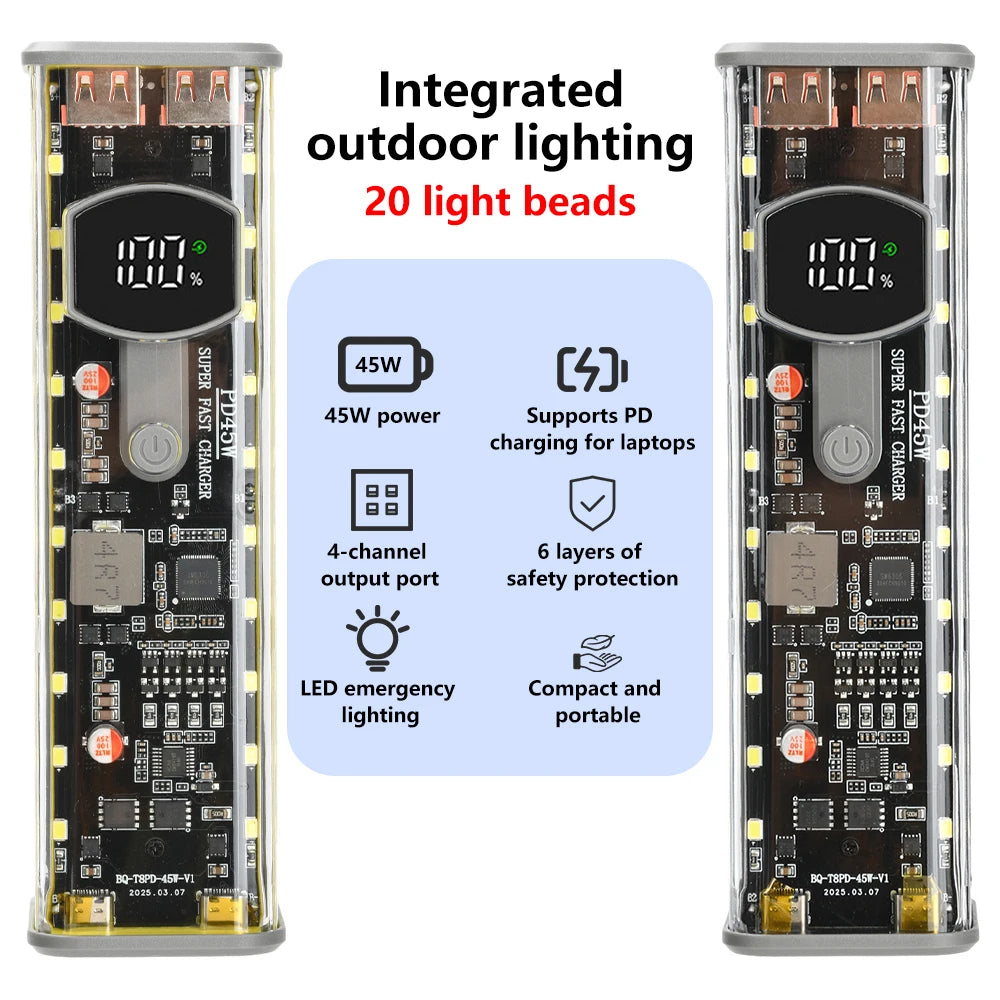

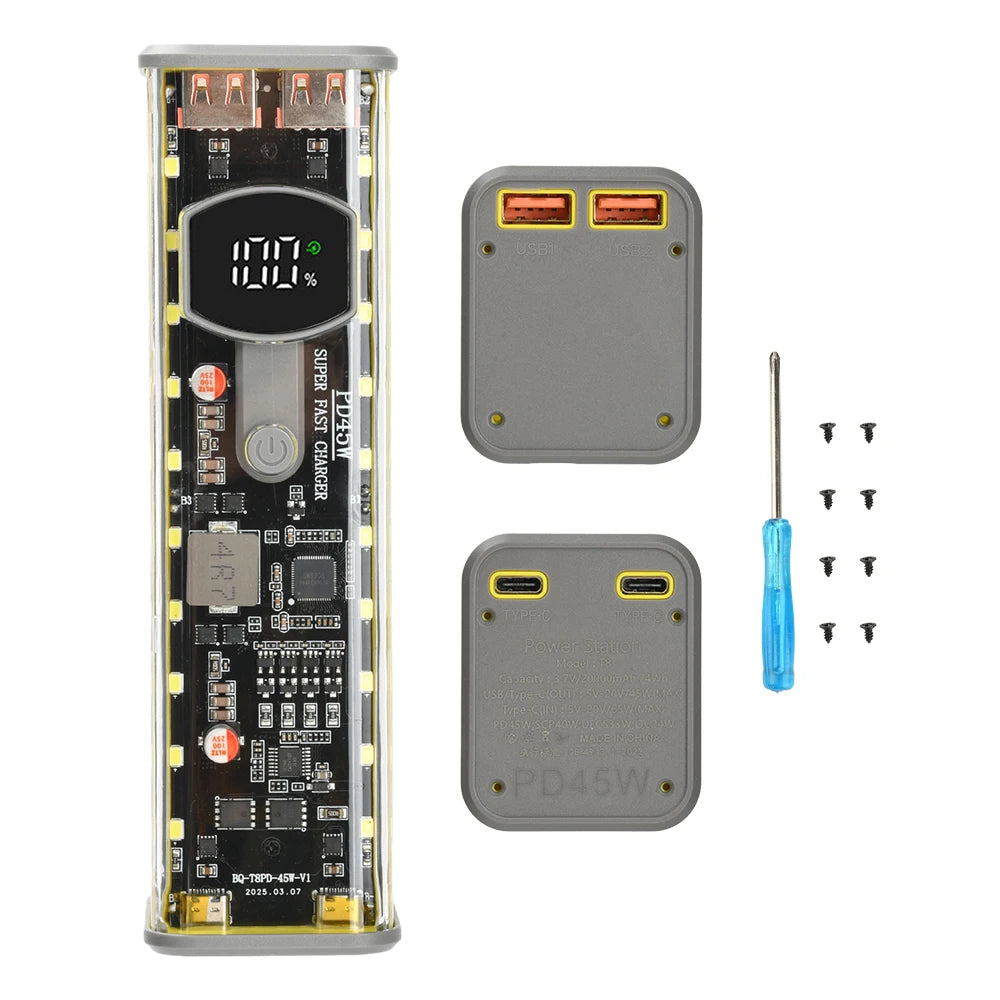

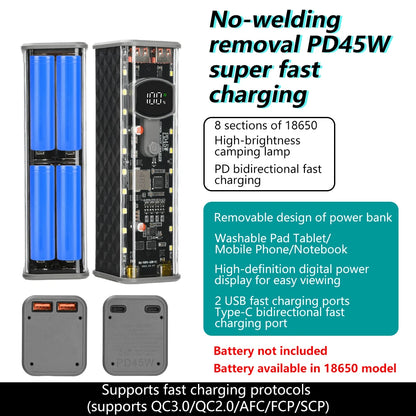

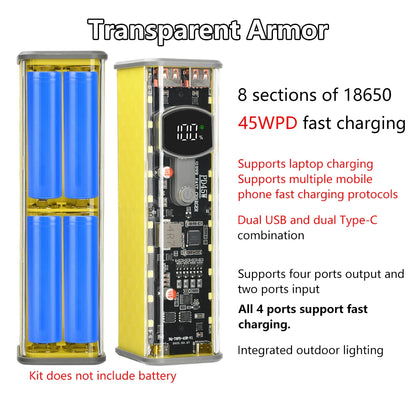

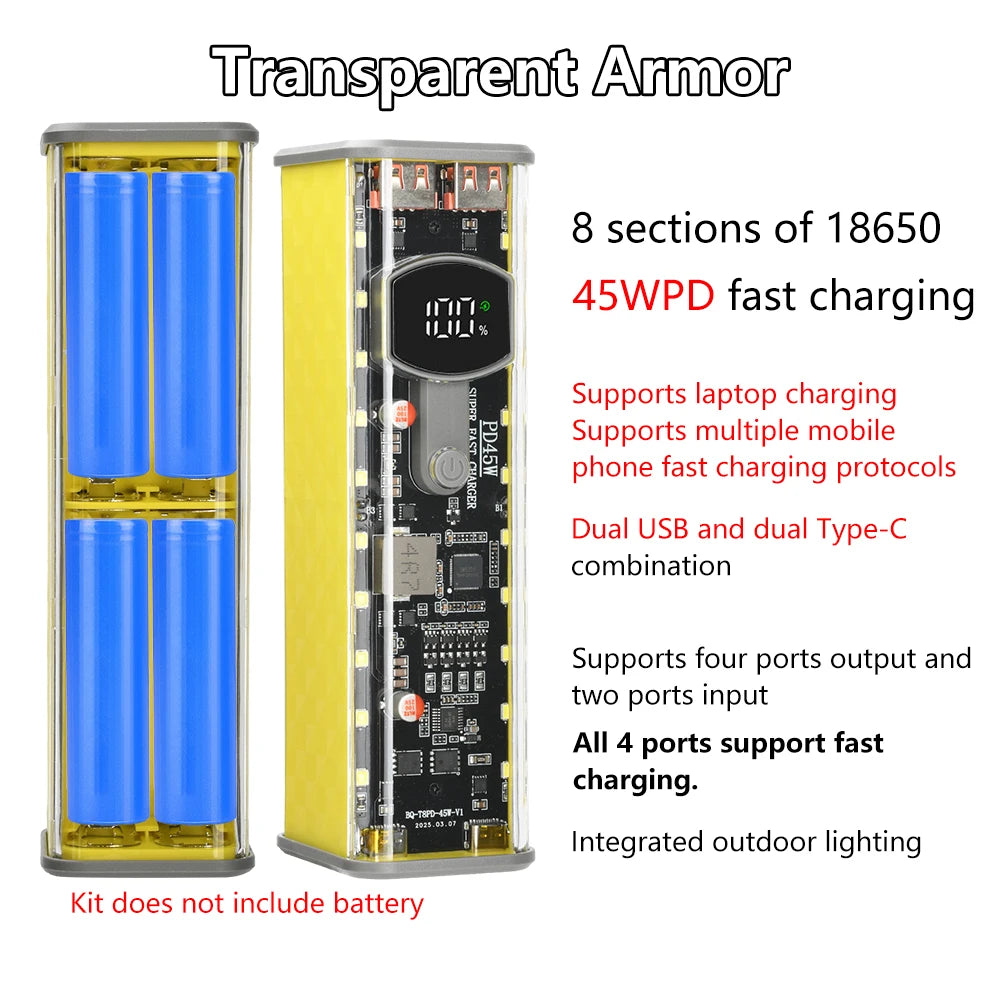

Output Power: PD 45W (Peak 48W)
Input Power: 30-65W

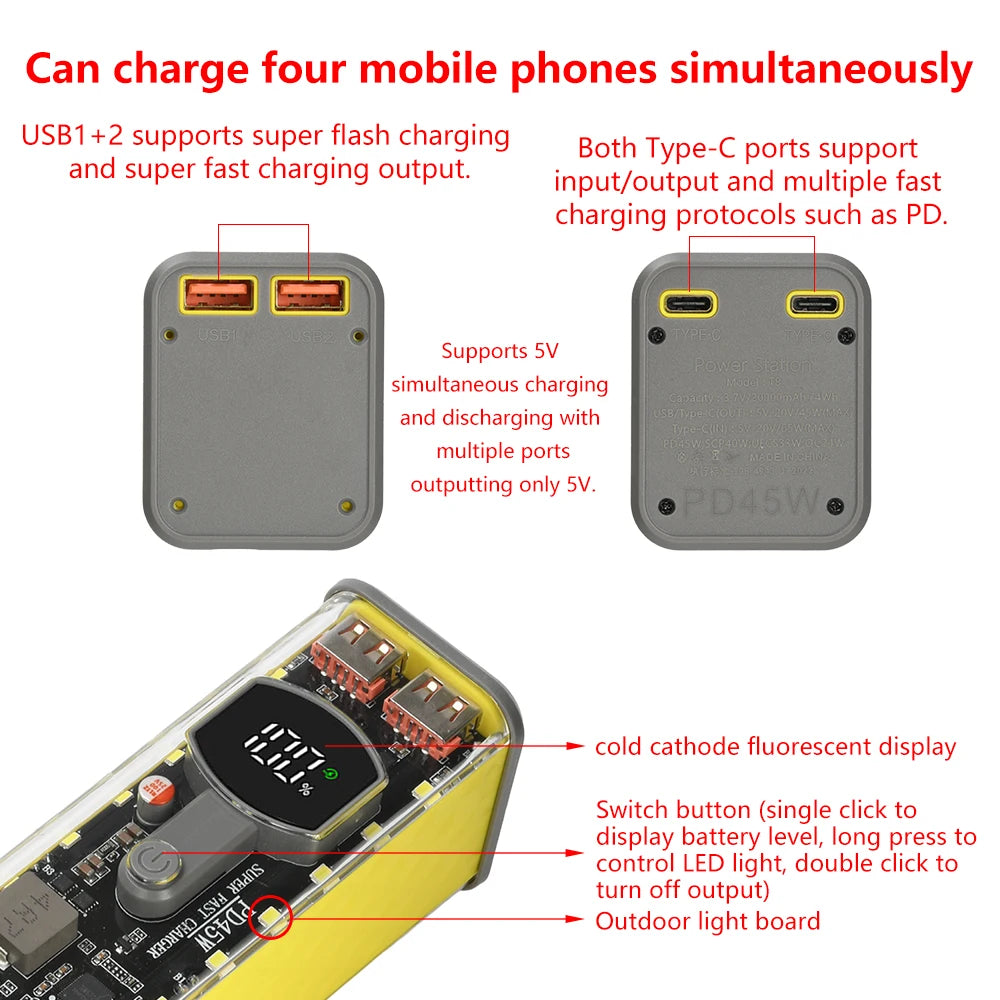

USB Output and Supported Smartphone Protocols:
5V/3.1A (Standard Output); SCP: 40W; UFCS: 33W;
SVOOC: 45W; VOOC 4.0: 30W (Requires High-Performance Fast Charging Cable); VOOC 1.0: 20W (requires fast charging cable);
PE 1.1: 7.5W; PE 2.0: 30W; QC 3+: 45W; QC 3.0: 36W; QC 2.0: 24W; AFC: 18W; FCP: 18W; SFCP: 18W;
Multi-port simultaneous output is limited to 5V;

Type-C output and supported smartphone protocols:
5V/3.1A (standard output); PD3.1: 45W; PPS: 44W;
SCP: 40W; UFCS: 33W; SVOOC: 45W;
VOOC 4.0: 30W (requires high-performance fast-charging cable);
VOOC 1.0: 20W (requires fast-charging cable); PE1.1: 7.5W;
PE2.0: 30W; QC3+: 45W; QC3.0: 36W; QC2.0: 24W; AFC: 18W; FCP: 18W; SFCP: 18W;
Multi-port output without fast charging;

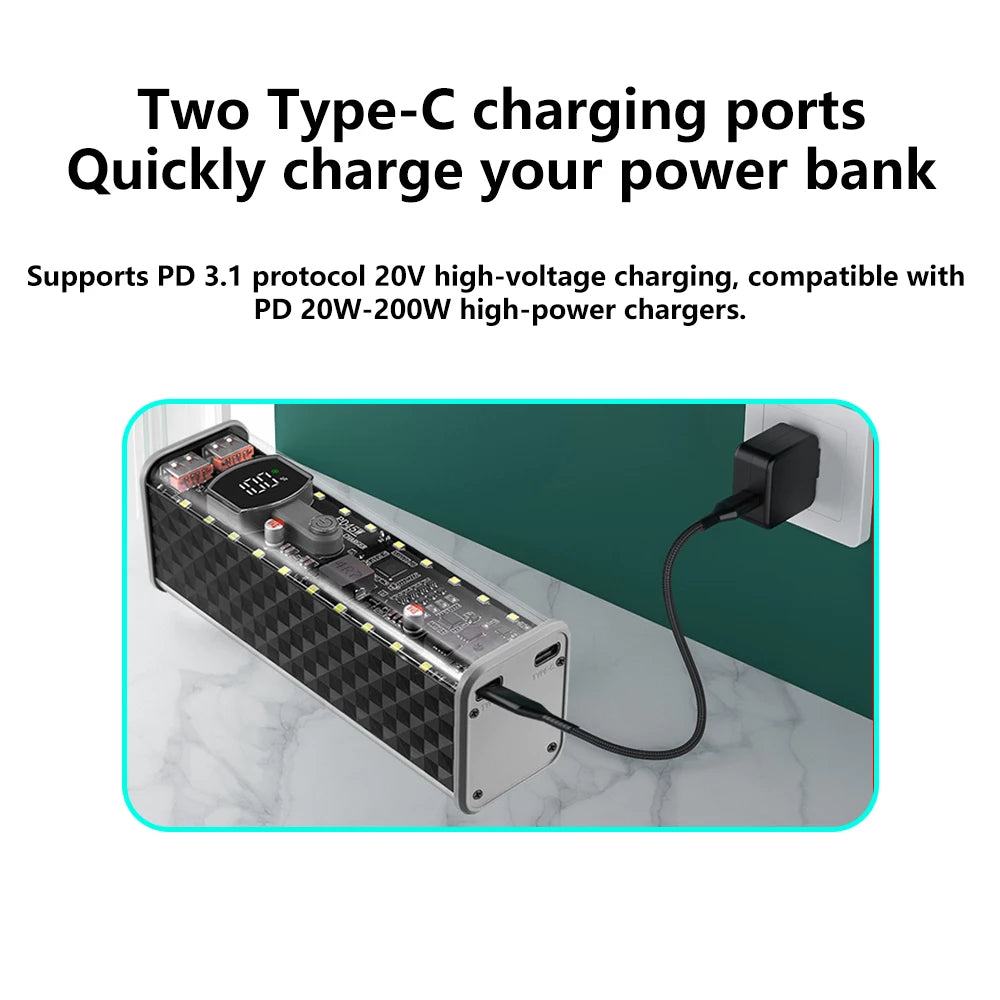

Type-C input and supported smartphone protocols:
5V/3.1A (standard input); PD3.1: 65W (MAX); SCP: 40W; UFCS: 33W; SVOOC: 45W; VOOC 4.0: 30W (requires high-performance fast-charging cable); VOOC 1.0: 20W (requires fast-charging cable); AFC: 18W; FCP: 18W;
Supports 5V charging and discharging simultaneously;

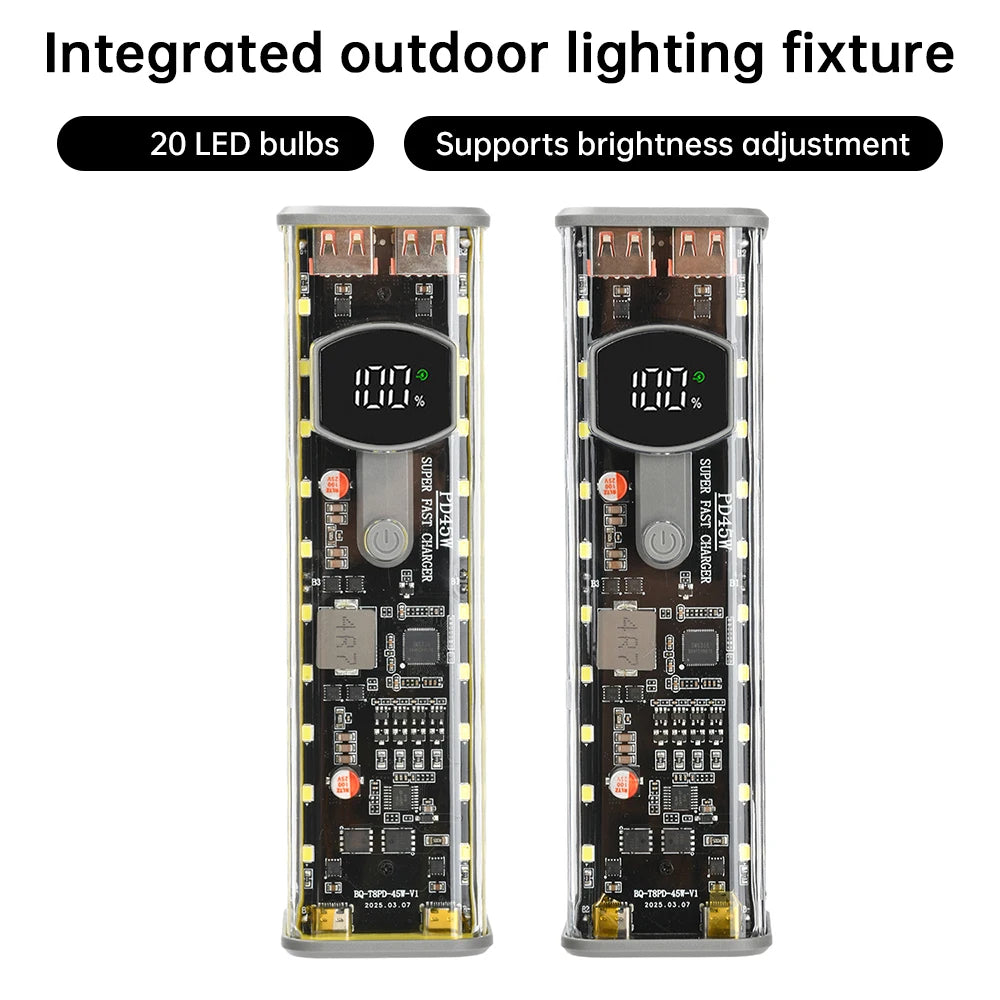

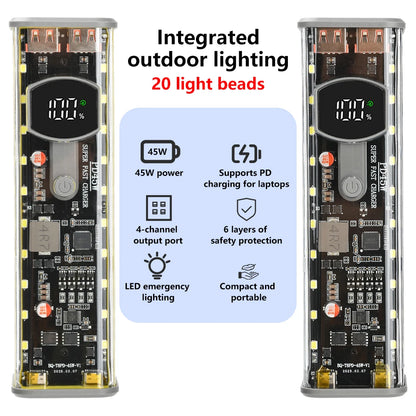

Button function: Long press to turn on LED light
Color: Black frame + gray + transparent, yellow frame + gray + transparent

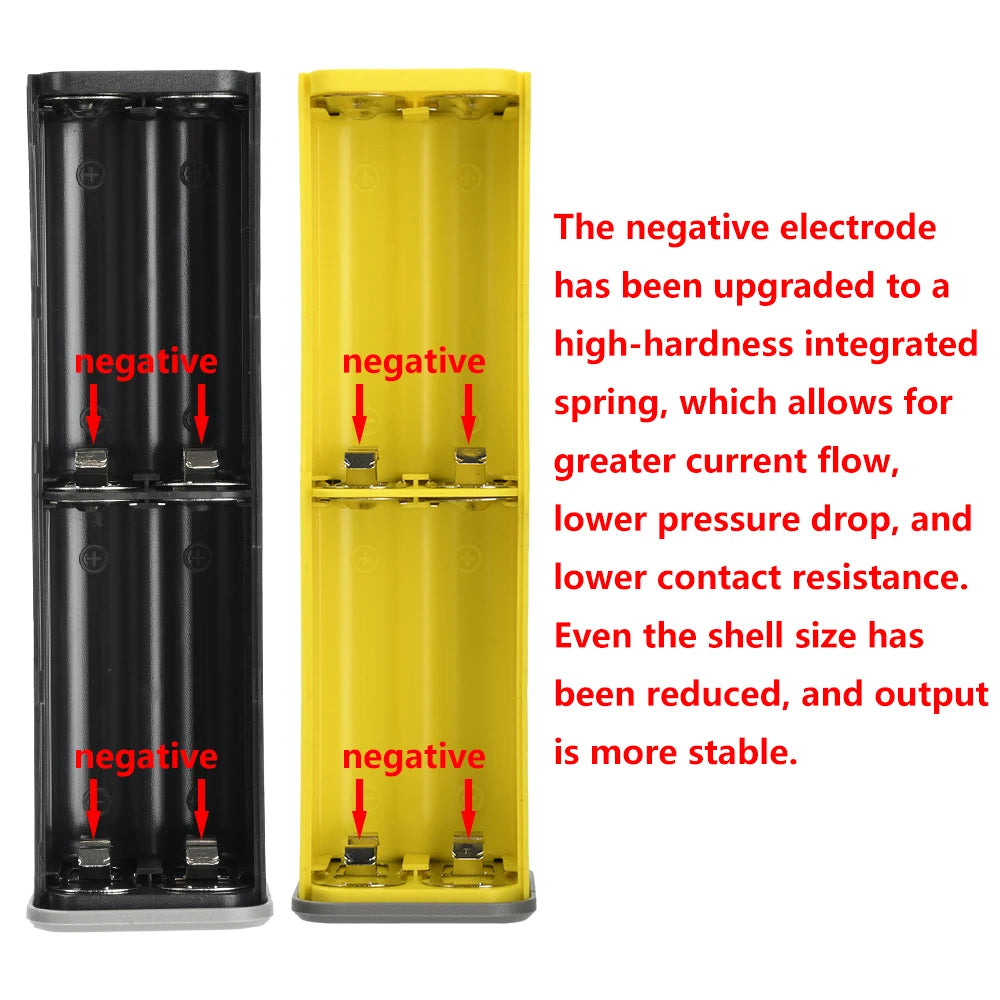

Effective voltage: 12.3V-16.5V (spring has voltage drop)

Fast charging specifications (support protocols):
with data transmission charging cable, one of the following protocols can be successful communication handshake)
support 5V, 9V, 12V voltage stalls input/output
compatible with BC1.2, IP (charging cable control)
integrated SCP 22.5W super fast charging output protocol
integrated QC2.0/QC3.0 output fast charging protocol
integrated FCP, AFC input/output fast charging protocol
Support PPS, PE2.0, SFCP output fast charging
Support PD2.0/3.0, PE1.1 input/output protocols
