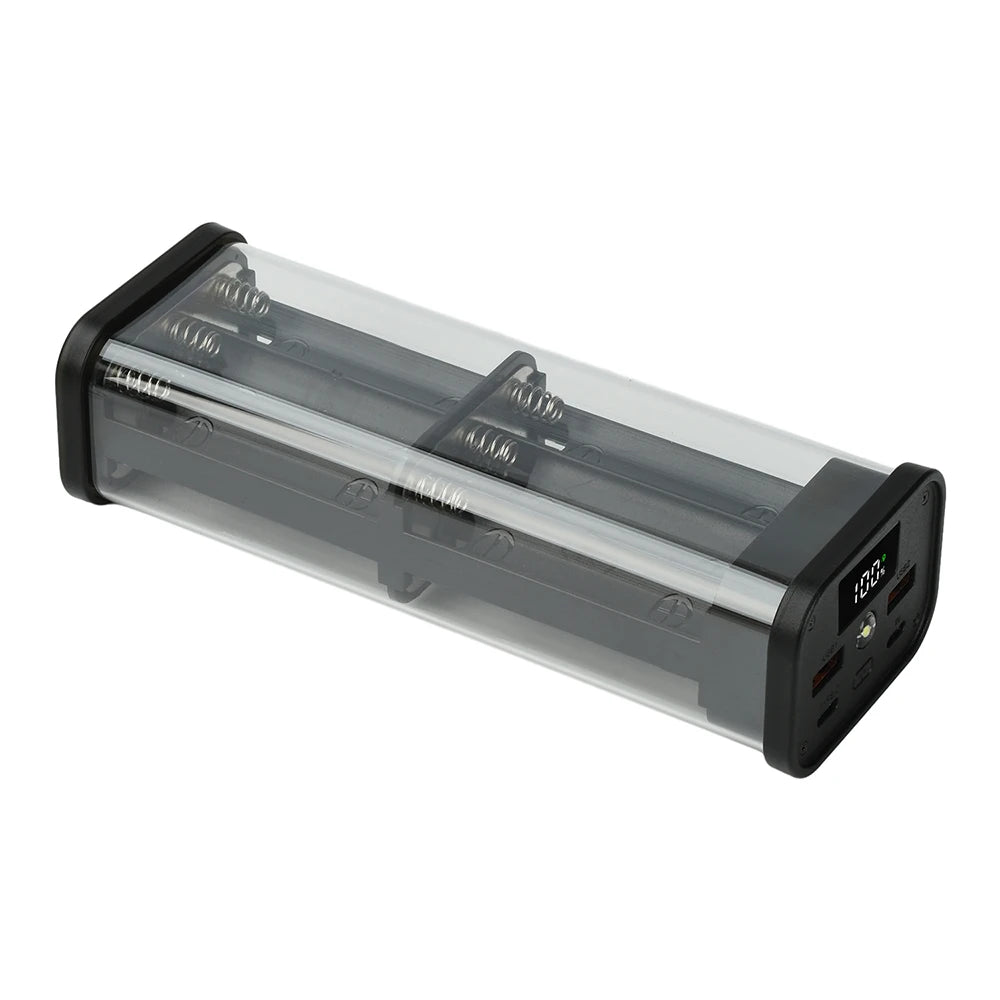

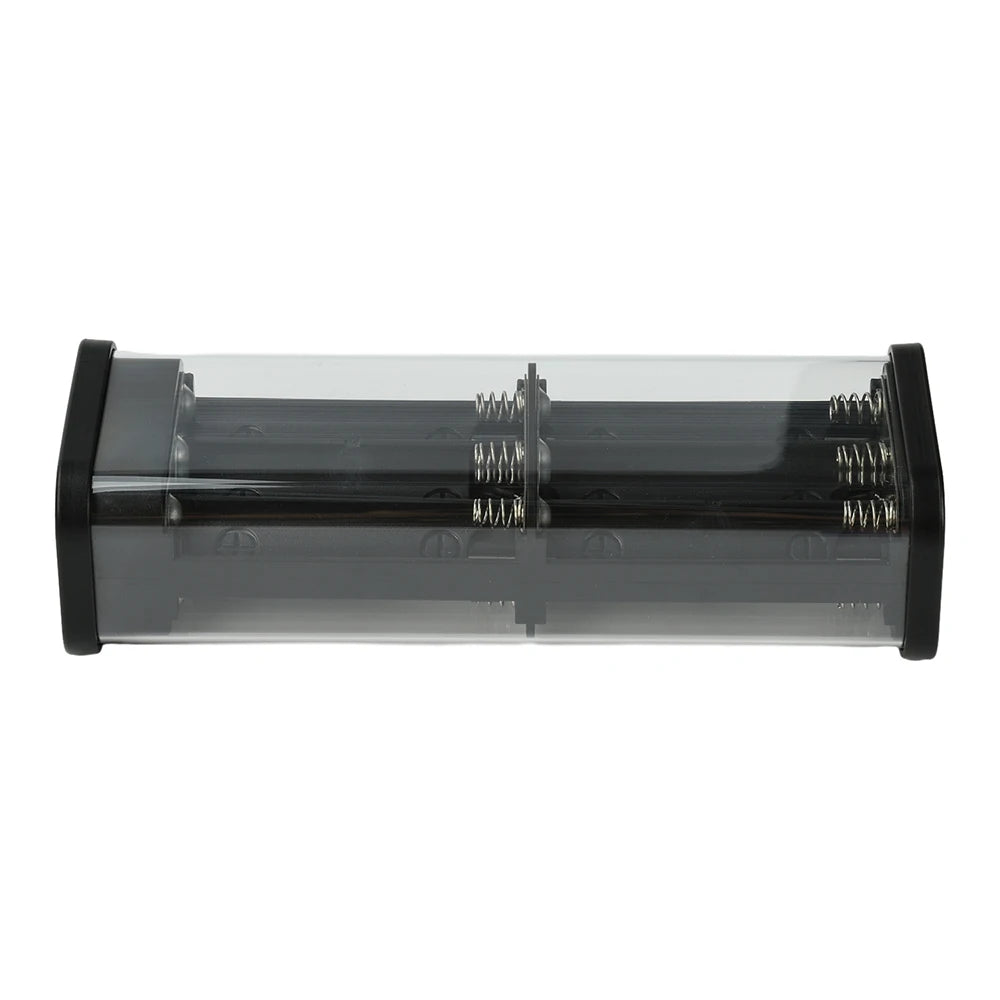

22.5W Fast Charging Power Bank Case No-Solder 6/12-Cell 18650 Battery Holder PD Power Supply Battery Energy Storage Box Kit

Features

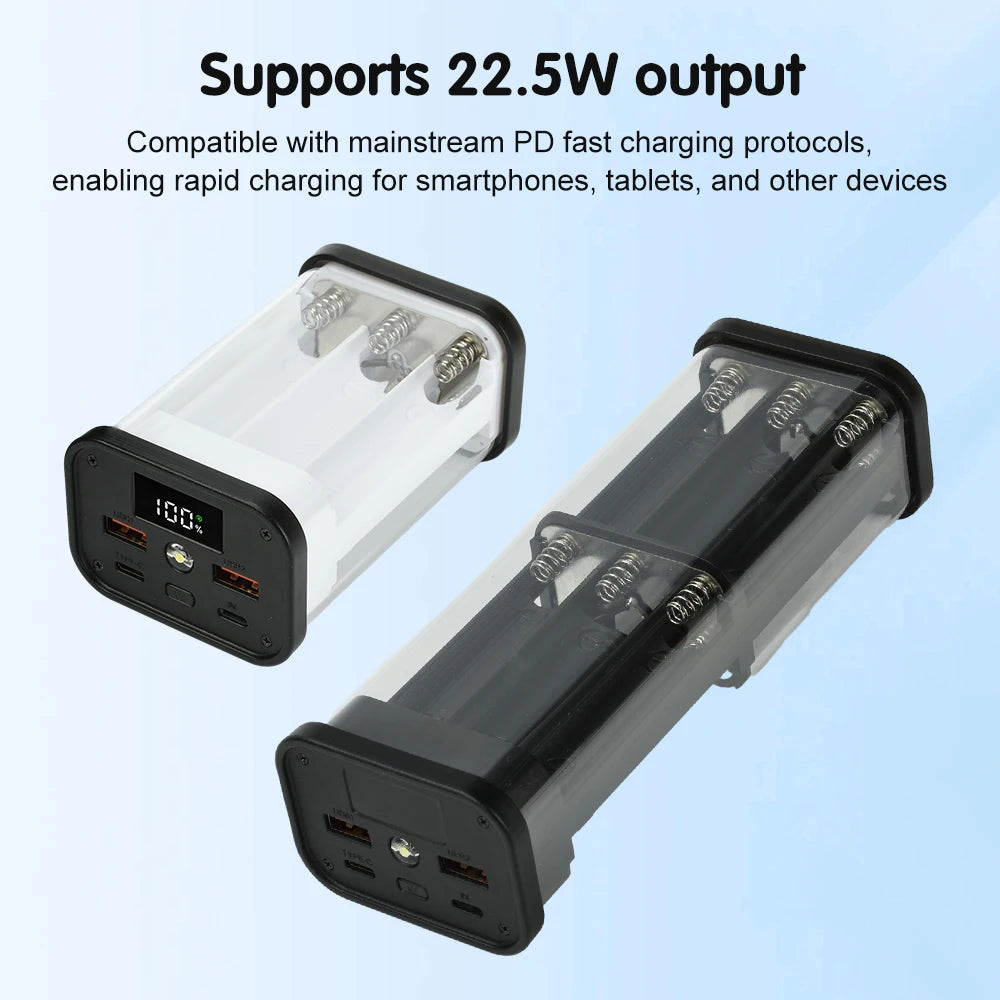

1. Supports 22.5W output, compatible with mainstream PD fast charging protocols for rapid charging of phones, tablets, and other devices

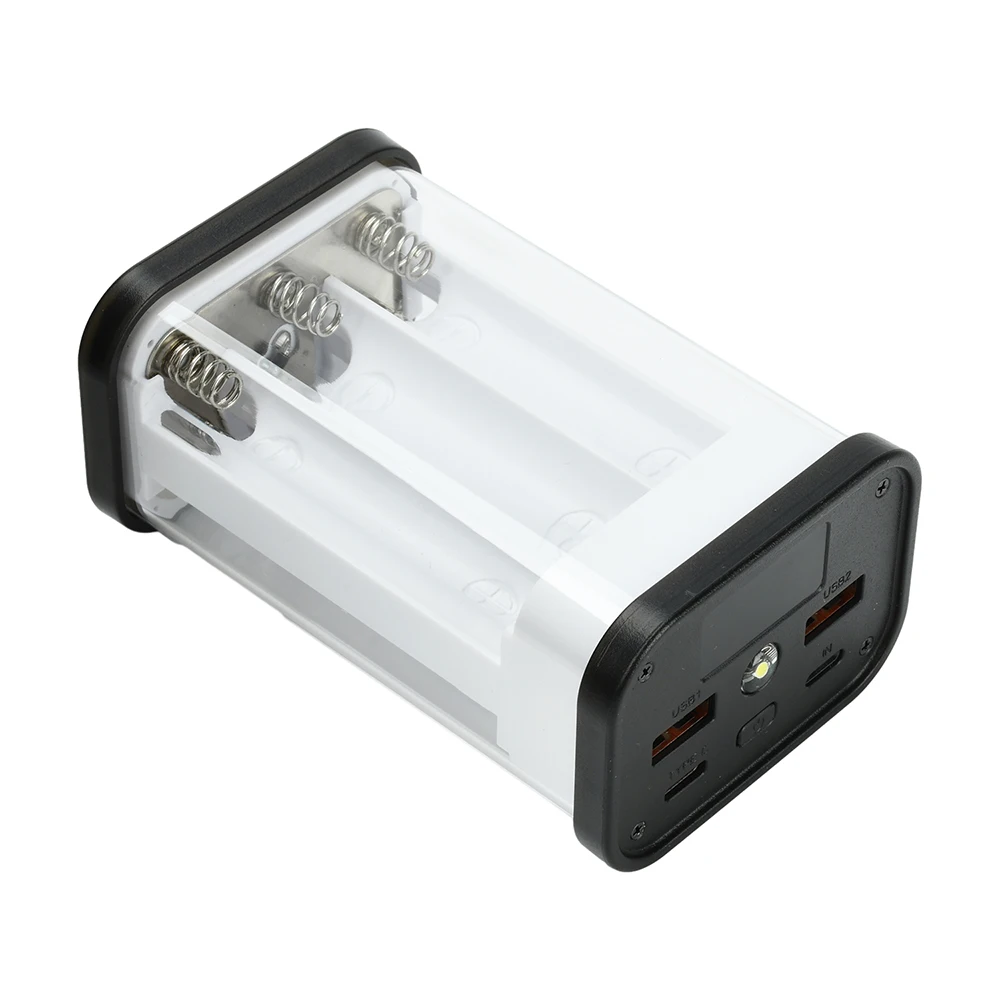

2. Features a fully transparent shell design with a high-tech aesthetic, ideal for DIY enthusiasts seeking customization

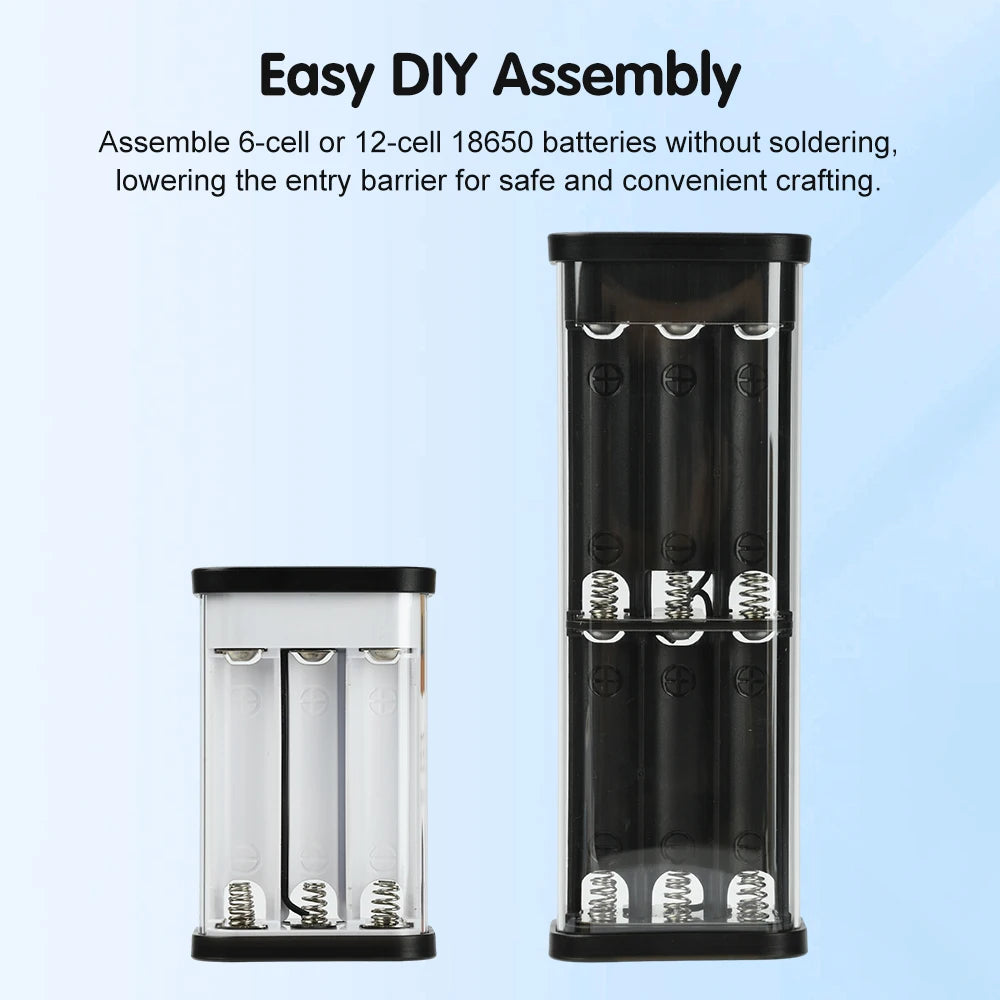

3. Assembles 6 or 12 18650 batteries without soldering, lowering assembly barriers for safe and convenient use

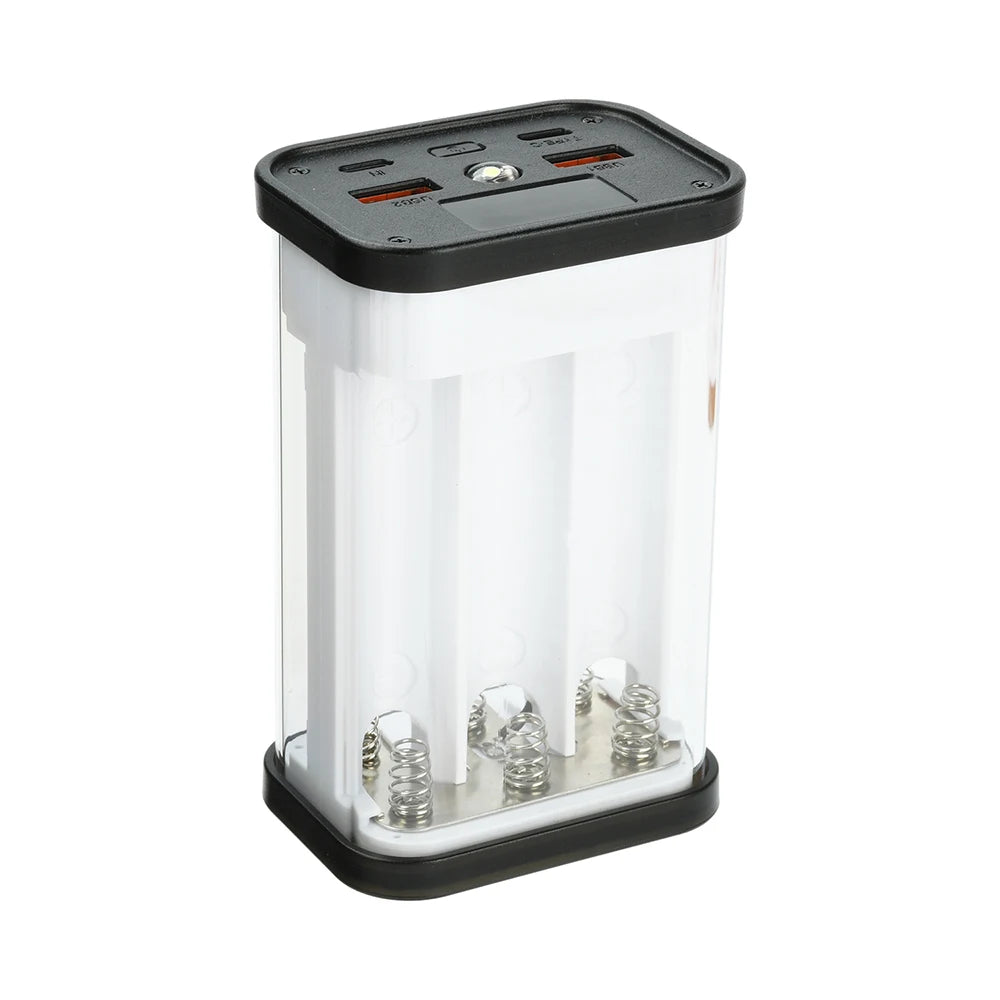

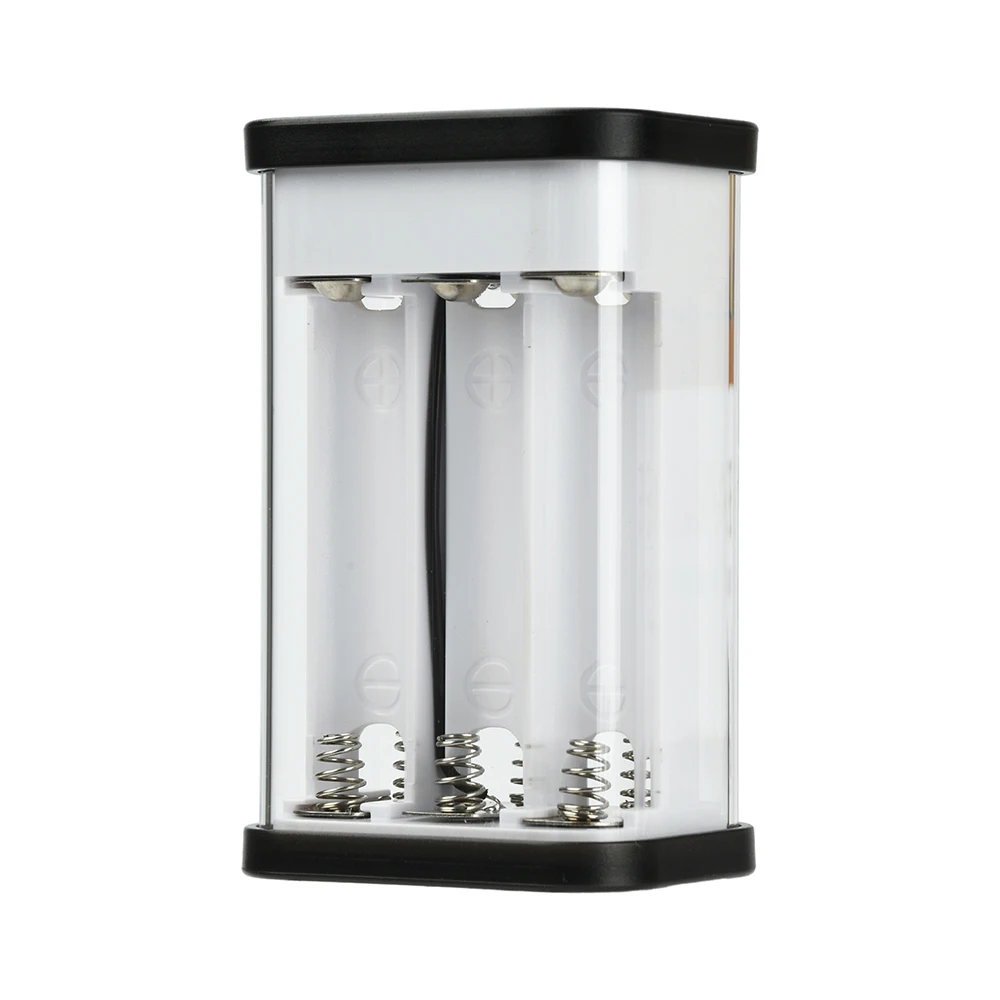

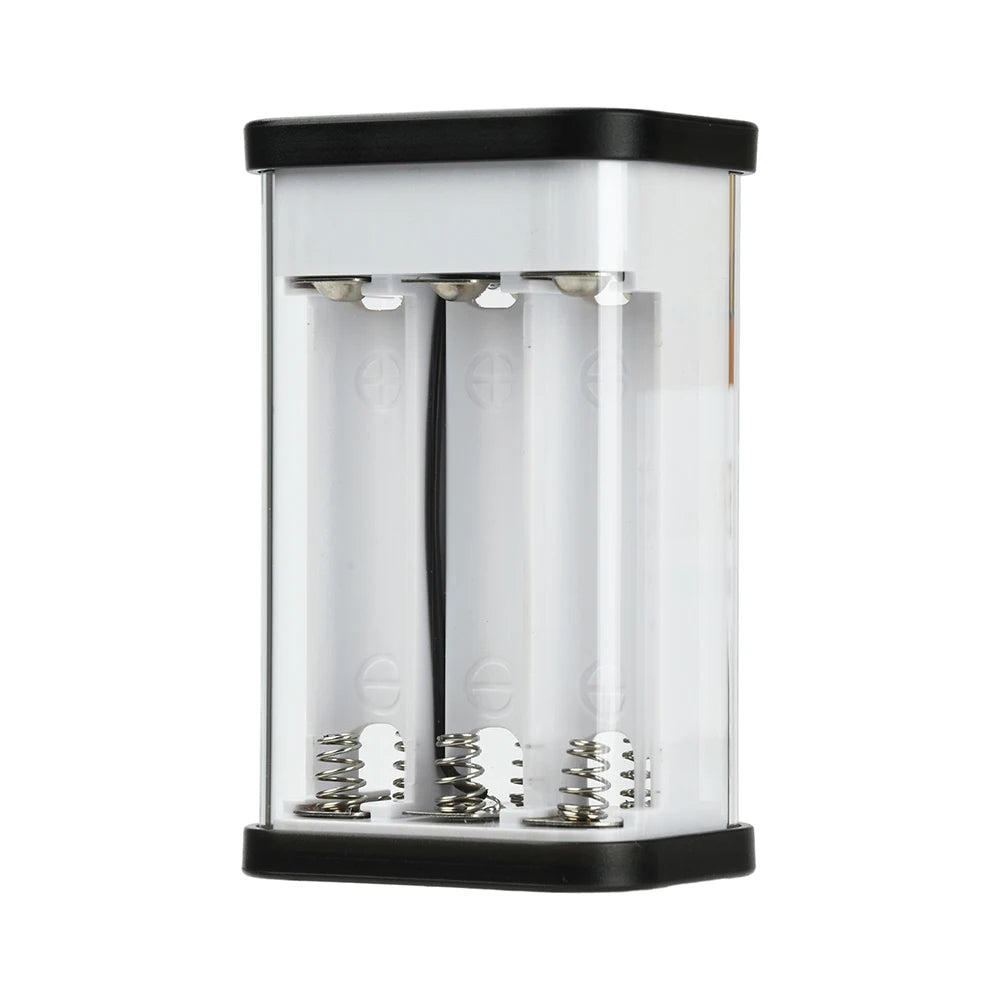

4. Supports 6-cell or 12-cell 18650 configurations, allowing users to freely select capacity for diverse endurance scenarios
5. Built-in multi-protection functions ensure safety and stability during operation

Parameter
Output Power: 22.5W
USB Output: 5V/4.5A (VOOC) 9V/2.5A, 12V/1.87A (5V only when multiple ports output simultaneously)
IN Input: 5V/2A
Type-C Output: 5V/3.1A, 9V/2.22A, 12V/1.67A (Output requires PD protocol support)
Type-C Input: 5V/3A, 9V/2A, 12V/1.5A (Simultaneous input not supported)

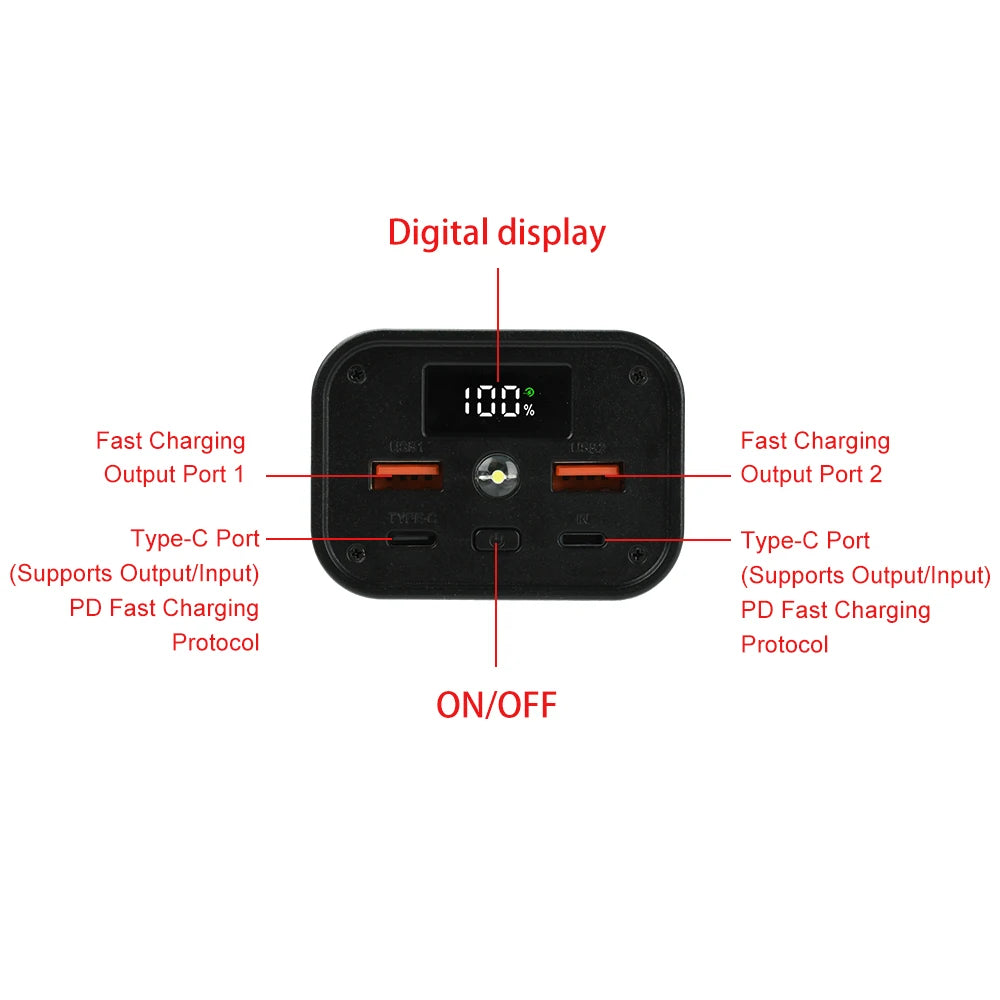

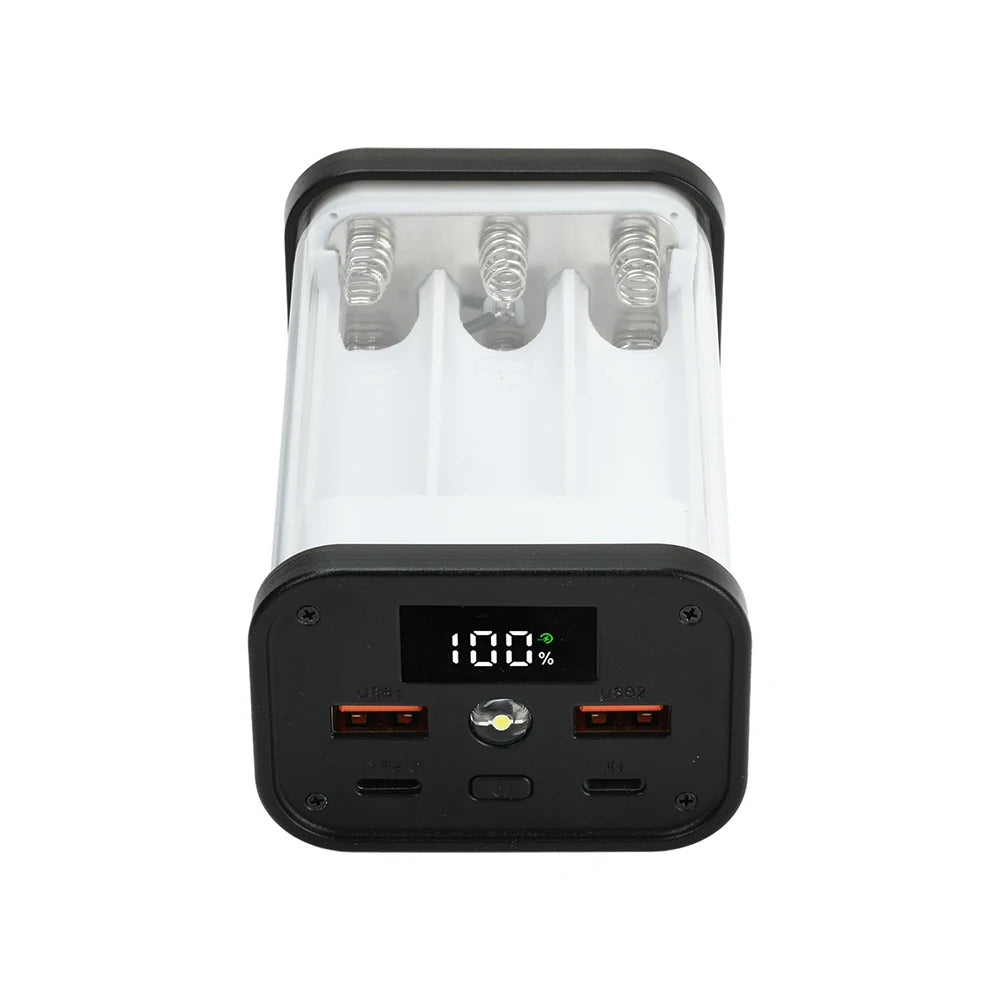

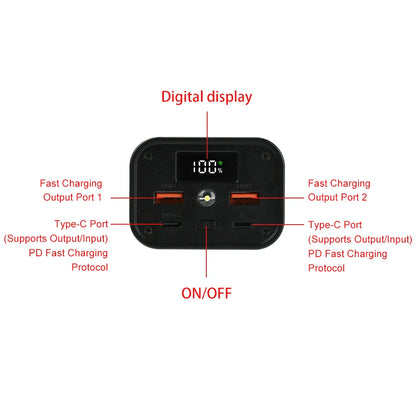

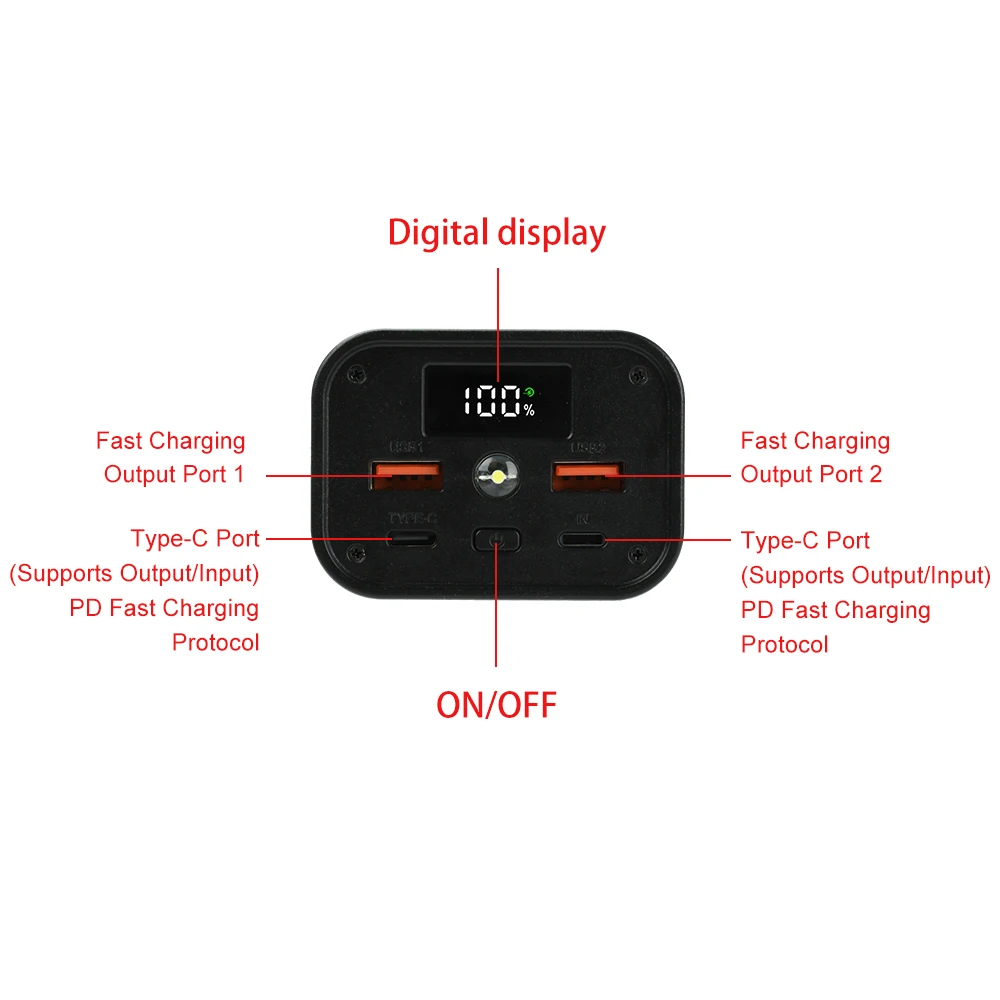

Additional Features: Long press to activate LED indicator; Reverse insertion won't damage the mainboard
Effective Voltage Range: 3.3V-4.15V (Spring-loaded design accounts for voltage drop)
Built-in protection: Input overvoltage/undervoltage protection; Integrated output overcurrent/overvoltage/short-circuit protection; Battery overcharge/over-discharge/overcurrent protection; IC over-temperature protection
Note: If proprietary phone protocols are unsupported (USB without fast charging), use PD charging (Type-C output). PD public protocol provides more stable output.
Fast Charging Specifications
With data-enabled charging cable, successful communication handshake requires one of the following protocols:
Supports BC1.2 fast charging
Supports SCP 25W Super Fast Charging output protocol
Supports VOOC 22.5W Flash Charge output protocol
Supports QC2.0/QC3.0 output fast charging protocols
Supports FCP, AFC input/output fast charging protocols
Supports USB C DRP protocol, enabling input/output fast charging
Supports PD2.0/3.0 protocols
Supports PD2.0/3.0 input/output
Important Notes:

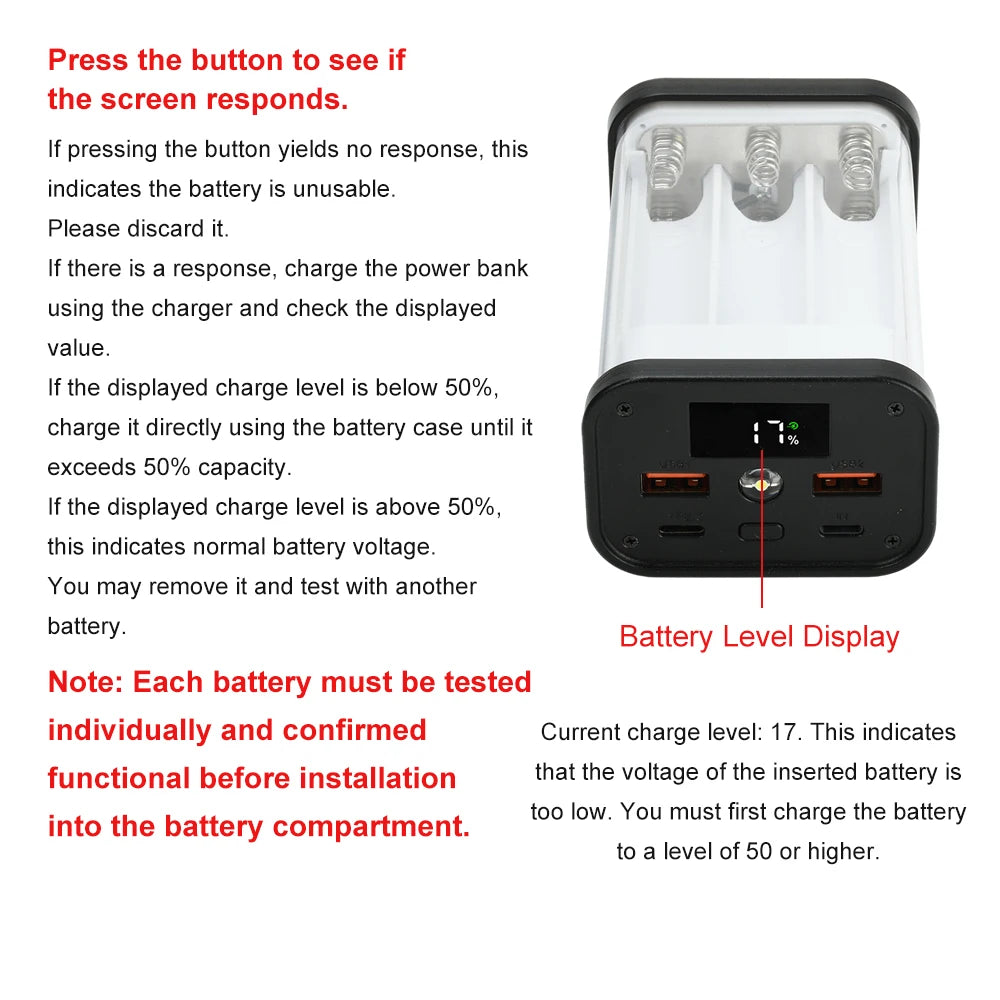

1. After assembly, activate the power bank by charging it with a charger
2. After activation, fully discharge the power bank first, then charge for approximately 20 hours to fully balance the battery.

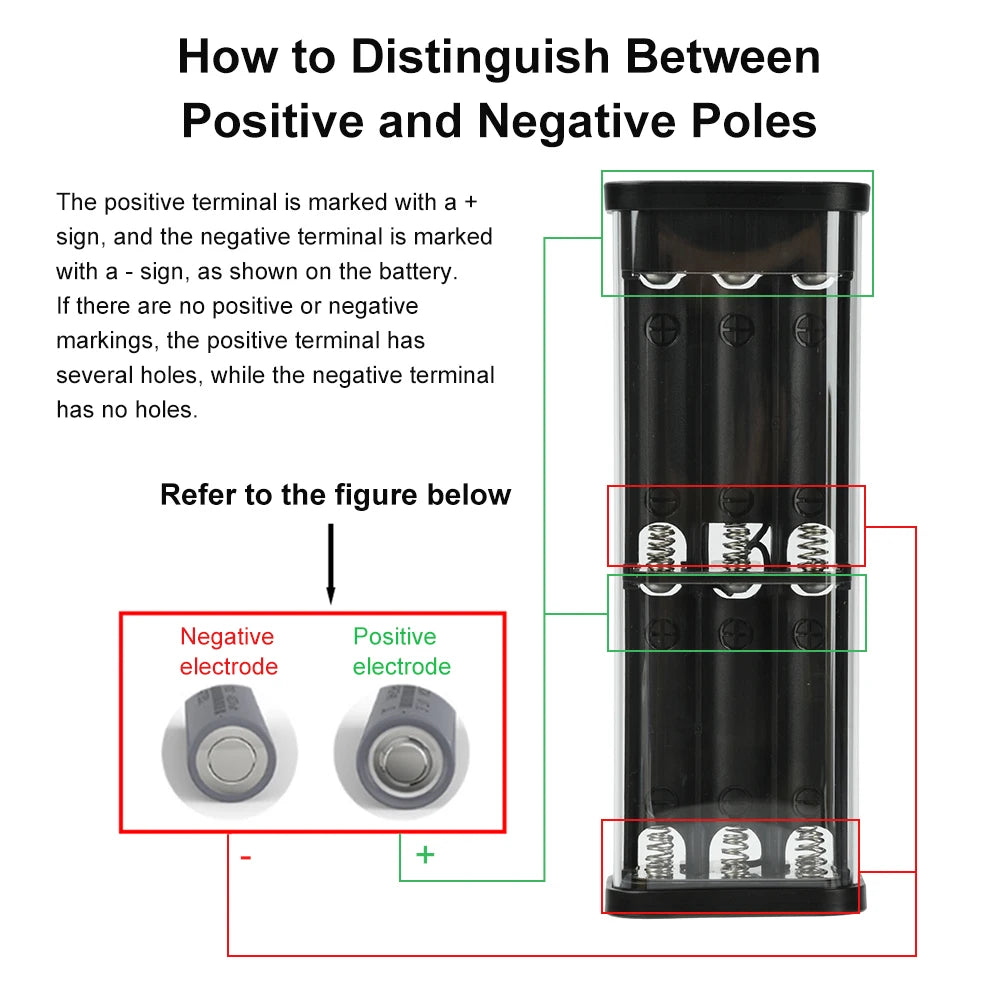

3. Only use flat-top 18650 batteries without protection boards. Batteries must be in good condition with undamaged positive terminals. If the positive terminal is damaged (e.g., peeling), it must be insulated. Do not use pointed-tip batteries or batteries with protection boards. Do not use any non-compliant batteries.

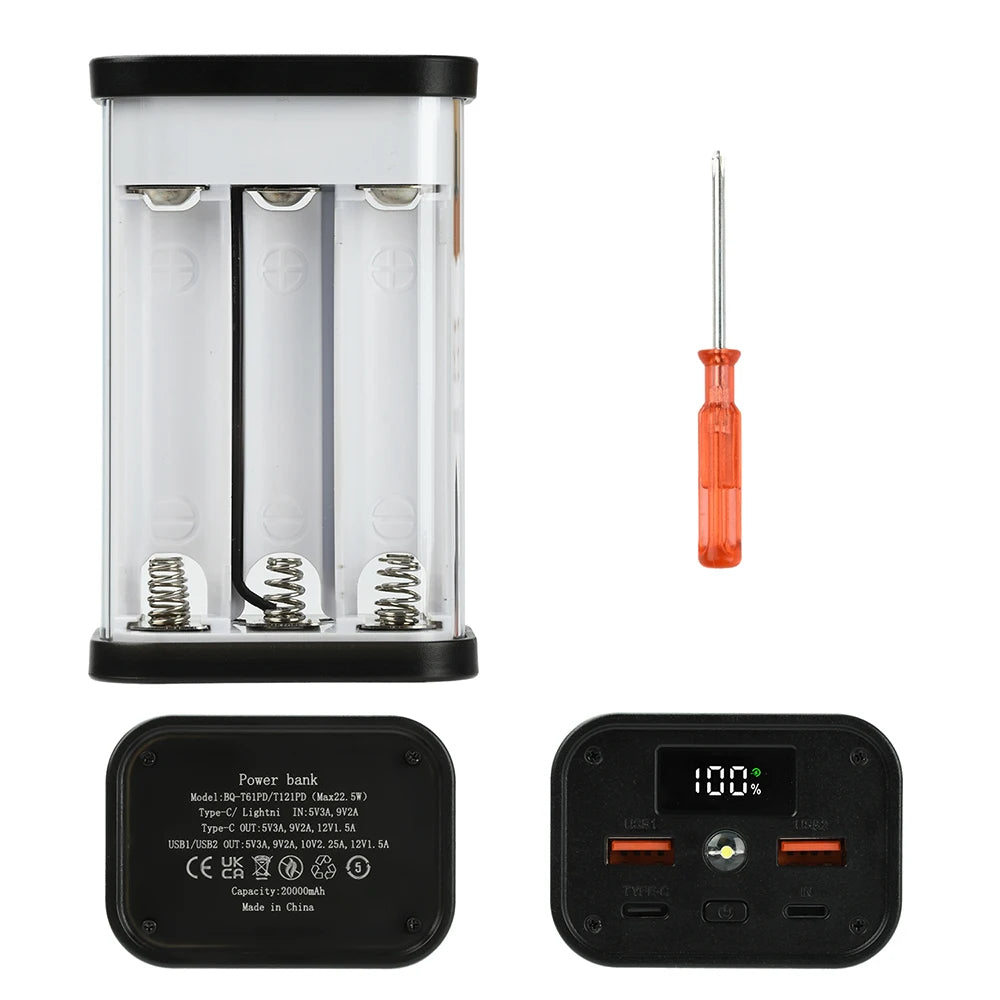

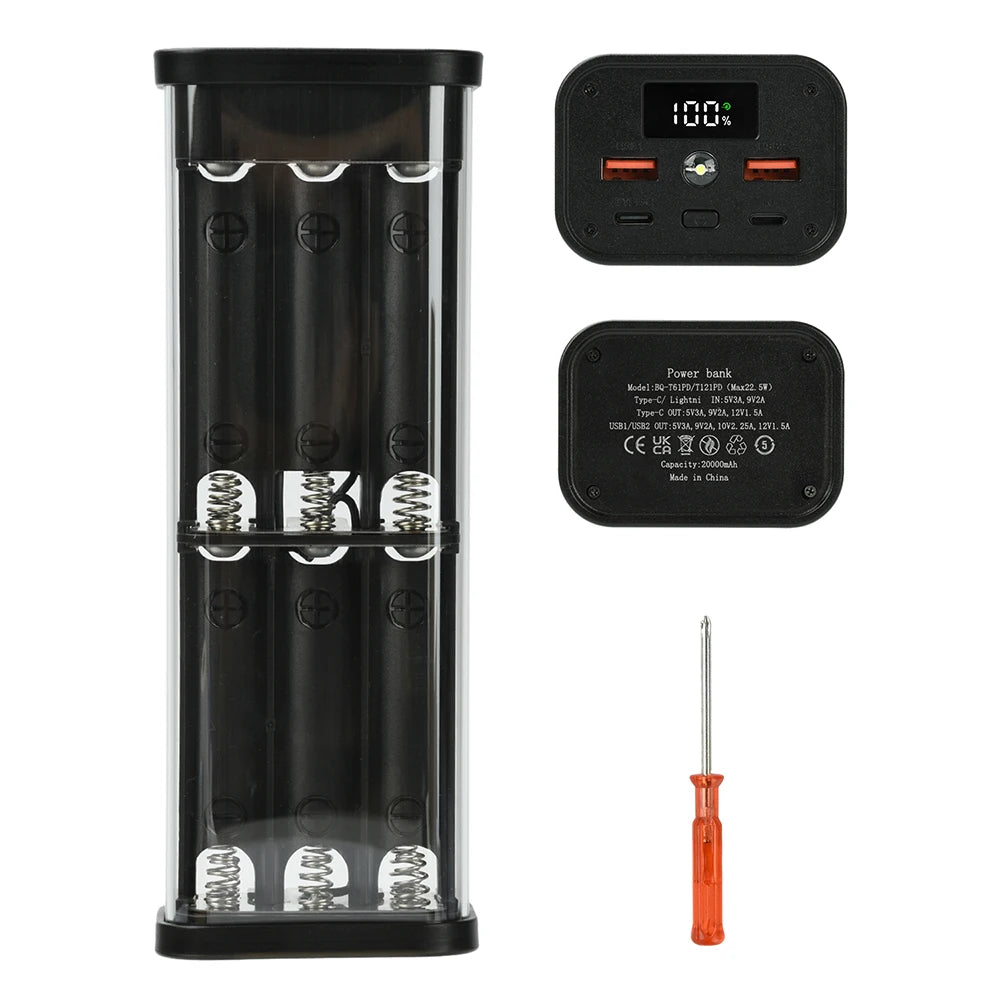

Package include

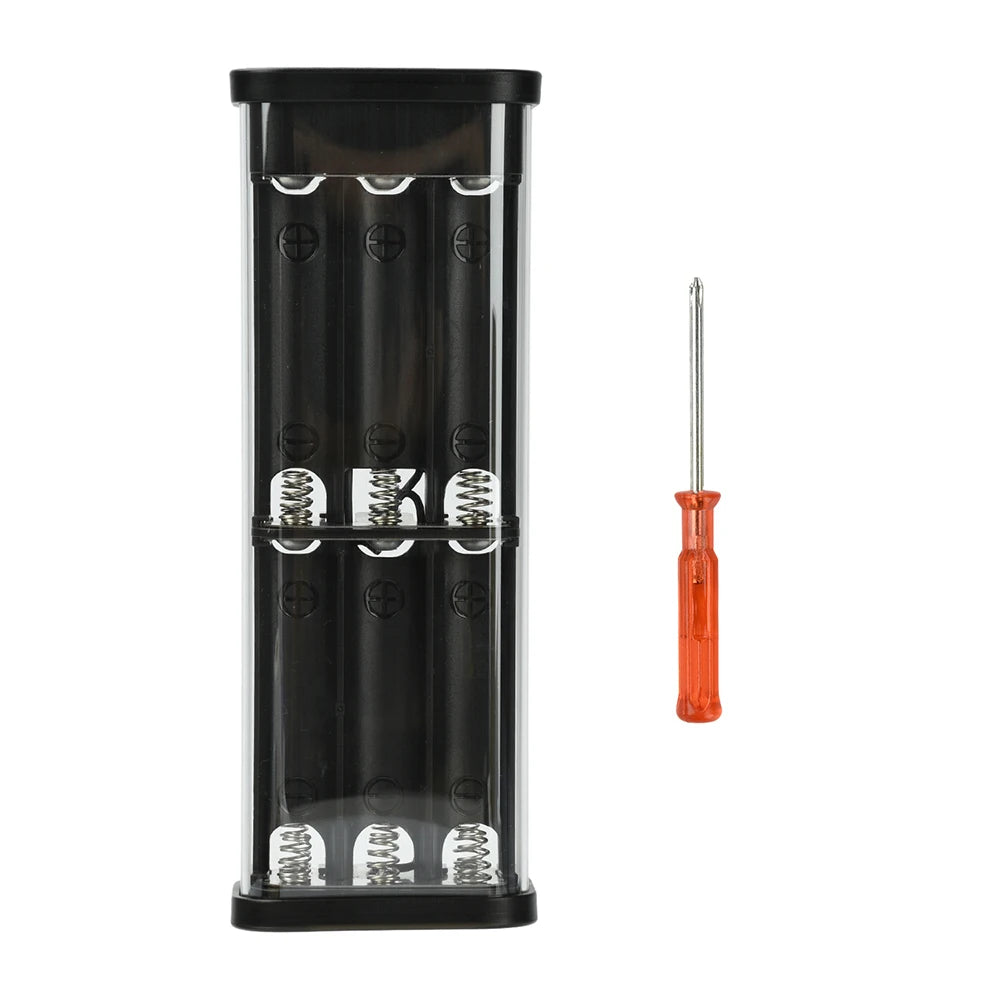

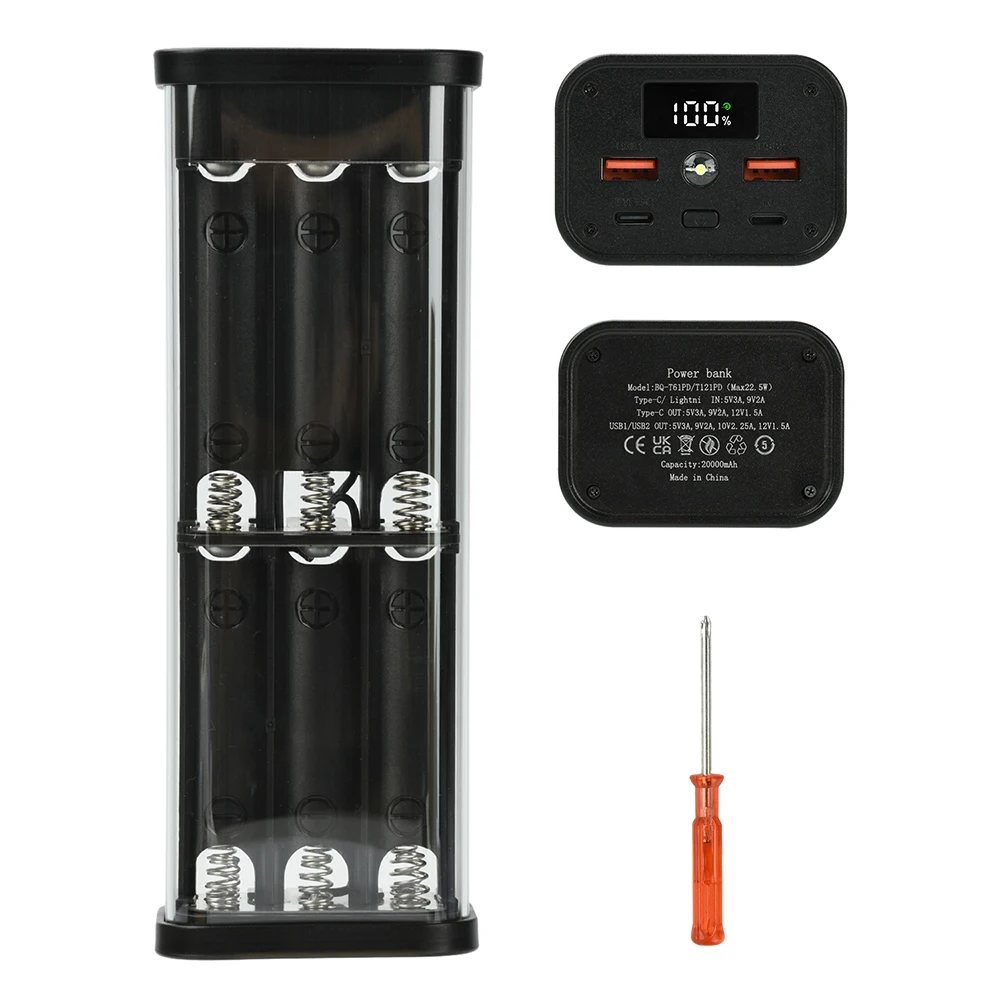

Power Bank Kit*1
Accessory Pack*1
