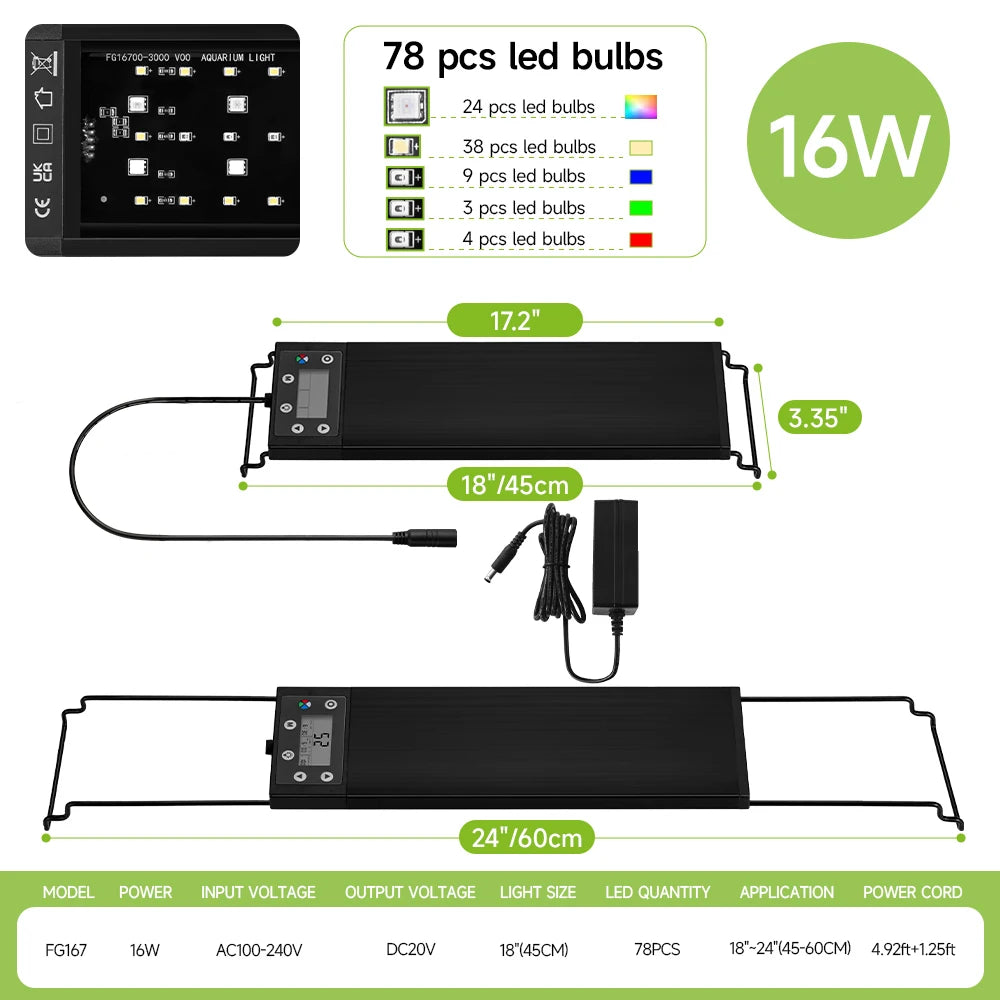

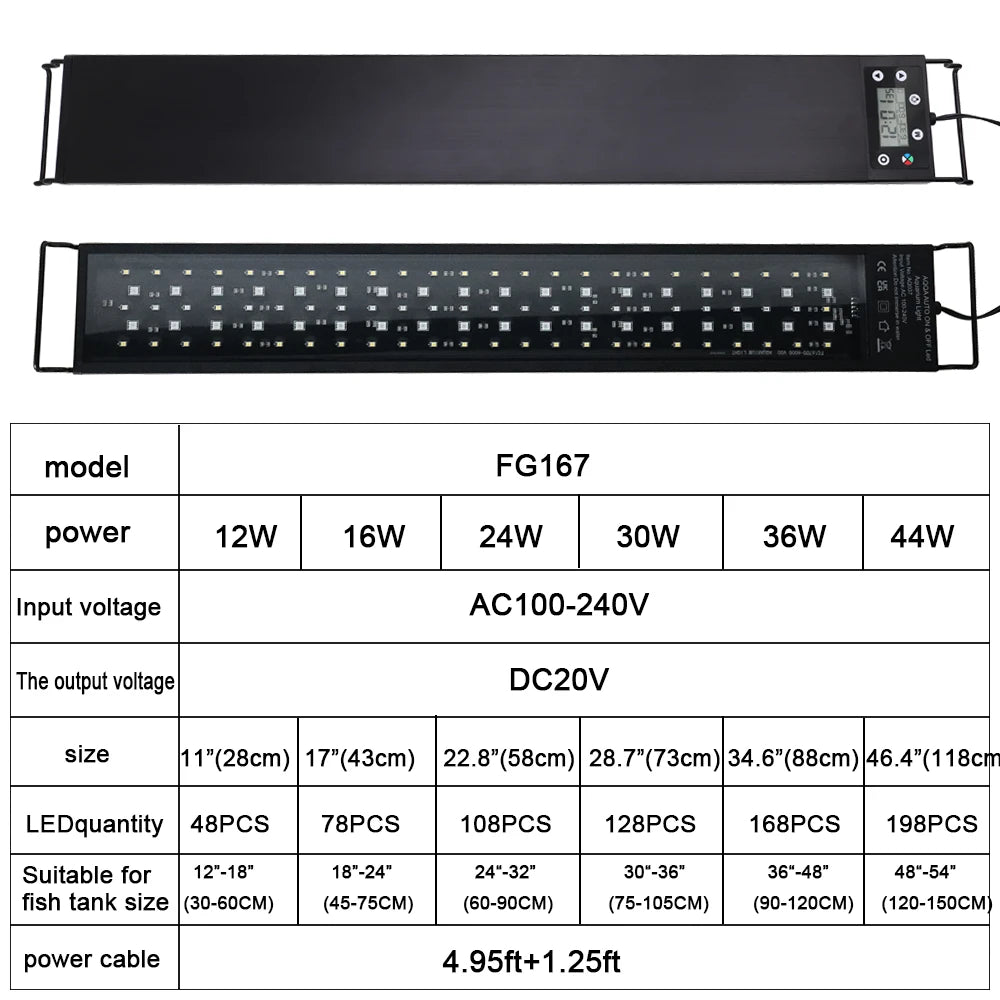

Product Name: Aquarium Sunrise Sunset Timing Dimmable Photo LED Light
Material: aluminum alloy

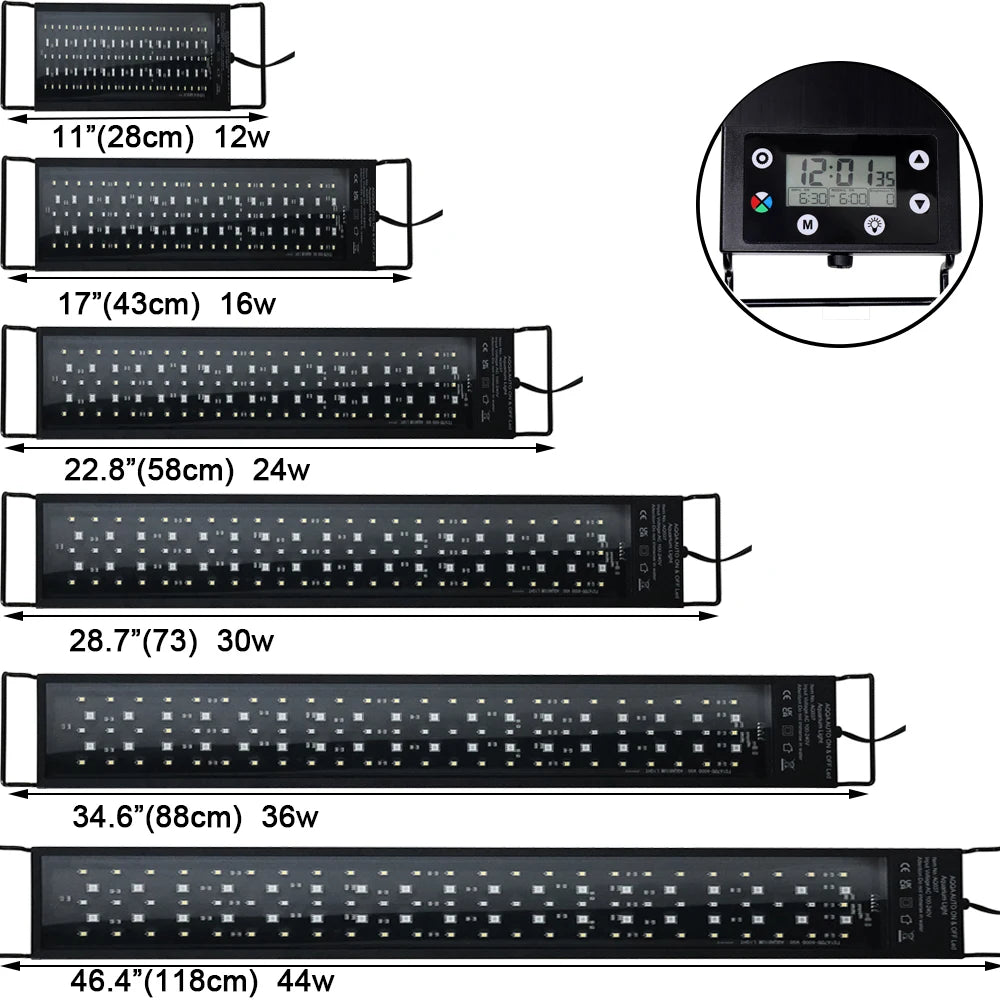

Length: 30 / 45 / 60 cm
Width: 12cm
Power: 12W/16W/24W
Input voltage: AC100V-240V
Output voltage: DC20V
Power cord length: 4.92ft+1.25ft
Lamp bead model: White: SMD 2835, RGB: SMD 5050
Quantity of LED lamp beads: 48 / 78 / 108 Pcs
Lumens: 900/1200/1900
Color temperature: 6000-10000K


Features:
【Super bright RGB+W LED lights】

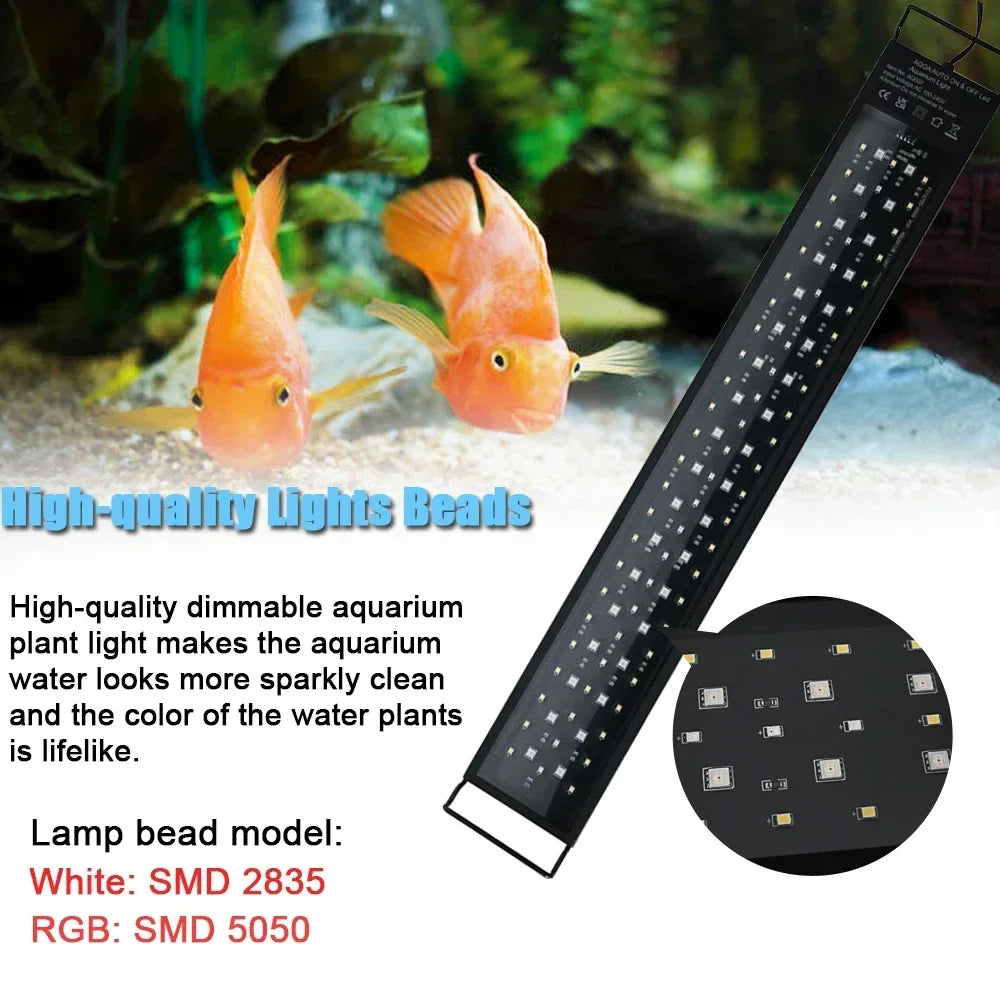

Premium 5050 and 2835 LED beads. 5 rows of LED beads provide bright lighting for your grow tank. 6500K white LEDs are combined with 455nm blue, green 560nm and 620nm red LEDs to produce a full spectrum lighting effect. Super bright, makes aquar ium water look more sparkling. Multiple sizes, recommended for fish tanks 30 - 150 cm. Great for promoting aquatic plant growth.
【8 light and color modes】
The aquarium light has 8 light modes; Full Spectrum LED, White LED, Red LED, Blue LED, Green LED, Purple LED, Orange LED, Cyan LED, changing colors very easily by pressing the color cycle button on the controller. Full-spectrum LEDs are available with the push of the on/off button. Cycleable set color changes will turn one of your aquariums into 8 different beauties
【24 hours cycle mode】

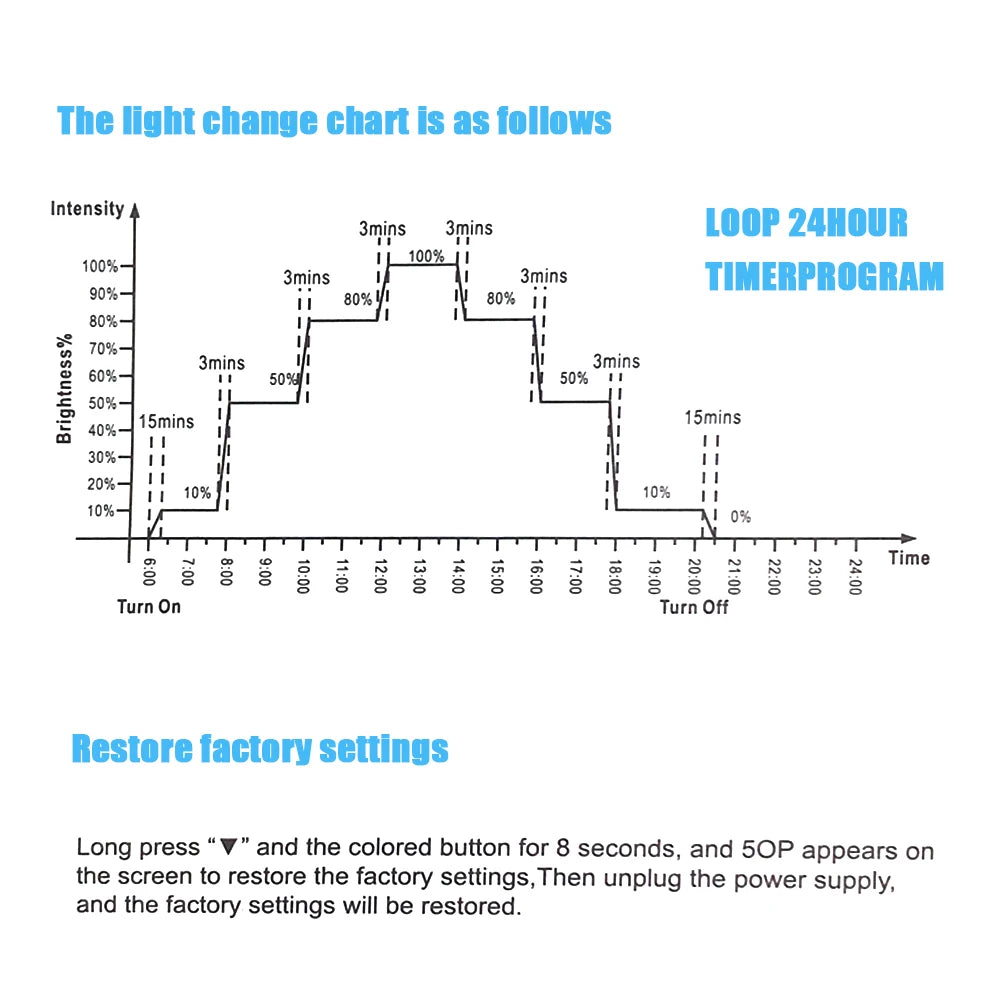

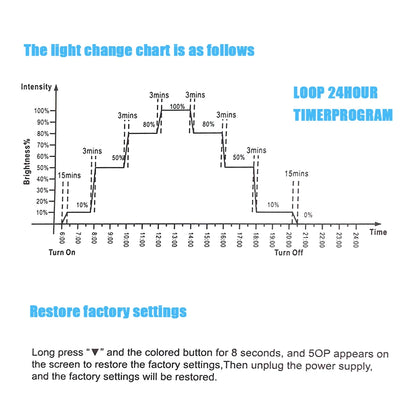

Aquarium Lighting LED lights have programmable progressive 24-hour light cycle settings (sunrise, noon, sunset and night) that turn on and off automatically to create the best conditions for your fish and aquatic plants
【Sunrise and sunset function】
Makes the LED light easy to program to turn on or off slowly over 15 minutes, preventing minor shocks to the fish. White light daylight mode mixes white light, red light, green light, and blue light to produce bright light. Moonlight mode provides 6 single colors (red, purple, blue, cyan, green, yellow) and 10 levels of dimmable options. 1 programmable preset saves custom color combinations and lighting

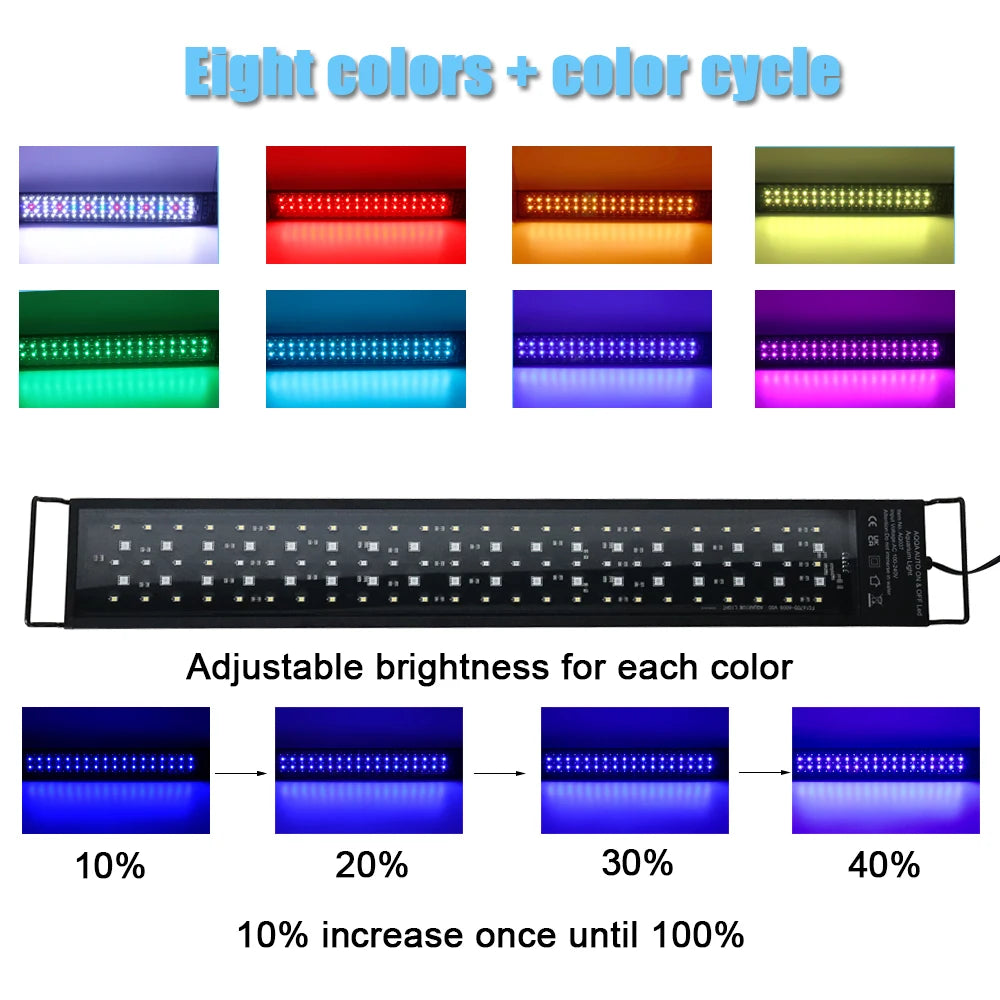

【Brightness and Timers】
You can adjust the light brightness from 100% to 10% according to your preference or the lighting needs of plants, a total of 10 levels of brightness. Color cycle brightness is adjustable
The lighting system supports a variety of functions, such as customizing the intensity and color of lights, setting schedules from day to night, mimicking sunrise and sunset, color gradient cycling, fine-tuning lighting schedules, automatic on and off, memory function, and more

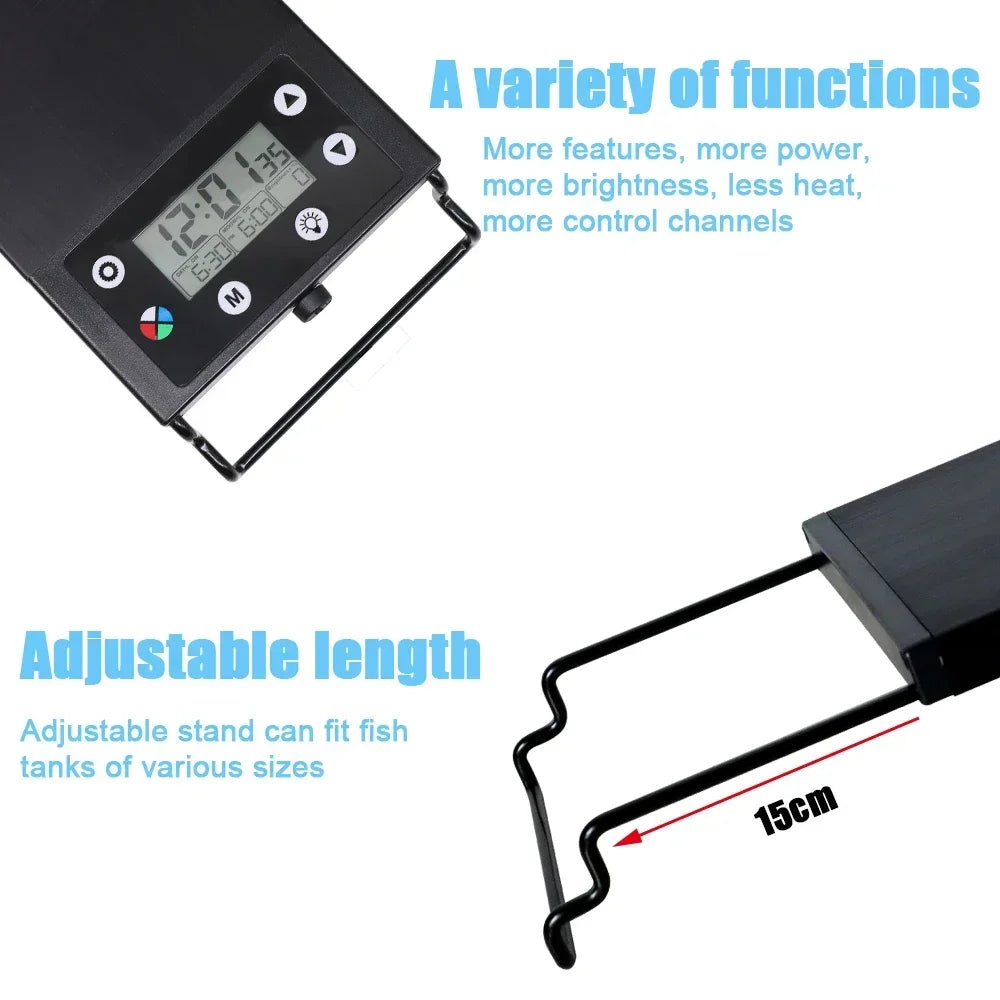

【adjustable stand】
This ultra-thin LED aquarium light is equipped with 2 metal mounting brackets, which can be extended freely, and the total extension length can reach 30cm. You can easily install LED aquarium lights on most ornamental fish tanks

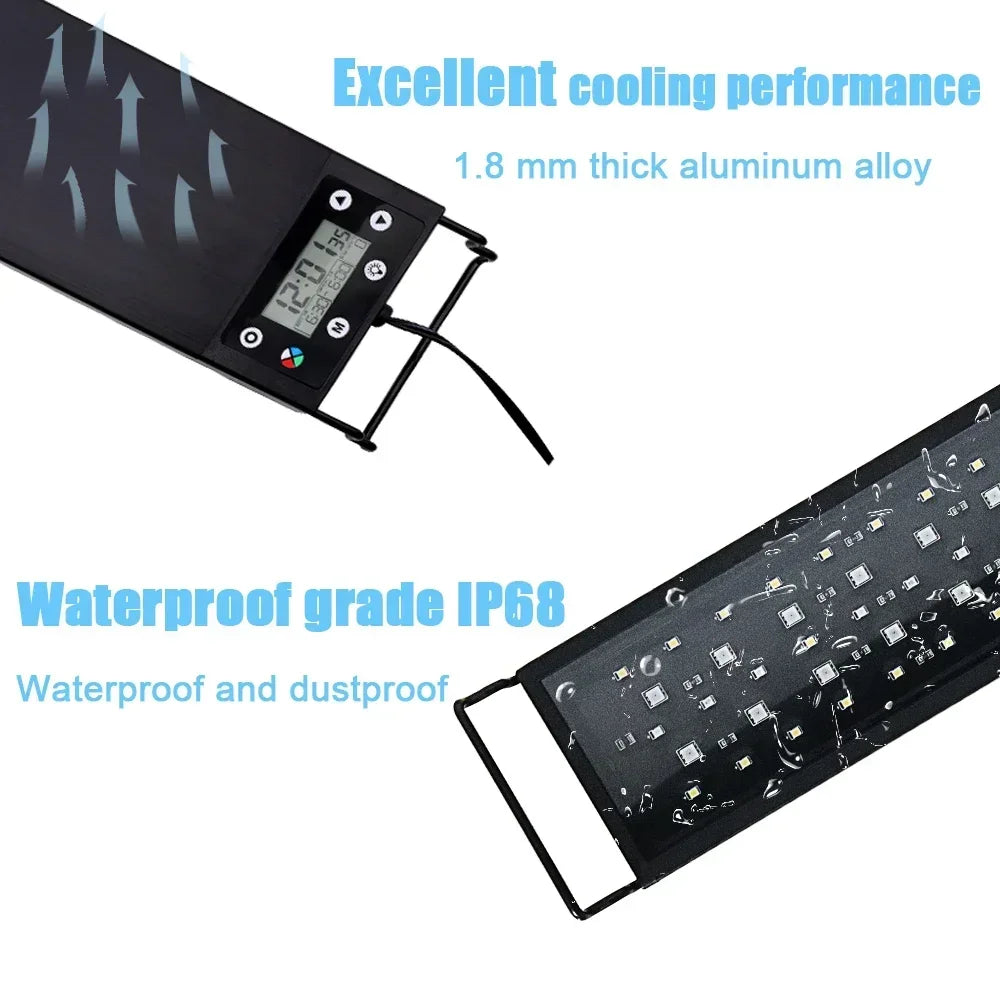

【Durable Aluminum Aquarium Light】
Aquarium lighting LED plant growth bracket fish tank lights, using aluminum alloy metal shell, good hand feeling, fast heat dissipation. Using high-quality LED, energy-saving, sustainable lighting up to 20,000 hours
【20V CE power supply】
100v-240v voltage, the original power supply contains insulating glue, low-voltage DC power supply, reducing your energy costs and making it safer to use



STANDARD MODE

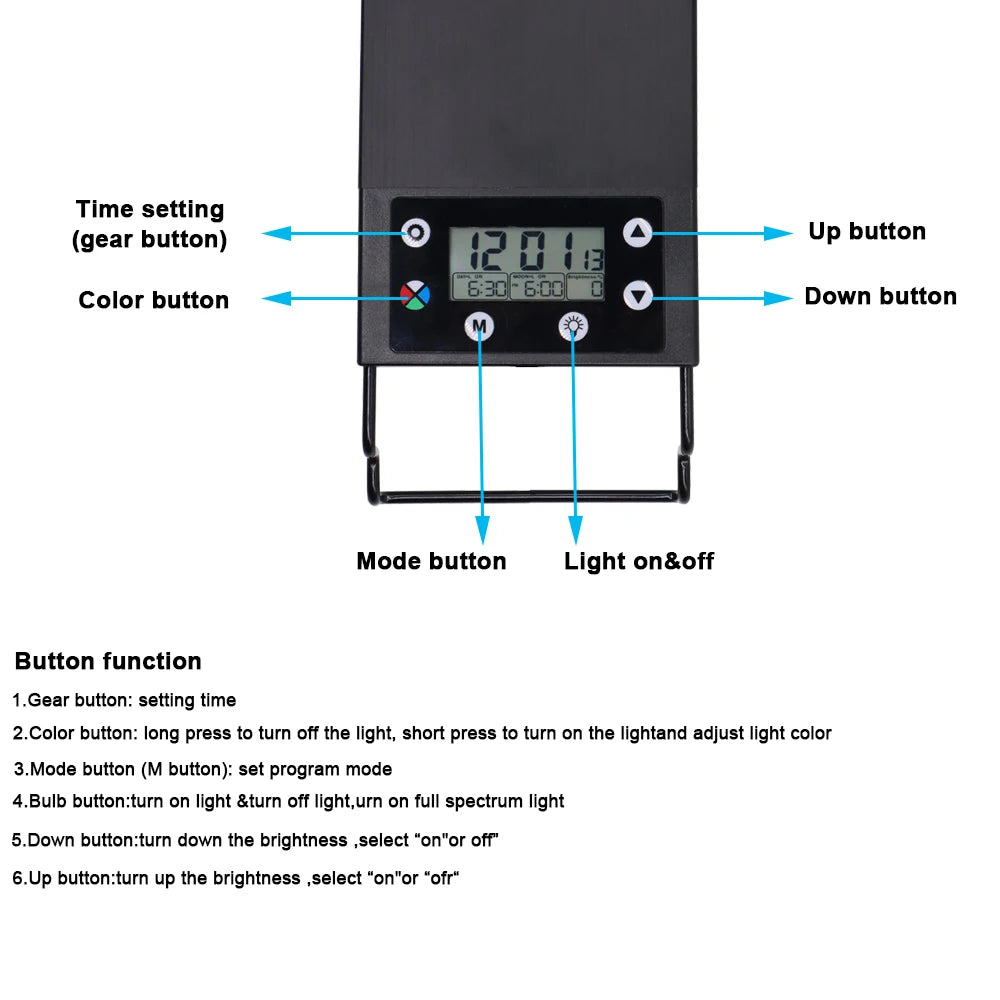

A.Set local time

1.Power on,press the up and down buttons to adjust the local time in hours.Press the gear button to confirm.

2.The minute flashes,adjust the minute,press the gear button to confirm;and then"24H" will flash on the screen, press the up and down buttons to select"12H" or "24H",press the gear button to confirm. Complete the local time setting.



B.Reset local time

Long press the gear button for 3 seconds until the time on screen flashes, press the up and down buttons to set the hour, then press the gear button to confirm and then press the up and down buttons to set the minutes, and press the gear buttons to

confirm.the same"24H" will flash on the screen, press the up and down buttons to select"12H"or"24H",press the gear button to confirm.



C. Setup program

Press the M button, and"51","52",or "53"representing day mode night mode, and DIY mode will appear on the screen respectively.

1.51 Day Mode

● Press the M button, after "51" appears on the screen, press and hold the M button"DAY-L ON OFF" in the first digital square flashes."ON&OFF" means to turn the daytime timer on and off. Press the up and down buttons to select ON and press the

M button to confirm.



● "DAY-L ON"and digits representing hour flash, press the up and down buttons to select the hour when the light is on in the morning;then press the M button,"DAY-L ON" and digits representing minute flash, press the up and down buttons to select

the minute, and confirm, If you need to reset the day time, press the gear button to exit and reset.



● Press the M button,"Brightness %" start to flash, press the up and down buttons to select the brightness of the light during the day

NOTE: During normal daytime, you can only select the brightness of white light,

cannot choose other colors.



● Press the M button,"DAY-L OFF"and the digits representing hour flash, press the up and down buttons to select the hour when the lights are turned off in the morning, press the M button, the "DAY-L OFF" and the digits representing minute flash, press the up and down buttons to select the minutes, press M button to save.This confirms the time to turn off the lights during the day. The light automatically adjusts to the set brightness and starts to run.



2.52 Night Mode

● Press the M button twice, after "52" shows on the screen, long press the M button，"MOON-L ON OFF" flashes;"ON" and "OFF" stand for turning the night timer on and off. Press the up and down buttons to select ON and press the M button to confirm.



● "MOON-L ON"and the digits representing hour starts to flash. Press the up and down buttons to select the hour when the lights are on at night and then press the M button."MOON-L ON" and minutes starts to flash. Press the up and down buttons to select the minutes.and press the M button to save. The time to turn on the lights at night is confirmed.



● "Brightness %" flashes, press the color button in the lower Left corner to select the desired color (you can only select the color, not the brightness) R 25% red RG30% orange RG 50% yellow G 25%green BG 50% cyan B 25% blue RB 50% purple.



● Press the M button,"MOON-L OFF" and the digits representing hour start to flash,press the up and down buttons to select the hour when the lights are turned off at night, press the M button,"MOON-L OFF" and the digits representing minute starts to flash, press the up and down keys to select the minutes, press M Key to save. The time to turn off the lights at night is confirmed.



3.53 DIY Mode

There are 8 time periods, namely L1-L8 periods.



● You can choose the corresponding time, the corresponding brightness and color. Press the M button 3 times, after "53" shows on the screen, long press the M button, press the up and down buttons to select ON and press the M button to confirm, start to set the lights of L1-L8.ON and OFF means to turn the DIY mode on and off.



● The hour at the bottom left corner of the screen flashes, press the up and down buttons to select the starting time of the first segment and press the M button to confirm;



● The digits representing minutes starts to flash, select the minute and press the M button to confirm. The hour in the middle box at the bottom of the screen flashes, press the up and down keys to select the ending hour of the first segment and press

the M button to confirm; then the minute button flashes, select the minute and press the M button to confirm.



● "W""R""B""G"stands for white,red,blue, green respectively. "Brightness % W" flashes at the bottom right corner of the screen.Press the up and down keys to increase or decrease the brightness of W accordingly. Press the color button in the

lower right corner again,"R" starts to flash, select the up and down buttons to adjust the brightness of "R". In the same way, you can adjust the different brightness of"W","B","G". Finally change the color temperature and brightness of the light.

After adjustment, press the M button to save. Complete the first part of setting.



● The hour in the middle digital square at the bottom of the screen flashes, press the up and down buttons to select the ending hour of the second segment and press the M button to confirm, the digits representing minutes start to flash, select the minute and press the M key to confirm.



● Enter the setting of "Brightness % W" at the bottom right corner of the screen, the same setting method applies. You can use the same setting method until L7. L8 is for light-off: set Brightness % "W""R""B""G" all to 0,and the light turns off.

"W","R","B","G" is white red blue and green.



General Tips:

● In any mode if you want to turn the light off, press the BULB icon the light goes off.When the light is off, press the BULB icon to turn the light back on.

● Restore factory settings: Long press the down button and the colored button for 8 seconds, and SOP appears on the screen to restore the factory settings. Note: In order to avoid the light from changing too quickly, during the switching process, this

product will switch slowly within 3 minutes.

Package Included
1 set x Aquarium LED Lighting

Notes
1. We have 4 original power plug sizes, EU/UK/AU/US, we will distribute the proper original power plug for you according to your country.
2. Due to manual measurement, please allow 1~2cm error, make sure you don't mind before bidding.
