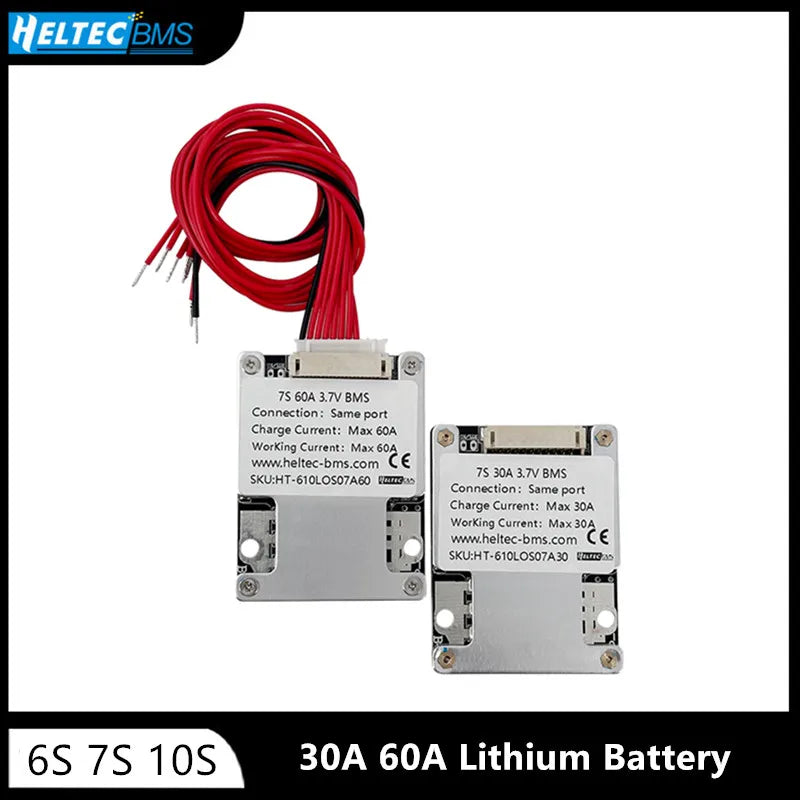

Heltec bms 10s 36v 30a 60a 6S 7S BMS 24V with balanced lithium battery protetcion board for eletronic tools/wheelchair/vehicle
Heltec bms 10s 36v 30a 60a 6S 7S BMS 24V with balanced lithium battery protetcion board for eletronic tools/wheelchair/vehicle
SPECIFICATIONS
Accessory Type: Battery Accessories
Battery Included: no
Brand Name: Heltecbms
Charger included: N
Choice: yes
Electronic: no
High-concerned chemical: None
Origin: Mainland China
PCBincluded: No
Voltage range: Low voltage non-USB (below 75V DC, below 50V AC)
semi_Choice: yes

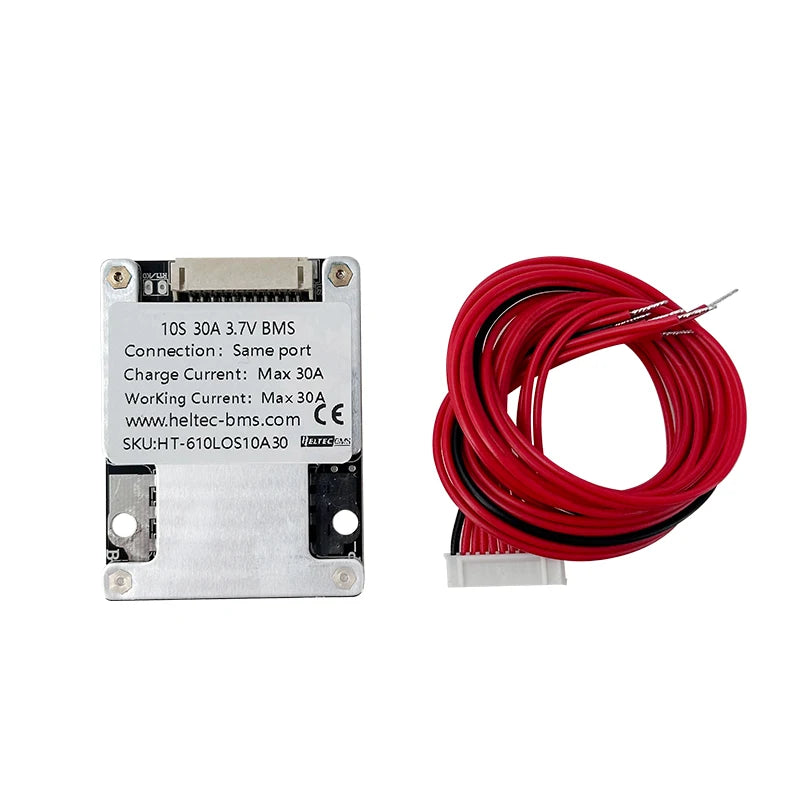

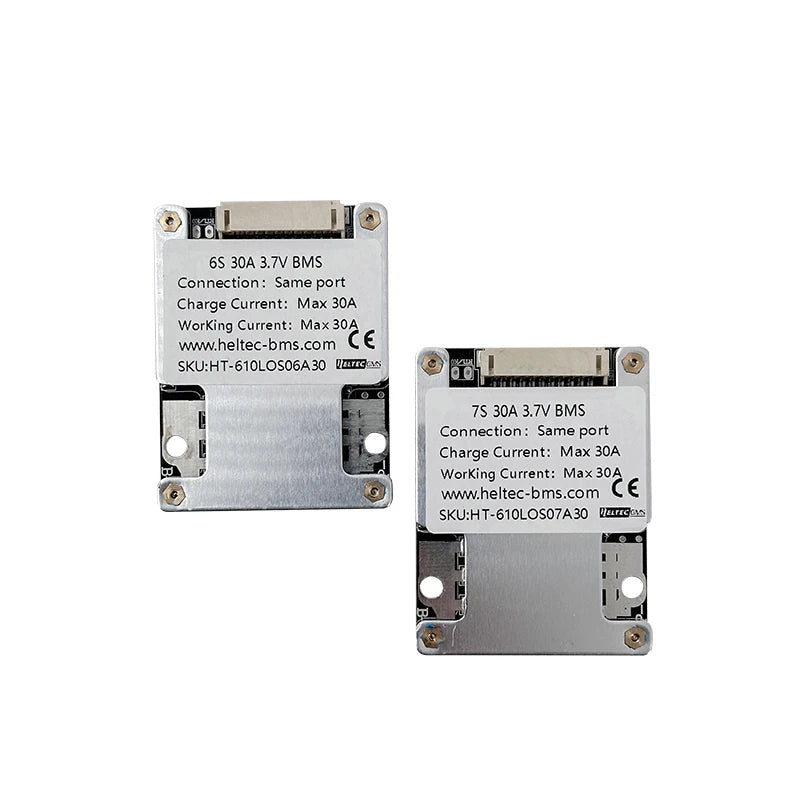

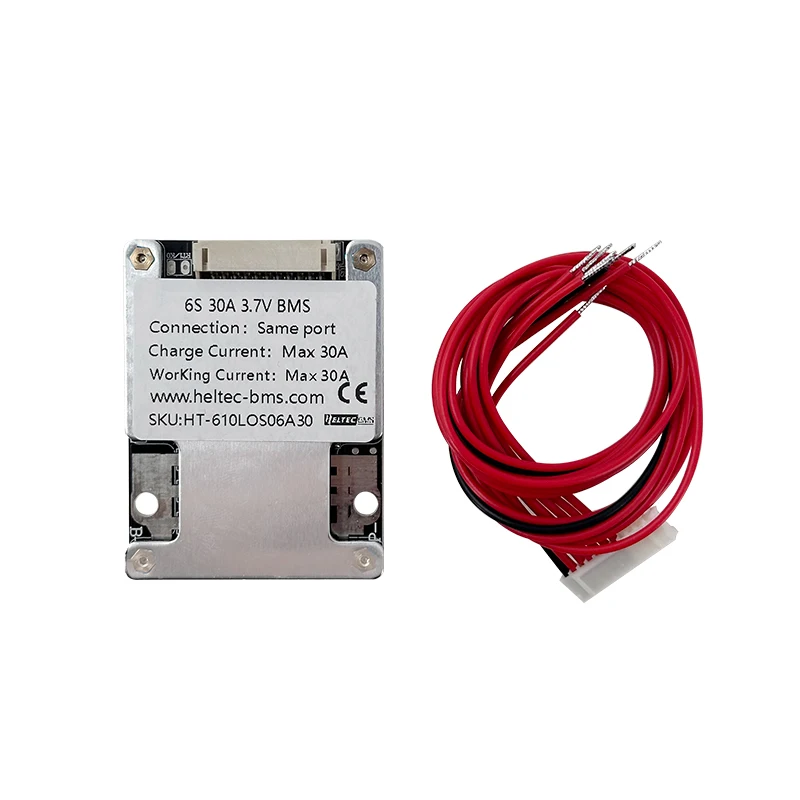

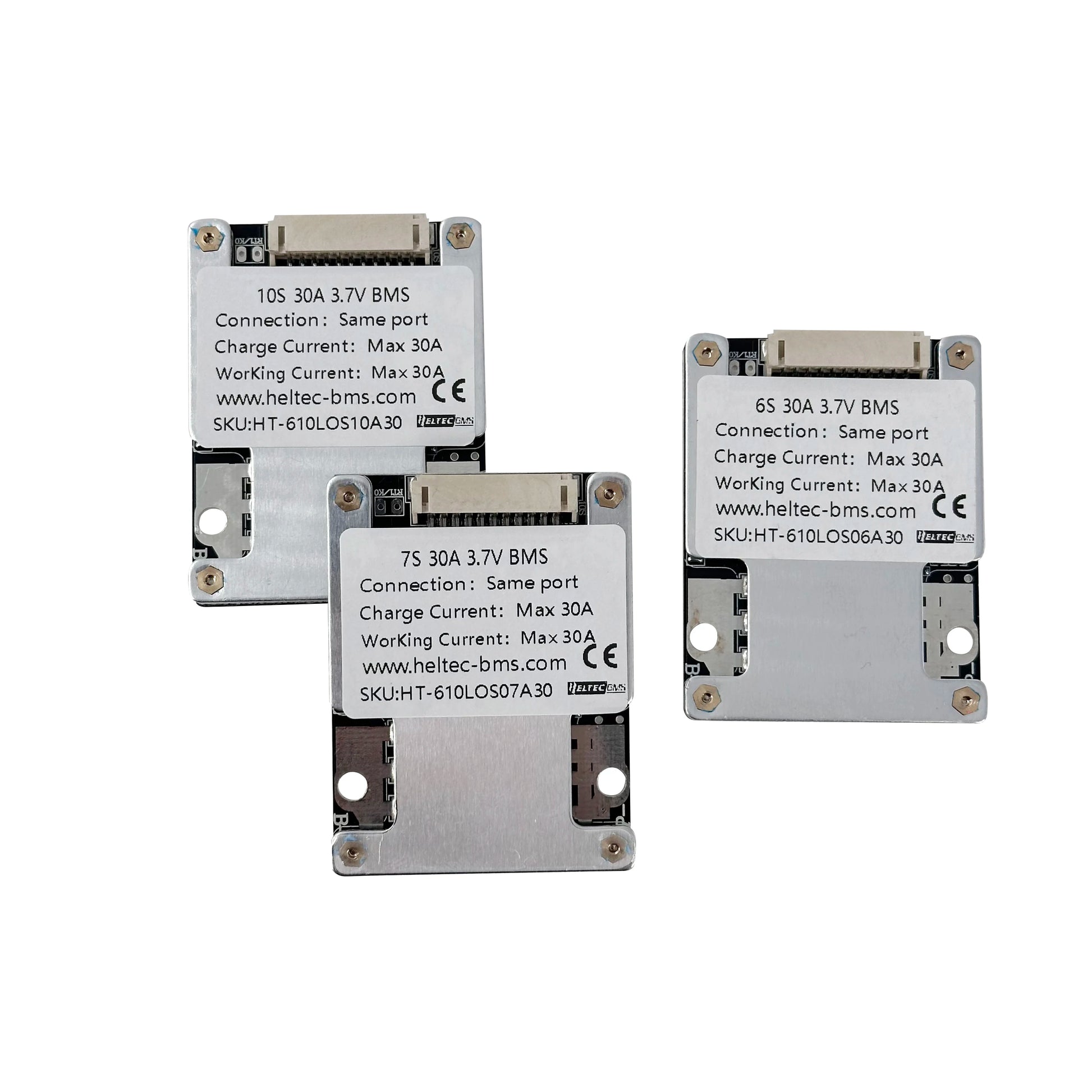

6S/7S/10S 30A 3.7V Same Port
Size：63×48×8
Overcharge protection : 4.25v
Over-discharge protection : 2.8v
Abnormal high voltage protection
Maximum continuous current : 30A
Discharge over current protection : 100A
Load short circuit protection
Balance current : 83 mA
Charging recovery

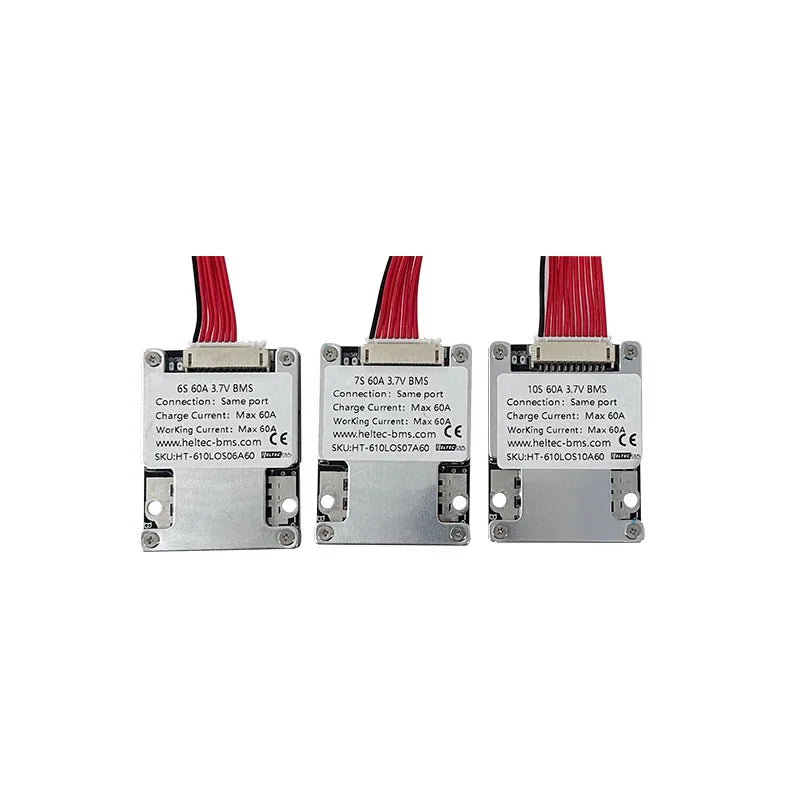

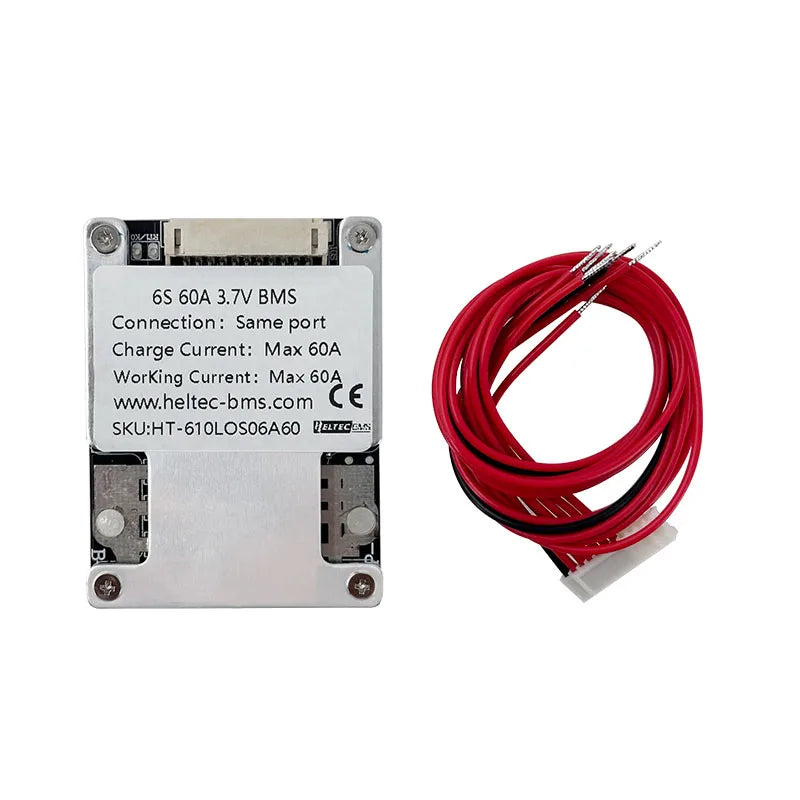

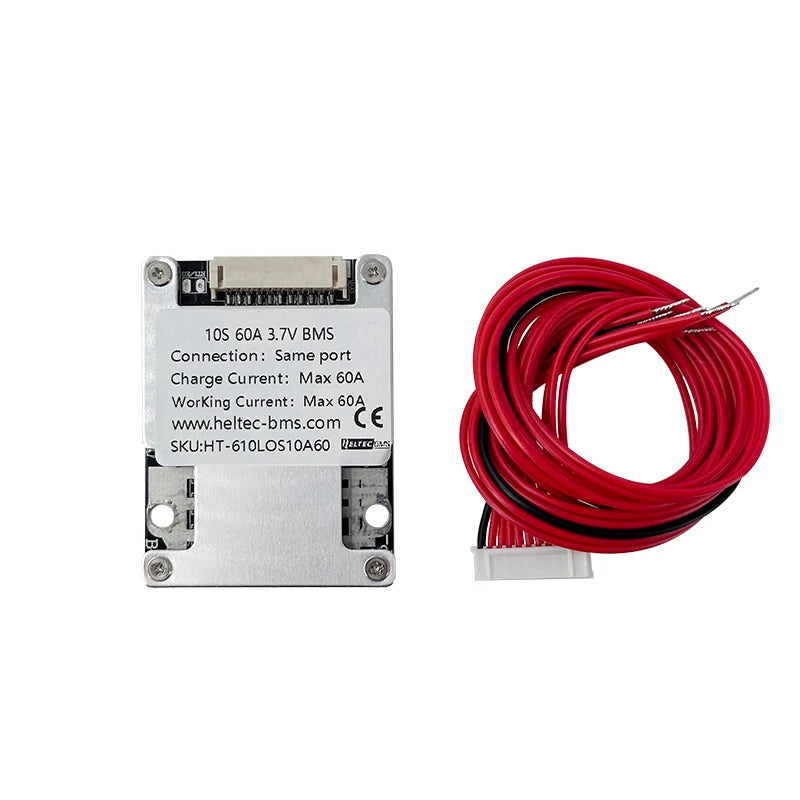

6S/7S/10S 60A 3.7V Same Port
Size: 63×48×14
Overcharge protection : 4.25v
Over-discharge protection : 2.8v
Abnormal high voltage protection
Maximum continuous current : 60A
Discharge over current protection : 200A
Load short circuit protection
Balance current : 83 mA
Charging recovery
Application：
Applicable to 24V Electric bicycle and electric tools within 1200W

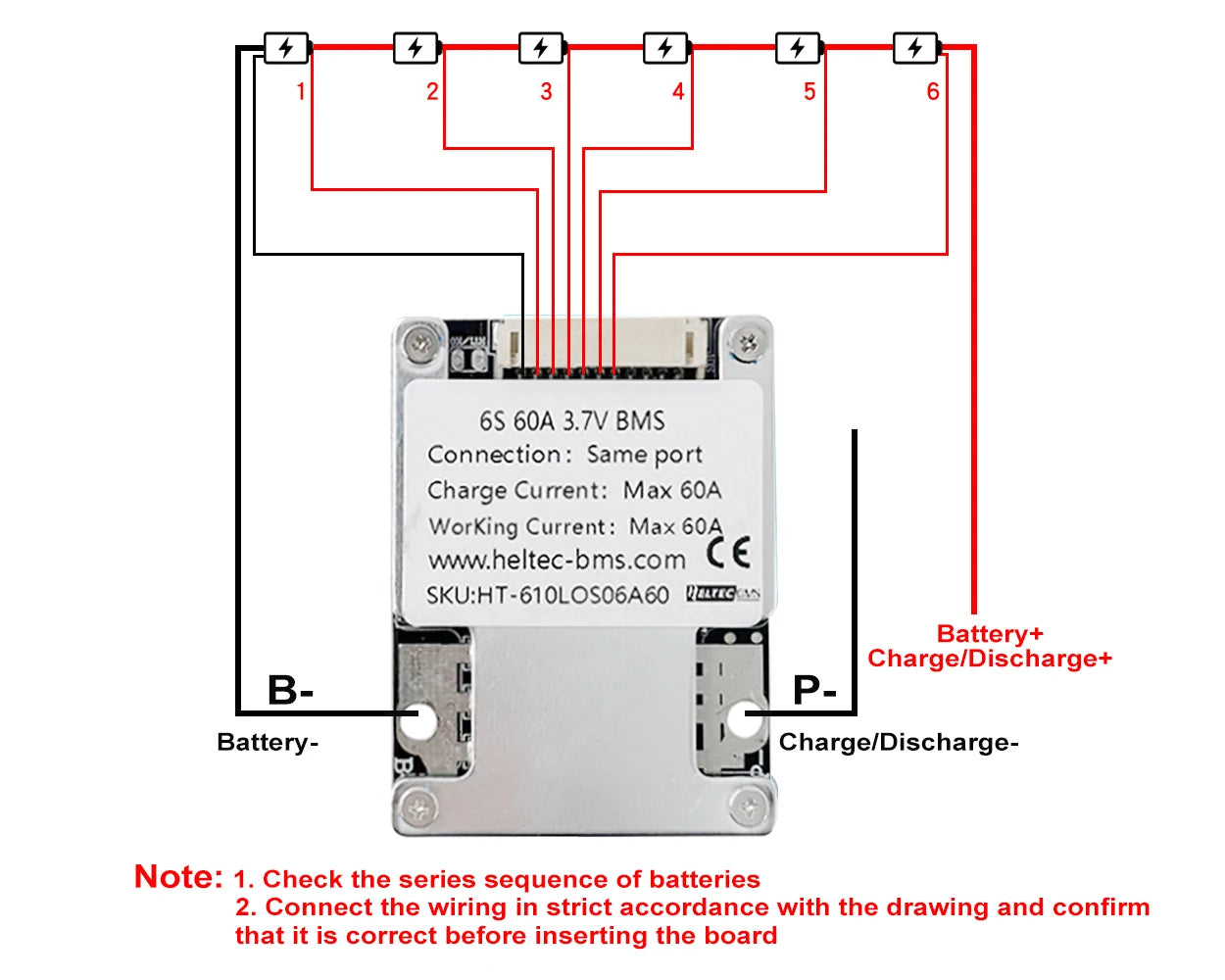

6S connection diagram

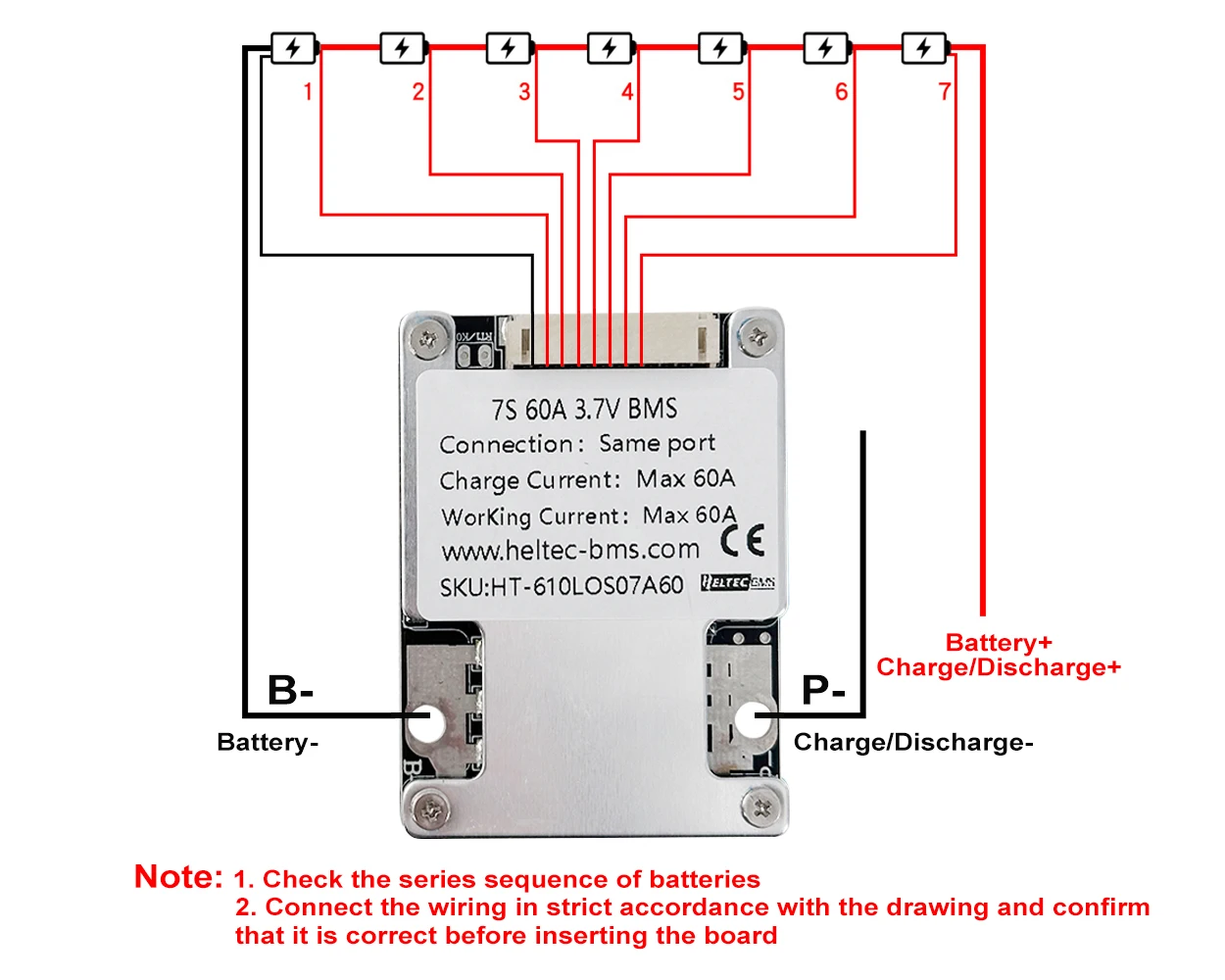

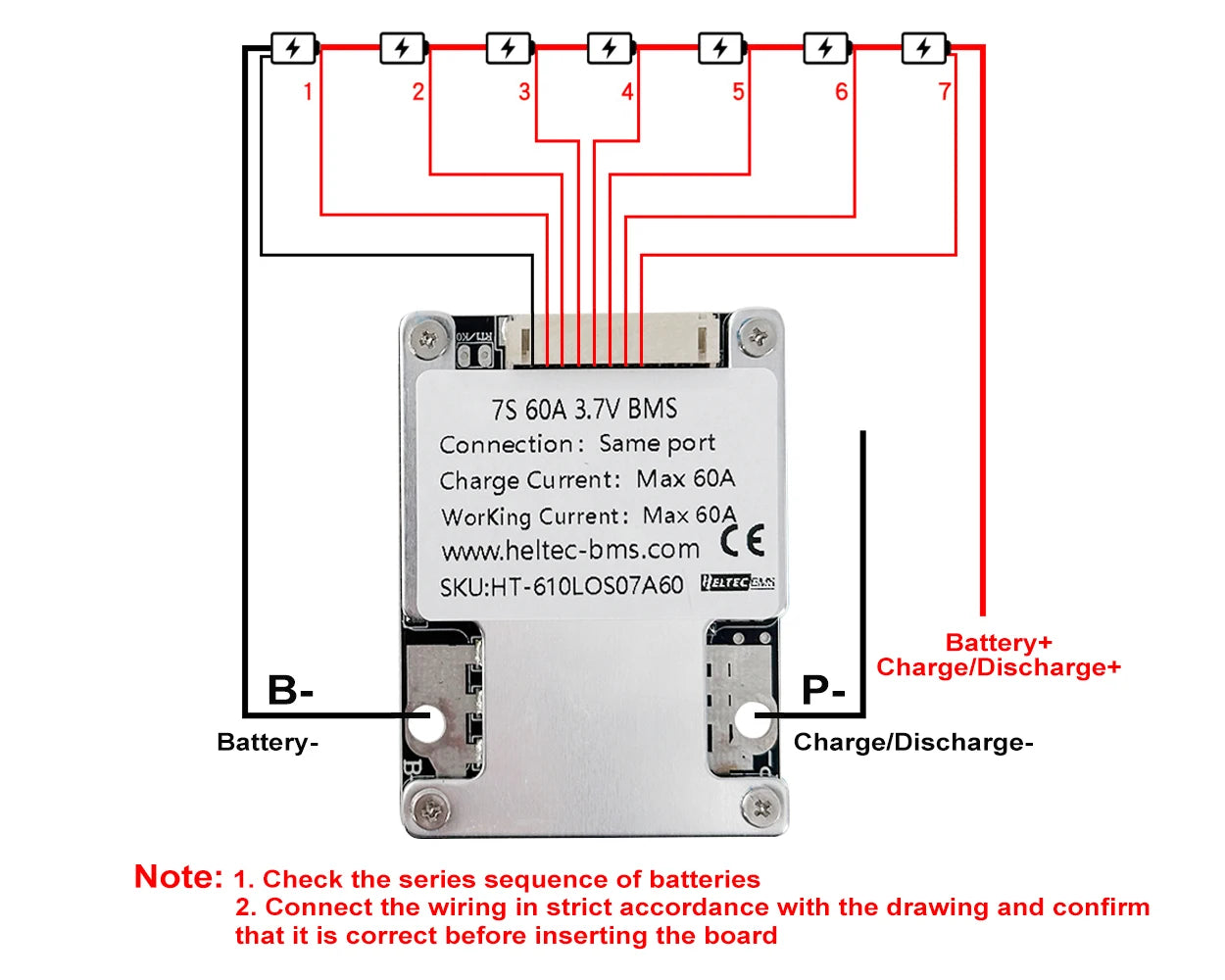

7S connection diagram

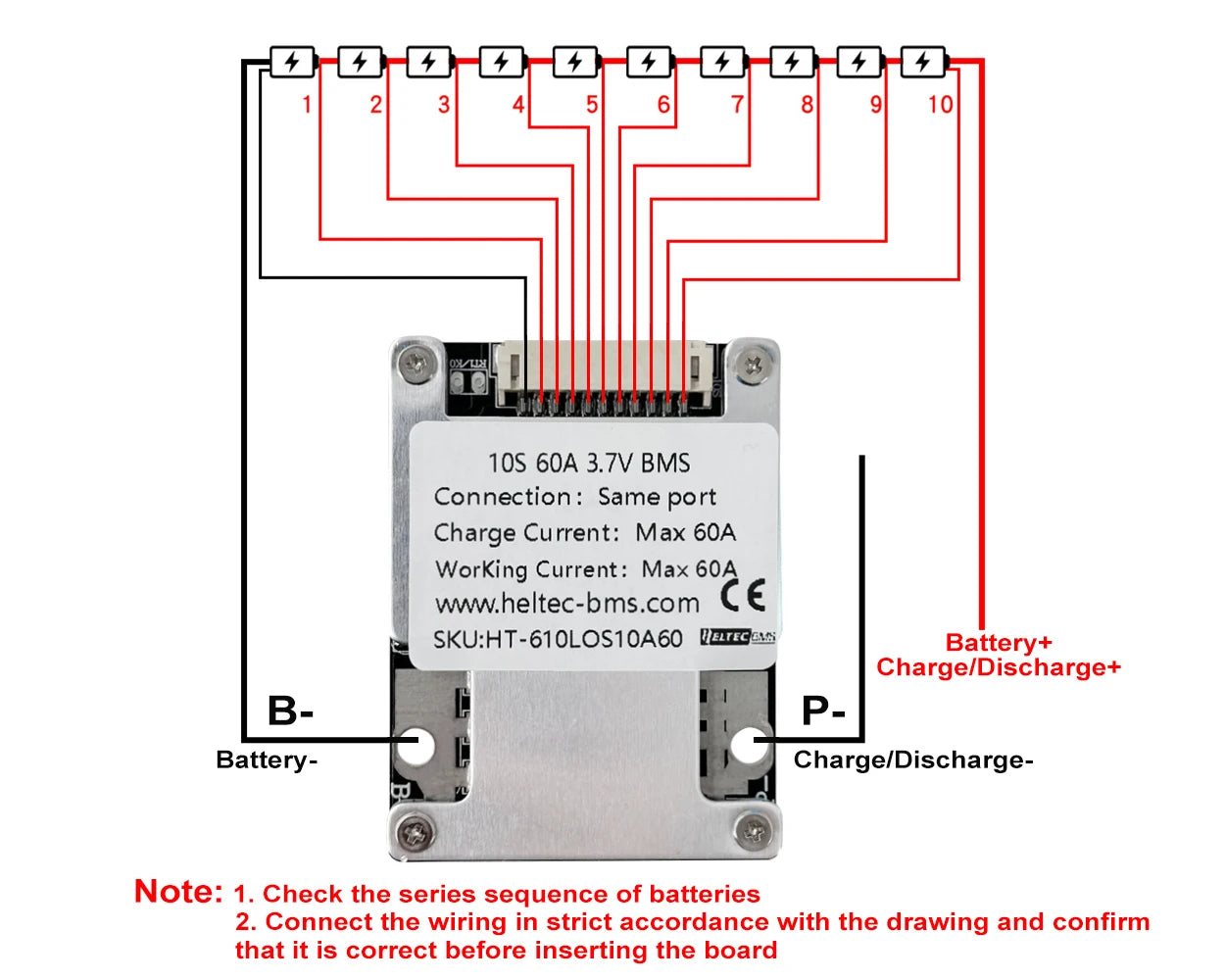

10S connection diagram

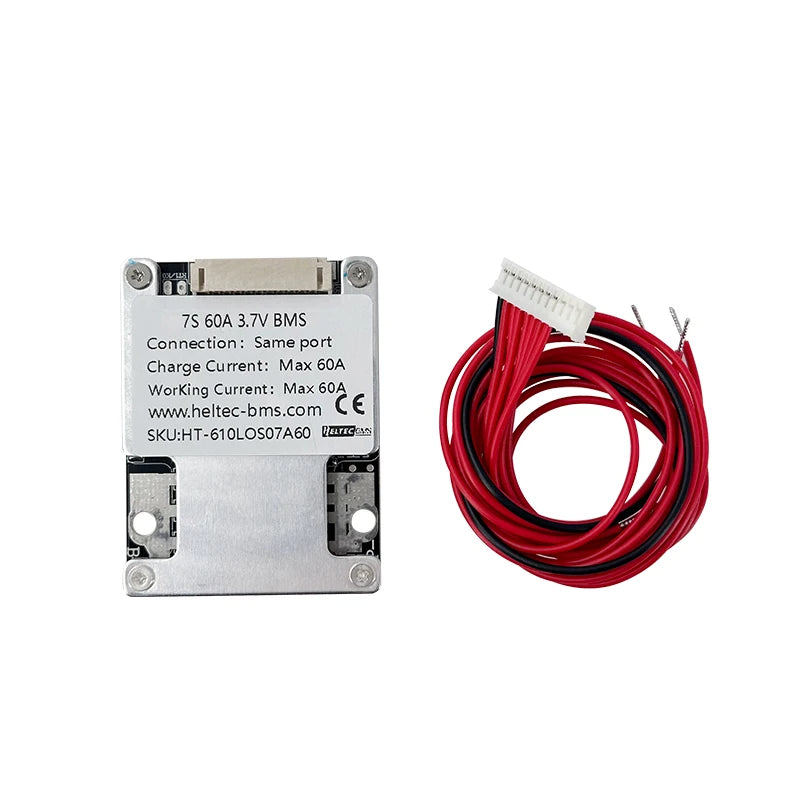

product Include
