SPECIFICATIONS

Application: Home Energy,Solar Power Storage,Off-Grid Solar Power System

BMS: 16S 200A

Battery Warranty: 10 years

Battery life: Deep Cycles 6000+ times

Brand Name: CERRNSS

Certification: CE,FCC,RoHS,UL,KC

Connection: Bluetooth-Compatible

Energy: 15360WH

High-concerned chemical: None

Inverter protocol: CAN BUS /RS485

Max Parallel: Supports up to 32pcs parallel

Model Number: 48V 300AH 15KWH

Nominal Capacity: 15360WH

Origin: Mainland China

Rated Voltage: Others

Rated voltage: 48V

Size: 480*570*255mm

Type: LiFePO4

Voltage: 48V/51.2v

Weight: 110kg

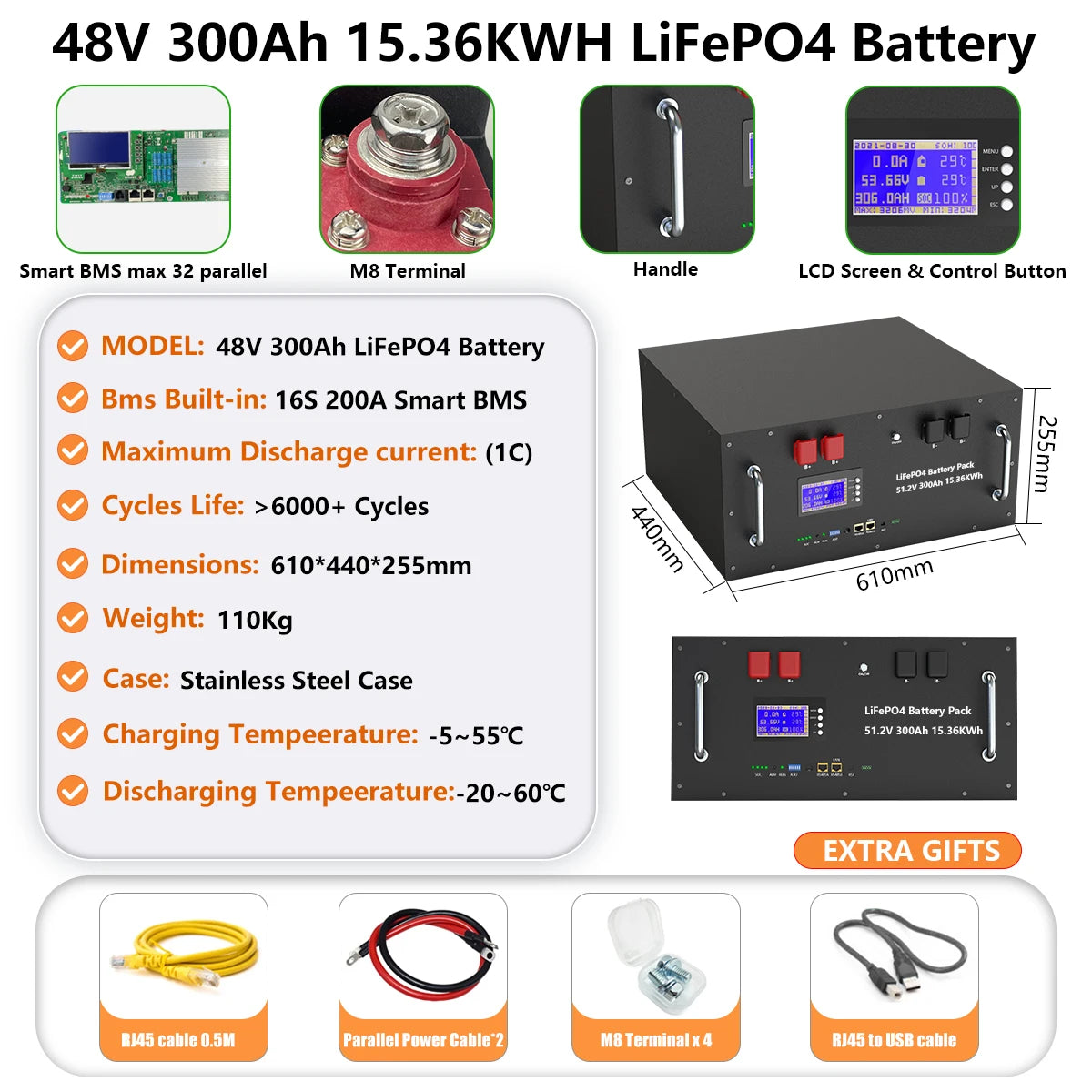

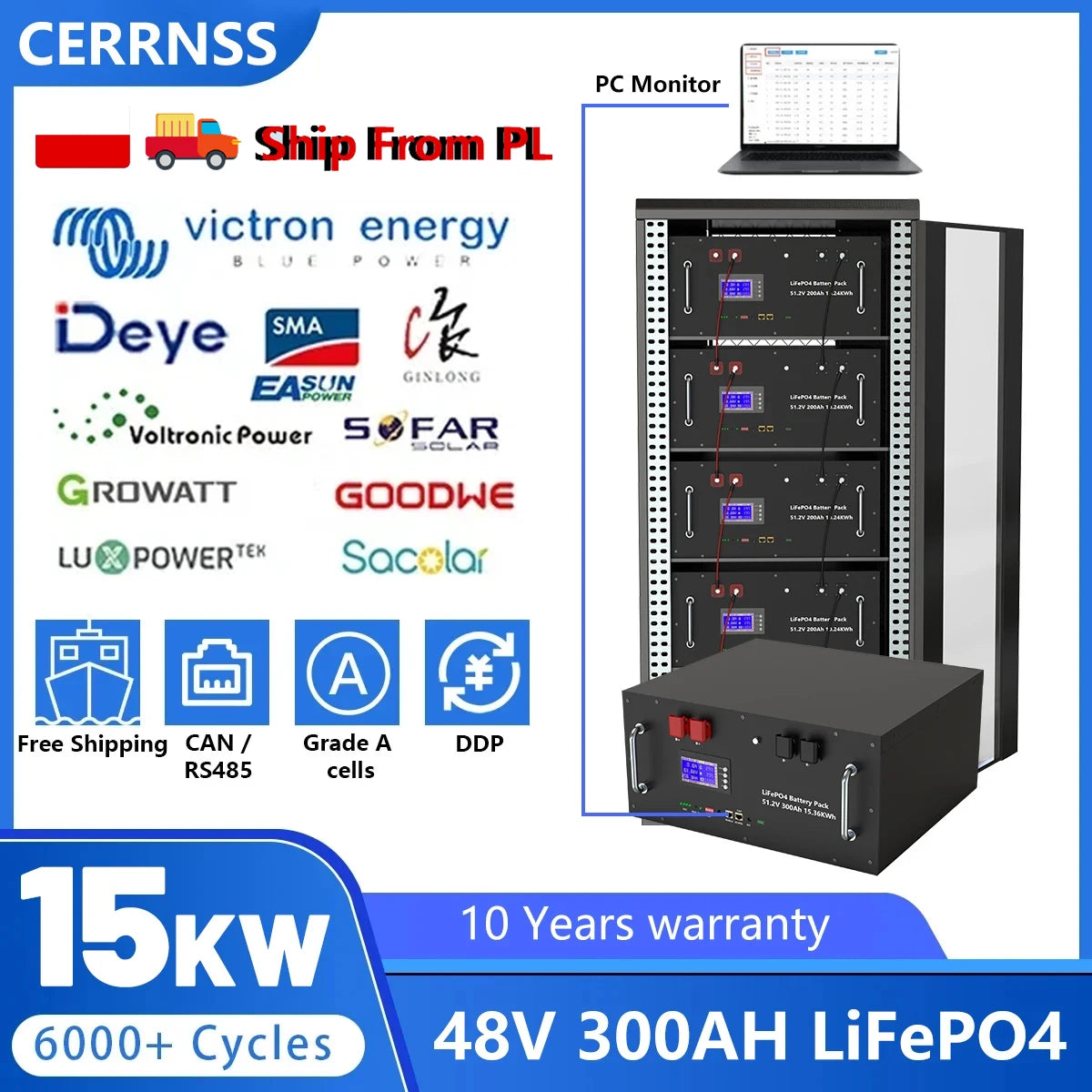

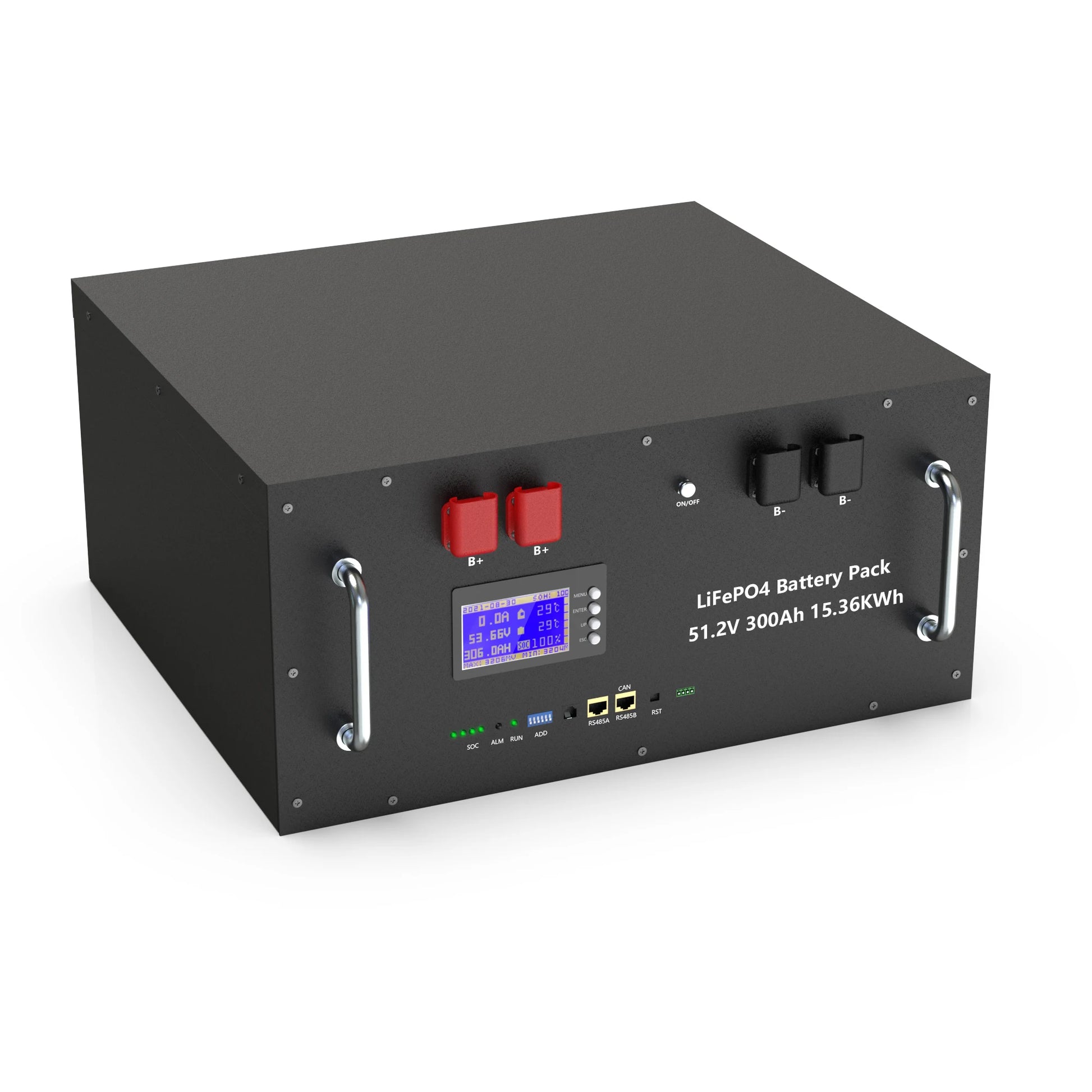

48V 300AH 15KWH Lifepo4 Battery with RS485 and CAN BUS

Battery specification:

BMS: Samrt 16S 200A (Support up to 32 pcs in parallel)

Cycle Life: ＞6000+ True cycles

Communication Protocol: CAN RS485*2

Nominal Voltage : 48v/51.2V

Charge Voltage: 58.4±0.4V

Rate Capacity : 300Ah

Energy Power : 15360WH

Max Charging Current: 200A

Max Discharging Current: 200A

Charging Temperature : -5~55°C

Discharging Temperature : -20~60°C

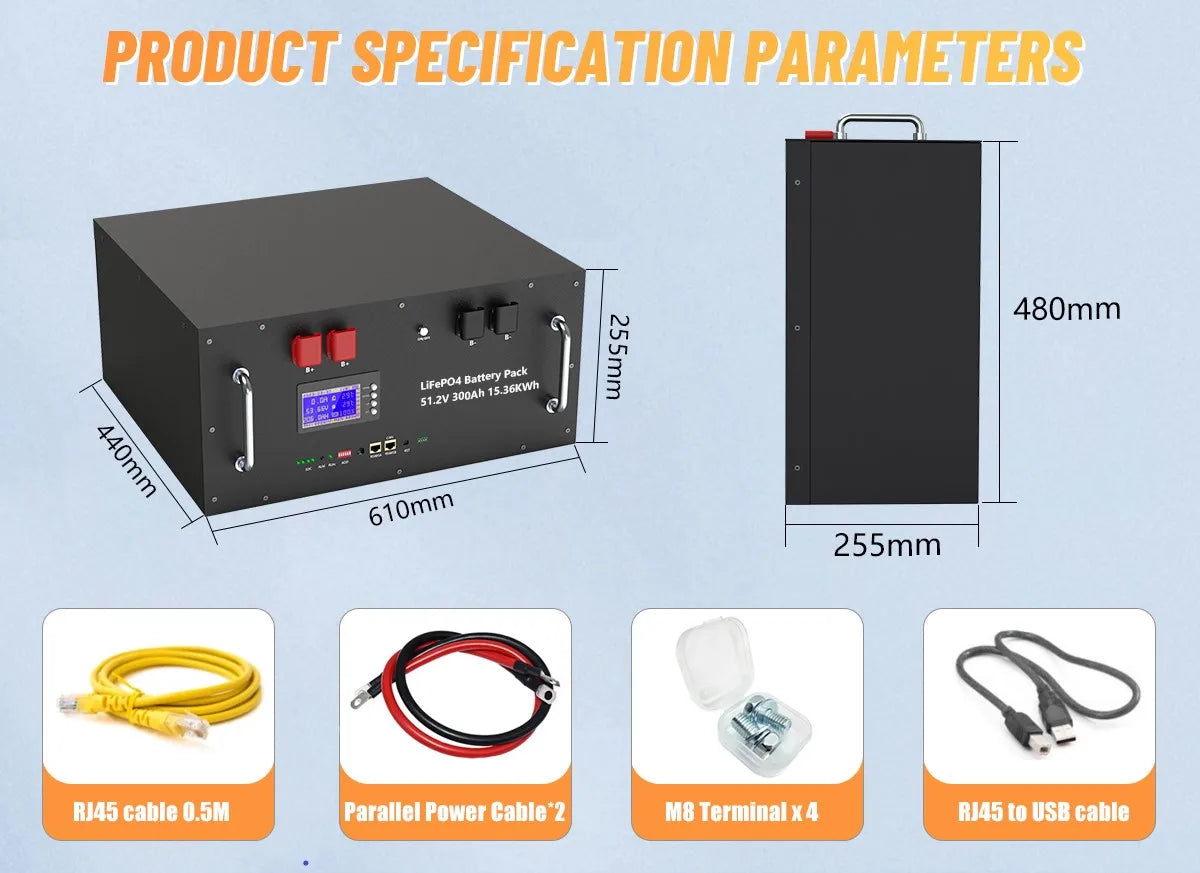

Dimensions(L*W*H) : 480*570*255mm

Terminal Type: Dual M8

Weight : 110KG

Battery warranty: 10 years

Replace any accessories and technical support free of charge during the warranty period.

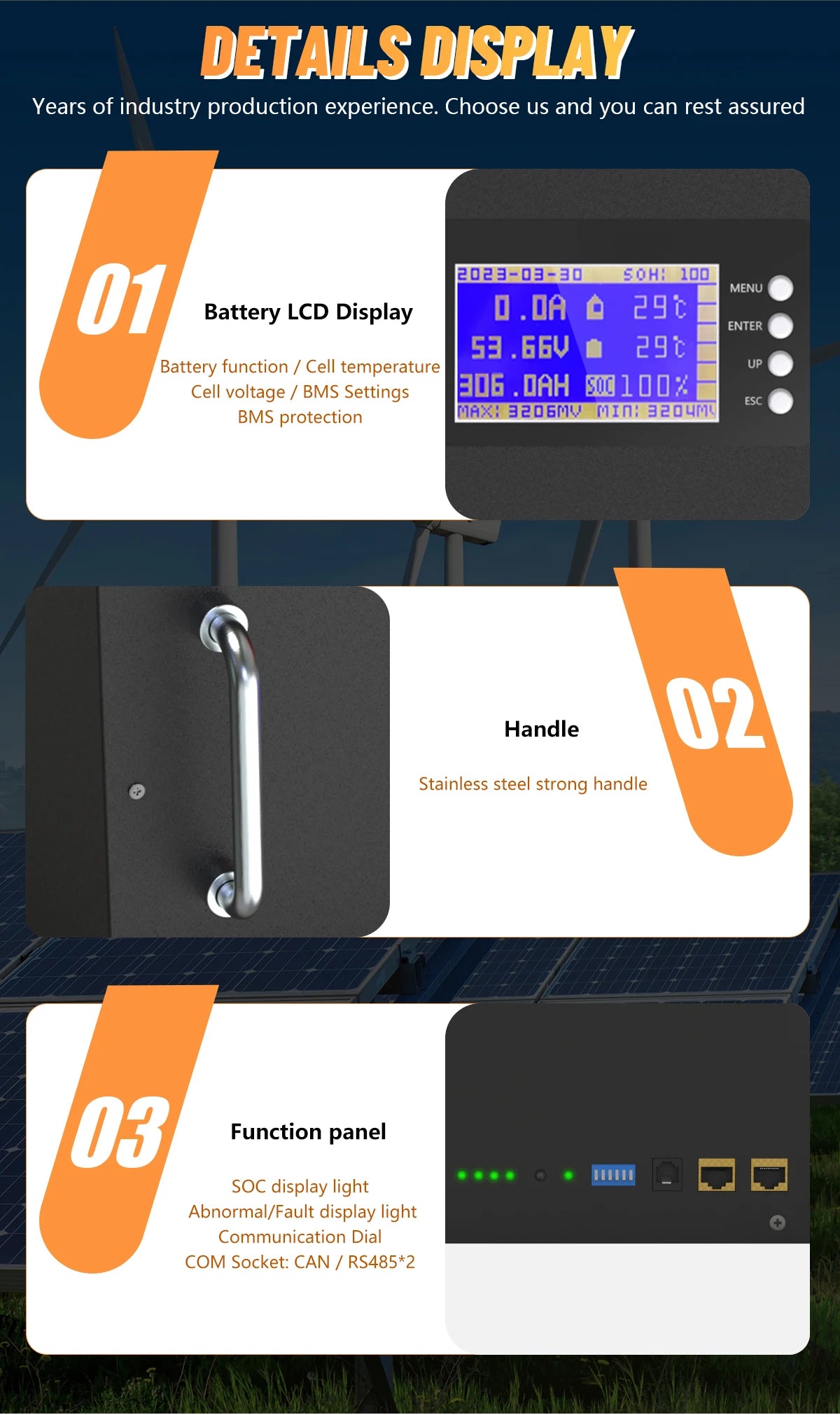

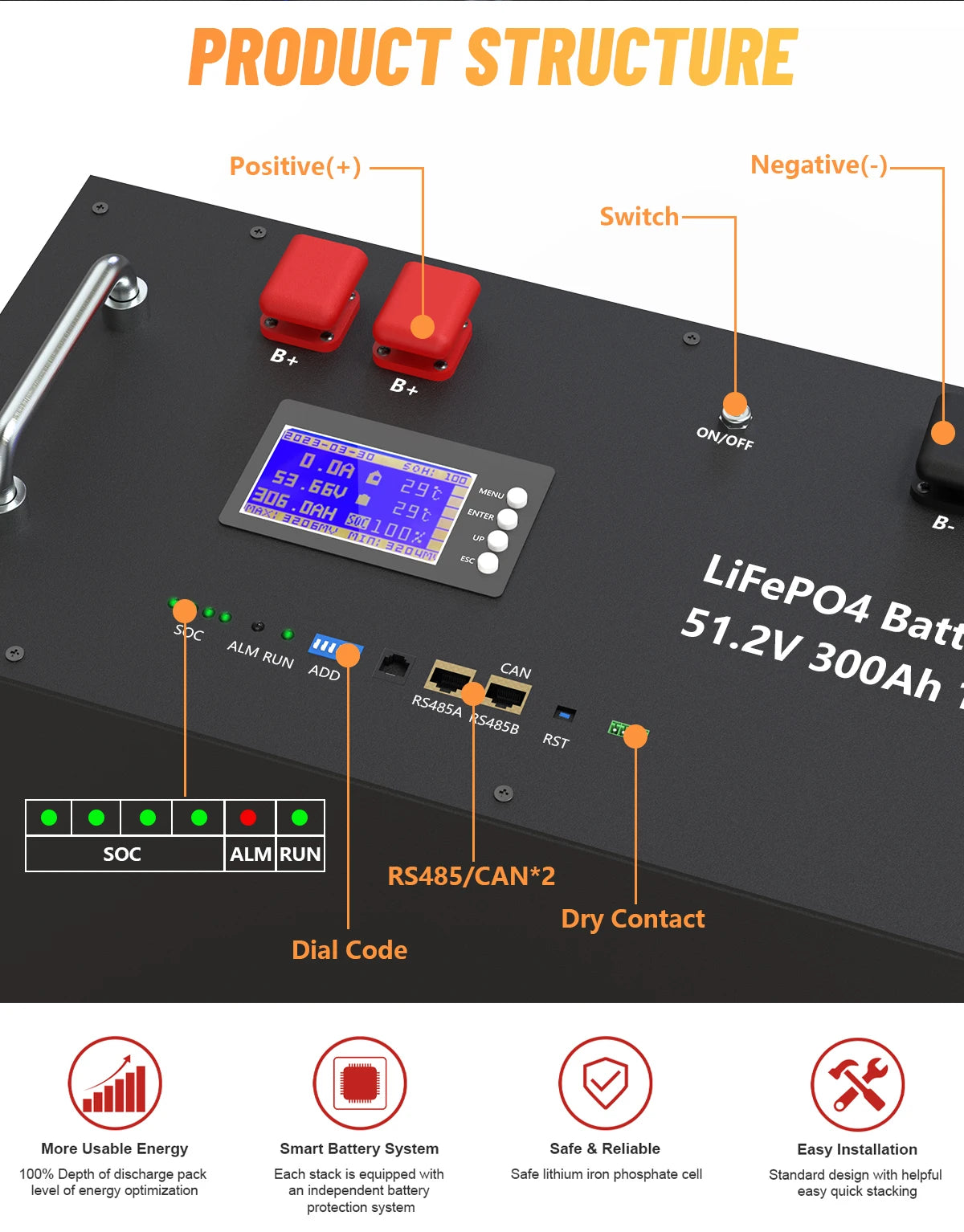

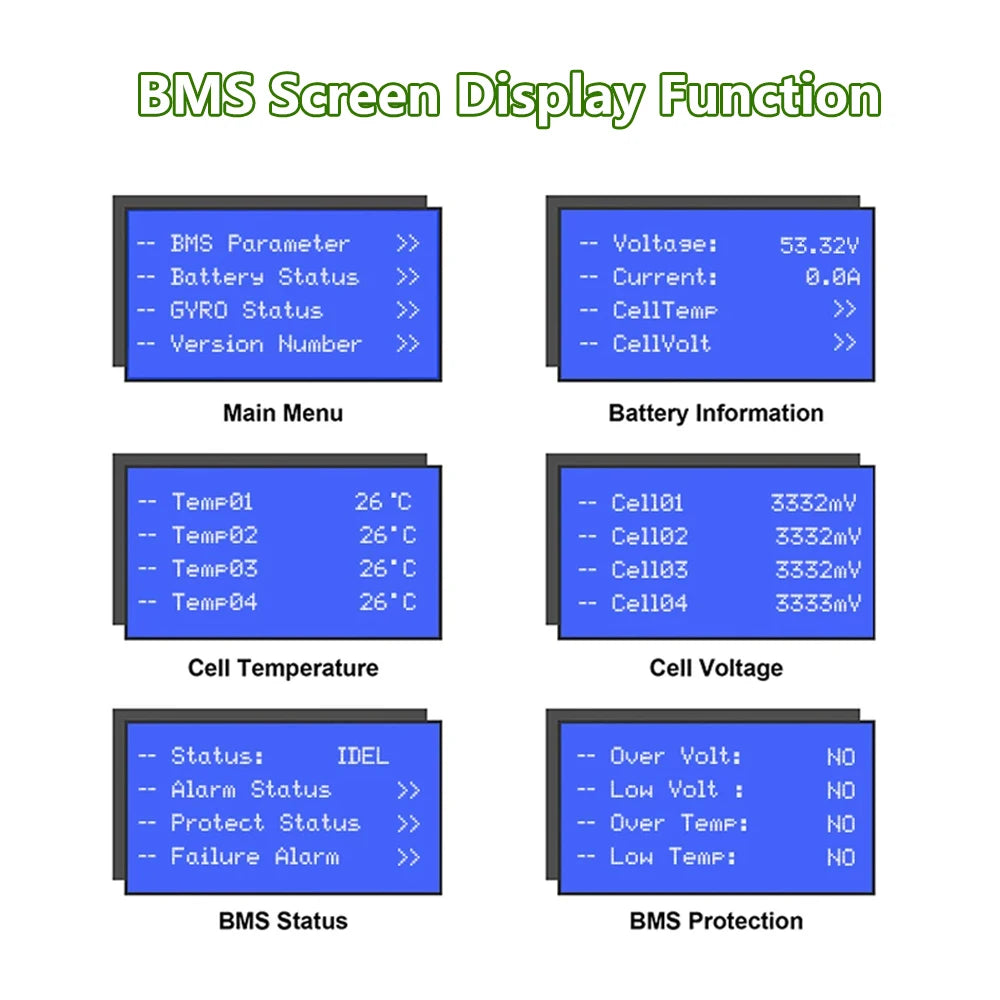

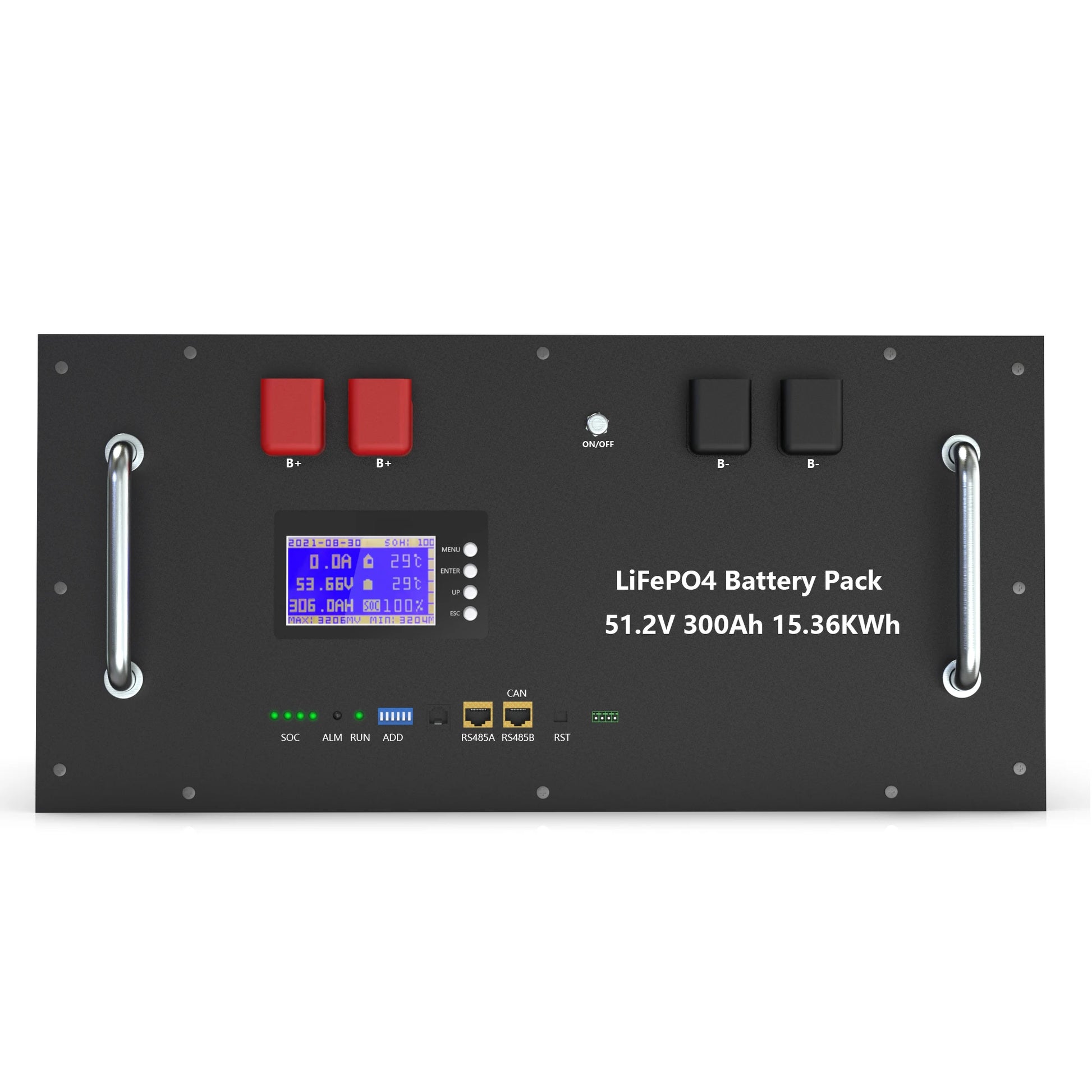

The battery has a display screen, which can display the overall voltage, capacity and current of the battery, as well as the voltage of the internal cells. The battery also has an RS-485 CAN communication port, which can also be connected to an external alarm device.

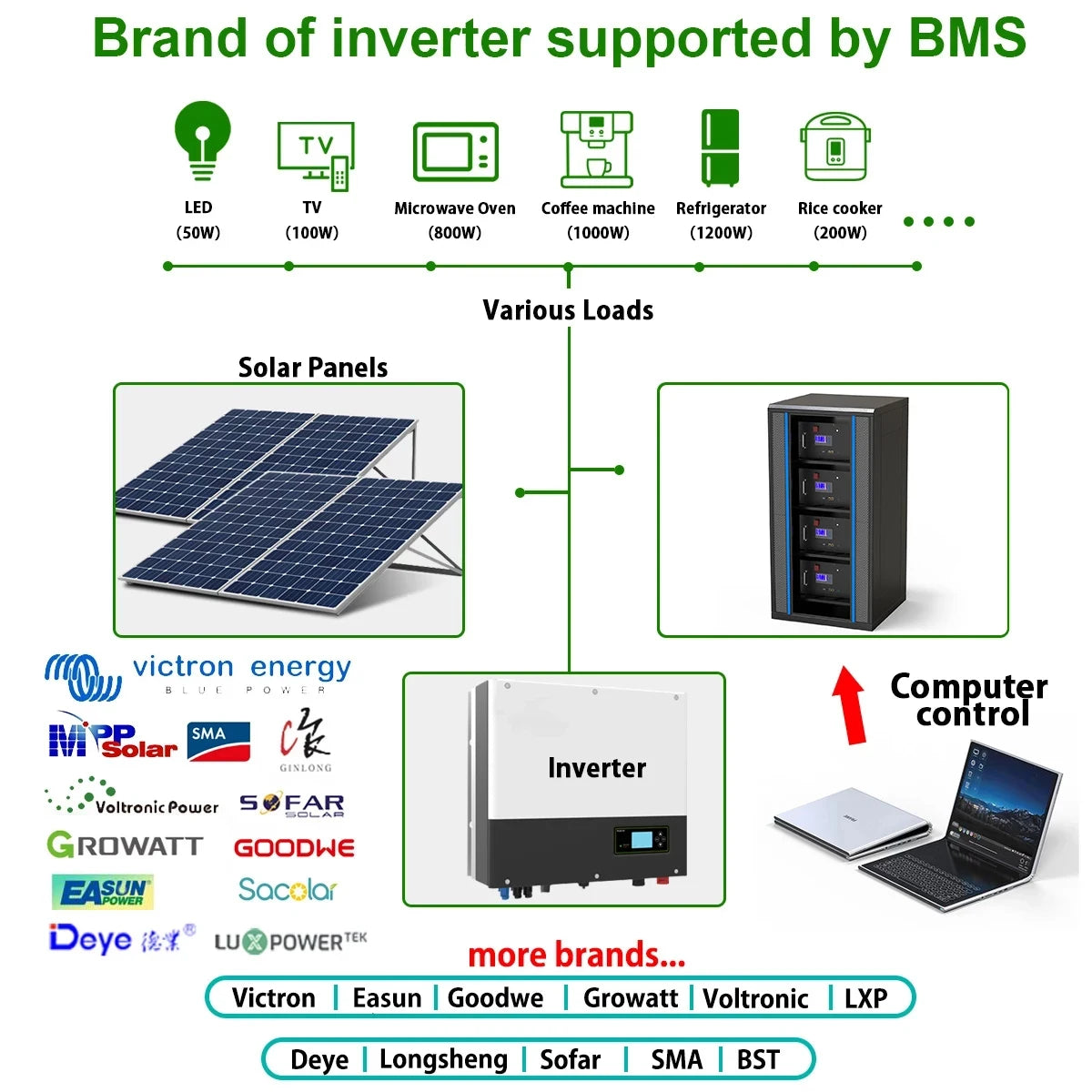

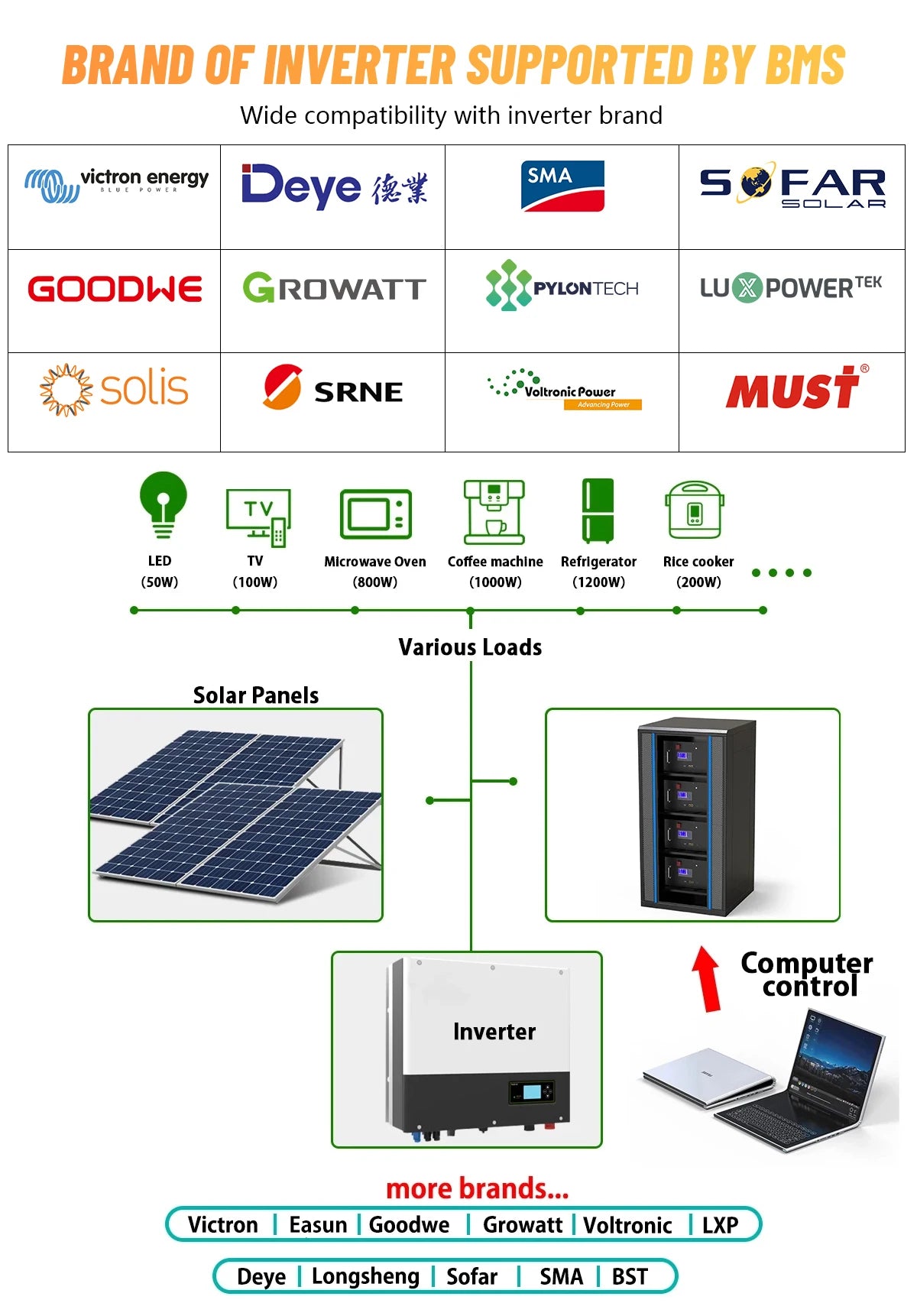

Compatible inverter brands list:
Victron, EASUN, Goodwe, Growatt, Voltronic, Deye, LXP, Sofar, GinLong, SMA and more.

if you have any questions,you can contact me any time,I will answer you!



Advantages of Our Batteries

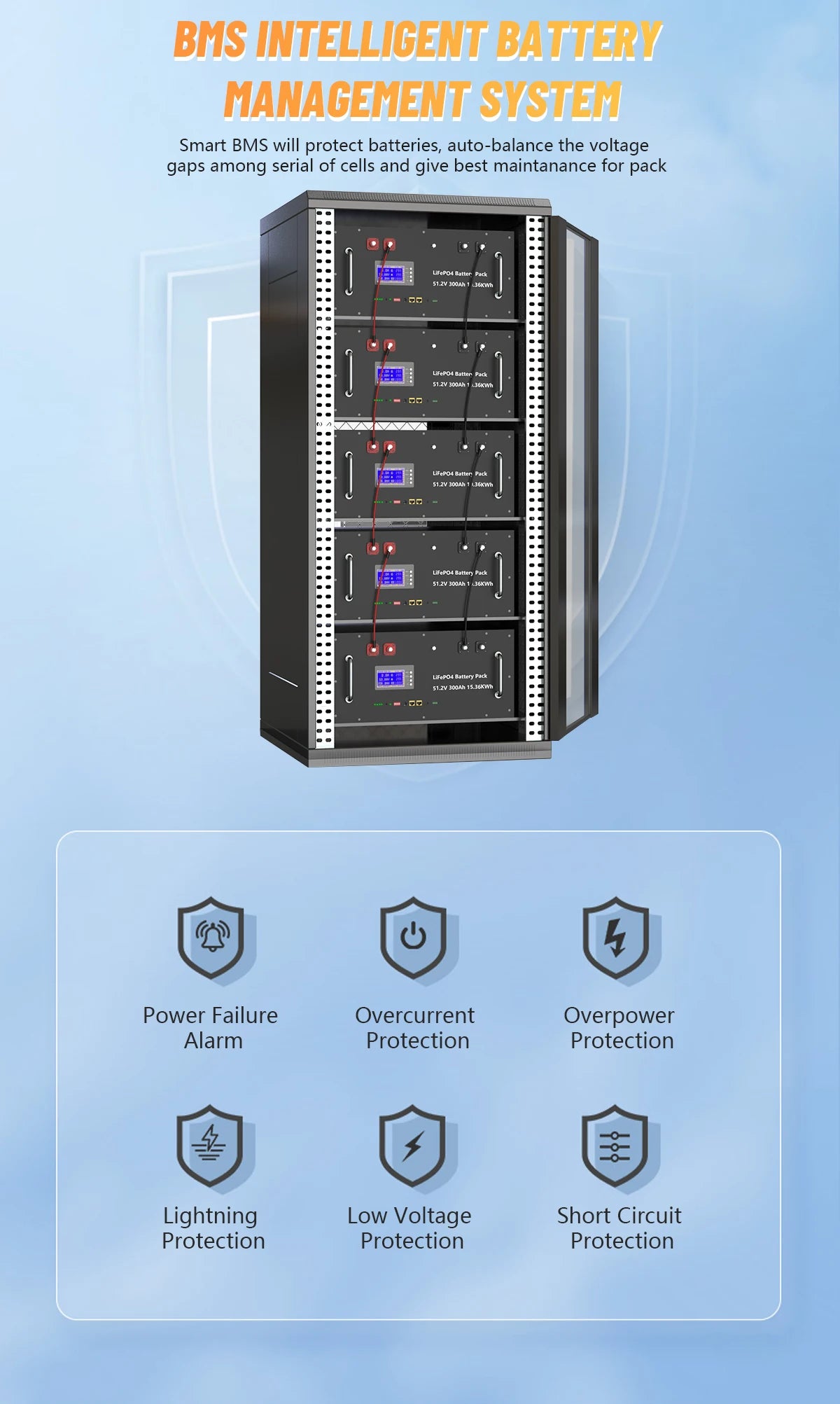

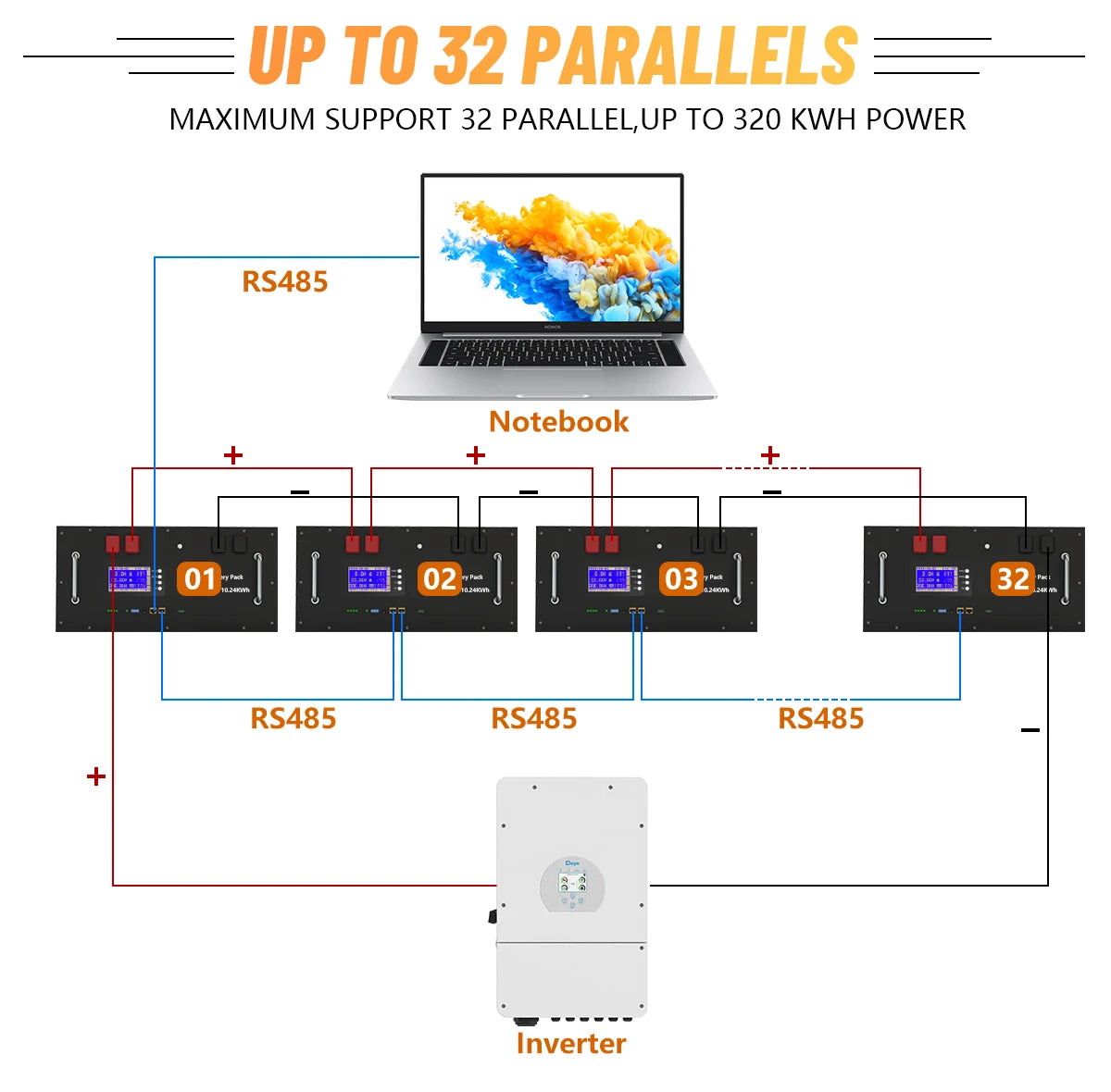

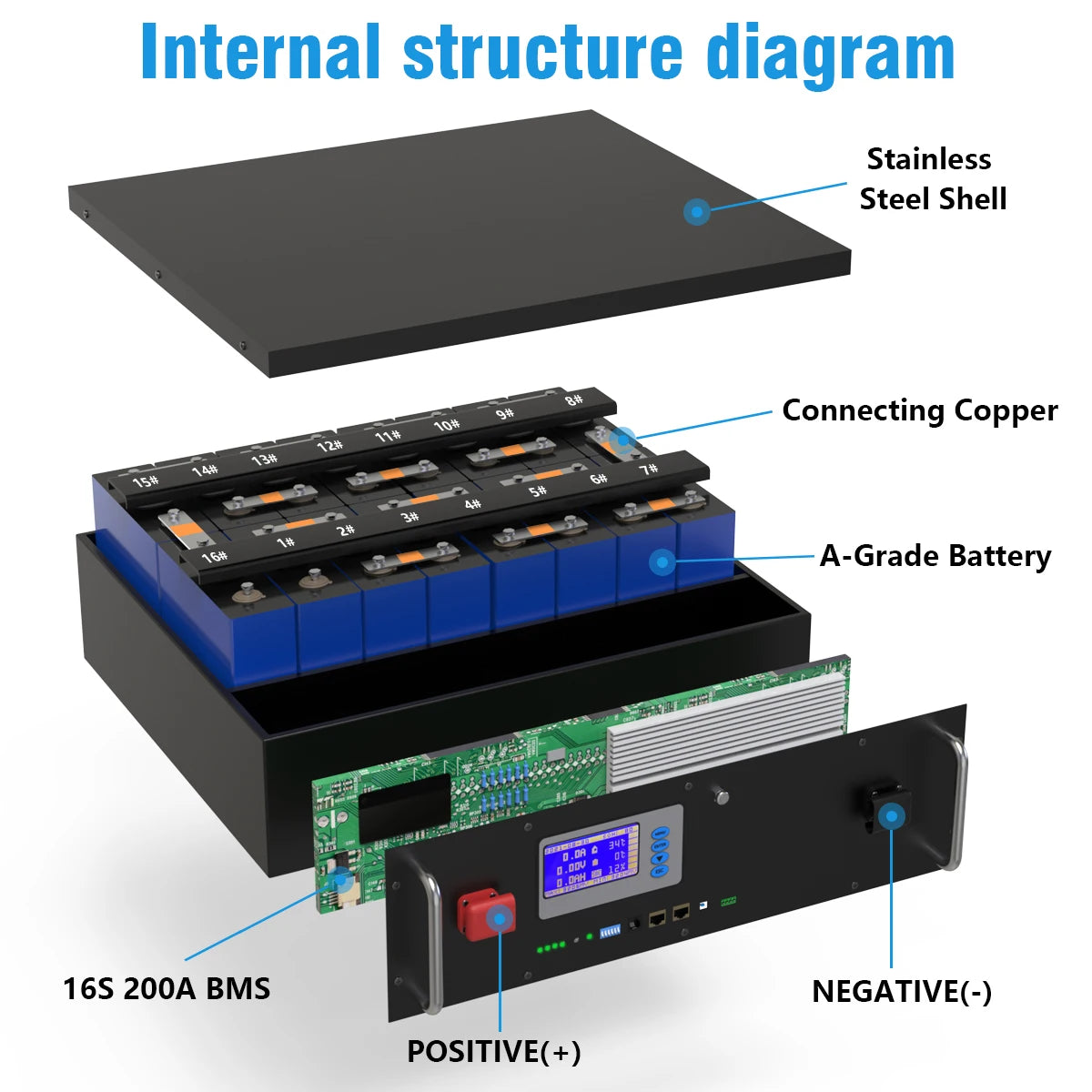

Built-in 16S 200A smart BMS.CERRNSS battery can support max of 32pcs in parallel connection. The voltage difference is less than 1mv for each cell.

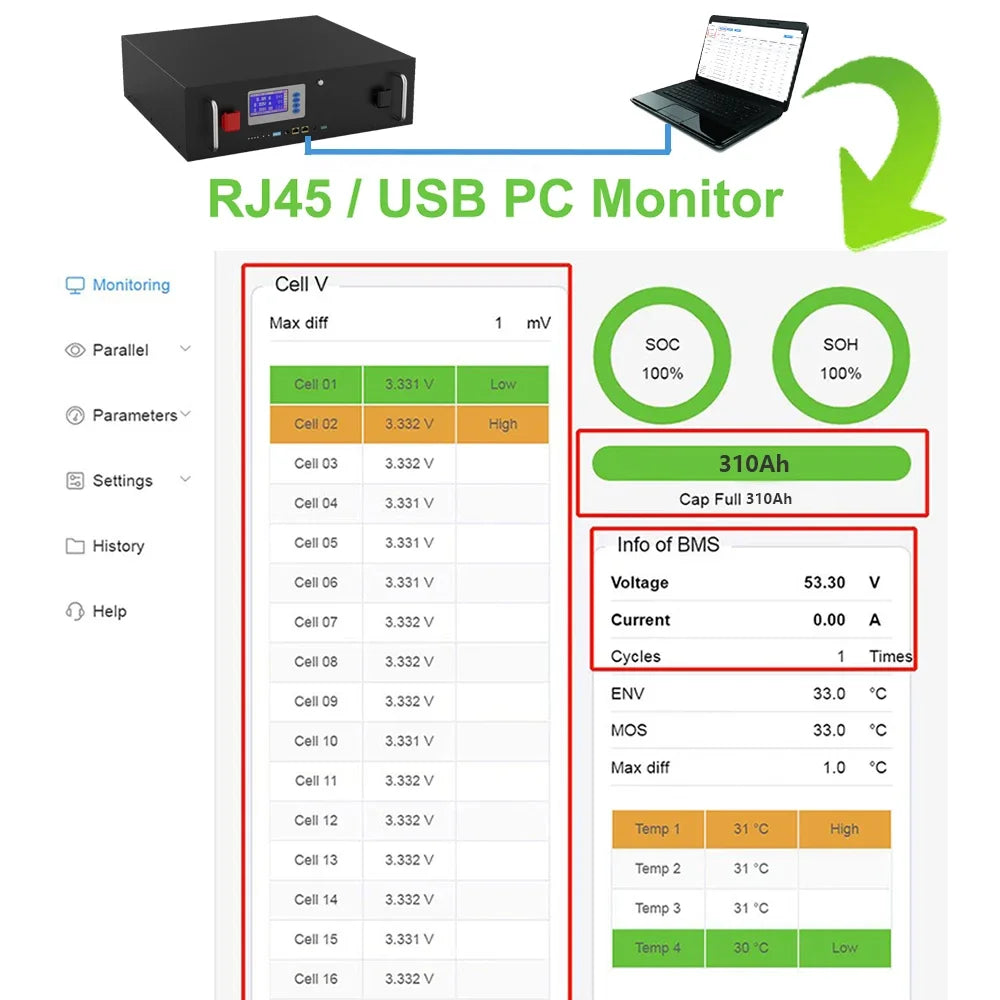

The battery can also check the internal cell voltage and capacity of the battery on the computerCan monitor and adjust battery data

The battery package comes with positive and negative cables, bolts, RS485 connection cable and RJ45-USB connection cable, which are packed firmly and reinforced with wooden boxes for safe and reliable transportation.
