SPECIFICATIONS

Brand Name: NONE

High-concerned chemical: None

Model Number: CWT-soil

Origin: Mainland China

If there is no stock available when you place an order, please contact us to increase the stock. Thank you.

Important Reminder

The measurement of NPK adopts the general rapid detection method, so there are certain error, Use with caution for planting reference.

However, the sensor supports the function of writing NPK data. You can use standard instruments to measure NPK then write in to provide data for monitoring system.

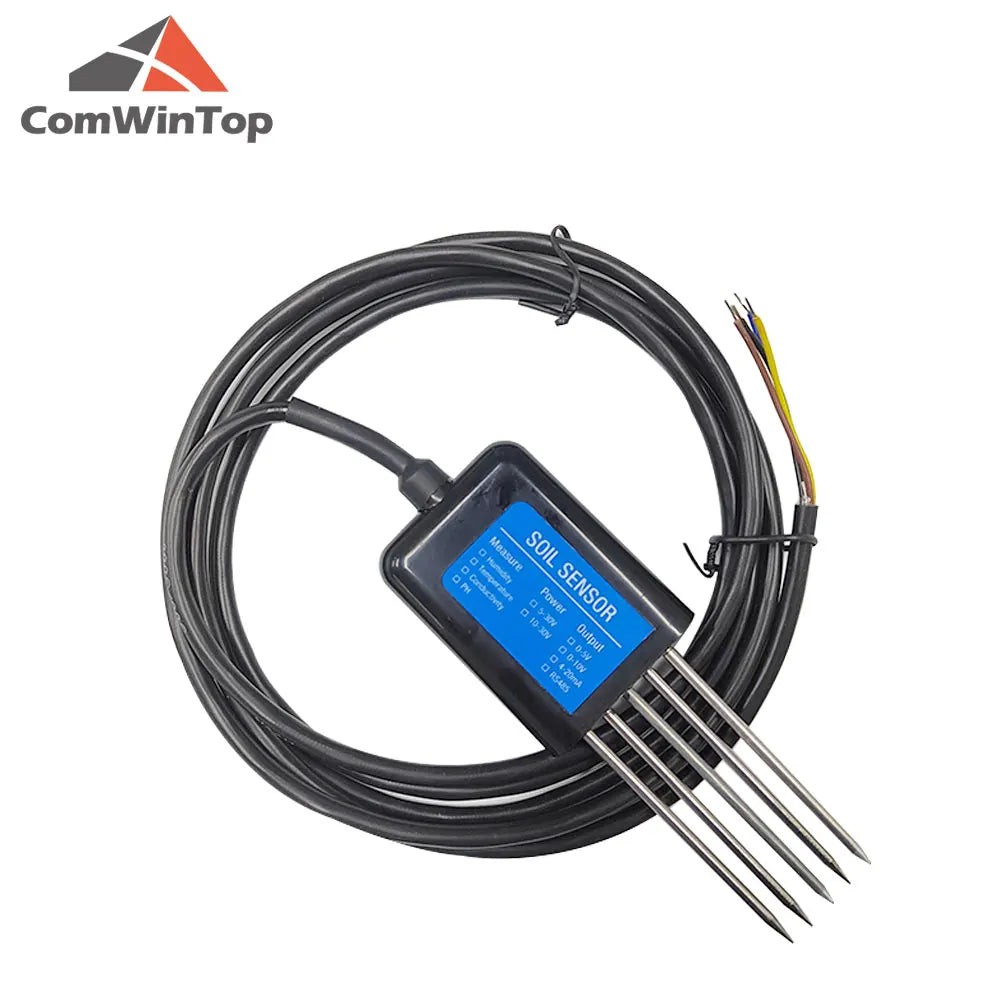

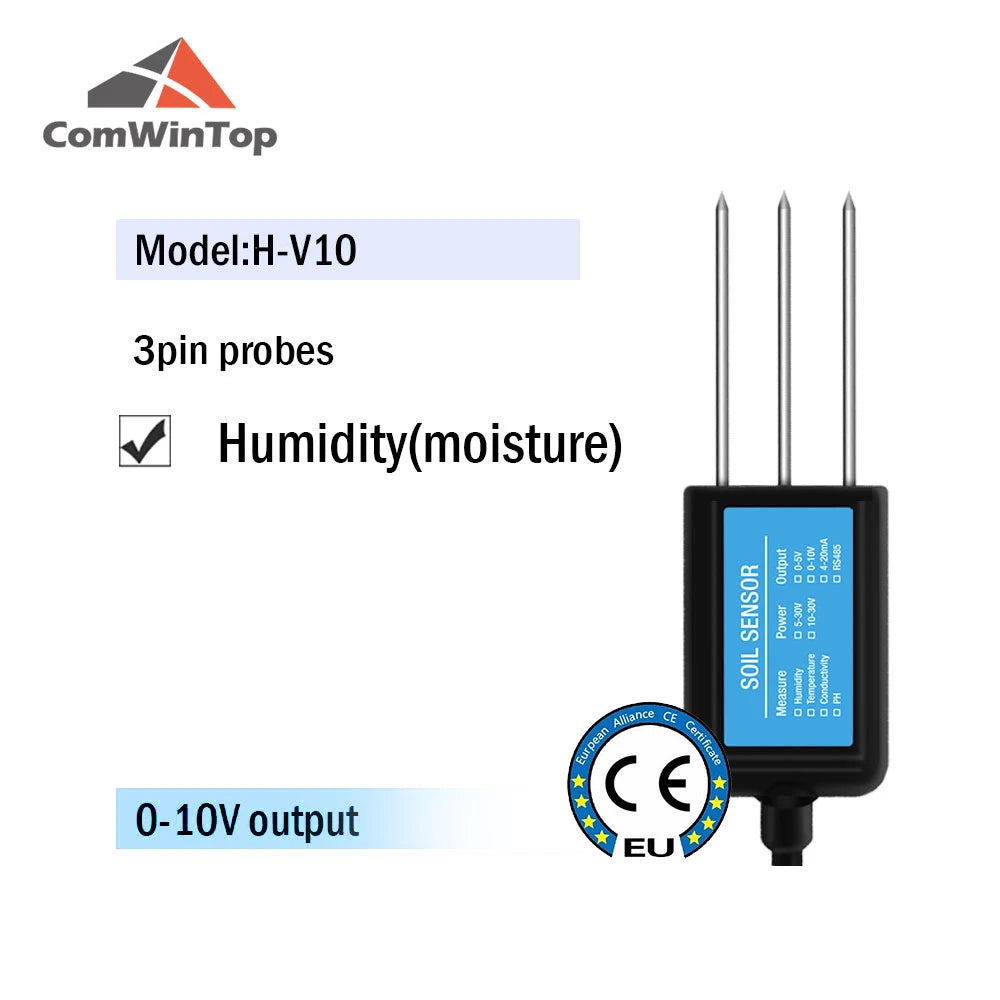

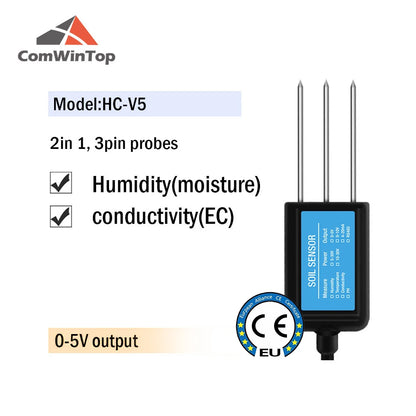

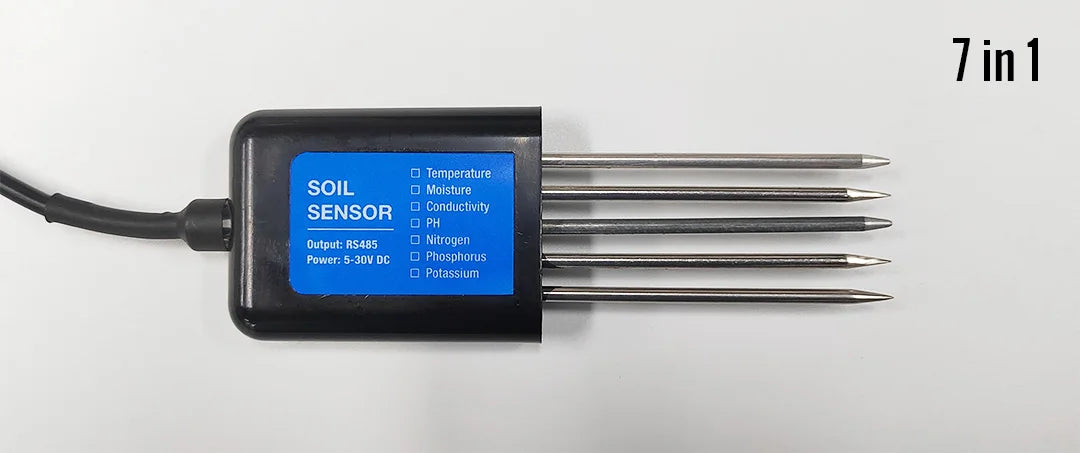

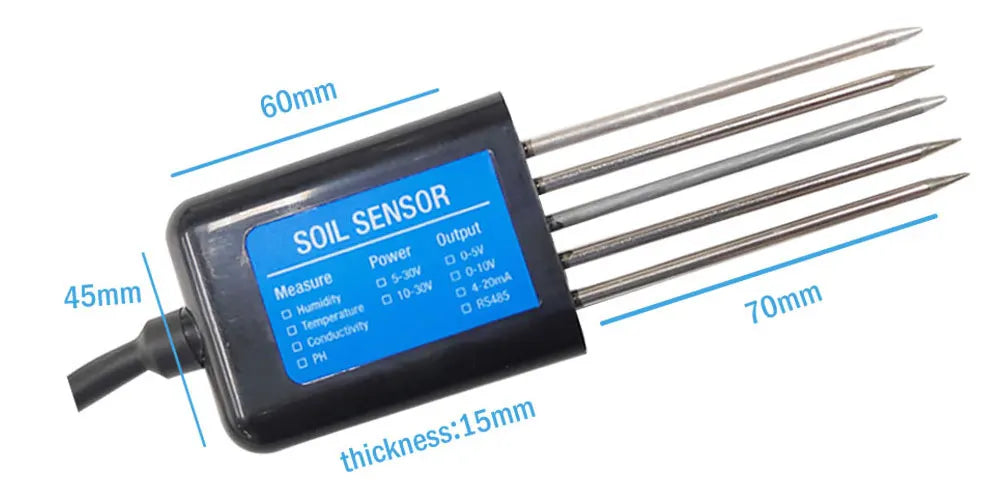

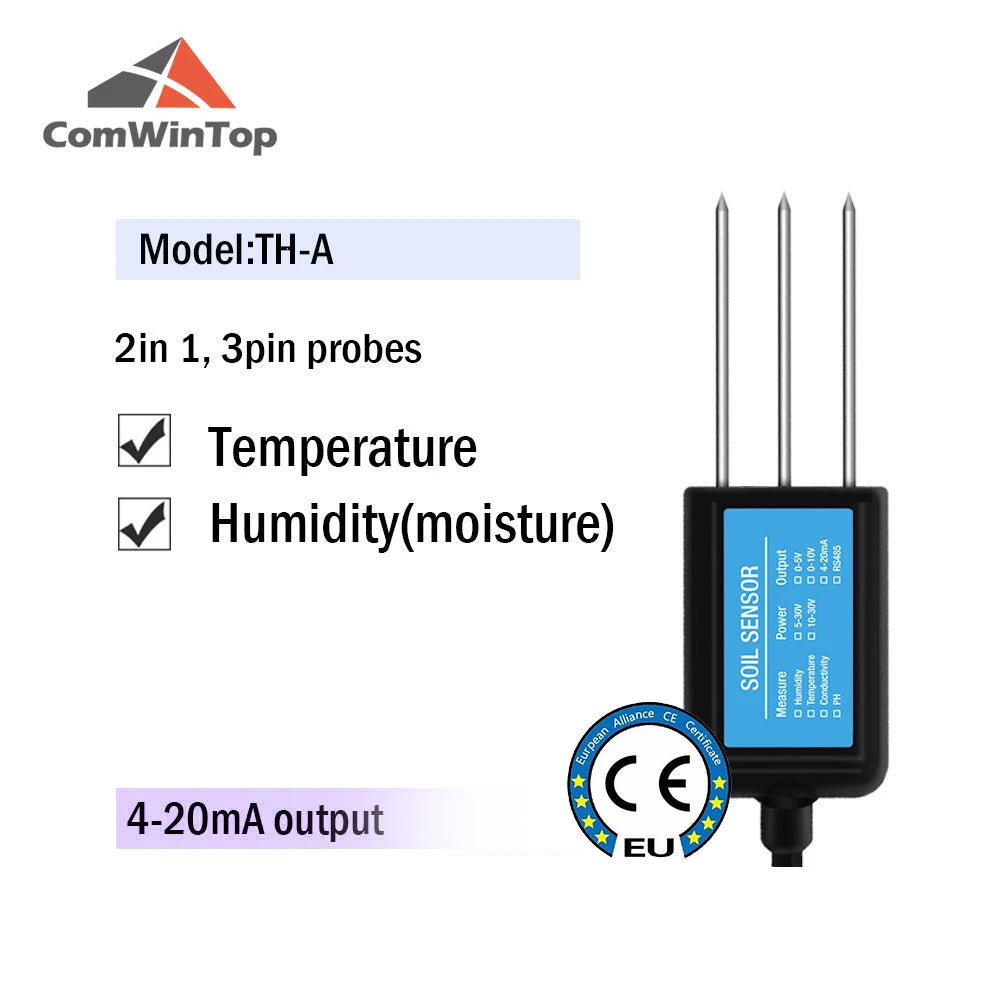

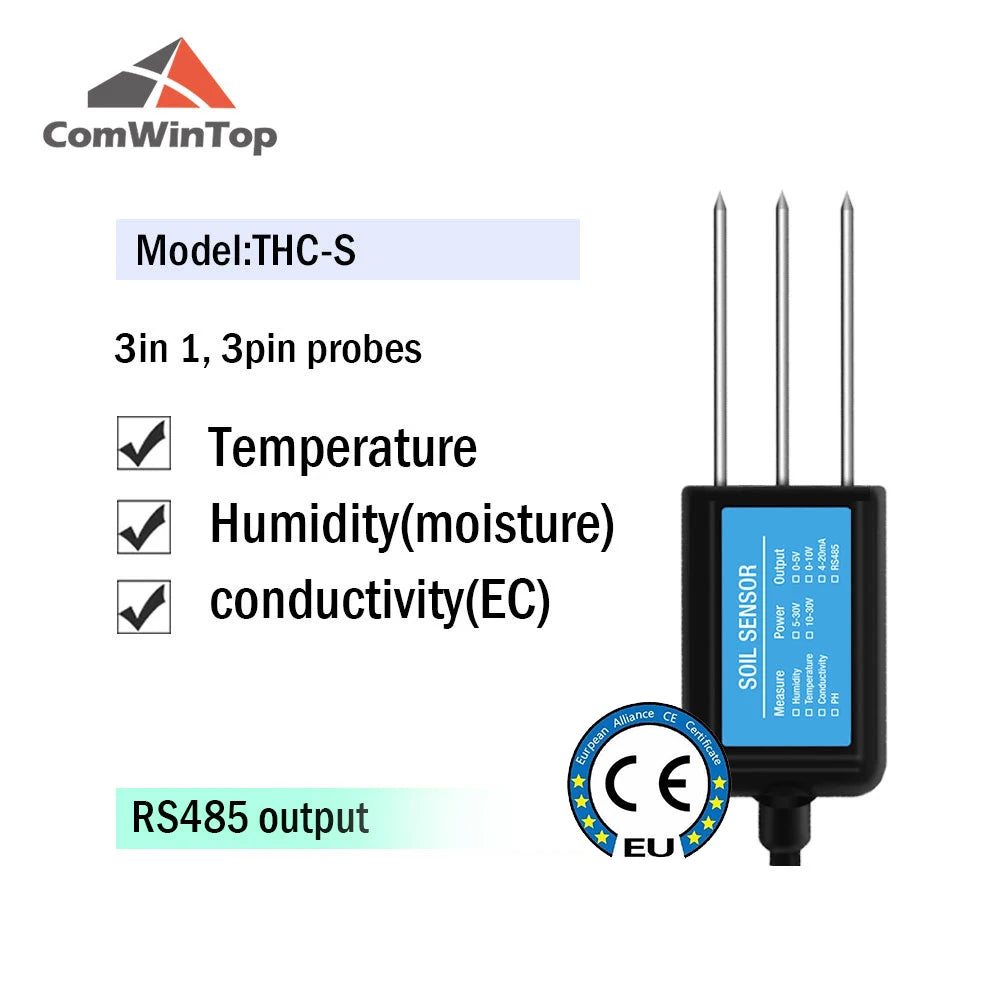

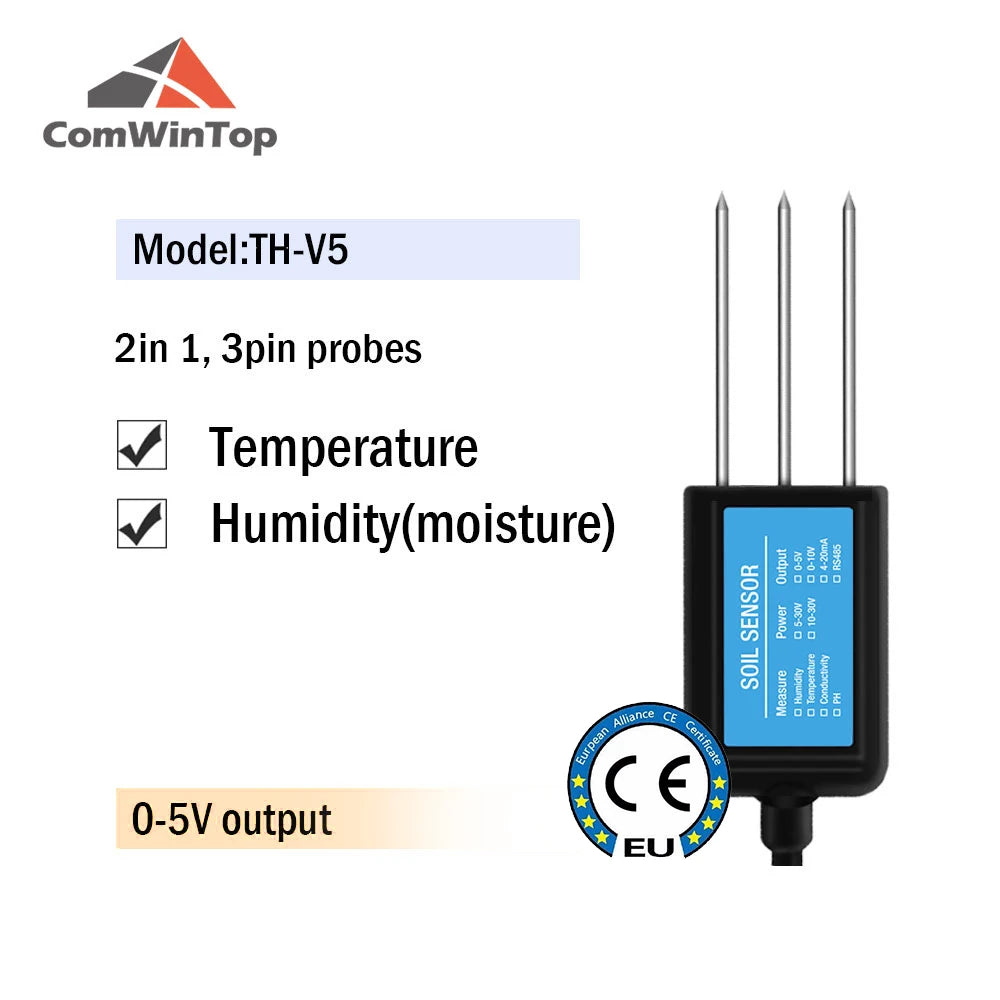

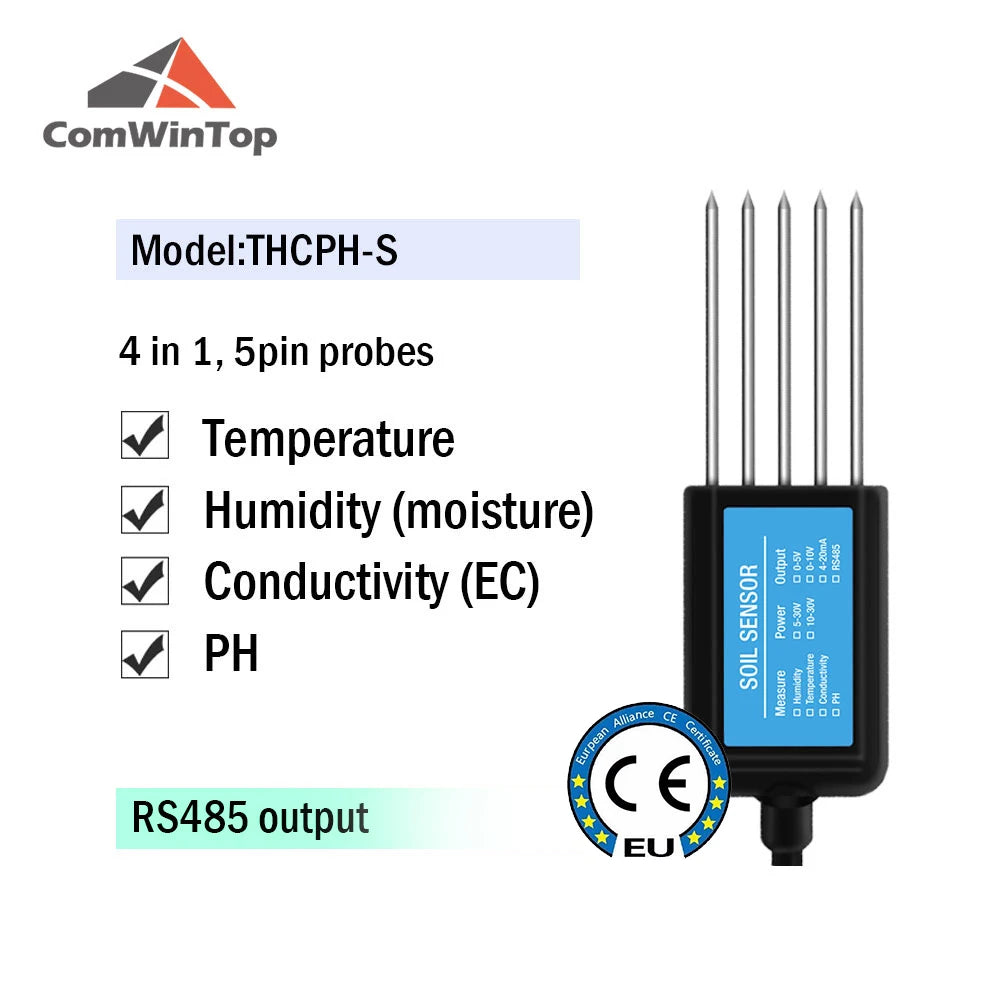

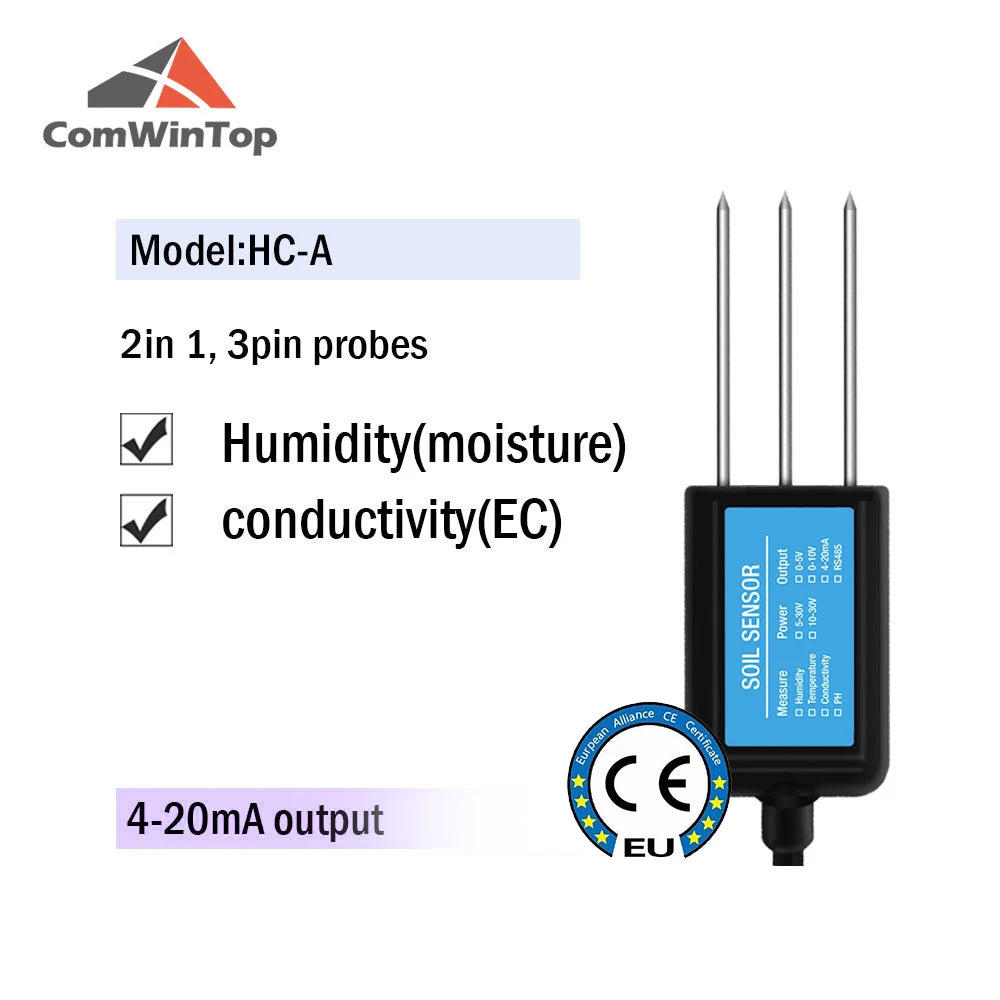

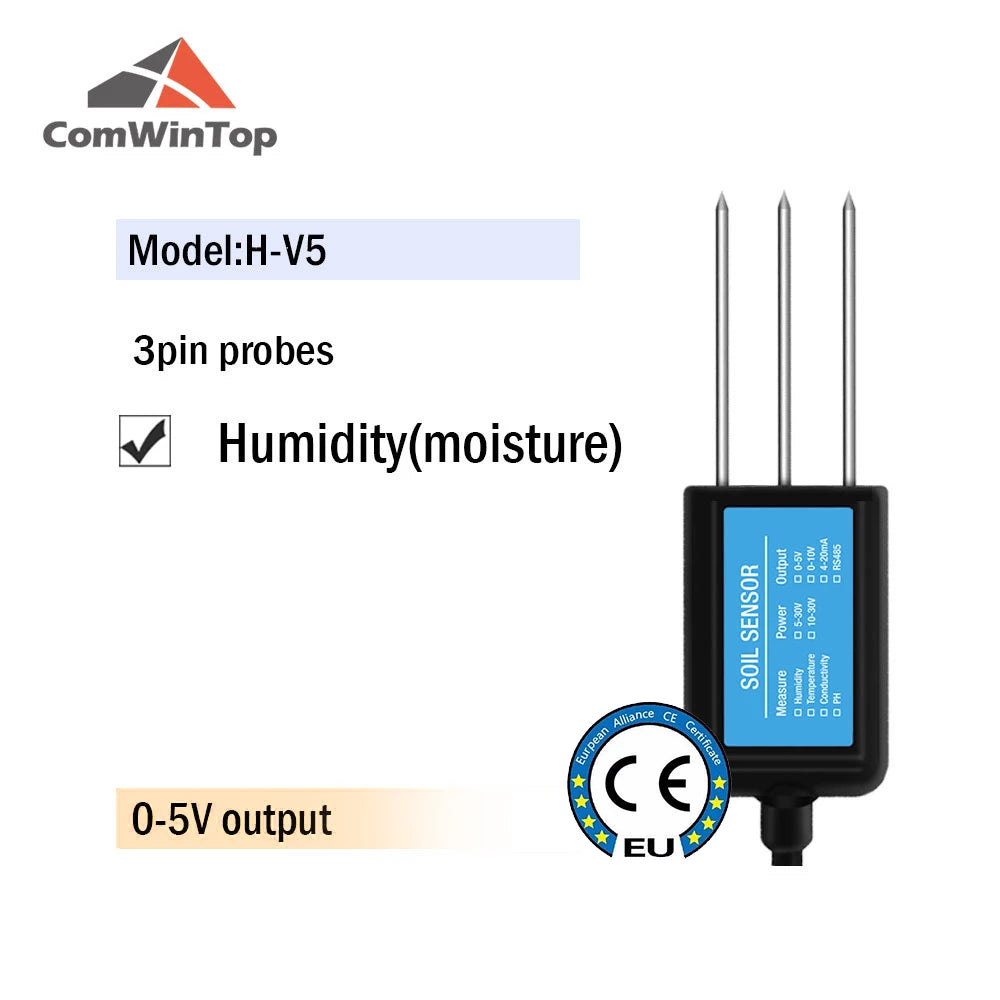

RS485 4-20mA Soil Temperature Humidity Moisture Conductivity EC PH Sensor

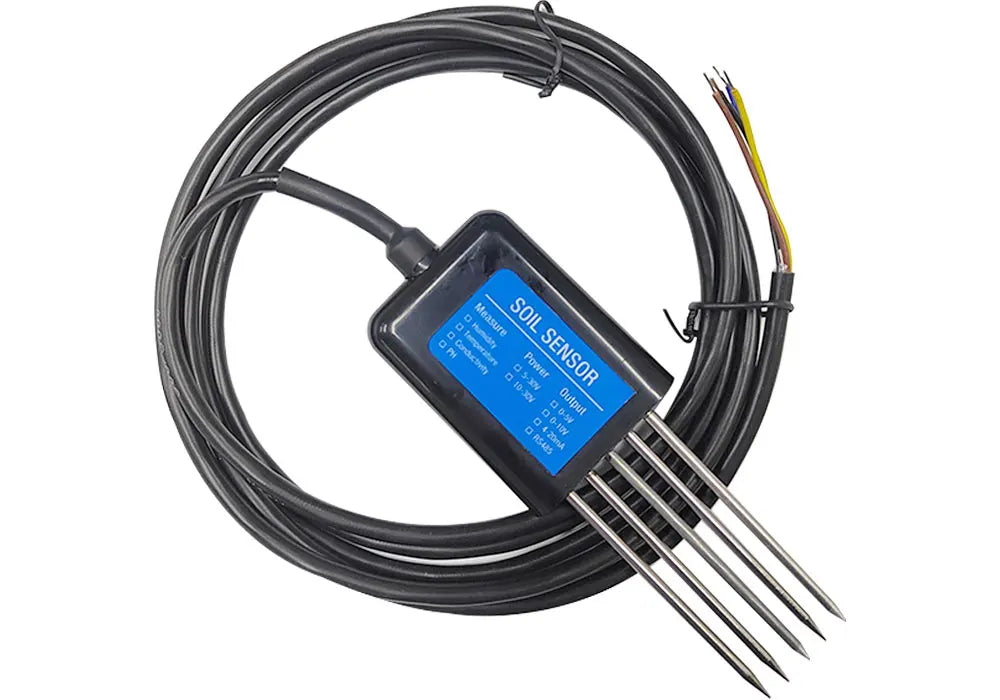

CWT-SOIL sensor is for soil temperature and moisture, PH, conductivity (EC),measurement, compared with the original German high-precision sensors and soil drying method of weighing the actual calibration, high precision, fast response, stable output. By the soil salt content of small, suitable for all kinds of soil. Long-term buried in the soil, resistant to long-term electrolysis, corrosion resistance, vacuum potting, completely waterproof.

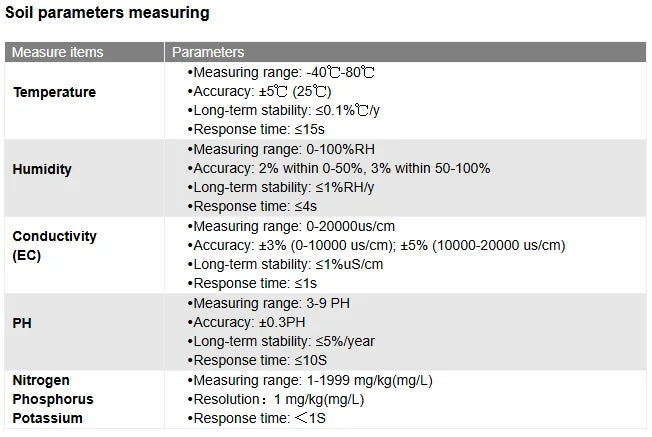

Soil parameters measuring

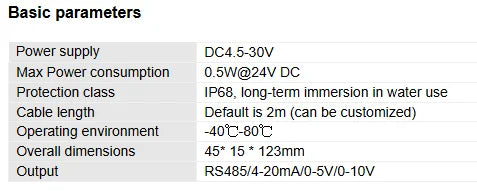

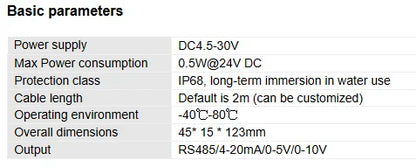

Basic parameters

Functions and Features
(1) The sensor compact design, easy to carry, installation, operation and maintenance.

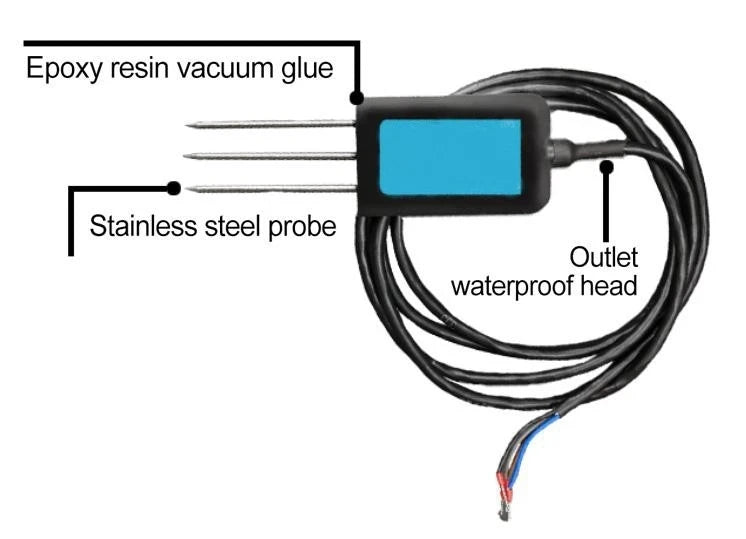

(2) reasonable structure design, stainless steel probe life assurance.
(3) soil less affected areas are widely used.
(4) High measurement accuracy, reliable performance, ensure proper operation
(5) fast response, high data transmission efficiency.

Applicable to the field of water-saving irrigation, greenhouse vegetables, flowers, gardening, grass pastures, soil-speed measurement, plant cultivation, scientific testing.

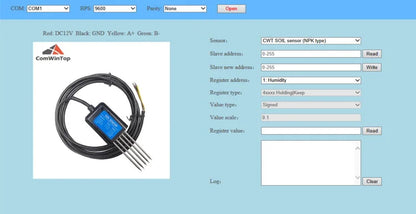

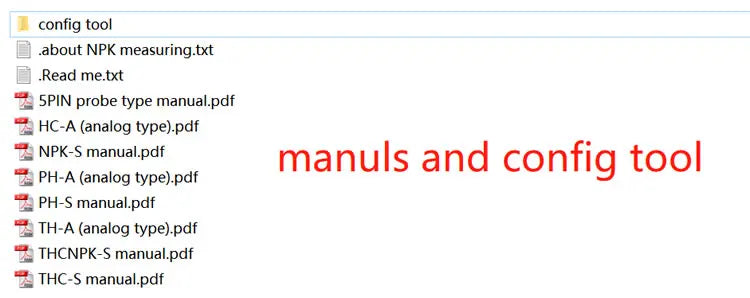

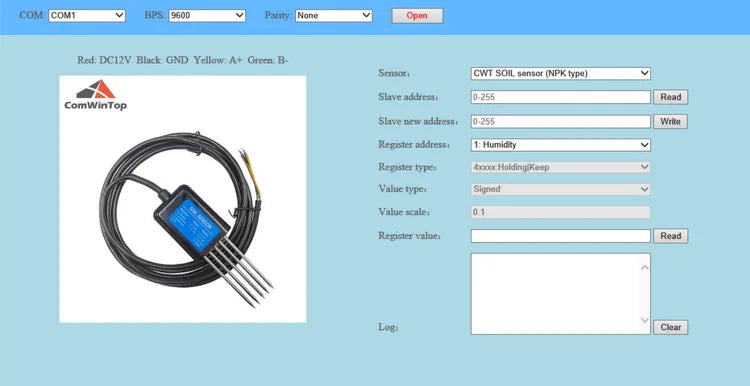

Provide config tool

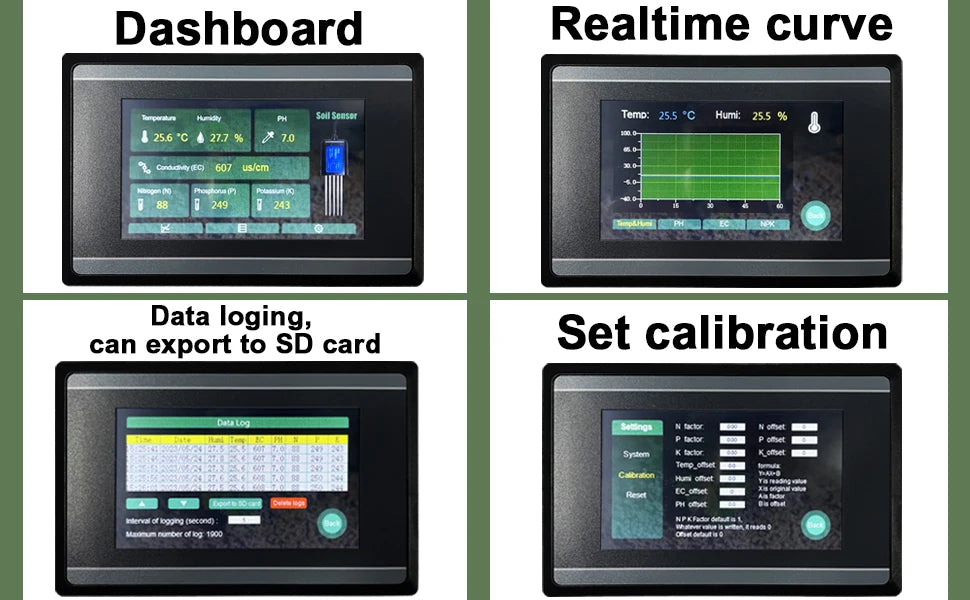

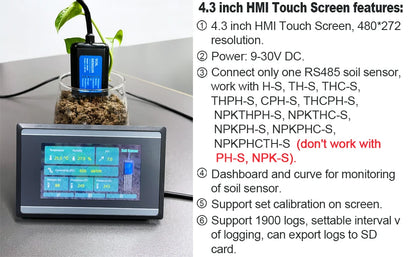

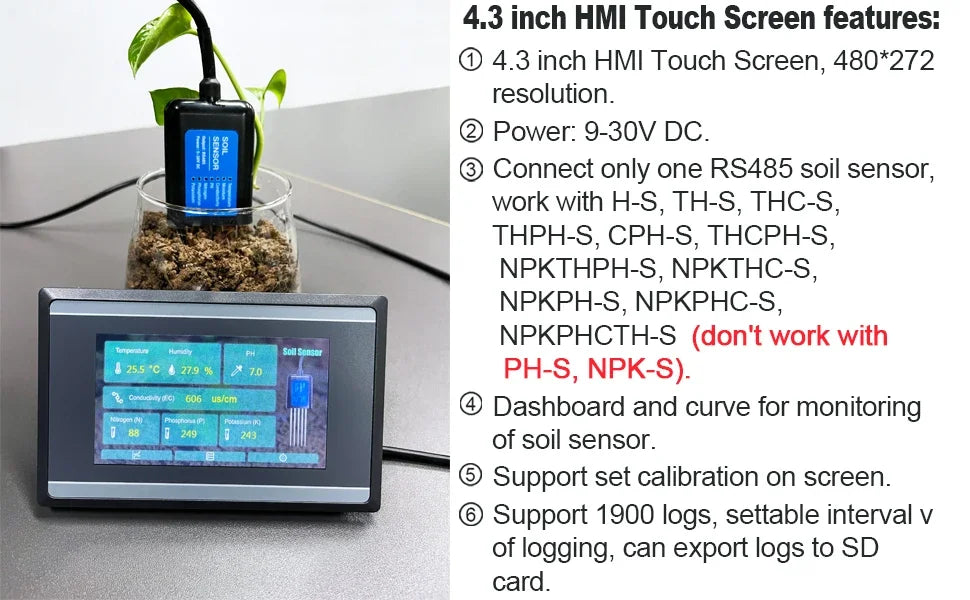

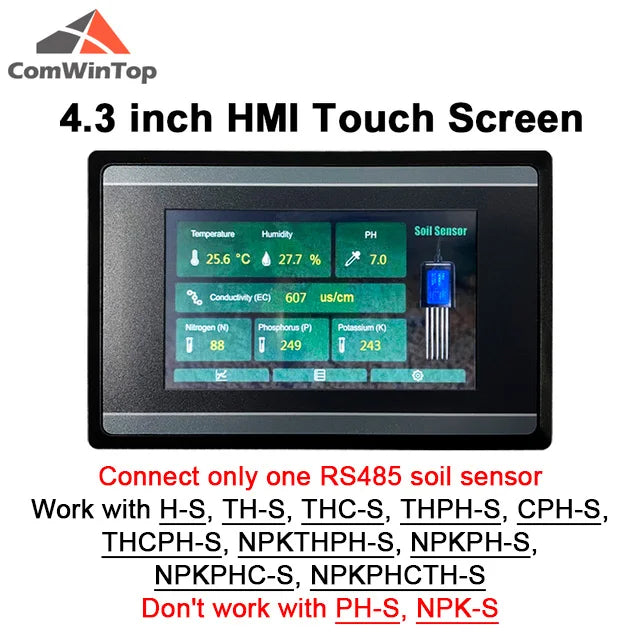

4.3 inch HMI Touch Screen features:

1. 4.3 inch HMI Touch Screen, 480*272 resolution

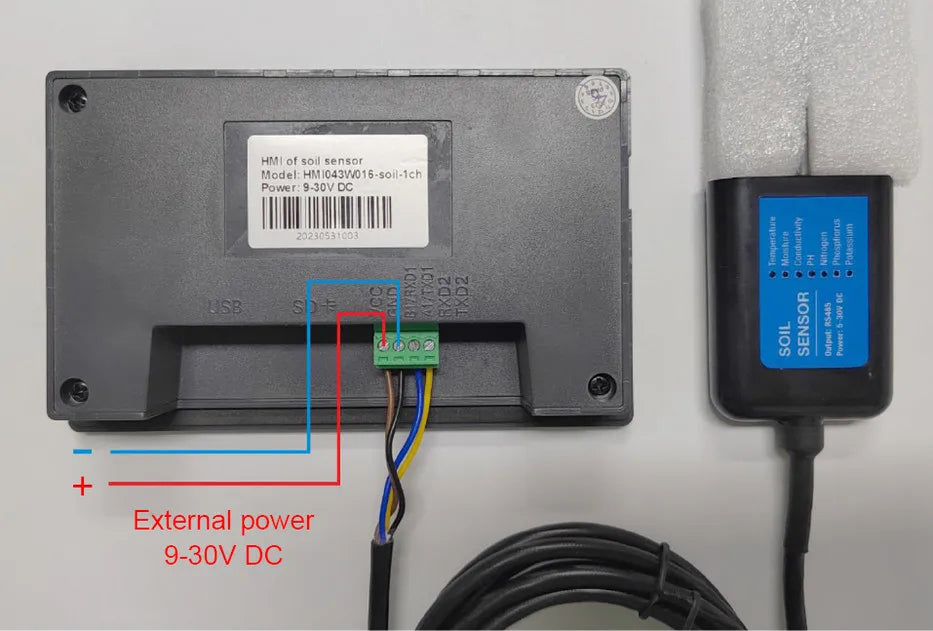

2. Power: 9-30V DC

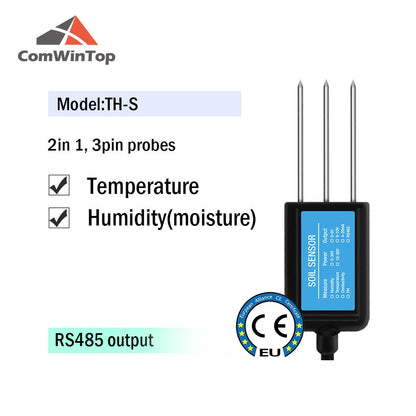

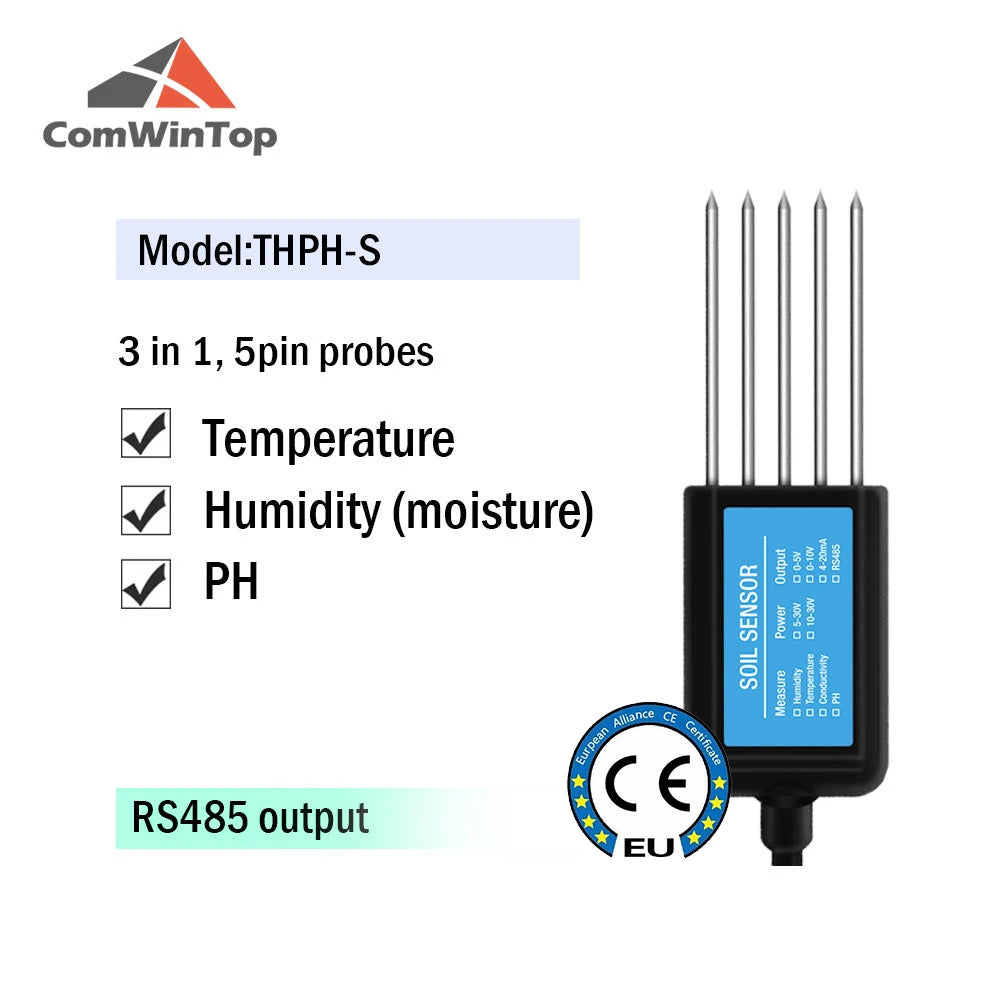

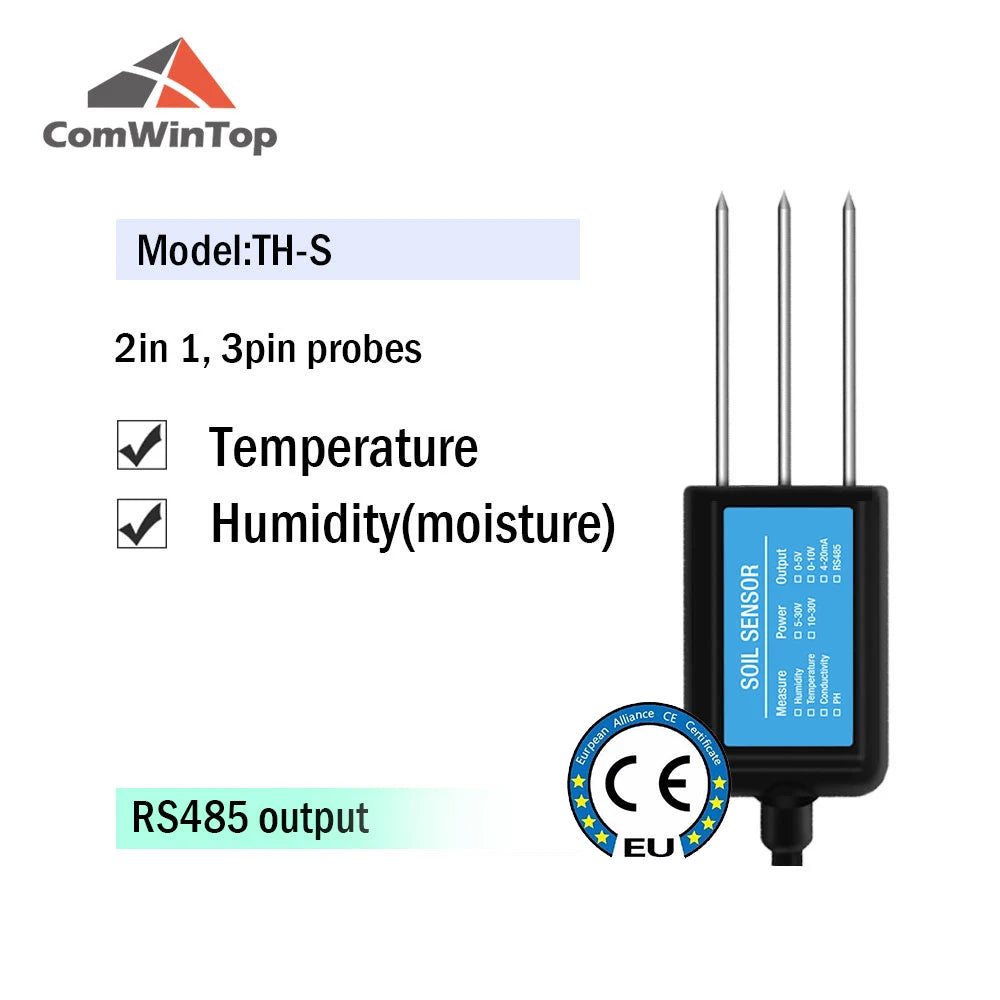

3. Connect only one RS485 soil sensor, work with H-S, TH-S, THC-S, THPH-S, CPH-S, THCPH-S,

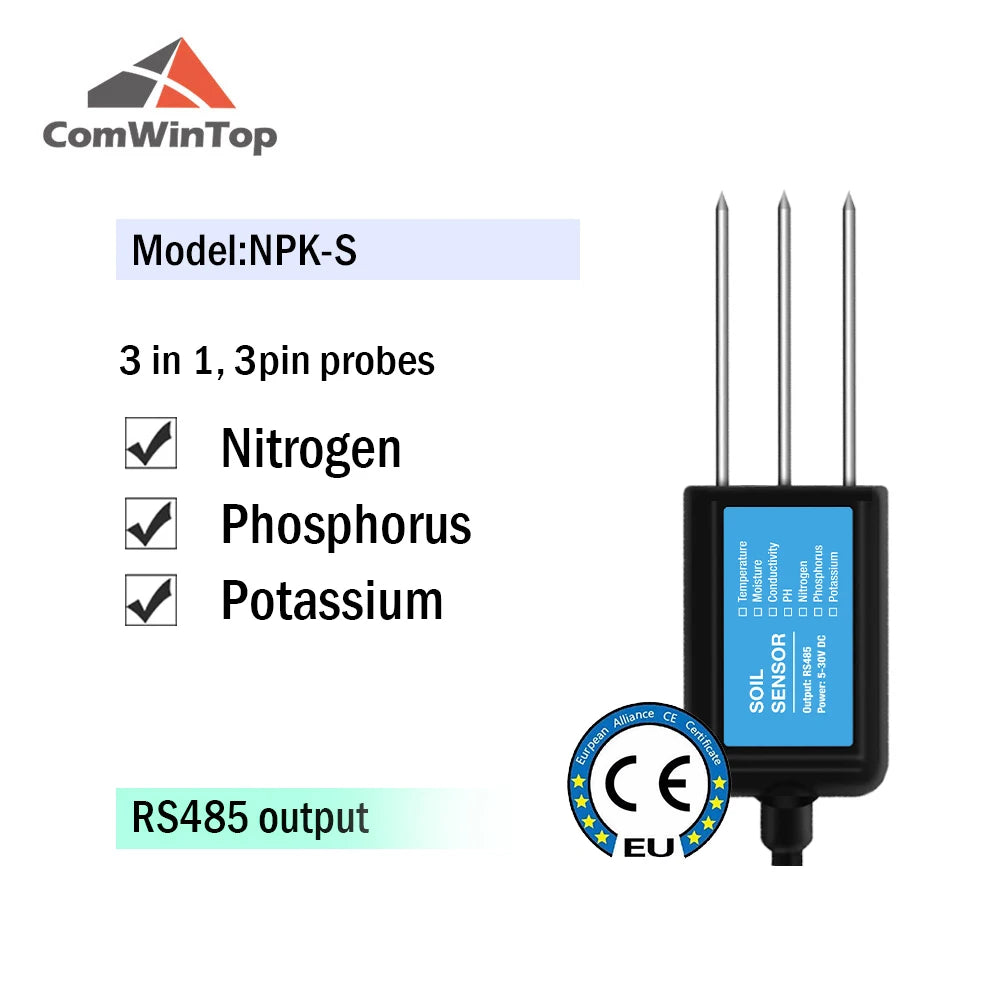

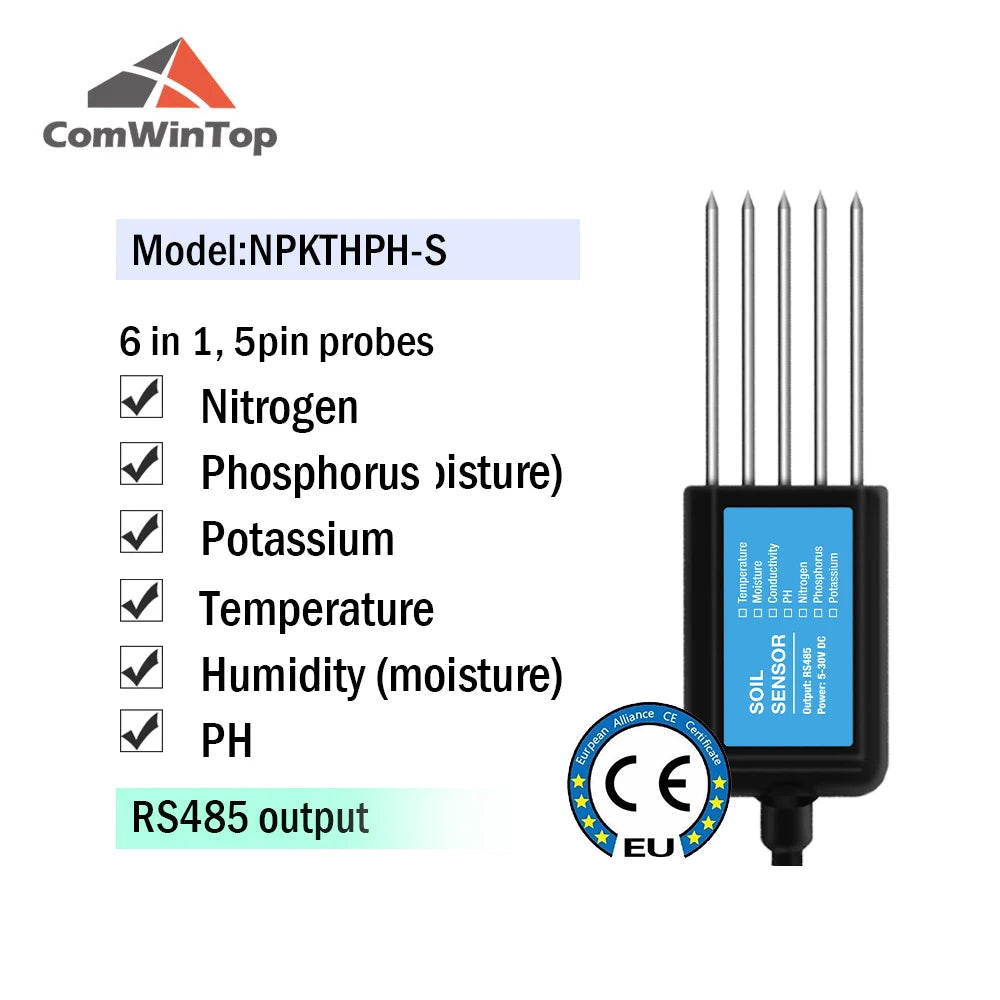

   NPKTHPH-S, NPKPH-S, NPKPHC-S, NPKPHCTH-S, don't work with PH-S, NPK-S

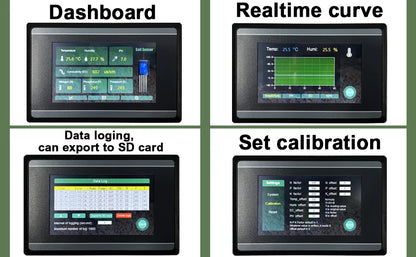

4. Dashboard and curve for monitoring of soil sensor

5. Support set calibration on screen

6. Support 1900 logs, settable interval of logging, can export logs to SD card

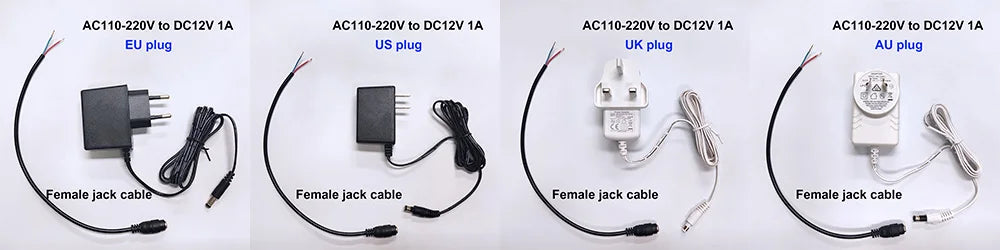

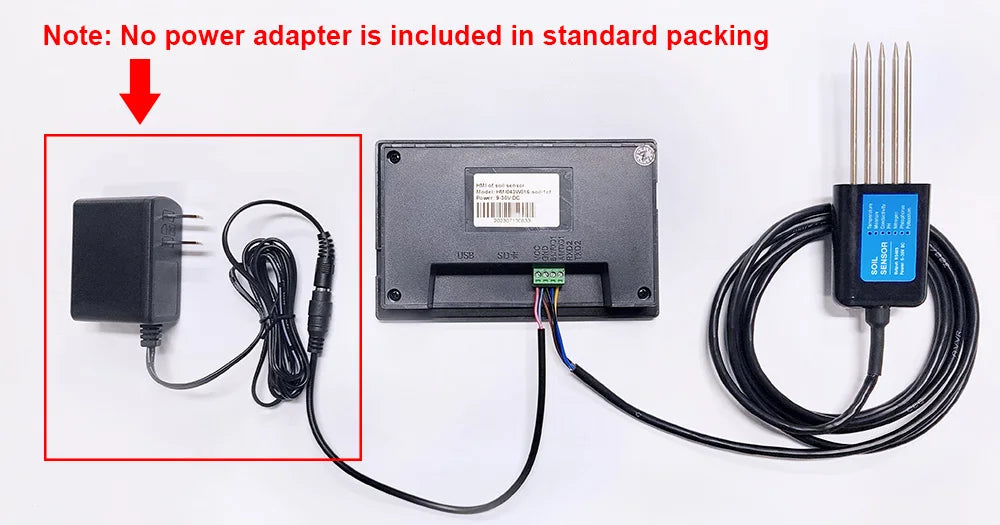

NOTE: No power adapter is included in standard packing, if need power adapter.
