Monitor Electricity Consumption by App

Transform Old Socket to Smart

Support High-power Appliances
It supports to use with electrical appliances under 16A, including variety of high-power household appliances.

Timer Function
Set timers for turning devices on and off to achieve automated appliance management for a more convenient life.

Two Switch Types Optional
You can choose from rocker switch and reset switch freely, perfectly applicable for different home switches.

Switch State Synchronous

Supporting the double control of two matched roker switches. Two operation types of flip to change on/off state and state synchronous can be set. After setting state synchronous, the on/off position is fixed and synchrounous with each switch.

Relay Status Settable
According to your living habits and needs, set the device on/off after the power on or maintain the original light state, so that your home equipment can operate normally.

Multi-control Association
No worry about rewiring trouble, you can realize double control or even multiple control on one light after setting in App.

Share Control
Share the smart control with your family members to build your smart home together.

Installation Methods
The switch module supports different installation methods. Its bracket can be clipped onto the din rail as well as  be fixed into the wall by screws to make sure the switch module to install in soundly.

Wiring Diagram
There are three wiring methods for 1-gang switch module and also three wiring methods for 2-gang switch module.

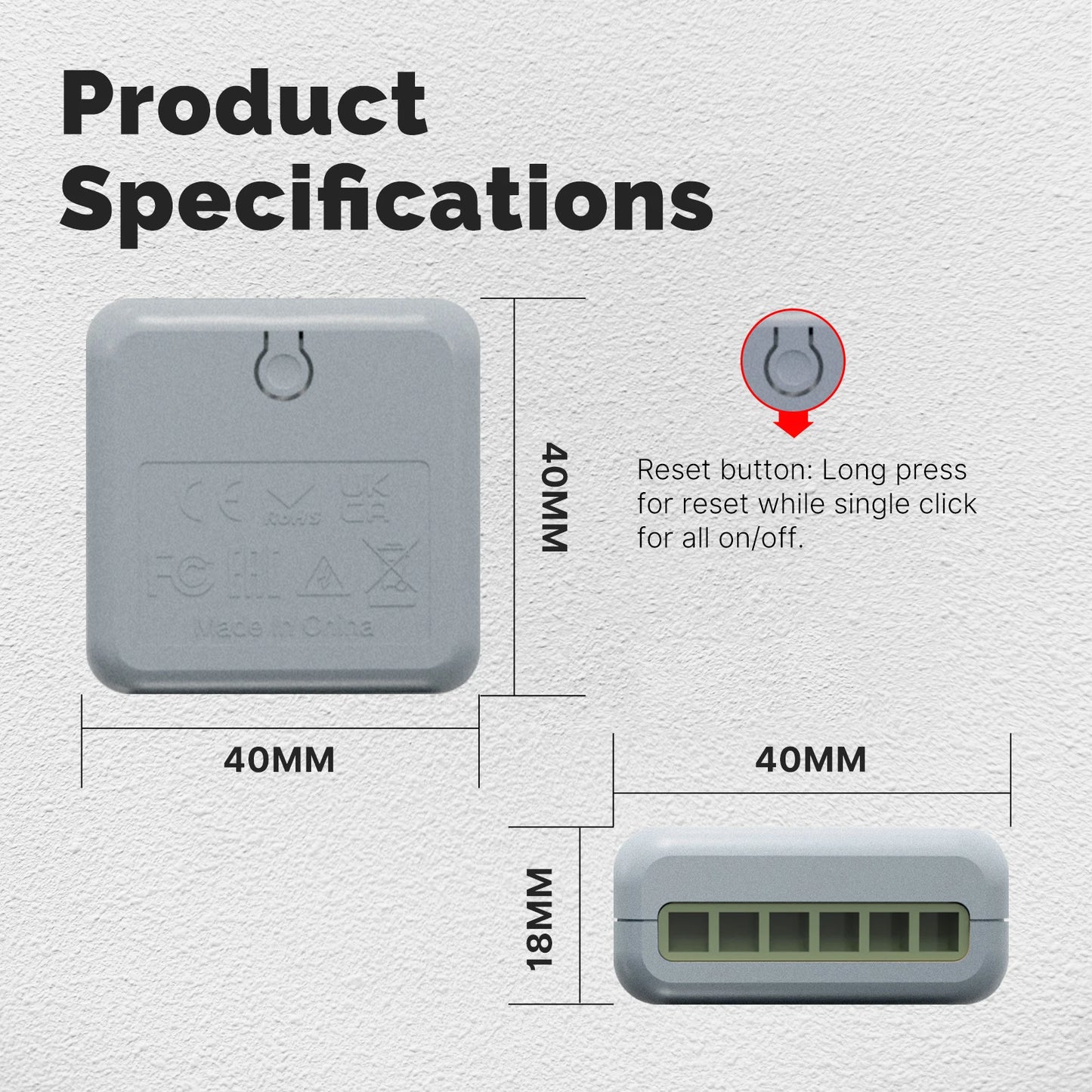

Product Specifications

TECHNICAL SPECIFICATIONS
Model:  ZM-104-M-16AM
Product type: Smart Switch Module
Voltage: 90-250V AC 50/60Hz
Wireless Protocol: ZigBee
Operation temp: -10℃-65℃
Case temp: Tc: +80℃(Max.)
Operation Range: ≤70m
Dims(WxDxH): 40x40x18mm
IP rating: IP20
Frequency band: 2.412-2.484GHZ
Maximum radio transmit power: <+10dBm
