Packing List
Smart Smoke & CO Alarm *1
Manual *1

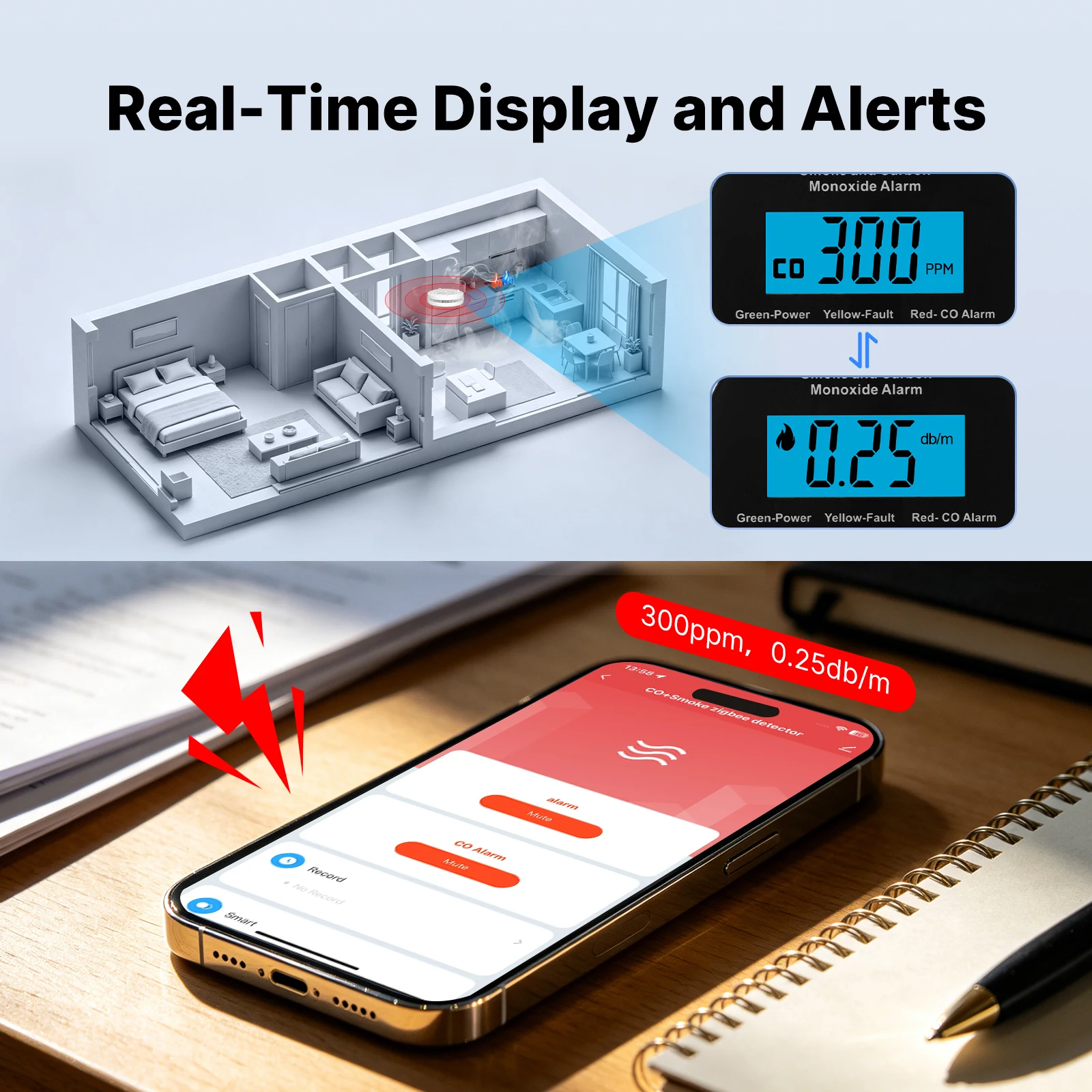

Real-Time Display and Alerts

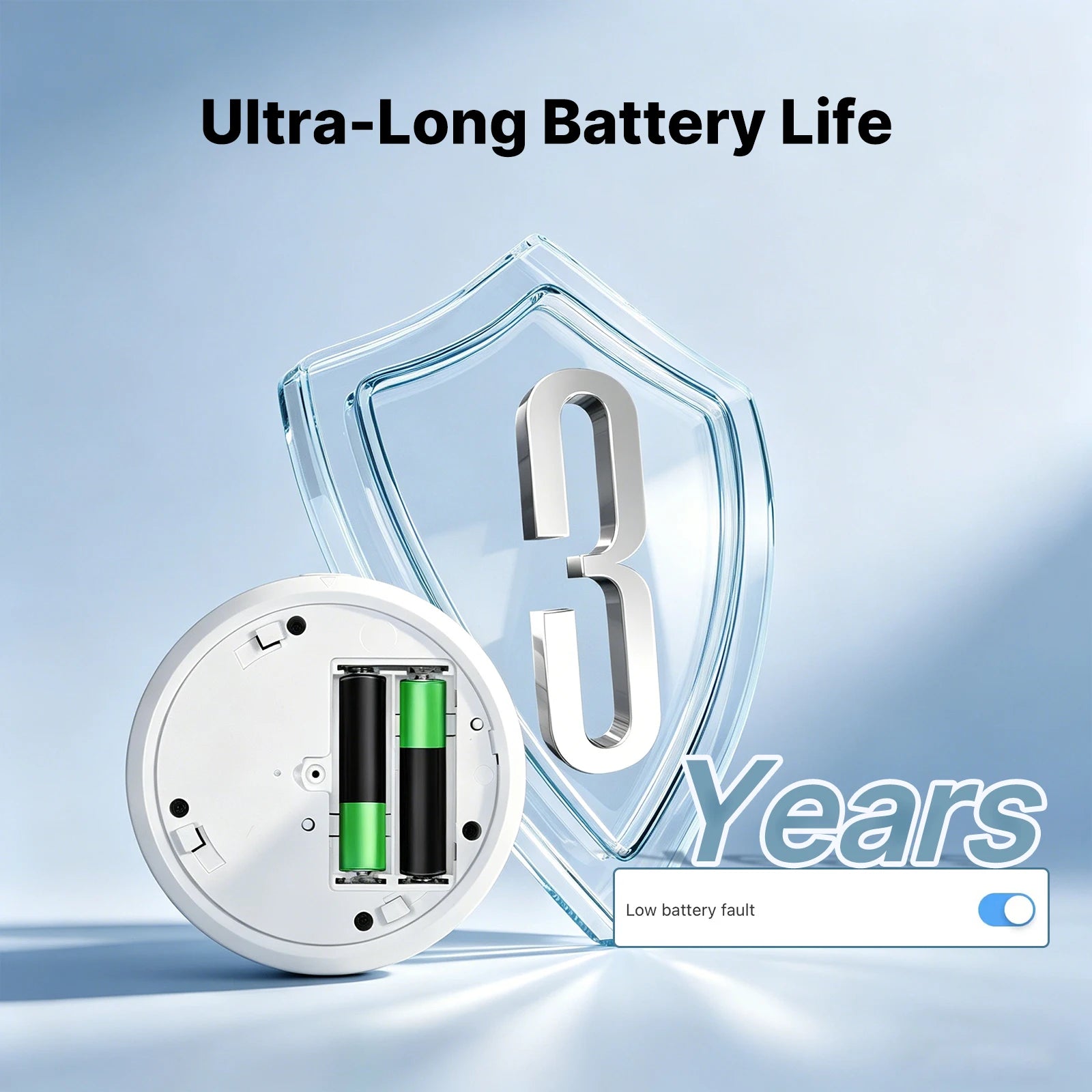

Ultra-Long Battery Life

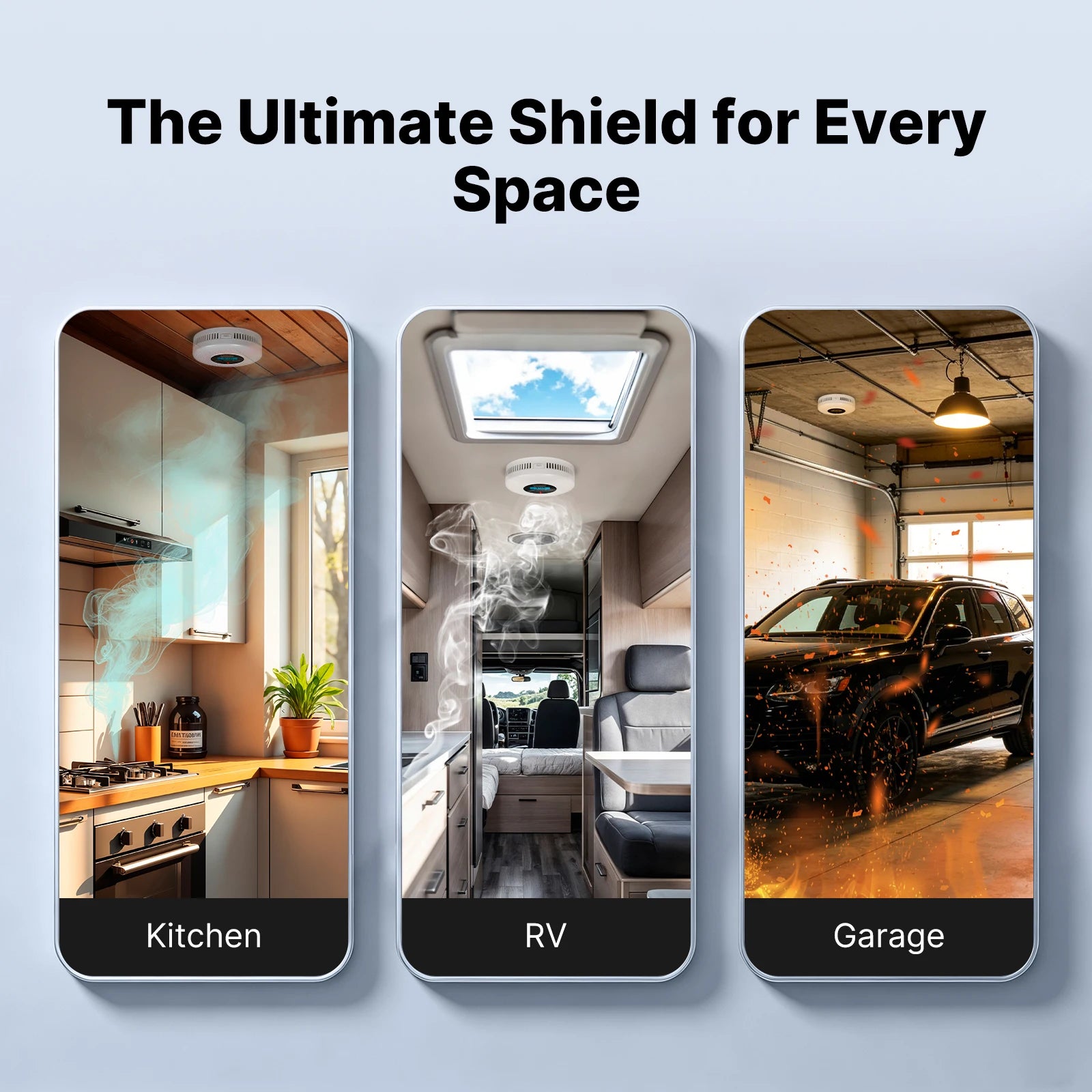

The Ultimate Shield for Every Space

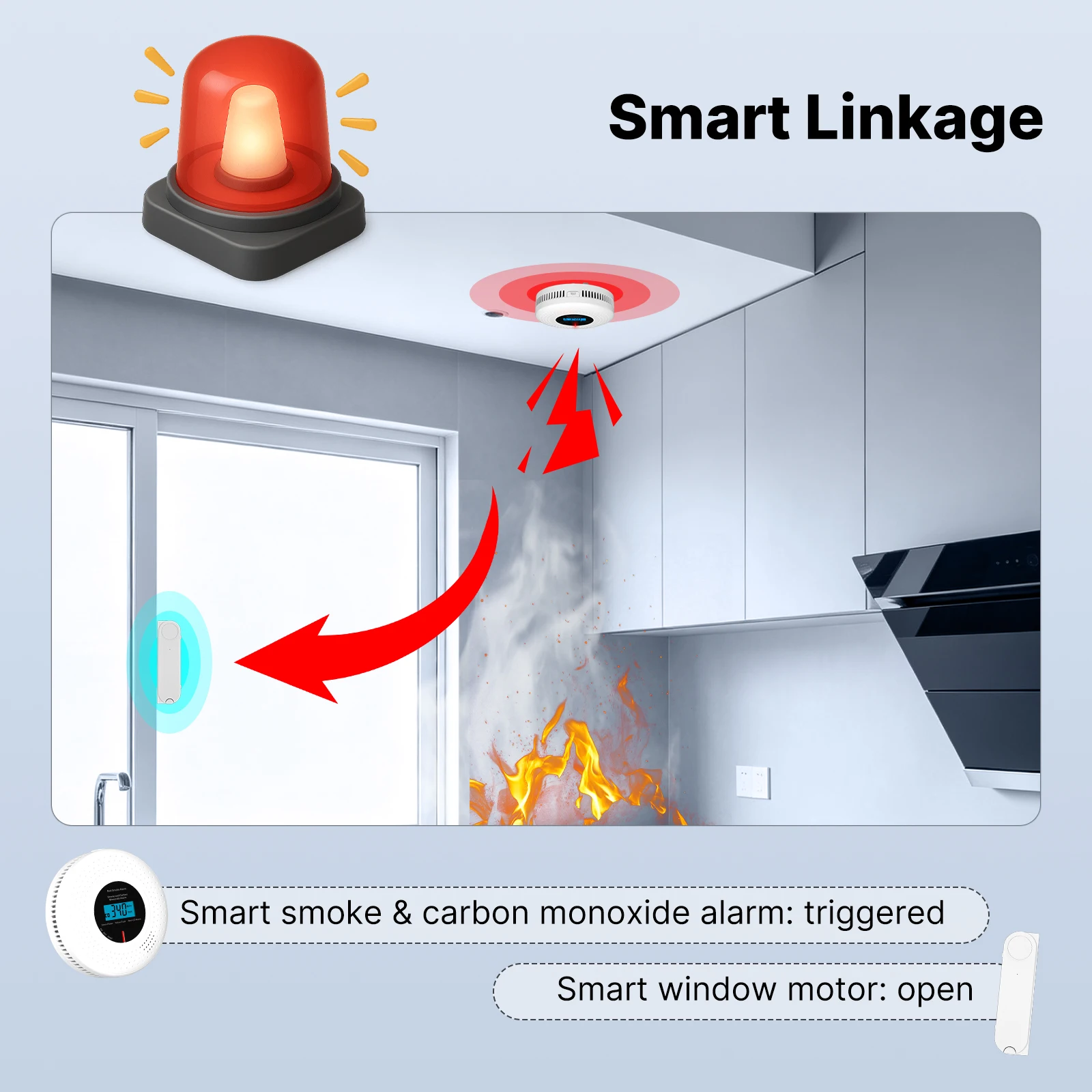

Smart Linkage
Set smart linkage between carbon monoxide alarm and window pusher. When the CO concentration reaches dangerous level, the window is set to open automatically.

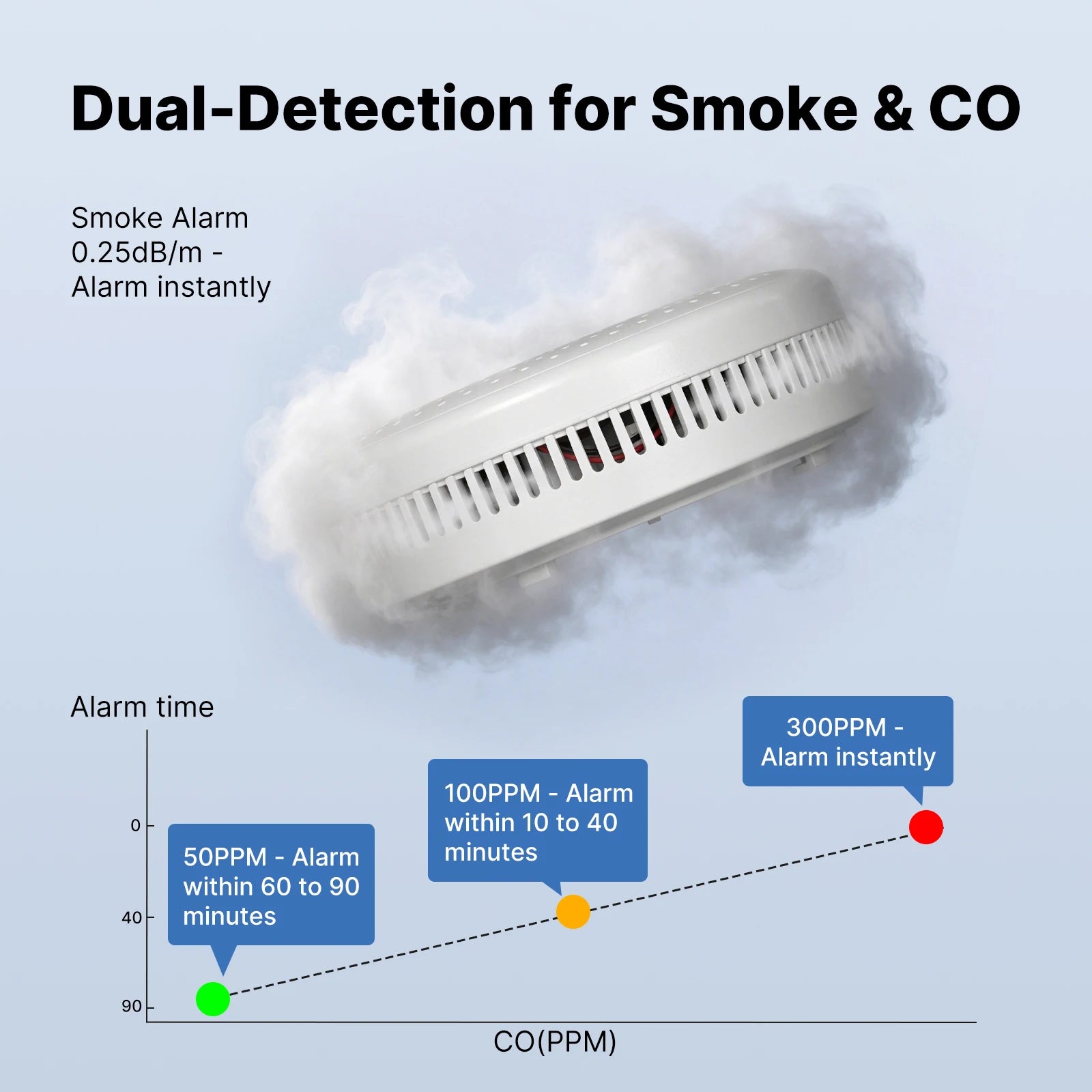

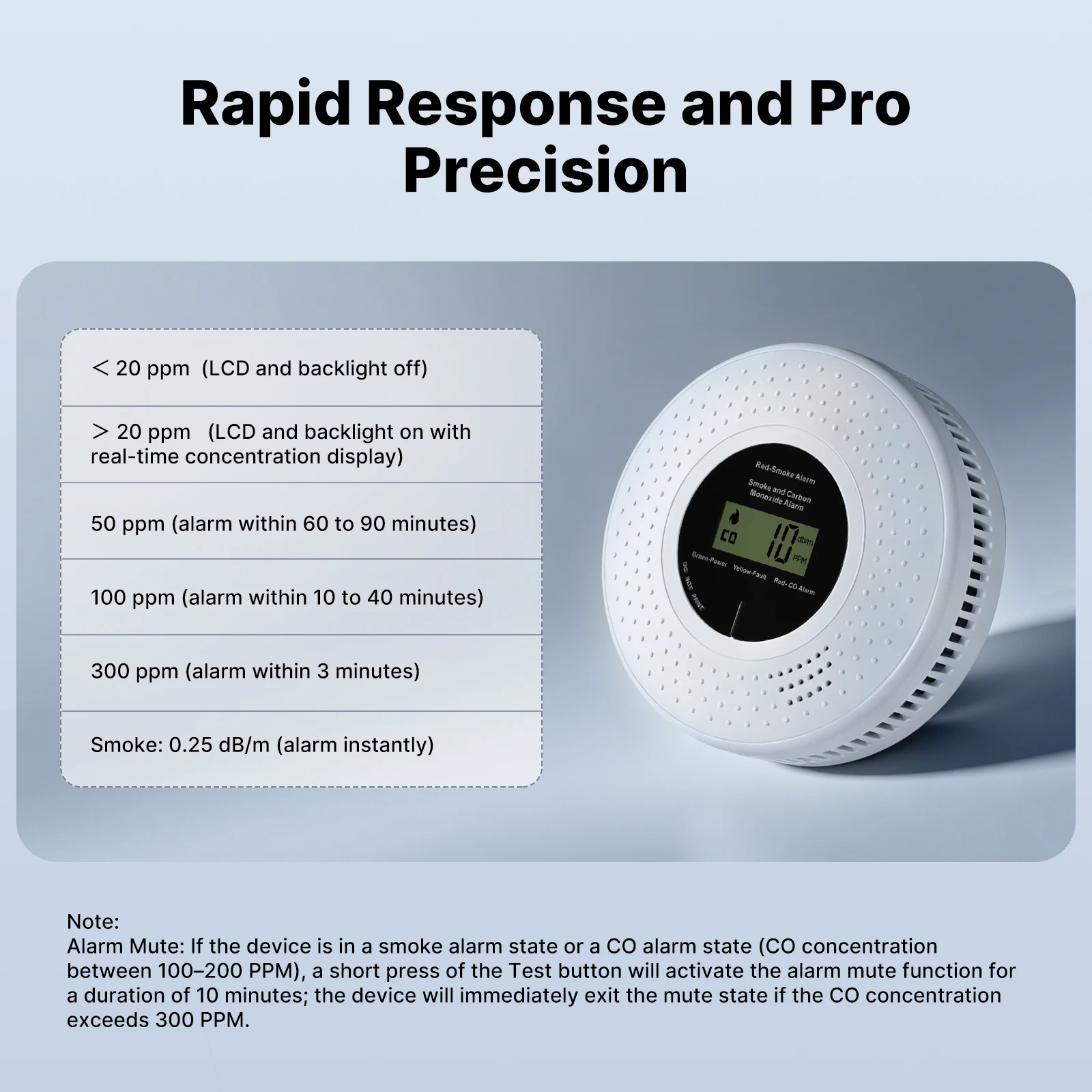

Rapid Response and Pro Precision
＜ 20 ppm  (LCD and backlight off)
＞ 20 ppm   (LCD and backlight on with real-time concentration display)
50 ppm alarm within 60 to 90 minutes
100 ppm alarm within 10 to 40 minutes
300 ppm alarm within 3 minutes
Smoke: 0.25 dB/m alarm instantly

Note:Alarm Mute: If the device is in a smoke alarm state or a CO alarm state (CO concentration between 100–200 PPM), a short press of the Test button will activate the alarm mute function for a duration of 10 minutes; the device will immediately exit the mute state if the CO concentration exceeds 300 PPM.

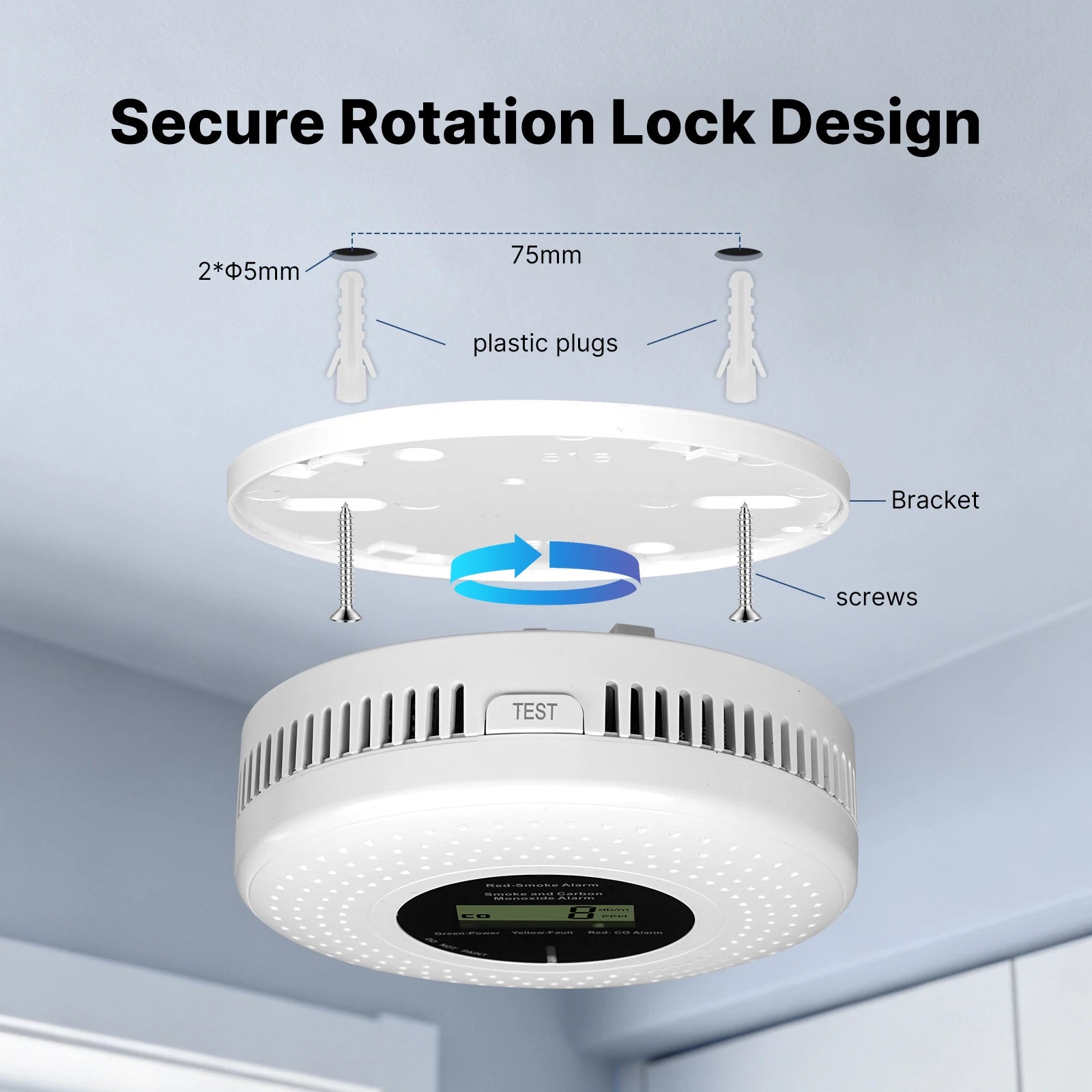

Secure Rotation Lock Design
Designed for effortless maintenance, the quick-release structure allows you to remove the device in seconds. Replacing batteries or cleaning the sensor is now simpler than ever.

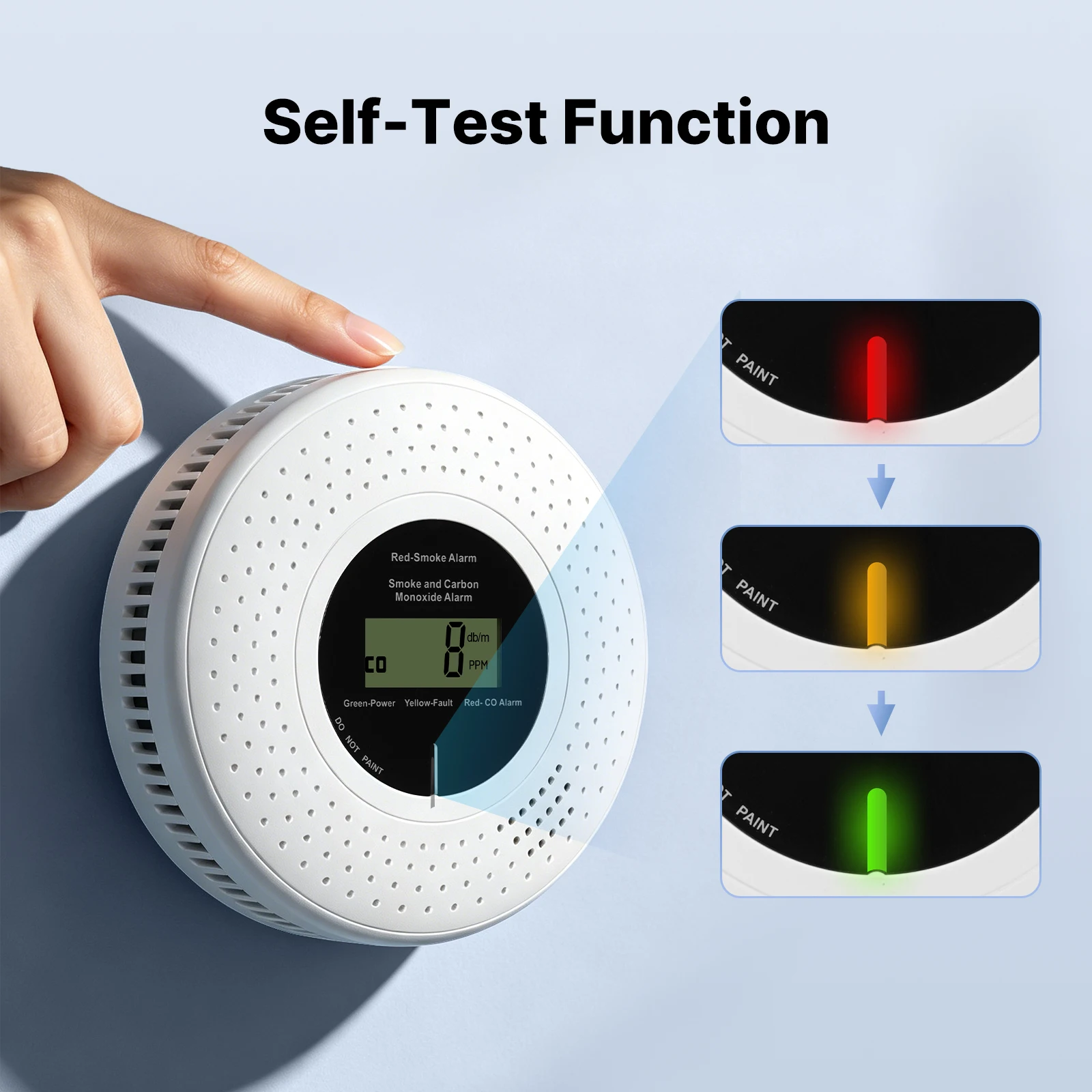

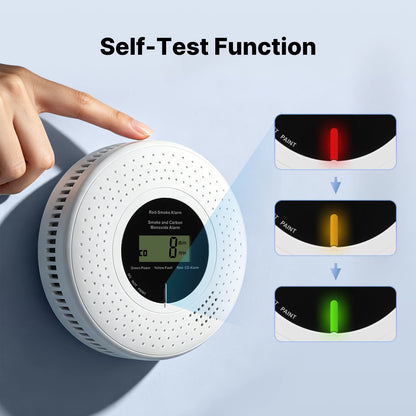

Self-Test Function
You can have a easy check with self-test function if there is any fault caused by accident. Just push the test button to check if it is normal.

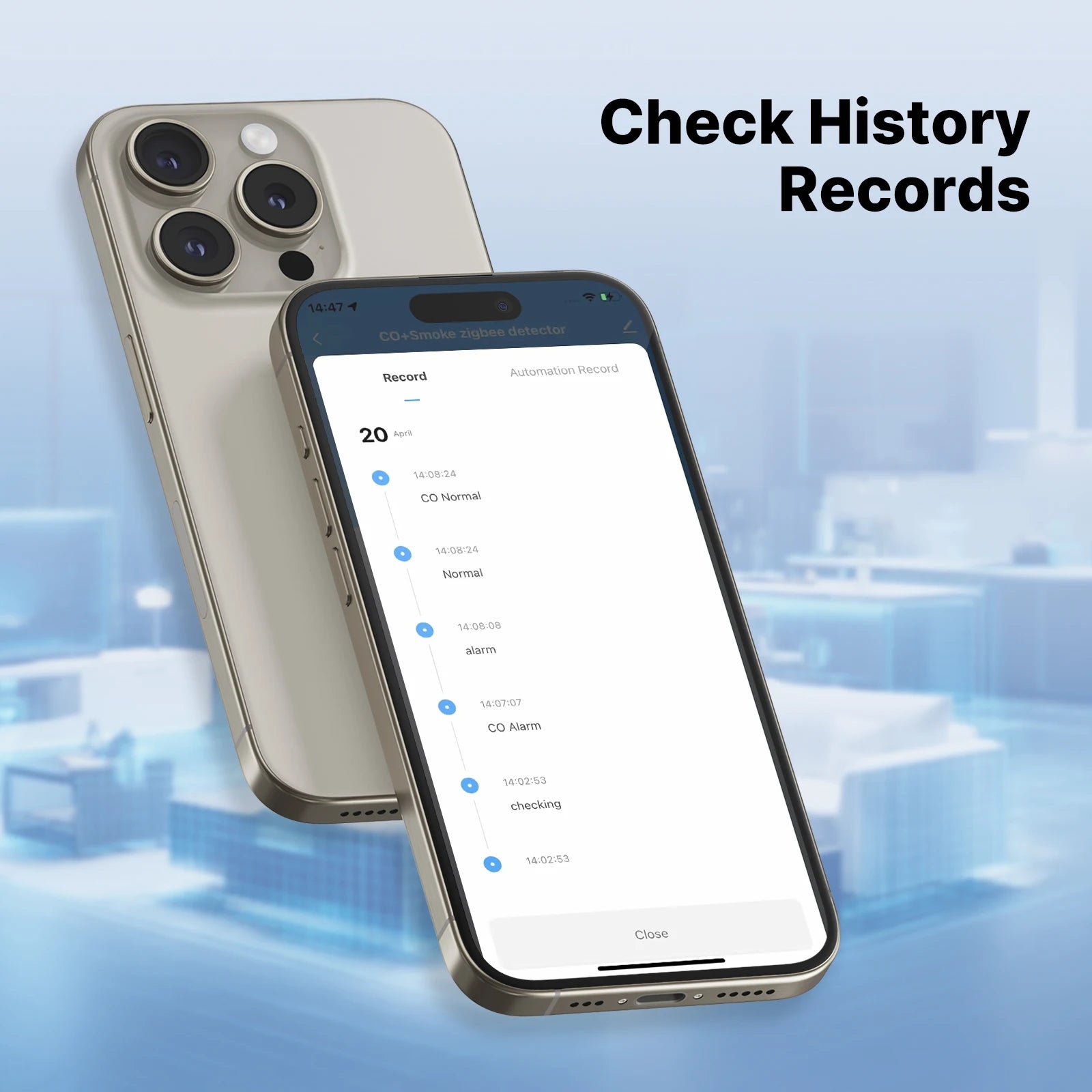

Check History Records
Anywhere you are, check the history records to ensure you never miss a potential danger in your house.

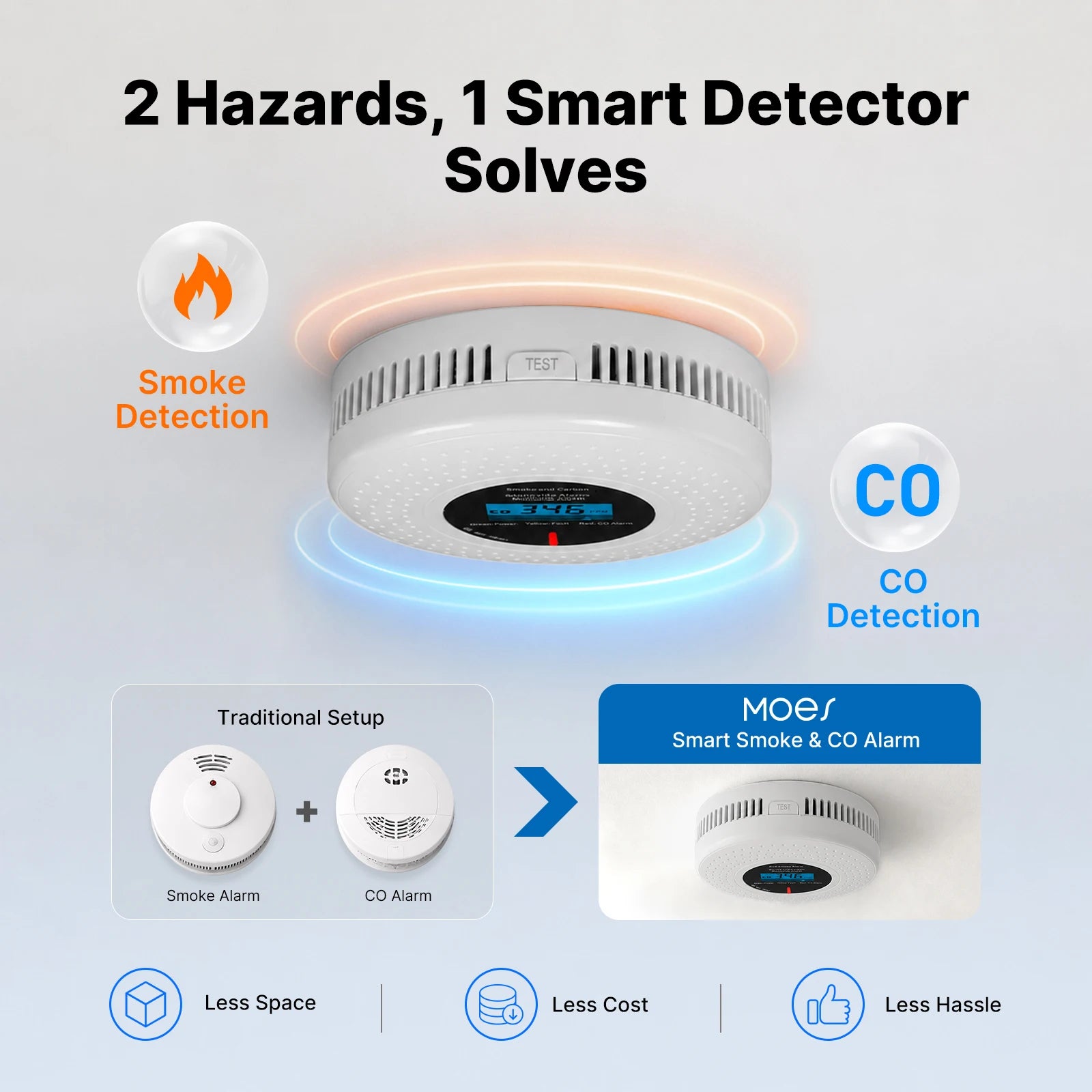

2 Hazards, 1 Smart Detector Solves

Detect What You Can't See

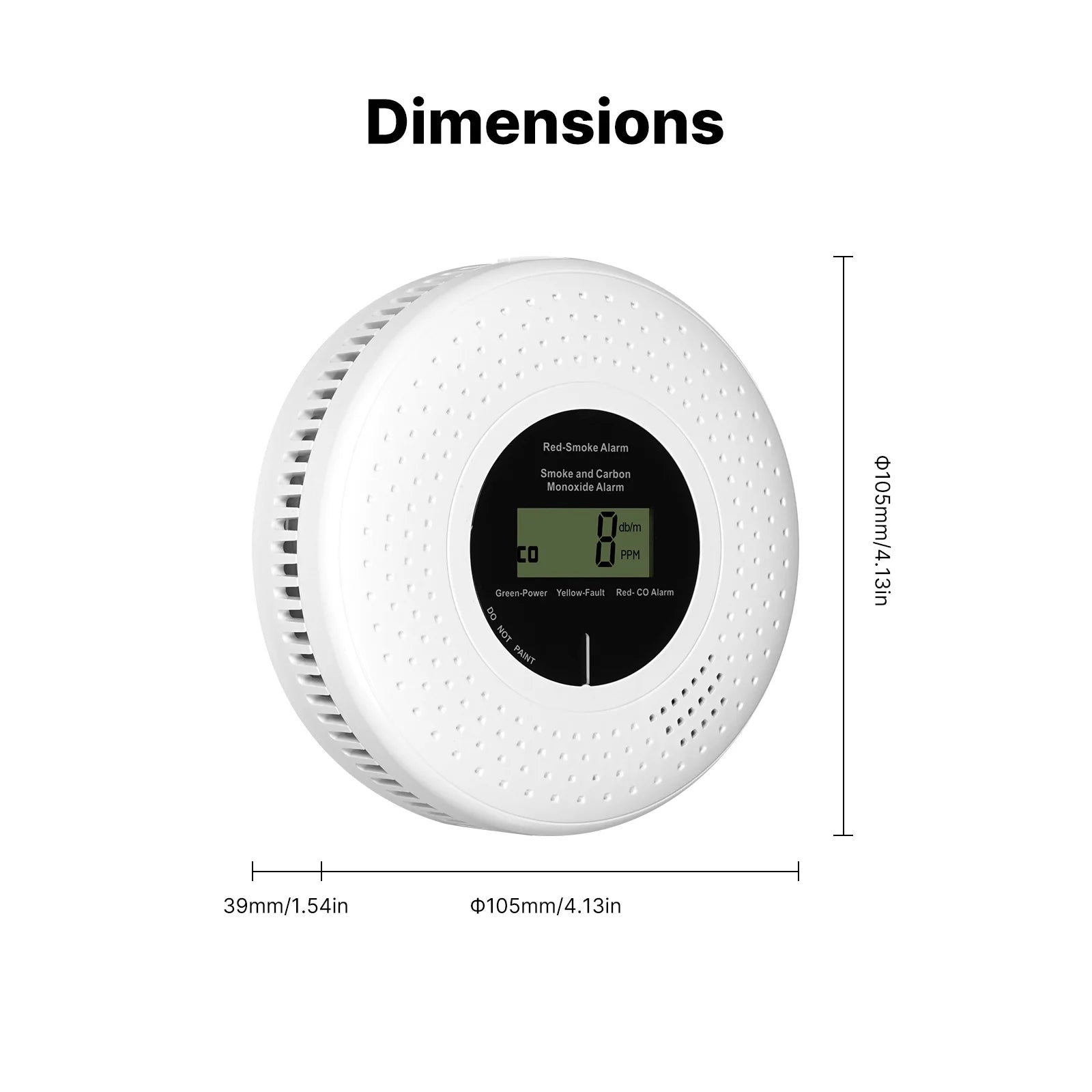

Dimensions

Technical Specifications
SKU: ZSS-S02-CS
Model: JKD-513COM-Z
Software version number: V1.2.5

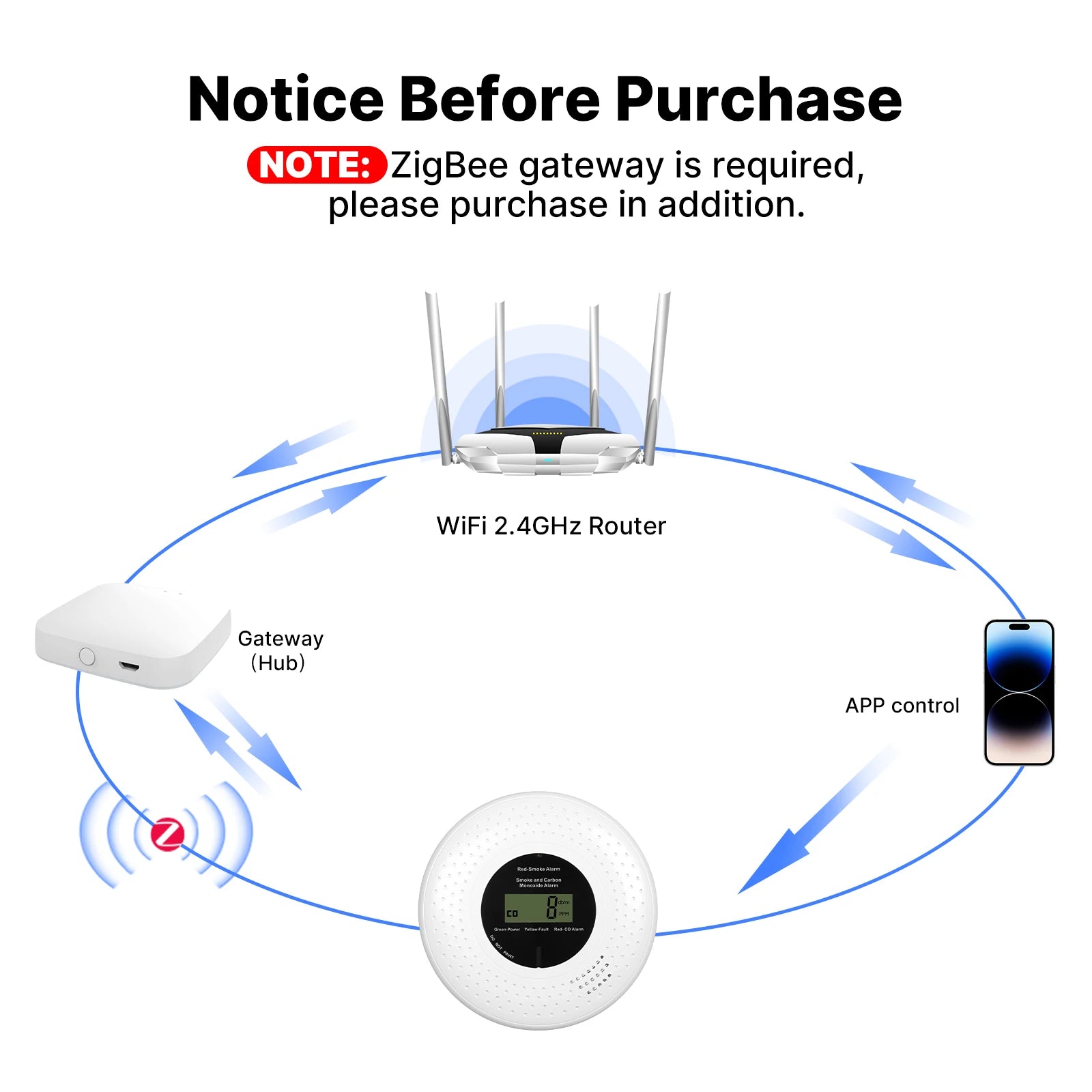

Communication protocol: Zigbee
Product standards:
EN 14604:2005/AC: 2008
EN 50291-1:2018+AC: 2021-01
Type of apparatus: type B - to provide a visual and audible alarm only
Power Supply: 2pcs 1.5V AA battery
Sensor of Smoke: Photoelectric reflection
Smoke Alarm Sensitivity: 0.25dB/m
Smoke alarm silence: about 10 minutes
Sensor of CO: Electrochemical
CO alarm sensitivity Setting:
Conforms to EN50291-1:2018+AC:2021-01
50PPM alarm within 60 to 90 minutes
100PPM alarm within 10 to 40 minutes
300PPM alarm within 3 minutes
Standby Current: <50μA (average)
Alarm Current: <90mA (average)
Operation Ambient Condition: -10℃~+50℃, <95%RH non-condensing
Storage/Transport Condition: -10℃~+50℃, <95%RH non-condensing
Alarm sound :≥85dB at 3m
Installation Location: ceiling or wall
Detection range: Max.. 40m2 within a room.
Size: about Ф105*39mm
Frequency Band: 2.405~2.480GHz
Maximum Radio Transmit Power: <+10dBm
