Product Description:

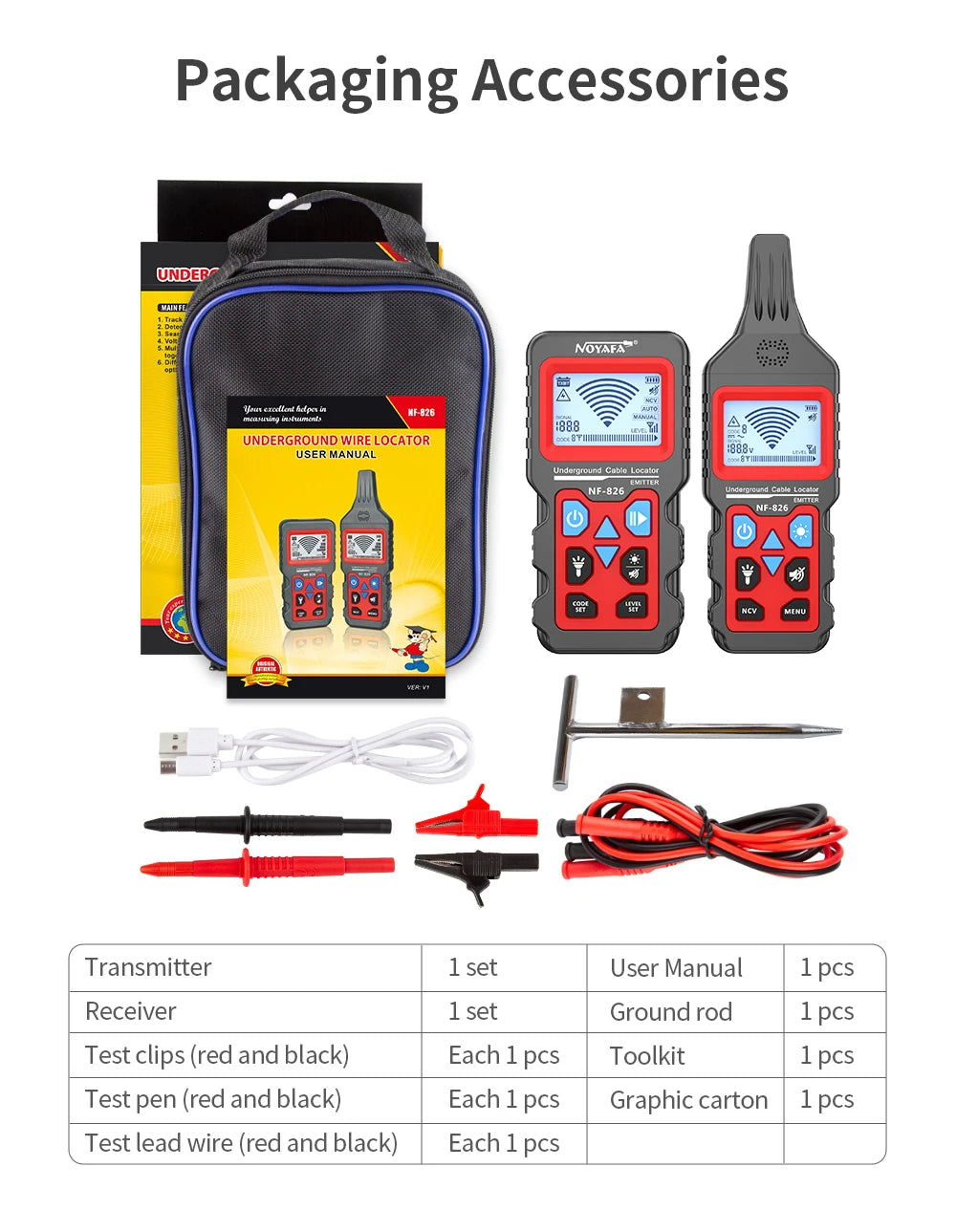

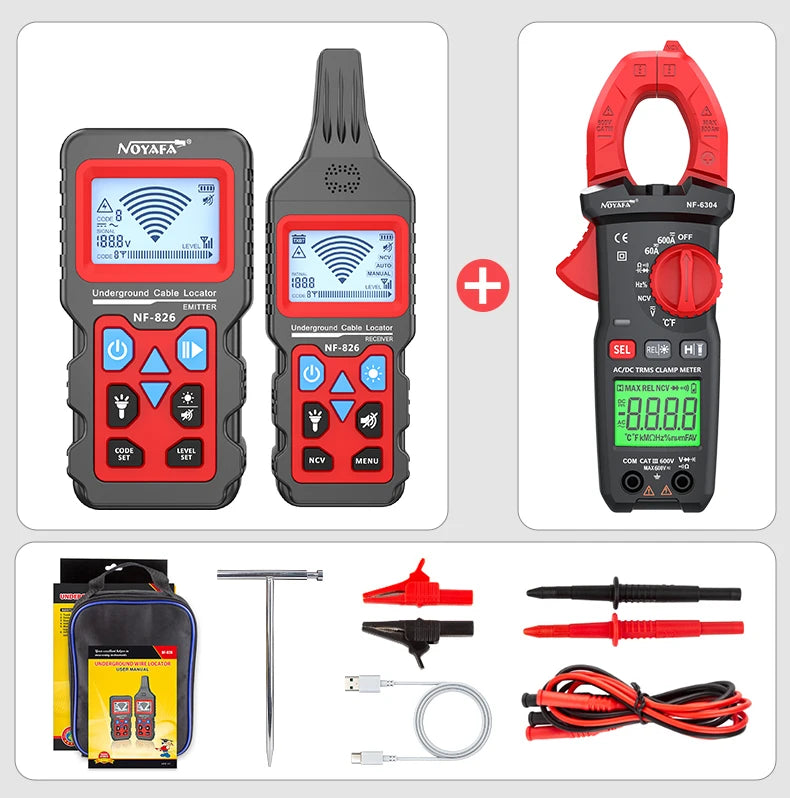

Brand: NOYAFA

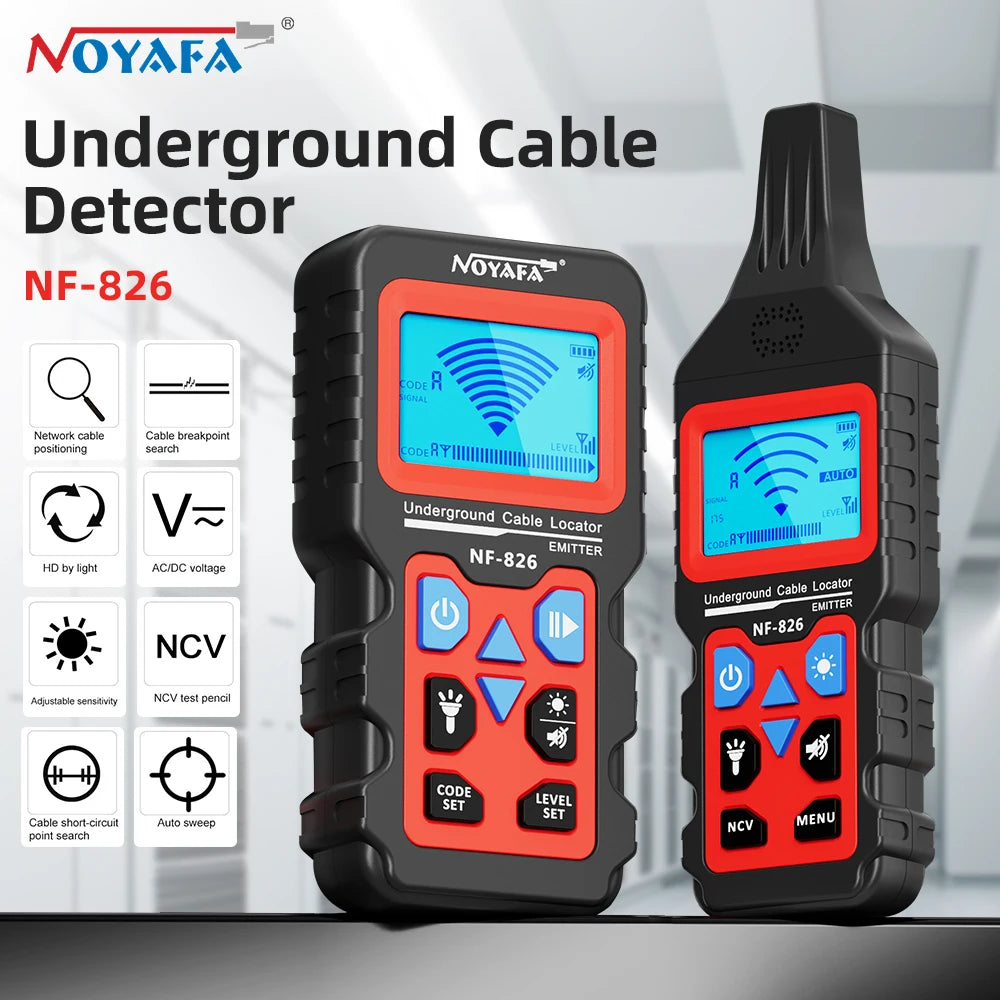

Product Name: Wire Tracker

Type: NF-826

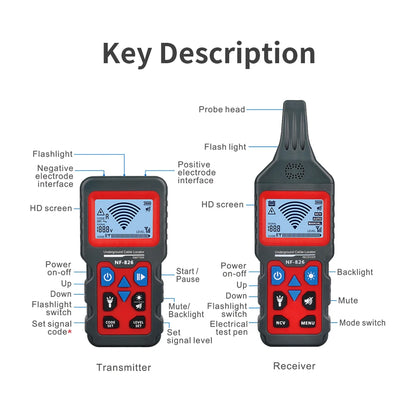

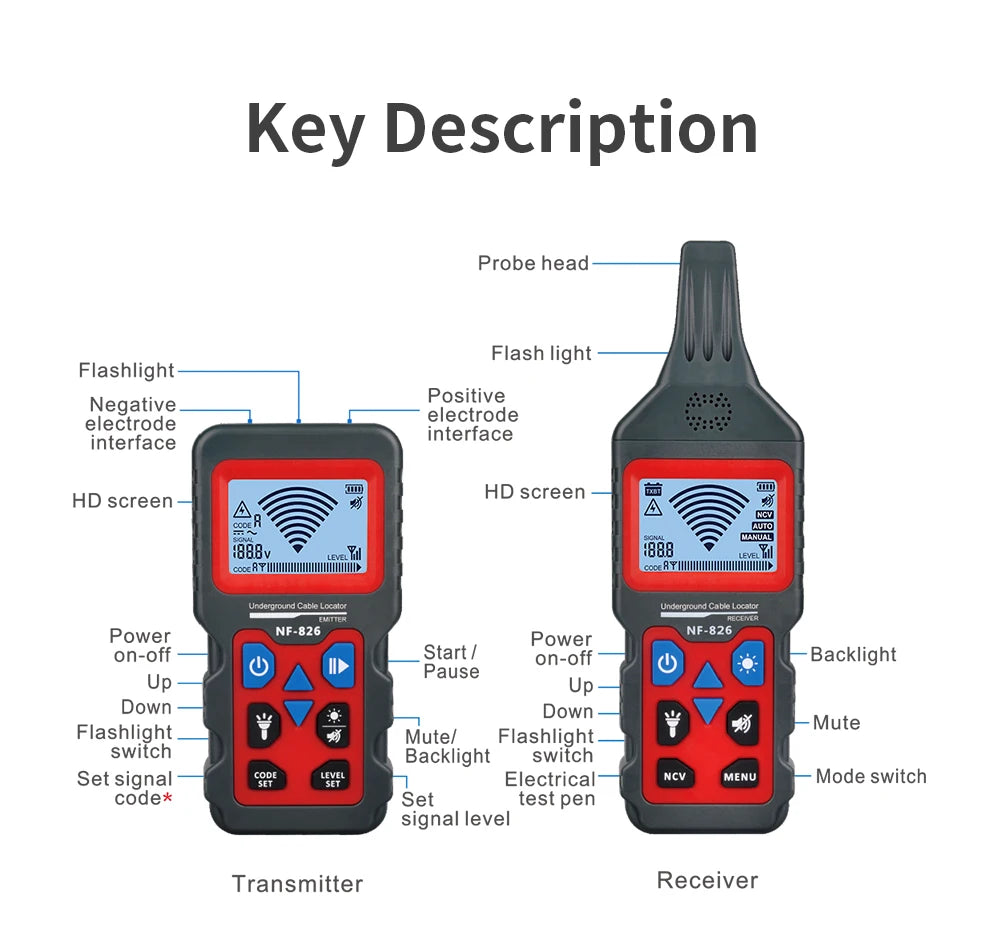

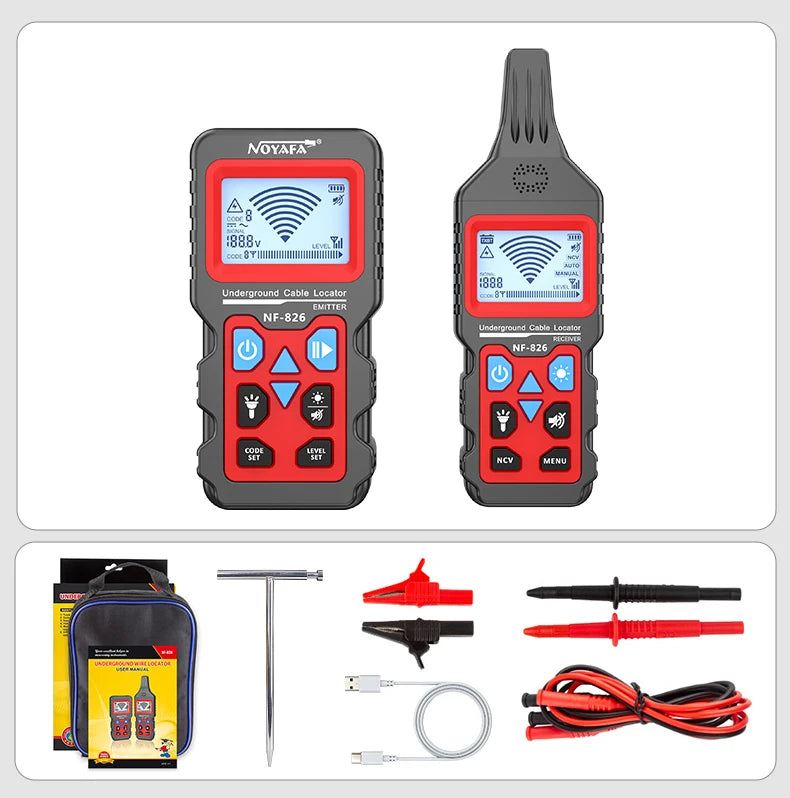

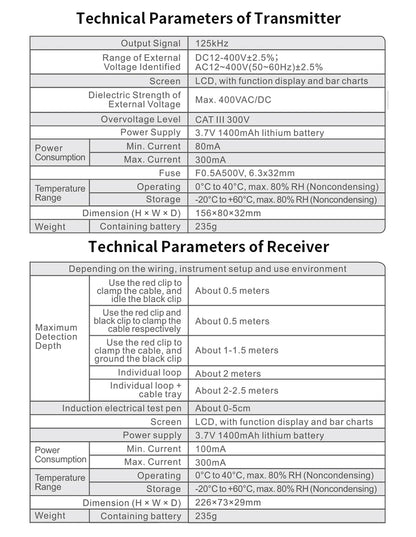

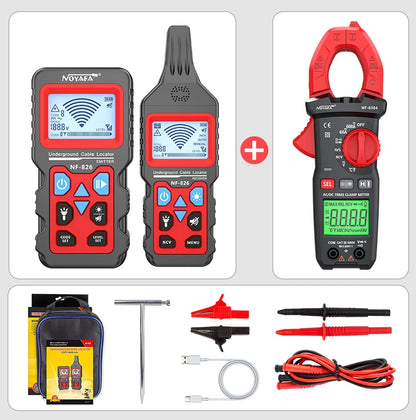

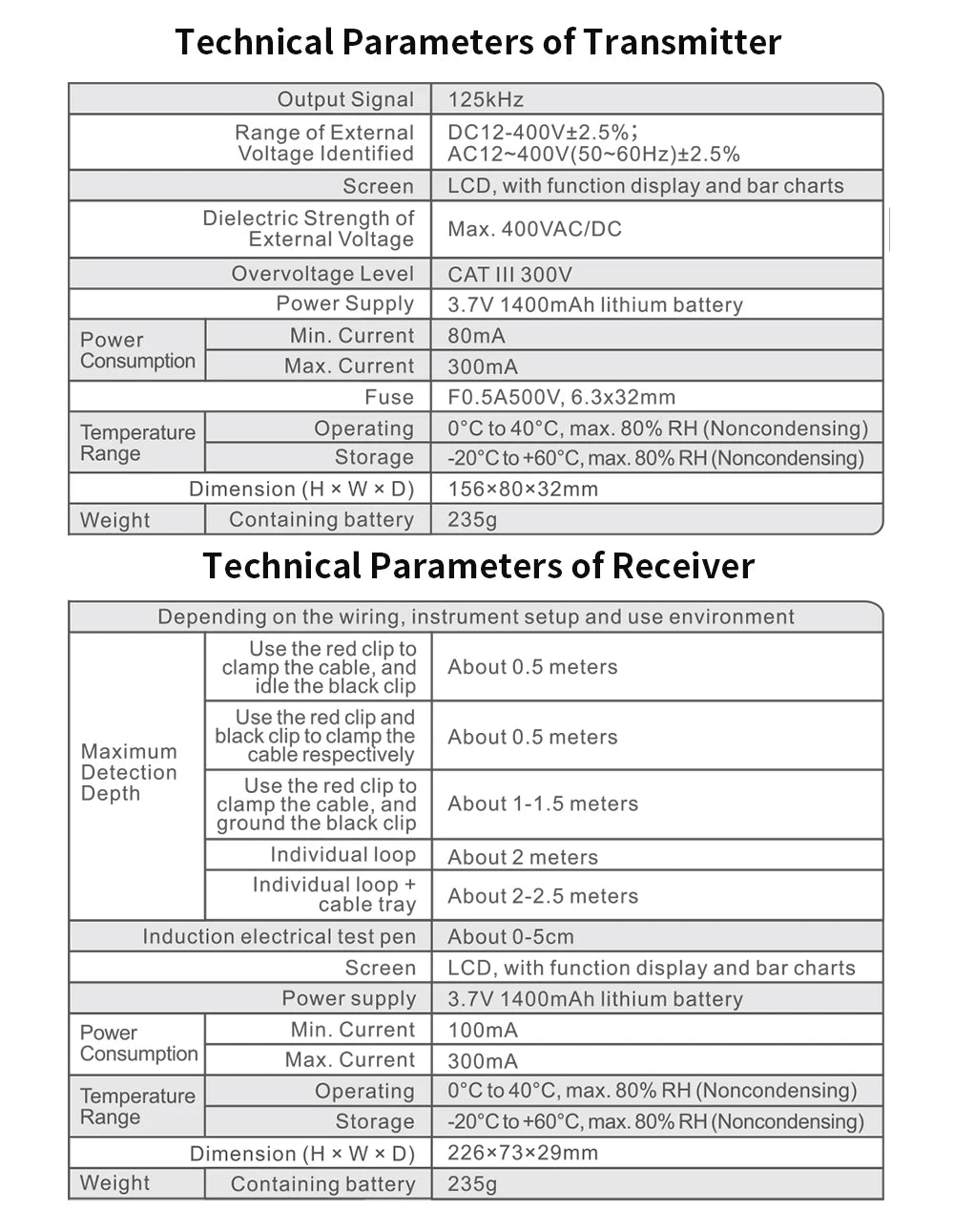

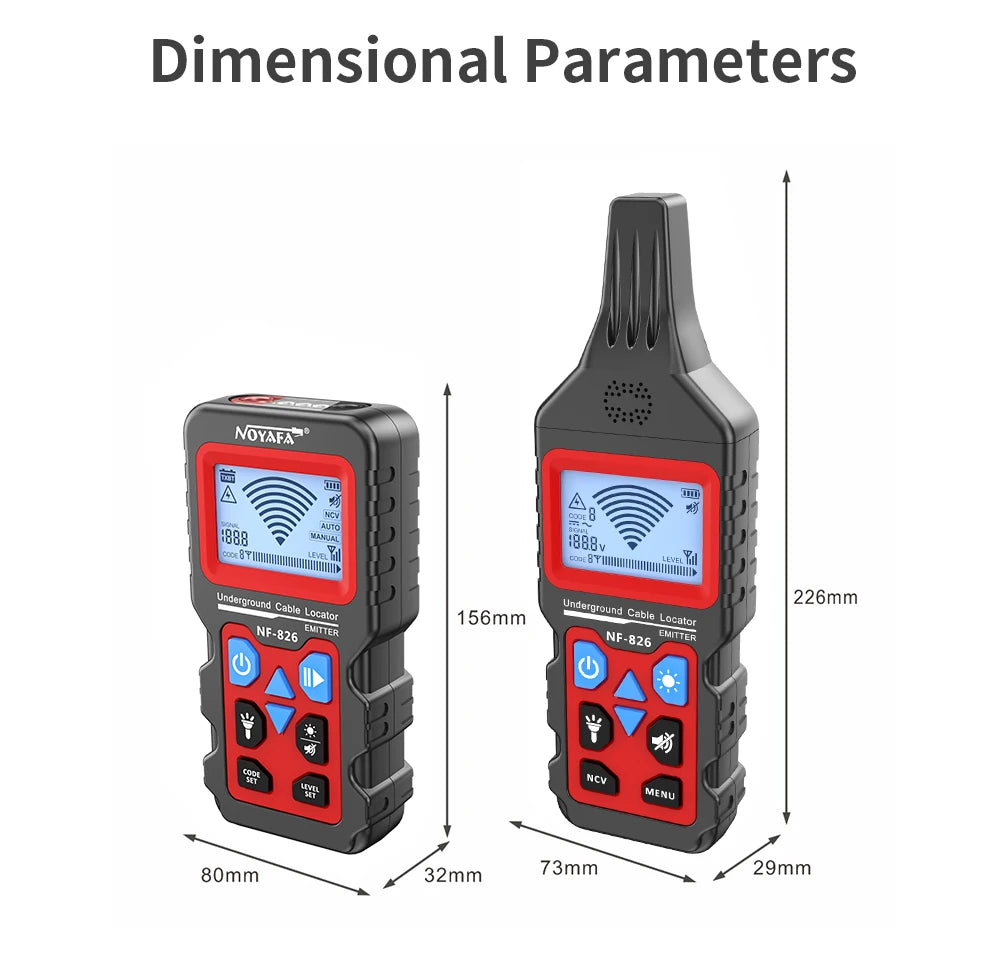

Size: 156x80x32mm(Transmitter) , 226x73x69mm(Receiver)

Detection Depth: 0.1 - 2 meters

External voltage identification range: DC 12~400V±2.5%, AC12~400V(50~60Hz)±2.5%

External voltage's dielectric strength: Max.400VAC/DC

Fuse: F0.5 A 500V 6.3x32mm

Single-pole Application: About 0~1m

Dual-pole Application: About 0-0.5m

Single Loop Line: Up to 2.5m

Power Supply: 3.7V 1400mAp

Display: LCD Display with function displayand column chart

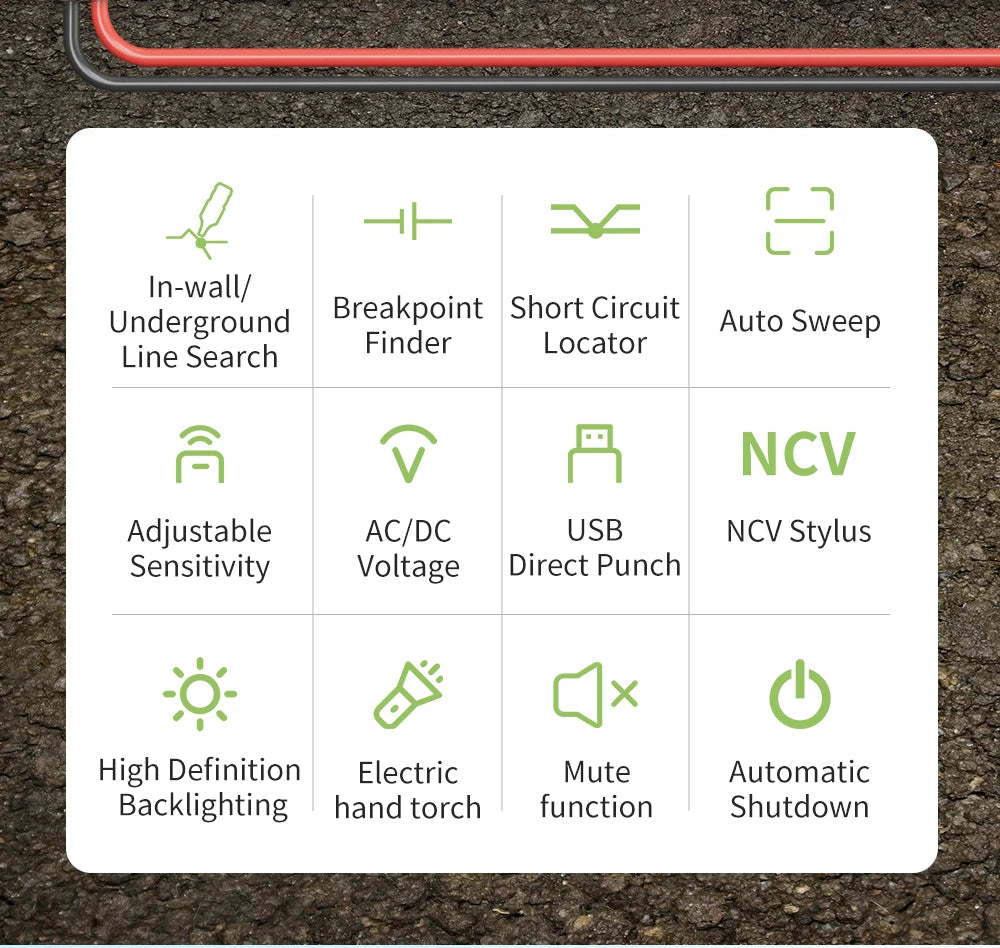

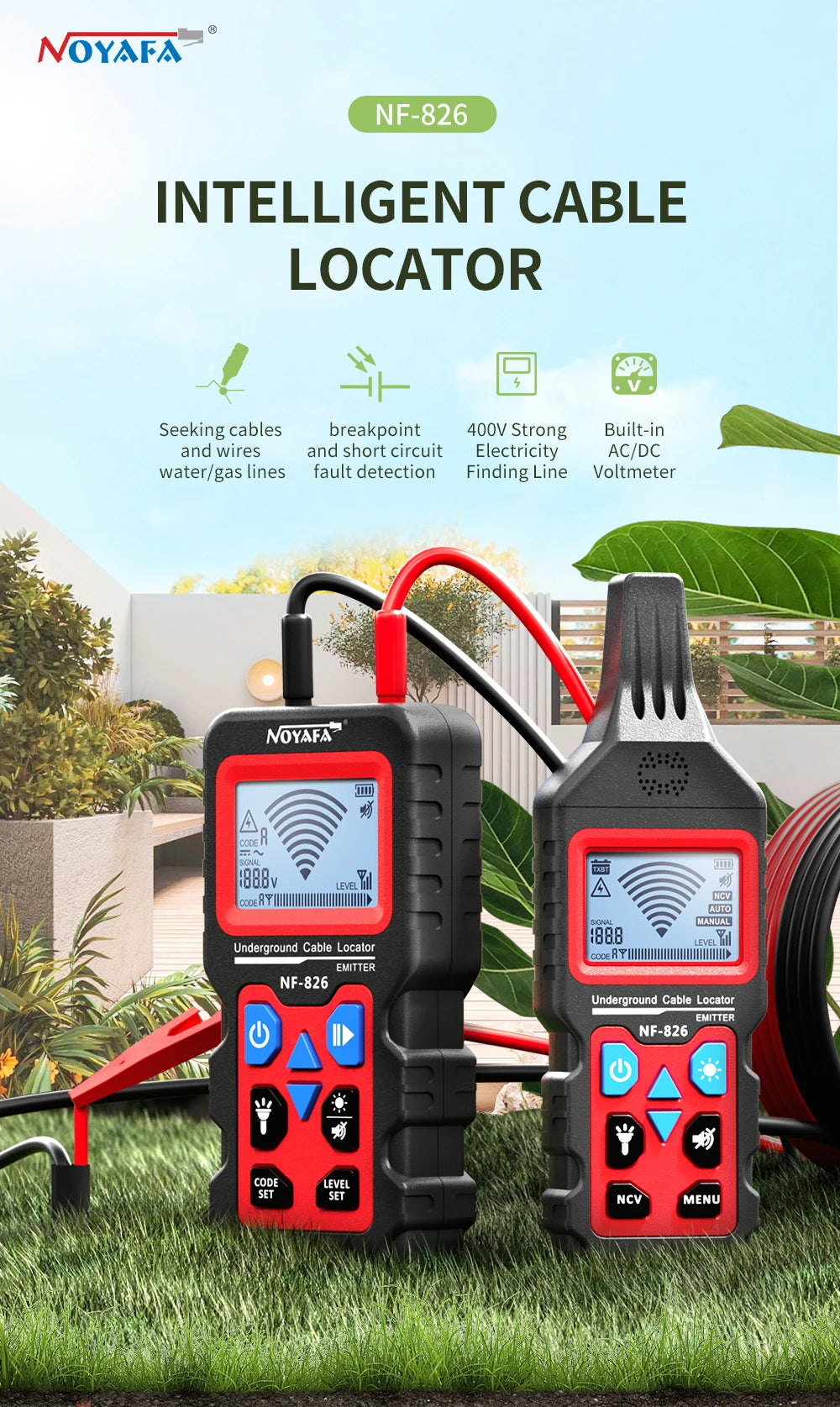

Product Function:

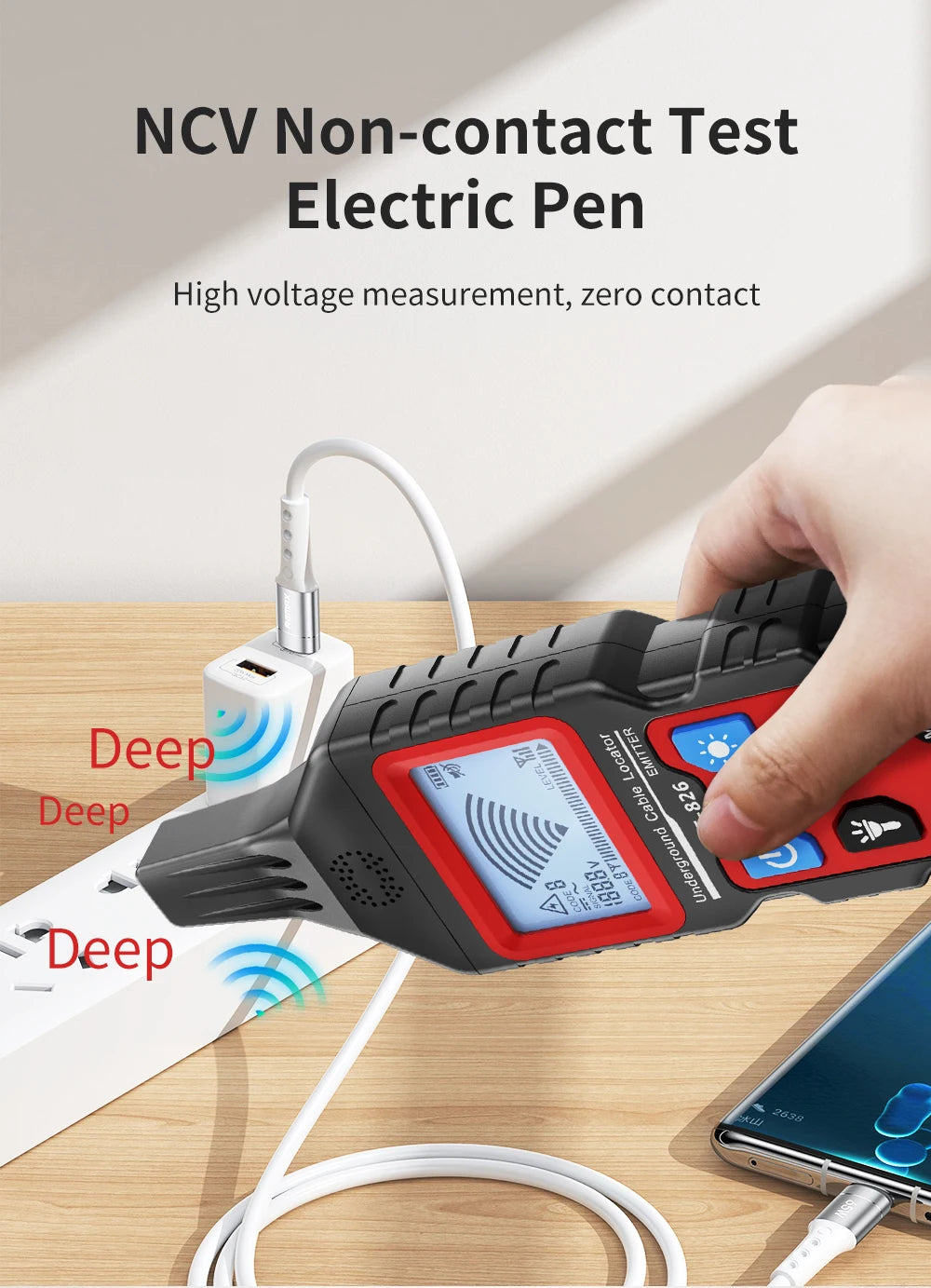

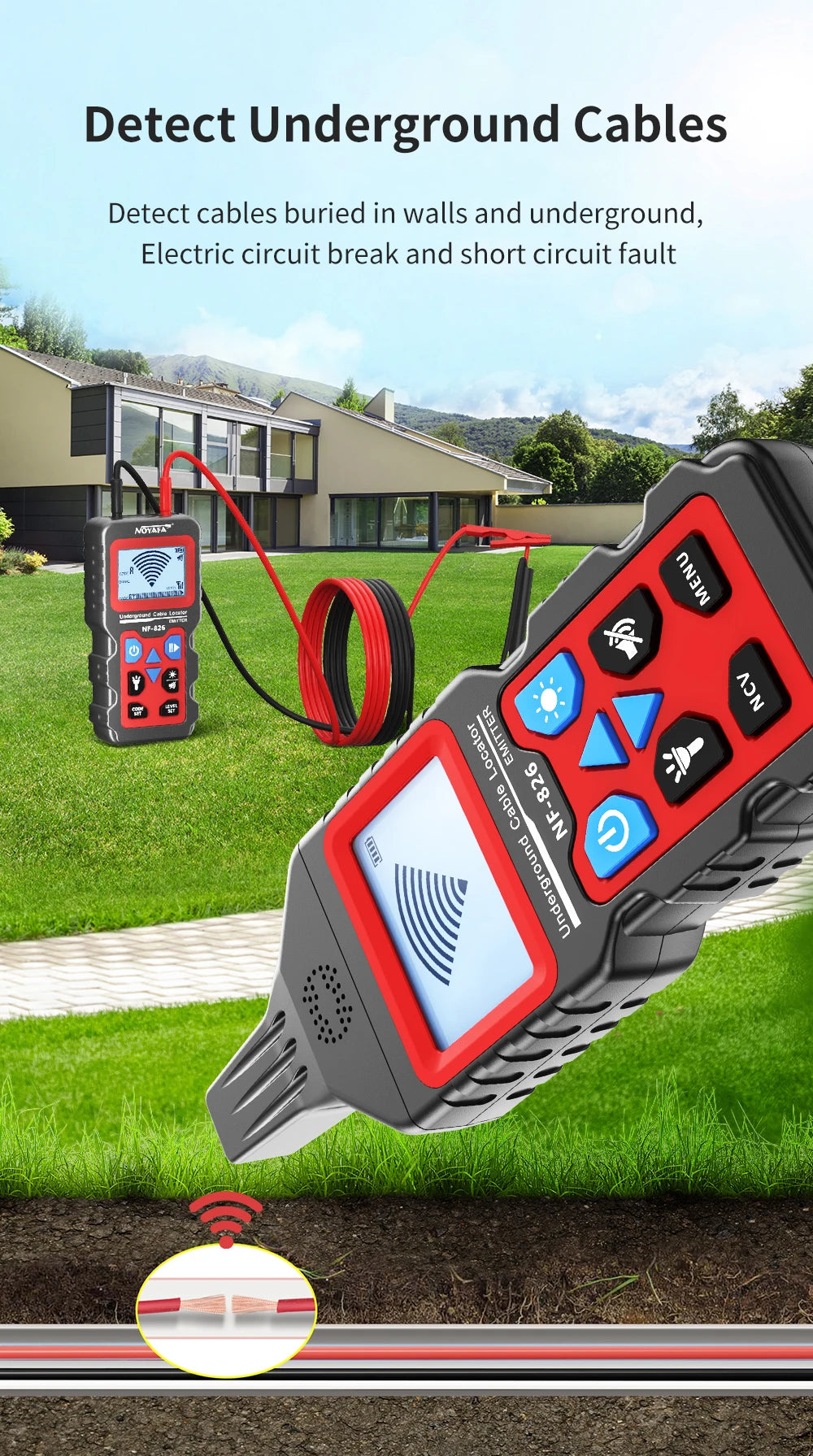

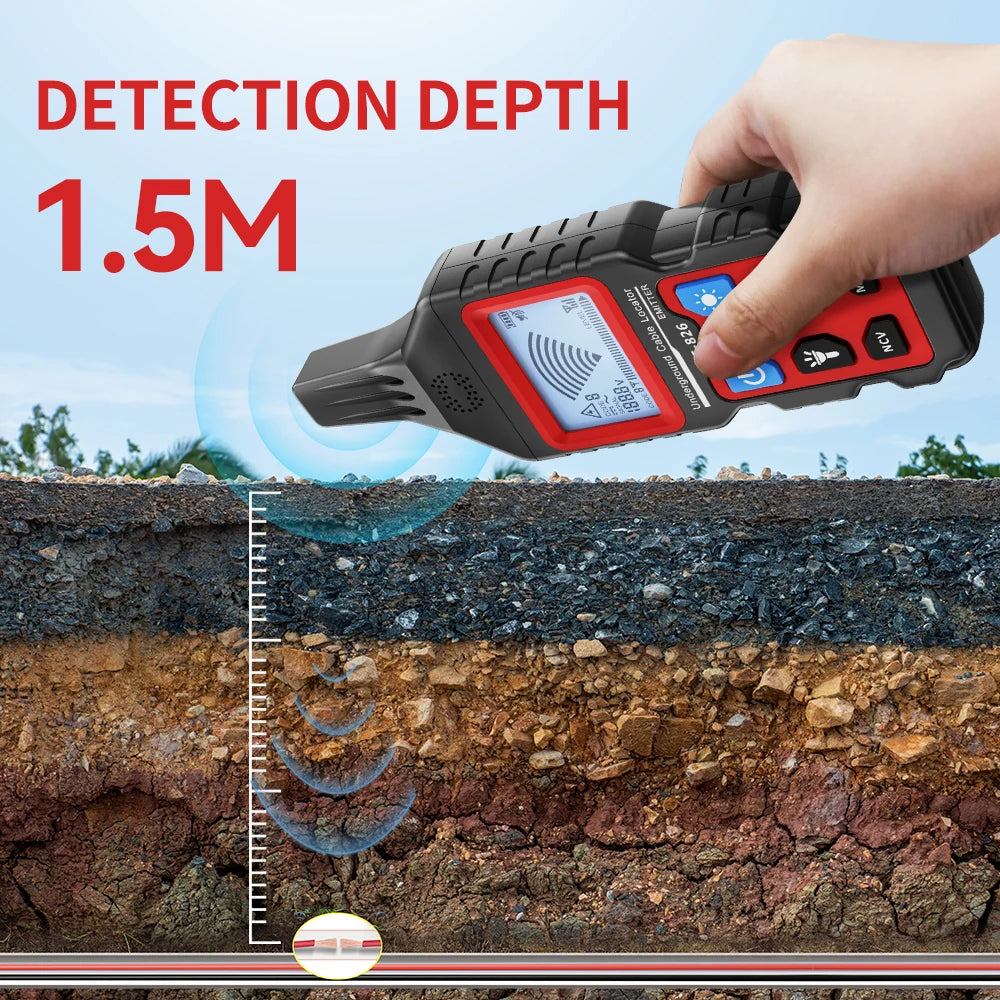

1. Detecting cables, electrical lines, water/gas supply pipelines buried in wall or earth, Detection depth is 0-1.5m;

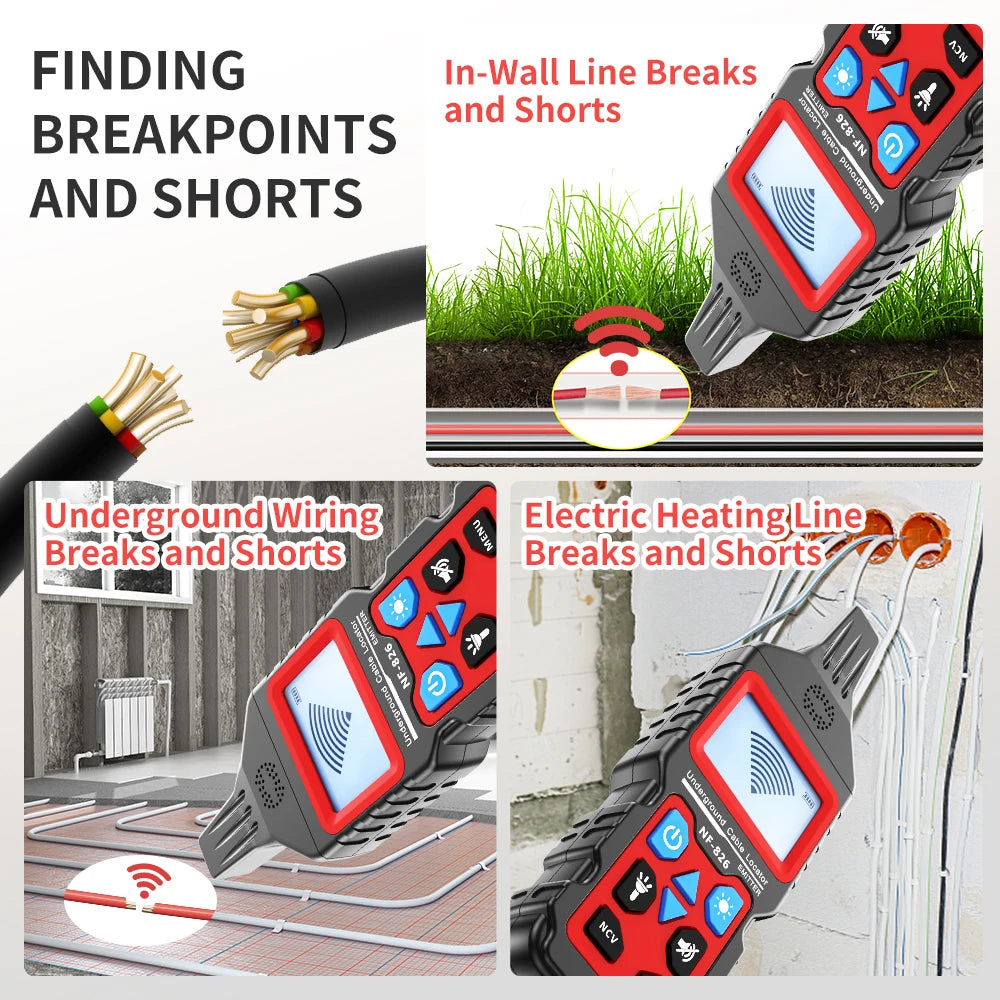

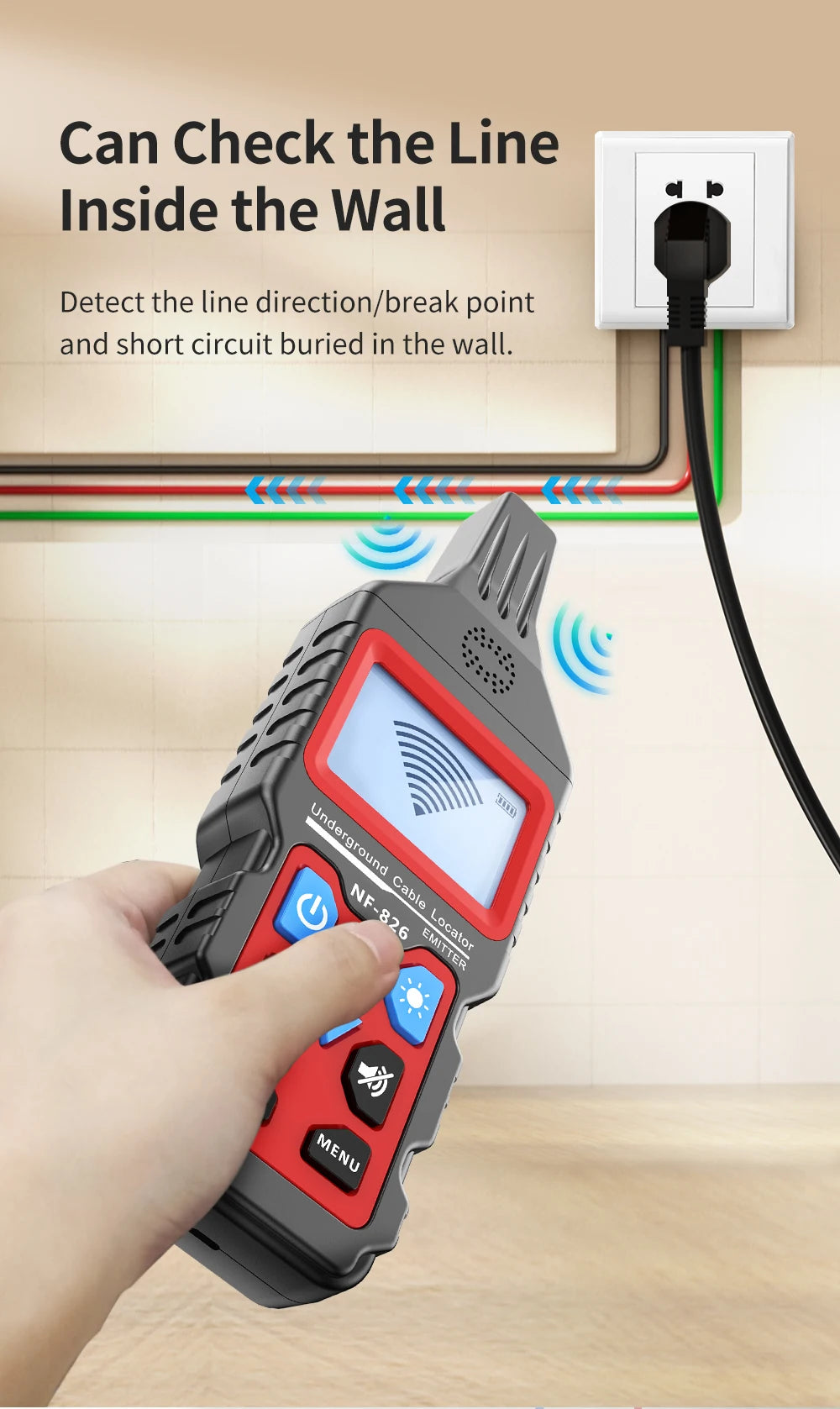

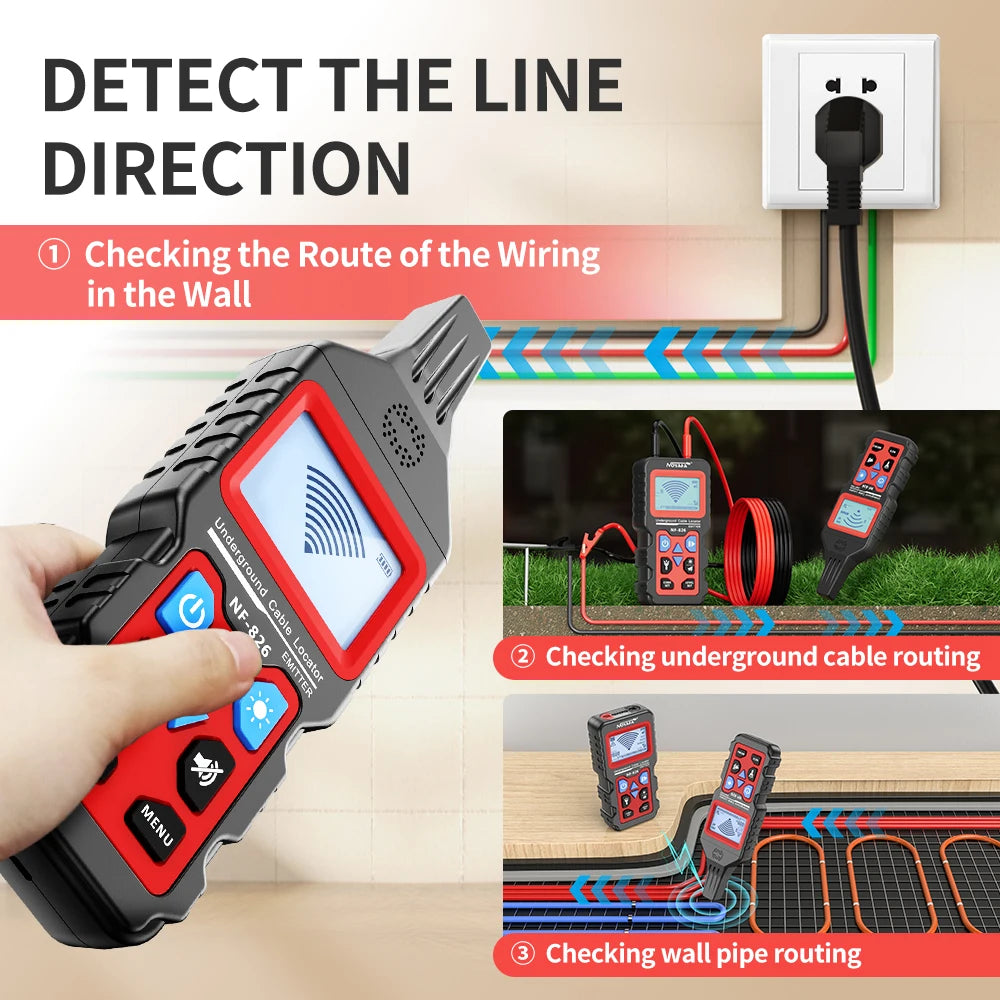

2. Detecting the direction, break points and short circuit points of the cable and electrical cable in wall or earth;

3. Detecting fuse and fuse circuits;

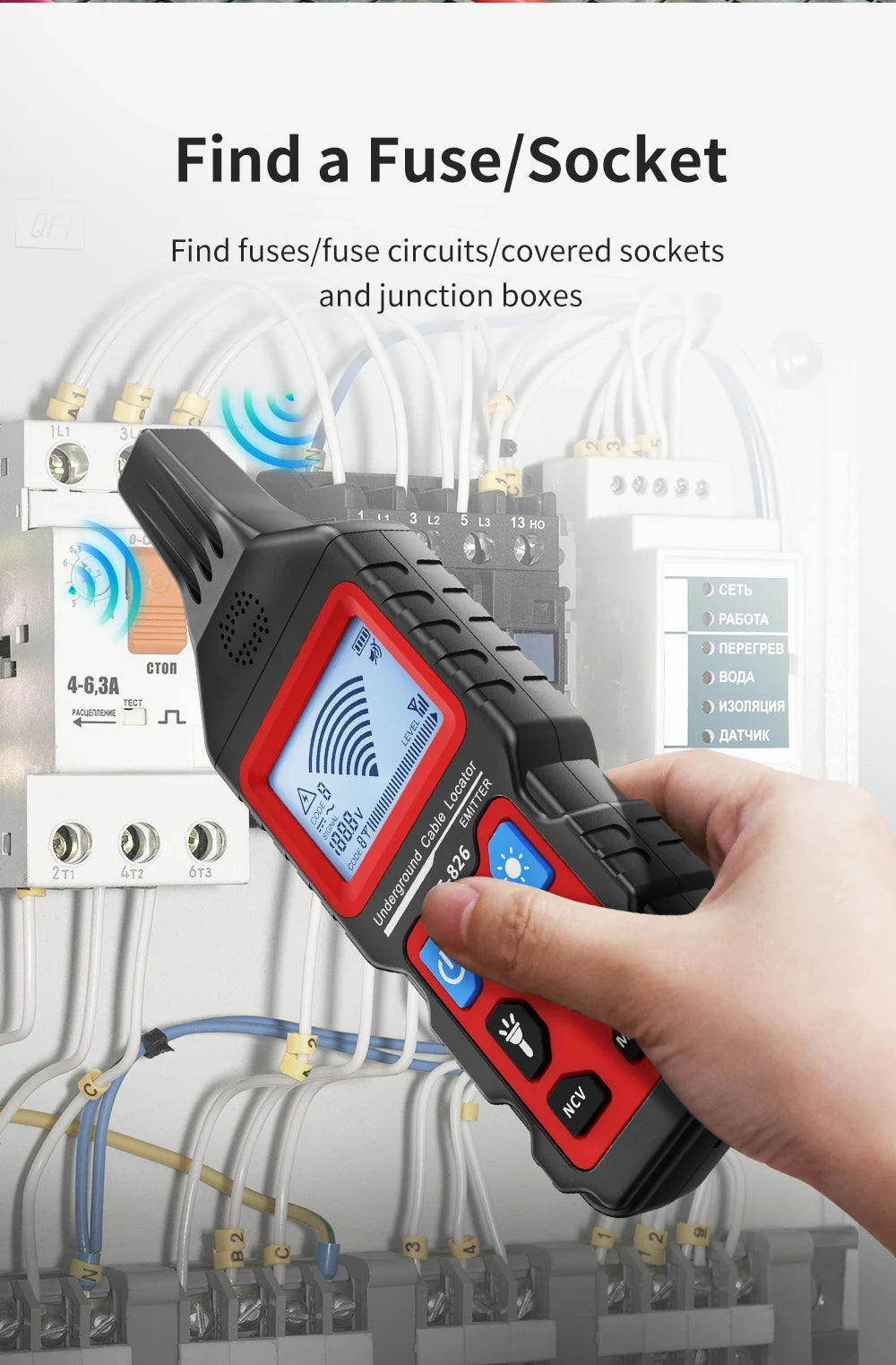

4. Finding the sockets and junction boxes which having been covered.

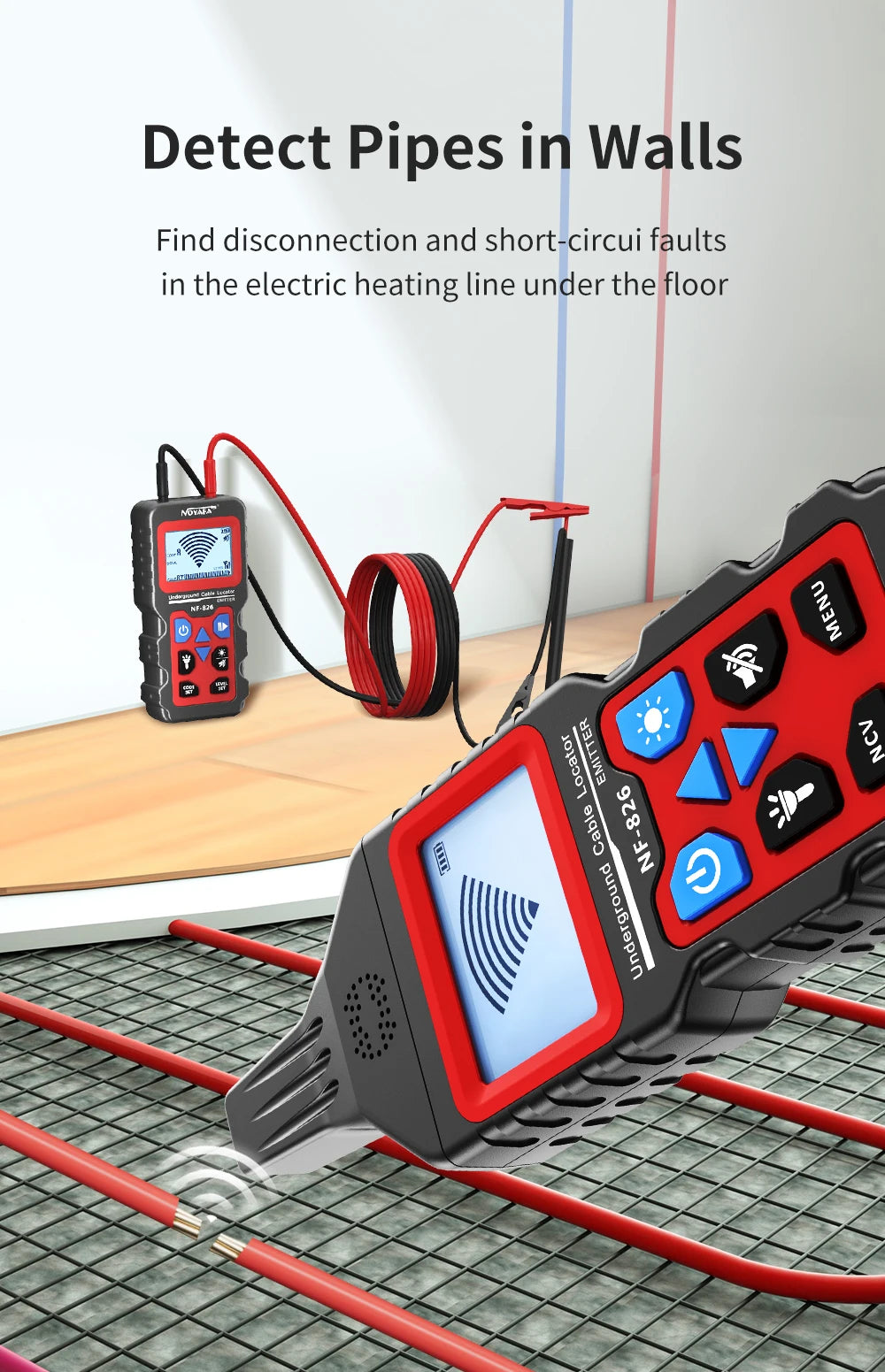

5. Detecting the broken wires and short circuits of the electric heating circuits under the floor.

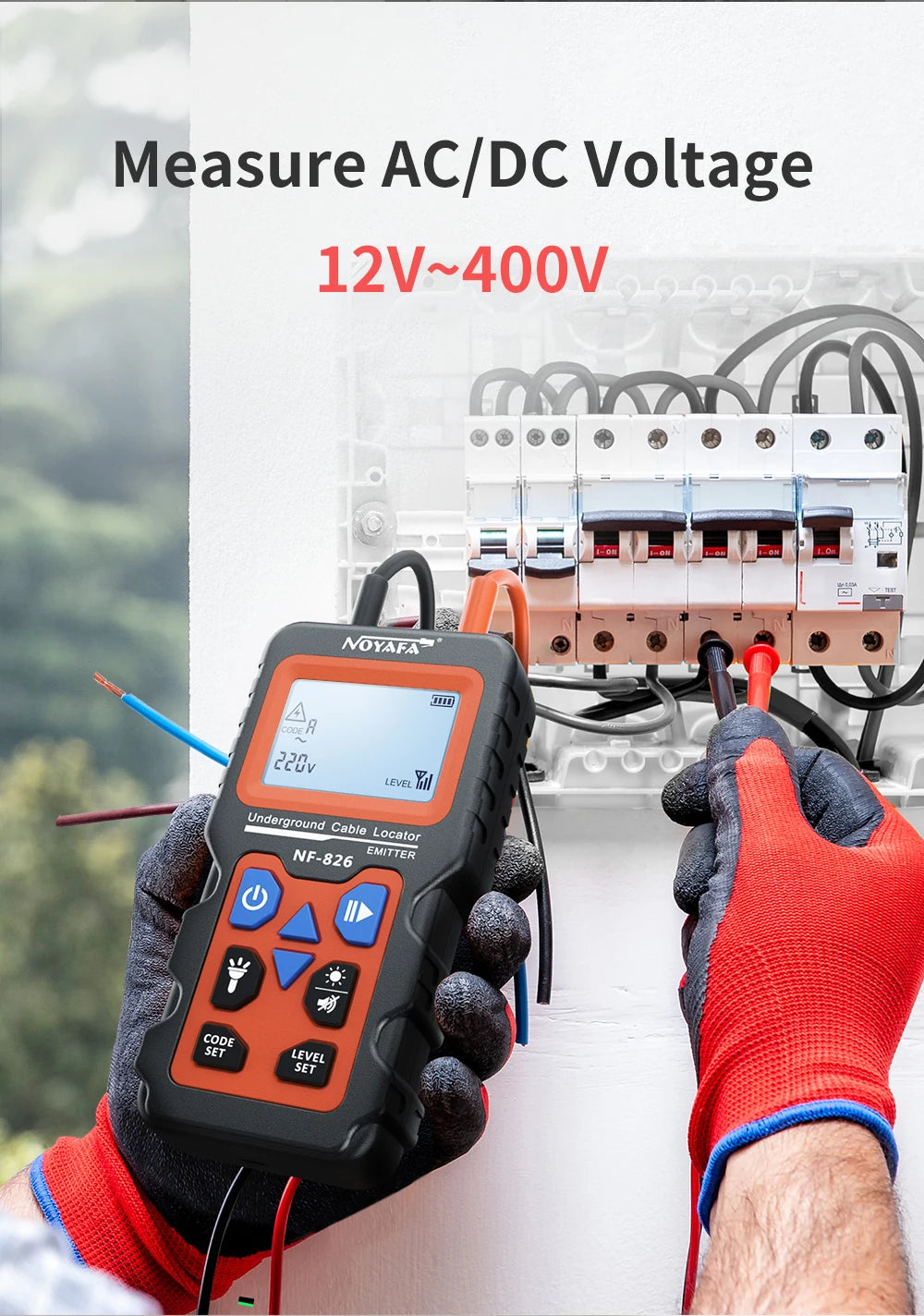

6. The transmitter has built-in AC and DC voltmeter function, which can linearly measure AC and DC voltages of 12V to 400V.

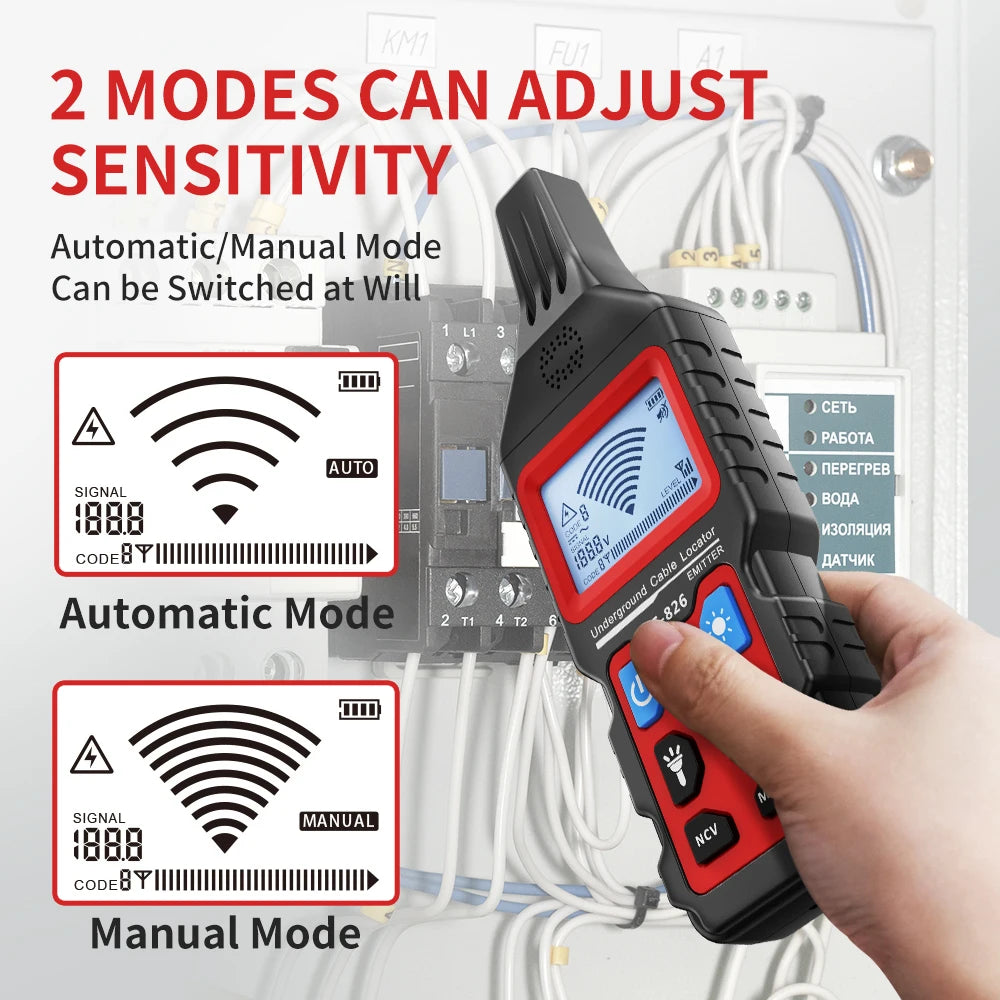

7. Sensitivity adjustment function: can be adjusted manually or automatically

8. Both receiver and transmitter have mute function

9. The receiver LCD screen has a backlight function, which is convenient for application in poor light places

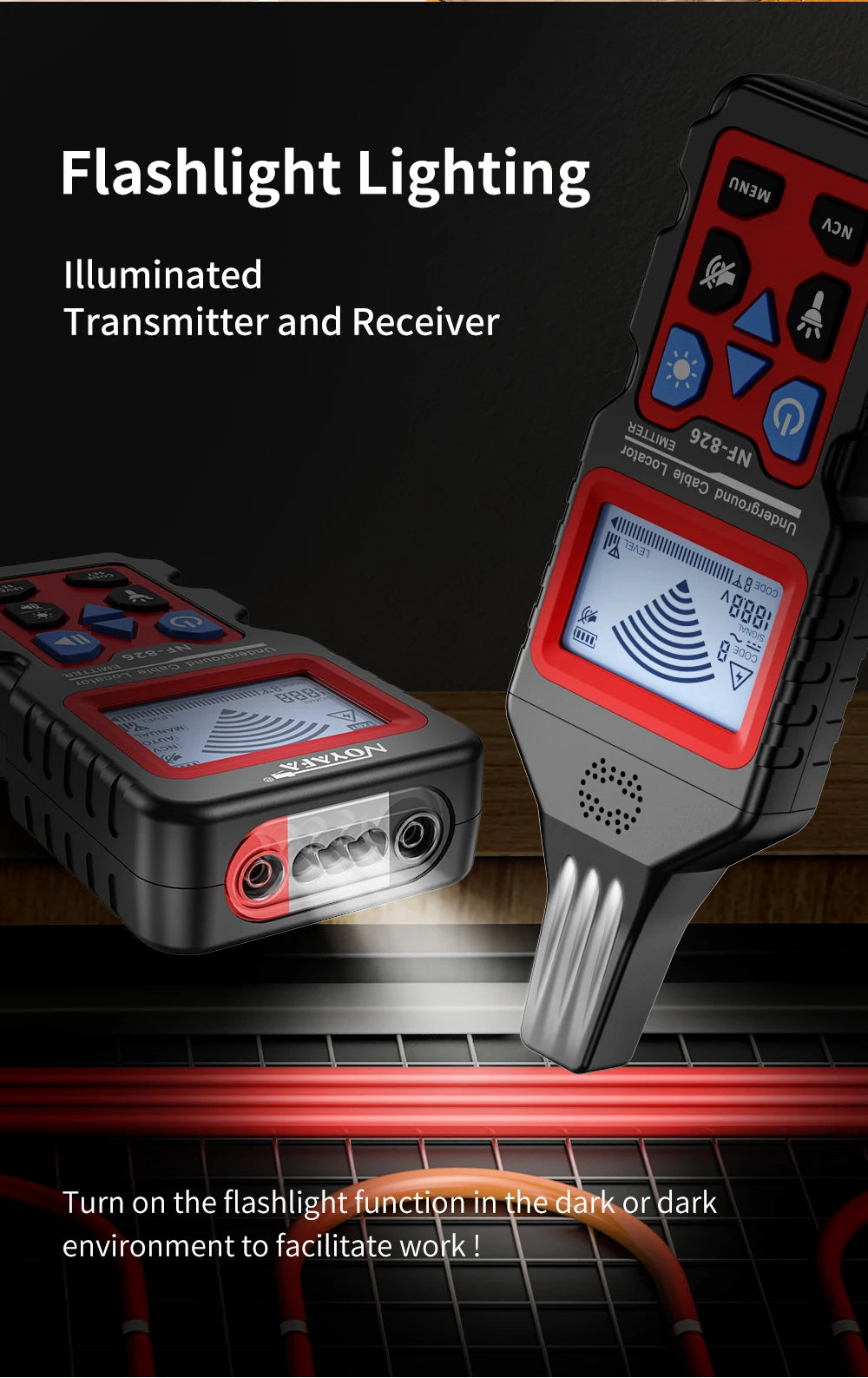

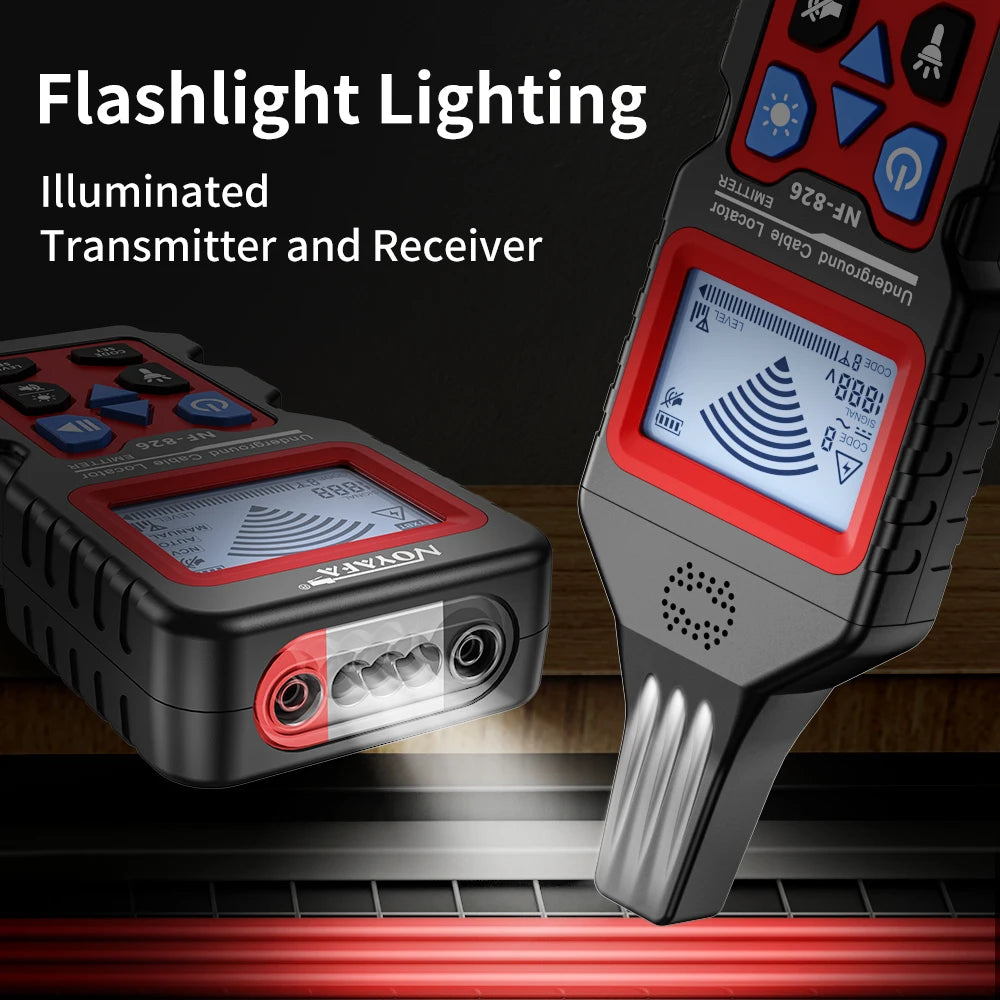

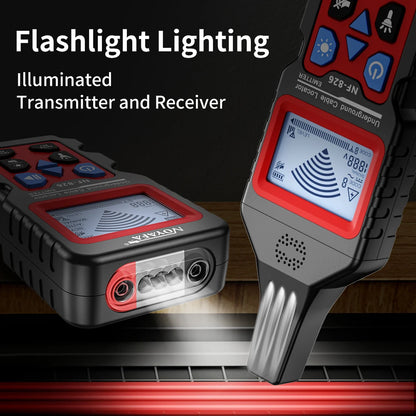

10. Both receiver and transmitter are equipped with torch function, convenient to work in dark environment.

11. Rechargable Lithium battery for long-time work. Automatic shutdown function.

Three Common Methods of Use（Line must be de-energized）：

1. Look for underground cables

Use the red clip (red needle)to clamp the cable that needs to be searched and the black clip (black needle)to the ground wire and the receiver traces the signalalong the line to find the cable direction.

2. Look for short-circuit points ofunderground cables

Use the red clip/black clip to clamp the short-circuited wire separately, adjust the sensitivity to an appropriate levelthe receiver will sound before the short-circuit point, and the receiver will not sound after the short-circuit point.

3. Find underground cable breakpoints

The red clamp clamps the target line, the black clamp clamps all the remaining lines and then connects the ground rod to ground(good groundingis required), the receiver will sound before the break pointand the receiver will not sound after the break point.
