SPECIFICATIONS

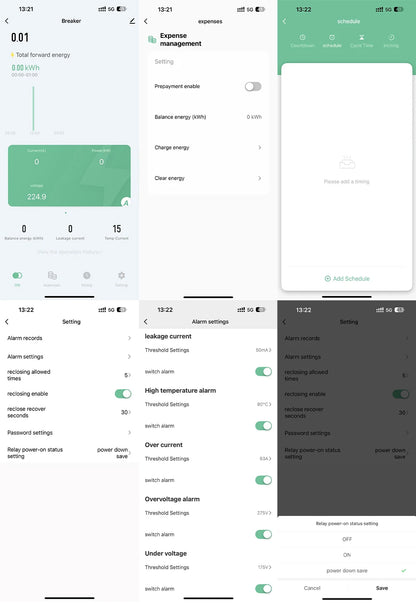

APP: Tuya/Smart Life

Brand Name: EARU

Certification: CE

Choice: yes

Delay time of APP setting program and device: max 20s (It depends on the network speed)

Does it include a Battery?: No

Does it include wireless functionality?: Yes

EU LVD Voltage: High voltage: Above 50Vac or 75Vdc

Earth Leakage Adjustable Range: 10-99mA

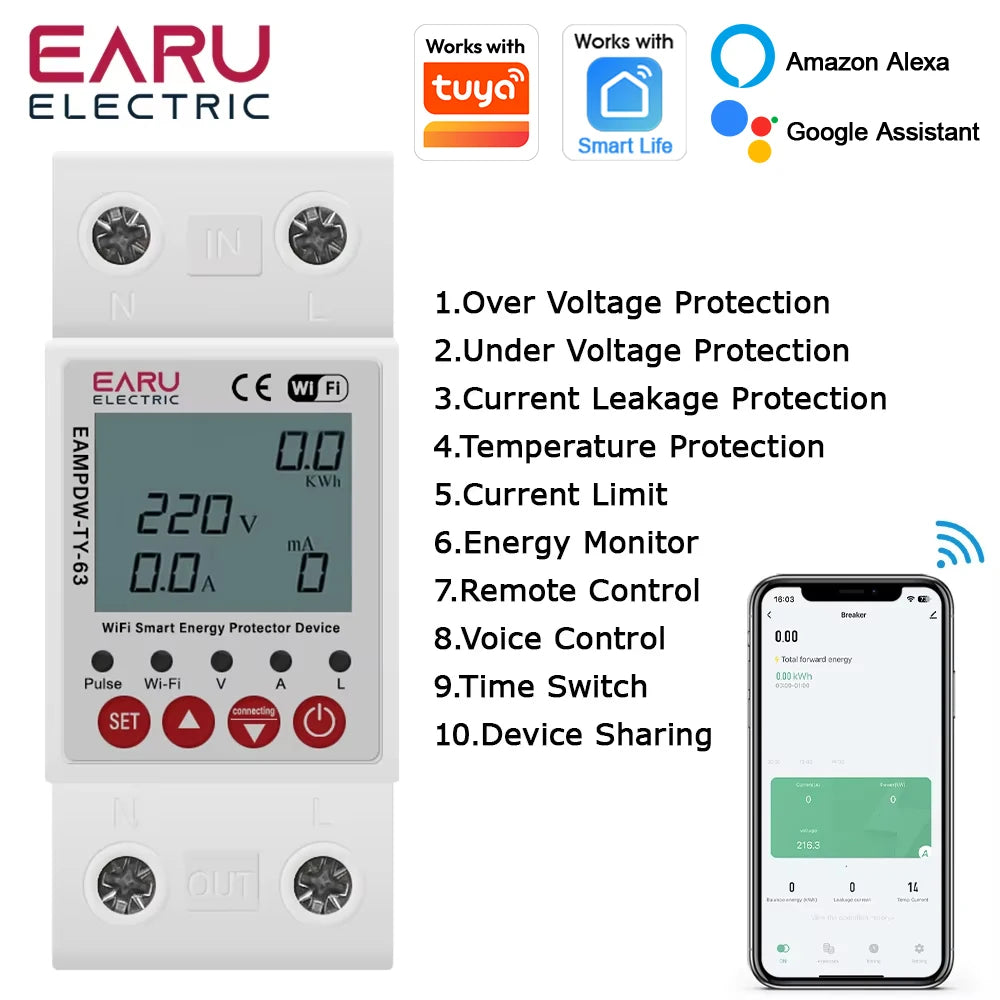

Function 1: Over Voltage Protection

Function 2: Under Voltage Protection

Function 3: Current Limiter

Function 4: Earth Current Leakage Protection

Function 5: Energy Consumption Record

Function 6: Remote Control ON / OFF

High-concerned chemical: None

Is Smart Device: Yes

Model 1: RCCB

Model 2: RCBO

Model 3: RCD

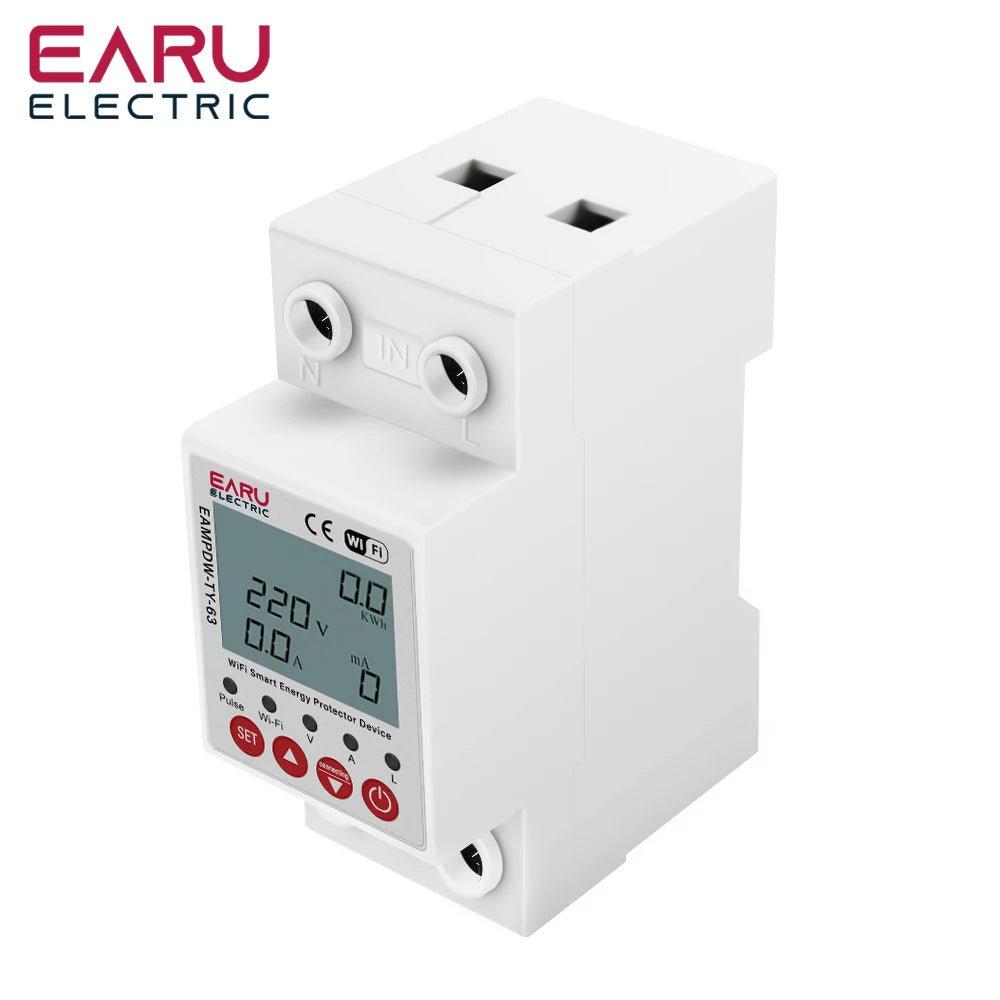

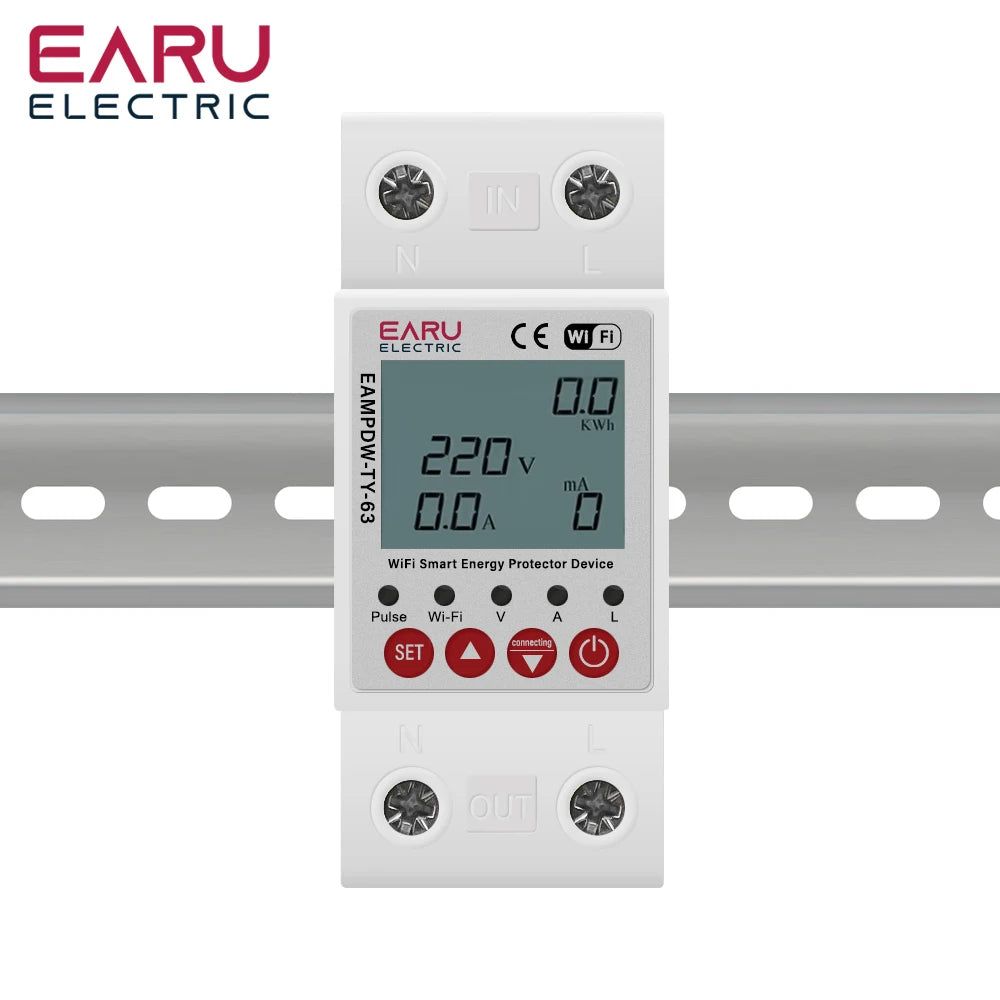

Model Number: EAMPDW-TY-63

Origin: Mainland China

Over Voltage Adjustable Range: 120V-300V (adjustable)

Rated Frequency: 50/60Hz

Rated Voltage: 220V

Rated Voltage 1: AC110V

Rated Voltage 2: AC220V/230V

Type: Earth Leakage,Circuit breaker

Under Voltage Adjustable Range: 80-210V (adjustable)

is_customized: Yes

semi_Choice: yes

We are factory, we can provide OEM service, if you need product with your logo, please contact us!

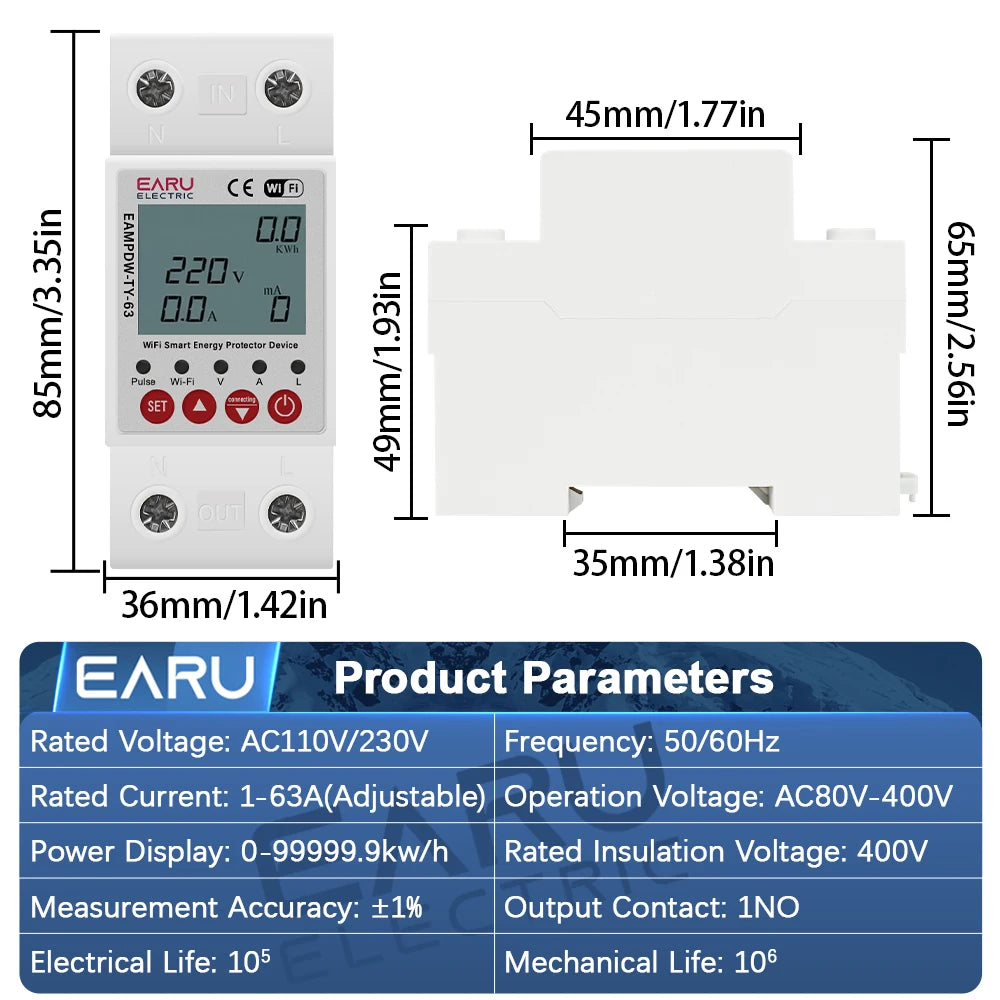

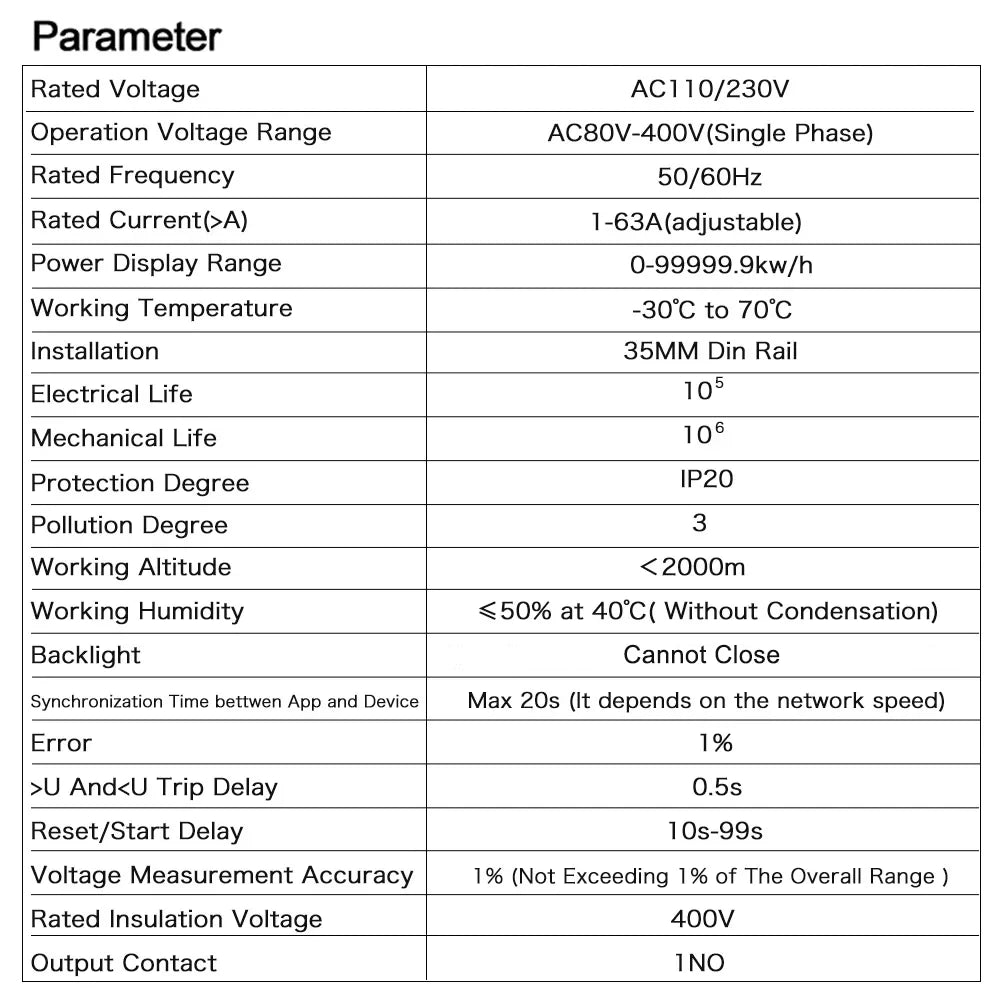

Product Specification

Rated Voltage: AC110V/230V; Frequency: 50Hz/60Hz

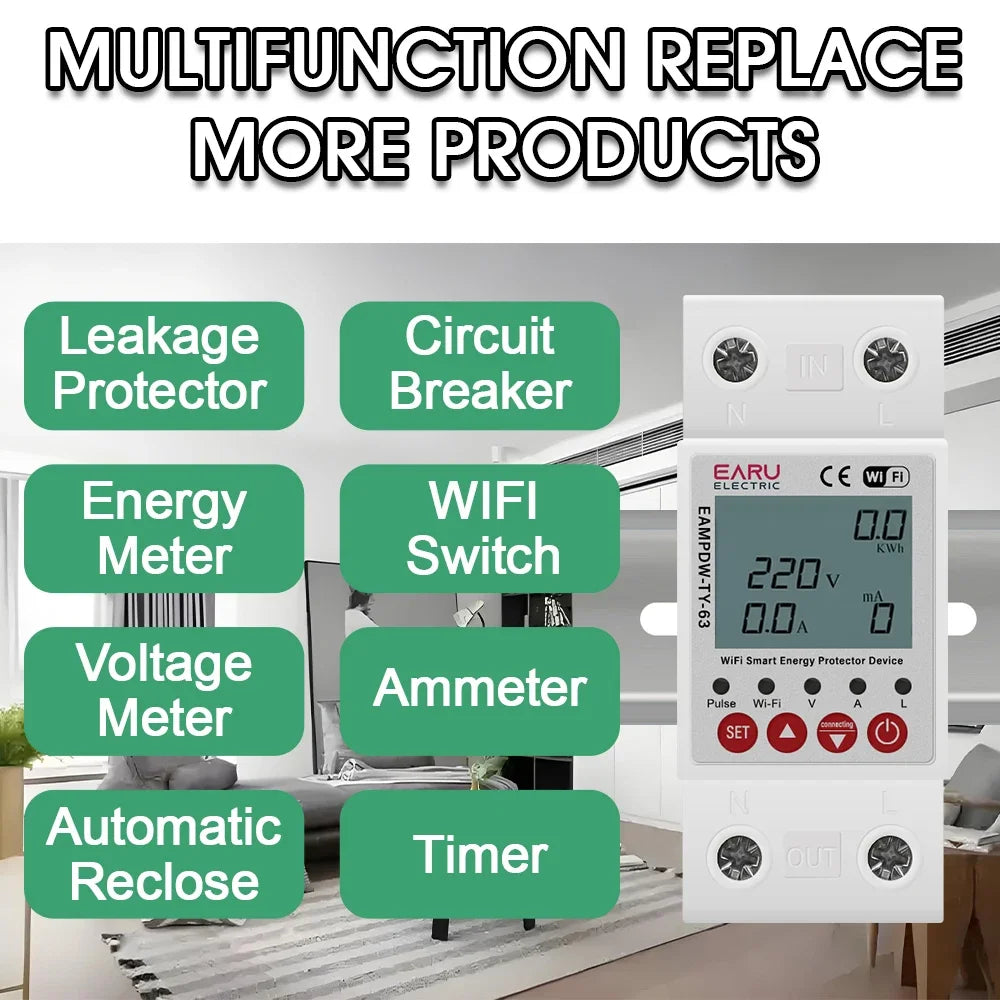

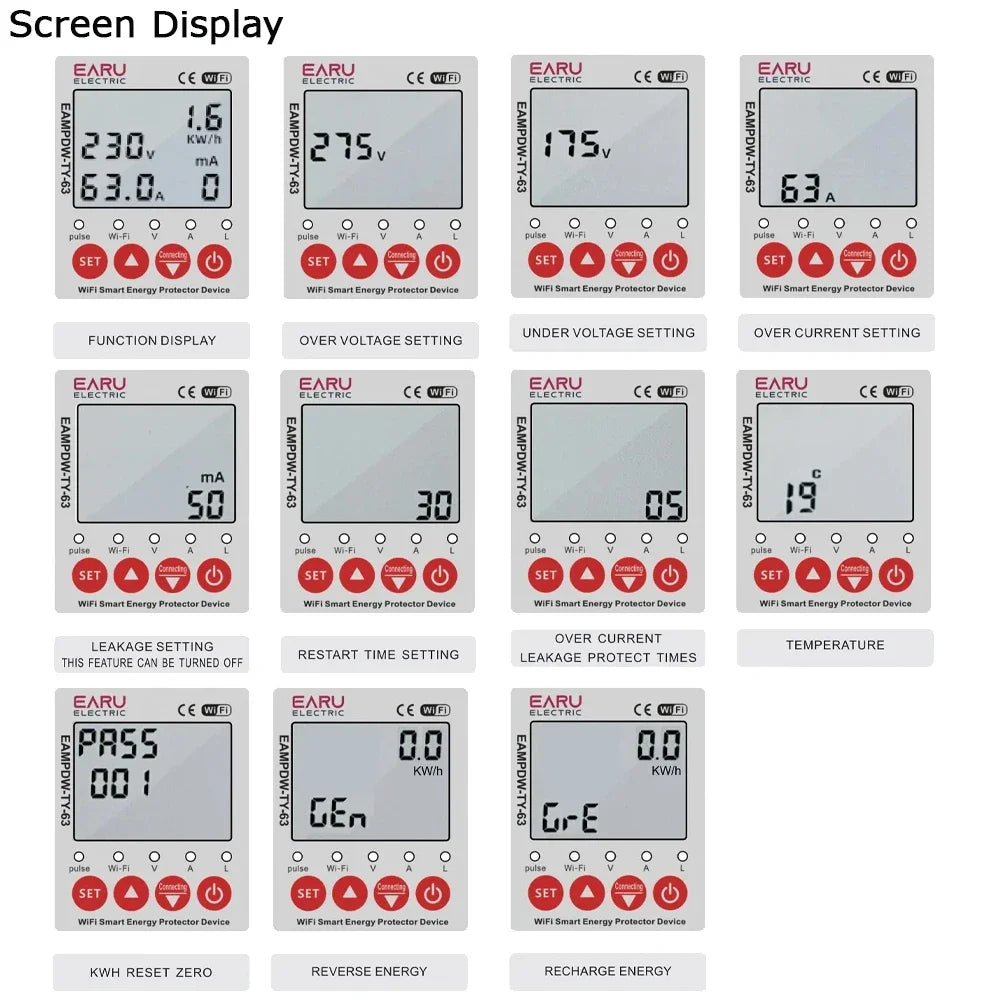

Function:

1. Voltage Meter

2. Ammeter

3. Energy Meter

4. Timer Switch

5. Remote Control ON/OFF

6. Power Failure Memory

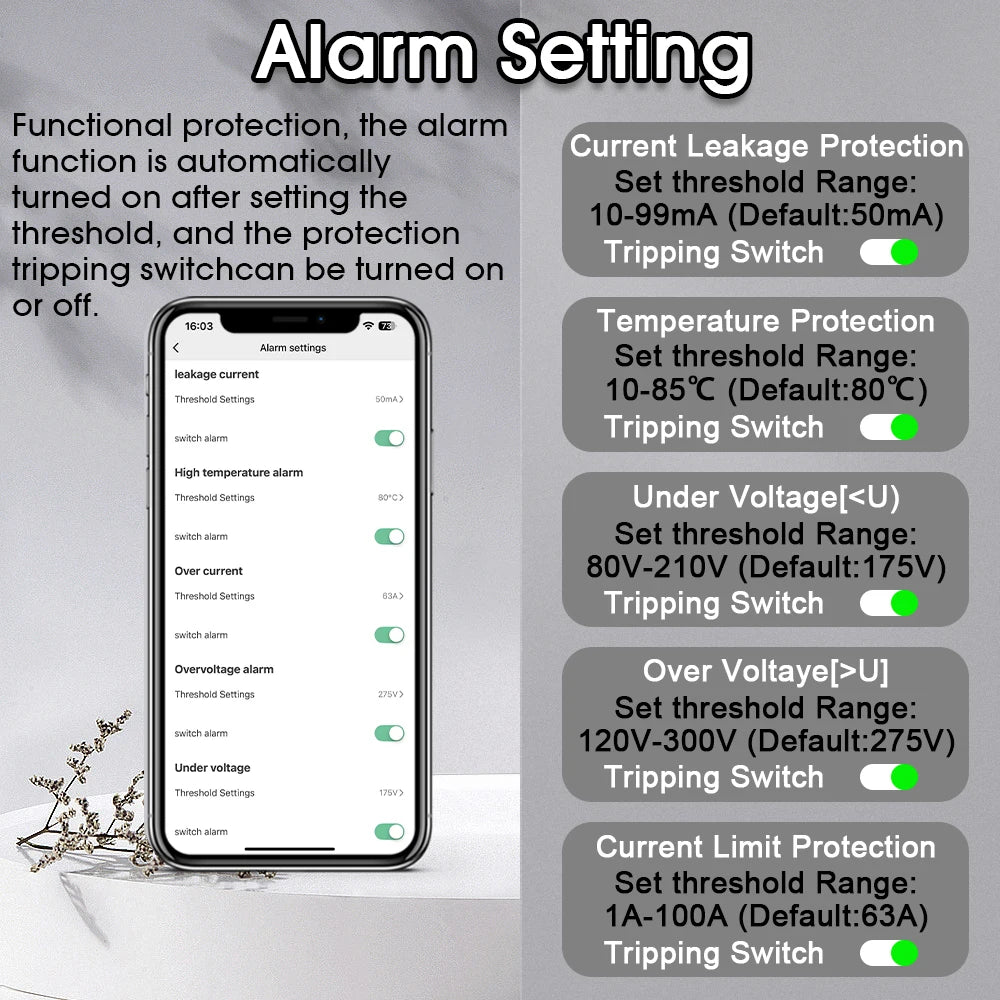

7. Over Current Protection (1A-63A Adjustable)

8. Under-Voltage Protection (76V-240V Adjustable)

9. Over-Voltage Proteciton (120V-300V Adjustable)

10. Current Leakage Protection (10mA-99mA Adjustable)

11. Temperature Protection (10°C-85°C Adjustable)

12. Over Current and Leakage Reconnect Times (1-30 Adjustable)

13. Reconnect Time (Delay on time) (10s-90s Adjustable)
