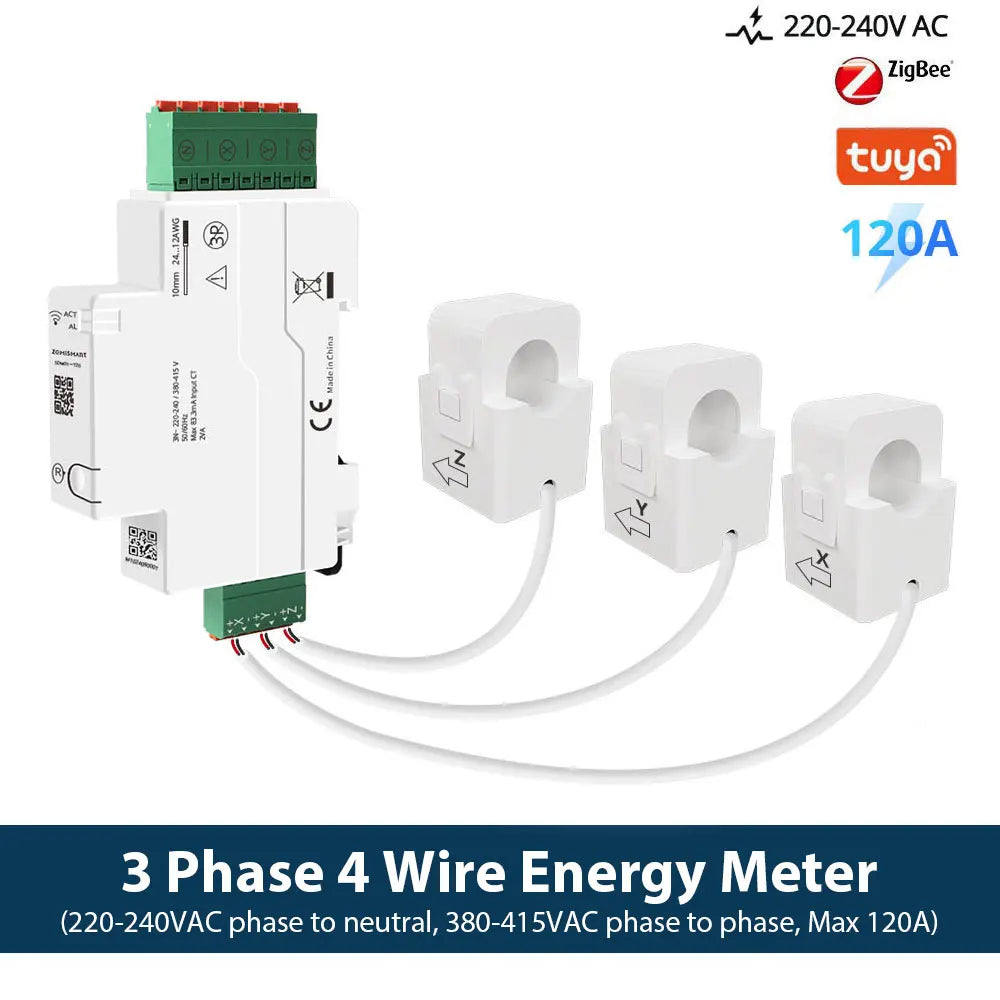

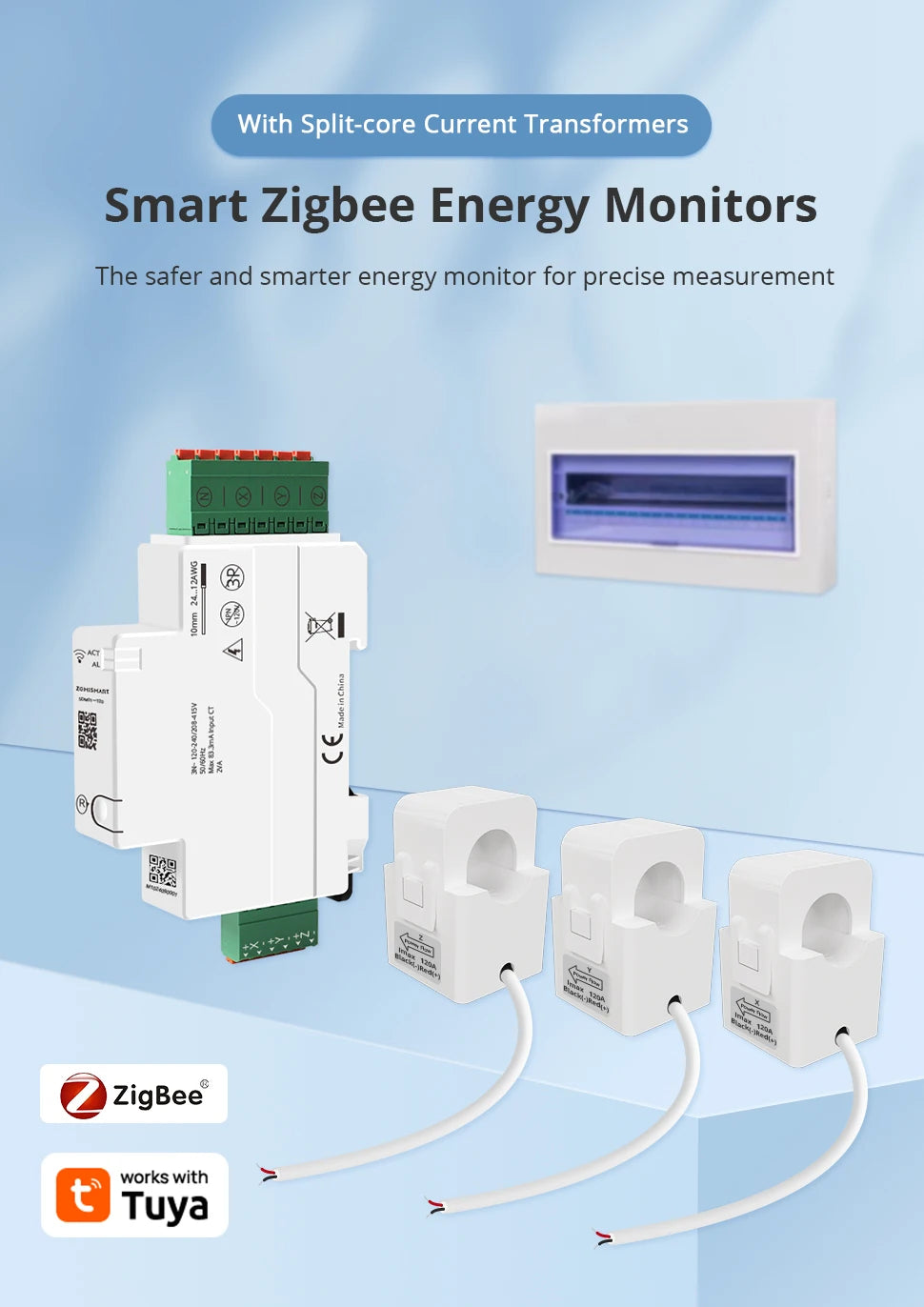

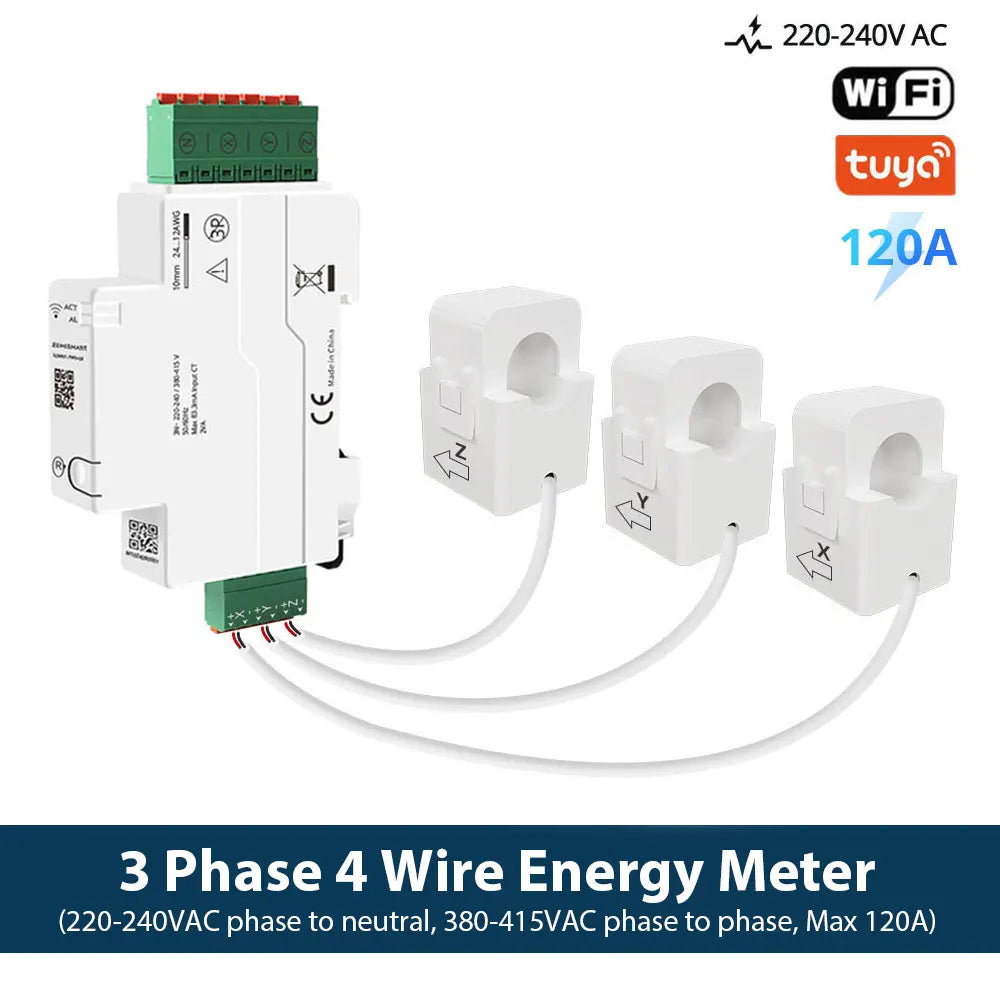

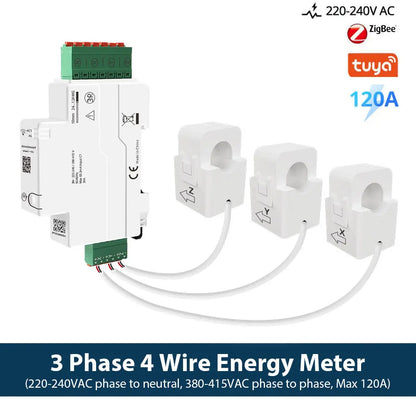

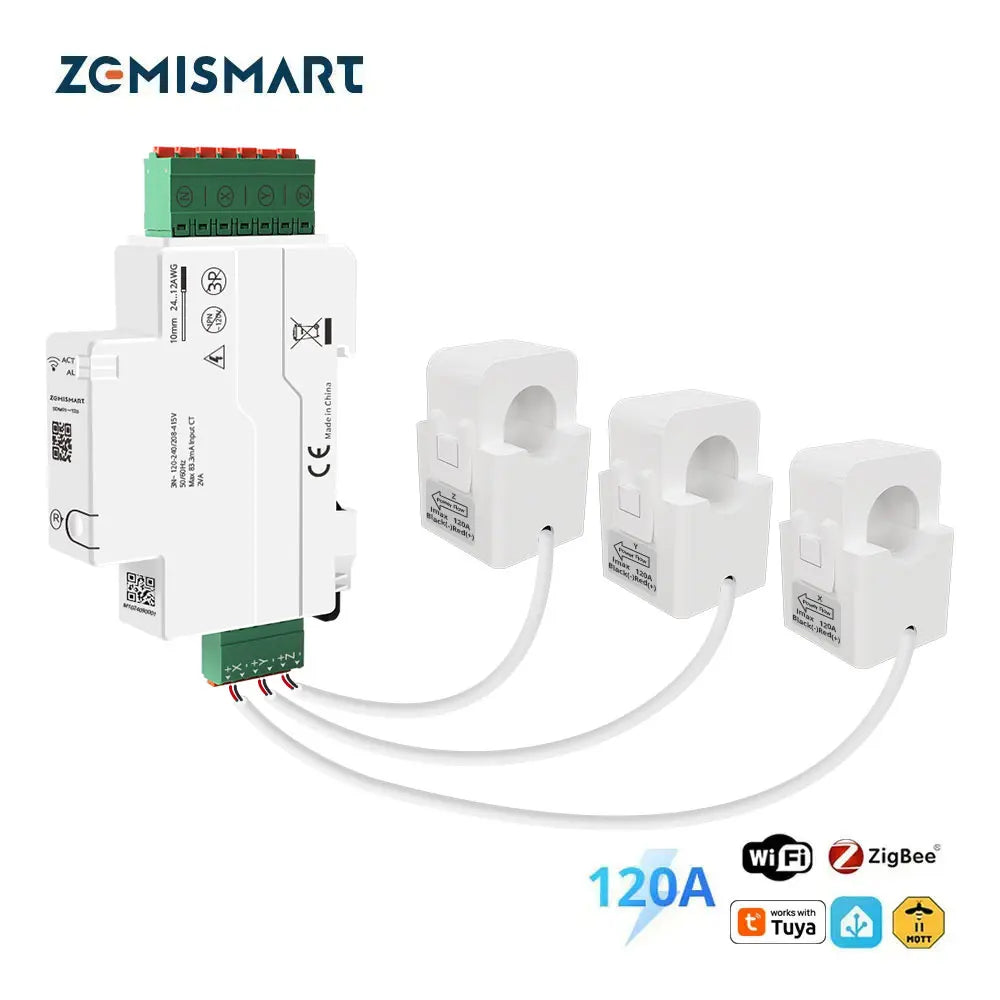

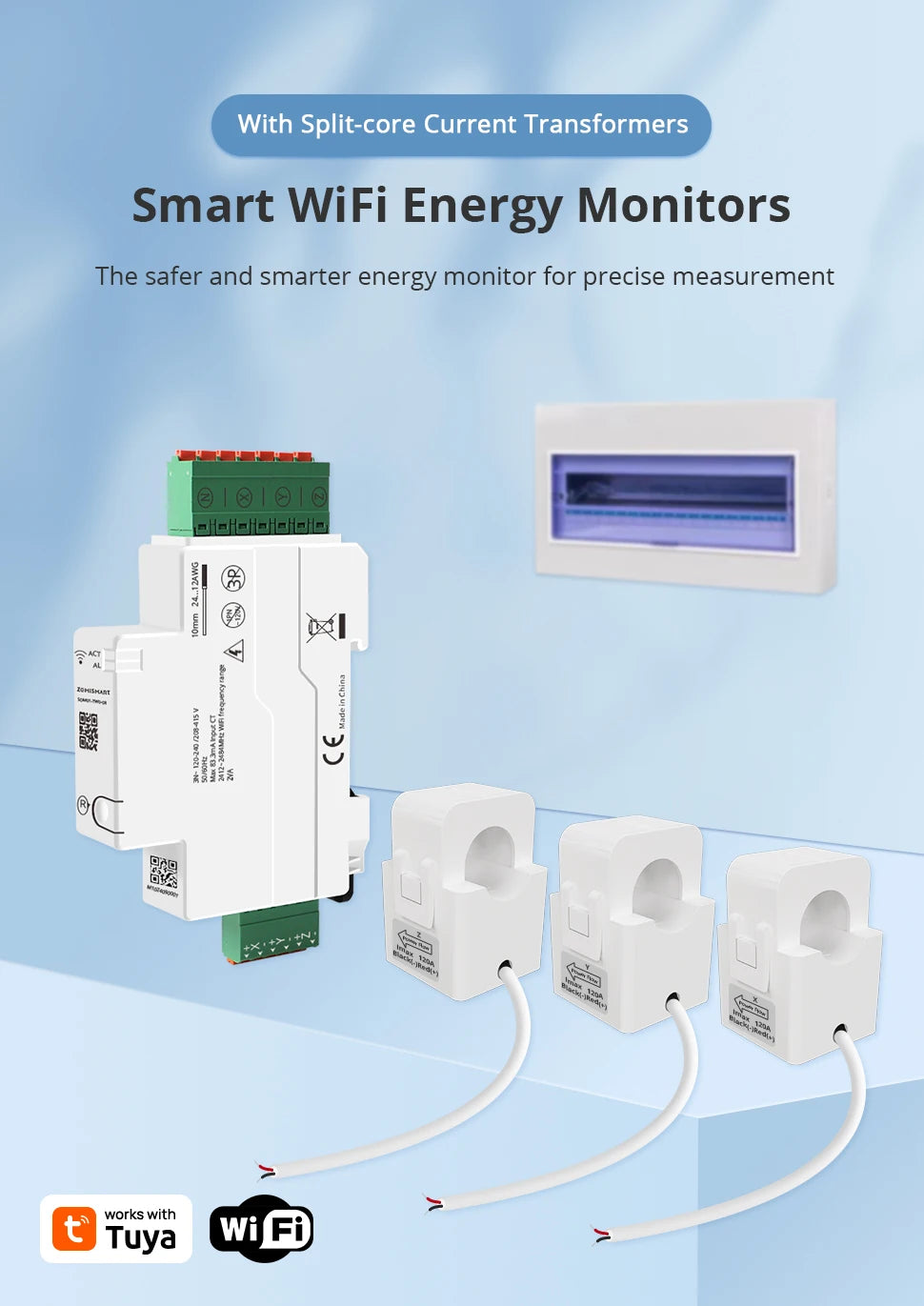

Zemismart 120A Zigbee WiFi 3 Phase Energy Meter Smart Din-rail Power Monitor Withdrawable Split-core CTs Works with Tuya App

Note:

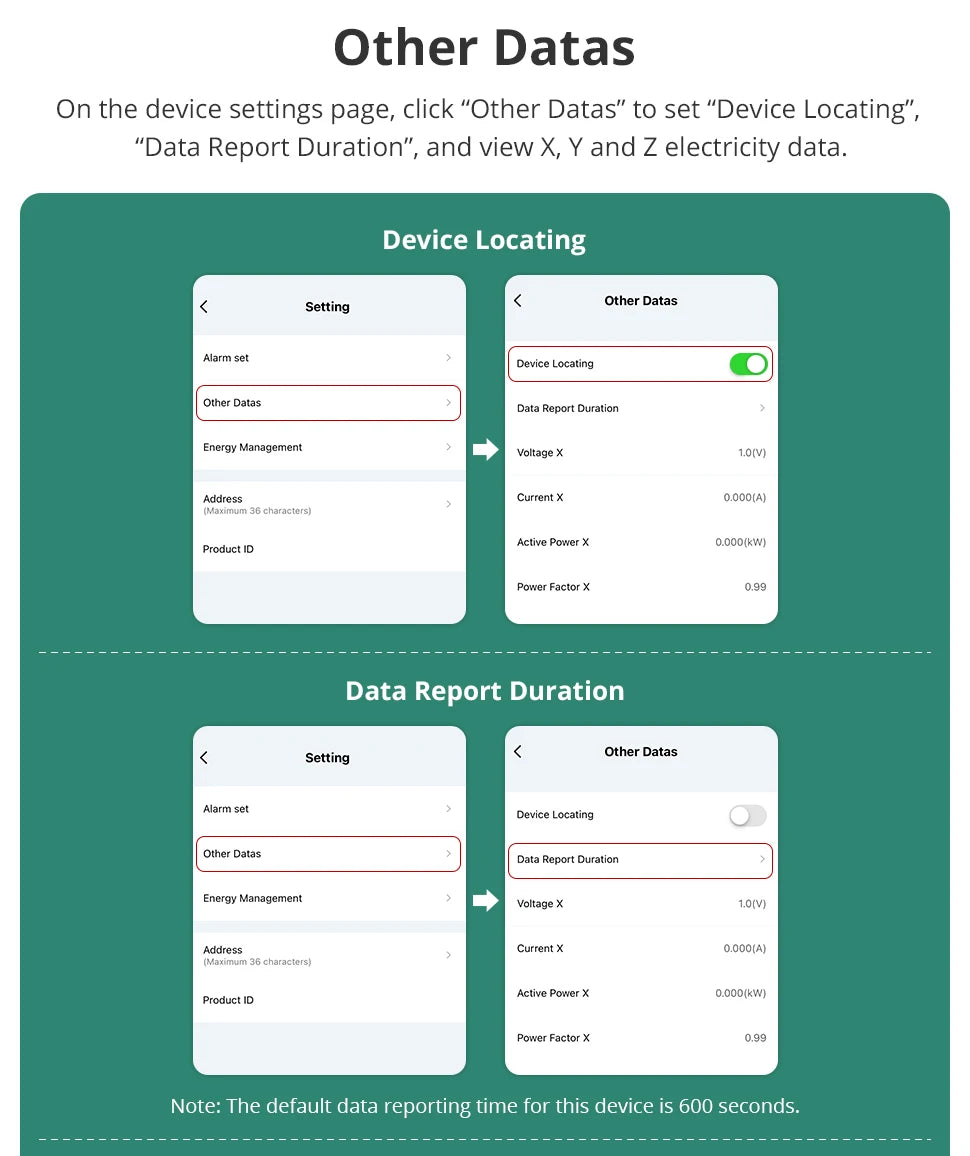

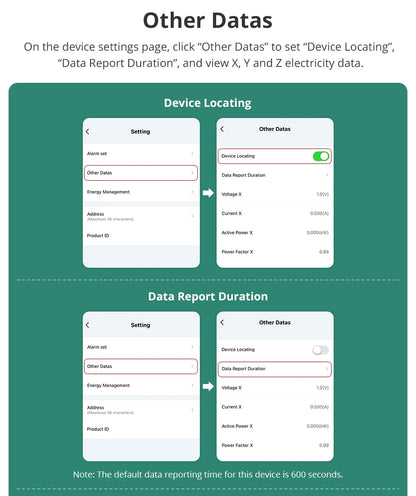

- The default data reporting time for Zigbee Version is 600 seconds, and for WiFi Version is 300 seconds.

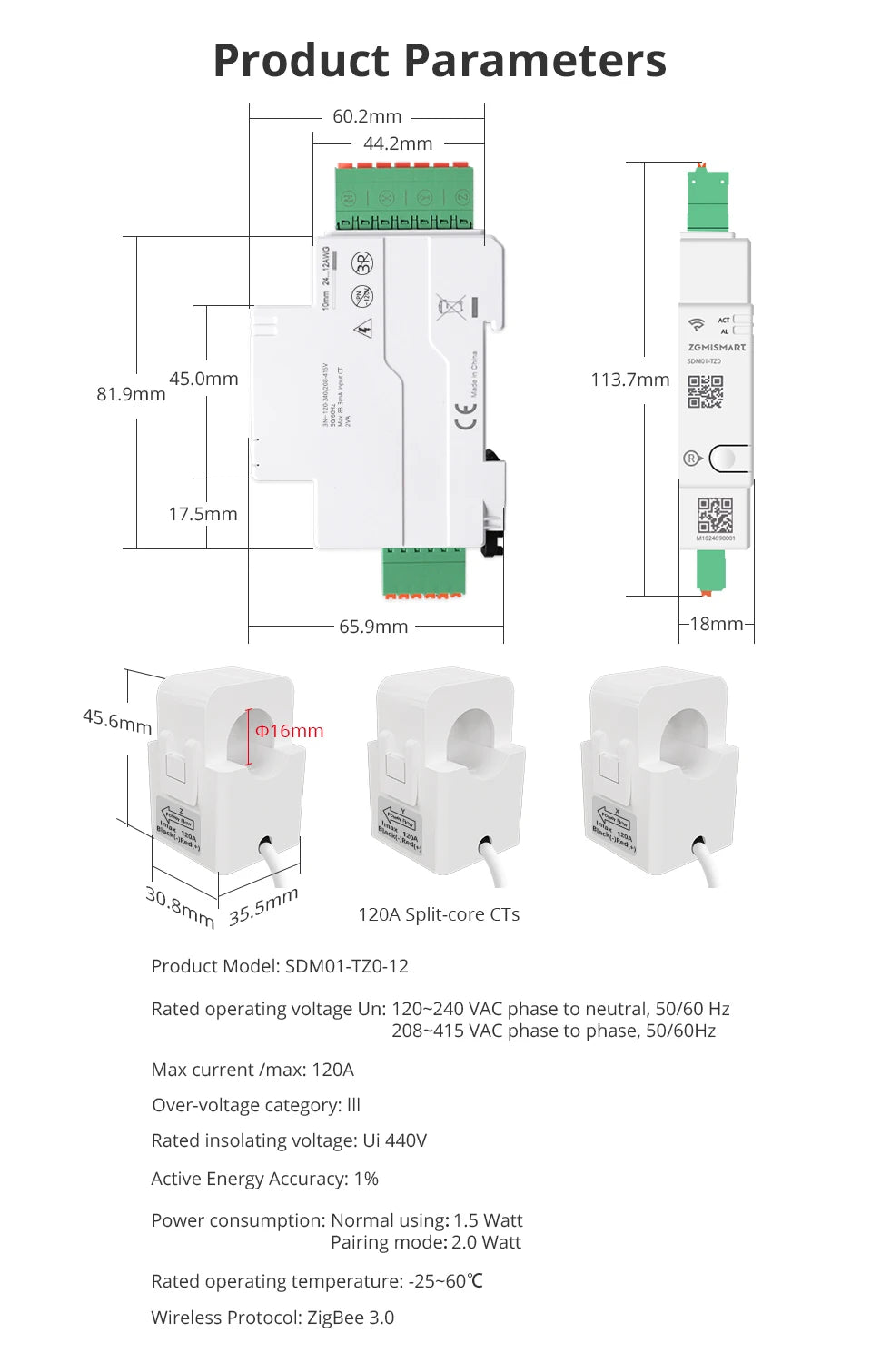

- Please note that there are four products in this link, SDM01-TZ0-12 (220-240V zigbee version with Split-core CTs) and SDM01-TW0-12 (220-240V wifi version with Split-core CTs),

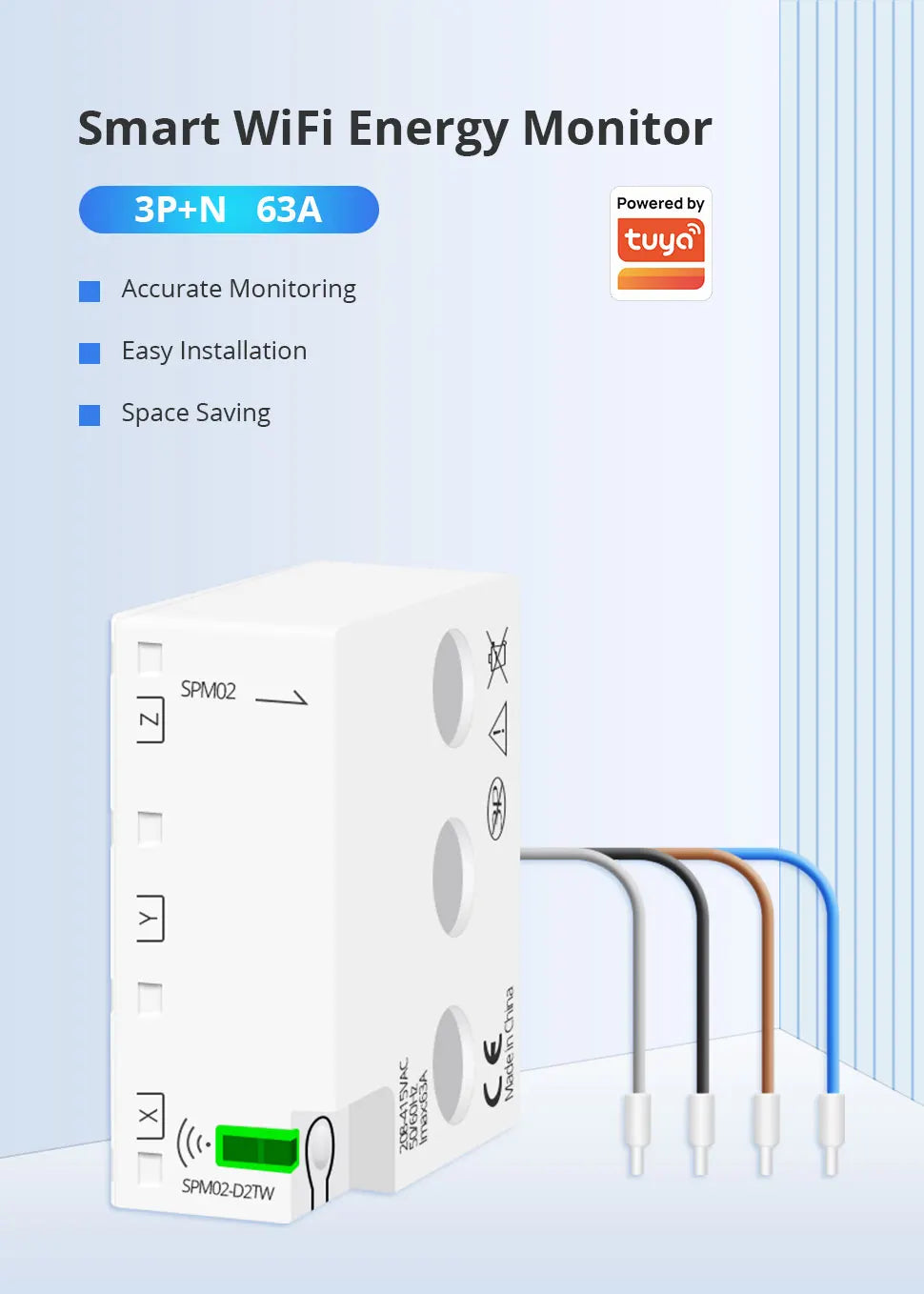

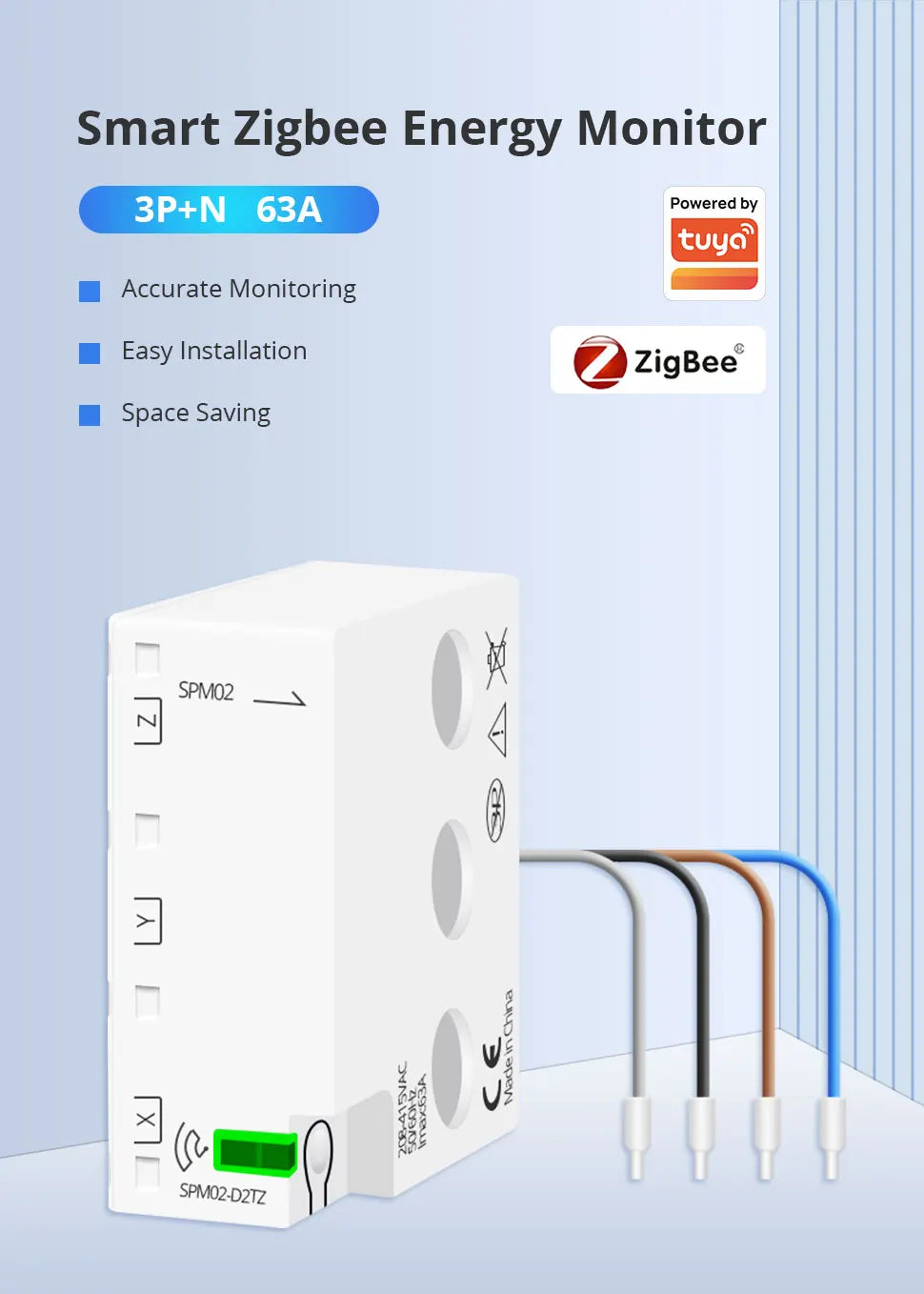

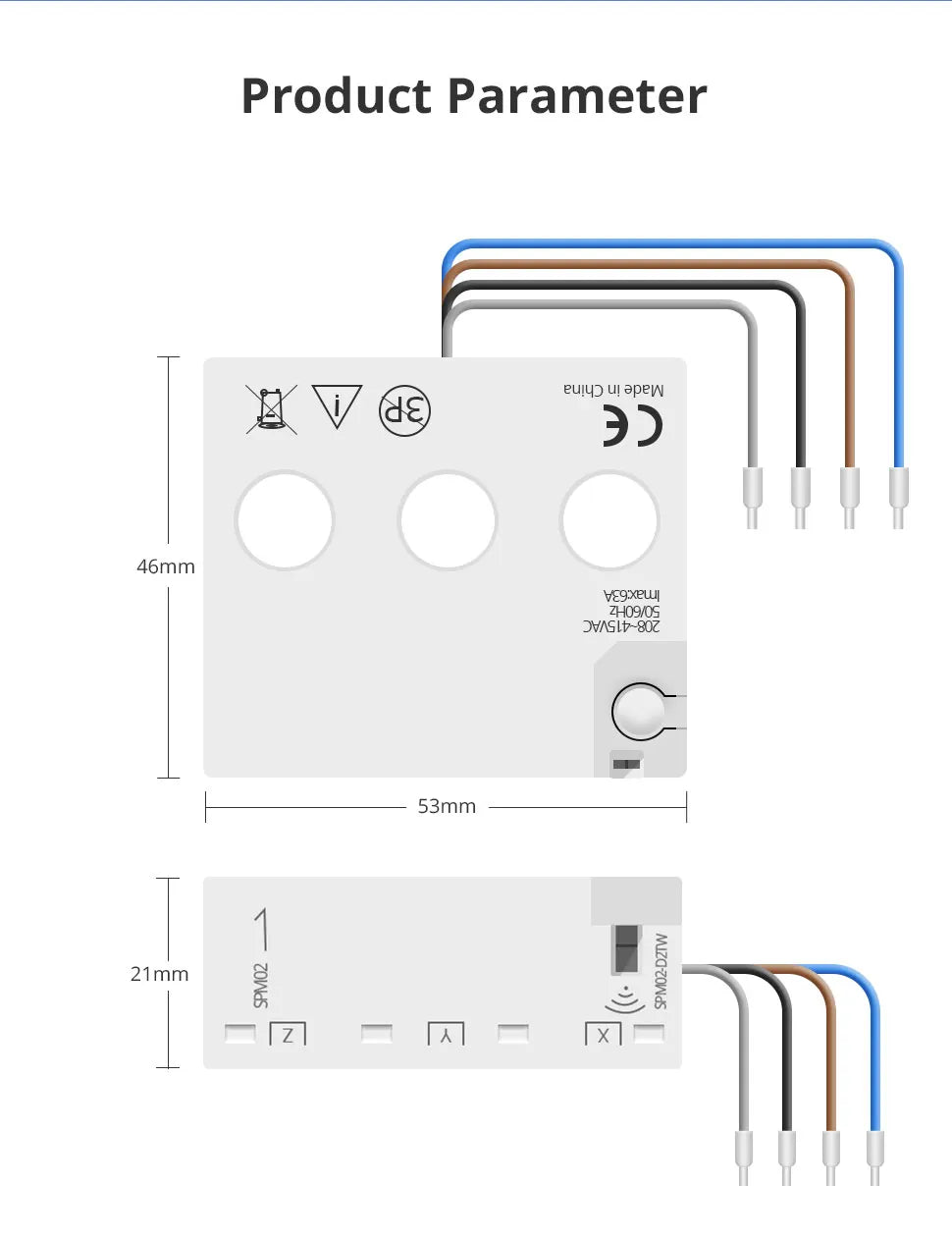

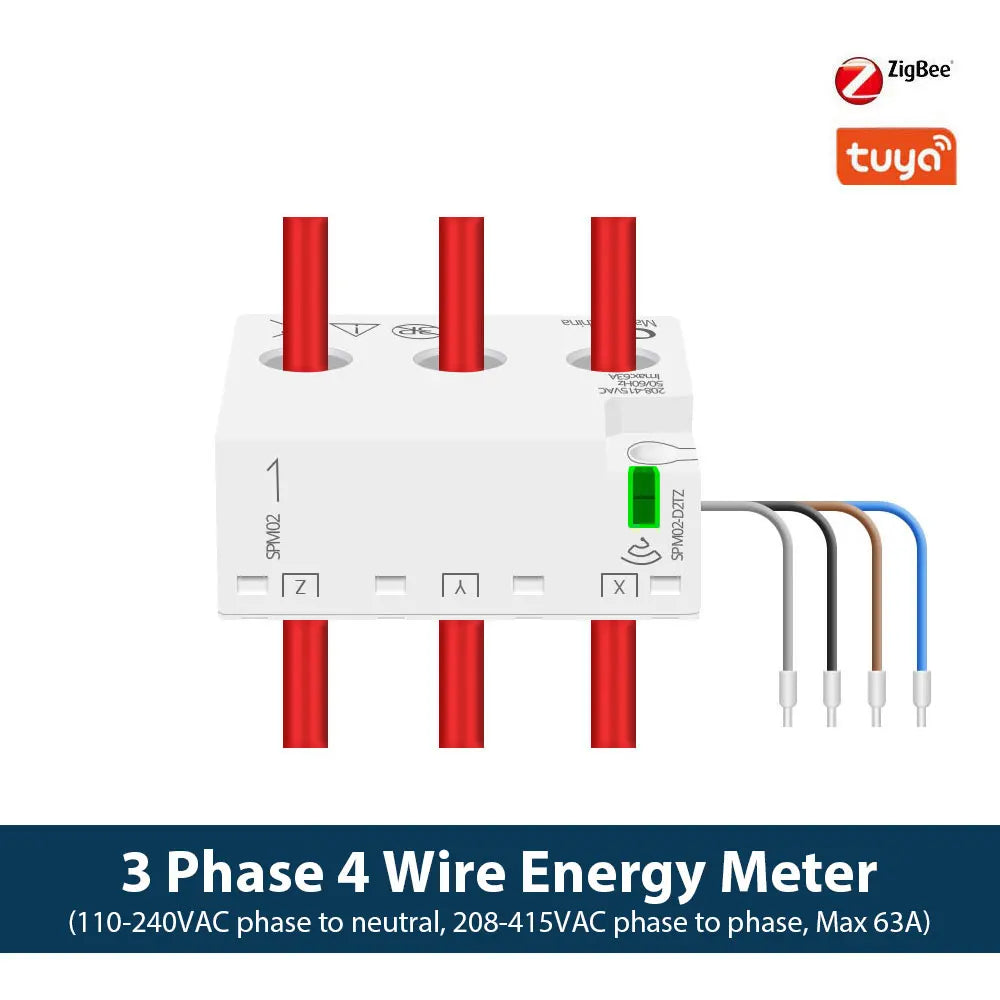

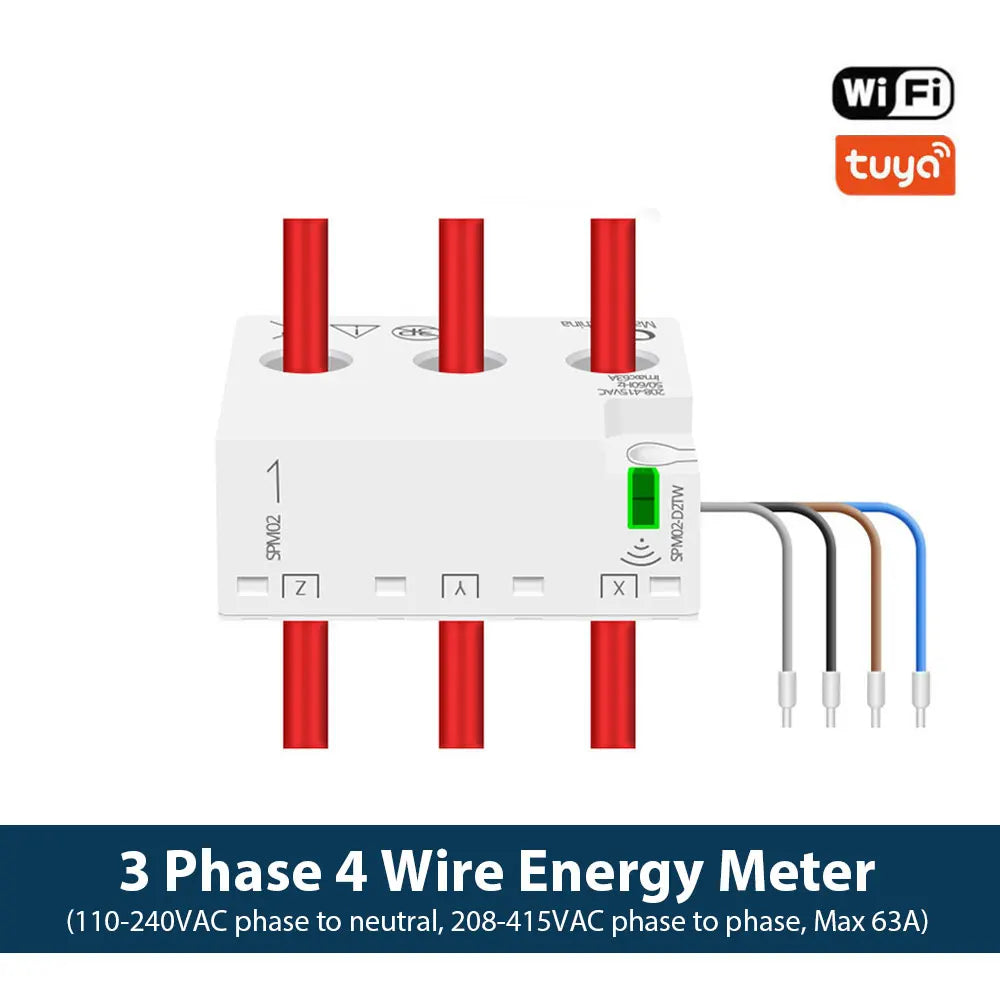

SPM02-D2TZ (110-240V zigbee version mini 3-phase energy meter) and SPM02-D2TW (110-240V wifi version mini 3-phase energy meter), please confirm the voltage and version before placing an order to avoid unnecessary losses.

Note Before Order:

- This product cannot be directly connected to ZHA, and can only be paired with Home Assistant through the Zigbee2mqtt dongle.
- It can only measure the total energy and cannot measure the energy of each phase separately.
- The bidirectional monitoring function can only be viewed on Home Assistant and cannot be displayed on the Tuya app.
- This 3-phase energy meter has two versions, WiFi and Zigbee. Please check carefully which version you need before placing an order.

Feature:

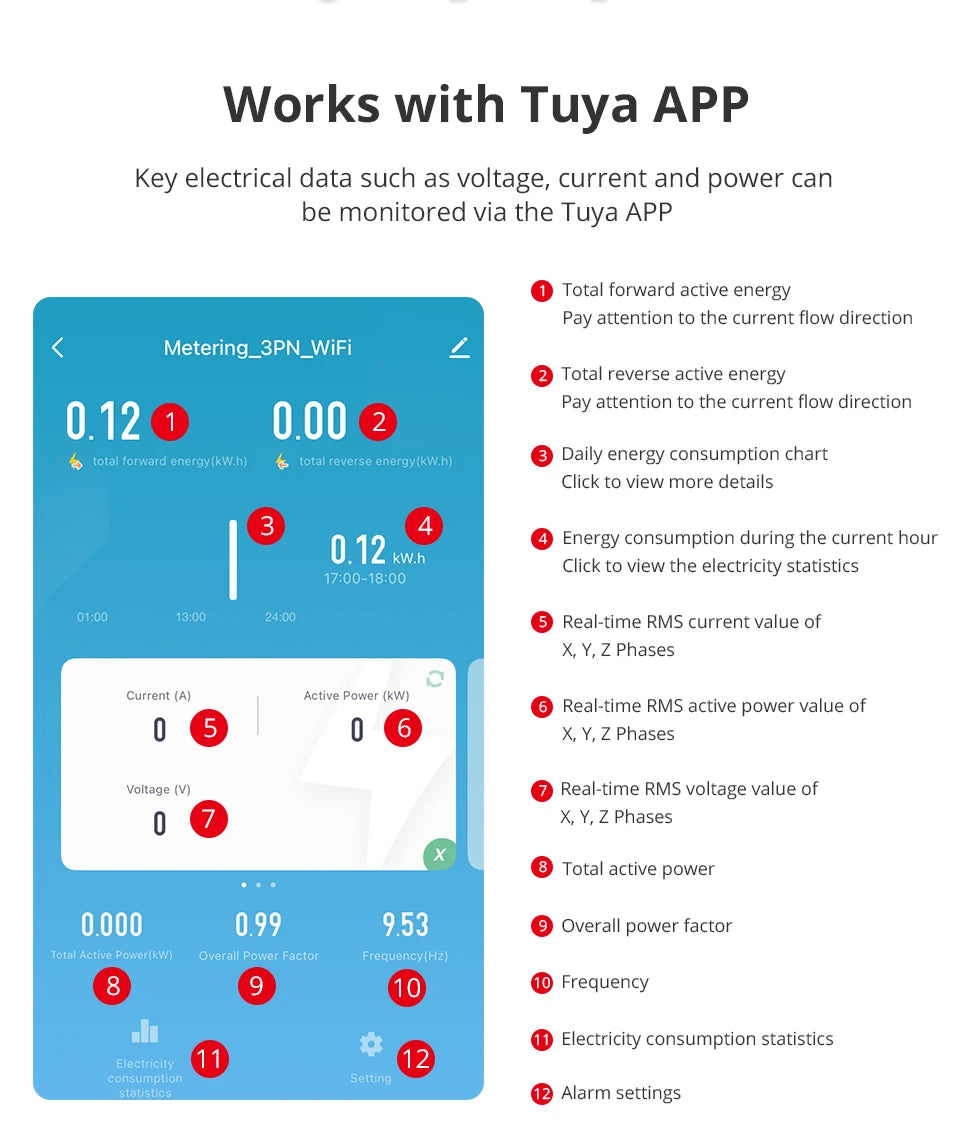

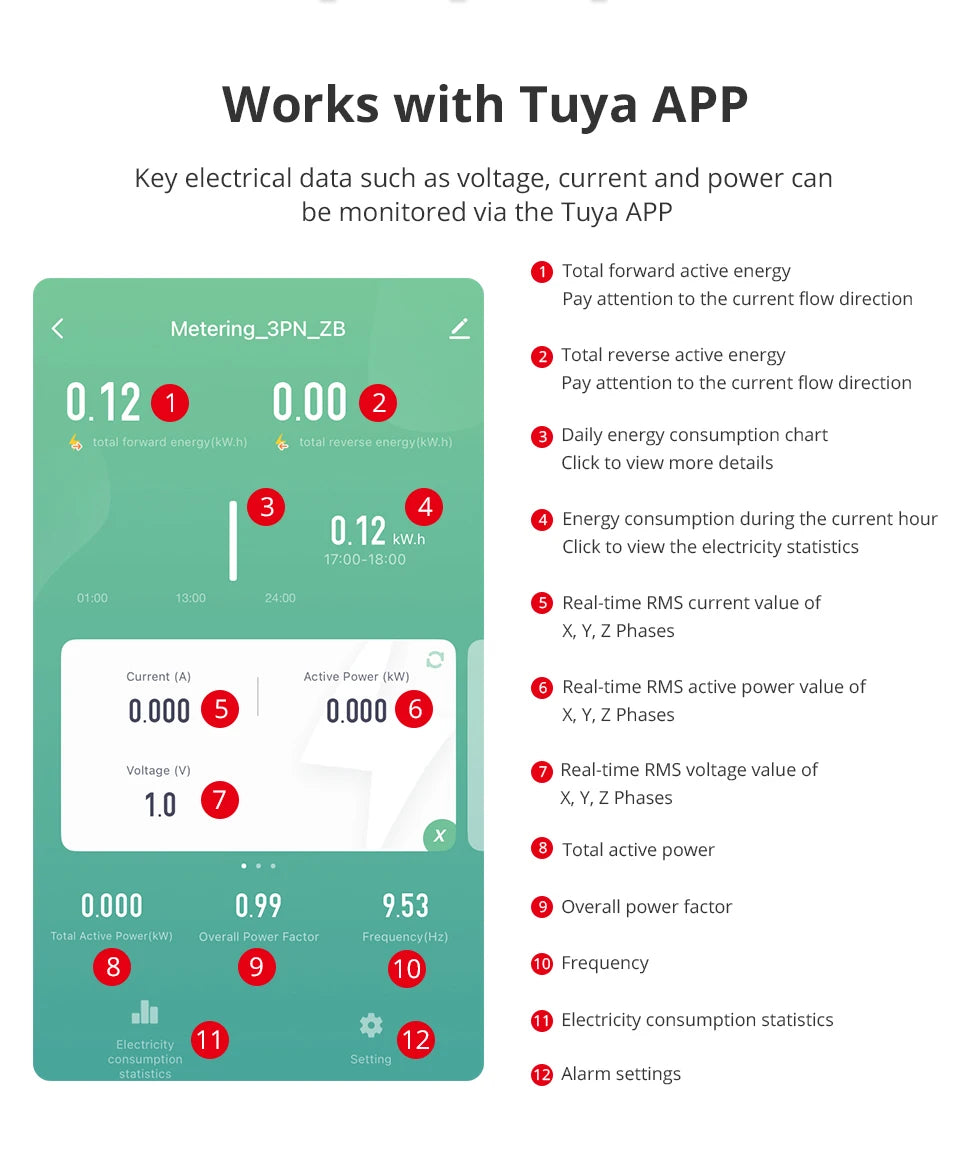

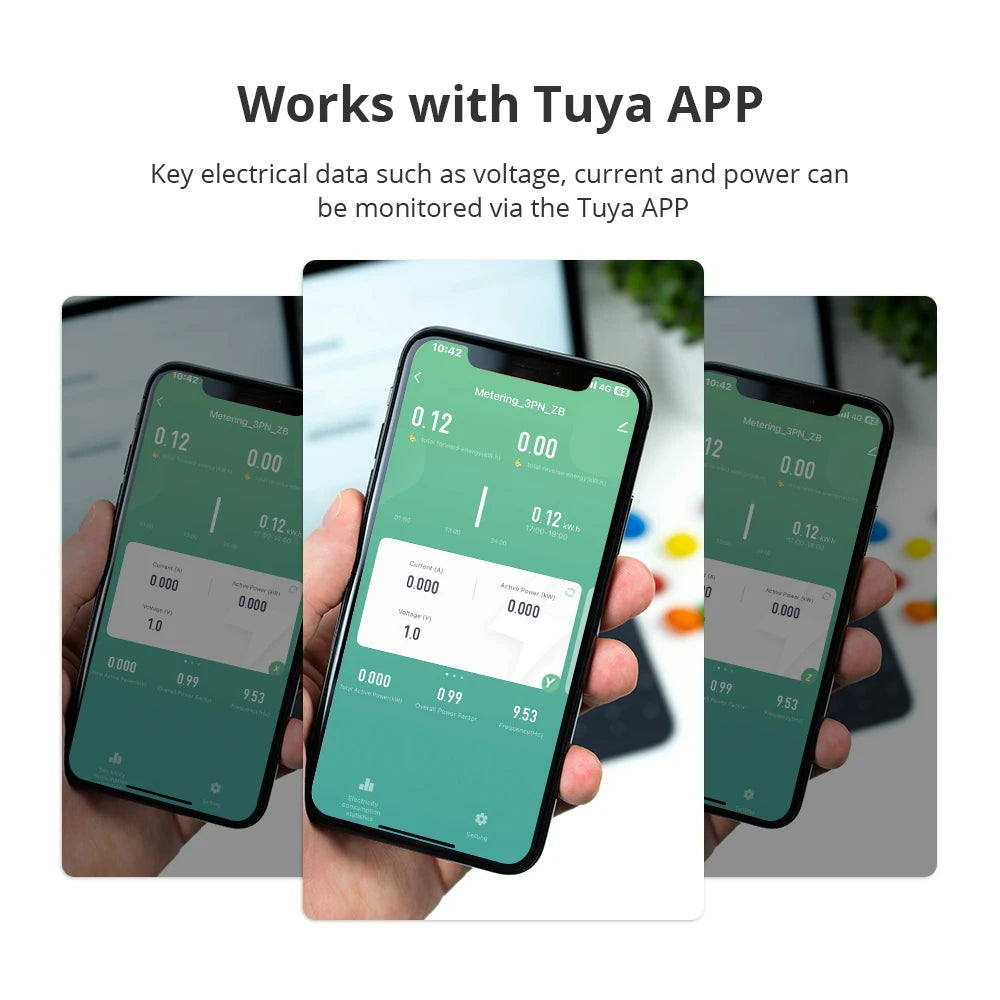

- WiFi Control: No need hub or gateway, works with WiFi 2.4Gh, works with Tuya.

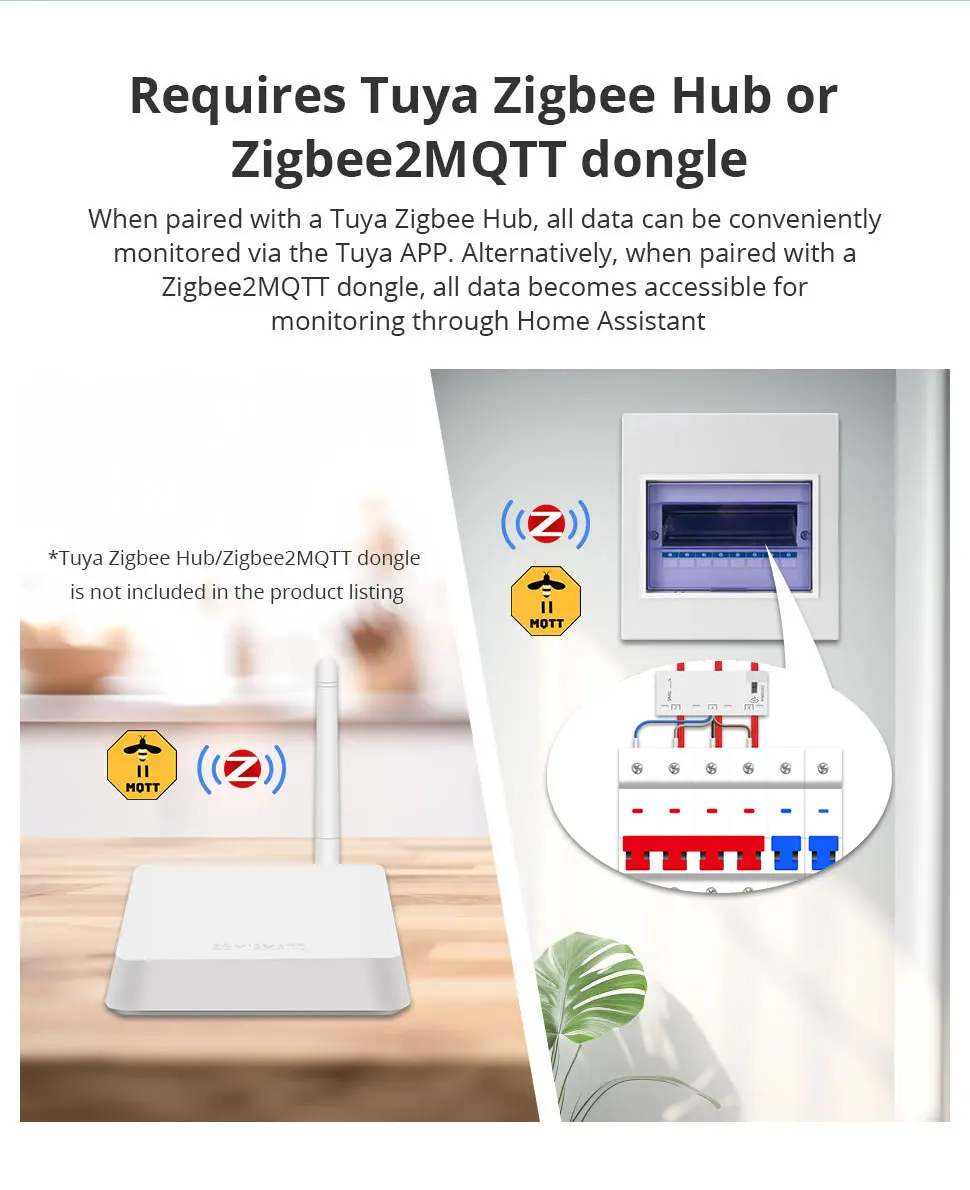

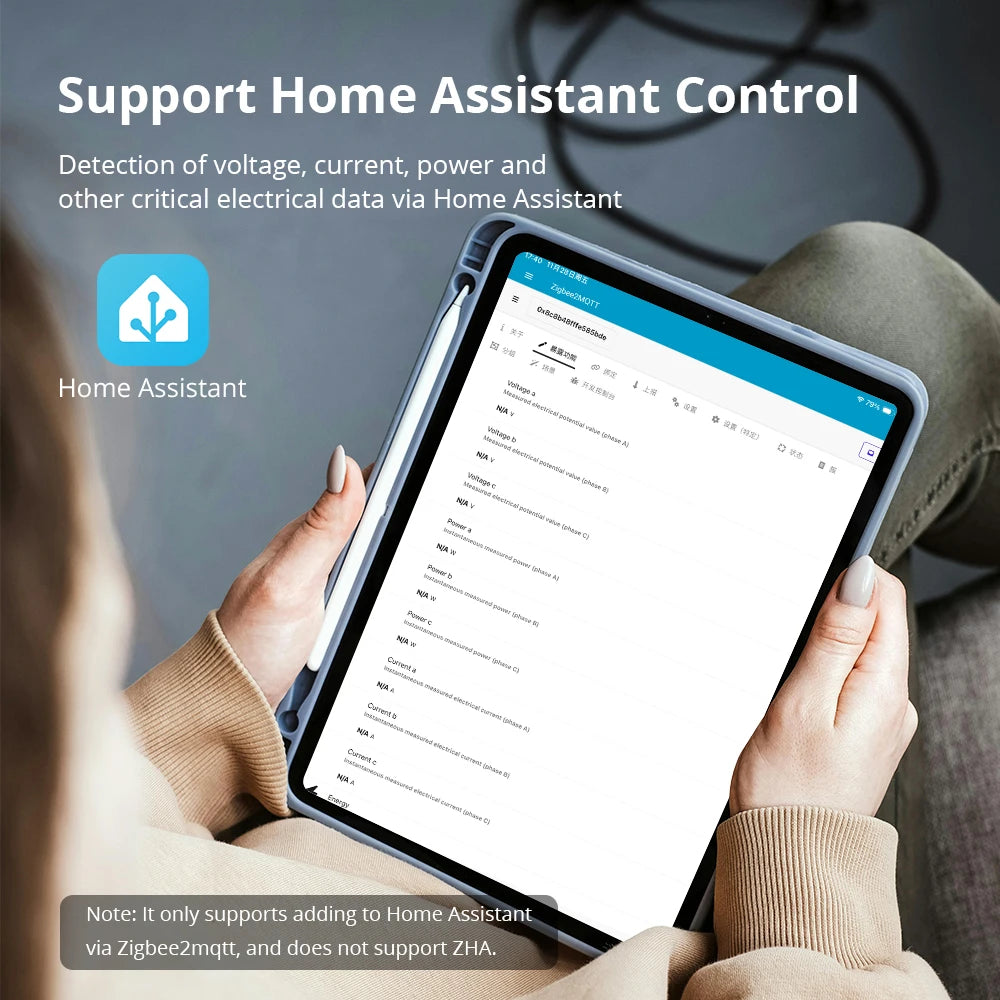

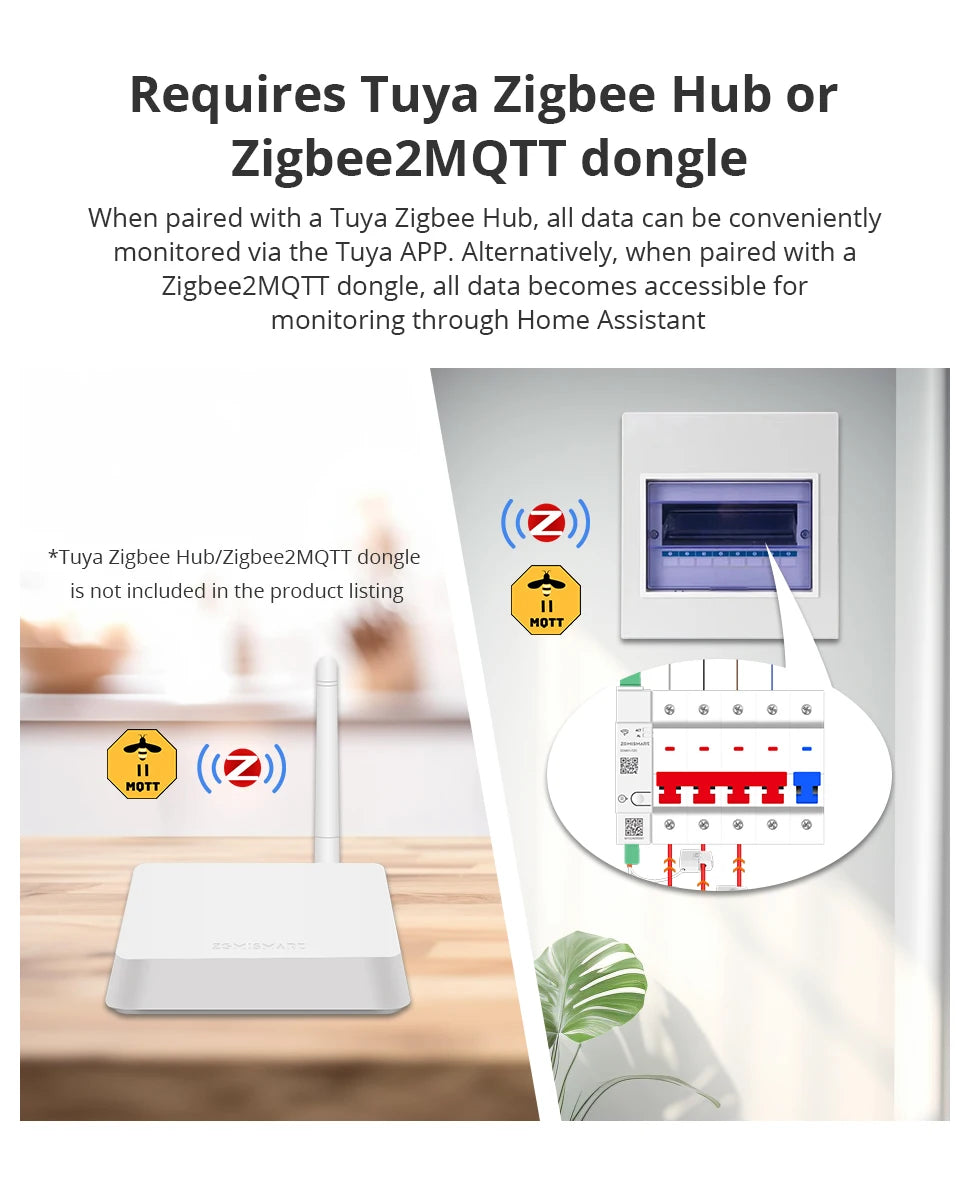

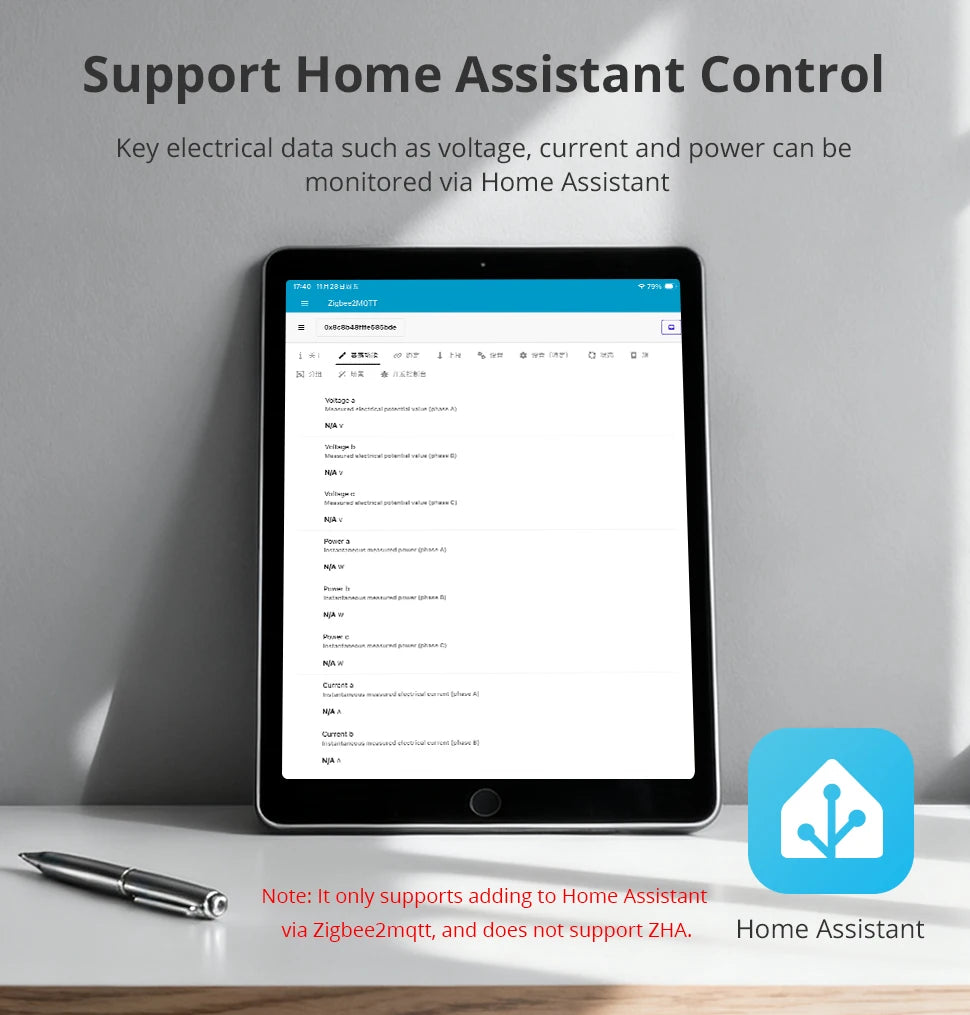

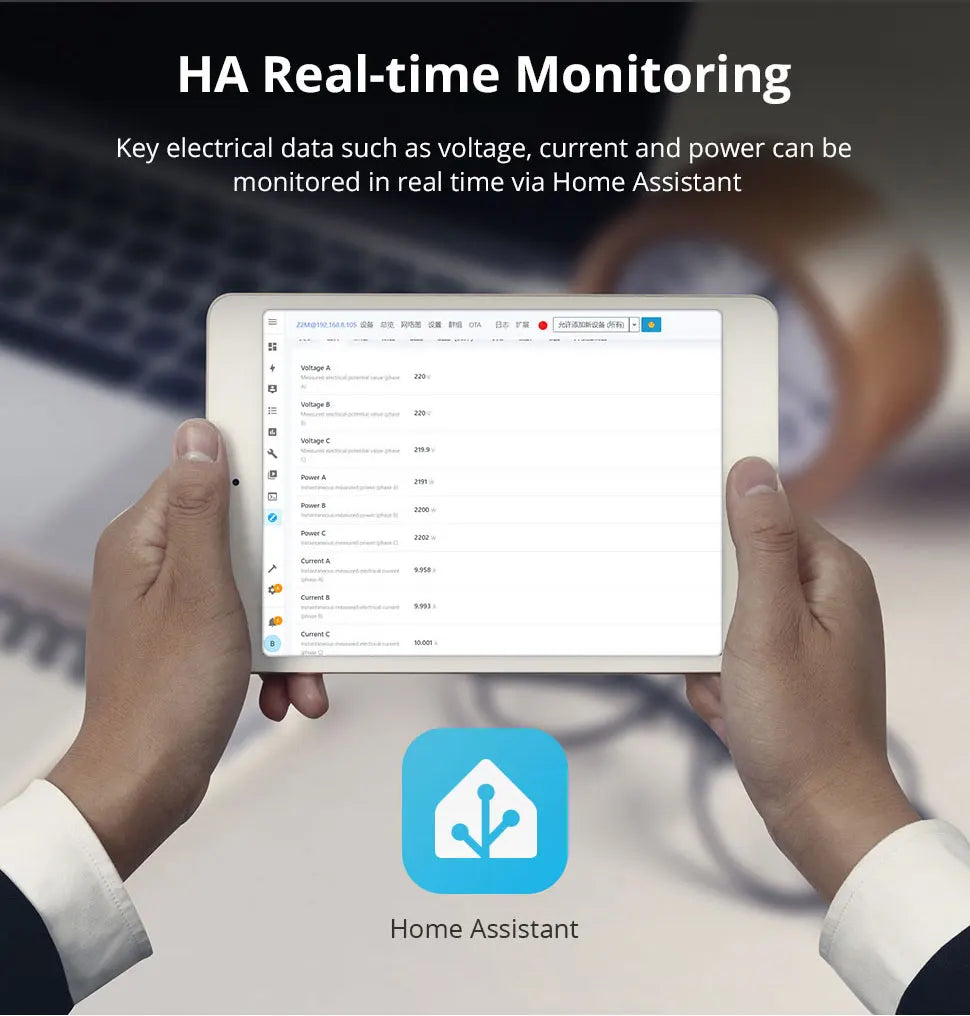

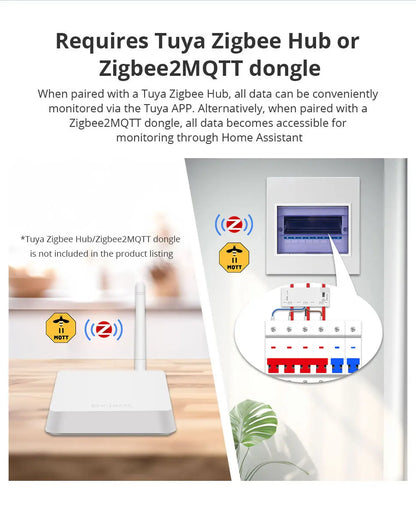

- Zigbee Control: support Tuya Zigbee Hub control/Home Assistant control via Zigbee2mqtt dongle( For details, please refer to this link: https://www.home-assistant.io/integrations/tuya/)

- Electrical Measurement: High-Accuracy metering (class 1)/Real-time Measurement/Bi-directional Monitoring/Three Phase & Individual Phase Monitoring/Different CT size up to 120A Meaurement.

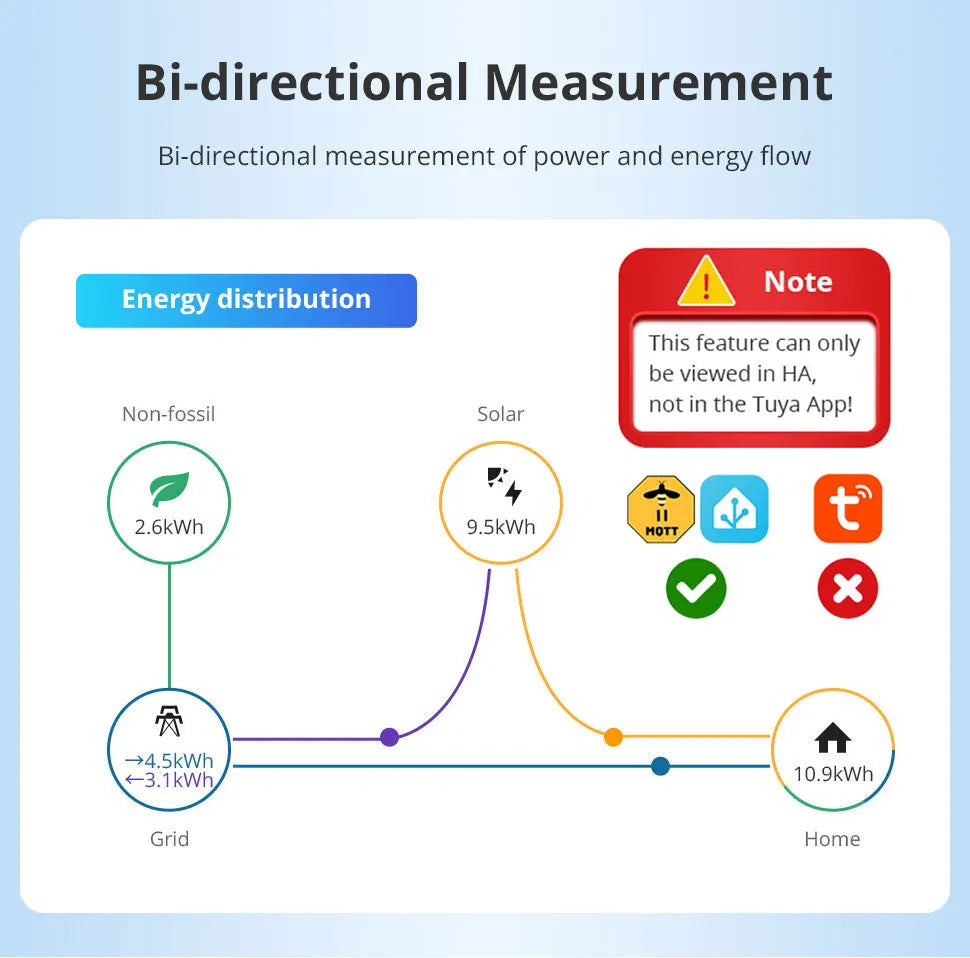

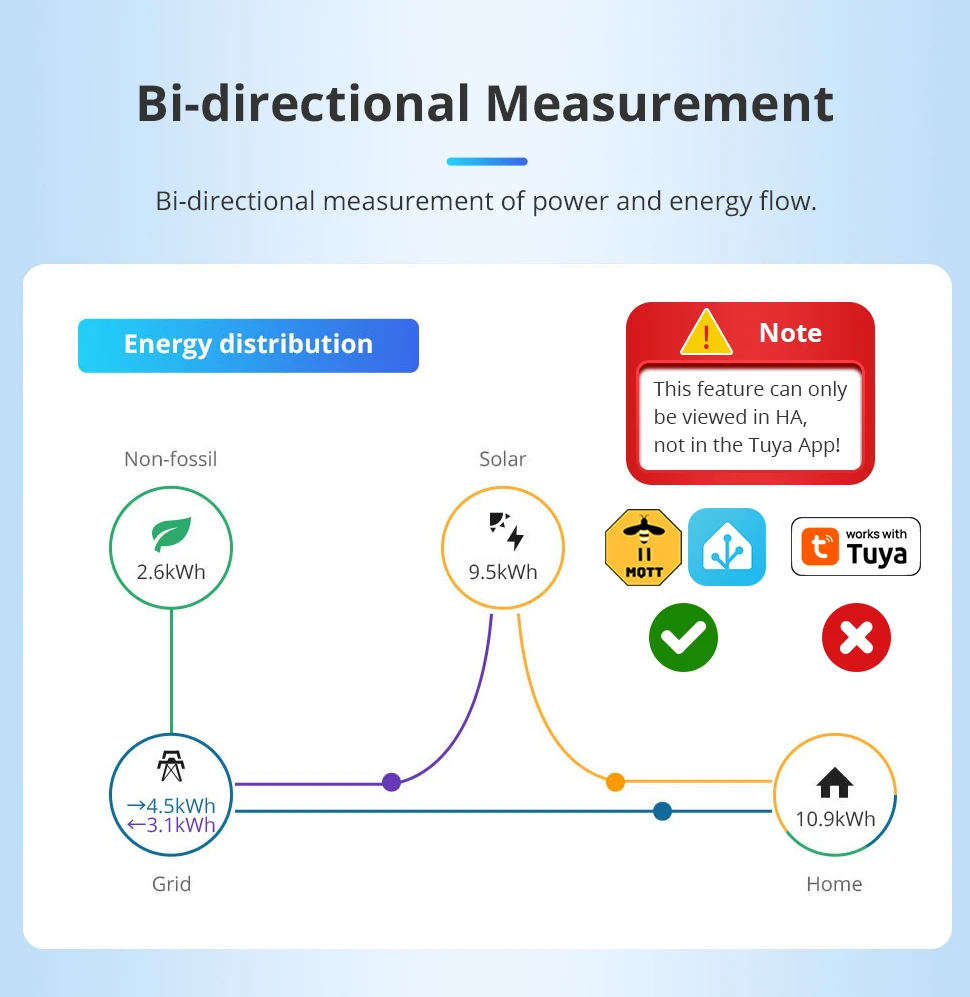

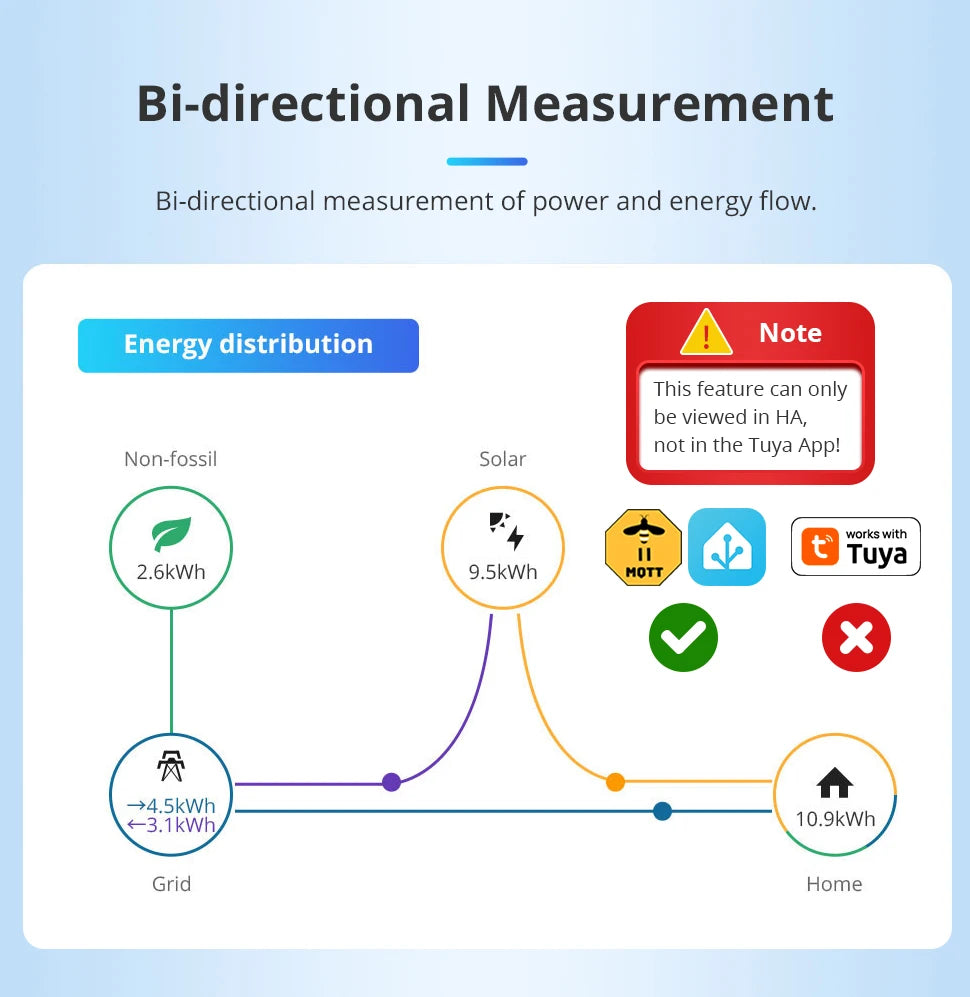

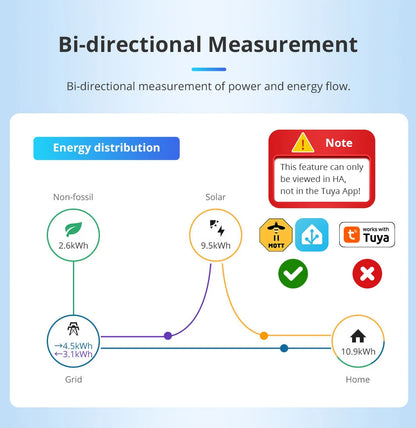

- Bi-directional Measurement: Bi-directional measurement of power and energy flow. (NOTE: This feature only allows the Zigbee version of 3-phase meter to view specific values and charts on Home Assistant through Zigbee2mqtt, which is not supported on the Tuya app.)

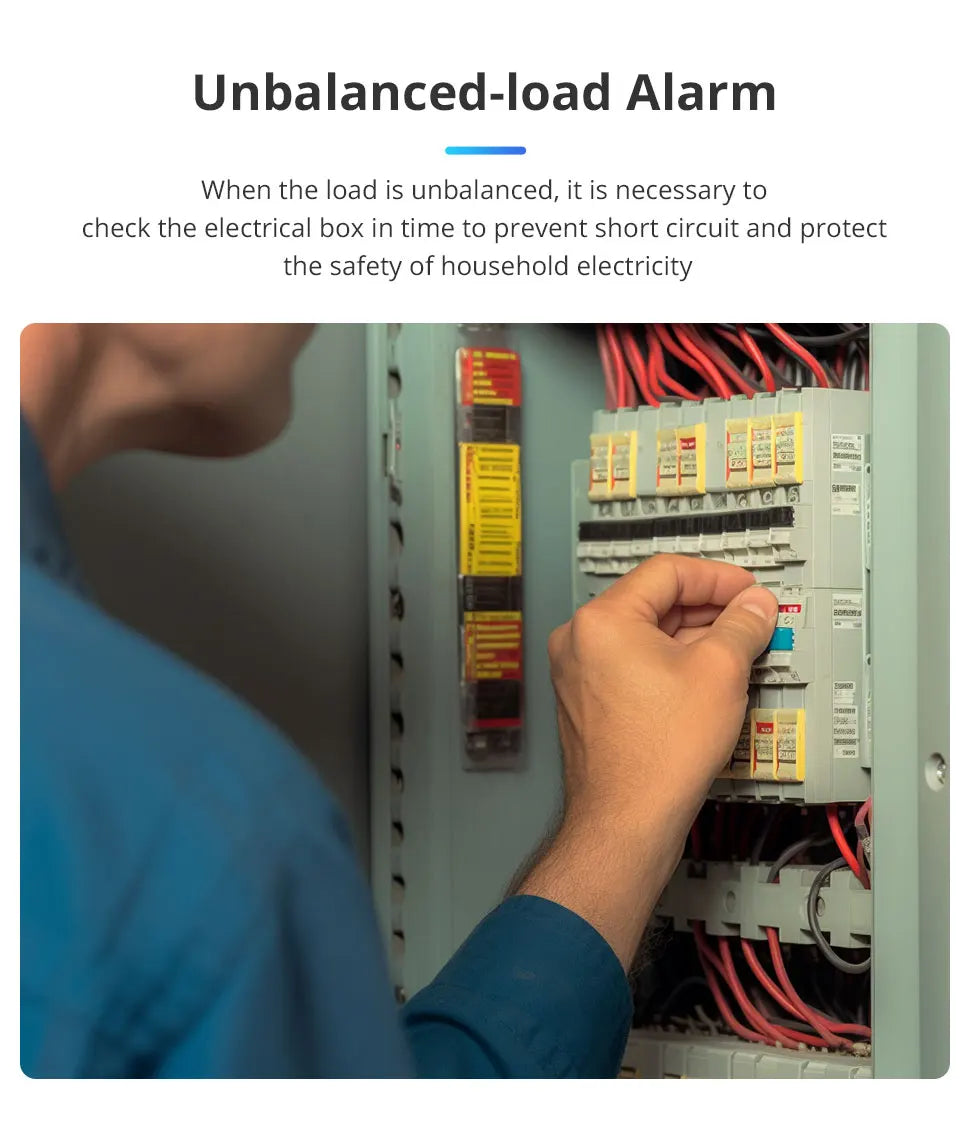

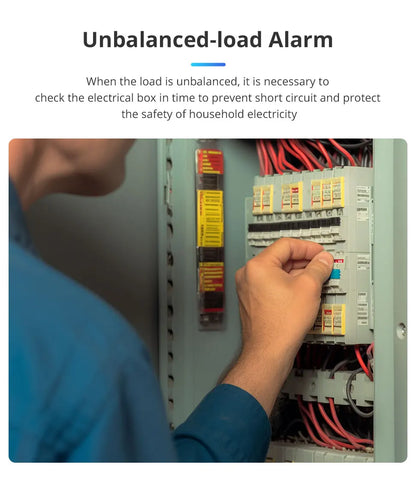

- Unbalanced-load Alarm: when the load is unbalanced, it is necessary to check the electrical box in time to prevent short circuit and protect the safety of household electricity.

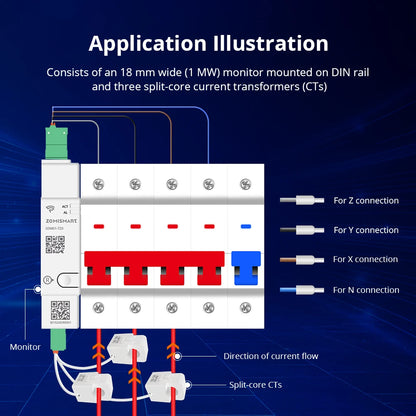

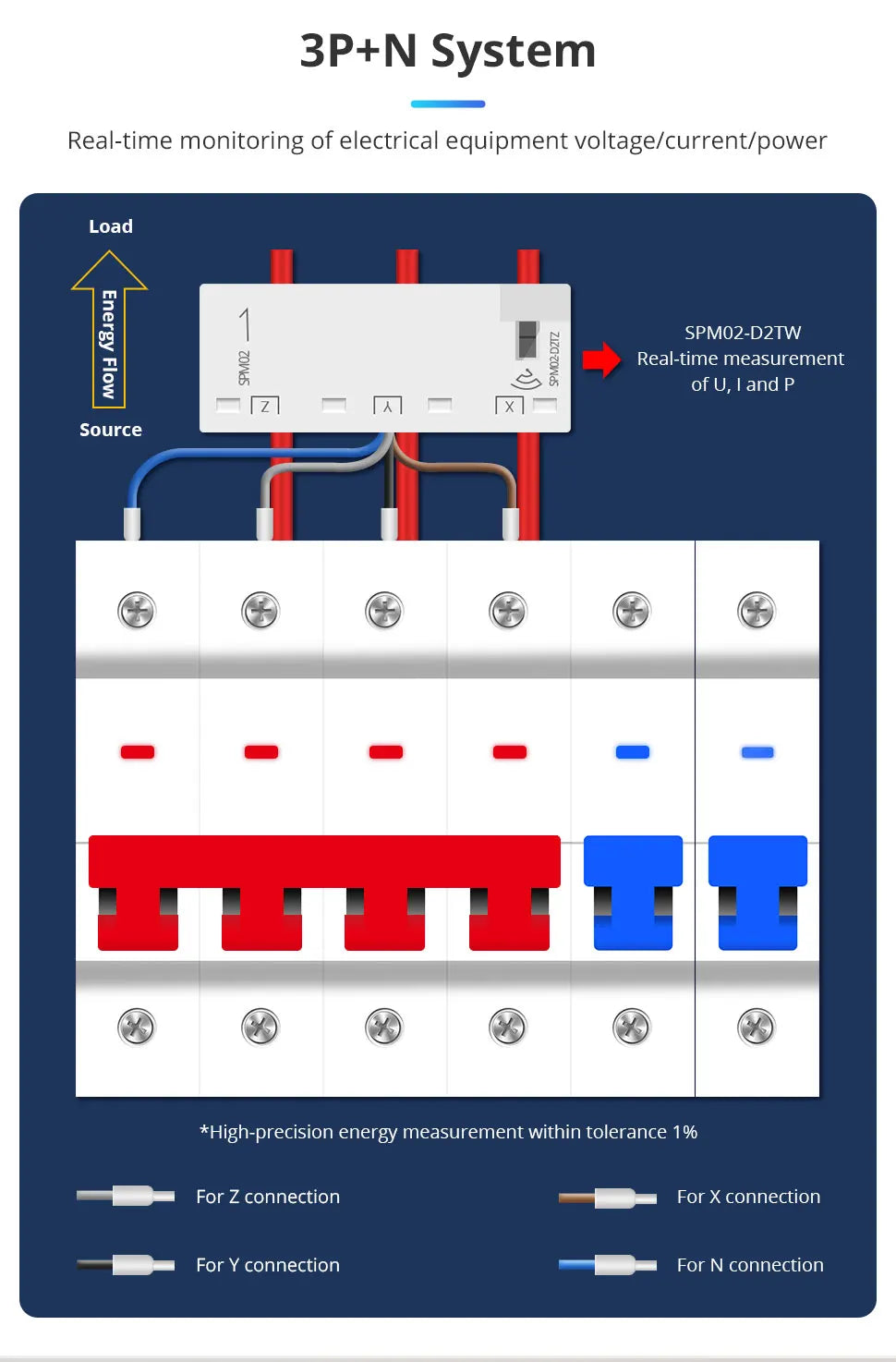

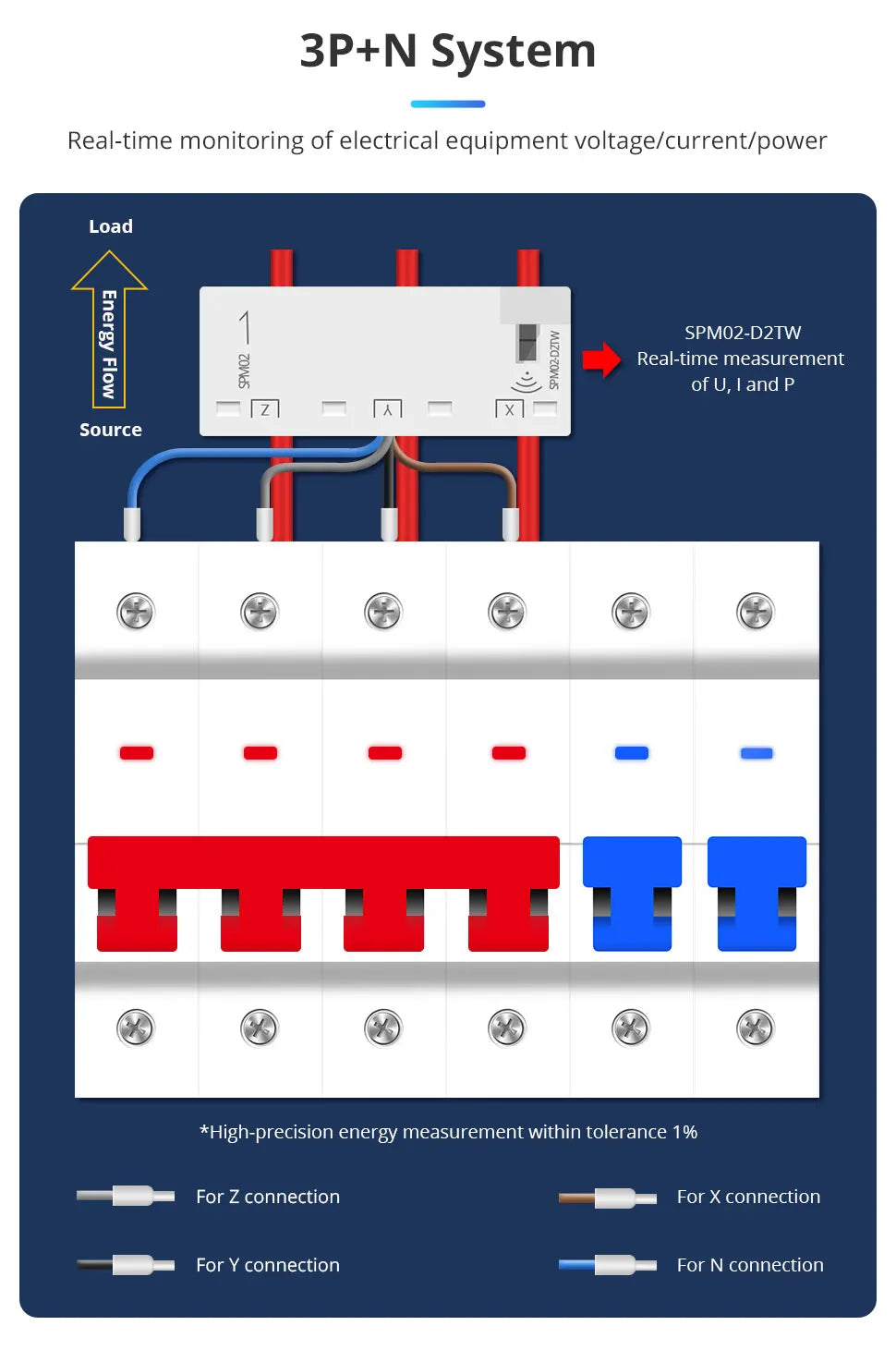

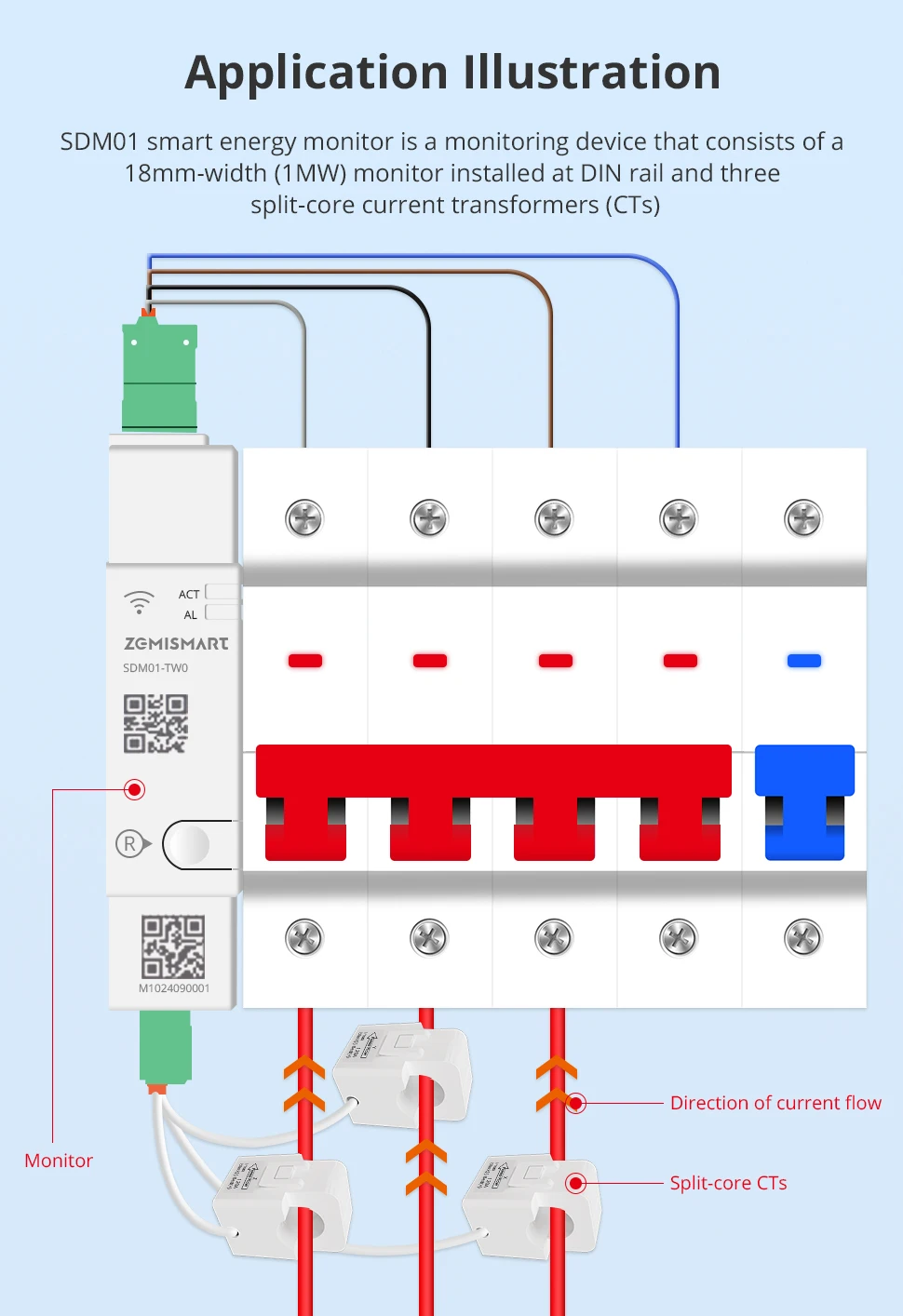

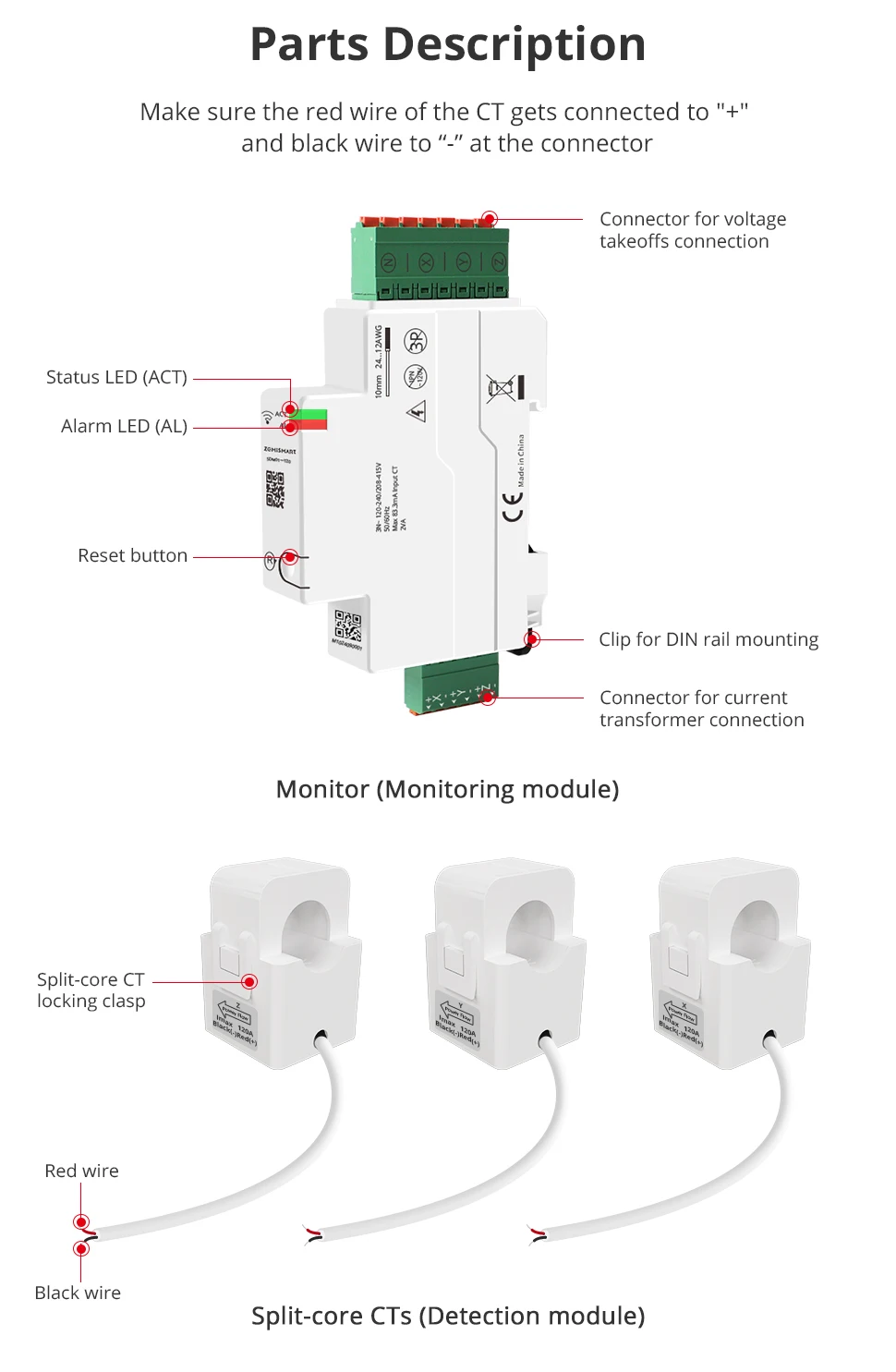

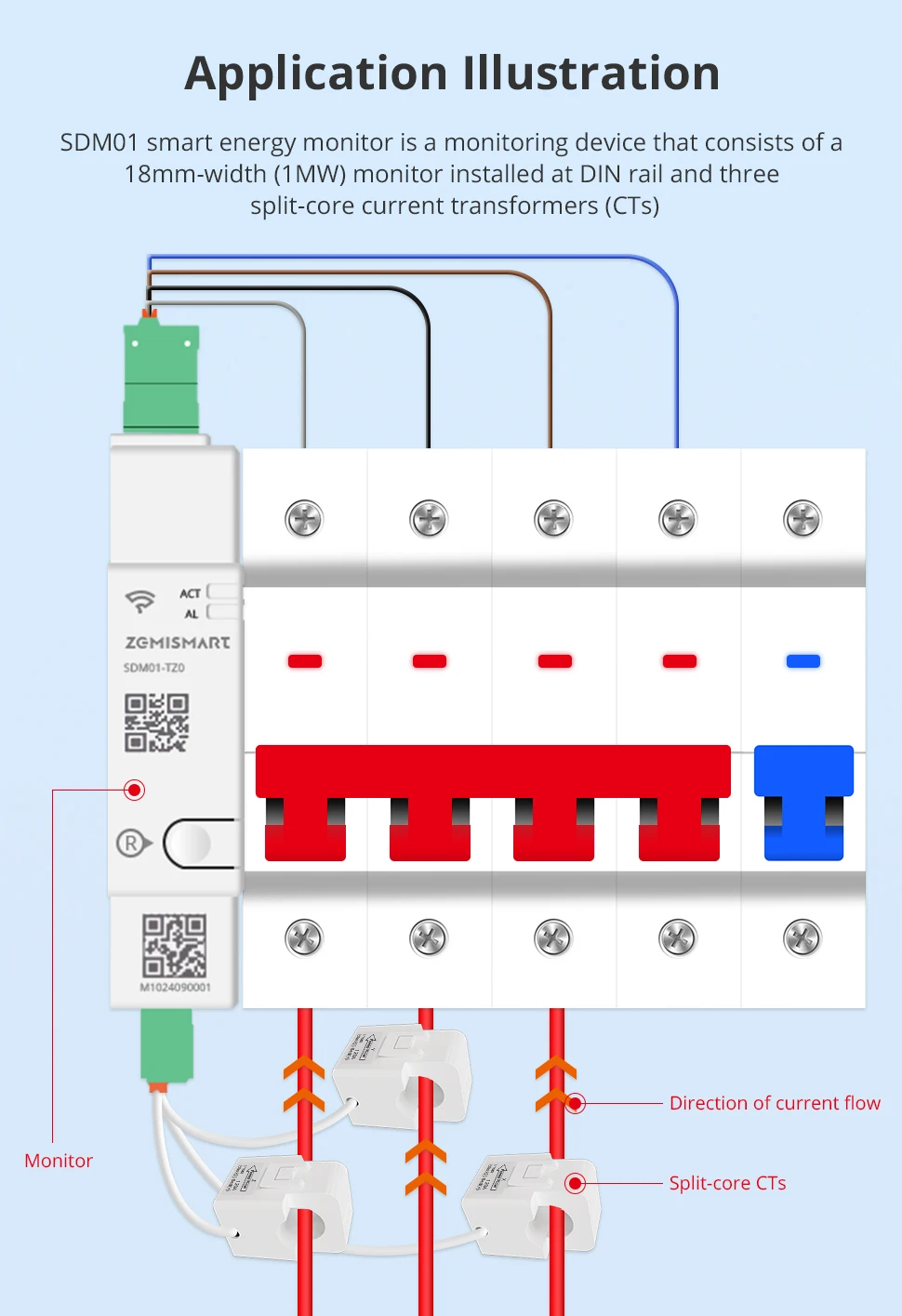

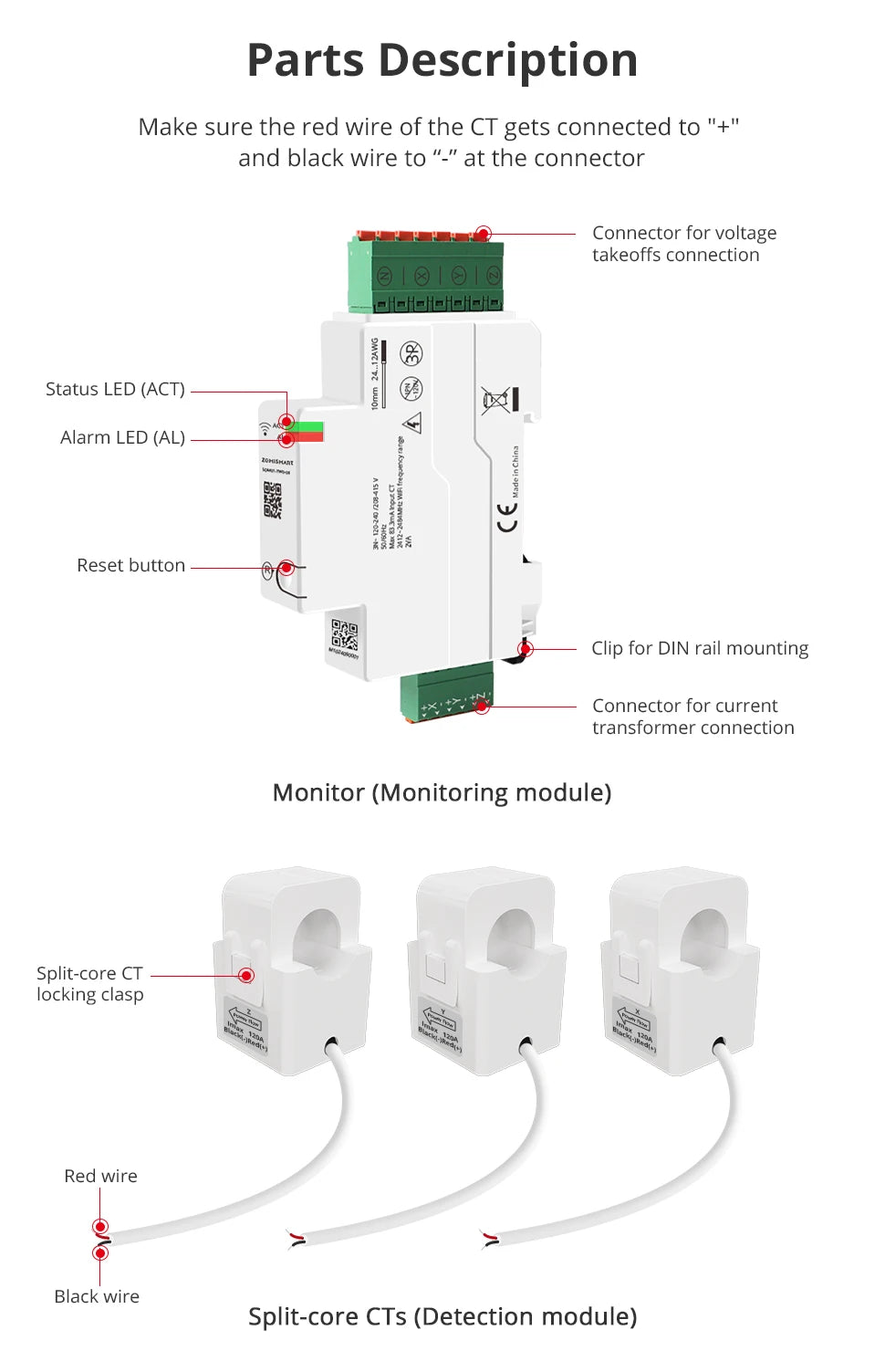

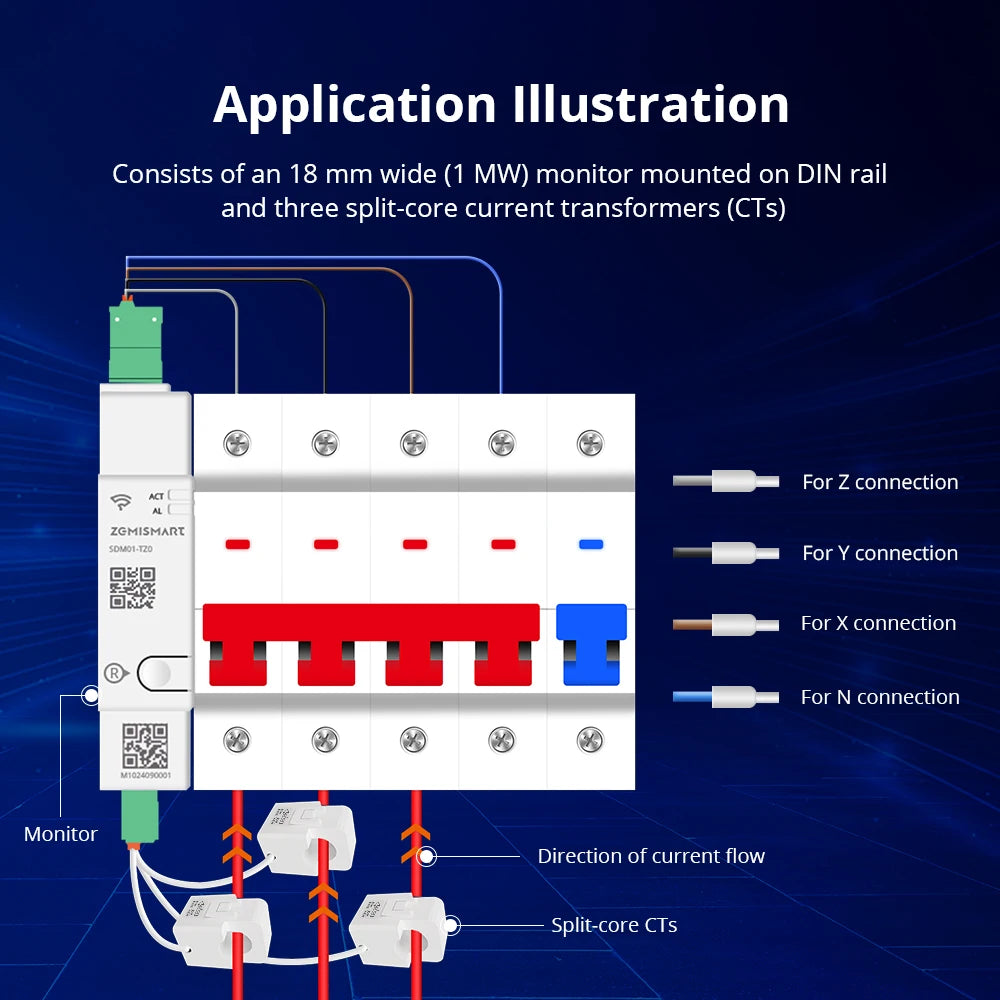

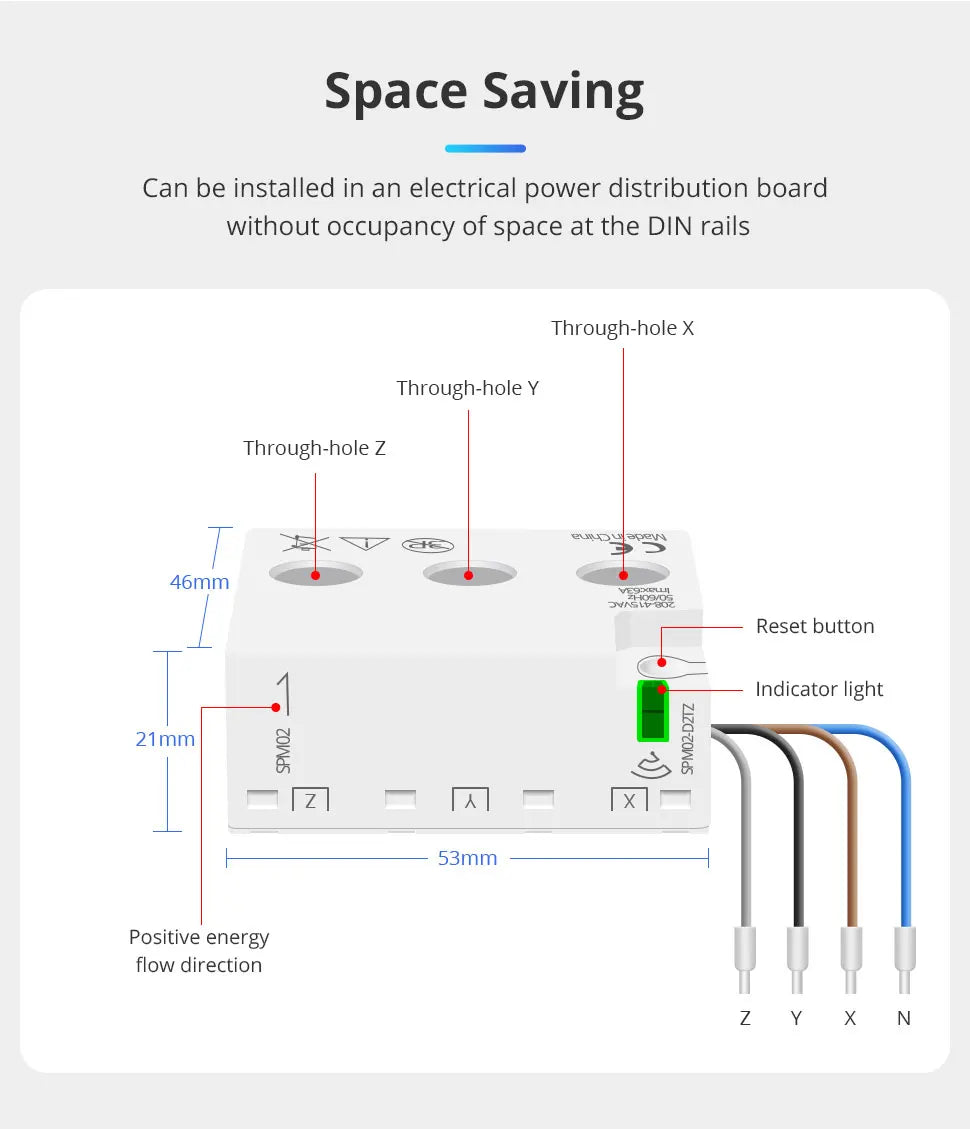

- Easy installation: Monitoring module reguiring only 1MW at DIN rail and associating with compact split-core CTs/Withdrawable connector for CT connection/Withdrawable connector for voltage take-offs connection.

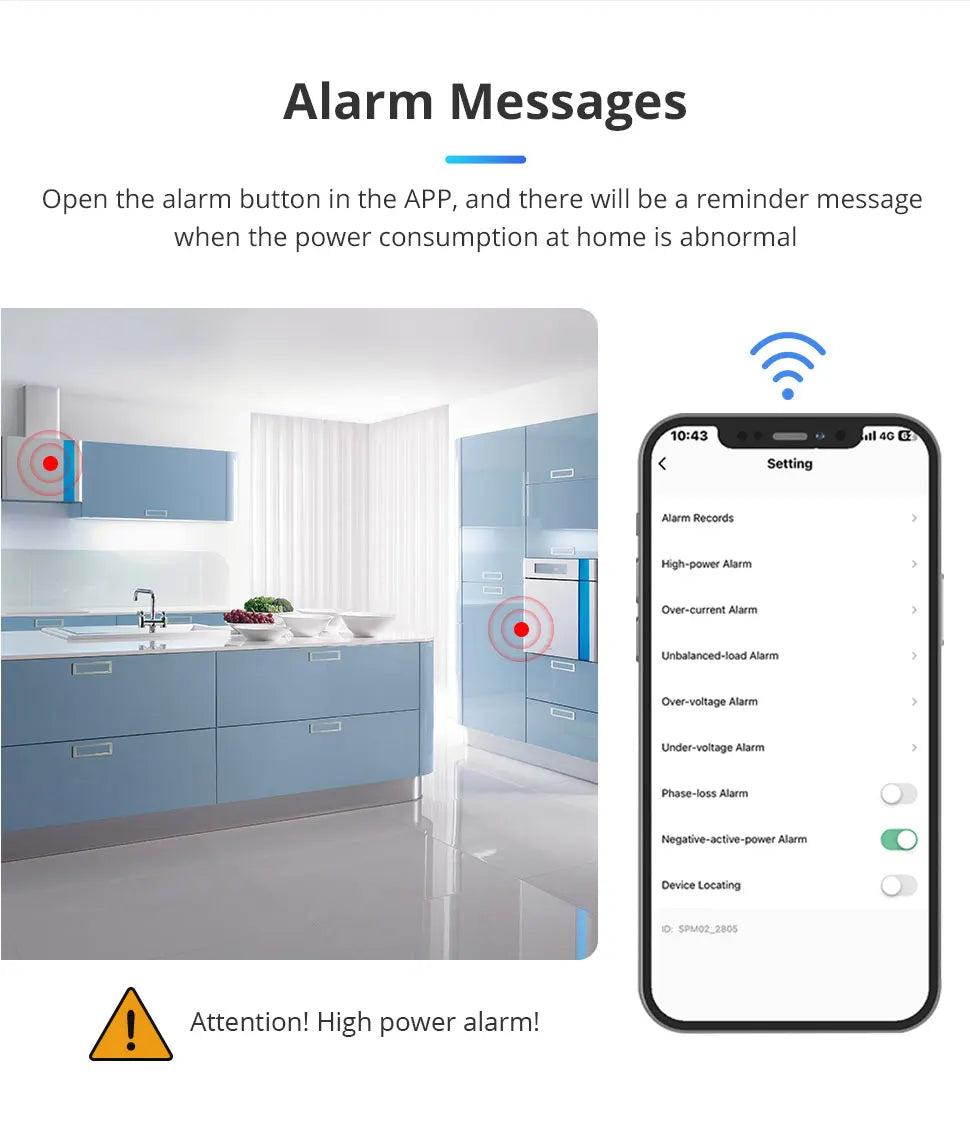

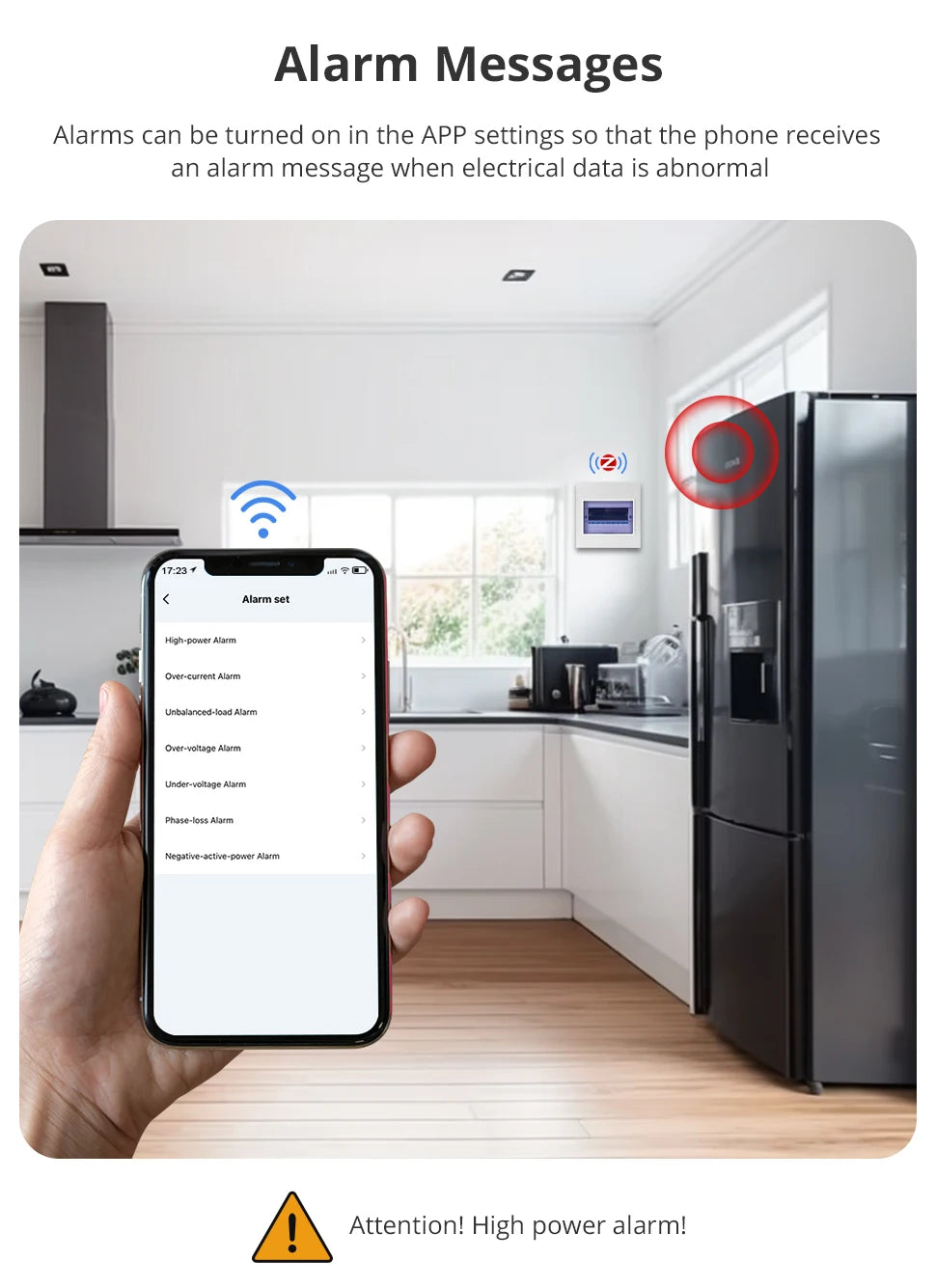

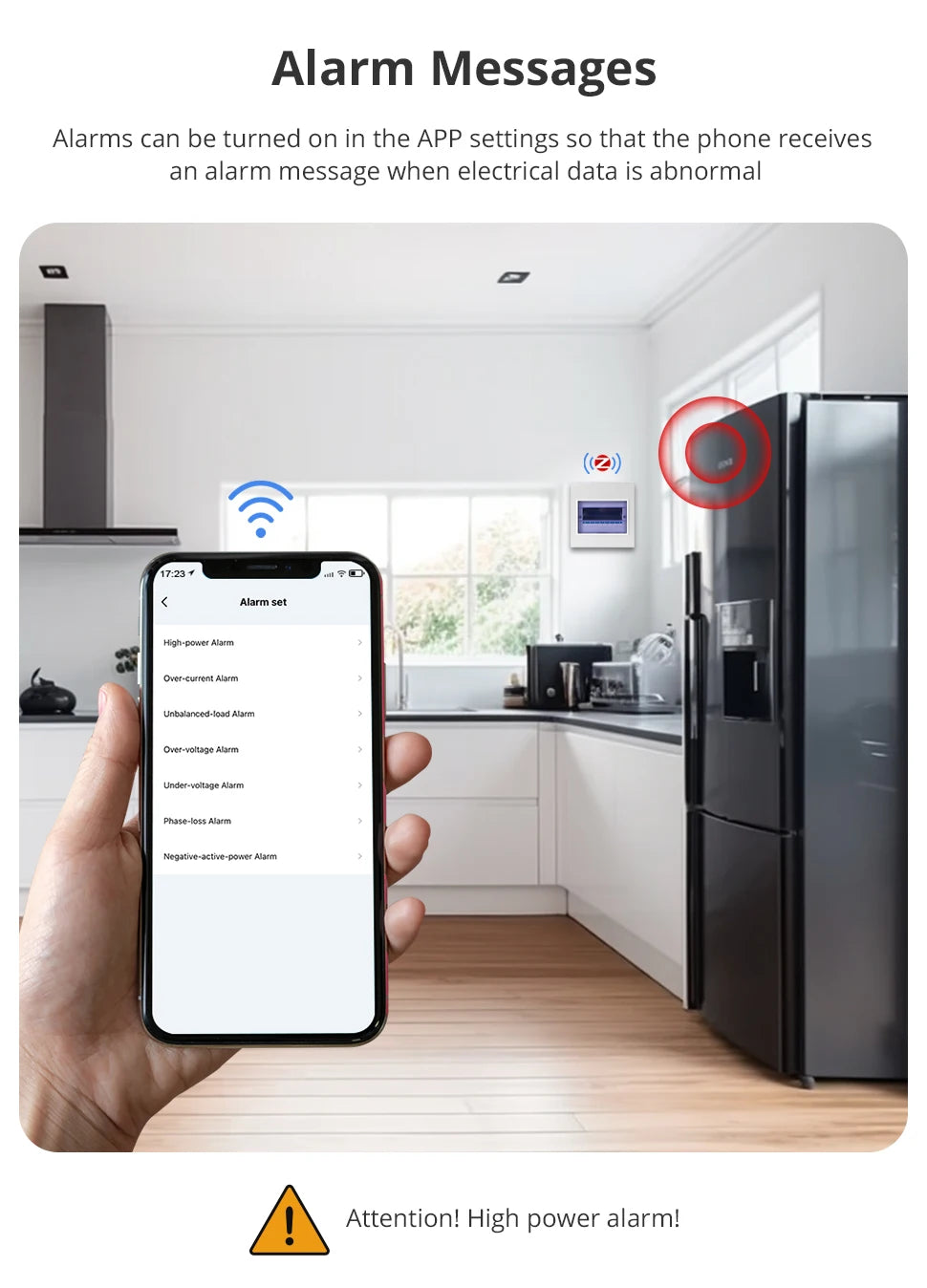

- Safety: Abnormal usage Alarm/ Over-consumption, Overload Alarm, Over/Under voltage Alarm.
