SPECIFICATIONS

Brand Name: Forubest

Camera Equipped: No

Certification: CE,RoHS

Choice: yes

Communication method: Zigbee

Compatibility: others

Feature: Zigbee Range Extender

High-concerned chemical: None

Model Number: zigbee signal repeater

Origin: Mainland China

State of Assembly: Ready-to-Go

Use: others

semi_Choice: yes

What is the difference between these versions ?

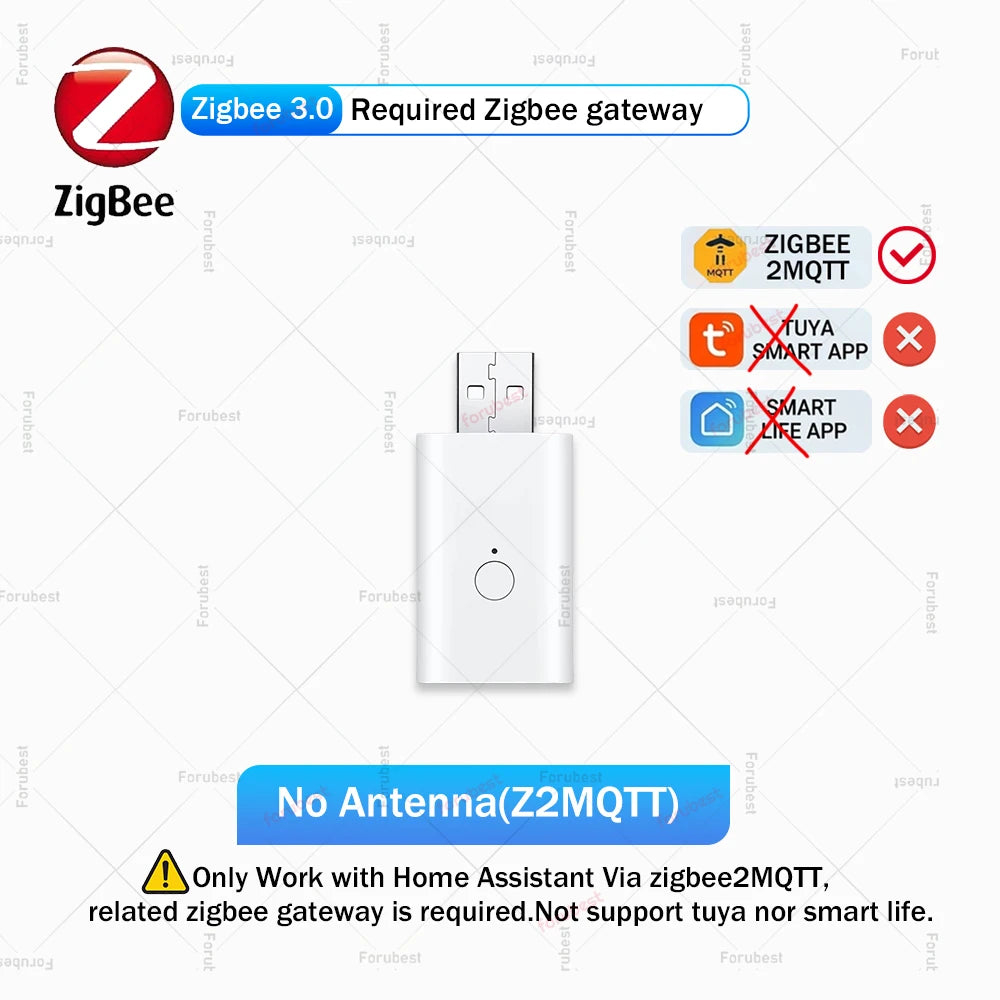

1.No Antenna (Z2MQTT):Only Work with Home Assistant Via zigbee2MQTT,related zigbee gateway is required.Not support tuya nor smart life.

2.With Antenna(2MQTT):Only Work with Home Assistant Via zigbee2MQTT,related zigbee gateway is required.Not support tuya nor smart life.

3.No Antenna (Tuya):Not only work with tuya zigbee gateway via tuya or smart life app ,but also support work with home assistant via zigbee2mqtt,related zigbee gateway is required.

4.With Antenna(Tuya):Not only work with tuya zigbee gateway via tuya or smart life app ,but also support work with hom assistant via zigbee2mqtt,related zigbee gateway is required.

Specifications

Working Voltage : 5V/1A
RF power:+21dBm
Outside distance:>300m
Working Temperature:-10 ~55℃
Working Humidity: 0%～99%RH

Network Configuration
1.lnsert the repeater into the DC 5V USB power adapter
2.Press and hold thebutton on therepeaterfor 3 seconds,and the indicator light will flash rapidly
3.Enter the Zigbee gateway into device discovery mode(refer to the gateway manual)
4.After the distribution network is completed, the indicator light goes out.

5.lnserting the repeater between the gateway and the device that needs to enhance the signal will resultin
better performance

Note
1.The signal repeater must be connected to a Zigbee gateway to use
2.On some Zigbee gateways, the device displayed is a socket, which is normal and also has the function of relaying signals
3.lnserting the repeater between the gateway and the device that needs to enhance the signal will result in better performance
