SPECIFICATIONS

Brand Name: SONGGER

DIY Supplies: Plumbing

Dimensions: 78-103 mm

Flow Rate: 2-10L/min

High-concerned chemical: None

Origin: Mainland China

Power: DC24V

Semi-finishedproduct: No

1.NOTE

Power Supply: DC 24V

Dimensions: 78 × 103 mm

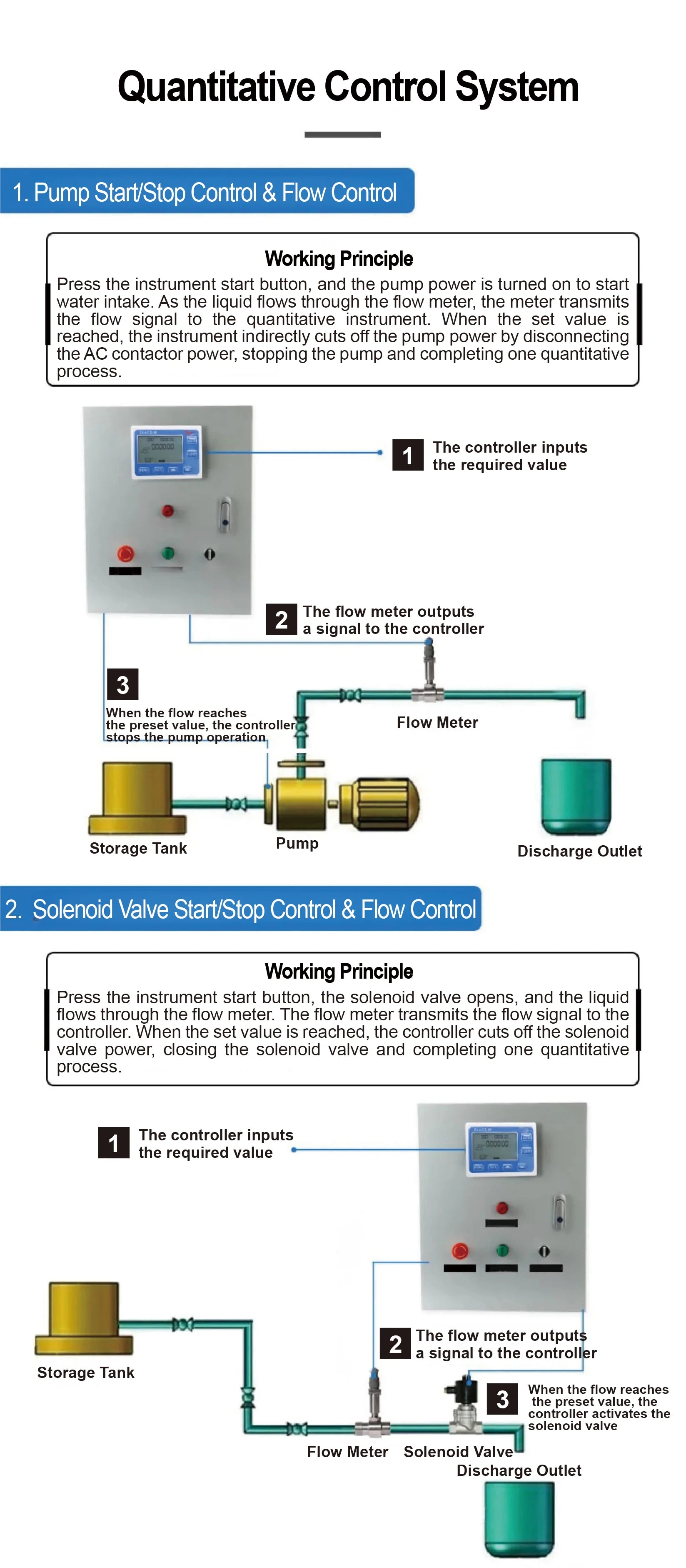

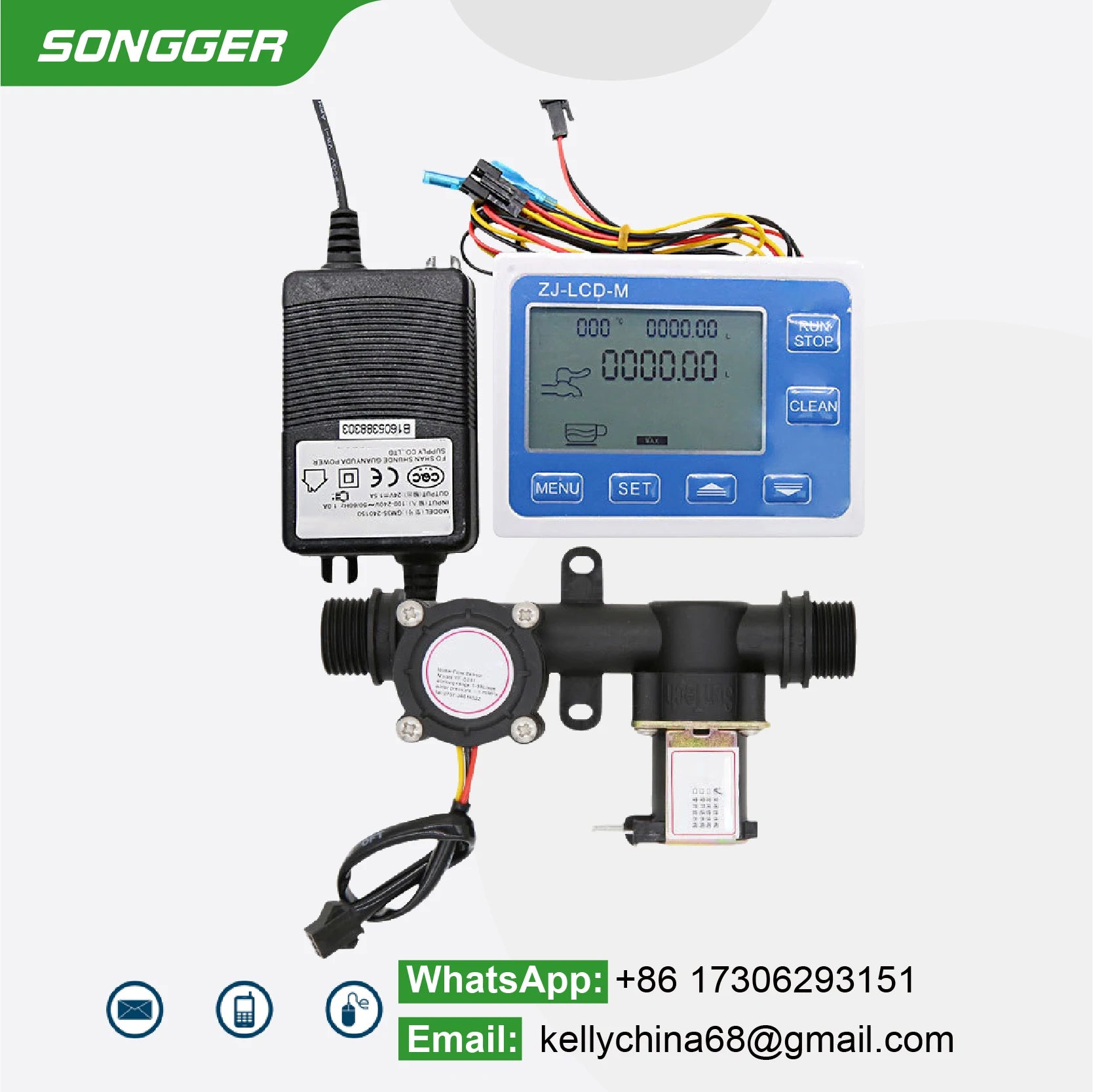

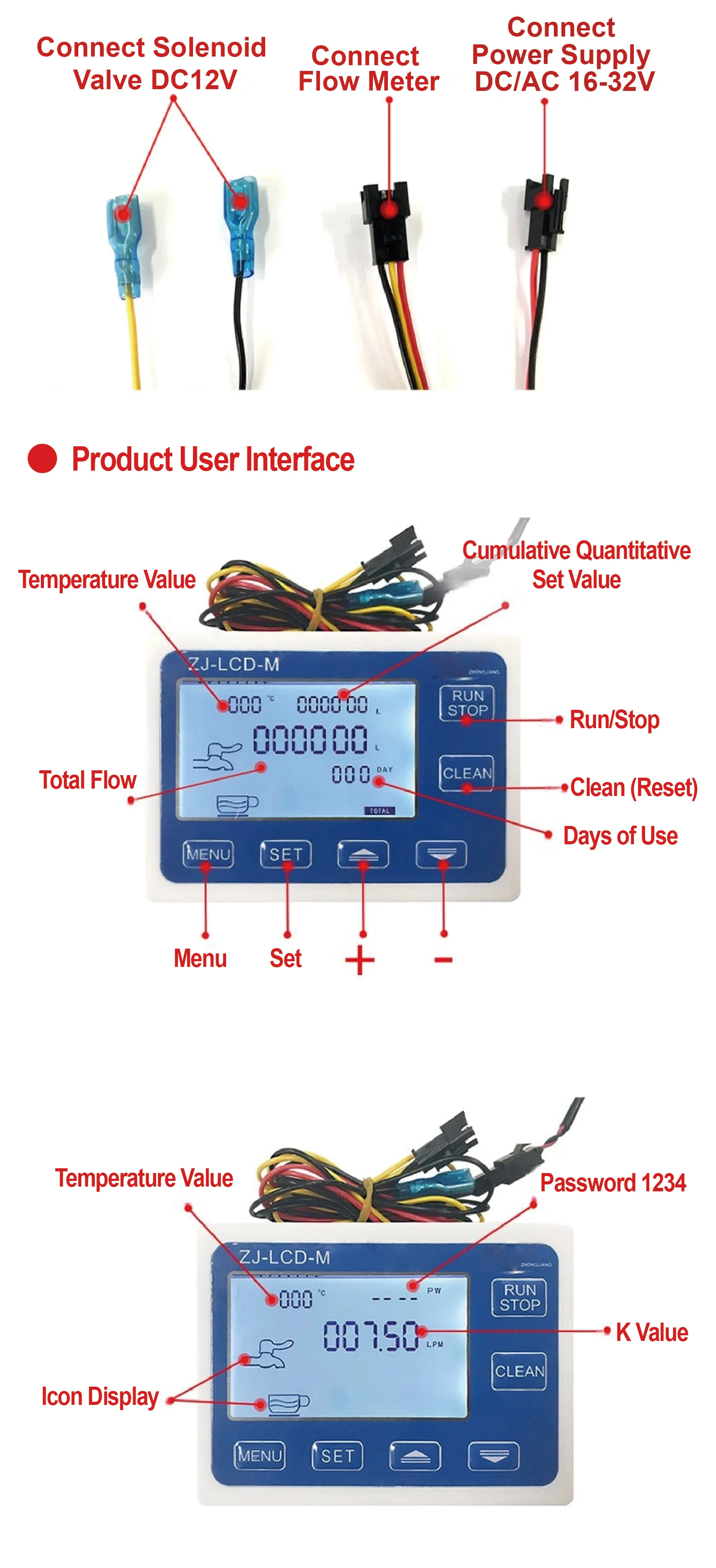

This digital display controller is powered by a single DC 24V supply. The solenoid valve and flow meter can be connected directly to the corresponding terminals on the controller according to the included wiring diagram. No separate power supplies are required, making installation simpler and more convenient.

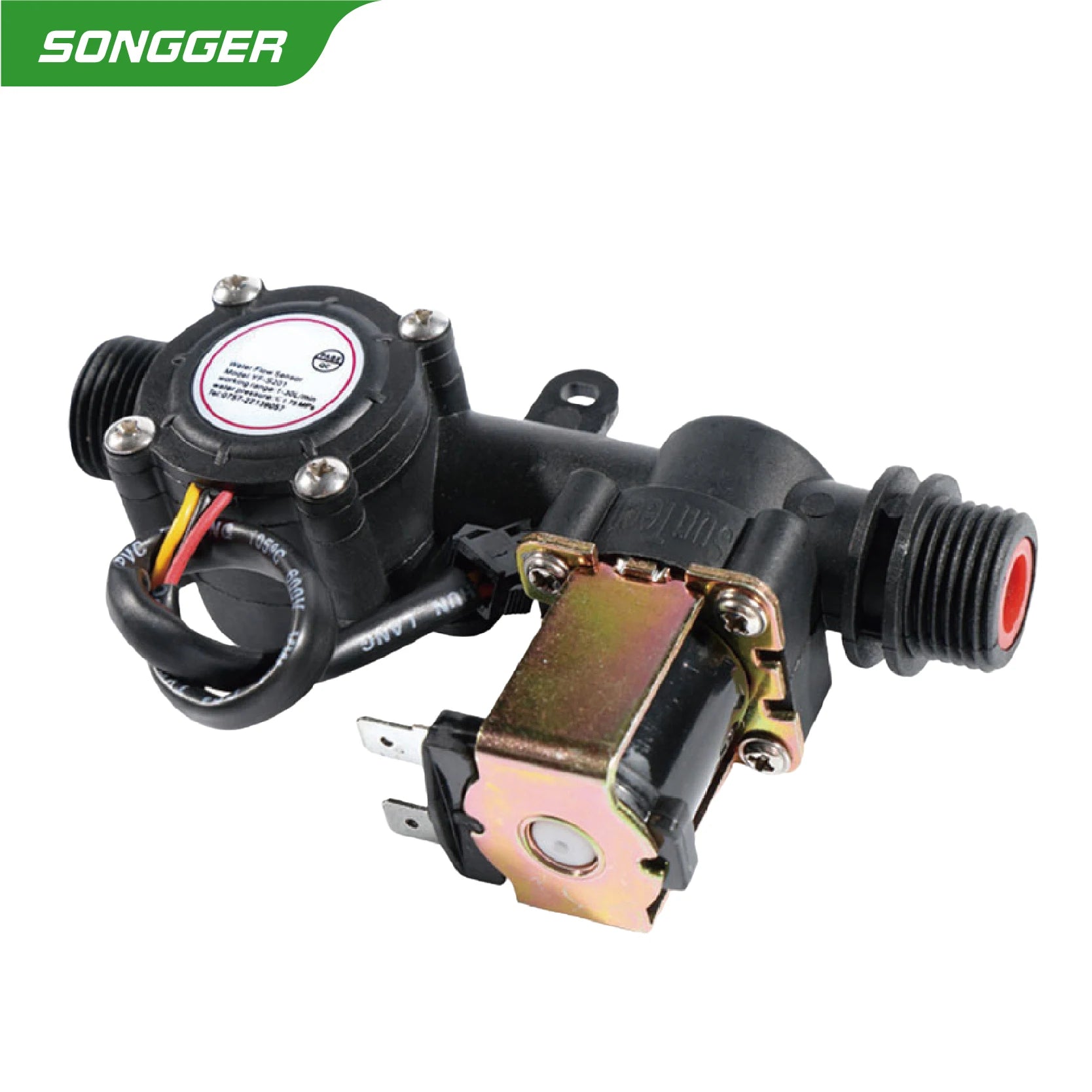

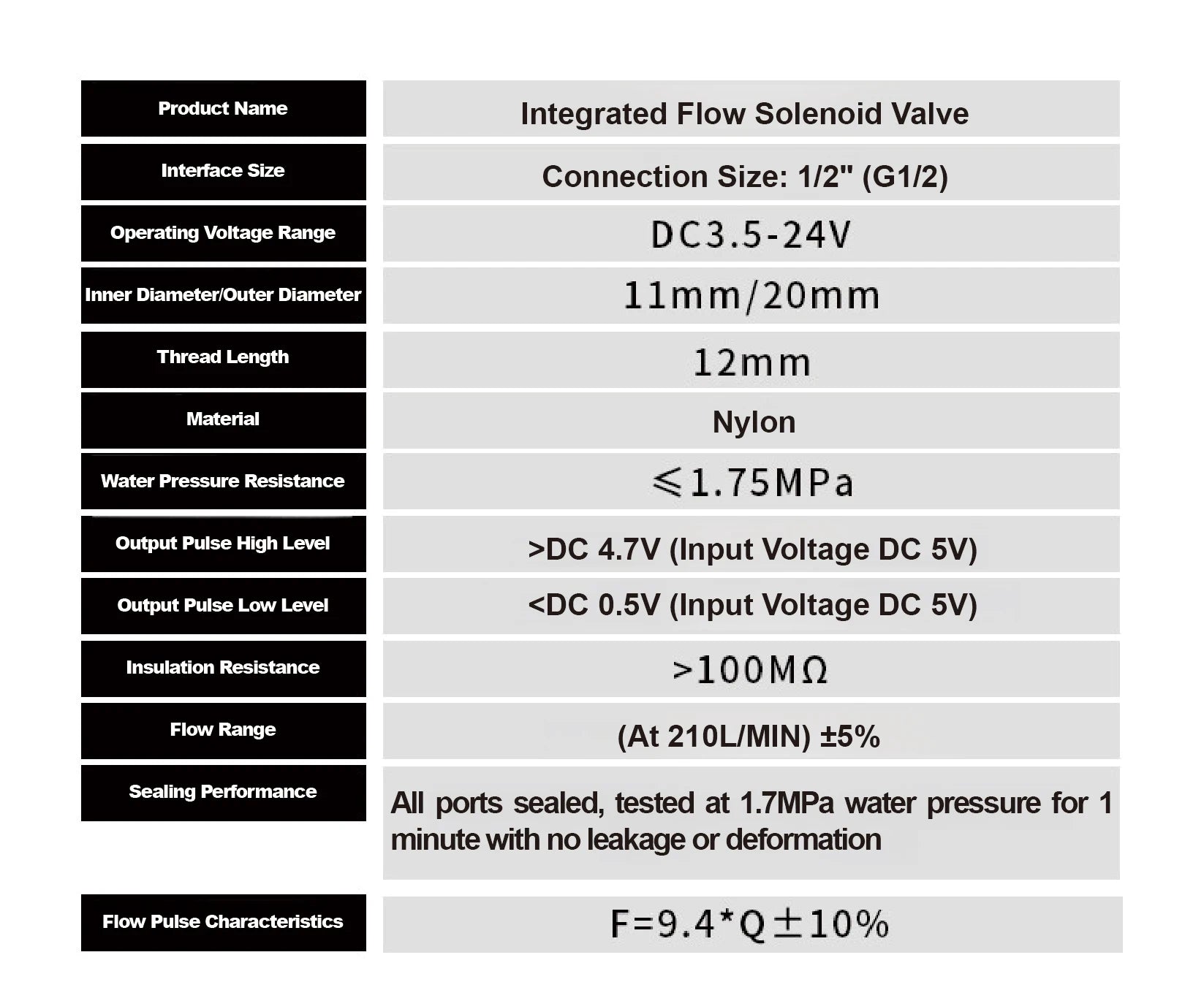

Flow Meter Specifications

Connection Type: G1/2 Male Thread (DN15)

Power Supply: DC 5V

Flow Range: 2–10 L/min

Maximum Working Pressure: ≤1.75 MPa

Operating Temperature: ≤60°C

Designed for accurate flow measurement, this flow meter features a standard G1/2 (DN15) male thread connection for easy installation. It operates on a DC 5V power supply and supports a flow range of 2–10 L/min. With pressure resistance up to 1.75 MPa and temperature resistance up to 60°C, it provides stable and reliable performance in a wide range of liquid flow control applications.

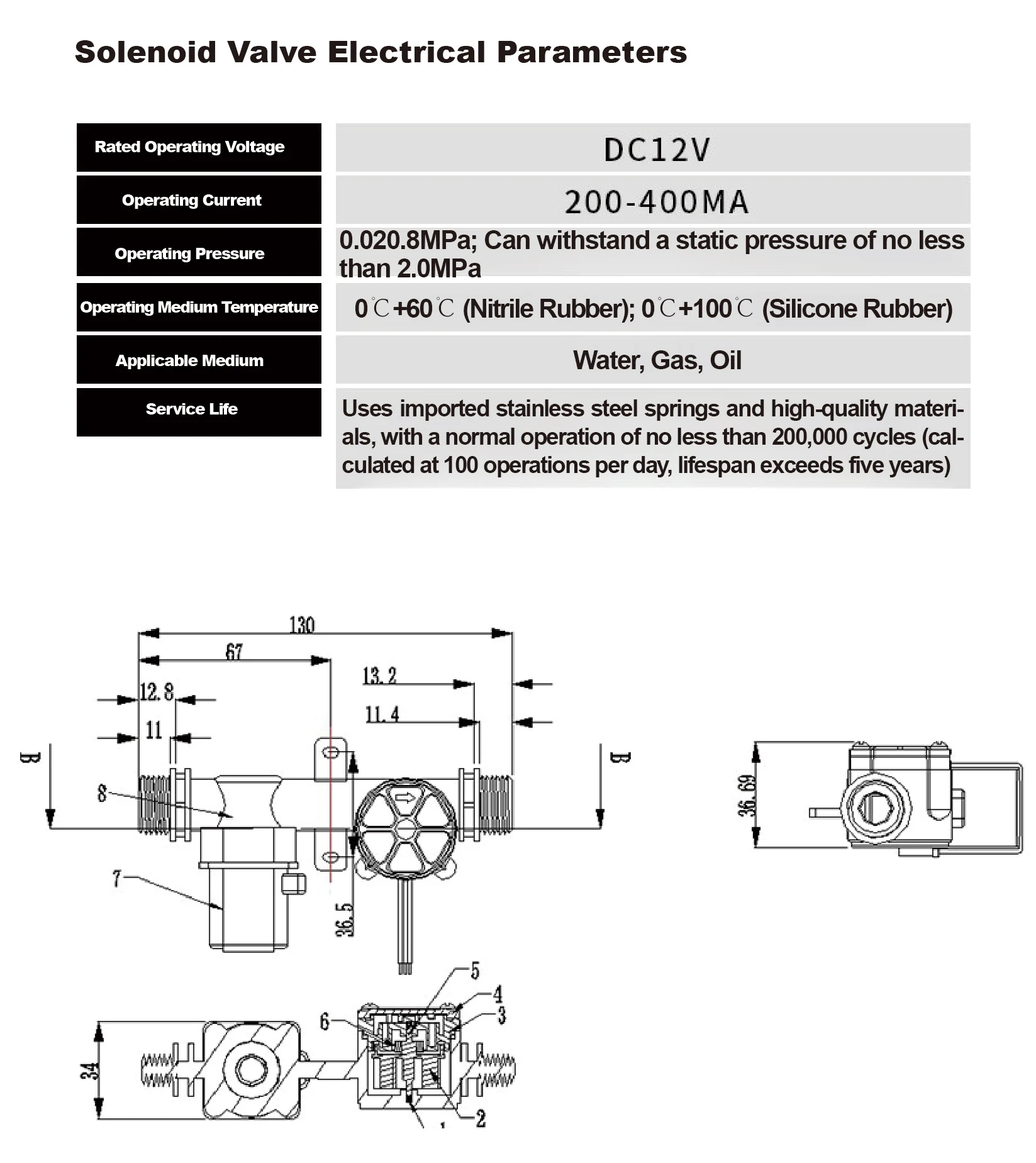

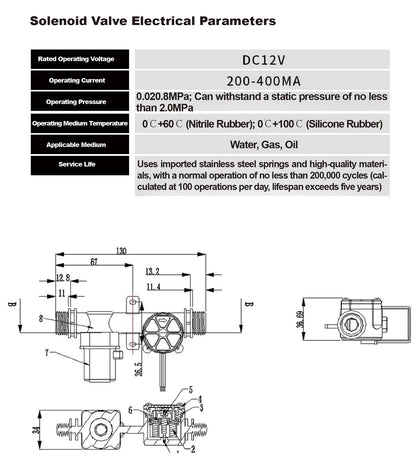

Solenoid Valve Specifications

Power Supply: DC 12V

Operating Current: 200–400 mA

Working Pressure: 0.02–0.8 MPa

Static Pressure Resistance: ≥2.0 MPa

Operating Temperature Range:

NBR Seal: 0°C to +60°C

Silicone Rubber Seal: 0°C to +100°C

The solenoid valve is designed for stable and reliable fluid control, featuring a DC 12V power supply and an operating current of 200–400 mA. It supports a working pressure range of 0.02–0.8 MPa and offers a static pressure resistance of up to 2.0 MPa or higher. Two seal options are available to meet different temperature requirements: NBR seals for temperatures up to 60°C and silicone rubber seals for temperatures up to 100°C.

Important Notes

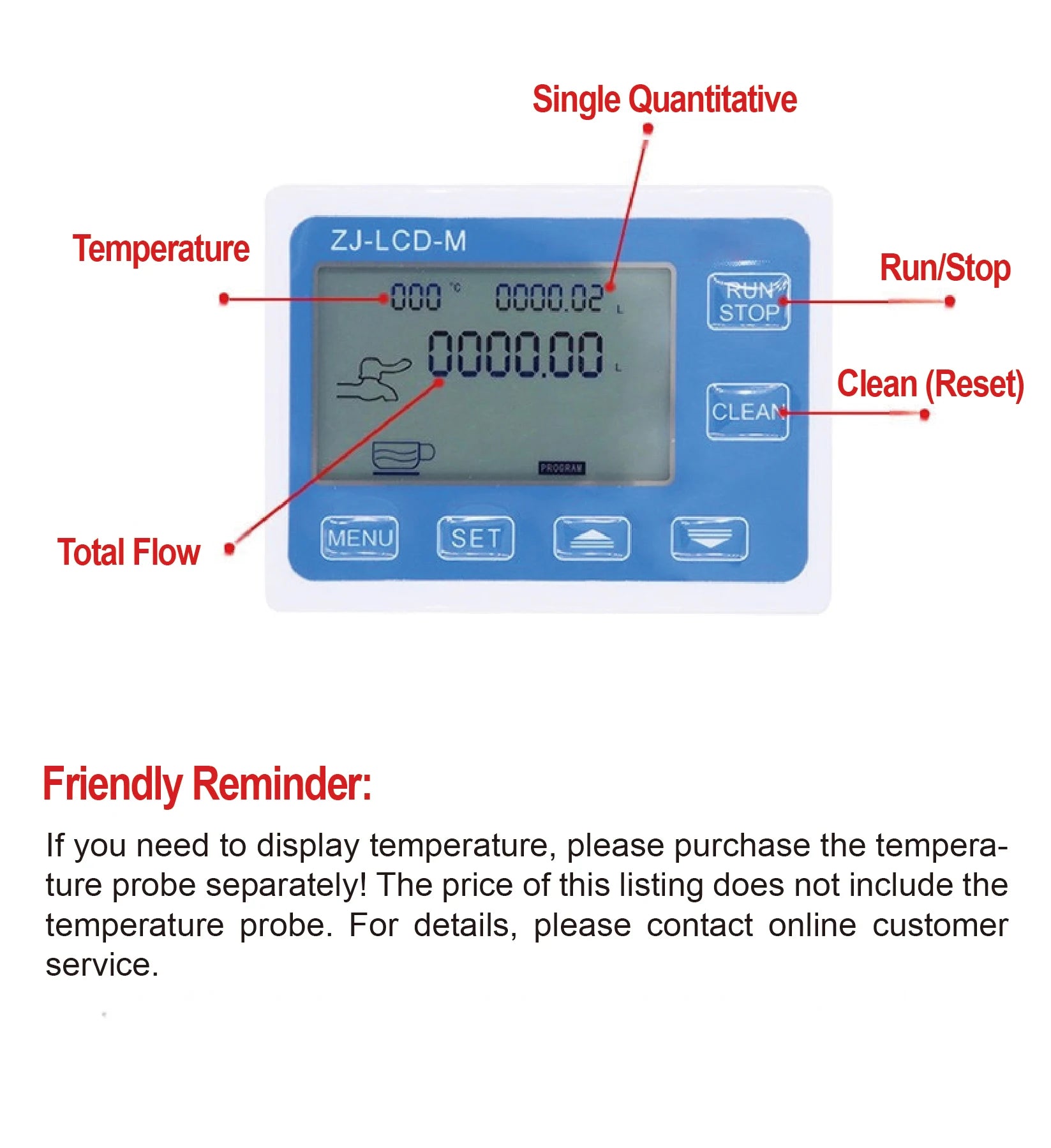

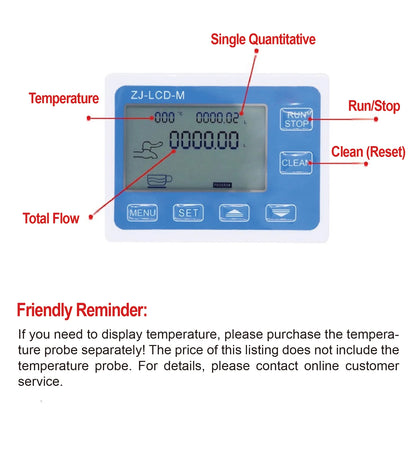

If temperature monitoring is required, a separate temperature probe must be purchased. The listed product price does not include the temperature probe. Please contact customer service for compatible options and pricing details.

This product includes the digital display controller only. The instrument enclosure (box) is not included. If you require an enclosure, please contact customer service for available options.

The display supports precision up to two decimal places for accurate measurement and control.

When adjusting the K value or password settings, all other buttons are temporarily disabled to prevent unintended operations.

In all other operating interfaces, the system automatically returns to the default display screen after 20 seconds of inactivity.

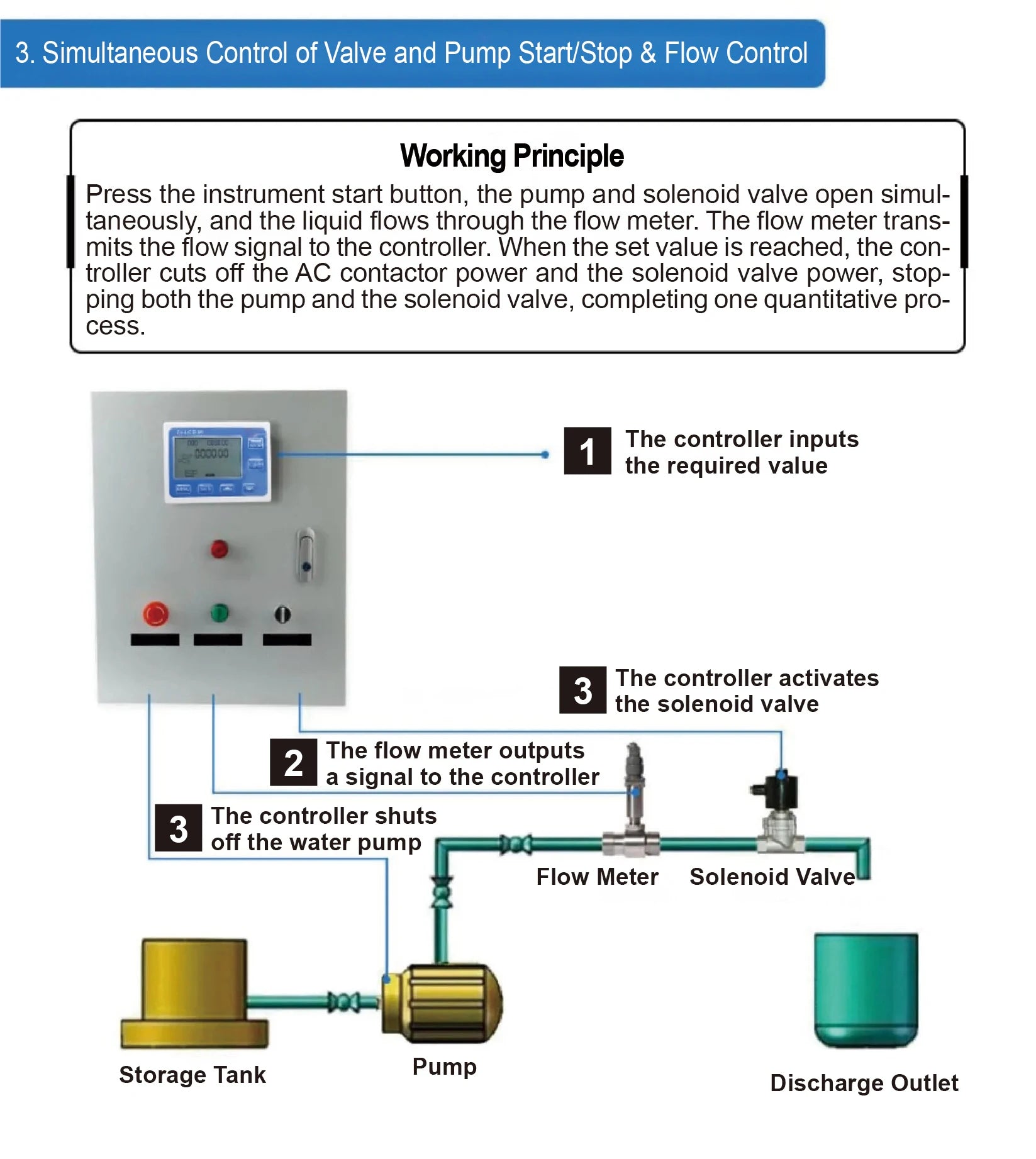

Pressing the "Start/Stop" button will immediately activate the solenoid valve and automatically return the controller to the default operating interface for convenient and efficient operation.

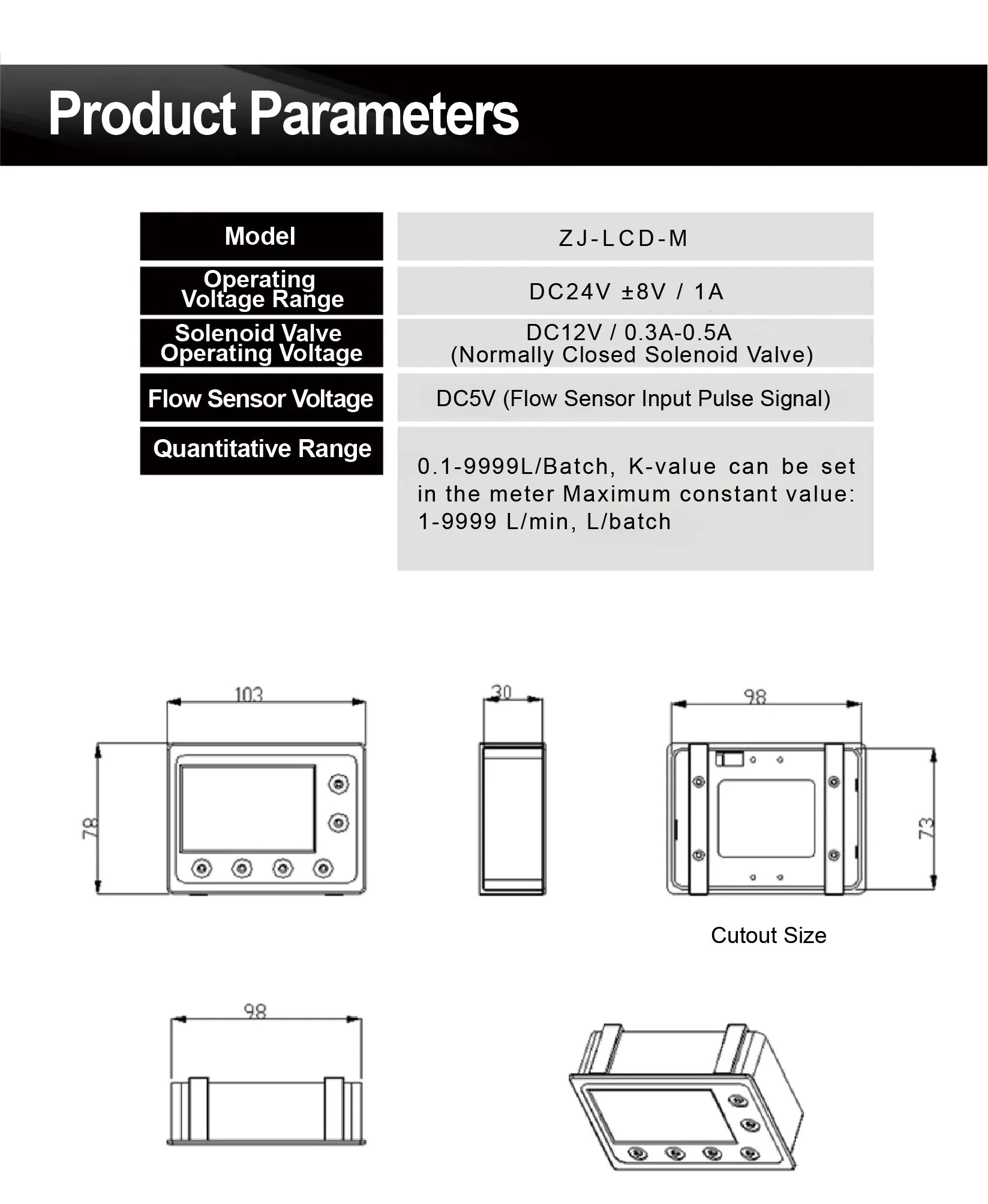

2. Parameters

3. Features

Real-Time Flow Monitoring

Accurately measures both instantaneous flow rate and cumulative flow volume, providing precise data for efficient monitoring and responsive process control.

Flexible Quantitative Control

Supports both single-batch dispensing and cumulative volume control, allowing users to easily adapt to different dosing, filling, and flow management requirements.

Compact and Space-Saving Design

Featuring an ultra-slim profile, the controller can be conveniently installed in limited spaces without compromising functionality or performance.

Wide Measurement Range

Designed to accommodate a variety of flow conditions, making it suitable for diverse industrial, commercial, and automation applications.

Durable and Reliable Performance

Manufactured with high-quality components and materials to ensure stable operation, excellent durability, and a service life exceeding 5 years under normal operating conditions.

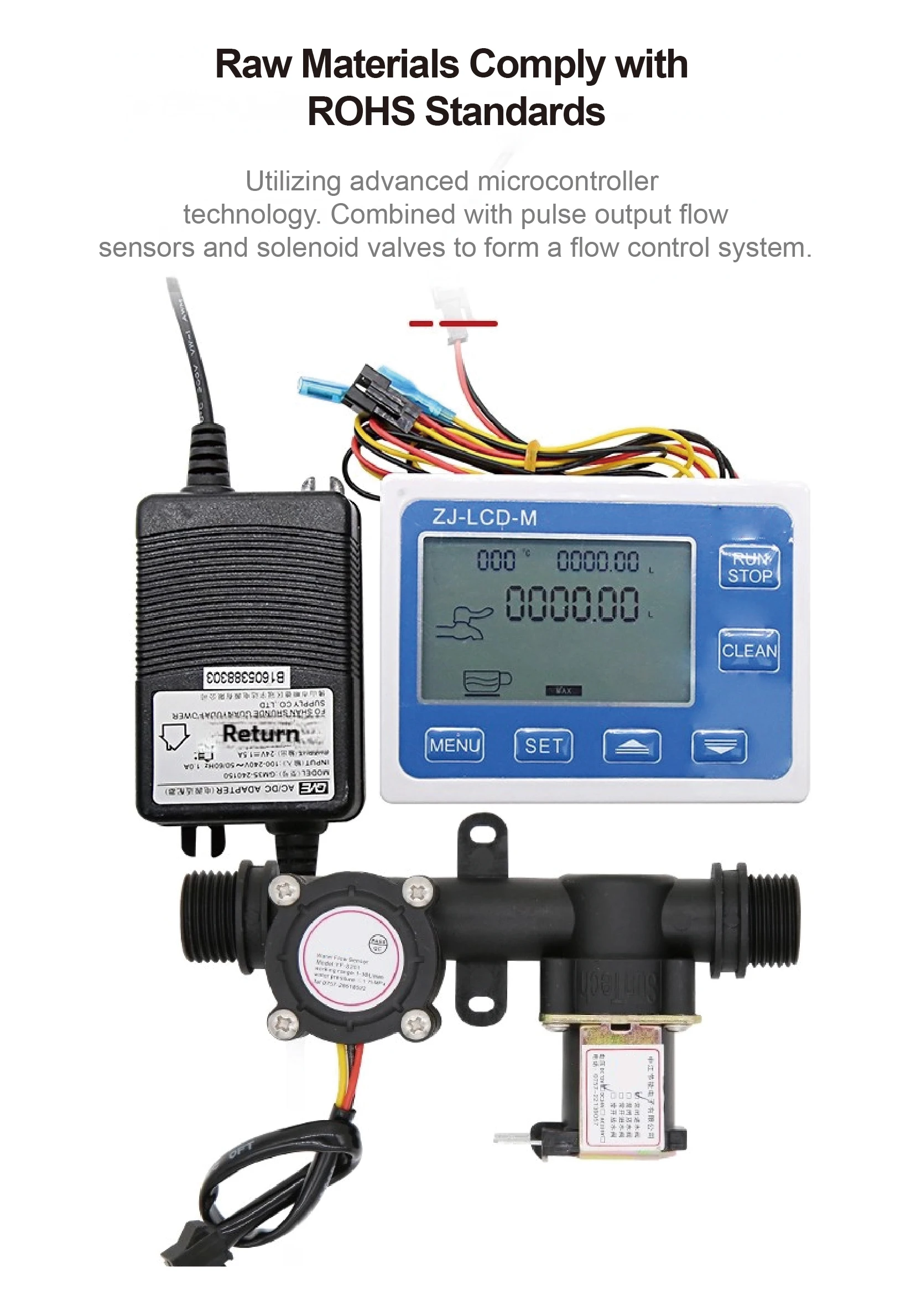

ROHS Compliant

Produced in accordance with ROHS environmental standards, ensuring safer materials, reduced environmental impact, and suitability for industrial applications.

4.Applications

Petroleum Industry

Ideal for fuel measurement, transfer, and dispensing applications, providing accurate flow monitoring and precise liquid distribution control.

Chemical Industry

Designed for reliable monitoring and control of various chemical liquids, helping improve process accuracy, consistency, and operational efficiency.

Food and Beverage Industry

Ensures precise ingredient dosing and liquid measurement, contributing to consistent product quality and optimized production processes.

Water Treatment Systems

Provides dependable flow monitoring and dosing control for water purification, filtration, and chemical treatment applications.

Industrial Automation

Supports accurate liquid flow measurement and regulation in automated production lines, enhancing process control, productivity, and operational reliability.

5.FAQs

Q1: Is this flow meter suitable for different types of liquids?

A1: Yes. The flow meter is compatible with water, fuel, oil, air, and a variety of chemical liquids, provided they are used within the specified operating pressure, temperature, and flow range.

Q2: What is the measurement accuracy of the flow meter?

A2: The flow meter offers an accuracy of ±5% within the 2–10 L/min flow range, ensuring stable and reliable flow measurement for everyday industrial and automation applications.

Q3: What is the service life of the solenoid valve?

A3: The solenoid valve is designed to withstand more than 200,000 operating cycles. Under normal working conditions and proper use, it can provide a service life of over 5 years with stable and dependable performance.
