4K 120Hz HDMI audio extractor 4K Support 5.1CH 2 Port HDMI to HDMI Audio ARC Switch with audio toslink stereo For Apple TV PS5
4K 120Hz HDMI audio extractor 4K Support 5.1CH 2 Port HDMI to HDMI Audio ARC Switch with audio toslink stereo For Apple TV PS5
SPECIFICATIONS
ARC: 2X1 HDMI Switch with ARC 5.1, 7.1 ,9.1 Audio
Application: Projector,For iPod,Multimedia,Monitor,MP3 / MP4 Player,Computer,TV box,DVD Player,Camera,Television,LCD,XBox,apple TV
Audio Extractor: HDMI 2.0 switcher switch with IR romote control
Brand Name: Navceker
Bundle: Bundle 1
Certification: CE,FCC,RoHS
Connector A: Micro USB,HDMI-Compatible
Connector B: RCA,jack,OPTICAL INTERFACE,Coaxial,HDMI-Compatible
Feature: HDMI-Compatible2.0
Gender: Male
HDMI port: 2 IN 1 OUT HDMI audio extractor
HDR: 4K HDR HDMI 2.0 switch splitter HUB box
High-concerned chemical: None
IR control: 4Kx2K HDMI Switcher Box Audio Extractor with IR control
Model Number: ZY-HS121
Model number: ZY-HS121 2 input 1 output HDMI 2.0 switch
Origin: Mainland China
Outer Diameter: 1mm
Package: Yes,Carton Box
Product name: 2 port HDMI 2.0 4K HDMI switcher with ARC & IR control
Resolution: 4K HDMI switch audio extractor
Shielding: Non-Shielded
Type: HDMI-Compatible Cables
Video standard: HDMI 2.0 and HDCP 2.2 UHD 4K HDMI switch
Warranty: one year free warranty HDMI 2.0 switcher splitter
|
|
If you like our products please you add to cart or add to Favorites,Surprise coupons is waiting for you to extract,
more refined small gifts free to send, please contact customer service.
If you follow our store and become our fans, you can get extra 5% discount for some designated products.

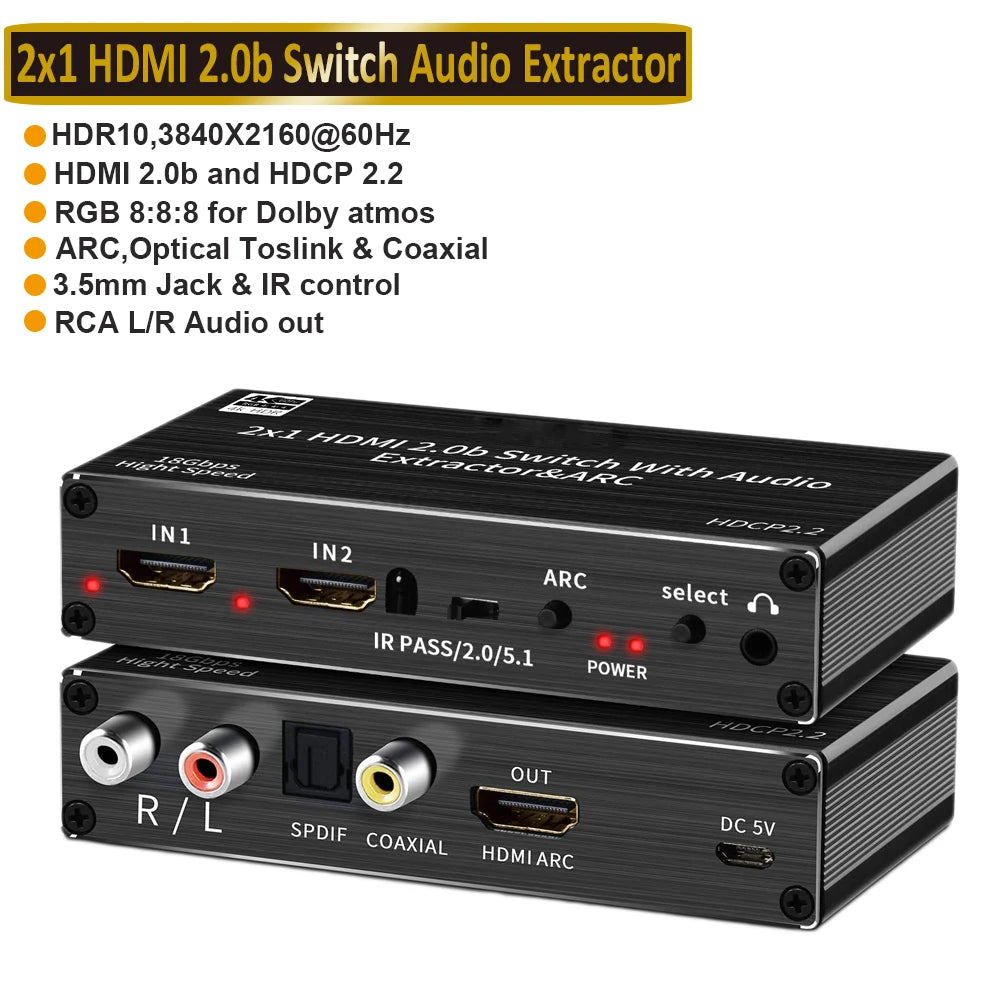

Mini 2x1 4K HDMI Switch Audio Extractor With ARC & Optical Toslink HDMI 2.0 Switch 4K 60Hz HDMI Switcher Remote For Apple TV PS4
Description:

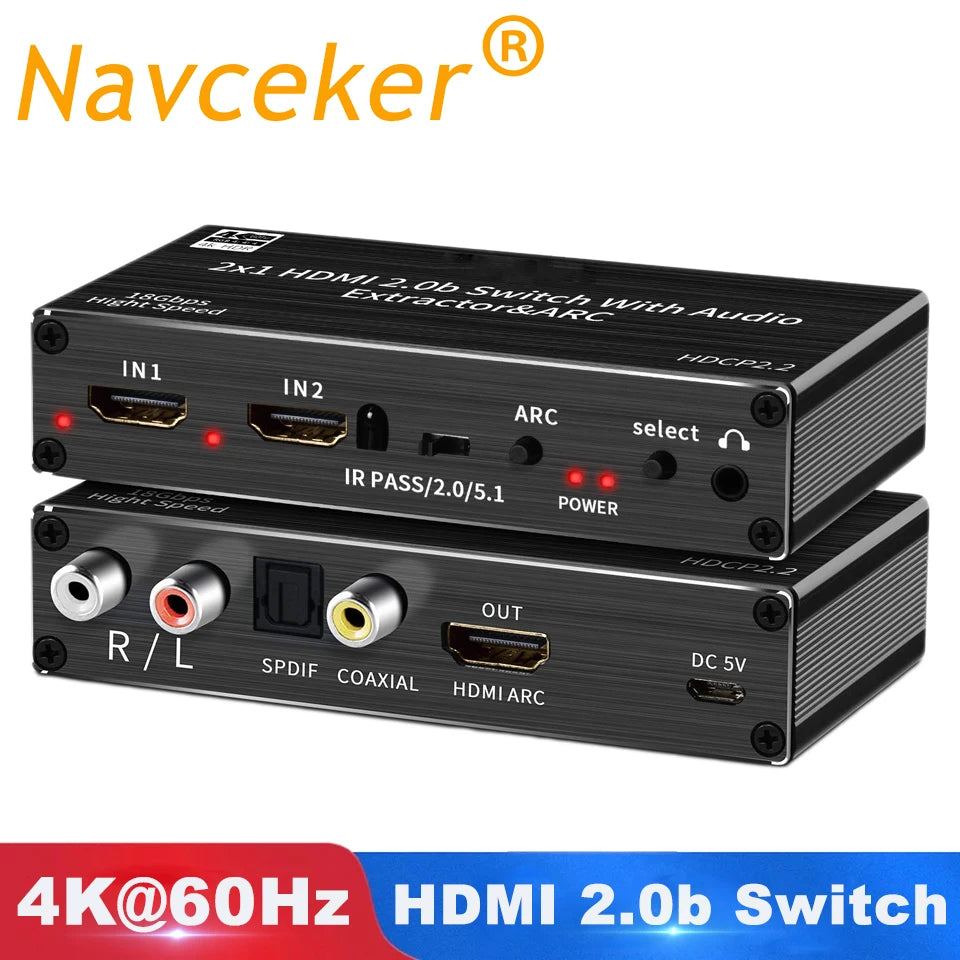

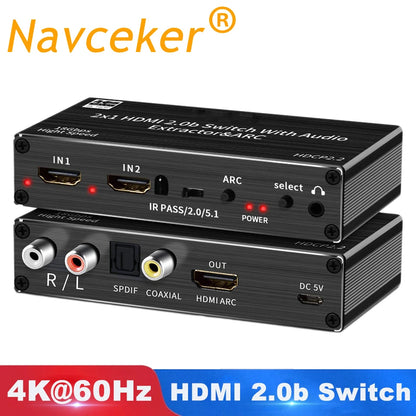

ZY-HS121，Navceker HDMI 2.0b Switch is a 2 port HDMI 2.0 4K 60Hz HDMI switcher for your latest gaming and home theatre setup. It supports 2 HDMI inputs and 1 HDMI output, allowing for HDMI 2.0 and HDCP 2.2, along with 4K@60/120Hz Ultra HD and compatibility on all HDMI.
Features:
Excellent Quality
· ★4K@60HZ 2X1 HDMI SWITCH with AUDIO EXTRACTOR: Navceker 4K HDMI Switch allows you connect Two HDMI 2.0 Sources to one display device, Each input source support audio extract by the Toslink+L/R+Coaxial audio output channel. No loss of quality after you split the signal. No degradation in audio quality. (HDMI port not support CEC)
· ★UHD 4K VISUAL ENJOYMENT: Supports HDCP 2.2, HDMI2.0b,1080P/1440P@120Hz,4K@60HZ, RGB4:4:4，4K@120Hz YUV 4:2:0 with new version PS5/XBox and PC,Full HD, UHD, HDTV, Deep Color to 36bit,also back compatible with 4K@30HZ and 1080P. Max Bandwidth of 18.2Gbps.(Kindly Note: It is not compatible with DVI)
· ★HDMI ADUIO EXTRACTOR: With Optical Tolink SPDIF+L/R+3.5mm Jack+Coaxial audio out allows you extract the audio from the HDMI input source ( Like PS4, Cable box, Xbox or any HDMI device)connection to a spearker, Amplifier etc. Note: If you choose optical or coaxial audio out, you can enjoy 5.1CH or 2CH or audio copy. If you choose 3.5mm or L/R audio out, you can enjoy 2CH or audio copy.

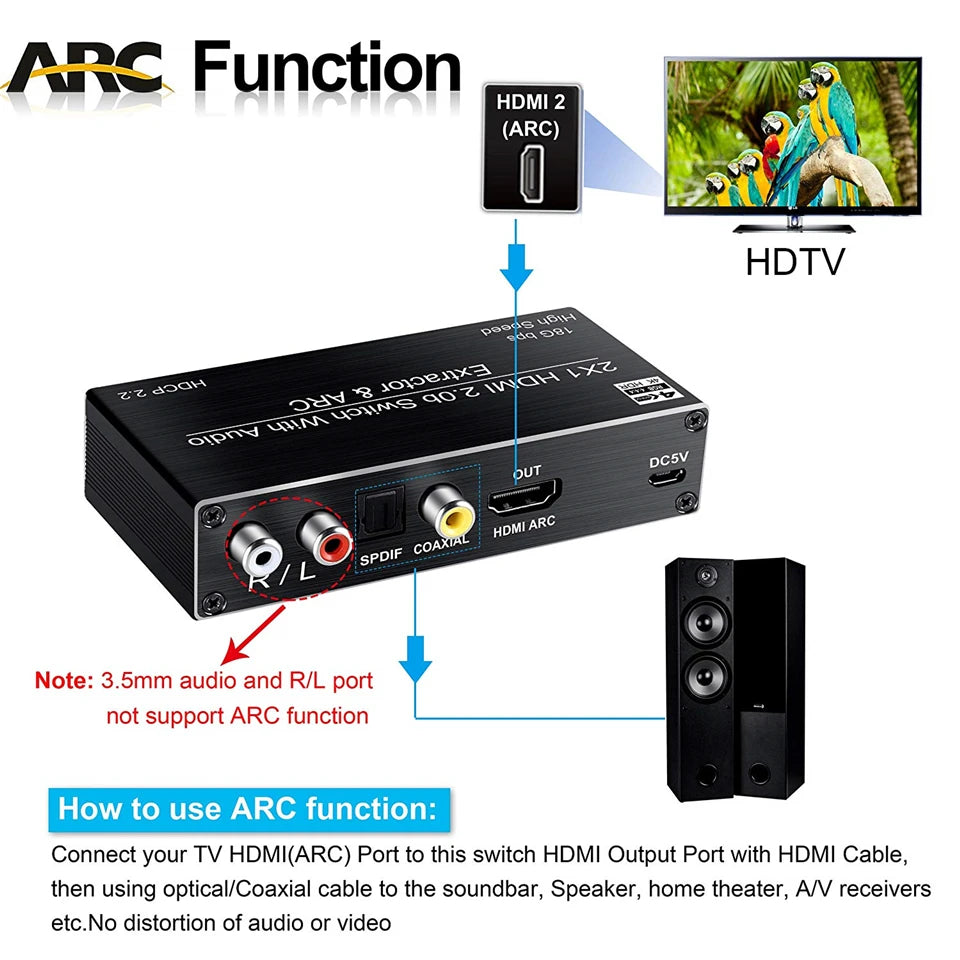

· ★HDMI ARC ADAPTER: Supports ARC (Audio Return Channel), Extractor the Audio from TV to Soundbar or Amplifier. Connect your TV HDMI(ARC) Port to this switch HDMI Output Port with HDMI Cable, then using optical or Coaxial cable to the soundbar, Speaker, home theater, A/V receivers etc.No distortion of audio or video(Note:3.5mm jack and L/R audio port not support ARC audio)

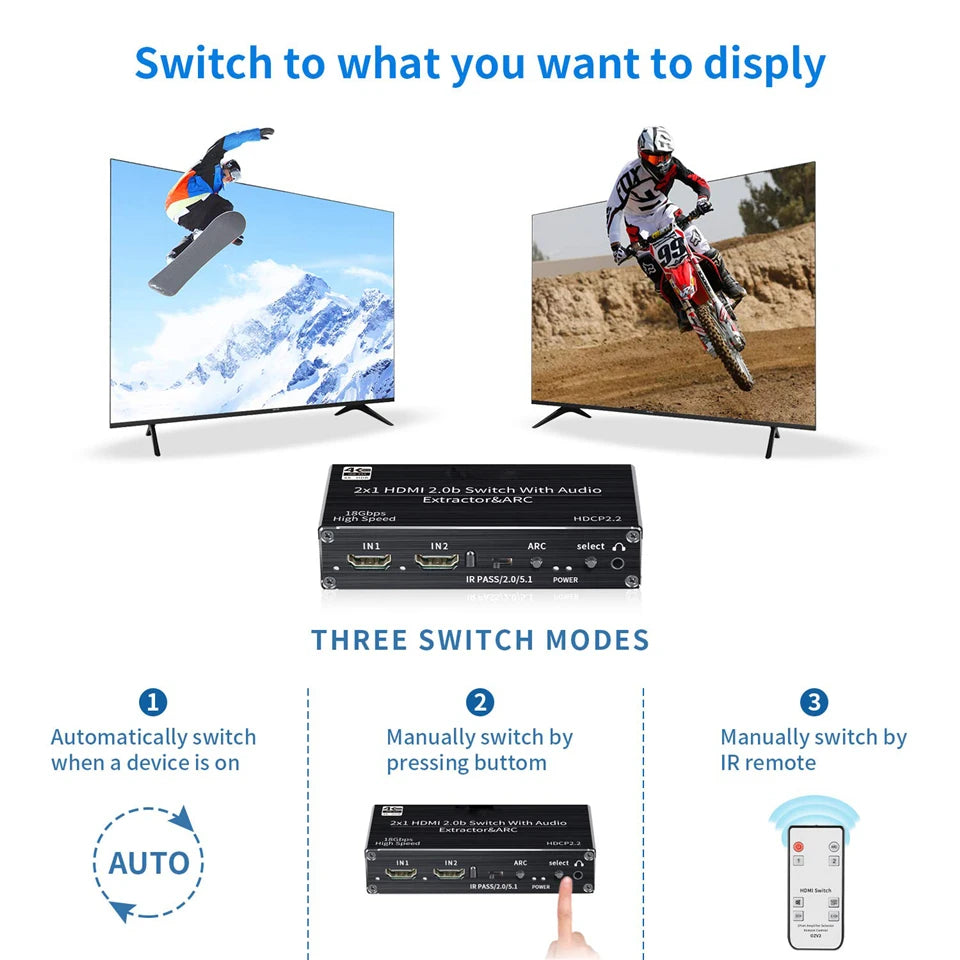

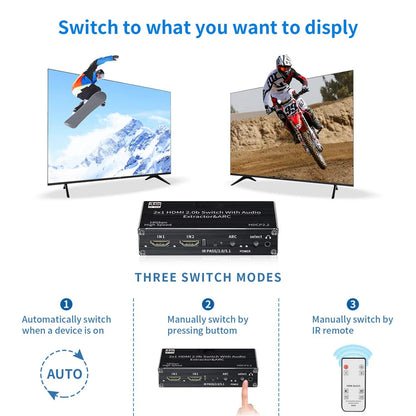

· ★Smart Auto-Switch with Remote Control: It will automatically skip to the most recently inserted HDMI signal source,it will automatic change from HDMI source A to HDMI source B when you turned on source B and back to source A when you turned source B off.
4K@60hz 2x1 HDMI Switch Audio Extractor + Optical TOSLINK SPDIF +Coaxial+ Analog RCA L/R Stereo Audio Video Audio Video Splitter Converter with 18.2Gbps, HDCP 2.2, HDR10, Support ARC.

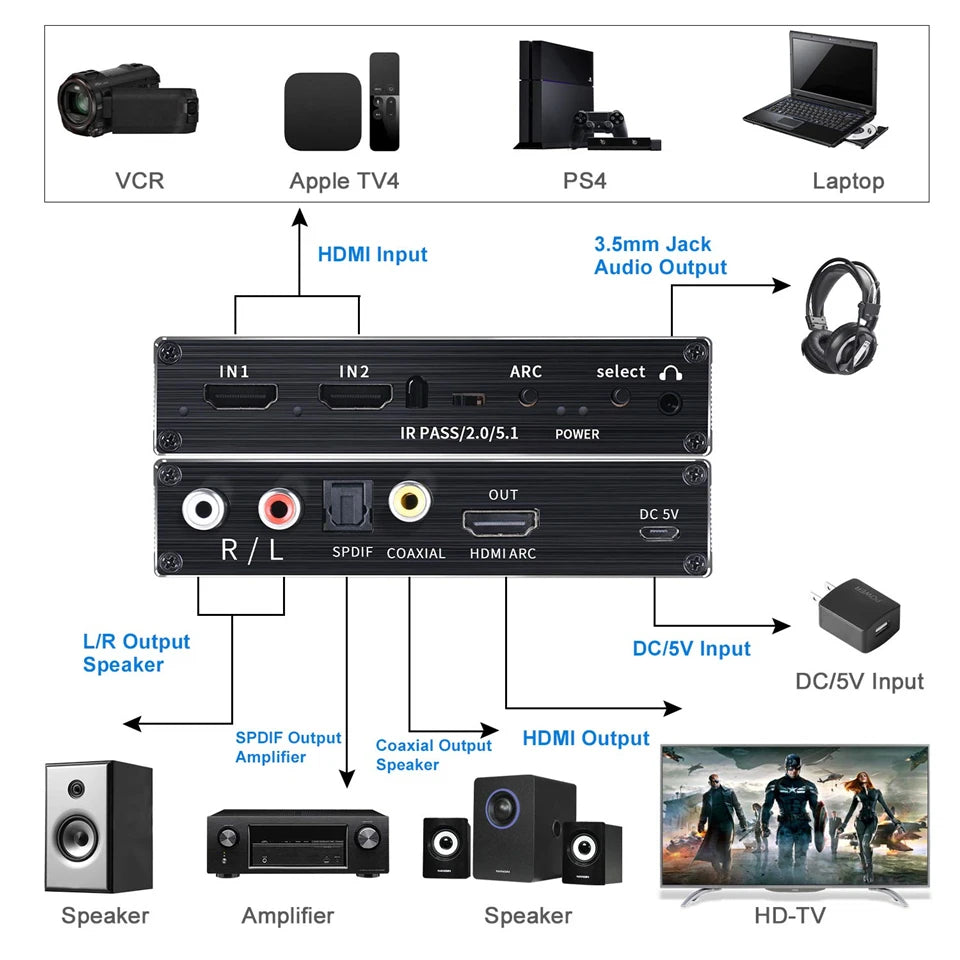

Navceker HDMI Switcher allows you to switch easily among three HD sources to one HD display. Also, it can extract digital audio embedded in HDMI and output it via optical SPDIF and RCA L/R stereo and Coaxial audio out, It also support ARC (Audio Return Channel)
Specifications:

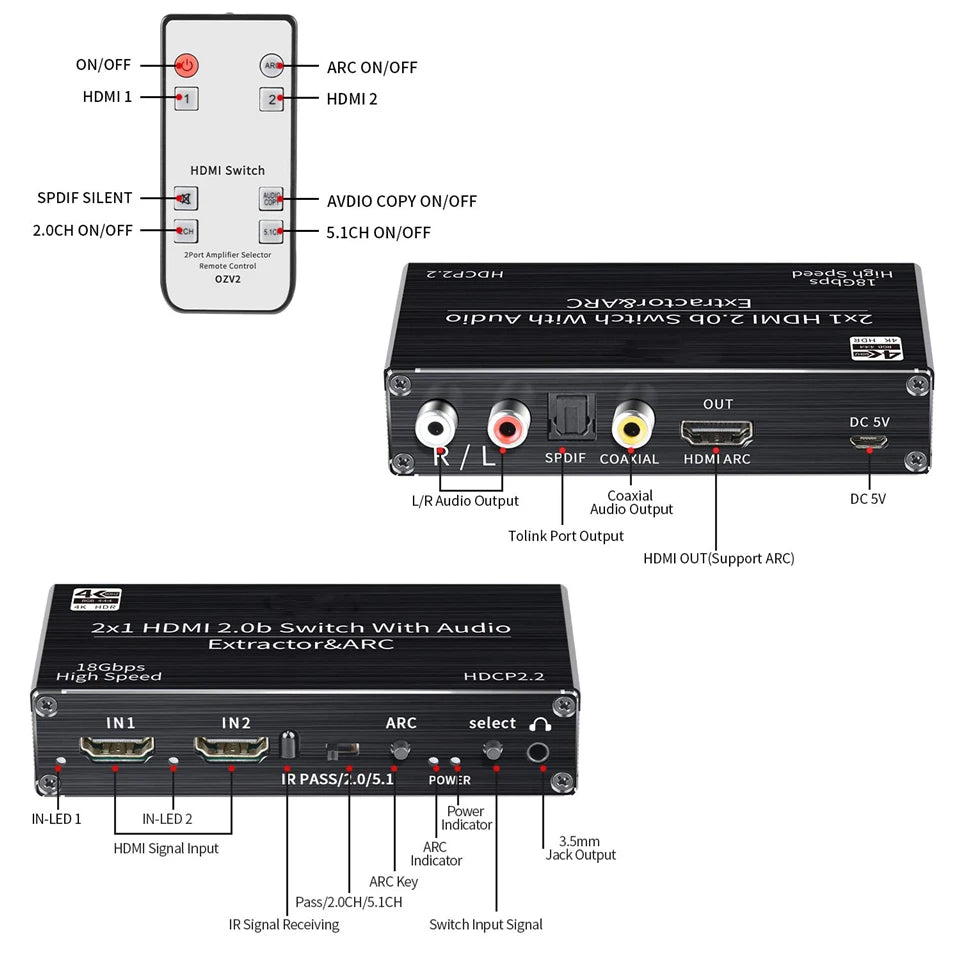

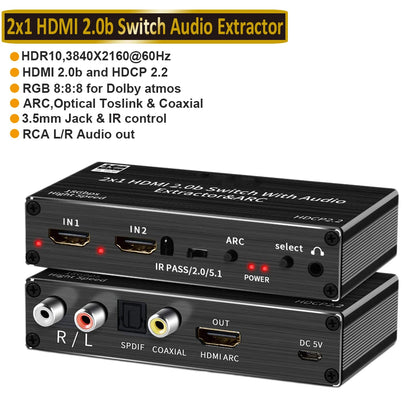

There are 2 ports HDMI input,1 port HDMI output with ARC function, Toslink output, Coaxial Output, L/R output, 3.5mm Jack output.
Coaxial and Toslink port output support audio return function (ARC)
3.5mm Jack port output and R/L support audio extract function ,it does not support ARC
support 480p/576i/576p/720p@50/60Hz/1080p@50/60/120Hz/1440P@60/120Hz/4Kx2K@30/60Hz with 24bit RGB/YcbCR 4:4:4/YcbCR 4:2:2,4K@120Hz YUV 4:2:0(Not support RGB4:4:4).
Max.bandwidth per channel: 600MHz. Max. baud rate per display: 18.5Gbps
Compliant with HDMI2.0b ,HDCP1.4 /1.3 /1.2/1.1 HDCP2.2
Audio Supports LPCM 7.1CH,Dolby TrueHD,and DTS-HD Master Audio
Supports Dolby True-HD, DTS-HD, AC3, DTS, DSD. This HDMI Switch will output the Dolby True-HD, DTS-HD, AC3, DTS, DSD audio format, But can't decode these audio formats.
Support HDR 2K HDR10 Wide Applicability: Compatible with any HDMI devices such as Nintendo Switch, PS4 Pro, Xbox 360, Xbox One X，PS3, Beamer, DVB Receivers, Blu-ray Player, Apple TV 4, Laptop and HDTV/HD Monitor etc.
Notes:
1.lt supports coaxial cable and Optical cable are up to 10meters(max)
2.Maximum remote control distance is 8meters.
3.HDMI input and output ,hdmi 2.1 cables can reach up to 1.5 meters if your Resoltion up to 4K@120HZ YUV 4:2:0;hdmi 2.0 cables can reach up to 3 meters if your Resoltion up to 4K@60HZ; can reach up to 5 meters if your Resoltion up to 4K@30HZ.

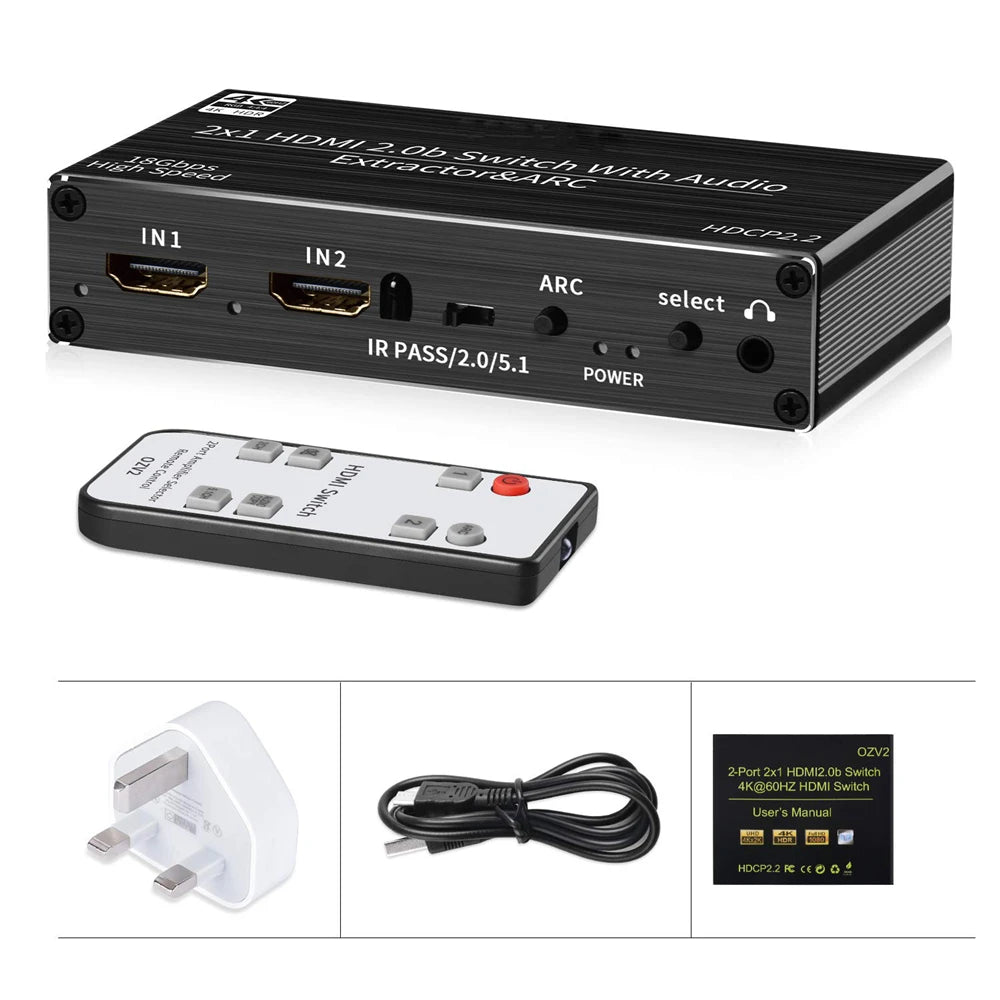

PACKAGE INCLUDED:
1.HDMI Switch 2X1 with audio extractor
2.5V/1A DC Power adapter x 1
3.IR Remote x 1(Battery is not included)
4.User manualx1
