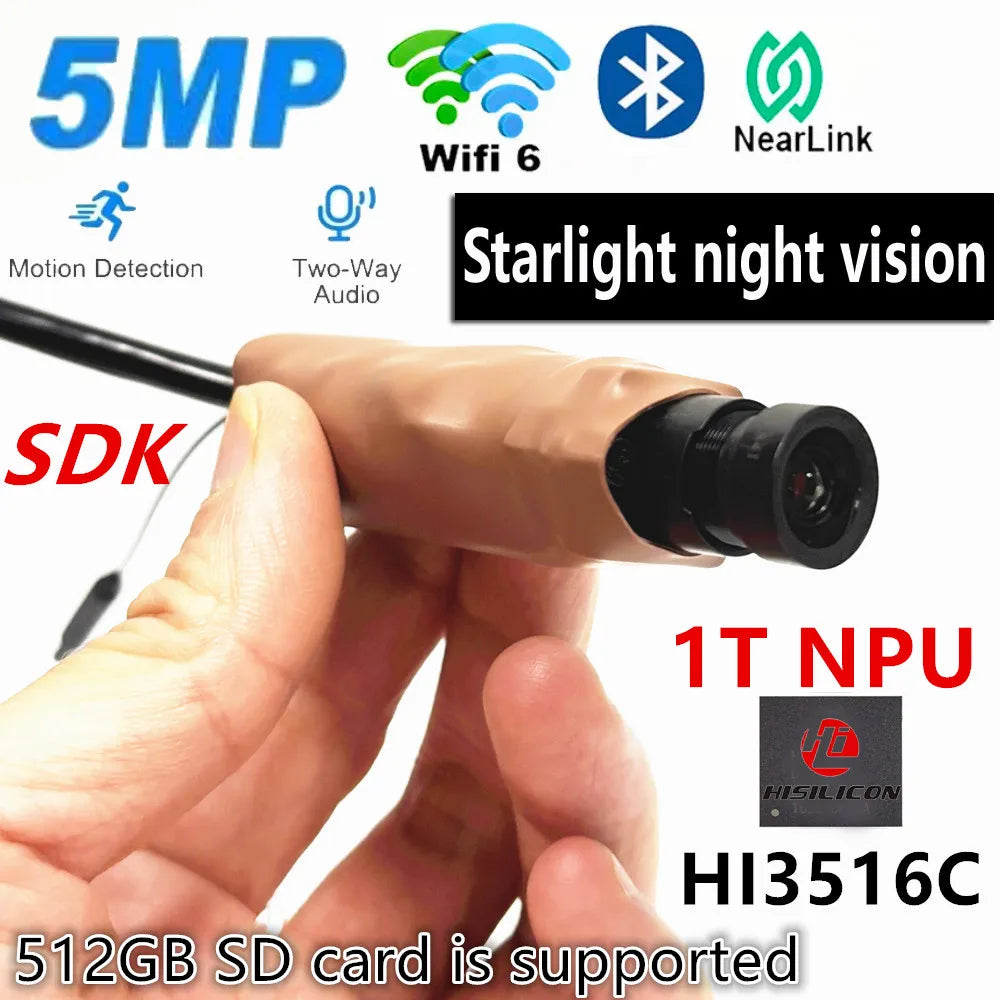

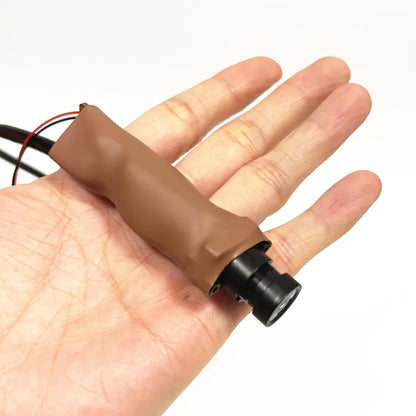

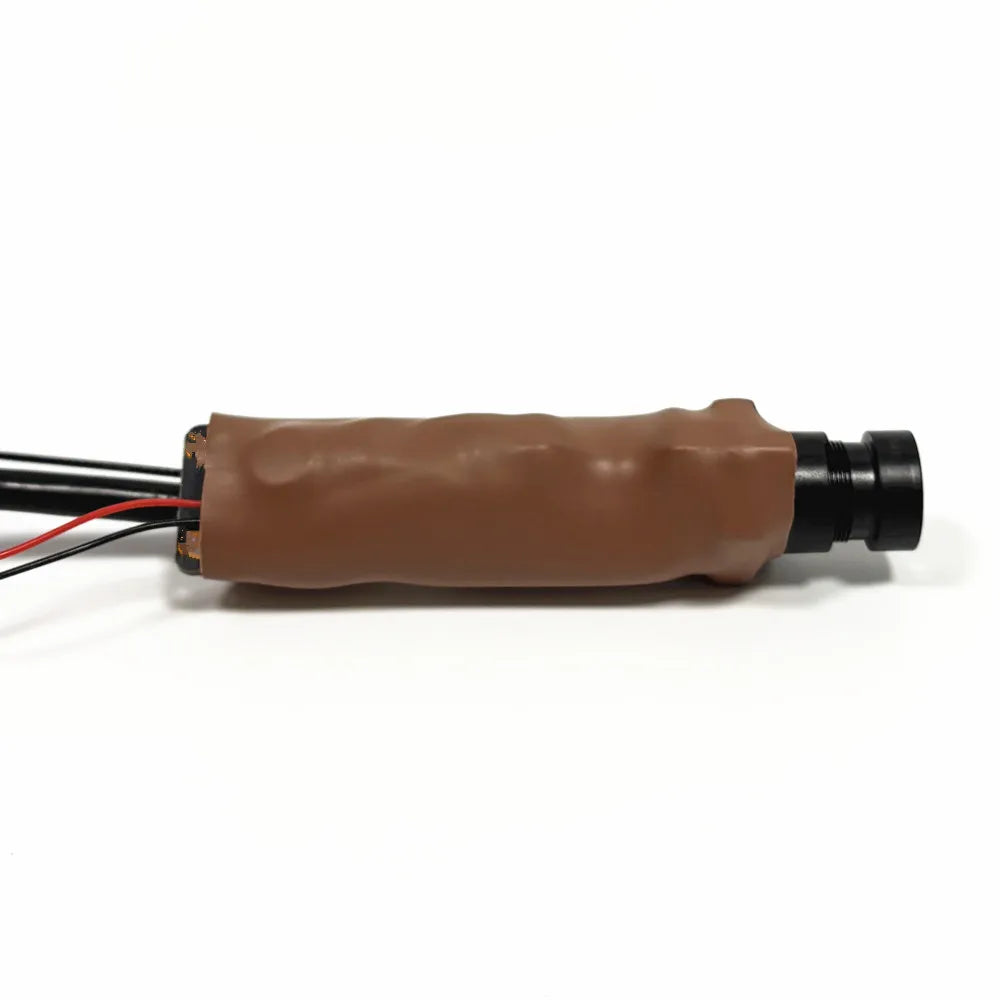

5MP Wifi Starlight Level Camera Mini Wifi 6 HI3516C Low Light Level Lens Module miniaturization support 512G SD Card P2P 1T CPU

$30.44 USD

~~$30.44 USD~~ $30.44 USD

Sale Sold out

SPECIFICATIONS

AI Functions: Vehicle Detection

Alarm Action: FTP Photo,Email Photo

Audio Output: Two Way Audio

Brand Name: HQCAM

Certification: CE

Choice: yes

Color Night Vision: Yes

Connectivity: IP/Network Wireless

Dimensions (L x W x D)(mm): 84mm

HQCAM Model: HQ-X08

High Definition: 5.0 Megapixels

High-concerned chemical: None

IR Distance(m): NA

Installation: ceiling,Normal

Internal Storage: None

Lens (mm): 3.6mm

Lens Quantity: Single Lens

Megapixels: 5 MP

Minimum Illumination(Lux): 0.001

Model Number: HQ-X06

Operating Temperature: -10°-60°

Origin: Mainland China

Power Source: Normal

Power Supply: Normal

Power Supply(V): 12V

Rechargeable Battery: NONE

Scene: Indoor

Sensor: CMOS

Sensor Brand: Omnivision

Shell Material: Plastic

Style: Mini Camera

Supported Mobile Systems: Android,iOS

Supported Operating Systems: Windows XP,Windows 7,macOS,Windows 8,Windows 10

TF Card: None

Video Compression Format: H.264,H.265

Viewing Angle : 90°

Whether or Not 50Vac or 75Vdc or Higher Power Supply: No

Zoom: 5x

Zoom type: Digital zoom

is_customized: Yes

Package list:

1x wifi IP Camera moudle

1x Manual

（This package does not include a TF card or a power adapter by default.）

A statement!

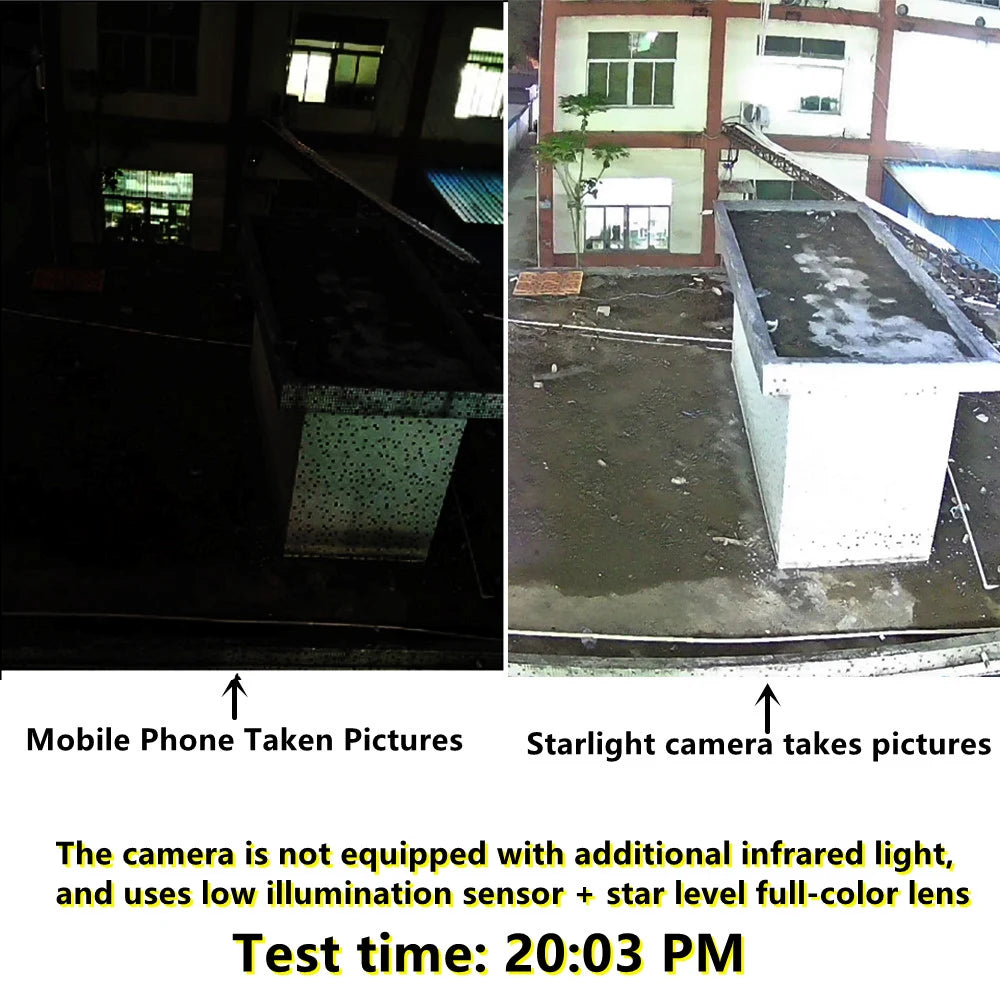

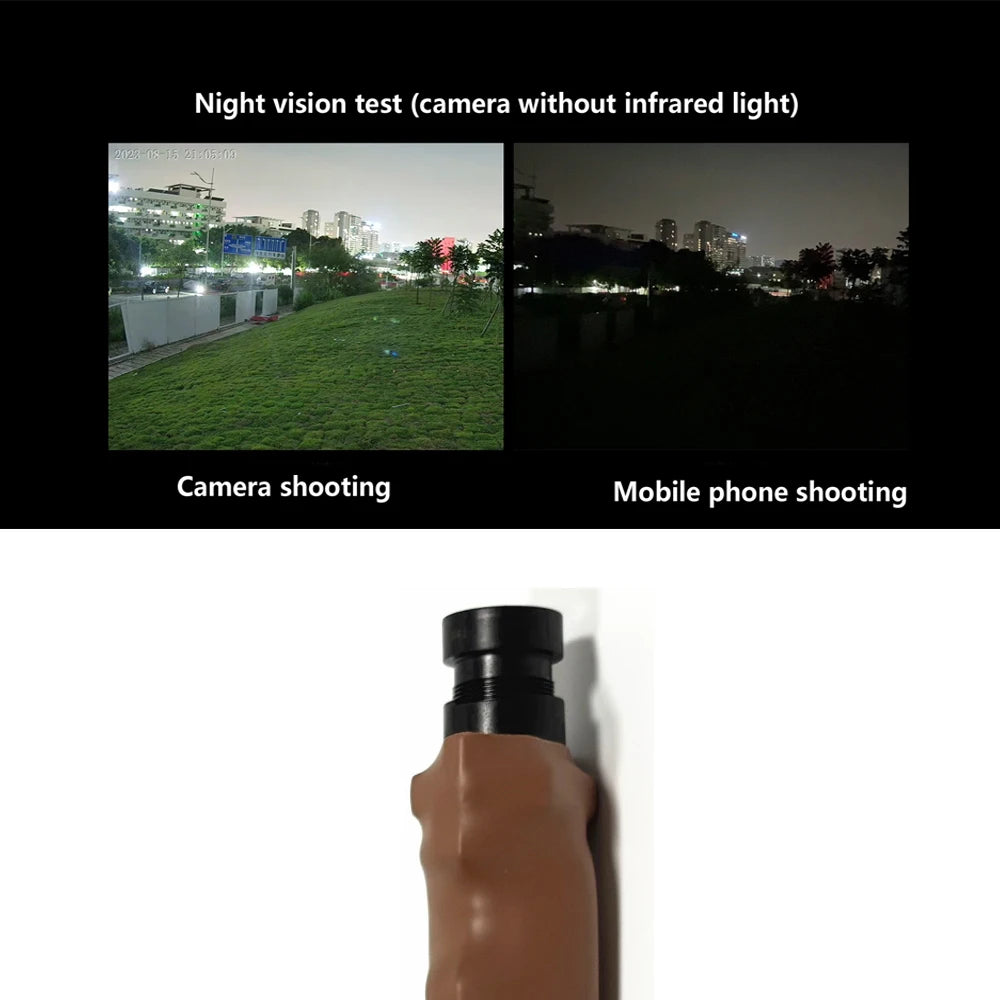

The tests provided below are real, this camera is not equipped with any red lights, and can achieve full color night vision in dark environments with a little shimmer.
In the case of low light, usually refers to the starlight environment without any auxiliary light source, can show clear color images, different from the ordinary camera can only show black and white images. Starlight camera features: no red lights or white lights are required, and clear color monitoring without trailing can be achieved at night.

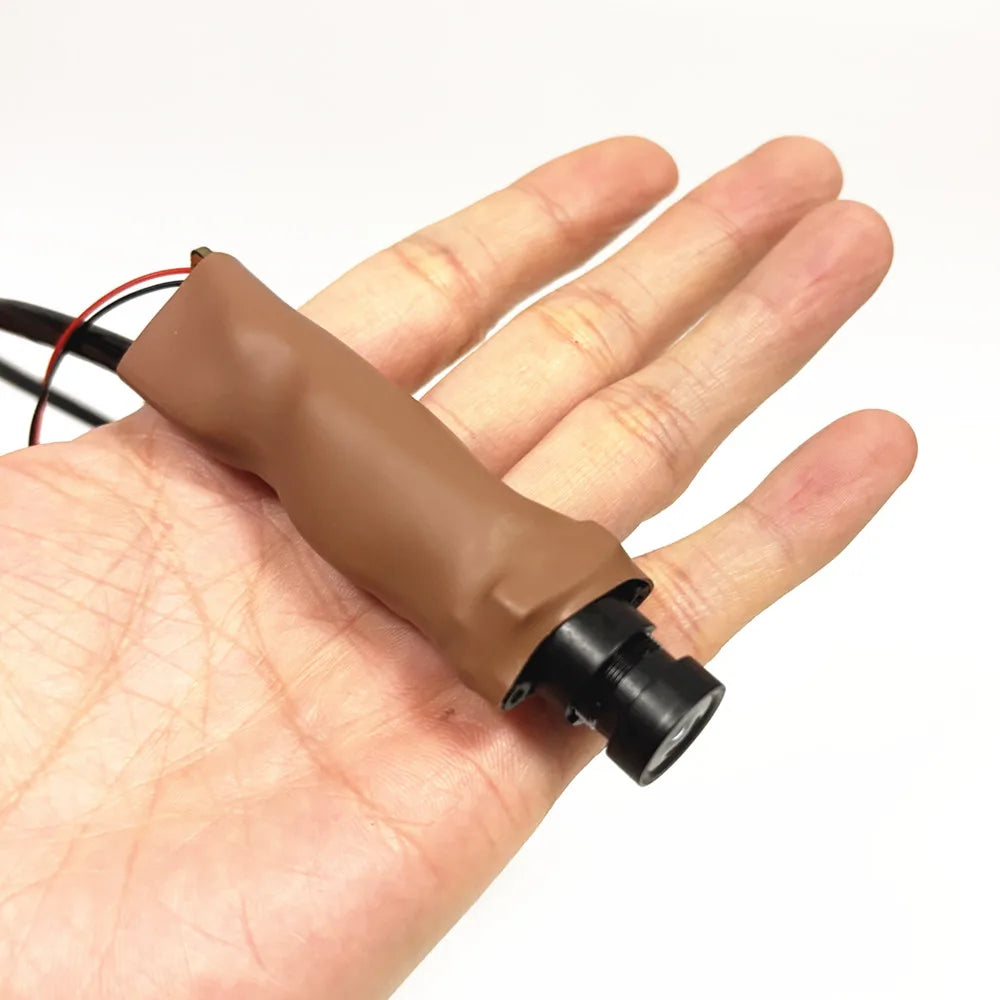

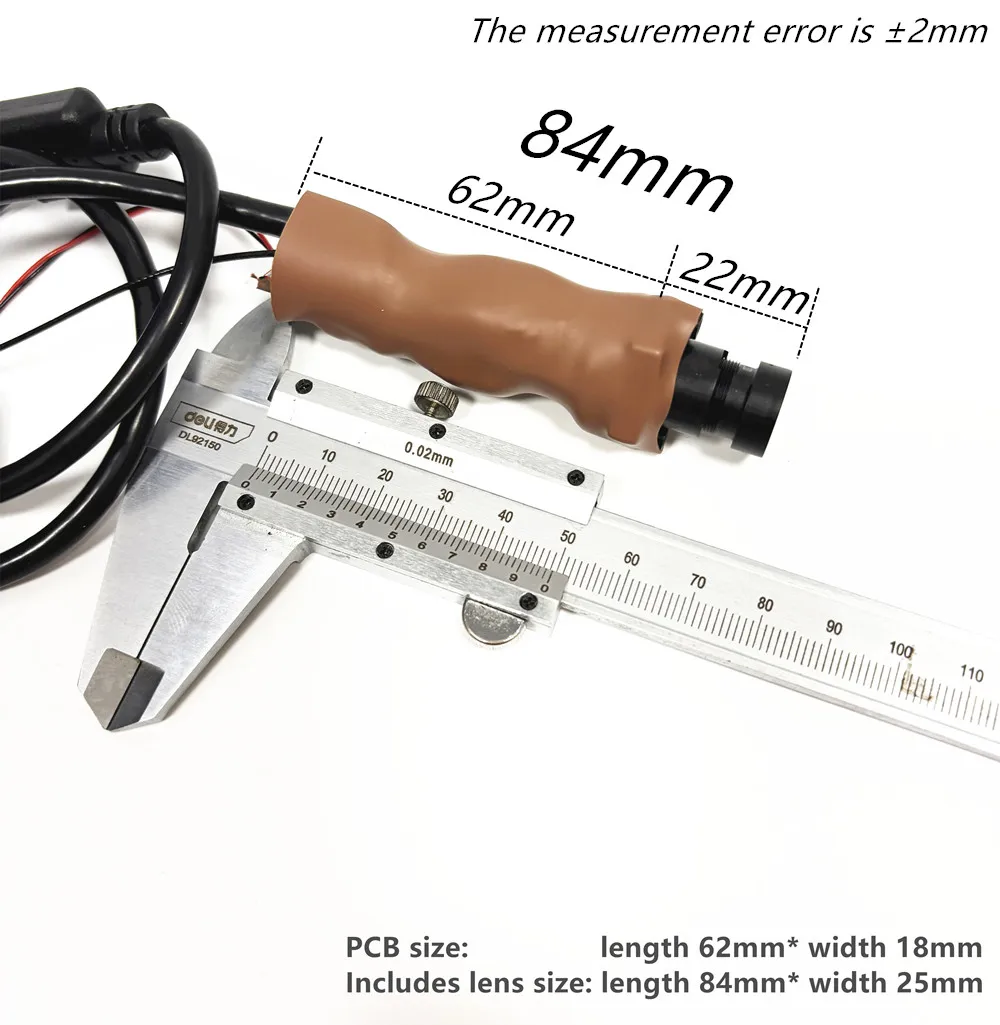

SIZE:
PCB module size: 62x18mm

PCB includes lens size: 84x25mm

Access the screenshot from your browser

· Built-in 1T computing power NPU, built-in AI algorithm large model;

· Support wired and wireless connections; Wireless connection support Wi-Fi 6, more stable transmission;

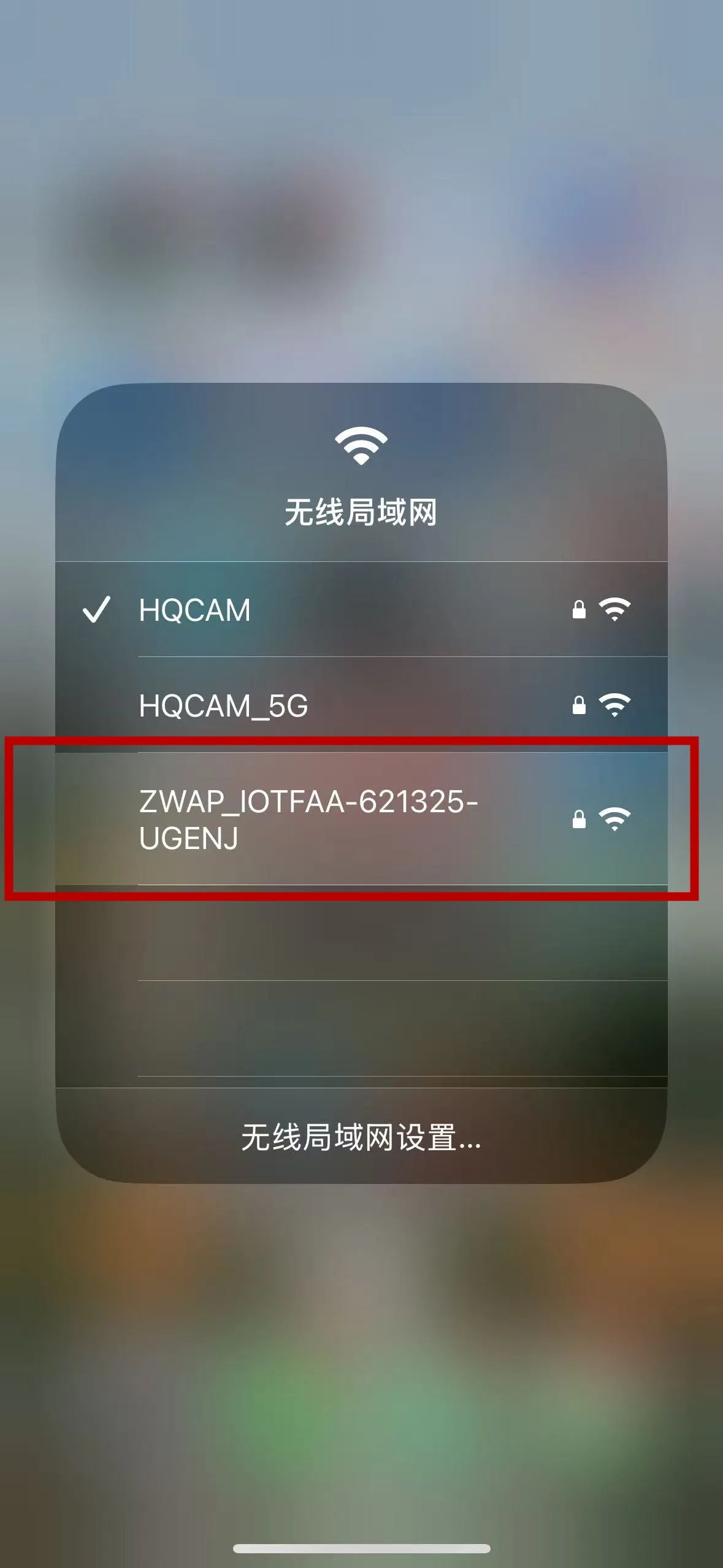

· Come with WiFi hotspot, no network can also monitor; APP support Bluetooth network, WiFi connection is more convenient;

· Intelligent detection of light, see faces at night;

· Built-in WEB 2.0 page, support Edge, Chrome, Safari, Firefox and other non-IE kernel browsers;

· Support 512G TF card; Support intelligent video/ordinary video, save full automatic coverage;

·5MP 25fps HD resolution, support dual stream output;

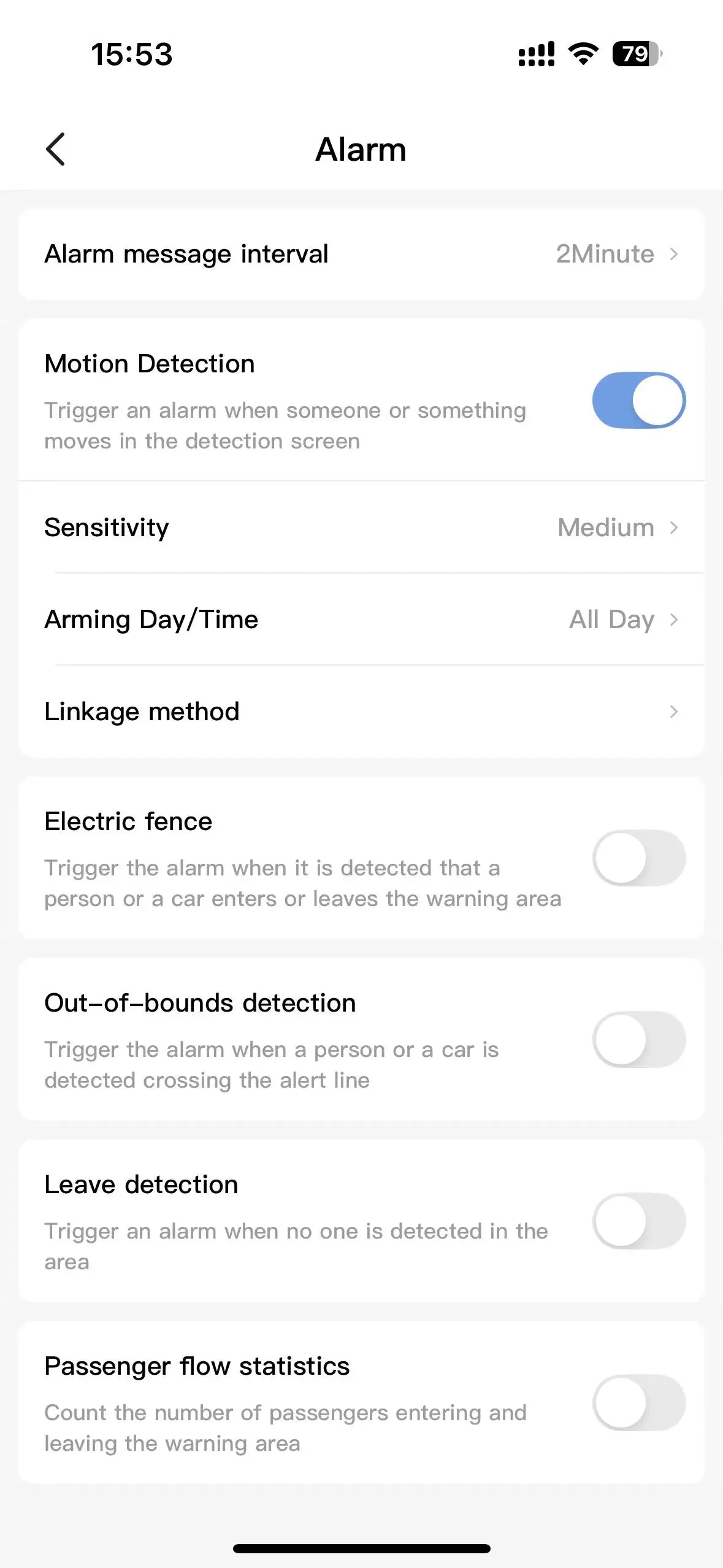

· New APP page, easy to use, support APP alarm push;

· Support sharing function, the maximum share of the APP is 16 people;

· Built-in humanoid and car shape detection function; Expand the application scenarios of electronic fence, cross-border detection, departure detection, and passenger flow statistics;

· Support humanoid tracking, automatic return after tracking (optional);

· Support linkage sound and light alarm; Alarm sound support custom recording and text to voice (optional);

· Support alarm output, can link red and blue lights and other alarms (optional);

· Support ONVIF protocol and access to third-party NVR;

· Support screen occlusion to protect the privacy area;

· Support OSD character overlay function, support network timing;

· Support audio input and output, two-way intercom, audio and video synchronization;

Product parameter description
Day and night mode	Black light full color (Requires a black light lens), intelligent dual light, infrared mode (Optional), intelligent light face but exposure
Image adjustment	Support automatic white balance, support digital width dynamic, support backlight compensation, brightness contrast color and other parameters adjustable;
Privacy block	The private occlusion area is supported
acoustic image	Support mirror image
OSD	Support OSD settings and support OSD drag

Intelligent application
Electronic fence	Support the detection of human shape / vehicle shape, and the equipment shall conduct the alarm after entering the warning area;
Transboundary detection	Support the detection of human shape, support the detection of A-> B, B-> A, A <-> B direction;
Deportation investigation	Support setting the detection area, the equipment will alarm after the personnel leave for a certain time, and the alarm stops after returning;
passenger flow statistics	Support the detection of entering and leaving number statistics, can stack OSD to the picture in real time; daily data can be checked;
Human tracking	Support the humanoid tracking function, automatic tracking after personnel detection;
Voice alarm	Support linkage voice broadcast, voice content can be customized recording;
IO report to the police	Support, can linkage red and blue light alarm; (Optional)
Video recorder linkage	Support linkage video recorder large screen, local voice, AI video, push and other functions
video frequency
compress	H.264 ,H.265
resolution ratio	Main code stream: 5MP (2880 * 1616) / 4MP (2560 * 1440) / 3MP (2304 * 1296) / 2MP (1920 * 1080) / 1MP (1280 * 720)
resolution ratio	Sub-stream: 448P (800 * 448) / 360P (640 * 360) / CIF (352 * 288)
memory	Support 512 GTF card storage(Excluding TF card）, support NVR added storage;
network
Ethernet	RJ-45 10M / 100M Adaptive
protocol	ONVIF ,P2P ,CGI ,HTTP ,TCP/IP ,IPv4 ,RTSP ,UDP ,NTP ,DHCP ,DNS ,IP Filter
WI FI	WIFI-6,2.4G band, 802.11 b / g / n
BLE	Support Bluetooth distribution network
access protocol	ONVIF Agreement / private protocol / CGI
client	Mobile phone client: , computer client: VMS, NVR, centralized management
audio frequency
audio frequency	G.711U,G711A
Audio input	Support (Recommended-36DB MIC)
Audio output	Support, built-in power amplifier (recommended 8 Ω 2W)
General specification
pcb size	18*61 mm
work environment	-30℃ ~ +60℃
source	DC 12V 1A

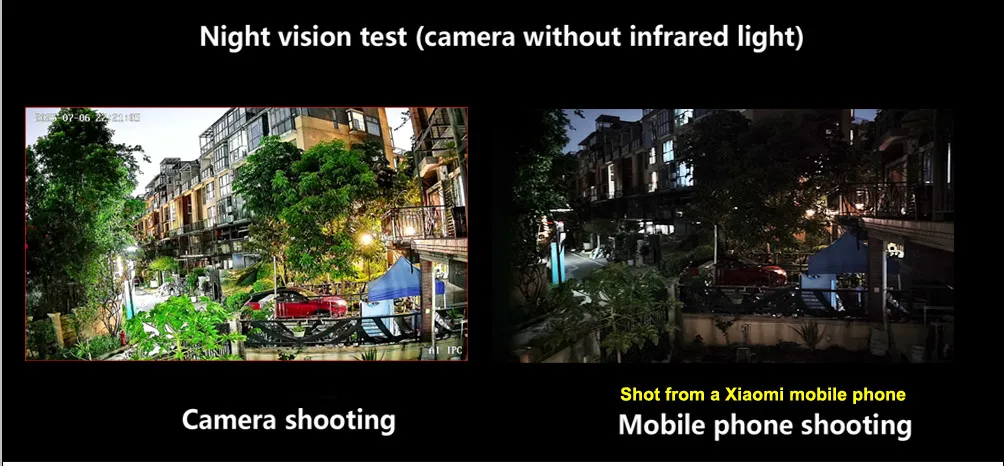

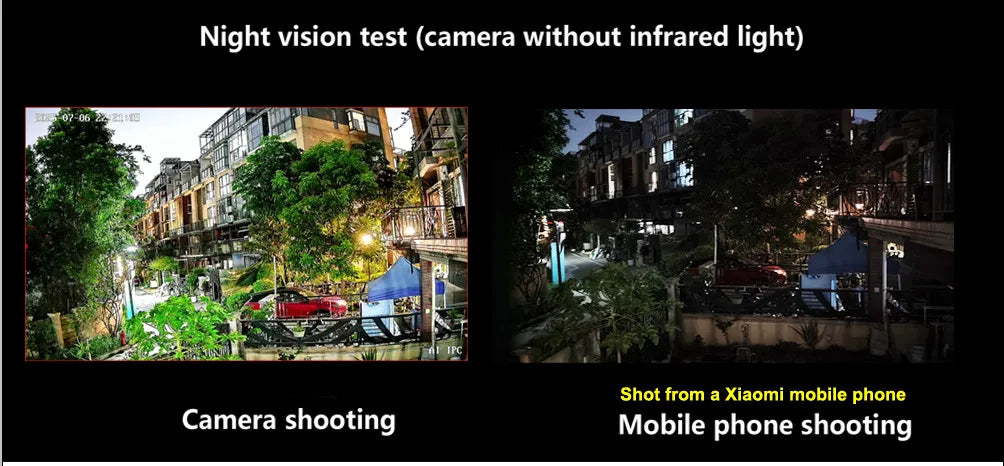

Test and compare photos outside the factory

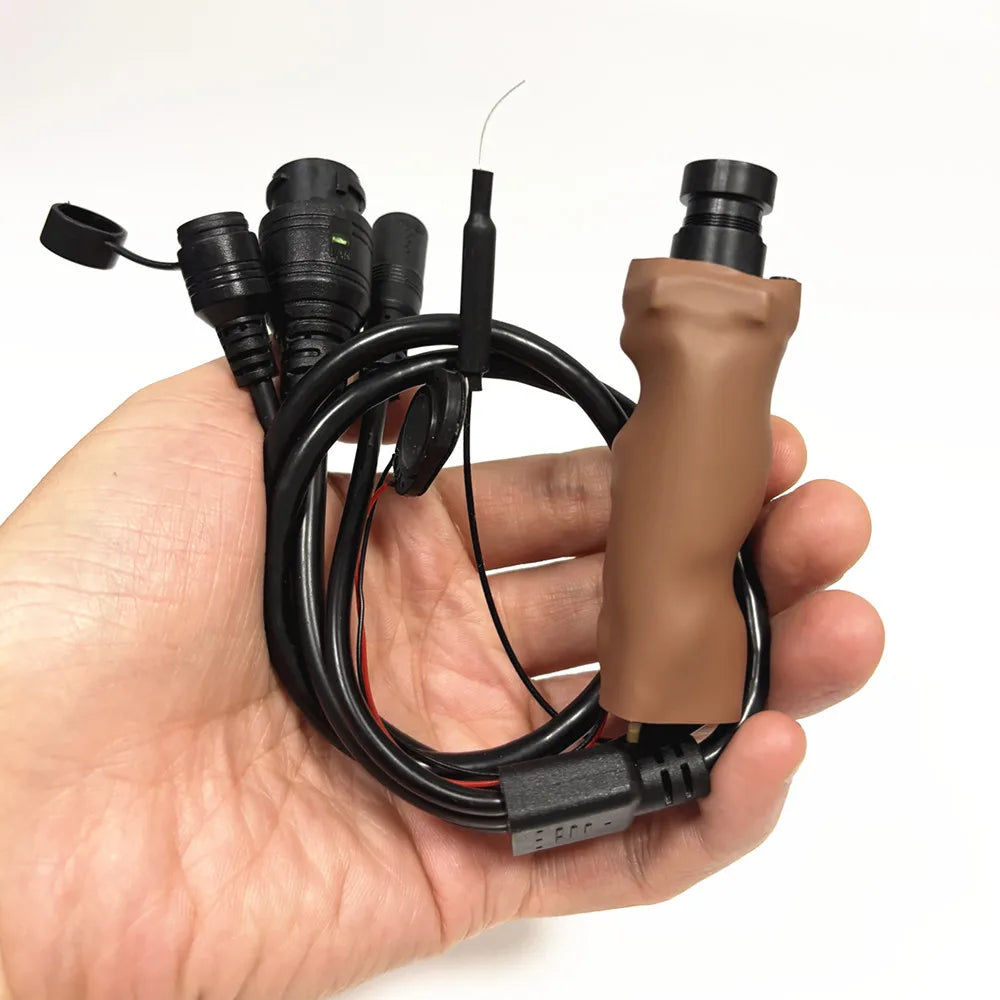

The weight including the wire is 62g

This module can be used for underwater cameras, drone cameras, industrial inspection cameras, etc., support SDK files and secondary development, if you need OEM and customization, please write to me, thank you!

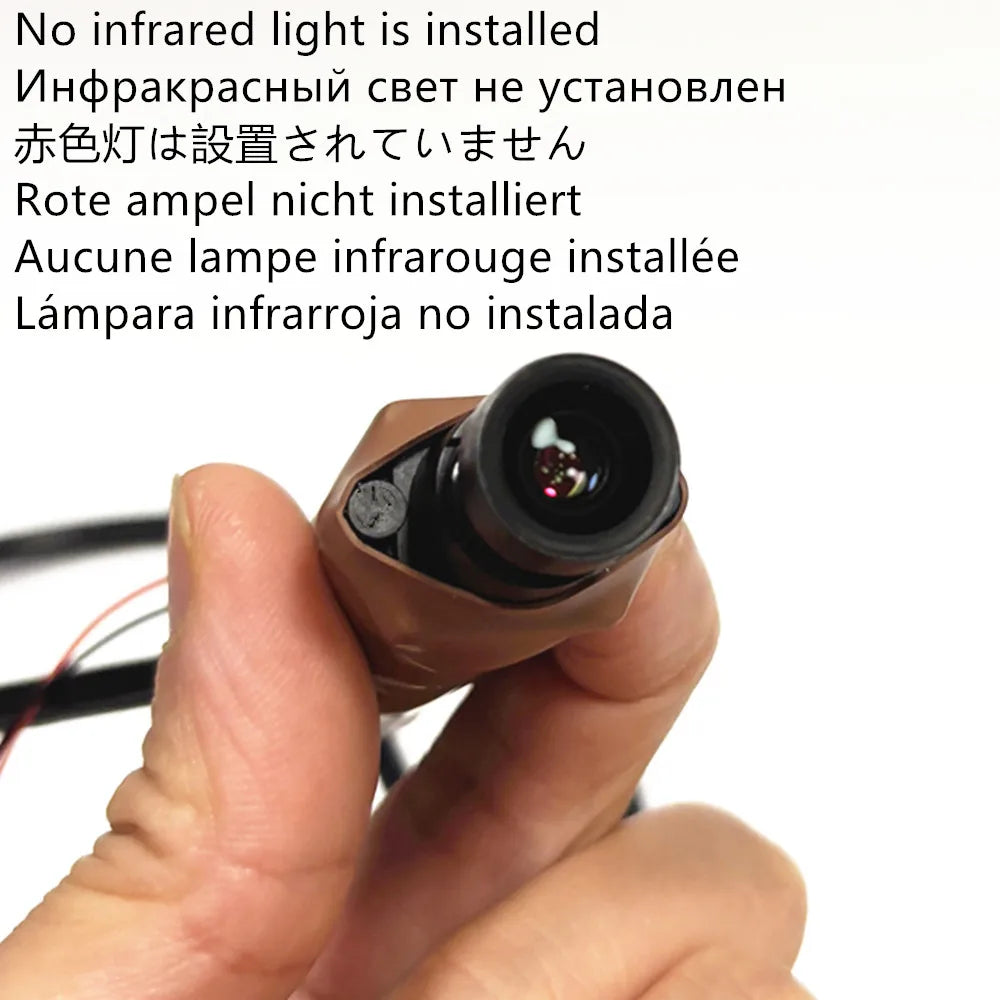

This camera is not equipped with infrared lights

Support personnel quantity statistics (including entry and exit personnel statistics)

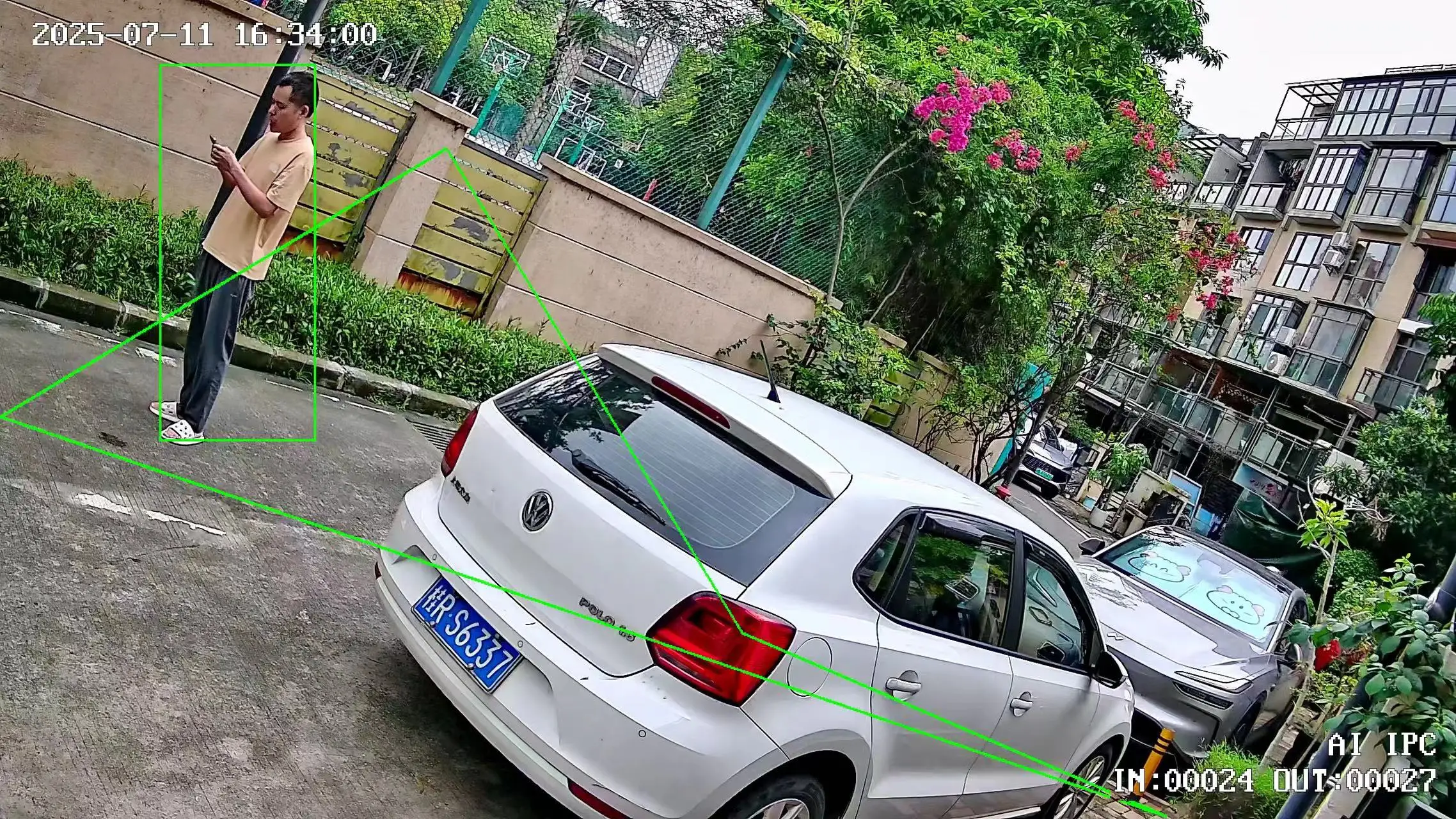

The lower right corner of the photo shows the number of people entering and leaving the statistics. The green triangles in the picture are the set areas, and you can freely set the areas in the Settings

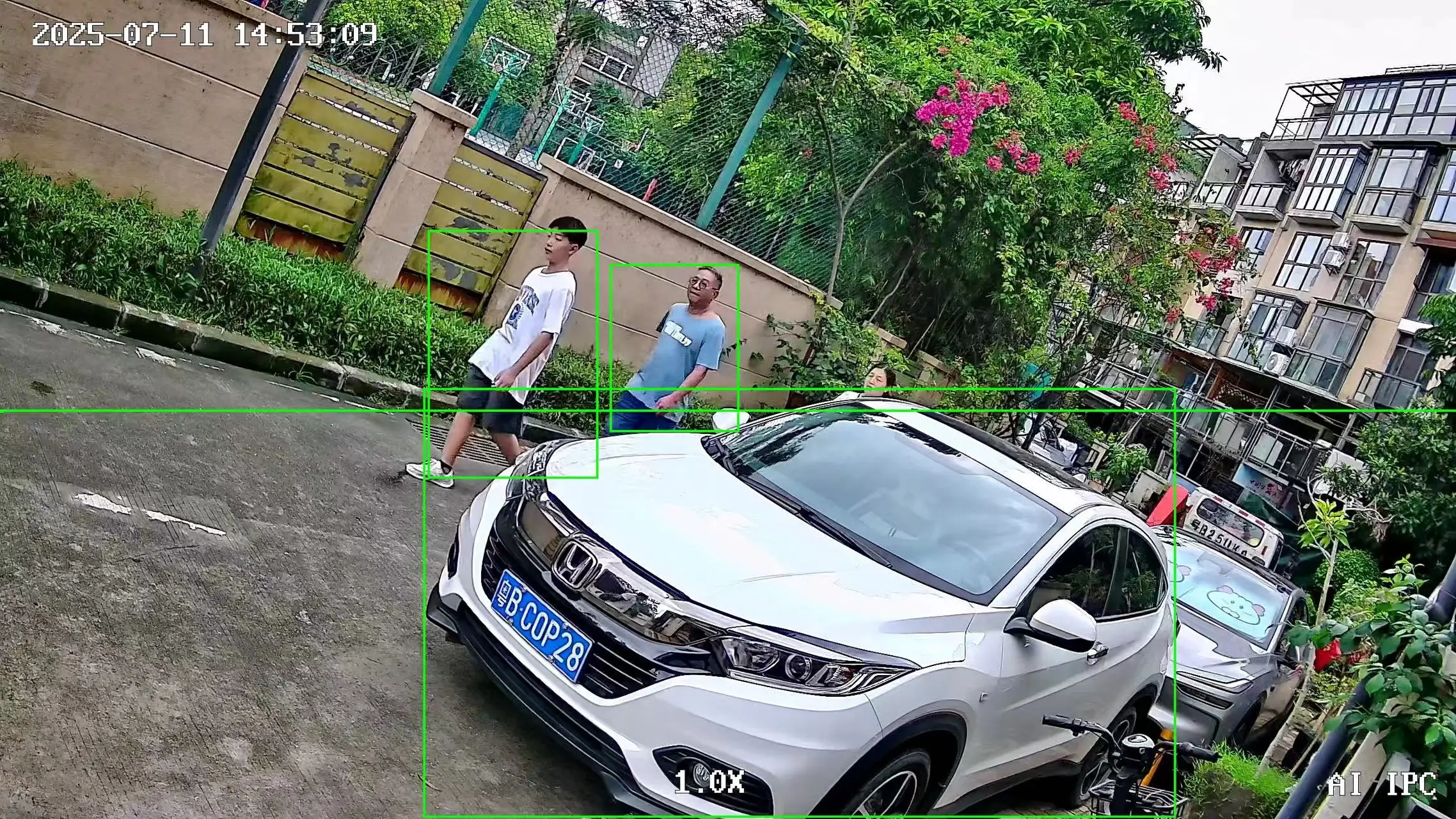

Supports human shape detection and vehicle detection

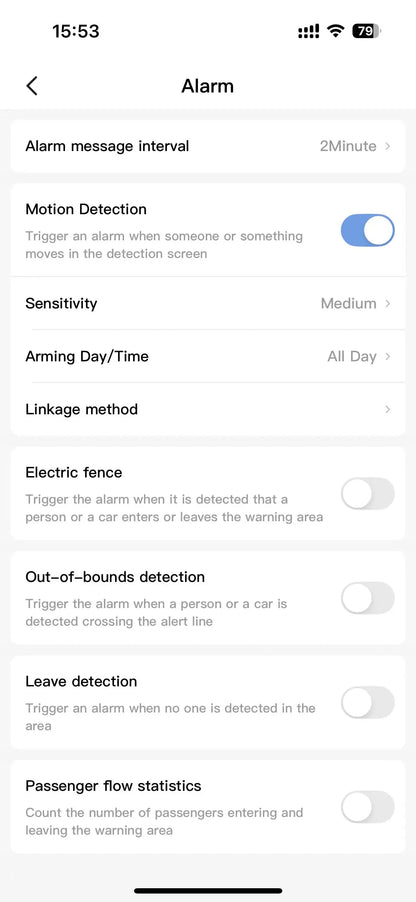

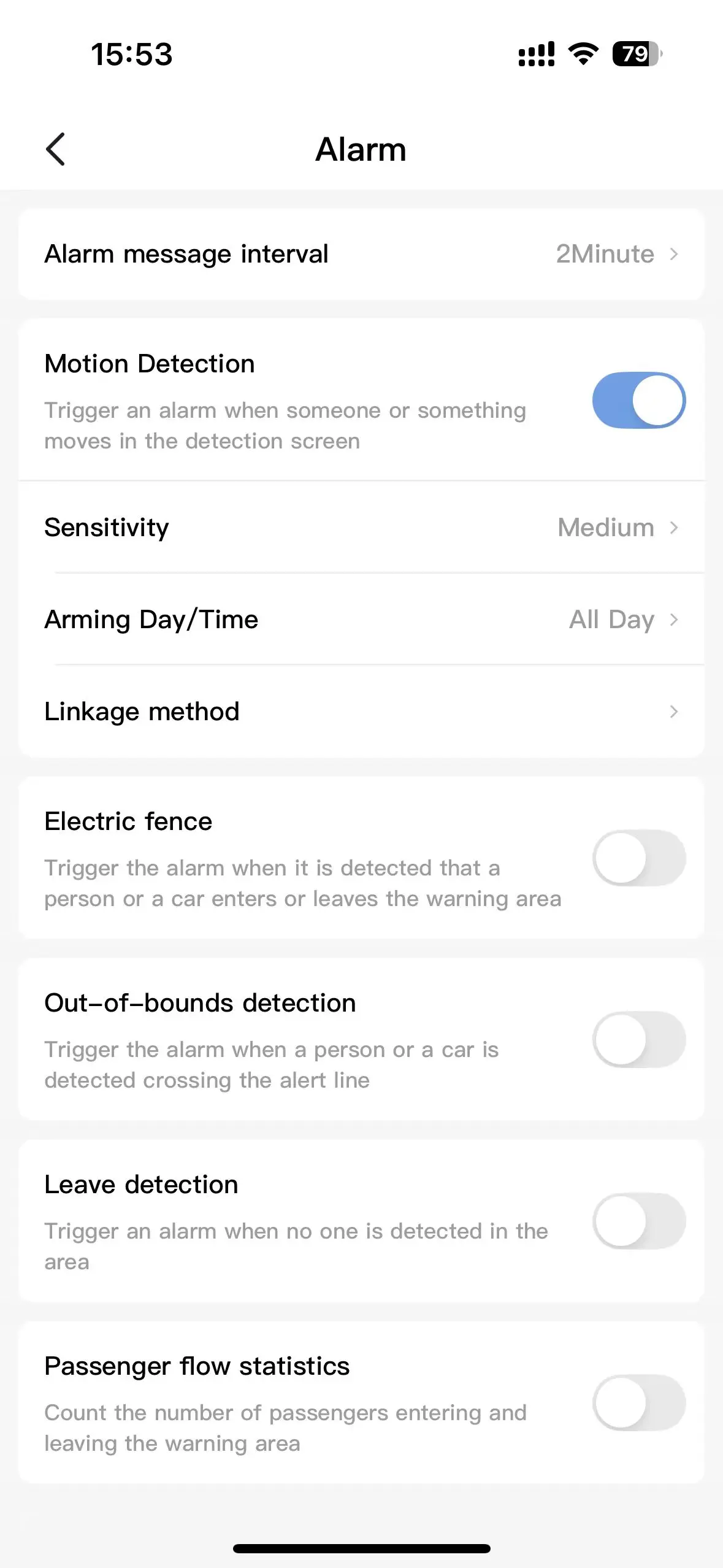

Support off-duty (employee position detection) detection. When no one is detected in the area, an alarm will be triggered
Supports boundary crossing detection. When a person or vehicle is detected to have crossed the warning line, an alarm will be triggered
The self-held electronic fence detection system will trigger an alarm when it detects someone or a vehicle entering or leaving the alert area

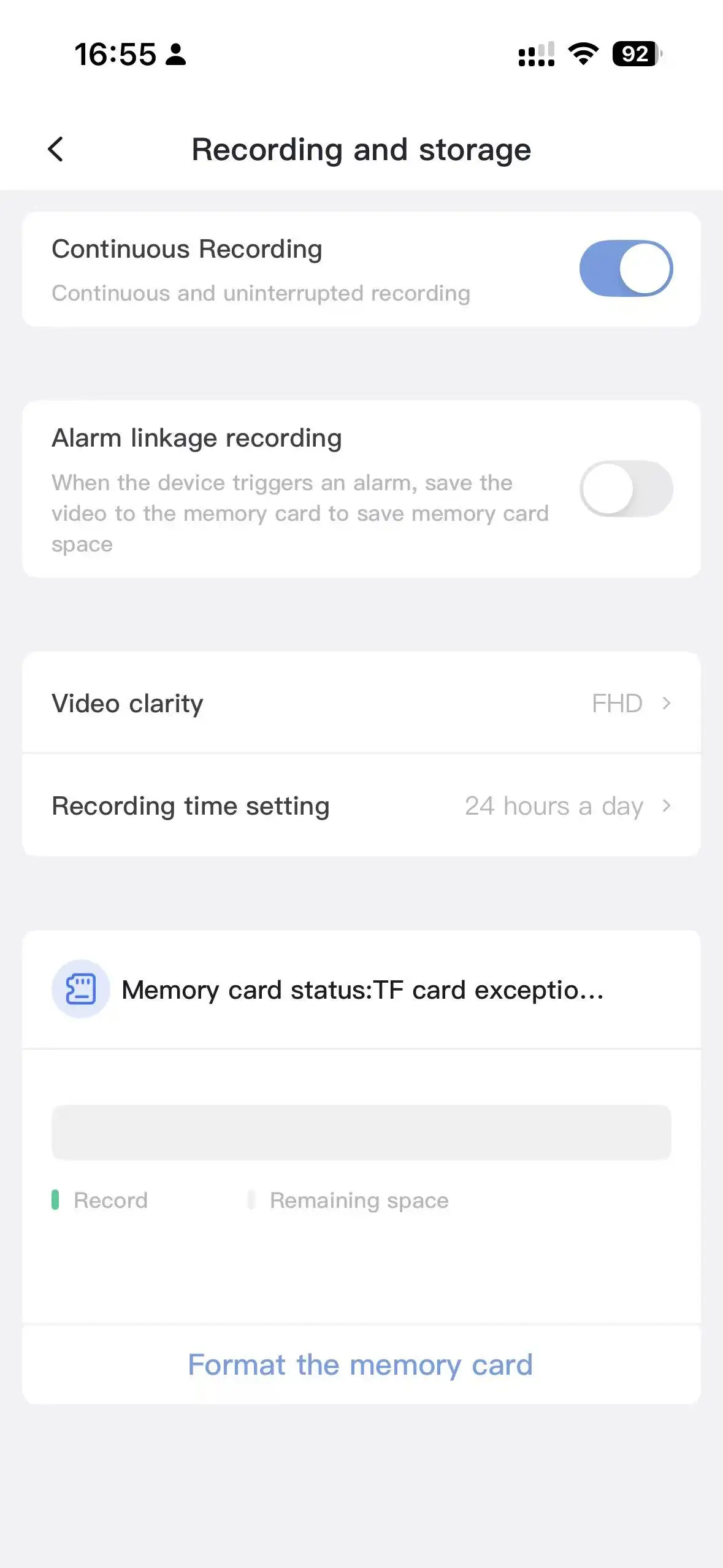

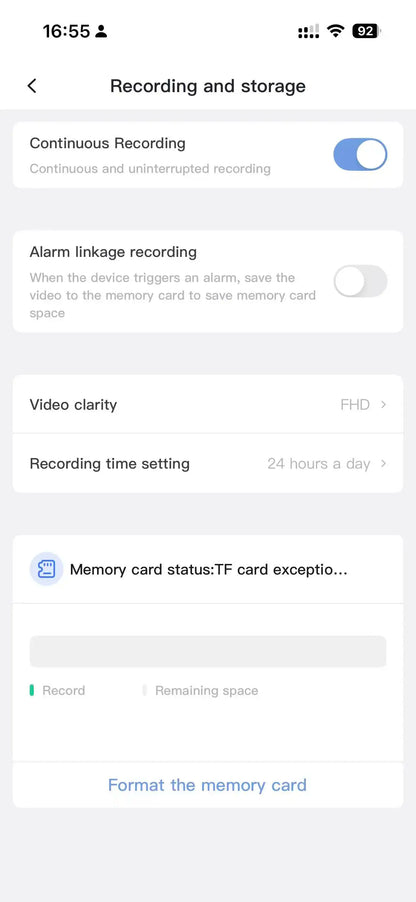

The TF card cannot be recognized. Please format the TF card and then check if it is working properly again.

Through the APP, it is possible to format.

Accessing the camera through the browser can perform formatting.

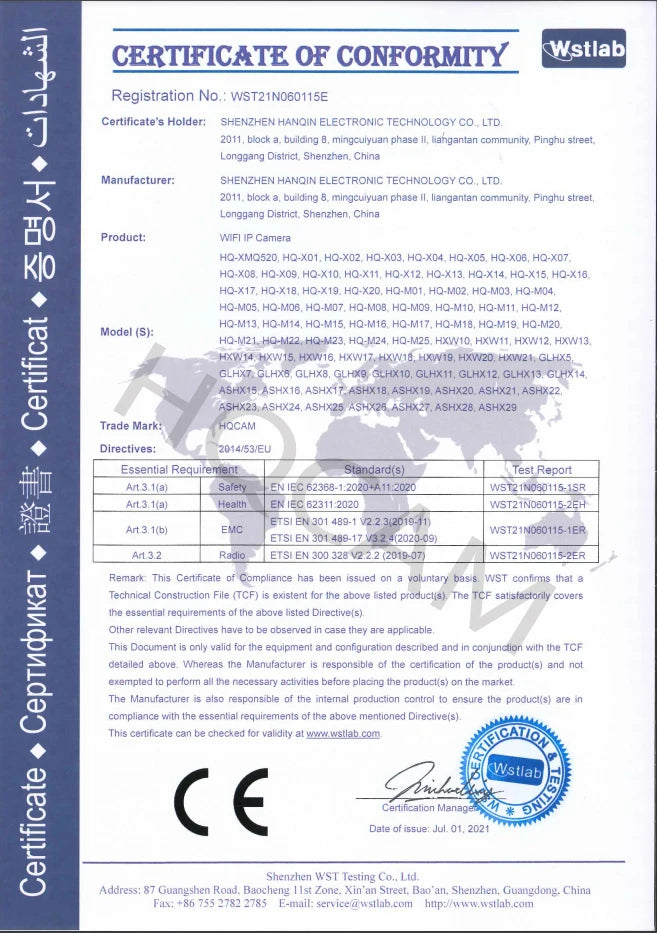

CE Certificate

RED Report-2.4G Wifi WST21N060115-2ER

Supports two-way voice intercom and alarm arming

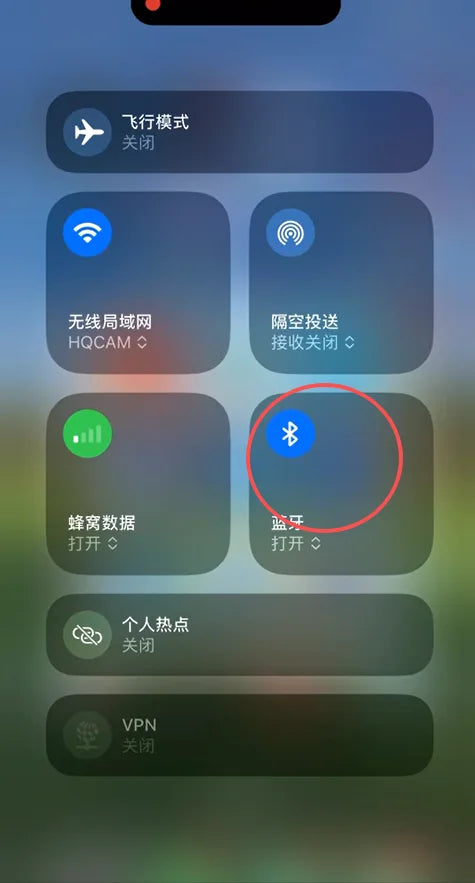

Remember to turn on the Bluetooth switch of your mobile phone. After 2 minutes of connecting the camera to the power adapter (12V 2A power adapter), start operating in the APP to add the camera.
