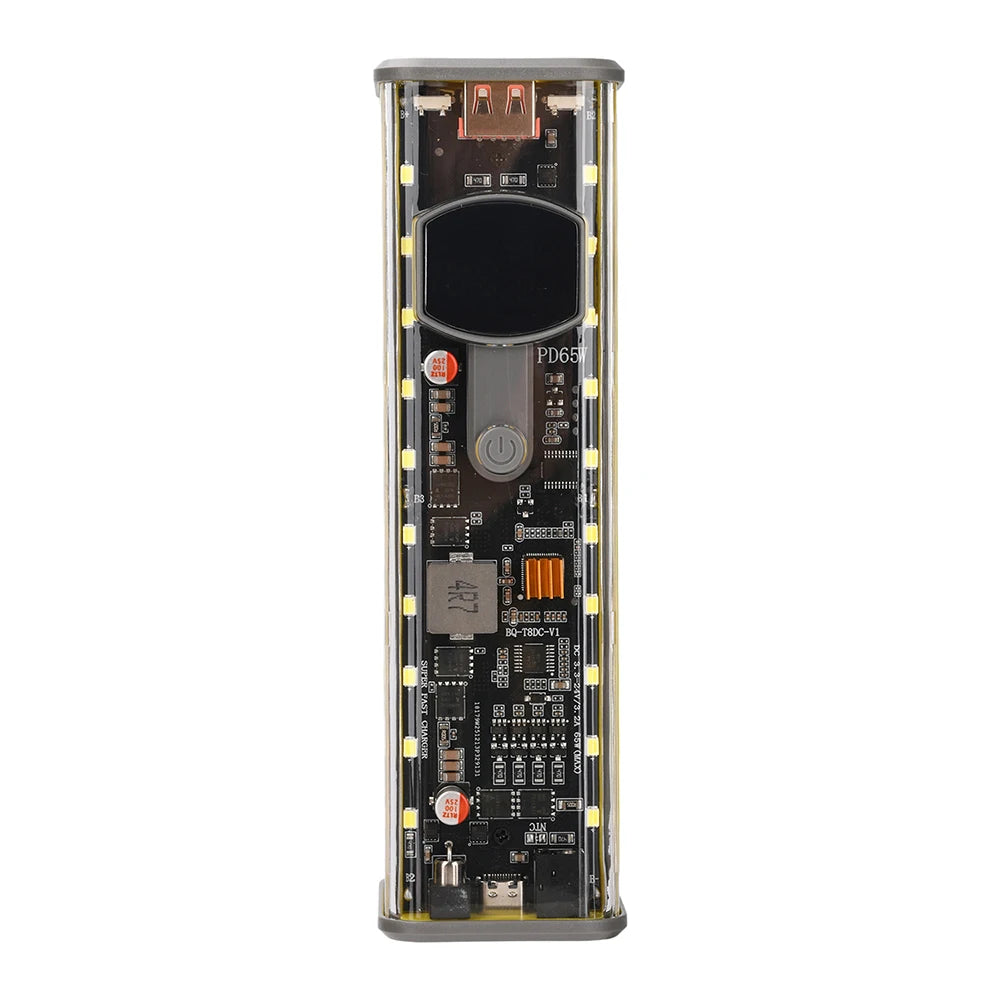

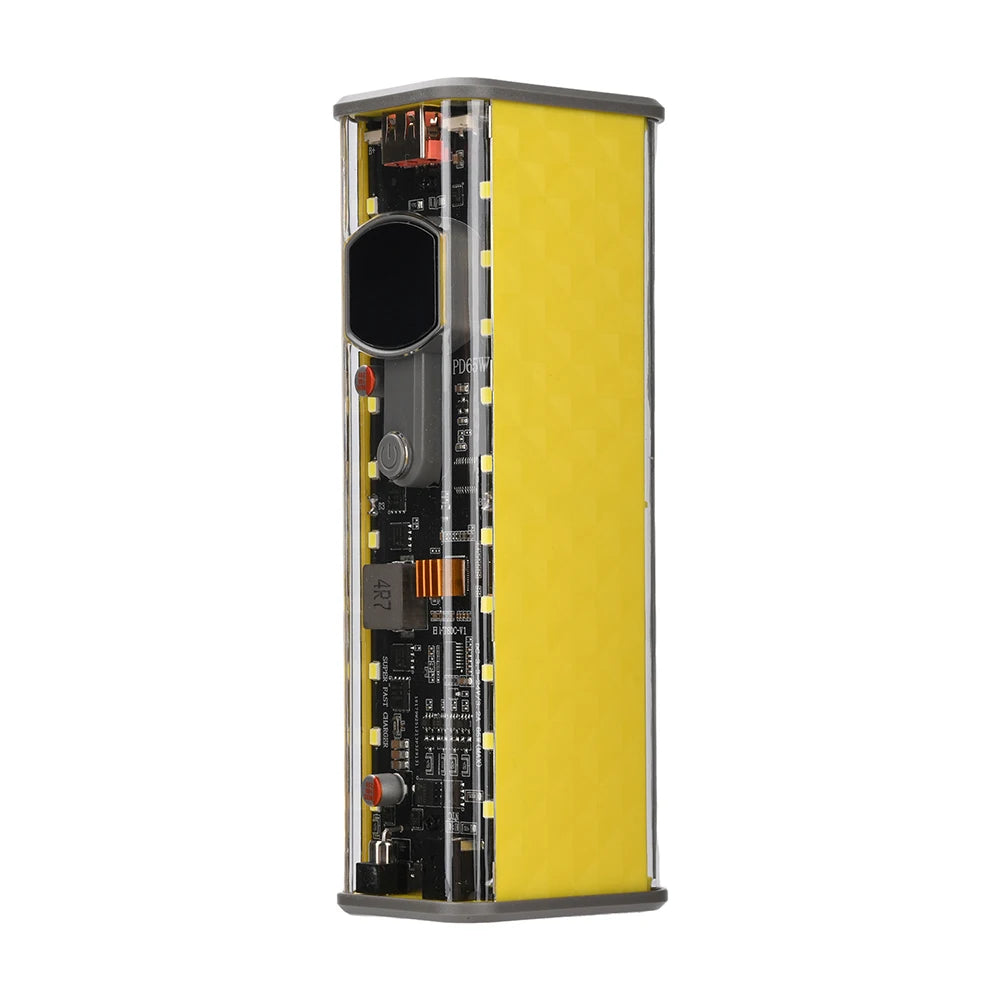

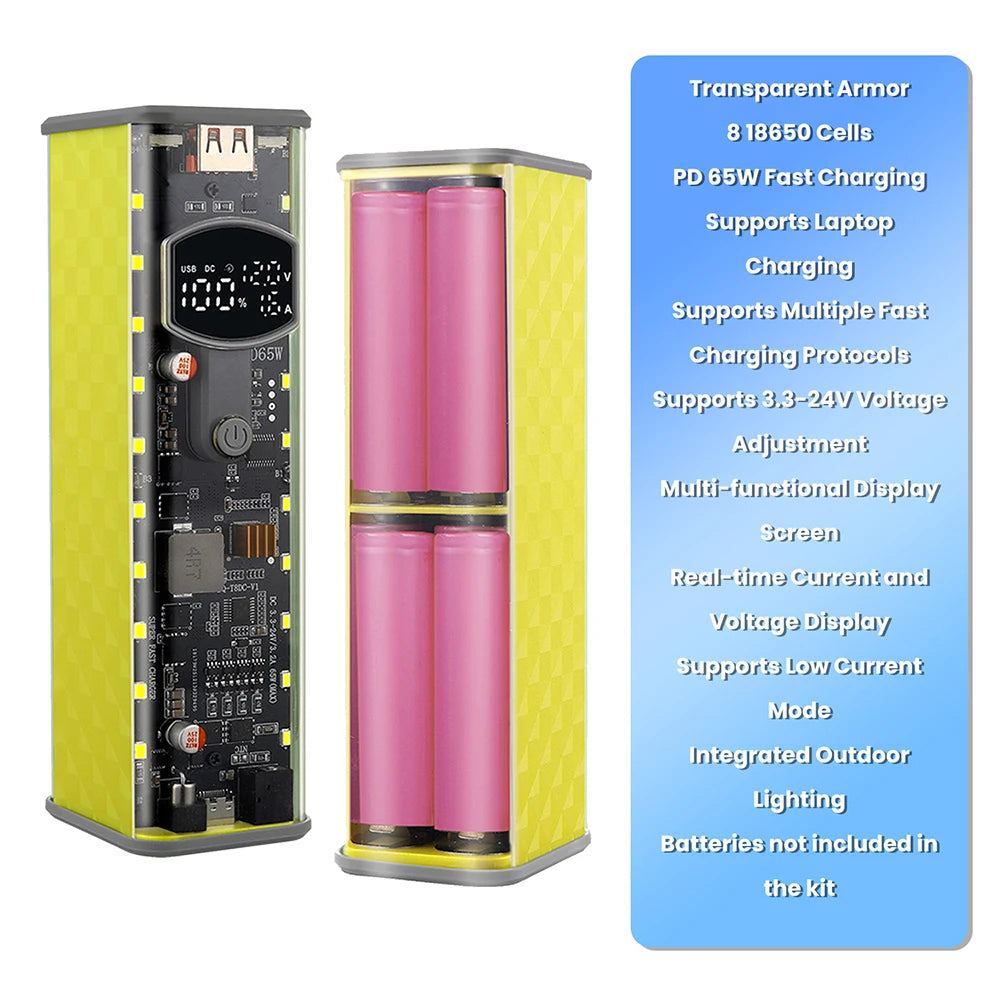

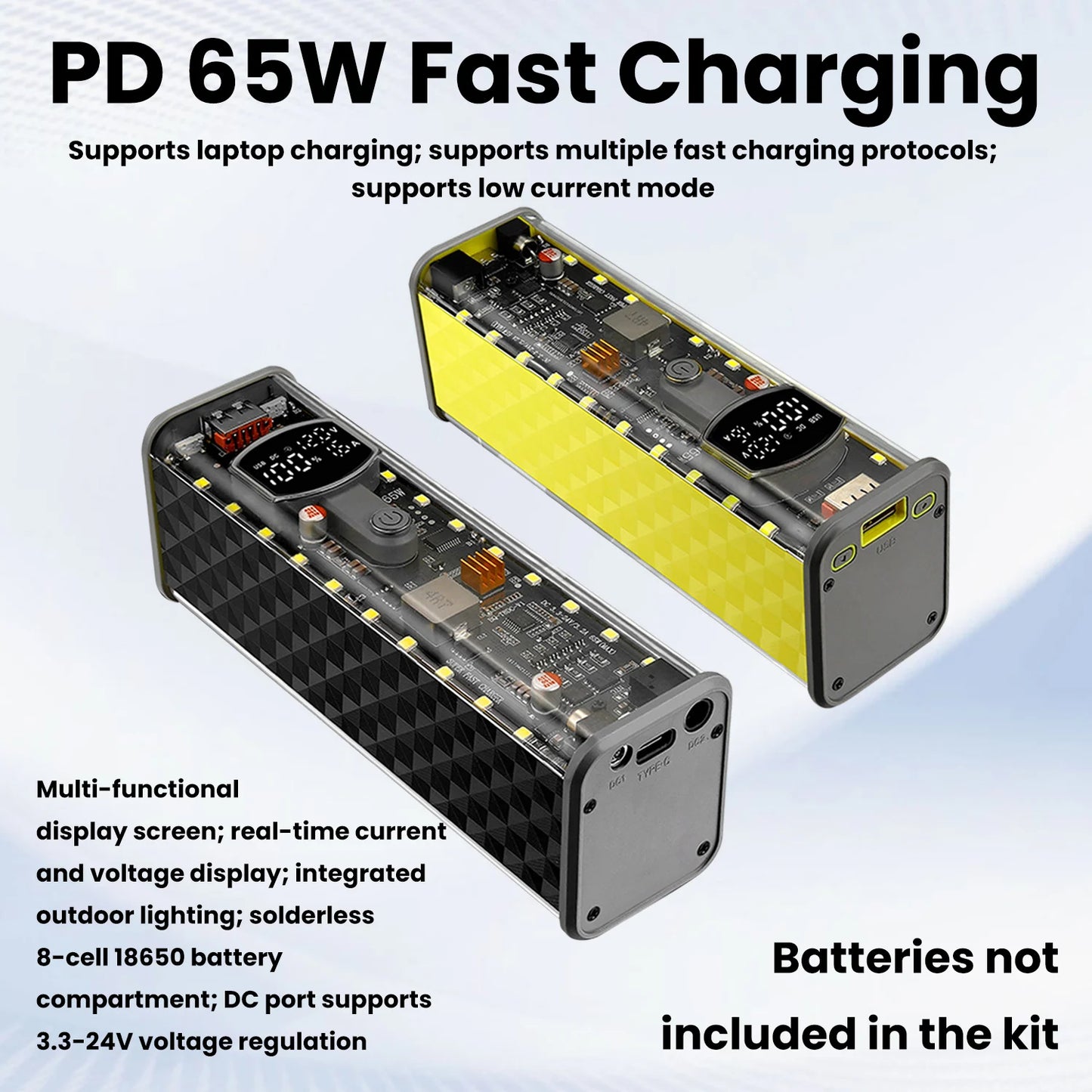

Product Features

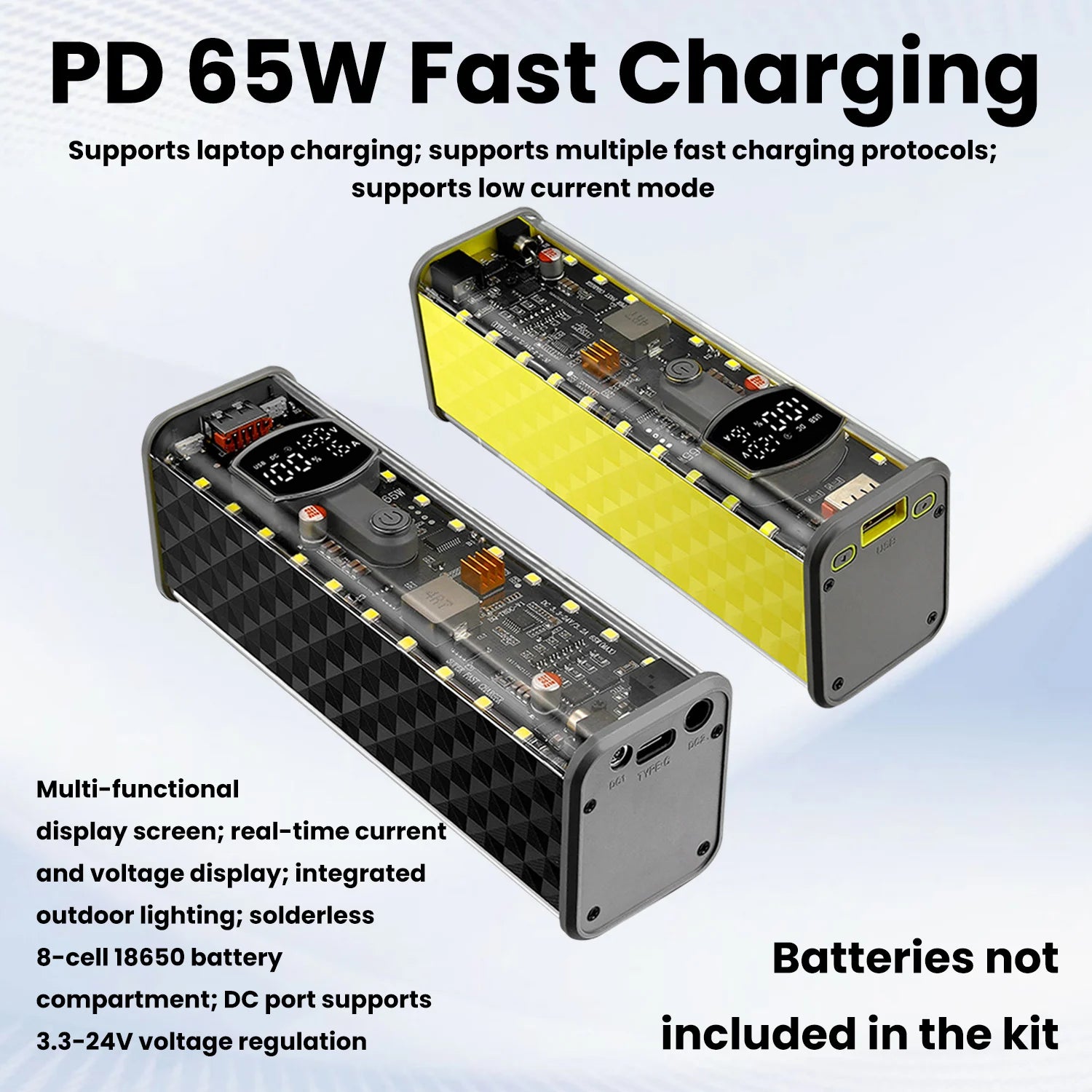

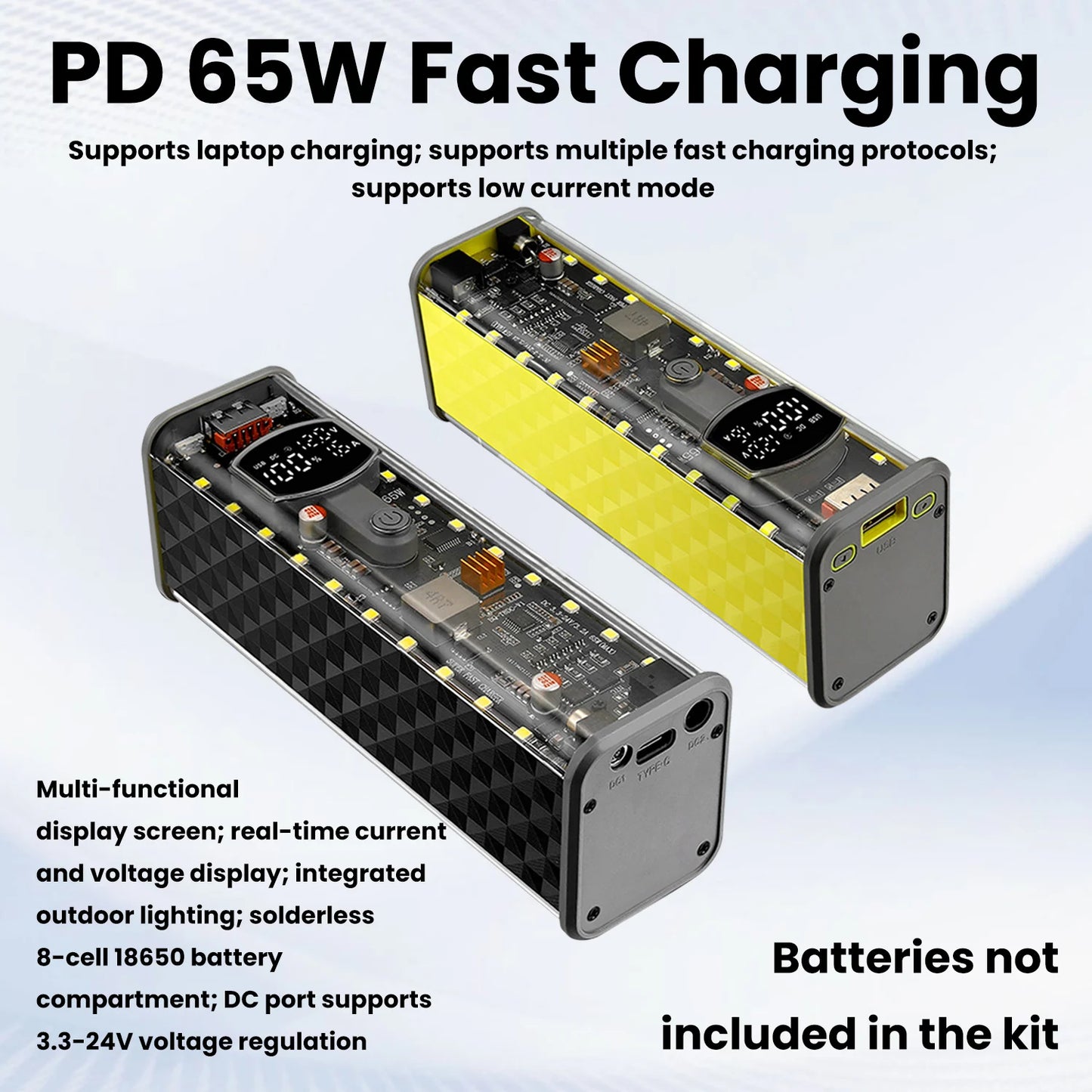

PD 65W high-power fast charging, compatible with a variety of devices for an efficient charging experience.

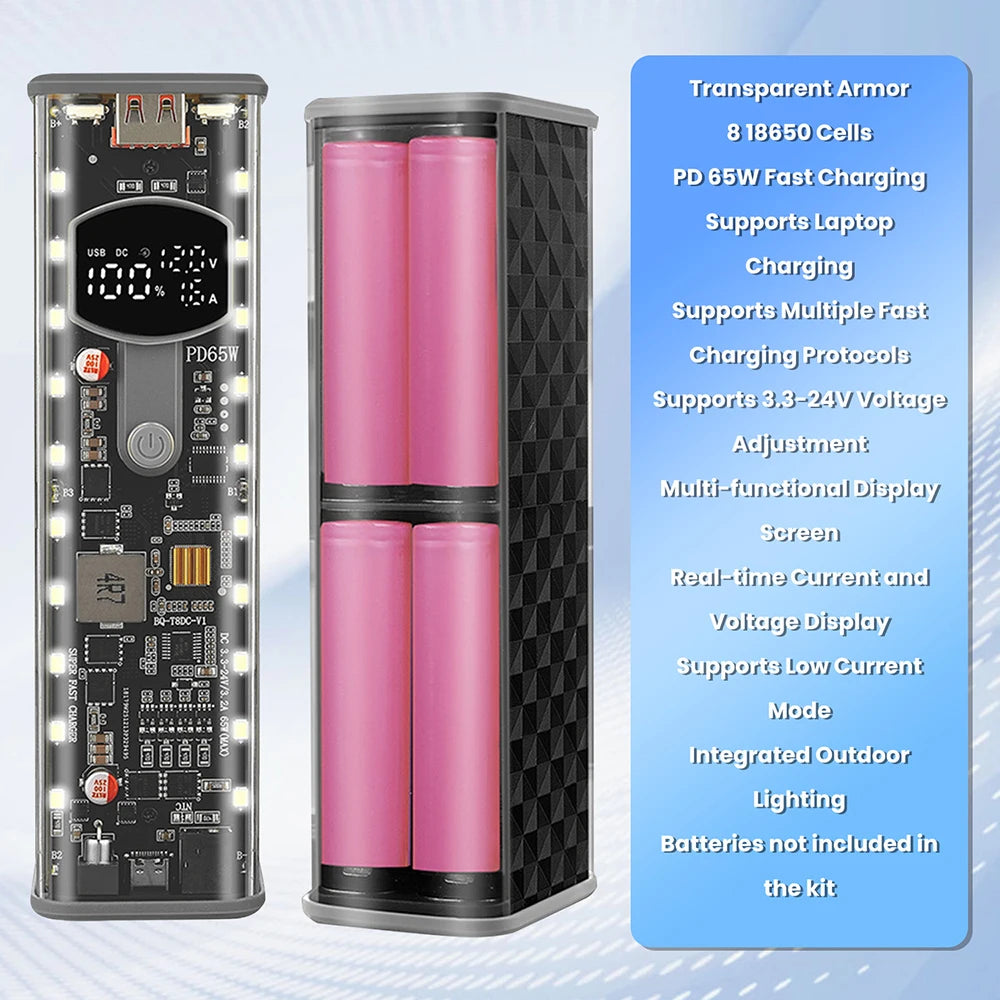

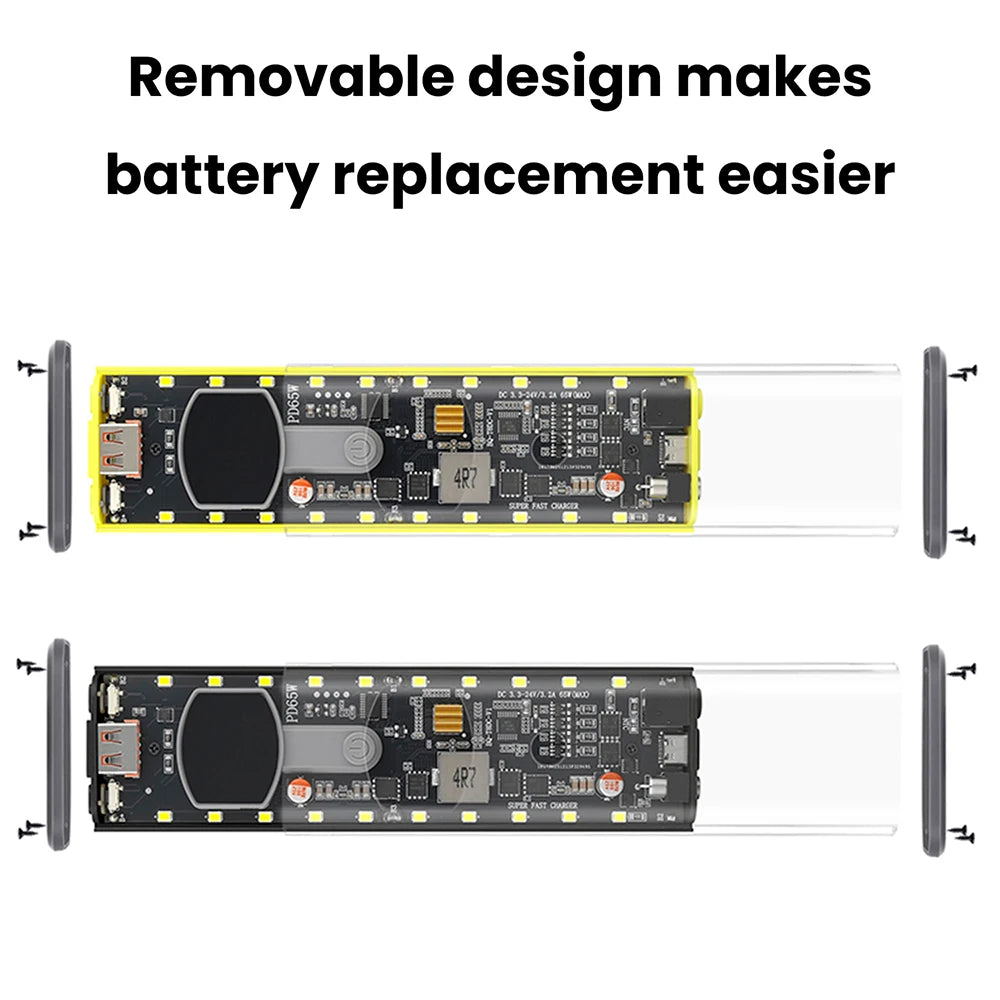

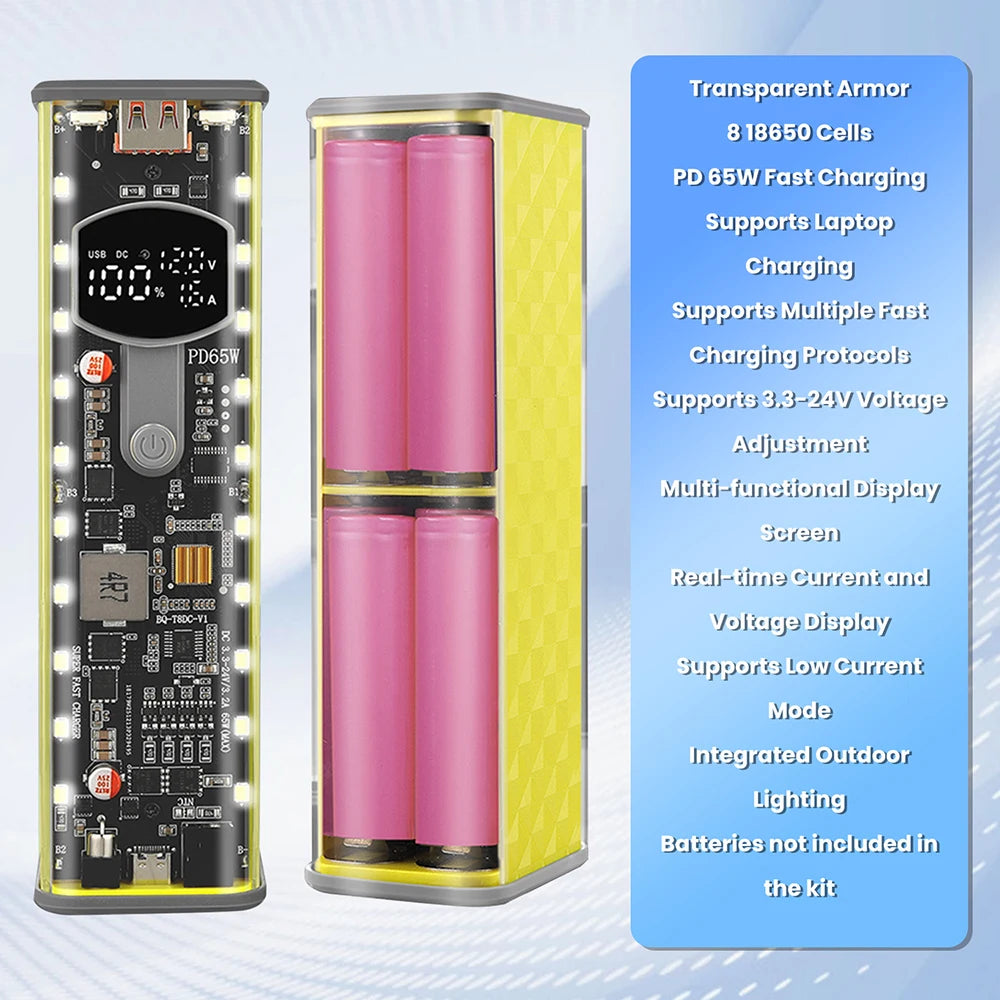

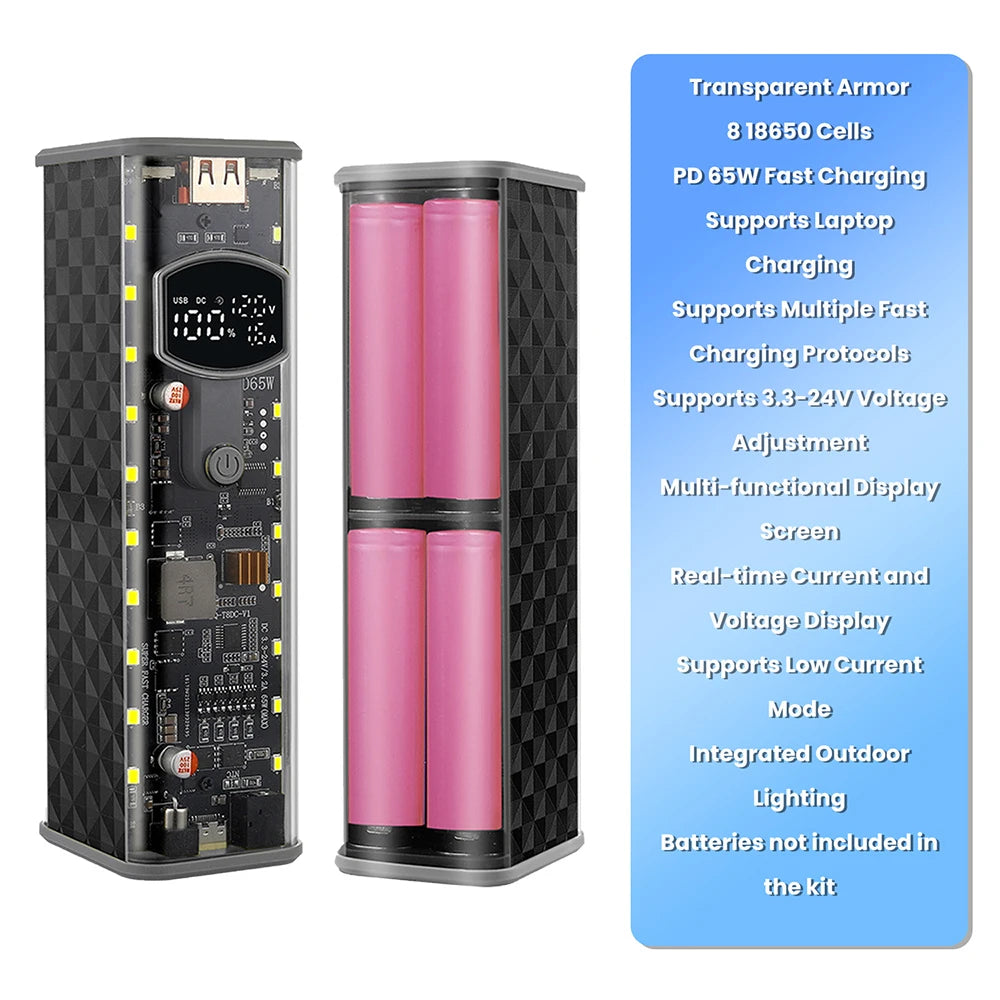

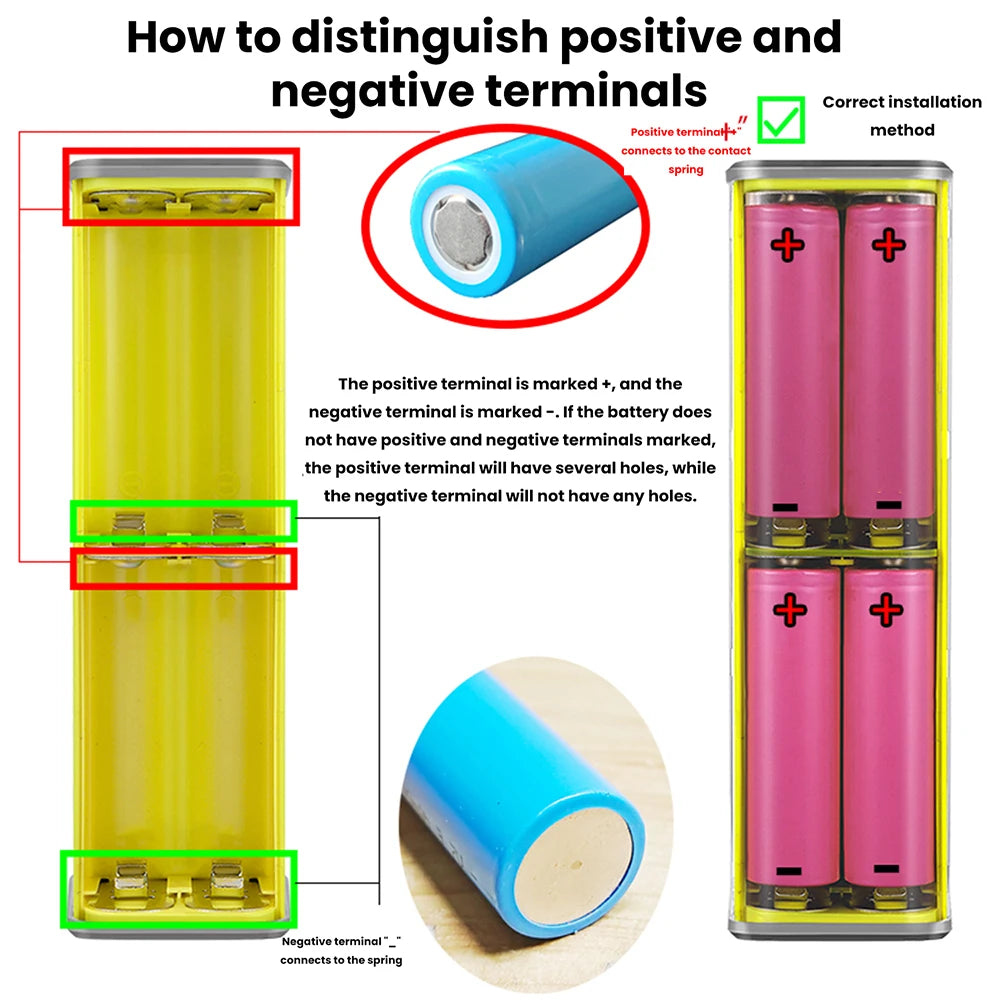

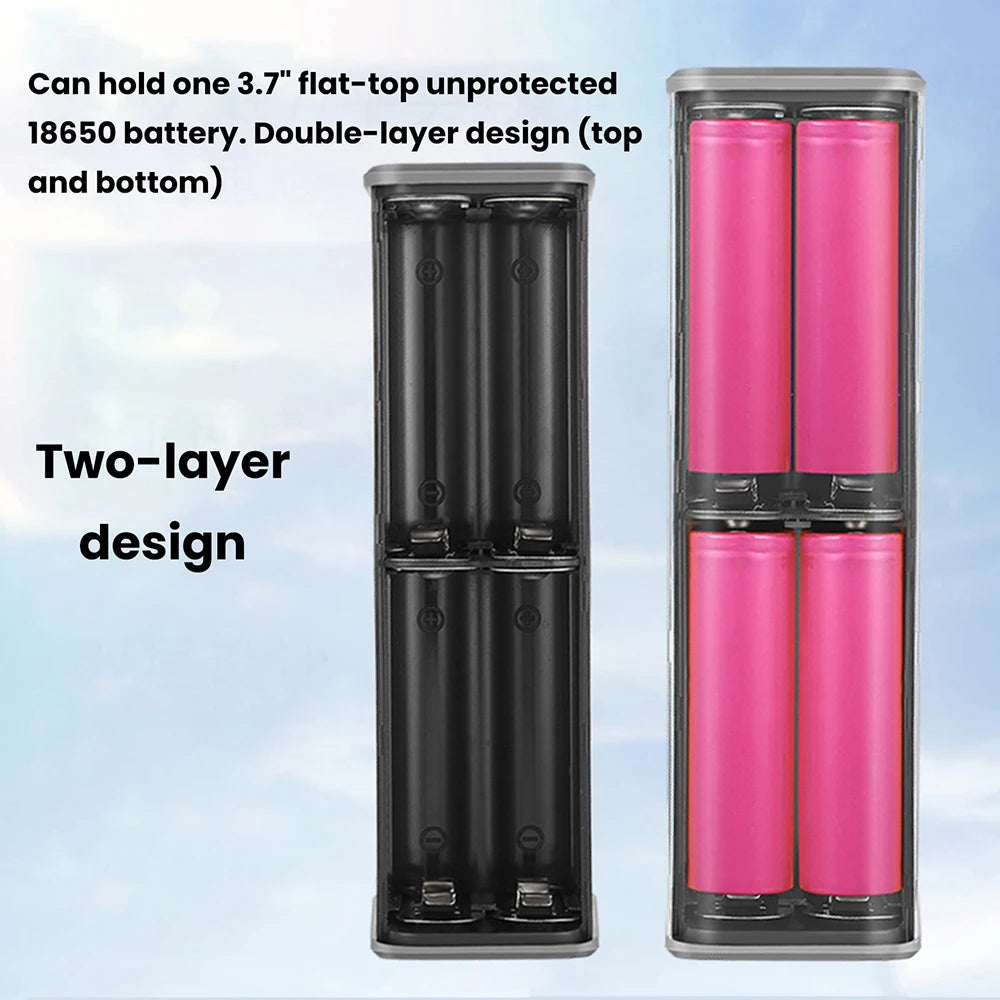

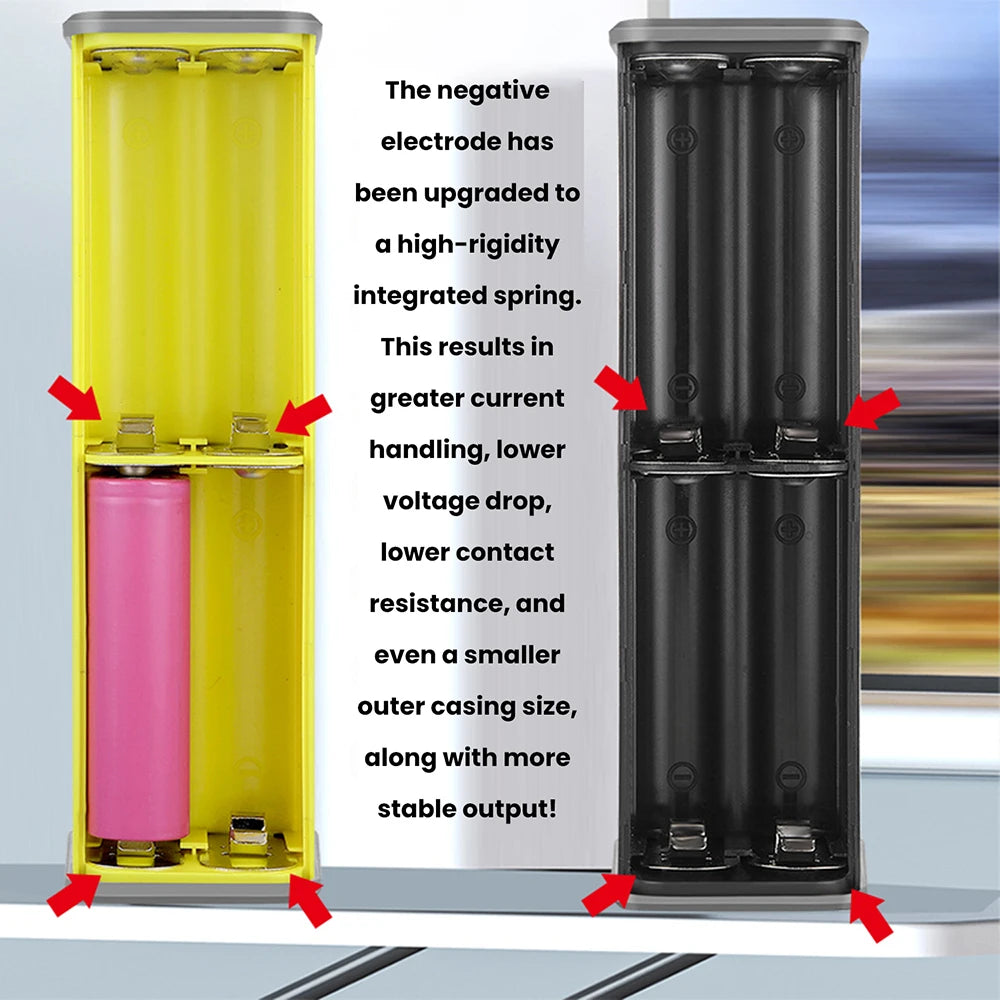

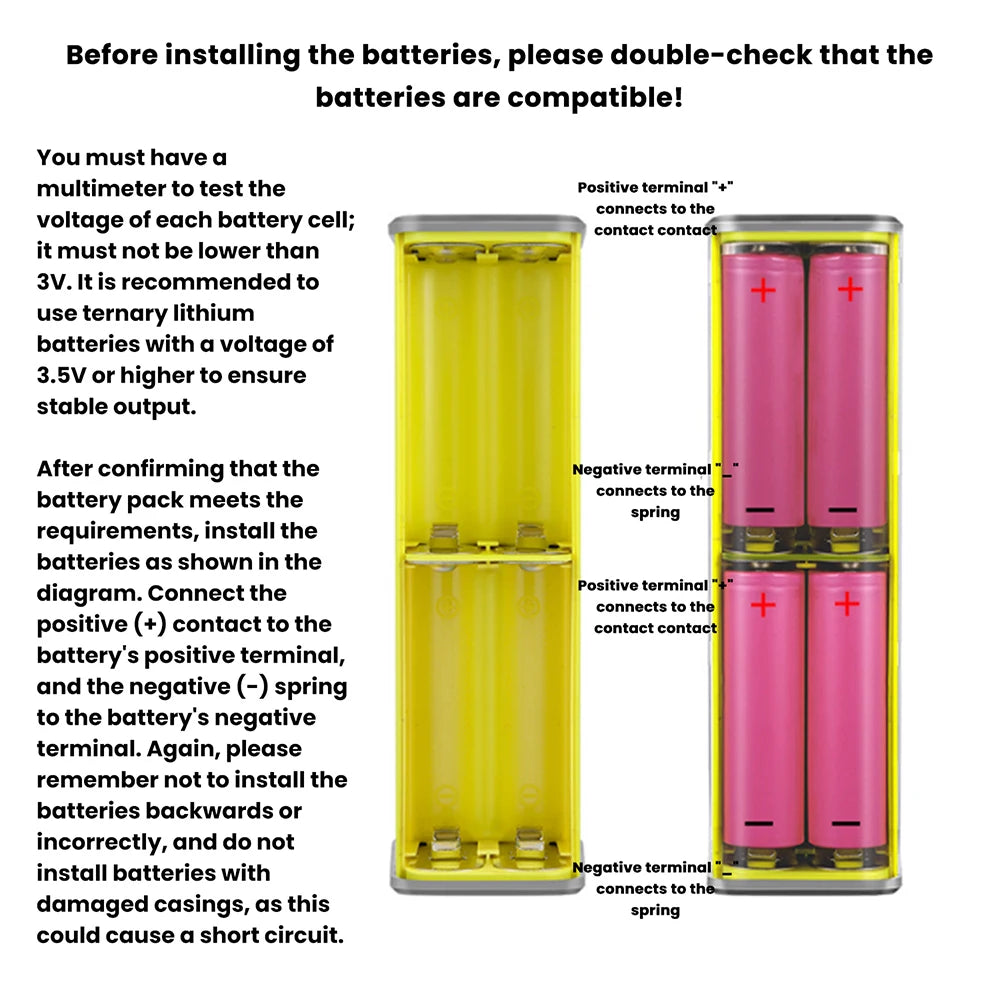

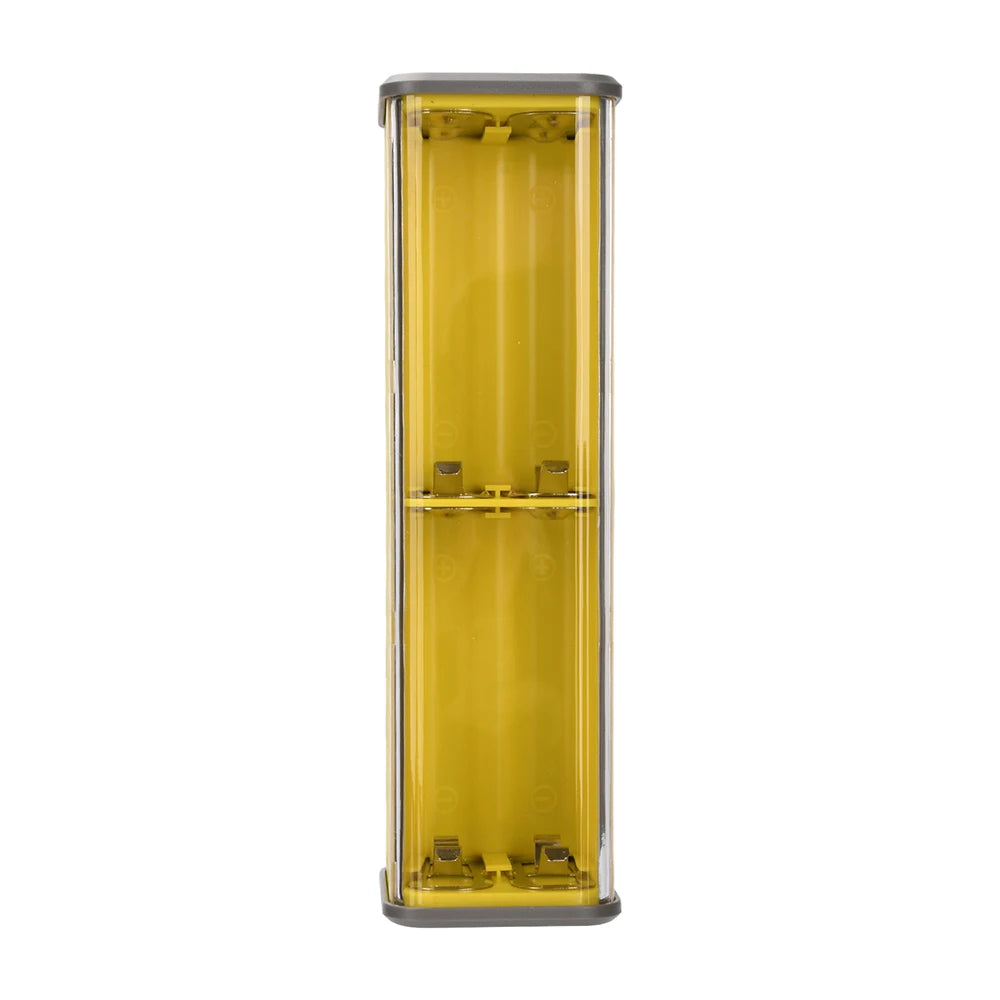

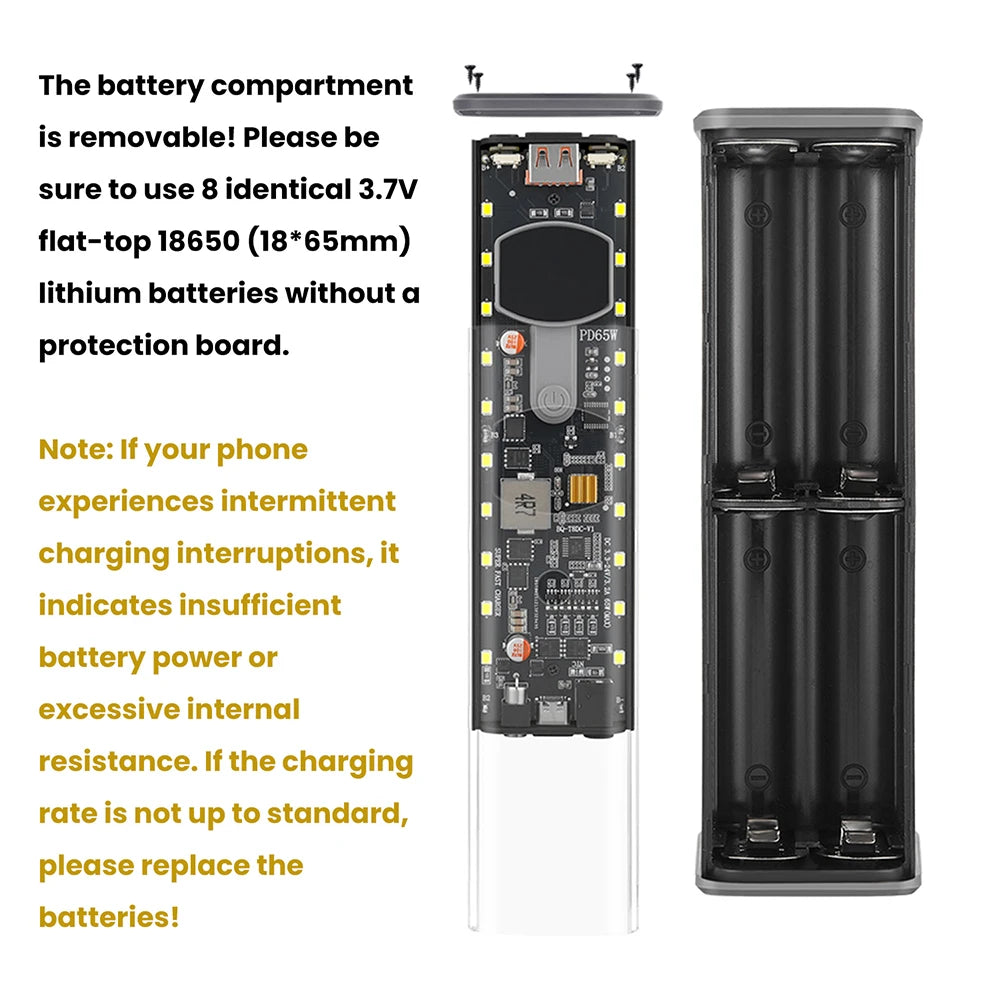

Solder-free 8-cell 18650 battery holder with large-capacity energy storage, safe and convenient for DIY.
3.3–24V adjustable DC port voltage, compatible with laptops and other electronic devices.
Multi-protocol fast charging recognition for a highly efficient and convenient charging experience.

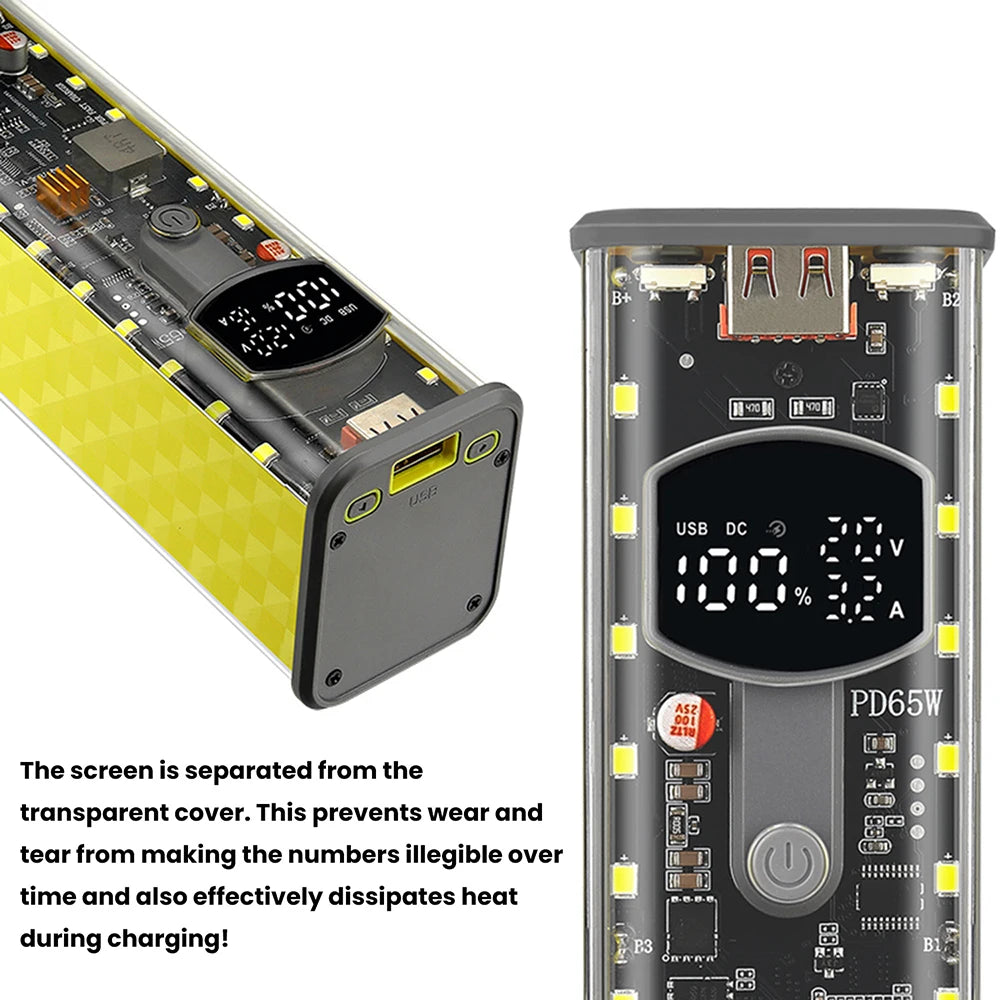

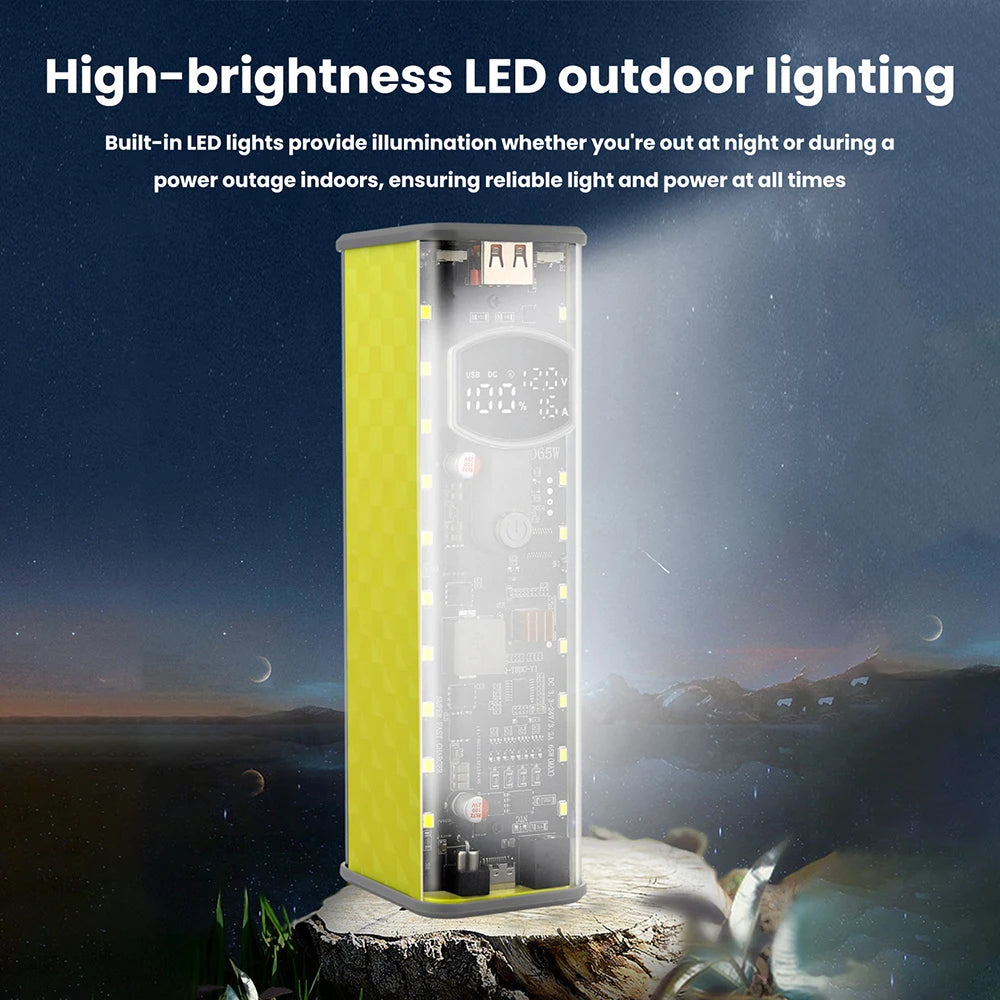

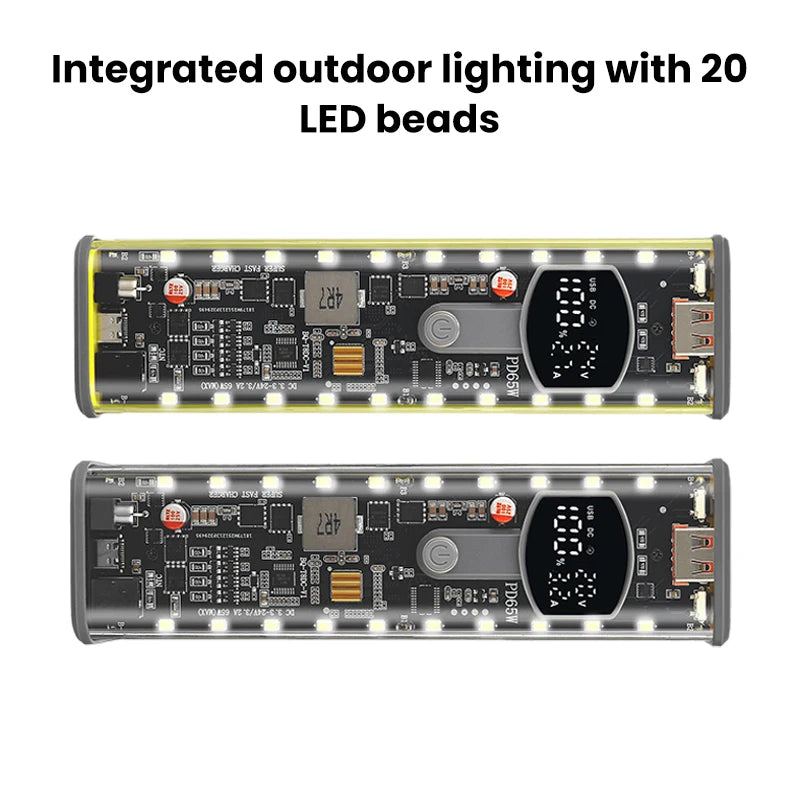

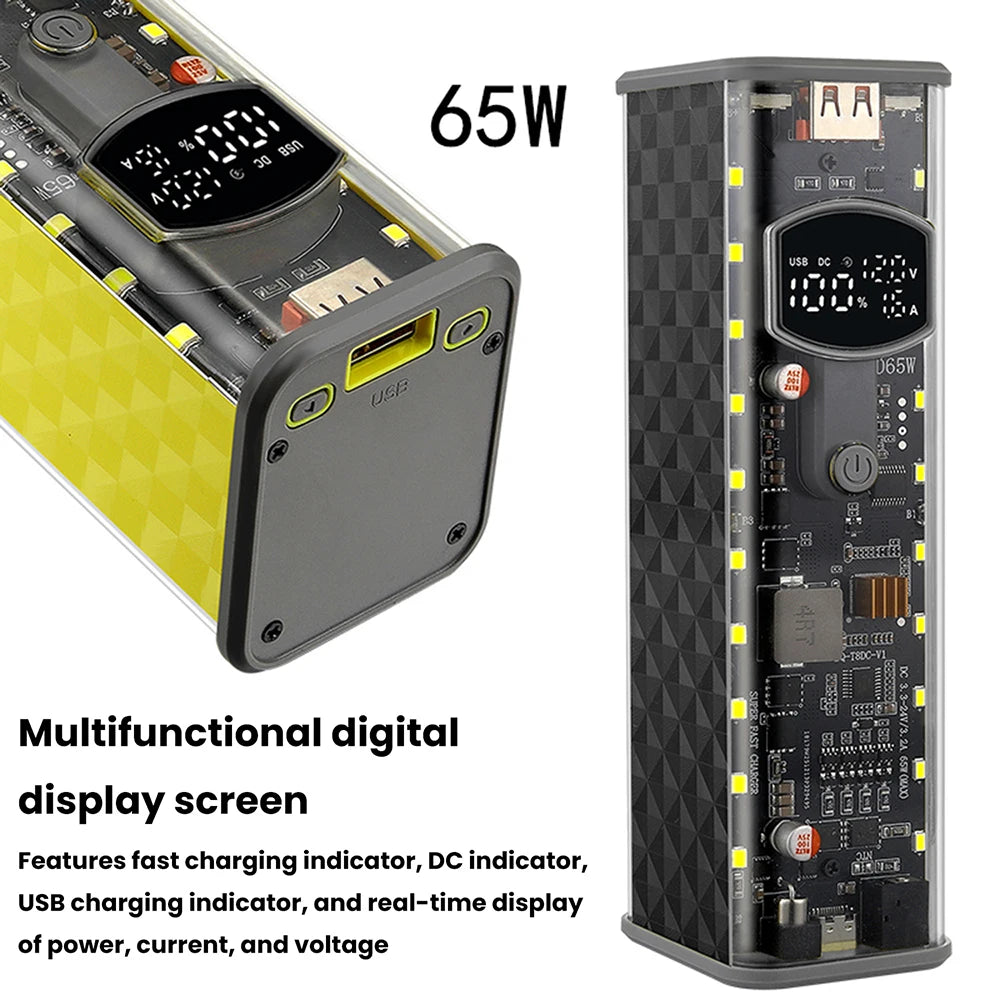

Multifunctional display with real-time voltage and current readout, plus a high-brightness LED outdoor light.

Product parameters

Battery box solution: DC65W + PD65W + Super Fast Charge 60W + Super Fast Charge 40W + Fast Charge 30W + Quick Charge 25W + Normal Charge 15W (Most mobile phone manufacturers limit non-original equipment to 33W or less)
Output power: 65W
Peak: 68W/3.2A (MAX)/3.3V - 24V
Input power: 65W MAX
Note: A charger and charging cable with high performance are required.

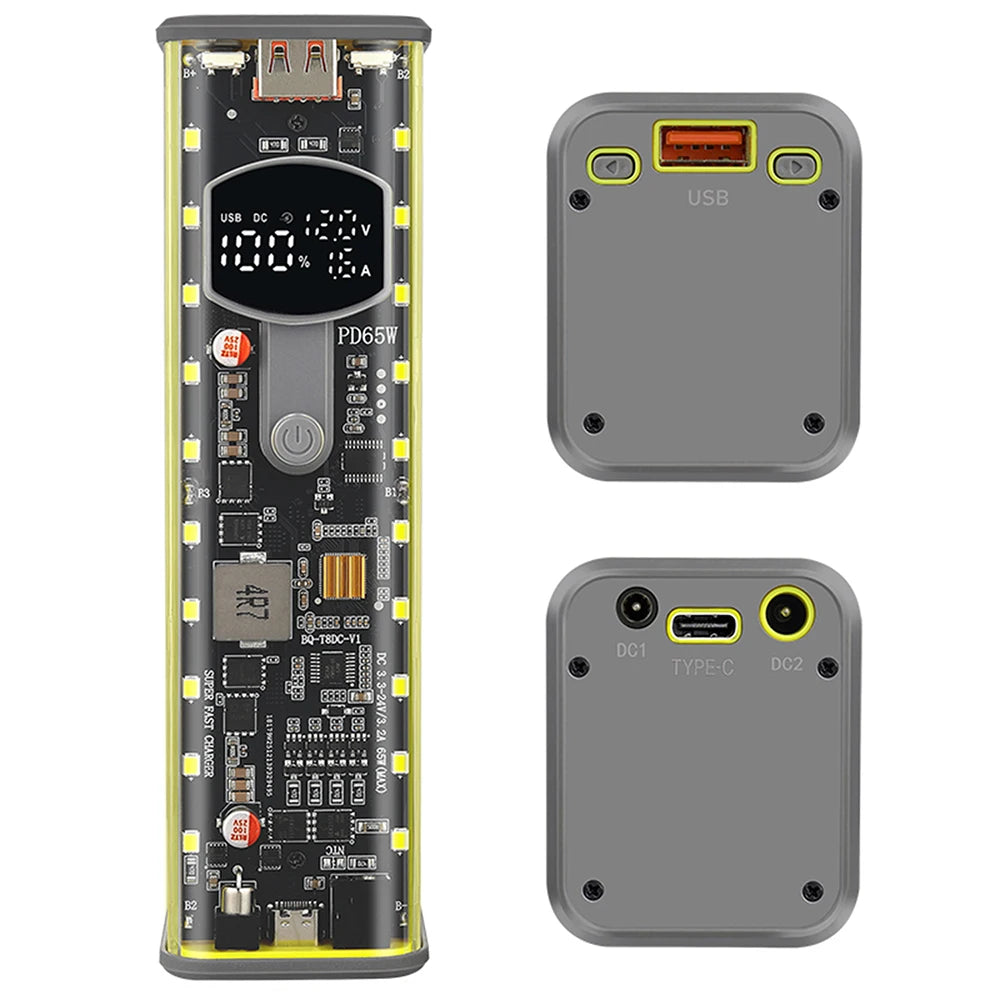

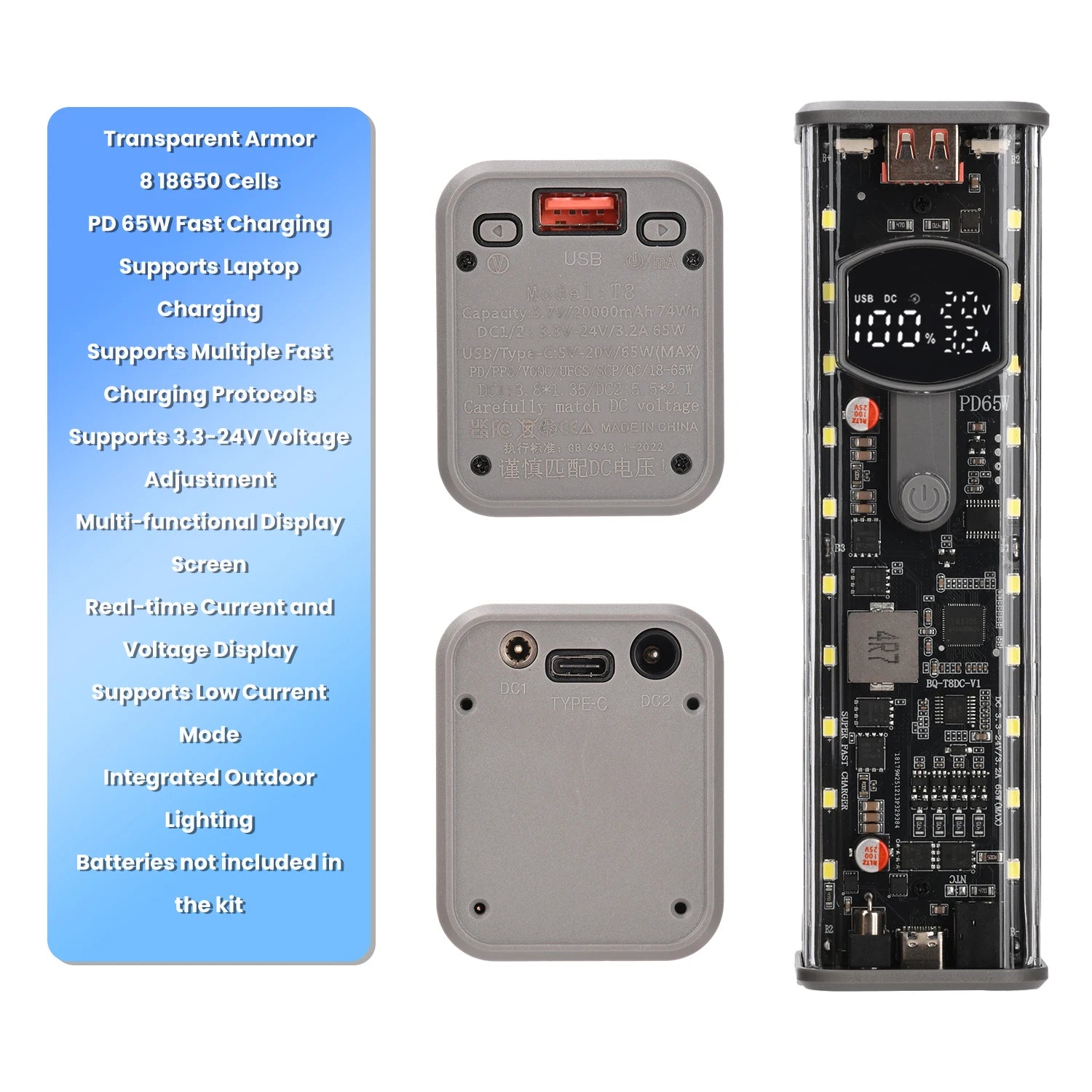

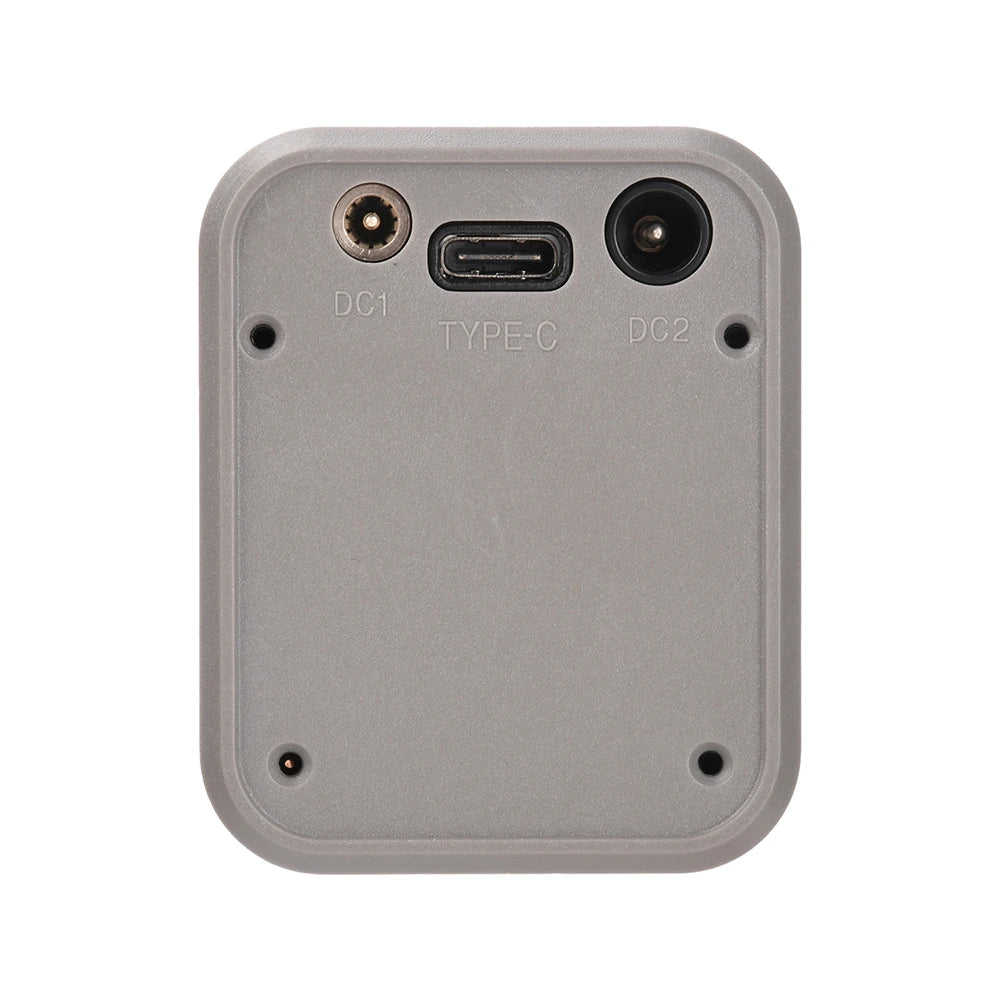

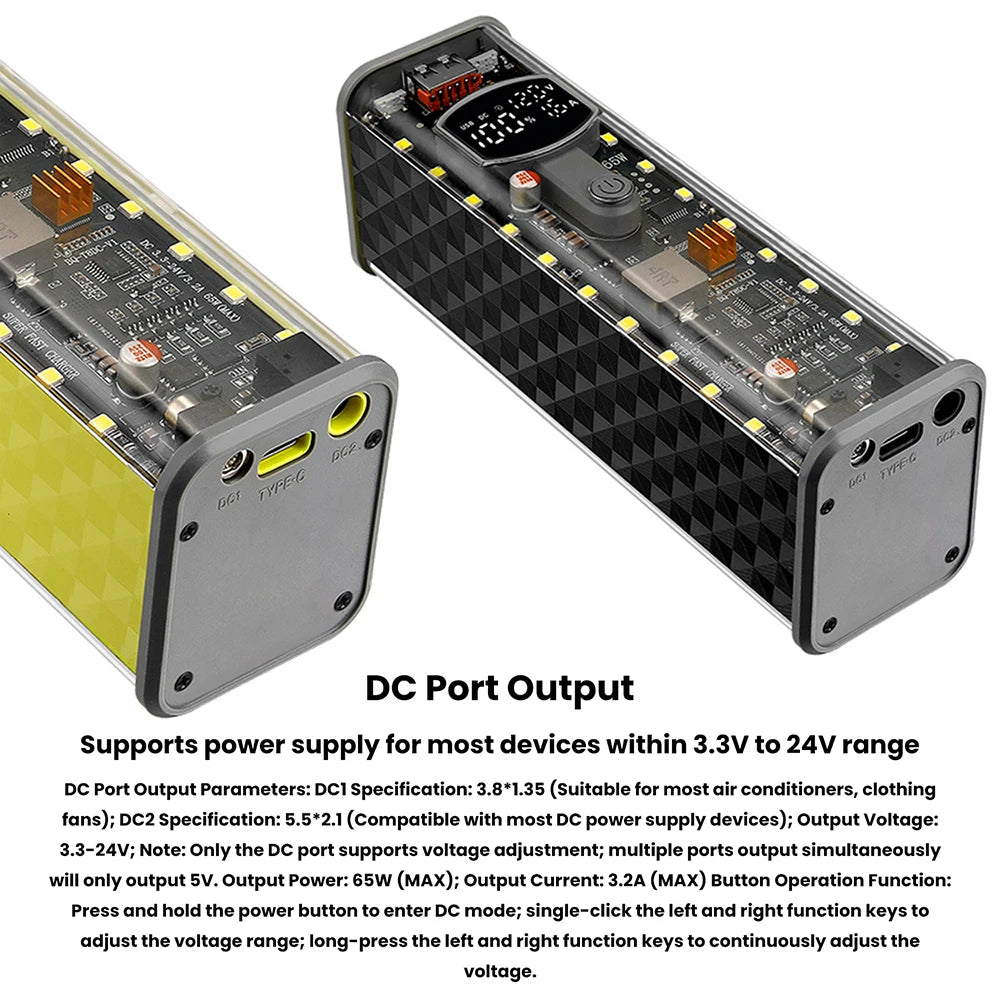

DC port output parameters:

DC1 specification: 3.8*1.35 (suitable for most air conditioning and fan devices)
DC2 specification: 5.5*2.1 (compatible with most DC power devices)
Output voltage: 3.3 - 24V
Note: Only the DC port supports voltage adjustment. When multiple ports are outputting simultaneously, the output voltage is only 5V.
Output power: 65W (MAX)
Output current: 3.2A (MAX)
Key operation function: Press the power button for a long time to enter DC mode. Press the left or right function keys to adjust the voltage range. Press the left or right function keys for a long time to continuously adjust the voltage.

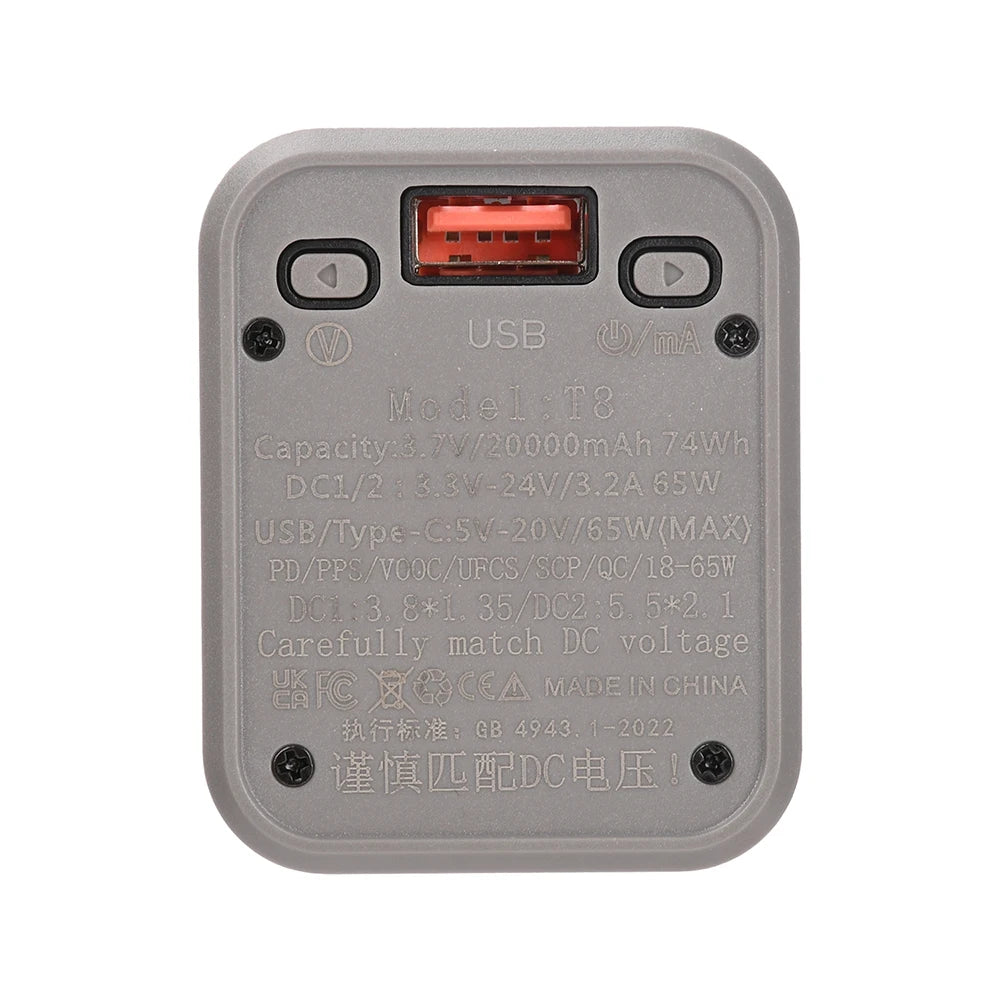

USB output and supported fast charging protocols:
5V/3.2A (normal output); SCP: 40W; UFCS: 60W
SVOOC: 65W (requires high-performance charging cable)
VOOC4.0: 30W (requires high-performance charging cable)
VOOC1.0: 20W (requires charging cable); PE1.1: 7.5W
PE2.0: 30W; QC3+: 45W; QC3.0: 36W; QC2.0: 24W; AFC: 18W; FCP: 18W; SFCP: 18W
Most mobile phones are limited to 33W. When multiple ports output simultaneously, it is only 5V normal charging.

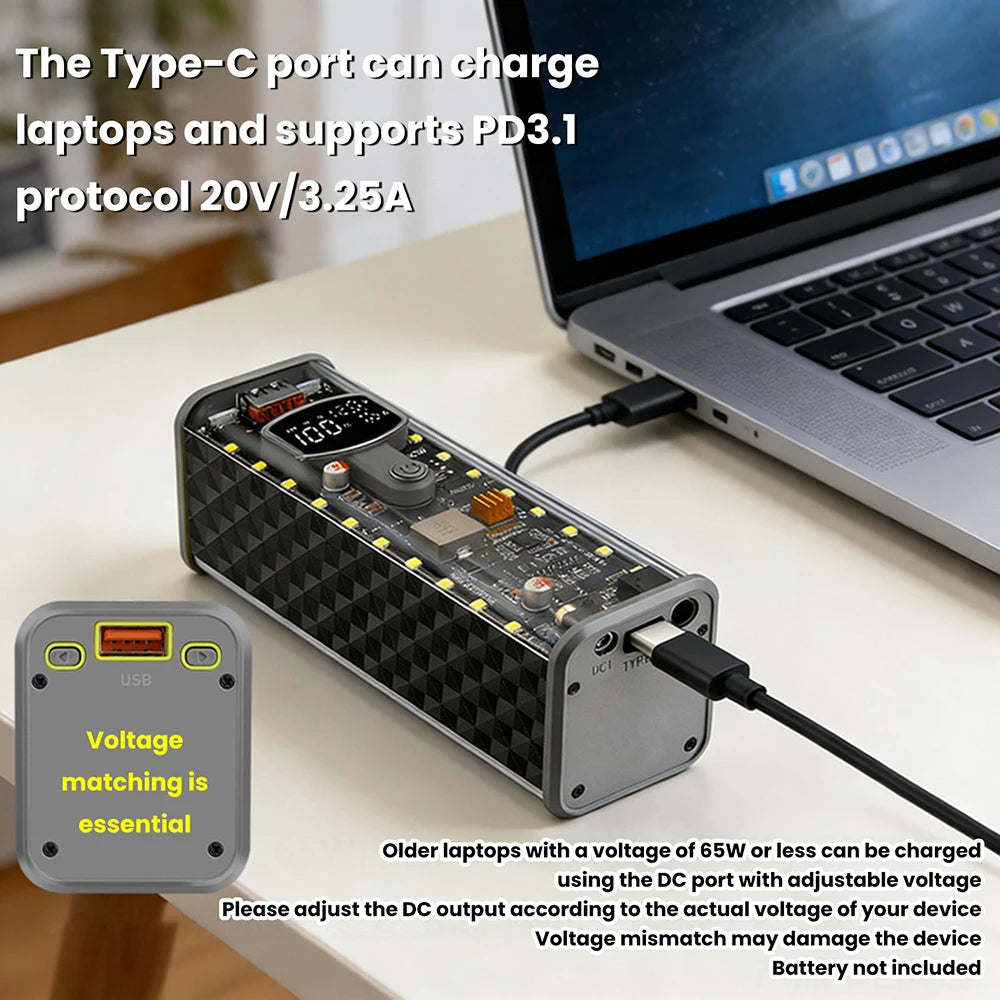

Type-C output and supported fast charging protocols: (Supports laptop charging)
5V/3.2A (normal output); PD3.1: 65W; PPS: 60W;
SCP: 40W; UFCS: 60W;
SVOOC: 65W (requires high-performance fast charging cable)
VOOC4.0: 30W (requires high-performance fast charging cable)
VOOC1.0: 20W (requires fast charging cable); PE1.1: 7.5W
PE2.0: 30W; QC3+: 45W; QC3.0: 36W; QC2.0: 24W; AFC: 18W; FCP: 18W; SFCP: 18W;
Most mobile phones are limited to 33W, and multi-output without fast charging.

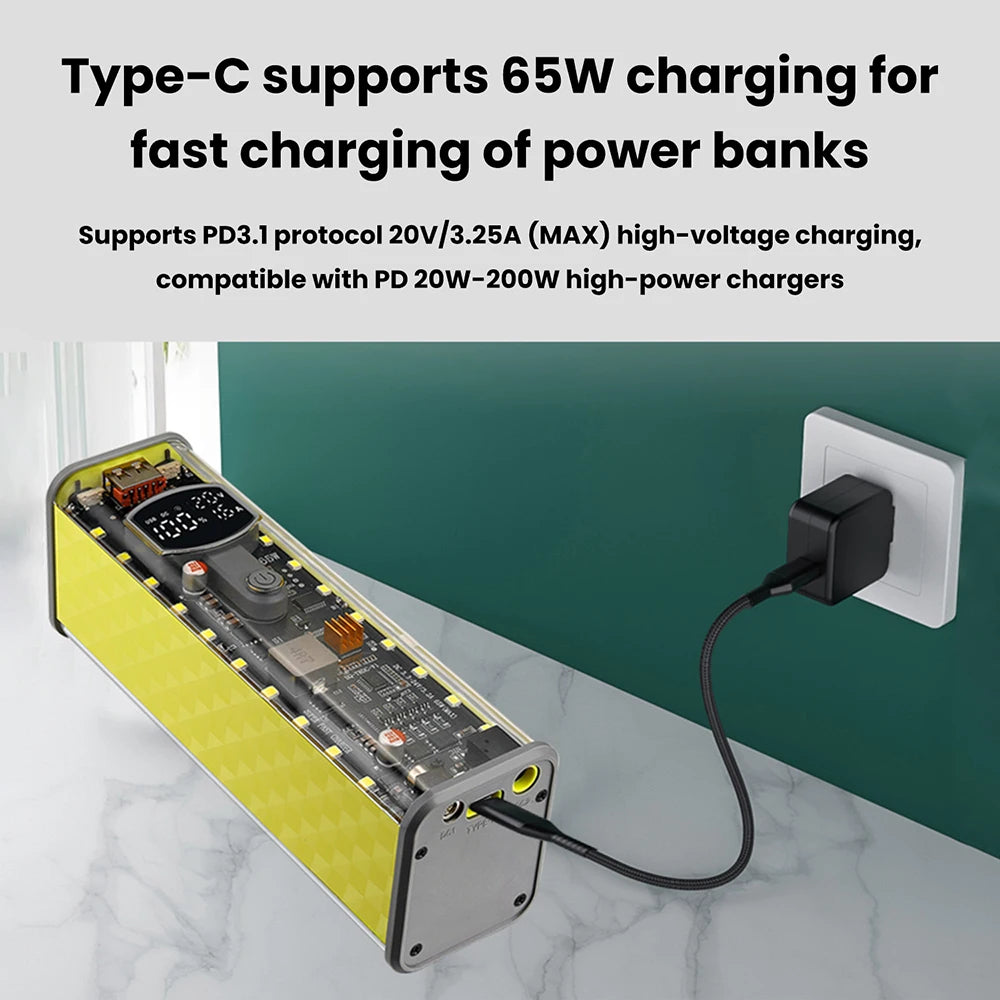

Type-C input and supported fast charging protocols:
5V/3.2A (normal input); PD3.1: 65W (MAX); SCP: 40W; UFCS: 60W; SVOOC: 65W (requires high-performance charging cable);
VOOC4.0: 30W (requires high-performance charging cable)
VOOC1.0: 20W (requires charging cable); AFC: 18W; FCP: 18W;
Supports charging and discharging simultaneously at 5V;
Note: If the private protocol of the mobile phone does not support (USB without fast charging), PD charging (TYPE-C output) can be used (PD public protocol output is more stable and has a higher output power)

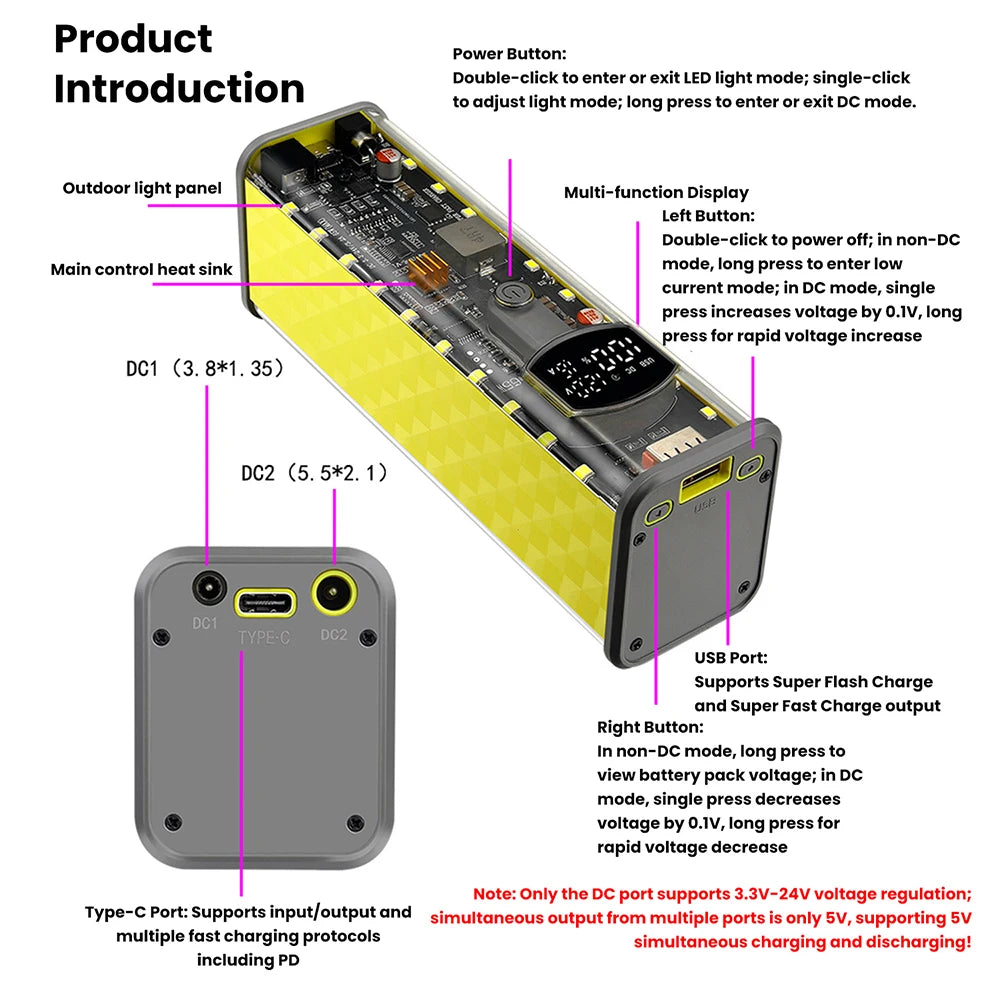

Button functions:

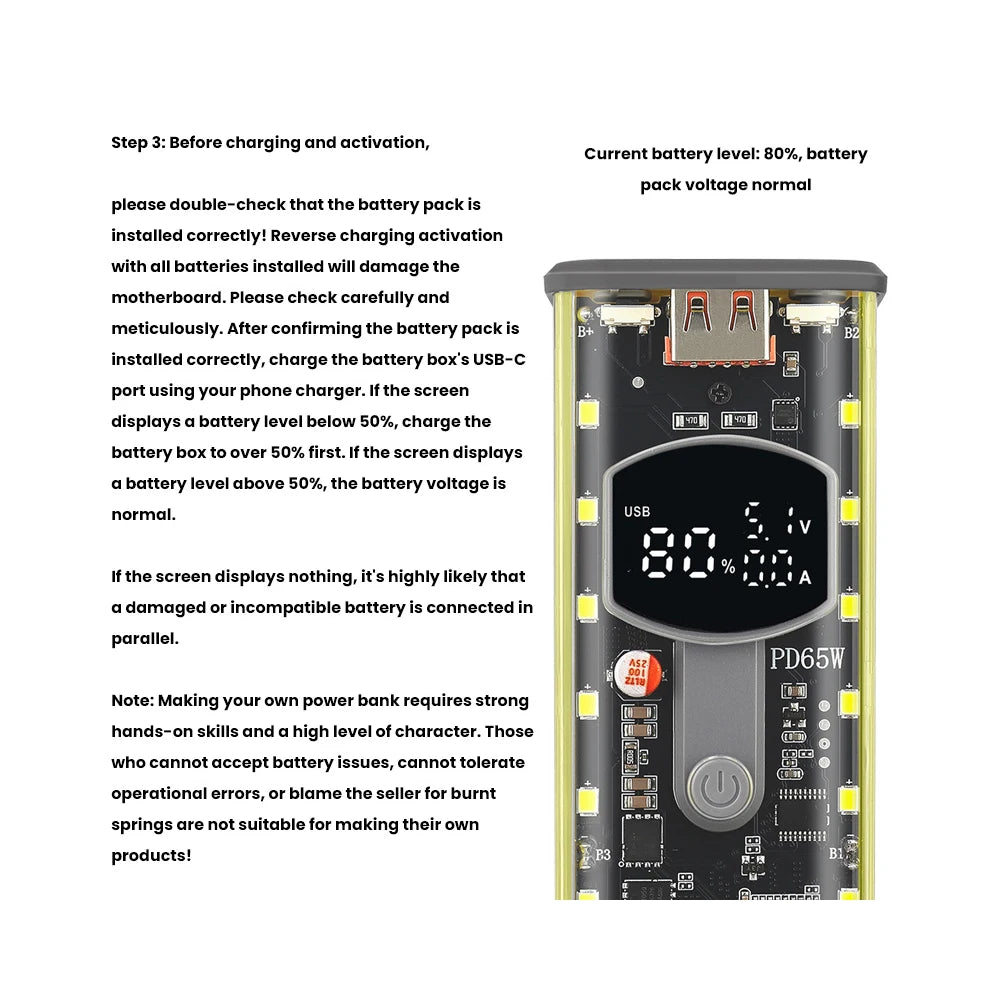

All buttons can display the battery level when pressed individually;
Power button: Double-click to enter or exit the LED light mode; Press once to adjust the light mode; Long press to enter or exit the DC mode;
Left button: Double-click to shut down the device. In non-DC mode, long press to enter the low current mode, and in DC mode, press and move the cursor step by 0.1V, and long press to quickly step down;
Right button: In non-DC mode, long press to view the battery group voltage. In DC mode, press and move the cursor to step down by 0.1V, and long press to quickly step down.

Package list:

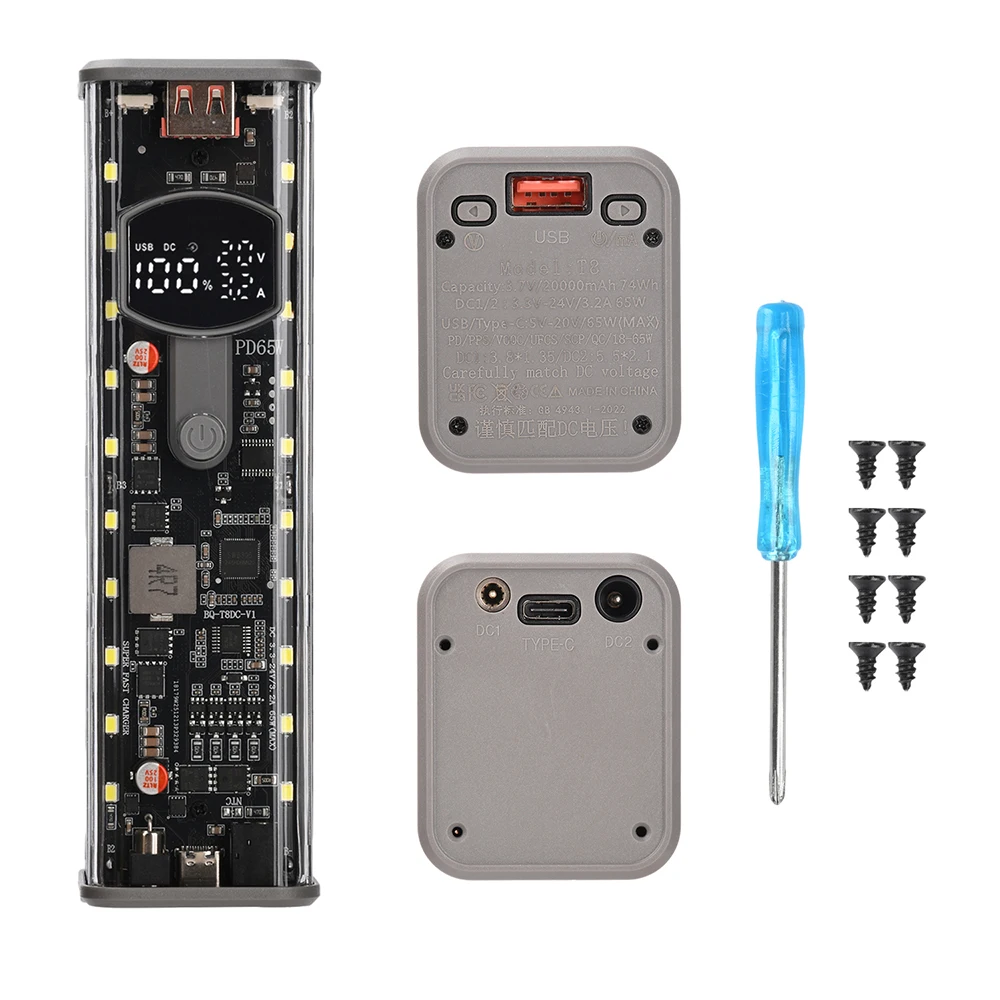

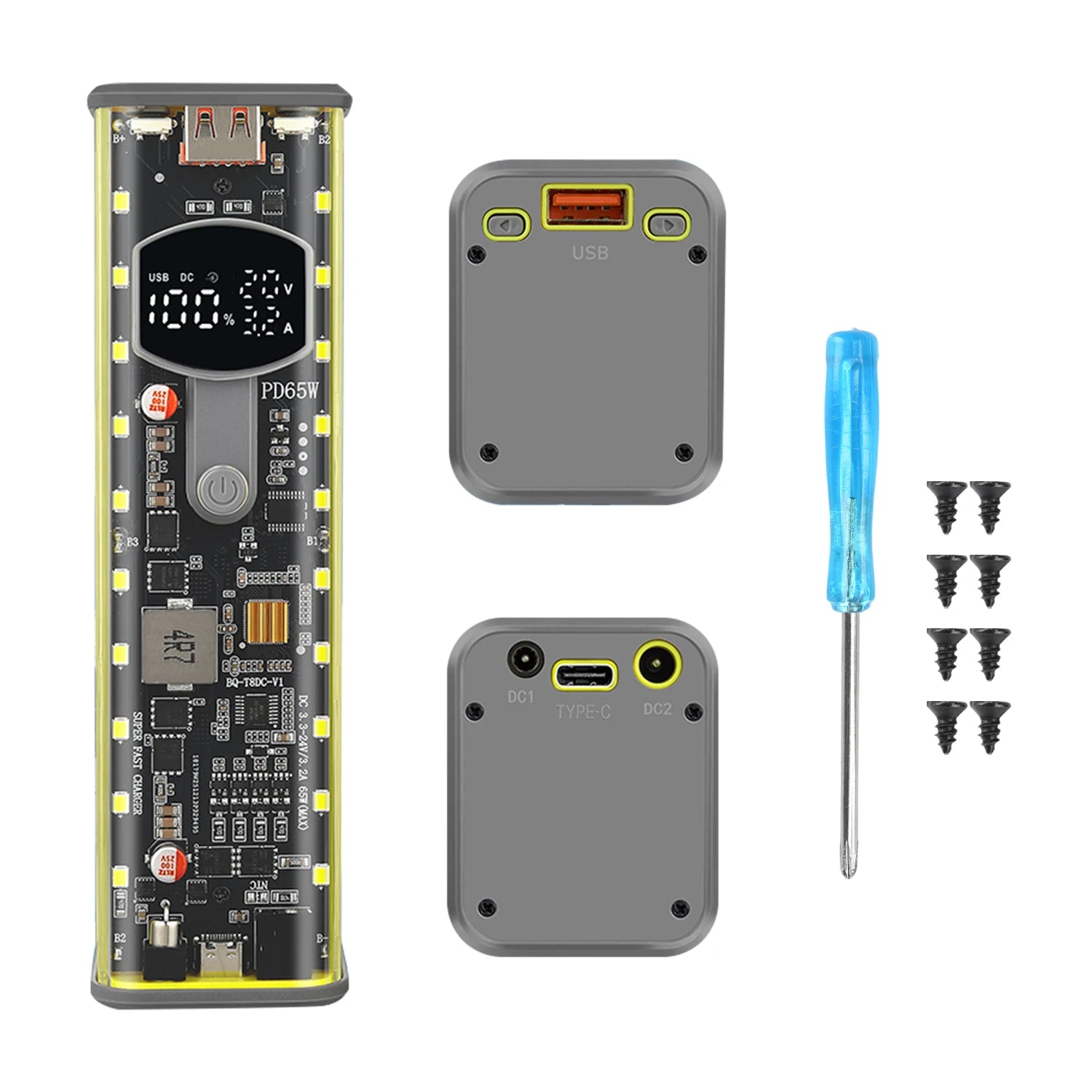

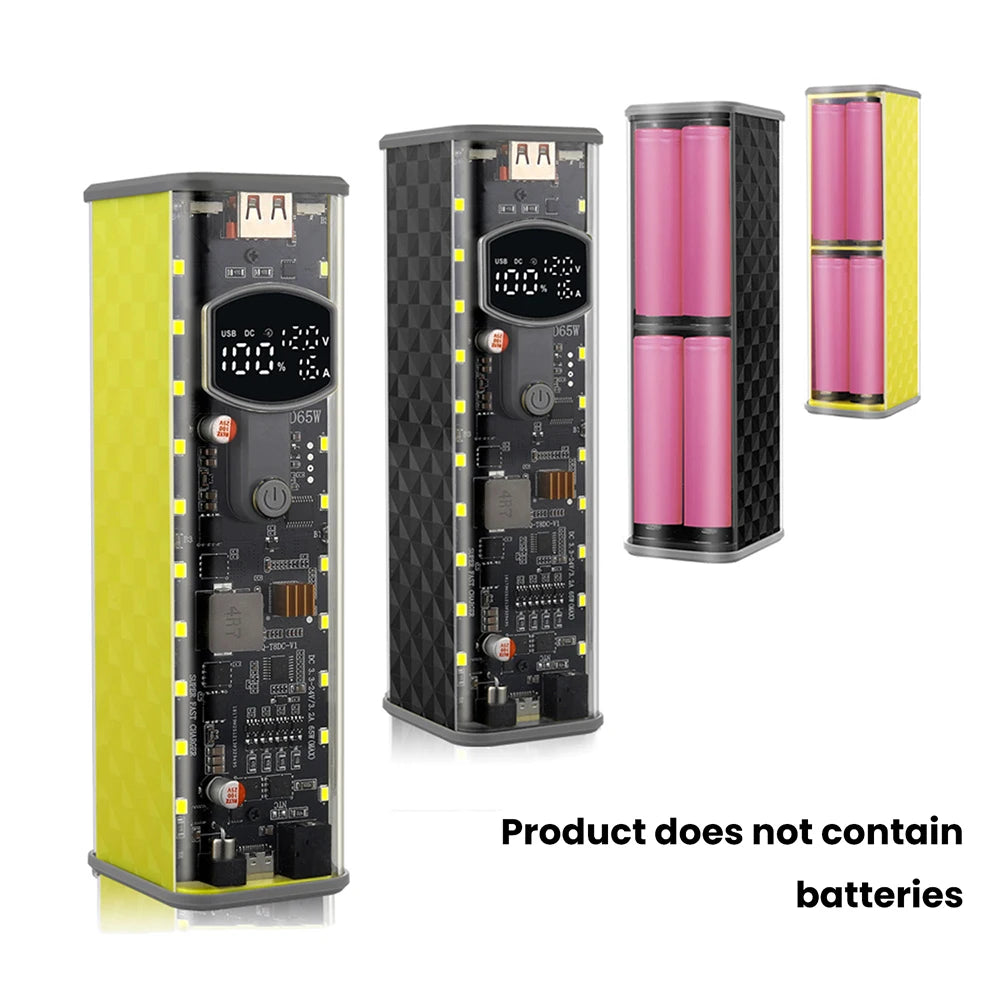

Charging battery case * 1 (excluding battery)
Accessory package * 1
