SPECIFICATIONS

Brand Name: occkic

Button Function: Long press to turn on LED light

Choice: yes

Input Power: 30-65W

Item Type: DIY Box & Shell

Model Number: 8*18650 battery pack

Operating Voltage: 12.3V-16.5V (voltage drop due to coil)

Origin: Mainland China

Output power: PD 45W (peak 48W)

Product Features:

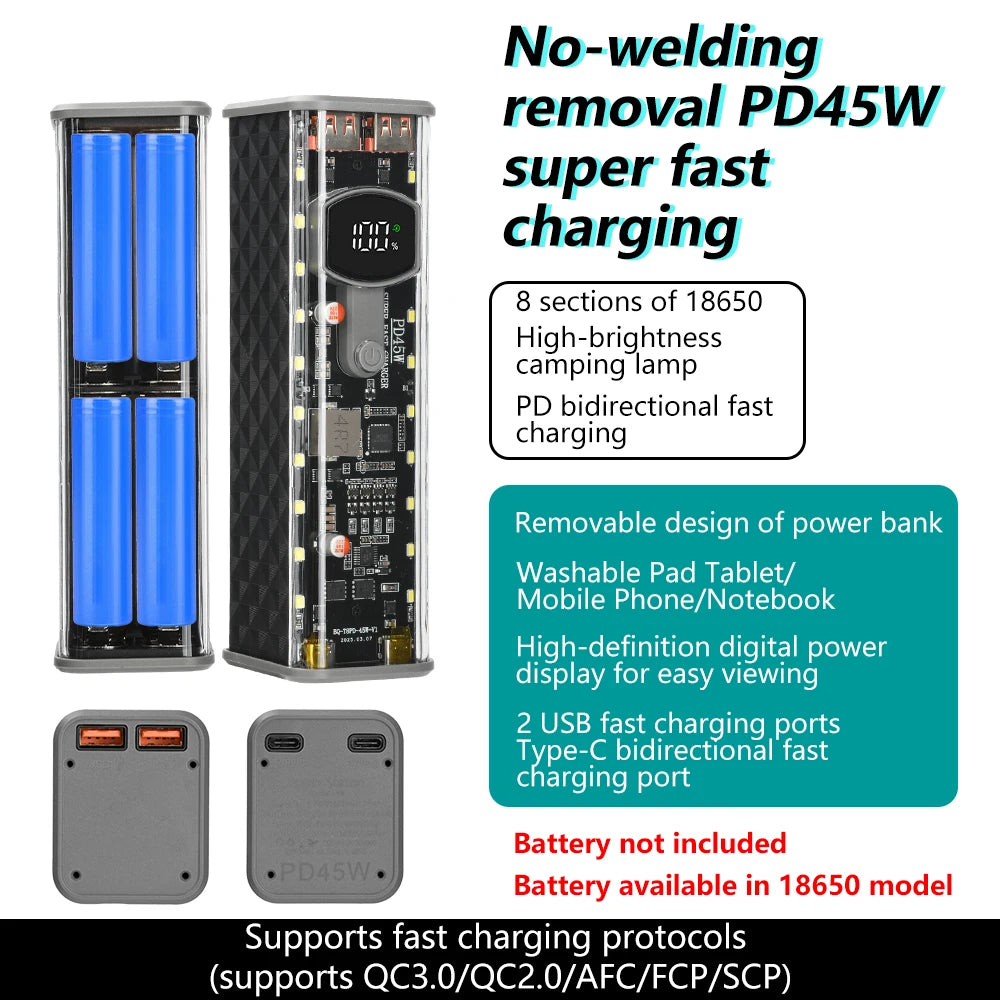

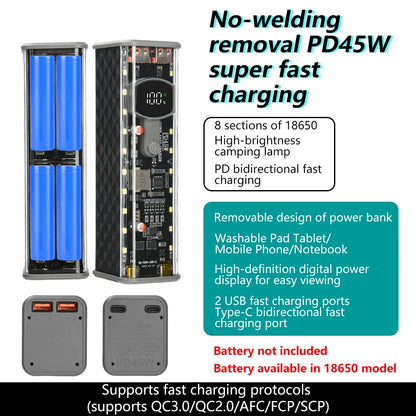

1. Transparent mech-style design with a high-tech aesthetic; the internal structure is fully visible, showcasing individuality

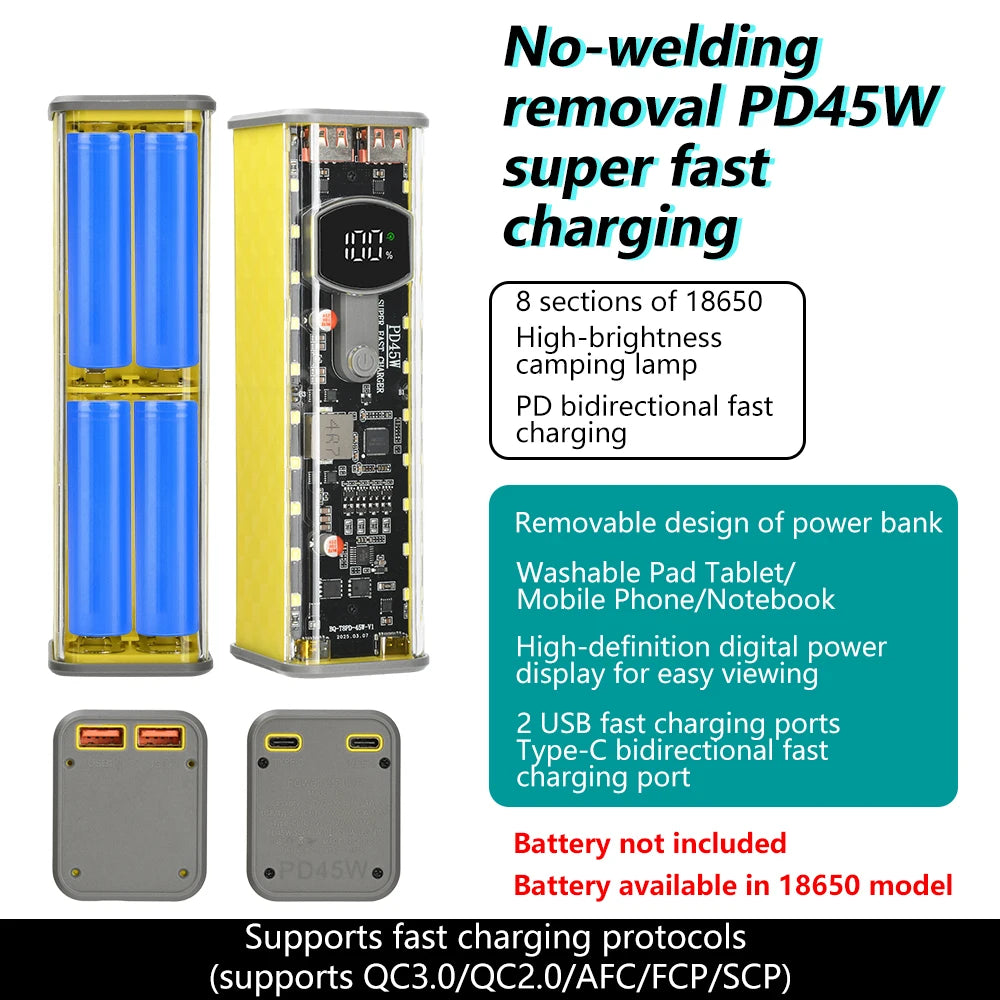

2. Supports installation of 8 x 18650 batteries, offering high-capacity storage to meet extended power requirements

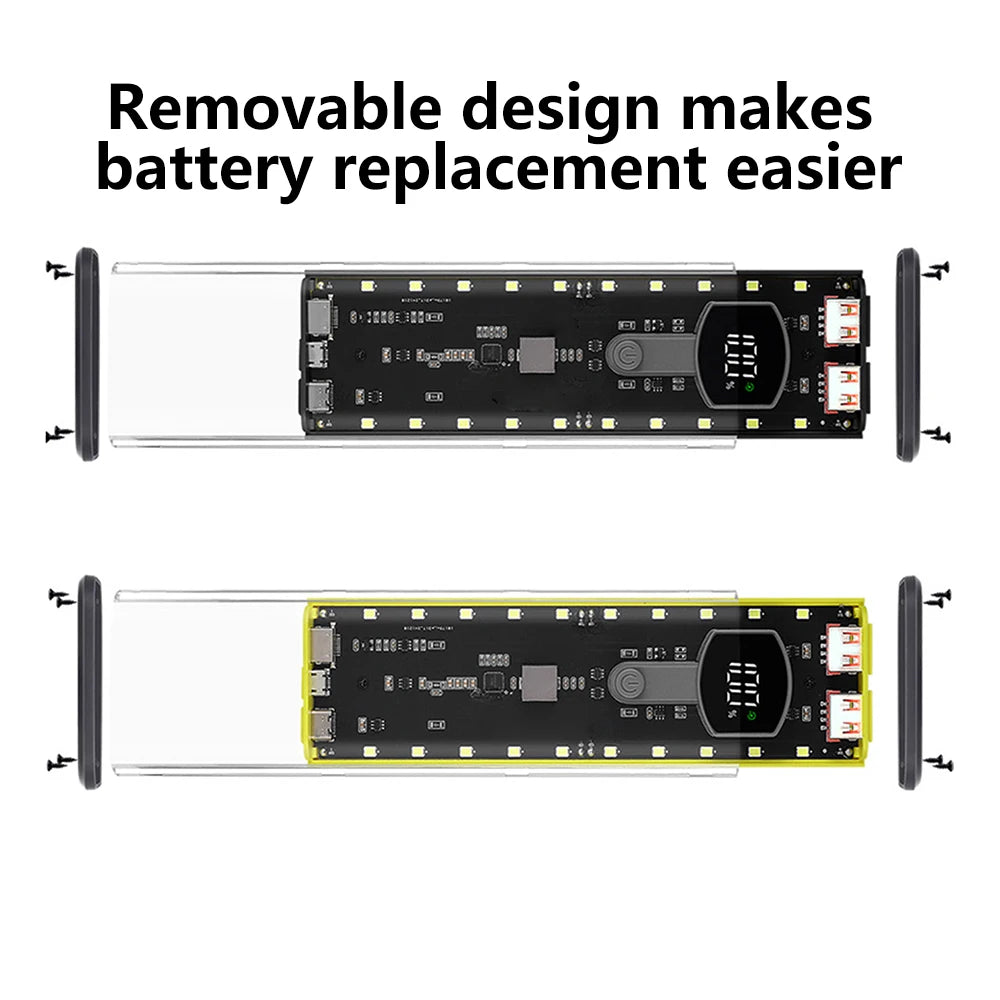

3. Solder-free design for quick and easy assembly, making it ideal for electronics enthusiasts to get started

4. Equipped with PD fast charging protocol, compatible with a wide range of devices, providing an efficient and convenient charging experience

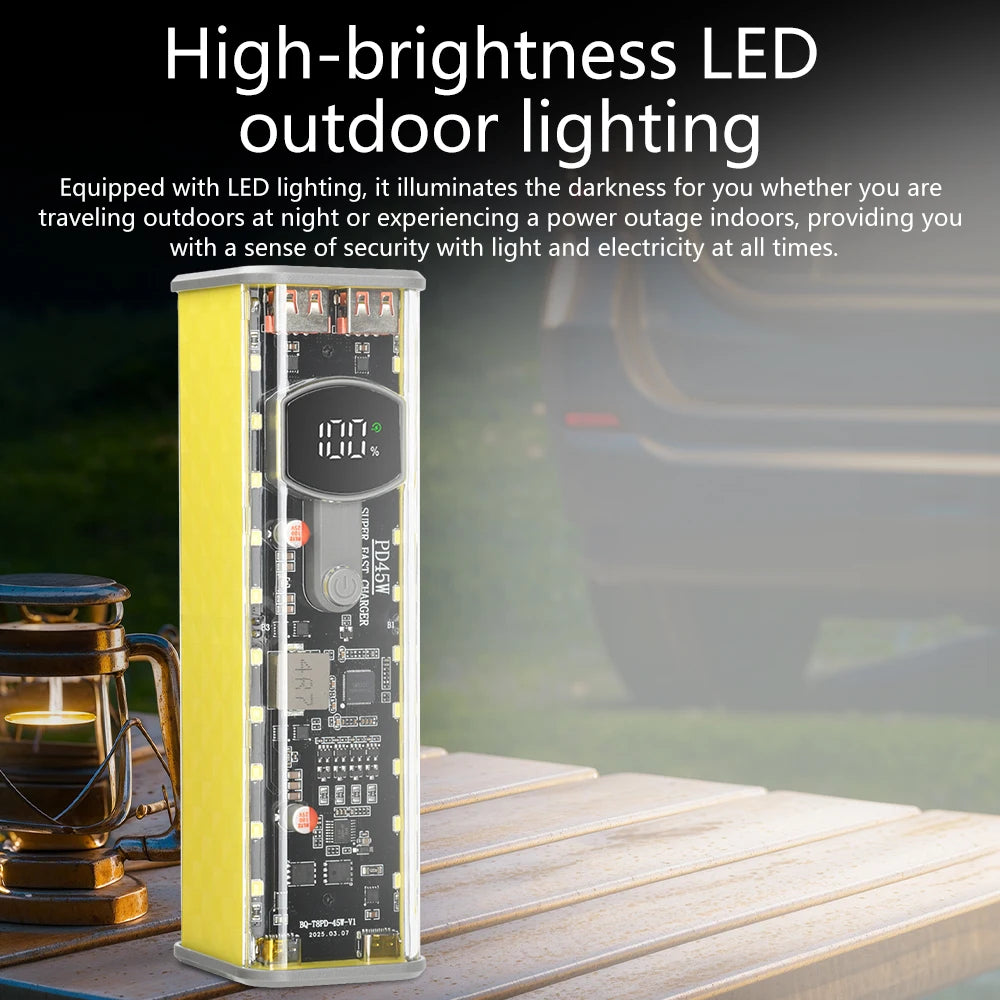

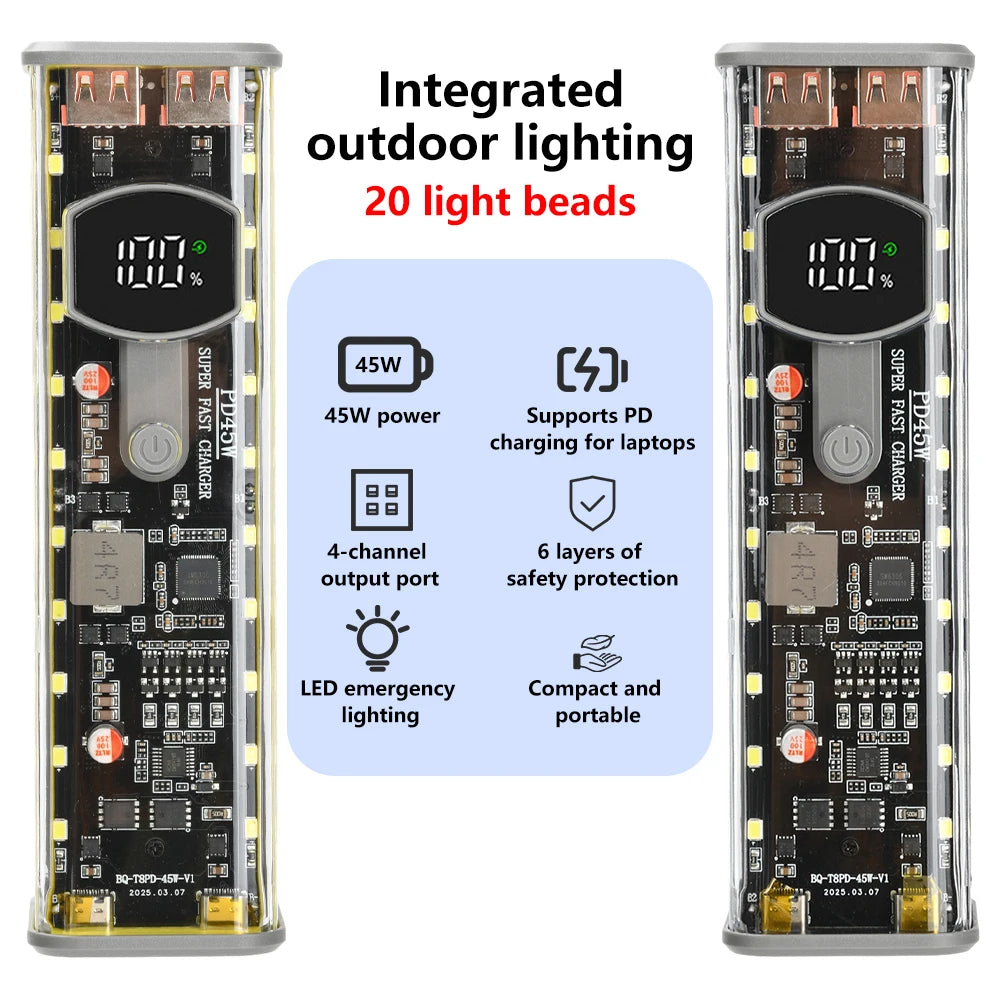

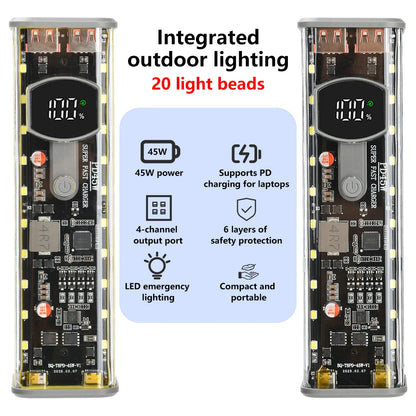

5. Built-in outdoor lighting for emergency illumination at night; versatile and practical for on-the-go use

Product Specifications:

Output Power: PD 45W (Peak 48W)

Input Power: 30–65W

Button Function: Long press to activate LED light

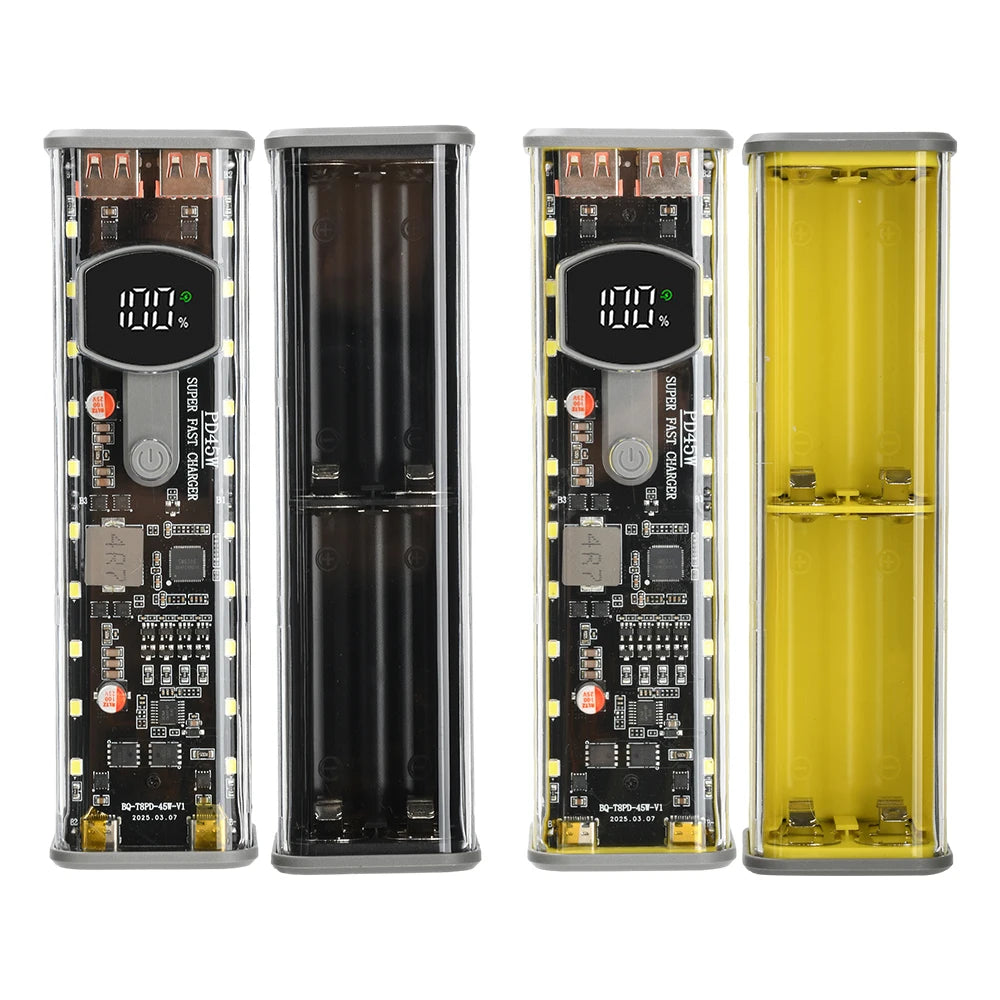

Colours: Black frame + Grey + Transparent, Yellow frame + Grey + Transparent

Operating Voltage: 12.3V–16.5V (Spring causes voltage drop)

Fast Charging Specifications (Supported Protocols):

(With data transfer charging cable; communication handshake is successful with any one of the following protocols)

Compatible with BC1.2, IP (cable-controlled charging)

Integrated SCP Super Fast Charging output protocol

Integrated QC2.0/QC3.0 output fast charging protocol

Integrated FCP, AFC input/output fast charging protocols

Supports PPS, PE 2.0, SFCP fast charging output

Supports PD 2.0/3.0, PE 1.1 input/output protocols

Note: If the device’s proprietary protocol is not supported (USB without fast charging), PD charging (Type-C output) can be used; PD public protocol output is more stable.

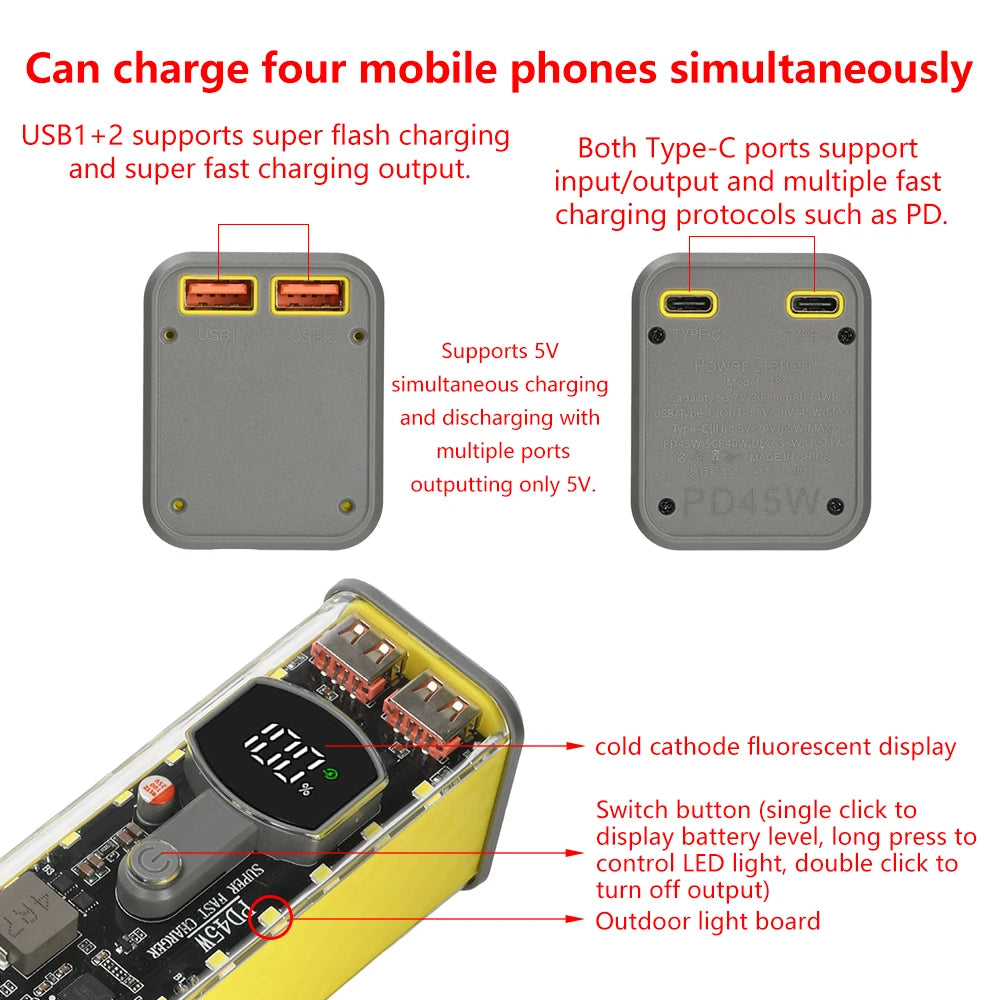

USB output and supported device protocols:

5V/3.1A (standard output); SCP: 40W; UFCS: 33W;

SVOOC: 45W; VOOC 4.0: 30W (requires high-performance fast-charging cable); VOOC 1.0: 20W (requires fast-charging cable); PE 1.1: 7.5W;

PE 2.0: 30W; QC 3+: 45W; QC 3.0: 36W; QC 2.0: 24W; AFC: 18W; FCP: 18W; SFCP: 18W;

Simultaneous multi-port output is limited to 5V;

Type-C output and supported mobile phone protocols:

5V/3.1A (standard output); PD 3.1: 45W; PPS: 44W;

SCP: 40W; UFCS: 33W; SVOOC: 45W;

VOOC 4.0: 30W (requires high-performance fast-charging cable);

VOOC 1.0: 20W (requires fast-charging cable); PE 1.1: 7.5W;

PE 2.0: 30W; QC 3+: 45W; QC 3.0: 36W; QC 2.0: 24W; AFC: 18W; FCP: 18W; SFCP: 18W;

Multi-port output does not support fast charging;

Type-C input and supported mobile phone protocols:

5V/3.1A (standard input); PD 3.1: 65W (MAX); SCP: 40W; UFCS: 33W; SVOOC: 45W; VOOC 4.0: 30W (requires high-performance fast-charging cable); VOOC 1.0: 20W (requires fast-charging cable); AFC: 18W; FCP: 18W;

Supports 5V charging whilst discharging;

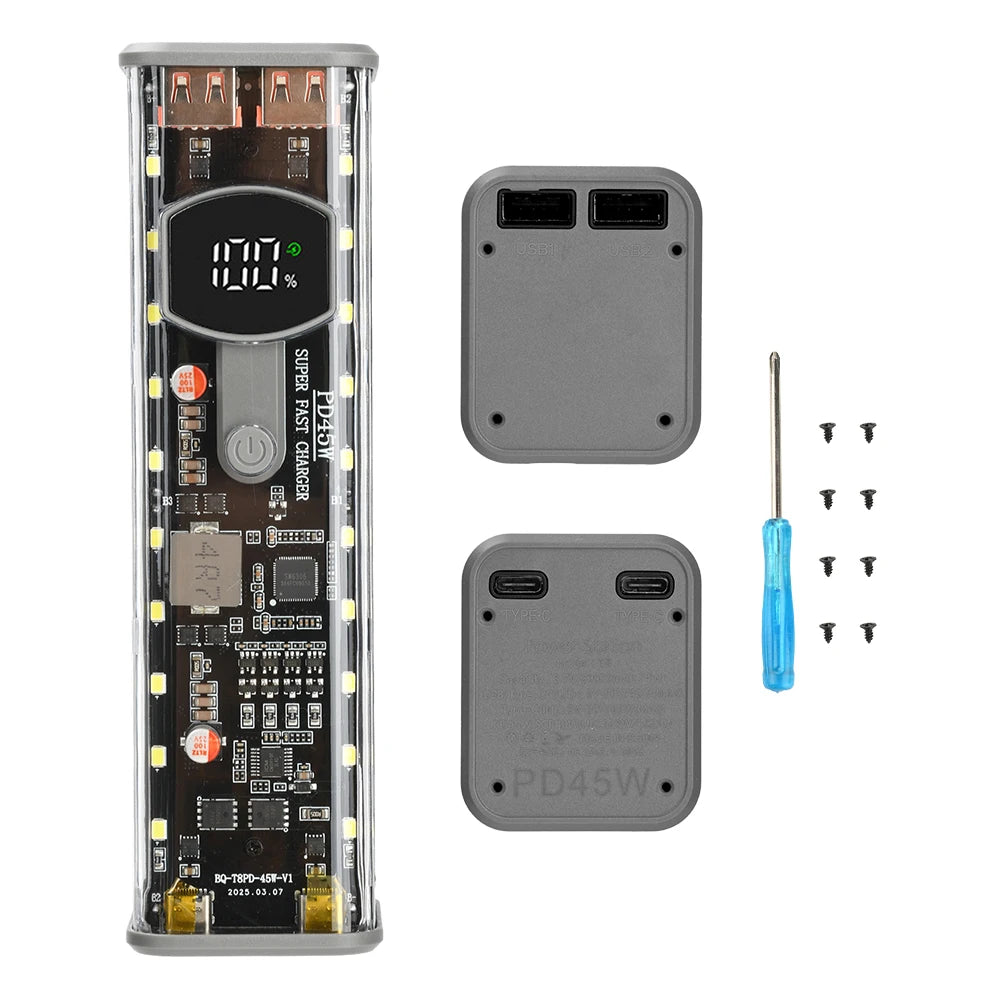

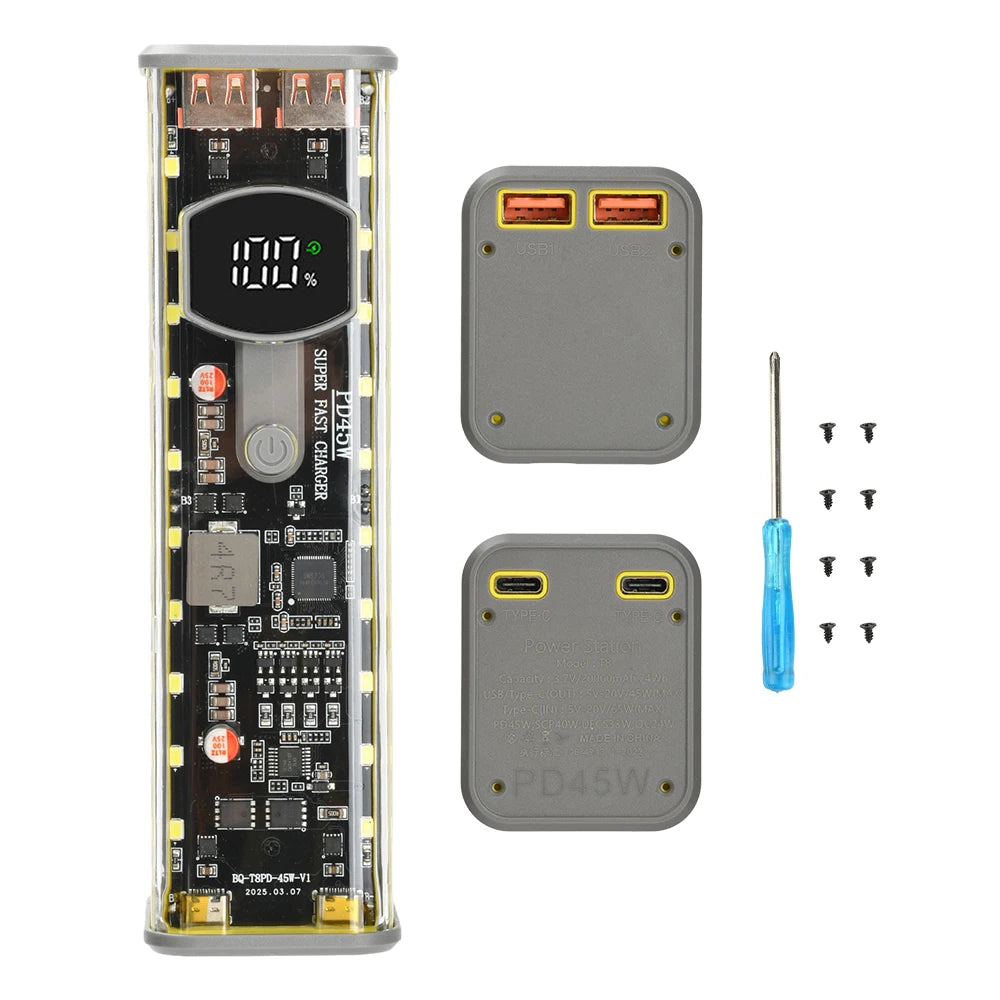

Package Contents:

Power bank casing x 1 (battery not included)

Accessory pack x 1
