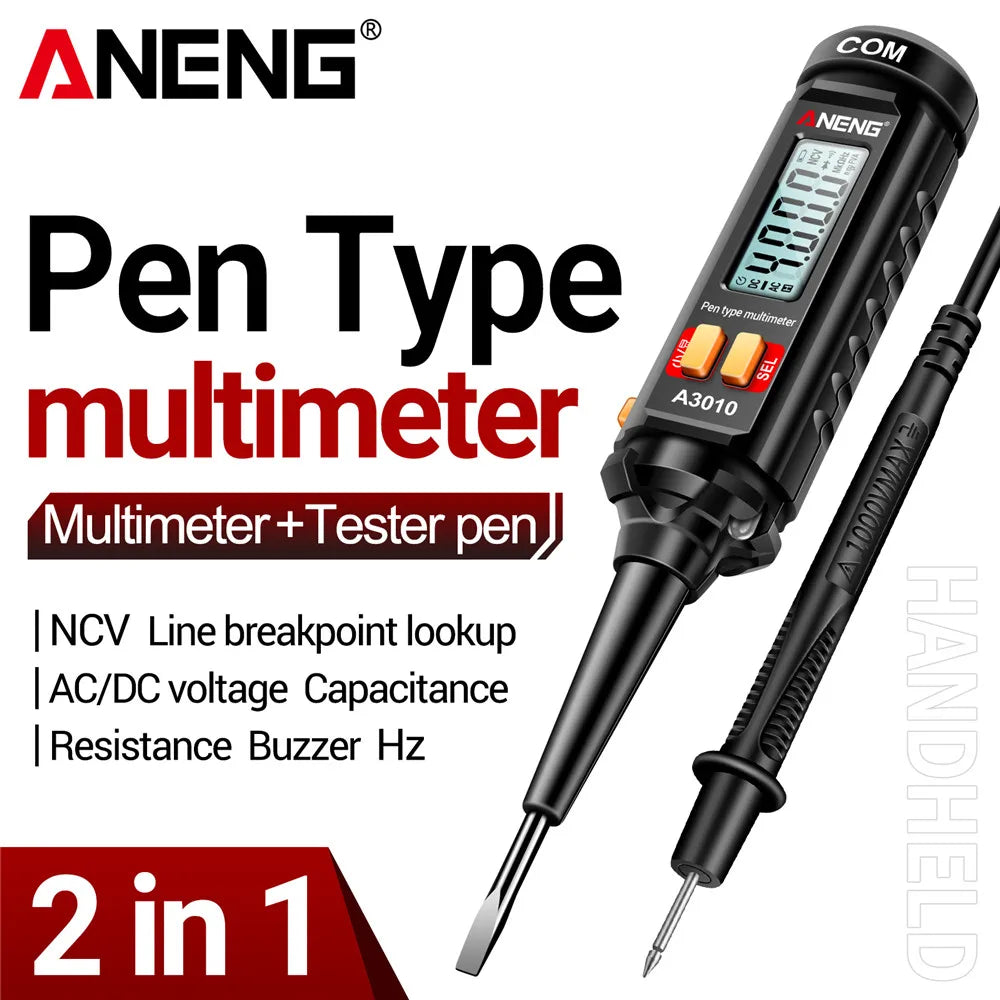

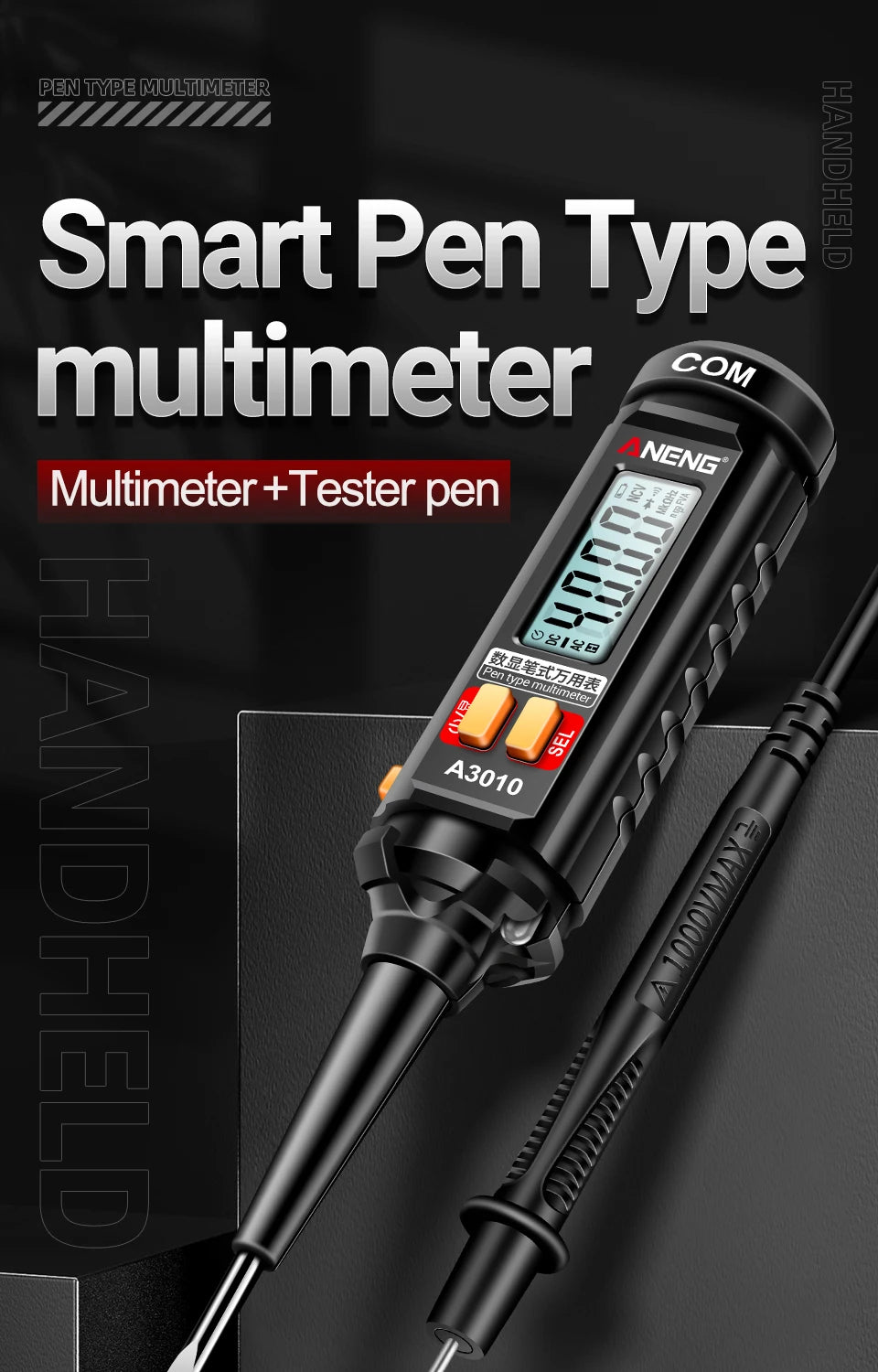

ANENG A3010 Pen-Type Multimeter 4000 Counts Digital True-RMS Backlight Multi Meter Auto Range Tester LCD Electrician Tester Tool

$7.05 USD

~~$7.05 USD~~ $7.05 USD

Sale Sold out

SPECIFICATIONS

4000 Counts: Yes

AC Current: No

AC Voltage: 4V/40V/400V/600V

ANENG Model: A3010

Auto Range: Yes

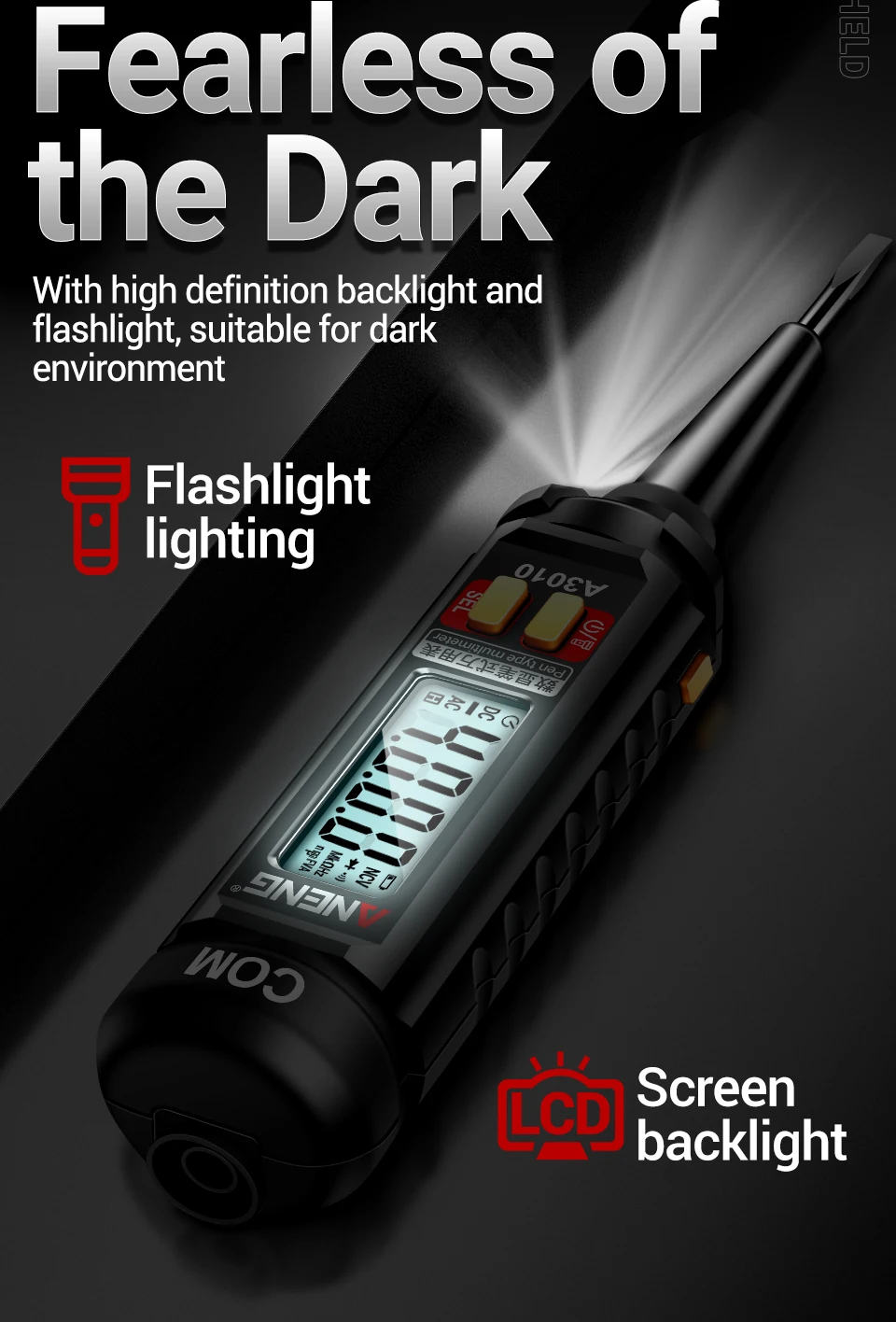

Back light: Yes

Battery Included: No

Brand Name: ANENG

Choice: yes

DC Current: No

DC Voltage: 4V/40V/400V/600V

DIY Supplies: Electrical

Display Type: Digital Display

High-concerned chemical: None

Low Battery Indicator: Yes

Measuring Capacitance Range: 0~4mF

Measuring Inductance Range: No

Measuring Resistance Range: 4K/40K/400K/4M/40M

Model Number: ANENG A3010 Pen Multimeter

Operating Mode: Manual Range

Operating Temperature: 0 - 40 ℃

Origin: Mainland China

Over-range Indicator: Yes

True RMS: Yes

Introduction:

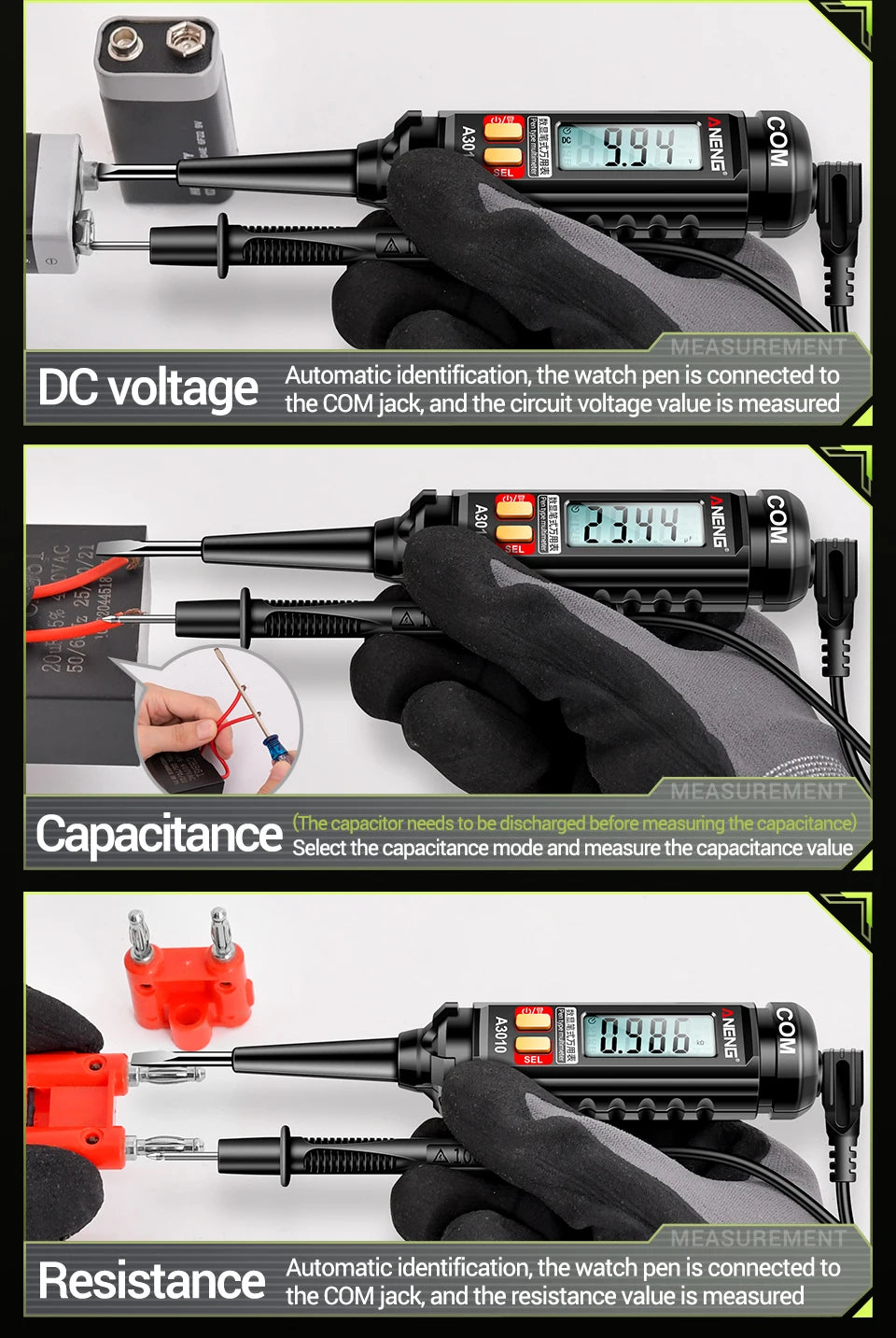

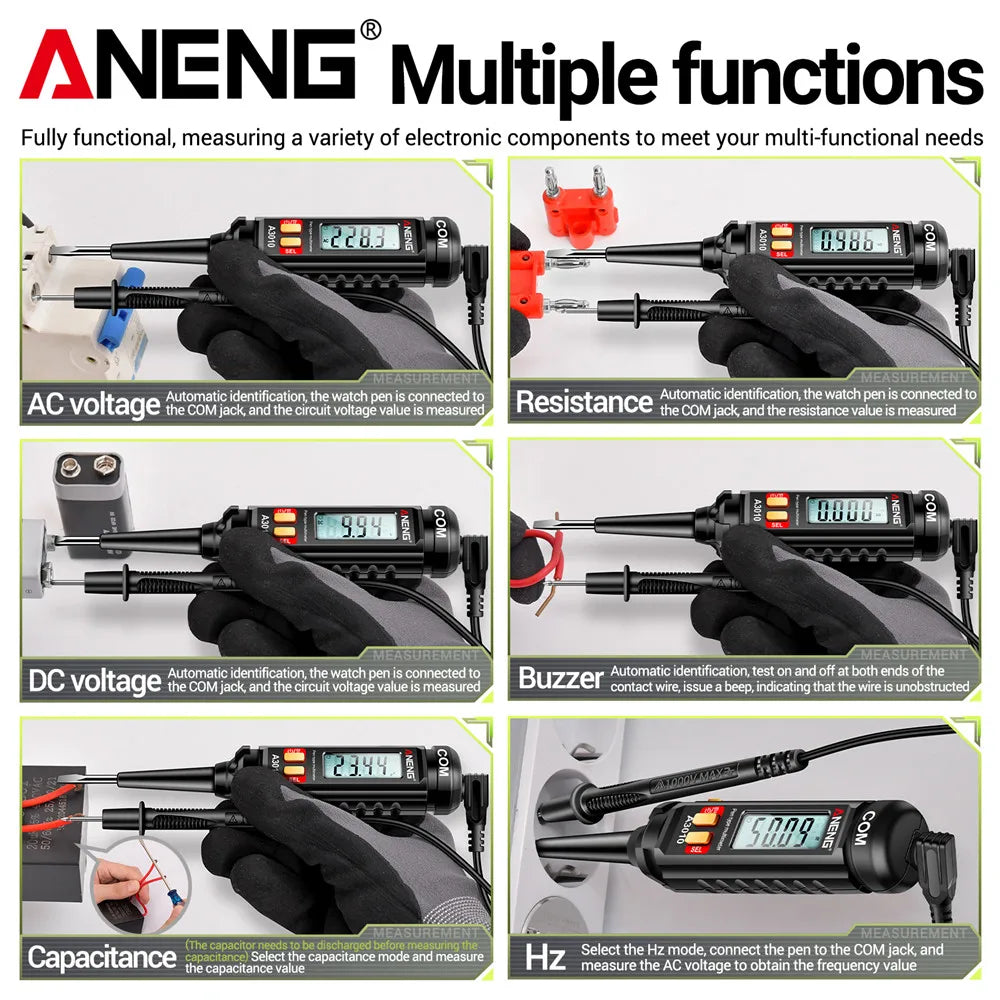

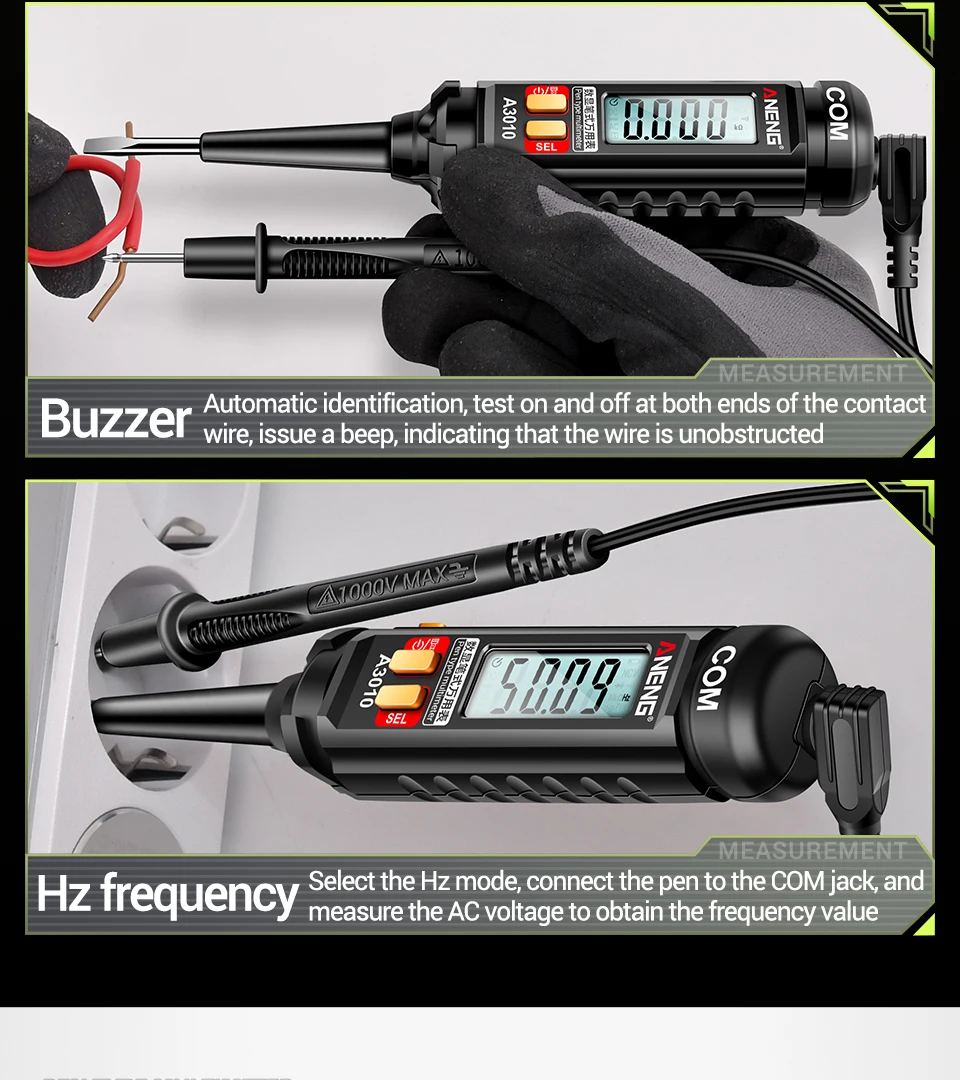

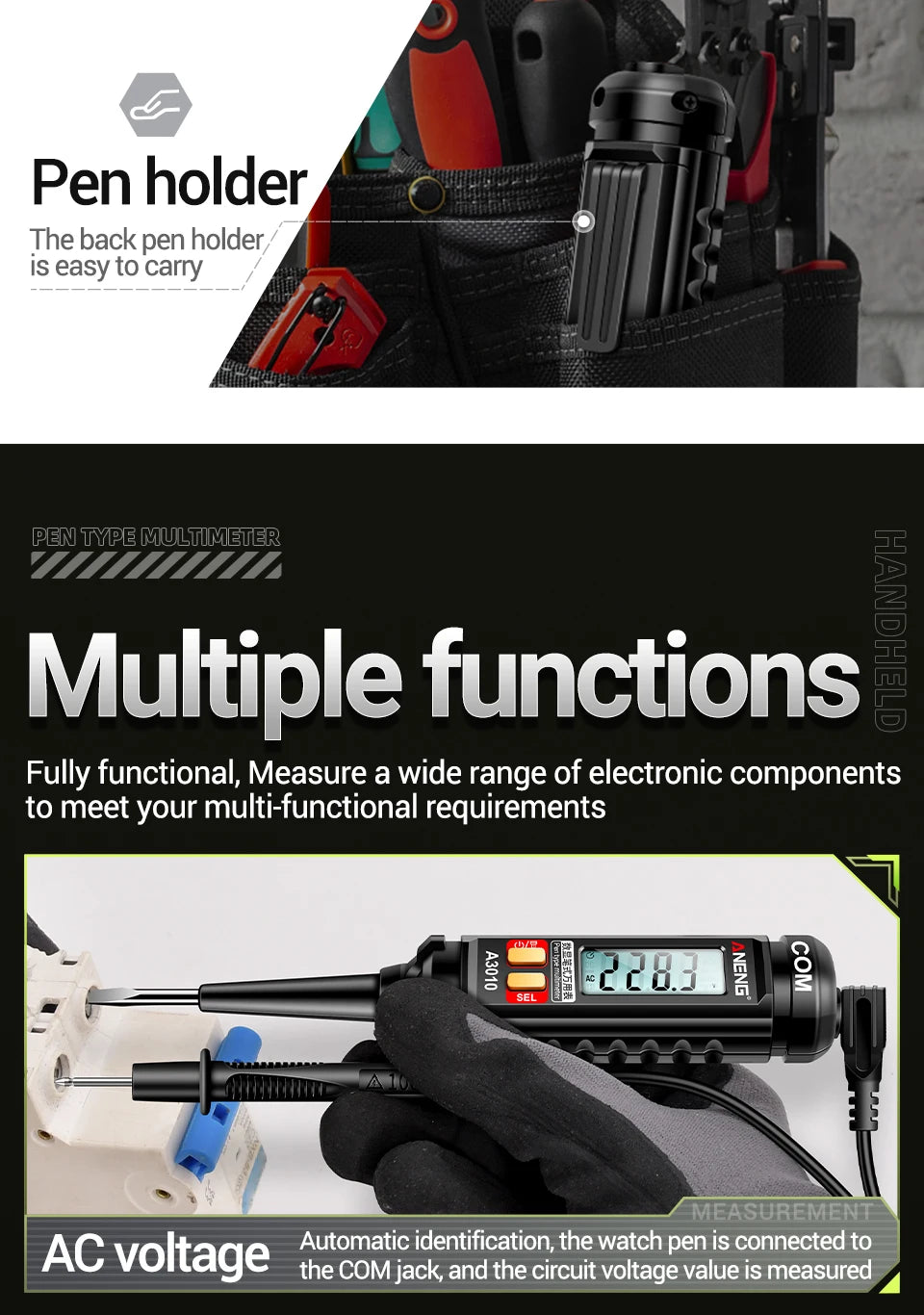

This instrument performs AC/DC voltage,Resistance,Capacitance,Audible continuity,Diode and Frequency measurement.
It is a 3 3/4 digits,4000 counts auto ranging DMM.

It has the functions of polarity indication,data hold,over range indication.It can be operated easily and is an ideal instrument tools.

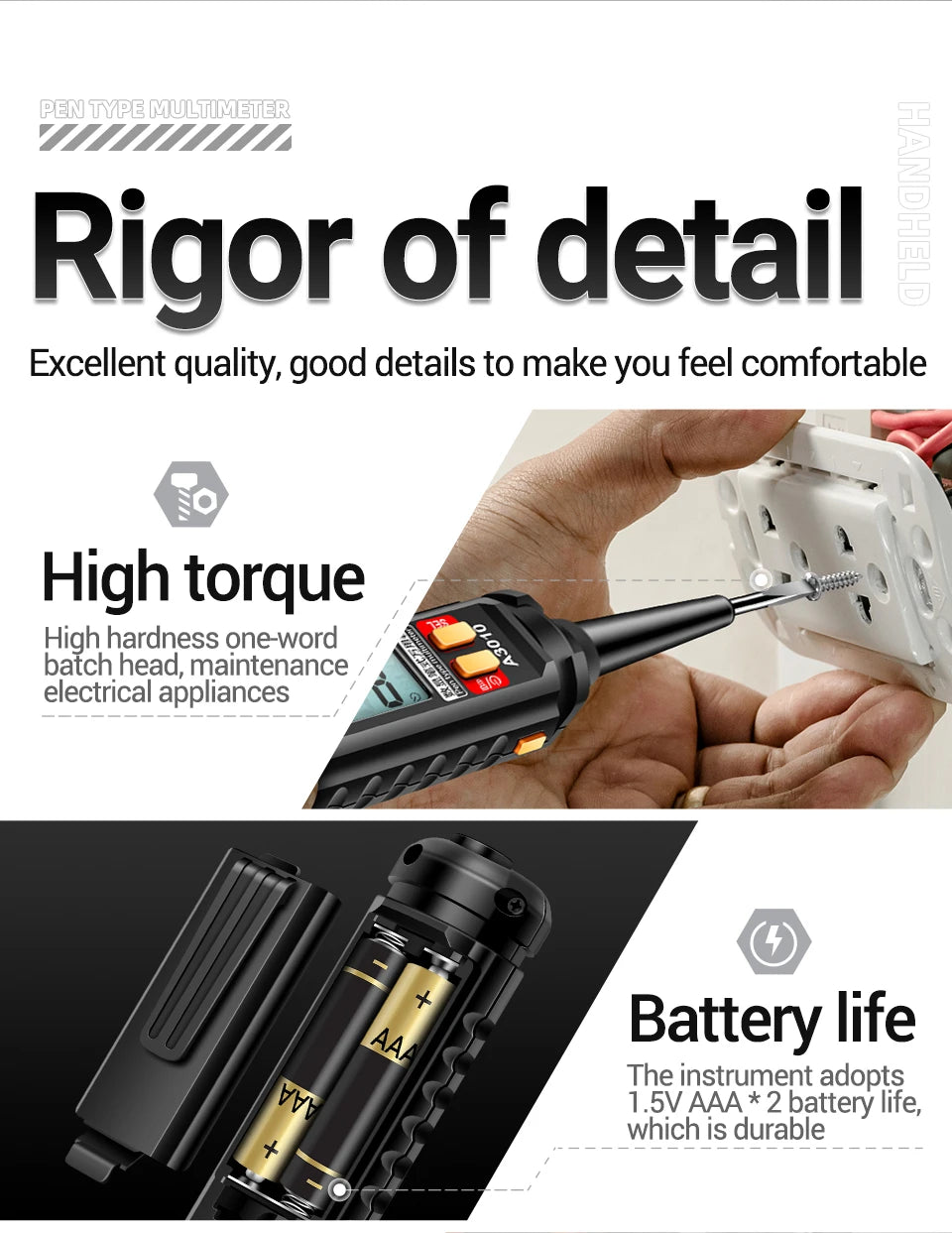

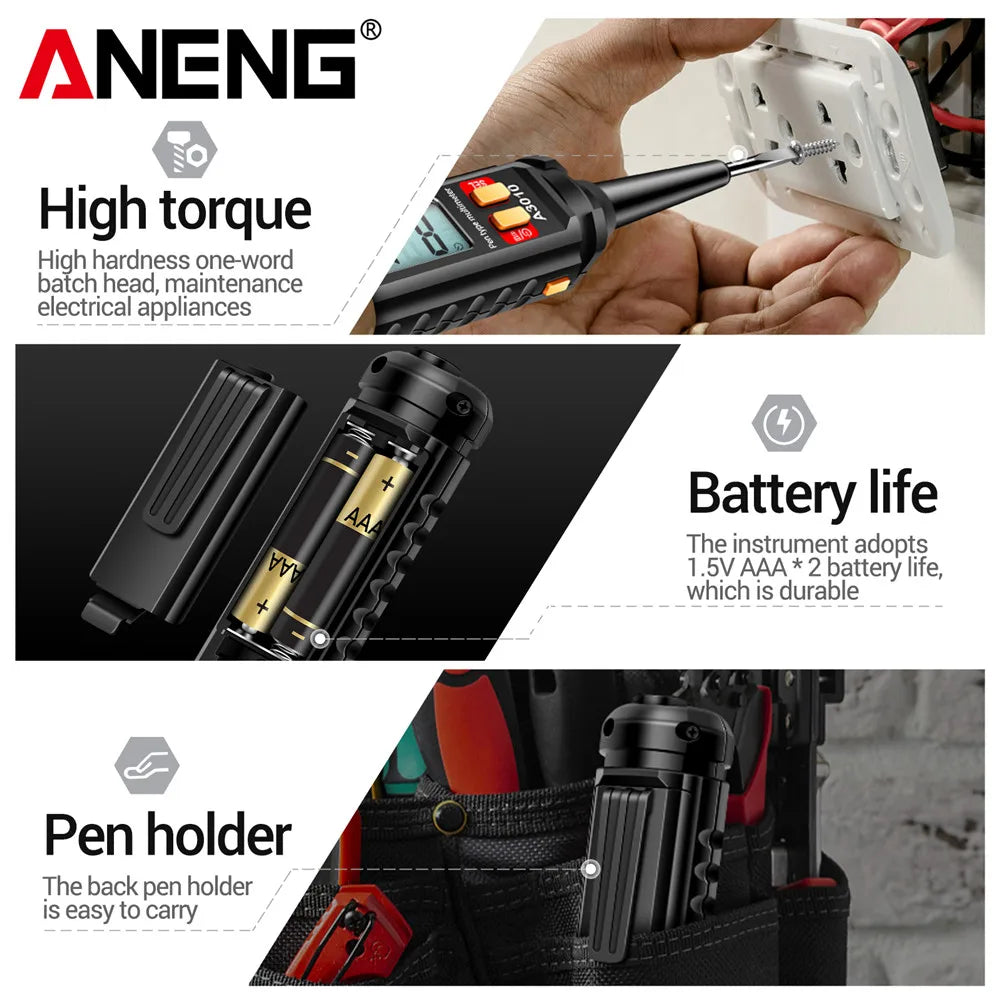

Battery Type: 1.5 AAA*2(Ship without battery)

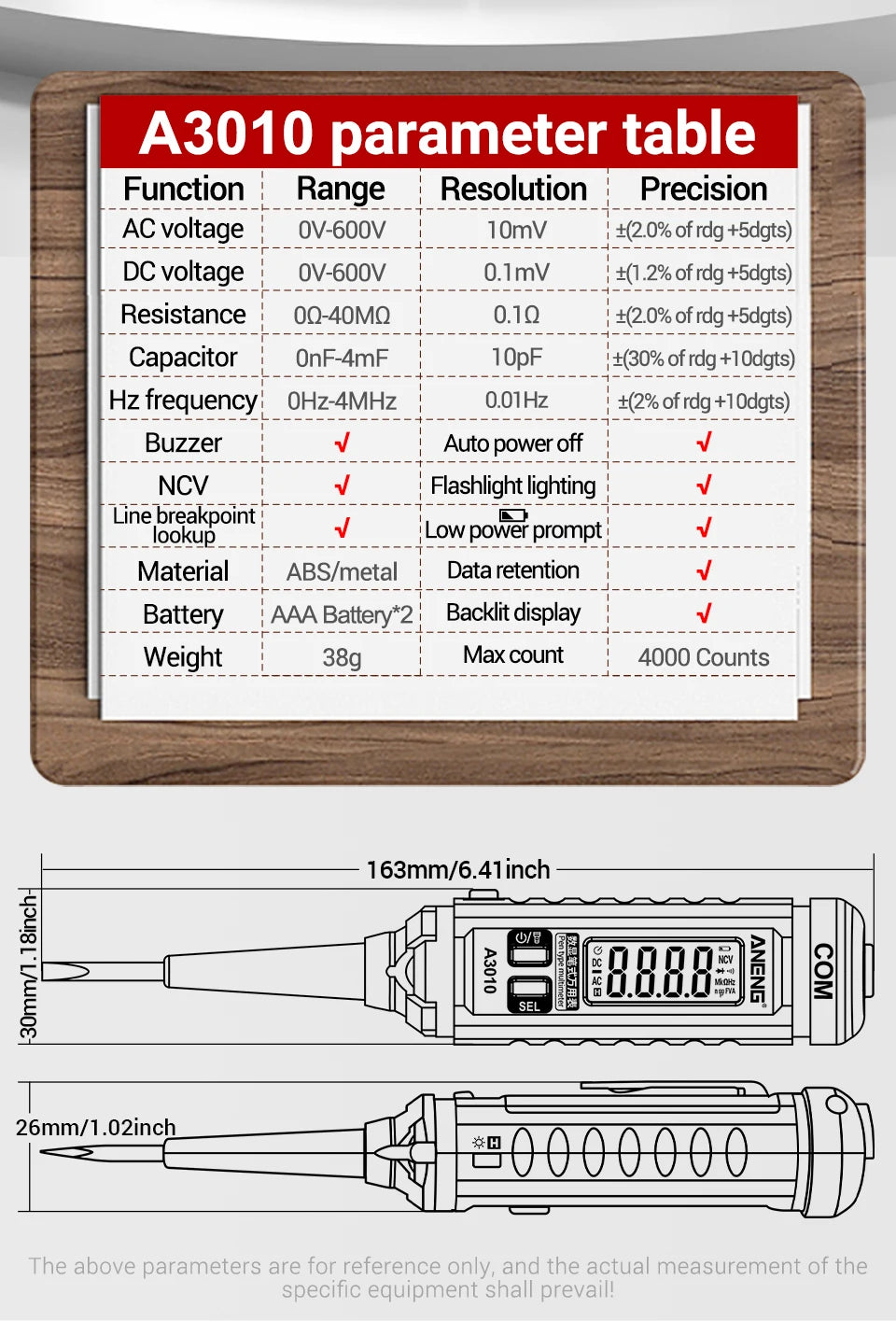

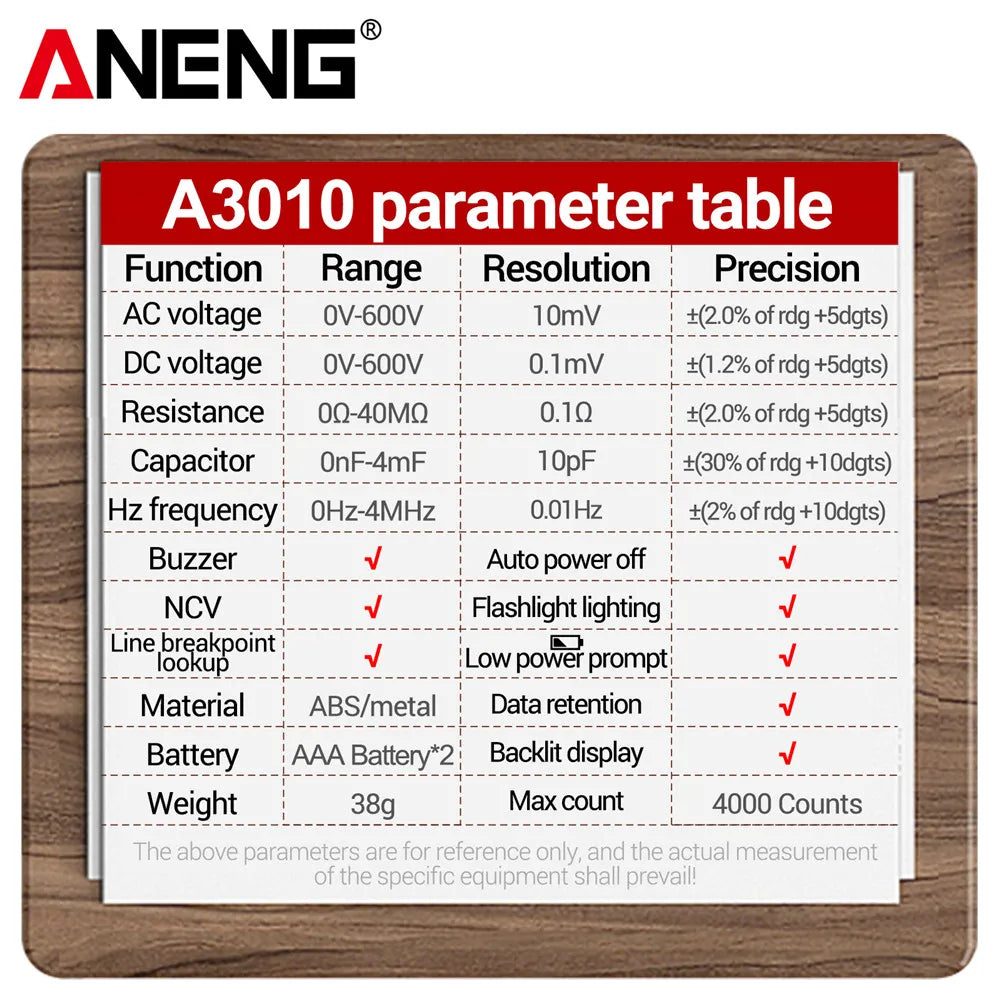

Specification:

Function	Range	Resolution	Accuracy
DC Voltage	4V/40V/400V	1mV/10mV/100mV	+-(1.0% of rdg +5 dgts)
	600V	1V	+-(1.2% of rdg +5 dgts)

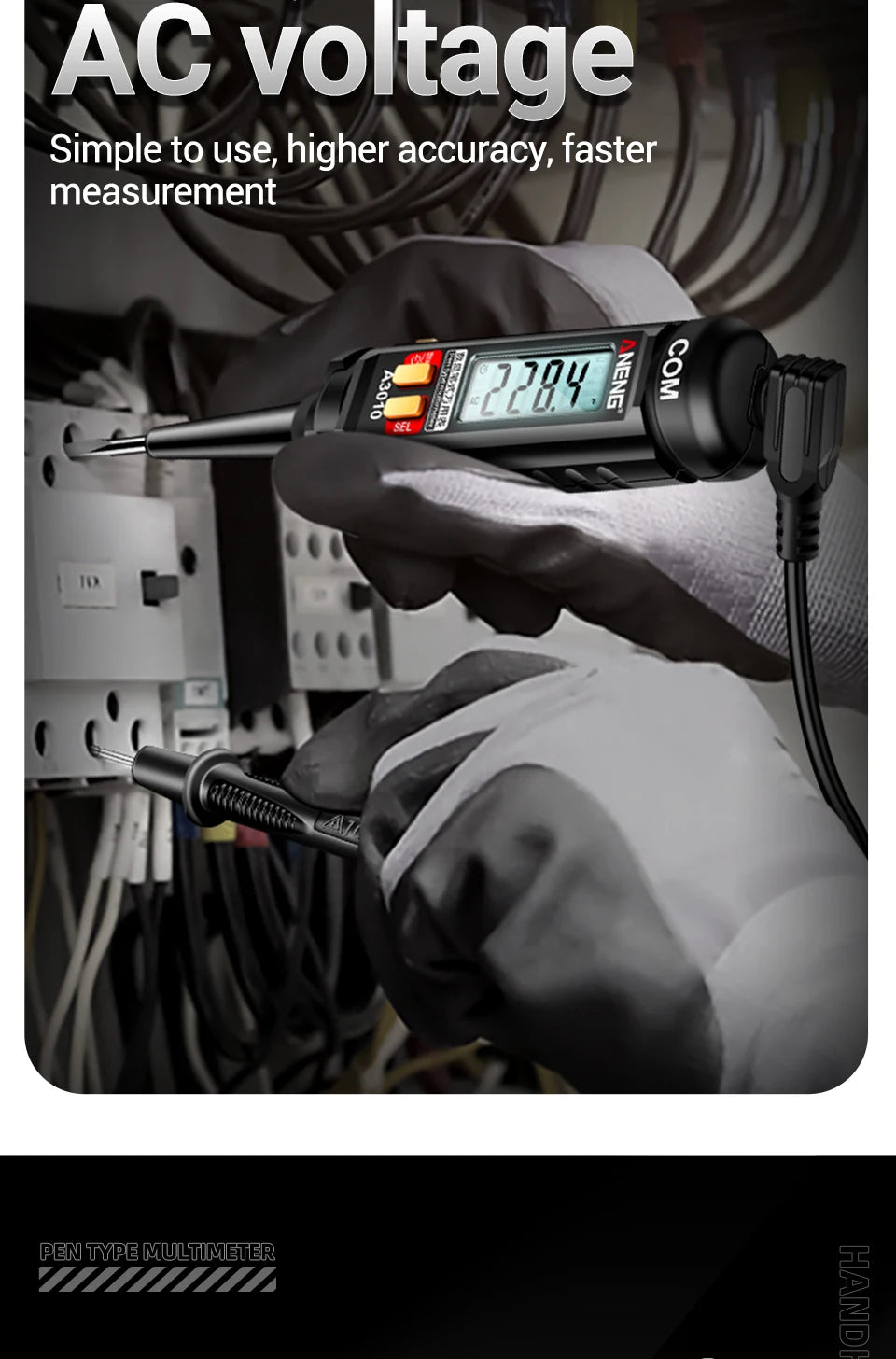

AC Voltage	4V/40V/400V	1mV/10mV/100mV	+-(1.5% of rdg +5 dgts)
	600V	1V	+-(2.0% of rdg +5 dgts)
Frequency	40Hz~4MHz	/	+-(2.0% of rdg +10 dgts)
Resistance	4KΩ	1Ω	+-(2.0% of rdg +10 dgts)
	40KΩ/400KΩ/4MΩ	10Ω/100Ω/1kΩ	+-(1.0% of rdg +5 dgts)
	40MΩ	10kΩ	+-(2.0% of rdg +5 dgts)
