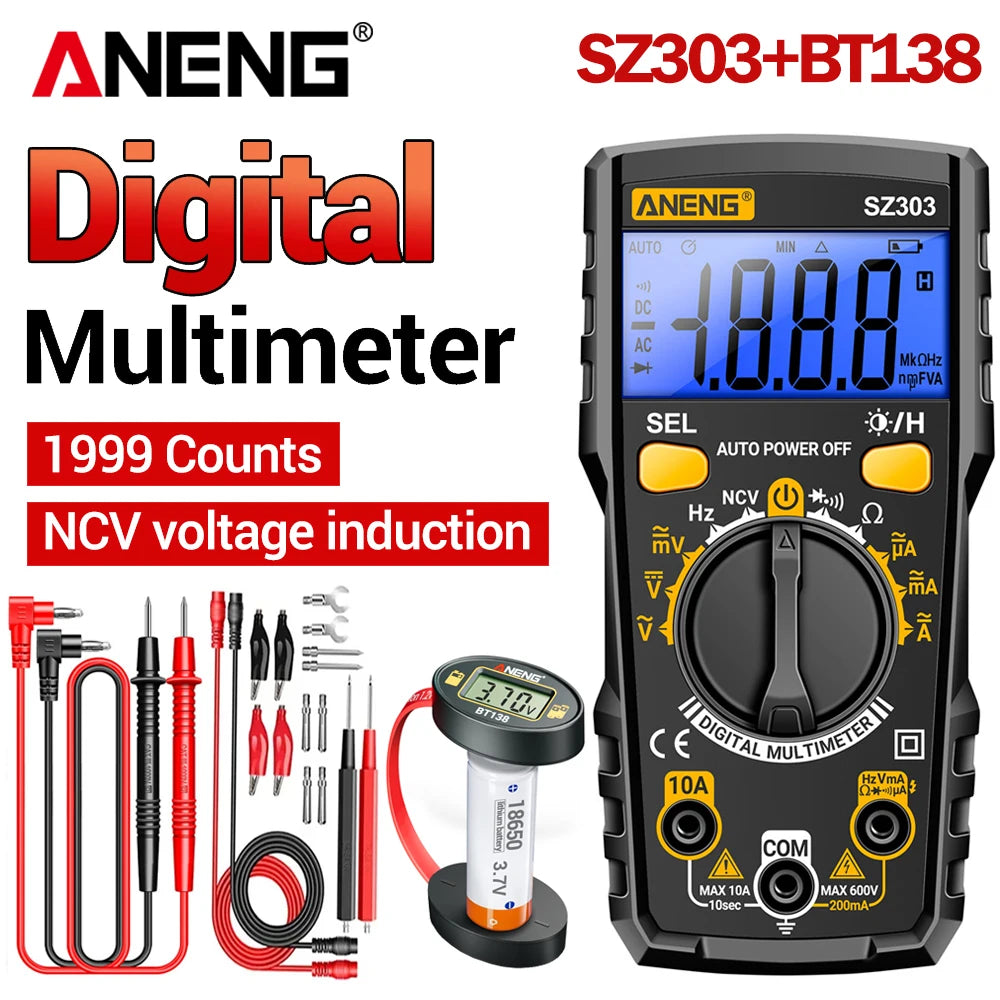

ANENG Digital Multimeter Professional Tester SZ303 AC/DC Voltage Resistance High Precision Professional Electrical Detection Too
ANENG Digital Multimeter Professional Tester SZ303 AC/DC Voltage Resistance High Precision Professional Electrical Detection Too
SPECIFICATIONS
AC Current: 200uA-10A
AC Voltage: 0mV-600V
ANENG Model: SZ303
Auto power off: 15 If there is no operation,it willautomatically shut down
Back support frame: Yes
Battery Included: No
Brand Name: ANENG
Buzzer: Yes
Certification: CE
Choice: yes
Color: Red/Black
DC Current: 200uA-10A
DC Voltage: 0mV-600V
DIY Supplies: Electrical
Diode: Yes
Display Type: Digital Display
High-concerned chemical: None
Material: ABS
Max count: 1999 counts
Measuring Capacitance Range: 0Ω-20MΩ
Model Number: SZ303 Multimeter
NCV: Yes
Operating Mode: Auto Range
Operating Temperature: 0 - 40 ℃
Origin: Mainland China
Weight: 99g

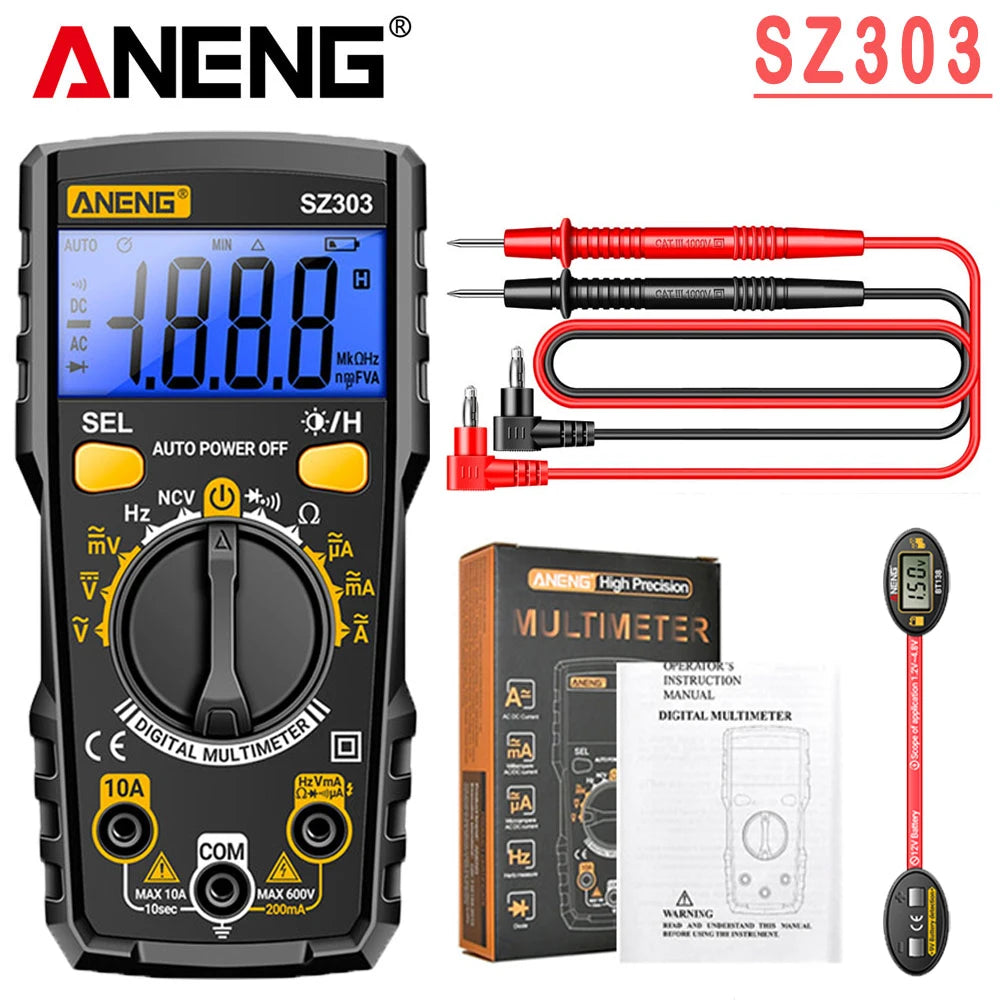

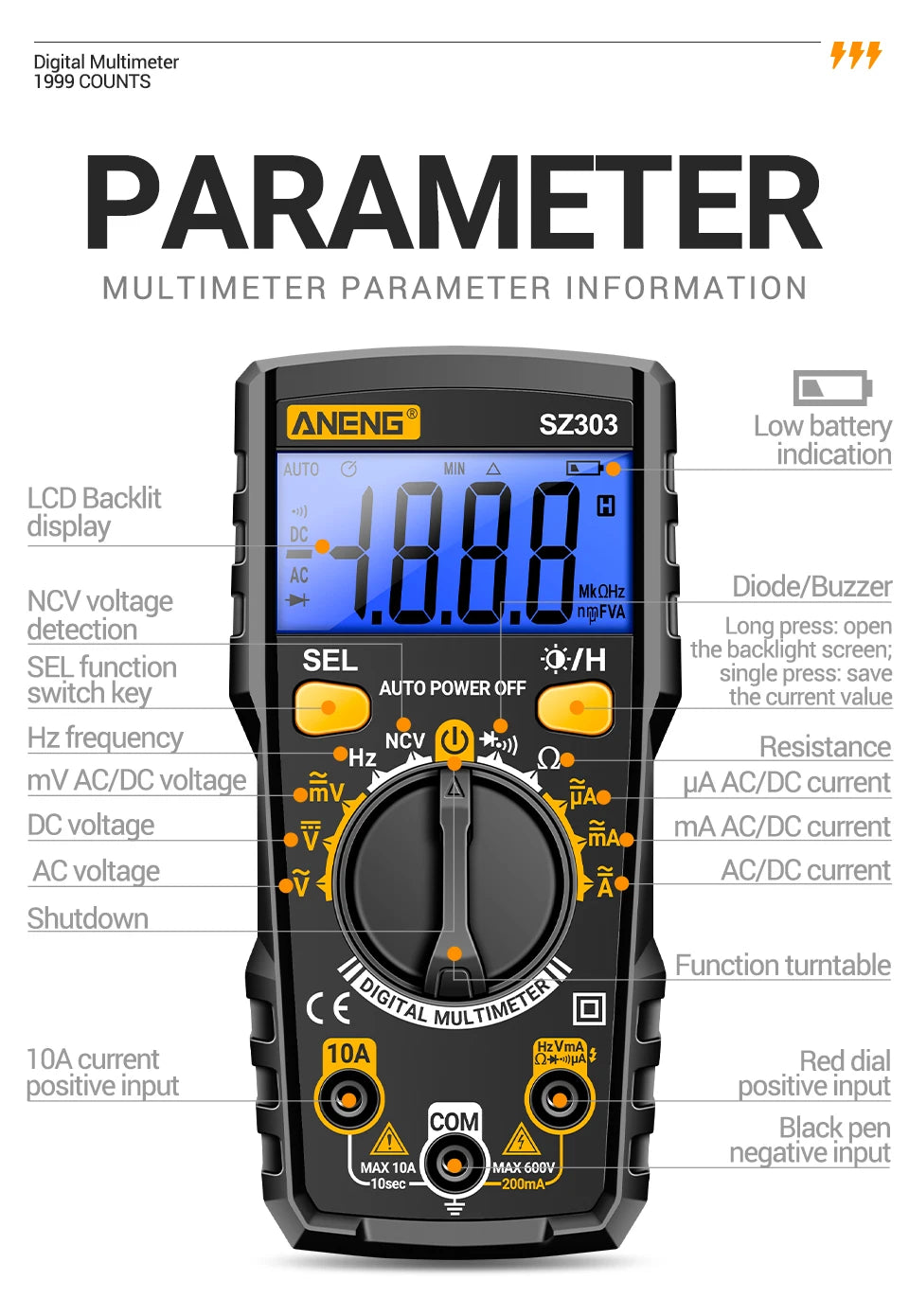

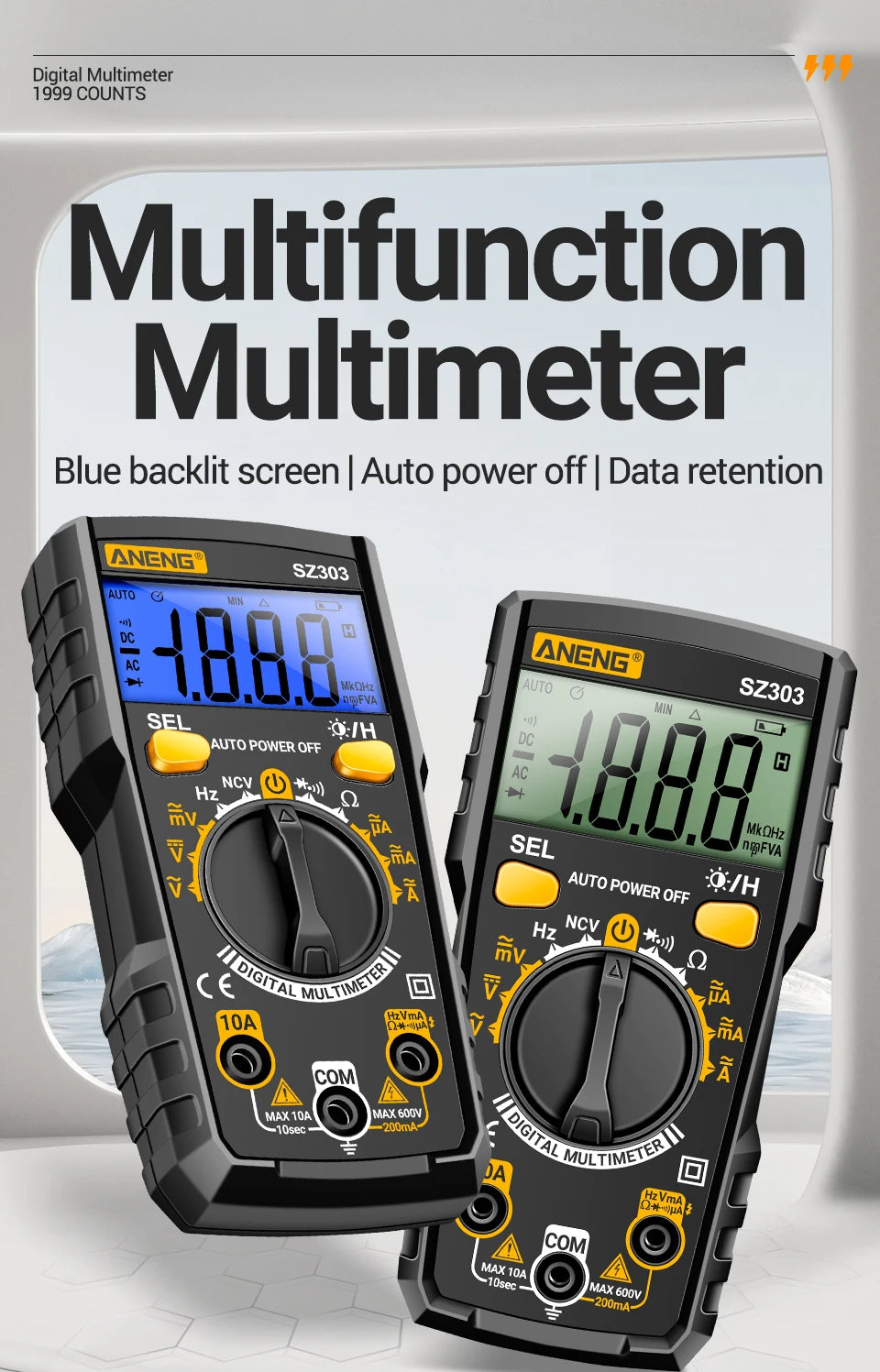

ANENG Digital Multimeter Professional Tester SZ303 AC/DC Voltage Current Resistance NCV Induction Backlit Screen High Precision Professional Electrical Detection Tools
Introduction ：
This digital multimeter is designed and produced in accordance with the safety requirements of the international work safety standard IEC-61010 for electronic measuring instruments and handheld digital multimeters.
Complies with the requirements of 600V CAT IV, 600V CAT III and pollution level 2 of IE61010. Before using this instrument, please carefully read the user manual and pay attention to relevant safety work guidelines.

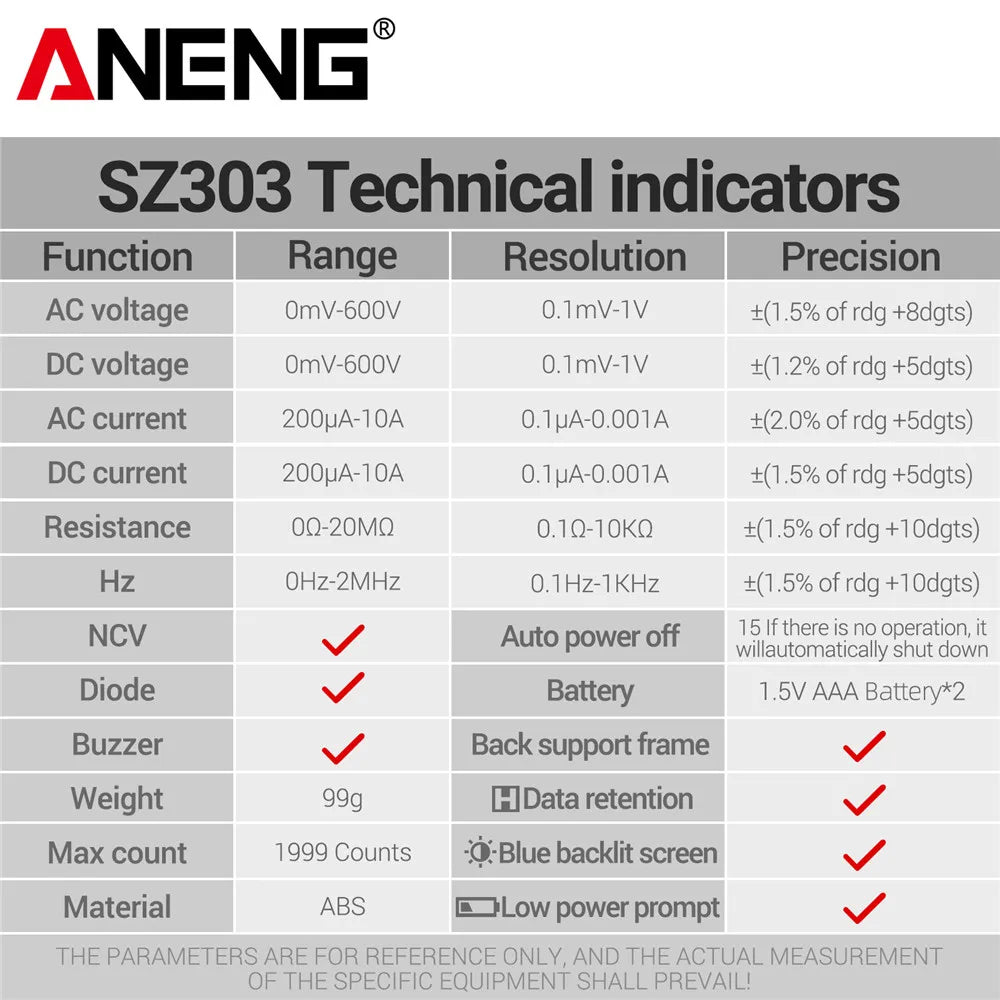

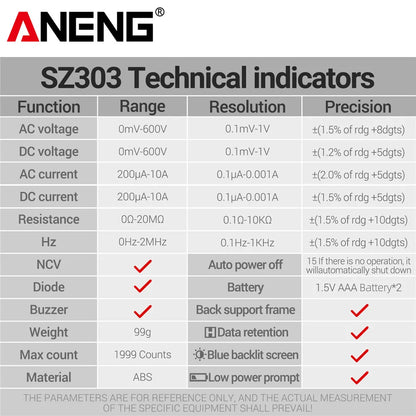

Feature:

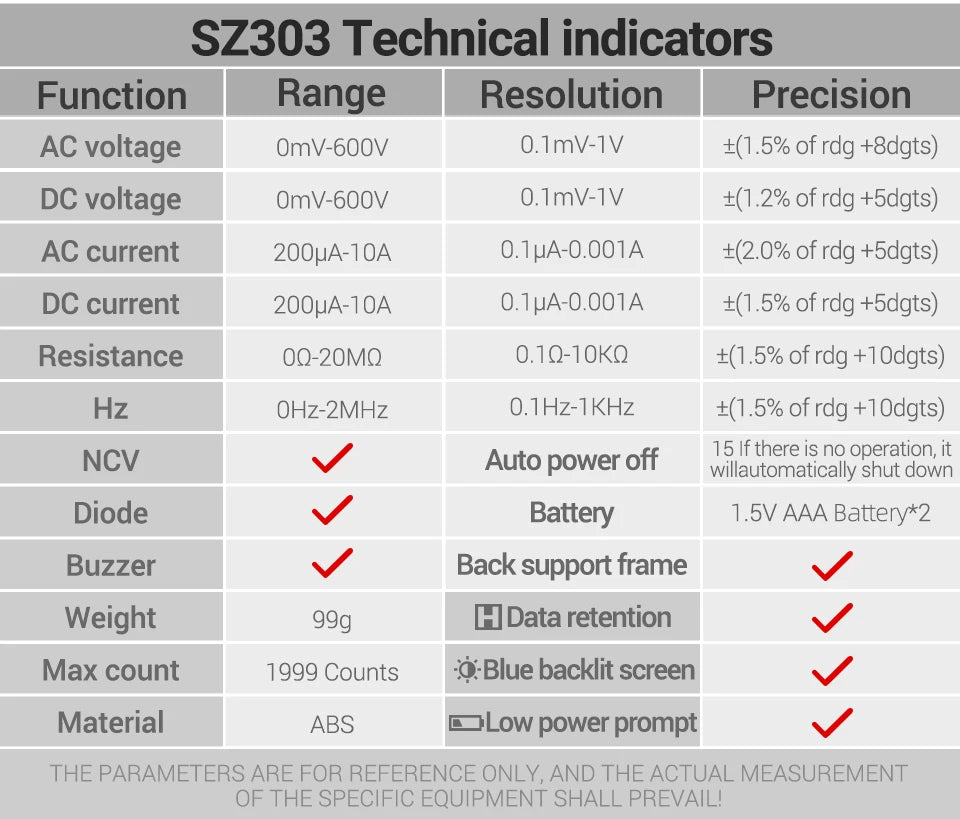

Function |
Range |
Resolution |
Precision |

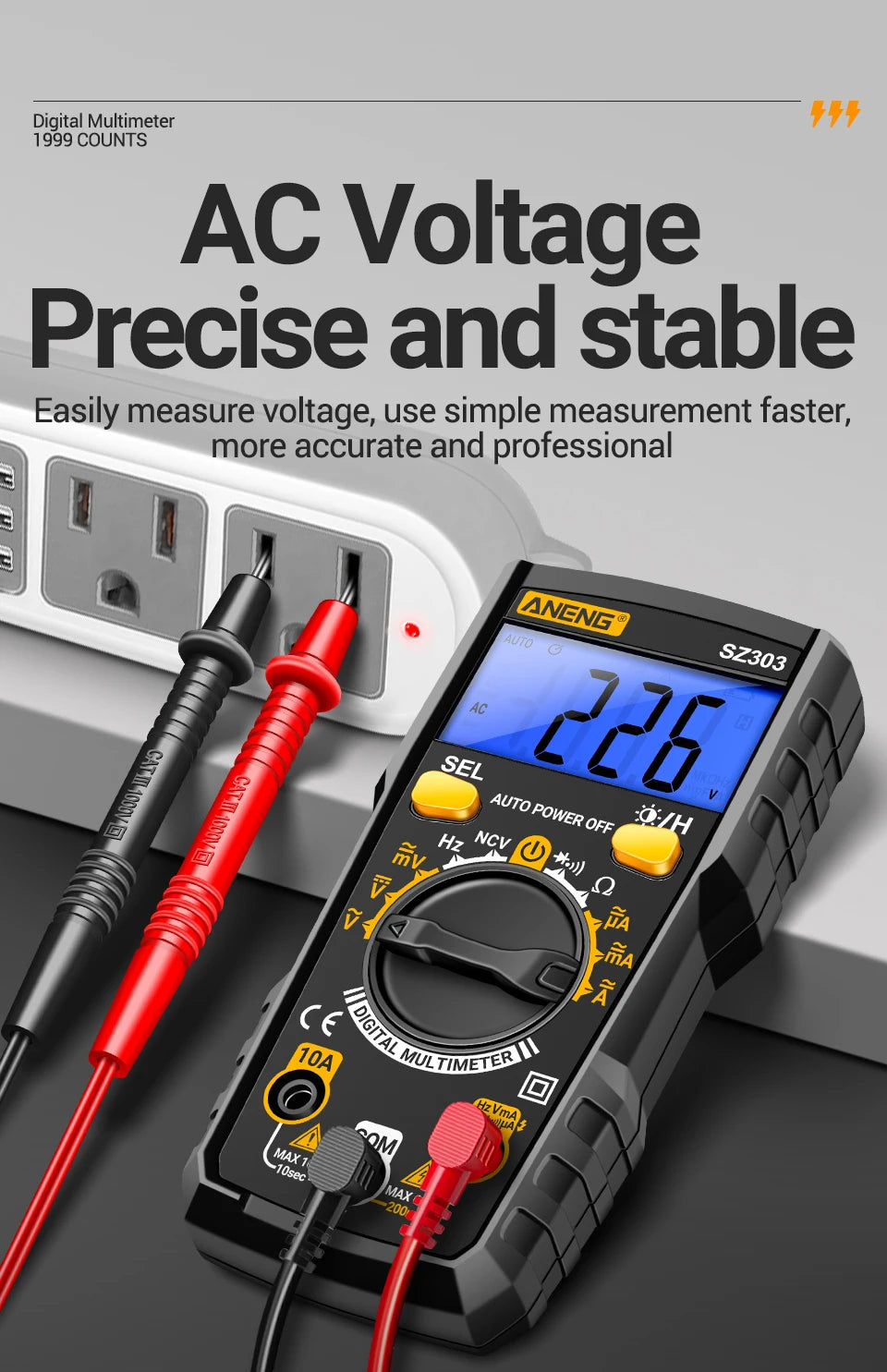

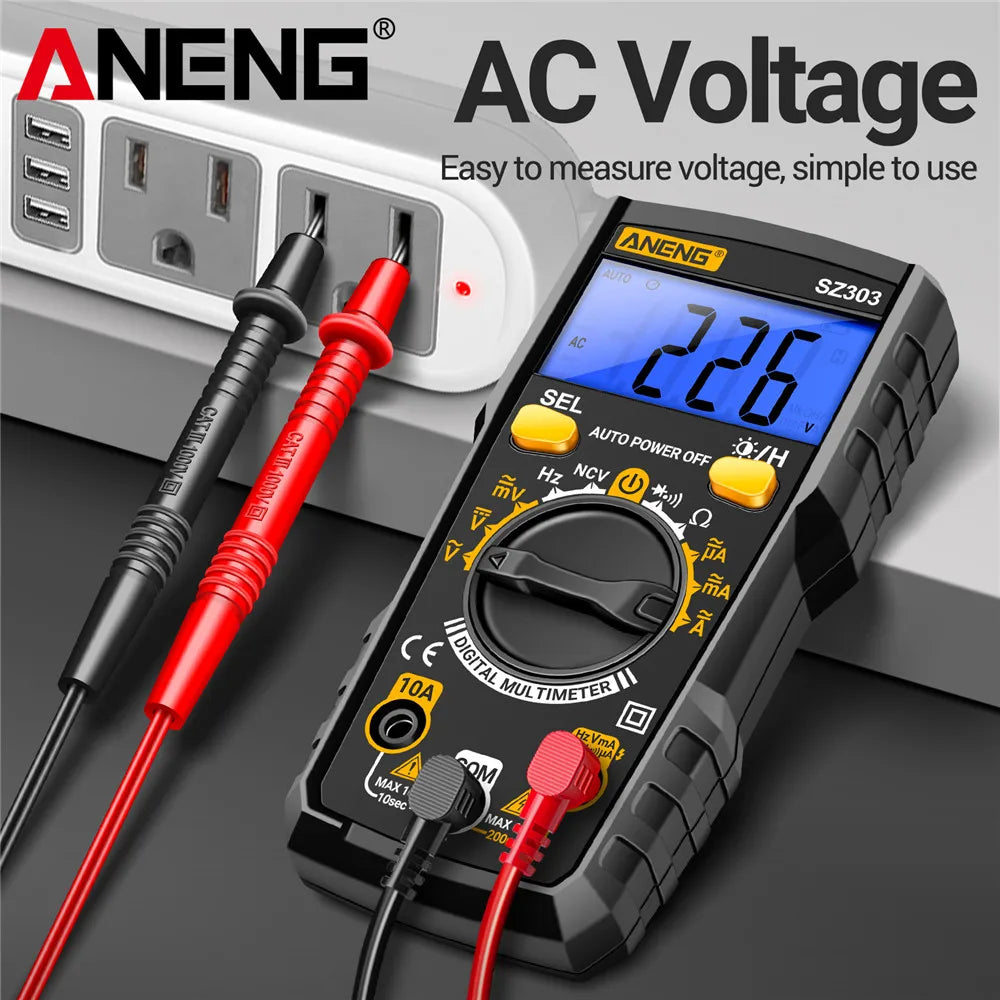

VC voltage |
0mV-600V |
0.1mV-1V |
±(1.5% of rdg +8dgts) |
DC voltage |
0mV-600V |
0.1mV-1V |
±(1.2% of rdg +5dgts) |

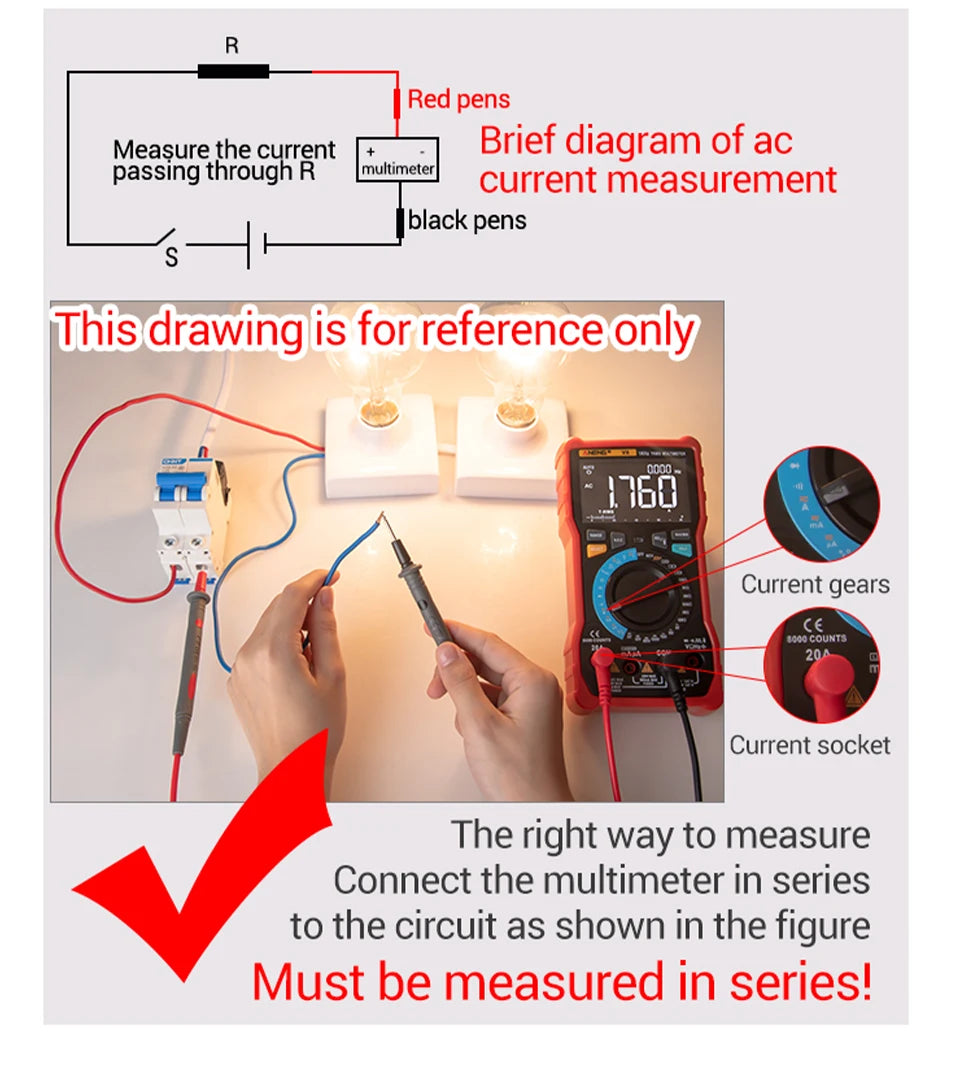

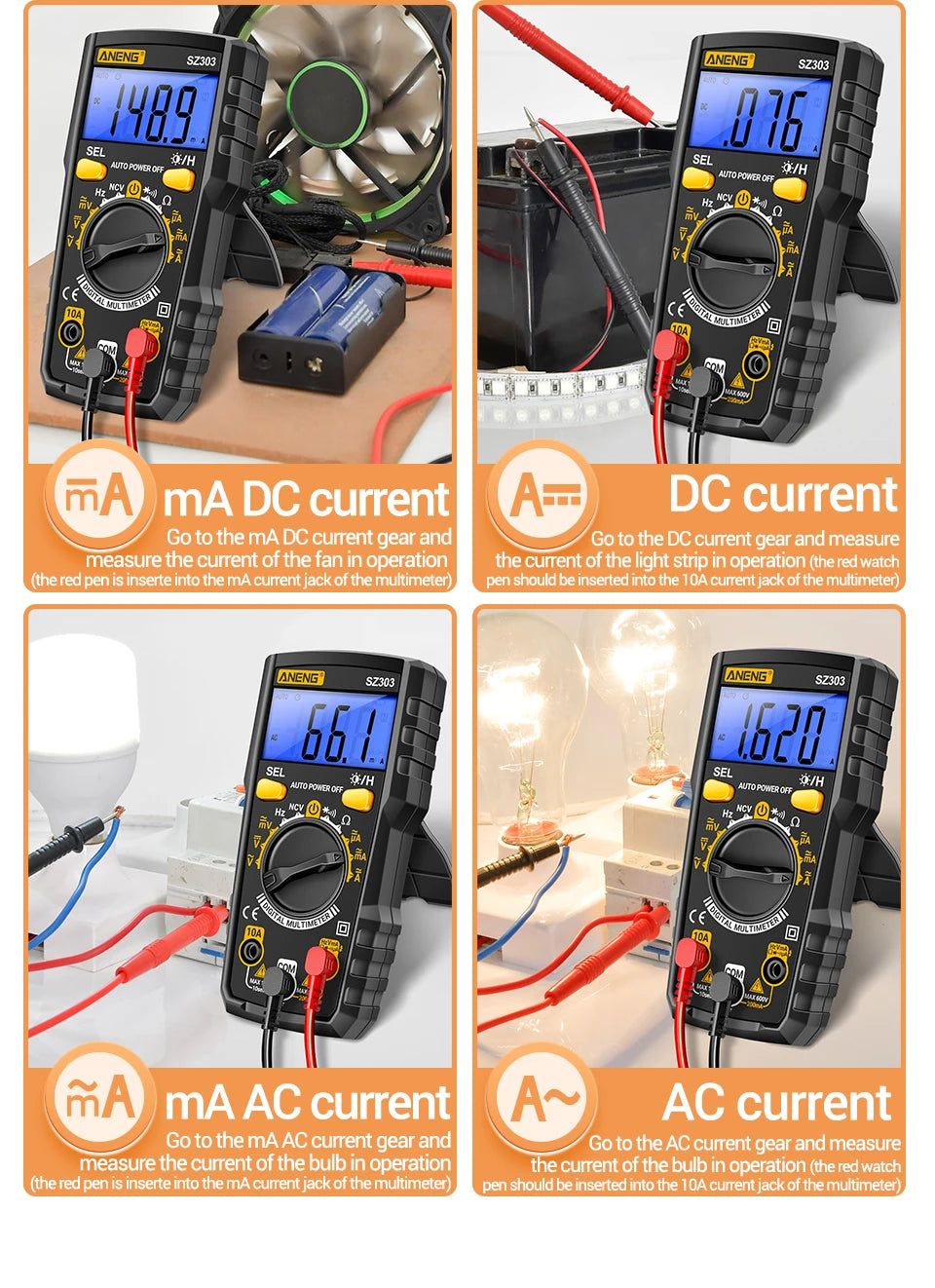

AC current |
200μA-10A |
0.1μA-0.001A |
±2.0% of rdg +5dgts) |
DC current |
200μA-10A |
0.1μA-0.001A |
±(1.5% of rdg +5dgts) |
Resistance |
0Ω-20MΩ |
0.1Ω-10KΩ |
±(1.5% of rdg +10dgts) |

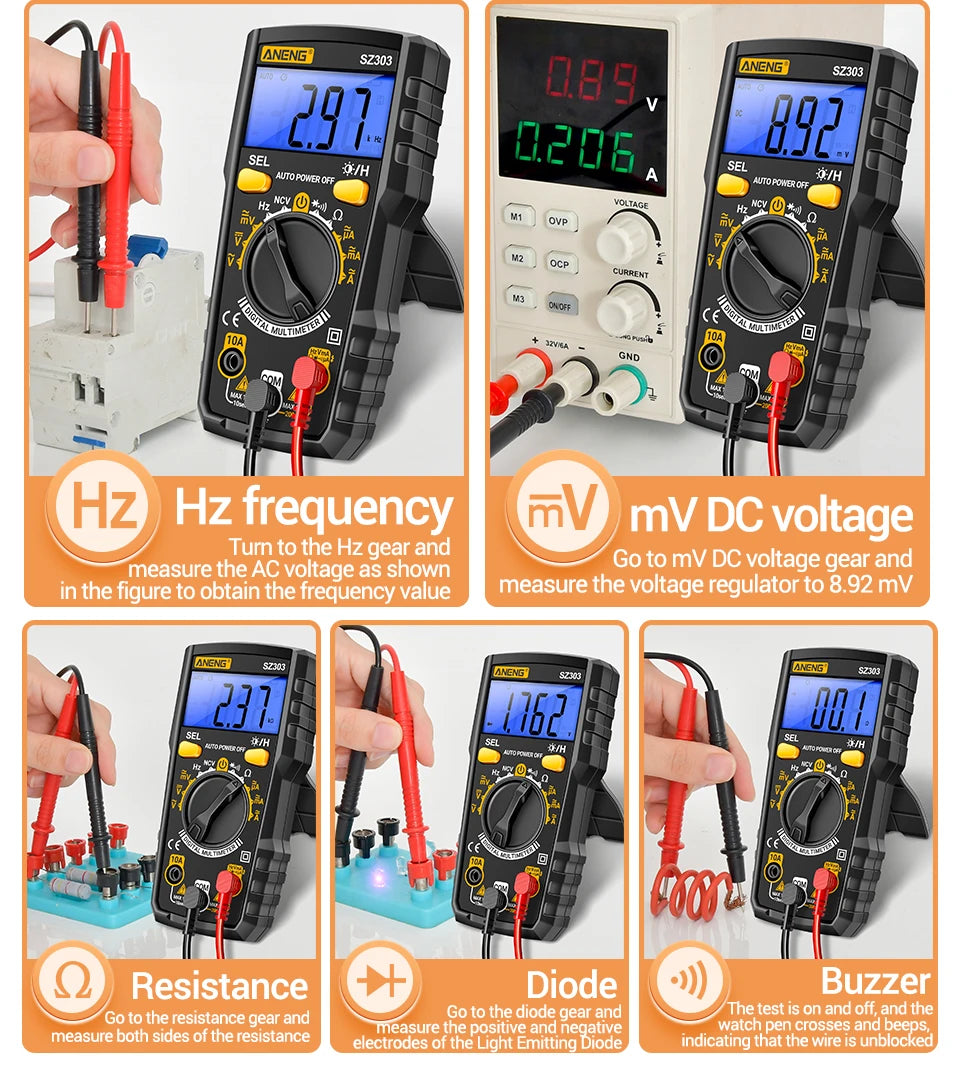

Hz |
0Hz-2MHz |
0.1HZ-1KHZ |
±(1.5% of rdg +10dgts) |

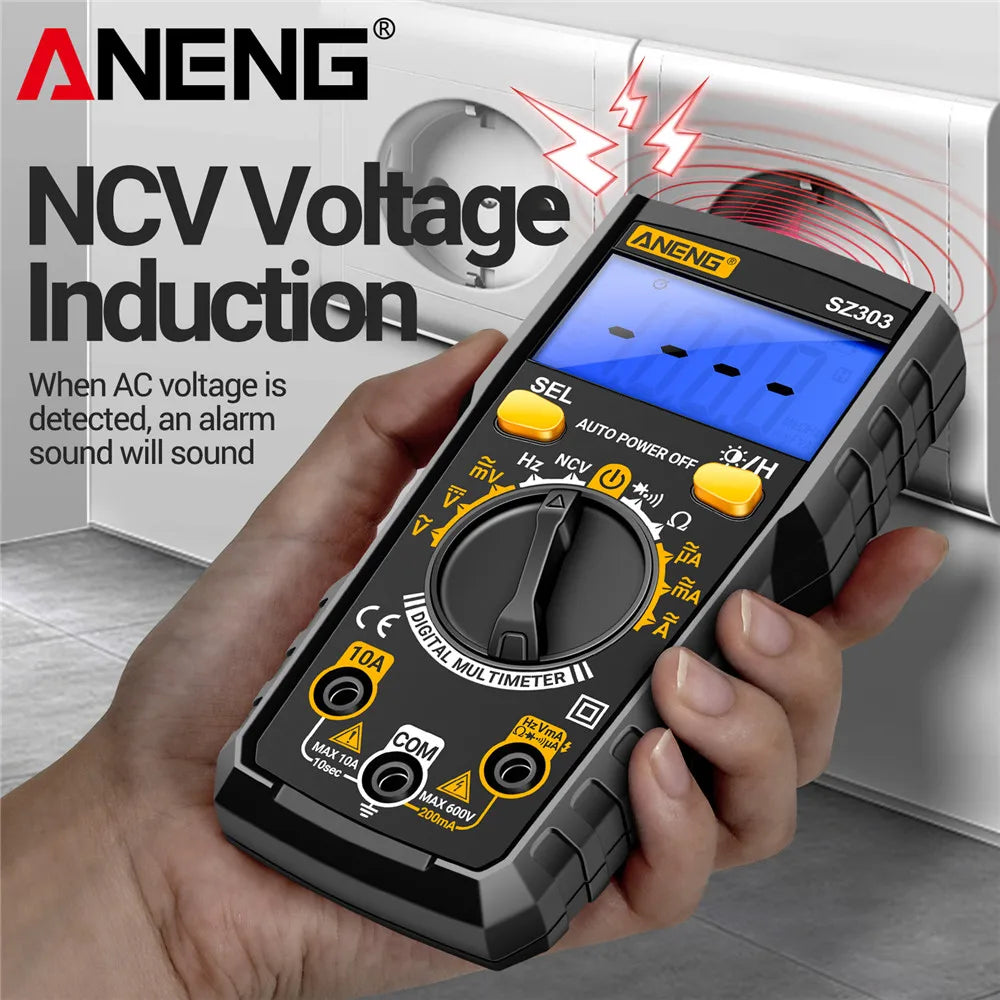

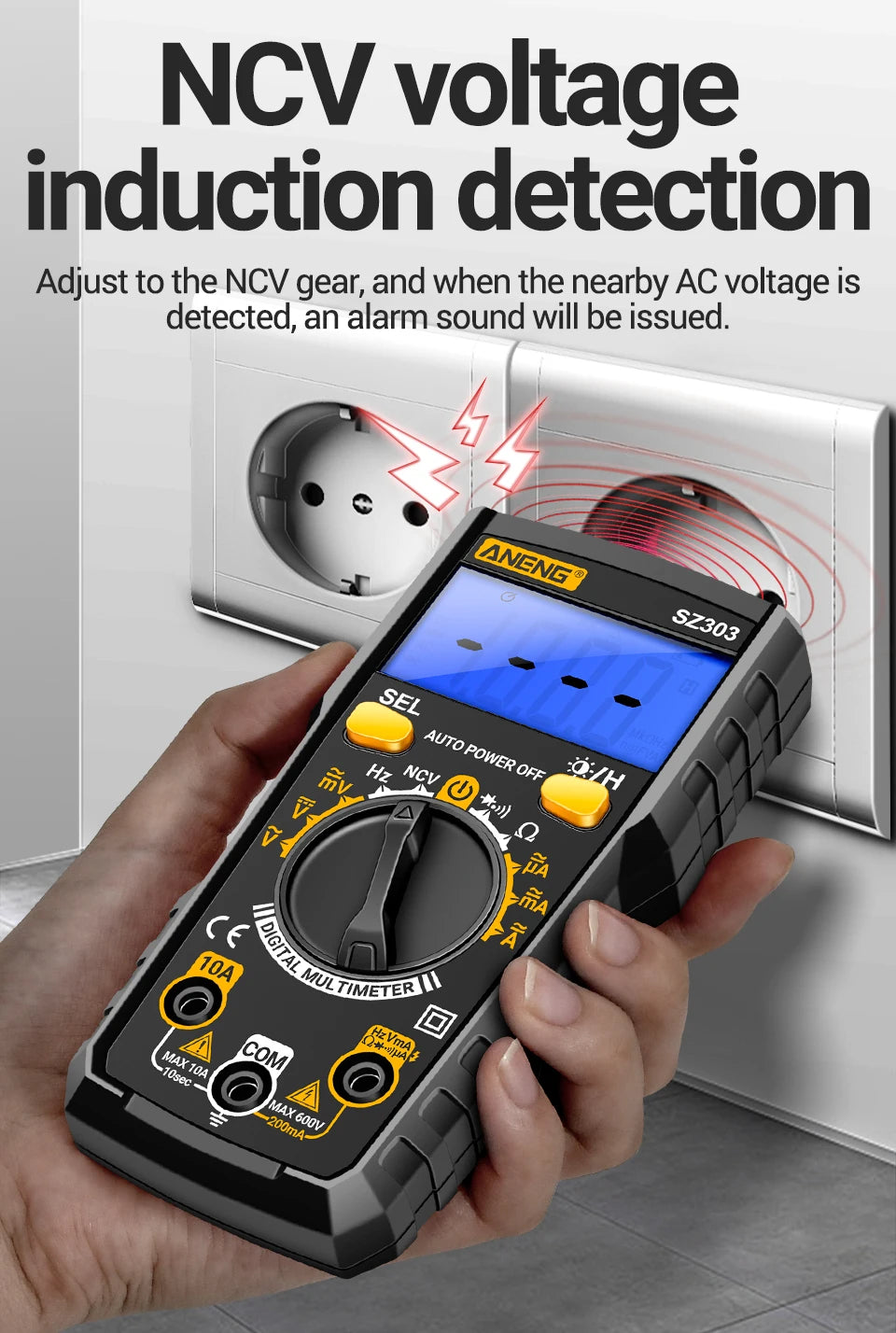

NCV |
√ |
Auto power off |
15 lf there is no operation, itwillautomatically shut down |
Diode |
√ |

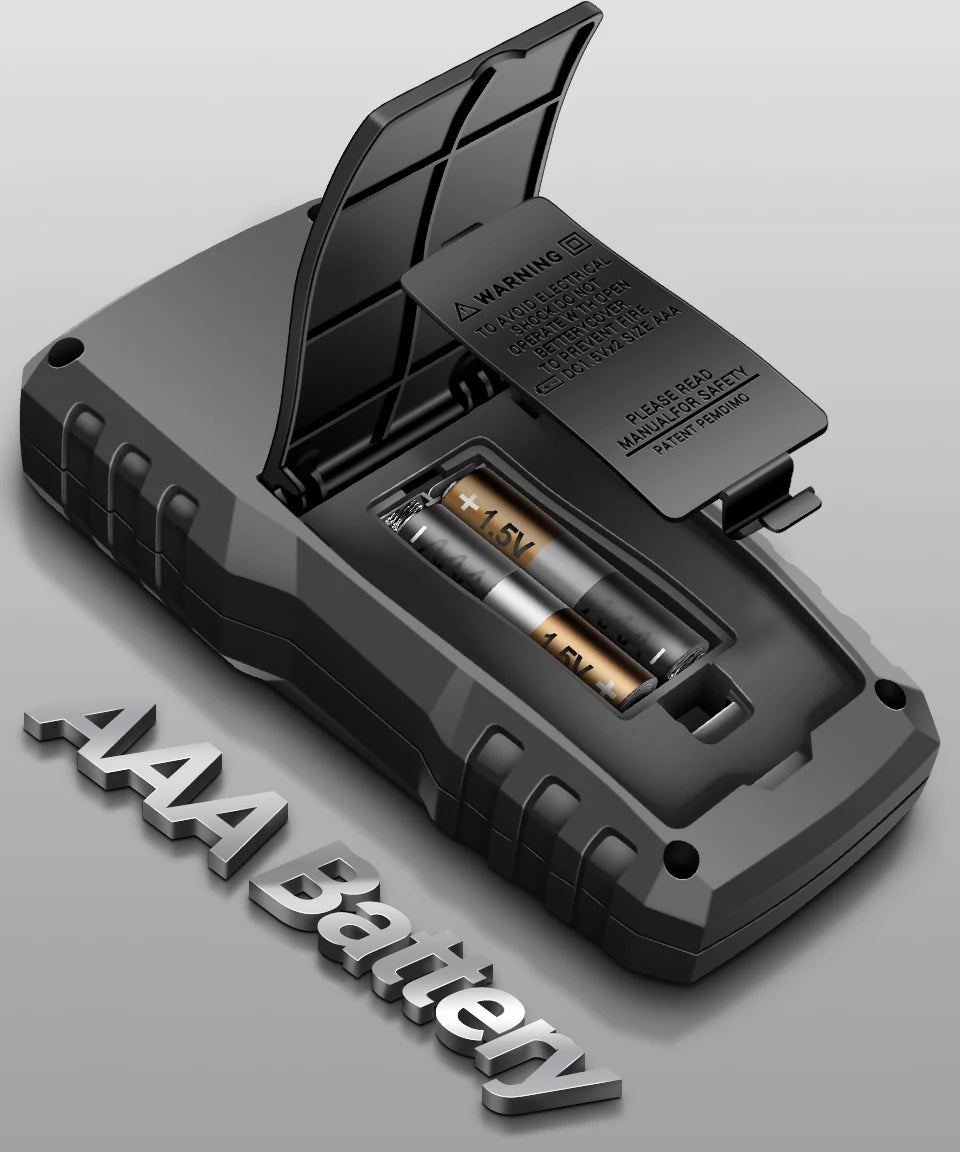

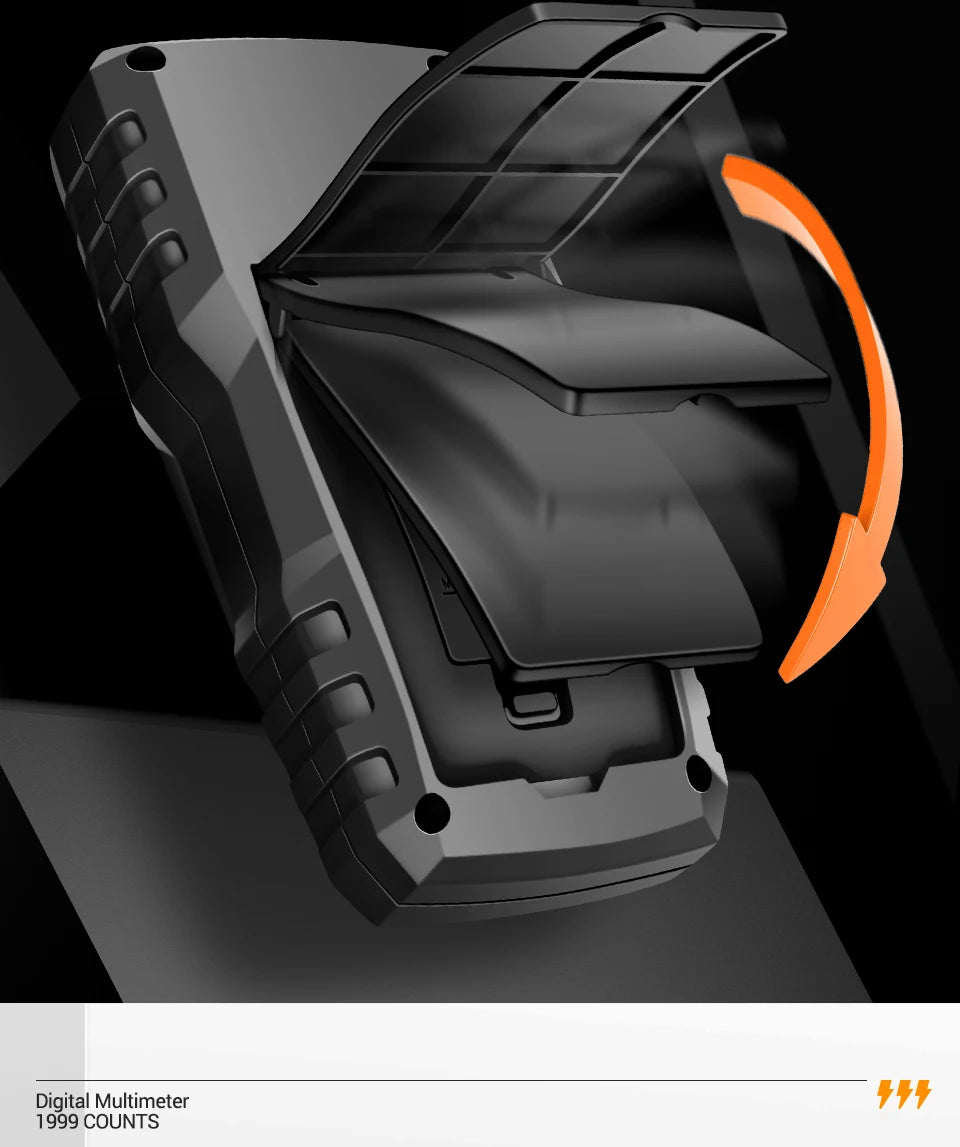

Battery |
1.5V AAA Battery*2(without shipment) |
Buzzer |
√ |
Back support frame |
√ |
Weight |
99g |

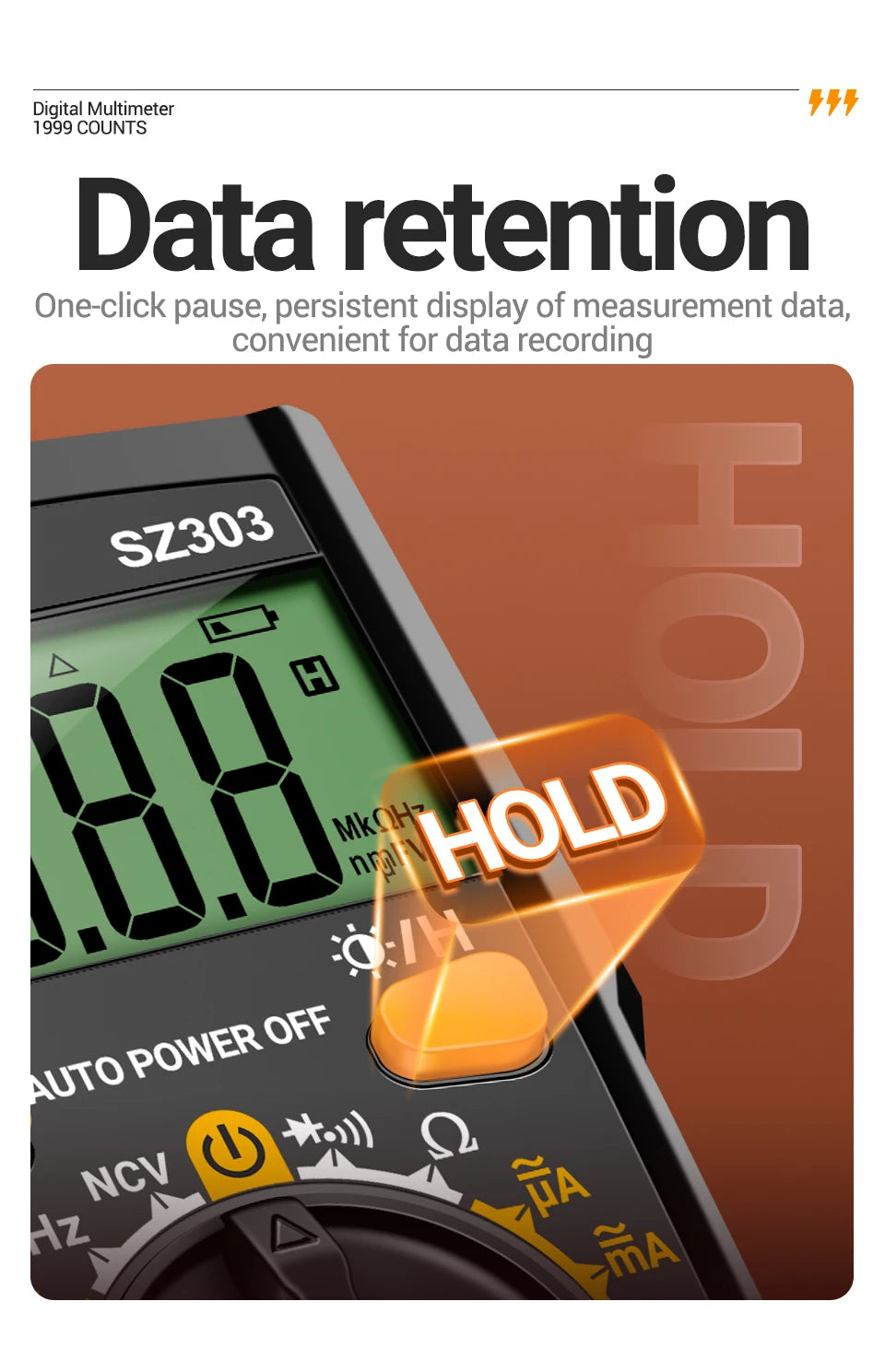

Data retention |
√ |
Max count |
1999 Counts |

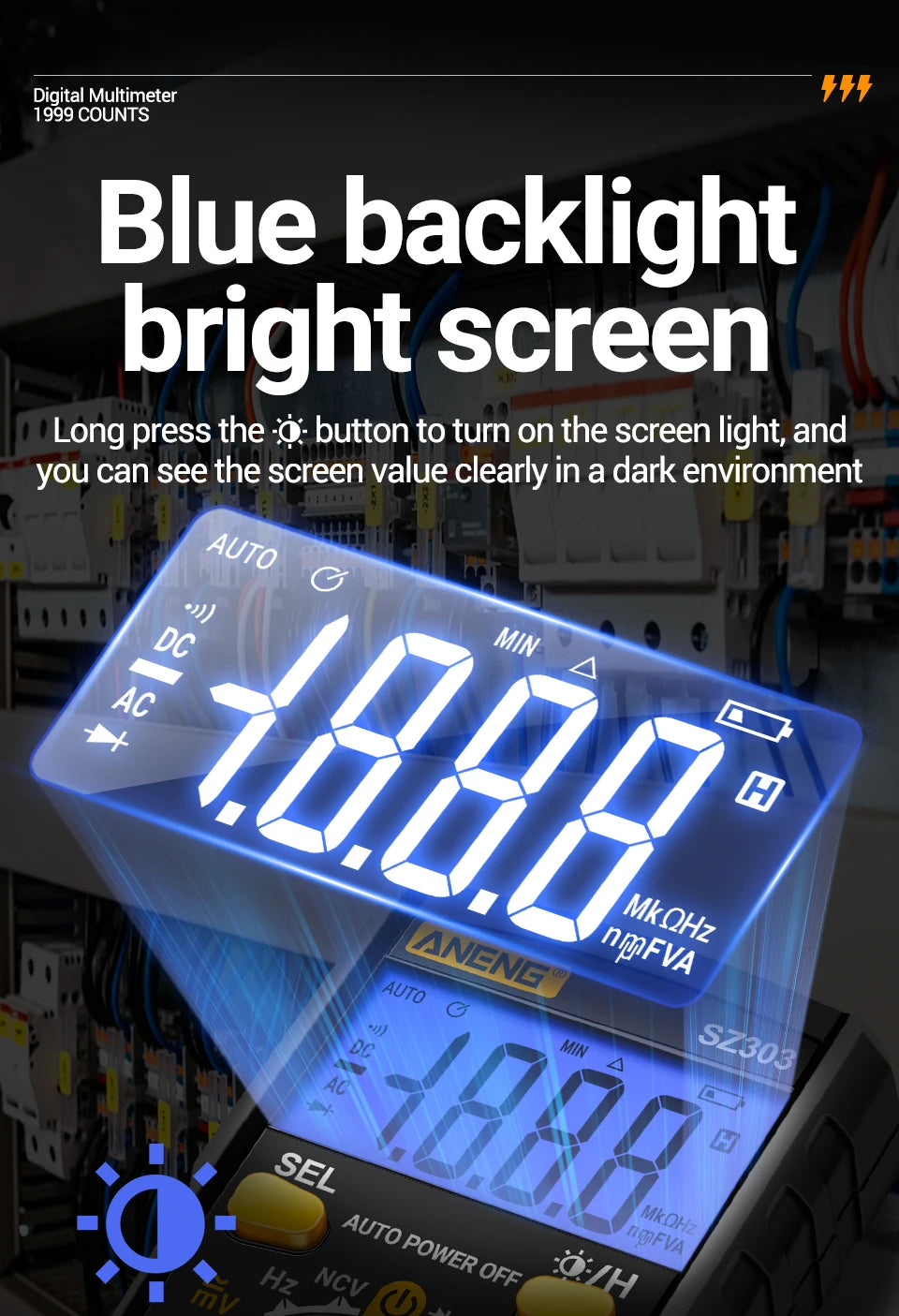

Blue backlit screen |
√ |
Material |
ABS |
Low power prompt |
√ |

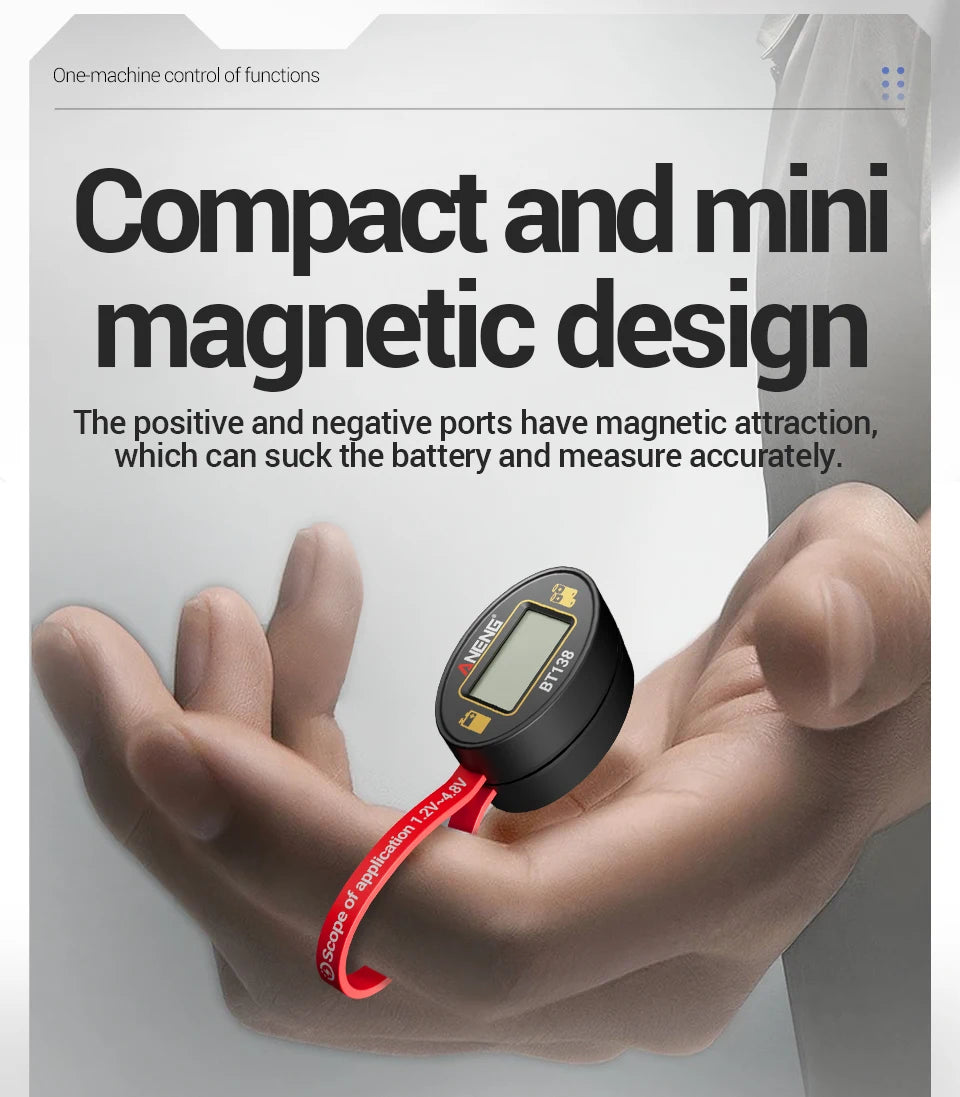

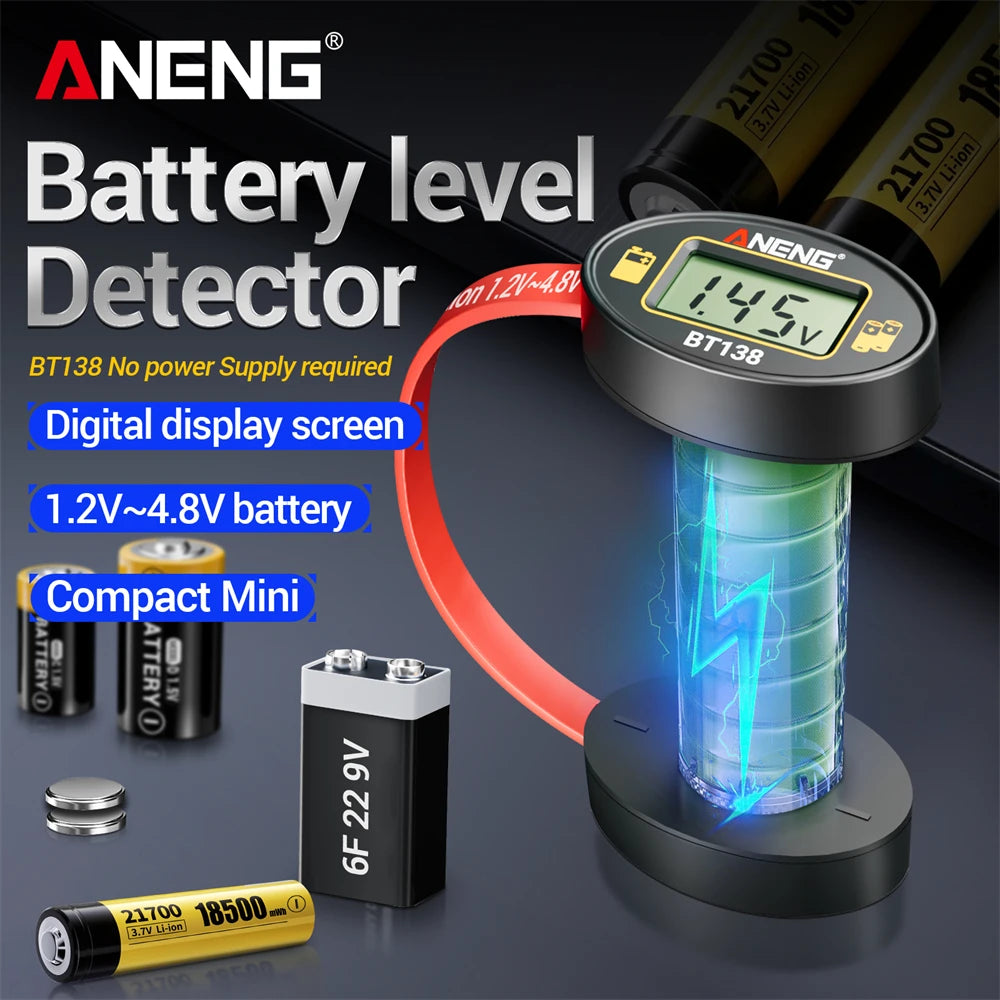

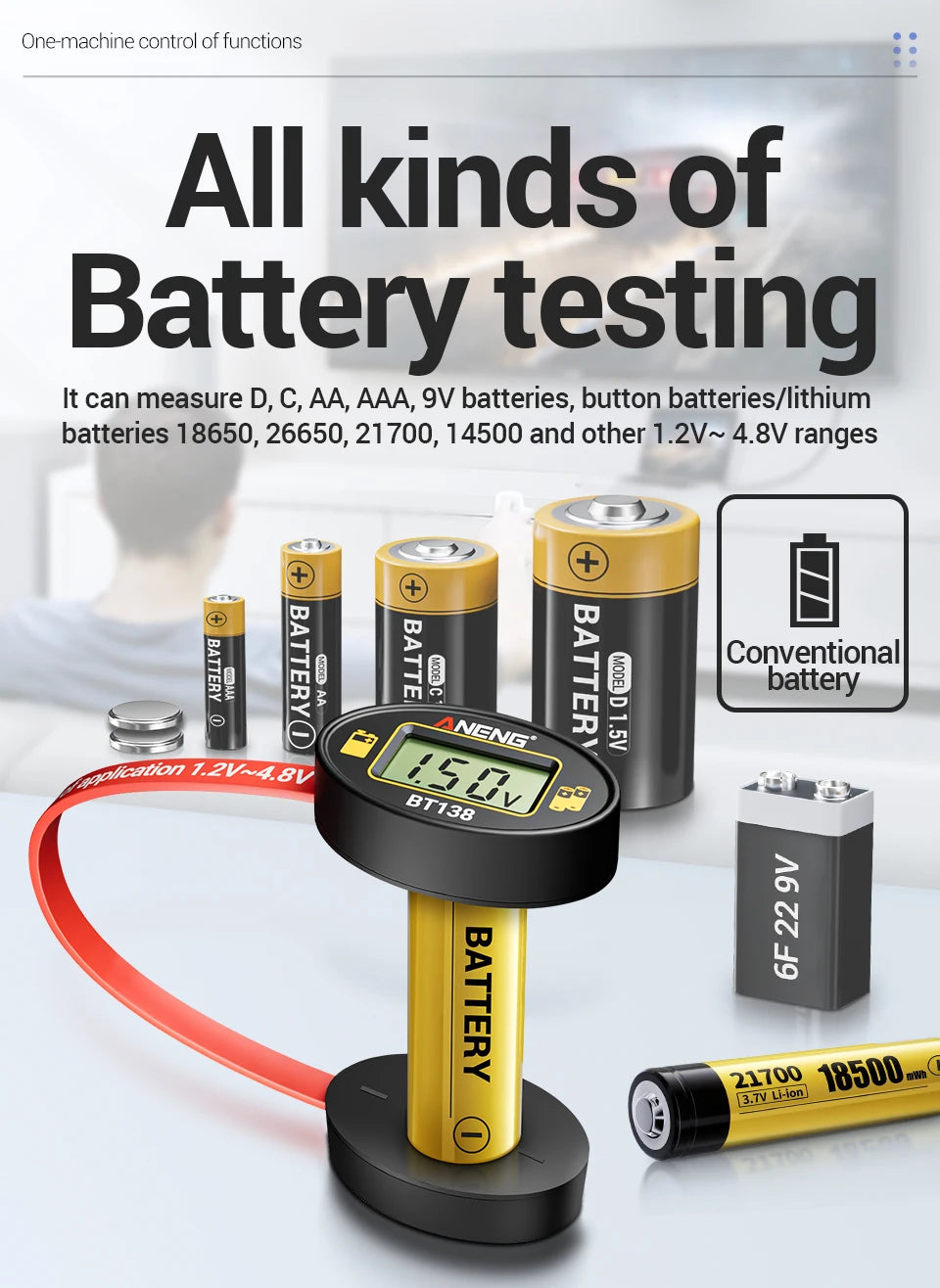

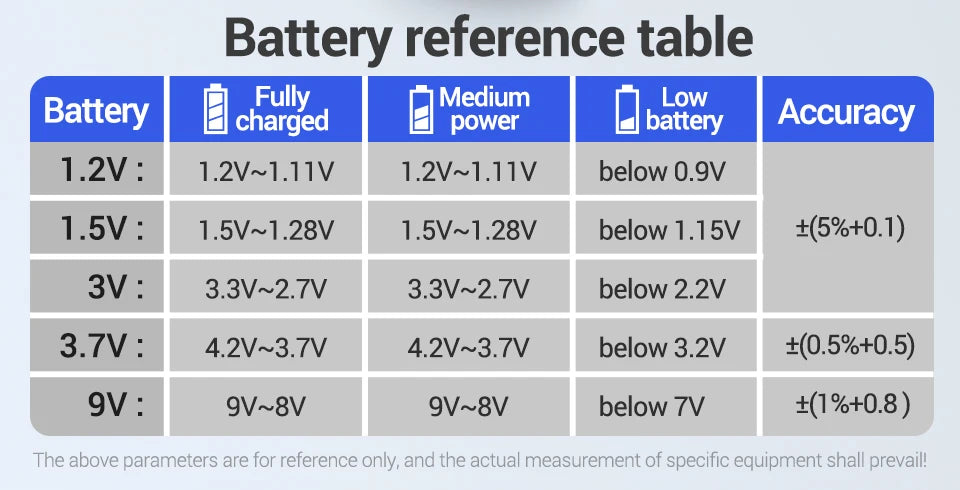

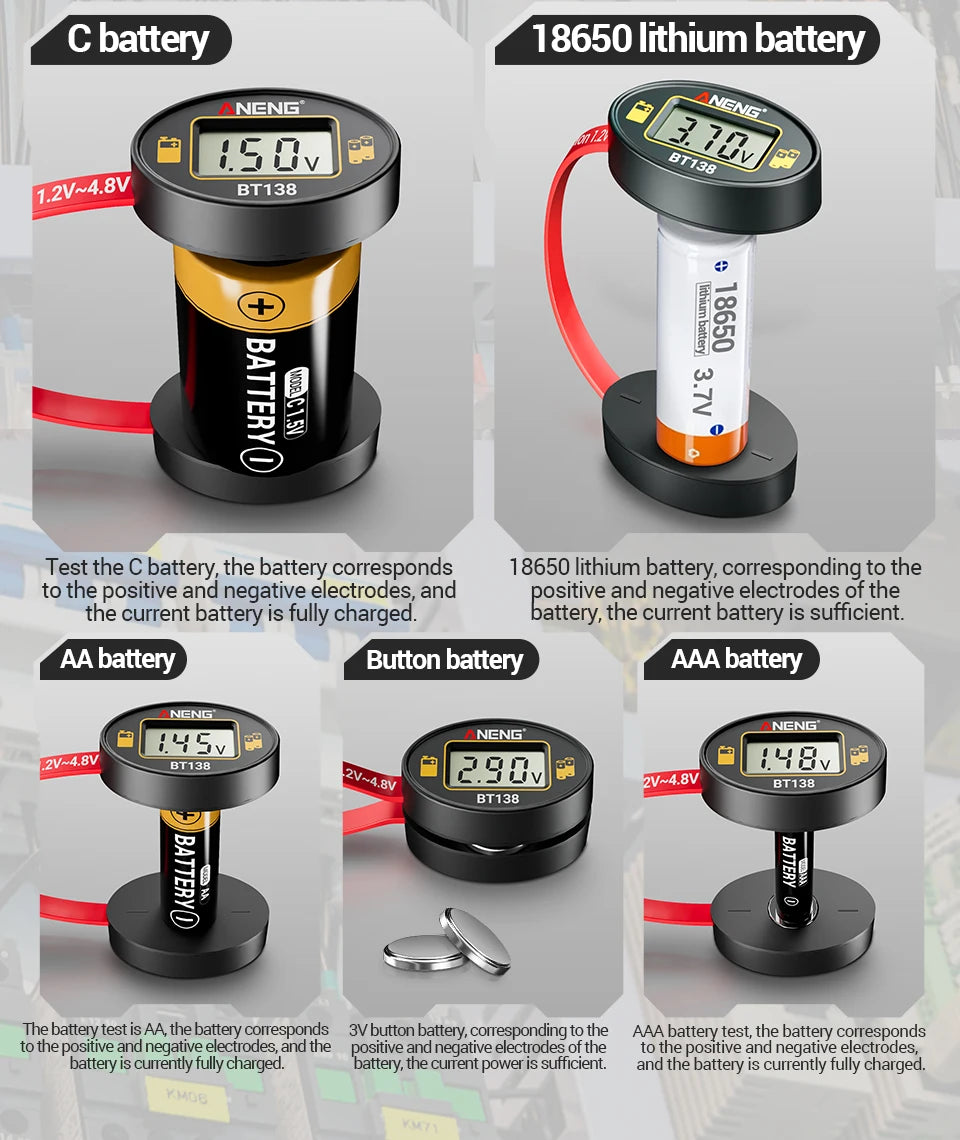

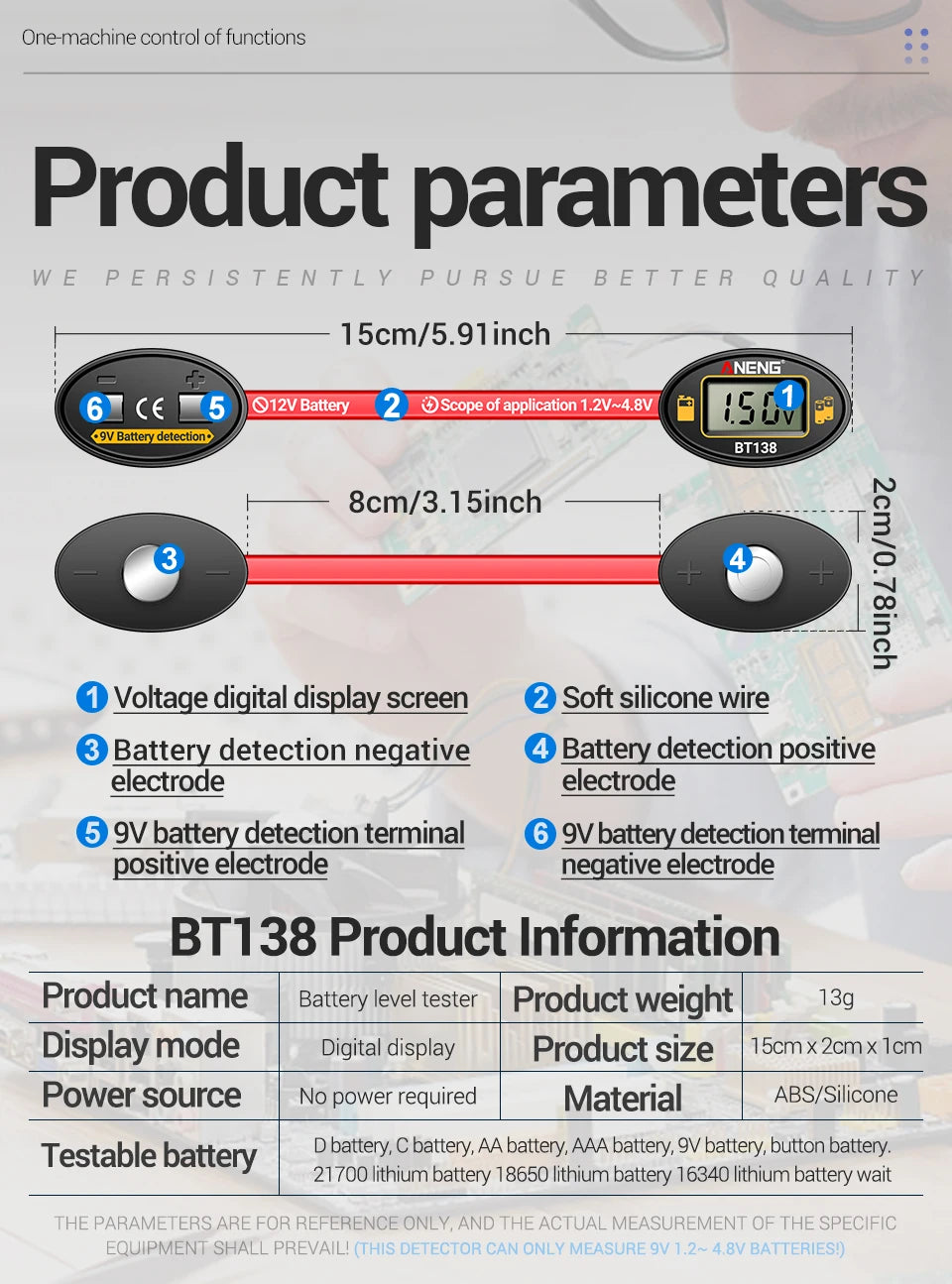

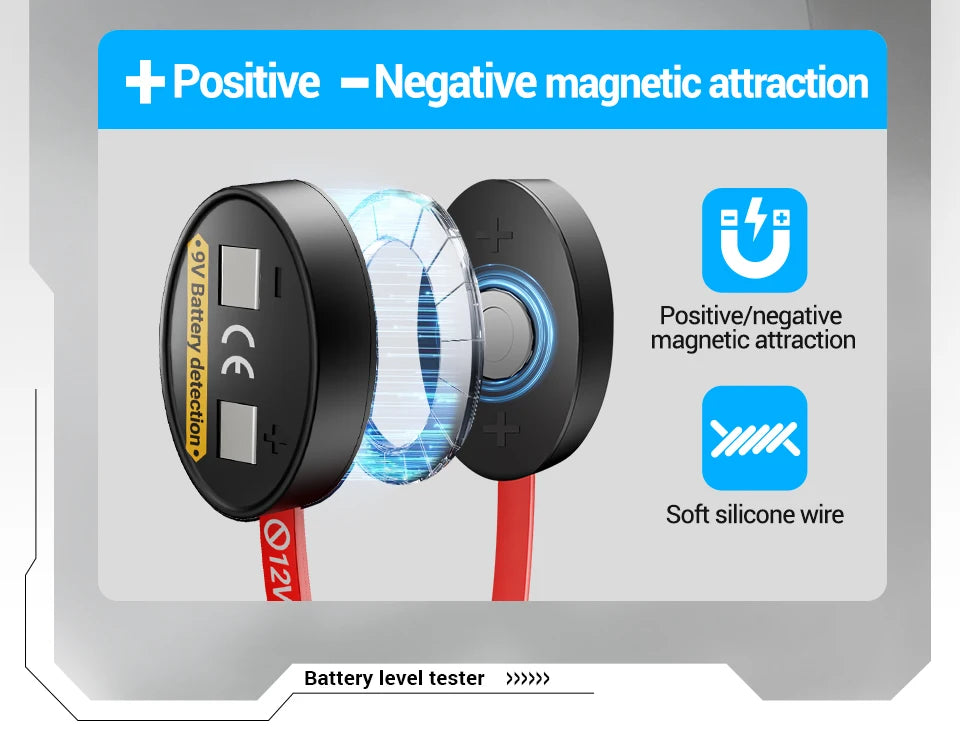

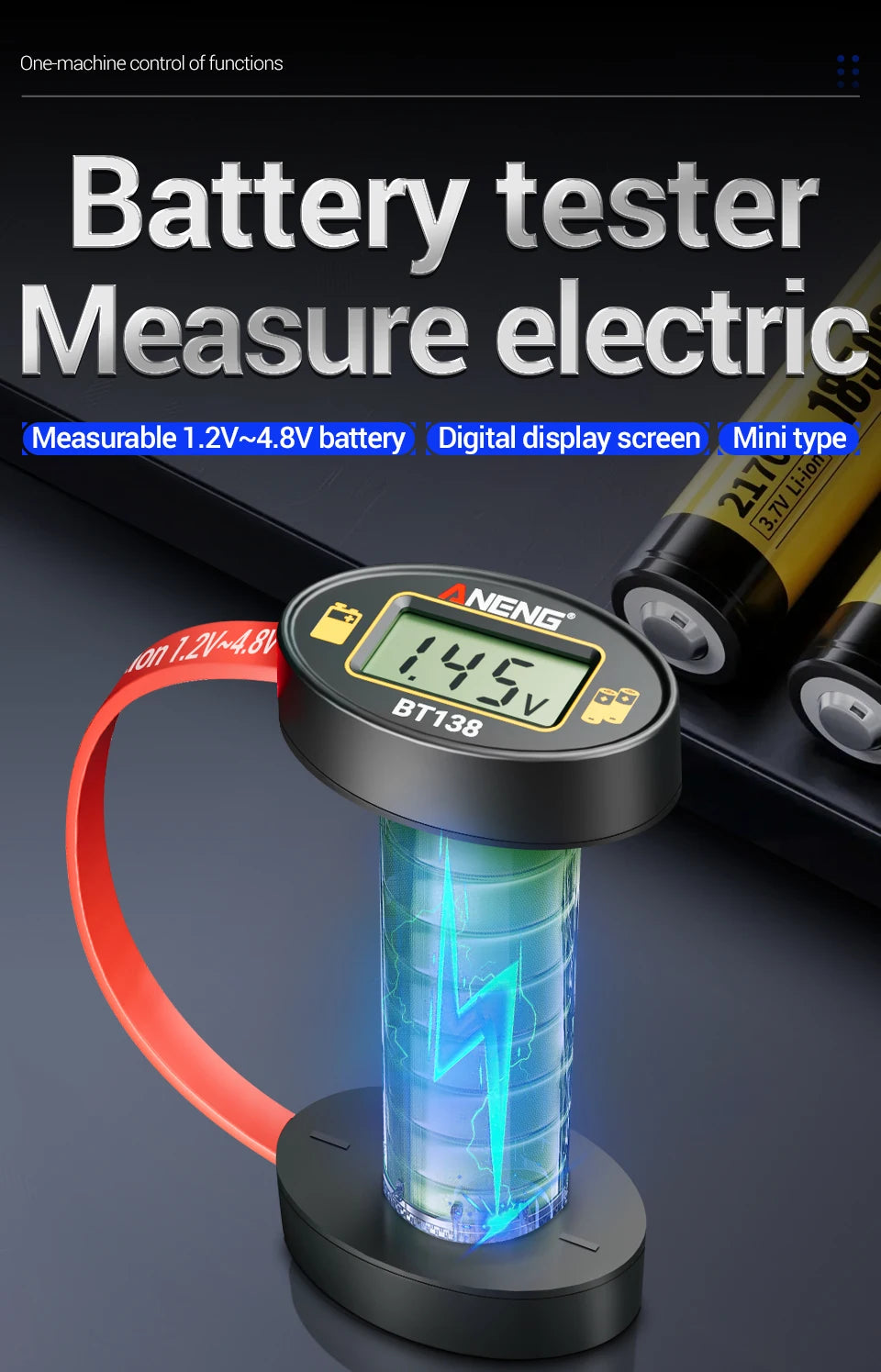

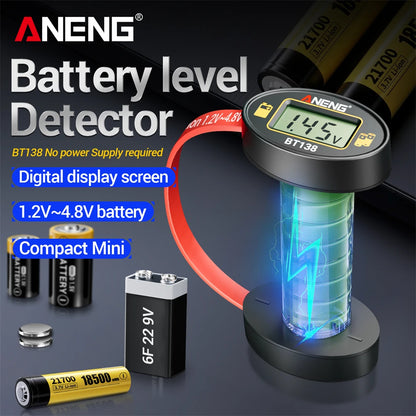

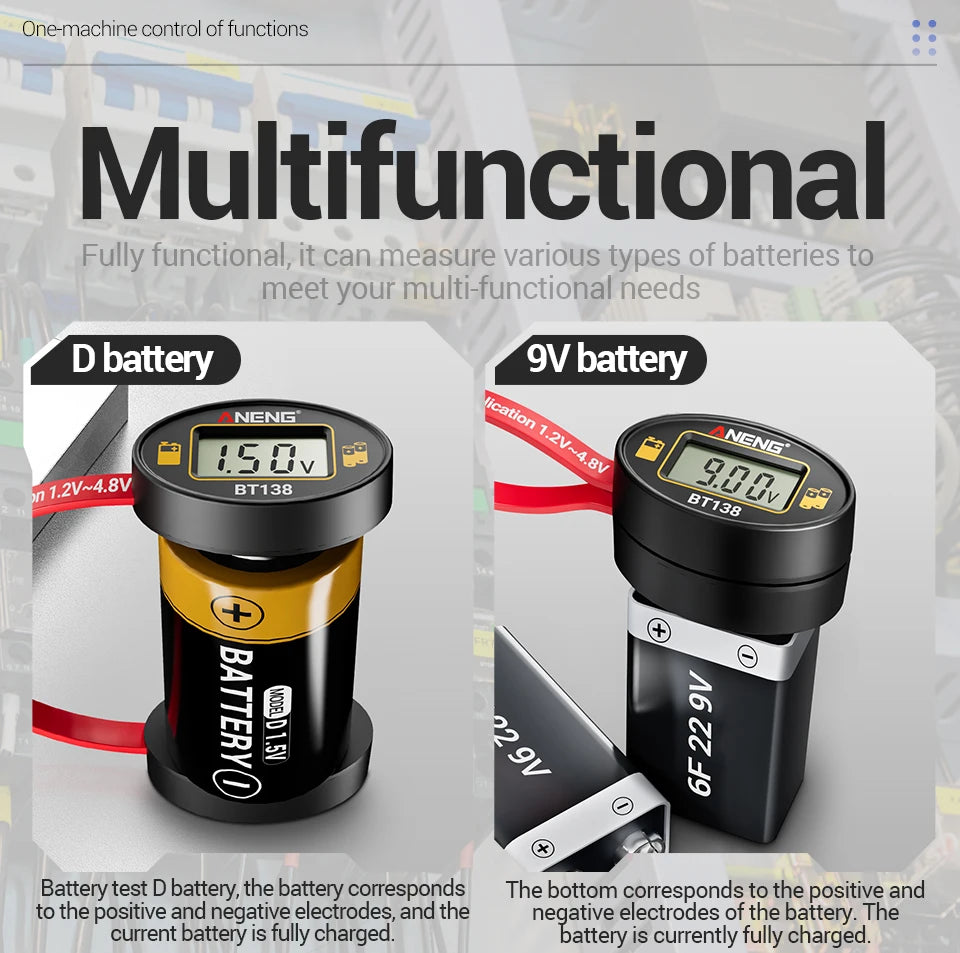

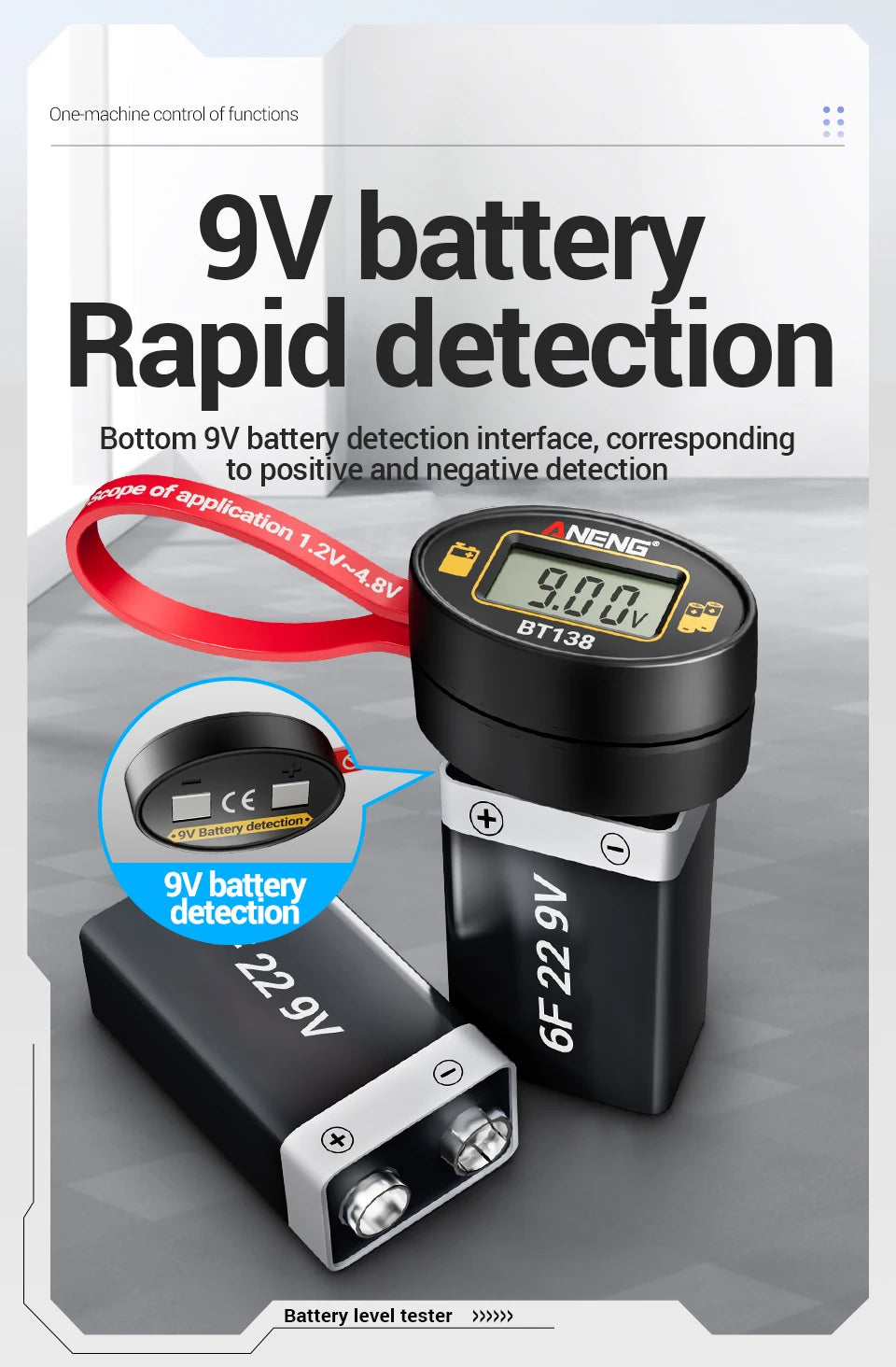

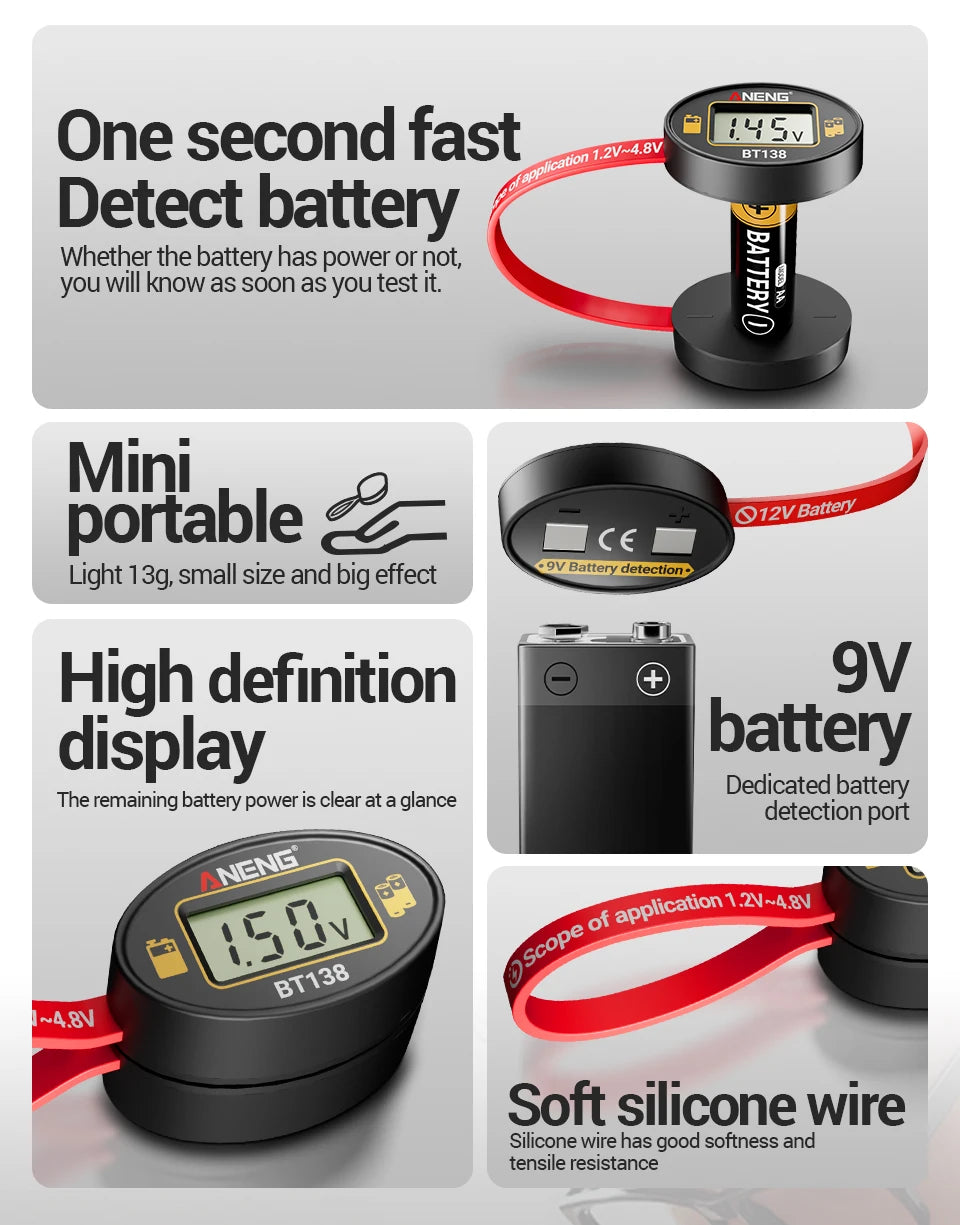

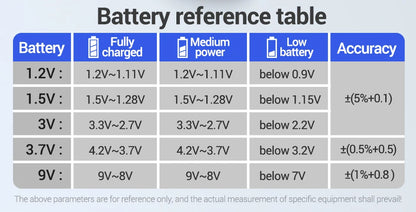

The battery level detector can easily measure multiple battery types within the range of 1.2V to 4.8V. Can test 1, 2, 5, 7, 9-volt batteries, button batteries 1.5V, 3V, lithium batteries 16340, 14500, 10440, etc.
Special note:
1. Pay attention to checking whether the battery is in contact with the positive and negative terminals of the detector. If there is no displayed value, it means that the battery is completely discharged

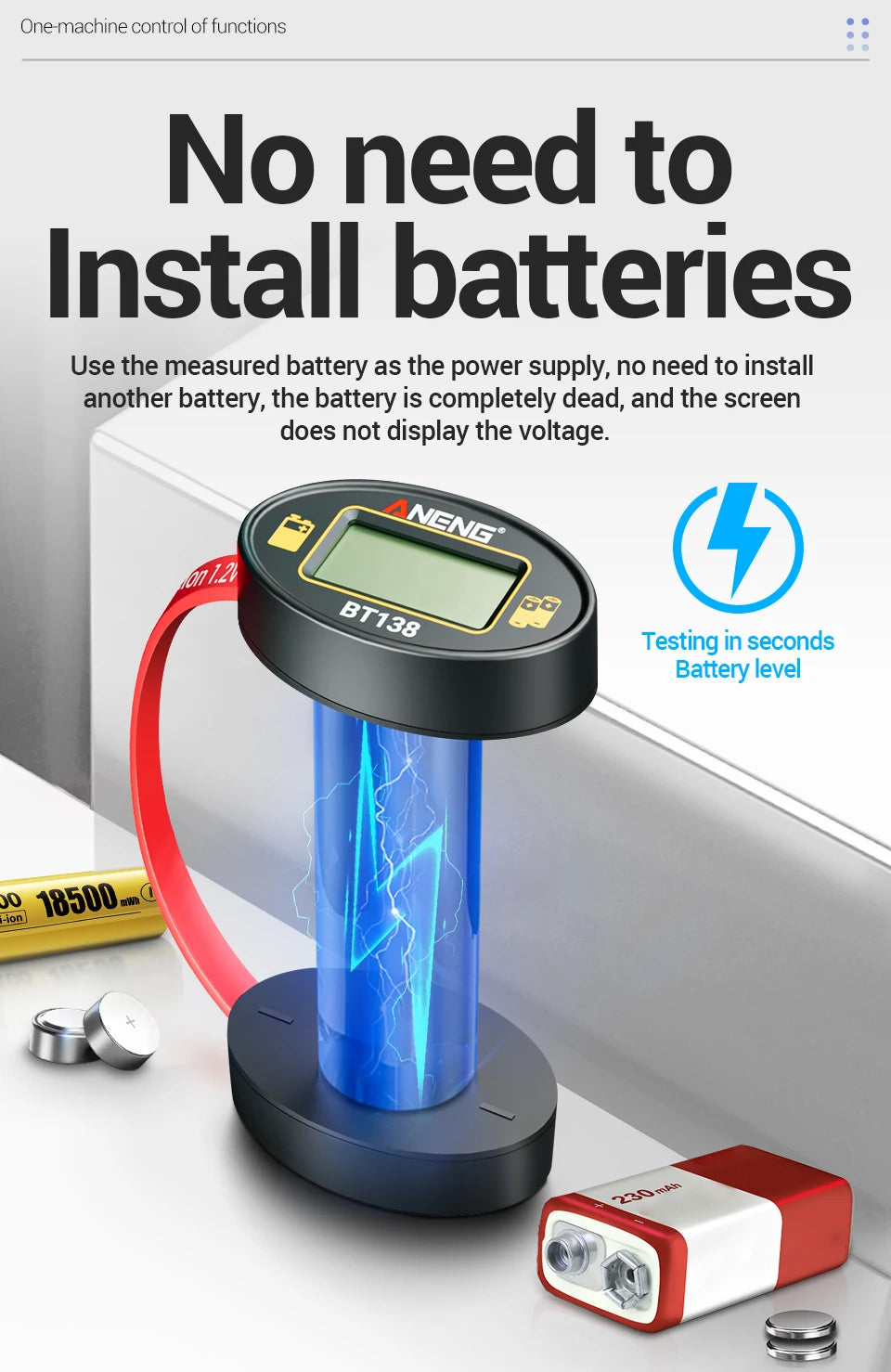

2. The detector is powered by a measuring battery and does not require additional battery installation.
3. The battery is completely discharged and the screen does not display voltage

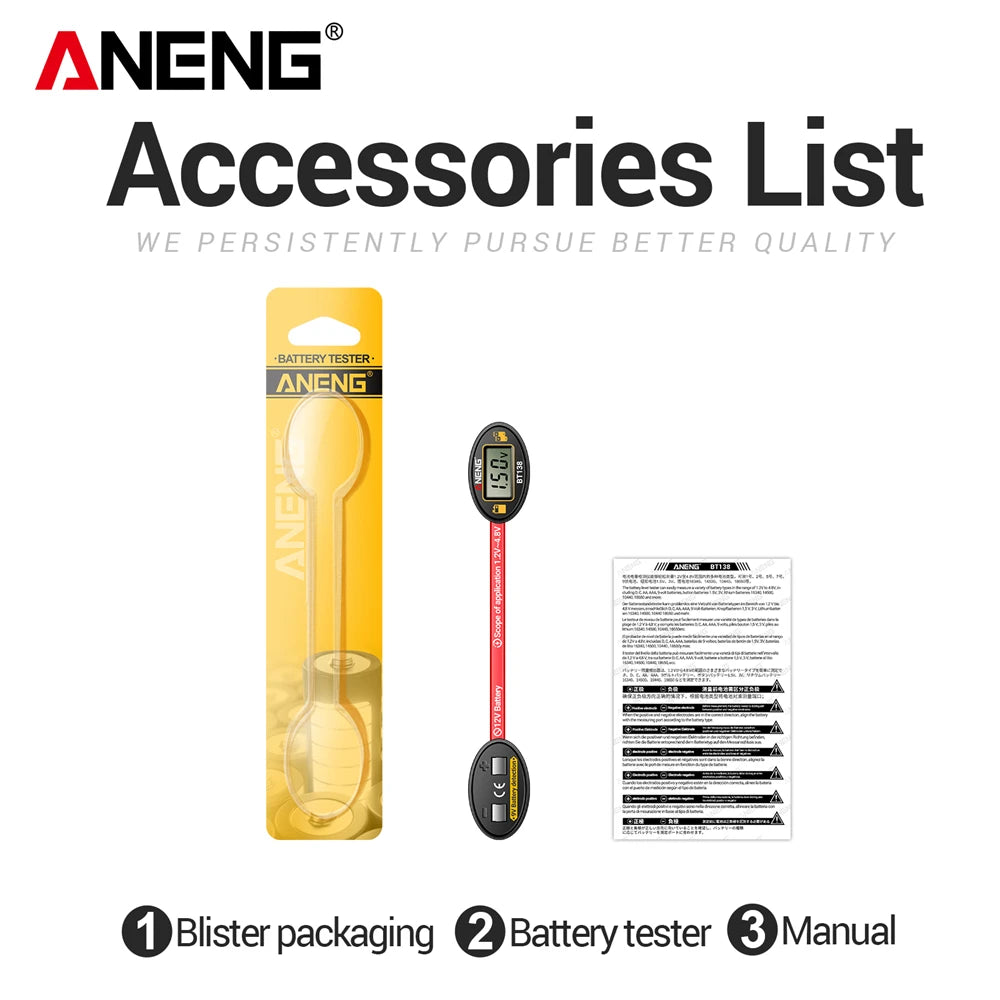

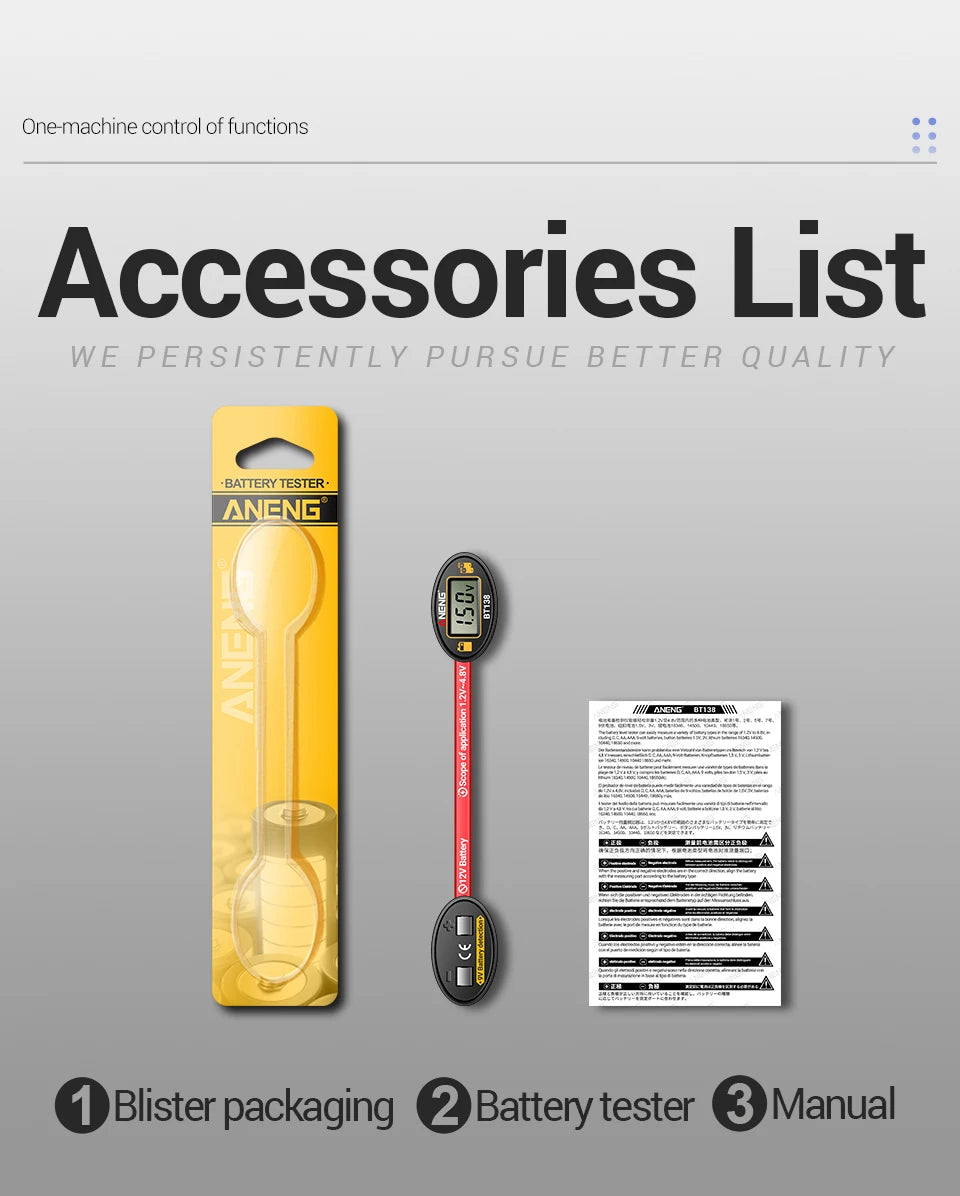

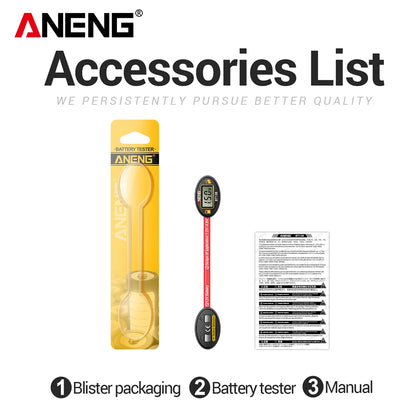

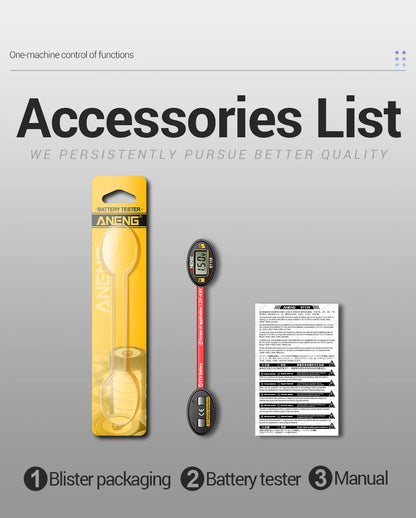

Package:(Without Battery)
according your choice

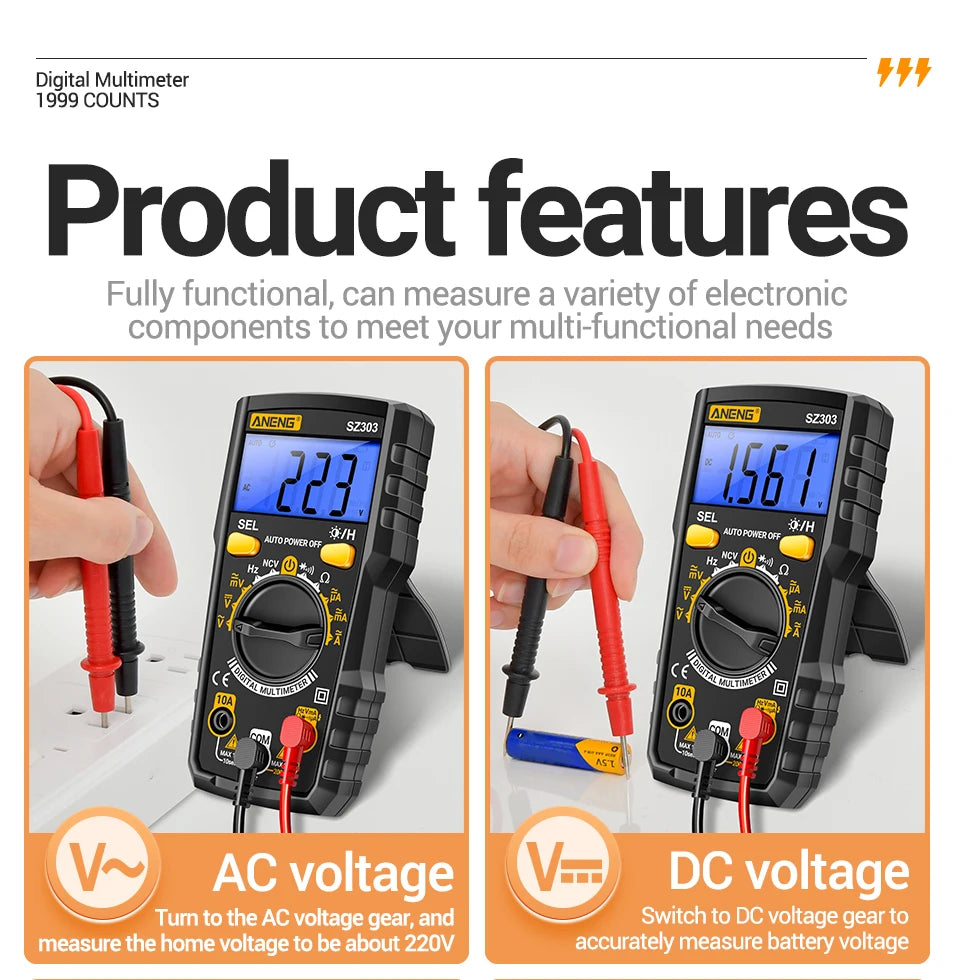

Product features
