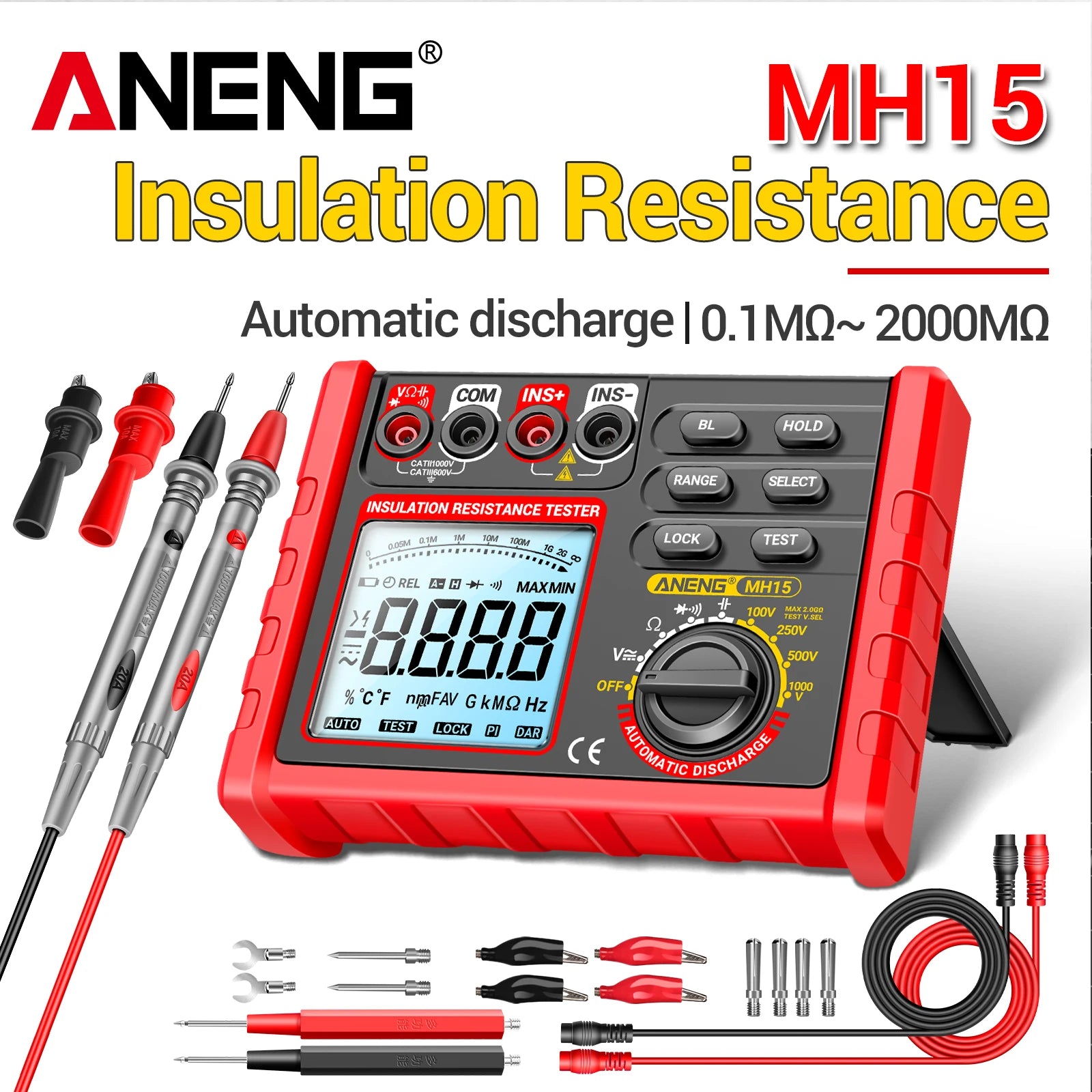

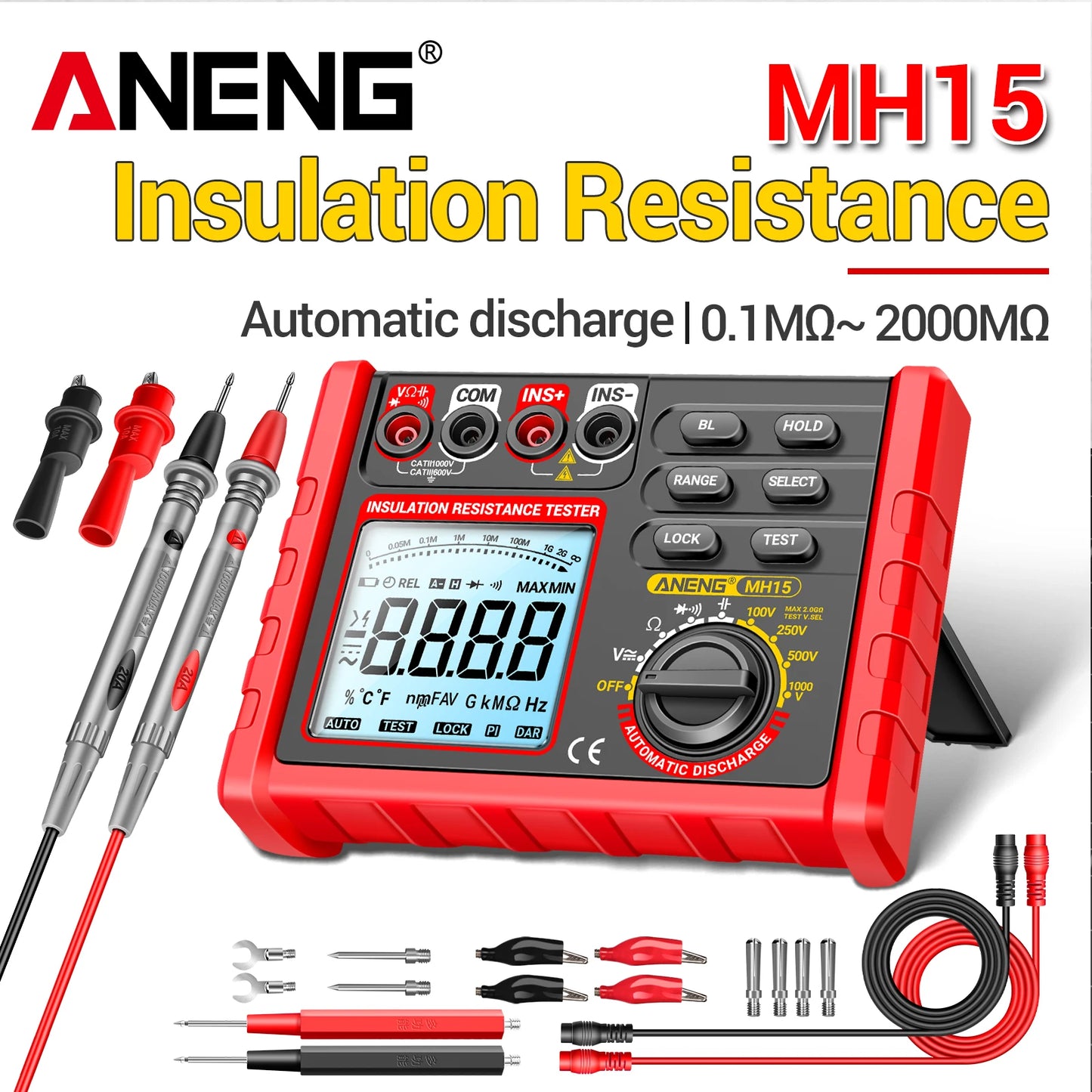

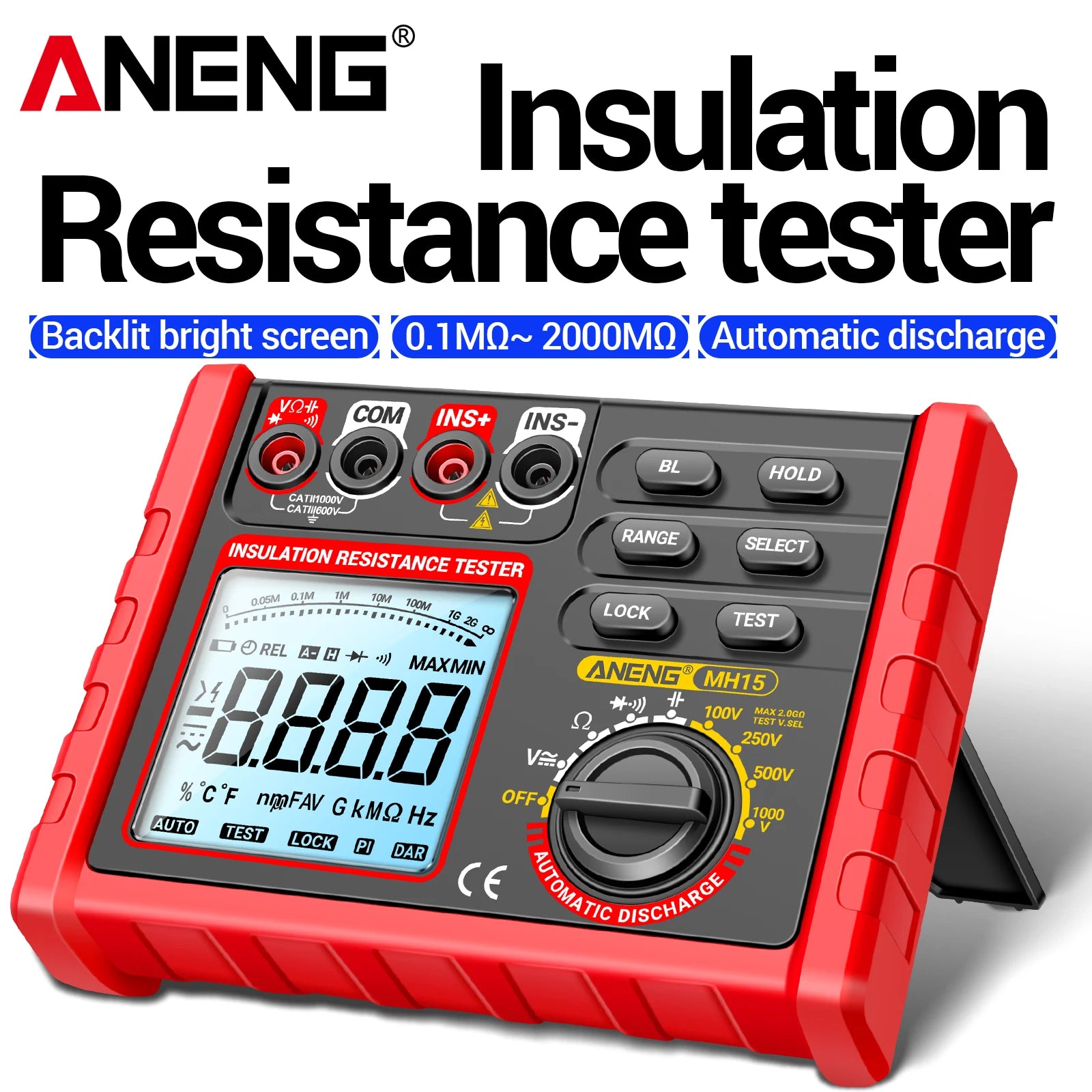

ANENG MH15 Digital Megohmmeter 1000V High Voltage Insulation Test 2000MΩ High Resistance Measurement Electrical Testing Artifact

ANENG MH15 Digital Megohmmeter 1000V High Voltage Insulation Test 2000MΩ High Resistance Measurement Electrical Testing Artifact

$47.55 USD
$47.55 USD $47.55 USD
Sale Sold out

SPECIFICATIONS

Accuracy Class: /

Automatic discharge: Yes

Automatic shutdown: 15 min no operation Automatic shutdown

Battery Included: No

Battery model: 1.5V AA battery*6pcs(Battery not included)

Brand Name: ANENG

Buzzer: Yes

Certification: CE

Choice: yes

DIY Supplies: Electrical

Data retention: Yes

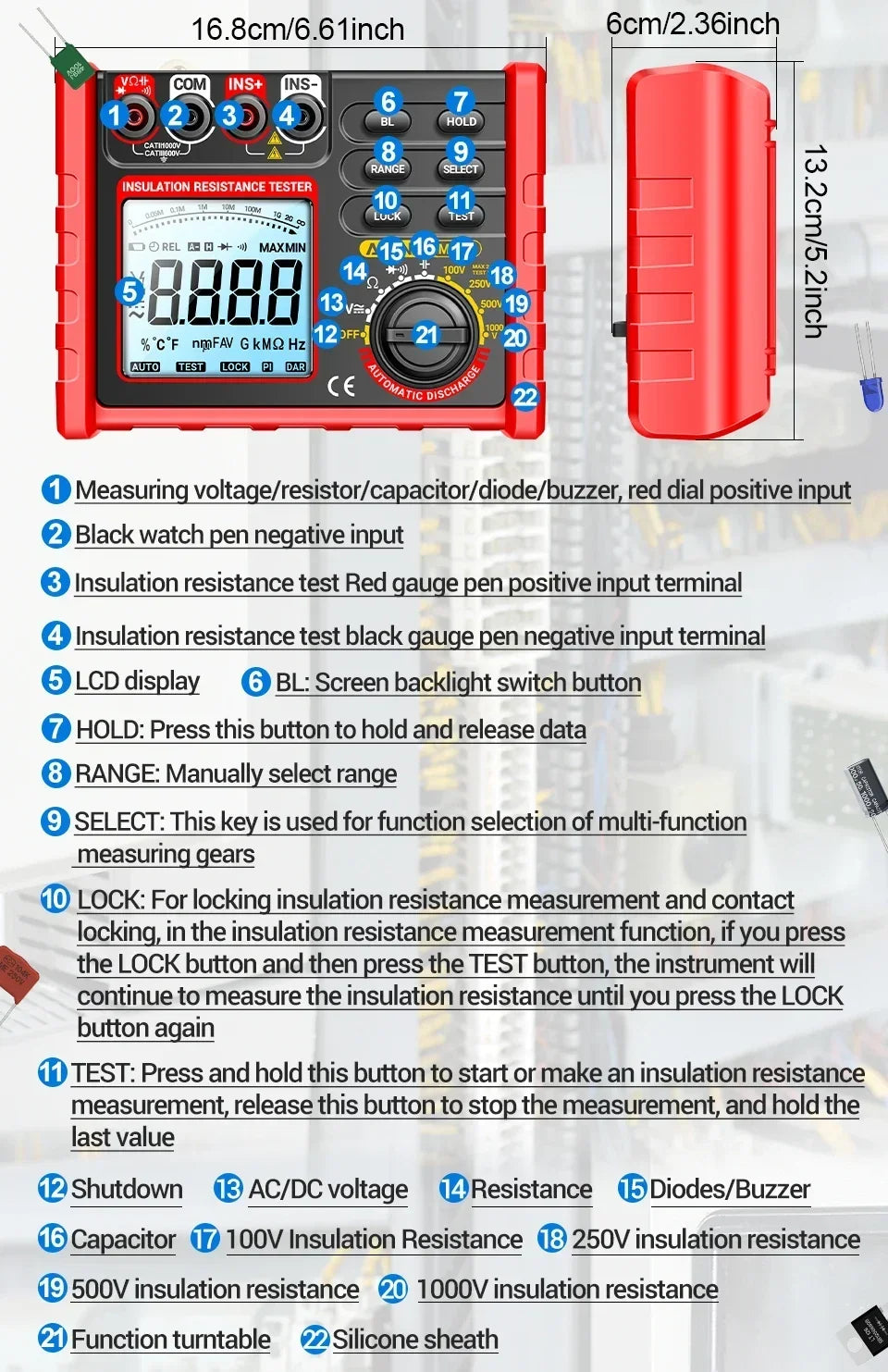

Dimensions: 23*20*7CM

Diode: Yes

Display Type: Digital Only

High-concerned chemical: None

Low power prompt: Yes

Material: ABS/Silicone

Max count: 6000 count

Measuring Range: /

Model Number: MH15

Operating Temperature: 0~40

Origin: Mainland China

Testing Voltage: 0V-750V

Weight: 419g

ANENG MH15 Digital Megohmmeter 1000V High Voltage Insulation Test 2000MΩ High Resistance Measurement Electrical Testing Artifact

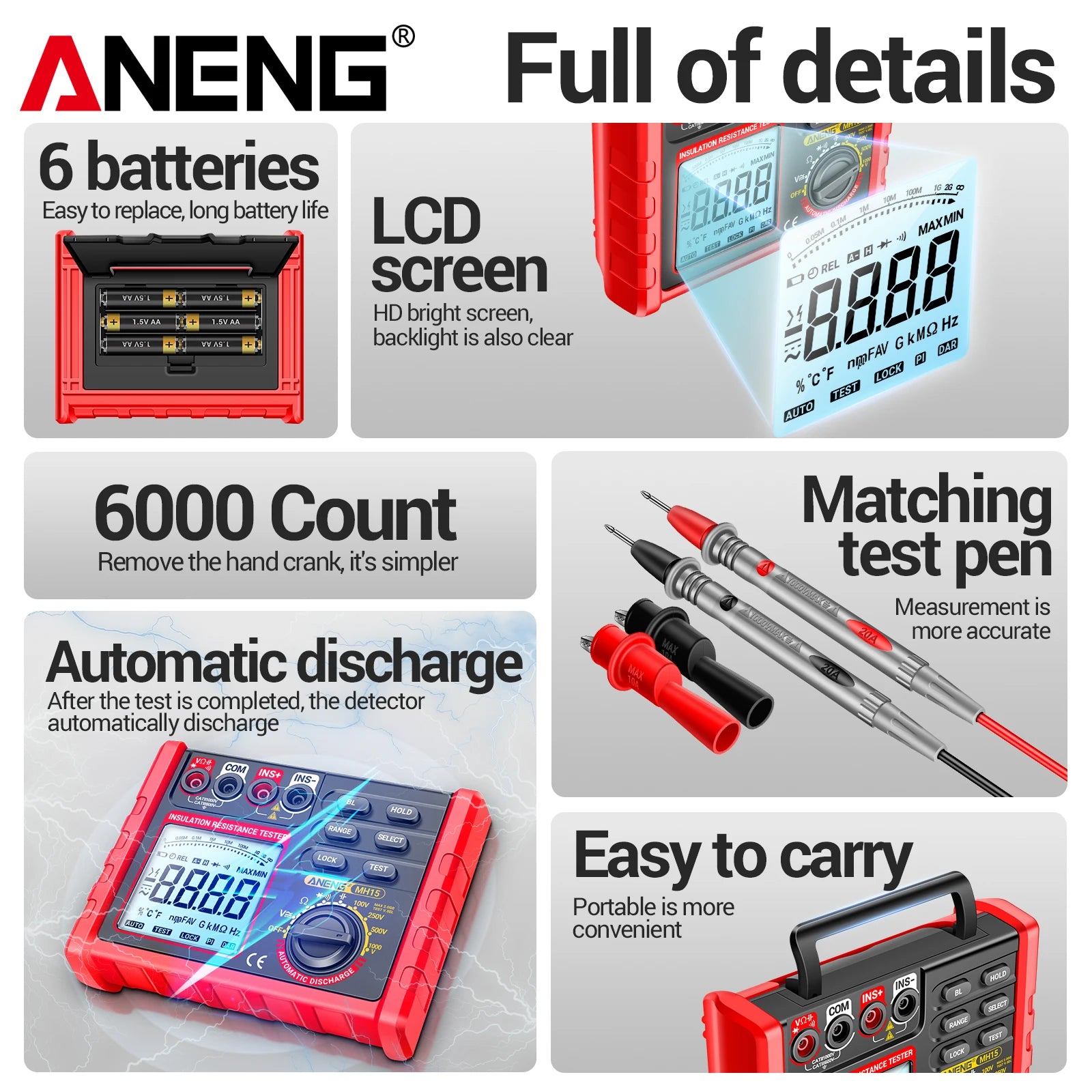

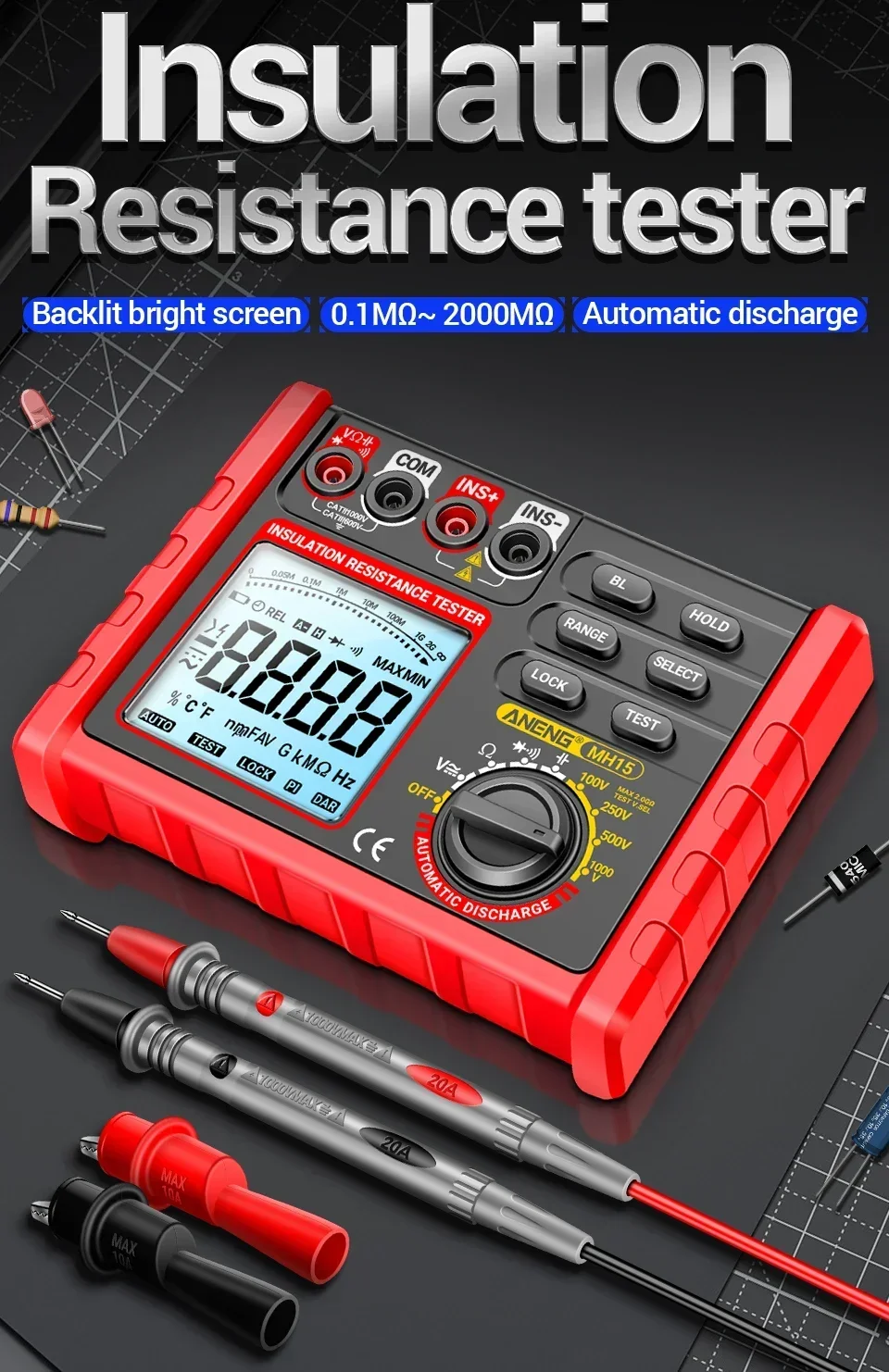

ANENG MH15 Digital Megohmmeter -6000 Count Professional Insulation Testing Tool!

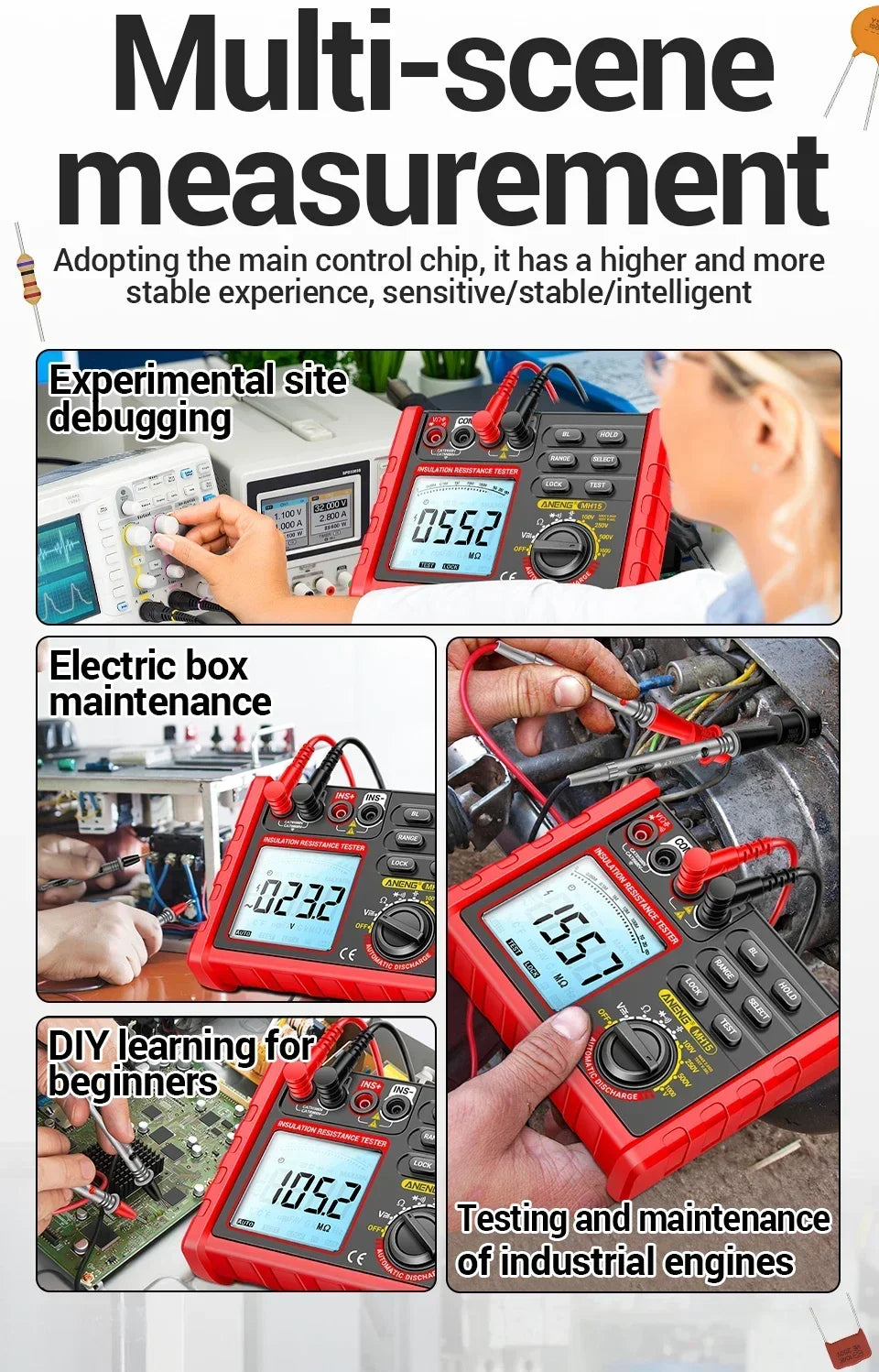

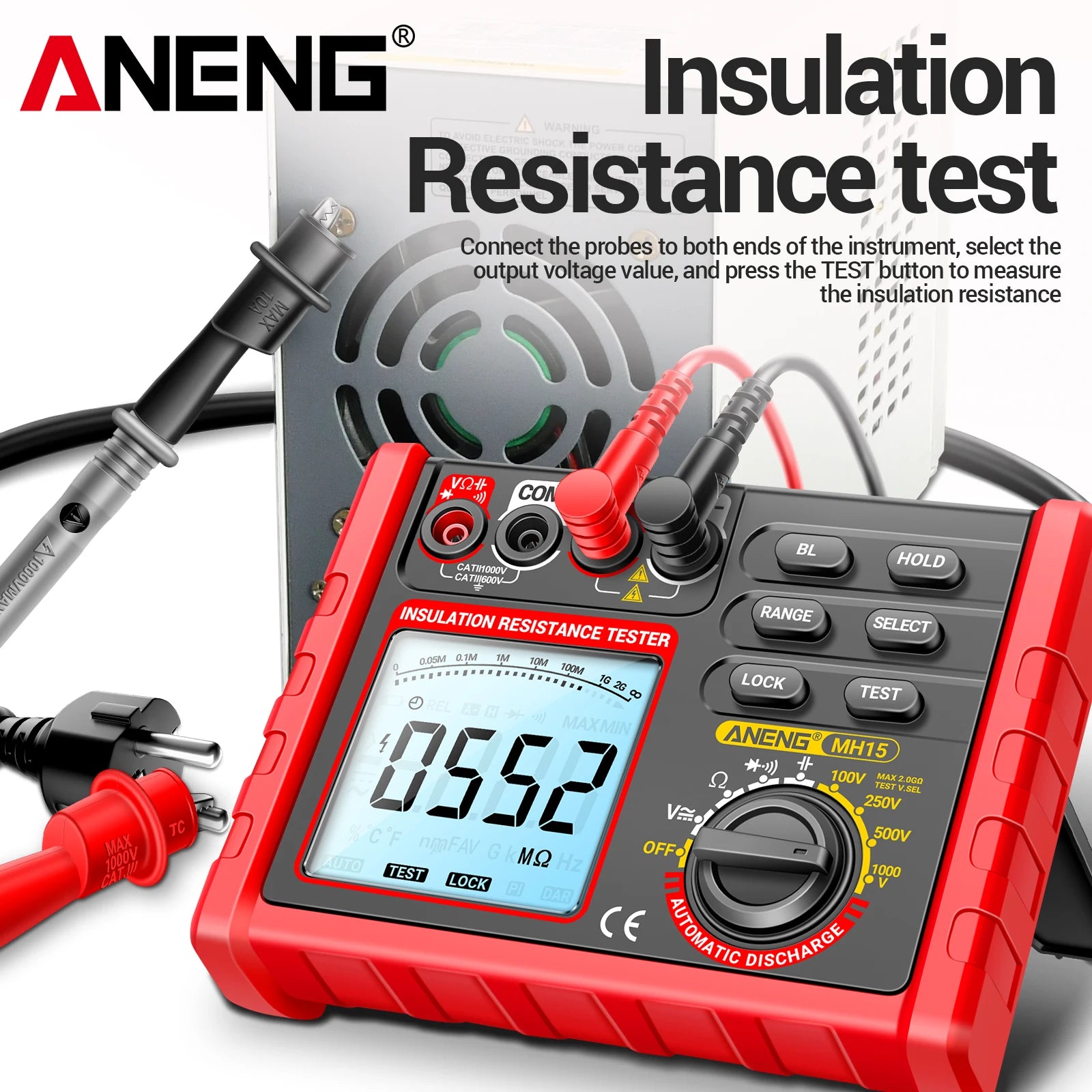

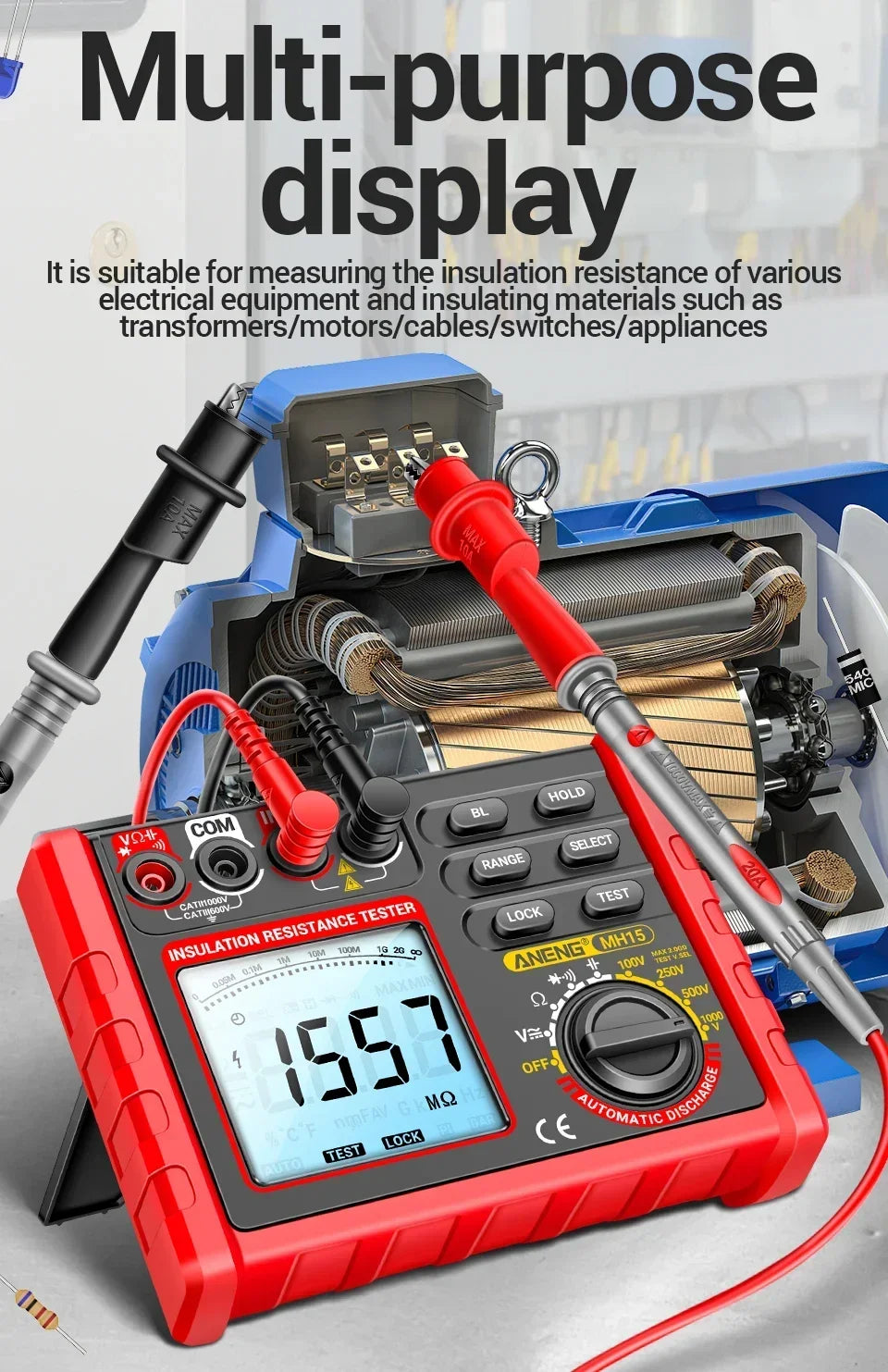

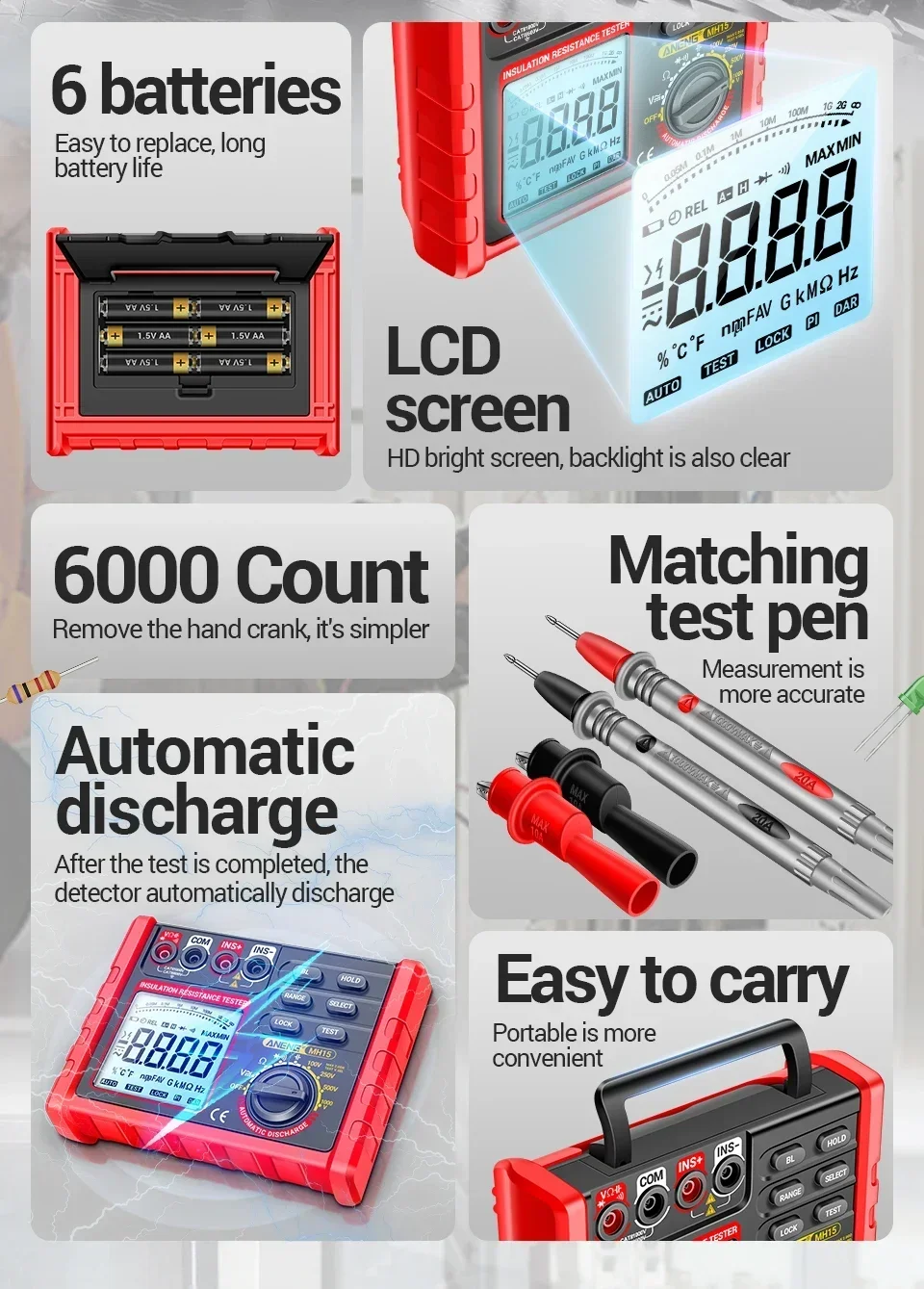

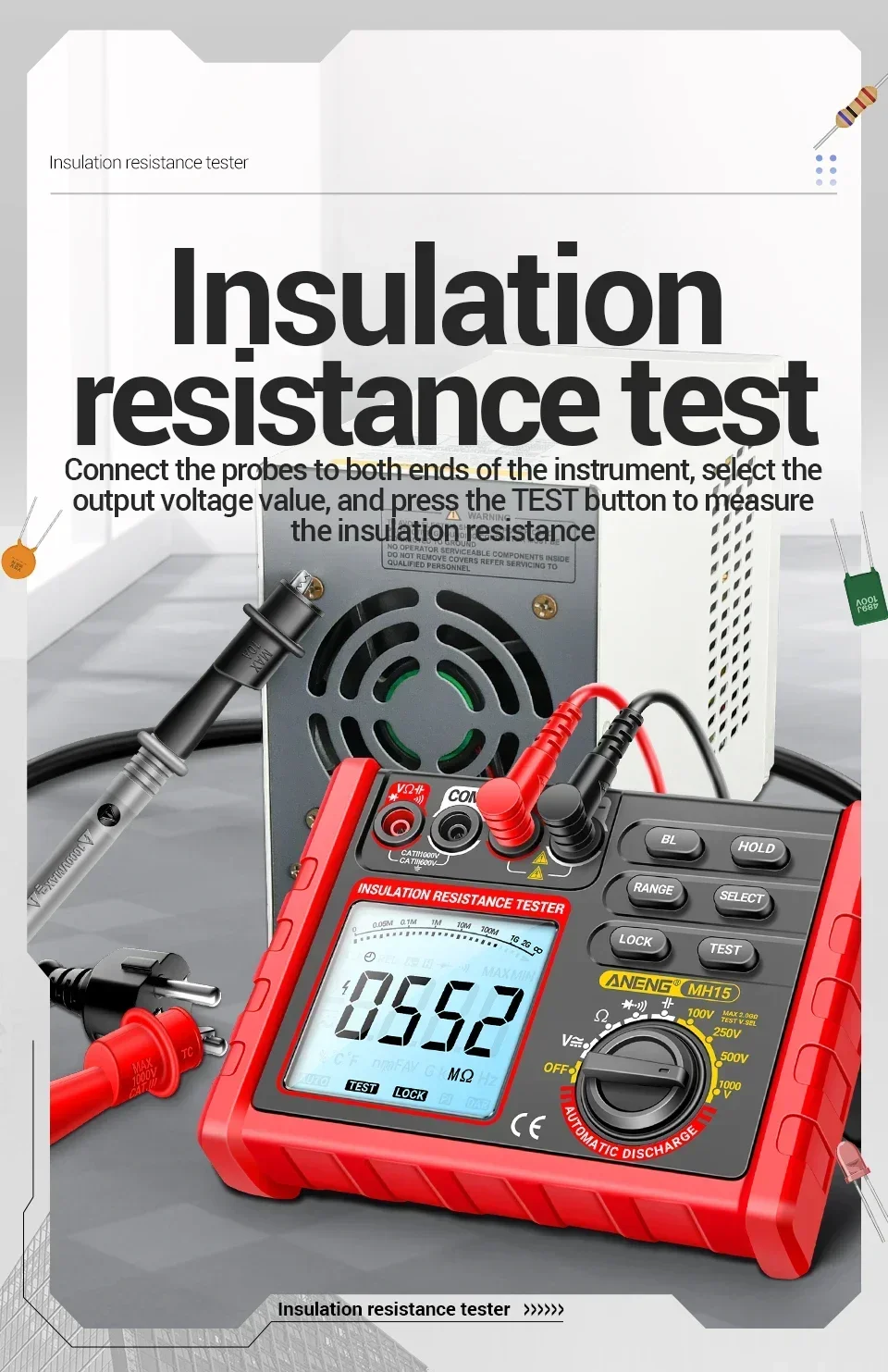

1000V high voltage four gear switching+2000M Ω ultra large resistance measurement, one-stop electrical engineering, line maintenance, insulation testing! ABS silicone durable body+automatic discharge safety protection, from industrial construction to home maintenance, precise measurement without stepping on pits, insulation detection results in seconds!

Are you still worried about the old shaking table being bulky, difficult to operate, and having poor accuracy?

✅ Afraid of not being able to measure: 1000V high voltage four speed switching, with a maximum resistance of 2000M Ω, making it easy to handle high insulation scenarios that cannot be measured by ordinary meters;
✅ Afraid of safety: automatic discharge function+professional insulation design, automatically releases residual voltage after testing, safer operation, and eliminates the risk of electric shock;

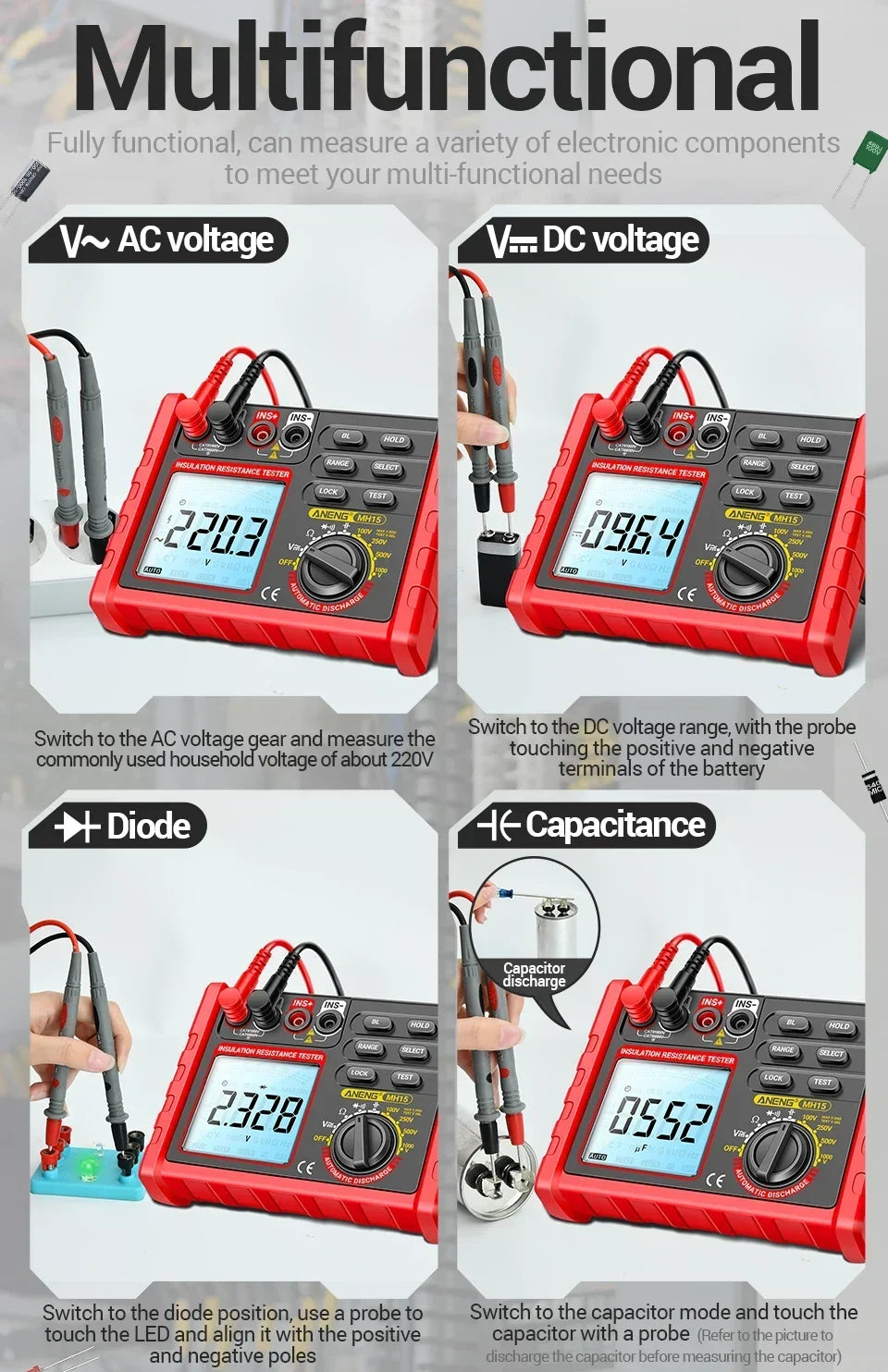

✅ Afraid of inaccuracy: 6000 high count, professional grade accuracy, accurate measurement of full range AC/DC voltage, resistance, and capacitance, stable and reliable data;
✅ Afraid of trouble: automatic shutdown+data retention+low battery reminder, one click data lock, forget to shut down without worrying about power consumption, more worry free operation;

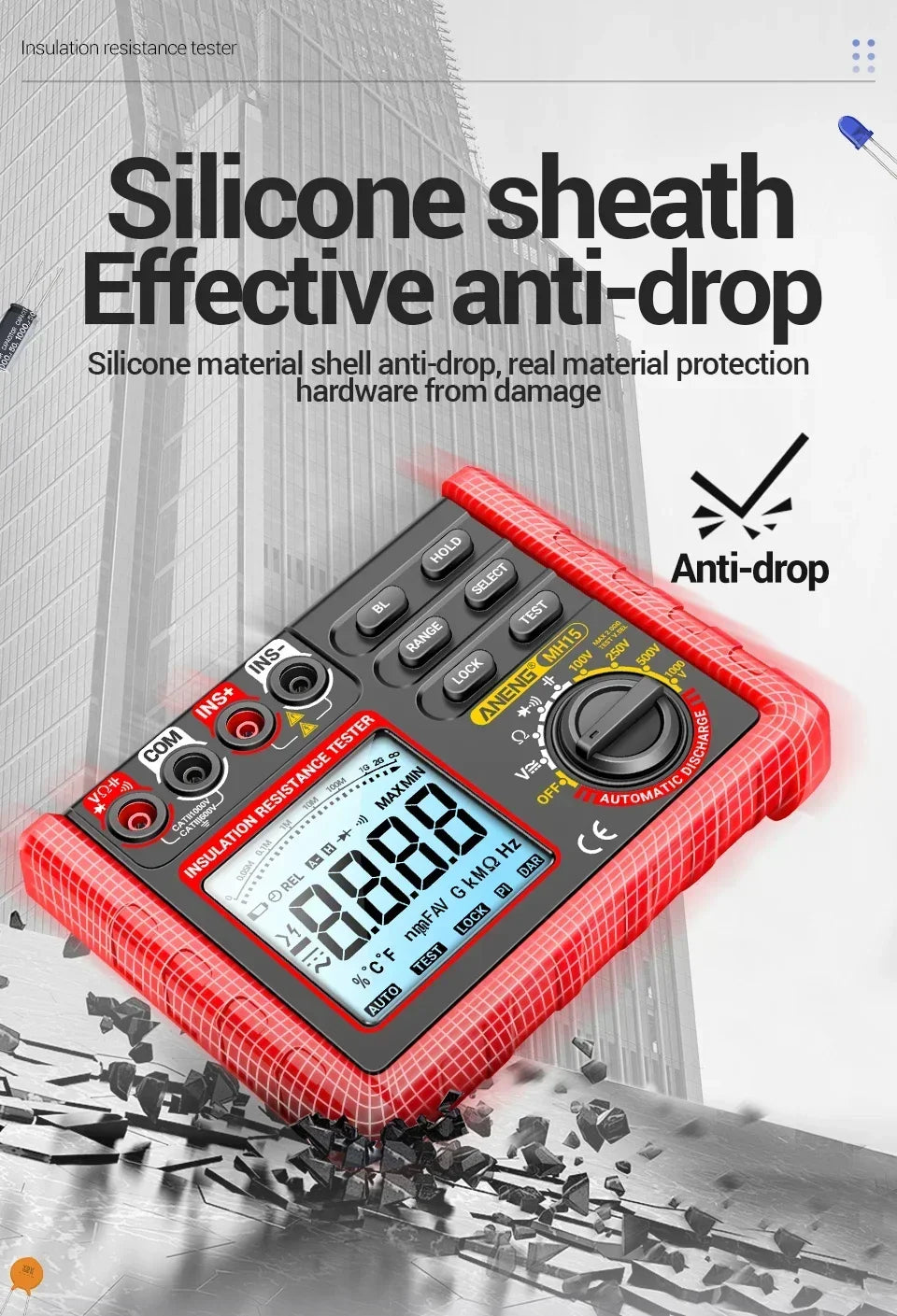

✅ Afraid of durability: Made of ABS and silicone dual material, it is wear-resistant and drop resistant, suitable for complex working environments such as construction sites and workshops, and has a longer service life.

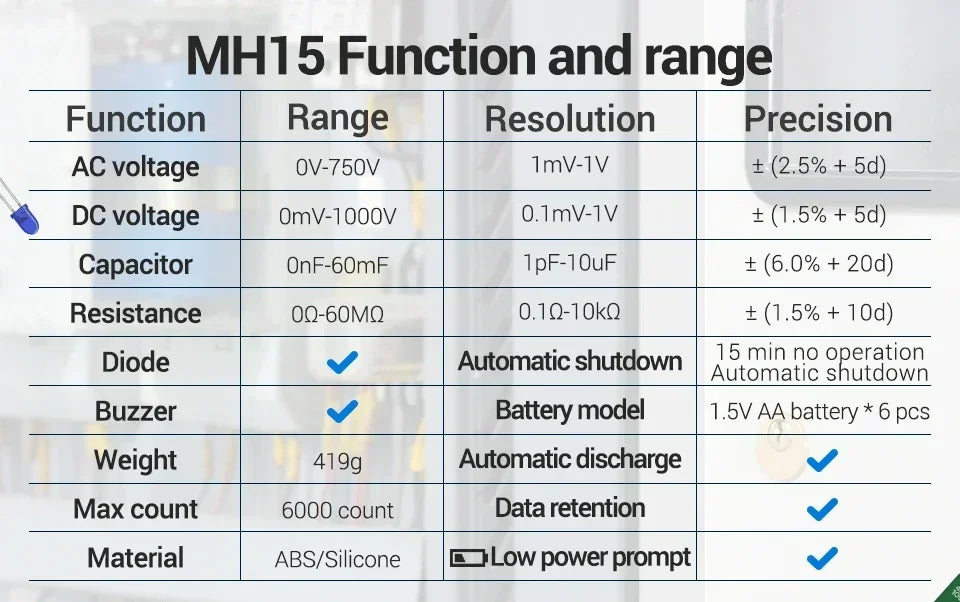

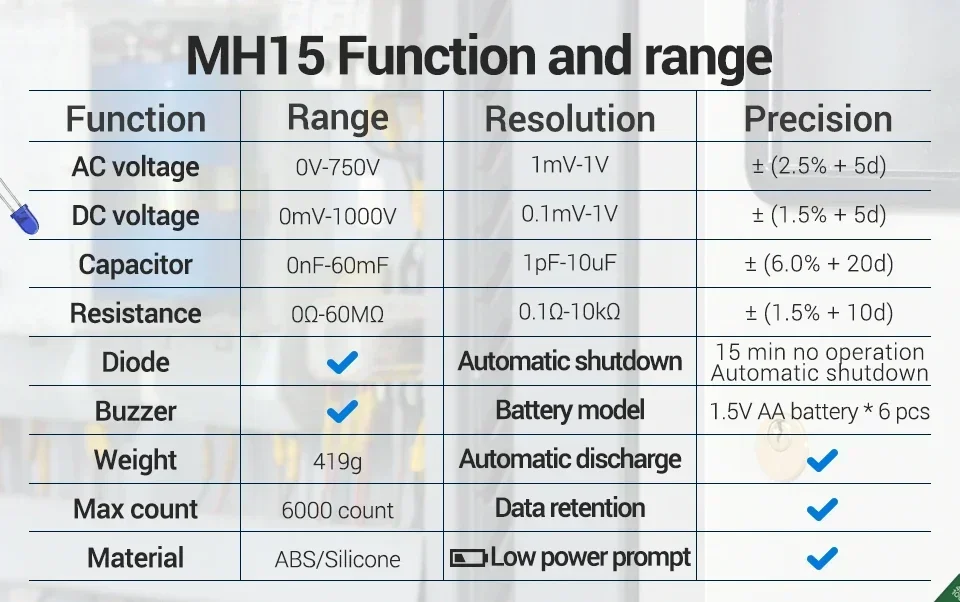

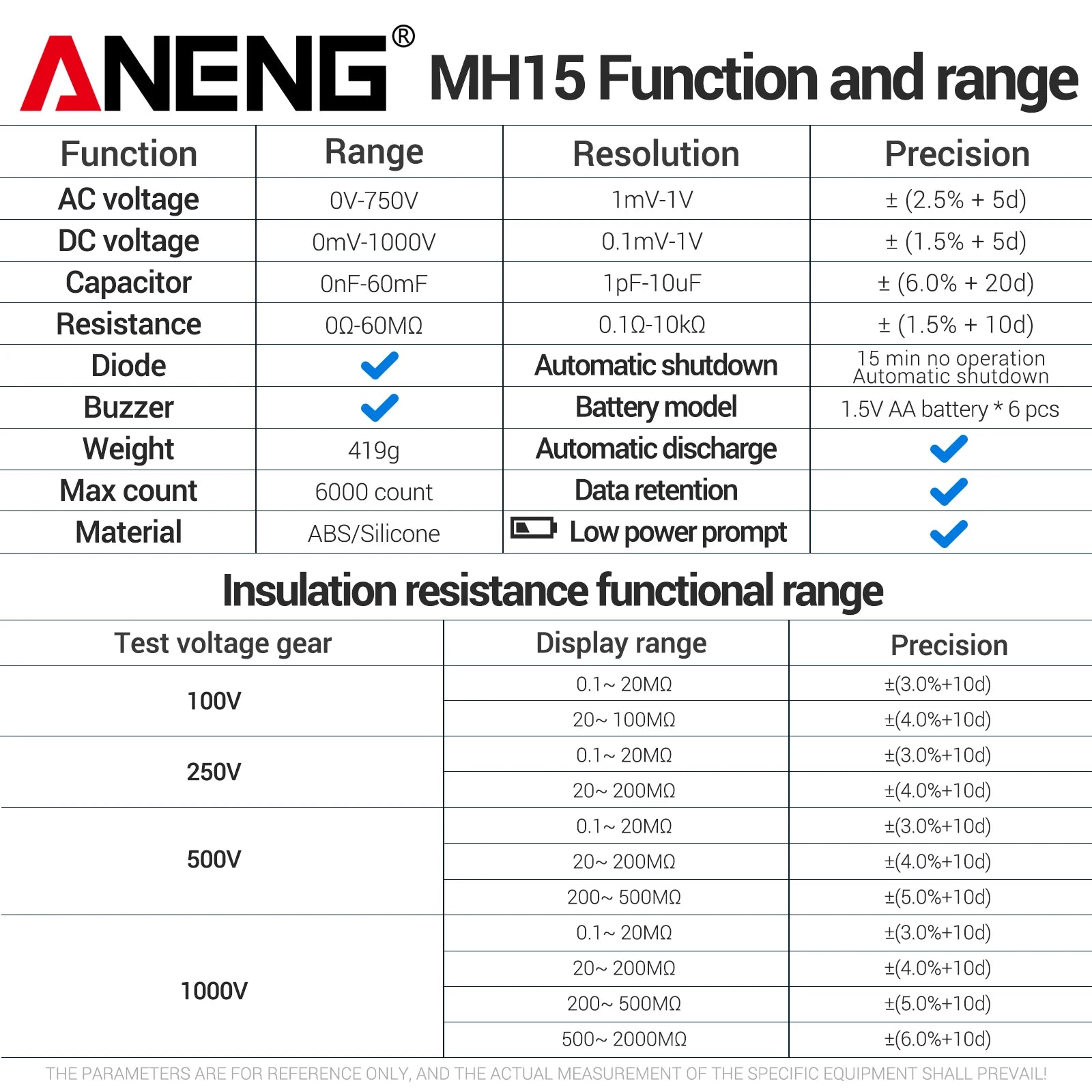

Core Functionality

Function

Range

Resolution

Precision

AC voltage

0V-750V

1mV-1V

±(2.5%+5d)

DC voltage

0mV-1000V

0.1mV-1V

±(1.5%+5d)

Capacitor

0nF-60mF

1pF-10uF

±(6.0%+20d)

Resistance

0Ω-60MΩ

0.1Ω -10kΩ

±(1.5%+10d)

Diode

√

Automatic shutdown

15 min no operation Automatic shutdown

Buzzer

√

Battery model

1.5V AA battery*6 pcs (without shipment)

Weight

419g

Automatic discharge

√

Max count

6000 count

Data retention

√

Material

ABS/Silicone

Low power prompt

√

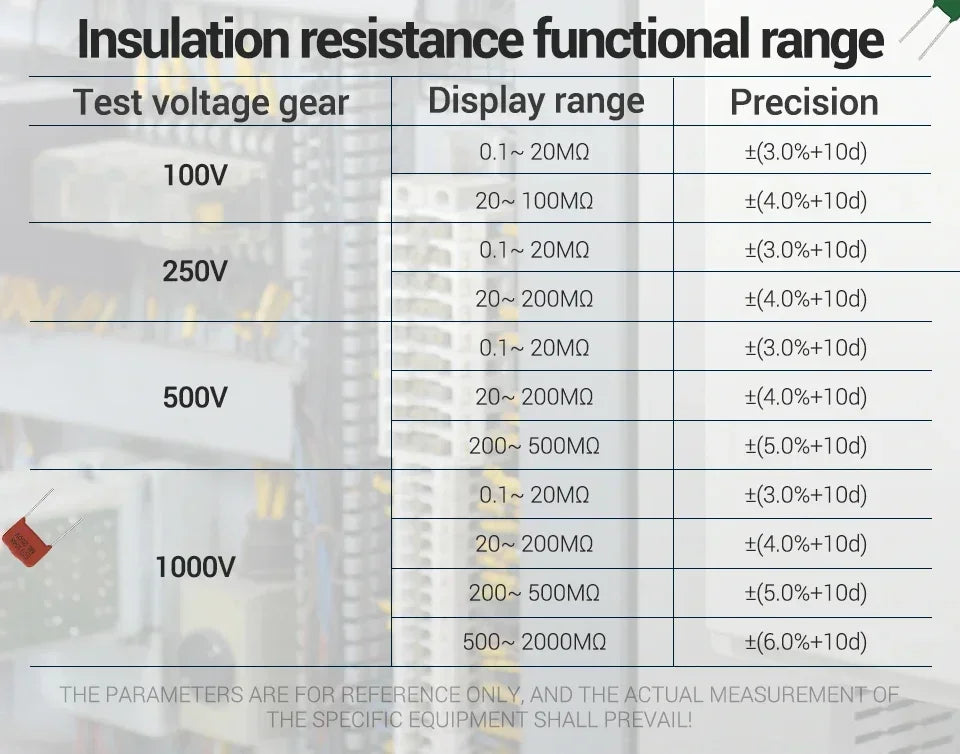

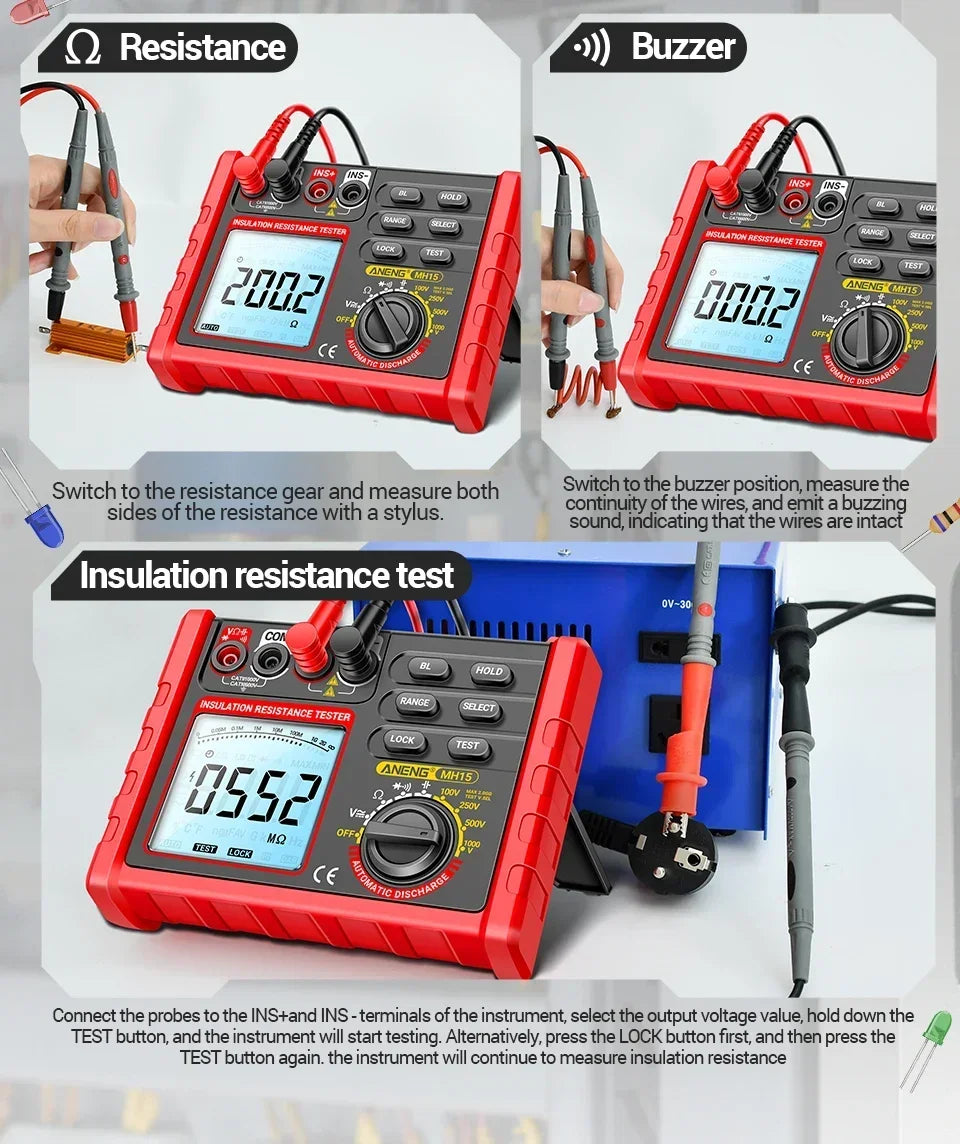

Insulation resistance functional range

Test voltage gear

Display range

Precision

100V

0.1~20MΩ

±(3.0%+10d)

20~100MΩ

±(4.0%+10d)

250V

0.1~20MΩ

±(3.0%+10d)

20~200MΩ

±(4.0%+10d)

500V

0.1~20MΩ

±(3.0%+10d)

20~200MΩ

±(4.0%+10d)

200~500MΩ

±(5.0%+10d)

1000V

0.1~20MΩ

±(3.0%+10d)

20~200MΩ

±(4.0%+10d)

200~500MΩ

±(5.0%+10d)

500~2000MΩ

±(6.0%+10d)
The parameters of this product are for reference only, and the actual product shall prevail.

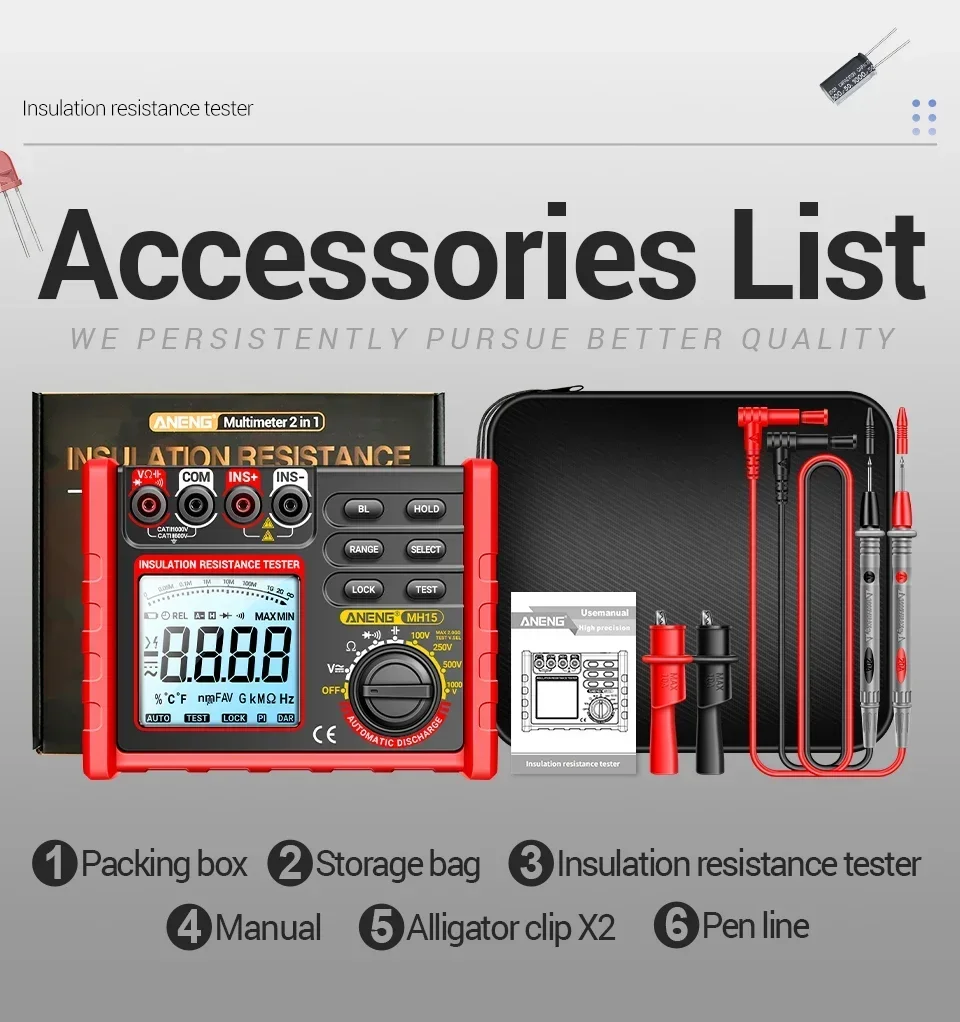

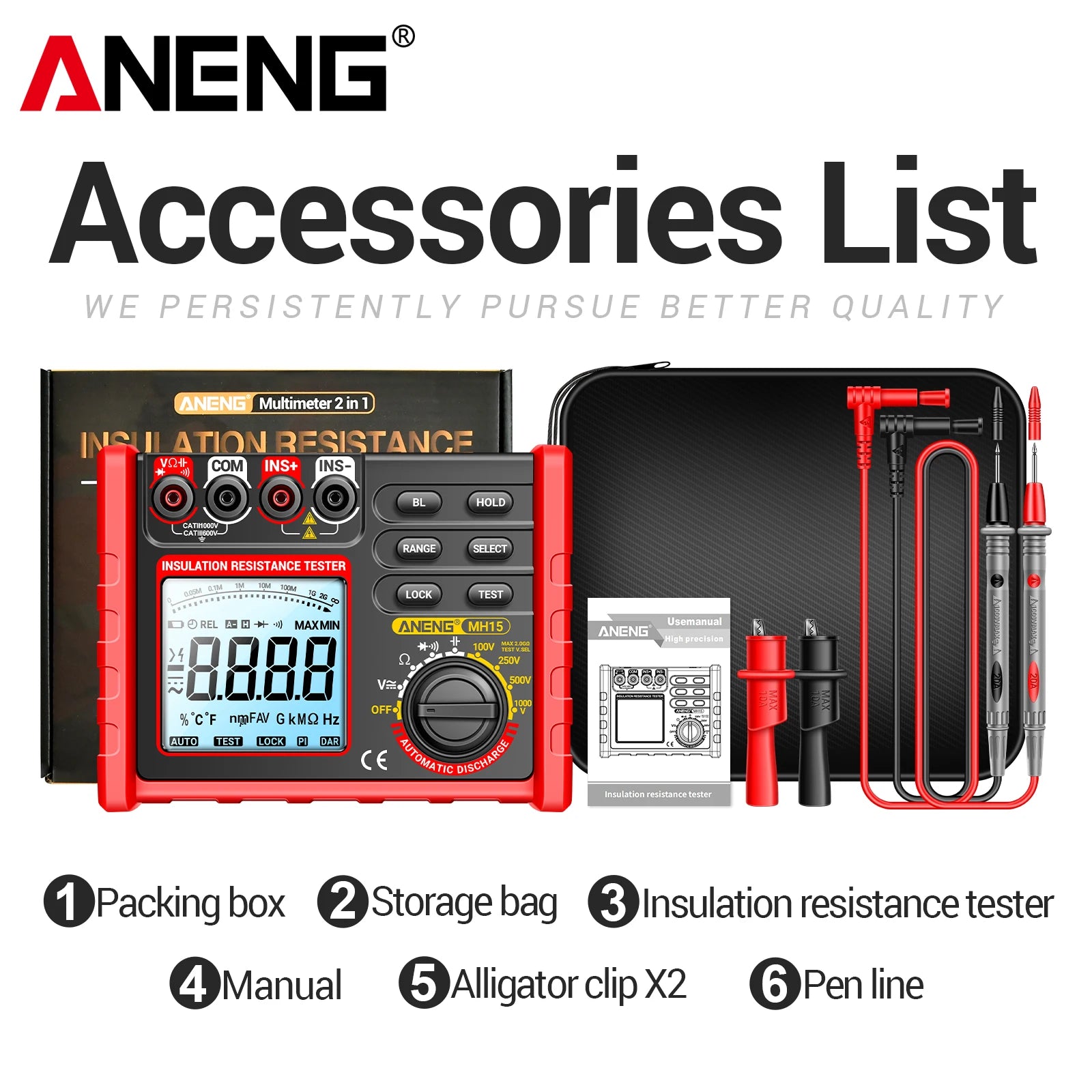

The packaging includes: (Battery not included)
1 * Packing box
1 * Storage bag
1 * Insulation resistance tester
1 * Manual

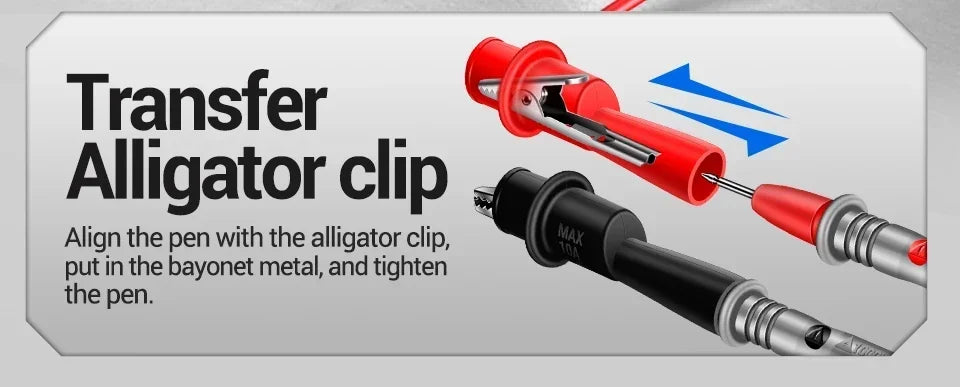

1 * Alligator clipX2
1 * Pen line

Resistance Tester, Digital Multimeter, Insulation tester, Megohmmeter, Digital ohmmeter, 6000 counts, Data hold, True RMS, ANENG MH15, Industrial maintenance
