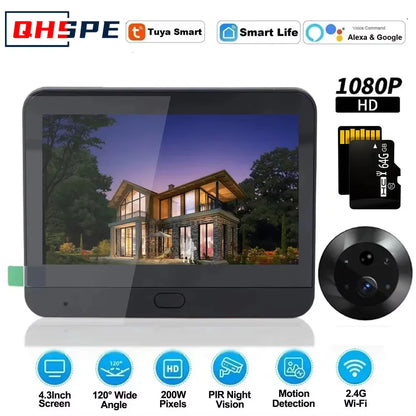

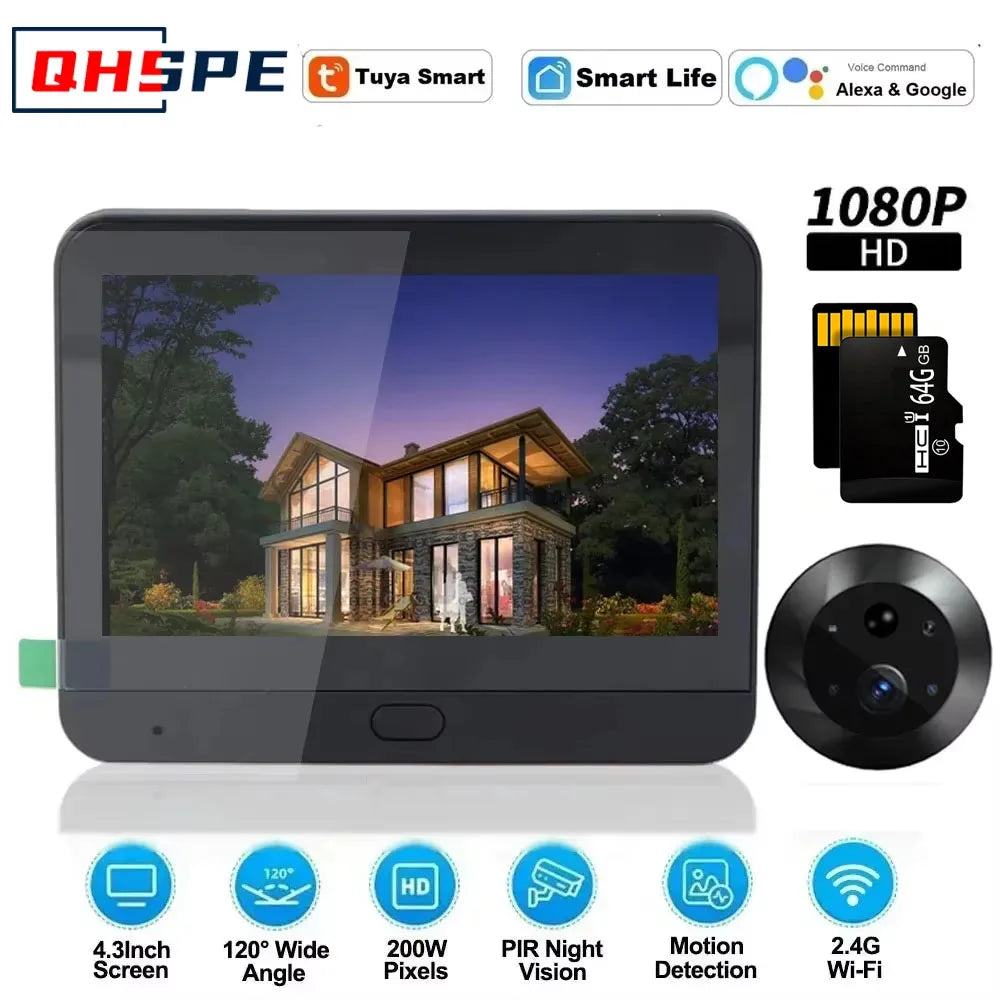

Door Camera Icam365 Peephole camera home wireless phone 4.3 Screen Night PIR wifi wireless Security protection Smart home

* Update from 2MP 1080P to be 2304×1296 Pixels
* The doorbell must work with 2.4G WIFI of router, can't work with 5G WIFI.
* The doorbell is suitable for: 40-120mm thickness of door, peephole is 16-50mm, and the cable installation length is 11cm.
Not suitable to: double doors, doors with small windows or steel mesh, soft-packed doors, doors without peepholes (need to drill a peephole by yourself)
RFQ:
Q1. What is the 3MP doorbell app?
A1: APP is iCam365

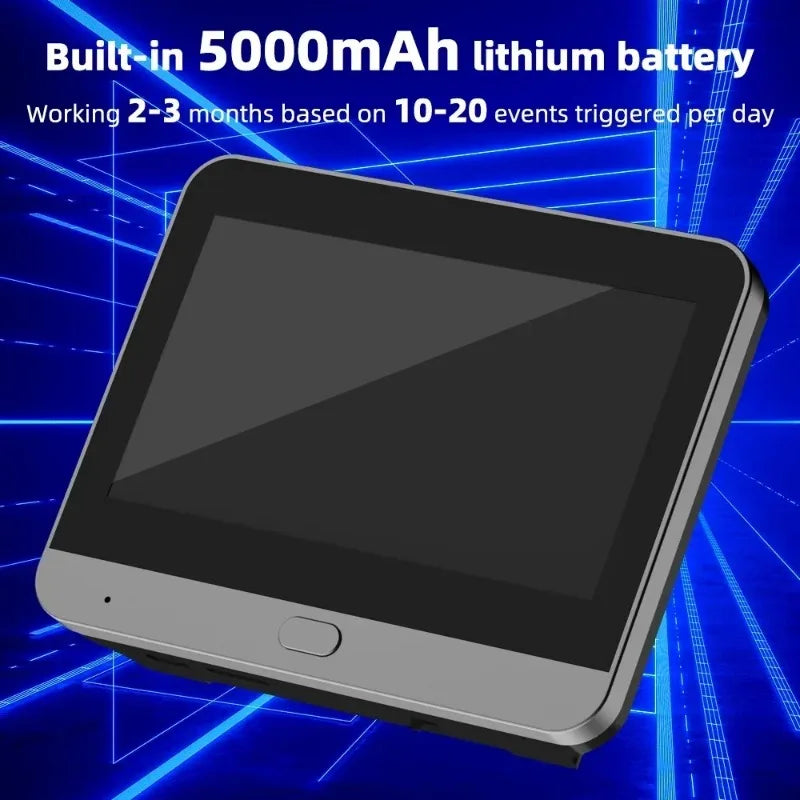

Q2.What battery is used in the doorbell? How long is the standy time?A2: Built-in lithium 5000mAh battery and easy charge by USB 5V 1A;
standy time 3 months (PIR alarm is not turned on),
After the PIR alarm is turned on, the battery can only last about 600 times at most, the usetime is about 20~30 days normally.
Q3. I bought TF card with doorbell, but I did not find the TF card?
A3: TF card is sticked on the side of doorbell box, please kindly check and find it.
Q4. How many video recordings 32GB TF card can have ?
A4: For 15 seconds video recording, it's about 14300 records, which can be used for 715 days according to 20 records per day
Automatic overwrite when TF card is full, or format the card in the APP

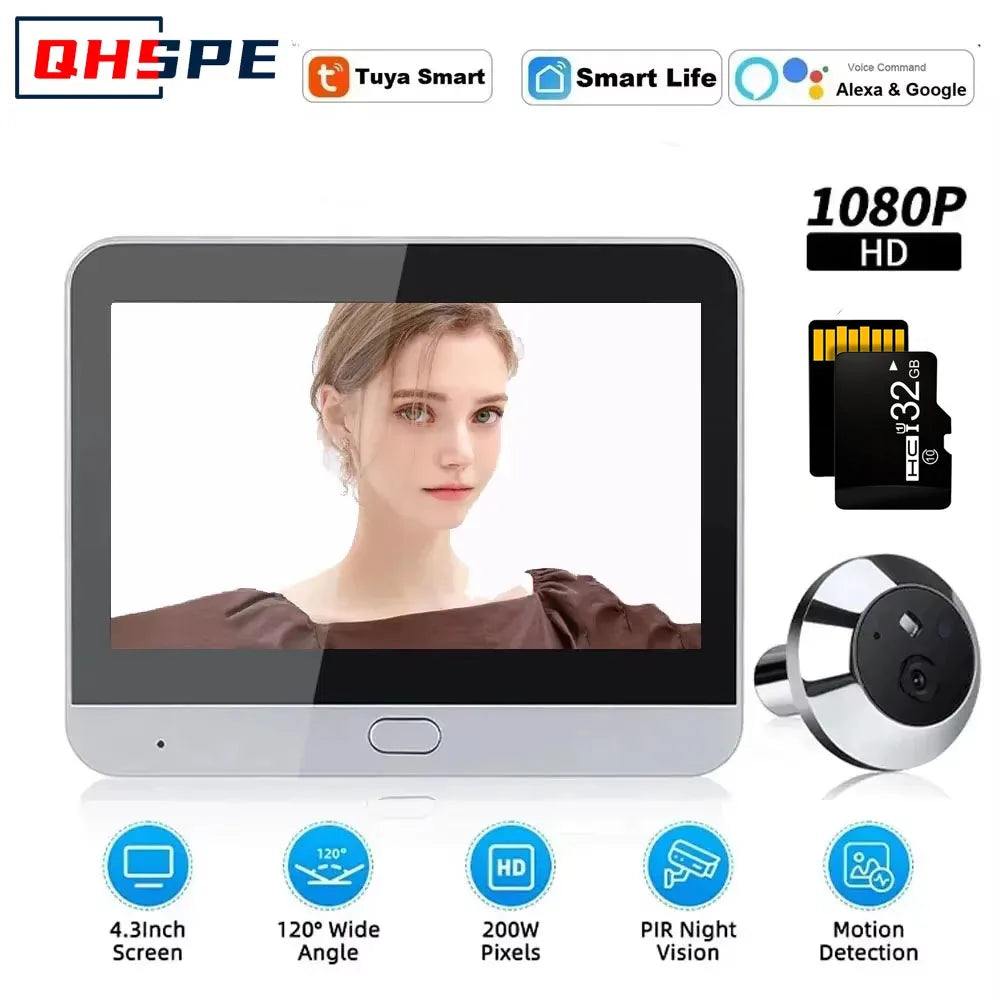

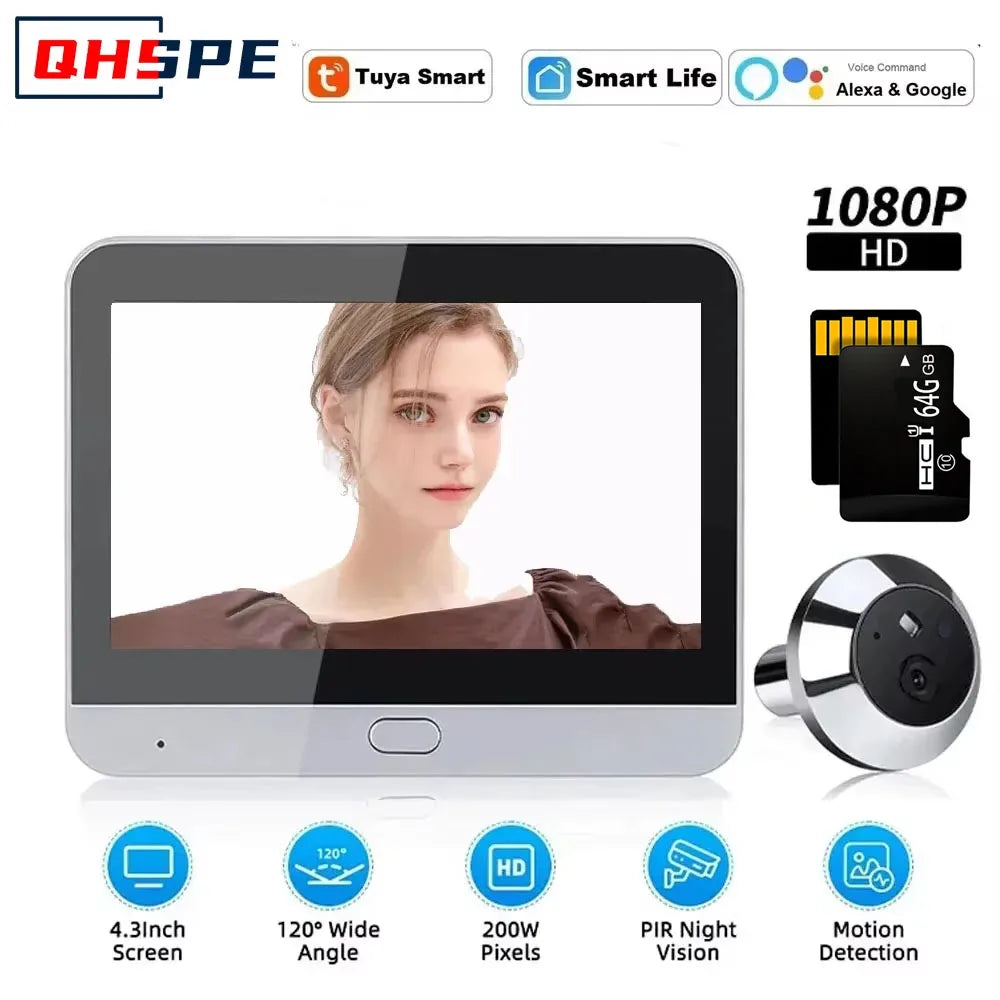

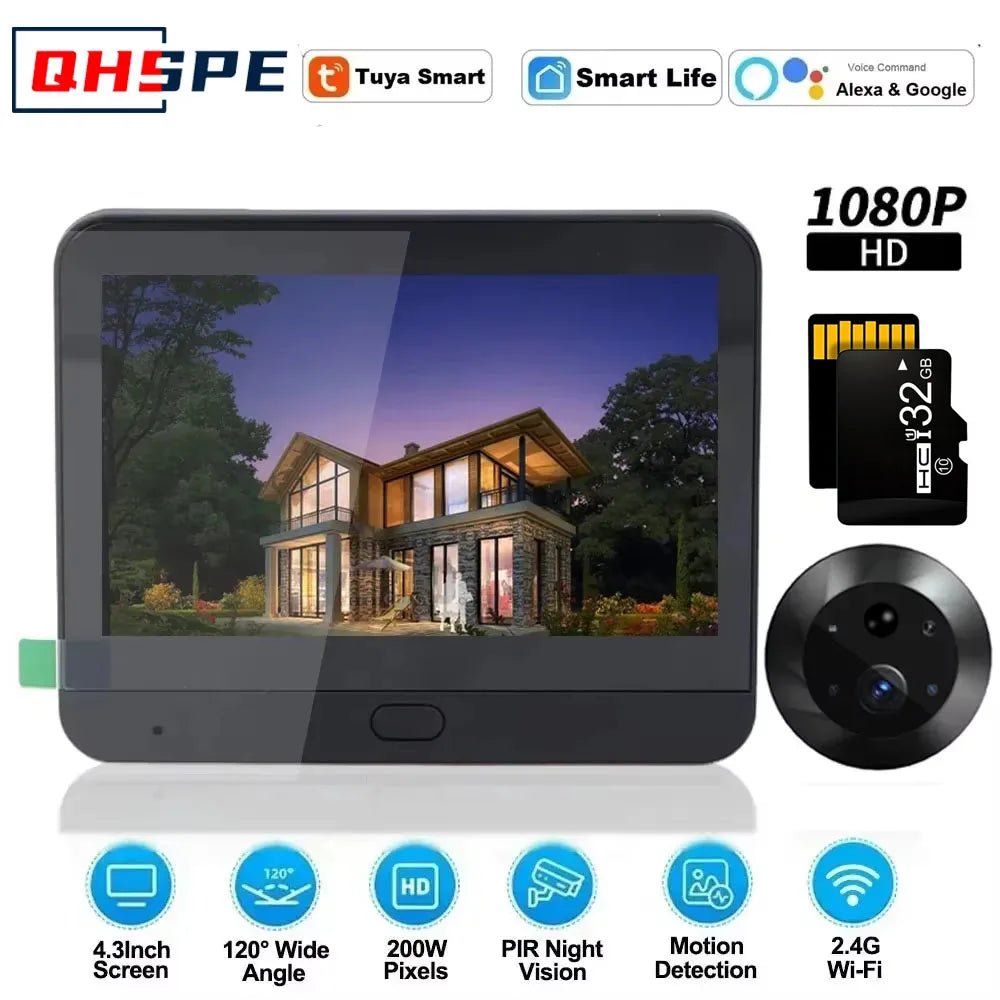

LCD Display Size: 4.3 inch
- Image Sensor
Display Resolution: 3.0MP-2304*1296P
Focal Length: 1.7mm
Angle of View:120 degreewide angle
- Audio

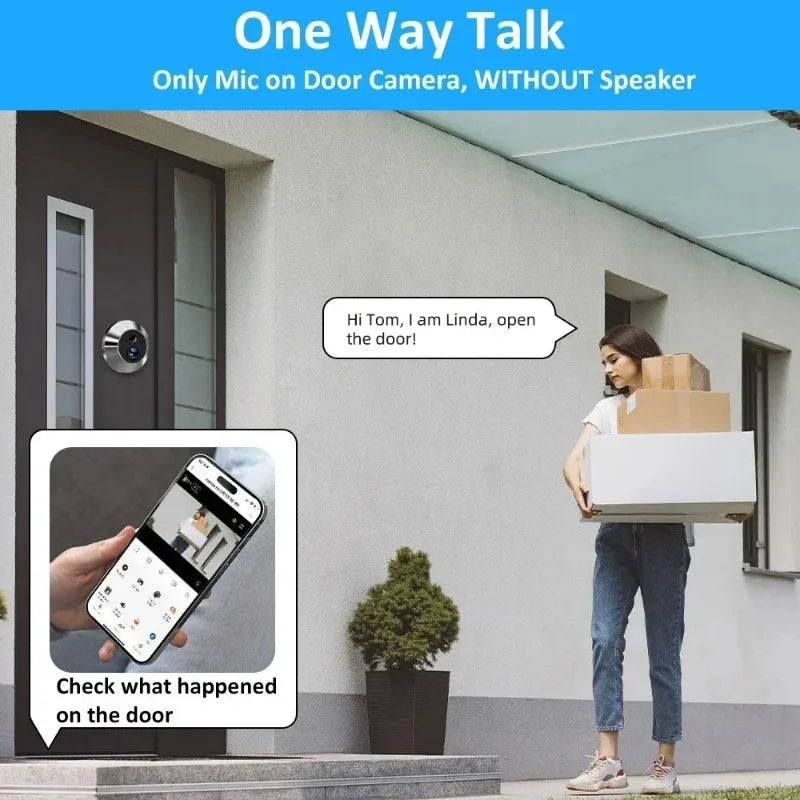

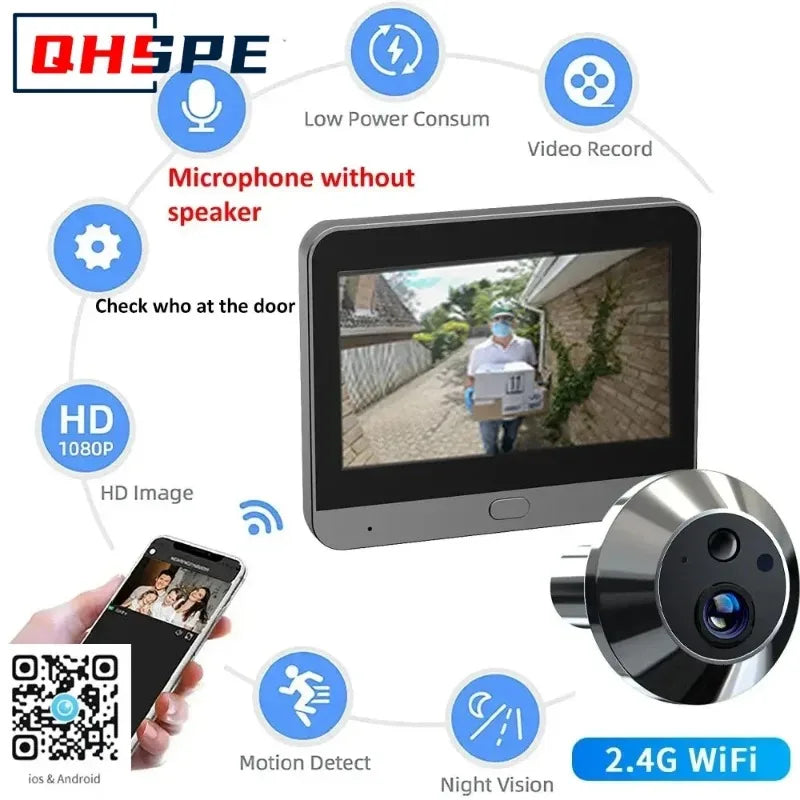

Input/Output: Built-in microphone (no speaker)
Type: 1-way audio with noice cancellation
- Video
Video Compression: H.265
Stream: Double stream

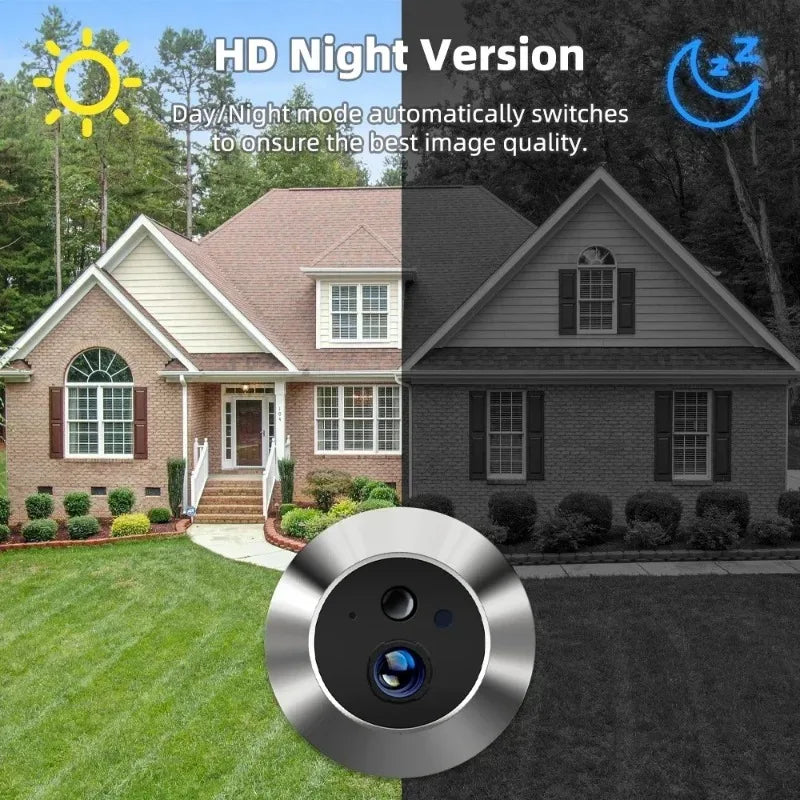

Night Vision: 2pcs IR-LEDs
- Alarm
PIR Motion Detect: Yes
- Network
Protocol: P2P
Wireless Standard: 2.4Ghz WiFi IEEE 802.11b/g/n

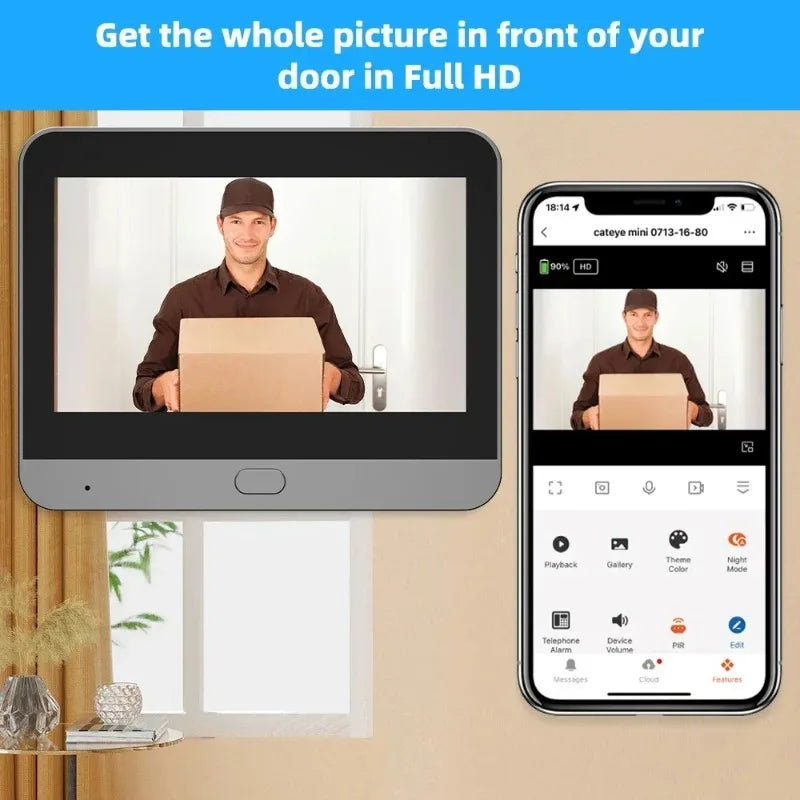

- App
Support: Android,IOS
APP: iCam365
- Storage
Mobile Phone Memory: Yes
SD TF Card: Support Max. 128GB ( please use above C10 high speed in FAT32 format TF card for the doorbell )
Cloud Function: Yes
- Power
Power Supply: Built-in Lithium Battery and EasyCharged by USB
Charging Port: Micro USB
- Consumption
Working Mode: 380mA (IR on)
Standby Mode: 200uA
Physical:LCD
Dimension: 140*82*20 mm
Camera Machine: 64.5*64.5*16 mm (copper)
Weatherproof: Yes
User Accounts: Total 4 Users
Working Temperature: -20℃ to 55℃
Relative Humidity: 85% non-condensing

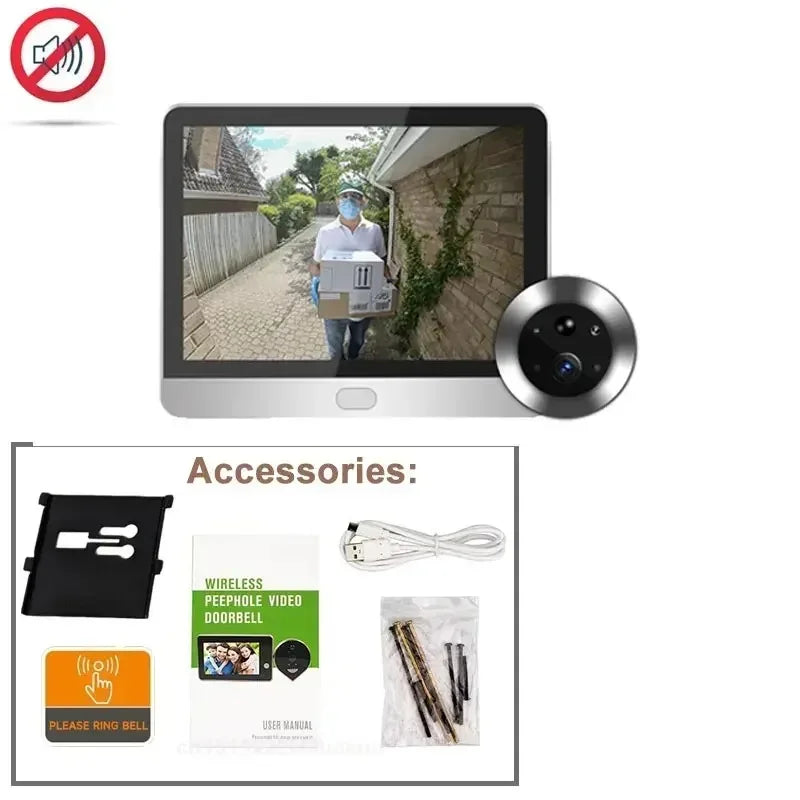

1x WiFi Peephole Viewer (indoor)
1x Doorbell (outdoor)
1x Micro USB Cable
1x Mounting Plate
1x Screw Kit
1x User Manual
Notice:TF card is option! (please useabove C10 high speed in FAT32 format TF card for the doorbell )
