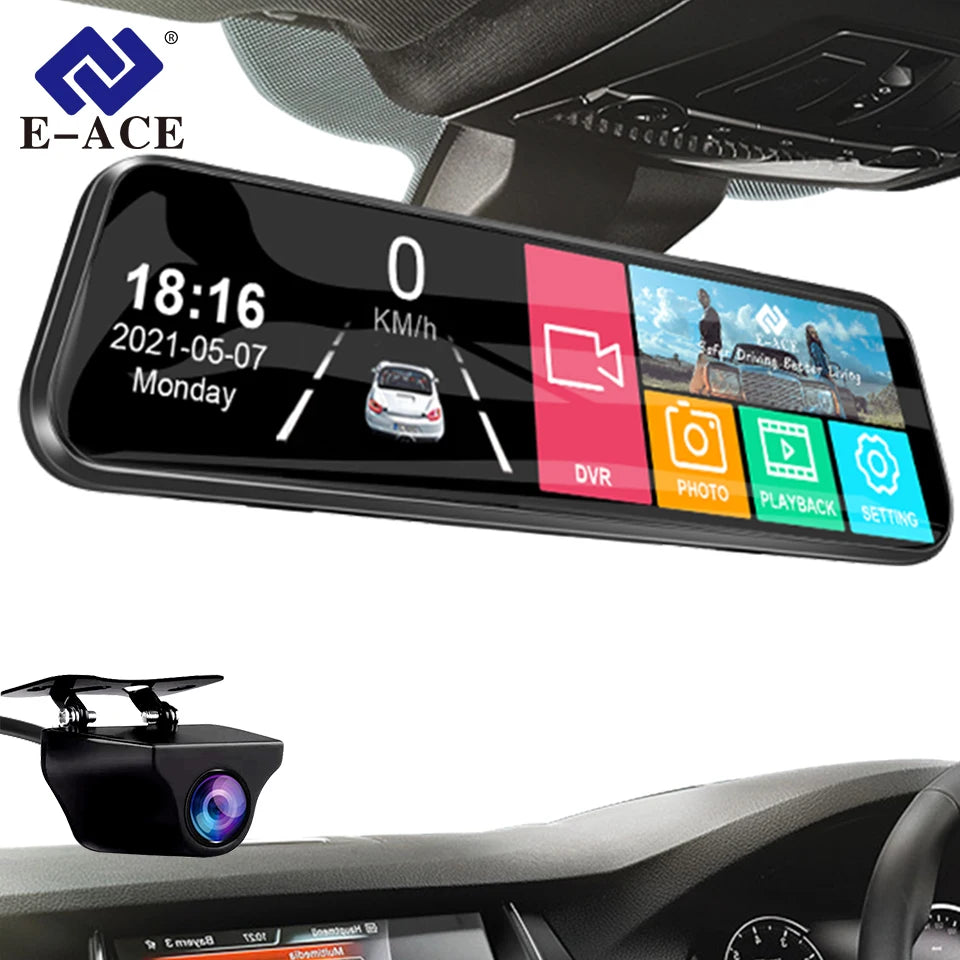

E-ACE 10 Inch Car DVR Mirror Video Recorder 1080P Touch Screen Dashcam For Car AHD Lens Streaming Driving Recorder Dash Camera
E-ACE 10 Inch Car DVR Mirror Video Recorder 1080P Touch Screen Dashcam For Car AHD Lens Streaming Driving Recorder Dash Camera
SPECIFICATIONS
2.5 Curved Screen Glass: HD Car Dvr Camera
9.66 Inch Touch Dash Camera: Stream Rear View Mirror Dvr
Aperture: F 2.0
Assembly Mode: Rearview Mirror
Audio Recorded: Yes
Auto Registrar: dash cam for car
Battery: Built-In
Battery Capacity(mAh): 300-500mah
Battery Life: Connect With Charger Work
Black box: 1080P Dash cam
Brand Name: E-ACE
Built-in Screen: Yes
Cable Length: 6 meters rear camera
Camera Resolution: 1920x1080
Car Dvrs Camera: 1:1 Split View Display
Certification: CE,FCC,RoHS,UL,pse,weee
Chipset Manufacturer: Generalplus
Choice: yes
Data Storage Capacity: None
Dimensions (W x H x D): 9.66 Inches
Display: IPS
Display Size: Other,9.66 Inch Full Touch screen
Dual Camera Lens: Dual Lens Recording Simultaneously
Dual Cmera Lens: Dvr With Rear View Camera
Dual Lens Simultaneous Recording: support 24H Parking Monitoring
Frames Per Second: 25

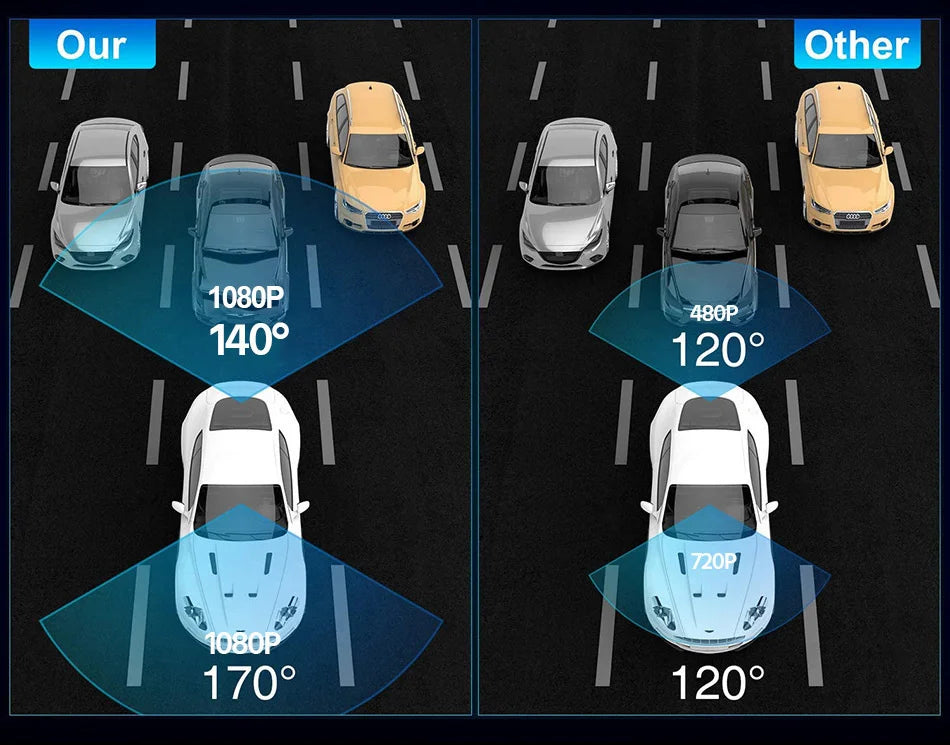

Front Camera: 170°,1080P
GPS logger: NONE
High-concerned chemical: None
Imaging Sensor: GC2053
Input/Output: Jack 2.0
Interface: AV-In,USB 2.0,Micro SD/TF
Is Batteries Included: Yes
Item Type: Car DVR
Loop-Cycle Recording Feature: Yes
Max External Memory: 128G
Maximum Video Frame Rate: 30
Memory Card Required Reding Speed: Class 10
NightShot Function: Yes
Number Of Lenses: 2
OSD Language: Arabic,Chinese (Simplified),Chinese (Traditional),czech,Dutch,English,French,German,Greek,Hebrew,hungarian,Italian,Japanese,Korean,Lithuanian,Polish,Portuguese,Romanian,RUSSIA,Russian,Slovak,Slovenian,Spanish,Turkish,Ukrainian,Vietnamese
Origin: Mainland China
Original Package: Yes
Pixels: 500Mega
Power Source: Corded Electric
Product Model Number: A20P
Rear Camera: Yes
Rear View Camera: 140°,1080P
Screen Ratio: 16:9
Special Features: G-Sensor,Digital zoom,motion detection,sd/mmc card,With Rearview Mirror,Anti Surge Voltage Impact,Waterproof,Anti Fog,Anti Vibration,Real Time Surveillance,Automatic White Balance,Wide Dynamic Range,Parking Monitor,3D DNR
Touch Screen: Yes
Video Code: MJPG
Video Format: AVI
Video Recorder DVRs: Night Vision Dash Camera
View angle: 170°
Warranty: 365 Days
Working Temperature: -20°-70°
semi_Choice: yes

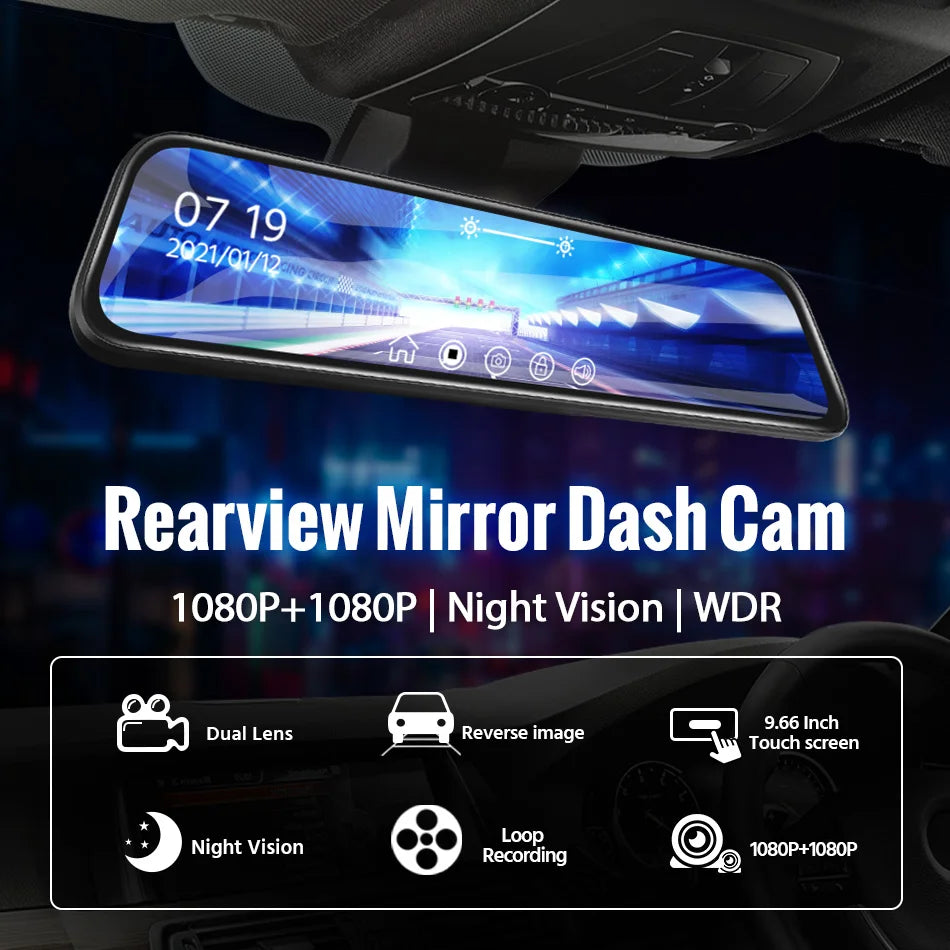

E-ACE 9.66 Inch Car DVR Mirror Video Recorder 1080P Touch Screen Dashcam Dual lens Streaming Driving Recorder Dash Camera
Features And Specifications
▶Installation Type: Rearview Mirror, suitable for all vehicles with mirror
▶Screen(Display) Size: 9.66 Inch IPS Touch Screen
▶Chipset(Processor/CPU): Generalplus
▶Camera Sensor: Front 2MP + Rear 2MP
▶Camera Lens: Front (6 Glass +170 Degree Angle + F2.0 Aperture) Rear (4 Glass + 140 Degree Angle + F2.0 Aperture)
▶Video Resolution: Front: 1920*1080P@30FPS; Rear: 1920*1080P@25FPS
▶Photo Resolution: 12M
▶Video Code: H.264
▶Battery: Built-In (Built-in battery is very small, can not support working, only for save time&setting, please use original power charger when working)
▶OSD Languages: Russian (default), English, Hebrew, Chinese, French, Turkish, Spanish, Japanese, Arabic, Korean, polish, Lithuanian, Hungarian, Italian, Portuguese, German, Czech, Slovak, Dutch, Romanian, Greek
▶Basic Features: G-sensor,Resolution,Digital Zoom,Frequency,Stream Media,Motion Detection,Cycle Recording,Screen Saver,Time&Date Display, Microphone, Boot Sound,Key Volume,Setting Guideline,Back camera mirror,Back camera flip,In-car camera mirror,In-car camera flip,With Rearview Mirror, With Ruler, Anti Surge Voltage Impact, Waterproof, Anti Fog, Anti Vibration, Real TimeSurveillance, Cyclic Recording, Automatic White Balance, WDR,Time-lapse video Infrared light etc
▶Memory Card: Micro SD Card, class 10 and 16GB to 128GB (Not included)
▶Rear Camera Upgrade: Support max 10 meters cable Rear Camera
▶Add Features: Night Vision, 2 Split Screen,

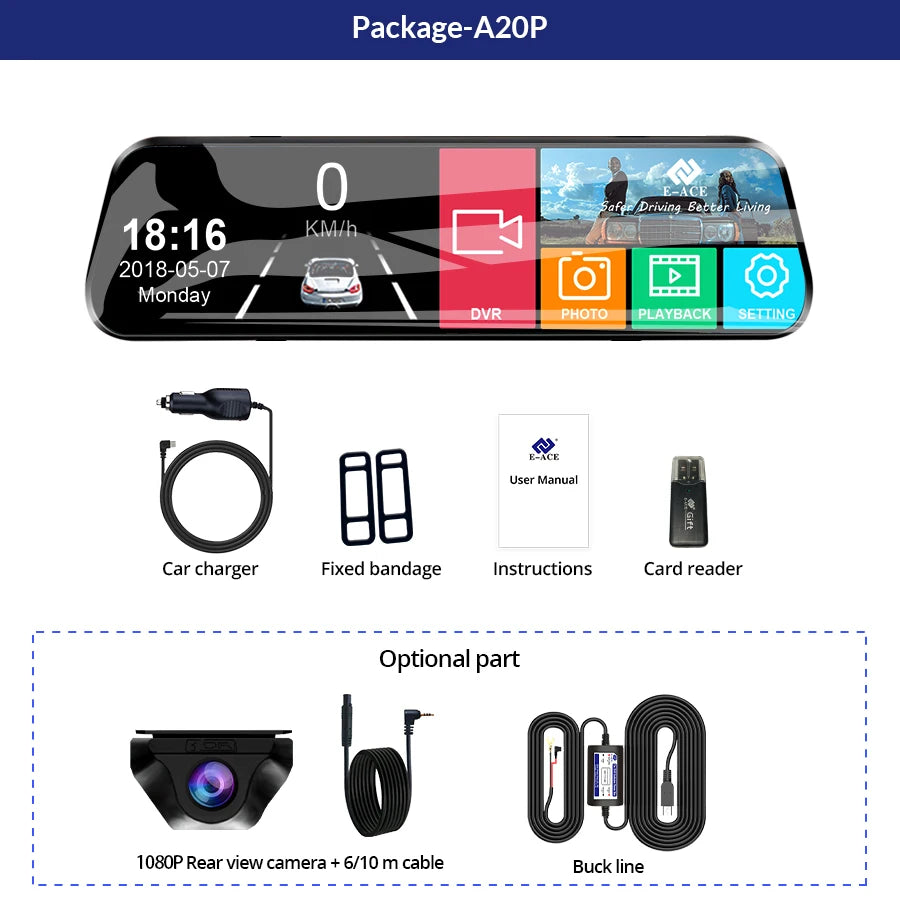

Packing List
▶1 x Packaging box
▶1 x DVR Mirror
▶1 x Power charger
▶1 x User manual
▶2 x Bandages
▶1 x USB Card Reader (Gift)
▶1 x Rearview Camera With 6 Meters Cable(Optional)
▶1 x Rearview Camera With 10 Meters Cable(Optional)
▶1 x Buck Line For 24H Parking Monitoring(Optional)
▶1 x Real Class 10 High Speed TF Card(Optional)
Pay Attention
▶About 24h Monitoring
The DVR is only compatible with cars that have a 12V power supply. A 24V power supply will burn the motherboard. If you want to use 24V, please add a 24V to 12V Converter(BL).
▶About Video
Our Car DVR is FHD 1080P Video Recorder,must use high quality Class 10 TF Card, any low quality/low speed TF card all can't support our DVRs work normally, if you can't make sure you have good TF Card,please buy our Original TF Card together.

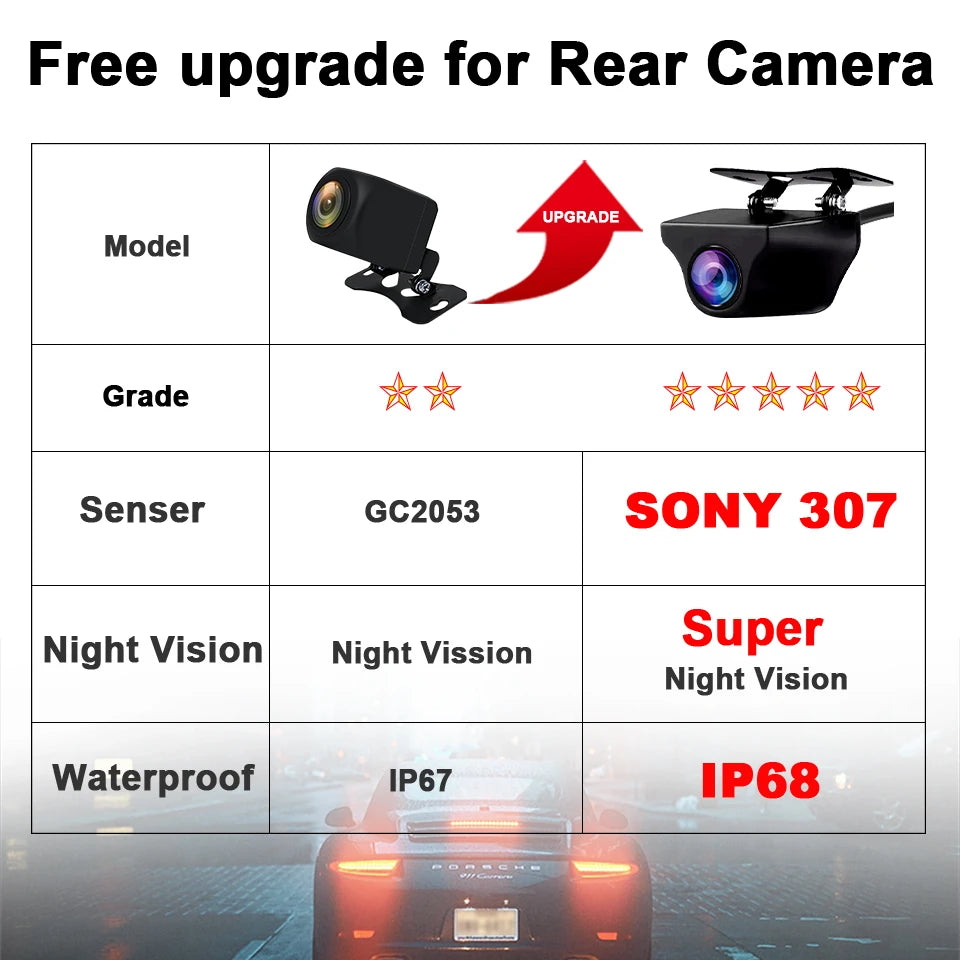

▶About Rear Camera:
Because the Chipset and Camera Sensor are different with other seller, we only guarantee that our Original rear Camera can work well with our Dashcam.

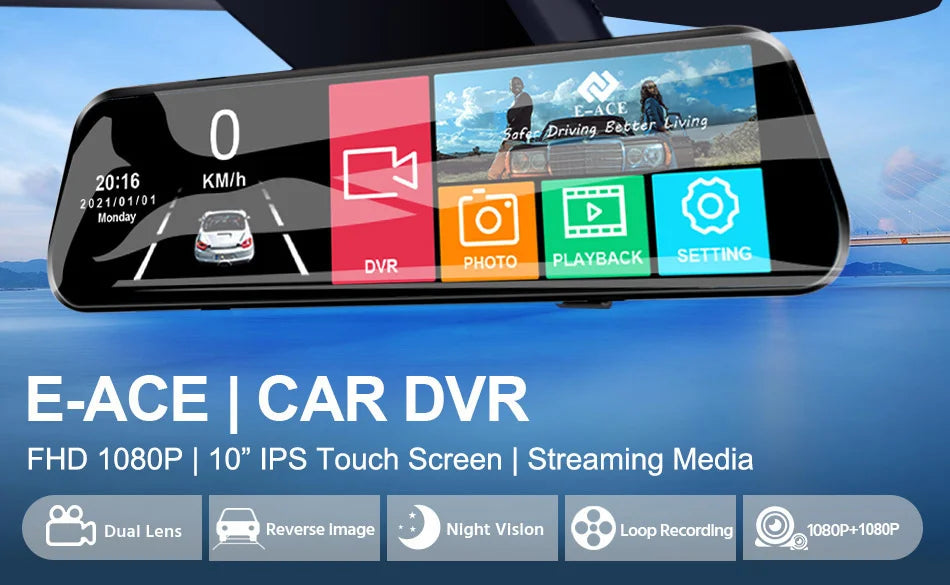

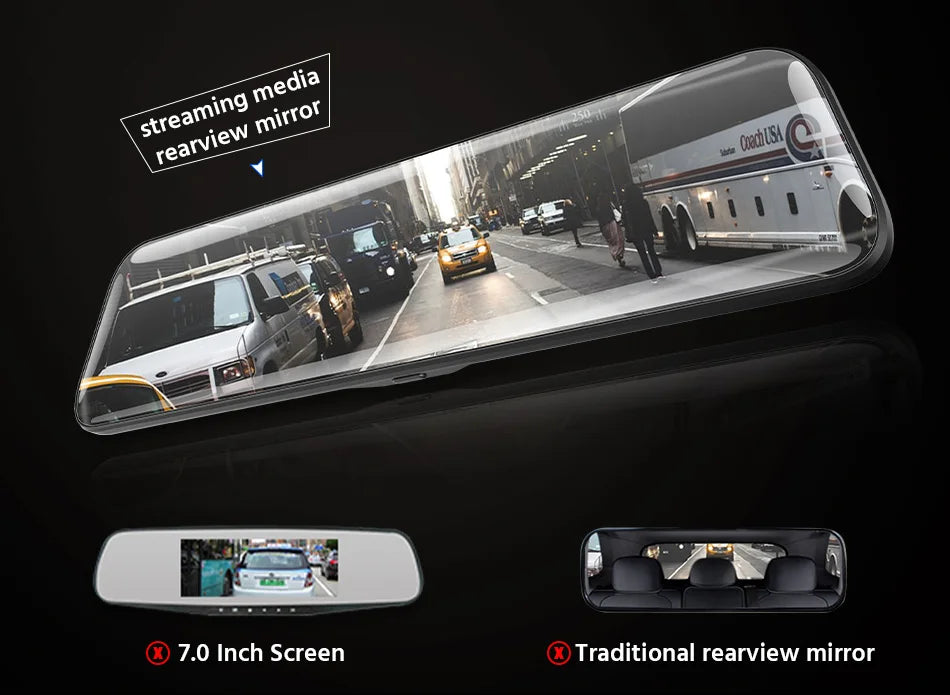

Streaming Media DVR Mirror
Streaming media rearview mirror use full screen instead of original reaview mirror. Display rear image of vehicle on screen in real time through camera. It is not affected by obstacles or natural weather.

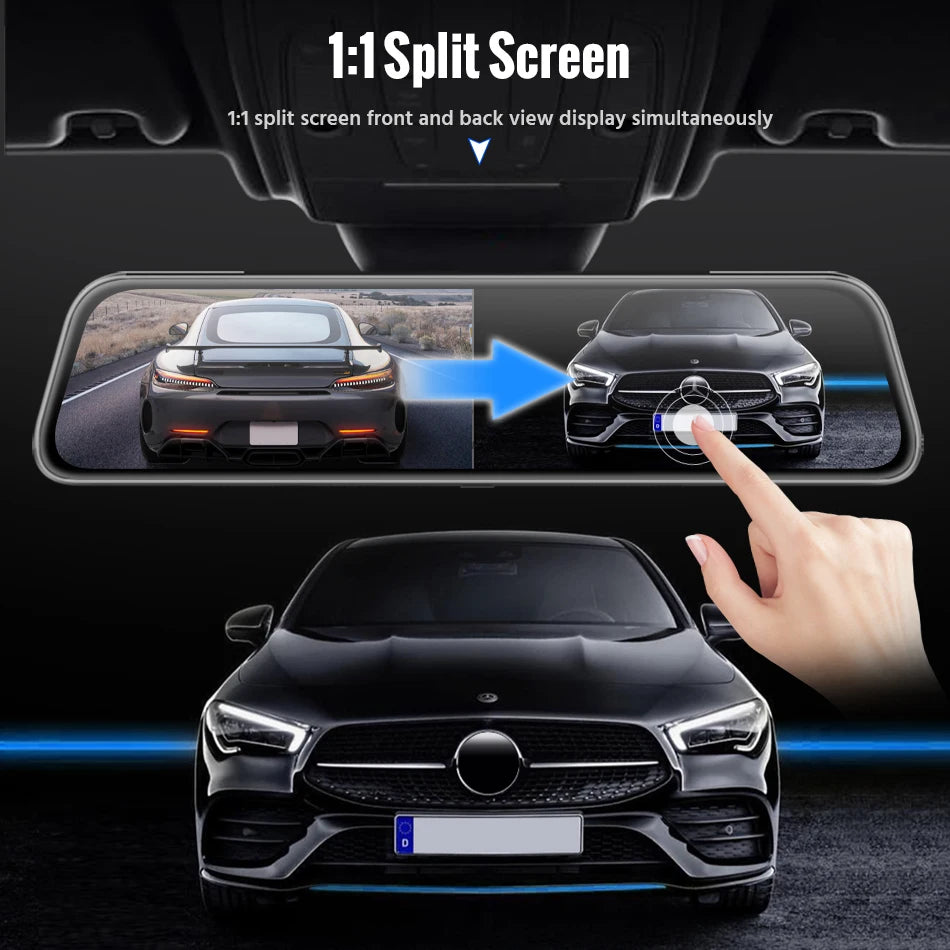

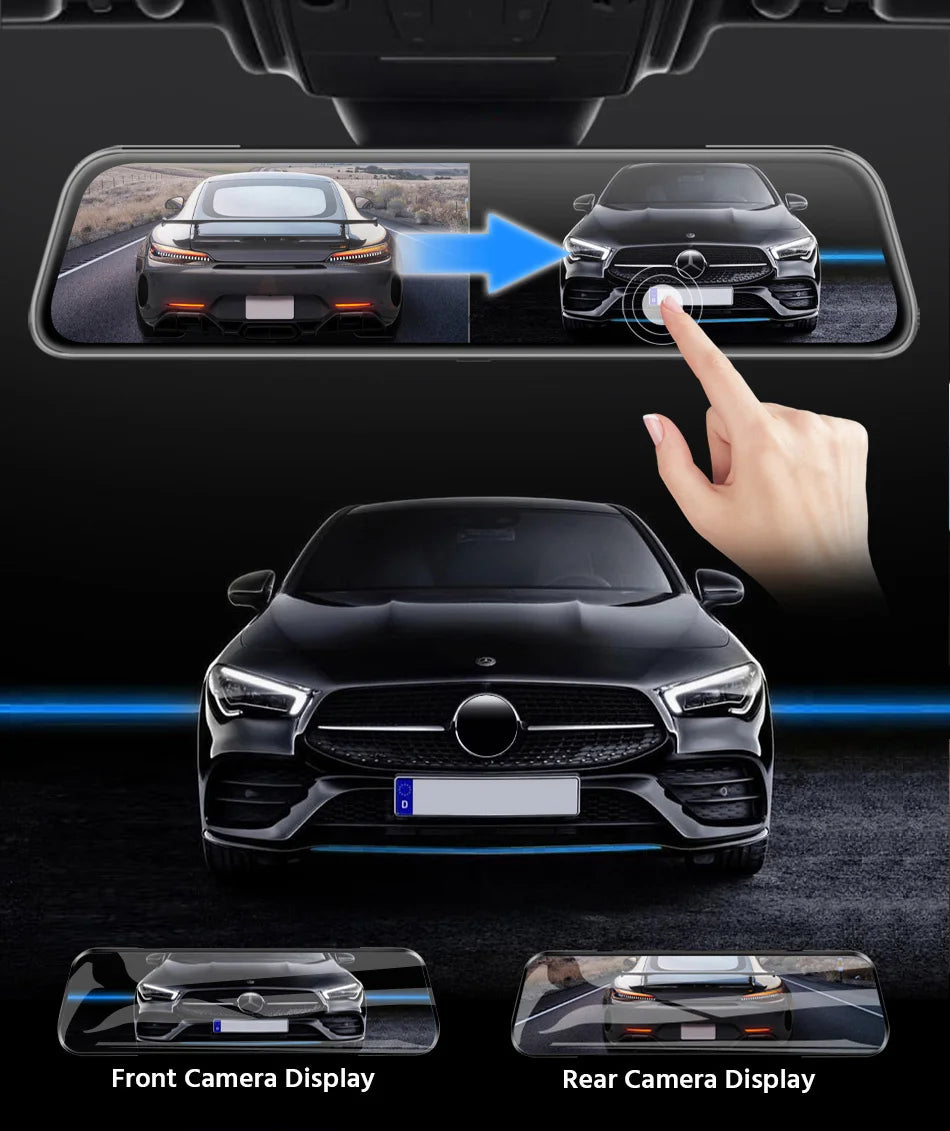

1:1 Split Screen
1:1 split screen design to switch front and rearview recording, big screen and clearly and ersily to check rear view.Touch screen to switch to front camera,back camera.

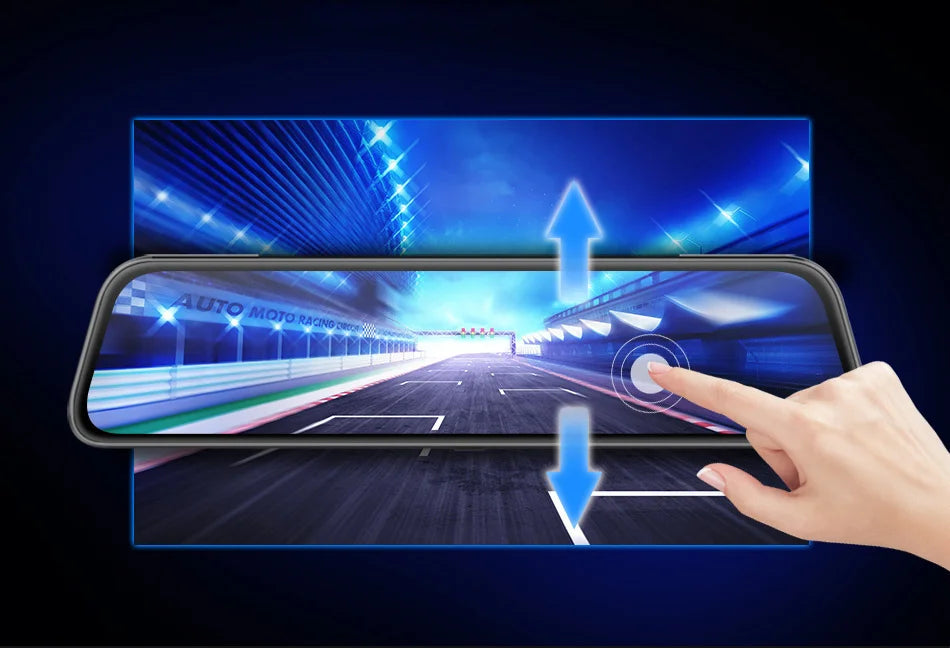

Angle of Wiew Adjustable
Move the screen up or down to get more view. You can adjust the appropriate angle of view by long pressing the screen and moving your finger up and down, Gently swipe to switch views.

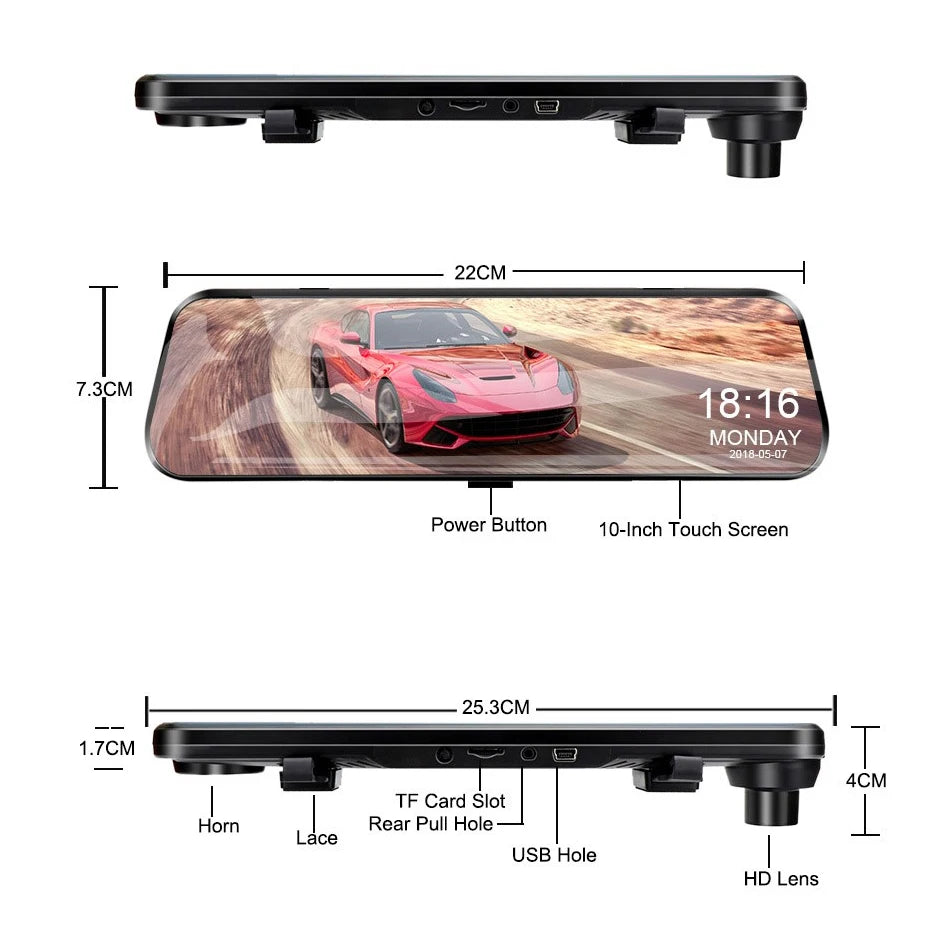

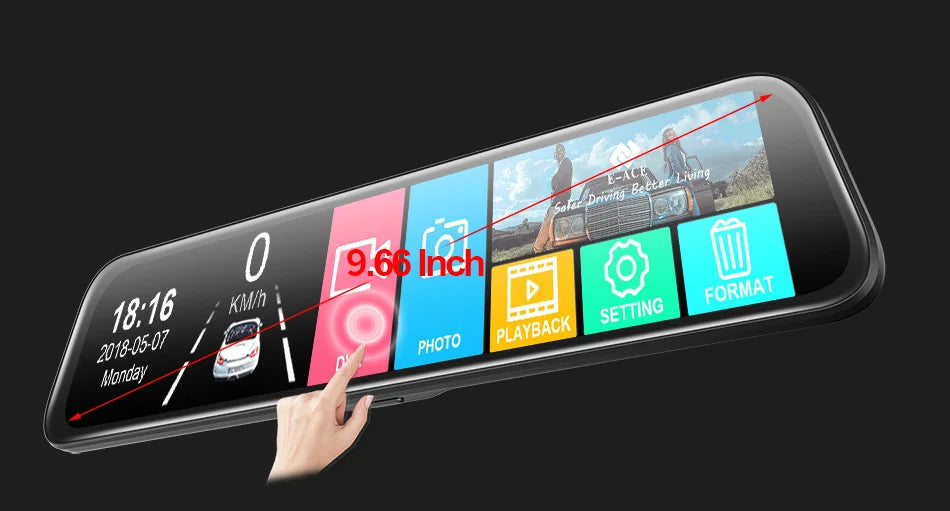

9.66 Inch Touch Screen Display
9.66 inch touch screen, more convenient to operate, you can very fast operation of the car camera, so that you are safer in driving.

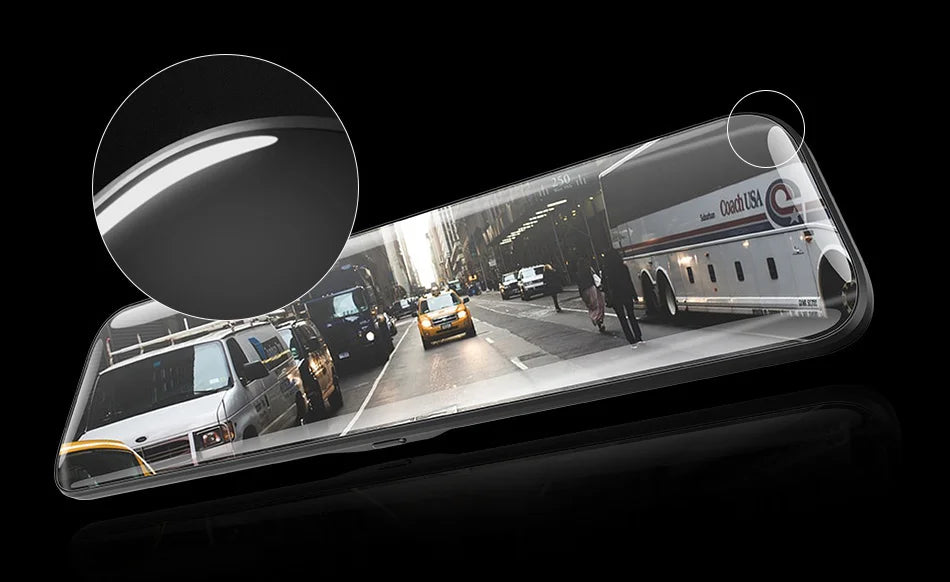

2.5D Curved Surface Screen
2.5D curved glass design,scratch-resistant ,anti-glare,anti-fingerprint.

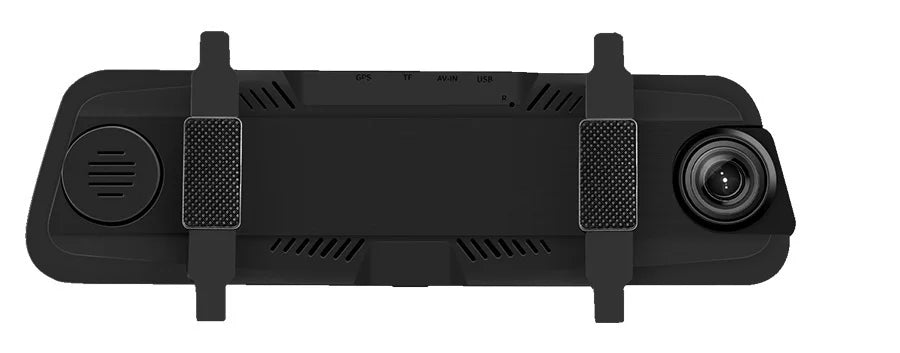

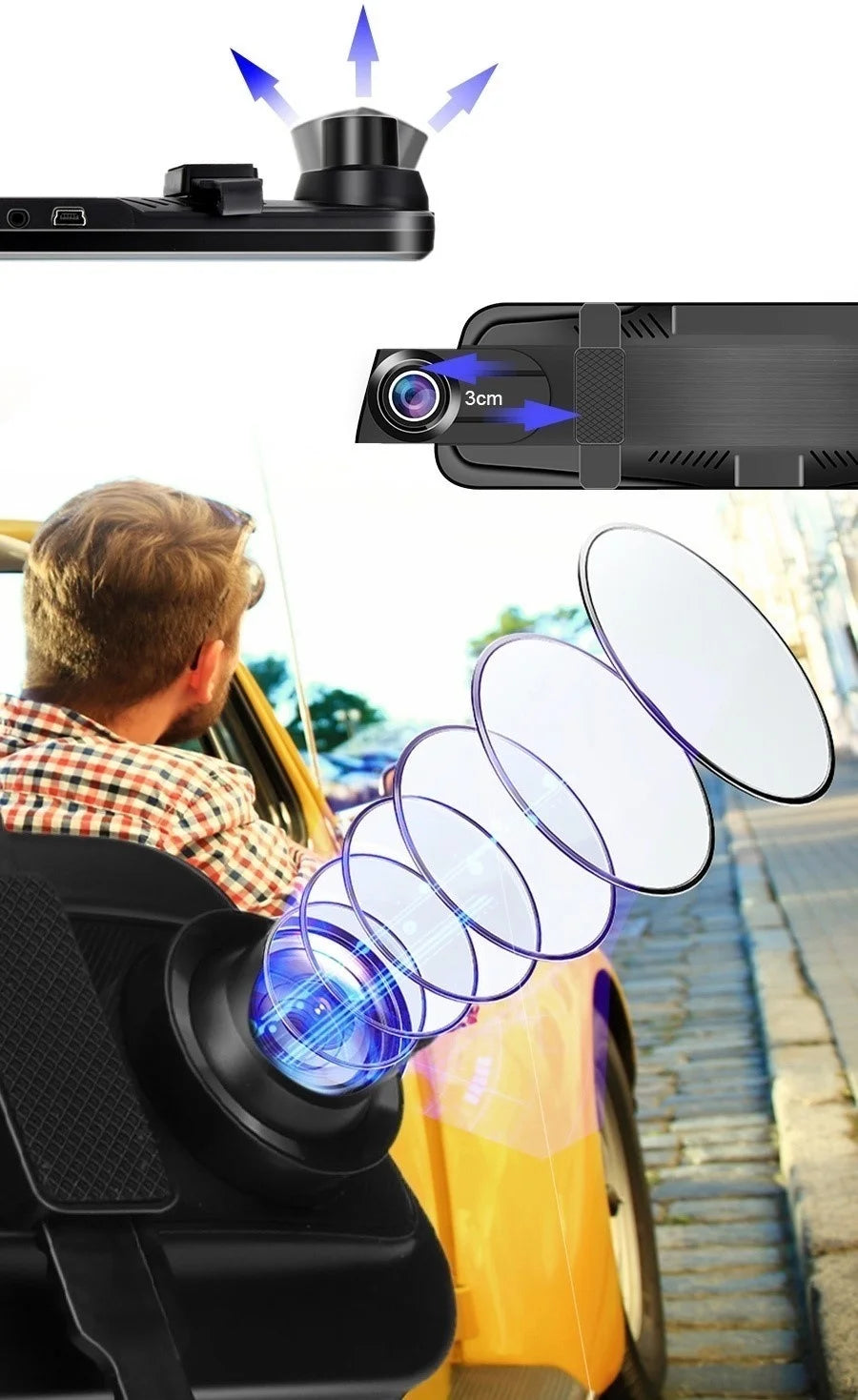

6 Glass HD Lens
Flexible front camera, can be slight adjust the lens up and down and left and right. And 6 glass HD lens , through the most, too dark, the screen of the active exposure adjustment, which is more detailed picture details, the image clearer.
Full HD 1080P Video Quality
Higher quality images help to identify vital details such as license plates,driver actions and road features which may prove your innocence.
Dual Camera Simultaneously Recording
This Car DVR has cameras that allows for simultaneously recording videos from two different angles.

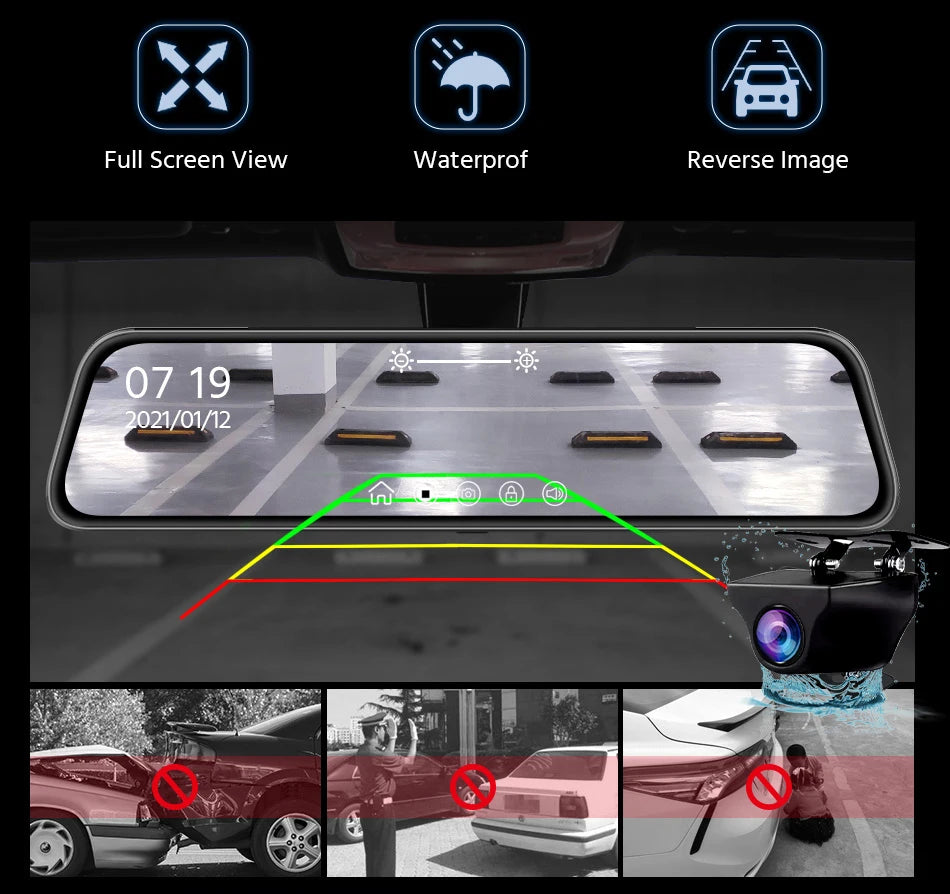

Real-time Display Reverse Parking view
Smart rear view angle switch between driving and parking.You could see all further vehicles and objects clearly behind. you while real-time driving and it will switch the rear view camera automatically to give a closer backup image when parking.
More Features

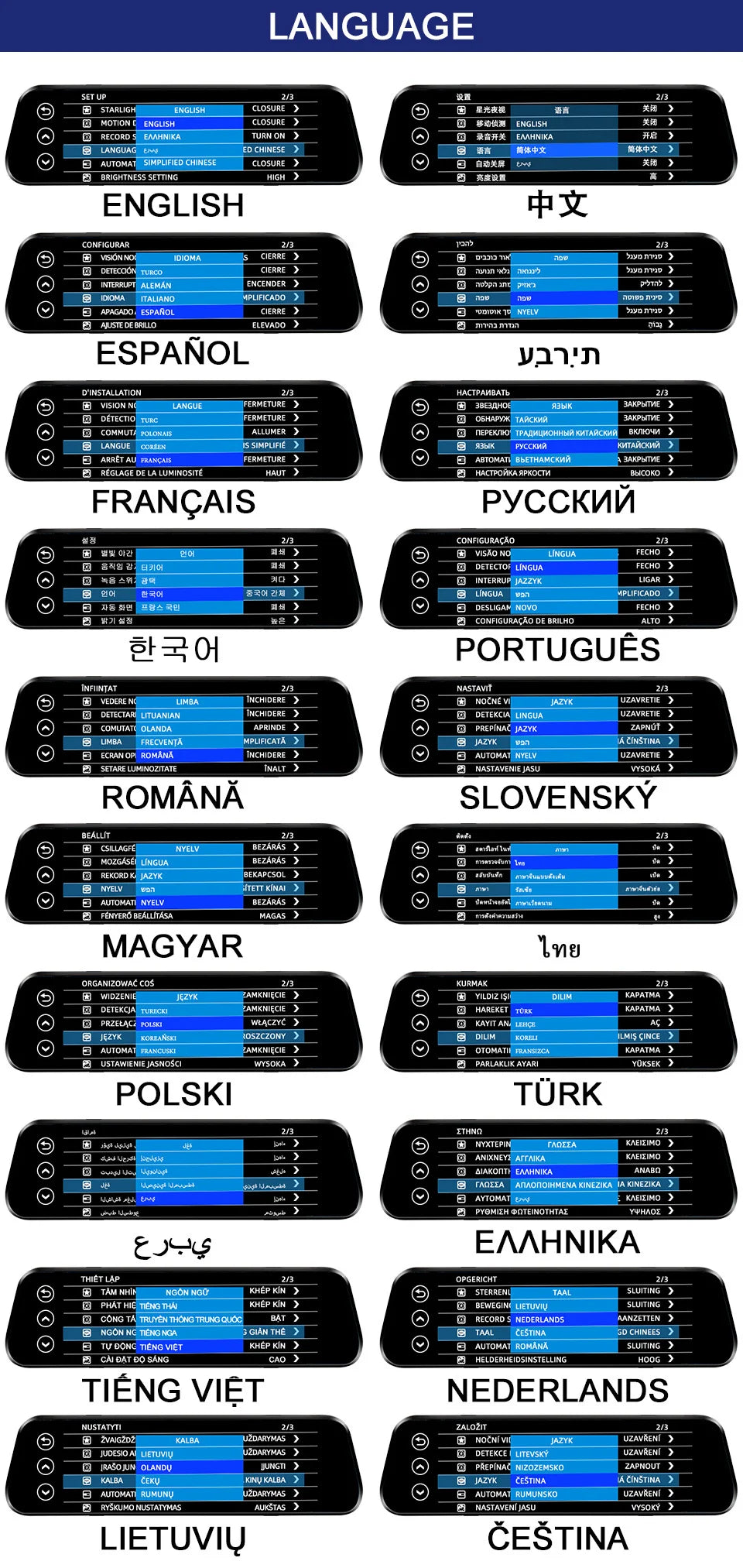

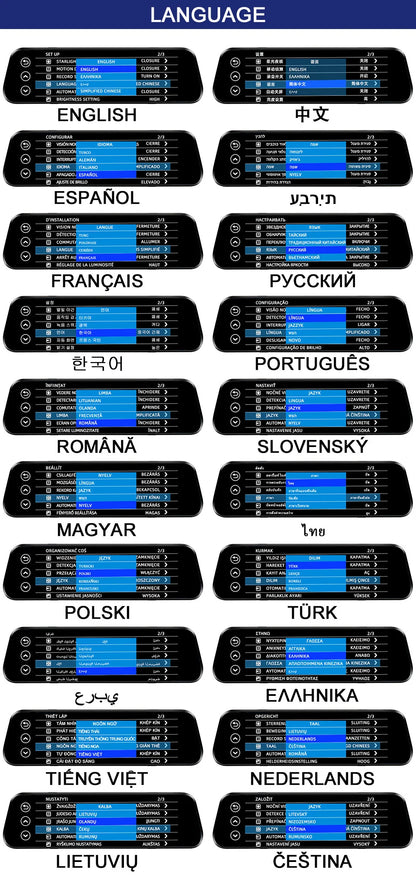

Multi-language menu
A20P is support multi-language, if your DVR Mirror don't have your language, just contract with us, we will help you add the all language.
How to change the OS language, Scan the QR code to watch the video in YouTube
Parking Monitor
If Dvr be shocked bv any external forces. like thief when parking, it will turn on to record automatically.（Note: Car Dvr built-in battery can't support work for long time, if you want 24 hours Parking Monitor, please buy our Transformer Cable Line or OBD Cable.）

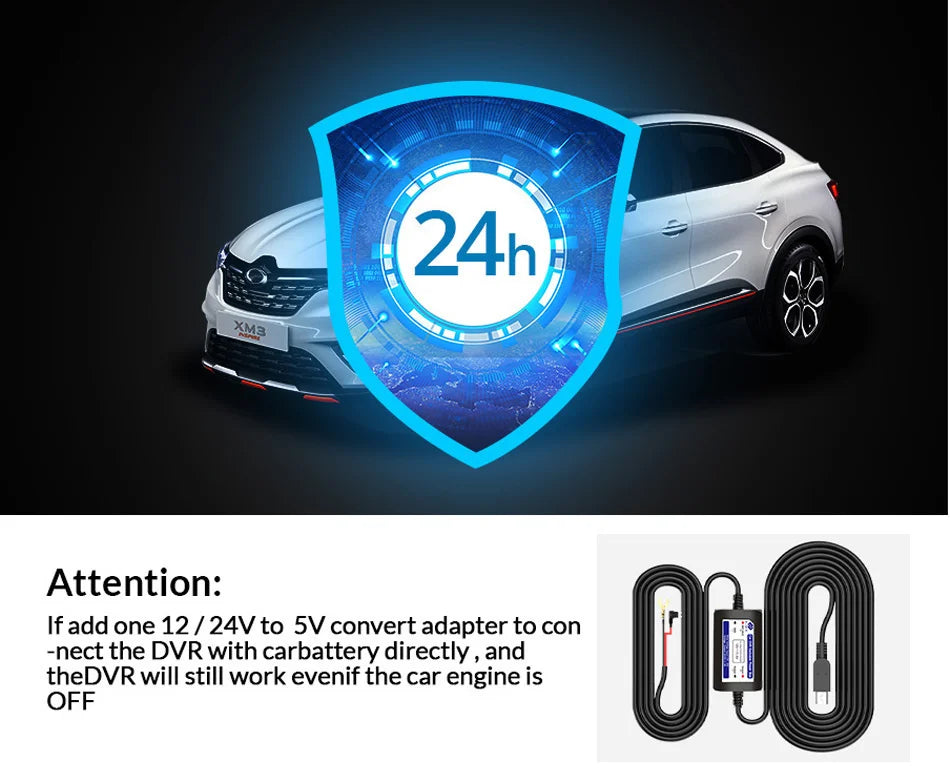

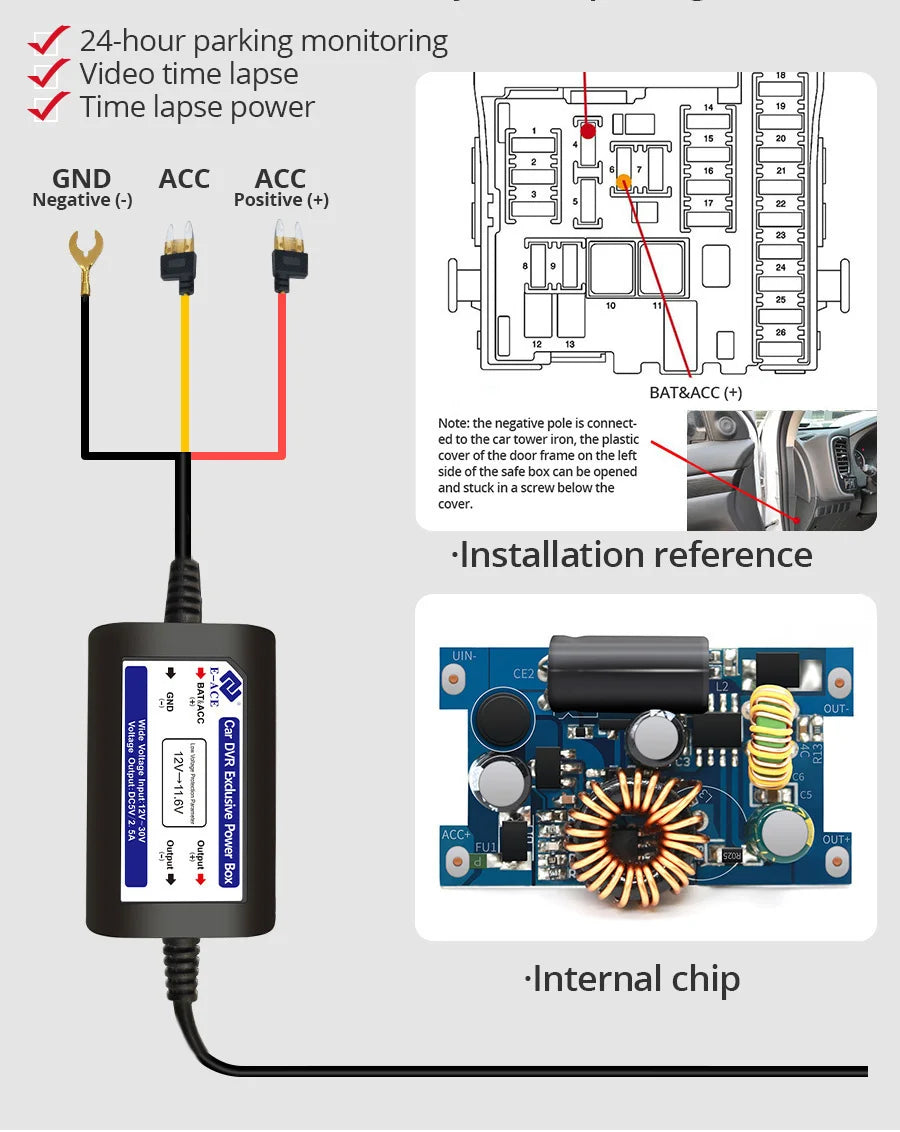

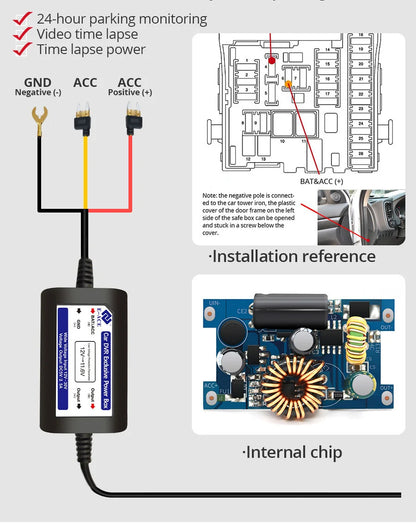

Buck Line
Use the buck line to not occupy the cigarette lighter interface.
First, connect the negative pole(black line) of the buck line to the ground of the car fuse box;
Secondly, if you want to continue monitoring after parking (the DVR works 24 hours), connect the positive pole(red line) of the buck line to the BAT interface of the car fuse box;
If you want to stop monitoring after parking (the DVR does not work after parking), connect the positive pole of the buck line to the fuse box ACC interface.
Product Display

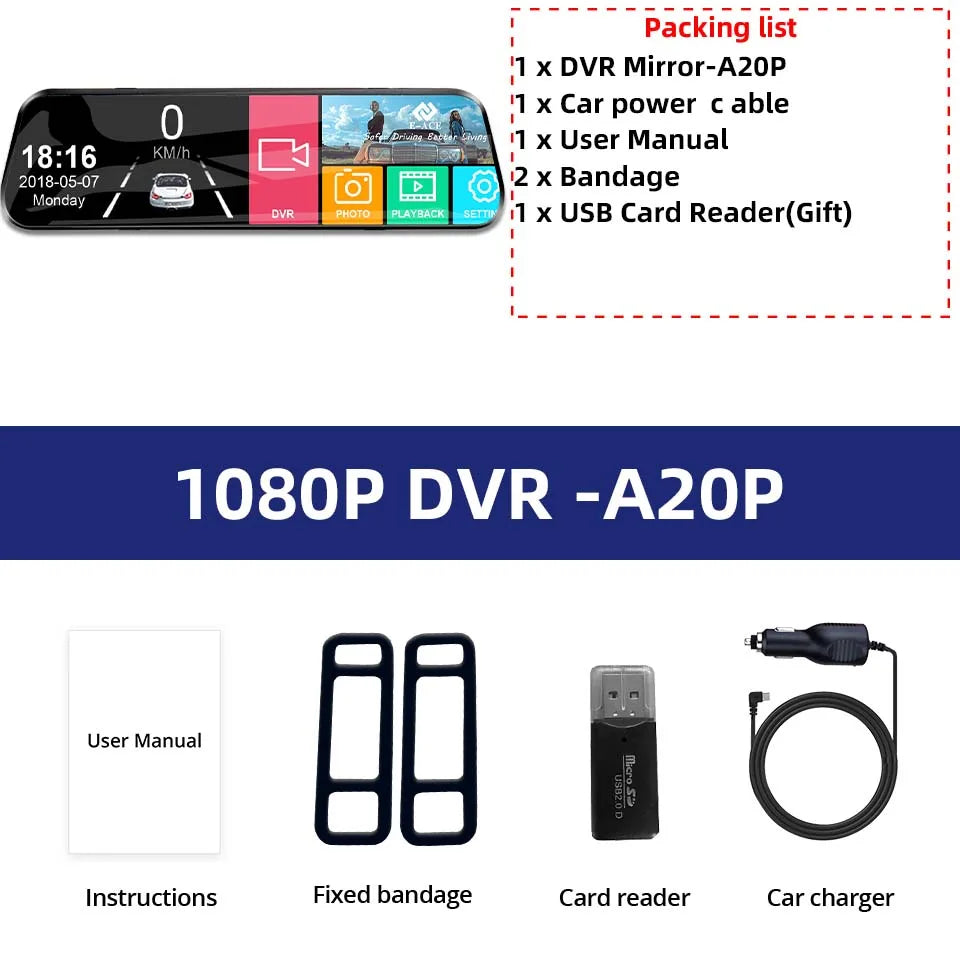

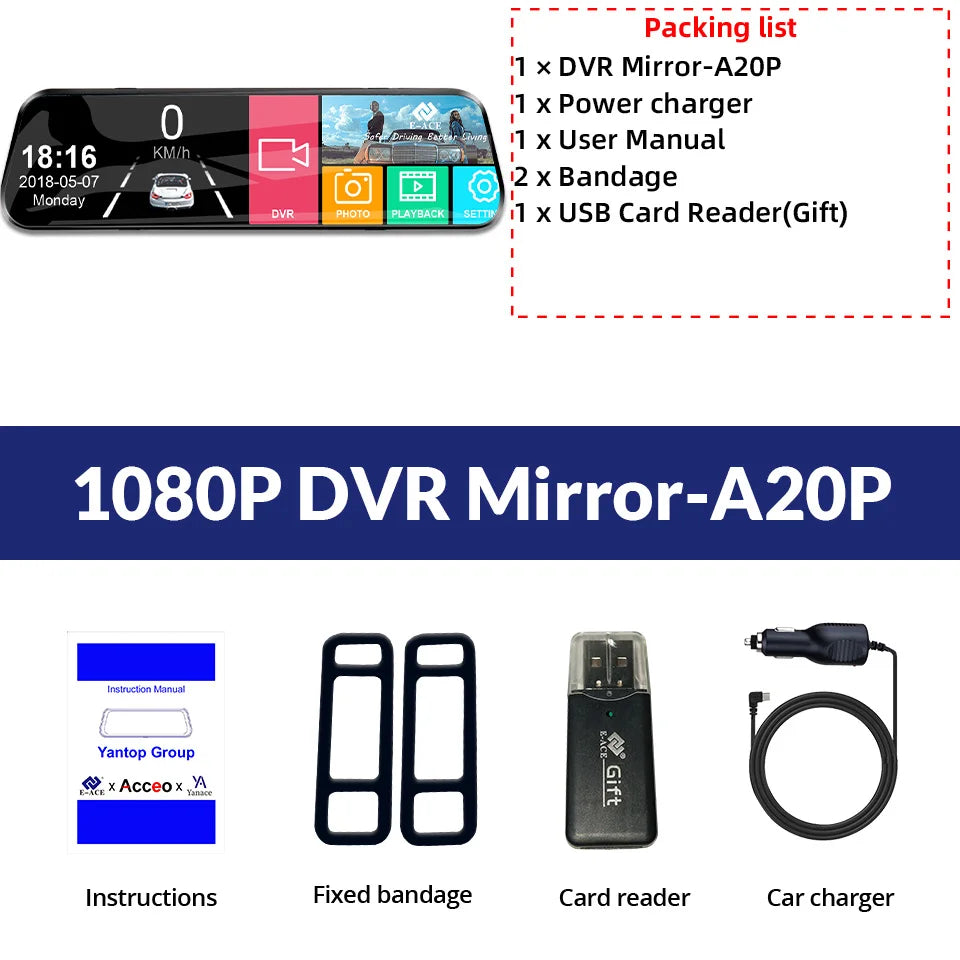

No Rear Camera
-1 x DVR(Without Rearview Camera)
-1 x Power charger
-1 x User Manual
-2 x Bandage
-1 x USB Card Reader (Gift)

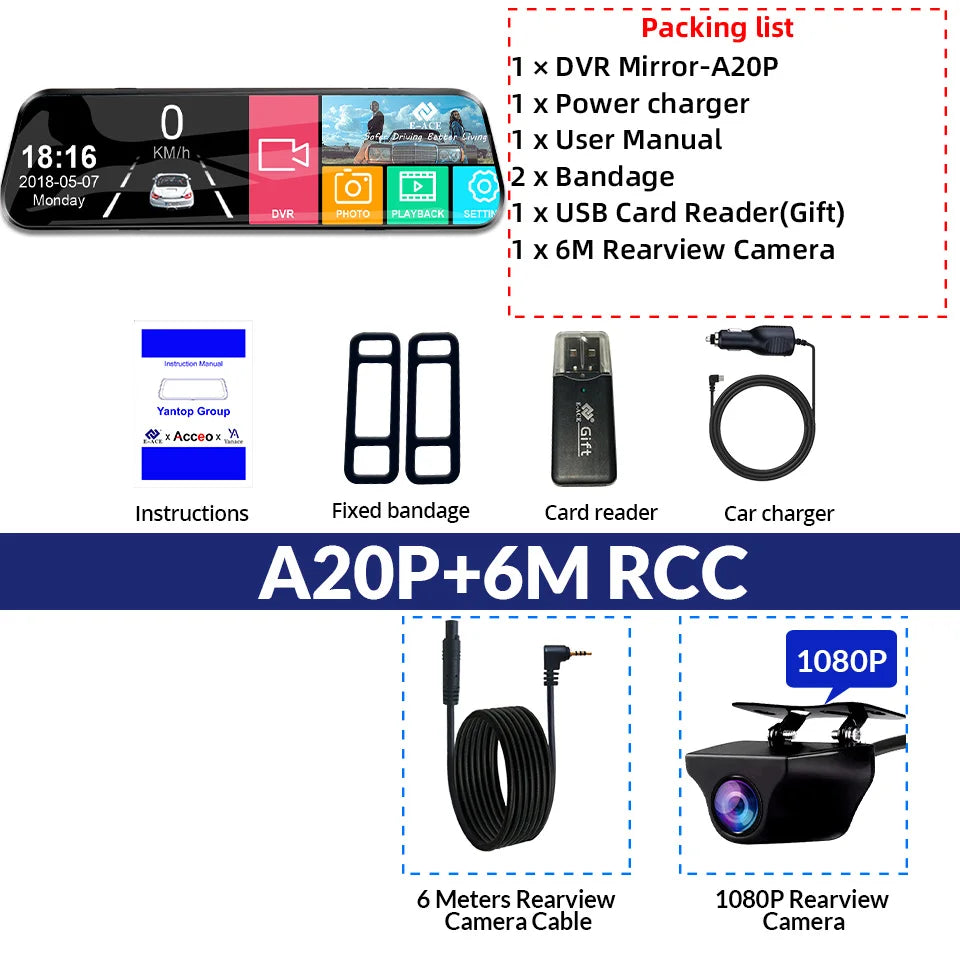

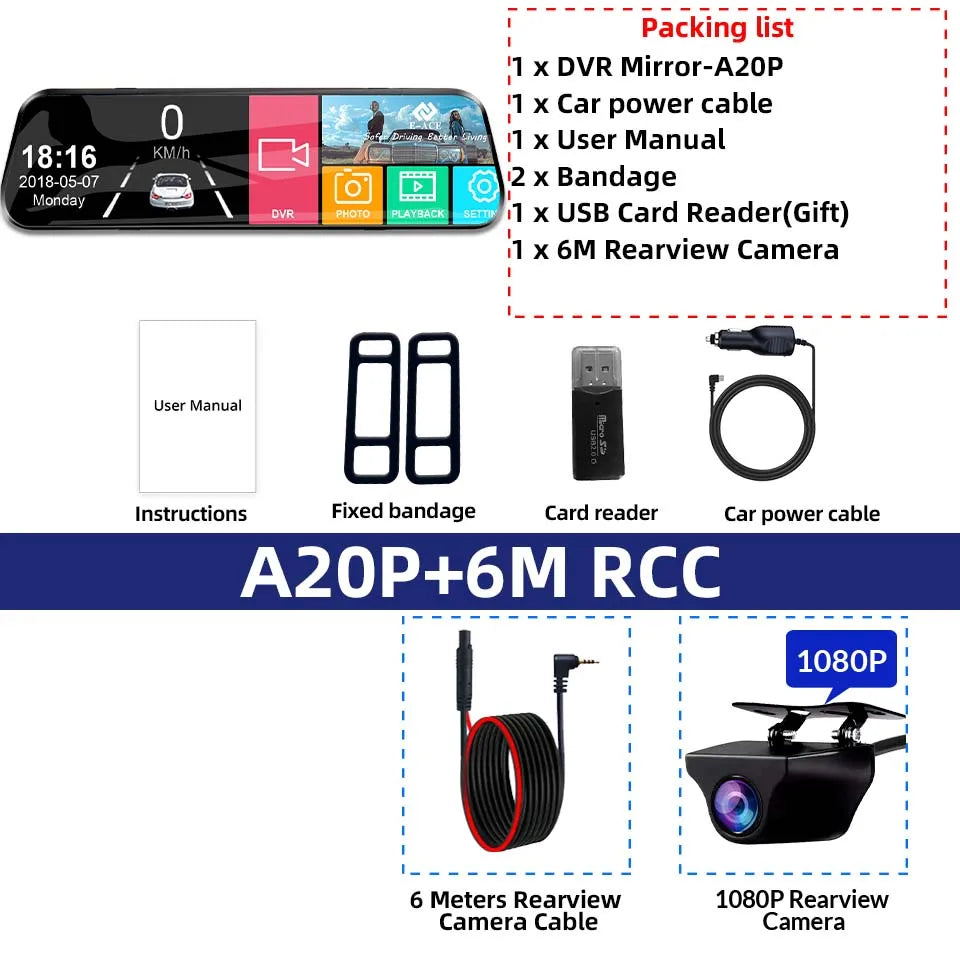

With 6M RCC
-1 x DVR
-1 x Power charger
-1 x User Manual
-2 x Bandage
-1 x USB Card Reader (Gift)
-1 x 1080P Rearview Camera With 6 Meters Cable

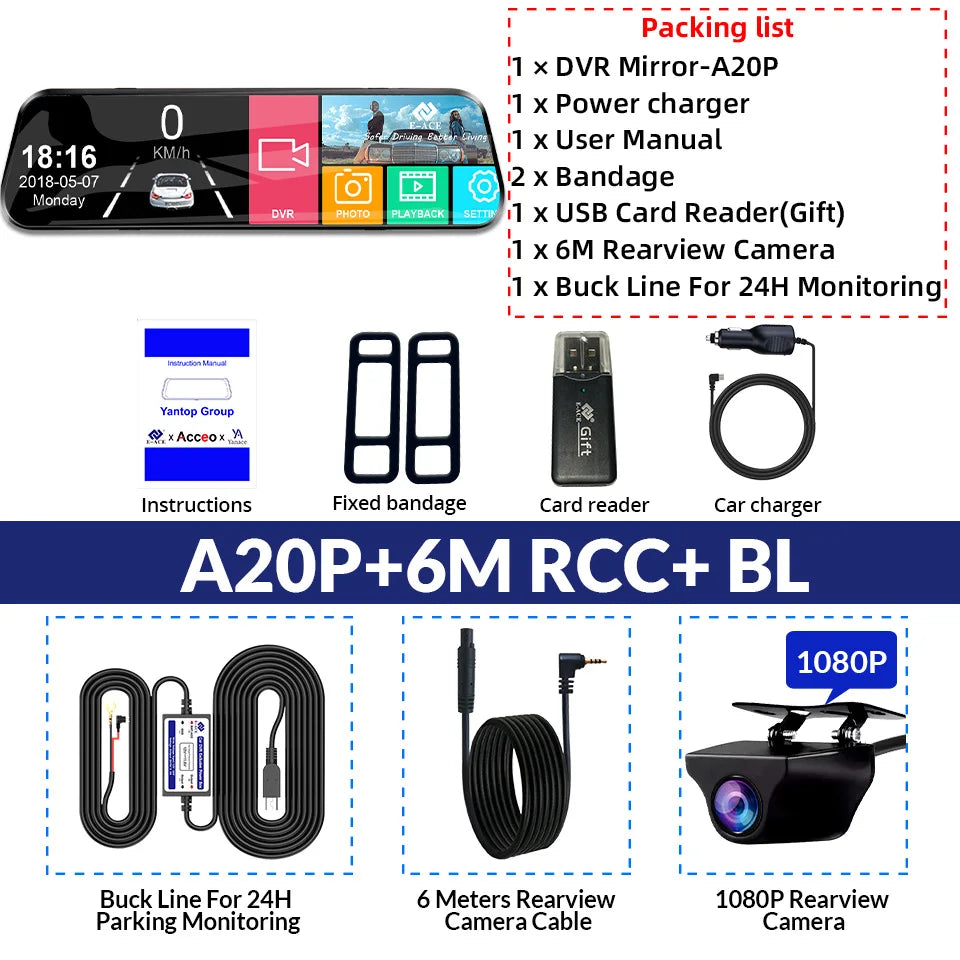

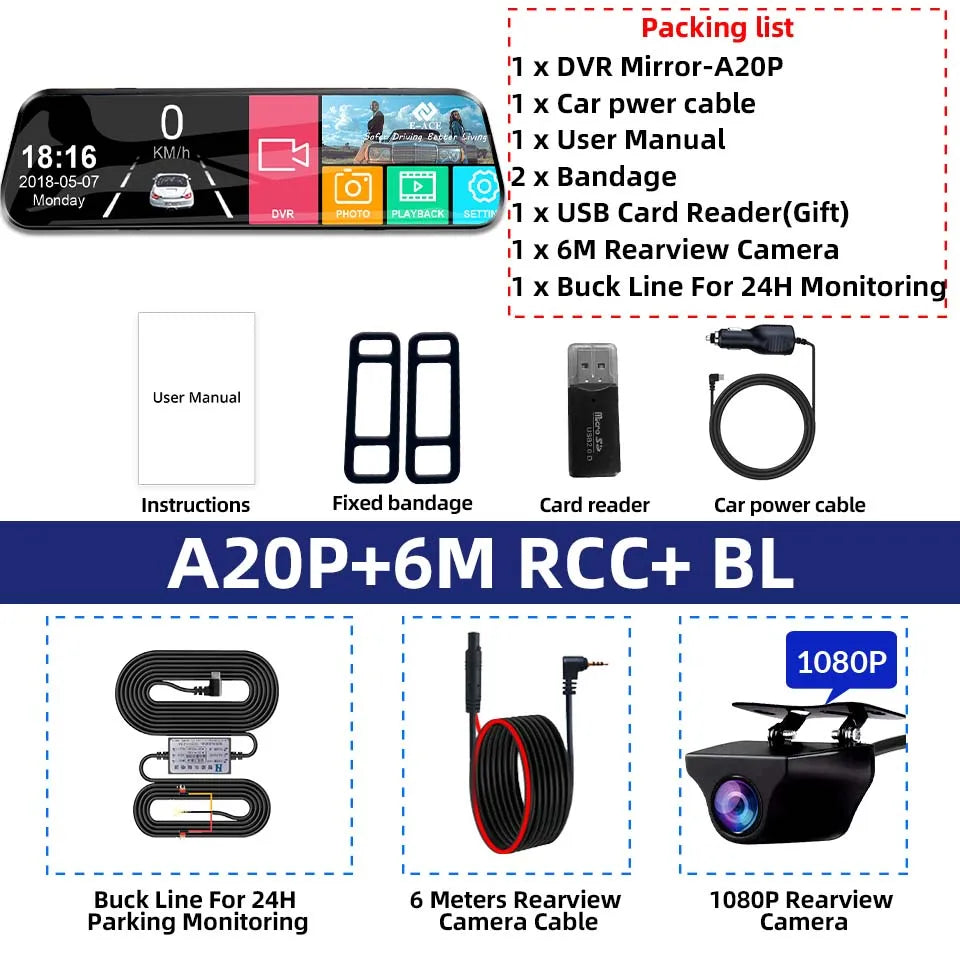

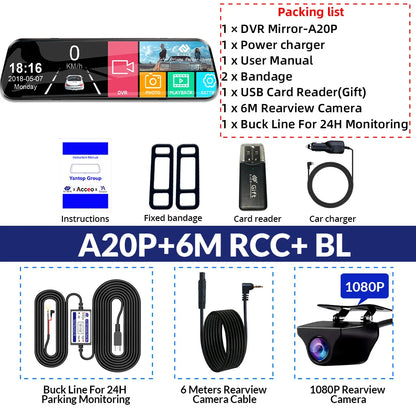

With 6M RCC BL
-1 x DVR
-1 x Power charge
-1 x User Manual
-2 x Bandage
-1 x USB Card Reader (Gift)
-1 x 1080P Rearview Camera With 6 Meters Cable
-1 x Buck Line For 24H Parking Monitoring

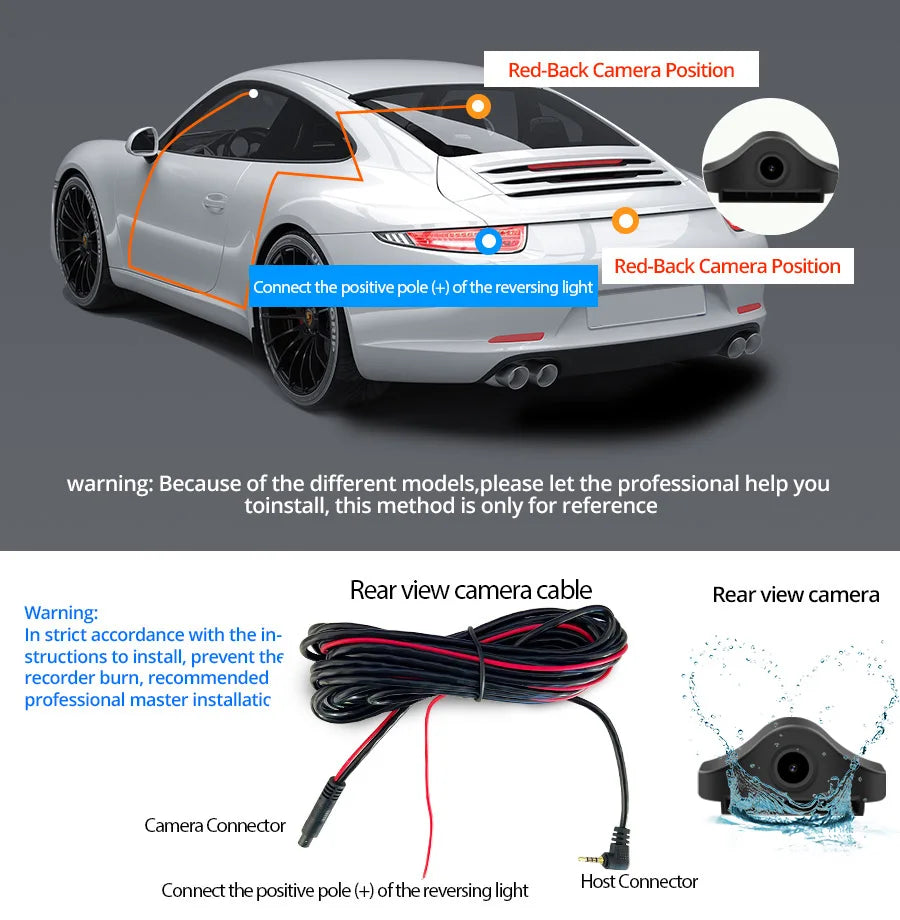

About Rear Camera Installation
Please connect the rear camera's Red cable wire with your car reverse lamp power 's Positive pole(+). and then plug the car charger into the cigar lighter to power supply the car dvr.When you get your car in Reverse Gear,the car dvr will automatically switch to the rear camera with parking line.Then the auto reversing function will work.
