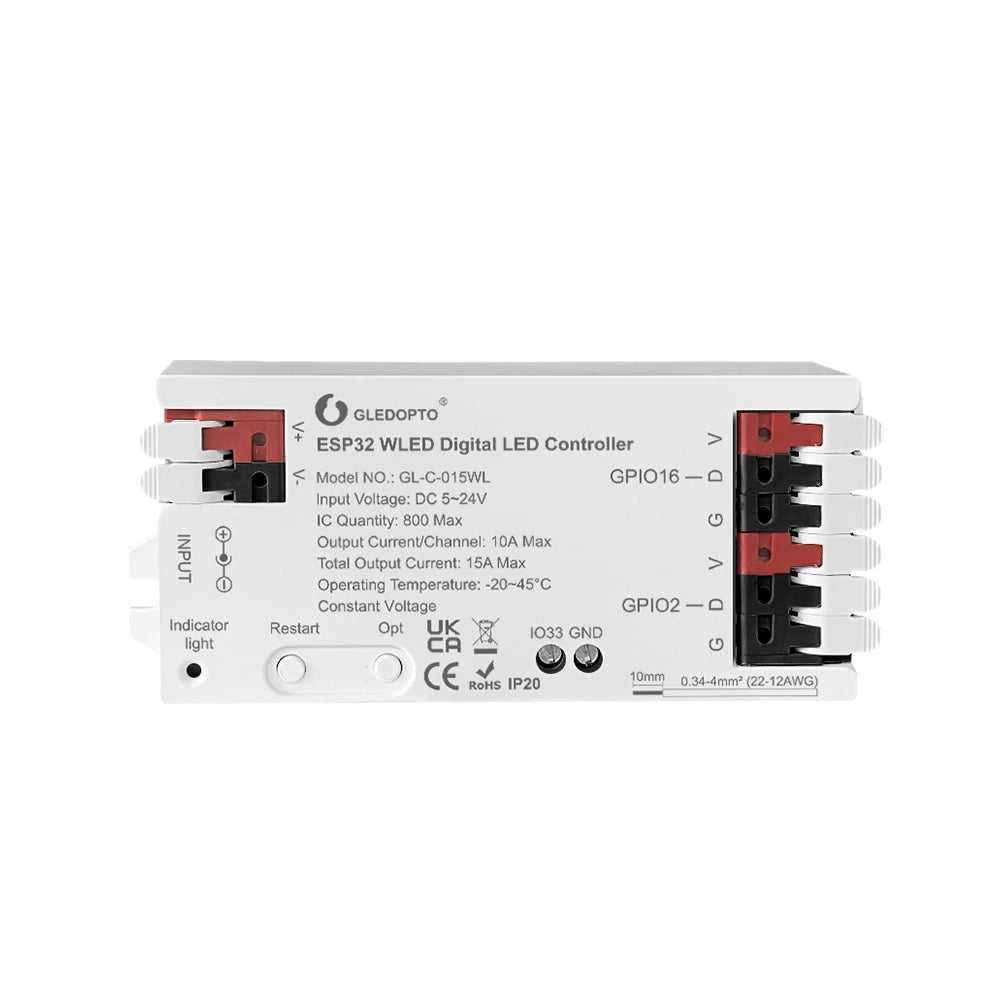

GLEDOPTO WLED LED Controller ESP32 Mic Music UART RGB IC Digital Lights Addressable String Lighting WS2811 WS2812B WS2815 SK6812
GLEDOPTO WLED LED Controller ESP32 Mic Music UART RGB IC Digital Lights Addressable String Lighting WS2811 WS2812B WS2815 SK6812
SPECIFICATIONS
Applicable Lights: RGB IC Addressable led strip
Brand Name: GLEDOPTO
Certification: ce,EMC,FCC,LVD,ROHS
Choice: yes
Connection Mode: WiFi
Controled Method: App Control
Features: WLED
High-concerned chemical: None
Item Type: RGB controler
Material: Plastic
Max. Load Power: 240W
Model Number: GL-C-014WL / GL-C-015WL / GL-C-015WL-M / GL-C-015WL-D
Origin: Mainland China
Power Source: DC
Remote Distance: 30m
Voltage: 12-24v
Warranty: 2 Years Warranty
Wattage: 240W
semi_Choice: yes

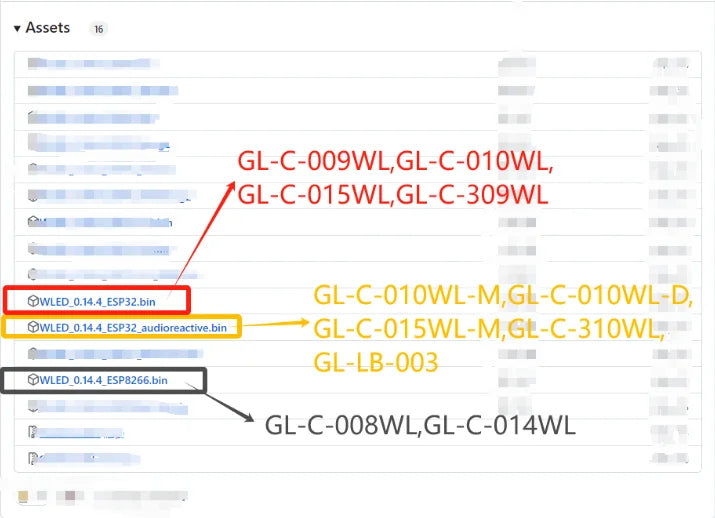

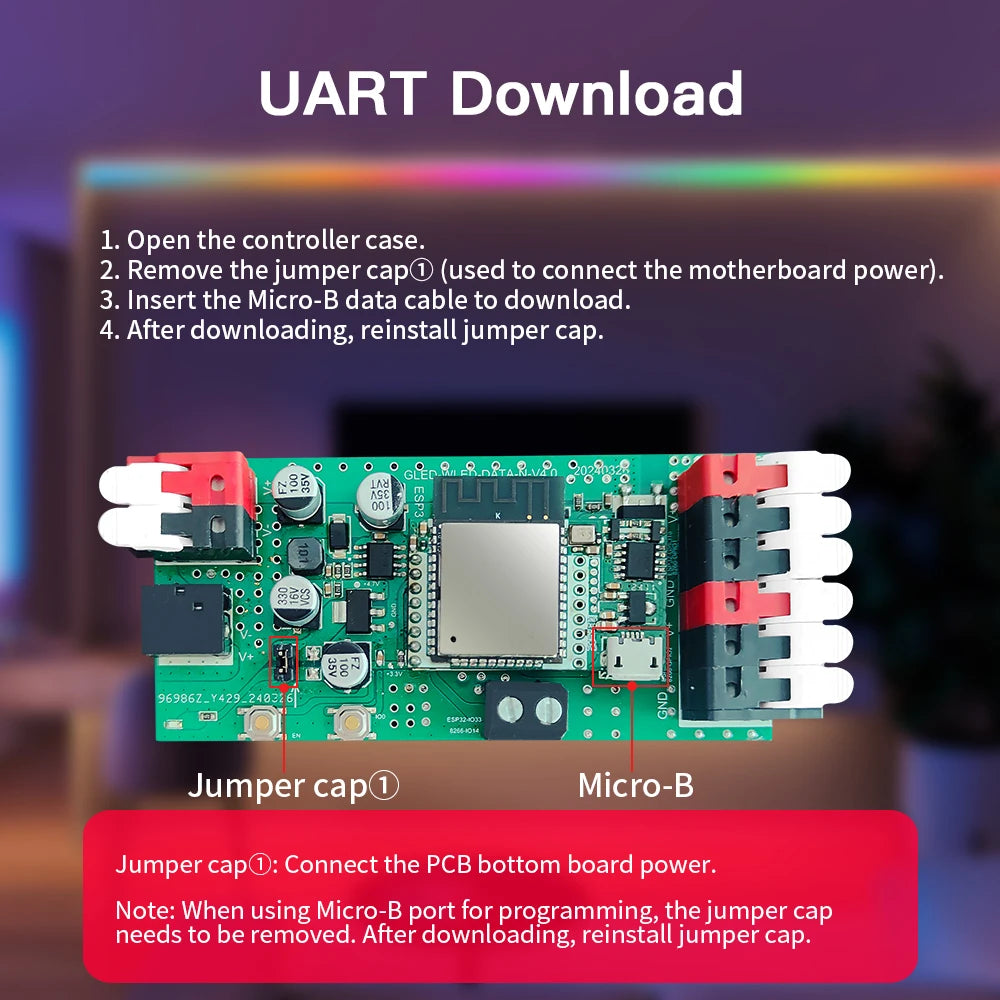

Note: WLED controller supports OTA upgrade firmware. Please select the firmware corresponding to the chip when upgrading firmware. Wrong firmware upgrade will lead to product brick

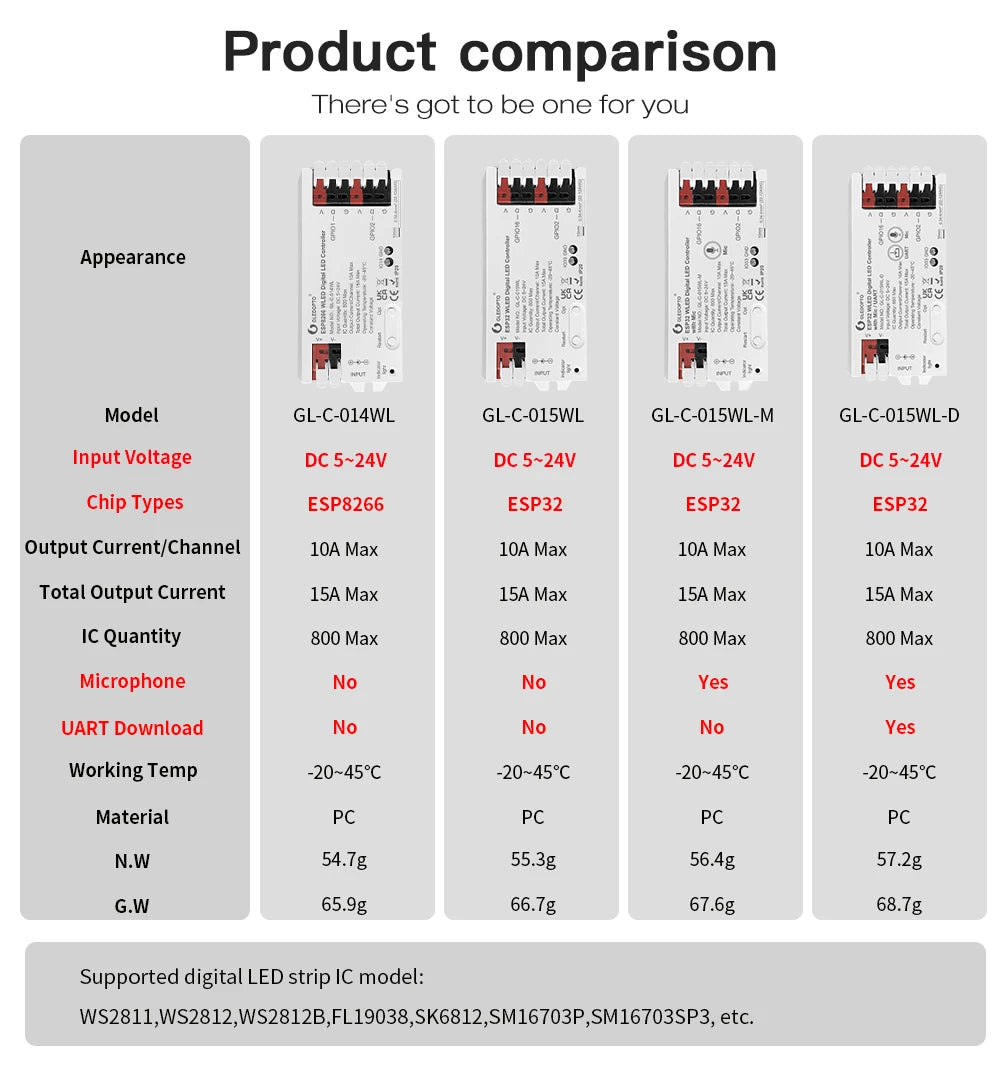

Note: Please note that there are Several controllers available for this link, please carefully select the controller you need.

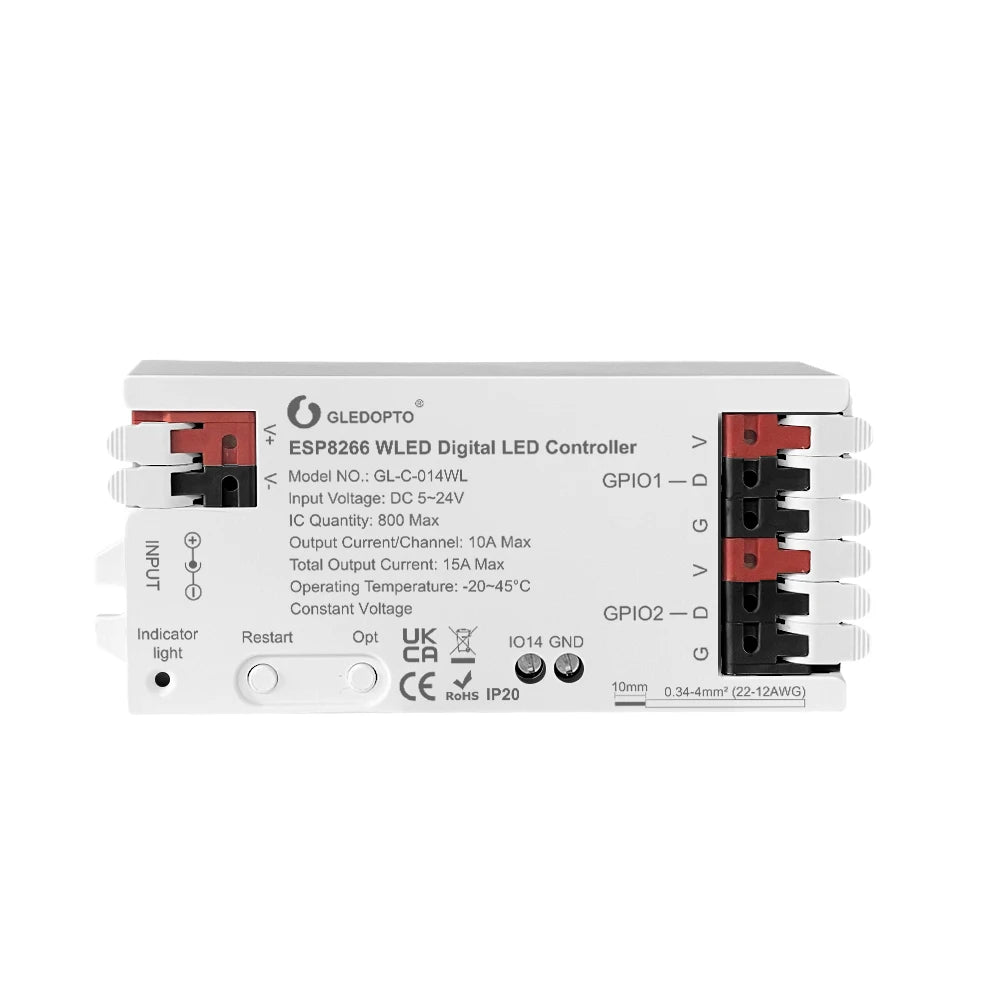

●ESP8266 White：GL-C-014WL White (No Mic and UART)

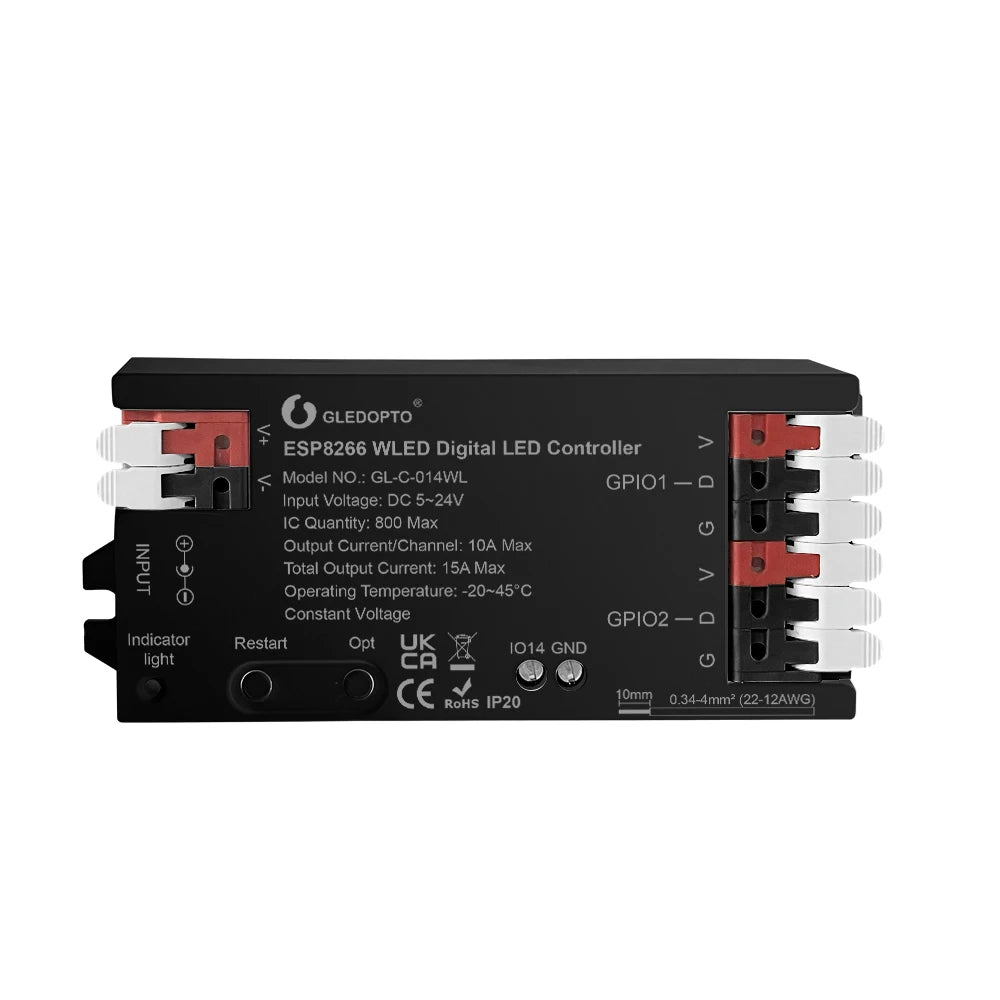

●ESP8266 Black：GL-C-014WL Black (No Mic and UART)
●ESP32 White: GL-C-015WL White (No Mic and UART)
●ESP32 Black: GL-C-015WL Black (No Mic and UART)

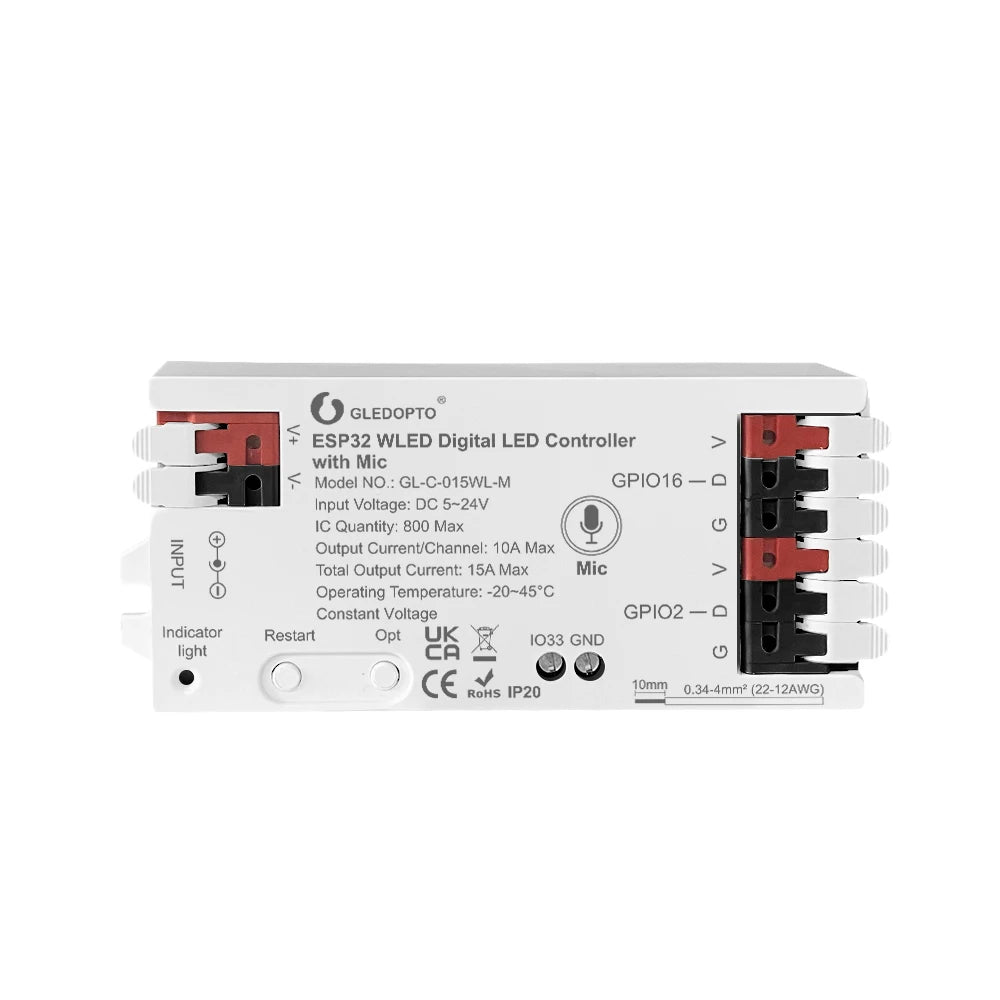

●ESP32 Mic White: GL-C-015WL-M White (No UART)
●ESP32 Mic Black: GL-C-015WL-M Black (No UART)

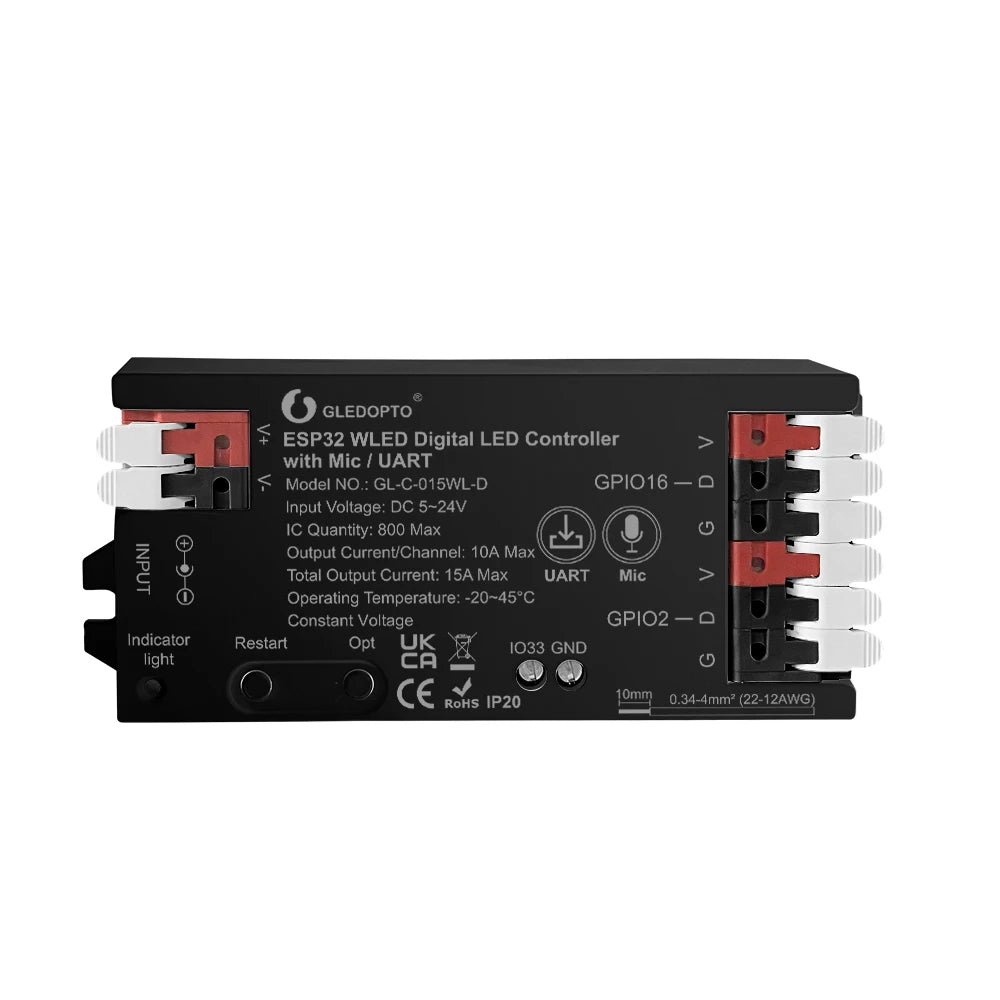

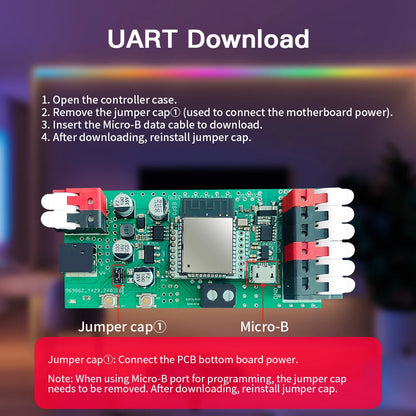

●ESP32 Mic UART White: GL-C-015WL-D White
●ESP32 Mic UART Black: GL-C-015WL-D Black

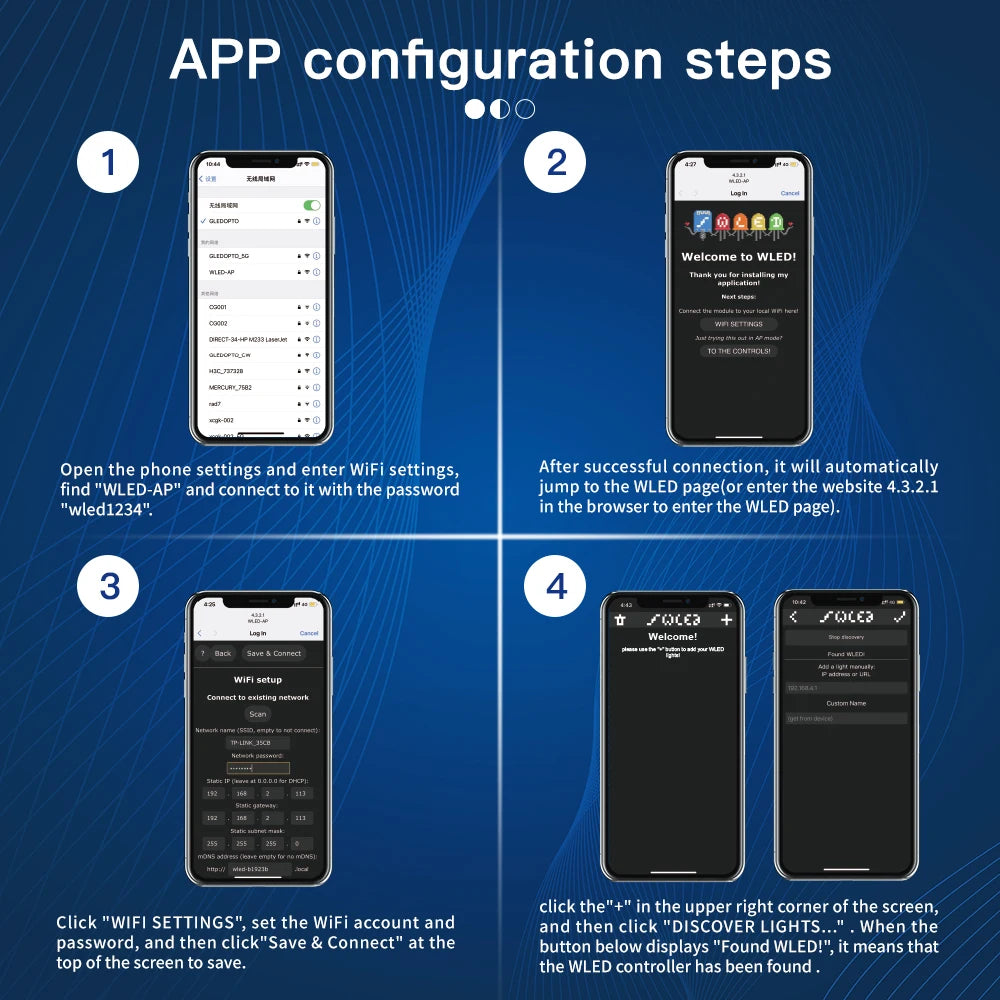

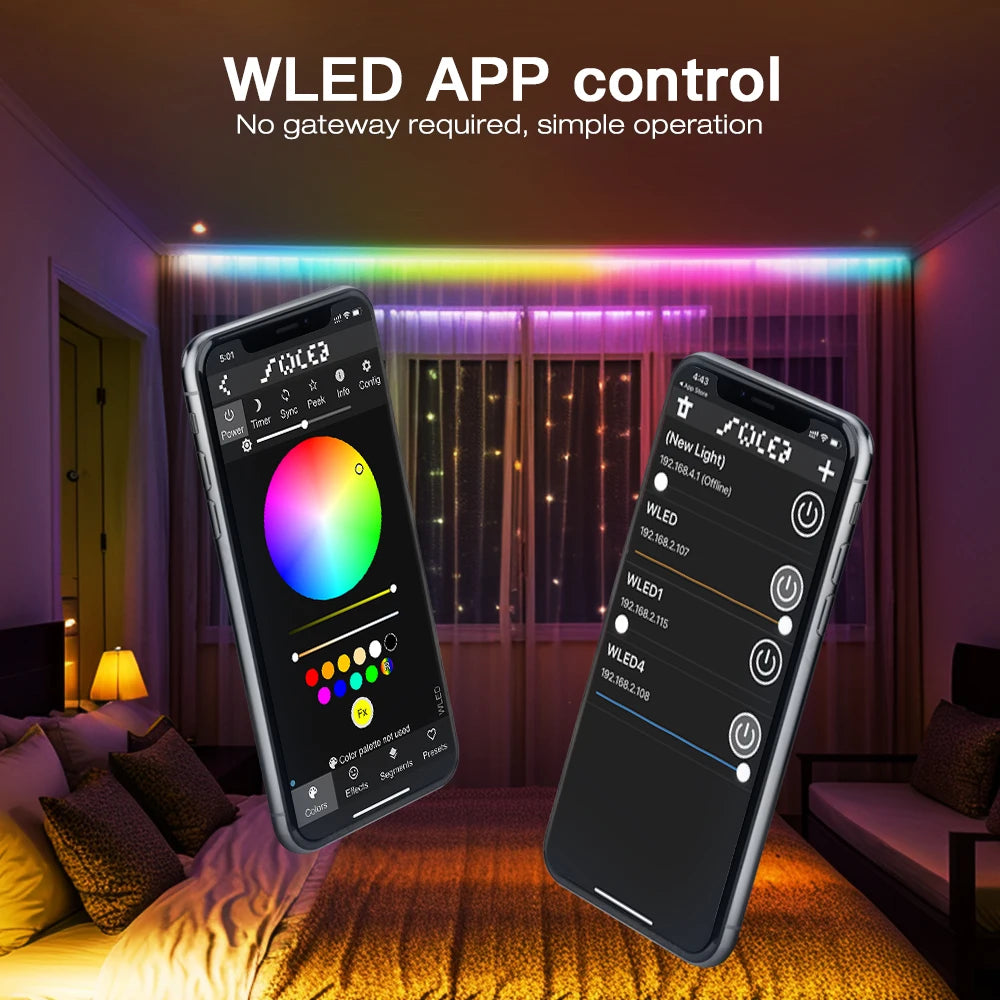

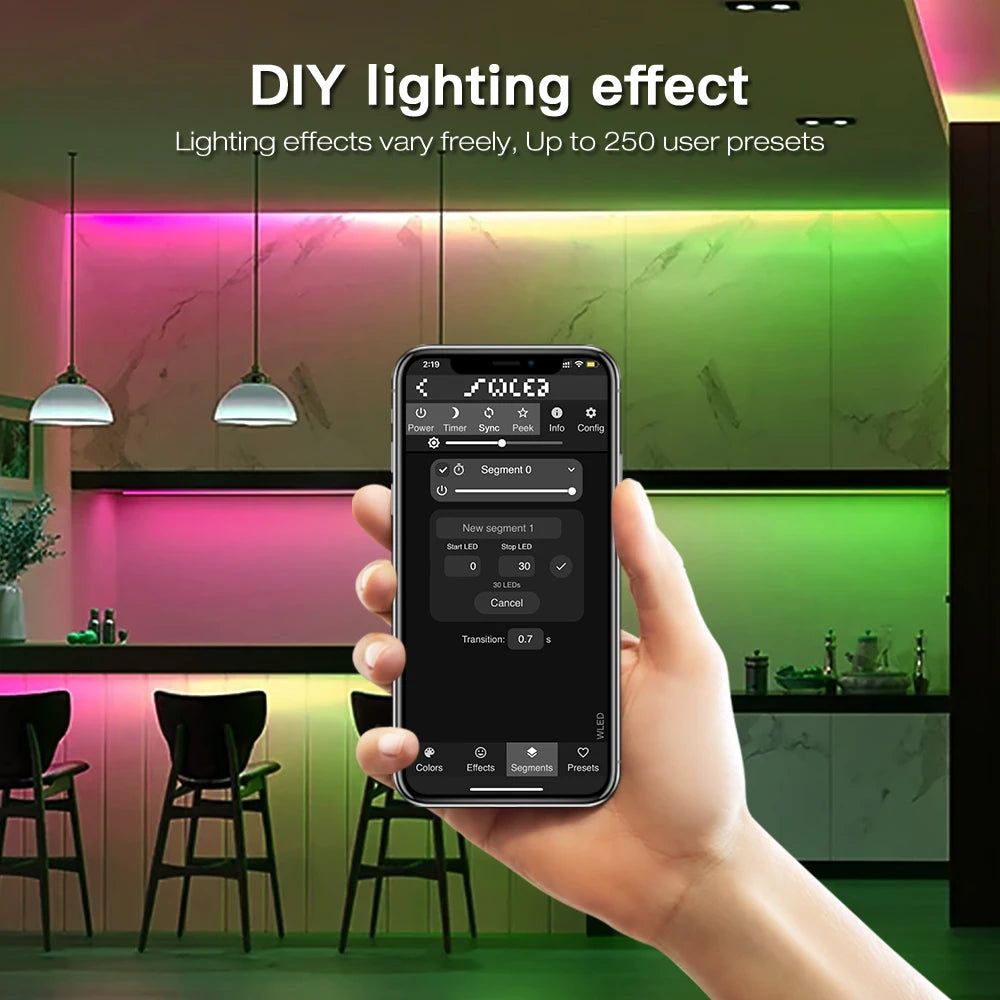

🌟 Wireless Control, No Gateway Required: With the dedicated WLED app, users can directly control the lights via their smartphones—no additional gateway needed, making setup and operation effortless.

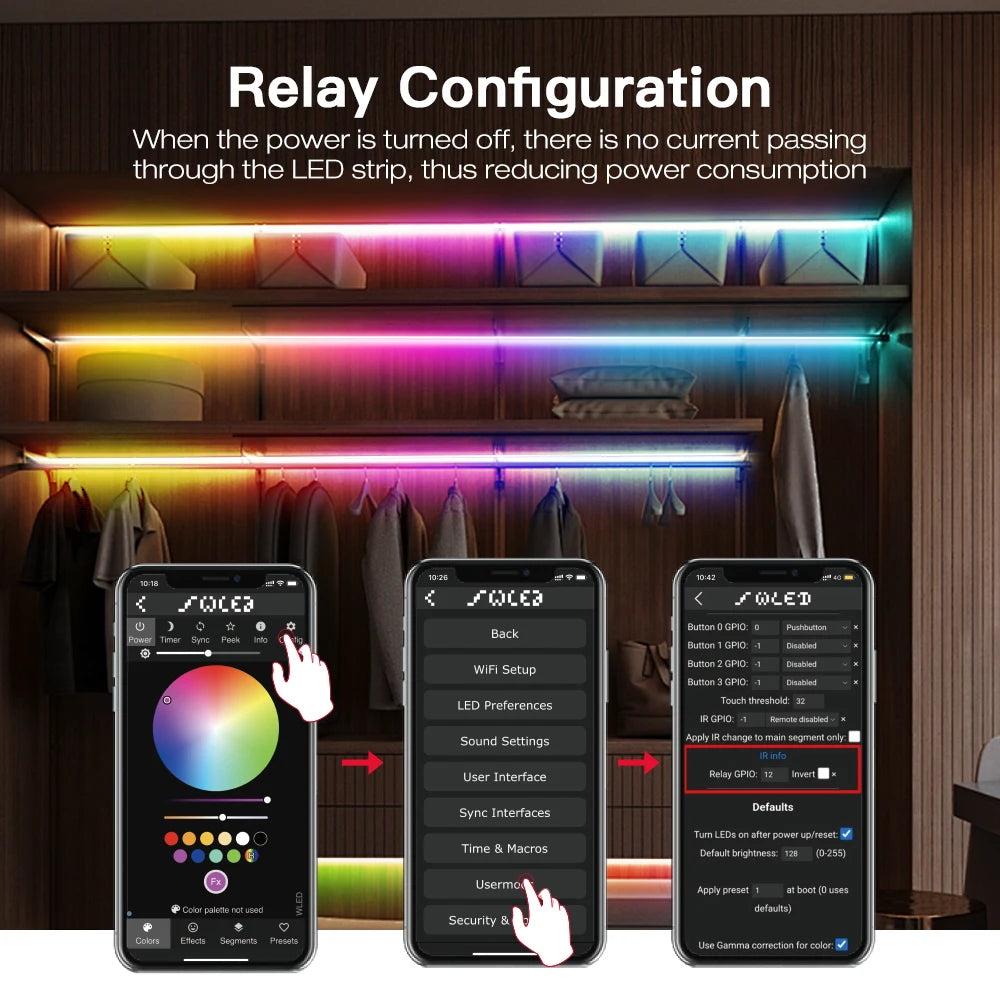

🌟 Energy-Efficient Design: Features an onboard switching regulator to power the ESP8266/ESP32, along with a built-in MOSFET relay that cuts off output power when WLED is off, ensuring ultra-low idle consumption.

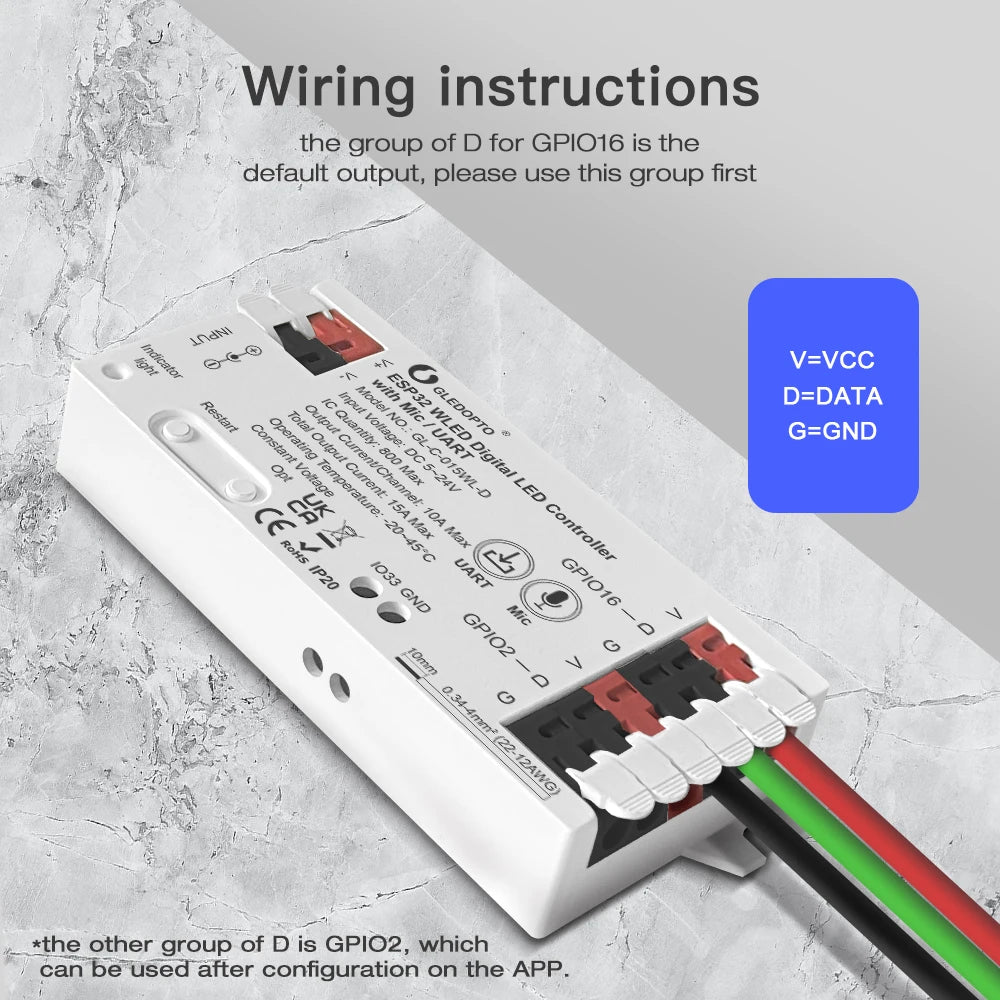

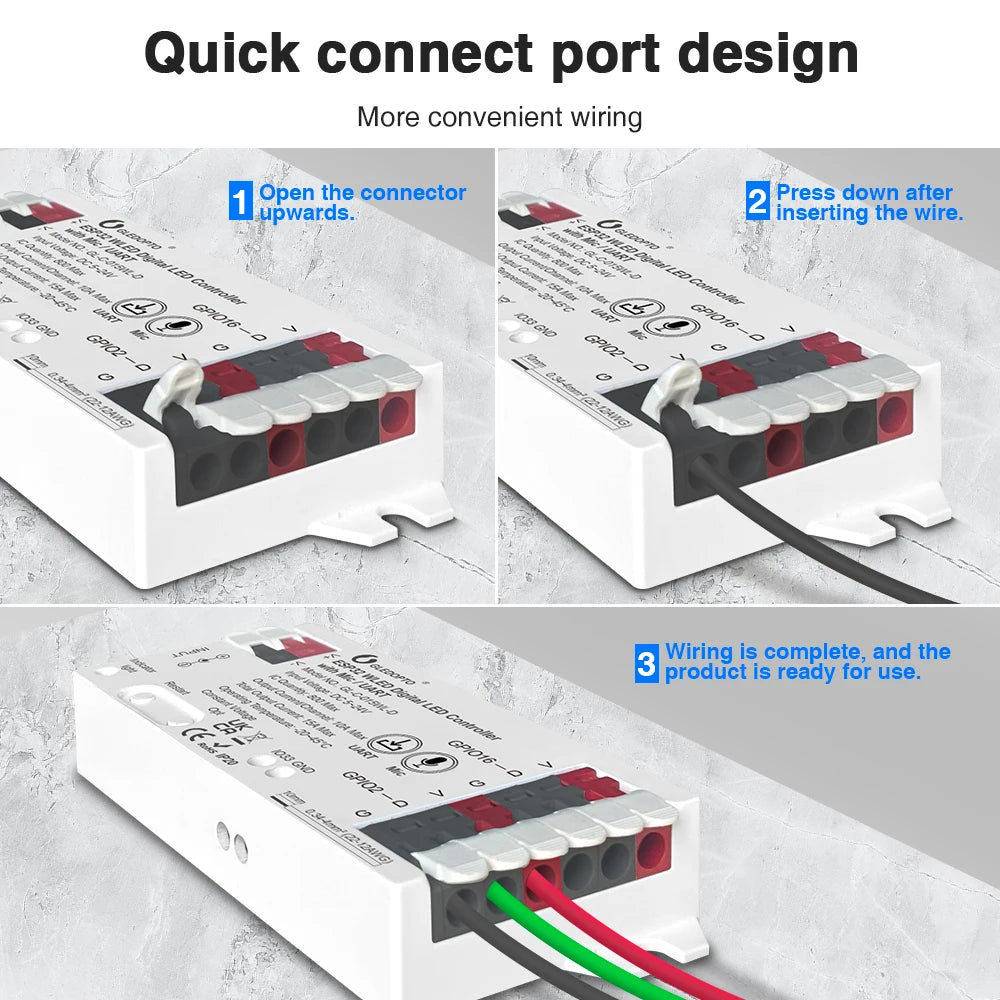

🌟 Easy Wiring & Scalability: Designed with user-friendly wiring ports for quick installation and seamless expansion of lighting setups.
🌟 Rich Effects & Broad Compatibility: Offers 100+ dynamic lighting modes for personalized ambiance, while supporting popular addressable LED strips like WS2811, WS2812, WS2813, and SK6812 for versatile applications.
Q&A or more info, please contact us on line, and we will answer you in time.

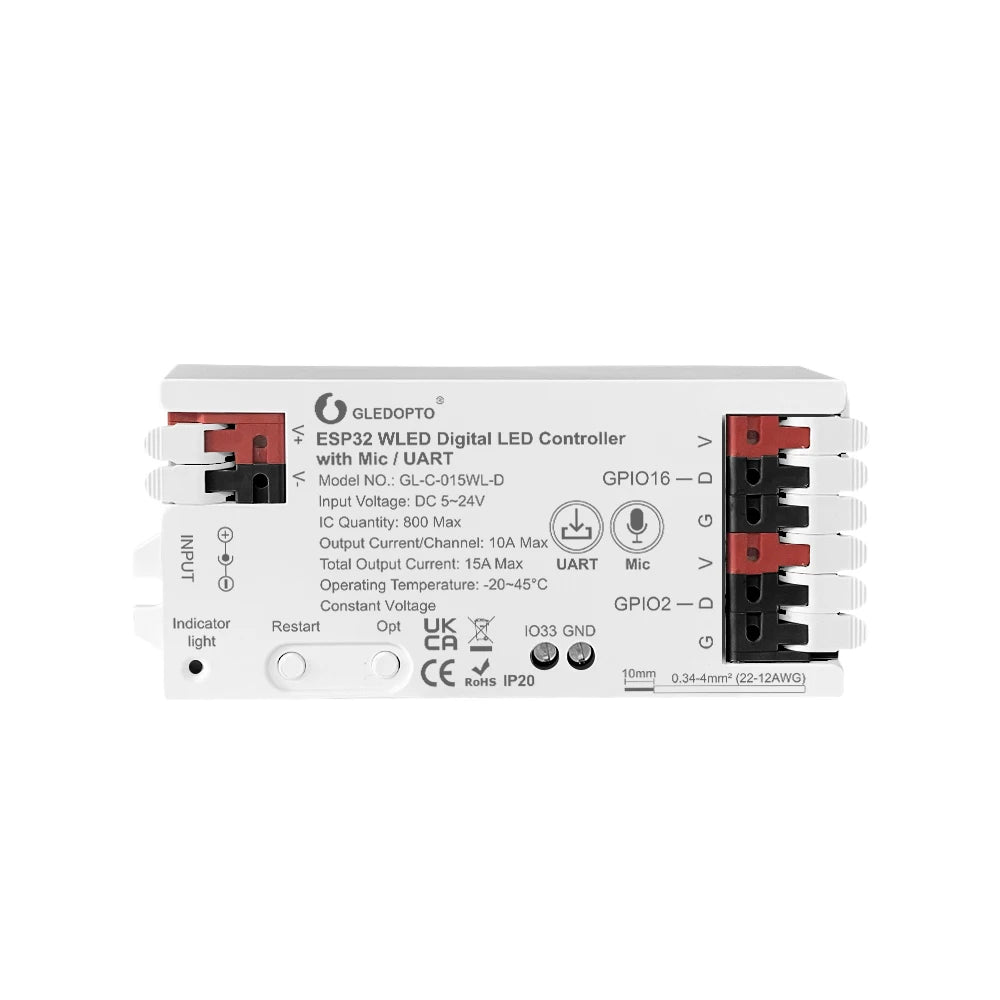

Product Name:WLED LED Strip Light Controller

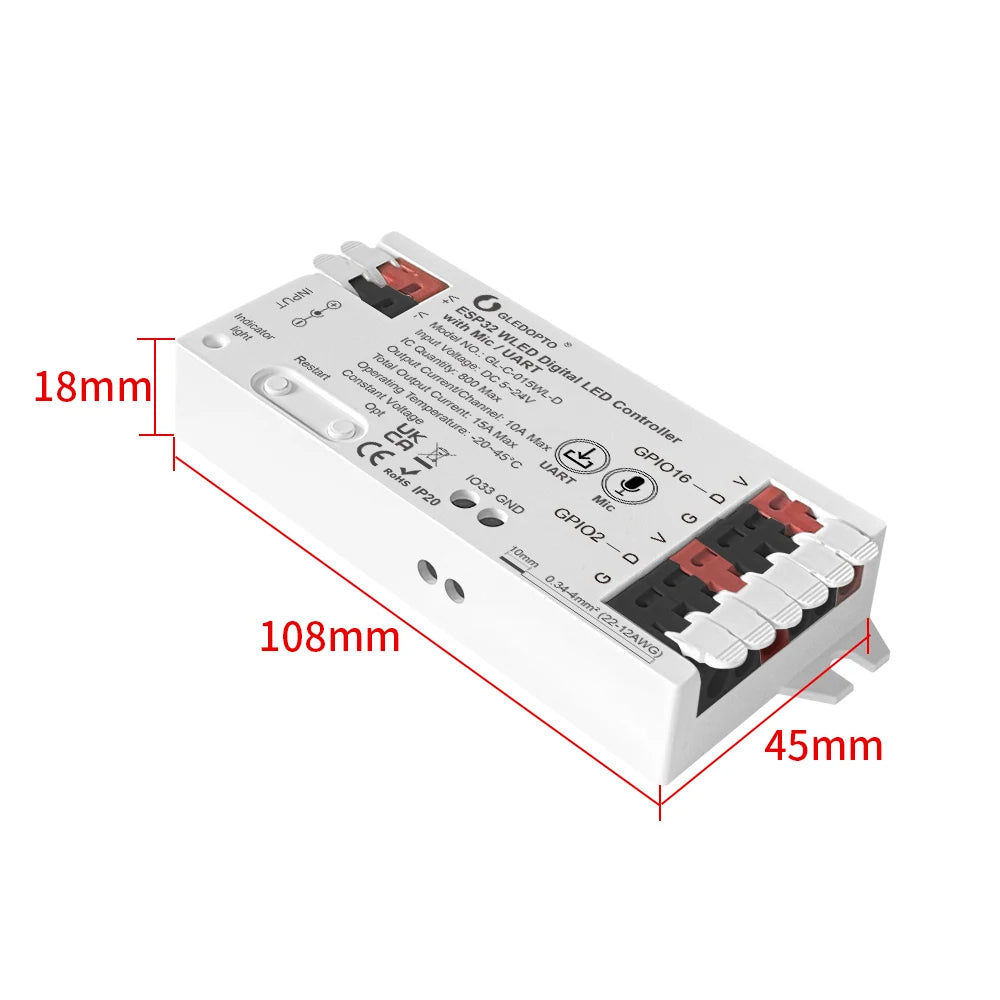

Size: 108*45*18mm
Operating Temperature:-20-45°C
Supported Strip: WS2811, SK6812, SM16703P, WS2812, etc
1pcs* WLED Strip Controller
1pcs* User Manual
1pcs* 3cm Stricker
