Interface Description:

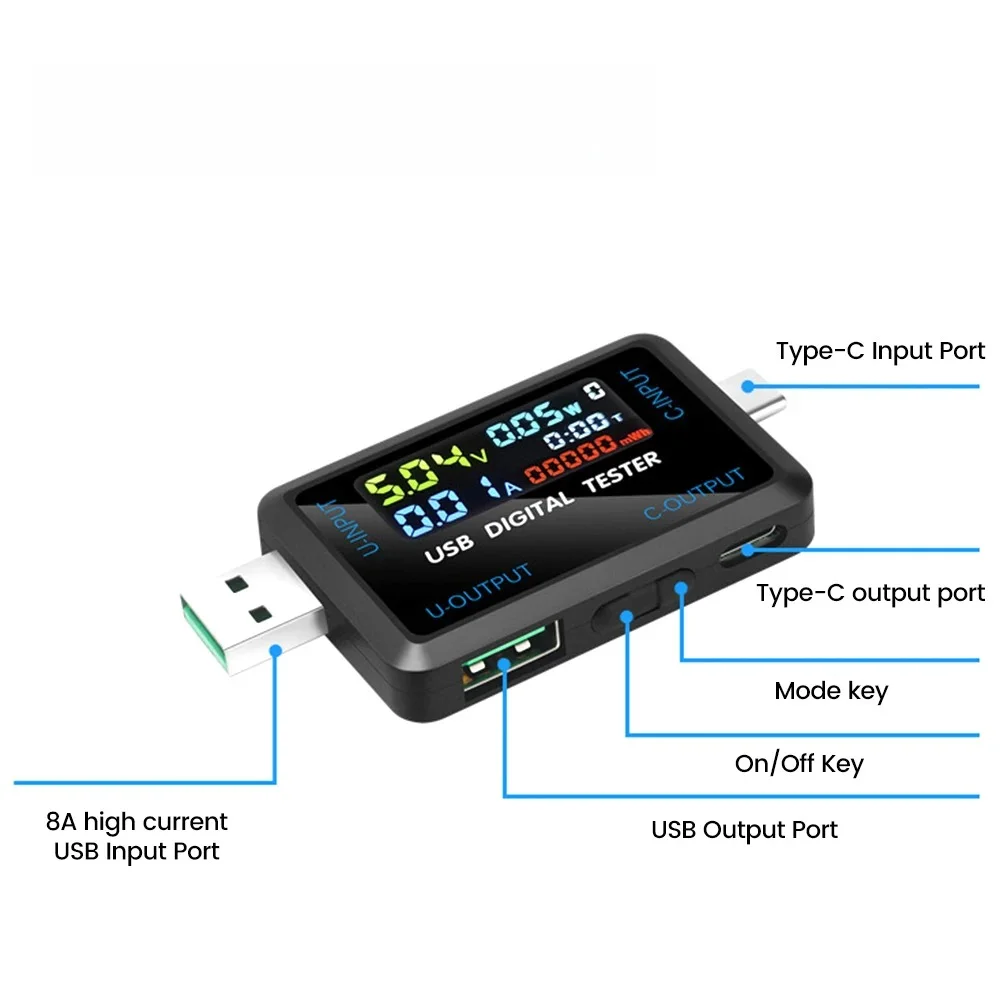

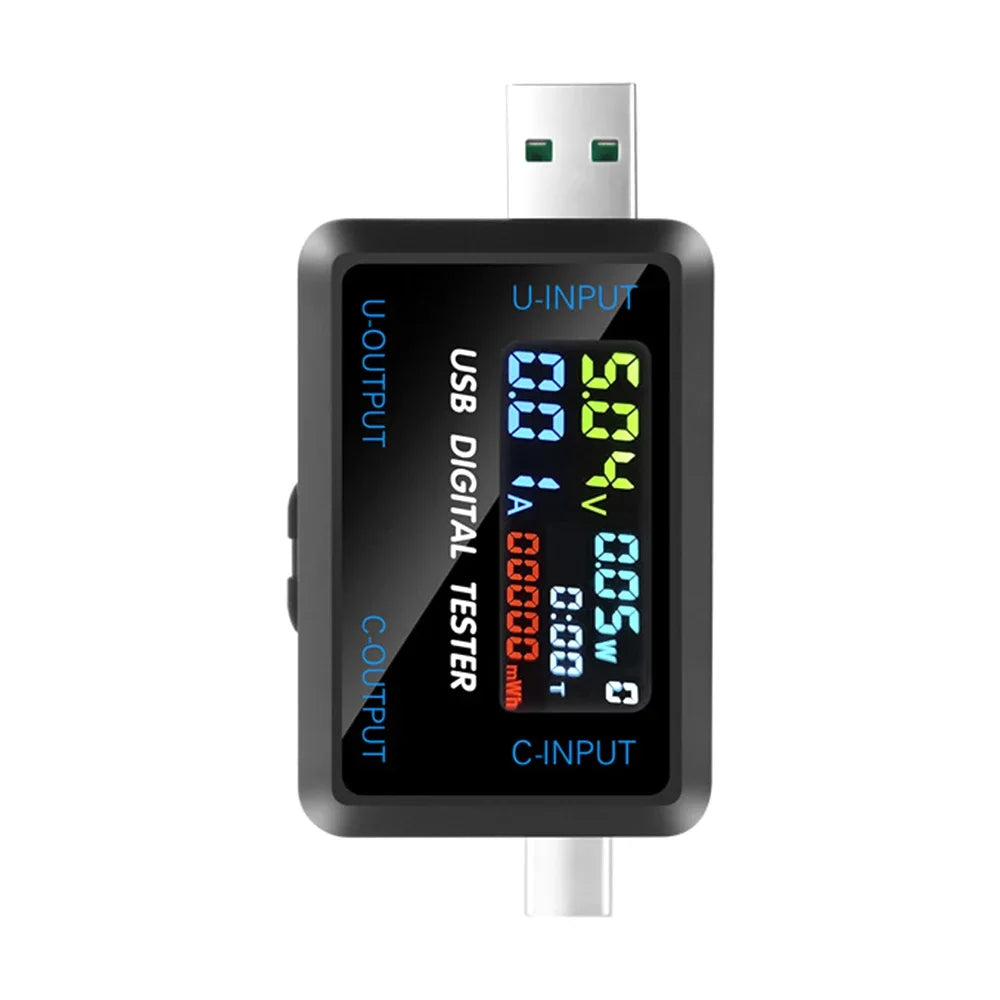

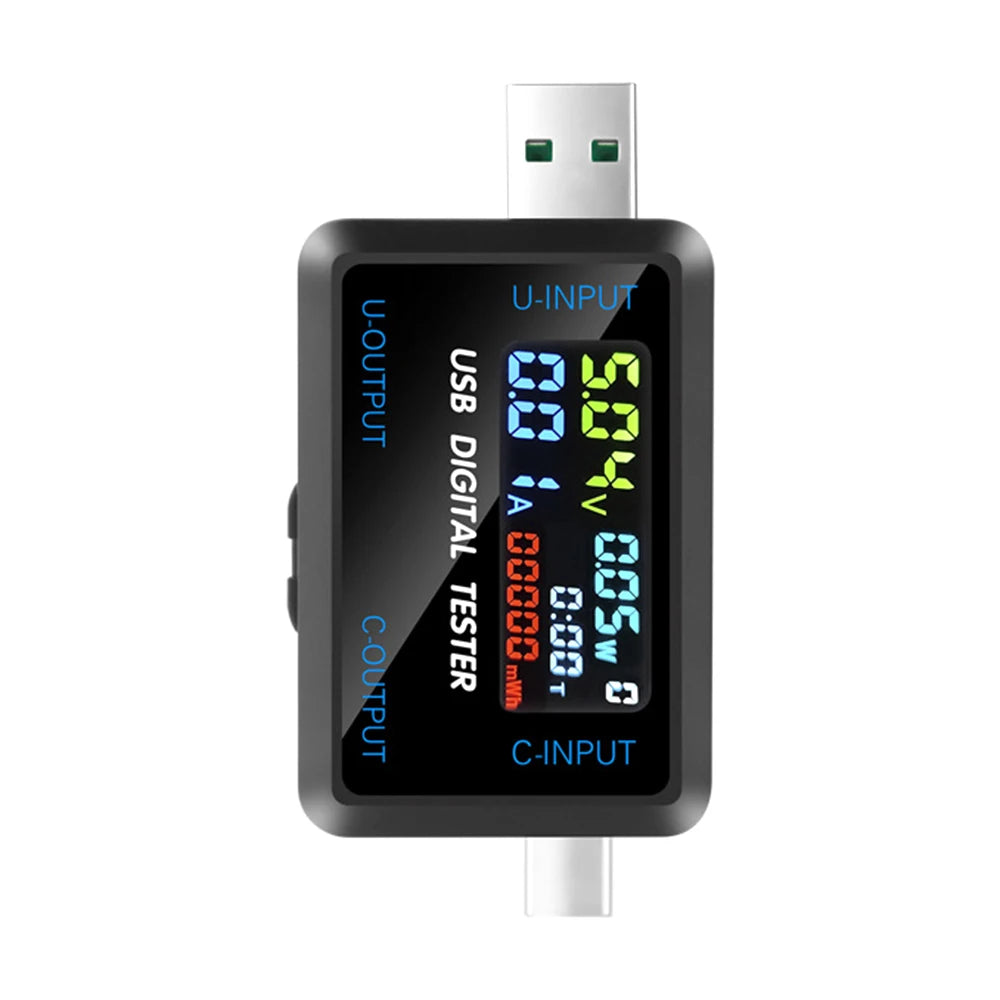

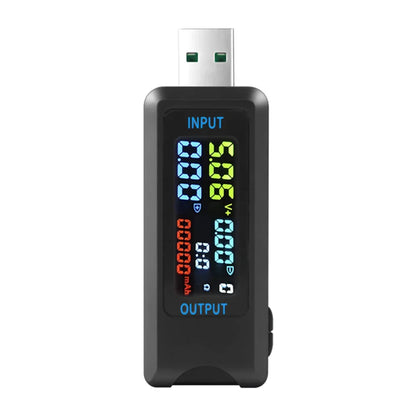

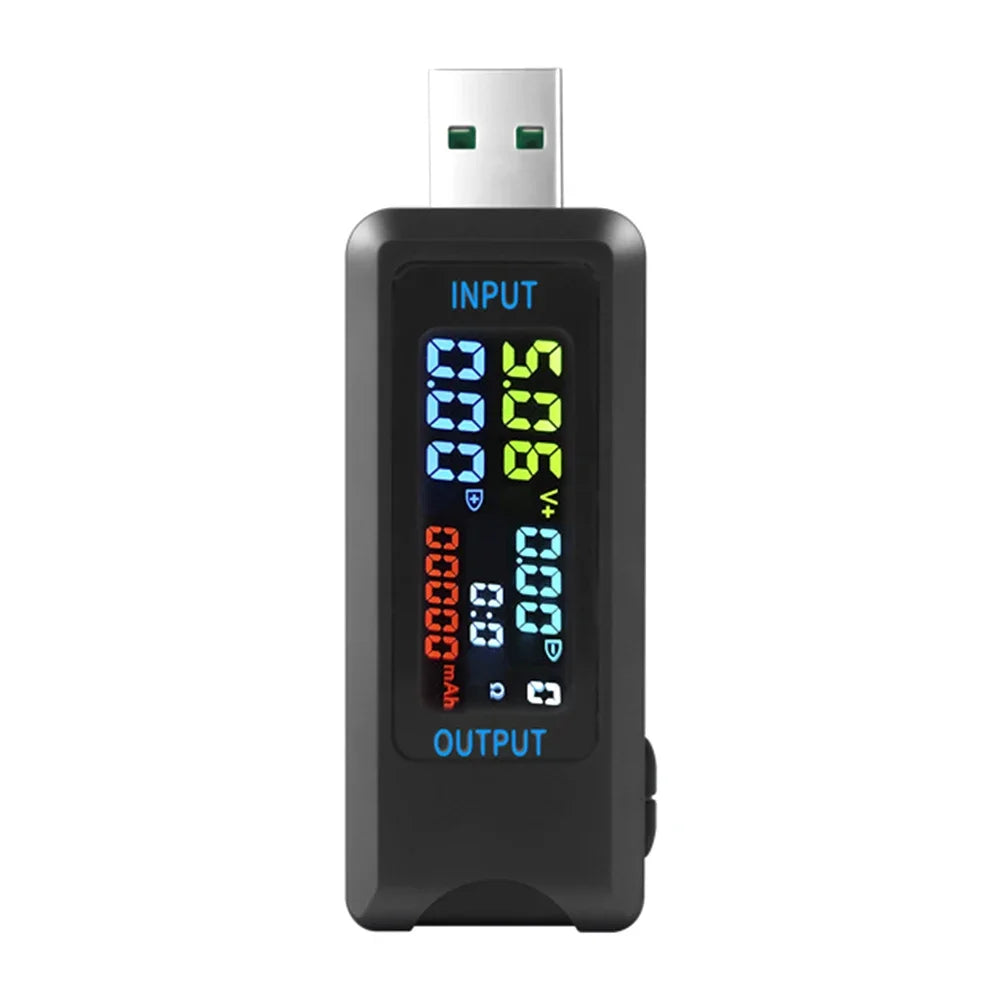

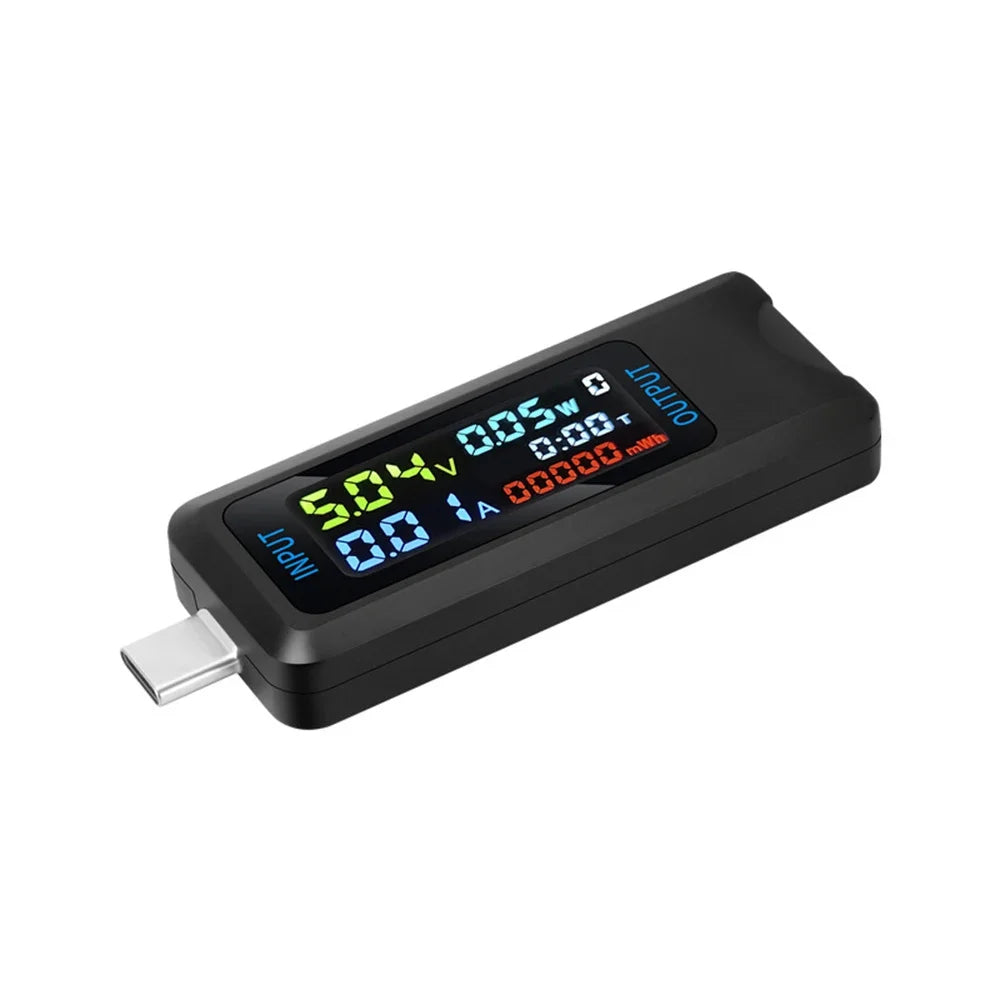

USB and Type-C interfaces: "INPUT" connects to the power source, "OUTPUT" connects to the load.

USB + Type-C interface: USB input = USB output, Type-C input = Type-C output.

Note: The Type-C interface will not display anything without a load connected.



Features:

1. Displays multiple parameters on one screen, including current, voltage, power, energy, capacity, resistance, timing, capacity groups, Celsius temperature, Fahrenheit temperature, and quick identification.

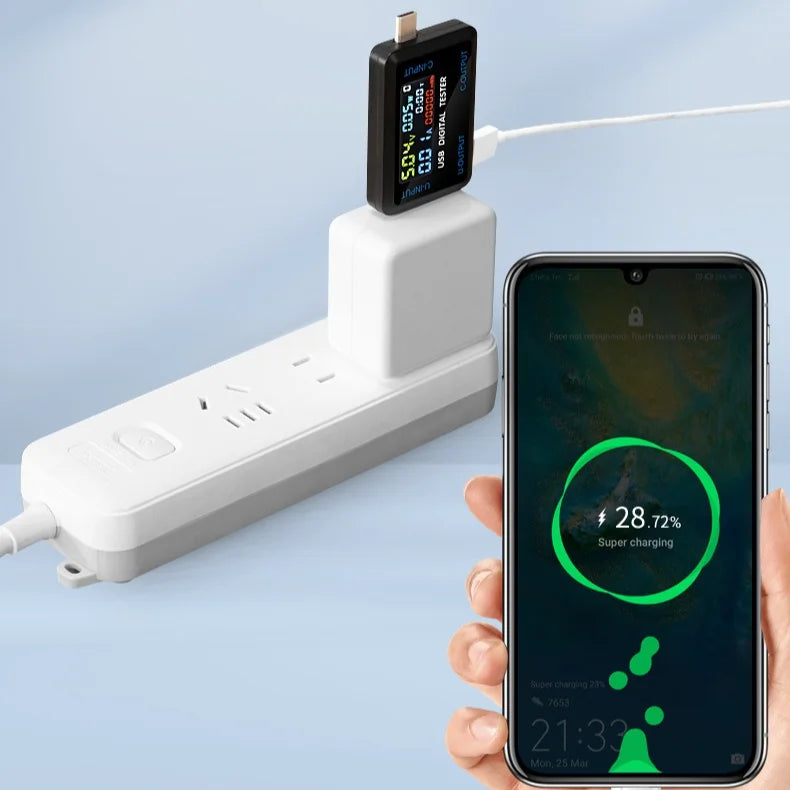

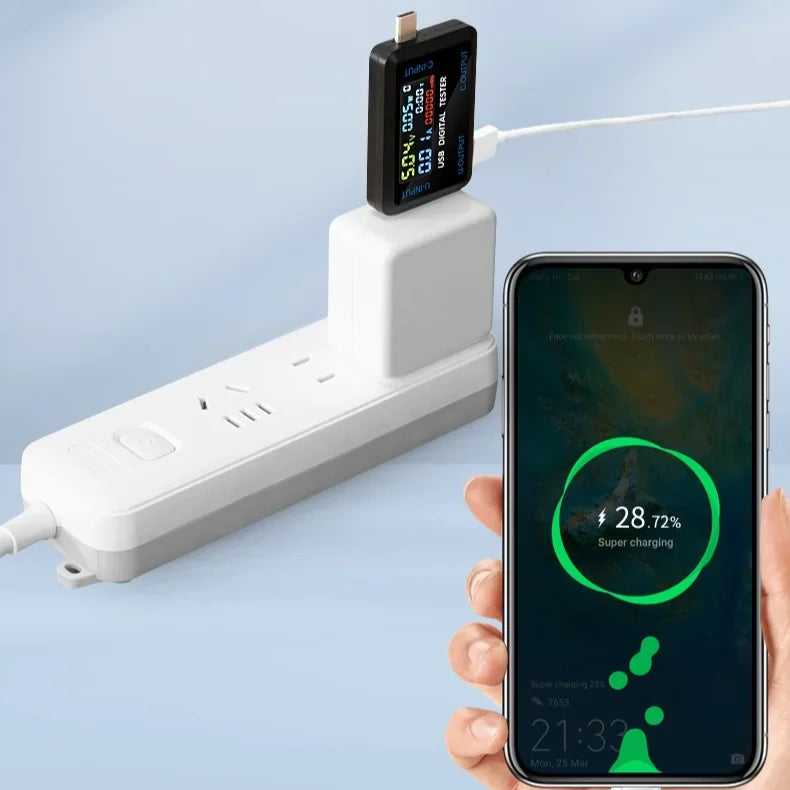

2. Real-time monitoring of the charging status of electrical devices, displaying various parameters such as voltage and current in real time, providing a clear overview.

3. Display screen on/off function: Short press the multi-function button to switch the interface to the screen-off interface to turn off the display while still allowing normal charging of the device at night.

4. Tests various USB and Type-C digital devices: Easily tests various chargers, data cables, power banks, laptops, mobile phones, Type-C digital devices, etc.

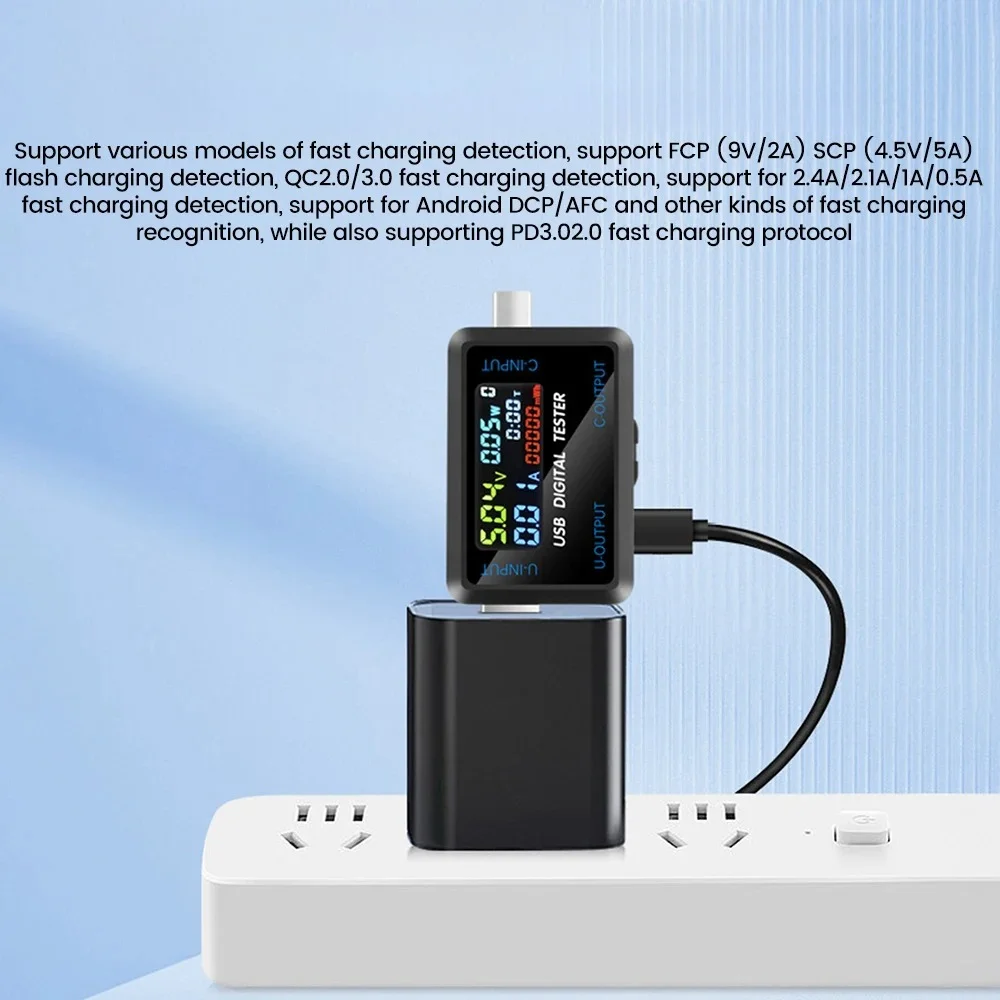

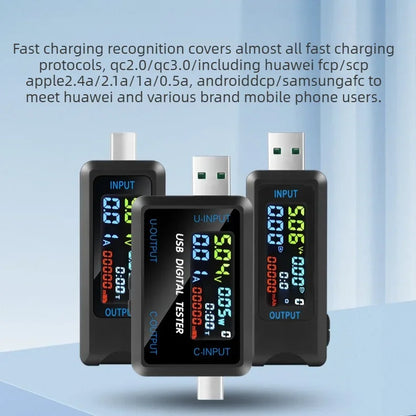

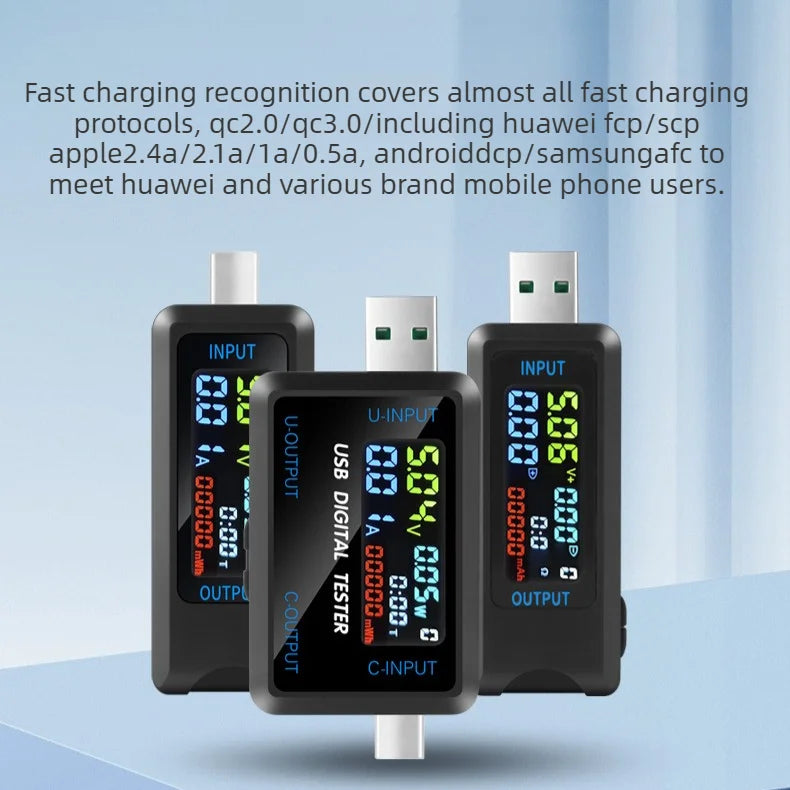

5. Automatic detection of multiple fast charging protocols: Fast charging identification and detection covers almost all fast charging protocols, meeting the needs of various mobile phone users. Product



Specifications:

Voltage Measurement Range: DC 4.5~36V

Current Measurement Range: 0-5A/0-8A

Capacity Accumulation Range: 0-99999mAh

Energy Accumulation Range: 0-99999mWh

Power Measurement Range: 0-150W

Impedance Measurement Range: 1-999.9Ω

Temperature Measurement Range: 0~80℃

Timing Time: 999 hours 59 minutes

Input Interface: 5A High Current USB Interface/Type-C Interface

Output Interface: USB/Type-C

USB D+ Voltage Range: 0~2.99V

USB D- Voltage Range: 0~2.99V

Refresh Time: >500ms/time

Measurement Rate: Approximately 0.5 times/second

Display Screen: IPS True Color Digital LCD Display

Self-consumption Current: <0.02A

Operating Temperature: -10~60℃

Operating Humidity: 10~80%RH (non-condensing)

Operating Pressure: 80~106kPa

Product Dimensions:

USB: 77.6*27*11mm

Type-C: 73.6*27*11mm

USB+Type-C: 76.9*38*11mm



Multi-function Button Operation Instructions:

Short press the mode button:

1: Switches the screen display.

2: Quickly triple-click the power button to reset the accumulated energy (mWh) and timer to zero for the current group (0.00).

3: Long press the power button for 2 seconds to change the accumulated data storage group number (NO.X).



Package Included:

Voltage and Current Meter *1 (USB, Type-C, USB+Type-C optional)
