HP-770D-C LCD Digital Multimeter - True RMS Auto Range for AC/DC Voltage, Ohm, Amp & Capacitor (40,000 Counts)
HP-770D-C LCD Digital Multimeter - True RMS Auto Range for AC/DC Voltage, Ohm, Amp & Capacitor (40,000 Counts)
SPECIFICATIONS
AC Current: 400uA/4000uA/40mA/400mA/4A/20A
AC Voltage: 400mV/4V/40V/400V/750V
Battery Included: Yes
Brand Name: BTMETER
Certification: NONE
Choice: yes
DC Current: 400uA/4000uA/40mA/400mA/4A/20A
DC Voltage: 400mV/4V/40V/400V/1000V
DIY Supplies: Electrical
Dimensions: 195*88*40mm
Display: 40000
Display Type: Digital Display
Frequency: 9.999Hz~9.999MHz
High-concerned chemical: None
Measuring Capacitance Range: 9.999nF----99.99mF
Measuring Resistance Range: 400/4K/40K/400K/4M/40M
Model Number: HP-770D-C
Operating Mode: Auto Range
Operating Temperature: 0 - 50 ℃
Origin: Mainland China
semi_Choice: yes
HP-770D-C LCD Digital Multimeter, AC DC Ohm Volt Amp Capacitor Tester,40000 Counts True RMS Auto Range Multimetro Measure

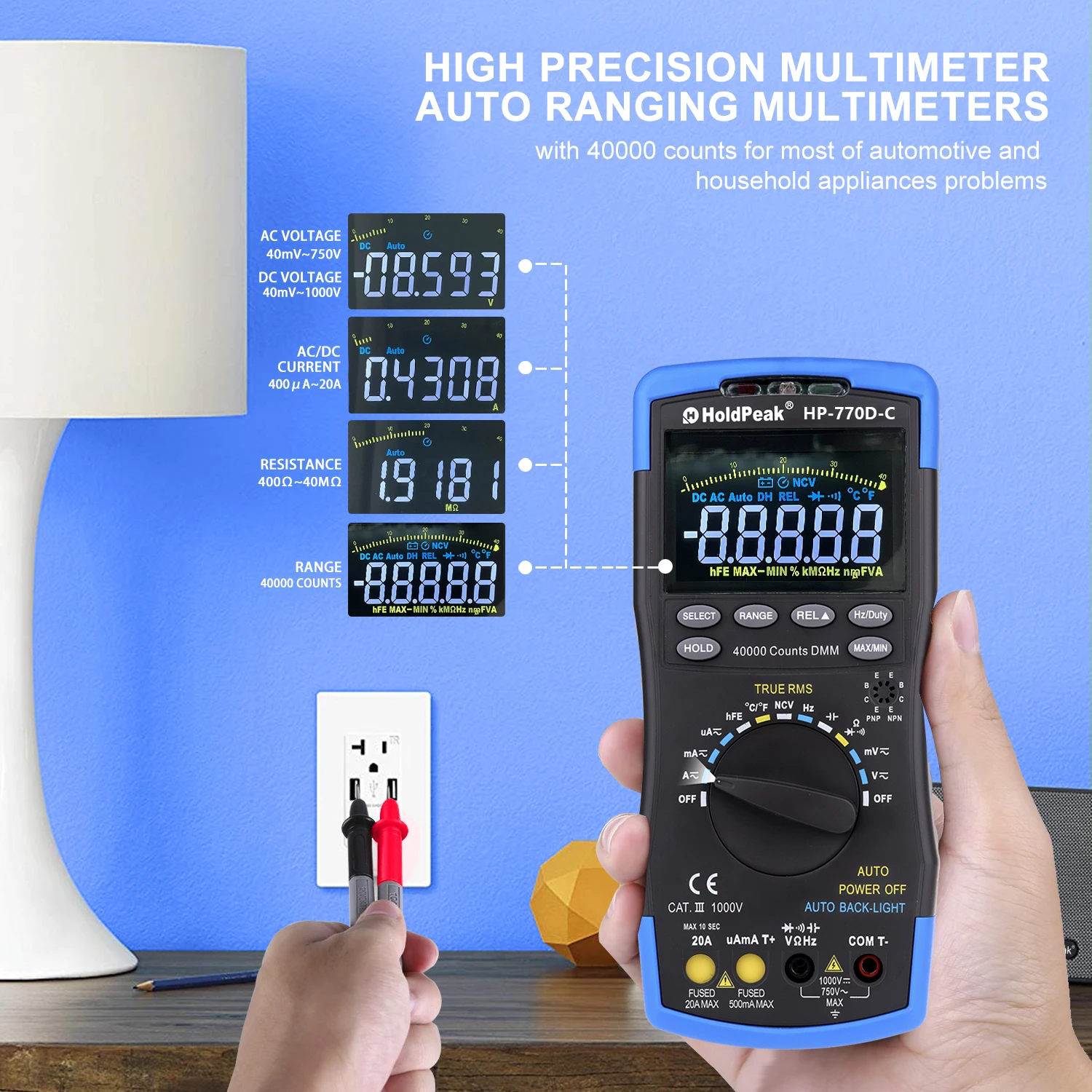

●HP-770D-C is high-accuracy auto range digital multimeter, characterized at slim size, portable, stable performance and anti-dropping capacity.
●Using a 40000 digit and analog bar chart LCD display with 16.5mm character height, the screen characters are optimized for color display, providing eye-catching display and clear readings.
●With overall circuitry design centering on large-scale IC A/D converters in conjunction and over-load protection circuit,mechanical blocking system the meters give excellent performance and exquisite making as a handy utility instrument.

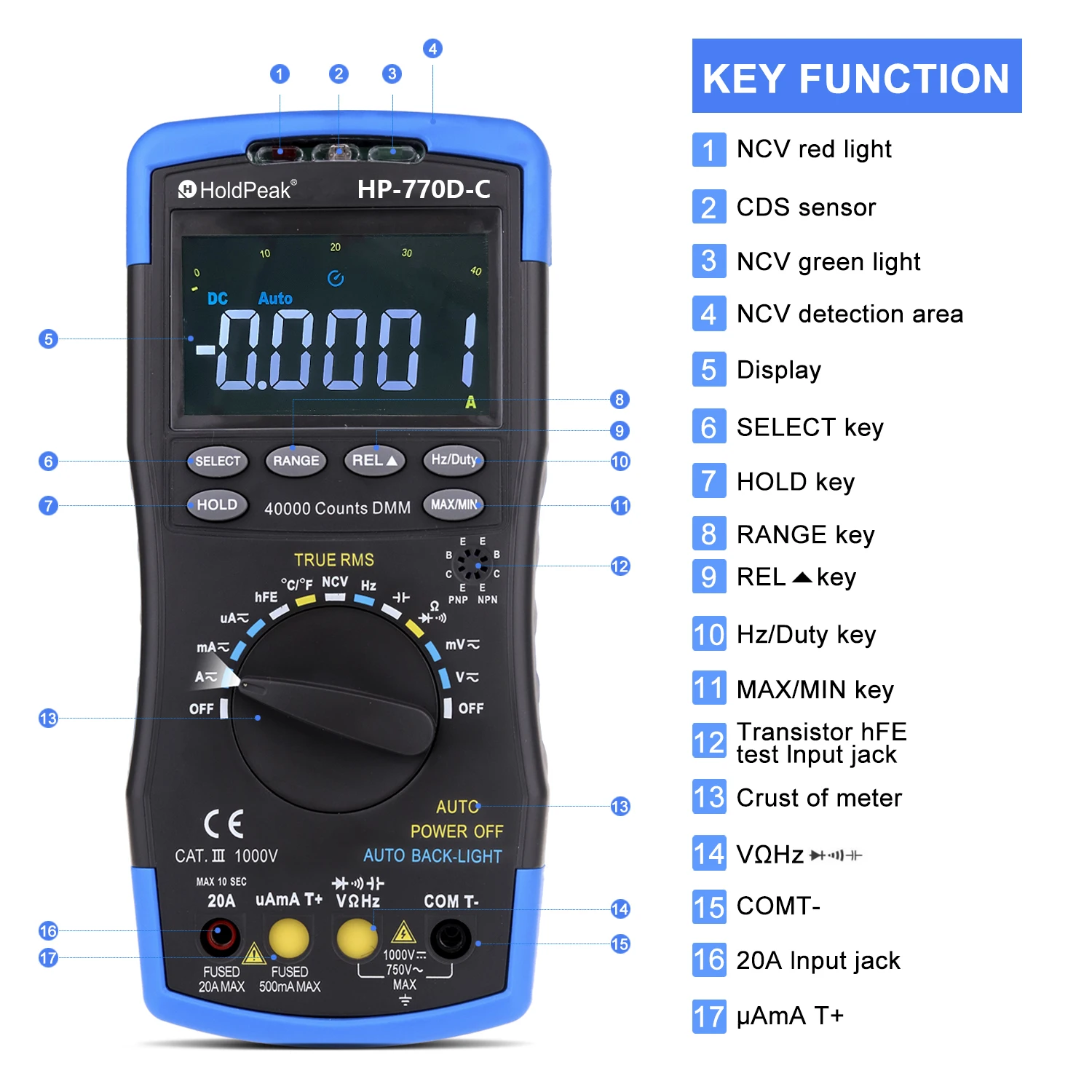

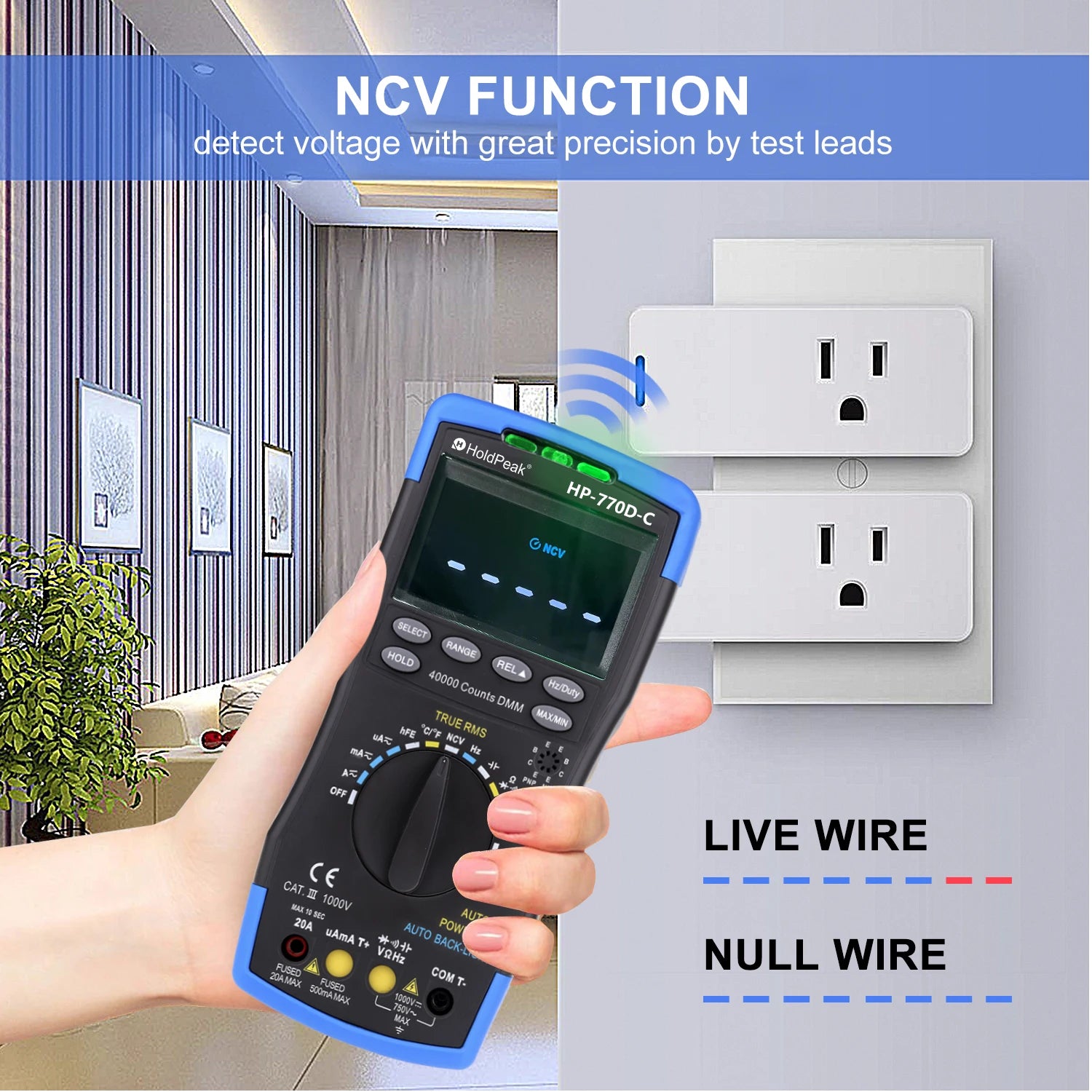

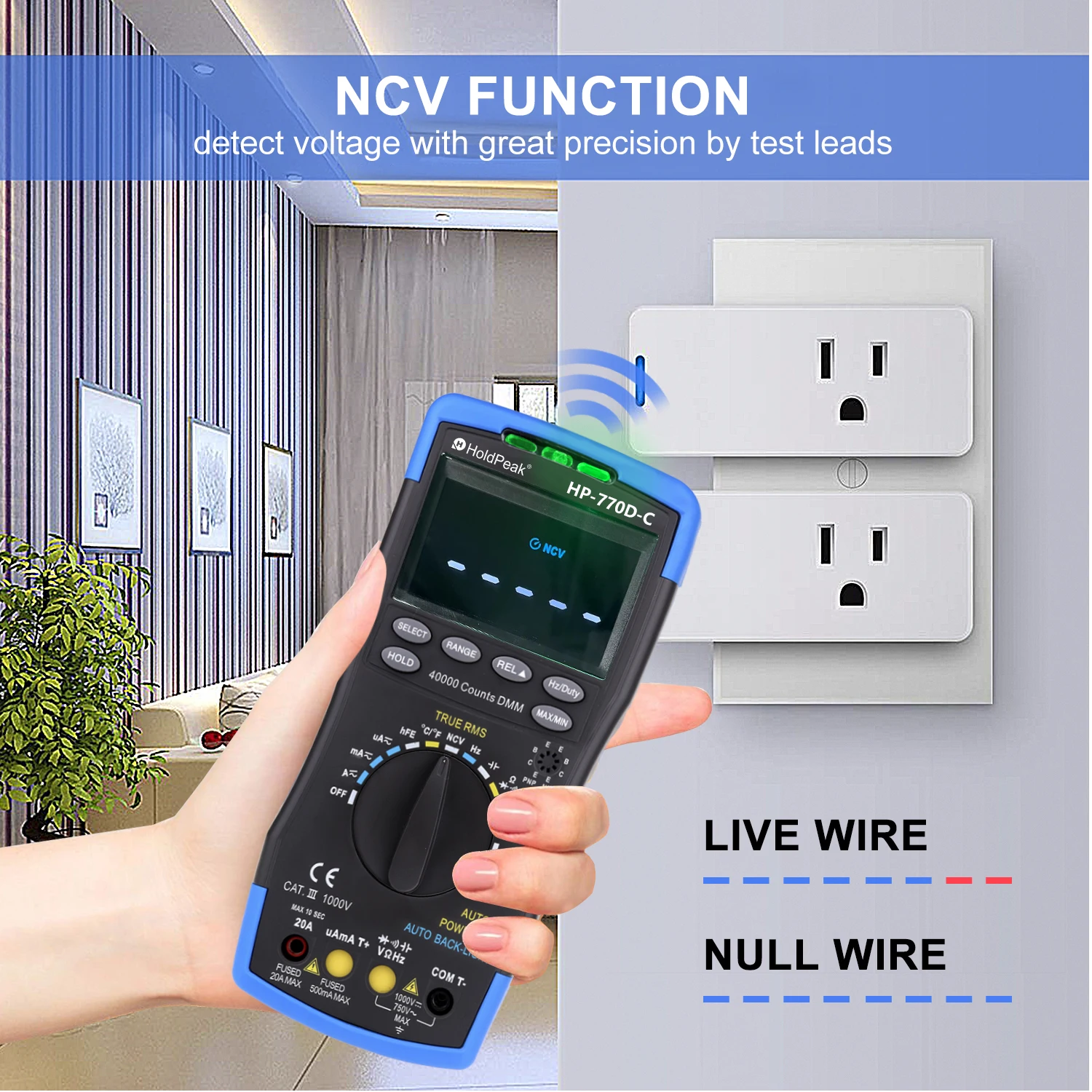

●HP-770D-C can be used to measure DC & AC voltage, DC & AC current, resistance, capacitor, frequency, duty cycle, temperature, transistor hFE, Non Contact AC Voltage (NCV) detection, positive diode voltage fall and audible continuity.
●HP-770D-C has a small measurement error value and accurate measurement values, which has been well received by customers. 2018, High precision Multimeter HP-770D withstand the test of the market, has been selling in the multimeter, Now its further optimization has become HP-770D-C, it is a good choice.
Product Specification:
DC Voltage:
40mV（0.5% of rdg+5dgt)
400mV/4V/40V/400V(0.1% of rdg+2dgt)
1000V(0.1% of rdg+5dgt)
AC Voltage:
40mV（1%of rdg+10dgt)
400mV/4V/40V/400V(0.8%of rdg+10dgt)
750V(1.2%of rdg+10dgt)
DC Current:
400μA /4000μA /40mA/400mA(1% of rdg+10dgt)
4A/20A(1.2% of rdg+10dgt)
AC Current:
400μA /4000μA /40mA/400mA(1.2% of rdg+10dgt)
4A/20A(1.5% of rdg+10dgt)
Resistance:
400Ω(1.0% of rdg+3dgt)
4kΩ/40kΩ /400kΩ/4MΩ(0.5% of rdg+10dgt)
40MΩ(1% of rdg+10dgt)
Capacitance:
9.999nF～99.99mF

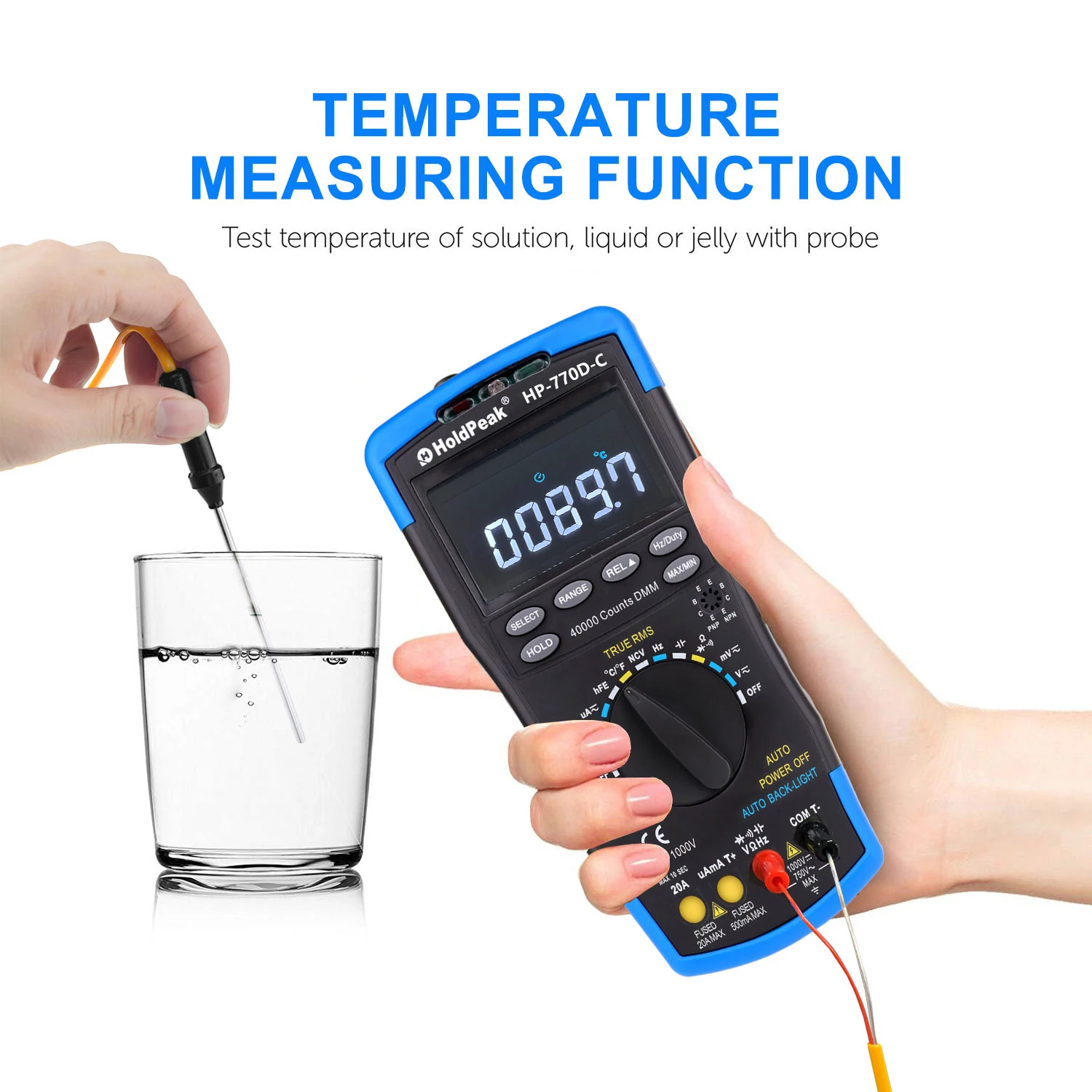

Temperature:
-20℃~1000℃(-4℉~1832℉)(3% of rdg+2dgt)
Frequency:
9.999Hz~9.999MHz(0.1% of rdg+5dgt)
Duty Circle:
0.1%~99.9%（2.0% of rdg+2dgt)
Display:
40000 counts
High Accuracy:
0.1%±2dgt
Range Select :
AUTO
Diode Test:√
hFE Test:√
Continuity Buzzer: √
NCV Test: √
Data Hold: √
Relative Test: √
MAX/MIN Test:√

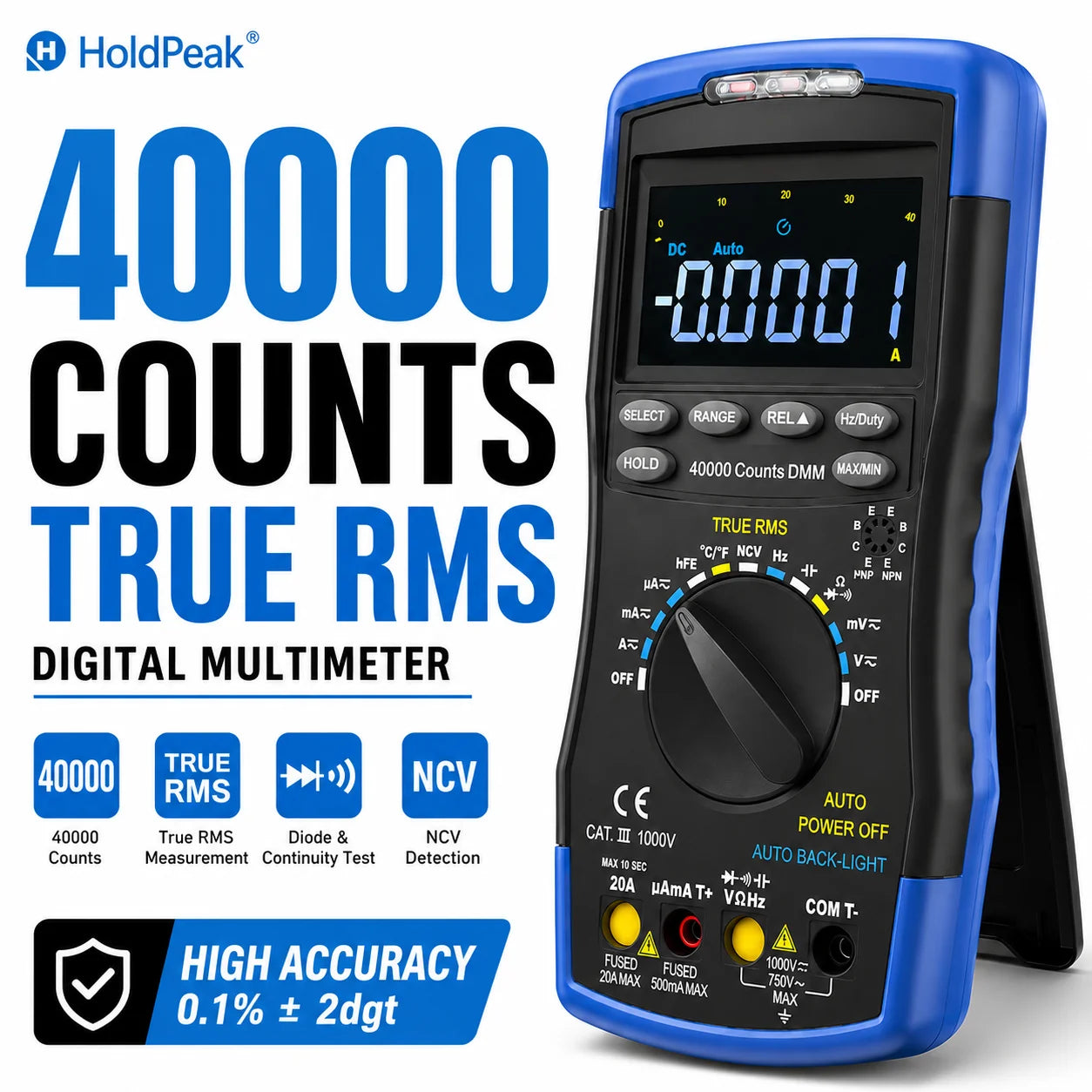

True RMS:√
Auto Power Off:√
Auto Back Light:√
Bar Graph Display:√
Funciton Switch Indicator Lamp:√
Mechanical Blocking System:√

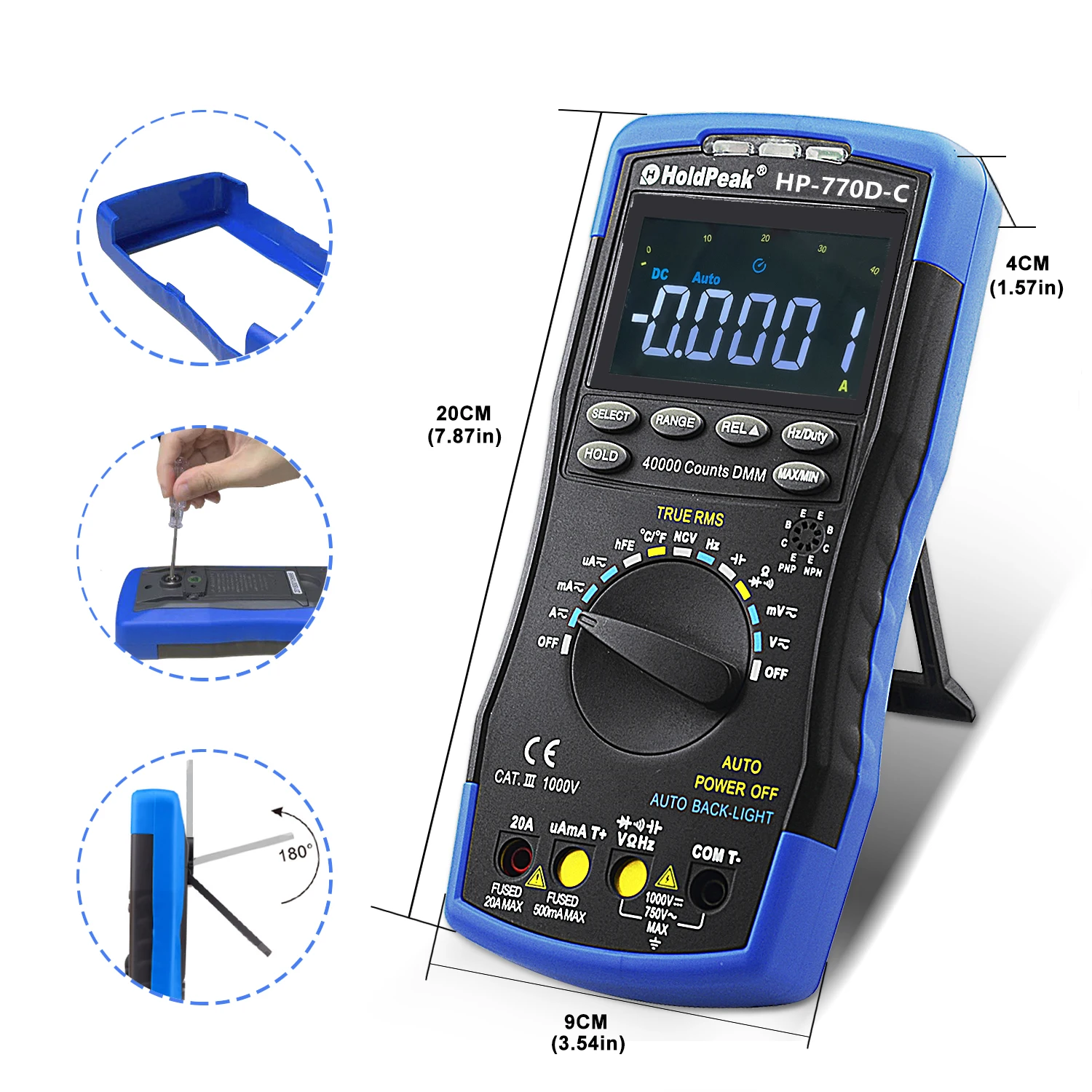

Dimension:195*88*40mm
Weight:350g
Other Four magical methods of digital multimeter:
Distinguish whether the power supply line is live or neutral.
Find the breakpoint of the cable,
Frequency of measurement.
NOTE:There are slight differences in the protective cases of some instruments. New and old versions of protective cases will be randomly sent. If you mind, do not place an order!

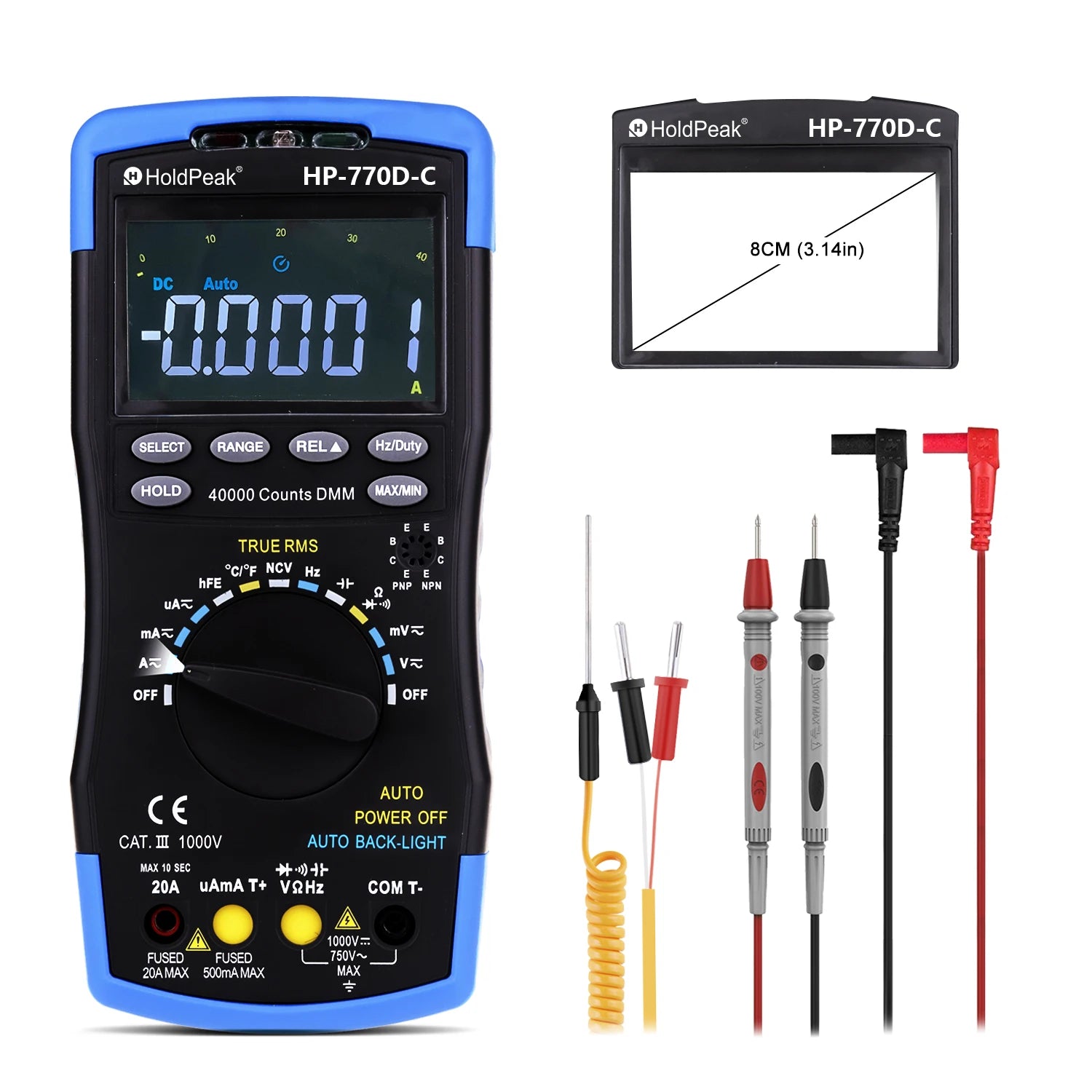

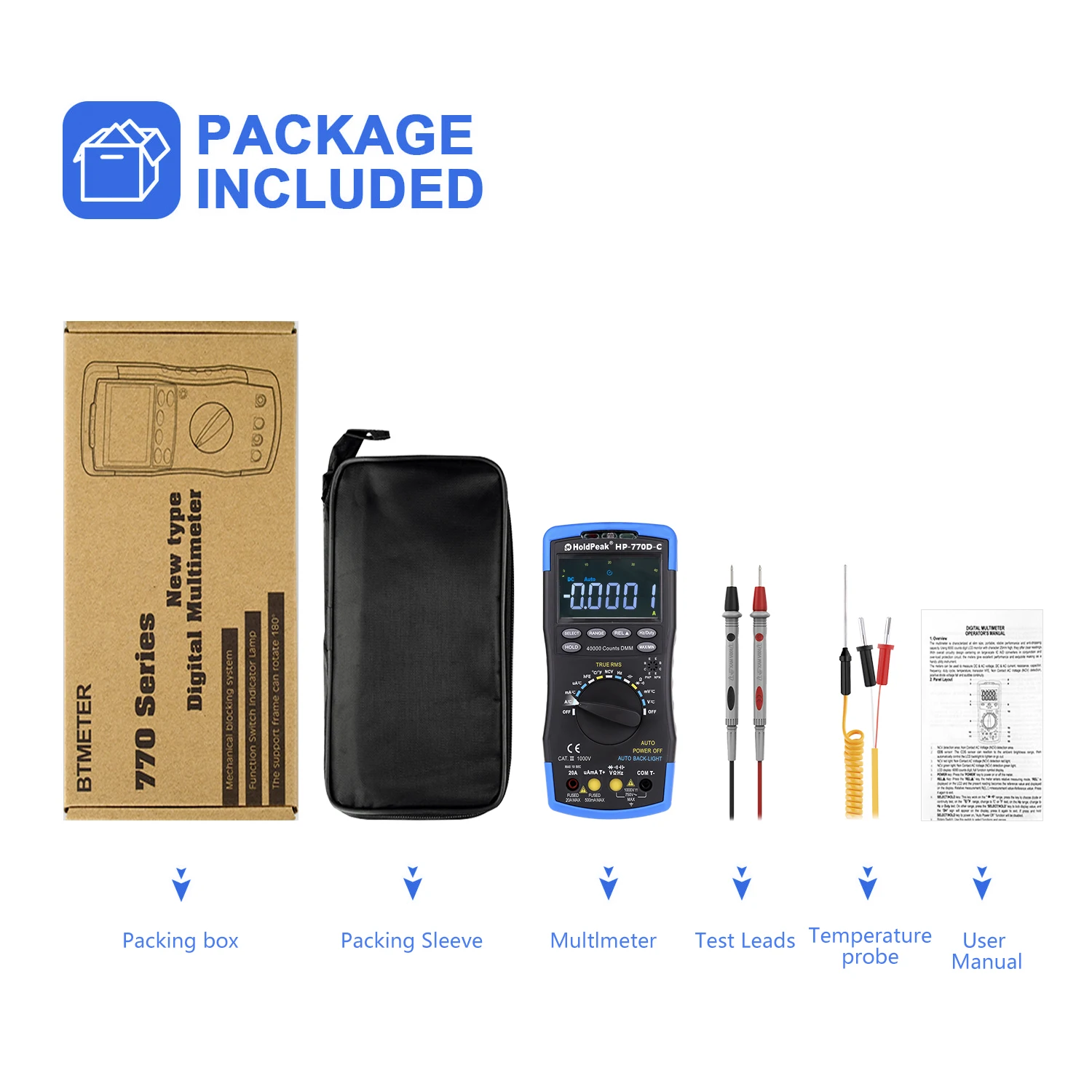

Packing list:
- HoldPeak HP-770D-C Digital Multimeter x1
- English Manual x 1
- Test Leads x1
- Temperature Test Probe x 1
- Carrying Case x 1
