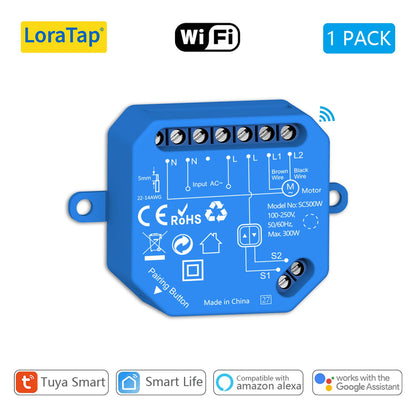

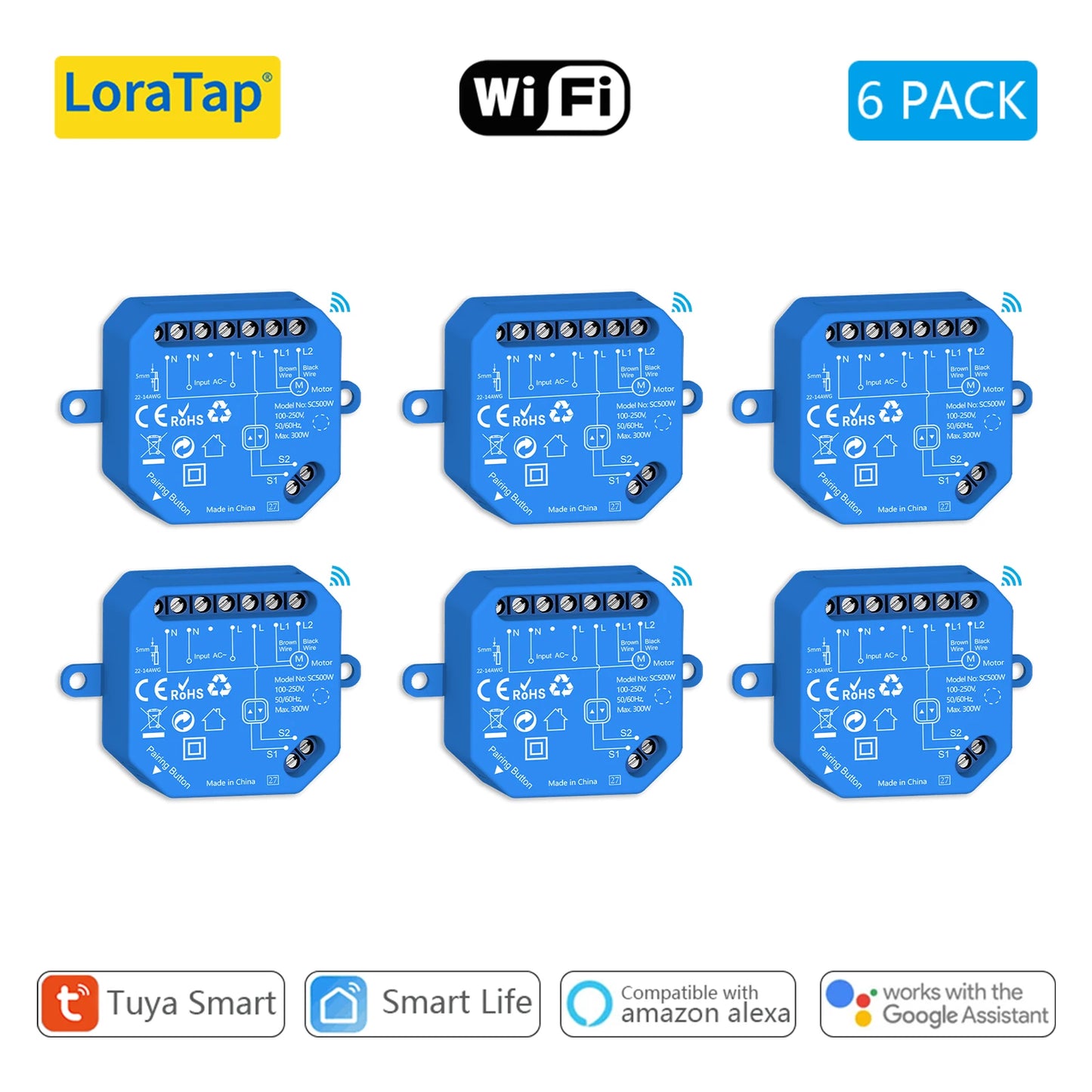

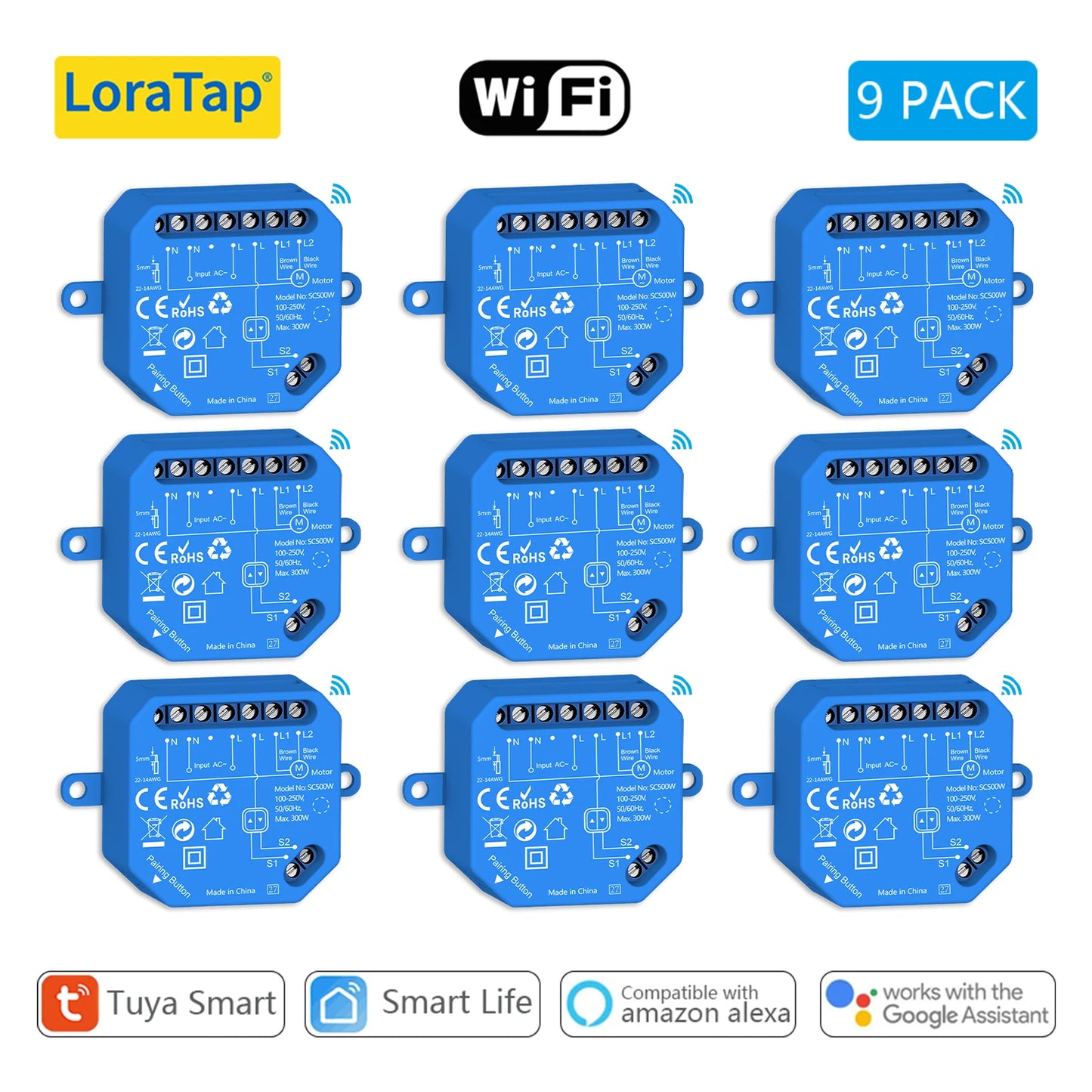

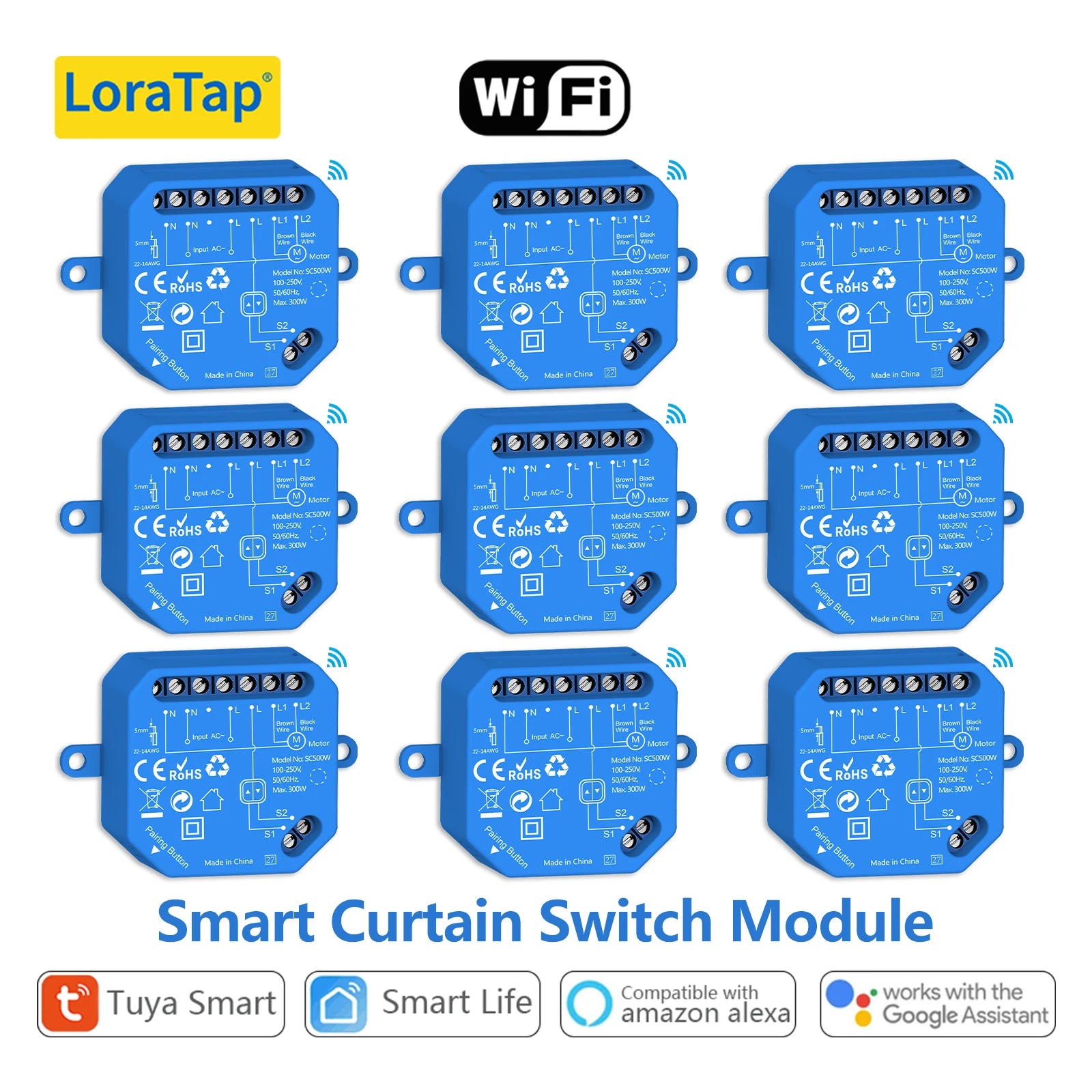

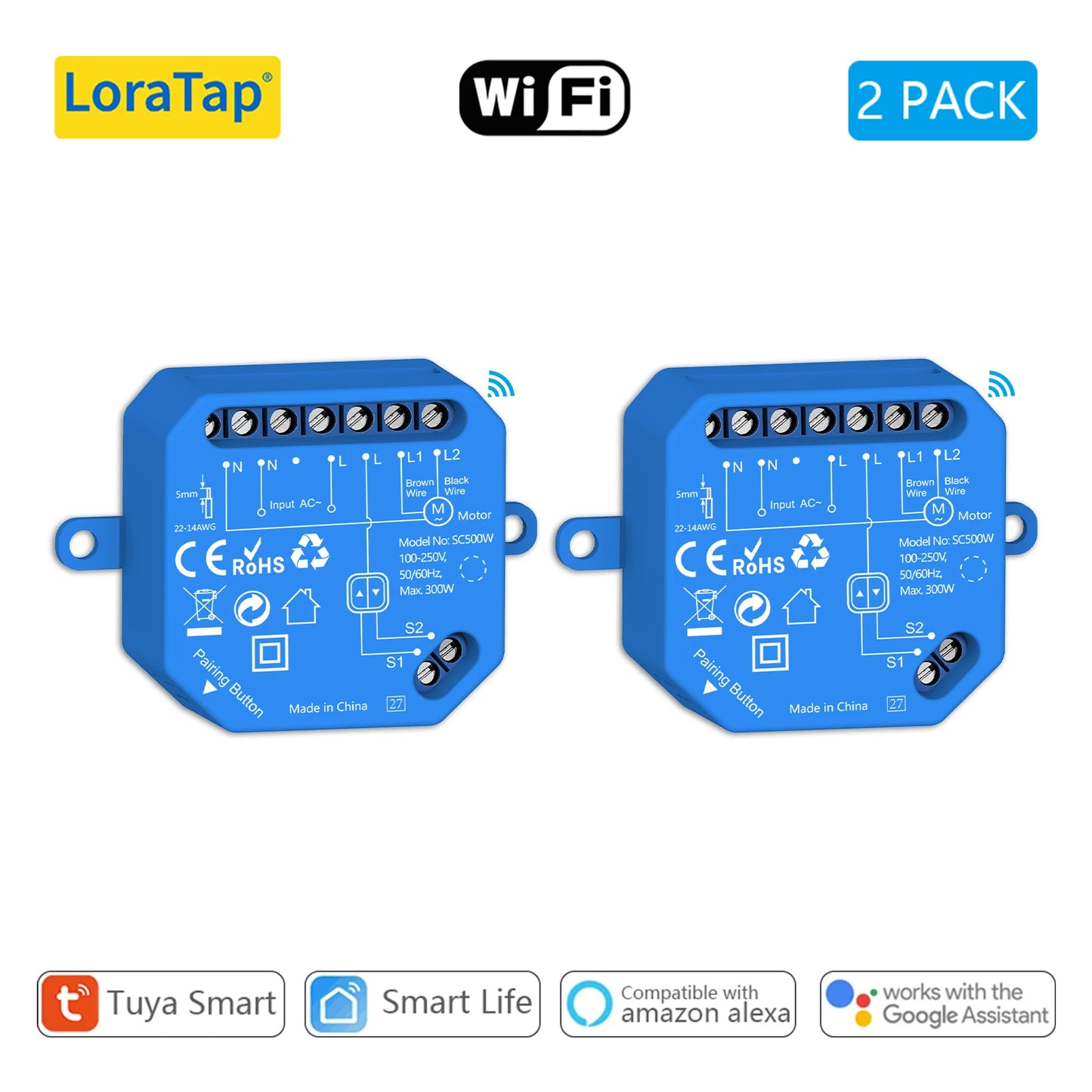

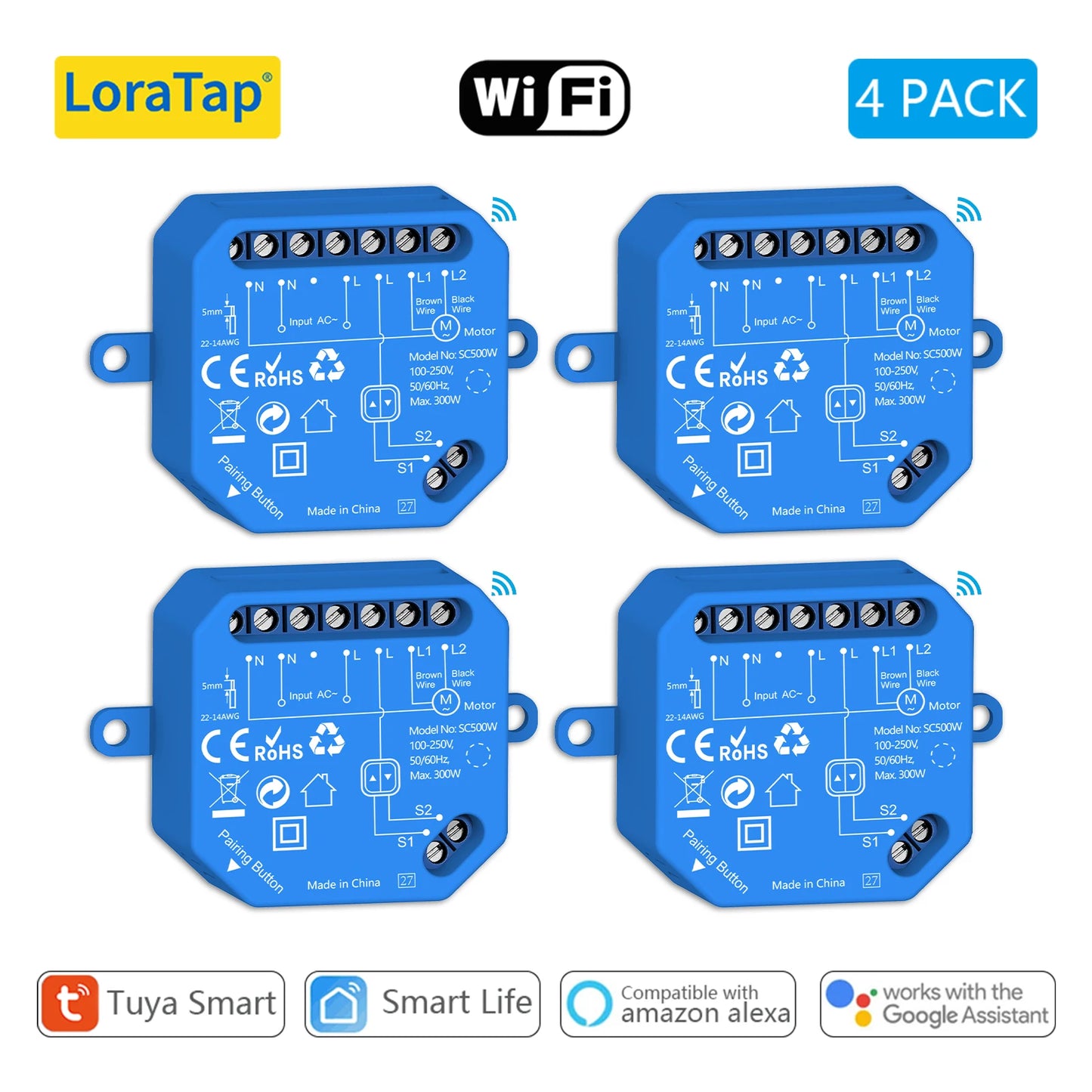

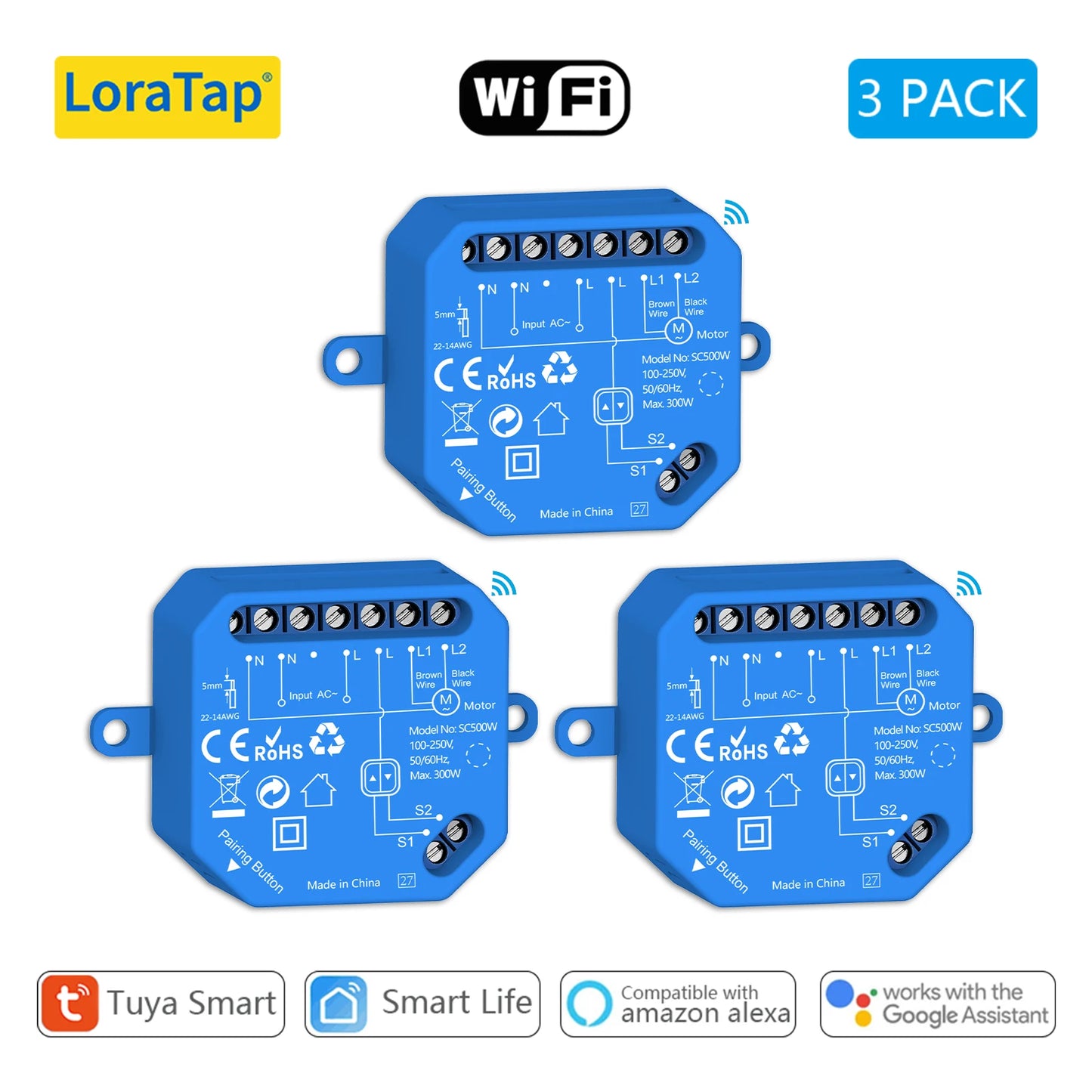

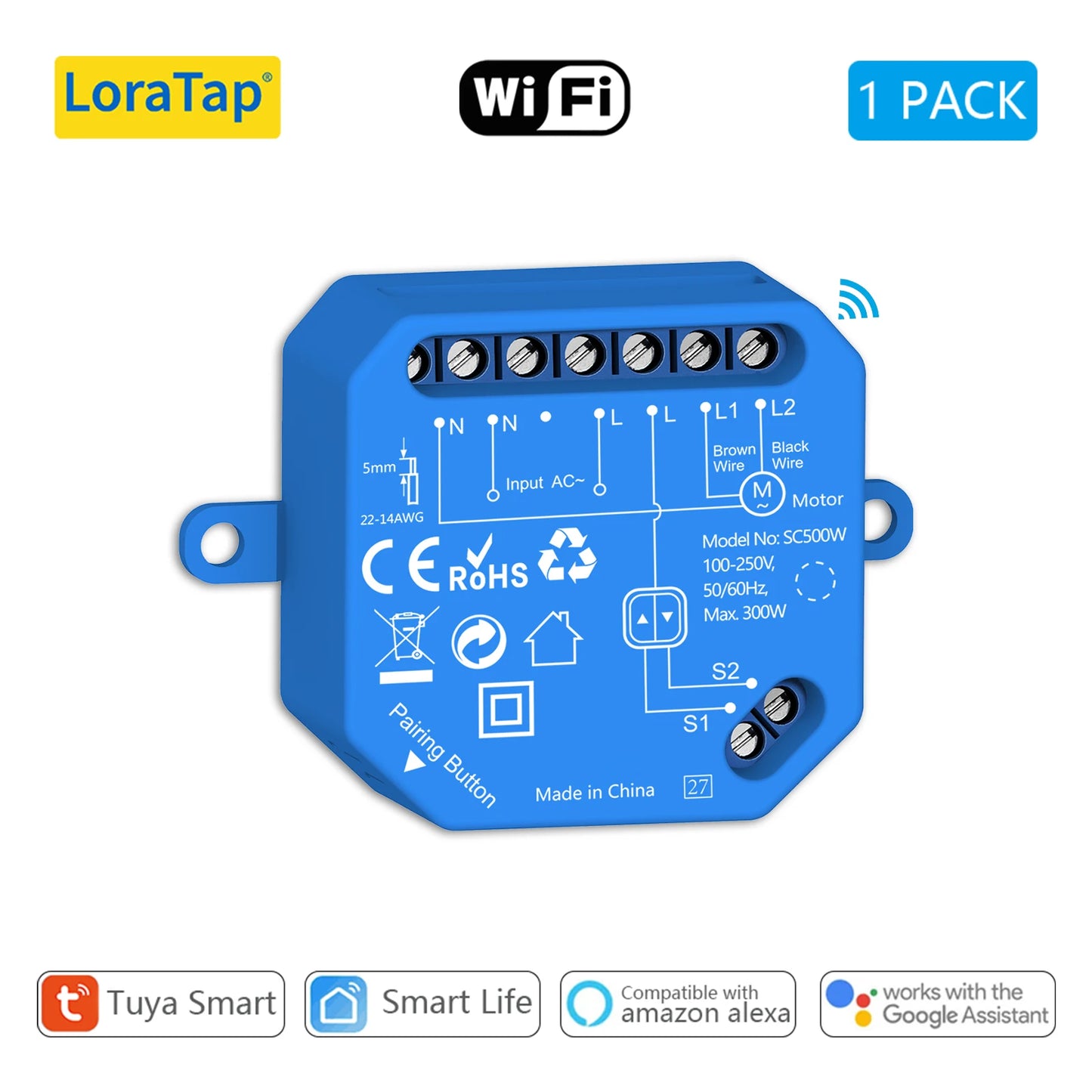

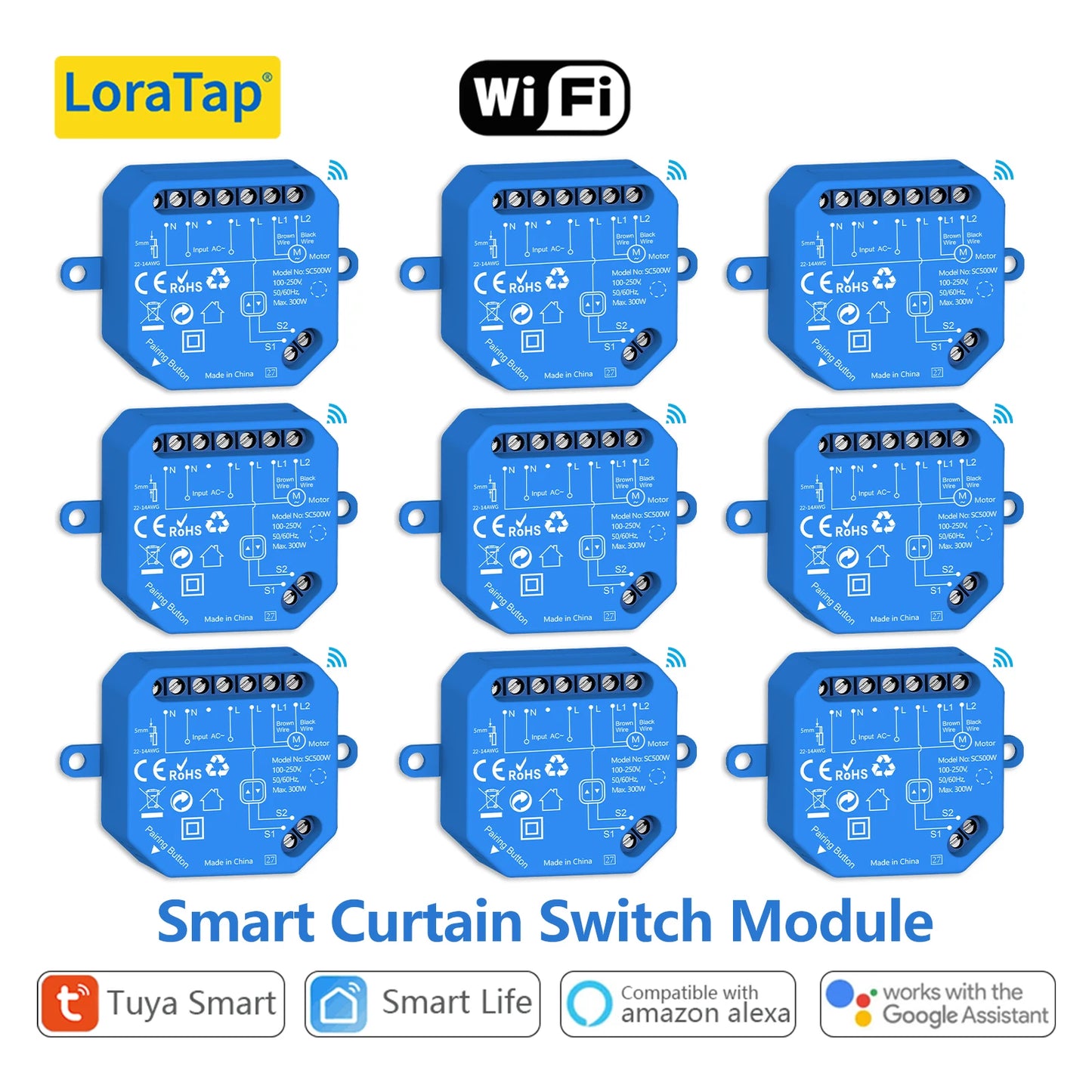

LoraTap Tuya Smart Roller Shutter Curtain Blinds Switch Tubular Motor Percentage Remote Voice Control by Google Home Alexa
LoraTap Tuya Smart Roller Shutter Curtain Blinds Switch Tubular Motor Percentage Remote Voice Control by Google Home Alexa
SPECIFICATIONS
App Name: Tuya, Smart Life
App Type: Free App, Support Android and IOS
Battery Included: No
Brand Name: LoraTap
Certification: CE,RoHS,CE, RED, EMC, RoHS
Choice: yes
Color: Blue
Compatible with: Tubular Motor with 4 wires
Dimensions: 48mm*47mm*16.5mm
EU LVD Voltage: High voltage: Above 50Vac or 75Vdc
Factory Quality: ISO9001:2015 factory
High-concerned chemical: None
Model Number: SC500W-V4-BLUE
Need a Hub: No
Origin: Mainland China
Plastic Material: Fireproof ABS
Remote Control: App Remote Control
Support: Hands-free Voice Control
Switch Type: toggle switch, rocker switch, back and forth switch
Switch type: Switch Module
Timer: App Timer Schedule
Voice Control: Google Home, Amazon Alexa,Yandex Alice
Voltage: 110-240V
Wattage: 300W
WiFi Smart Curtain Switch: DIY Smart Home
Wireless Protocol: 2.4GHz Wi-Fi(not support 5GHz Wi-Fi)
Works for: Smart blinds, Smart Curtain, Roller Blinds, Shutter
Works with: Blinds Shutter with electric motor
application: DIY
is_customized: Yes
semi_Choice: yes
LoraTap 7th Generation RF & WiFi Percentage Curtain Switch
4th Generation ZigBee Percentage Curtain Switch Module

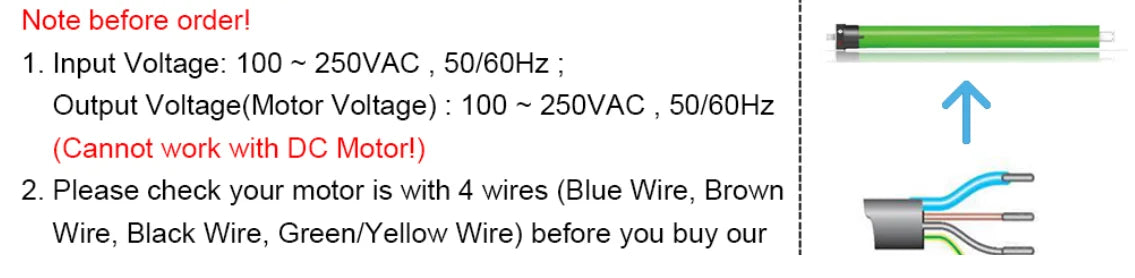

Note before order
This is a Wi-Fi only Curtain Switch Module, it can’t work with our RF curtain remote. Please don’t buy the extra RF remote to add the remote control, they are not compatible.
- Input Voltage: 100~250VAC, 50/60Hz；Output Voltage(Motor Voltage): 100~250VAC, 50/60Hz(Our switch can't work with DC motor!)
- Please check your motor is with 4 wires (Blue Wire, Brown wire, Black Wire, Green/Yellow Wire) before you buy our curtain switch module. And please be noted that neutral wire is a must for the installation, or you can't use our device.
- Our curtain switch module is compatible with toggle switch(rocker switch, back and forth switch, 3 stable status switch) and button switch(spring switch), but if your wall switch is button switch or spring switch, the wall switch needs to be pressed all the time to give a continuous signal to run the motor. Please don't buy our curtain switch module if you mind this operation manner change.
Features
- Voice Control: Compatible with Amazon Alexa, Google Home, and Yandex Alice.
- App Remote Control: Support Smart Life APP /Tuya APP.
- Timer and Schedule: You can set a timer to open or close the curtains at a specified time.
- Curtain Percentage Control: Accurately control roller shutter at specify percentage position via App.
- Wall Switch Control: After you install this module, your wall manual switch still works, it can open , or close the shutter.
- Sunrise/Sunset Automation: You can set the sunrise/sunset automation in the smart life app.
- Device Sharing: You can create group in the APP to manage all the blinds in your house and share the devices to all your family members.
Specification
Input voltage: 100-250VAC, 50/60Hz
Wiring: Neutral Wire, L1, L2, Earth Wire
Max Load: 300 W
Wireless Protocol: 2.4GHz Wi-Fi(not support 5GHz Wi-Fi)
Standby Consumption: below 0.5W
APP Name: Smart Life or Tuya
Voice Control: Google Home, Amazon Alexa
Plastic Material: Fireproof ABS
Certification: CE, EMC, RED, RoHS
Patented Product: Yes
Produced by ISO9001 Factory: Yes

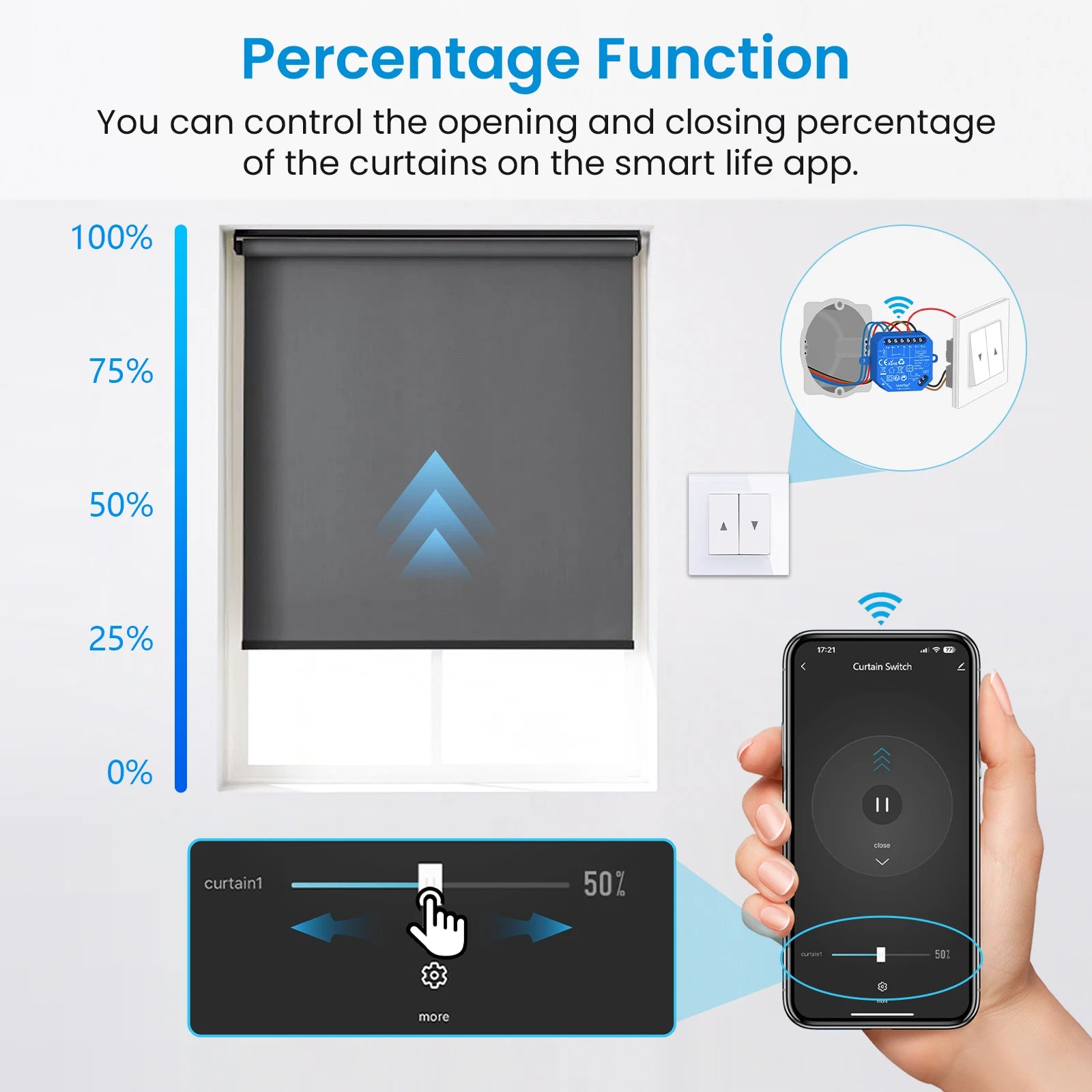

New Function - Percentage Function
You can control the opening and closing percentage of the curtains on the smart life app.
App Control
Mobile app remote control to open or close curtains.
Voice Control
- Voice Control with Google Home, Amazon Alexa.
- With voice control to turn on and turn off the curtains.

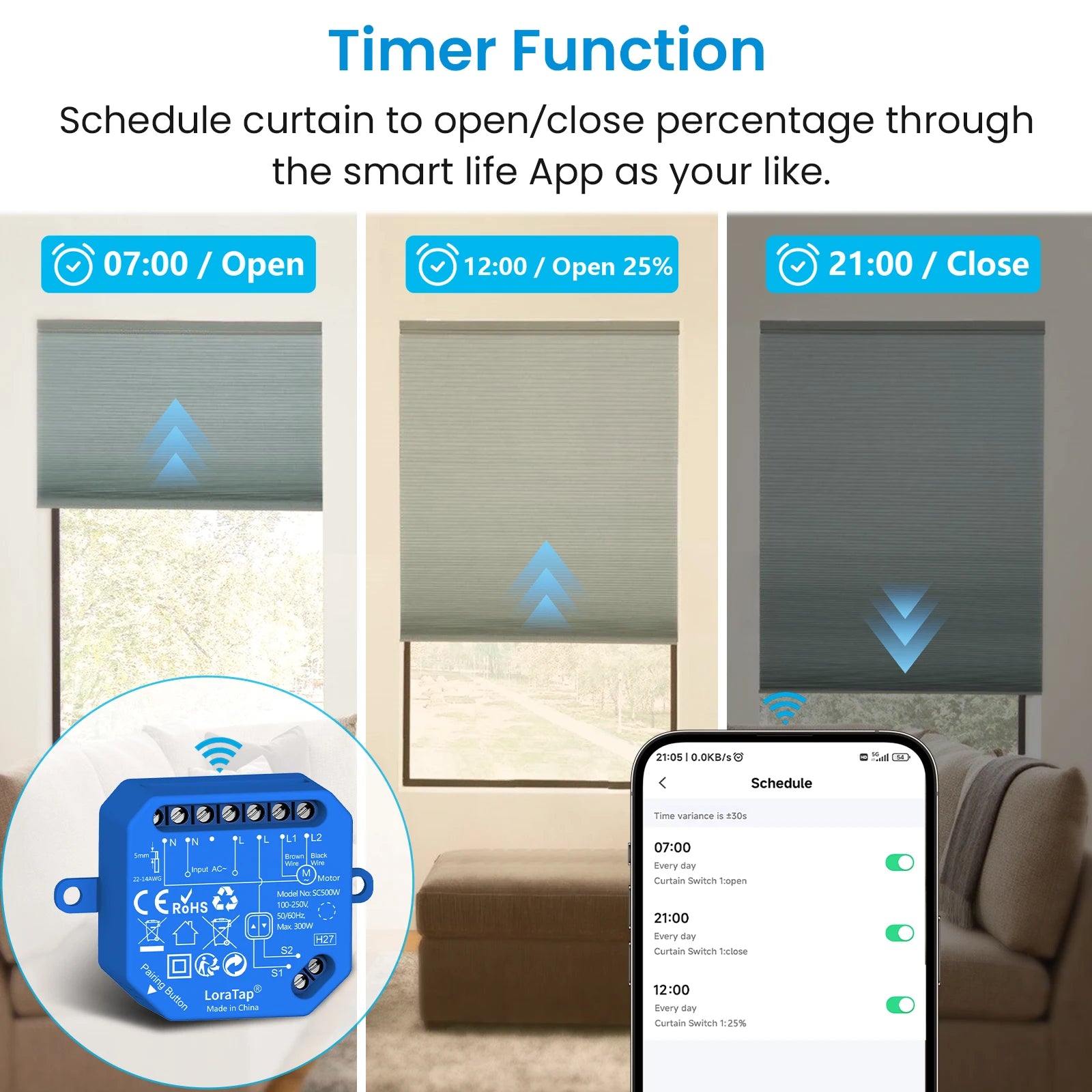

Timers and Schedules
- You can set a timer for your curtains, and the curtains will automatically open or close within a specified time.
- You can have the curtains open by a percentage at a specified time.

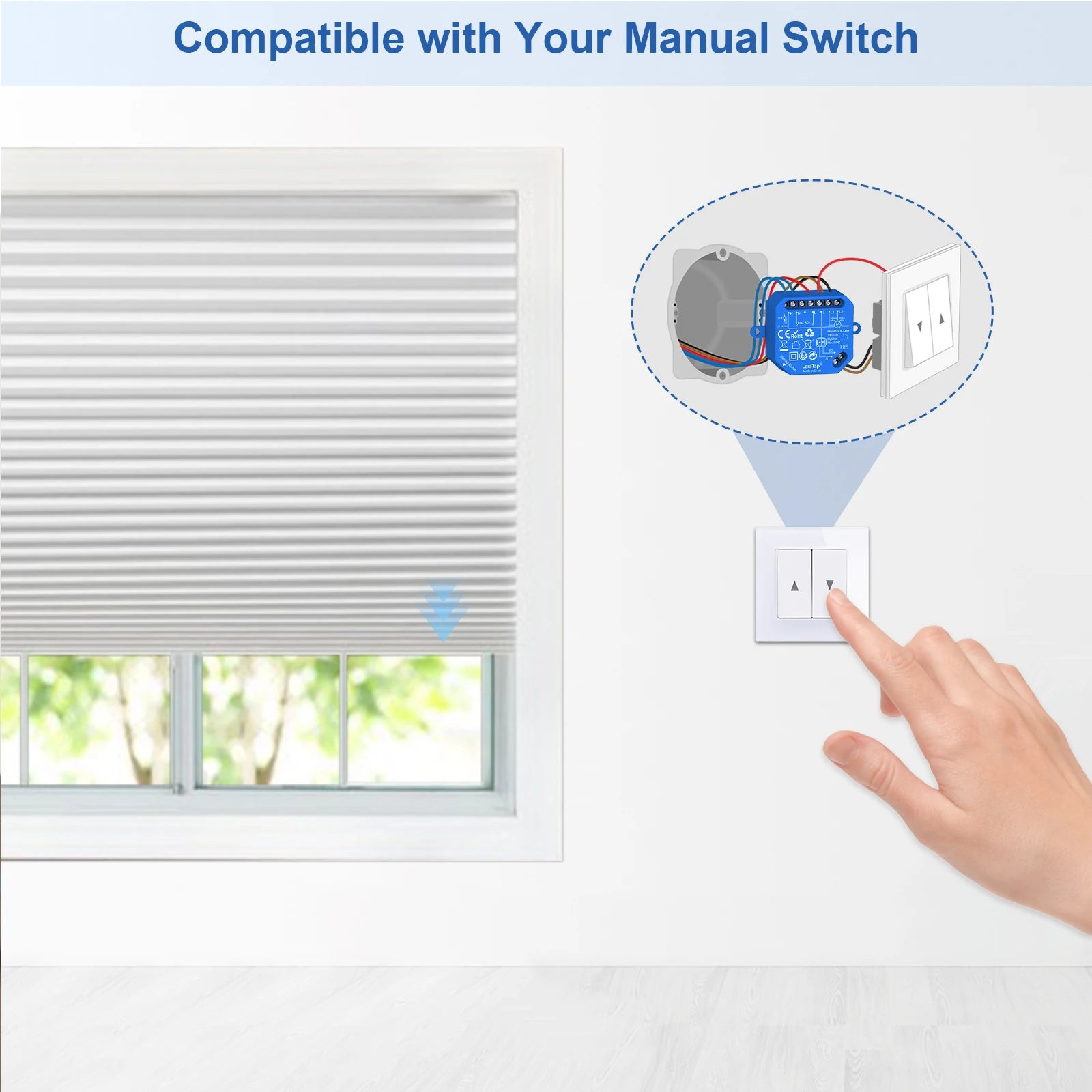

Compatible with Your Manual Switch
- After you install this module, your wall manual switch still works, it can open , pause, or close the shutter.
- In the absence of internet, you can still open or close the curtains through the wall switch.

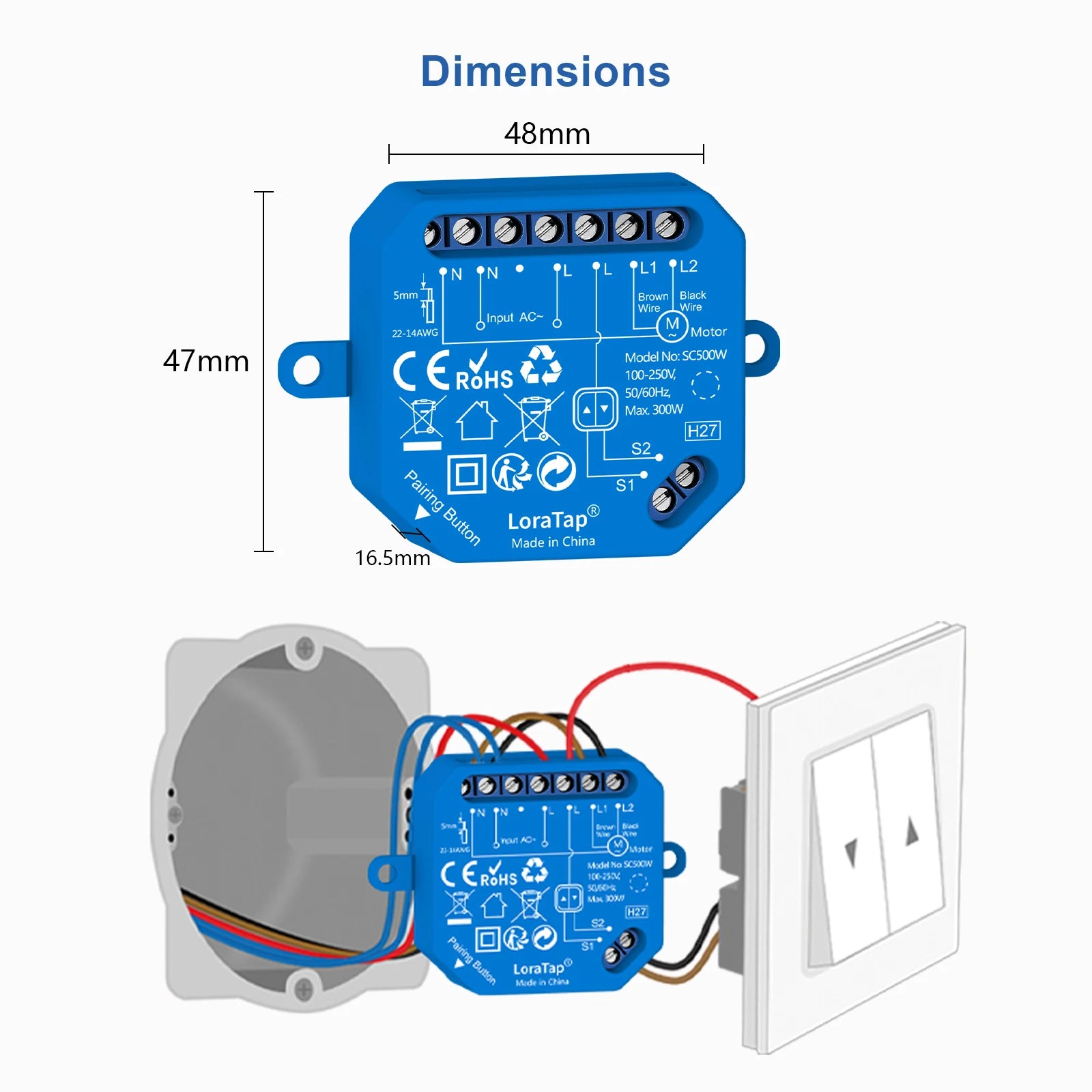

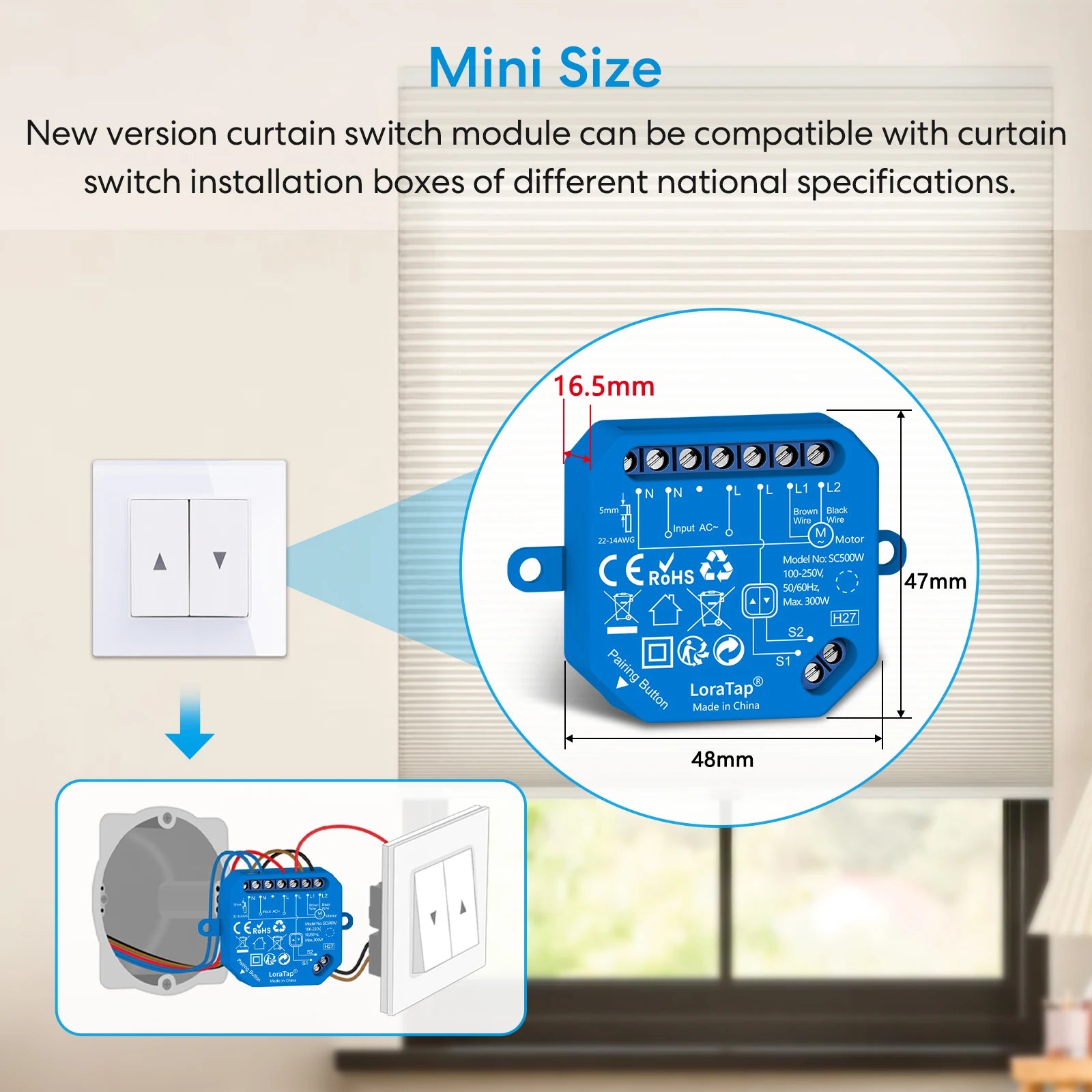

Dimensions
Module size: 48mm*47mm*16.5mm
Tiny size design enable it can fit most junction box.

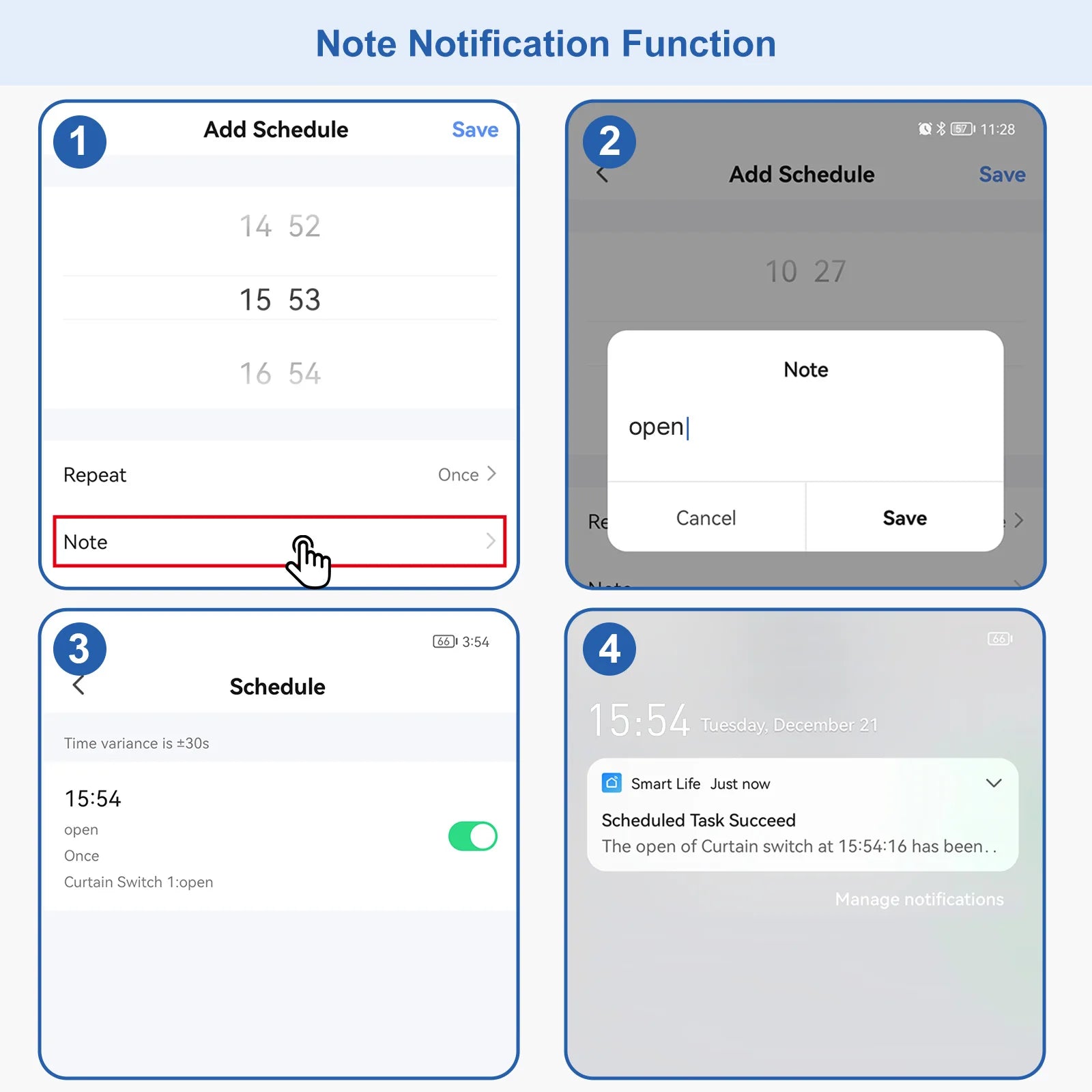

Note Notification Function
You can add notes when creating a timer. When the time is up, the device will automatically work and send a notification to the phone.
Sunrise / Sunset Automation
You can set the sunrise/sunset automation in the smart life app.

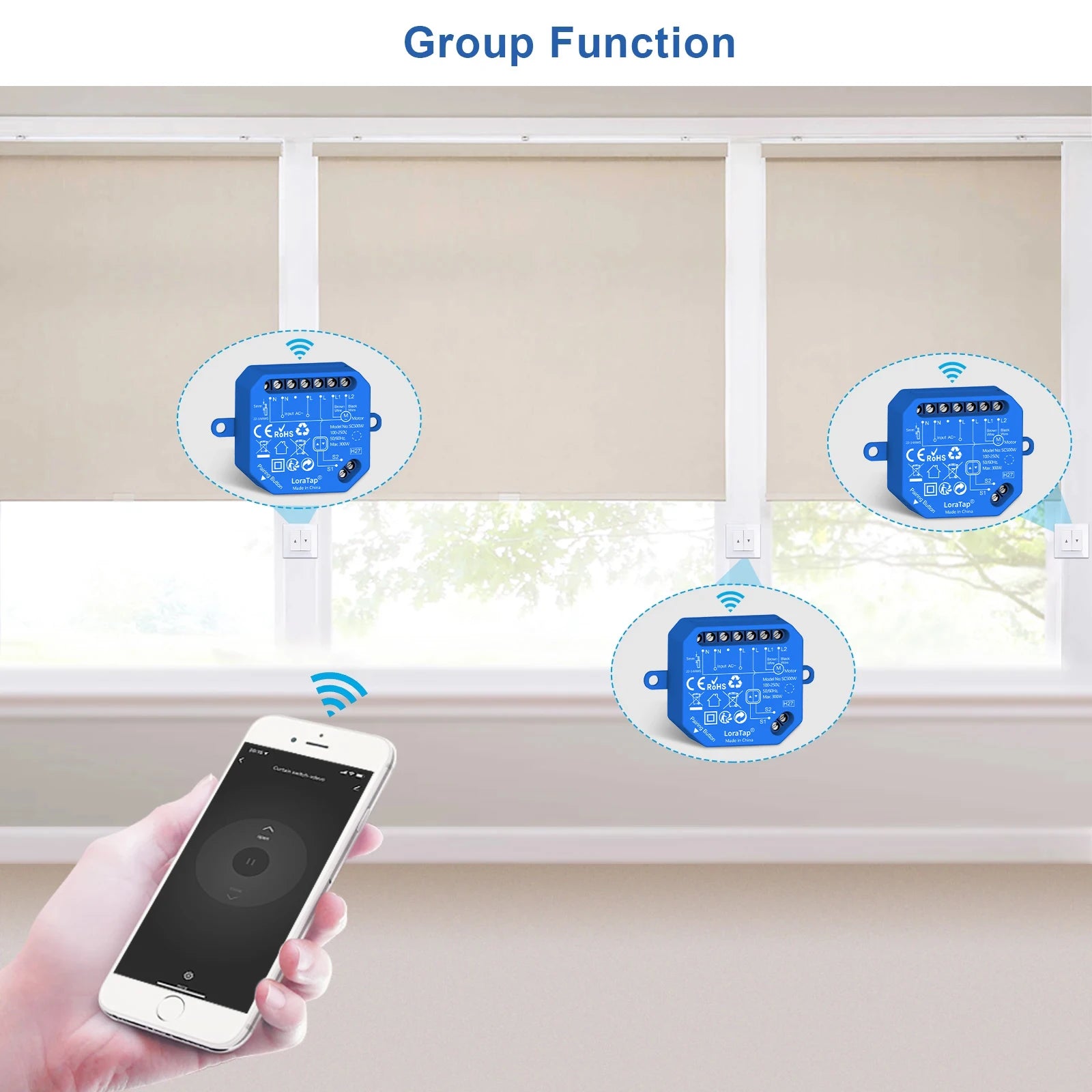

Group Function
You can create a group in the app to easily manage all the blinds in your home.
Device Sharing
You can control the same device with family members through the device sharing function.

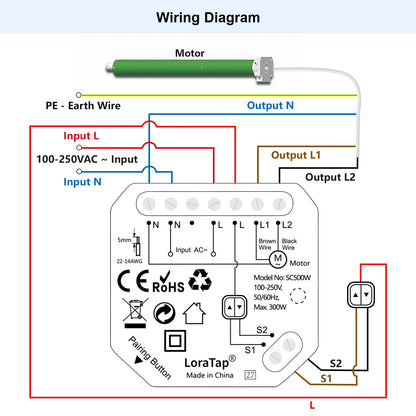

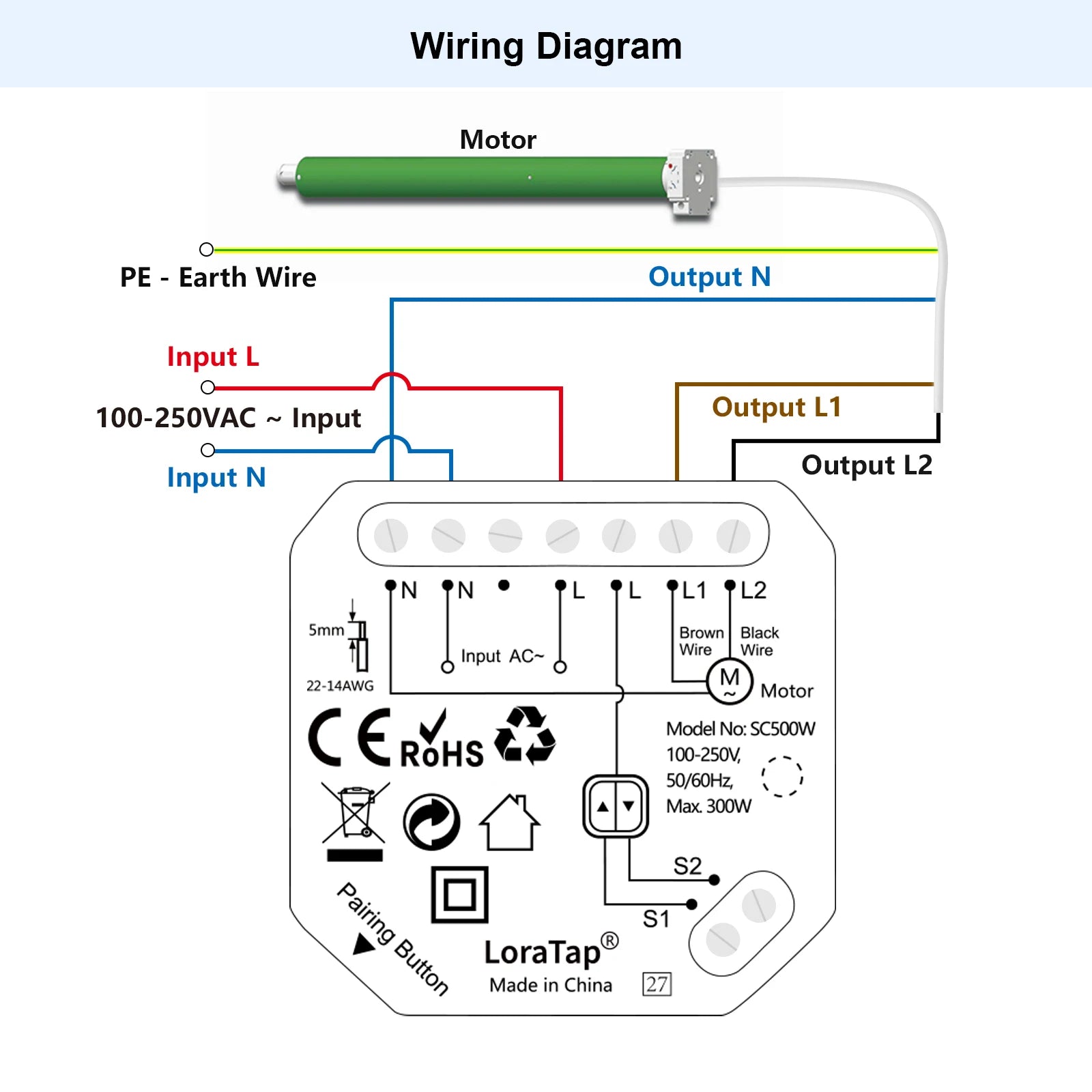

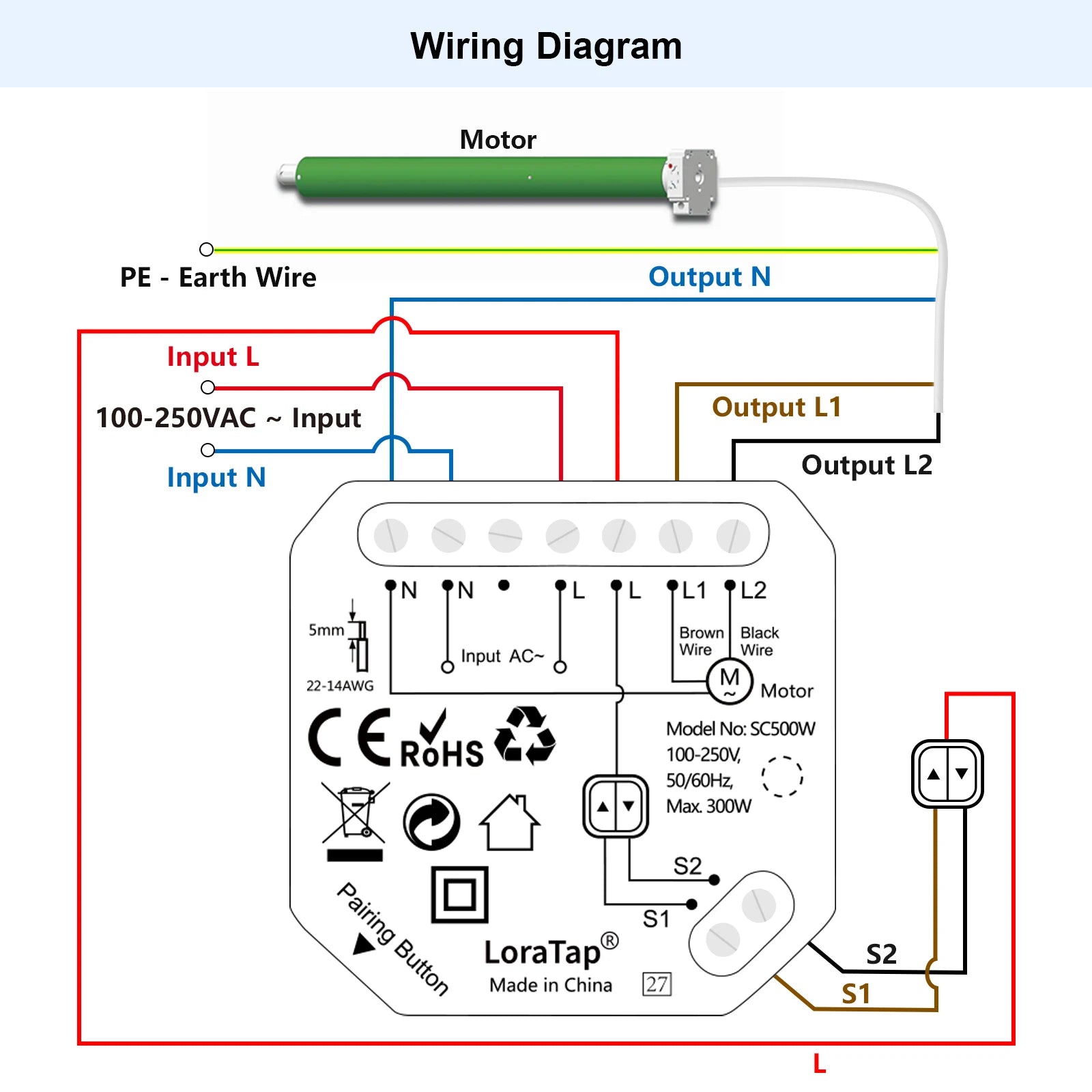

Wiring Diagram
- If you need to connect with your manual switch, please refer to below wiring diagram.
- If you need any help for how to connect the module, please be free to contact with seller.
- If you don't need to connect with your manual switch, please refer to below wiring diagram.
We have all the accessories you need in the box, you don't need to pay extra cost.

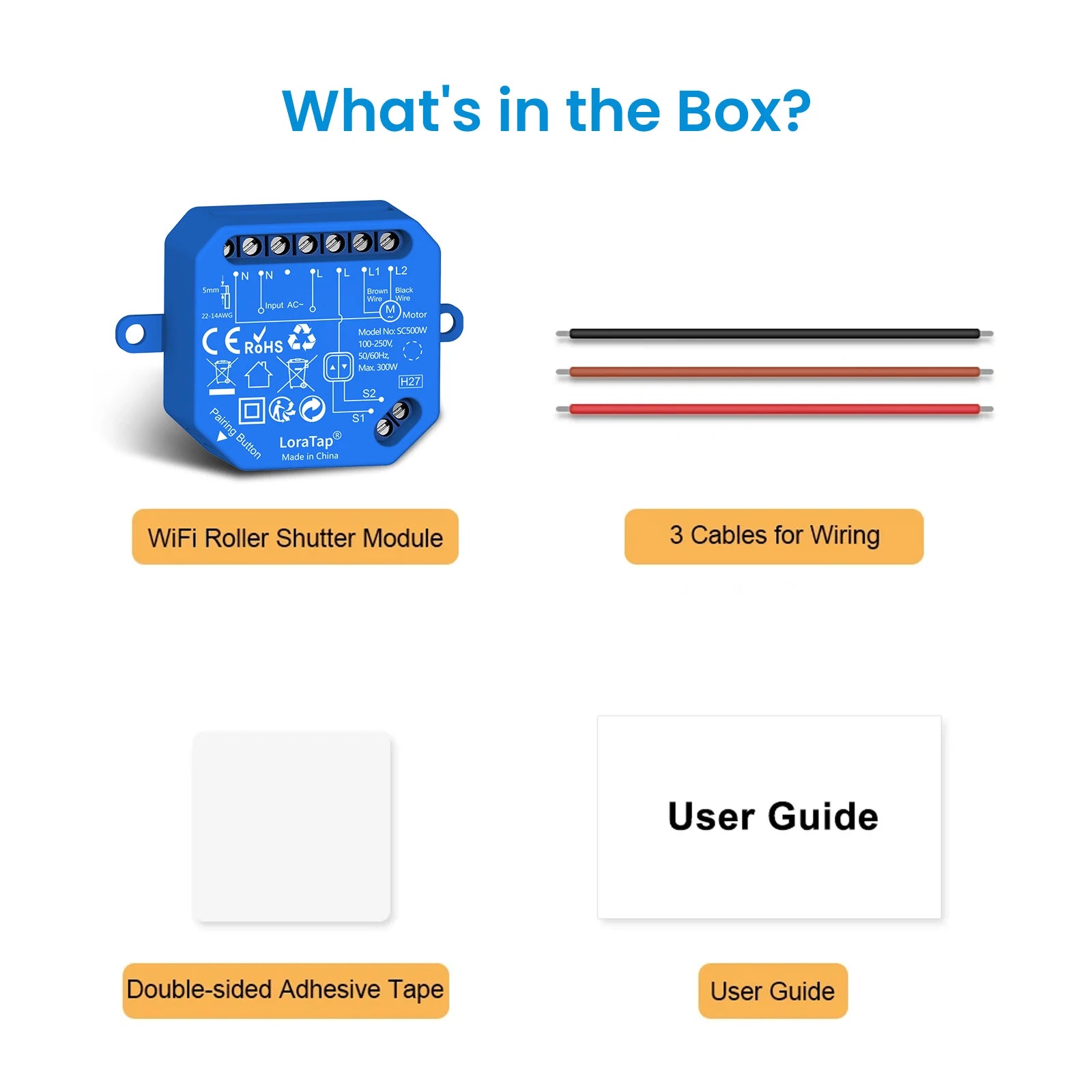

What's in the Box?
1 * Roller Shutter Module
3 * Cables for Wiring
1 * Double-sided Adhesive Tape
1 * Screwdriver
1 * User Guide

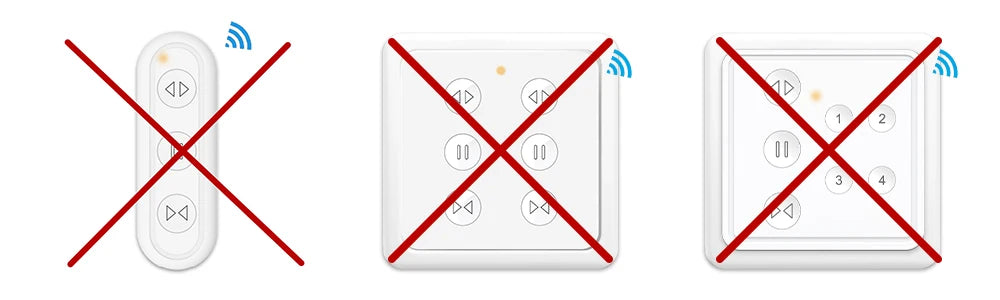

This is a WiFi Only Product. It can't work with any RF remote in our store.
Please don’t buy any extra RF remote in our store to work with this WiFi only curtain switch.
