Meian Focus Wired Dual/Triple Infrared Beam Sensor, IP65 Waterproof Infrared Barrier Detector, Infrared Barrier for Villa Farm
Meian Focus Wired Dual/Triple Infrared Beam Sensor, IP65 Waterproof Infrared Barrier Detector, Infrared Barrier for Villa Farm
SPECIFICATIONS
Alarm signal threshold: ≤0.5V
Application: Community Wall, Farm Fence, Villa Fence, etc.
Brand Name: i Alarm
Certification: CE
Choice: yes
Current consumption: ≤100mA(a pair)
Detection method: All beams simultaneously interrupted detection type
Dismantling alarm: Support
High-concerned chemical: None
Light source: Infrared digital pulse type

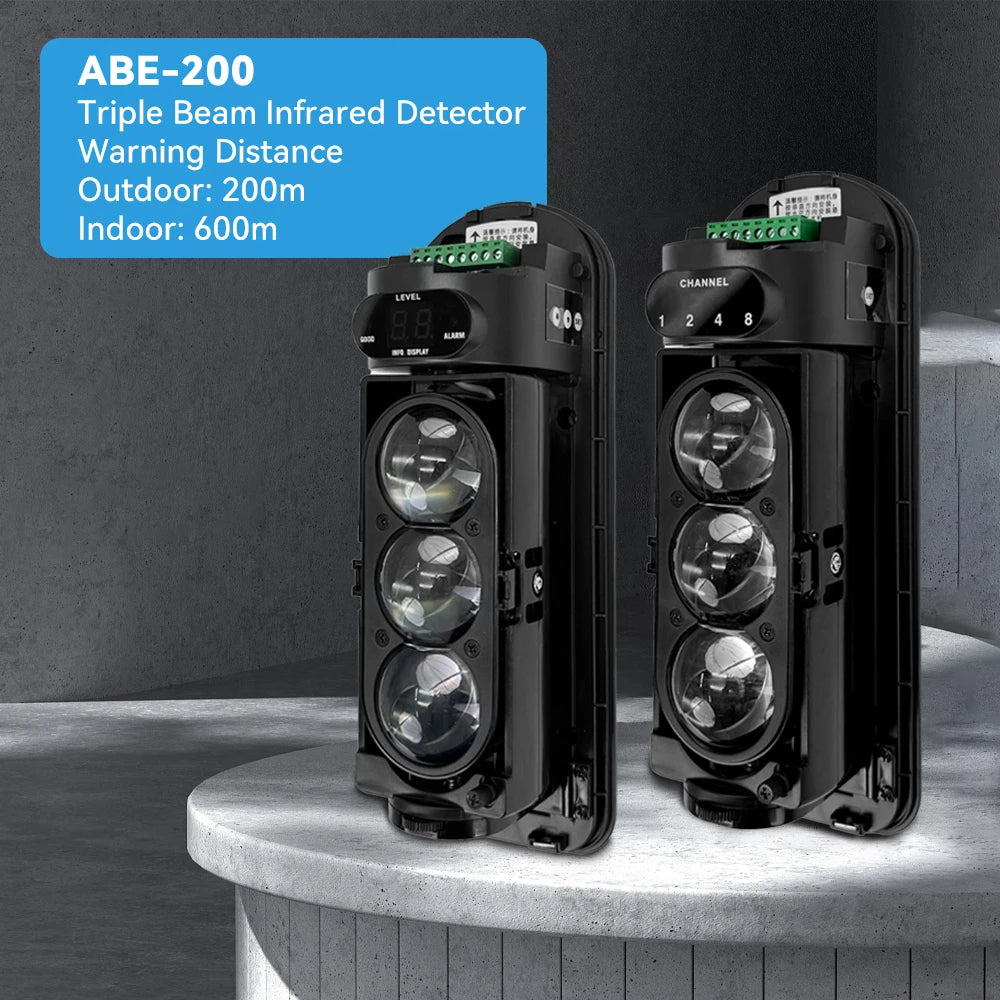

Model Number: ABE
Name: Wired Infrared Beam Detector

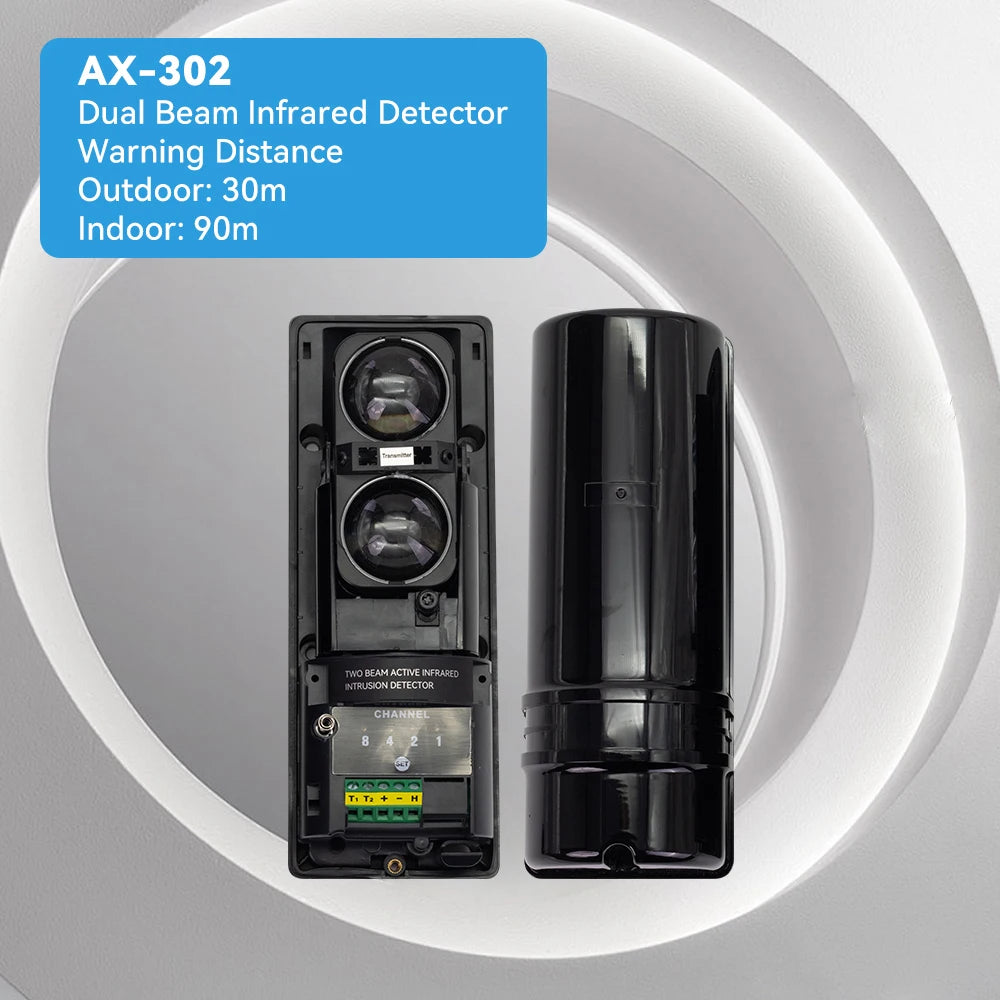

Number of beams: 2 beams/ 3 beams
Optical axis adjustment angle (horizontal): 180°(±90°)
Optical axis adjustment angle (vertical): 20°(±10°)
Origin: Mainland China
Power supply voltage: DC12V-24V
Shading time: 50-240ms (stepless adjustable)
Smart home platform: Other
Working Temperature: -25℃~+55℃
Working humidity: 5%-95%RH (relative humidity)
semi_Choice: yes

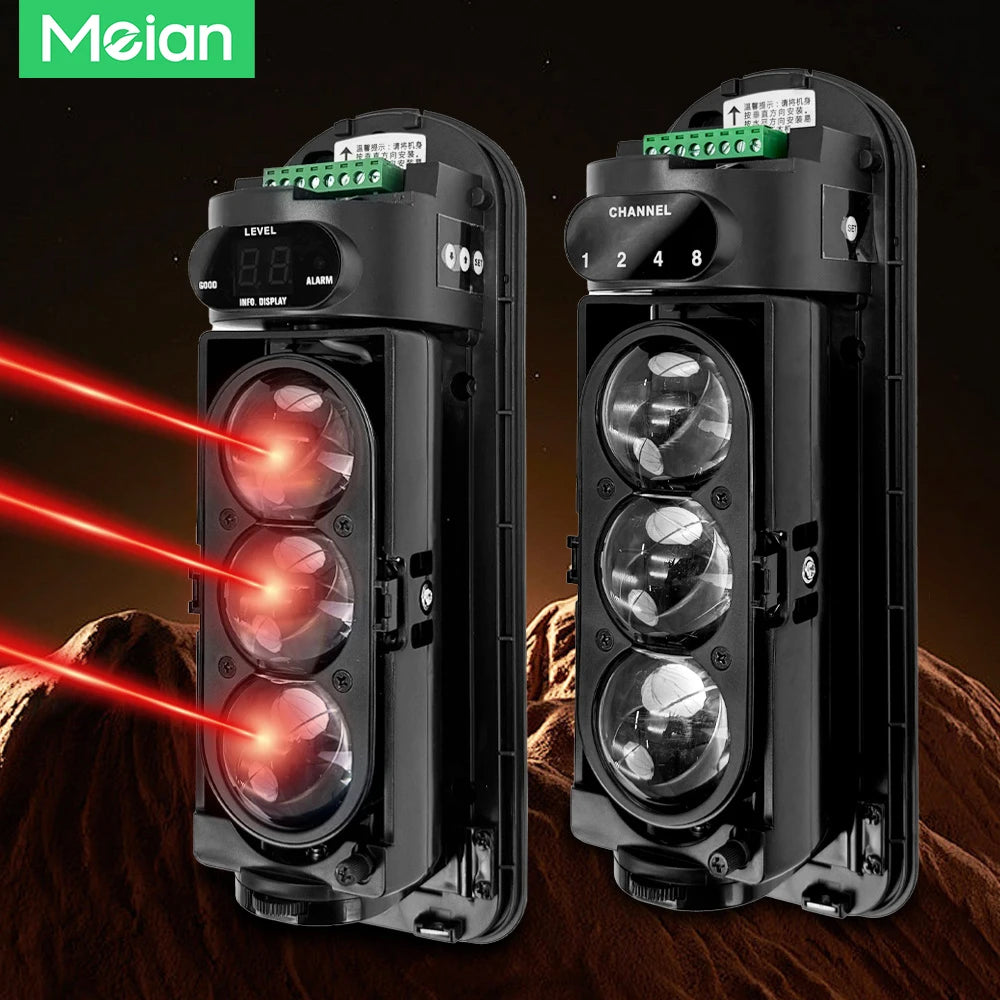

Meian Focus Wired Dual/Triple Infrared Beam Sensor
Working Principle:
The light emitted by the transmitter directly enters the receiver. When the detected object passes between the transmitter and the receiver to block all beams of light, the detector will sends an alarm signal to the host. Suitable for perimeter defense and alarm systems for fences, yards, farms, etc.

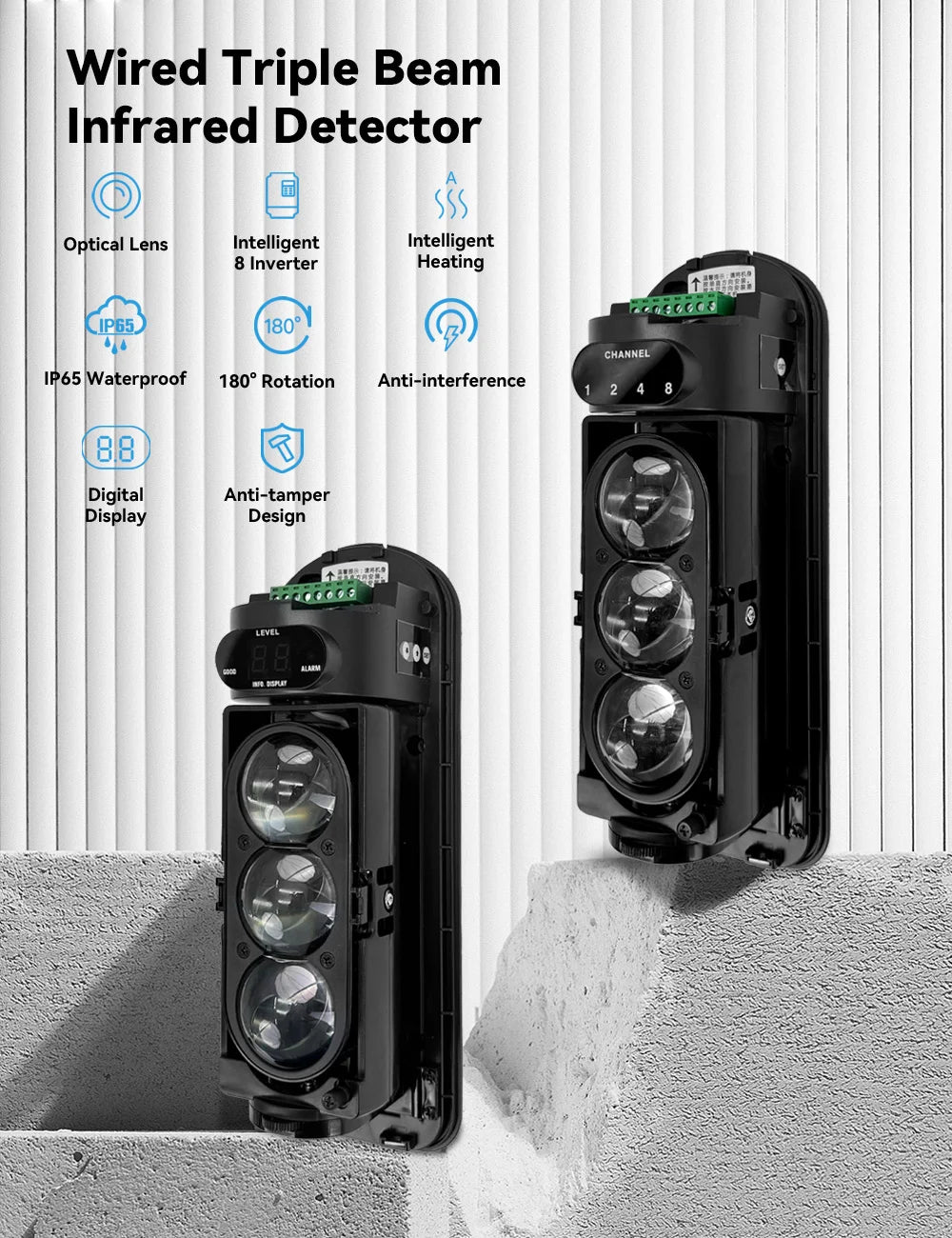

Product Features:
1.Dual-beam/ Triple-beam Infrared Sensor: Adopts aspherical coated optical lenses and professional DSP chip, strong anti-interference, high levels of anti-RFI / EMI capability.
2.Digital Fuzzy Artificial Intelligence Recognition: Intelligent power emission.
3.Intelligent 8 Frequency Conversion: Anti-interference and anti-false alarms.
4.Digital Display: Shows the bus address, signal strength and operating frequency in real time.
5.Adjustable Optical Axis Angle: 90°left/right, 10°up/down for easy installation.

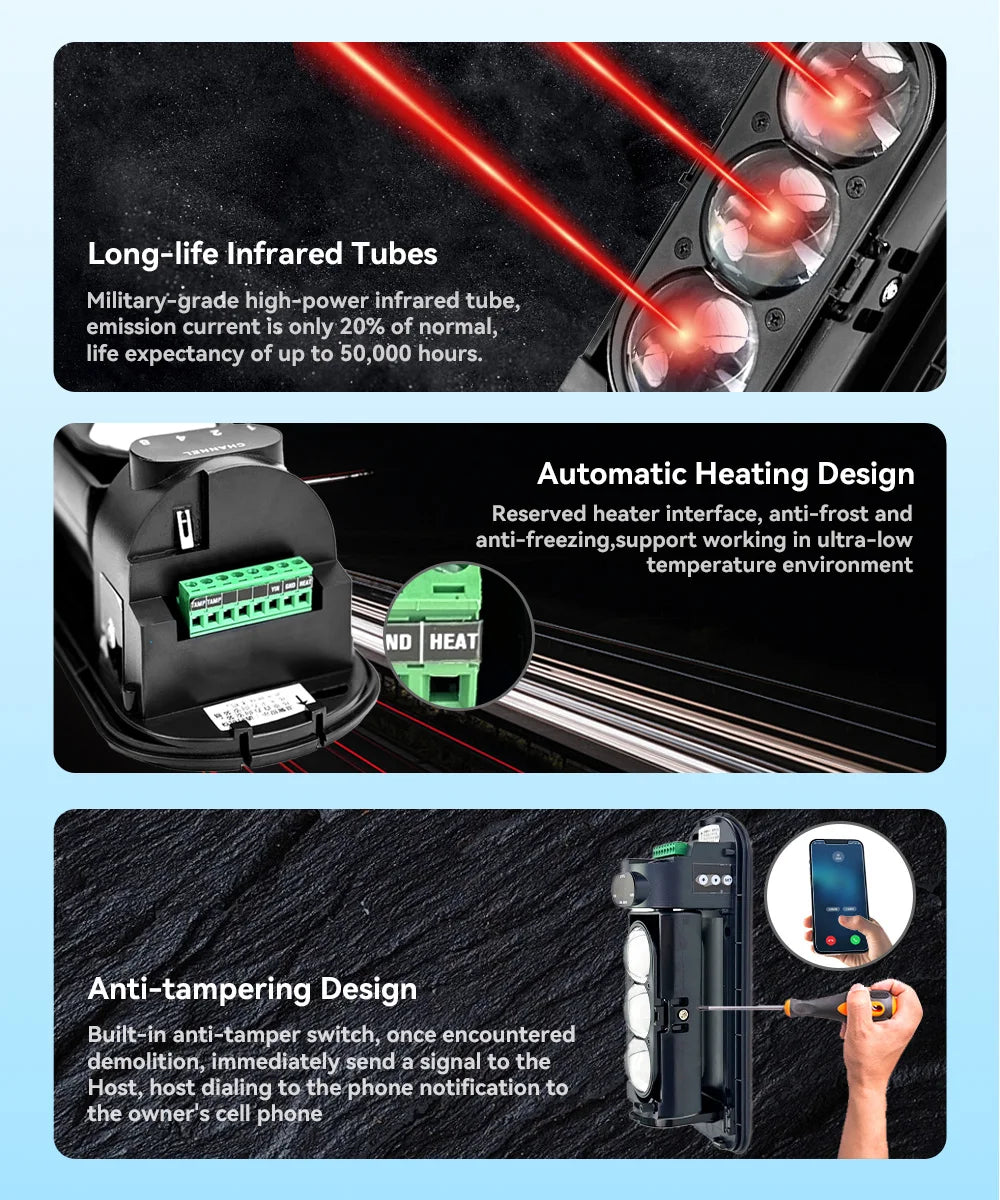

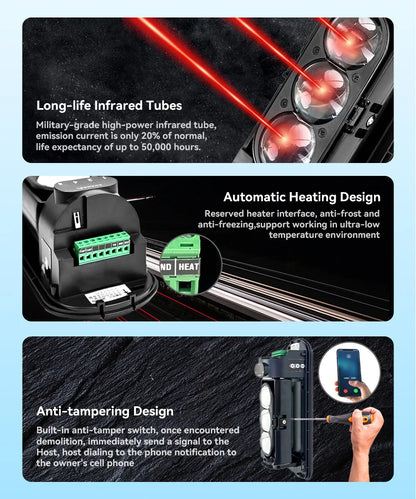

6.Intelligent Heating Function (optional): The receiver and transmitter have built-in iron-aluminum alloy, which can be connected to a 5V heater (optional). When the ambient temperature is lower than 5℃, the HEAT terminal will output a 5.5V voltage to the heater Power supply can effectively prevent light blocking caused by haze and low temperature.
7.Tamper Function: This product has a tamper switch, which can trigger an alarm when the outer cover is loose under working conditions.
Note: This link only includes infrared detector
Wires and host need to be purchased separately.

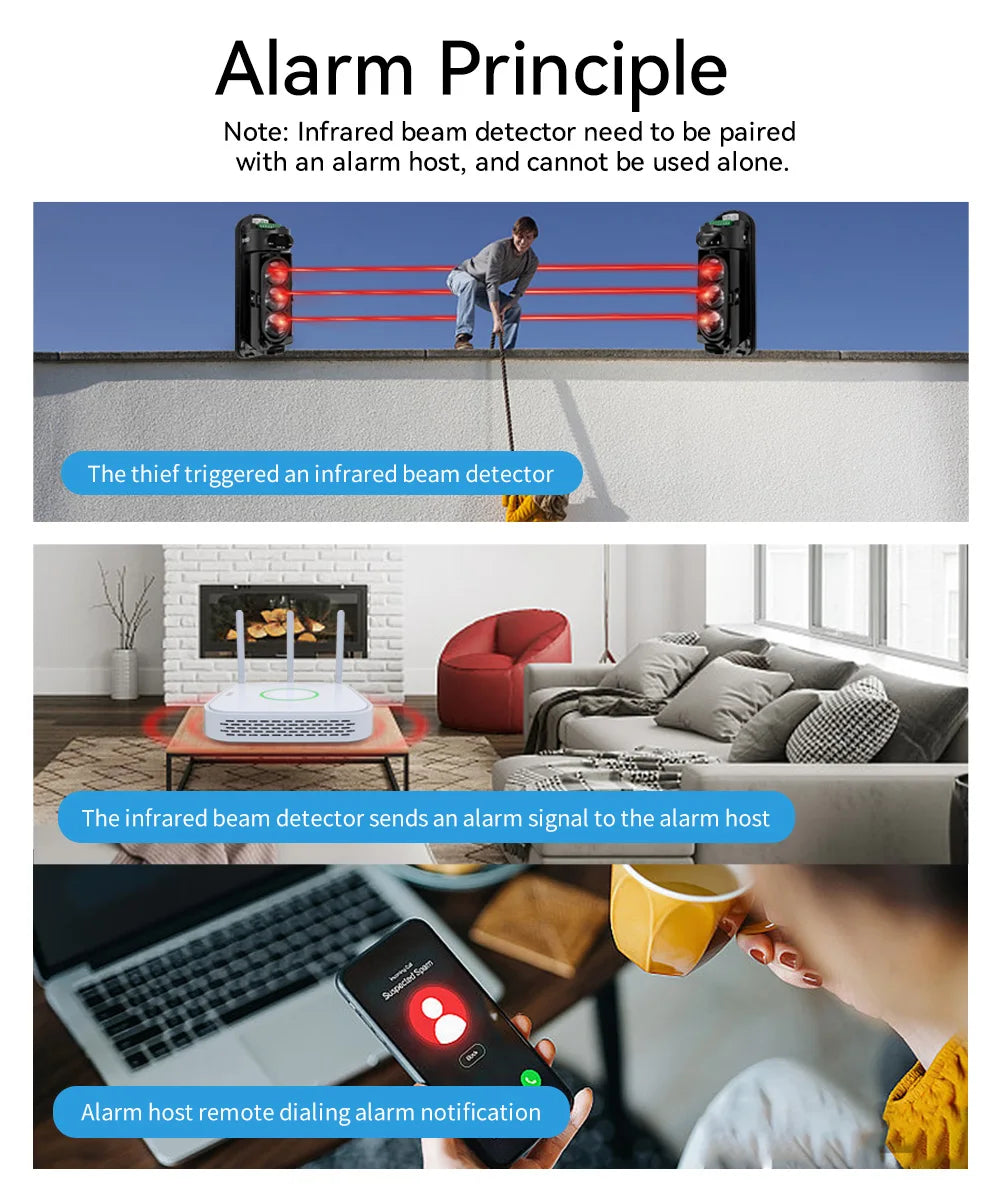

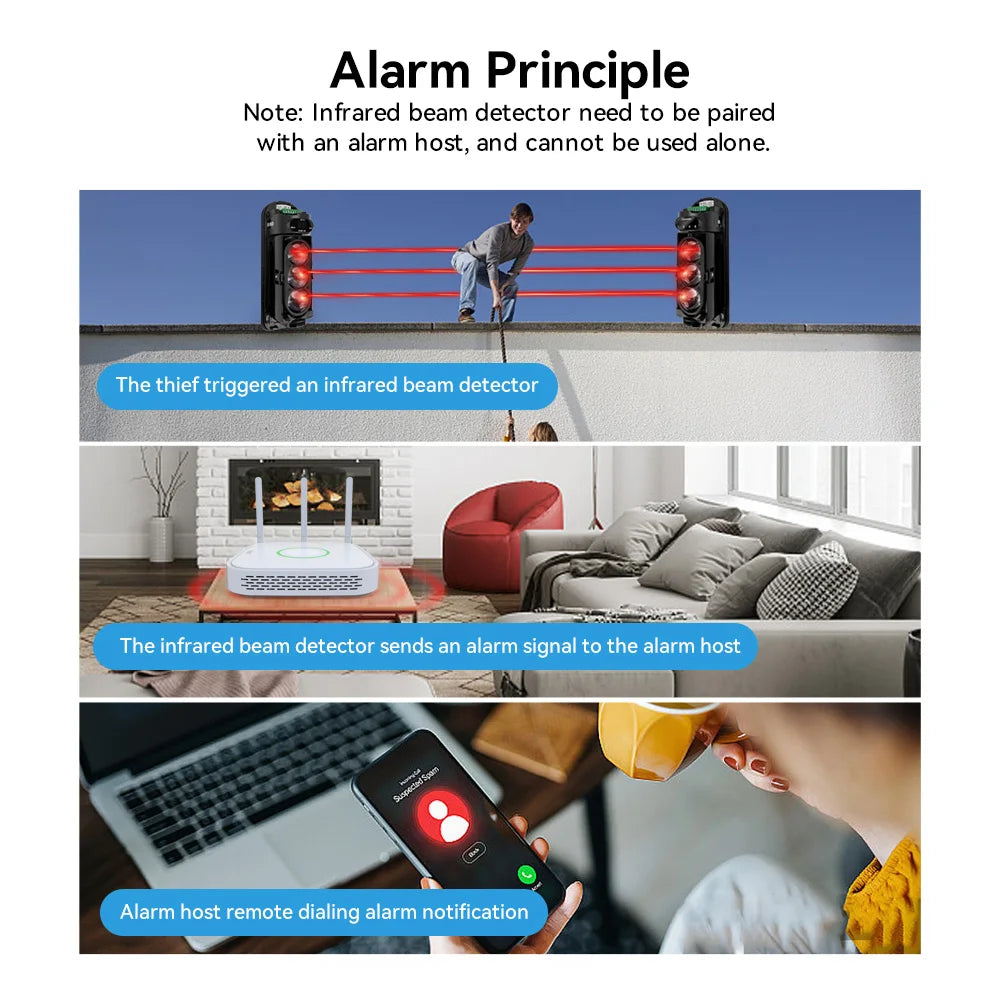

Alarm Principle
The intruder blocks all infrared beams and triggers an alarm

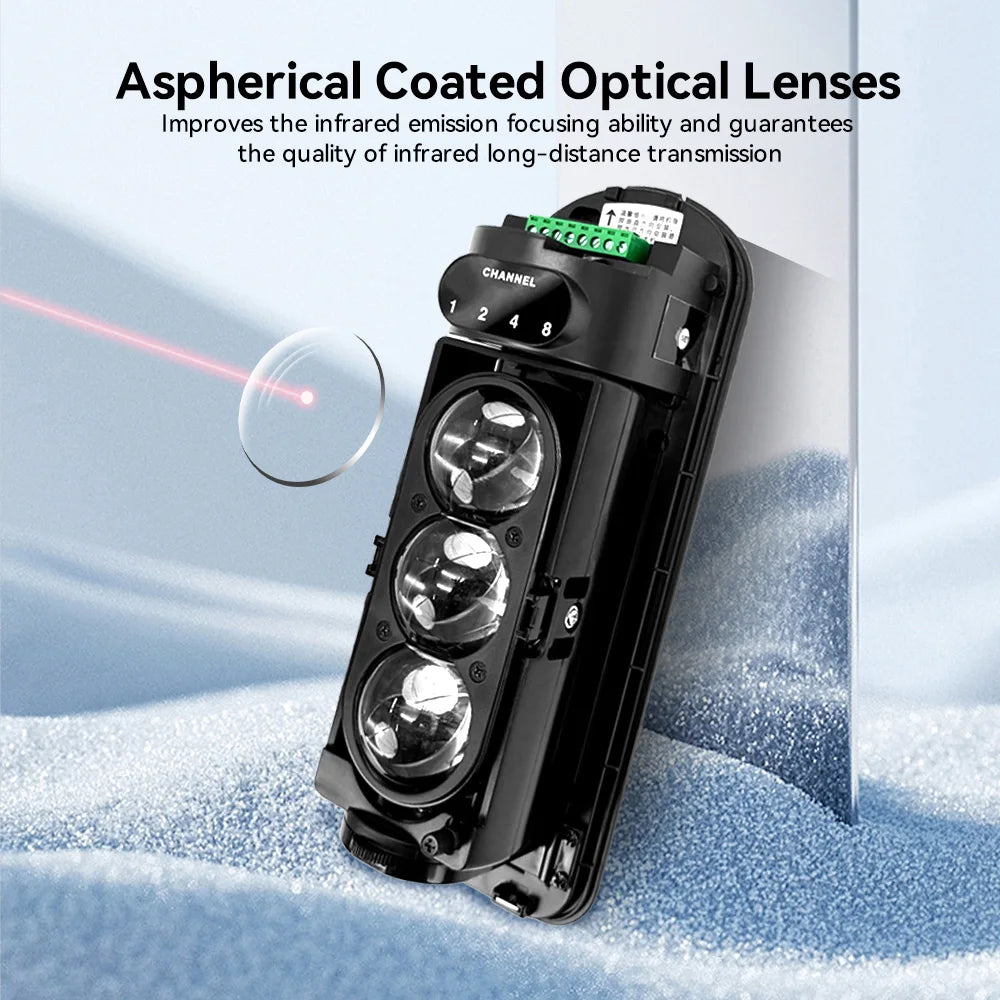

Aspheric Coated Optical Lenses
Improves the infrared emission focusing ability and guarantees the quality of infrared long-distance transmission

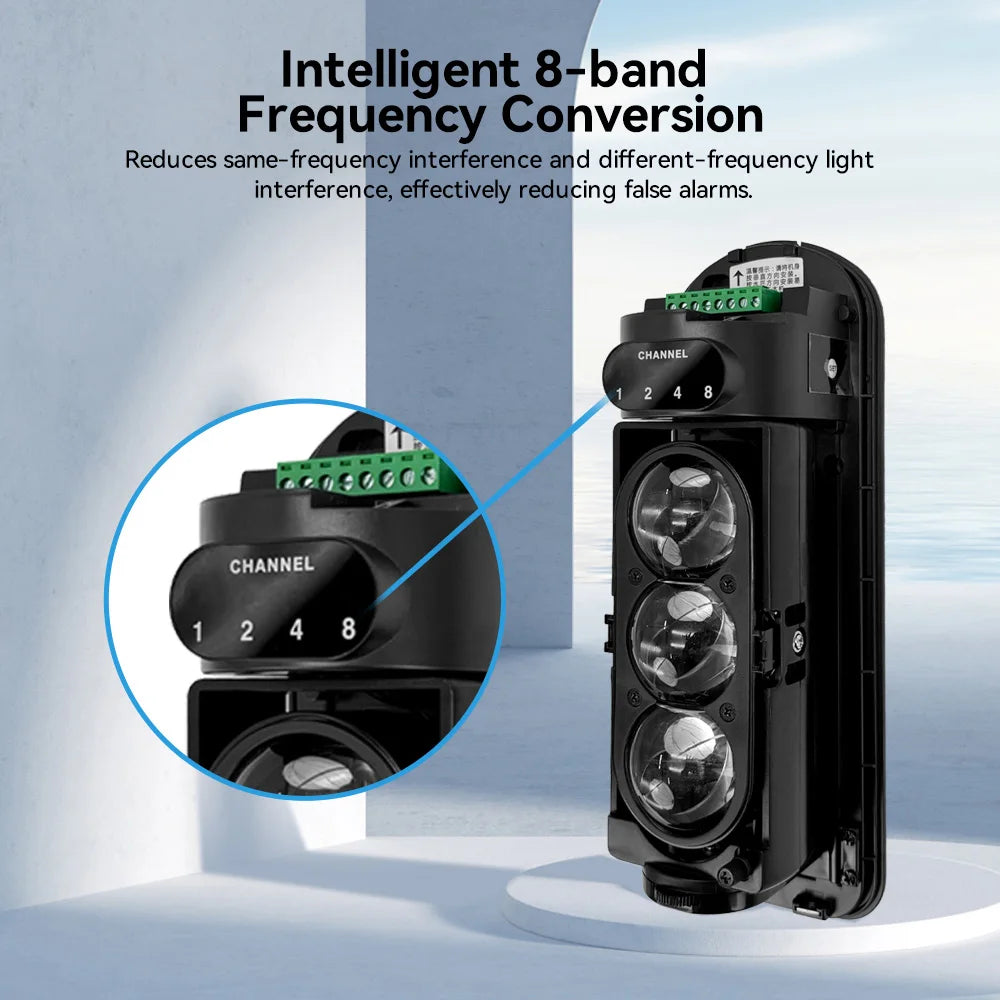

8 Frequency Conversion
Set different frequency bands for each pair of Infrared Detector to reduce interference

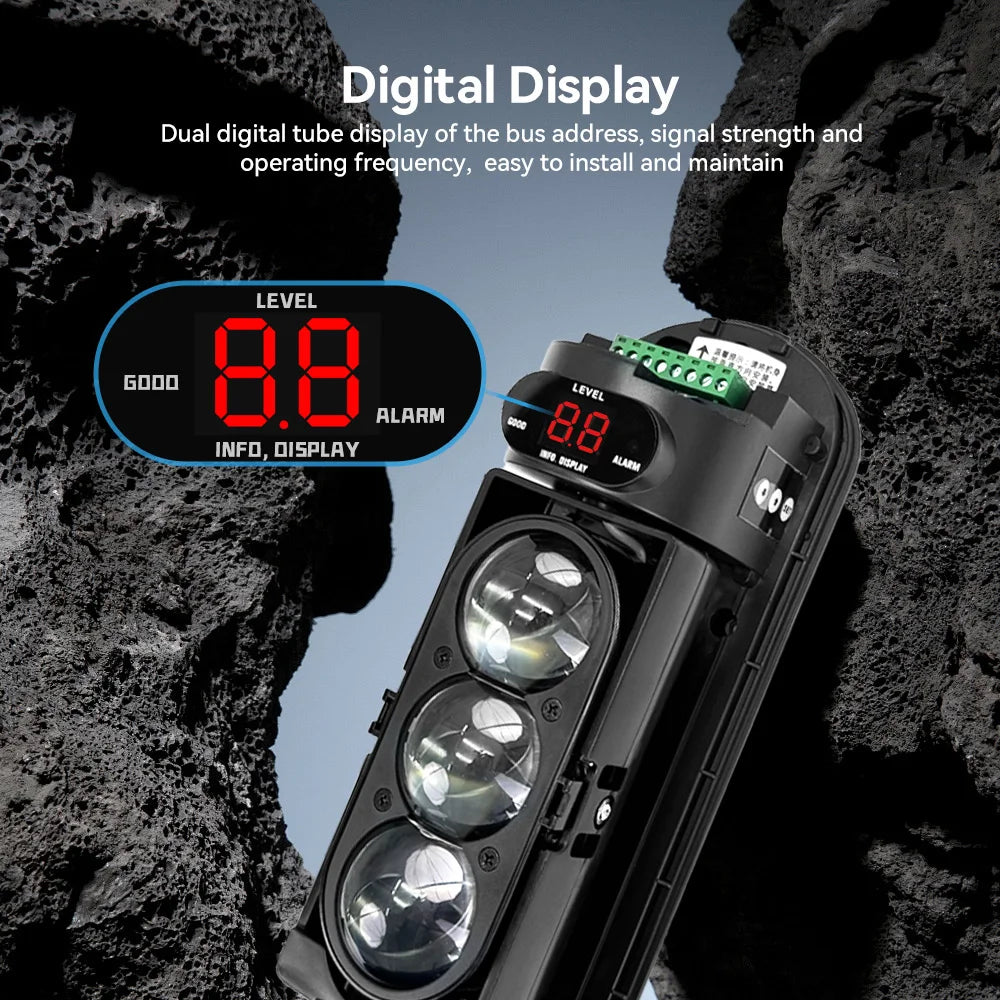

Digital Display
Dual digital tube display of the bus address, signal strength and operating frequency, easy to install and maintain

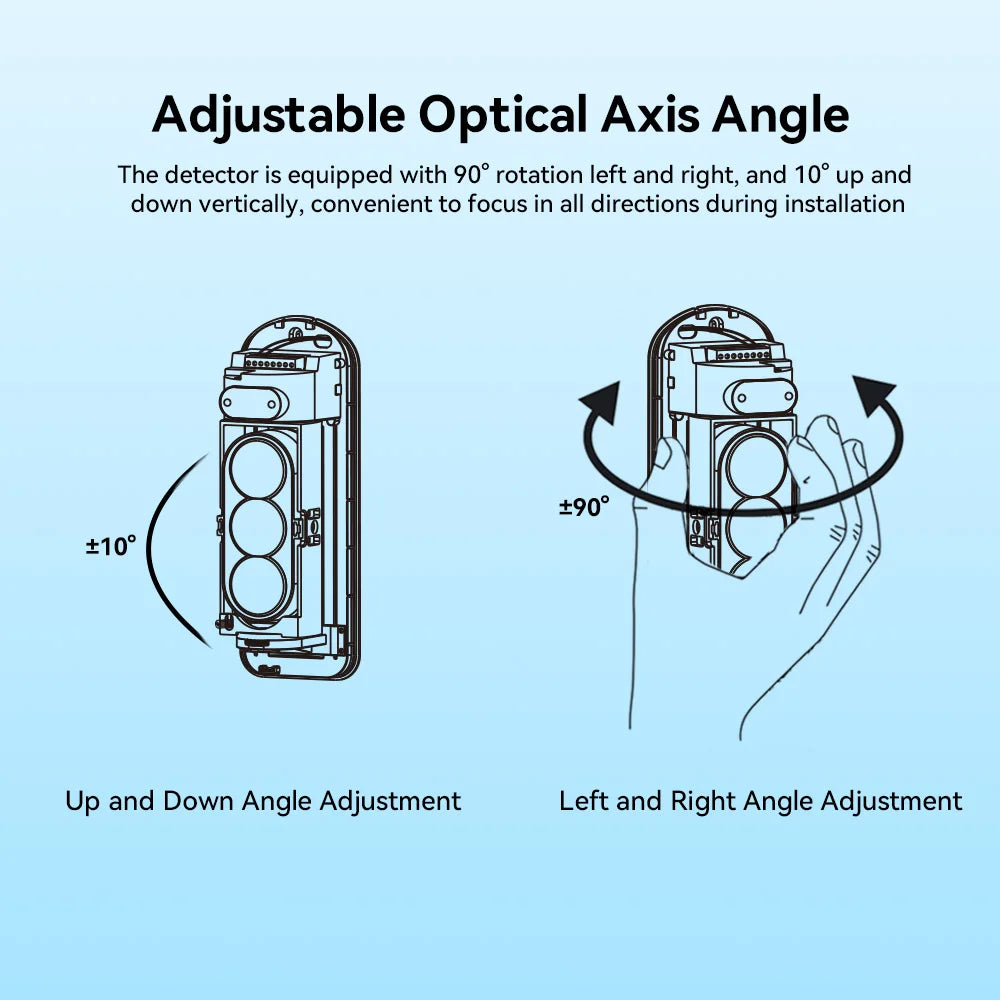

Adjustable Optical Axis Angle
Horizontal: 180°(±90°), Vertical): 20°(±10°), convenient to focus in all directions during installation

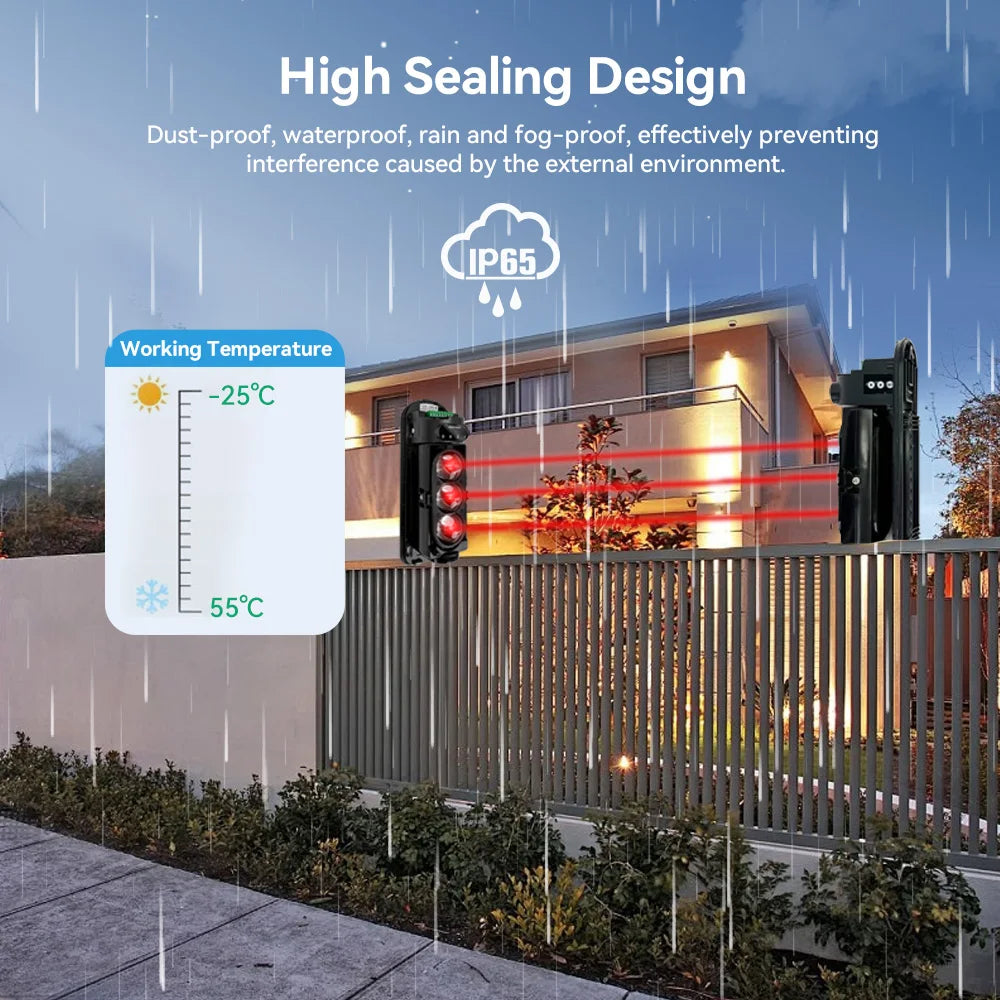

High Sealing Design
Dust-proof, waterproof, rain and fog-proof, effectively preventing interference caused by the external environment

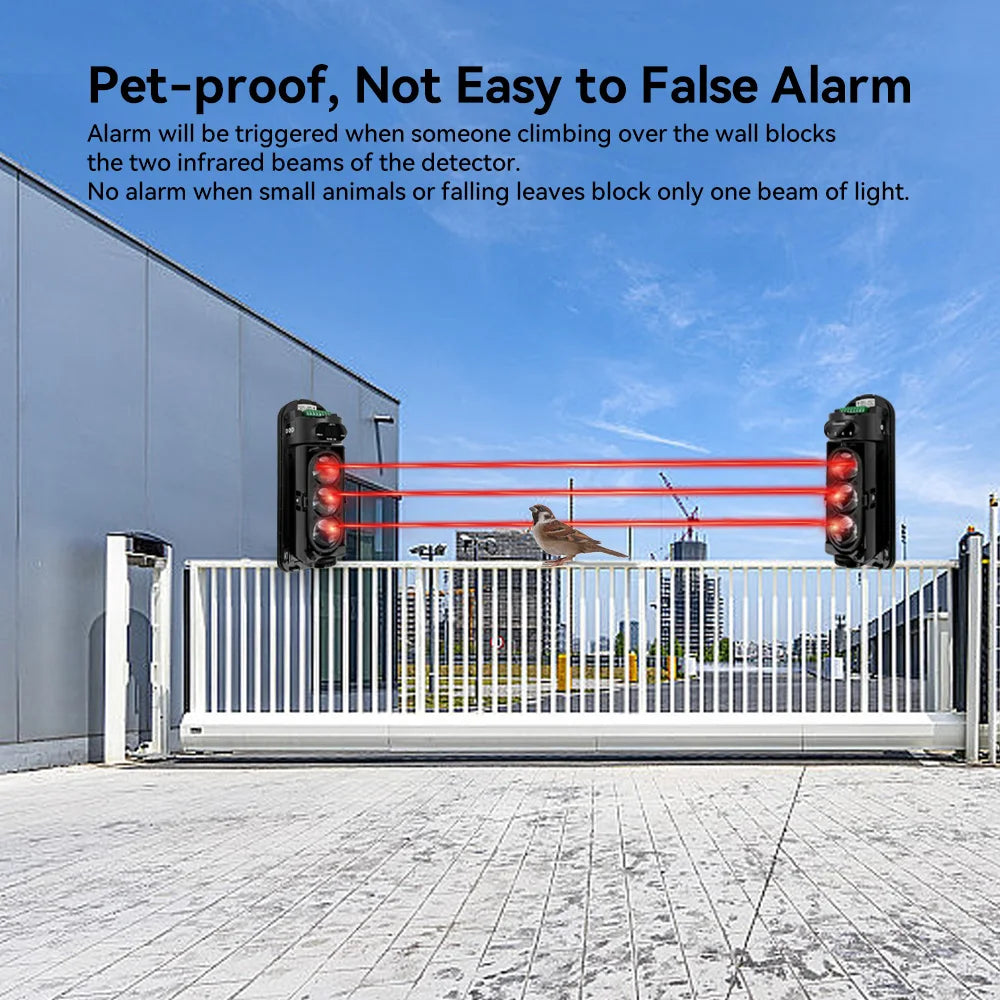

Pet-proof, Not Easy to False Alarm
Only when all infrared beams are blocked simultaneously will an alarm be triggered, and small animals will not trigger an alarm when only one beam of light is blocked

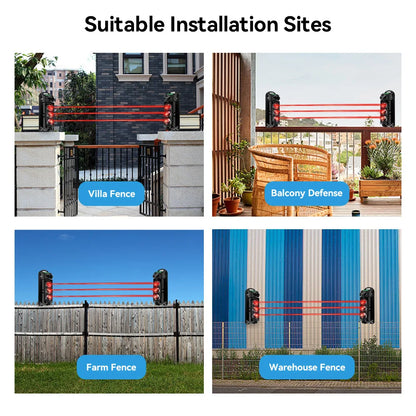

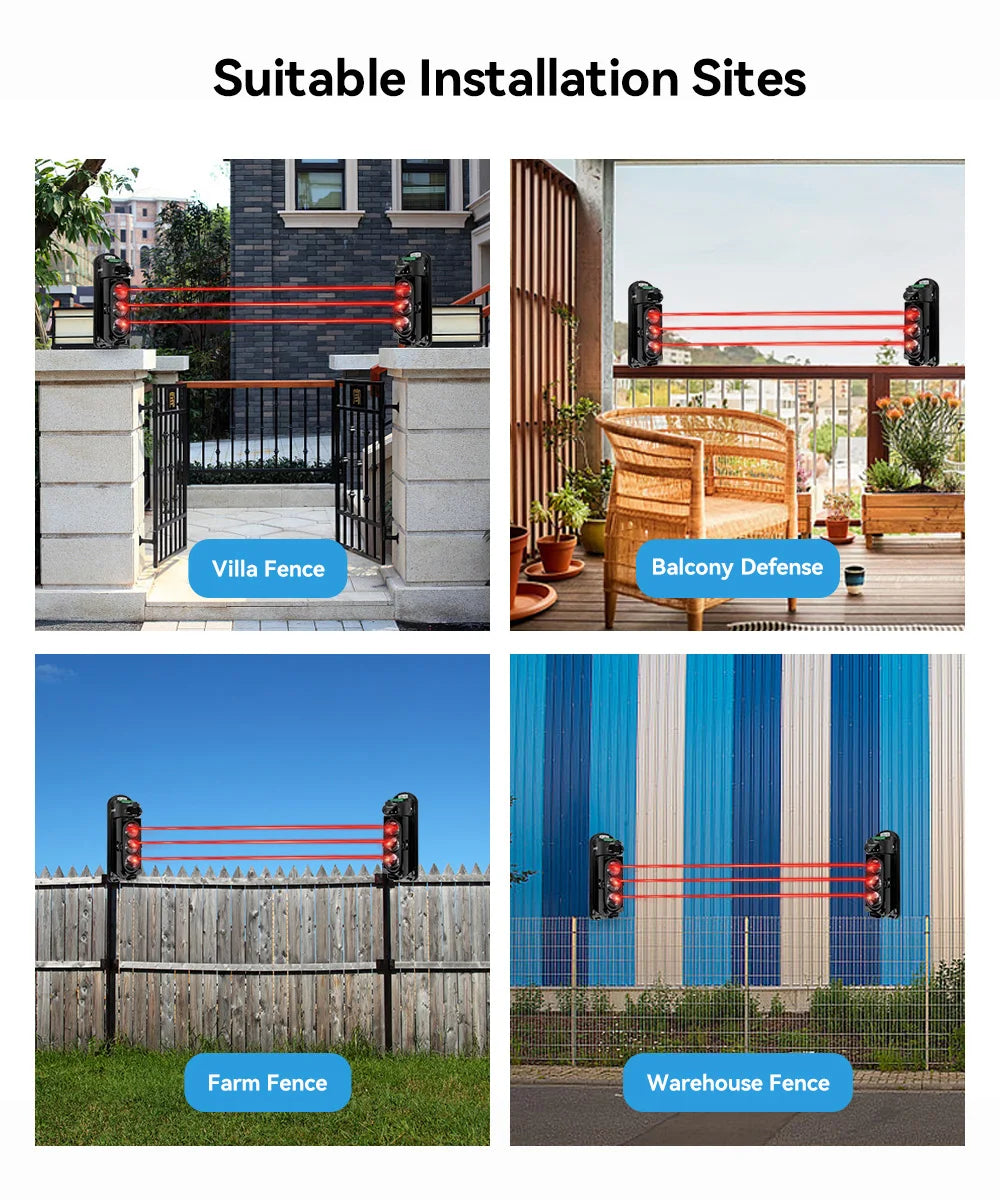

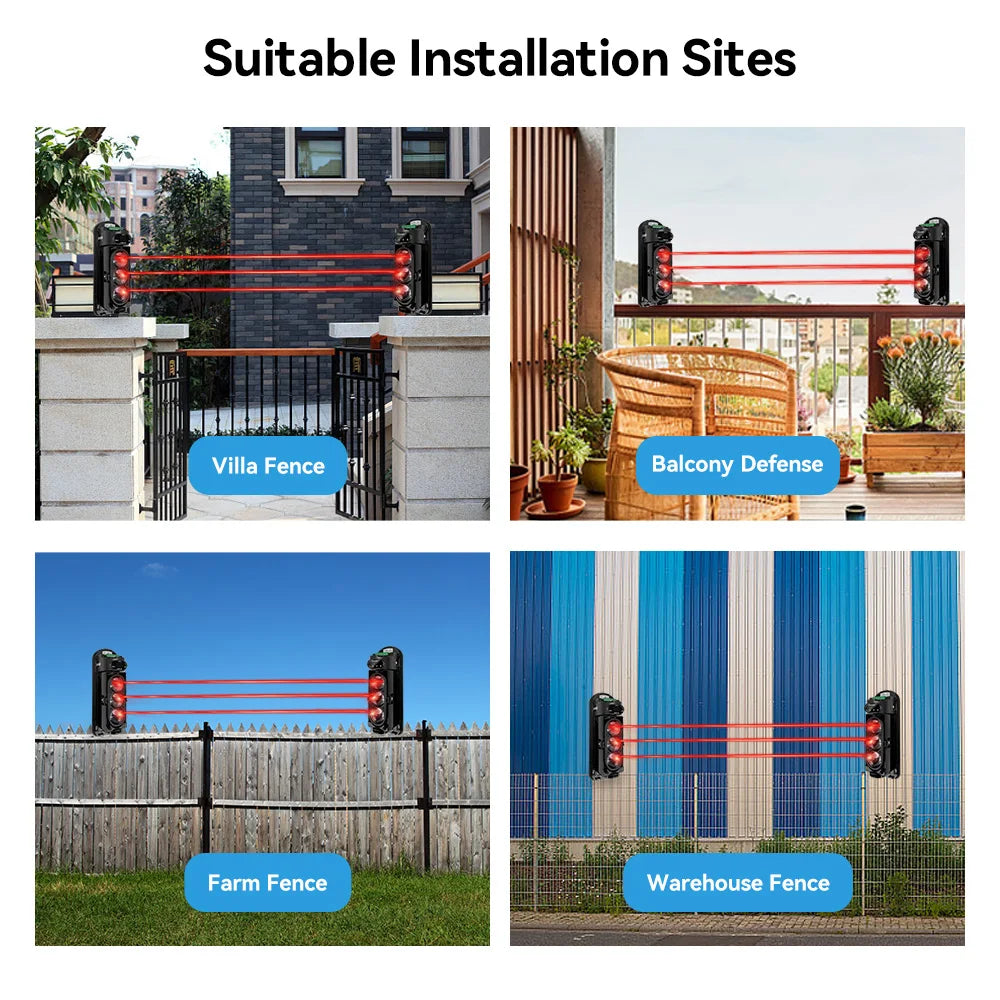

Wide Range of Applications
Suitable for Community Wall, Farm Fence, Villa Fence, Balcony Defense, School Fence, Warehouse Fence, Orchard Fence, Factory Fence, etc.

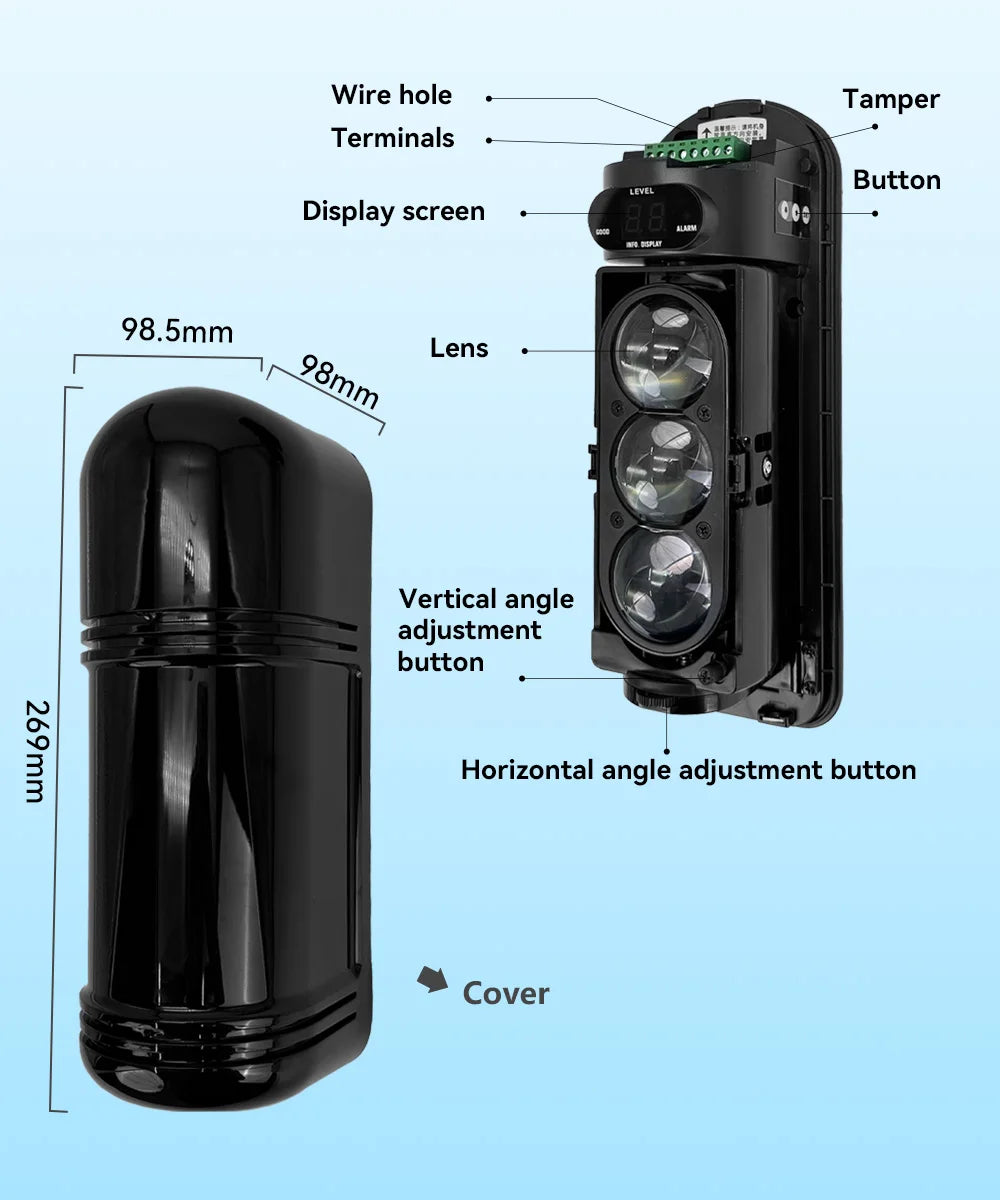

Product Details

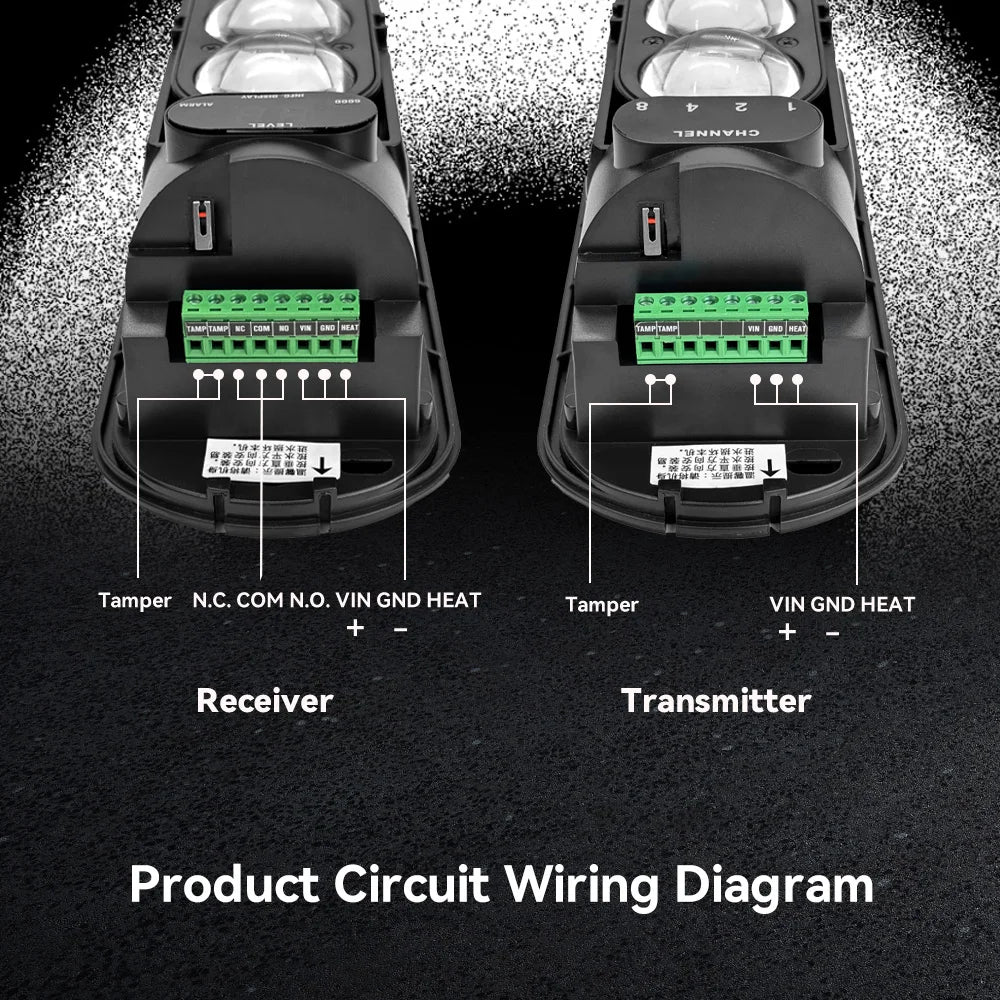

Product Circuit Wiring Diagram

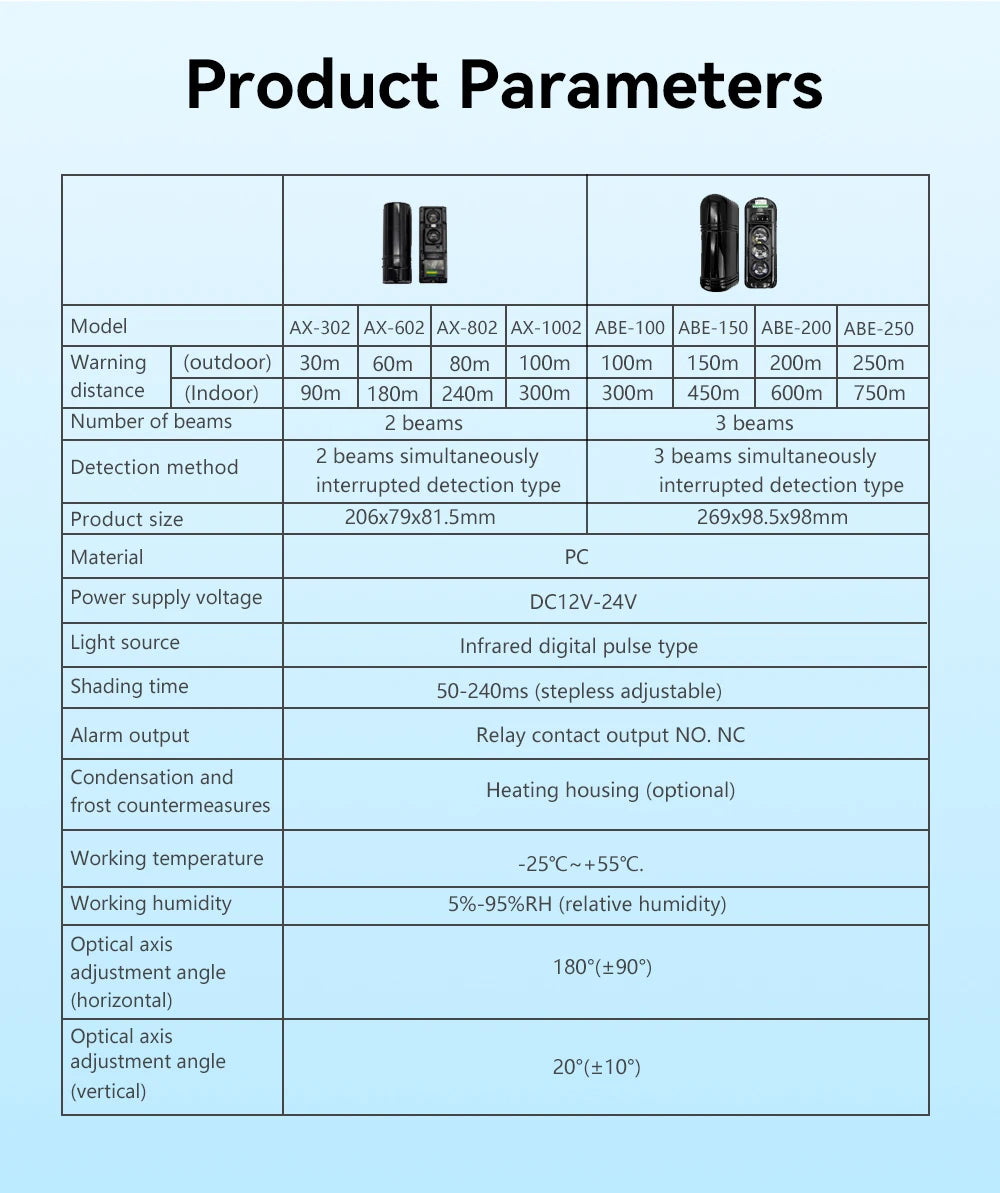

Product Parameters
Note: This link only includes infrared detector, wires and host need to be purchased separately.
