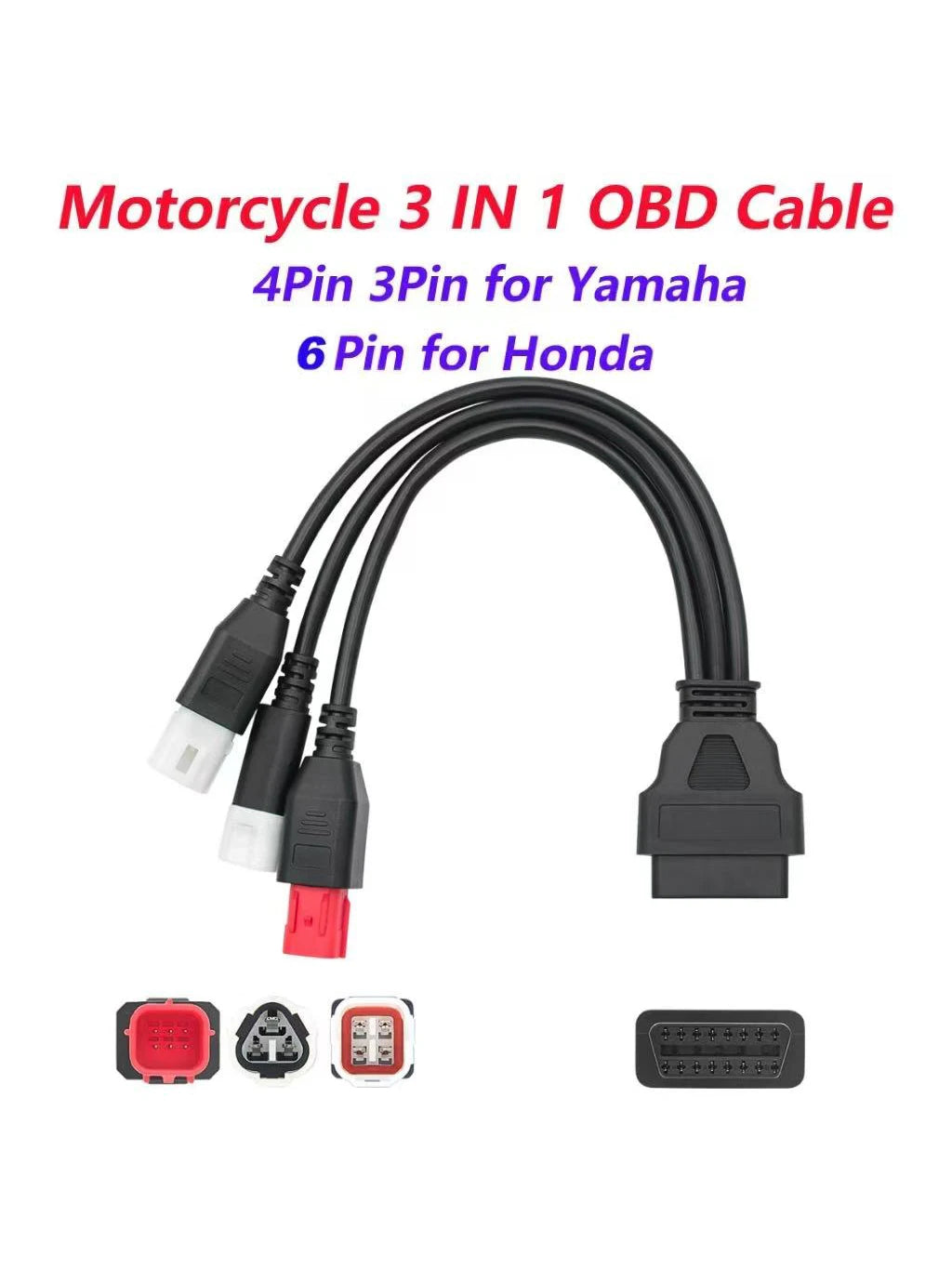

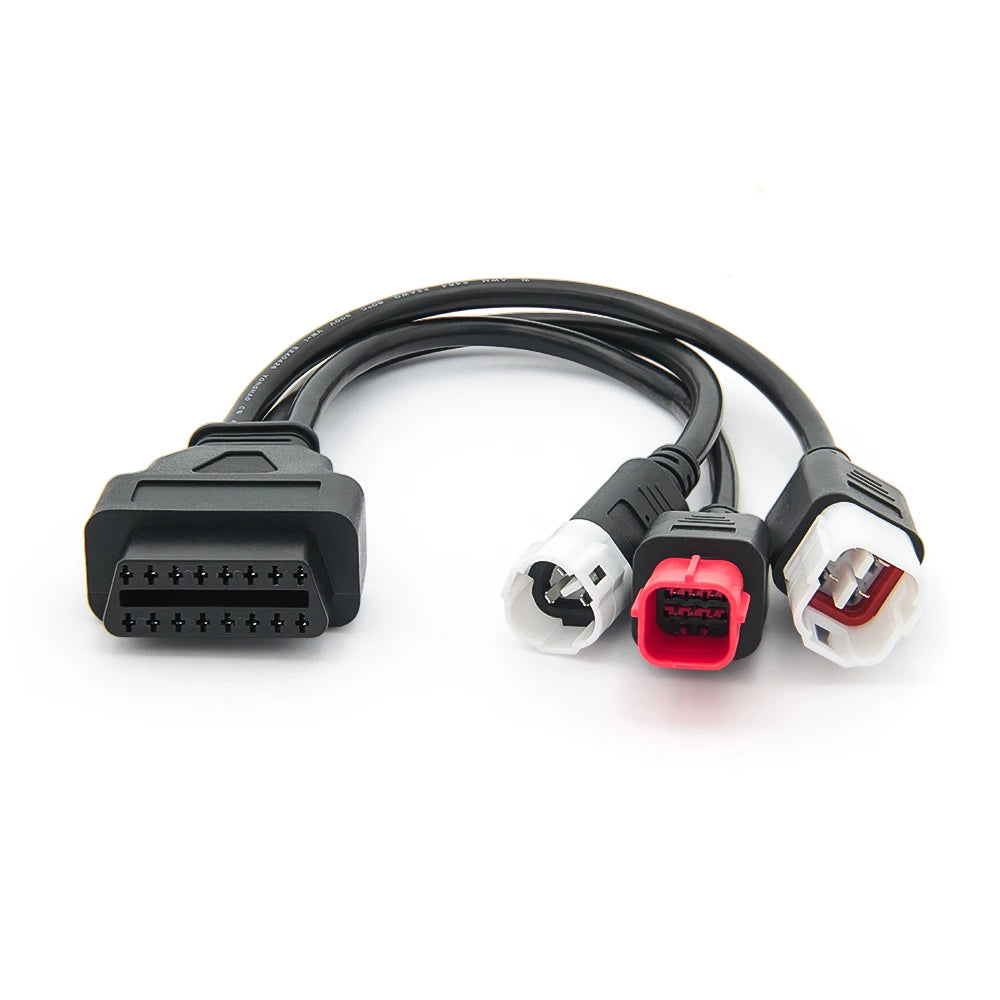

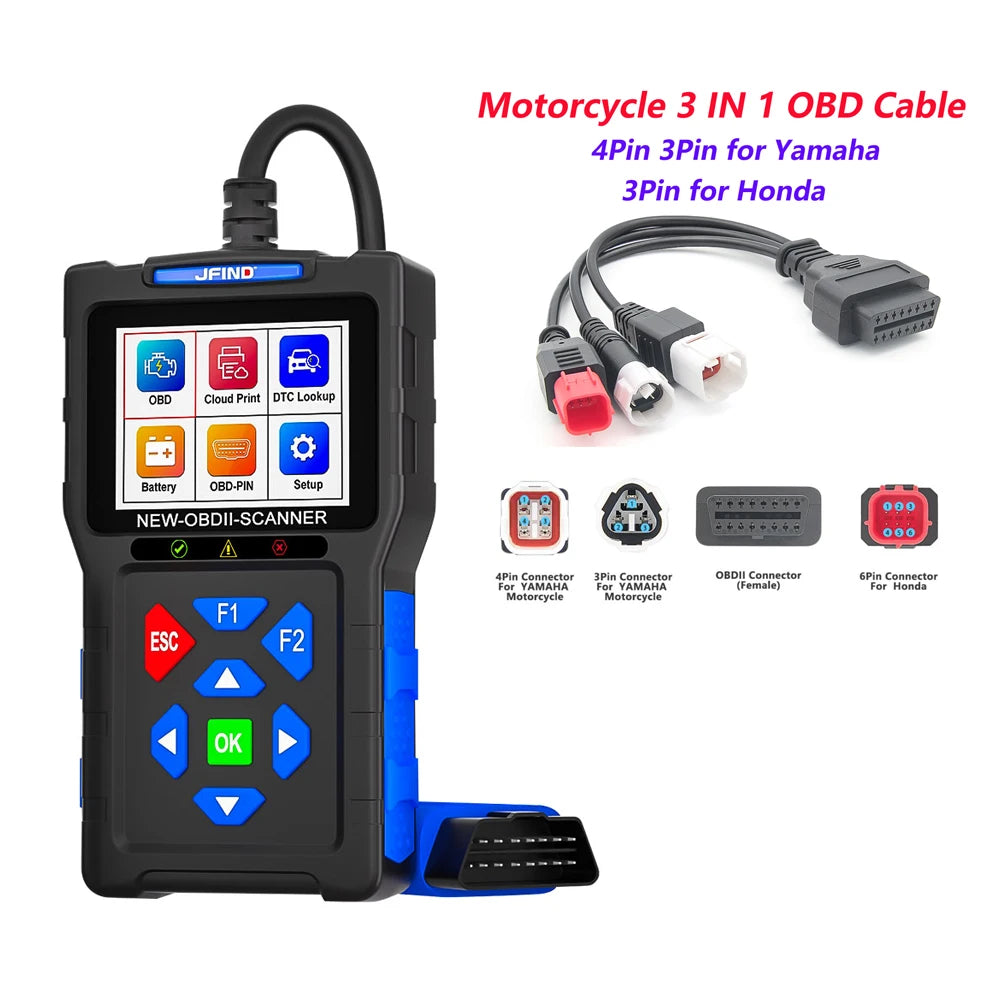

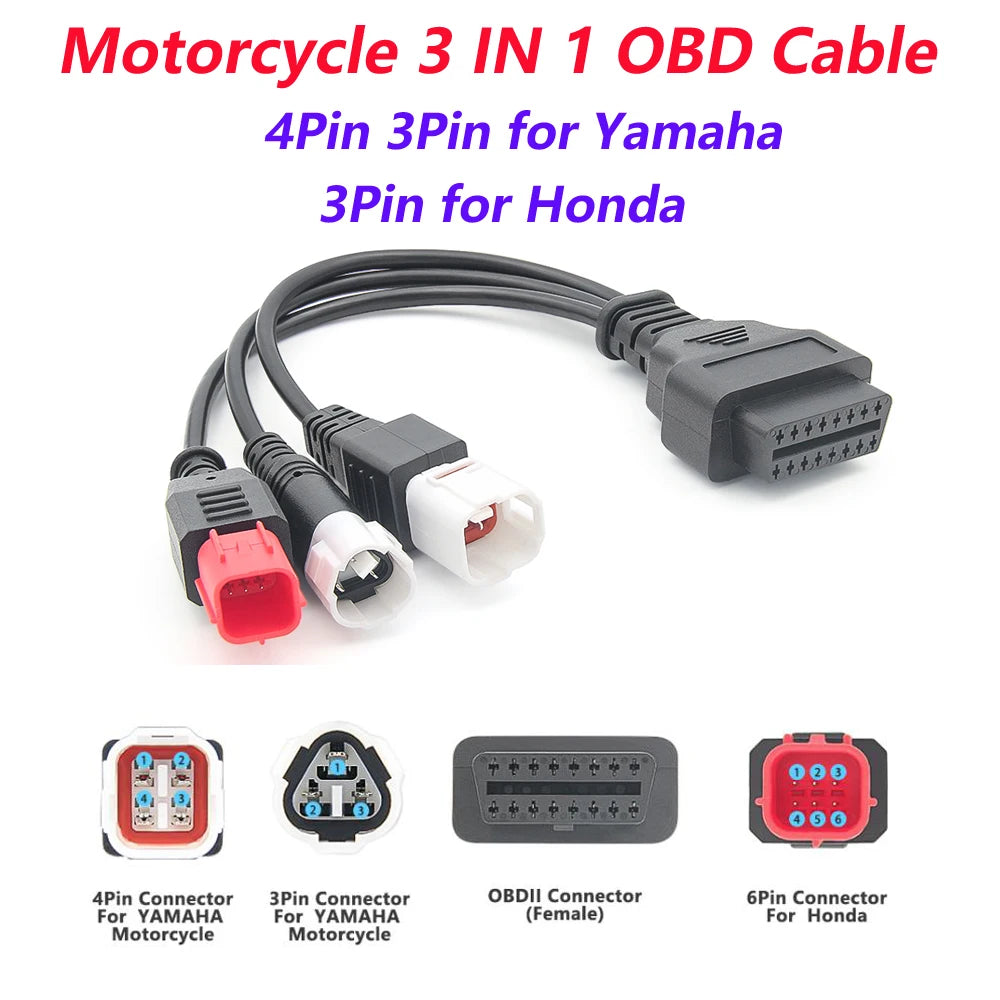

Model one:For Yamaha 3PIN 4PIN For Honda 5Pin Motorcycle OBD Extension Cable to OBD2 16 Pin OBD Connector Cable

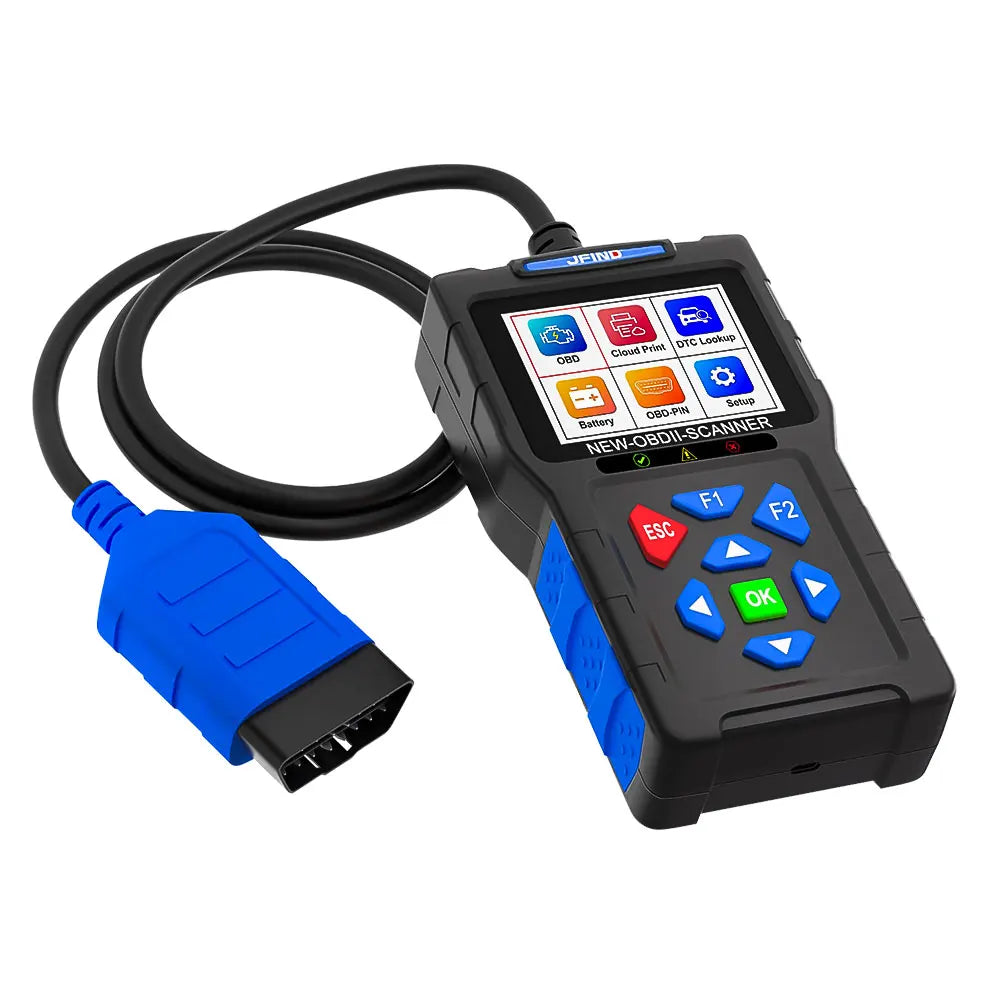

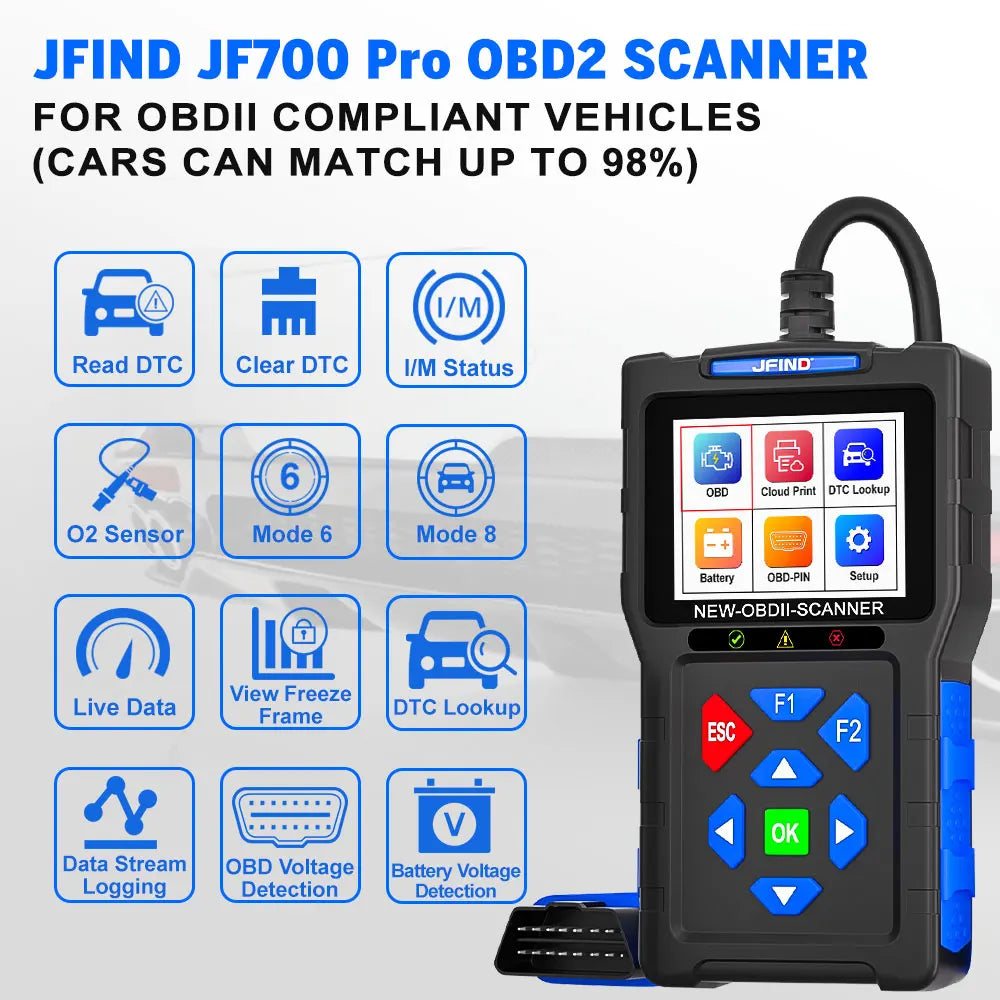

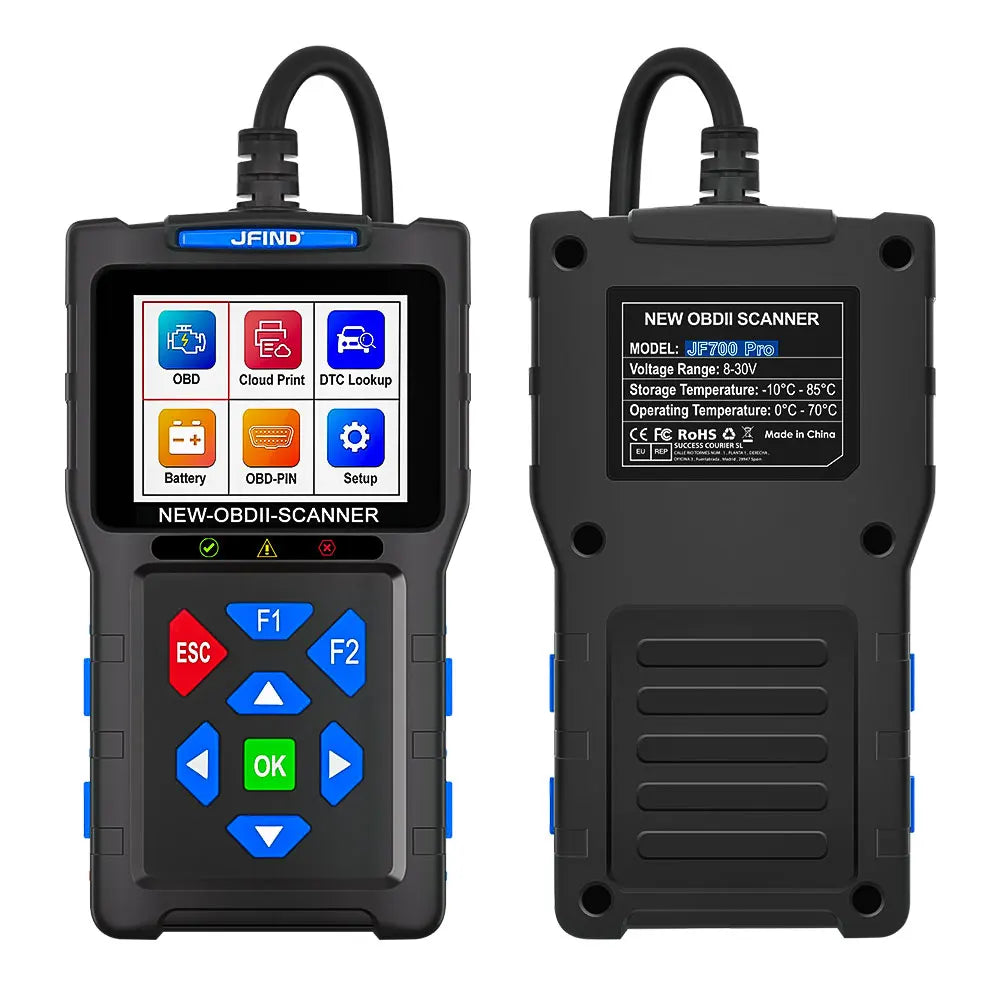

Model Two:JFIND JF700 Pro OBD2 Code Reader:
JFIND JF700 Pro suitable for all vehicles compliant with the OBDII protocol (compatible with up to 98% of car models) and supports cloud printing, charging tests, start tests, load tests, fault code queries (with a database of over 5000+), reading vehicle information, viewing real-time data streams, reading fault codes, clearing fault codes, I/M readiness tests, and more.
Reading vehicle information

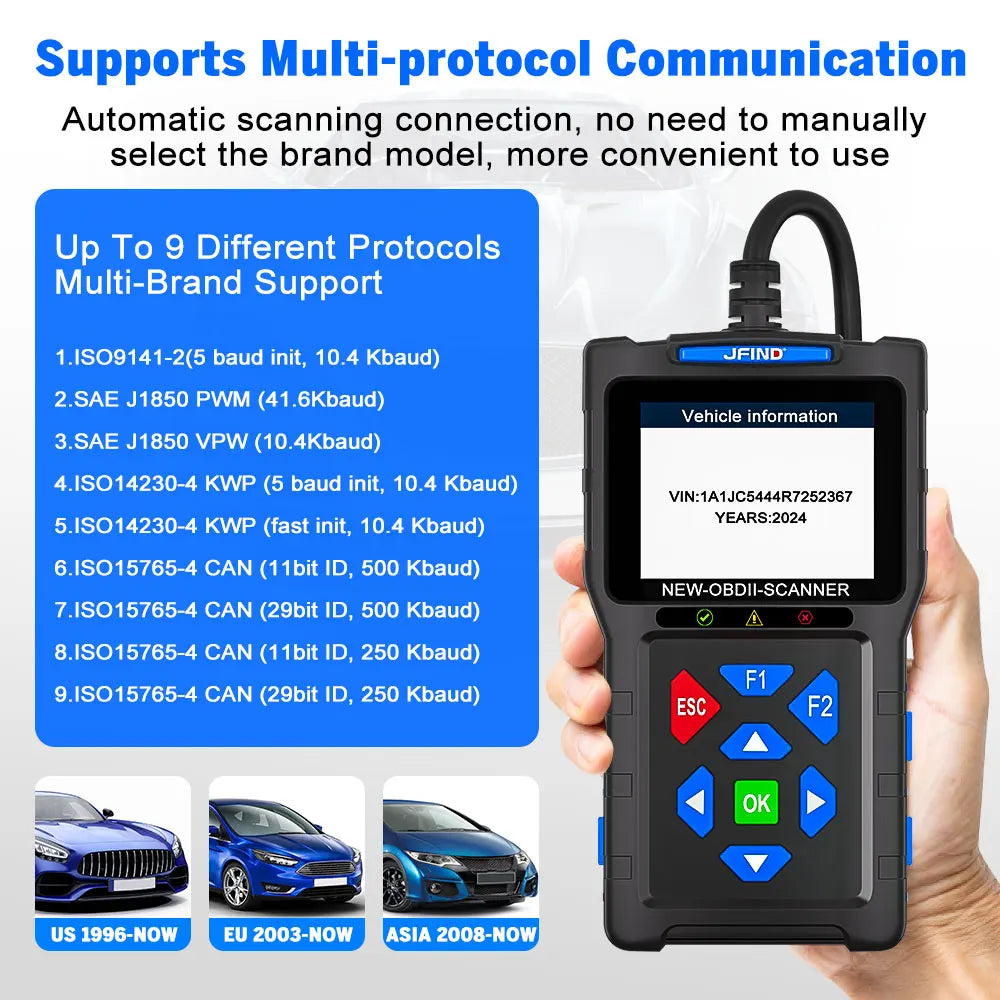

1.ISO9141-2(5 baud init, 10.4 Kbaud)
2.SAE J1850 PWM (41.6Kbaud)
3.SAE J1850 VPW (10.4Kbaud)
4.ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
5.ISO14230-4 KWP (fast init, 10.4 Kbaud)
6.ISO15765-4 CAN (11bit ID, 500 Kbaud)
7.ISO15765-4 CAN (29bit ID, 500 Kbaud)
8.ISO15765-4 CAN (11bit ID, 250 Kbaud)
9.ISO15765-4 CAN (29bit ID, 250 Kbaud)

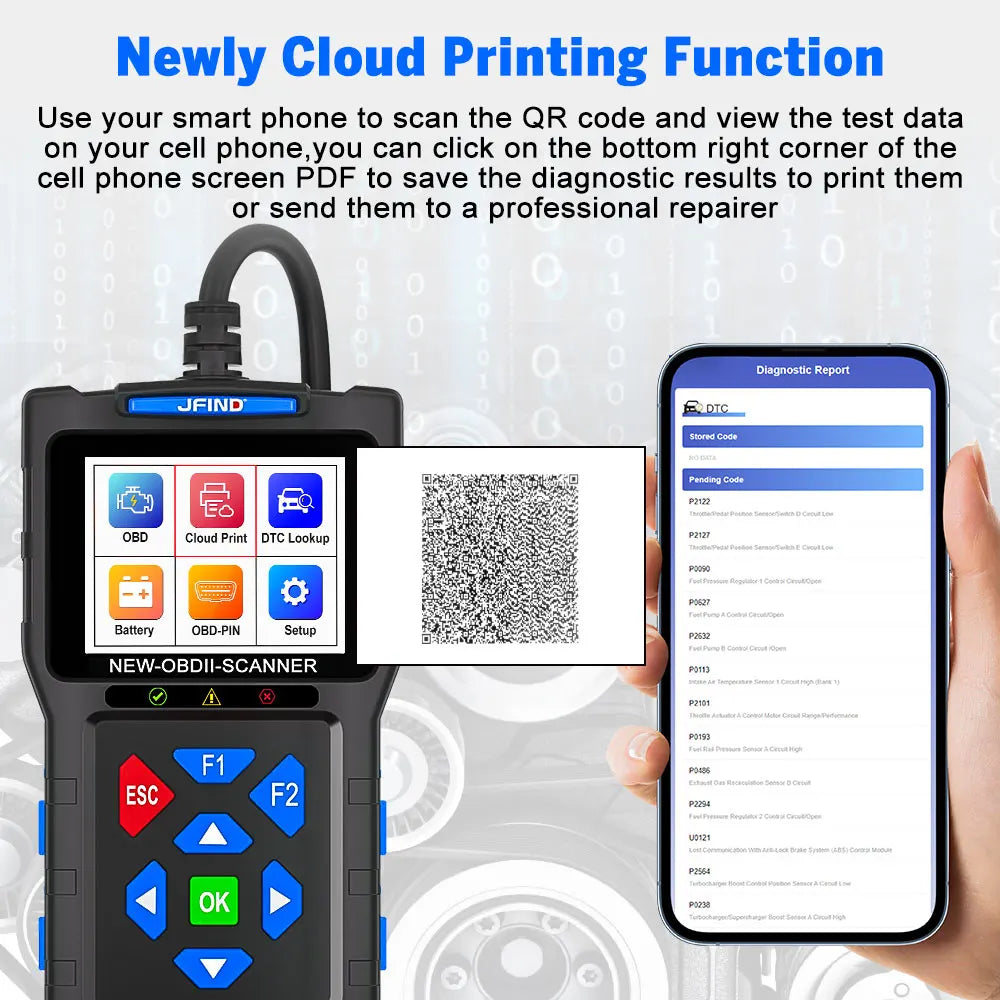

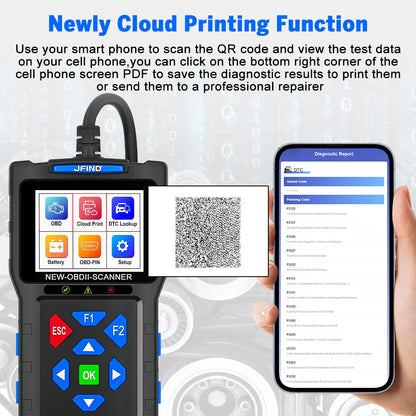

Cloud printing
Use your cell phone to scan the QR code and view the test data on your cell phone.you can click on the bottom right corner of the cell phone screen PDF to save the diagnostic results to print them or send them to a professional repairer

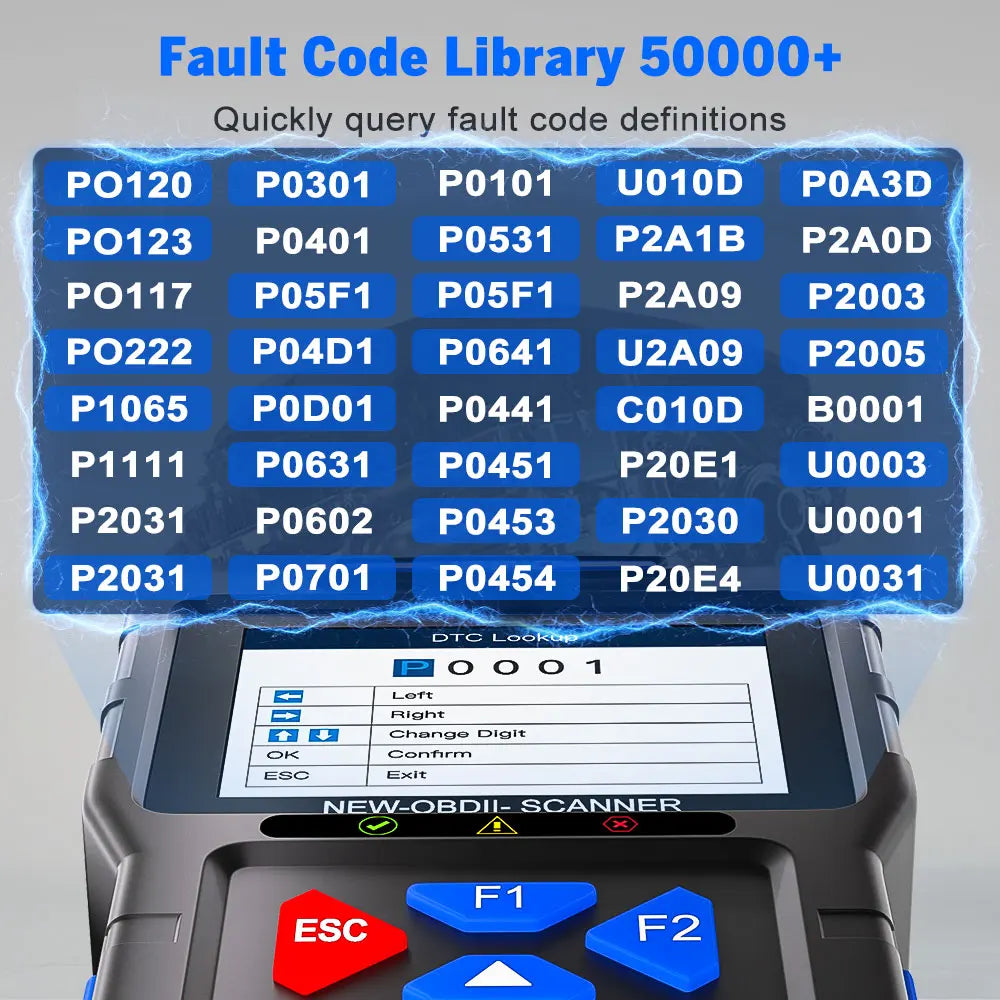

Built-in 50,000+ fault codes
Quick Lookup Fault Code Definitions

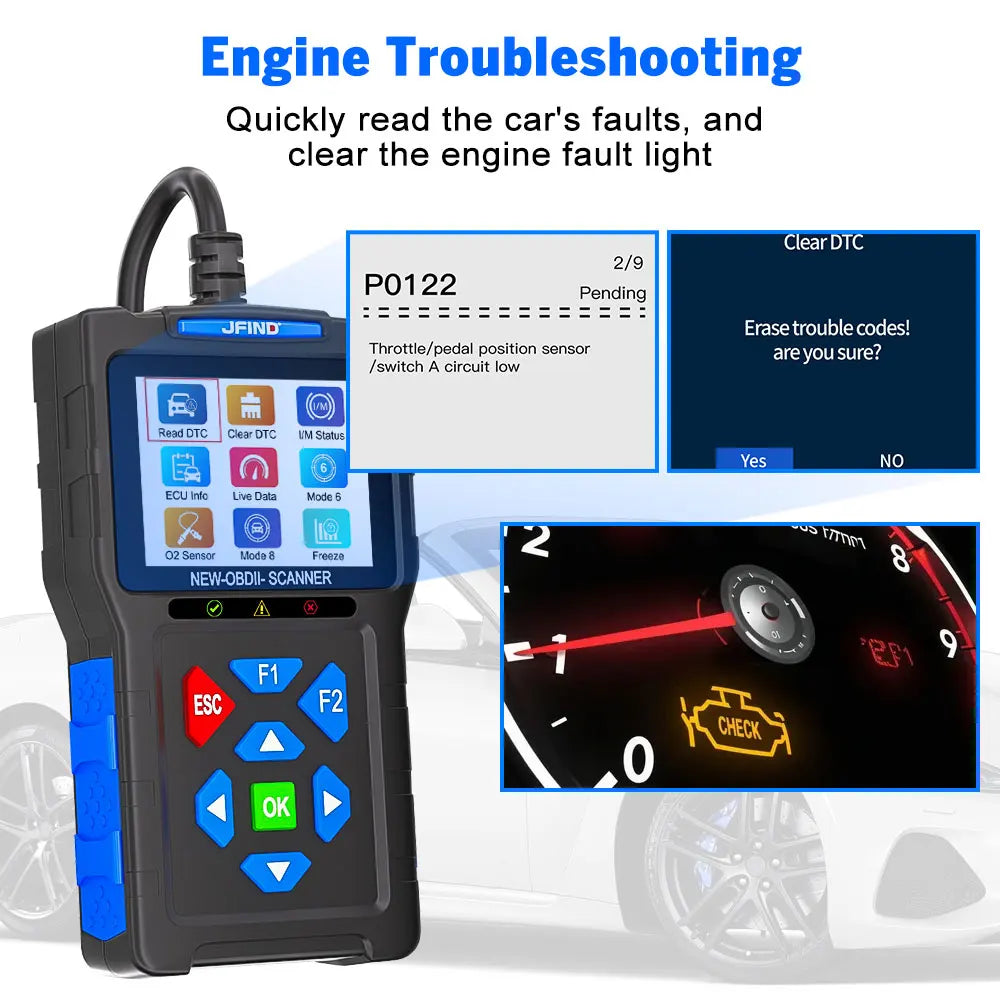

Engine troubleshooting
Quickly read the car's faults, and clear the engine fault light.

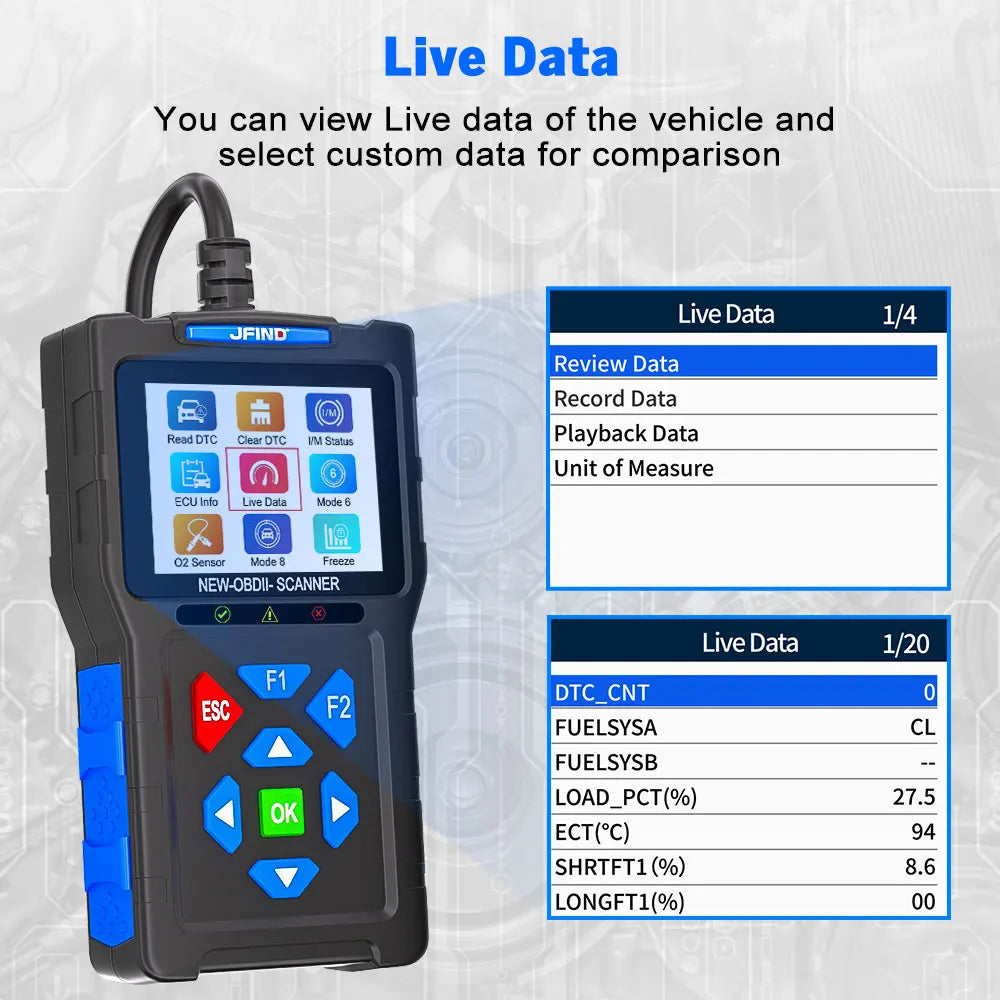

Real-time data view
View real-time car data, car condition data at a glance,for your travel
IM Testing
The [l/M Status] function is used to check the operation of the emissionsystem on OBD ll-compliant vehicles, and the l/M shortcut key can alsobe set up for one-touch access with the l/M shortcut key

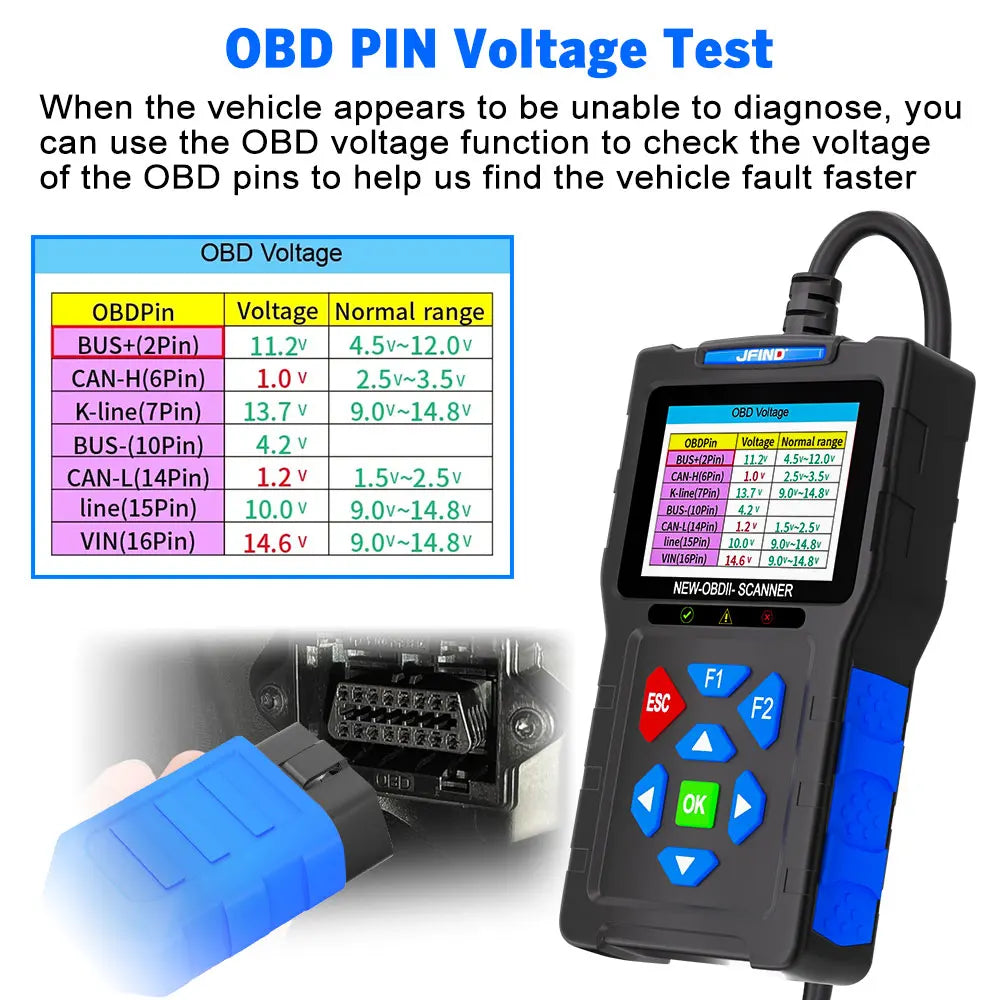

OBD Voltage Test
When the vehicle appears to be unable to diagnose, you can use theOBD voltage function to check the voltage of the OBD pins to help usfind the vehicle fault faster.

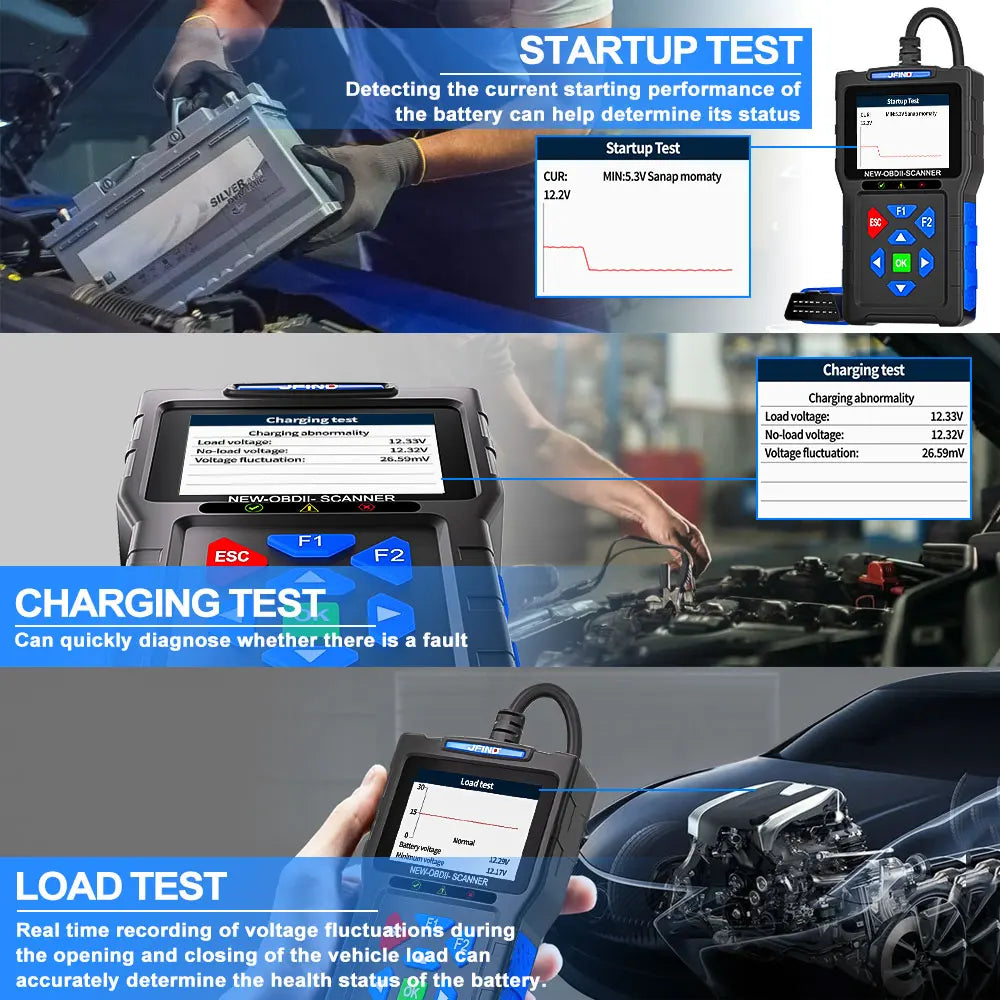

Startup test
The start-up test can detect the current starting performance of the battery and help judge the service life of the battery.
Charging test
When your car has the following conditions and you don't know how to troubleshoot, you can use the Charge Test function in the JF700 device, which can quickly diagnose whether there is a malfunction in the power generation system, resulting in the inability to charge the battery properly.
Customized shortcuts
F1 and F2 can be set to the correspondingshortcut keys as needed.
