SPECIFICATIONS

AC Current: 10A

AC Voltage: 750V

Battery Included: Yes

Brand Name: TOOLTOP

Cable Length: Network cable (600M), telephone line (400M), coaxial cable (400M)

Cable Mapping: Normal/Open/Short/Cross

Capacitance: 60MF

Choice: yes

Continuty: support

DC Current: 10A

DC Voltage: 1000V

Digital Tracing: Digital mode (ET636),Digital and vibration mode(ET638)

Diode: support

Display: 3.2 inche 240*320 color screen,60000 counts

Frequency: 6MHz

Fuse: CE 5*20mm 10A/100V

High-concerned chemical: None

Interface: ST, SC, FC

Length self-calibration: Support

Multimeter: only for ET638

Name: 4 in 1 Multifuction Network Cable Tester

Optical Meter Measurement range: -70.00~6.00 dBm

Origin: Mainland China

POE Test: Voltage/polarity

Power supply: 1500mAH(Host) / 800mAH(Receiver) Lithium Battery

QC Crimping: Support

Receiver: Sensitivity adjustable

Resistance: 60MΩ

Switch Flash: 10M/100M/1000M

VFL: 10wm, about 10kM, ON 1Hz/2Hz/OFF

Separate purchase link for remote ID:

https://www.aliexpress.com/item/1005007994985409.html

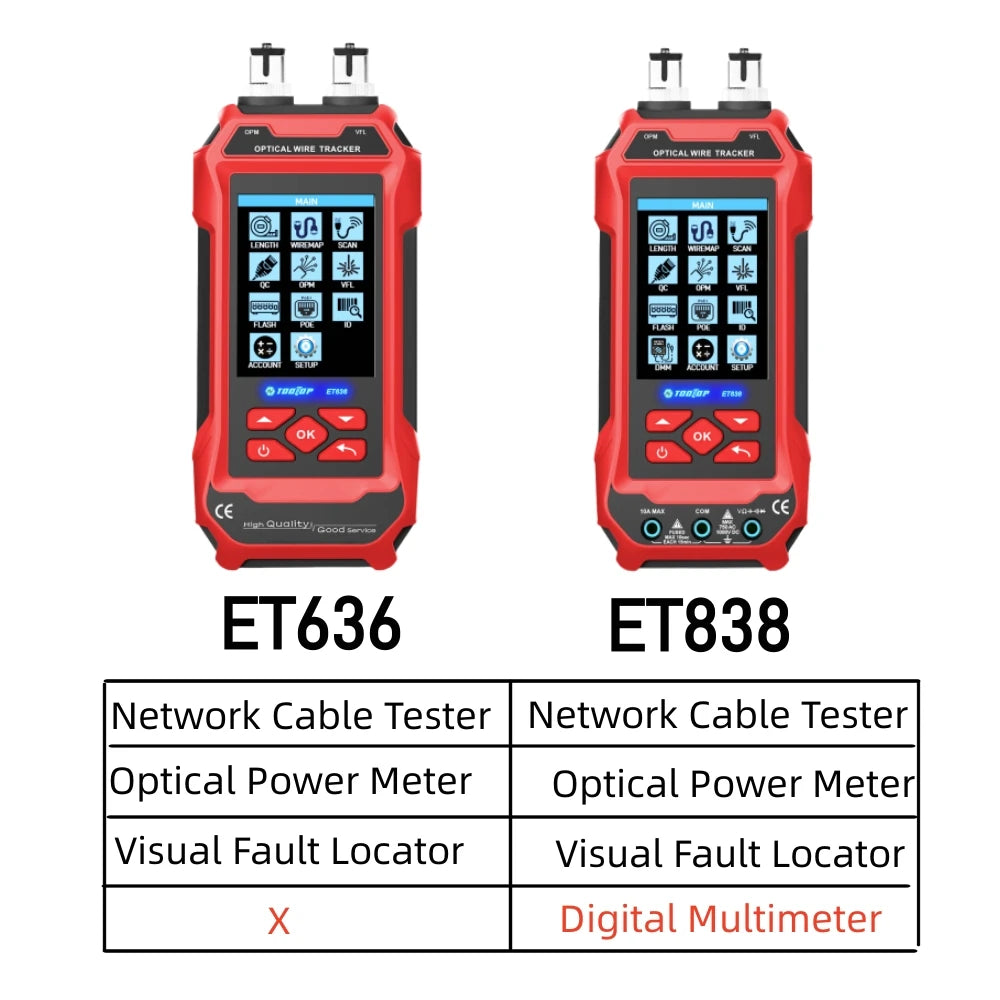

Note: The ET636 model does not come with a multimeter function. Please confirm before purchasing!!!

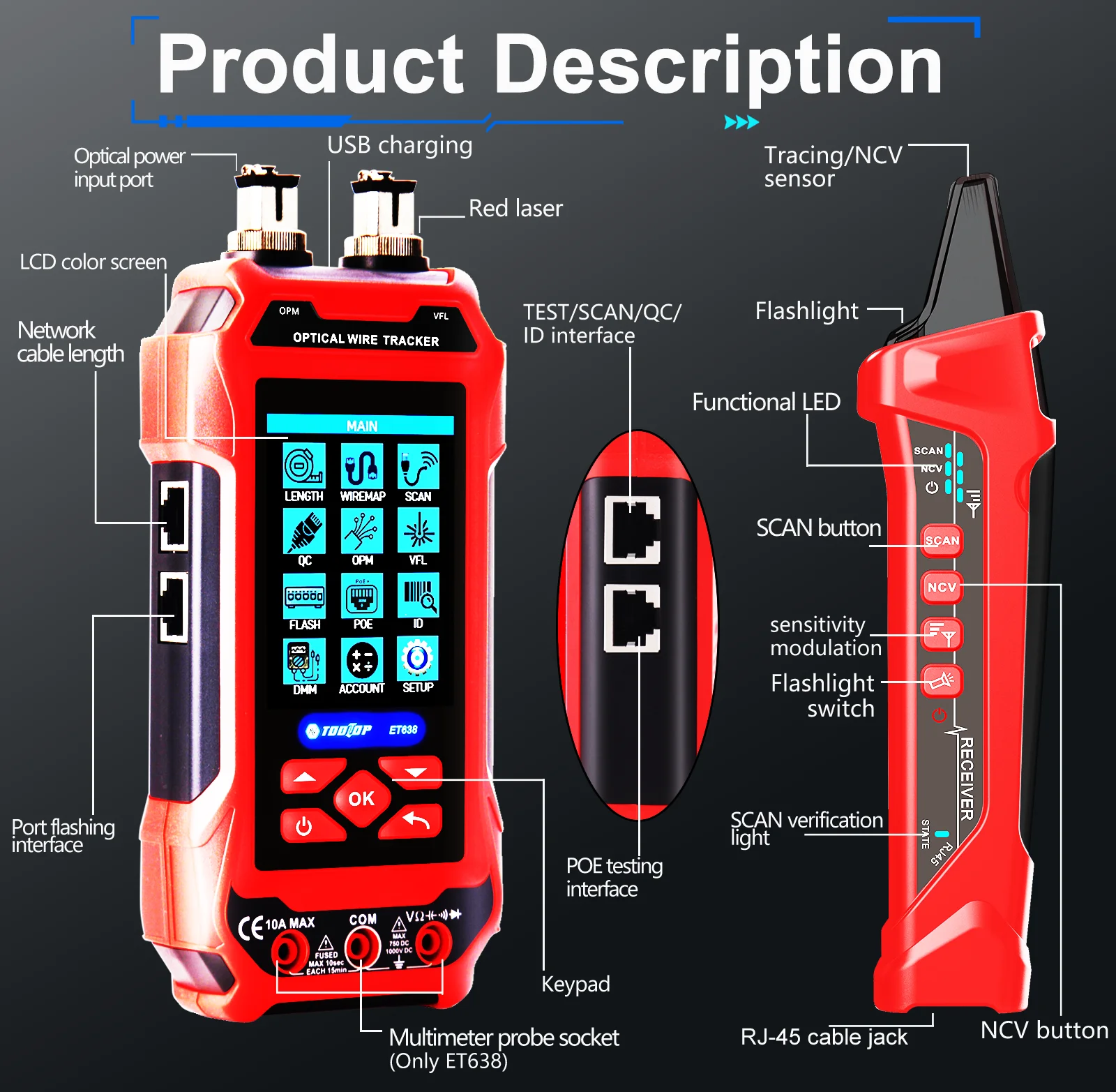

Features:

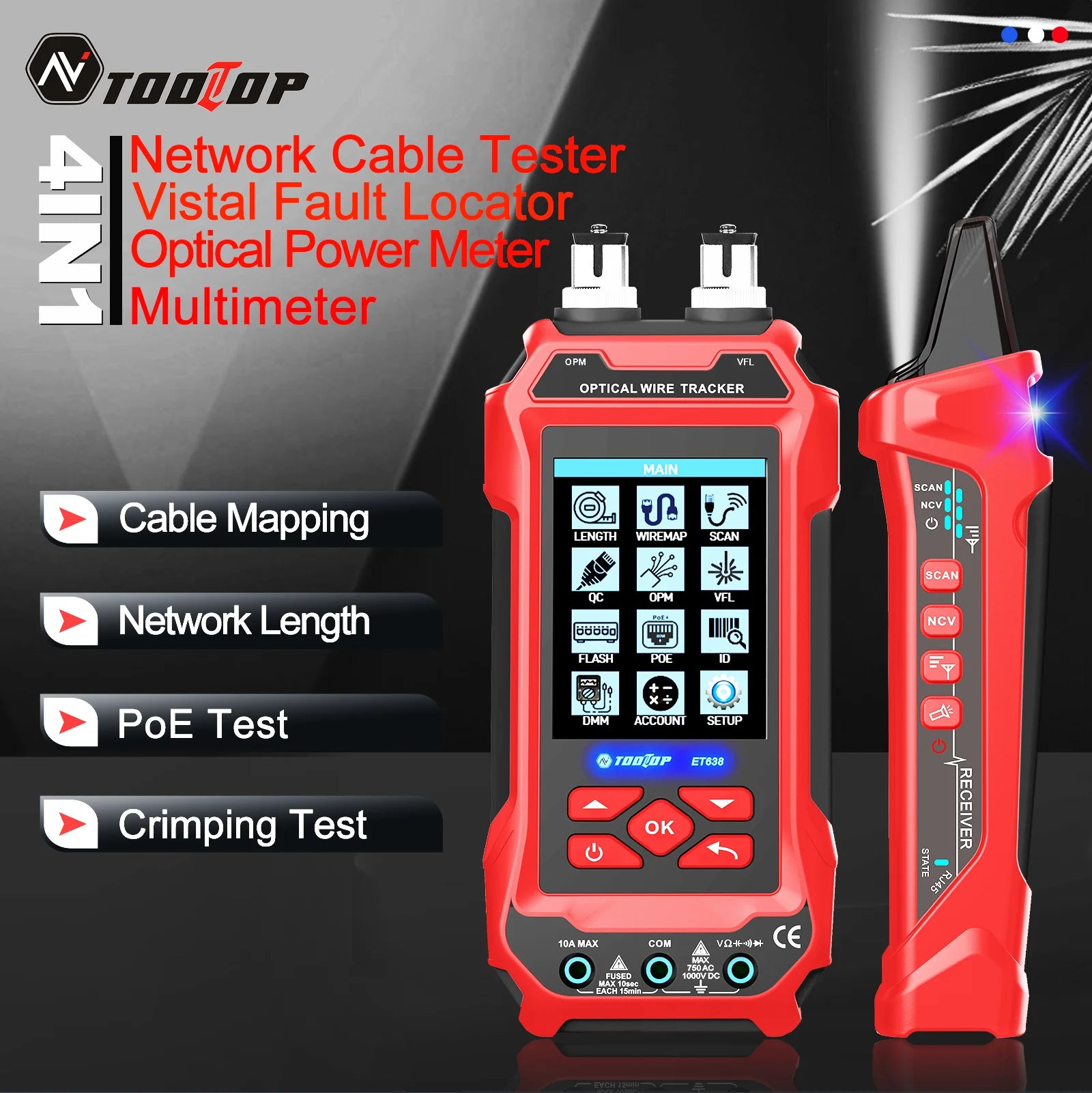

1. Multifuction Network Cable Tester + Multimeter + Optical Power Meter +10W Vistal Fault Locator 4 in 1

2. Ethernet, telephone and coaxial video cable length measurement, up to 600 meters

3. Powerful network cable analysis function: open circuit, short circuit, crossover and crystal head crimping test

4. Professional multi-function multimeter, display up to 60,000 digits (only for ET638)

5. 6dBm to -70dBm optical power meter design, compatible with ST, SC, FC interfaces

6. Equipped with red laser emission function, the optical fiber transmission distance can reach 10KM, for visual positioning of breakpoints

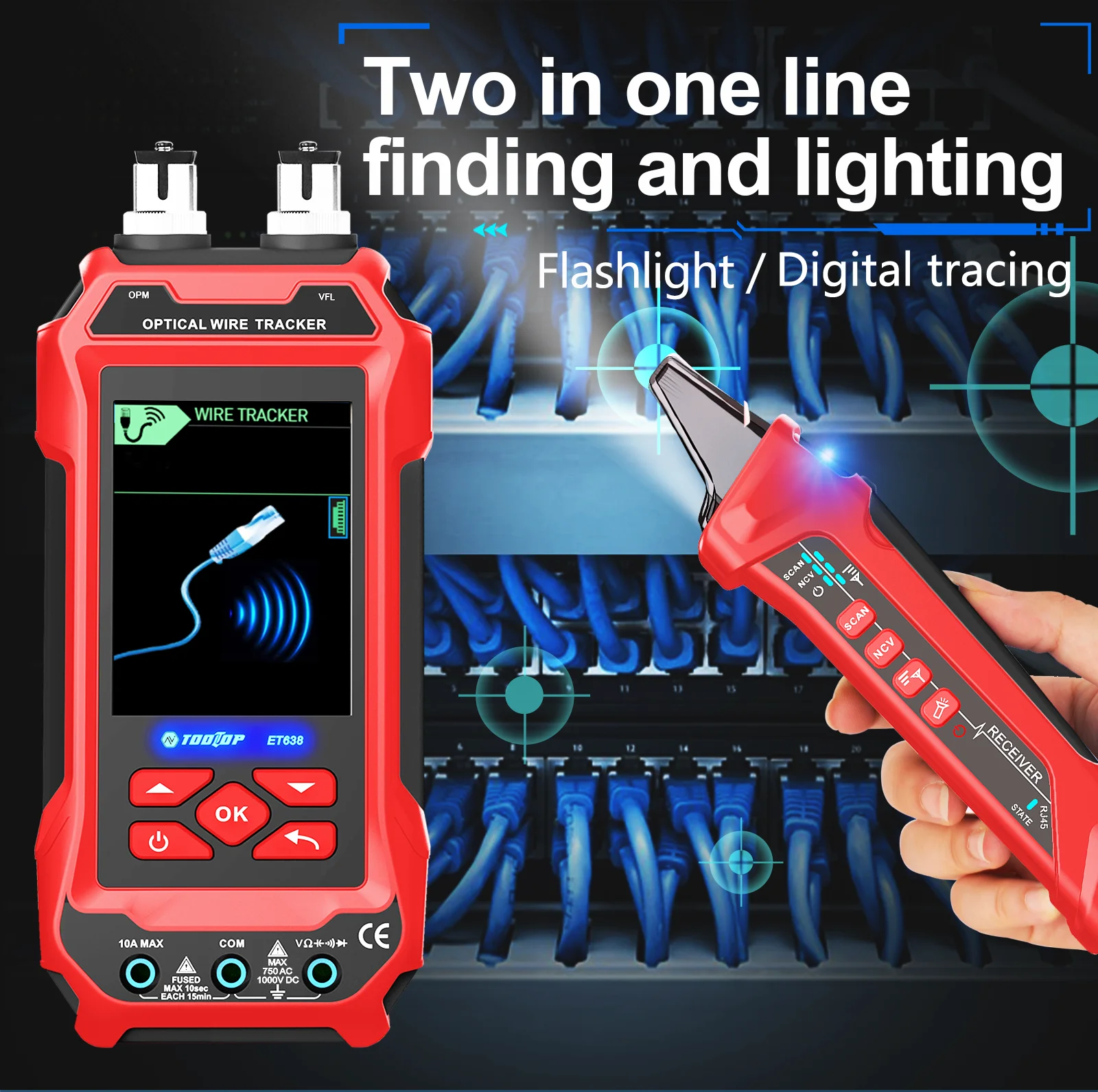

7. Scan(line finding ),is noise-free and anti-interference, quickly find the target line in complex lines, support RJ45 BNC TEL Cable

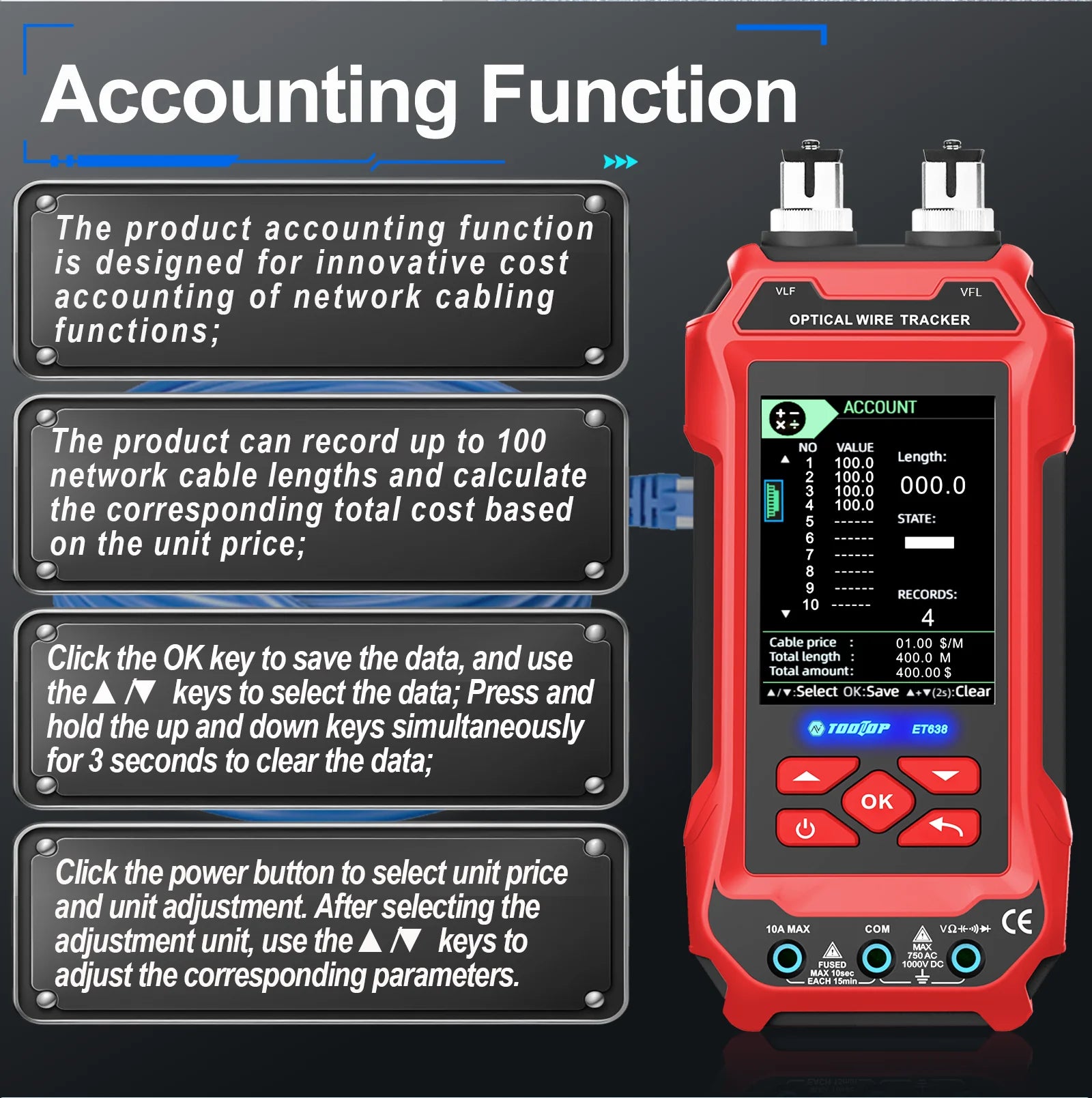

8. Innovative engineering accounting function, which can retain up to 100 length records and calculate network costs

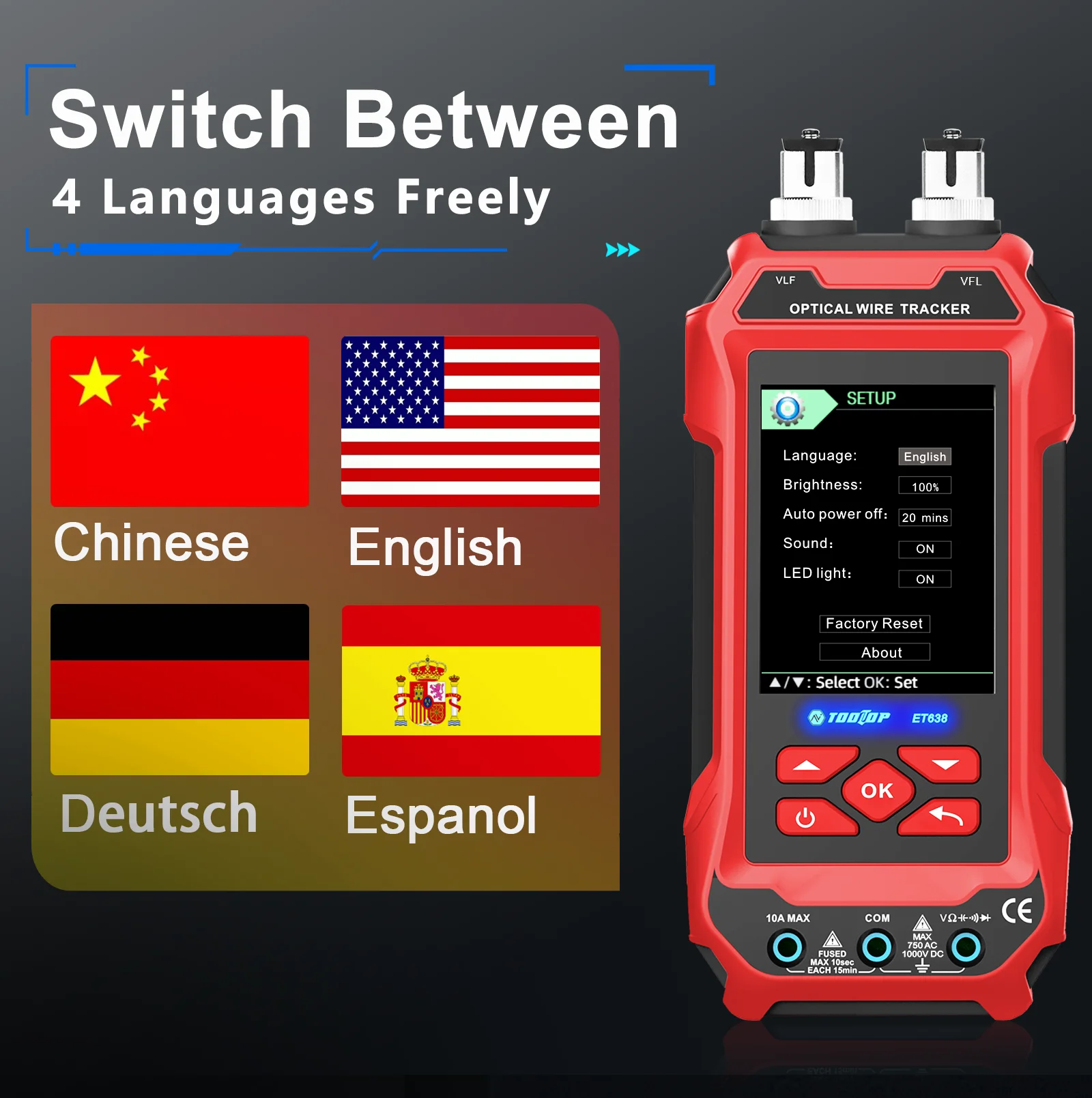

9. Support Chinese, English, German, Spanish display, more in line with user needs

10. Both the host and the line finder are powered by rechargeable lithium batteries, more environmentally friendly and efficient.

Specifications：

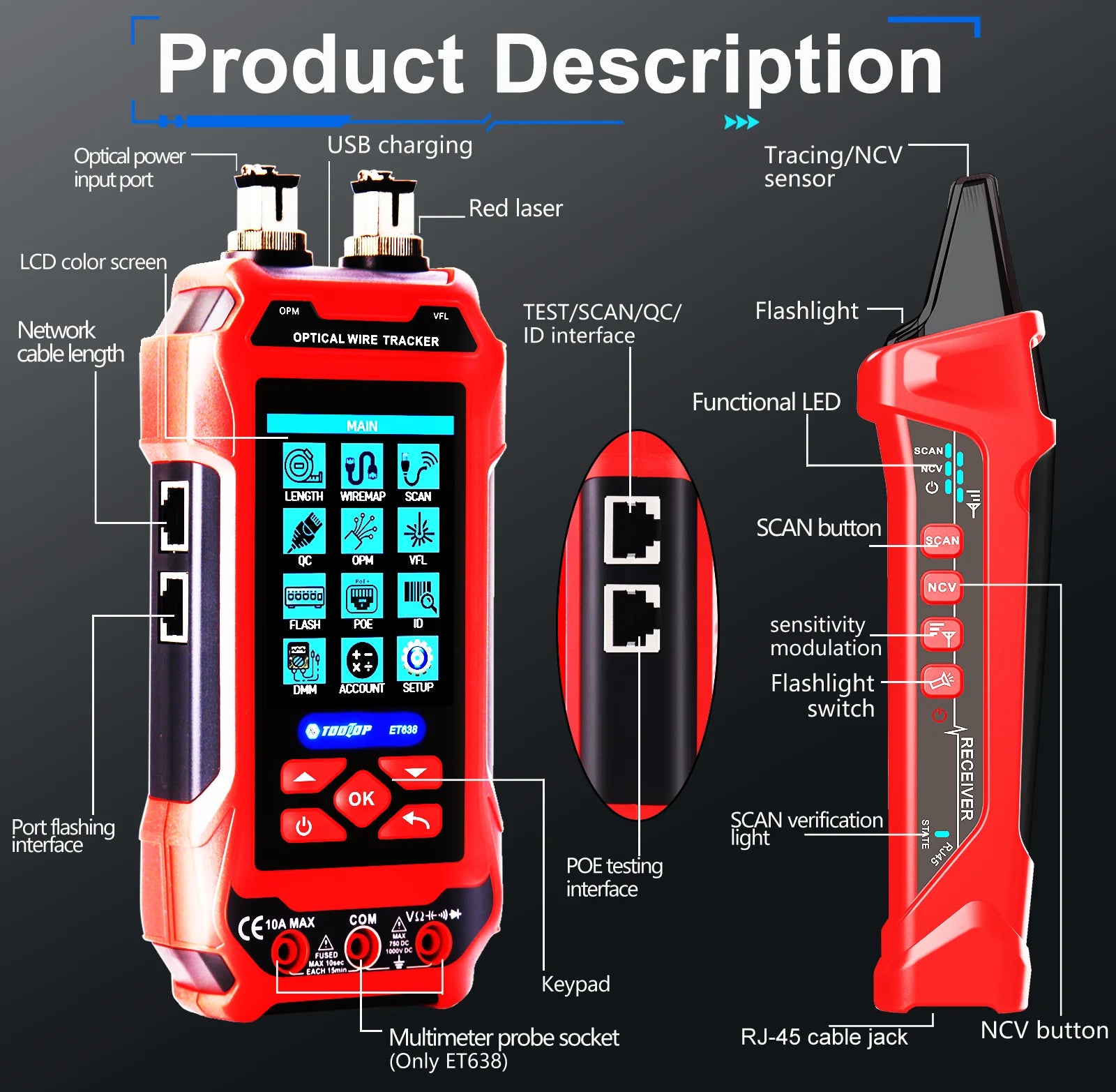

Name: Multifuction Network Cable Tester

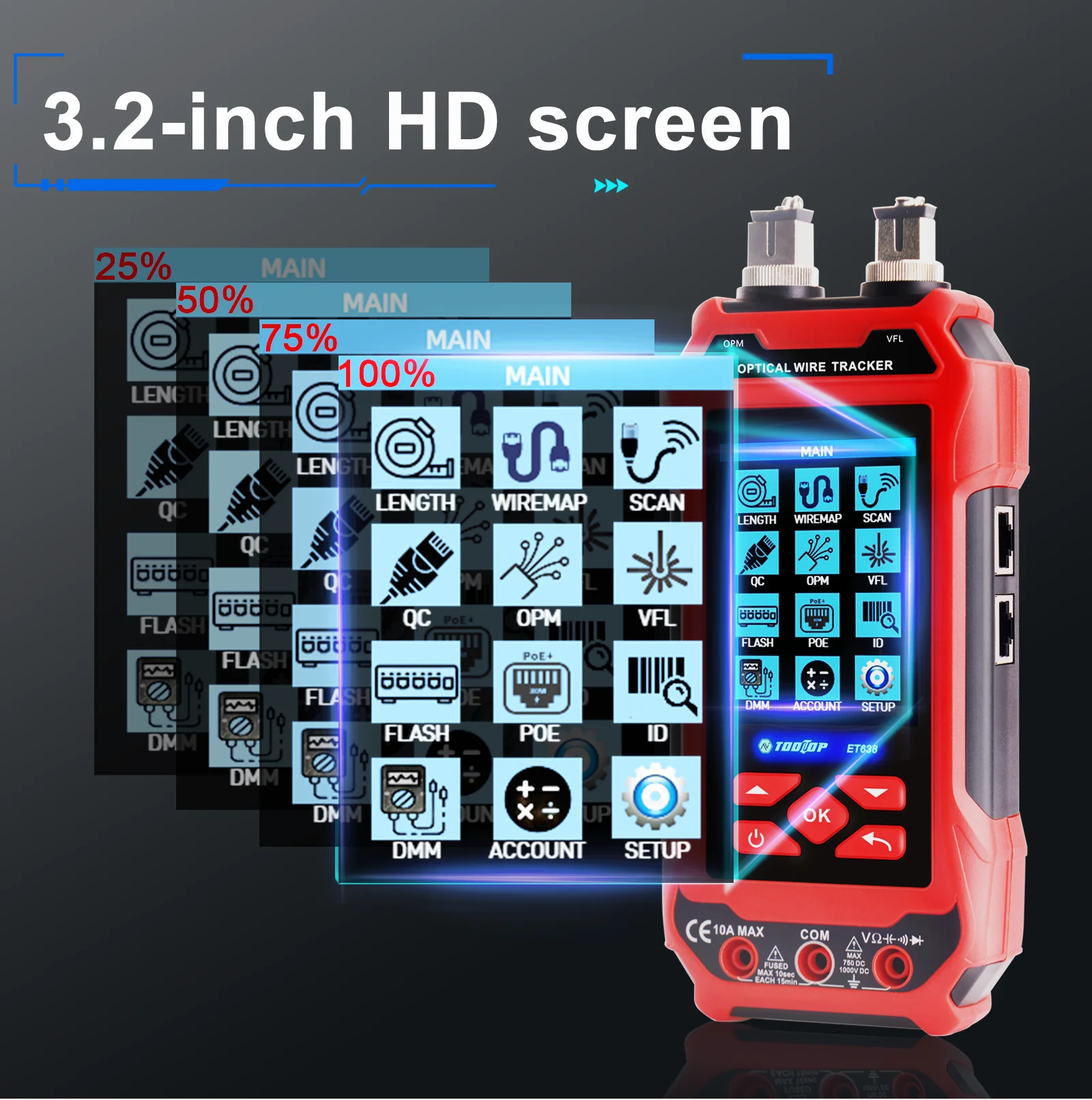

Display: 3.2 inche 240*320 color screen

Power supply: 1500mAH(Host) / 800mAH(Receiver) Lithium Battery

Size：Host 187 * 86 * 34mm / Receiver 197 * 47 * 36mm

Network Cable Tester

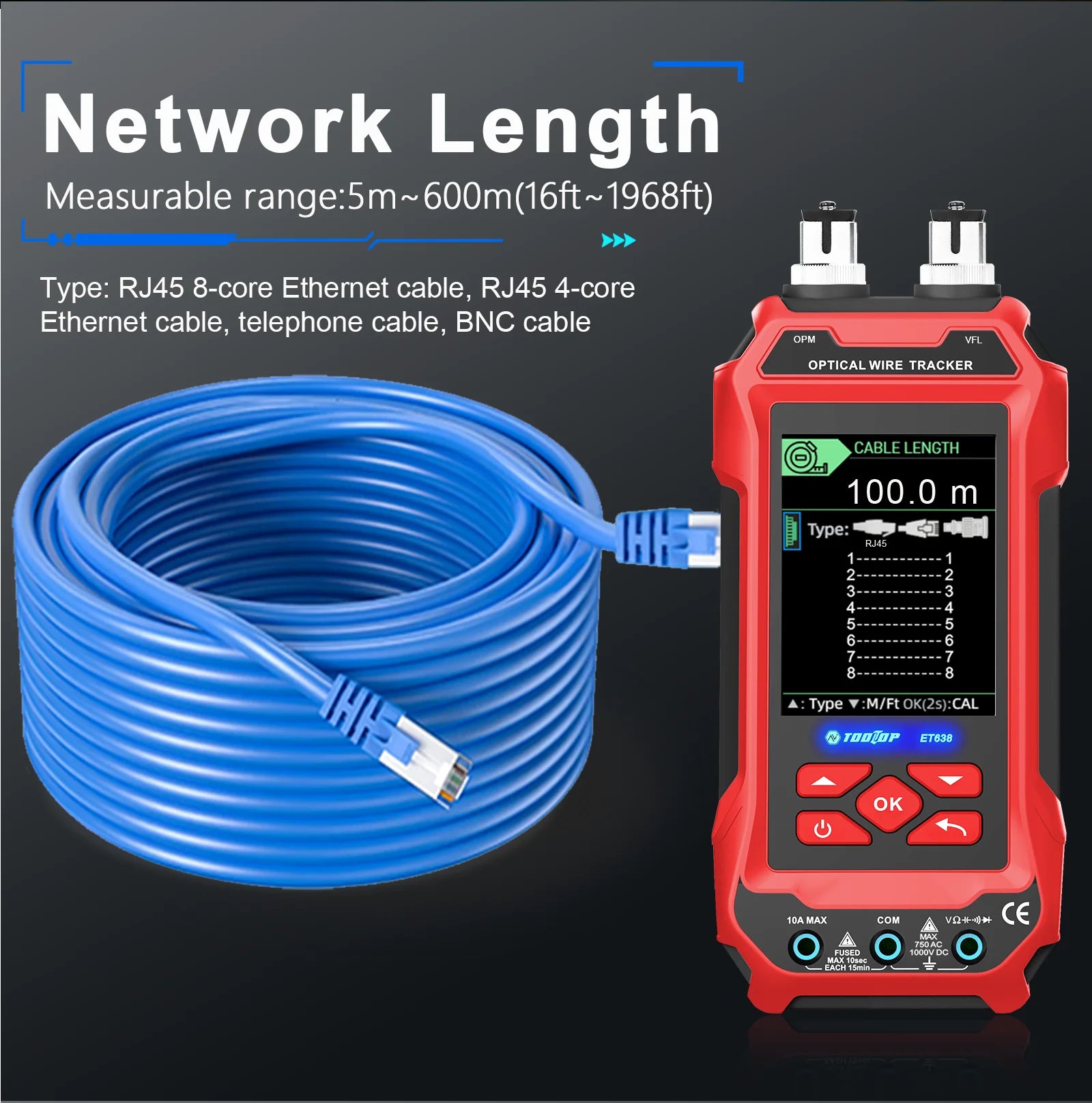

Cable Length：Network cable (600M), telephone line (400M), coaxial cable (400M)

Measurable range: 1m~600m

Length self-calibration: support,the length of the referencel line used for calibration must be greater than 5 meters

Digital Tracing: Digital mode (ET636) , Digital and vibration mode(ET638)

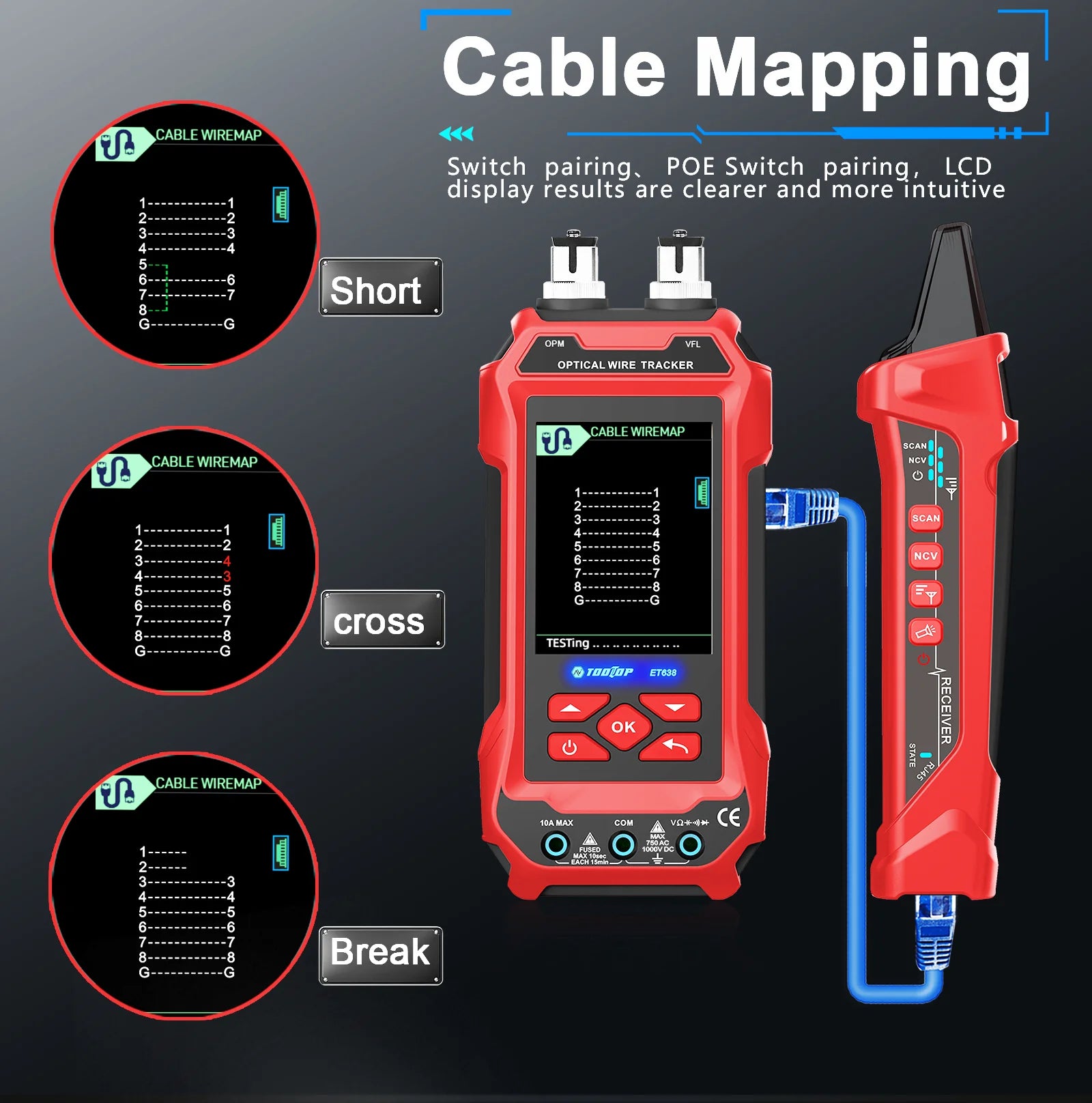

Cable Mapping: Normal/Open/Short/Cross

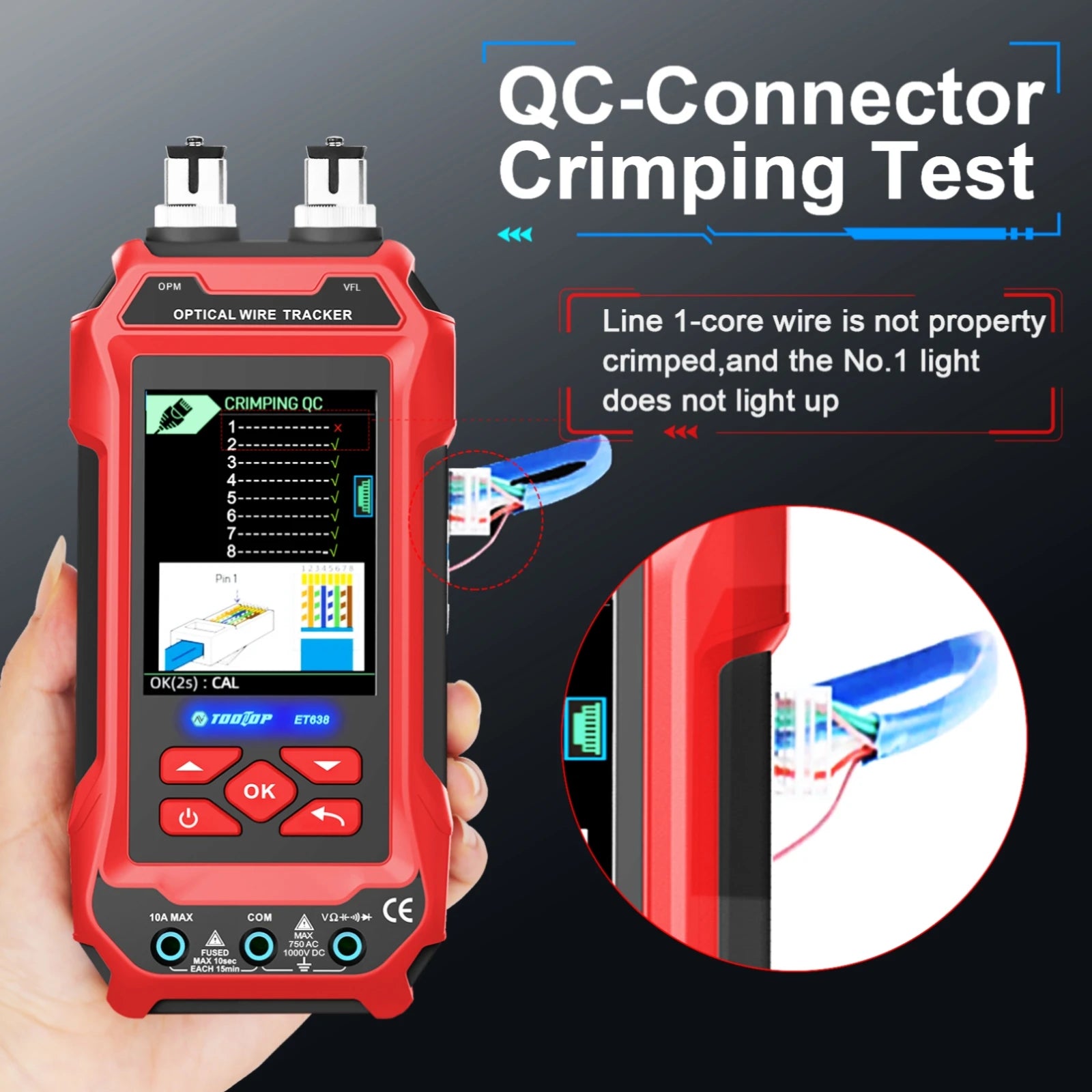

QC Crimping: Support

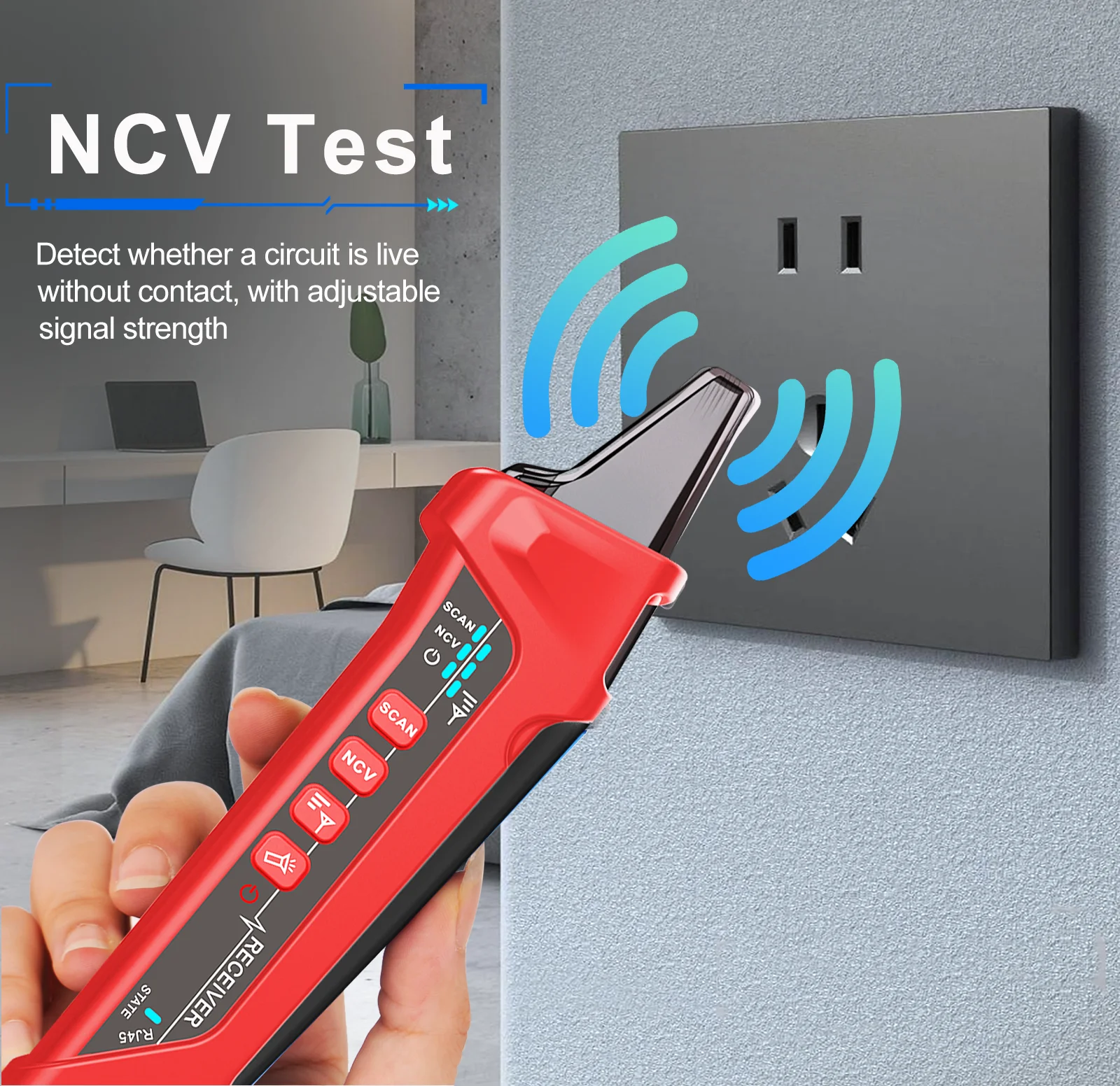

NCV: Support

Receiver: Sensitivity adjustable

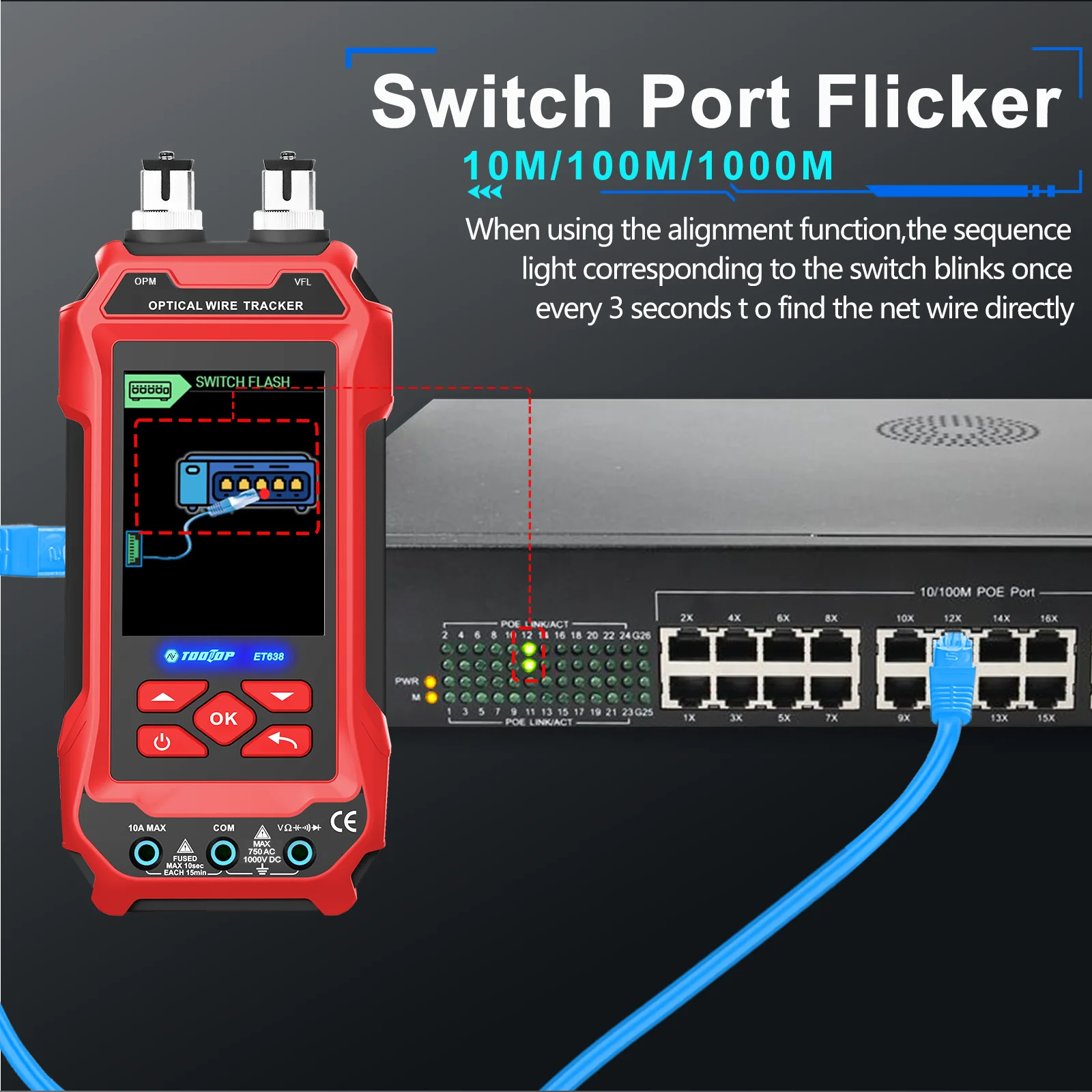

Switch Flash: 10M/100M/1000M

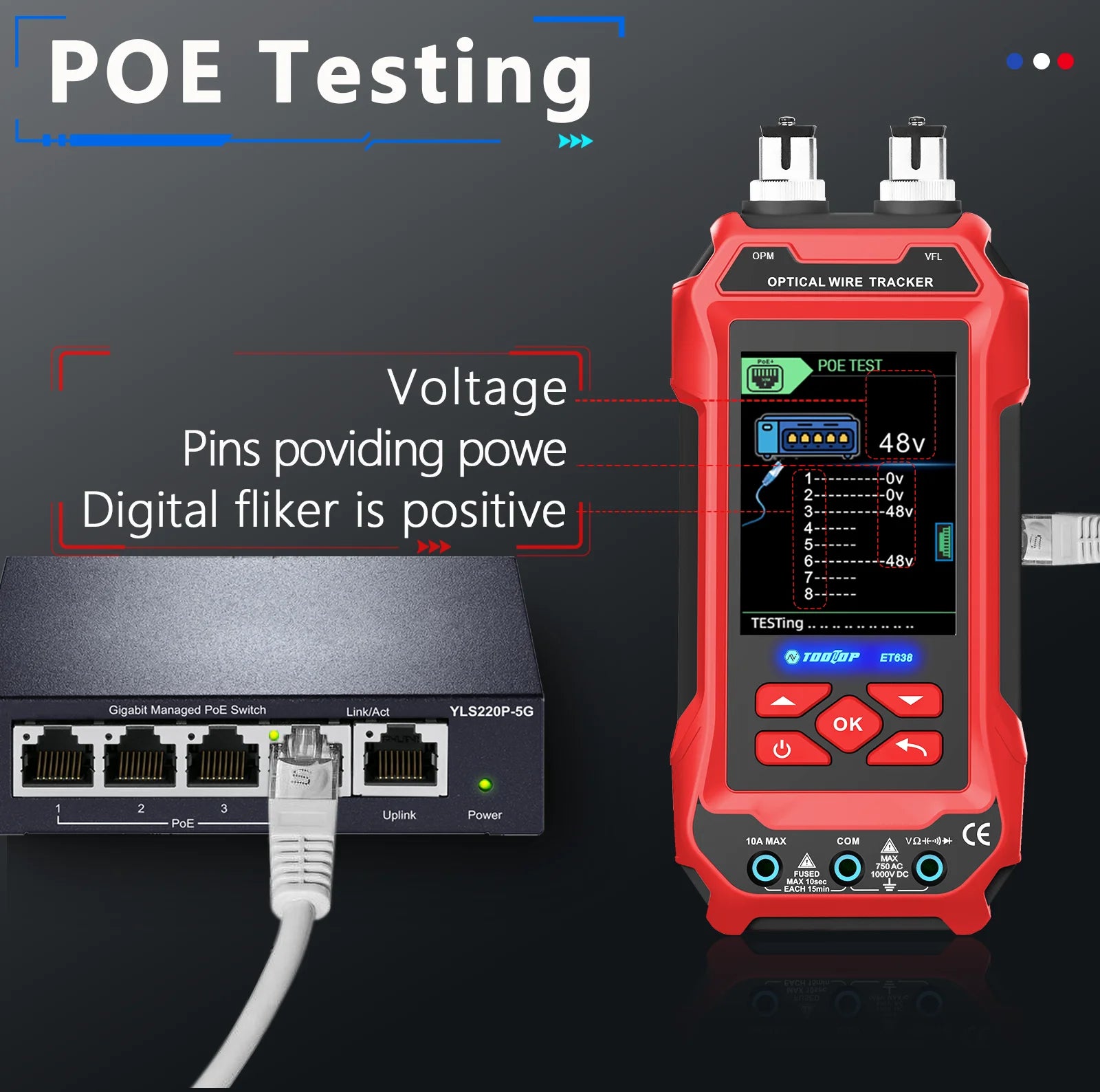

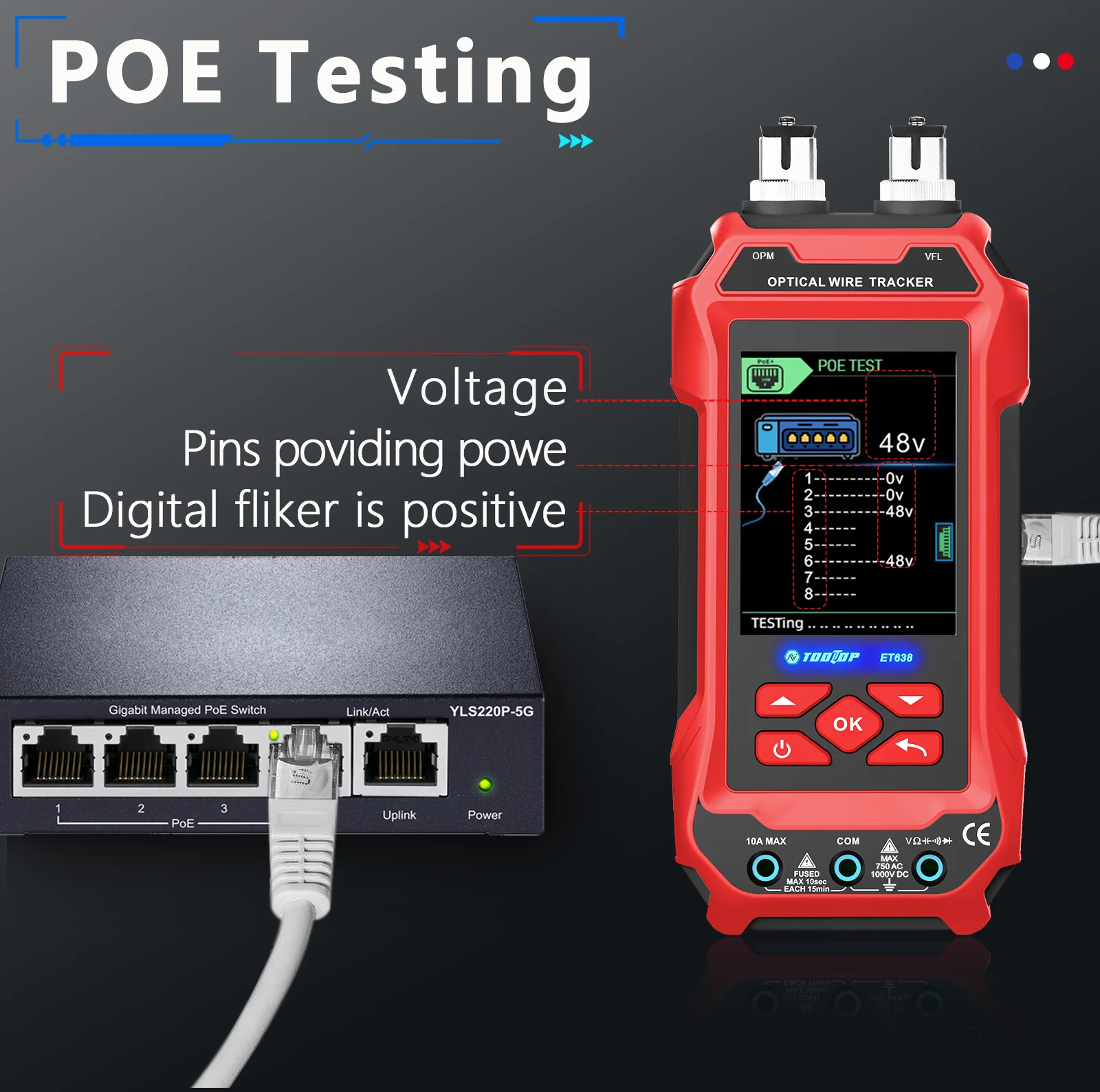

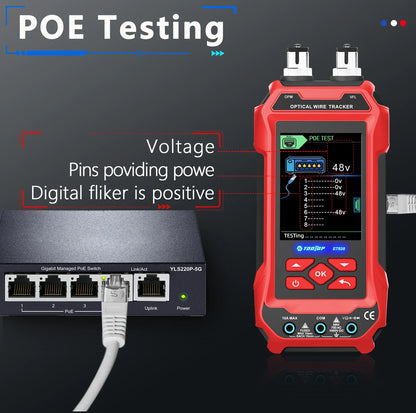

POE Test: Voltage/polarity

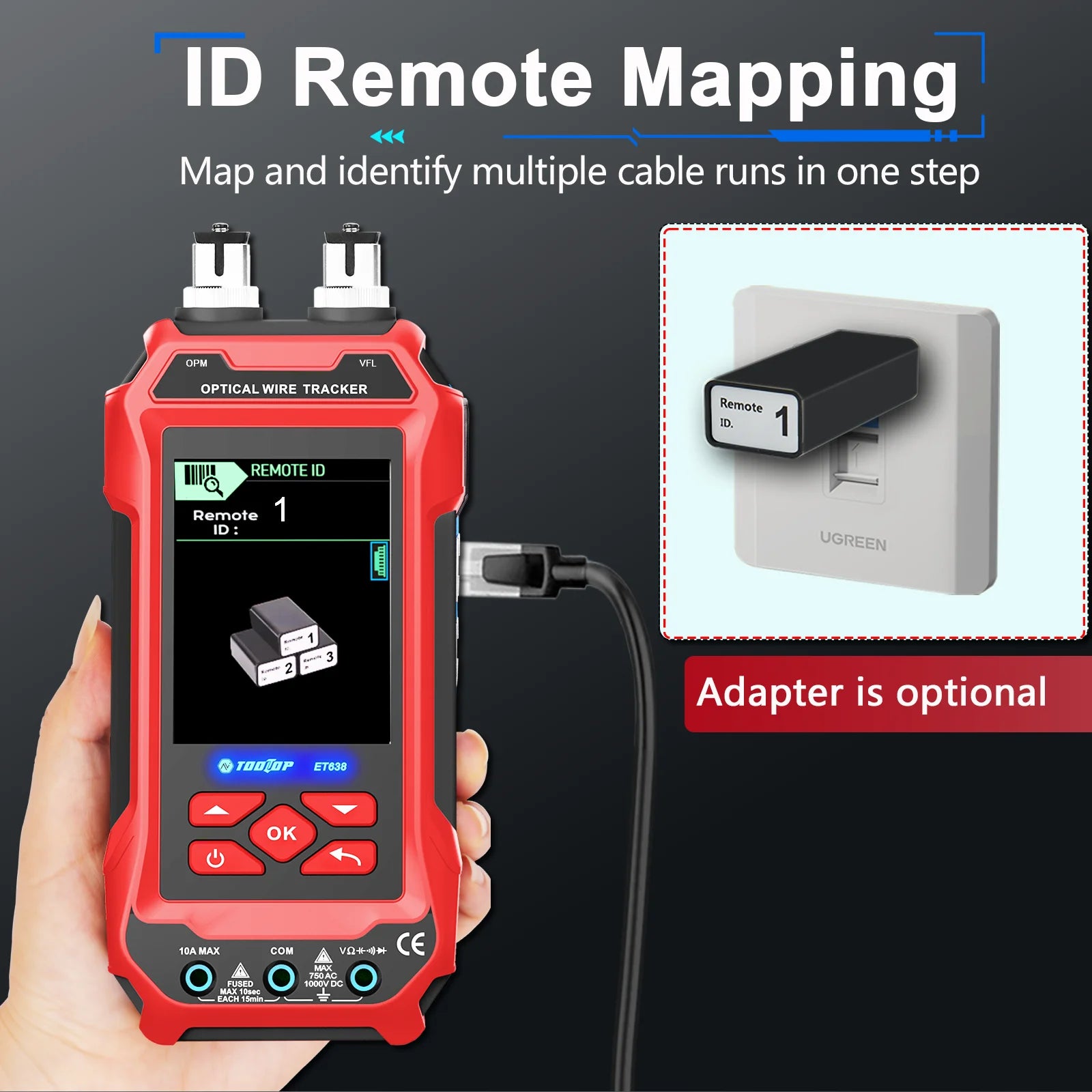

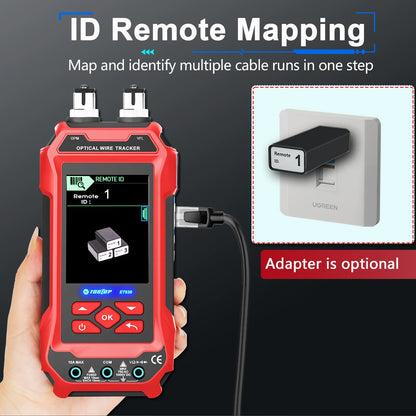

Remote ID: ID1~15 (for option)

Account: 100 records storage/unit price/amount

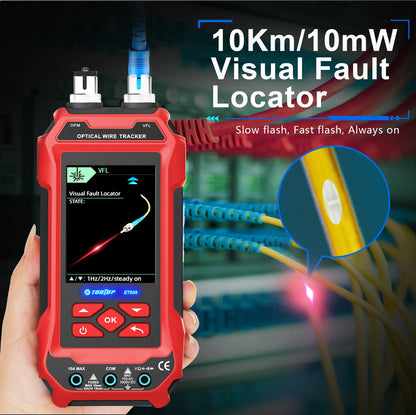

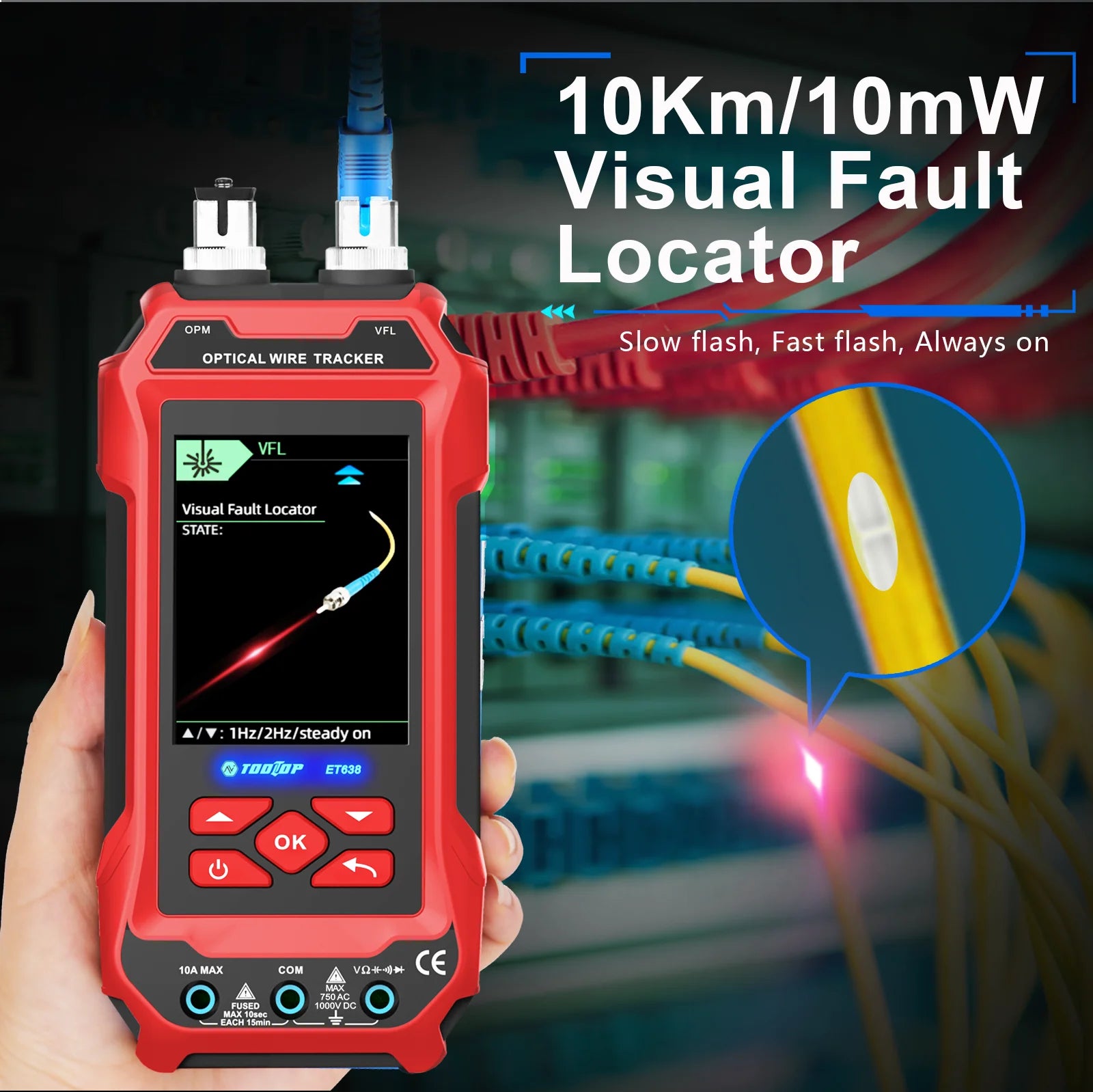

Visual Fault Locator(VFL):10wm, about 10kM, ON 1Hz/2Hz/OFF

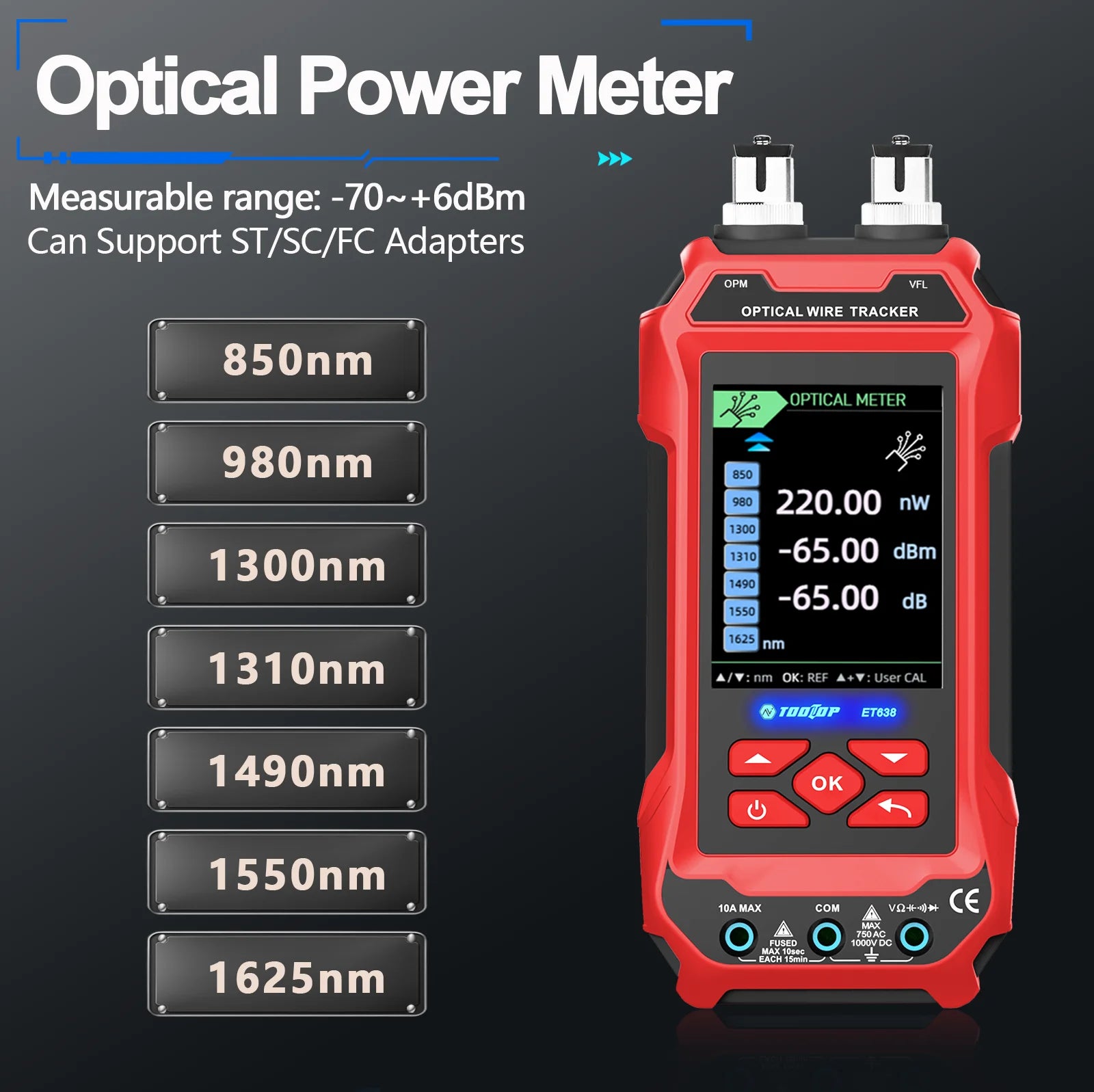

Optical Meter

Measurement range:-70.00~6.00 dBm

Optical power display: mW/uW/nW/dBm/dB

Interface: ST, SC, FC

Standard wavelength: 850,980,1300,1310,1490,1550,1625nm

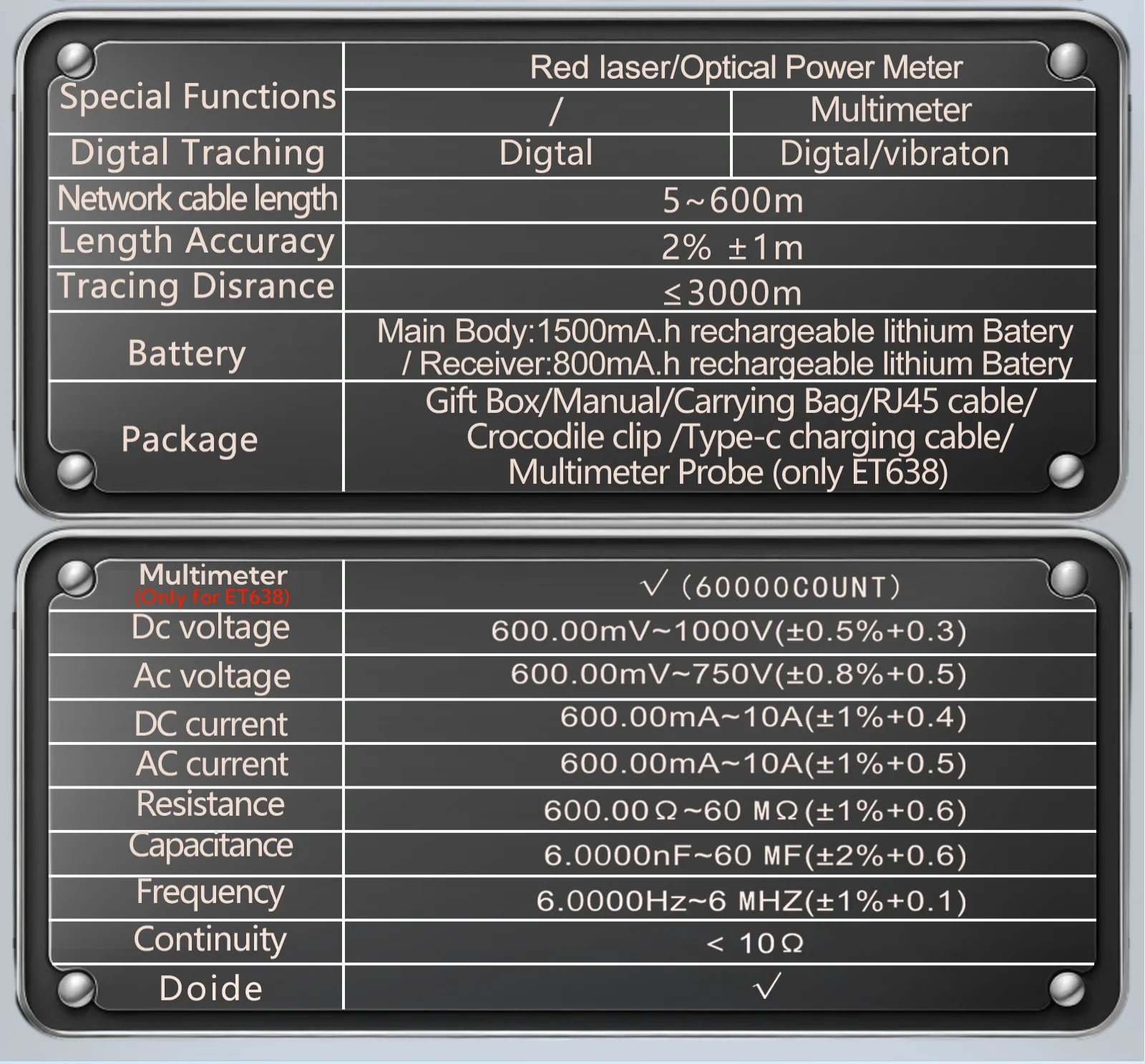

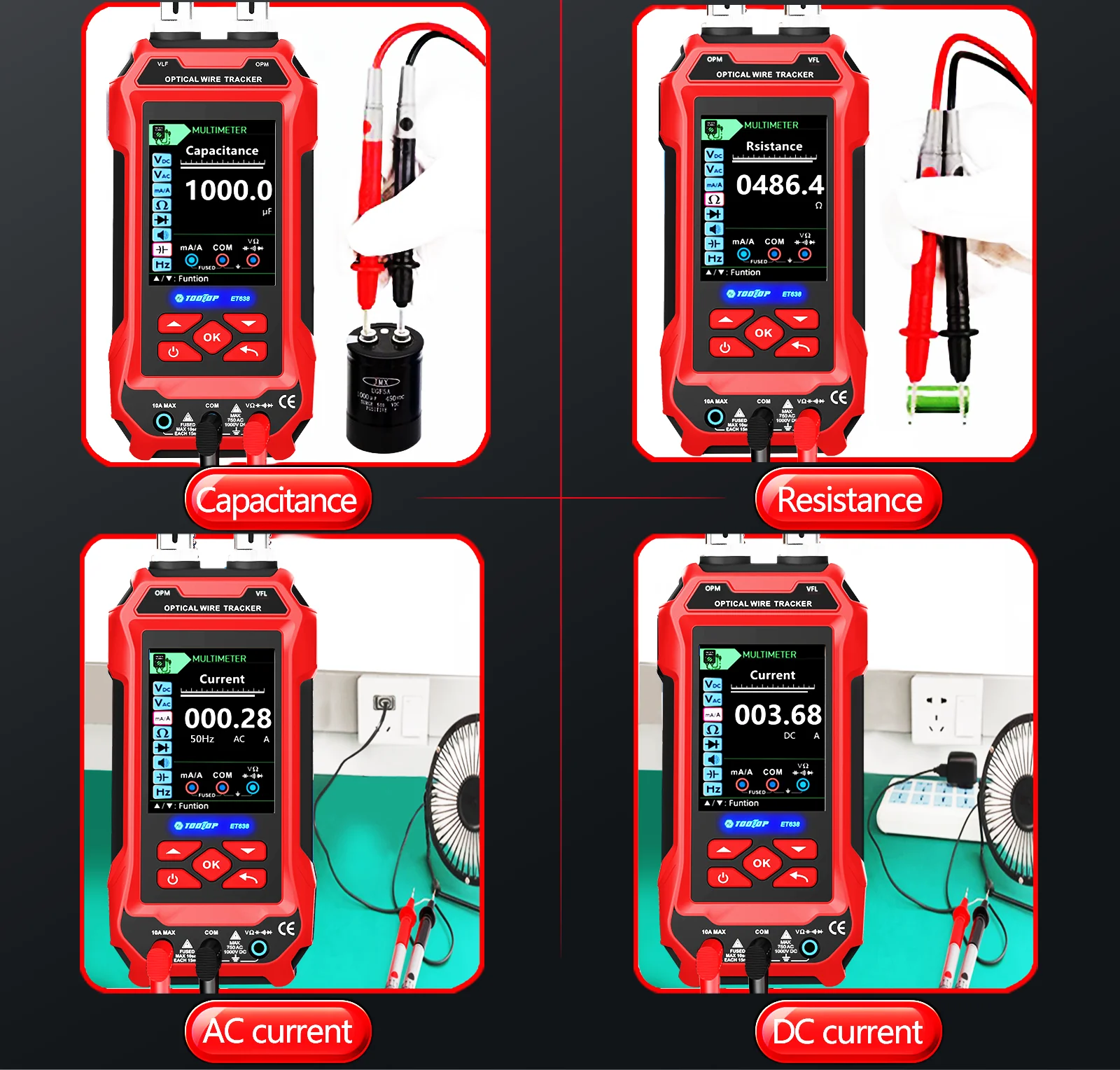

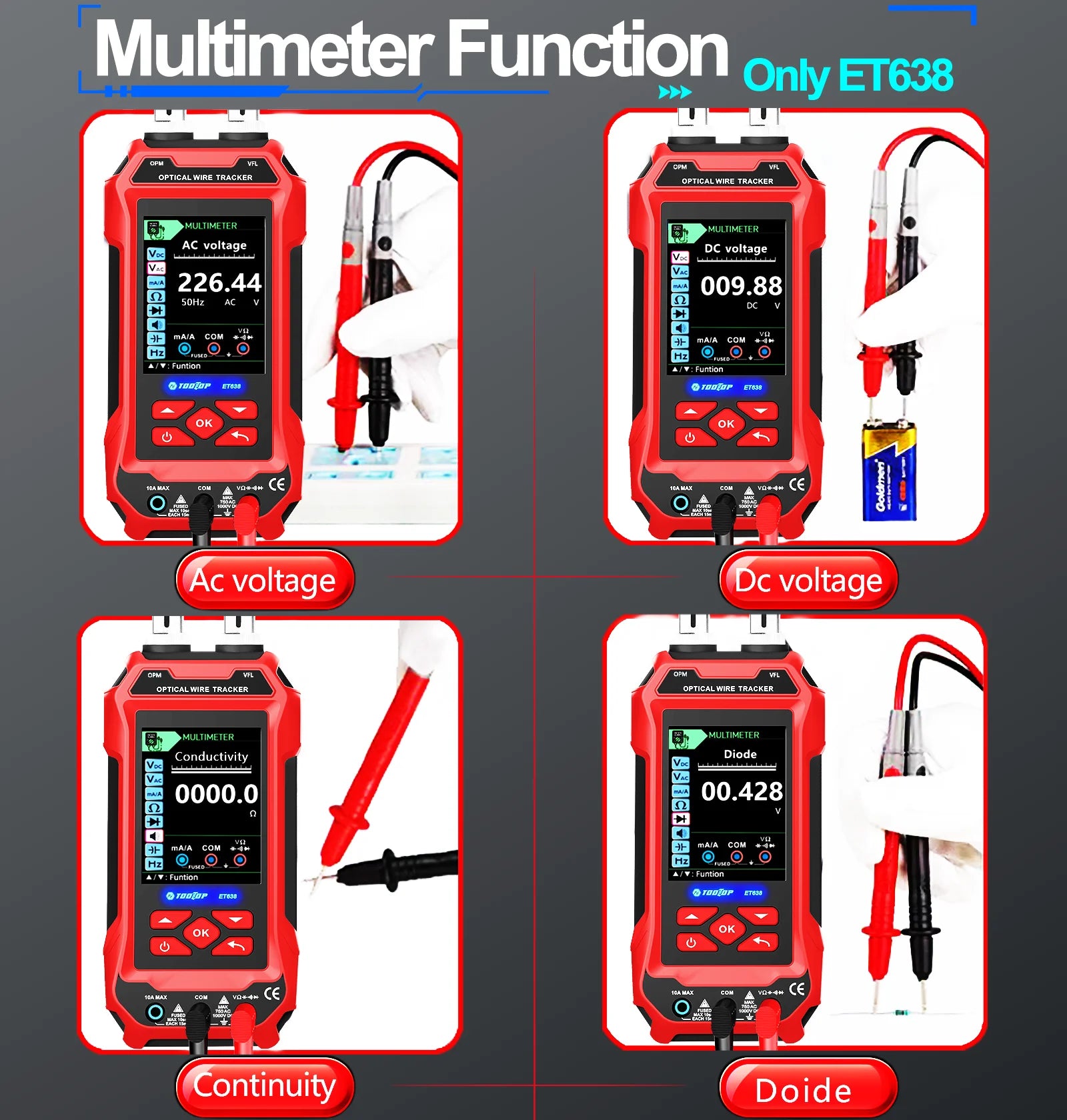

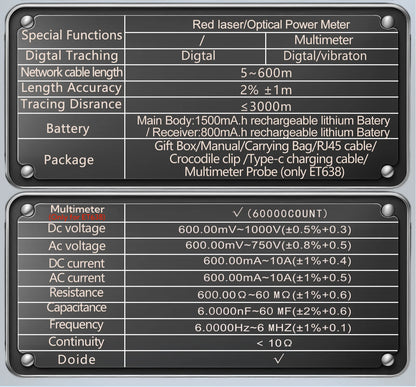

Multimeter【only for ET638】

Display: 60000 counts

DC Voltage: 600.00mV~1000V (±0.5%+0.3)

AC Voltage: 600.00mV~750V (±0.8%+0.5)

DC Current: 600.00mA~10A (±1%+0.4)

AC Current: 600.00mA~10A (±1%+0.4)

Resistance: 600.00Ω~60MΩ (±1%+0.6)

Capacitance: 6.0000nF~60MF (±2%+0.6)

Frequency: 6.0000Hz~6MHz (±1%+0.1)

Continuty: ＜10Ω ，buzzer sounds

Diode: support

Fuse: CE 5*20mm 10A/100V

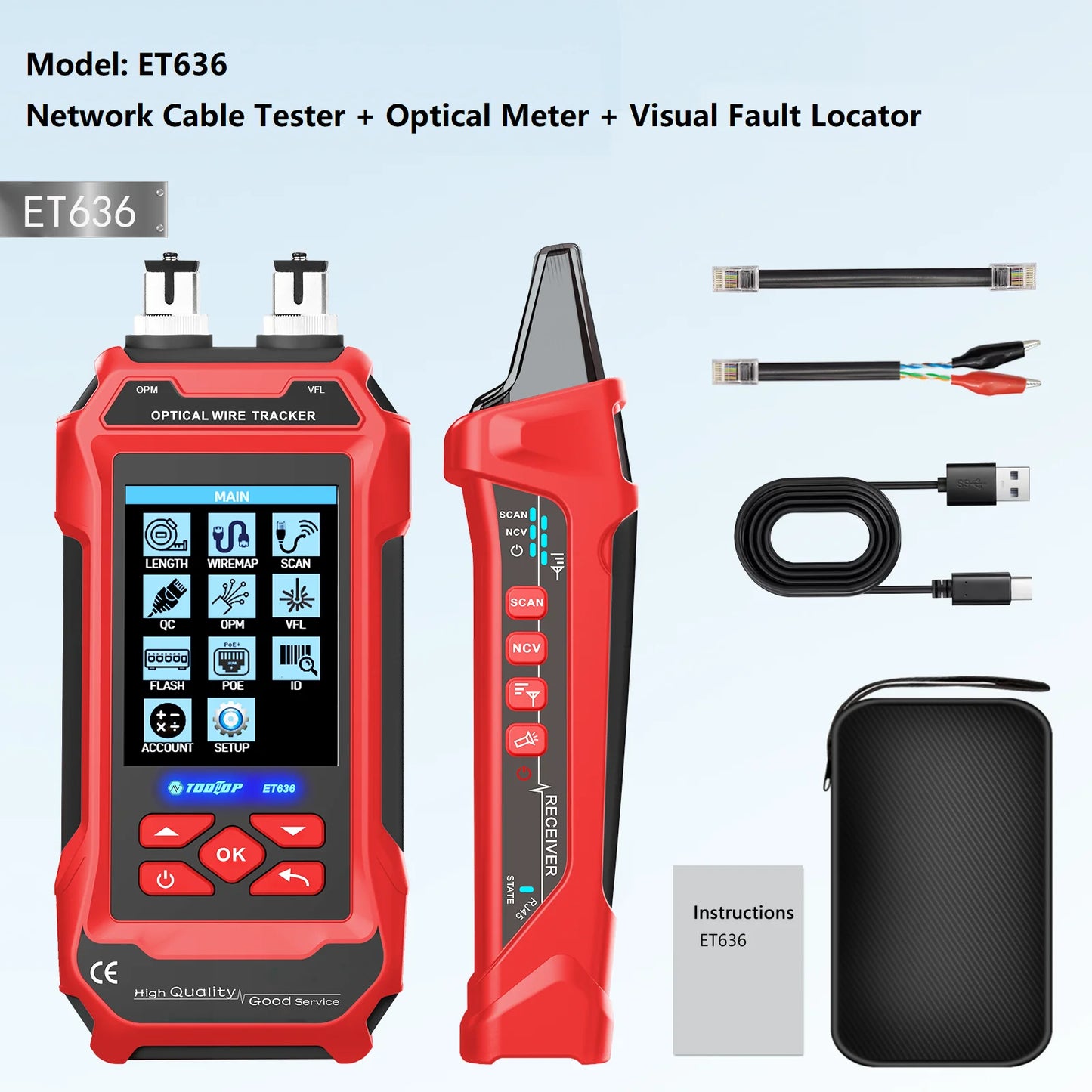

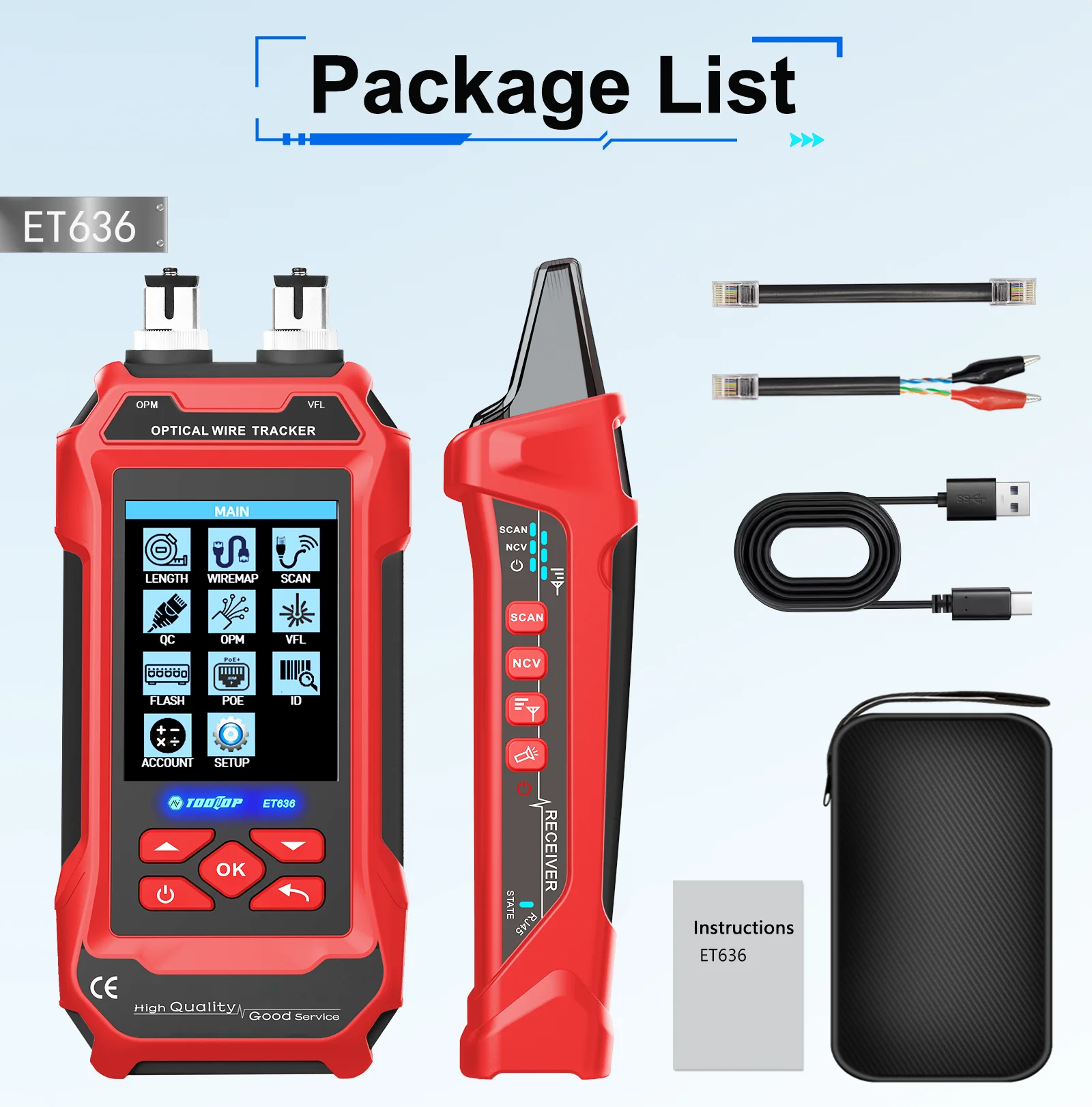

ET636 Package List:

1 x Network Cable Tester

1 x Receiver

1 x USB Cable

1 x RJ45 Cable

1 x Crocodile Clip

1 x English User Manual

1 x Storage Bag

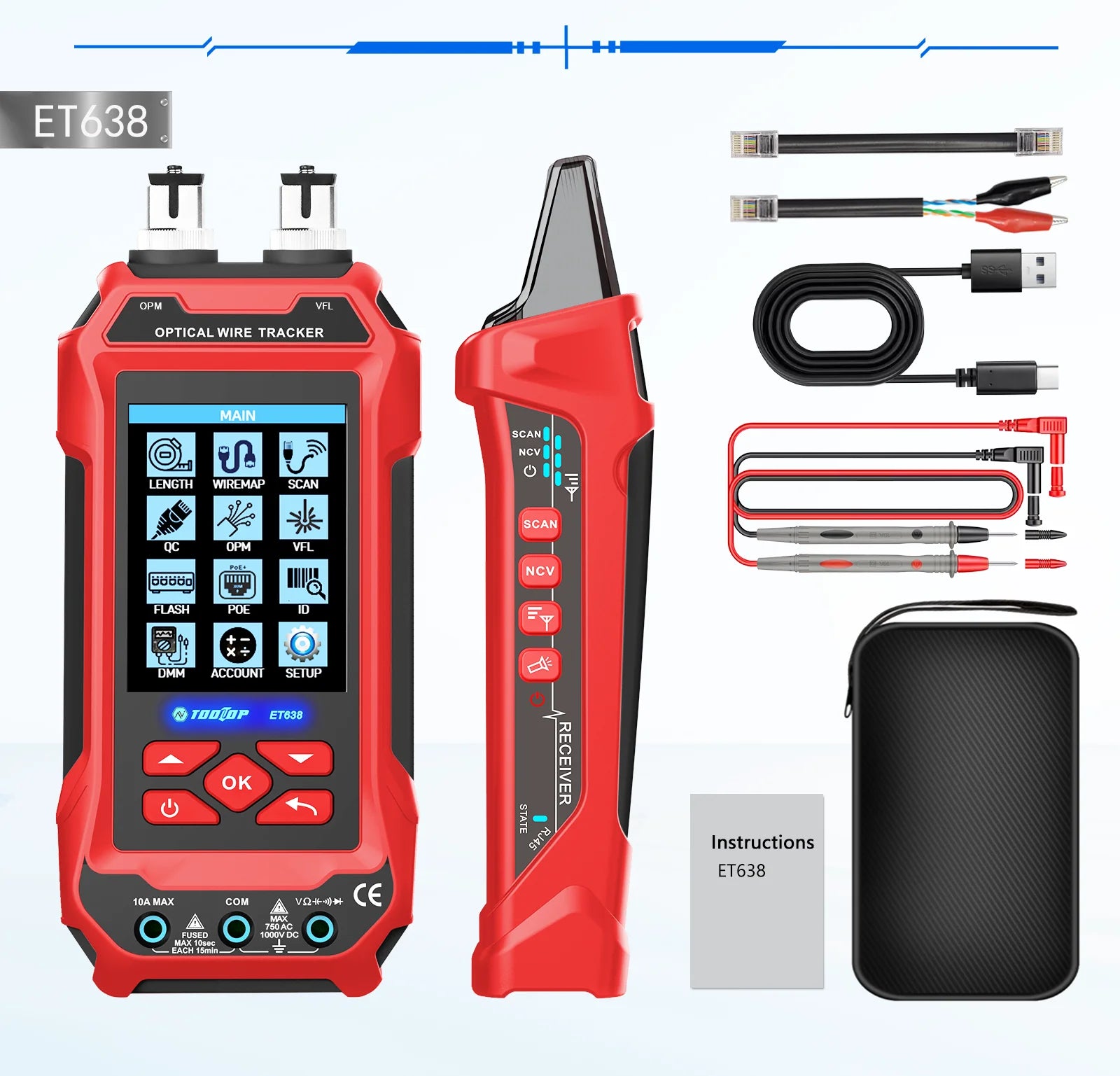

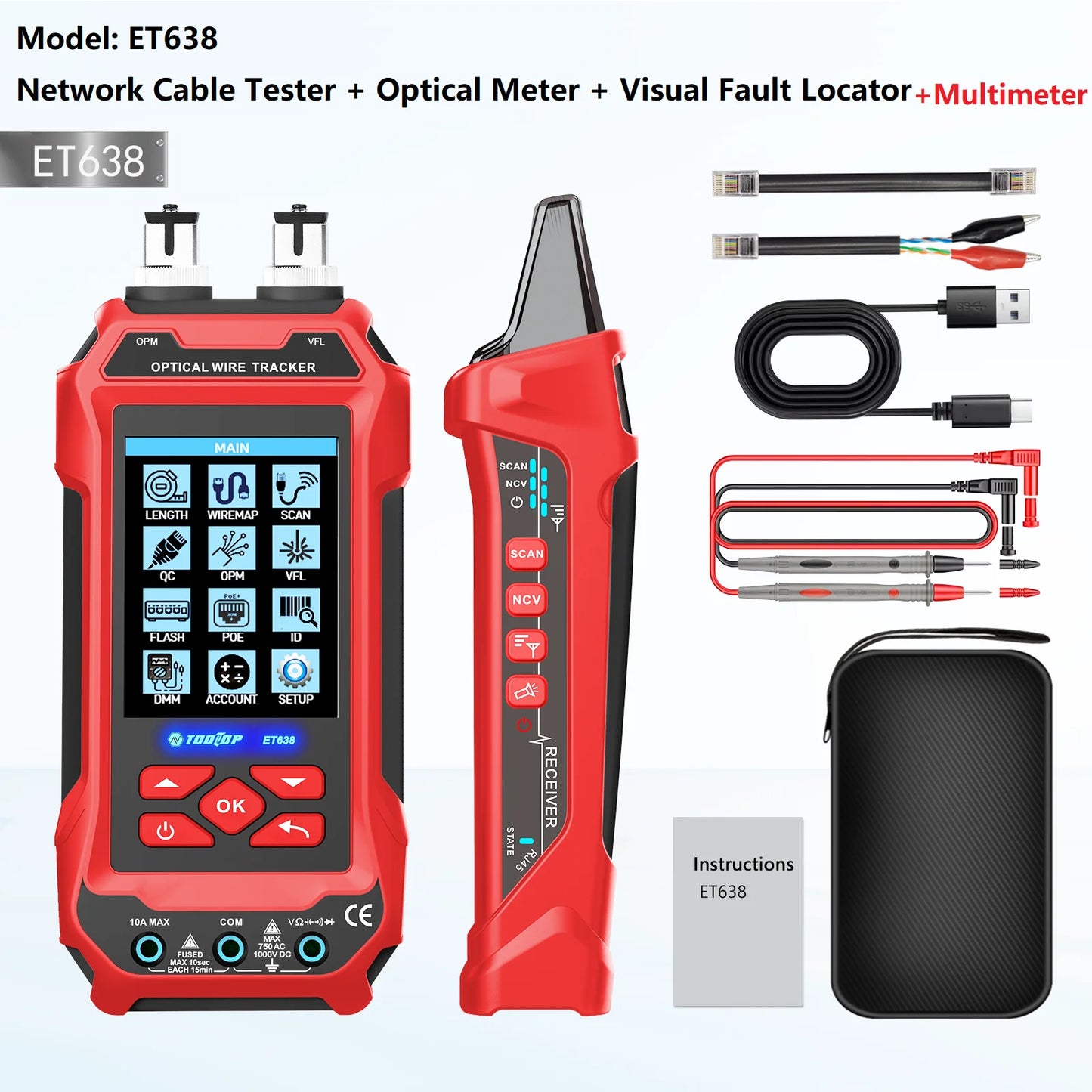

ET638 Package List：

1 x Network Cable Tester

1 x Receiver

1 x USB Cable

1 x RJ45 Cable

1 x Crocodile Clip

1 x Multimeter Test Leads

1 x English User Manual

1 x Storage Bag

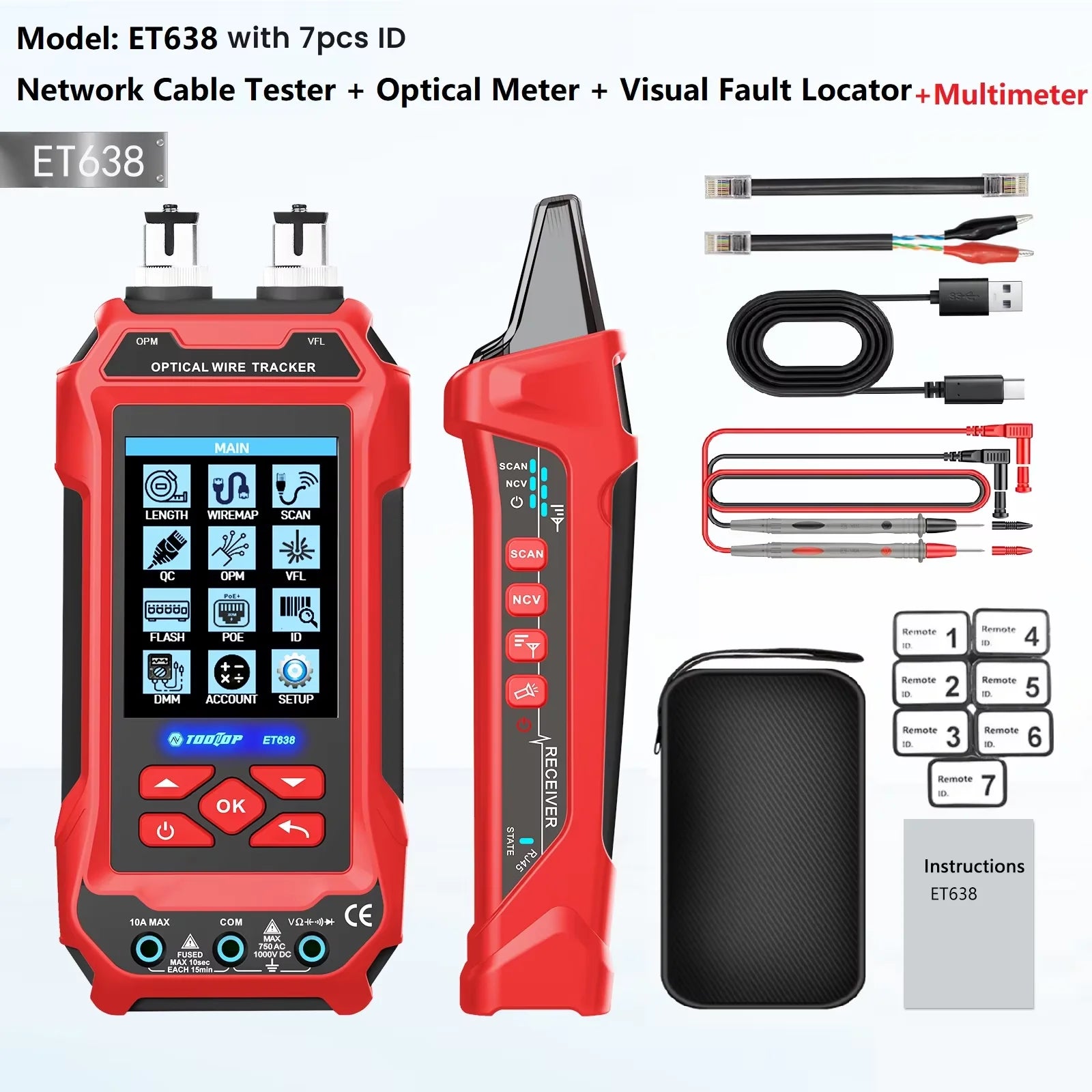

ET638 with 7 ID Package List：

1 x Network Cable Tester

1 x Receiver

1 x USB Cable

1 x RJ45 Cable

1 x Crocodile Clip

1 x Multimeter Test Leads

1 x English User Manual

1 x Storage Bag

7 x ID Remote
