Note:

1. The equipment is wired and used;
2.Zigbee version-needs to connect to Smart Life APP through Tuya Zigbee 3.0 gateway;

Main Features:

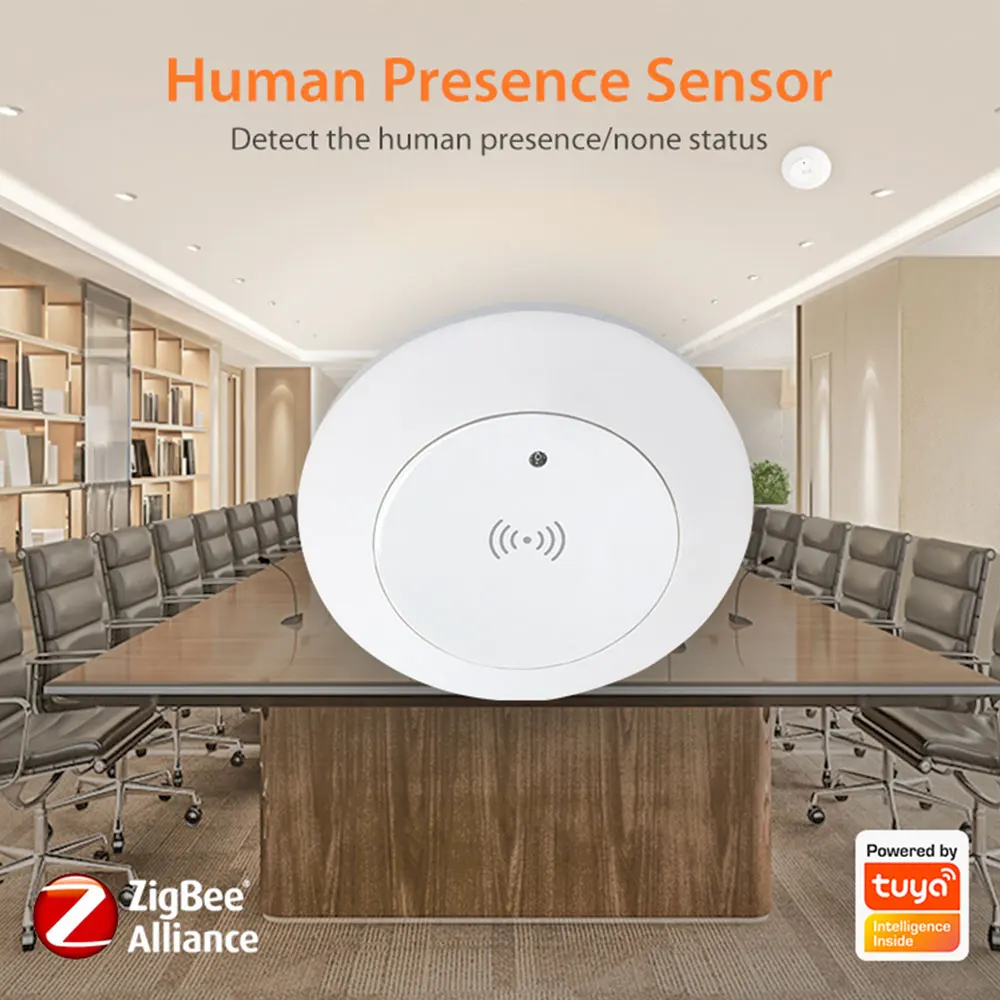

1. Functional ZigBee Smart Human Presence Sensor

Featured as human presence,human static,human micro motion and human movement motion detection to detect the presence or absence of people in the area,even to detect the static state such as personnel sleeping accurately with mmWave Radar Detection featured.

2. 24G radar frequency

24G has faster corresponding speed and more accurate detection, suitable for some demanding usage scenarios.

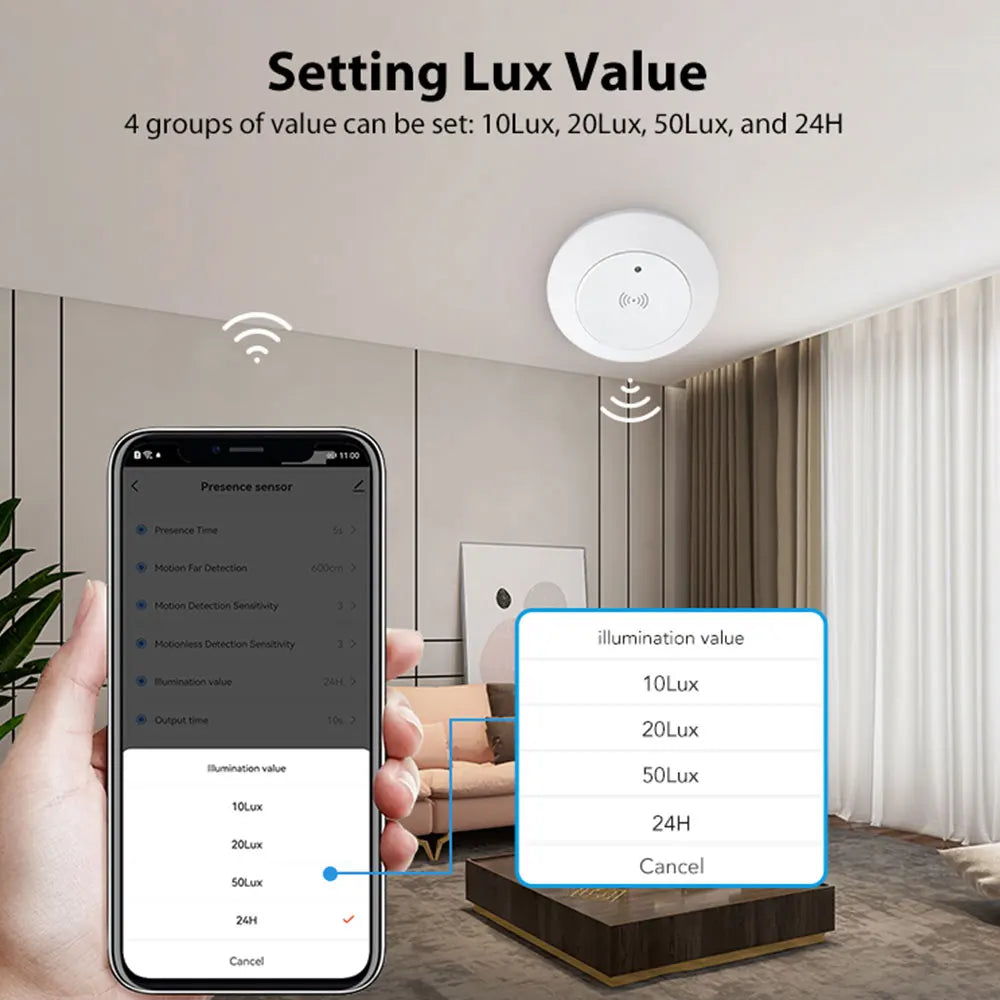

3. Perceived Light Intensity for Smart&Scene Linkage

Illuminance monitor in Tuya Smart APP enables its smart feature as smart scene linkage with other smart devices,especially your house lights to ON/OFF automatically as the brightness changes;Besides,you can intelligently linkage the sensor to other smart home devices for home automation.

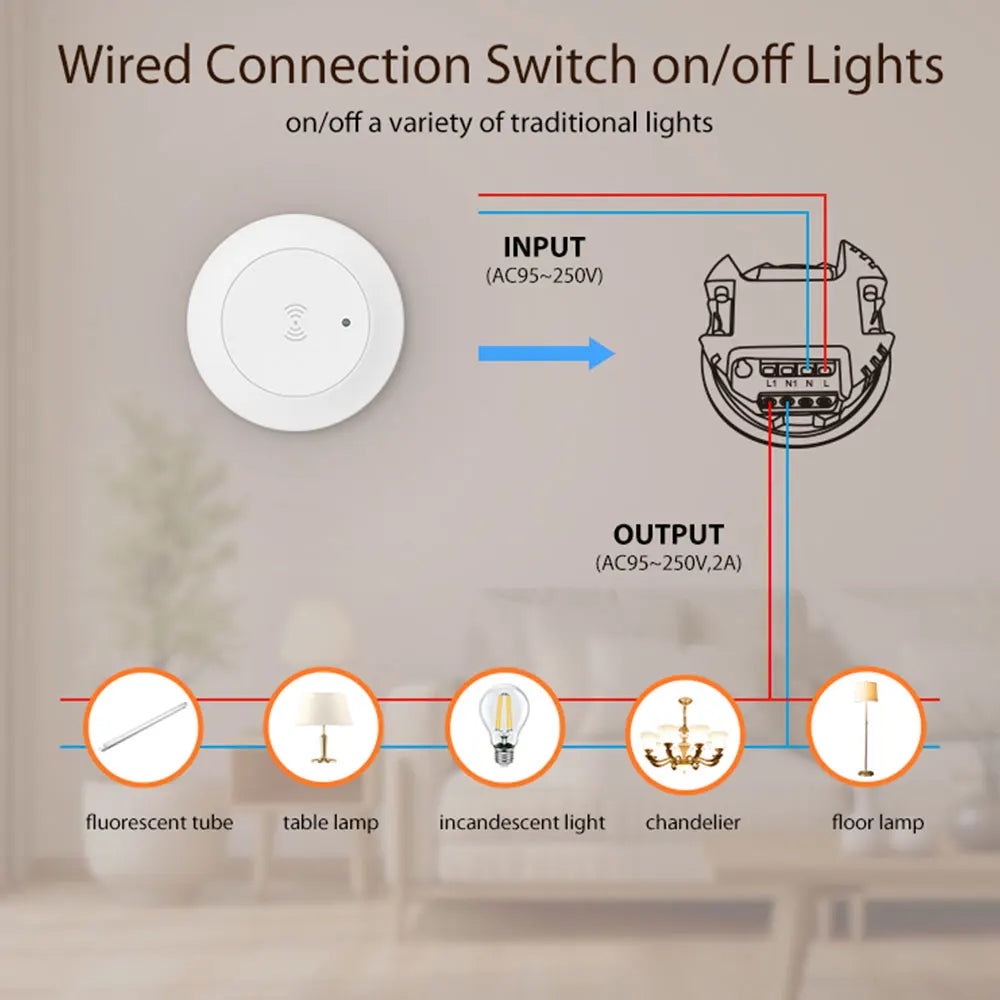

4.Hardwired AC power supply (AC95-250V)

The ceiling mount can be installed like a downlight。AC power supply is more stable, so there is no need to worry about insufficient power.

5. Advanced New Design with Multiple Settings

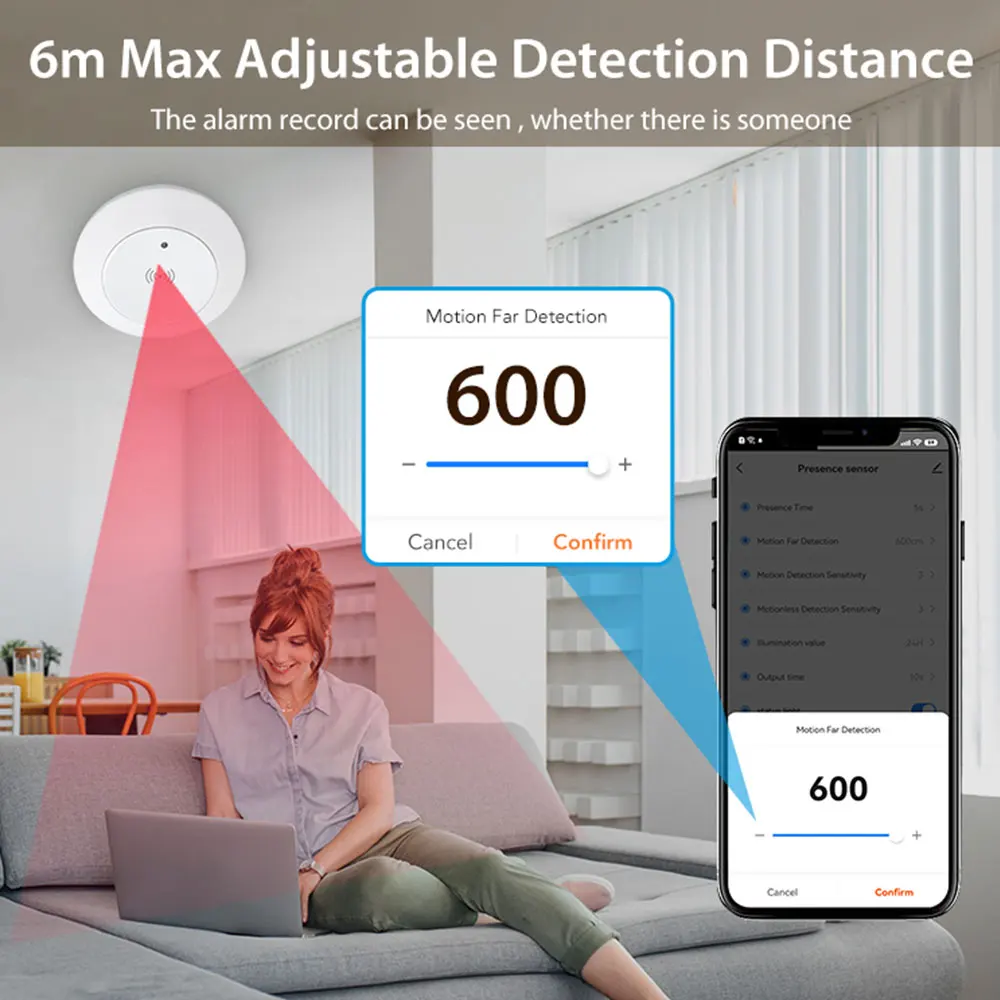

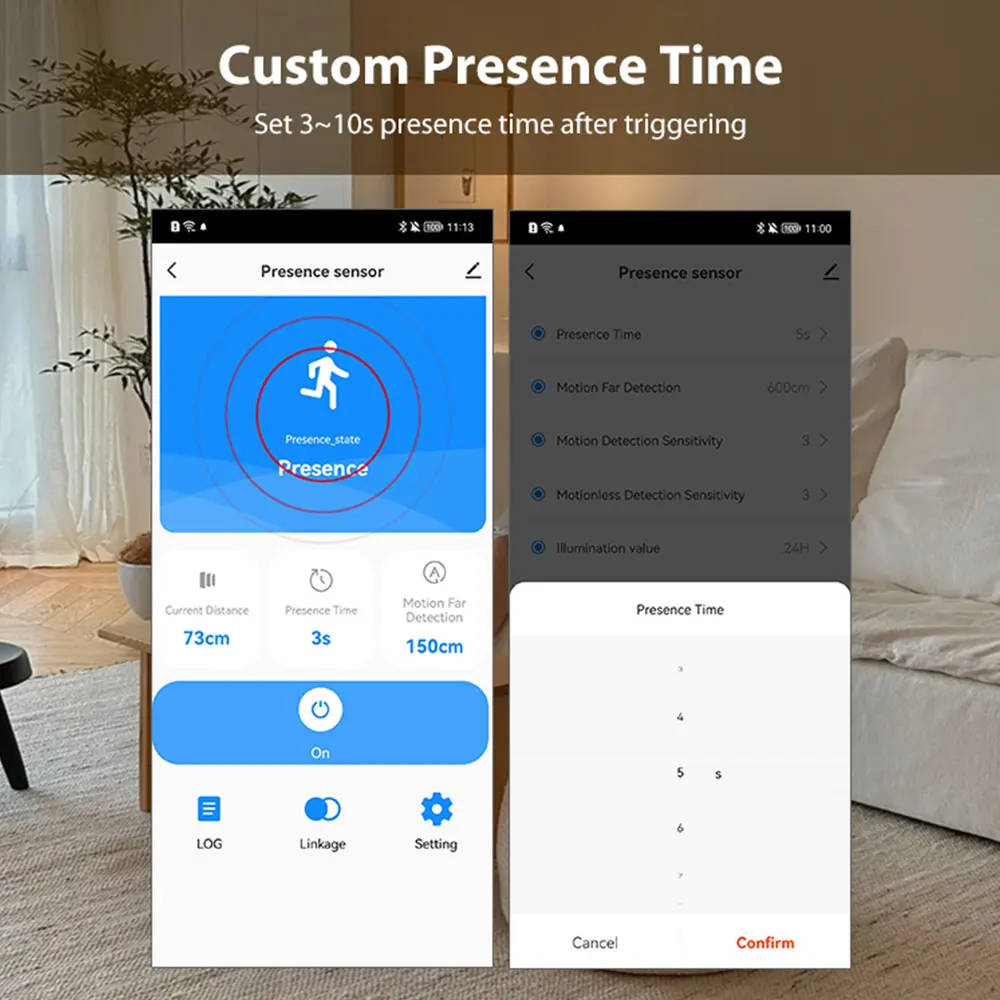

Set sensitivity levels 1-7 as needed, with a minimum detection range of 1.5m and a maximum detection range of 6m to meet flexible detection needs. At the same time, it is designed with a holding time set to 0-10s, and the detection output can often be set to 10-1800s to avoid irrelevant and annoying movements and reduce the false alarm rate.

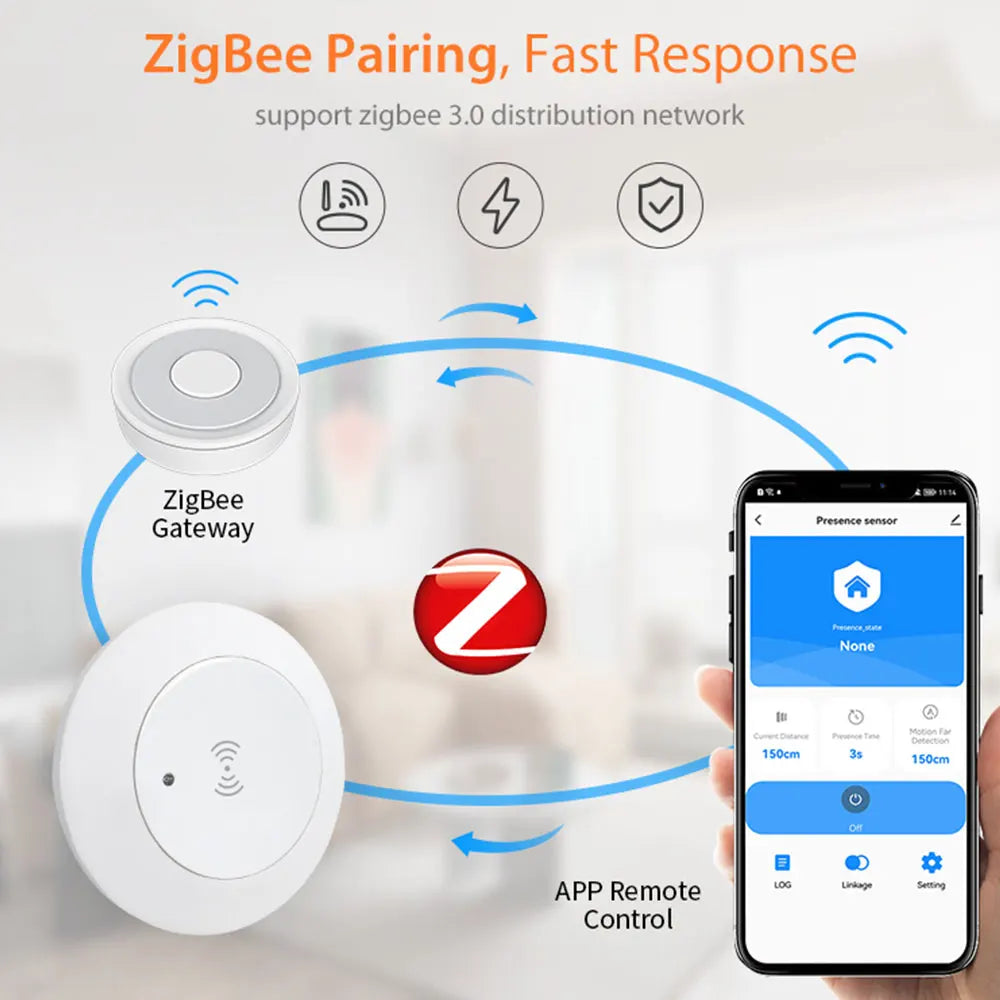

6. ZigBee Hub as Control Center

Tuya ZigBee 3.0 gateway is required for this ZigBee human presence sensor,performing as the center bridge for all Tuya ZigBee smart devices with extremely stable signal and a really good necessity for whole-house intelligence.(note:Tuya ZigBee hub is highly recommended for its wider compatibility than other hubs)

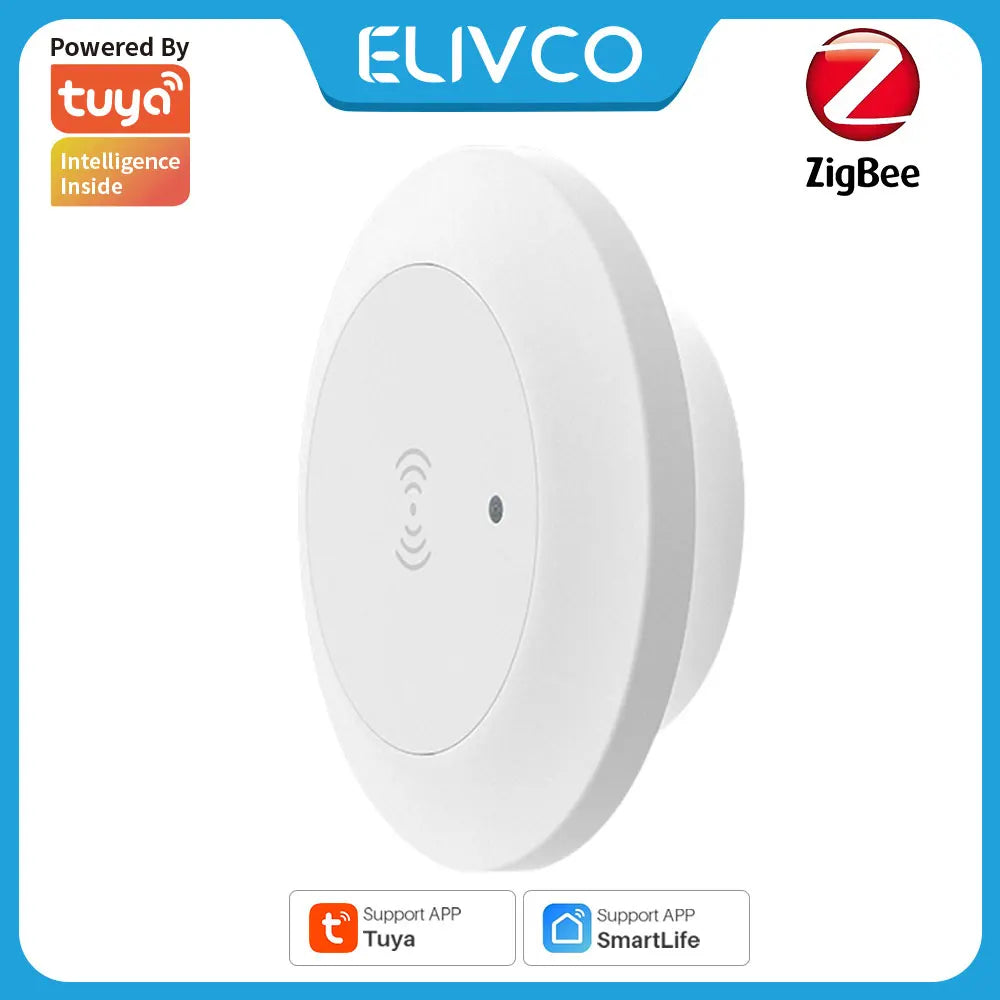

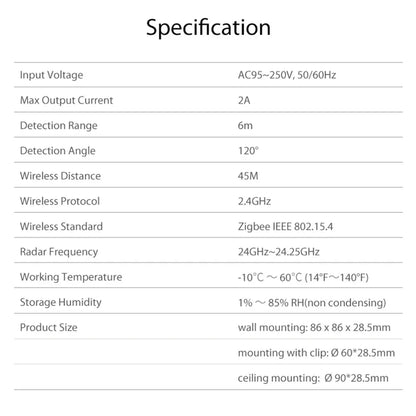

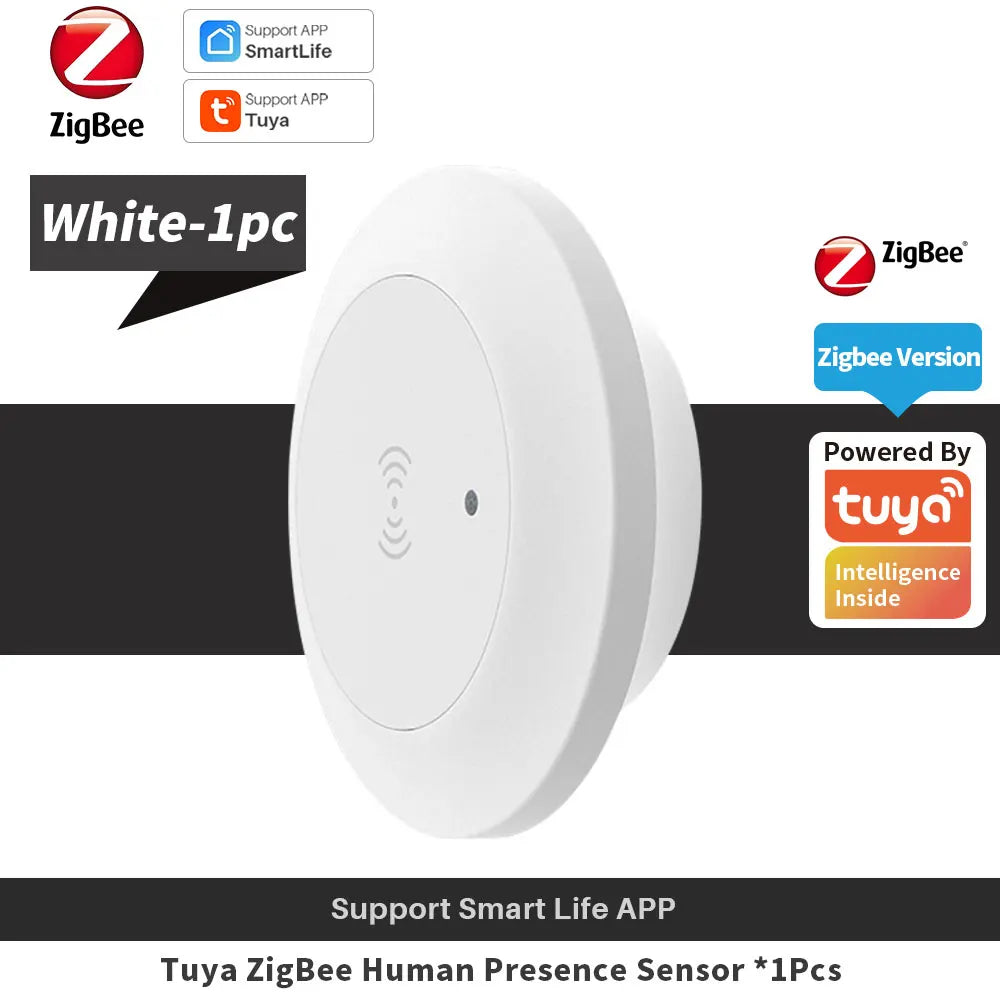

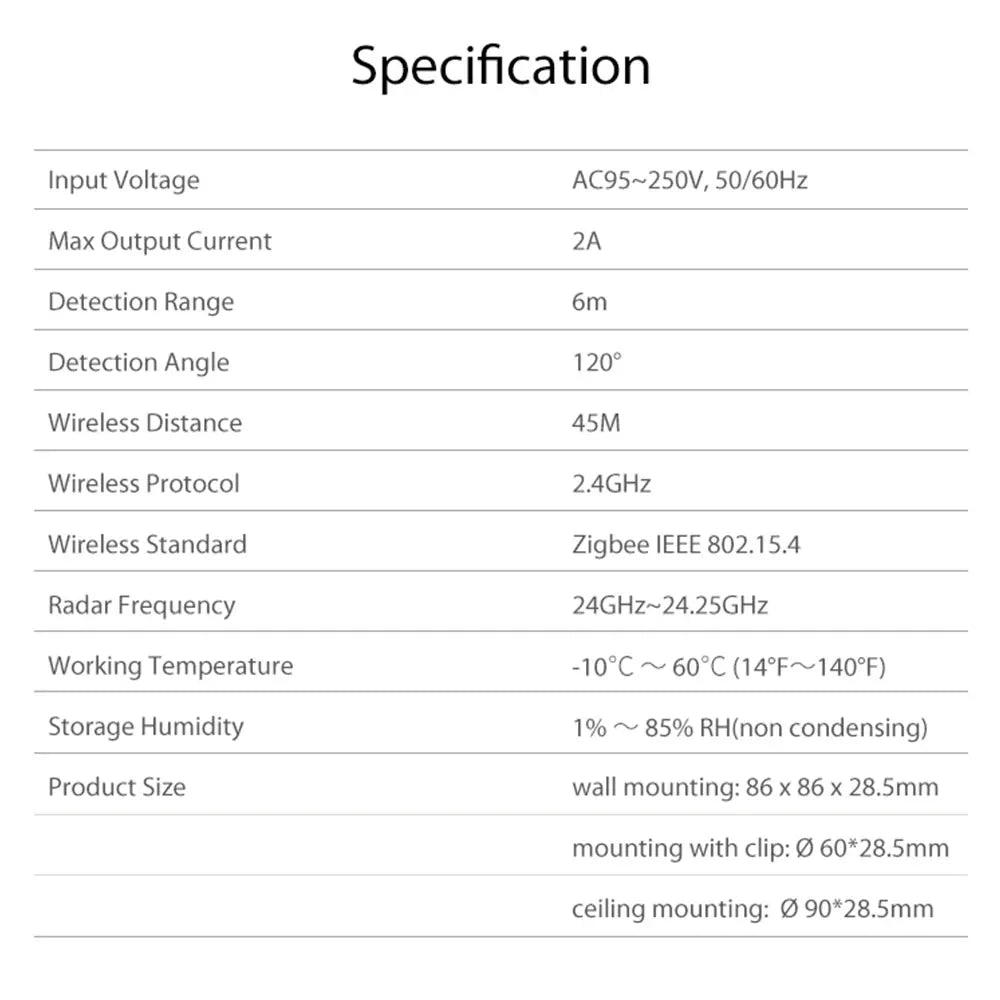

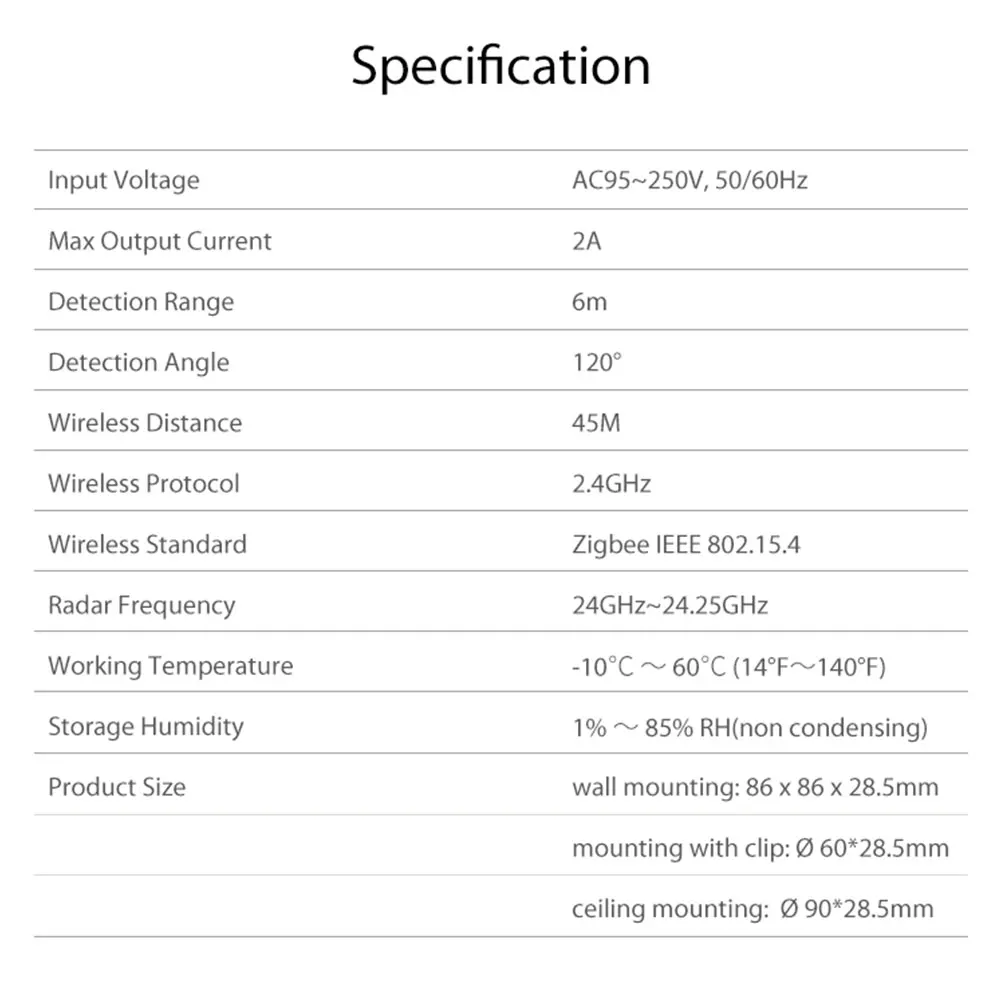

24G radar frequency-ZigBee Human Presence Sensor Pro

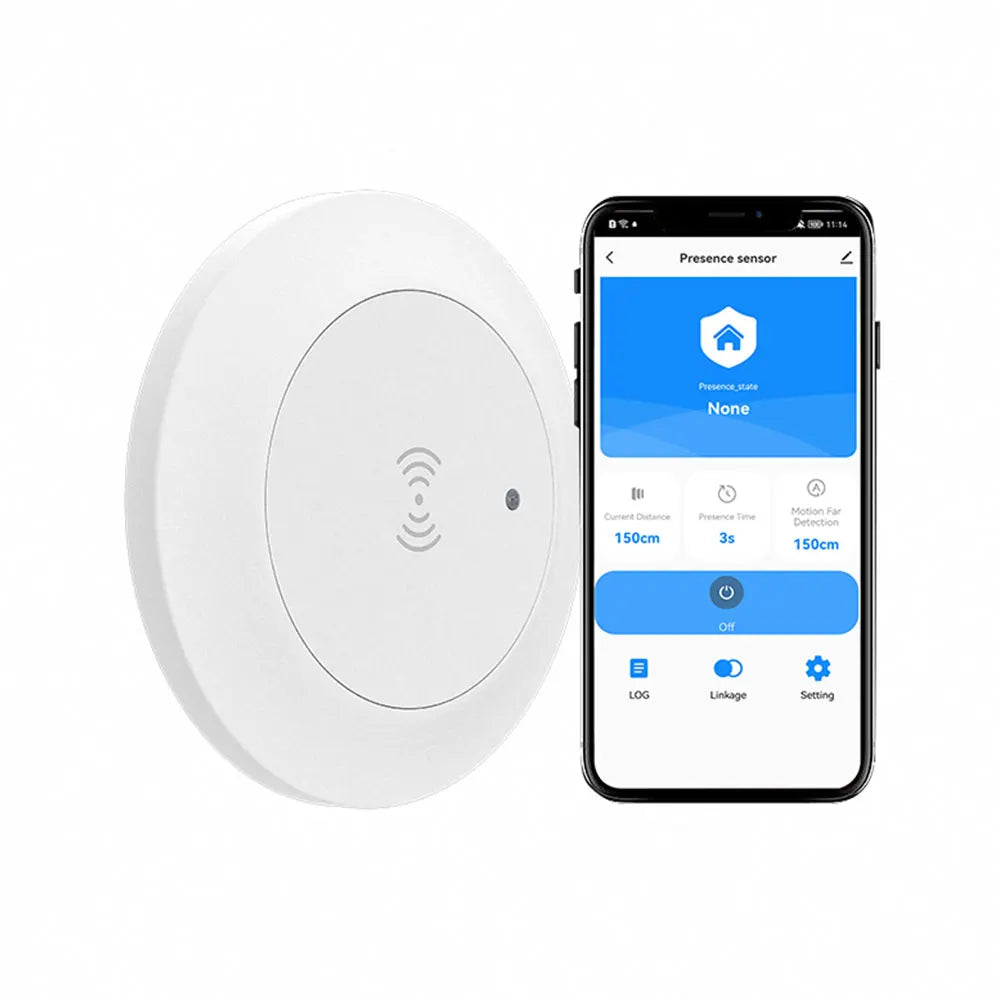

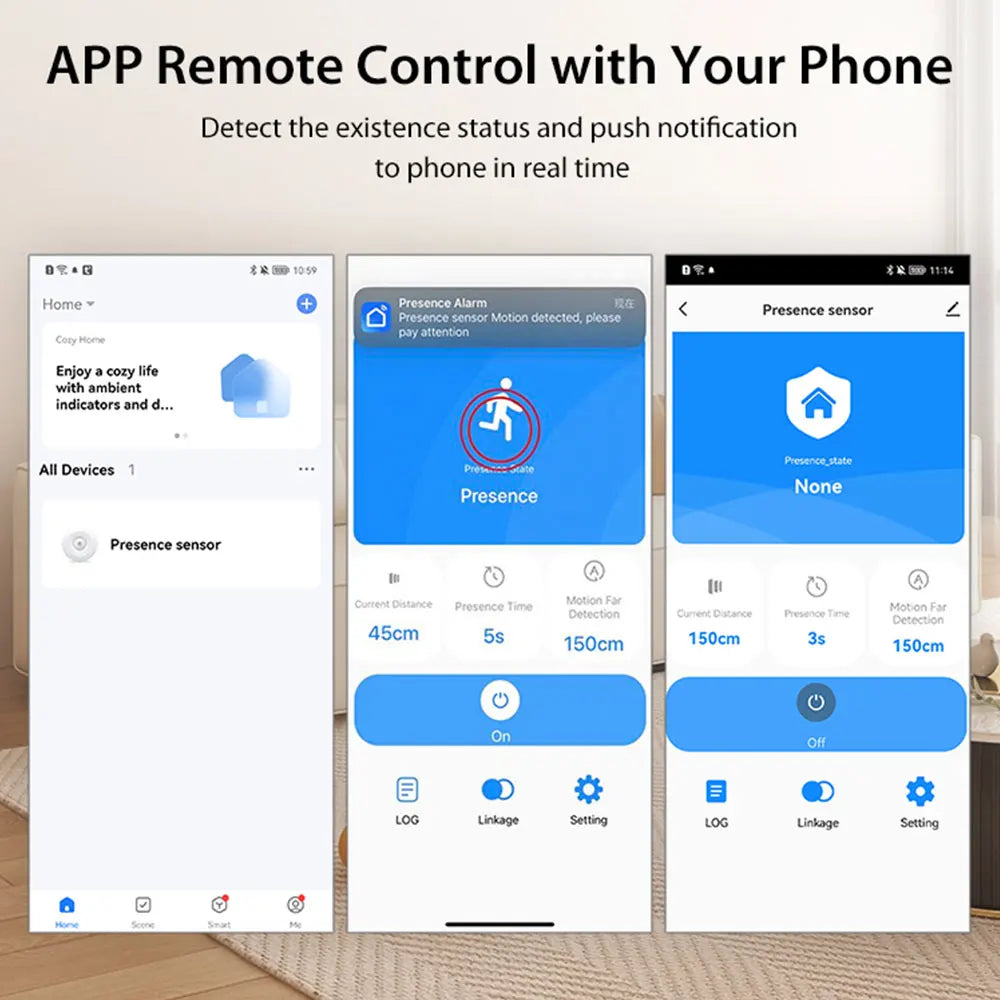

● Support Smart Life and Tuya Smart APP;
● Requires Zigbee 3.0 Tuya gateway
● Power：AC 95~250V 50/60Hz
● Max Output Current: 2A

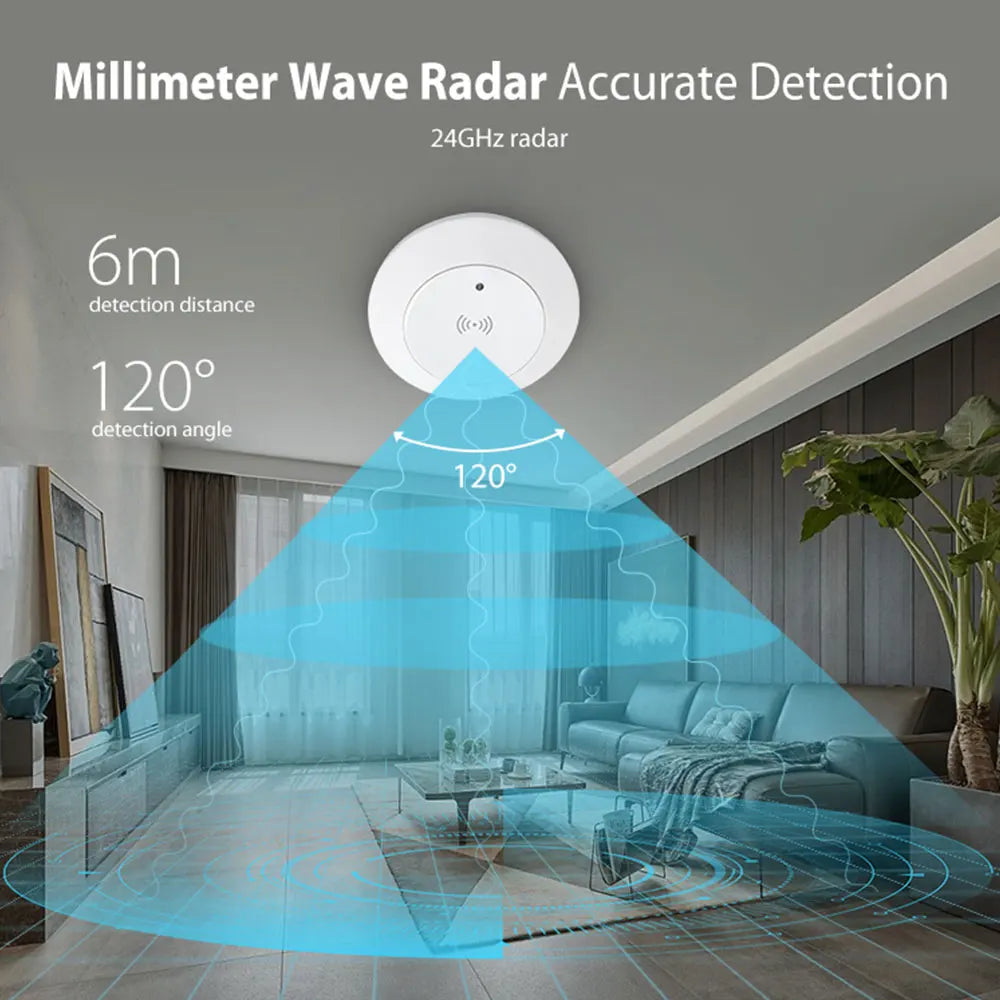

● Detect Angle: 120°
● Radar Frequency: 24GHz
● Working Temperature: -10℃ ～ 60℃ (14°F～140°F)
● Working Humidity: 1% ～ 85%RH(Non-condensing)
● Max Detection Distance: 6M
● Status Indicator: One LED light
● Wireless Standard：ZigBee IEEE 802.15.4MAC/PHY
● Wireless Frequency：2.4GHz
● Wireless Protocol：ZigBee 3.0
● Wireless Distance：50M
● Product Size: 90mm*90mm*28.5mm
