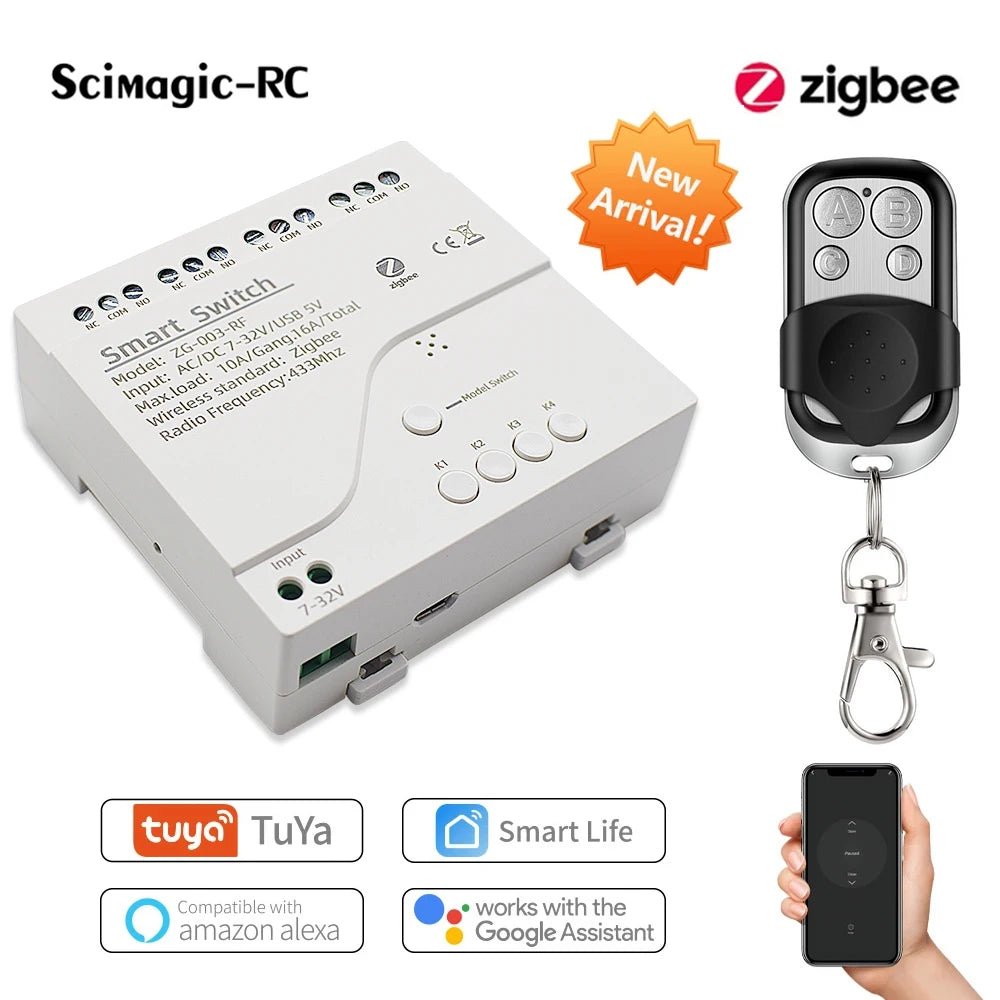

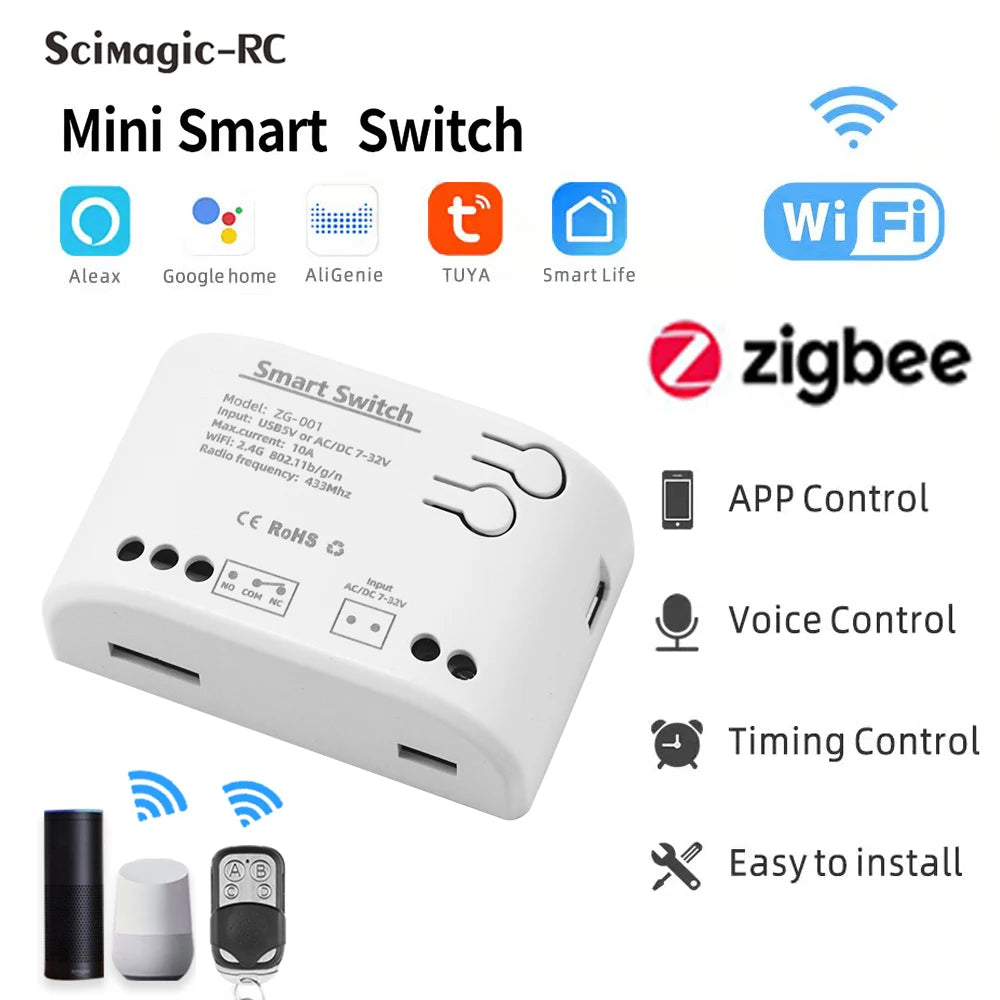

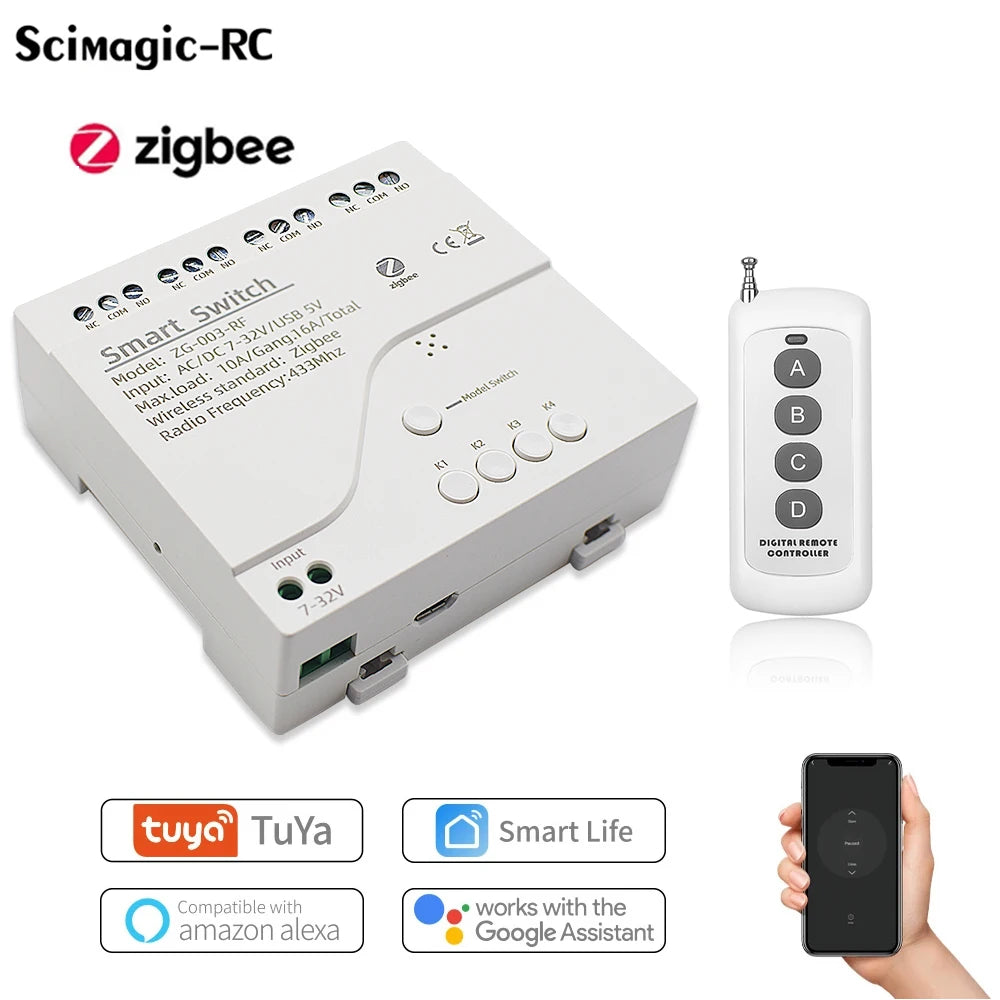

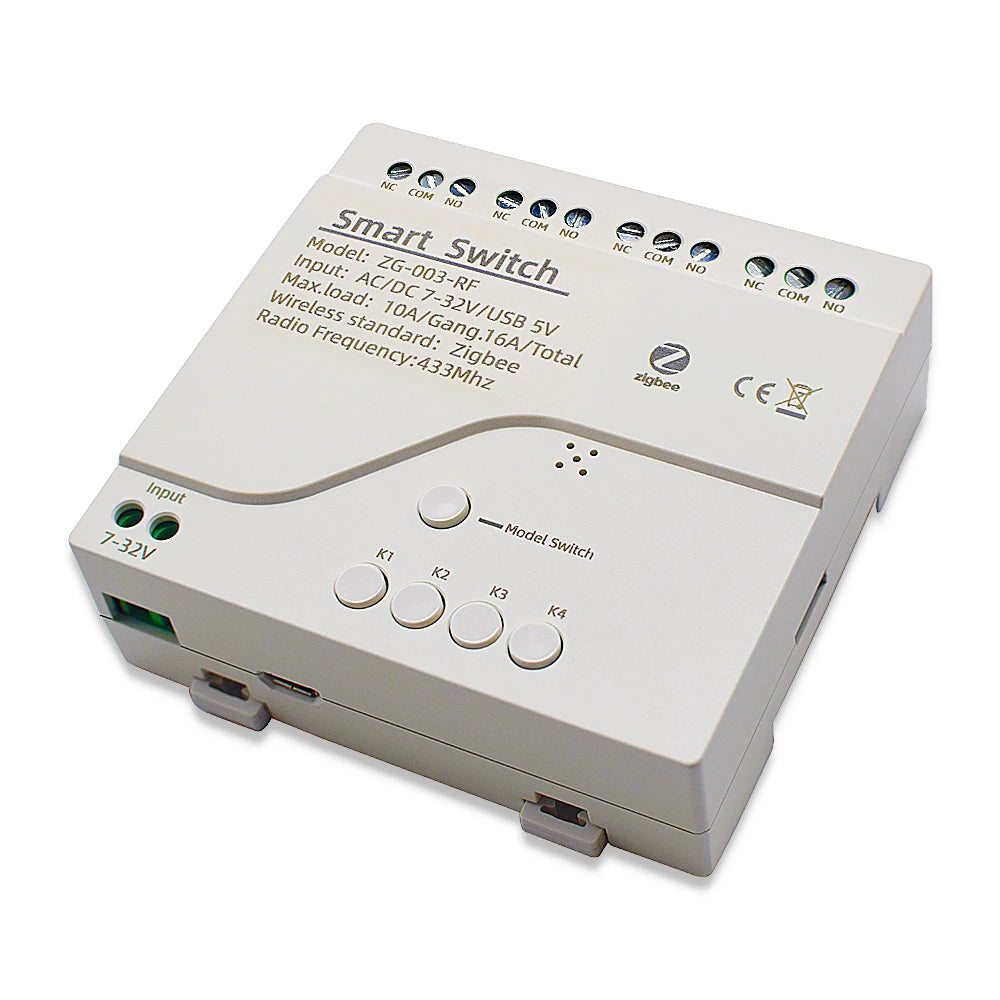

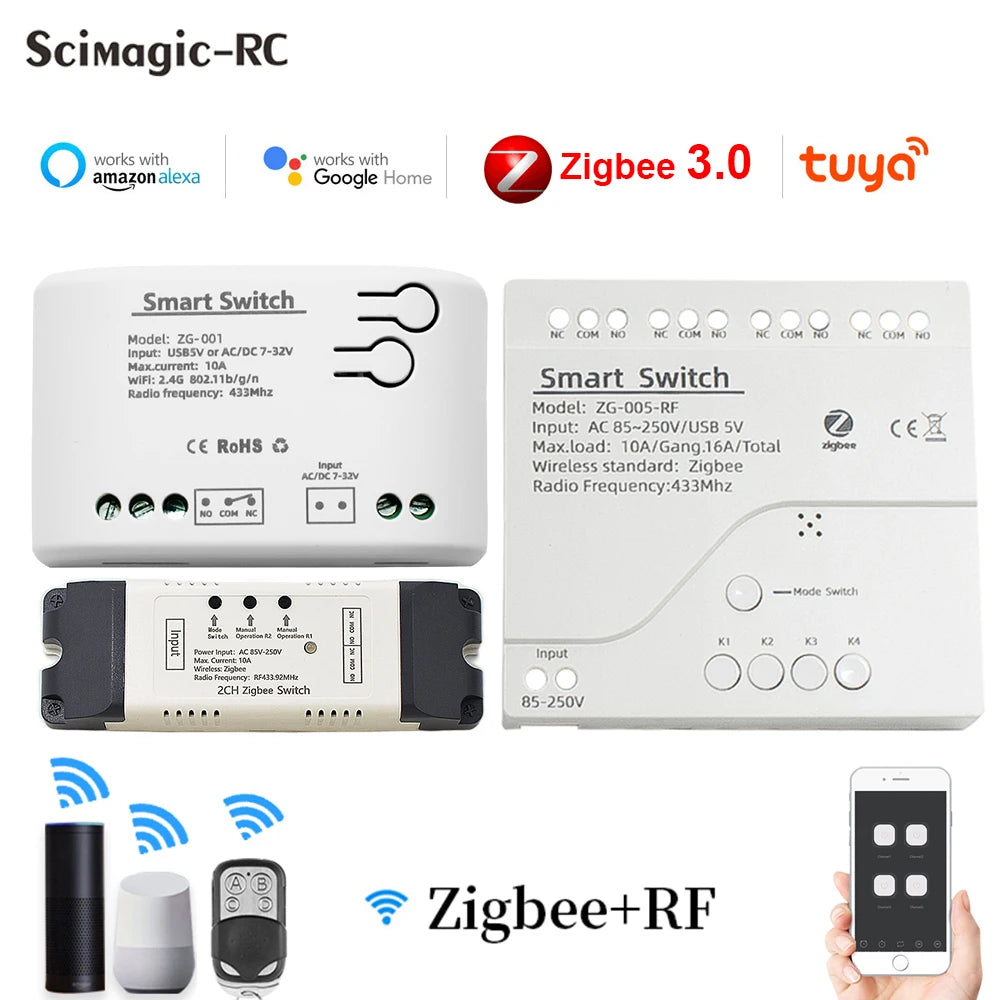

Tuya Zigbee Relay 4CH Smart Home Switch Module APP Remote Control Wireless Radio RF 433 4 Channel Relay for Zigbee Gateway Hub
Tuya Zigbee Relay 4CH Smart Home Switch Module APP Remote Control Wireless Radio RF 433 4 Channel Relay for Zigbee Gateway Hub
SPECIFICATIONS
Brand Name: Scimagic-RC
Certification: CE
Choice: yes
Communication method: Zigbee,RF,Wi-fi
Compatibility: All Compatible
DIY: Smart Home, Home automation
Drop shipping: Welcome drop shipper
Features: Voice control,Time switch,APP control
Function feature: App Remote Control
High-concerned chemical: None
Item Type: Zigbee Smart Switches
Model Number: Zigbee smart module

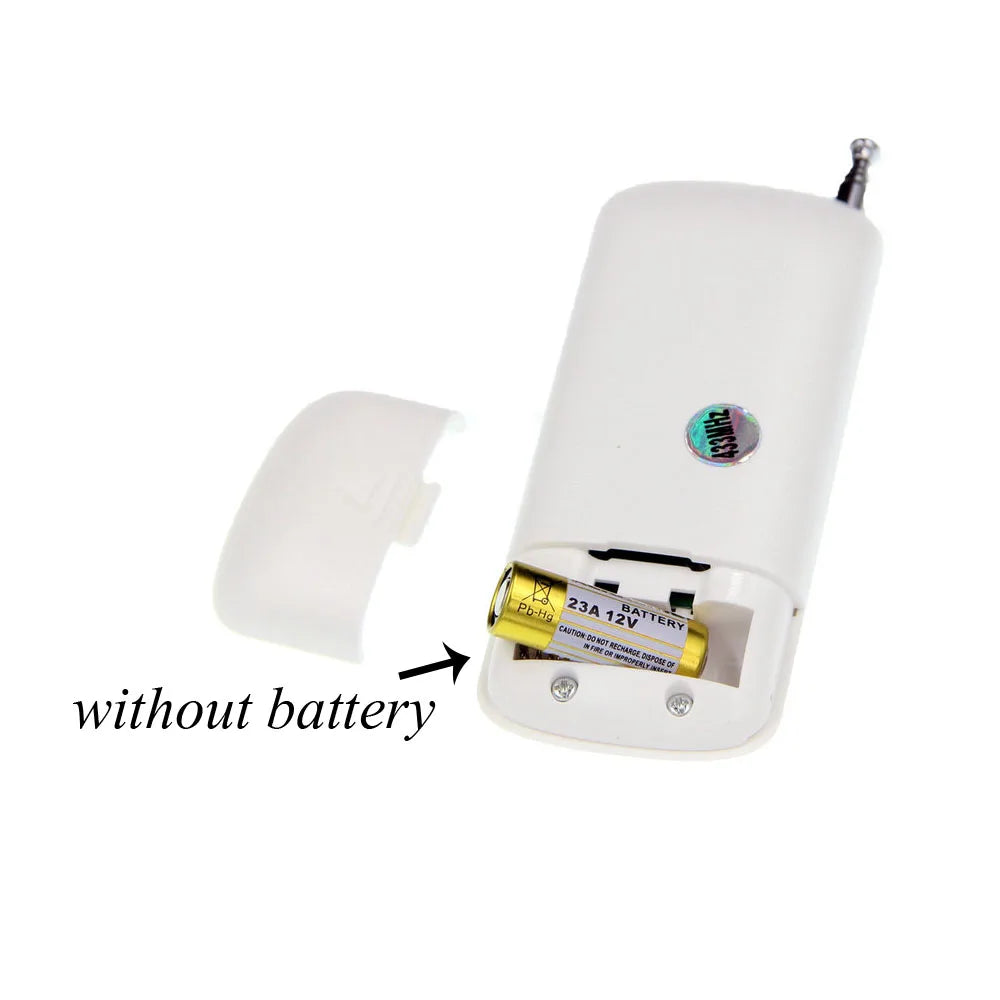

Note: Remote control without battery
Origin: Mainland China
RF: Support 433MHz remote control
State of Assembly: Ready-to-Go
Time Type: Timer
Voice Control: Google Assistant, Amazon Alexa
Wireless Protocol: zigbee
connected object: household applicacances
Zigbee 1/2/4 Channel Switch Module Relay makes your home smarter
Three Working Modes
Use for
1.Remotely give a pulse signal to turn on/off Lights,Lamps and other home appliance.
2.Remotely give a pulse signal to turn on/off Garage Door,Door Access.
3.Remotely give a pulse signal to control DC Motor,AC Motor to Forward and Reverse.
Features:
*Supports zigbee gateway control.
*Supports manage numerous zigbee smart switches on one smart phone.
*Supports status tracking: it will show device status timely in the Tuya/Smart Life
*Supports remotely turn on/off household appliances, such as light, electric kettle, electric rice cooker, electric curtain, access control etc.

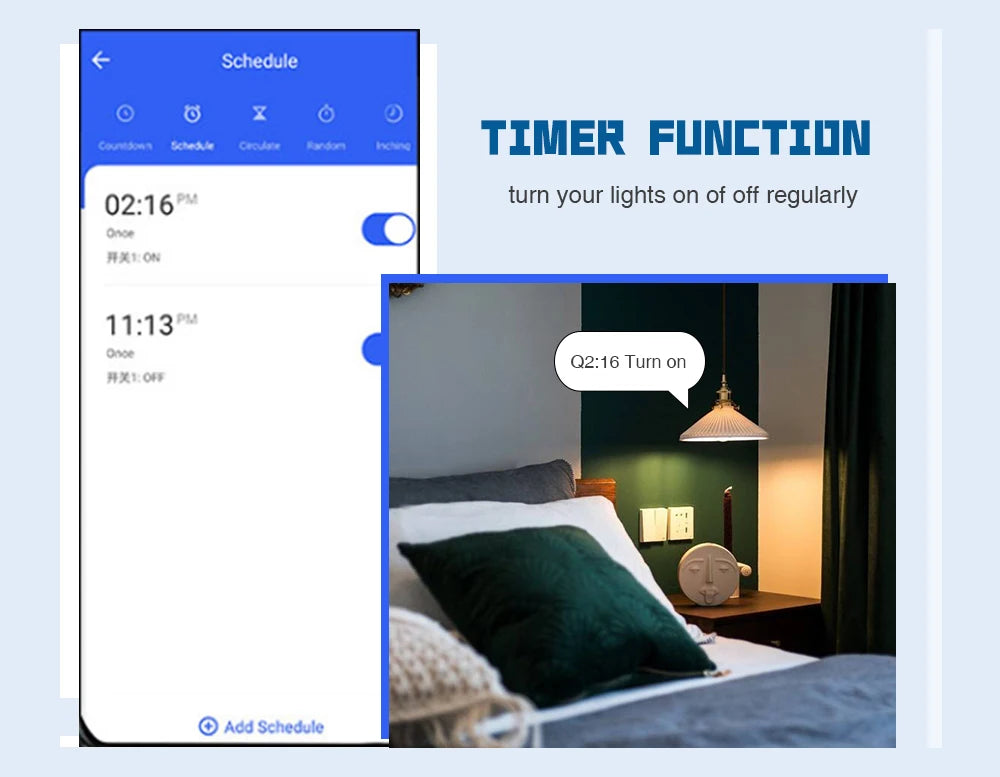

*Supports enabled 8 time schedule/countdown/ cycle timers for each device.
*Voice Control: Compatible perfectly with "Amazon" Alexa, Google Assistant.
*RF Control: Can be used with RF 433MHz remote control.
*Supports status tracking: device status timely feedback to the APP.
Description:

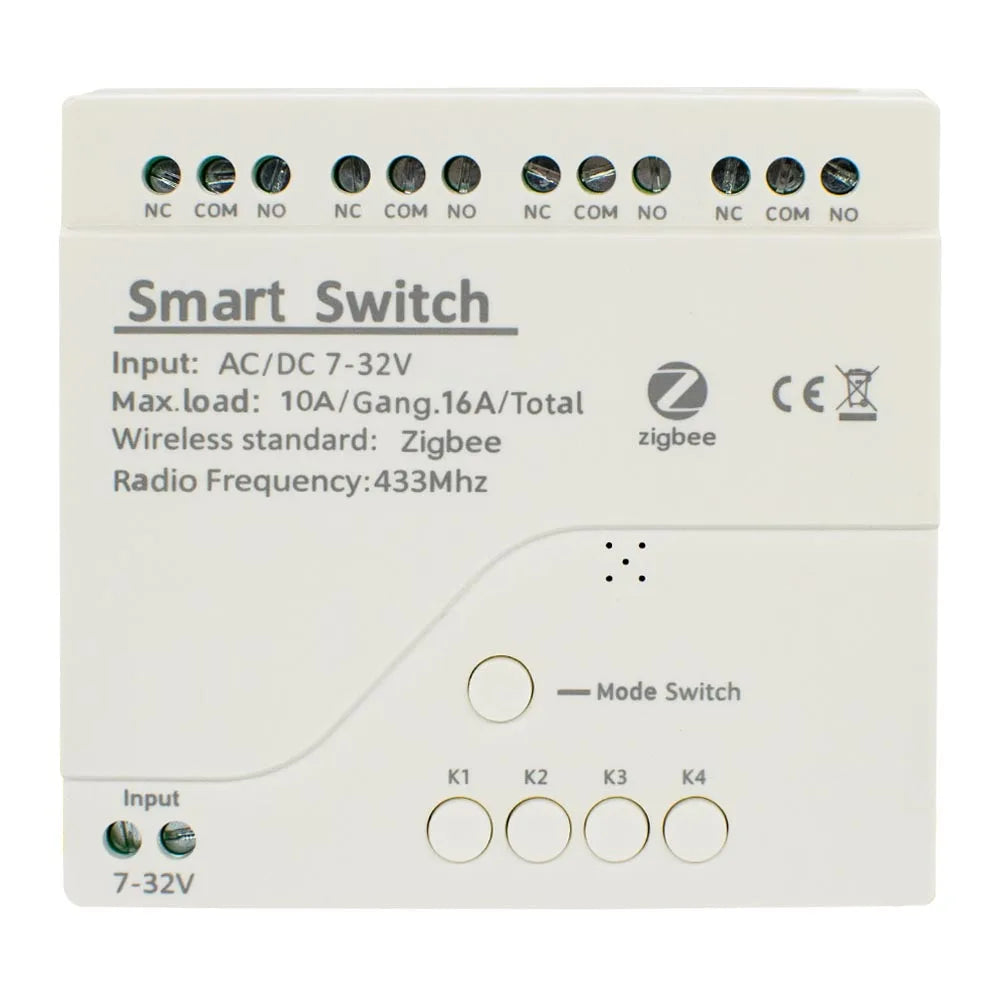

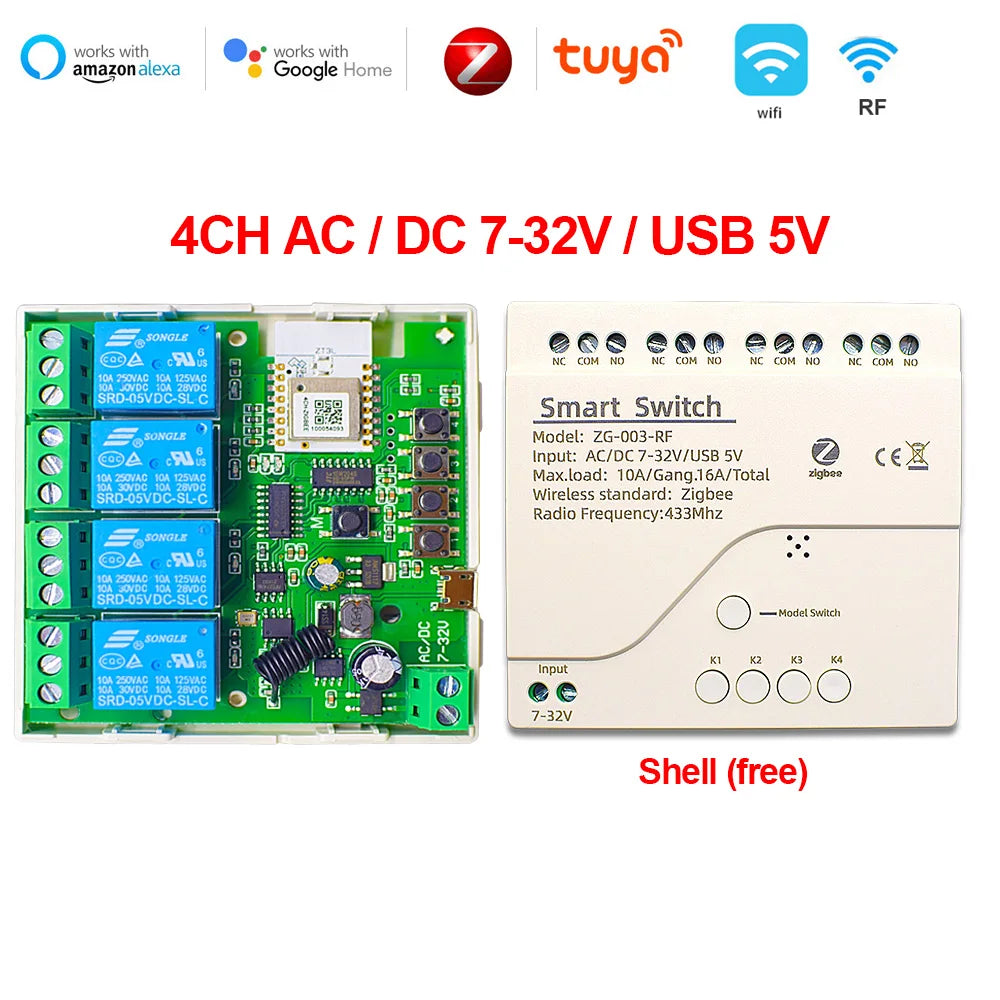

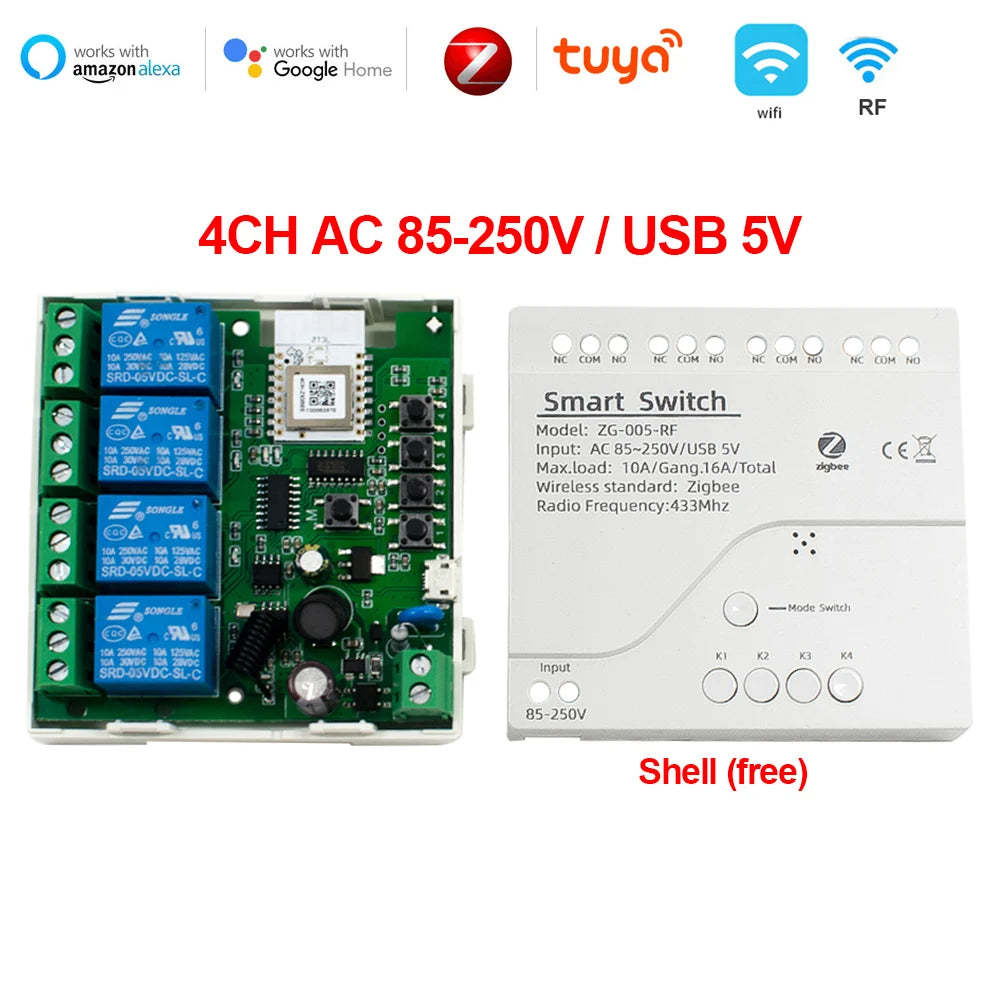

Working voltage: AC/DC 7-32V / USB 5V.
Radio frequency: 433MHz.
Zigbee standards/ protocol :zigbee 3.0.
Max load : 10A/Gang 16A/Total.

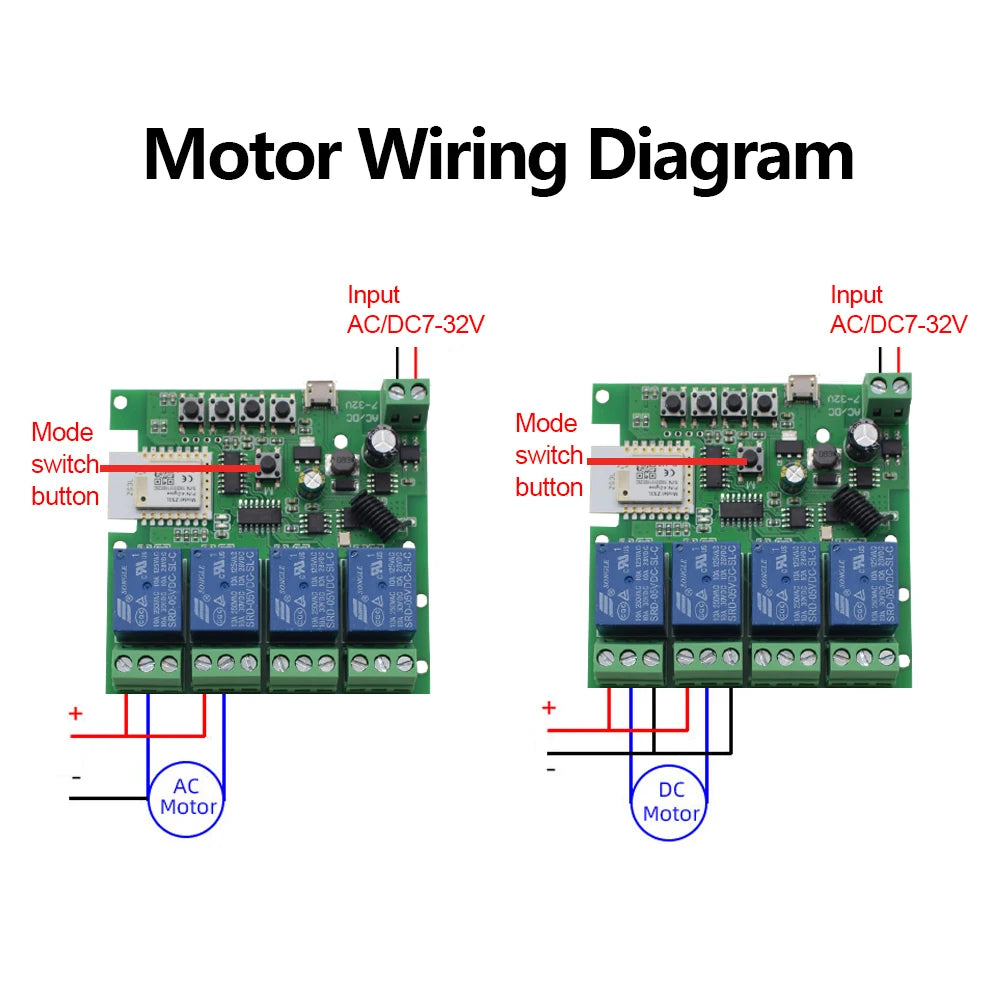

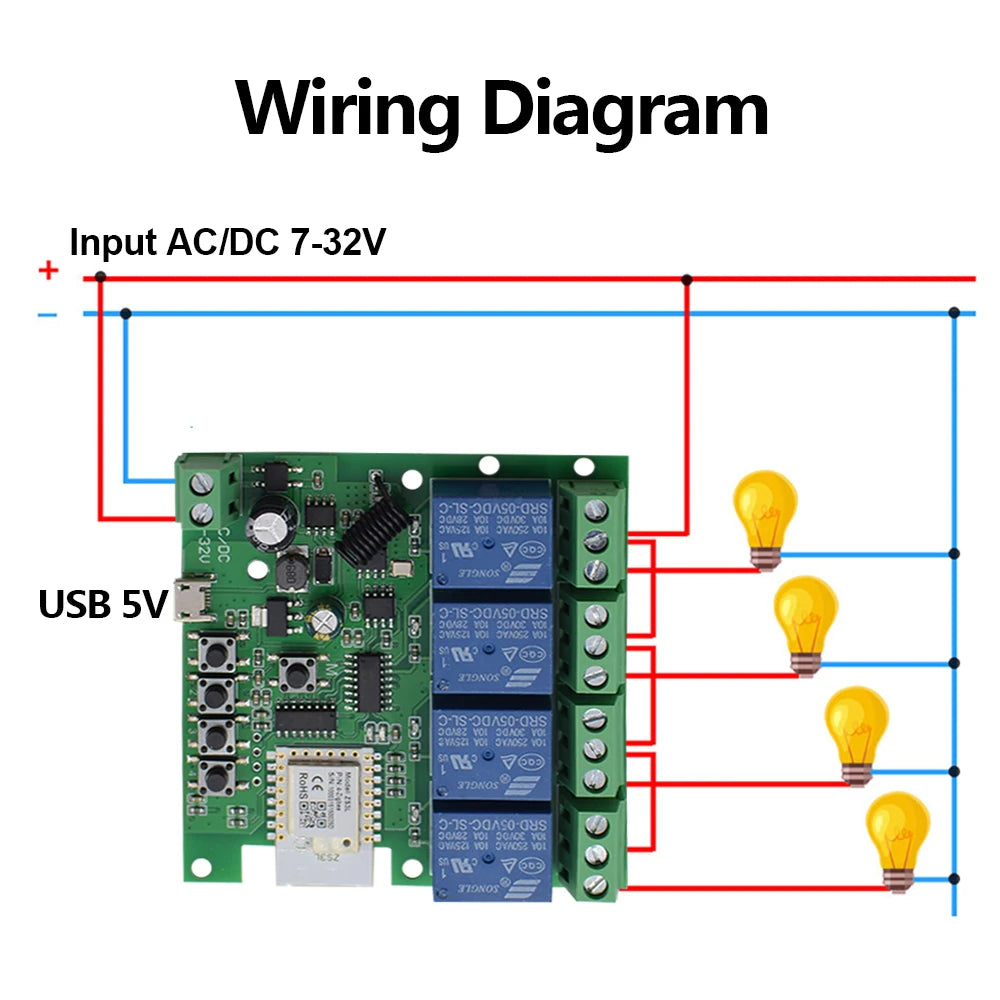

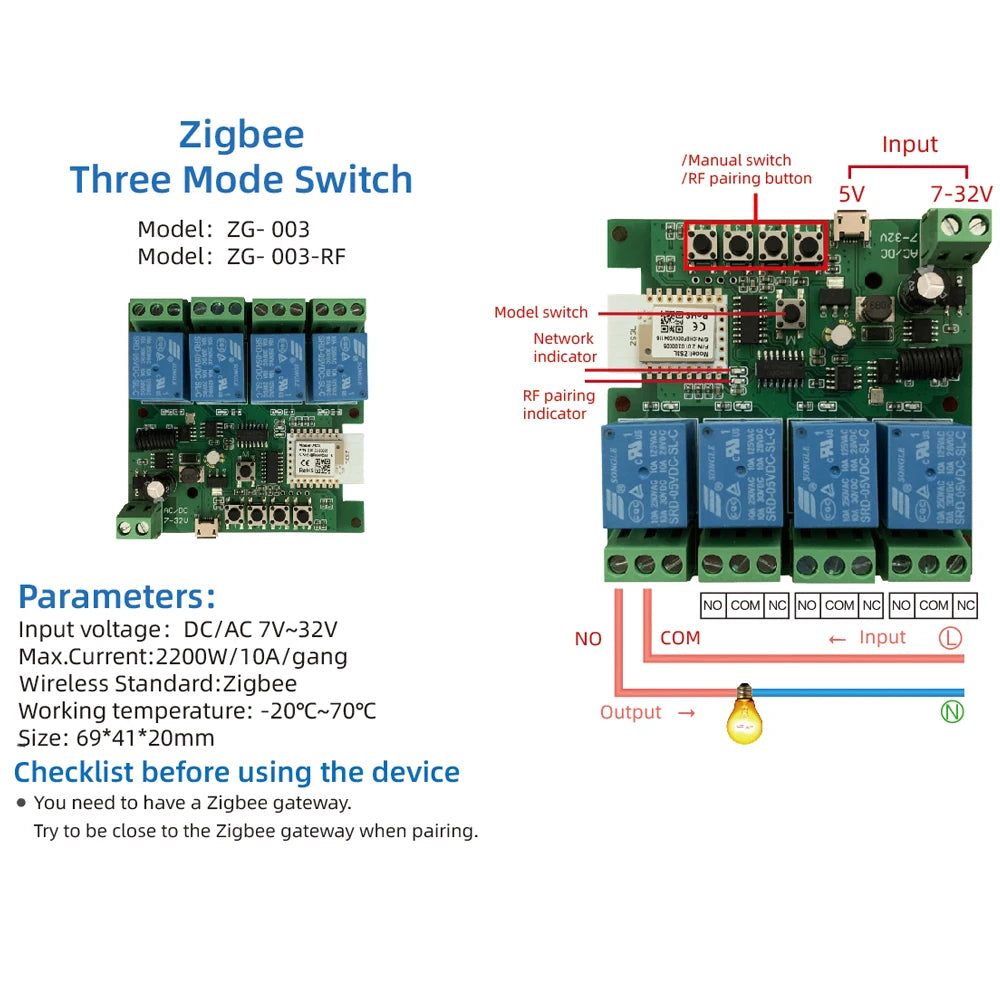

Common wiring methods

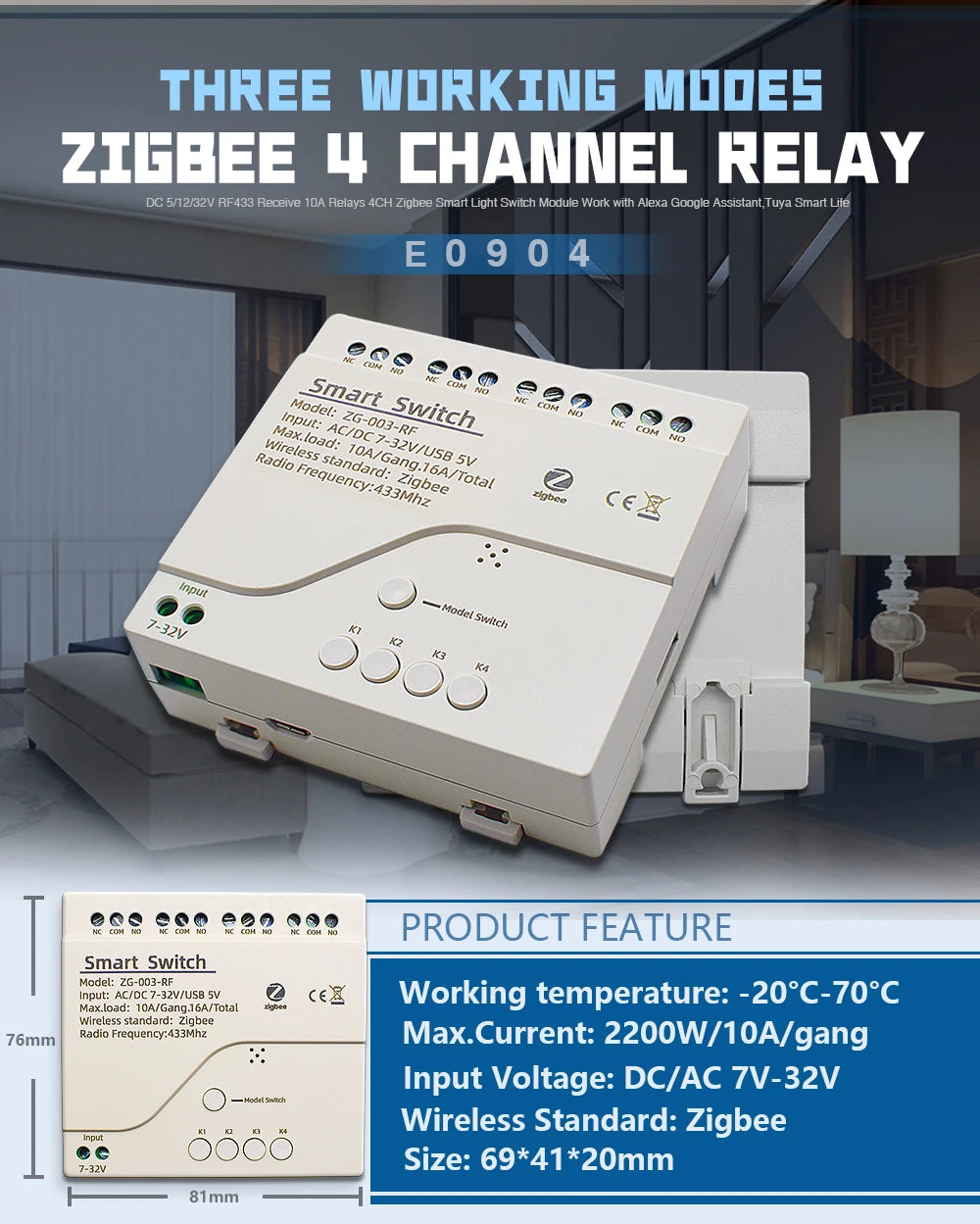

3 Working Modes
1.Inching mode : Switch on channel 1,channel 1 will be automatically closed after 1 seconds . The inching time can set in the APP
Other channel is same to the channel 1 . you can also change the inching time on the APP and need enter into the self-lock or interlock mode
2.Self-locking : each channel could be switched on/off seperately .
3.Interlocking mode : Switch on any channel , other channels will be switched off automatically .

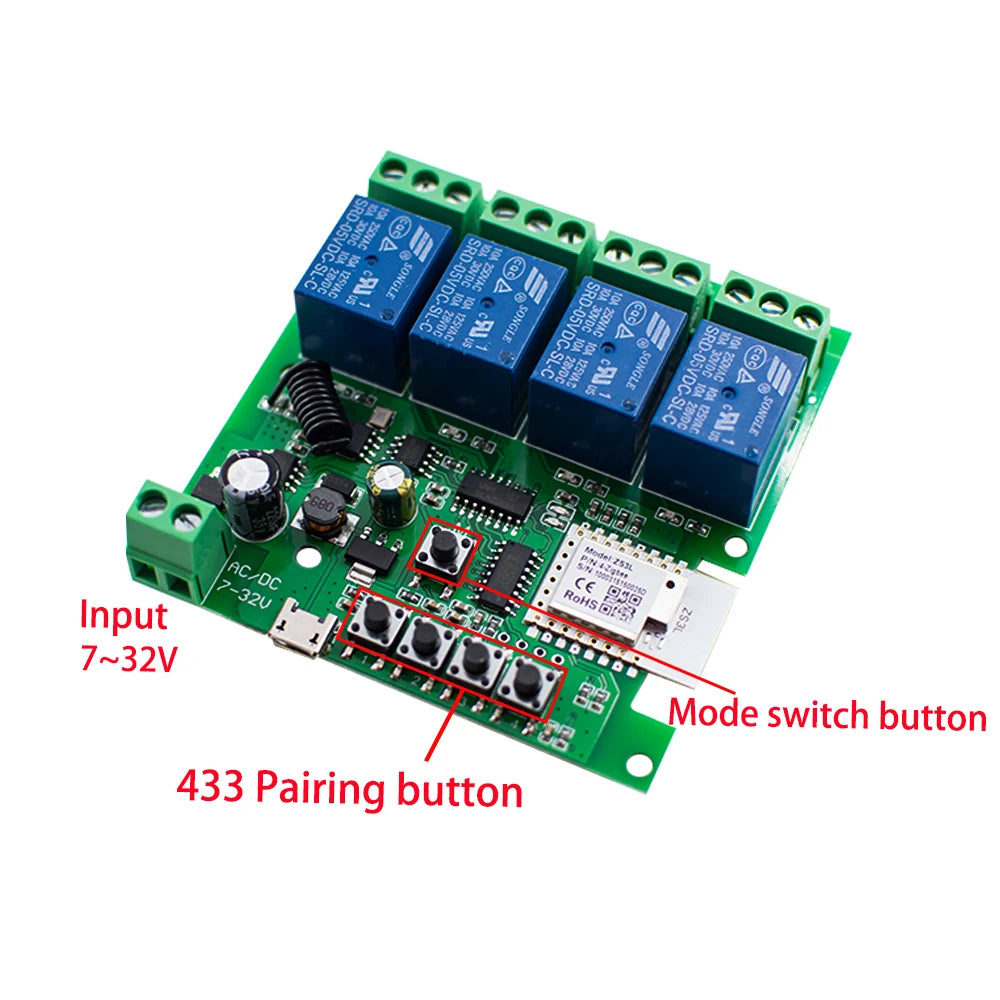

If you need to change the mode,you need to press the mode button

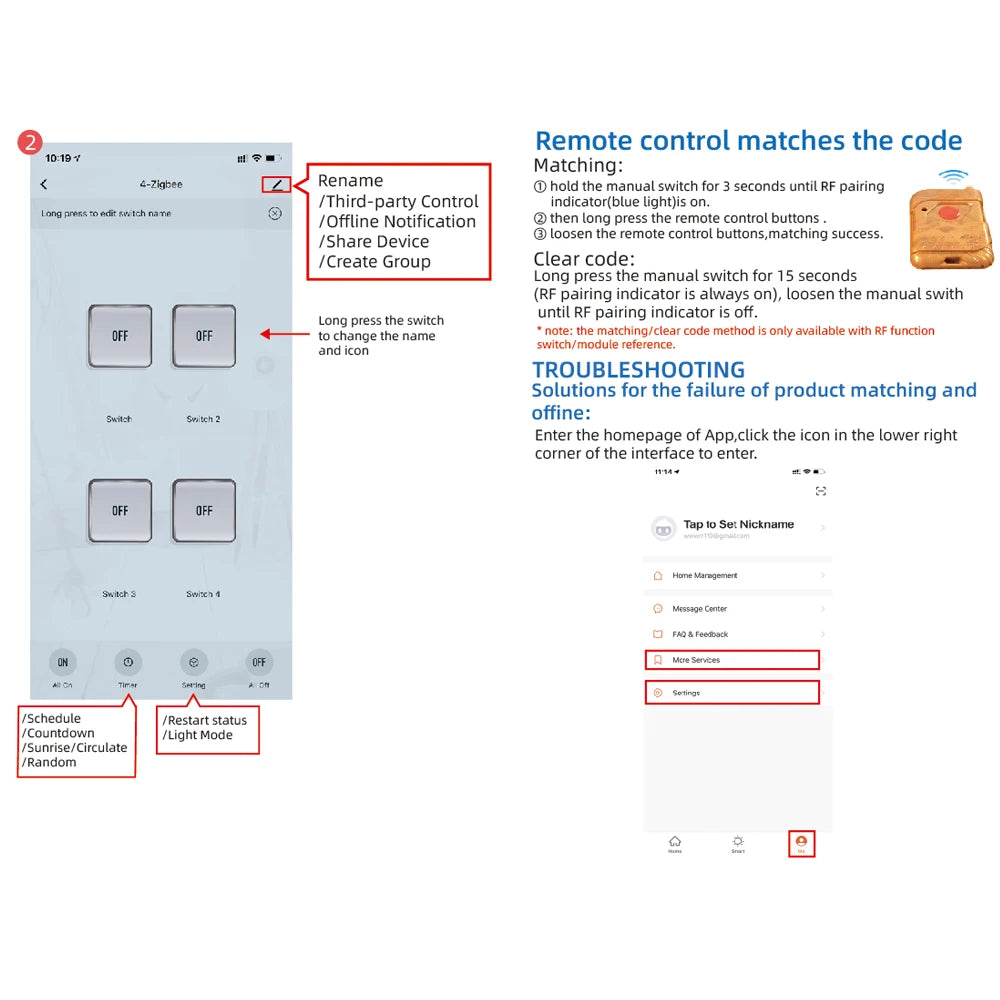

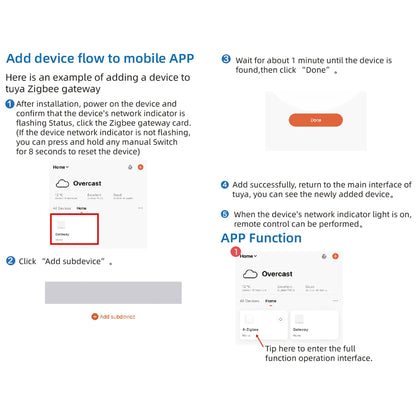

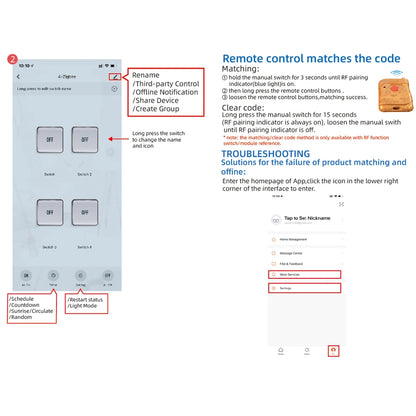

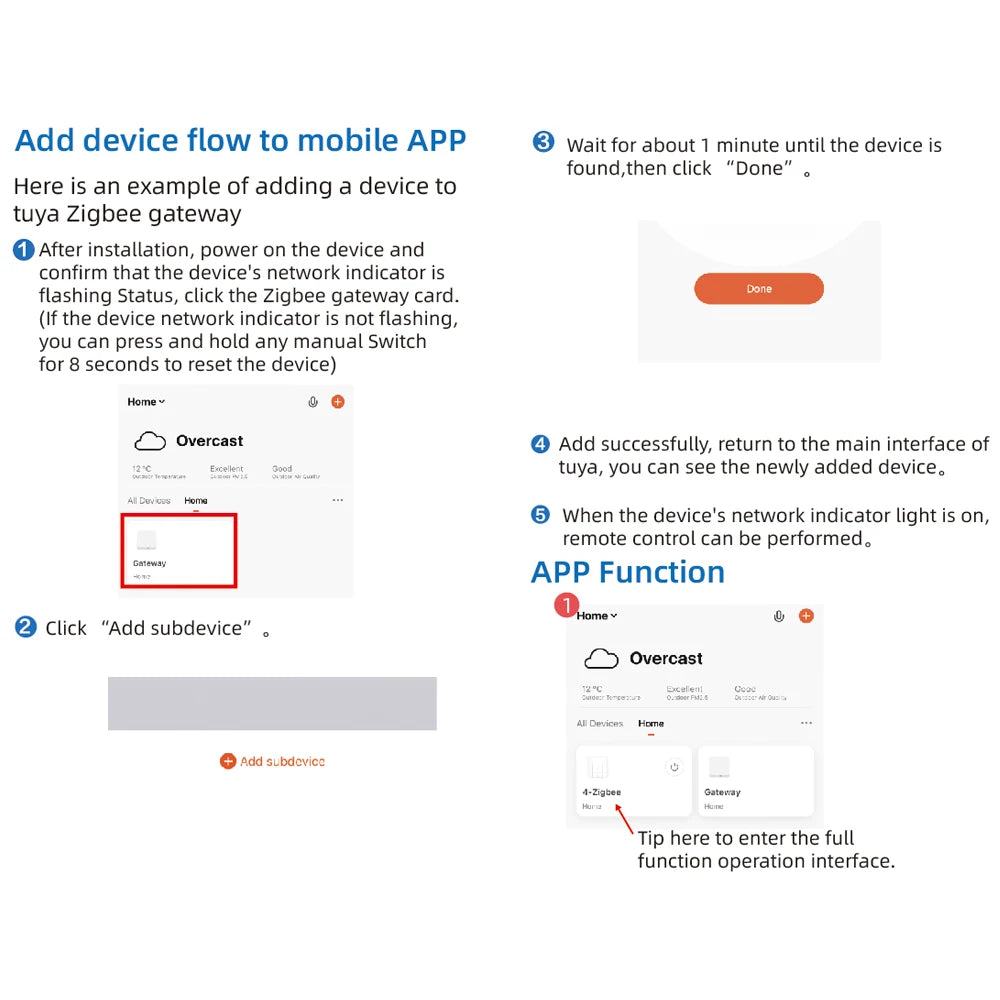

User's manual

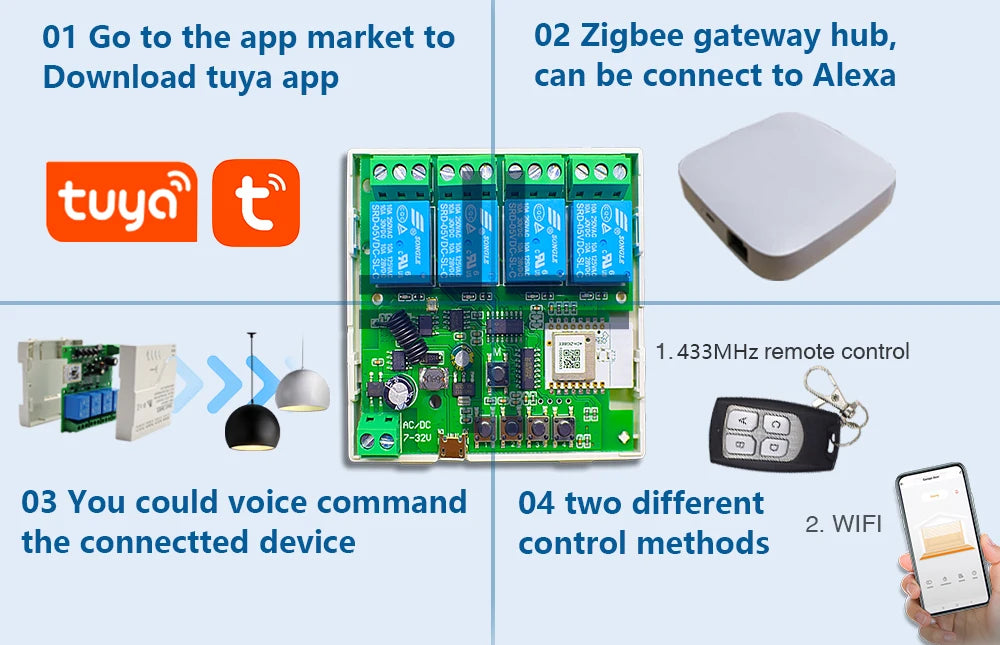

Physical picture

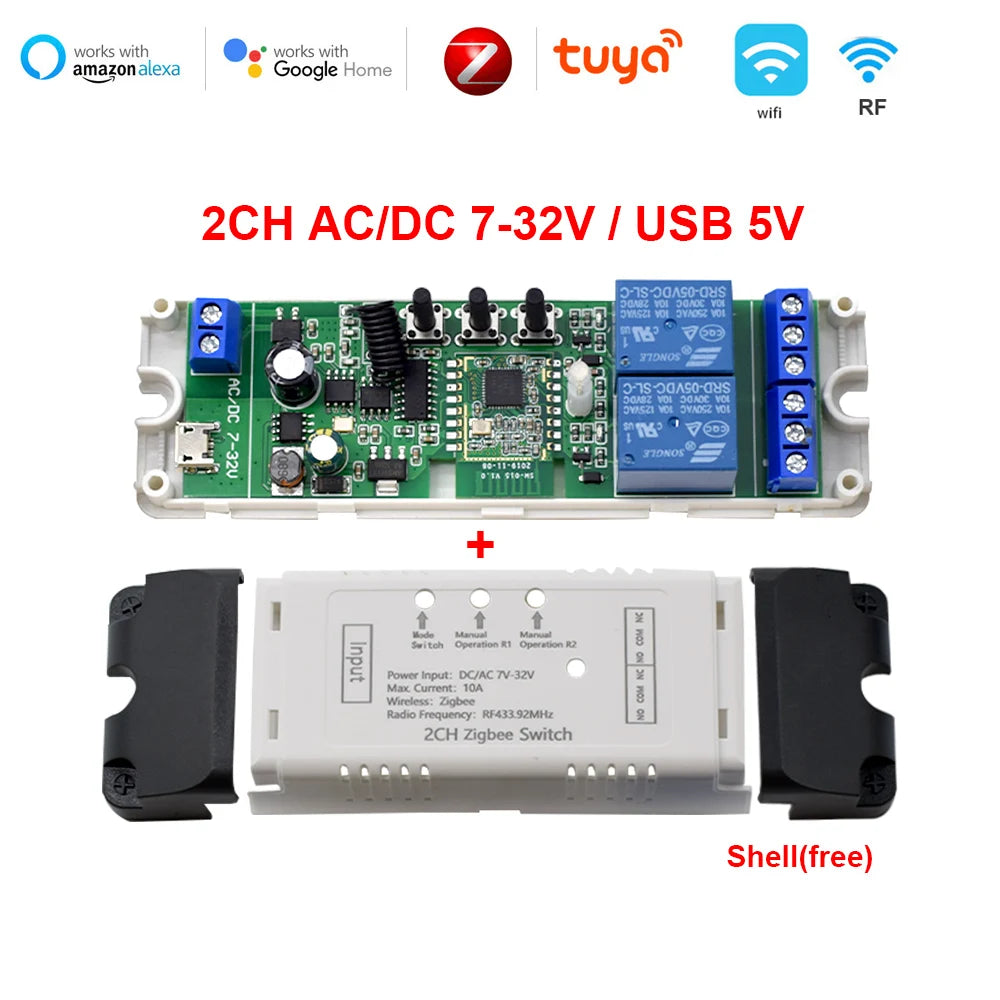

2 Channel AC/DC 7-32V
lnput voltage: DC/AC 7V~32V or USB 5V
Number of channels: 2.
Max.Current:2200W/10A
wireless Standard:Zigbee
Radio frequency: 433MHz.
Zigbee standards/ protocol :zigbee 3.0.
Working temperature: -20℃~70℃

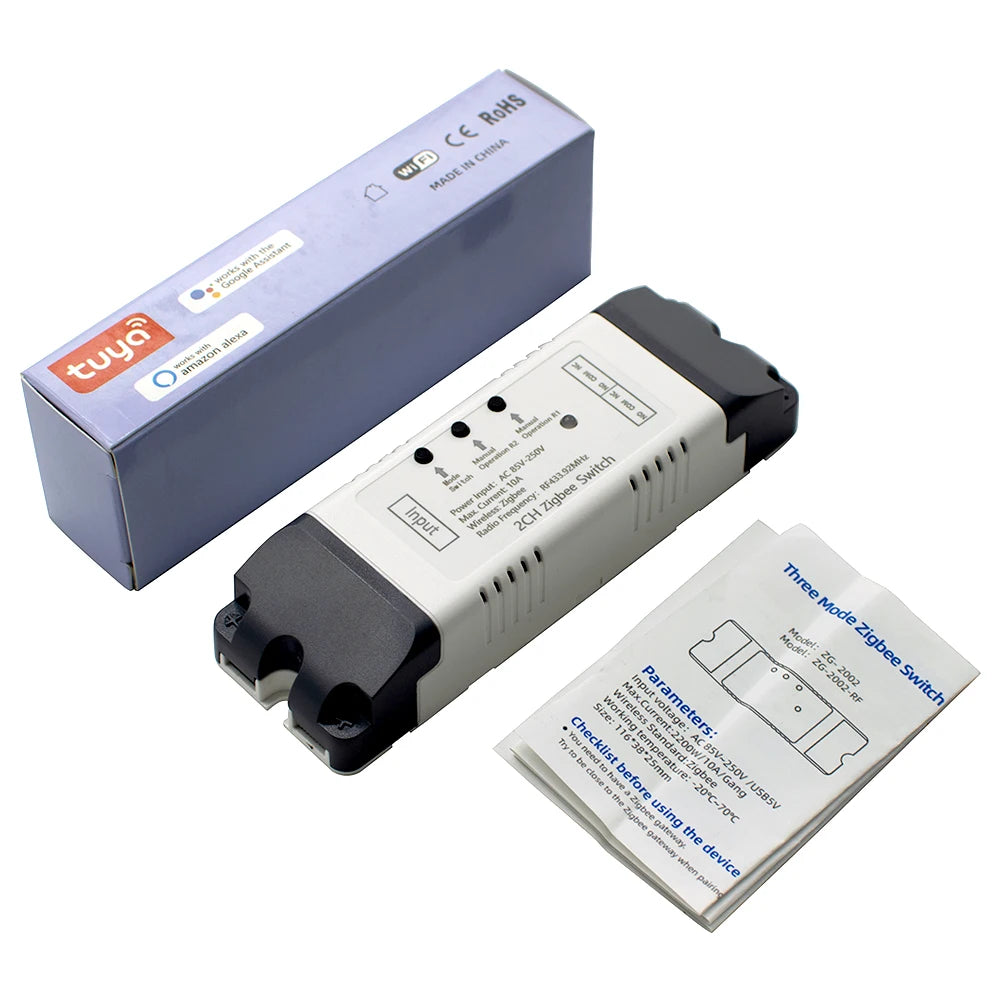

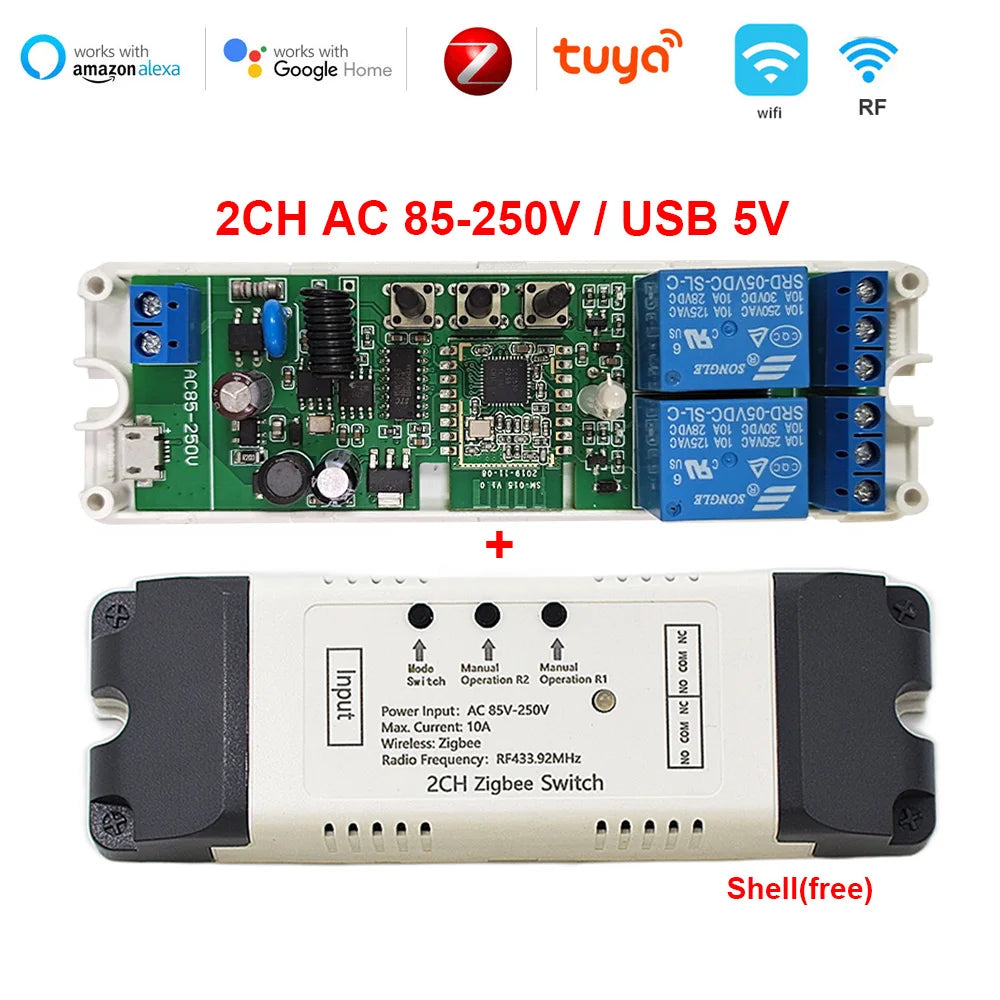

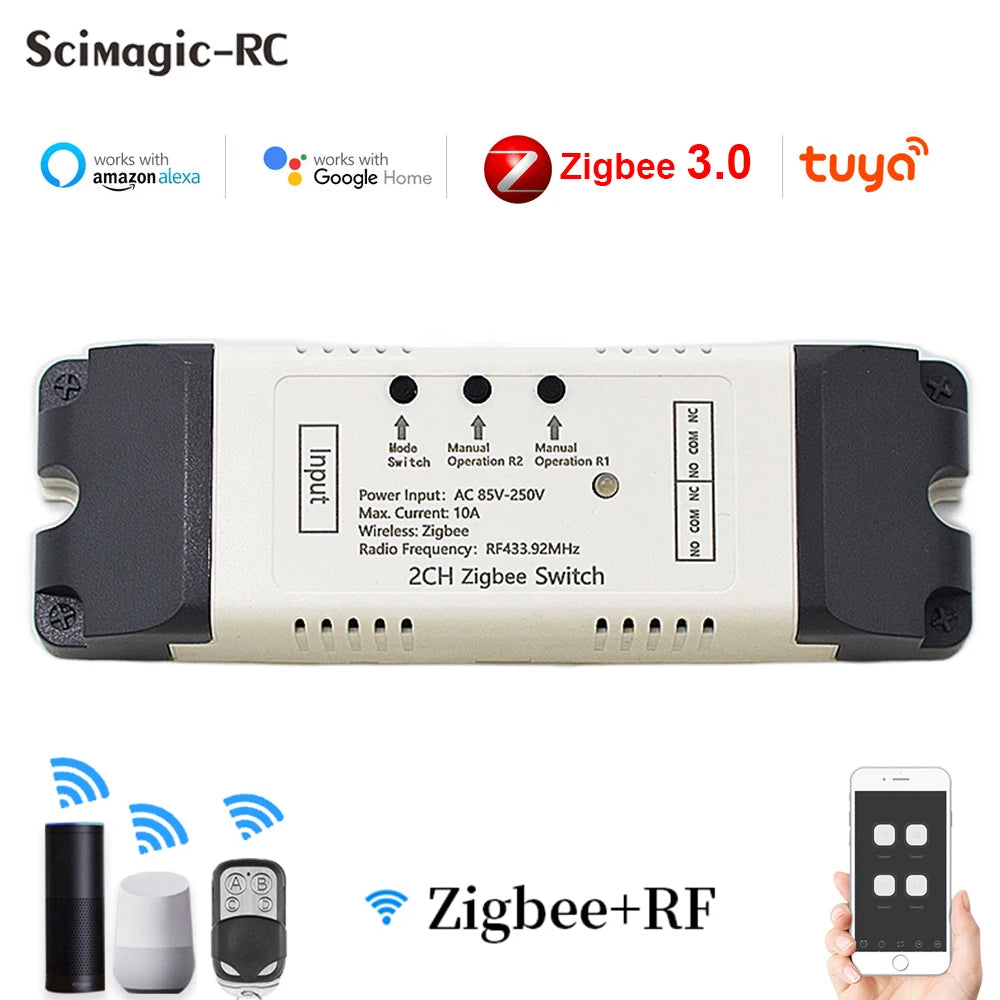

2 Channel AC 85-250V
lnput voltage: AC 85V~250V or USB 5V
Number of channels: 2.
Max.Current:2200W/10A
wireless Standard:Zigbee
Radio frequency: 433MHz.
Zigbee standards/ protocol :zigbee 3.0.
Working temperature: -20℃~70℃

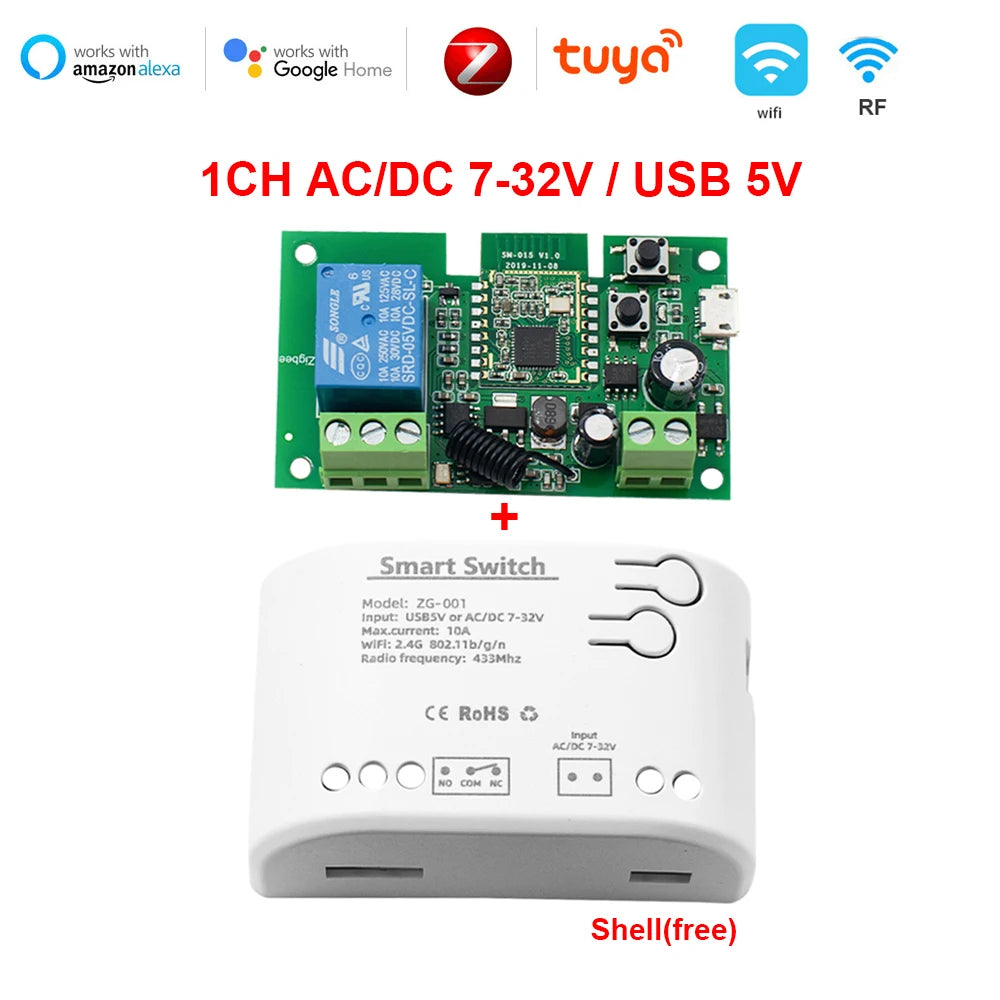

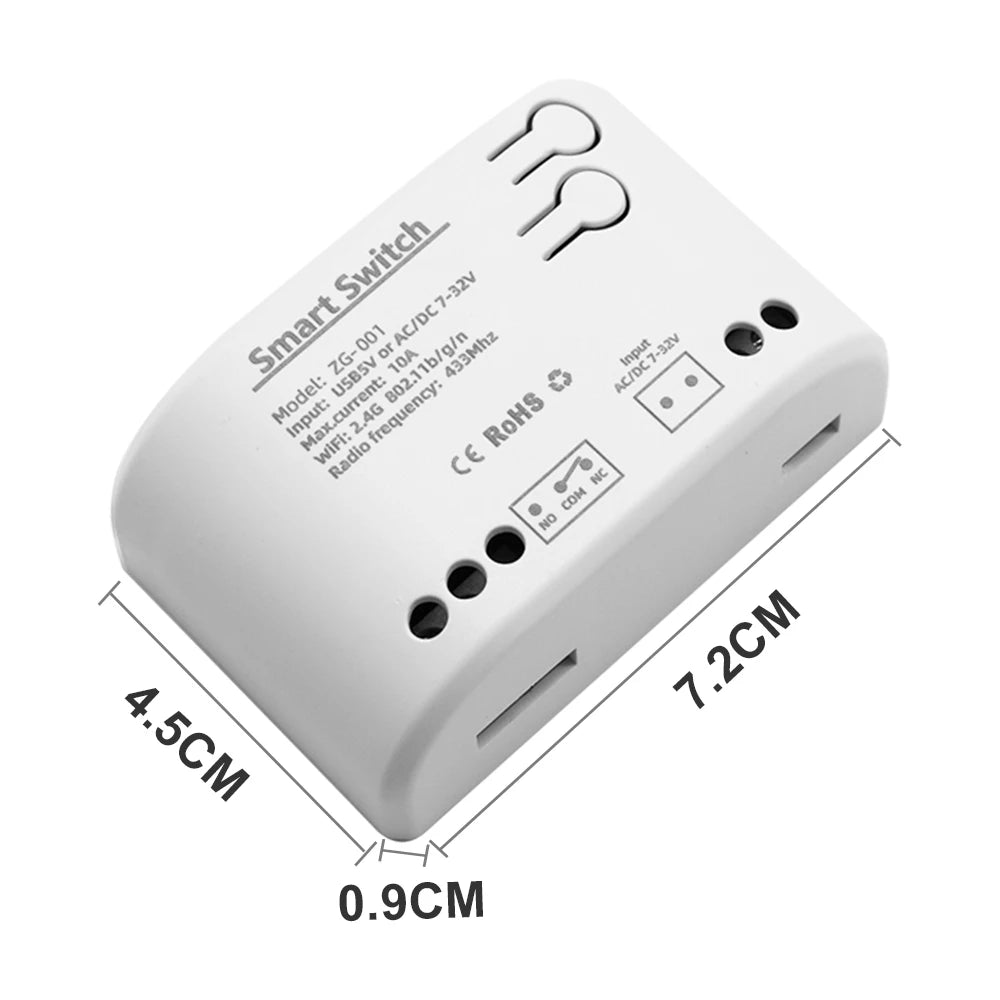

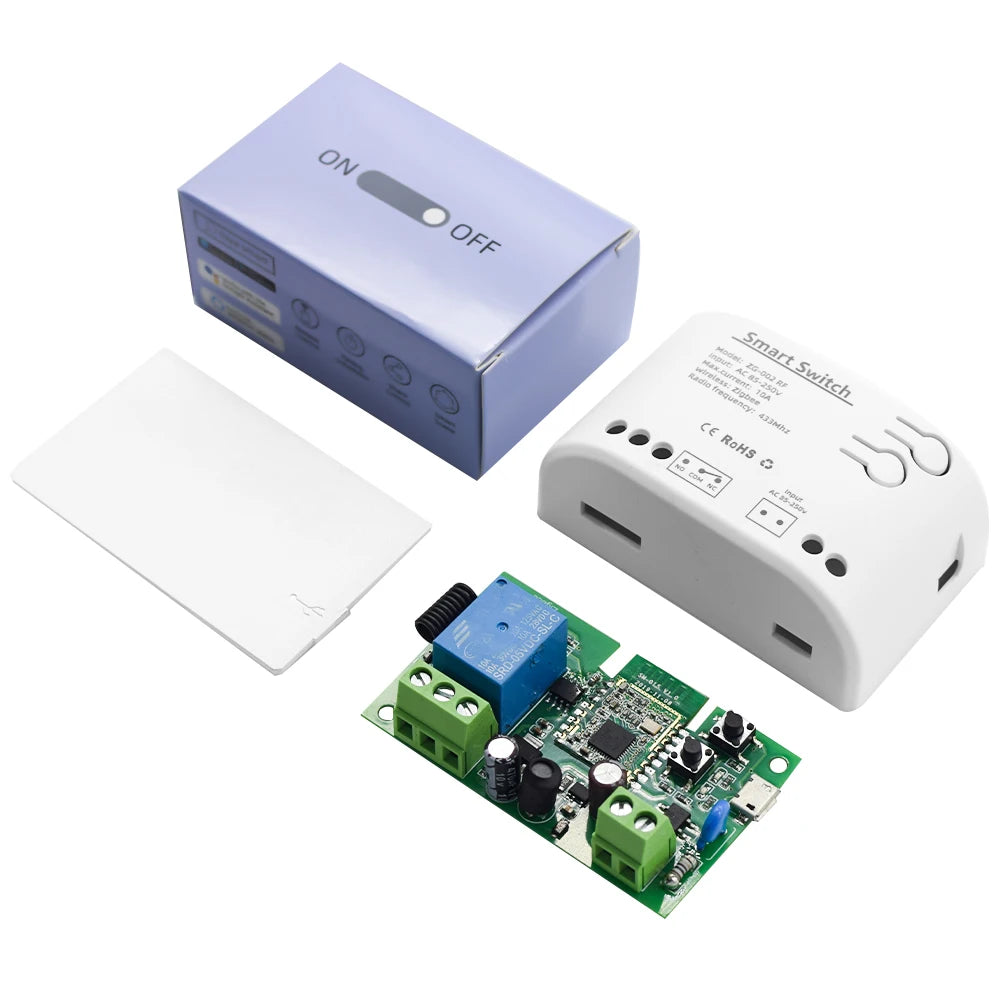

1 Channel
lnput voltage: DC/AC 7V~32V or USB 5V
Number of channels: 1.
Max.Current:2200W/10A
wireless Standard:Zigbee
Radio frequency: 433MHz.
Zigbee standards/ protocol :zigbee 3.0.
Working temperature: -20℃~70℃
Note:
The zibgee series relays need to be used with the zibgee gateway. If there is no zibgee gateway, you need to buy it at this link. However, the current smart speakers on the market basically have the zibgee gateway function.

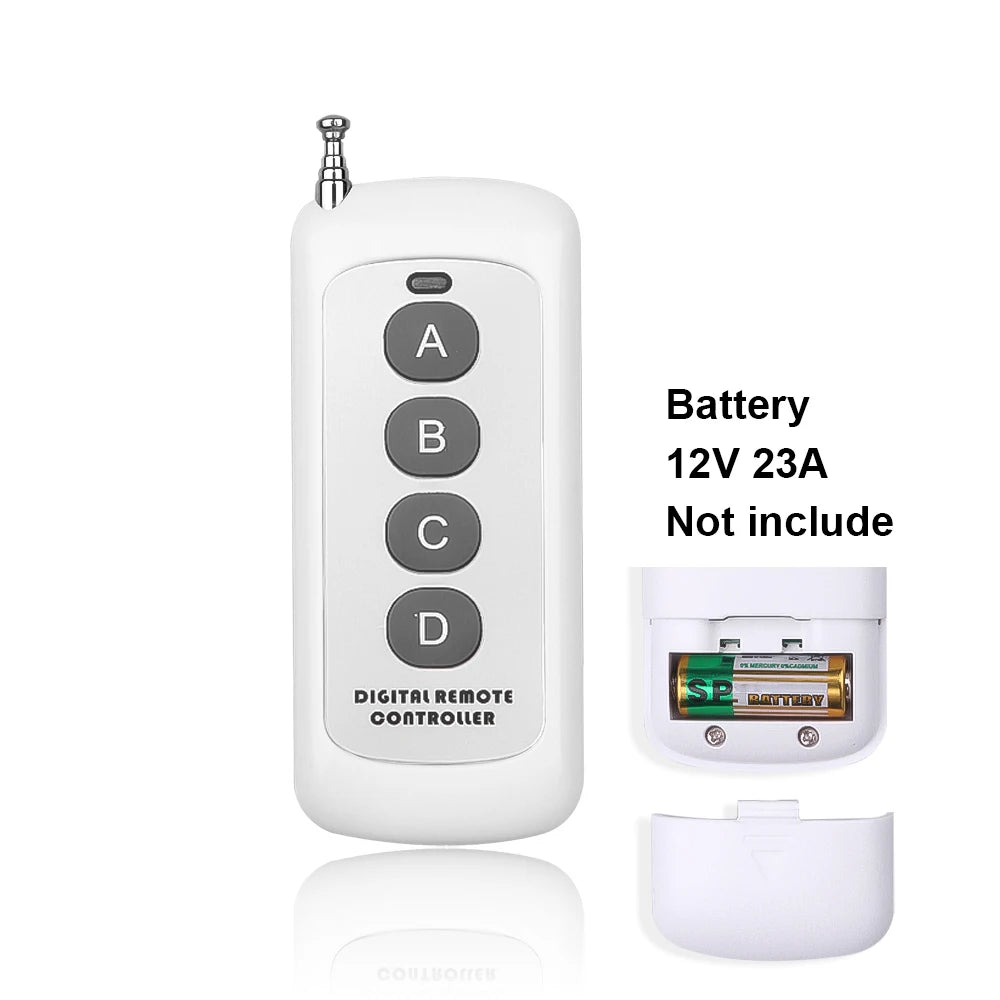

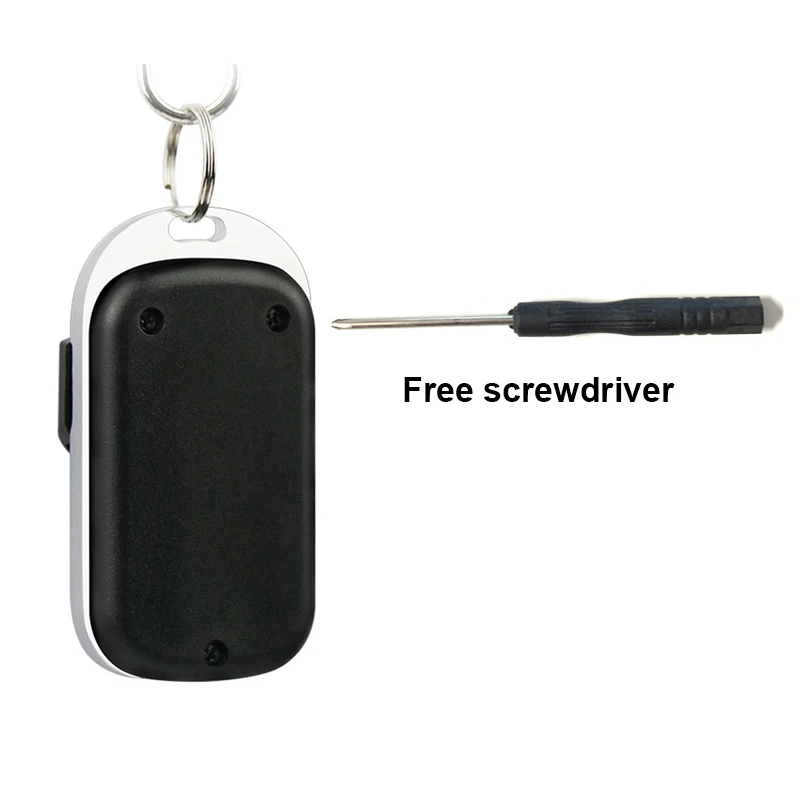

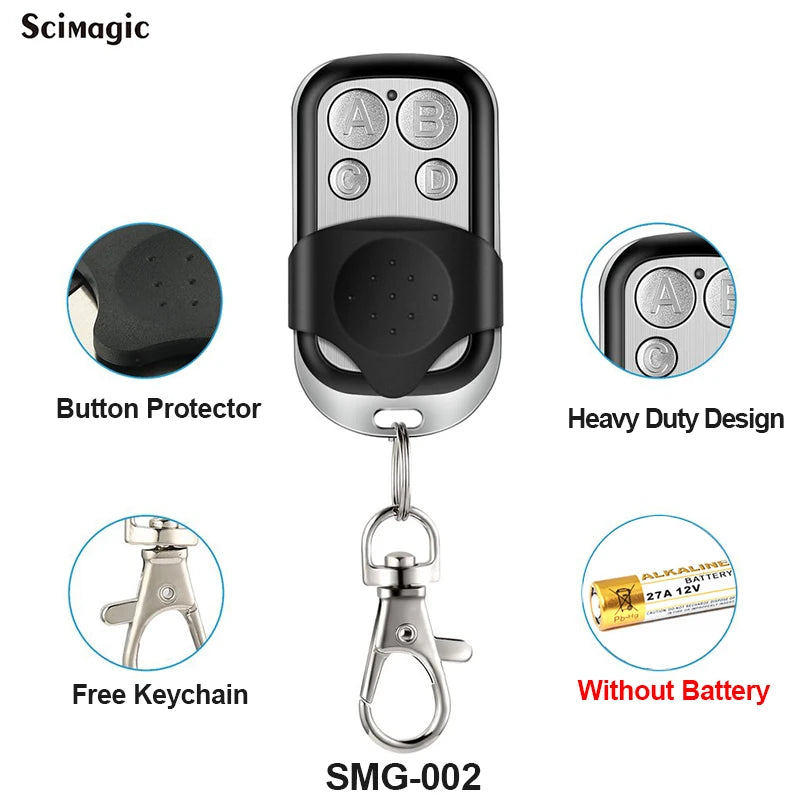

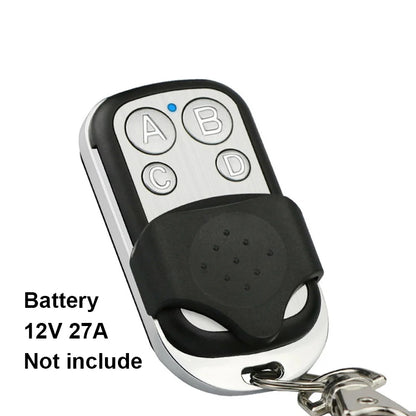

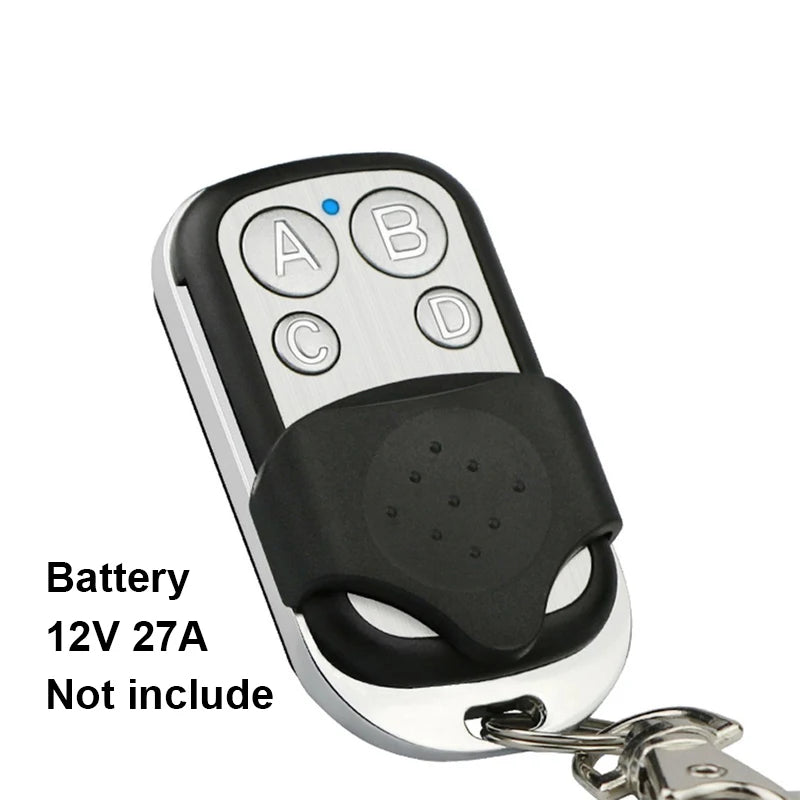

RF remote control
