Zigbee 3.0 Tuya 1 Channe Smart Relay Module Smart Life Switch Controller 12V 24V 220V 230V Dry Contact NO NC COM Inching Timer
Zigbee 3.0 Tuya 1 Channe Smart Relay Module Smart Life Switch Controller 12V 24V 220V 230V Dry Contact NO NC COM Inching Timer
SPECIFICATIONS
App: Tuya & Smart life
Brand Name: Scimagic-RC
Certification: CE
Choice: yes
Communication method: Zigbee,RF
Compatibility: All Compatible
Features: Voice control,Time switch,APP control,Remote control
High-concerned chemical: None

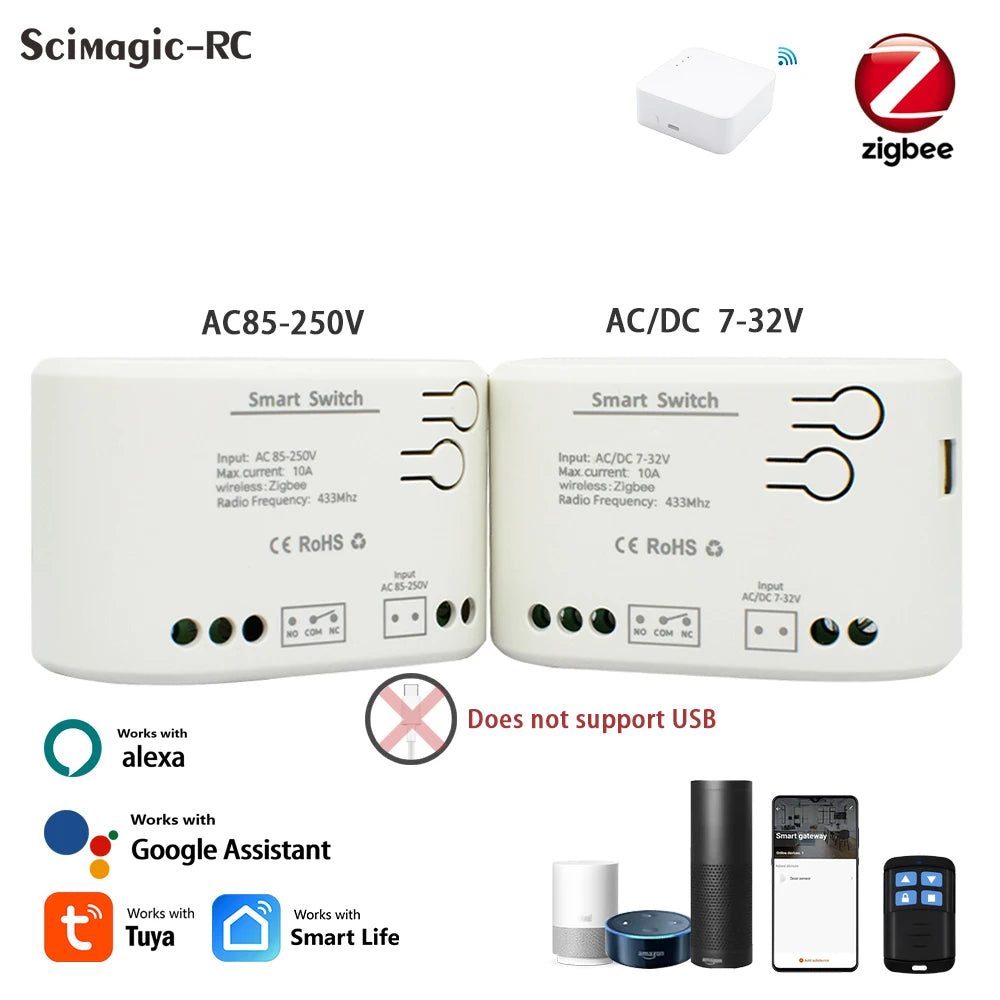

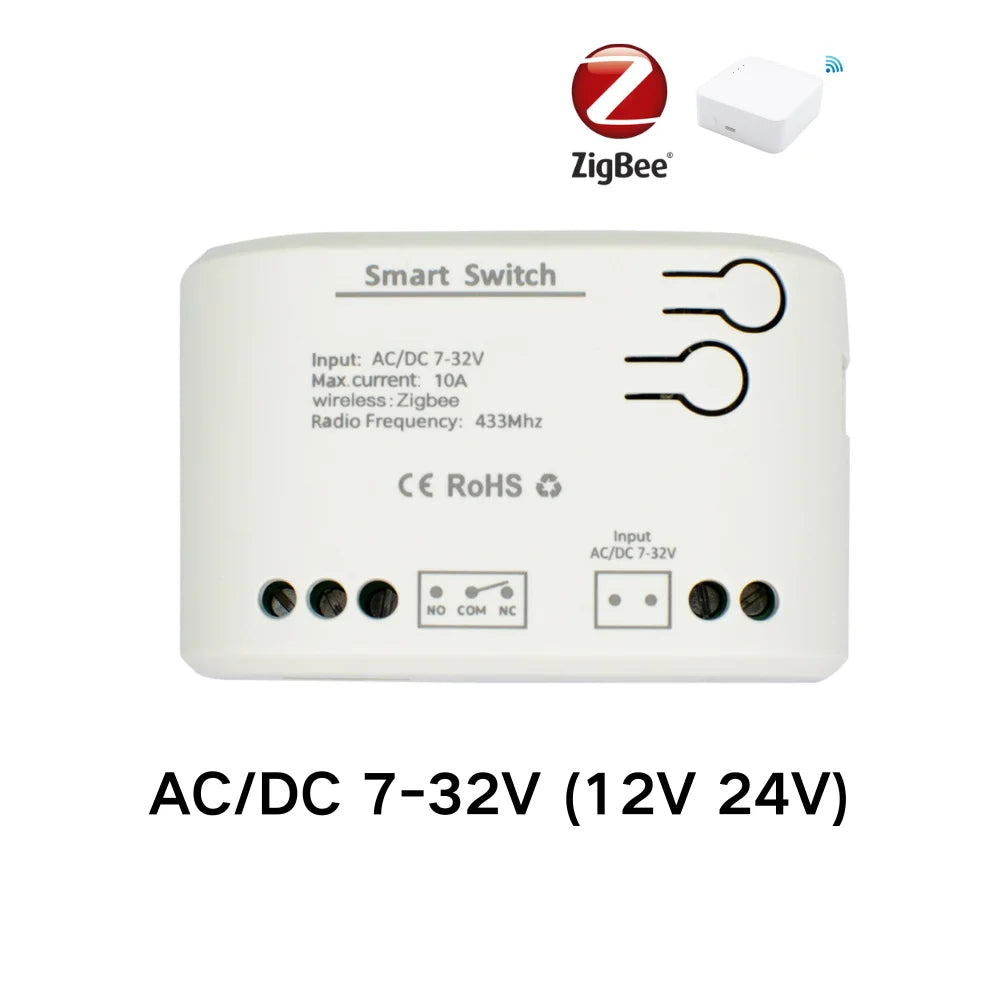

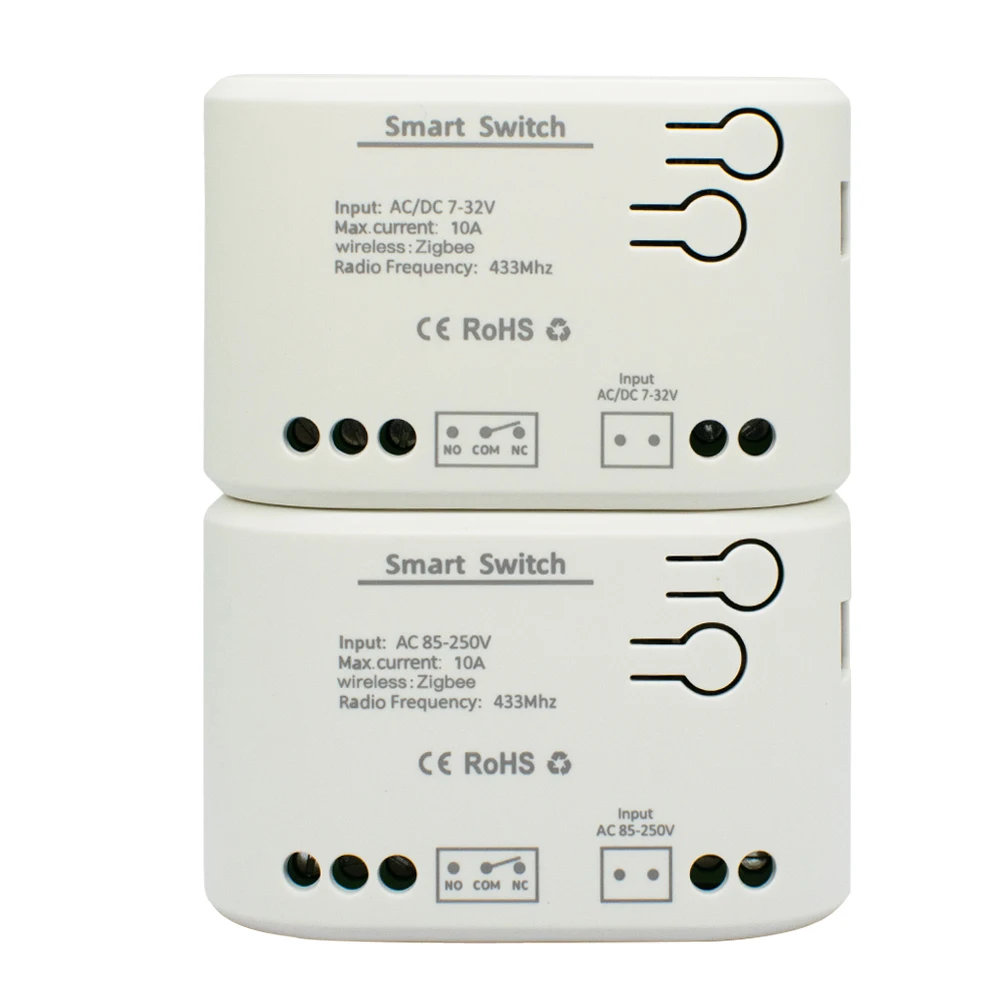

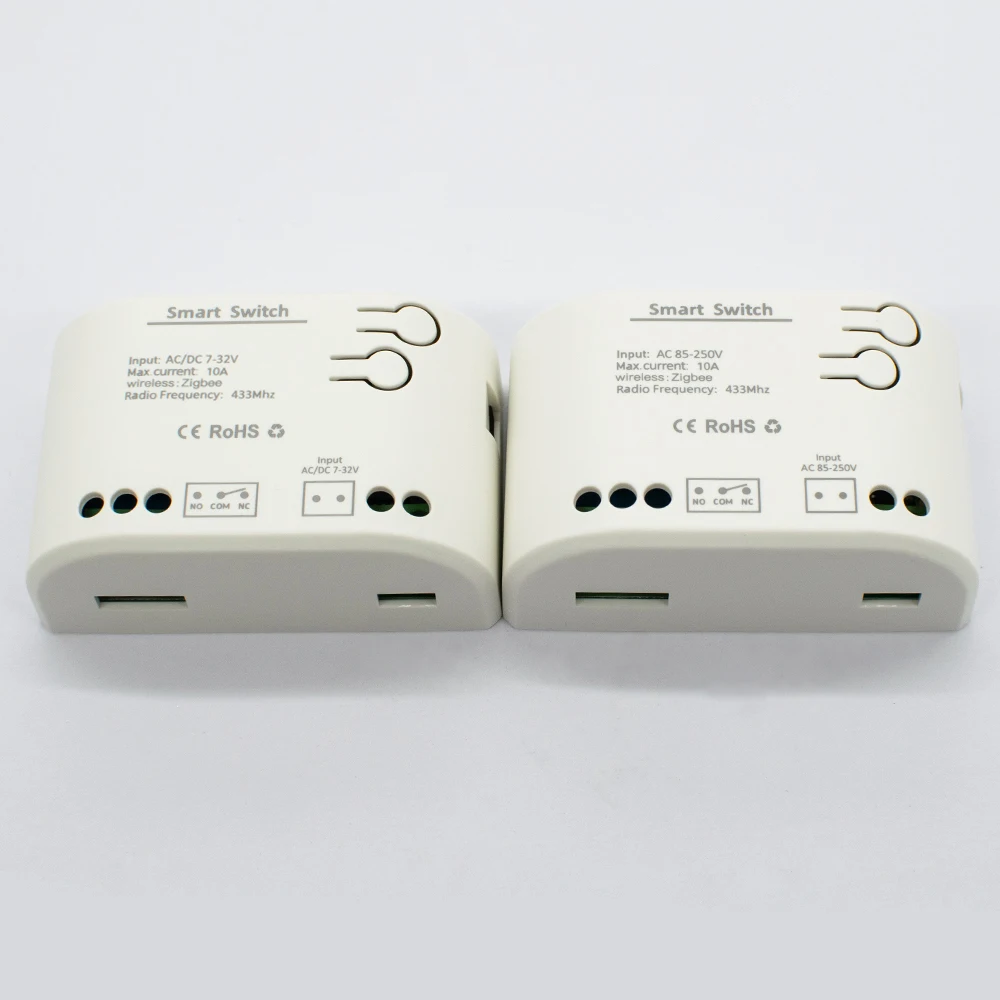

Input voltage: AC/DC 7V-32V,AC 85-250V
Model Number: Zigbee Smart Switch
NOTE: Zigbee Gateway required
Operating Humidity: 40% ~ 80% RH
Origin: Mainland China
State of Assembly: Ready-to-Go
Voice Feature 1: Supports Alexa
Voice Feature 2: Supports Google home
Wireless Protocol: ZigBee 3.0
function 1: inching switch
function 2: self-locking switch
function 3: 1CH Diy Wifi Switch Module
working temperature: -20 degrees to +70 degrees

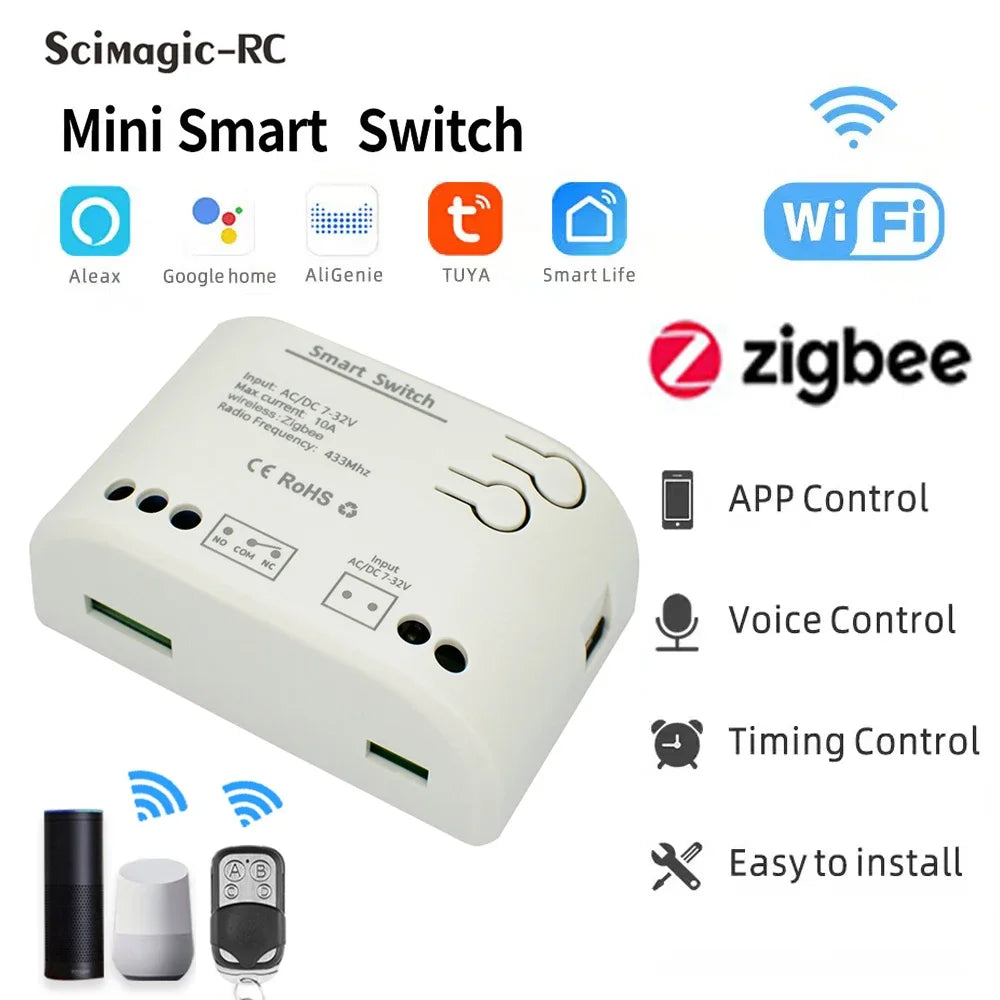

ZigBee Relay Module Remote Control Light Switch Work With Alexa Google
The Switch is a ZigBee-enabled inching/self-lock smart switch that is compatible with different hubs.The ZigBee3.0 protocol gets the switch and ZigBee bridge to be paired in a quick way. The switch is safer to use in you home that is promised by the fire-proof and flame-retardant shell. Additionally, AES-128 encryption ensures the safety is extended to data device privacy, no worry about privacy disclosure of your device. It can be as a Zigbee router to help transmit the ZigBee signal to ensure a stable connection when multiple Zigbee devices are used for your home.
Use for
【APP Remote Control】
Require Tuya Zigbee Hub. You can check the working state of the device in Tuya APP anywhere and anytime.
【RF433mhz Control】
The device can be controlled by the Learning Code RF433mhz Remote Controller.
【Mobile Phone Control】
Require Tuya ZigBee Hub ,when you go outside or at home, your smart phone could control the device by 2.4Ghz WIFI or 2G/3G/4G Mobile Network.
【Voice Control】
Require Tuya Zigbee Hub, you could voice control the device by Alexa/Google Assistant.

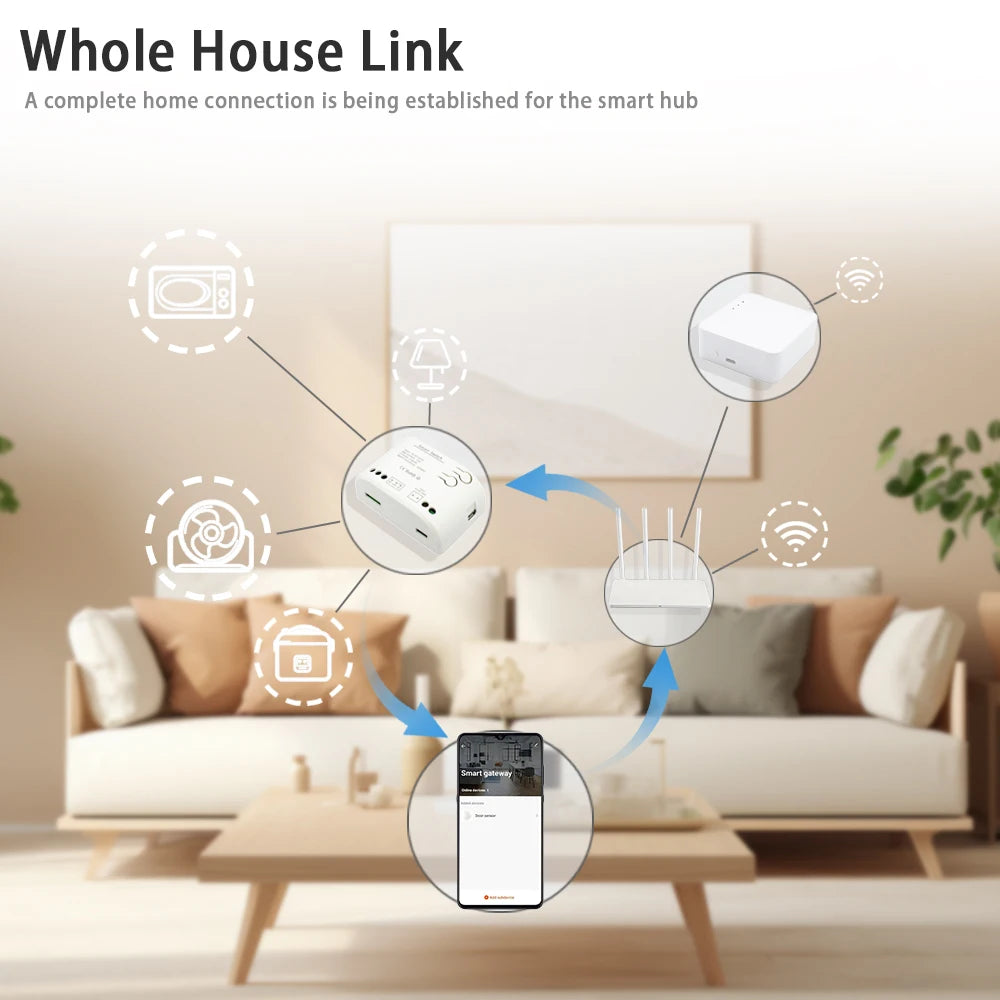

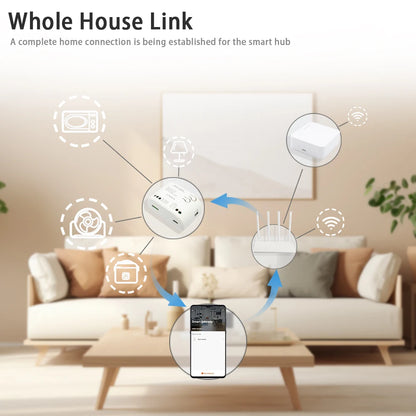

【Smart Linkage】
Cooperate with other zigbee products to achieve intelligent linkage. For example, with zigbee door magnetic sensing, to realize the light on immediately after opening the door
【Group Control】
Unified management of individual devices using gateways
【Timing function】
Lying in bed without turning off the lights fell asleep, it does not matter, the wall switch timing function to the point of turning off the lights, from the lights off do not worry about.
【Two Working Modes】
Self-locking, Inching

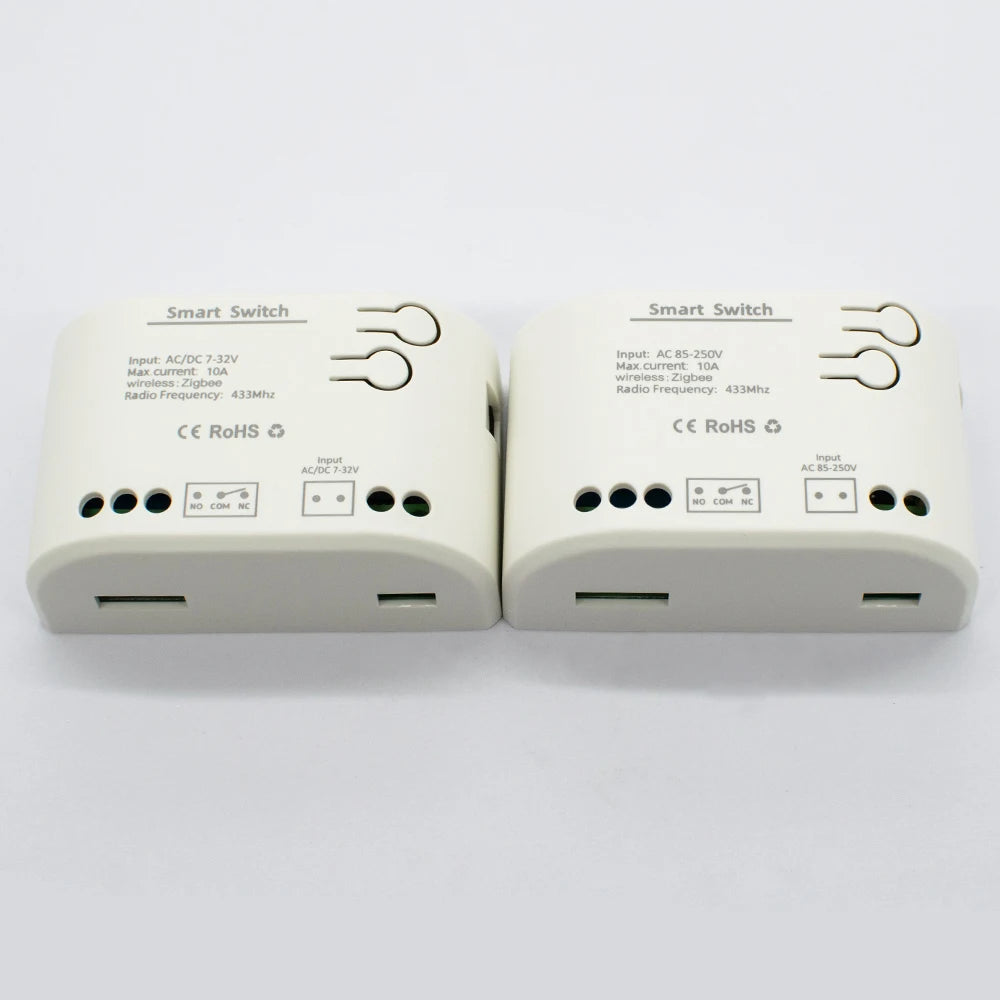

Parameters:

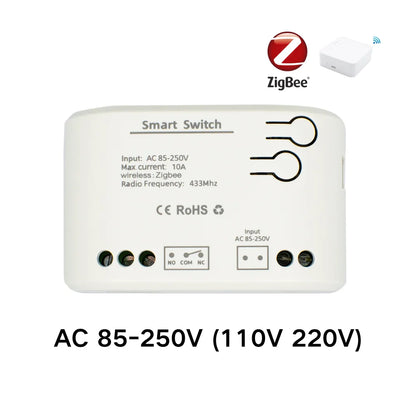

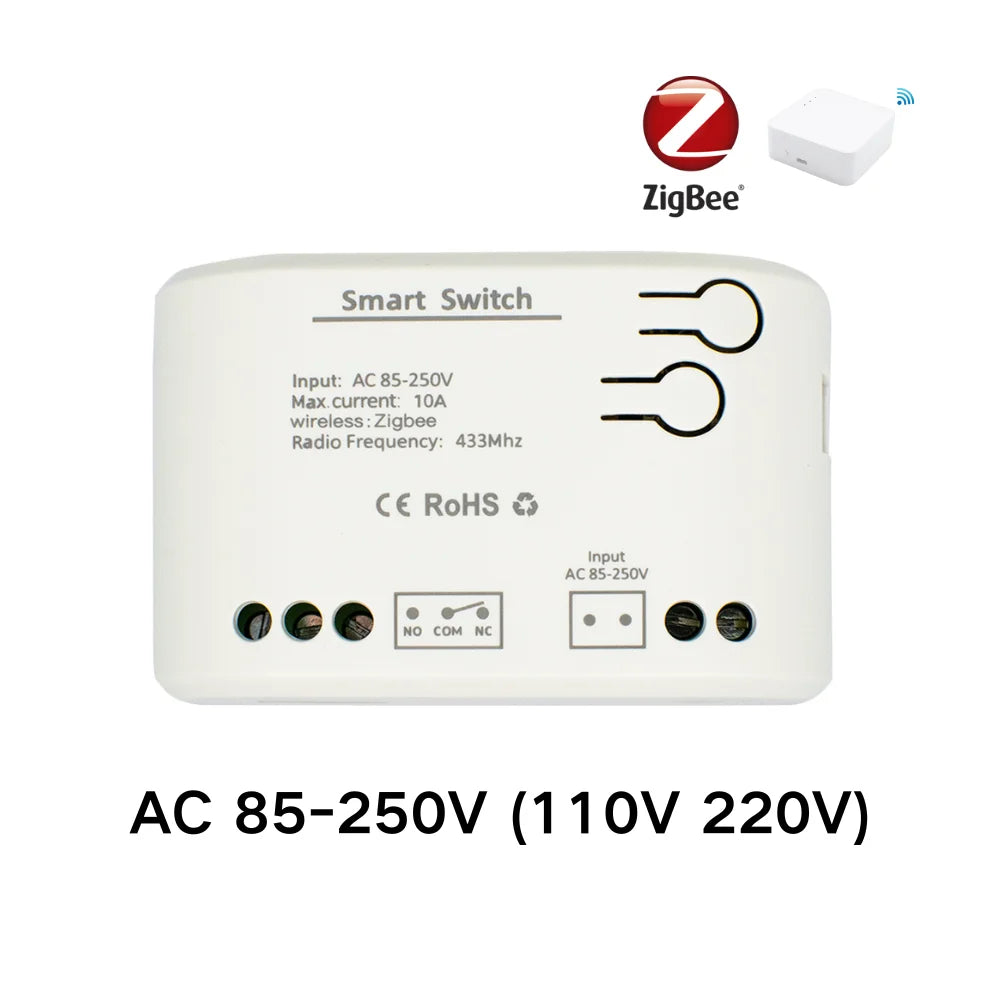

lnput voltage: DC/AC 7V~32V,AC 85-250V
Max.Current:2200W/10A
wireless Standard:Zigbee
Working temperature: -20℃~70℃

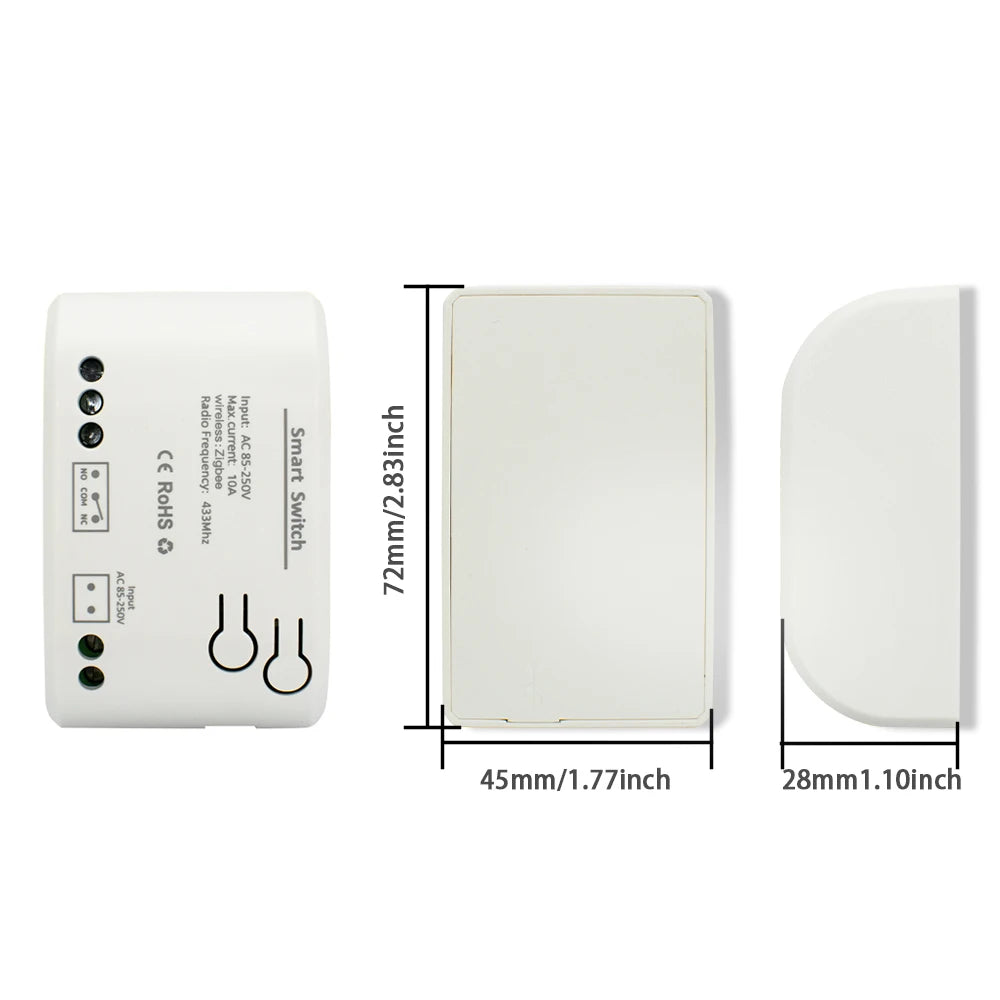

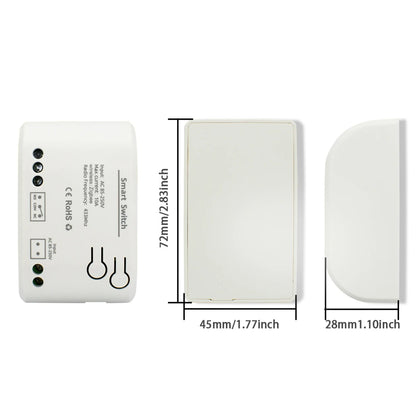

Size: 69*41*20mm

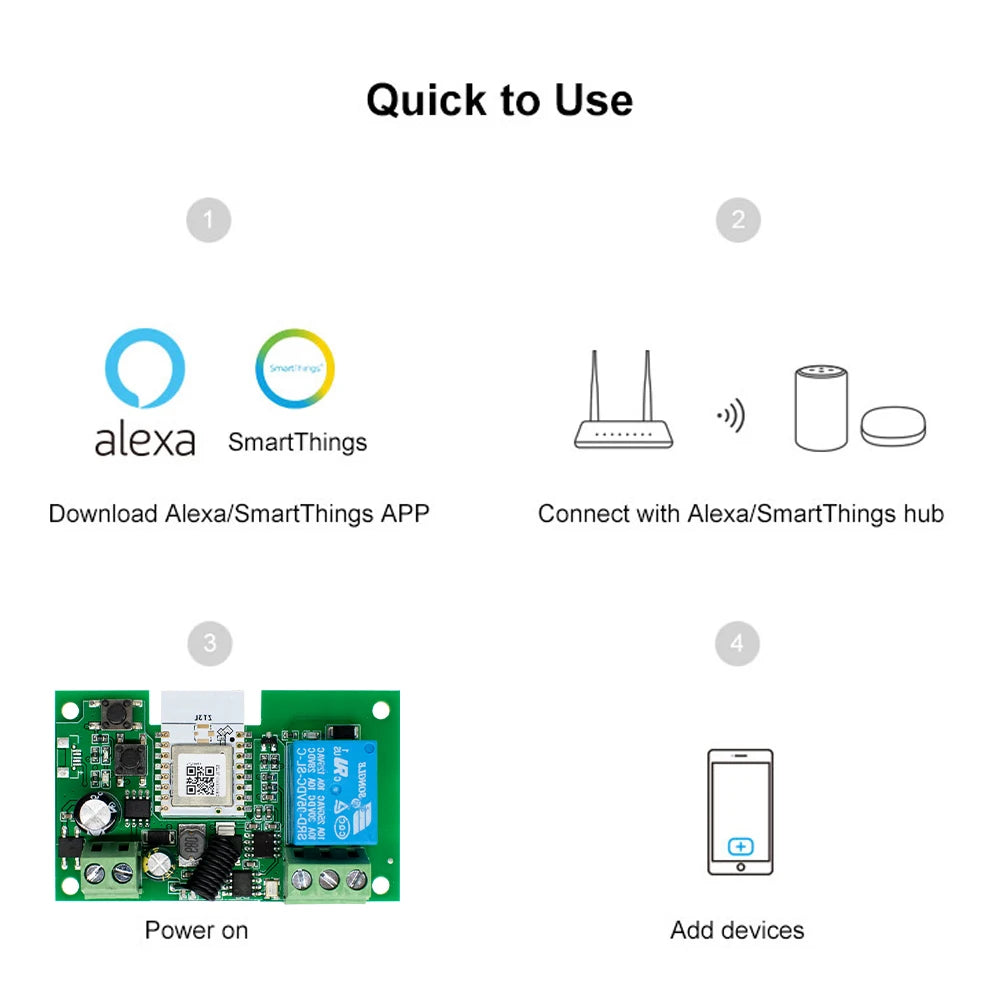

Checklist before using the device
1) Your smartphone or tablet has been connected to a 2.4G WiFi capable of accessing the Internet (5G WiFi is not currently supported)
2) The mobile phone or tablet using the Android system must be an Android version above 4.0
3) If your wireless router has set MAC address filtering, please enter the router background and turn off the MAC filtering function
4) Must be used in conjunction with Zigbee gateway.You need to have a Zigbee gateway.Try to be close to the Zigbee gateway when pairing.

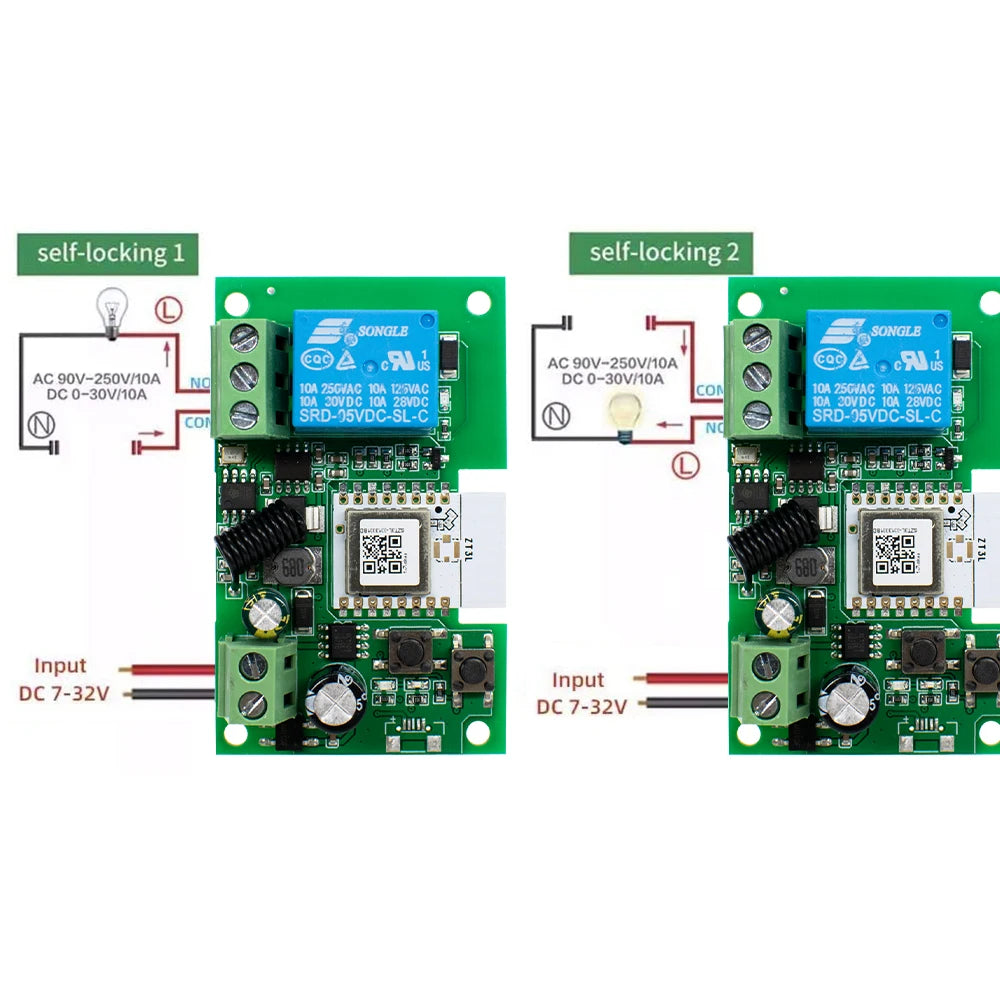

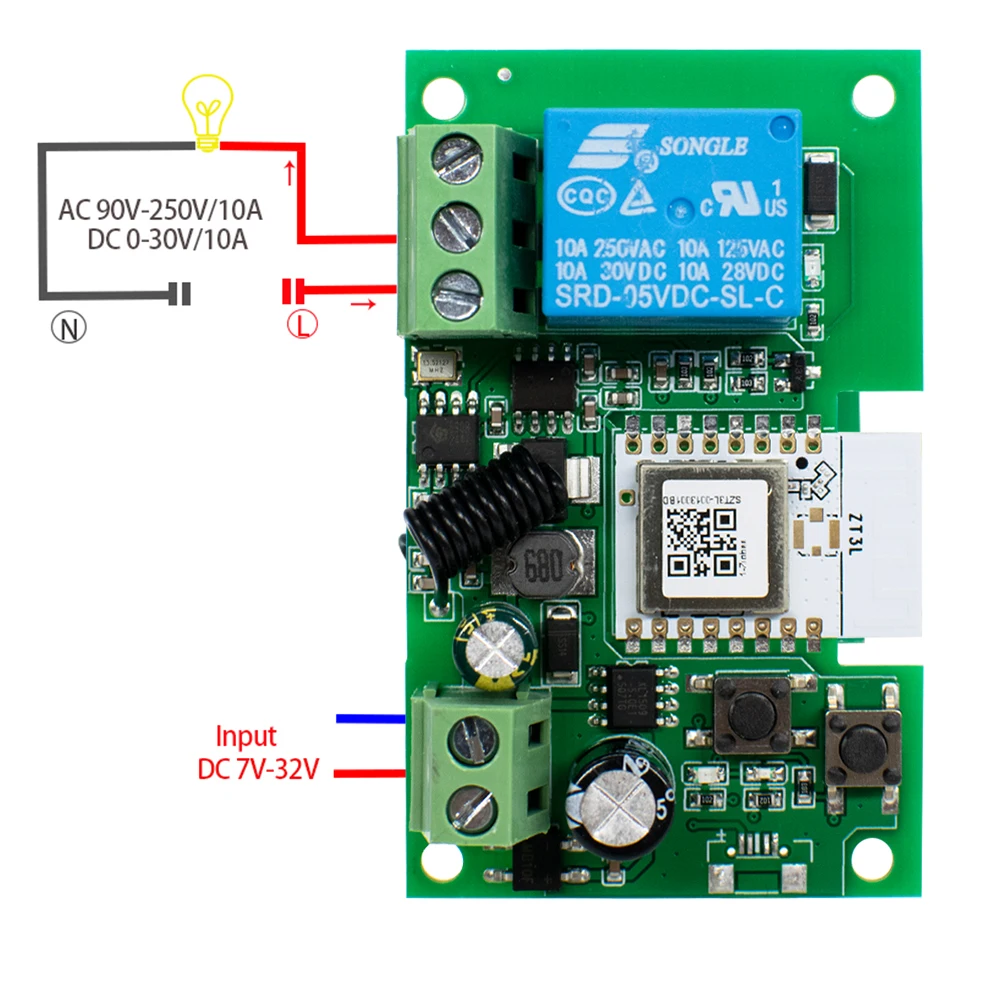

Noted :

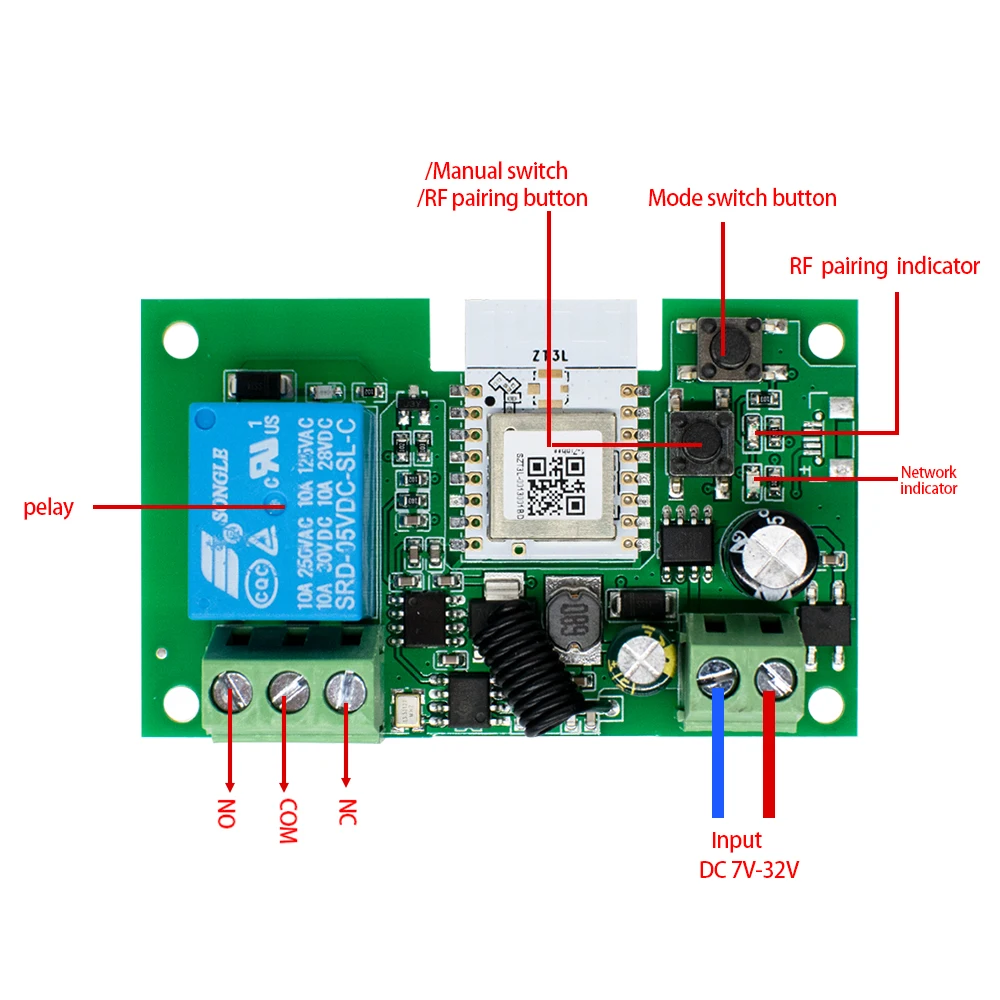

The relays is passive output(dry contact), No matter how many power you supply in the input, the output don't have any voltage, you also need to supply power in output.
The power supply in the input just can make PCB board work.
If you do not supply power in output, the connectted device can't work.
Two working modes
1. Self-locking: each channel can be turned on/off individually, and all channels can be turned on/off at the same time.
2. Inching mode: open a channel, the channel will automatically close after 1 seconds.
If you need to change the mode, you need to press the mode button

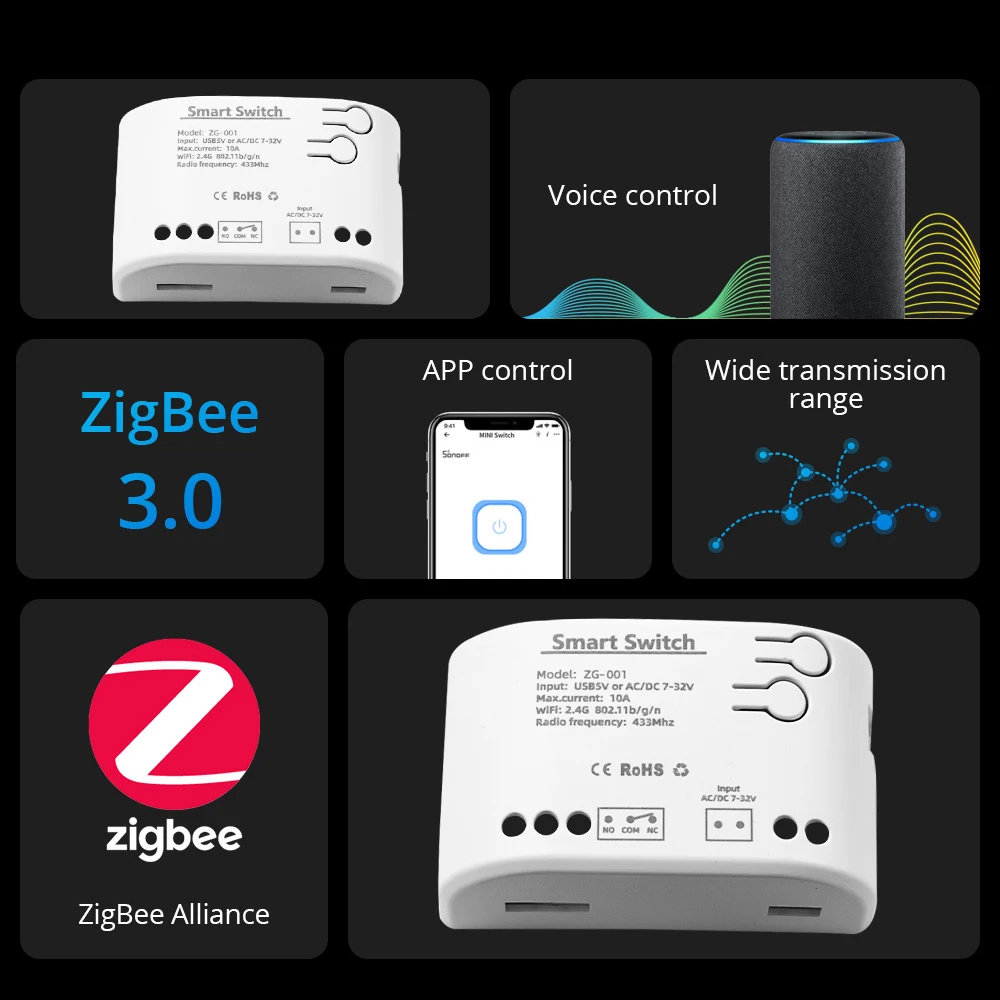

Features:
*Supports zigbee gateway control.

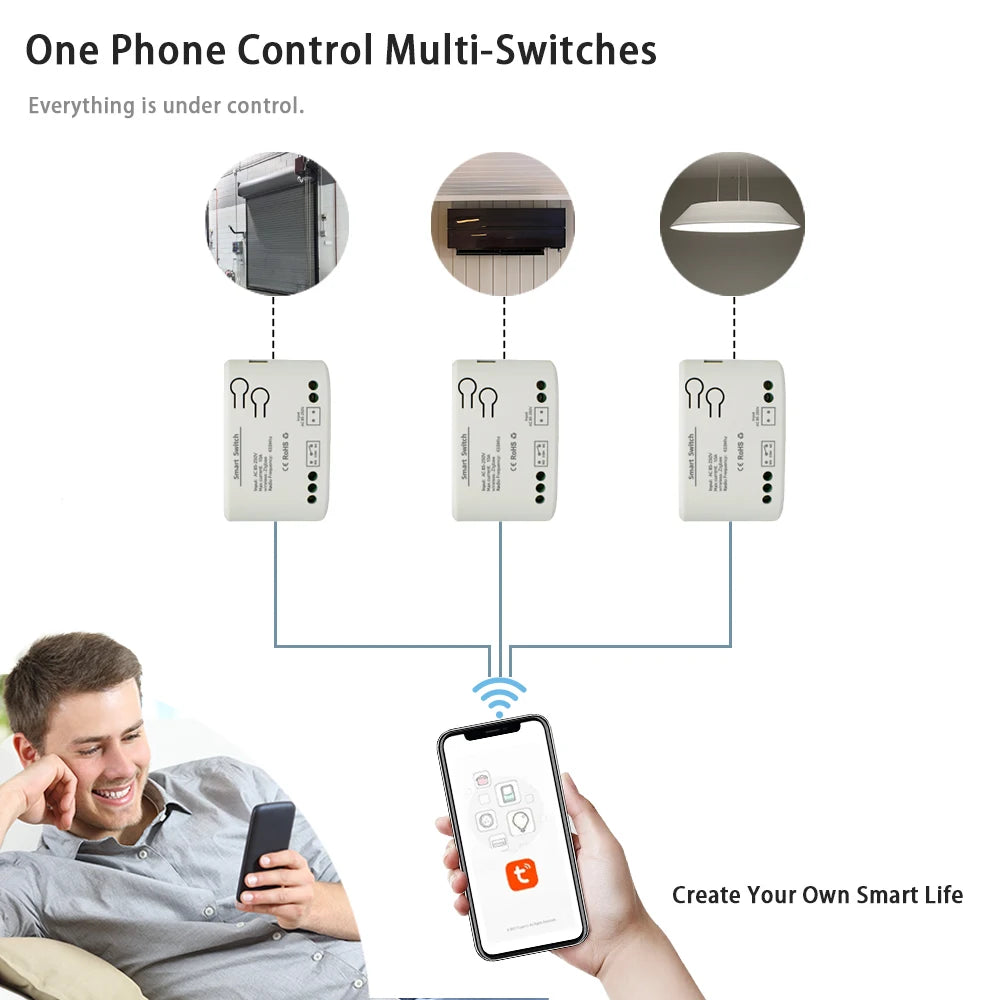

*Supports manage numerous zigbee smart switches on one smart phone.
*Supports status tracking: it will show device status timely in the Tuya/Smart Life
*Supports remotely turn on/off household appliances, such as light, electric kettle, electric rice cooker, electric curtain, access control etc.
*Supports enabled 8 time schedule/countdown/ cycle timers for each device.
*Voice Control: Compatible perfectly with "Amazon" Alexa, Google Assistant.
*RF Control: Can be used with RF 433MHz remote control.

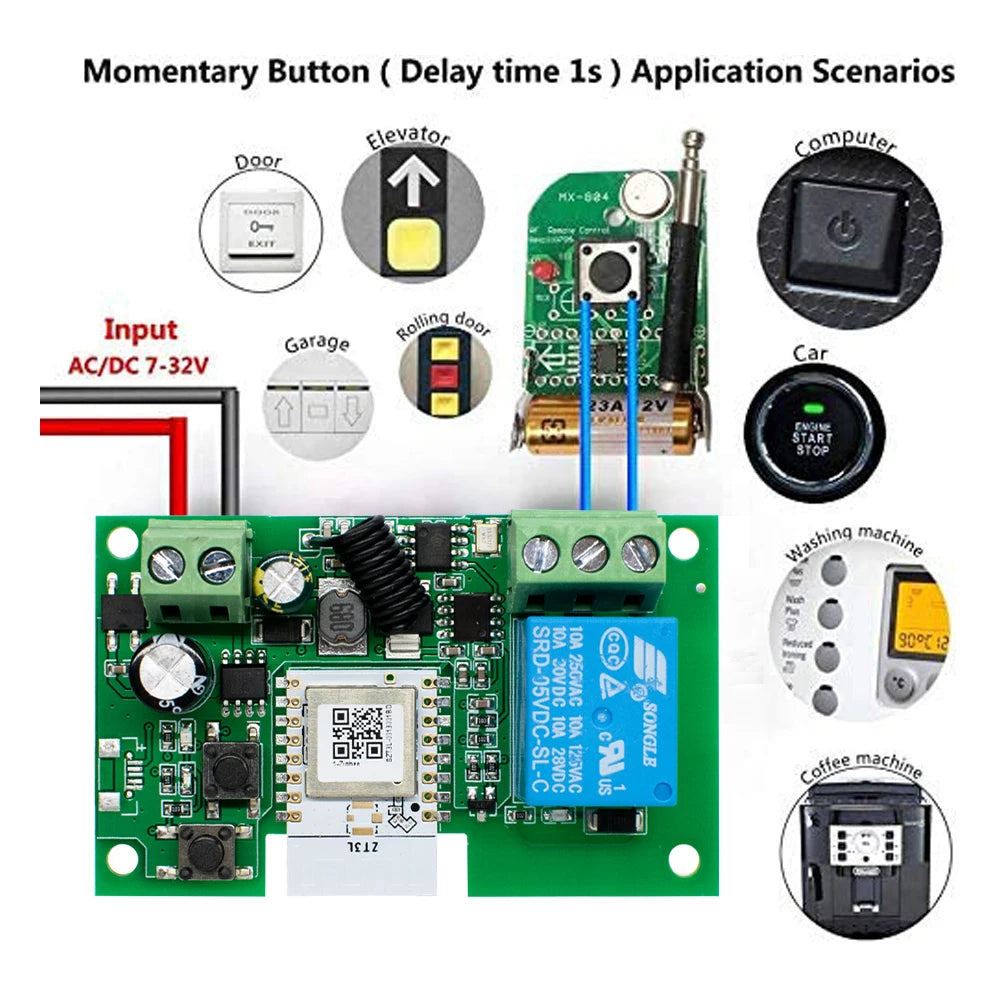

lnching Switch(Delay time 1s)Appilcation Scenarios
Work For Door,Garage,Elevator,Rolling door,Computer,Car,Washing machine,Coffee machine etc.

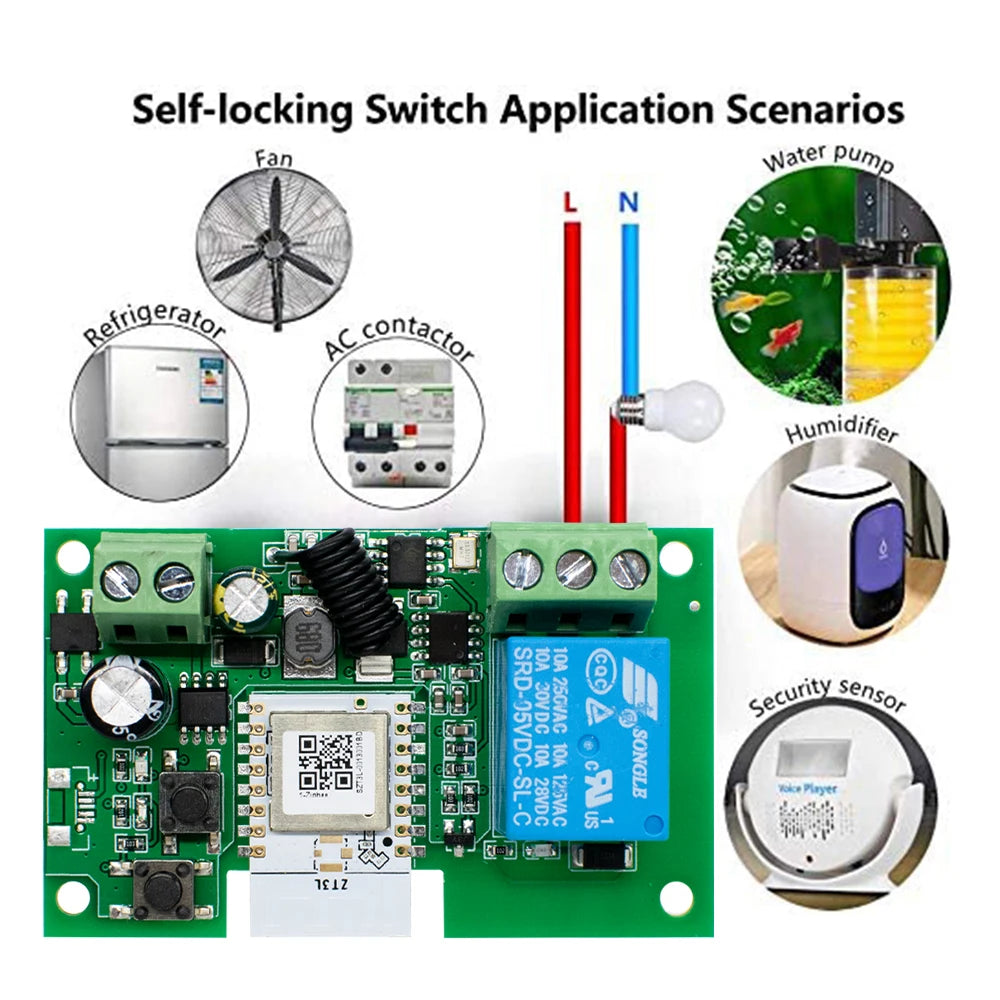

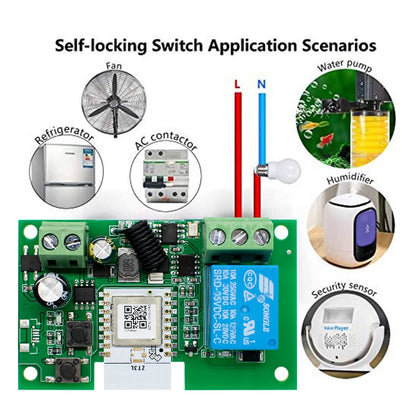

Self-locking Switch Application Scenarios
Work For Light,Fan,Refrigerator,AC contactor,Water pump,Humidifier,Security sensor etc.

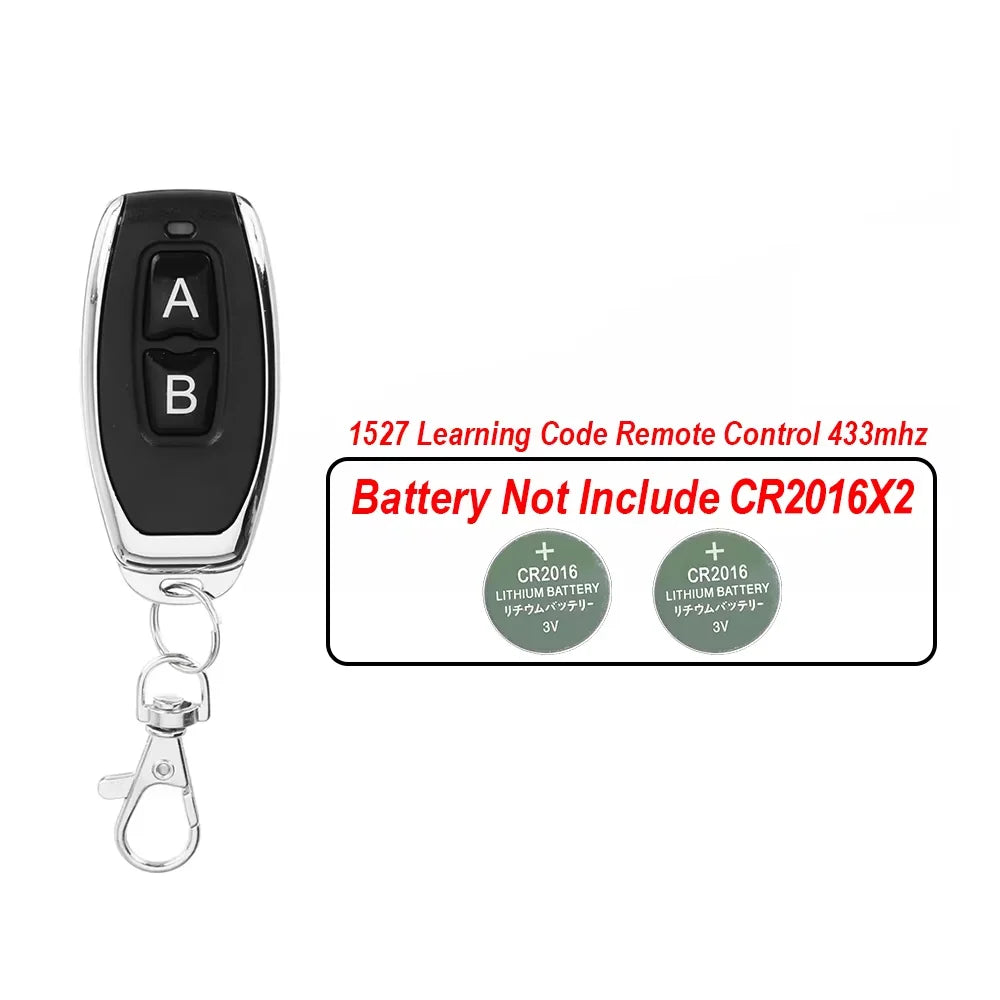

433MHz Remote Control:
Battery: Without battery
Transmitting frequency: 433MHz
Encoding Type: Learning code
Transmission distance : 10-100M (Open field)
Remote control not included.
I strongly recommend that you purchase my remote control.
