SPECIFICATIONS

Battery Included: No

Brand Name: NONE

Certification: CE,RoHS

Choice: yes

Electronic: No

High-concerned chemical: None

Humidity accuracy: ±5%RH

Is Smart Device: Yes

Max Measuring Temperature: 50°C - 69°C

Model Number: Zigbee Soil Moisture Tester

Origin: Mainland China

Power Source: Aaa Battery

Power Type: Aaa Battery

Theory: Thermometer Hygrometer

Use: Indoor

*Compatible zigbee hub is required ,they cannot work alone without related gateway.

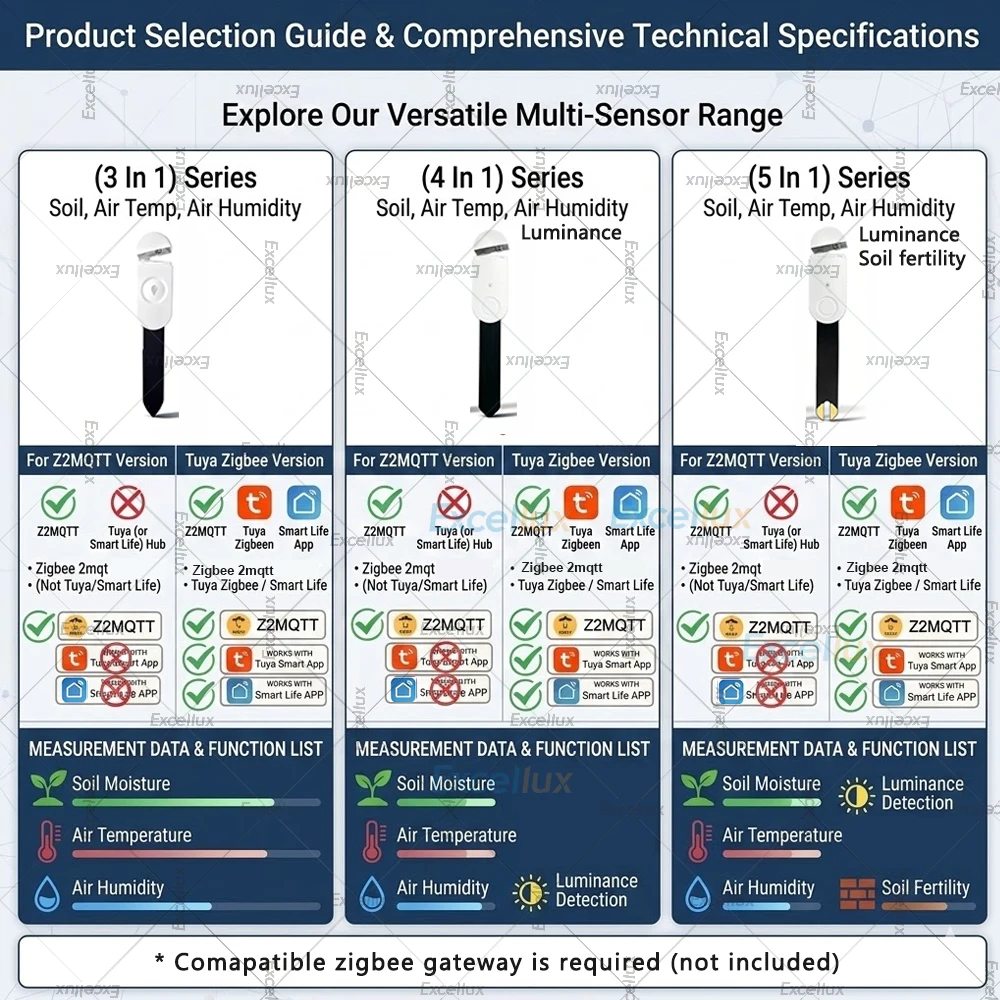

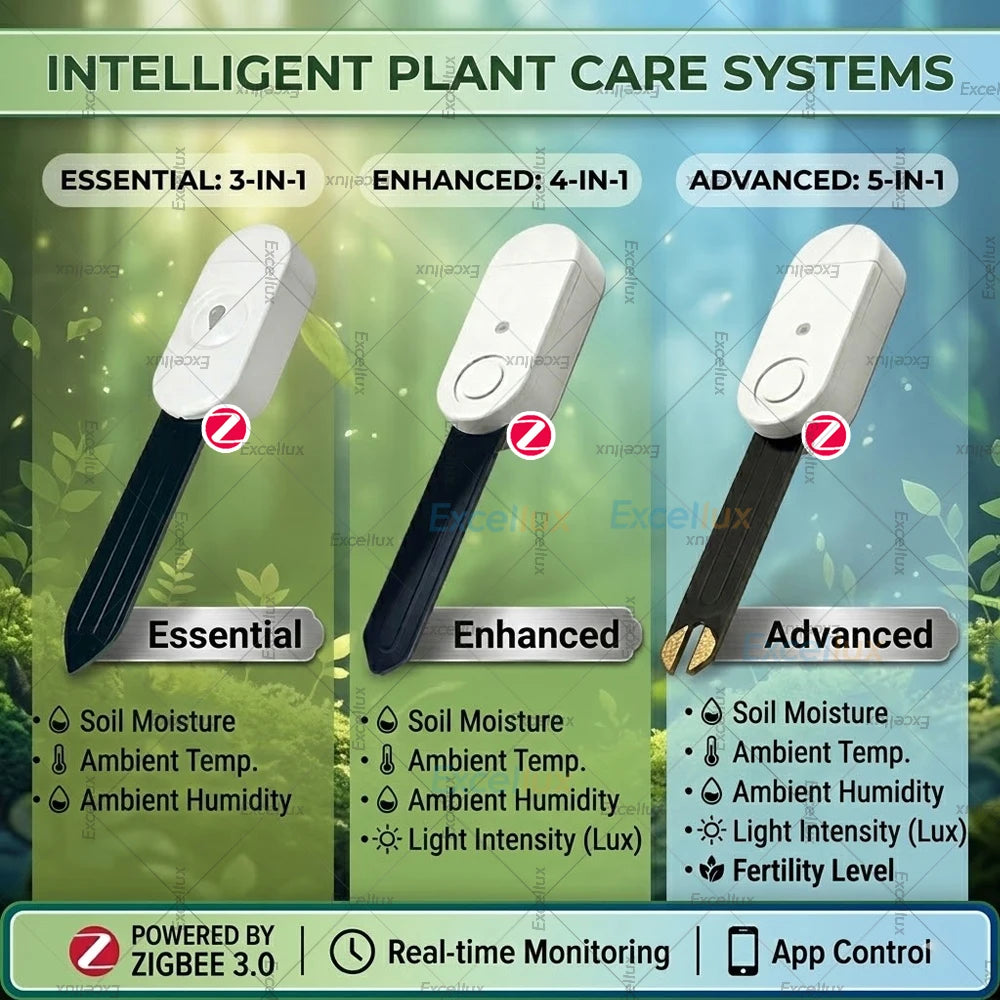

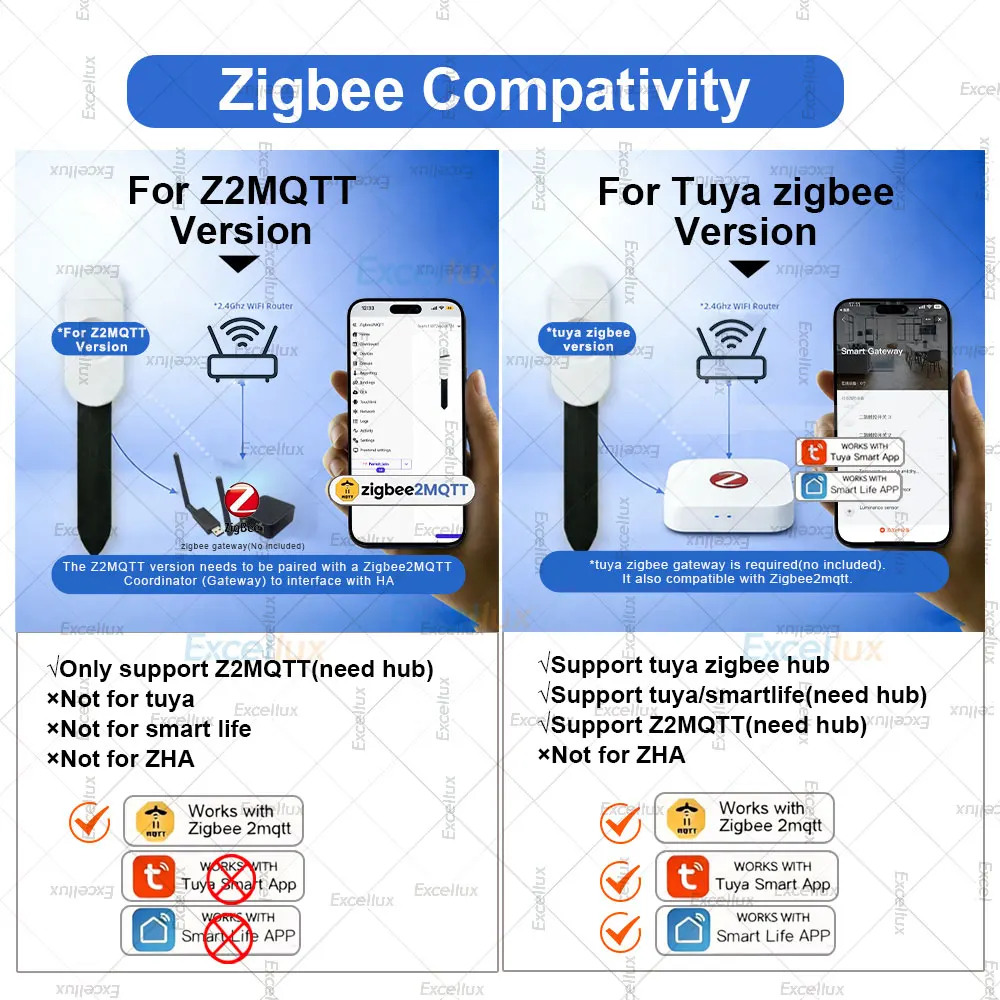

What is the difference between these 6 options?

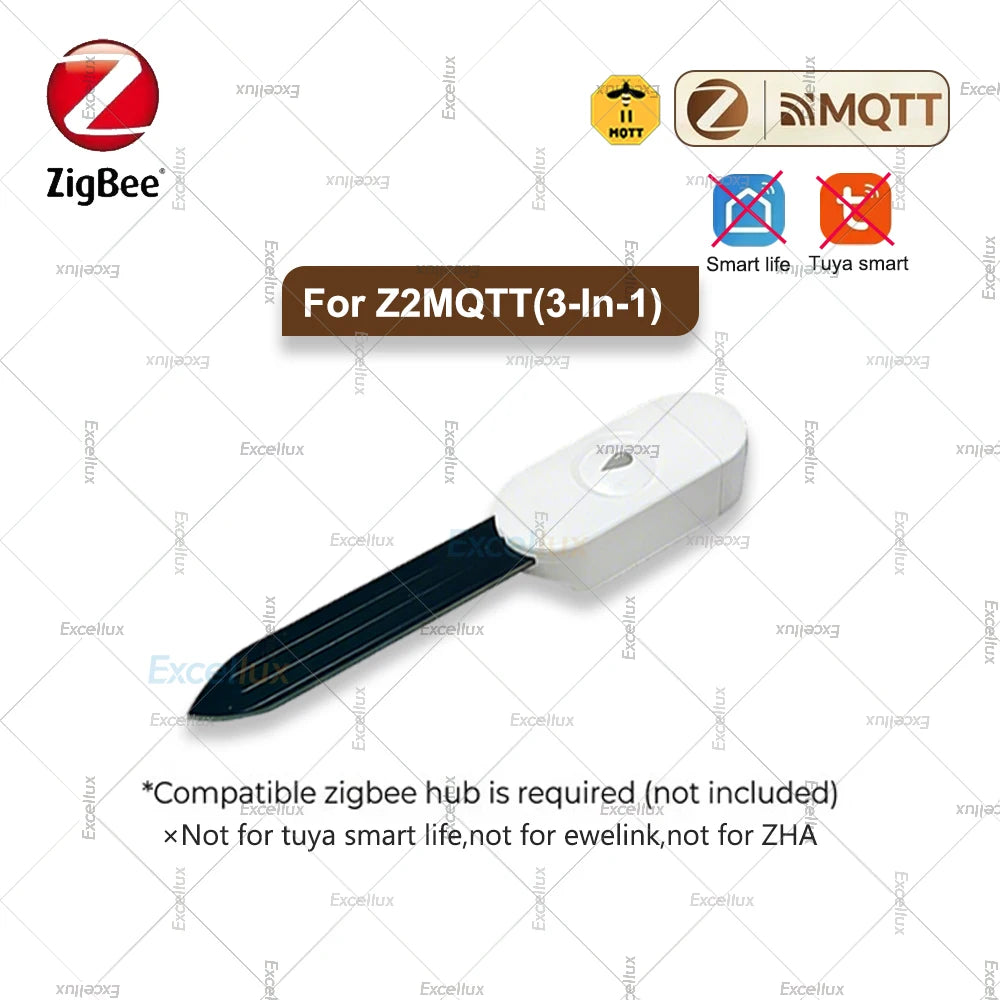

**For Z2MQTT(3-In-1):

Soil moisture detection +Air temperature + Air Humidity ,

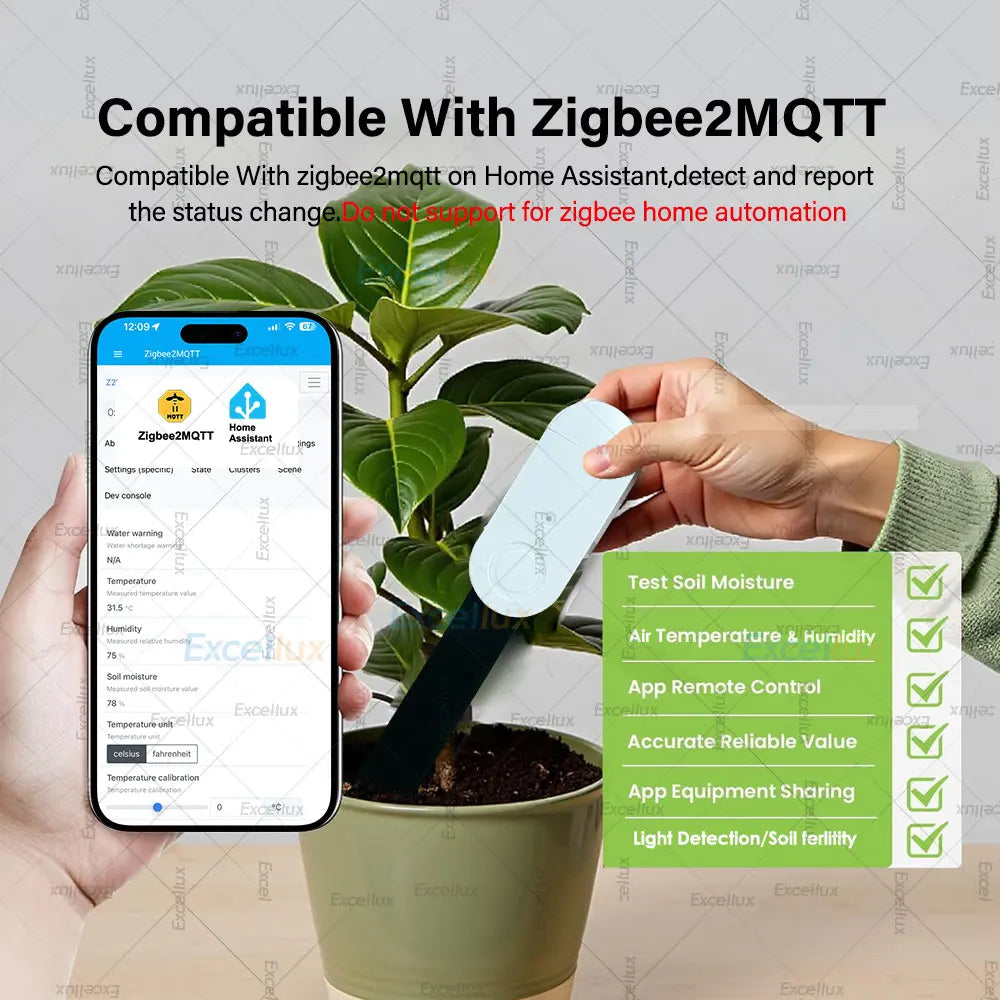

Need to work with zigbee2mqtt on home assistant via related gateway.

Not support for ZHA(zigbee home automation ),Not support for tuya.

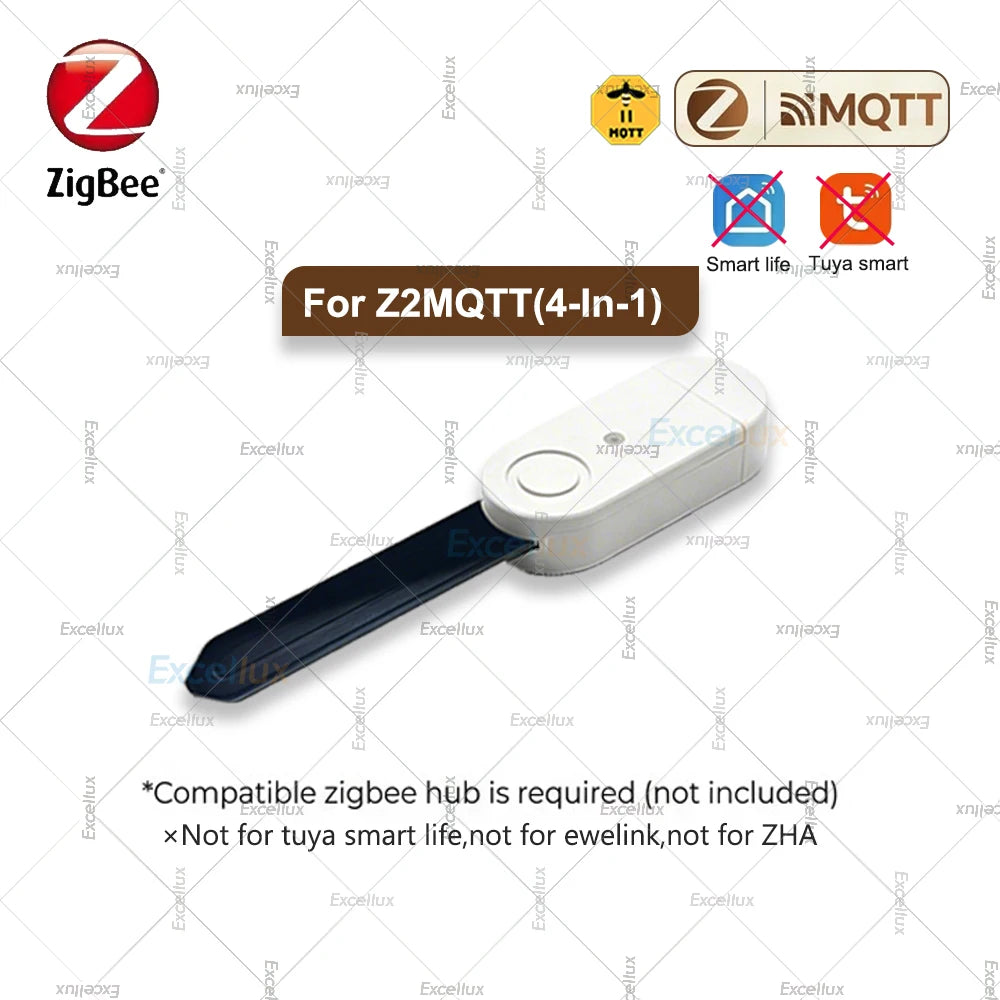

**For Z2MQTT(4-In-1):

Soil moisture detection +Air temperature + Air Humidity + Luminance Detection ,

Need to work with zigbee2mqtt on home assistant via related gateway..

Not support for ZHA(zigbee home automation ),Not support for tuya.

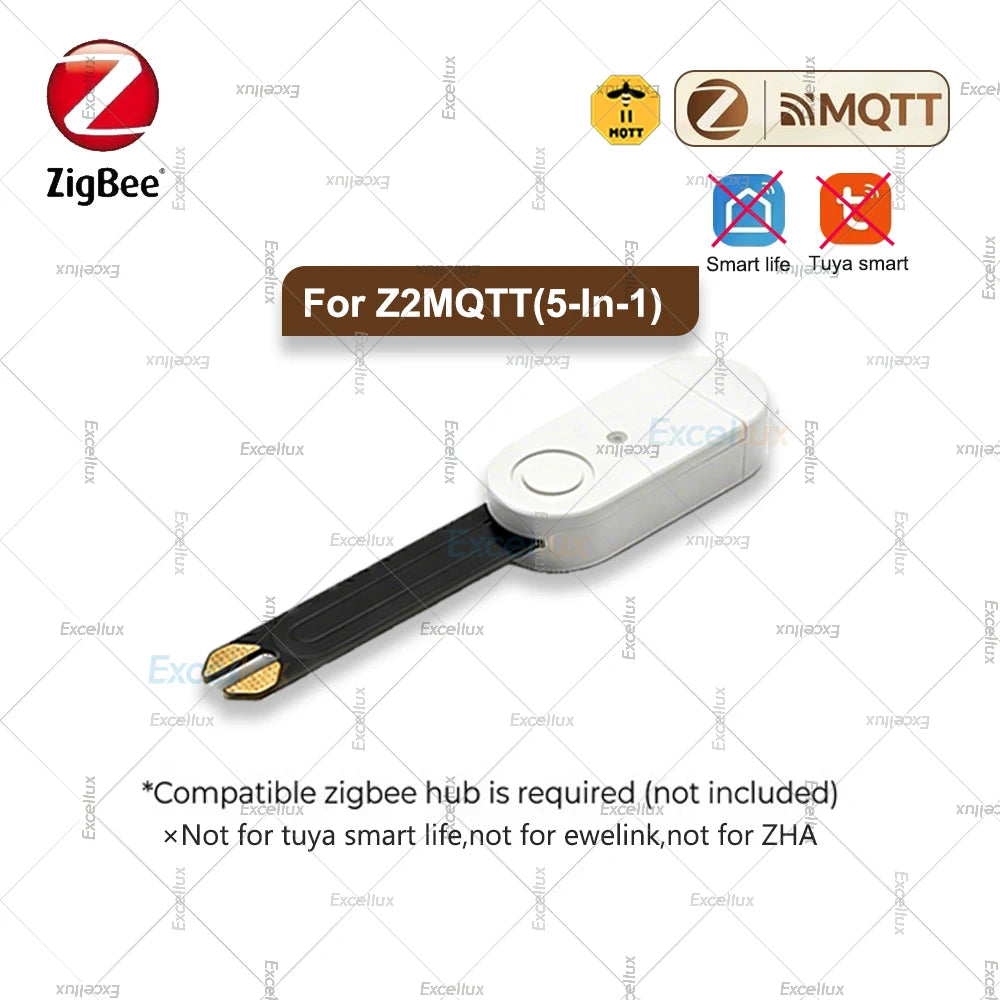

**For Z2MQTT(5-In-1):

Soil moisture detection +Air temperature + Air Humidity + Luminance Detection +soil fertility ,

Need to work with zigbee2mqtt on home assistant via related gateway..

Not support for ZHA(zigbee home automation ),Not support for tuya.

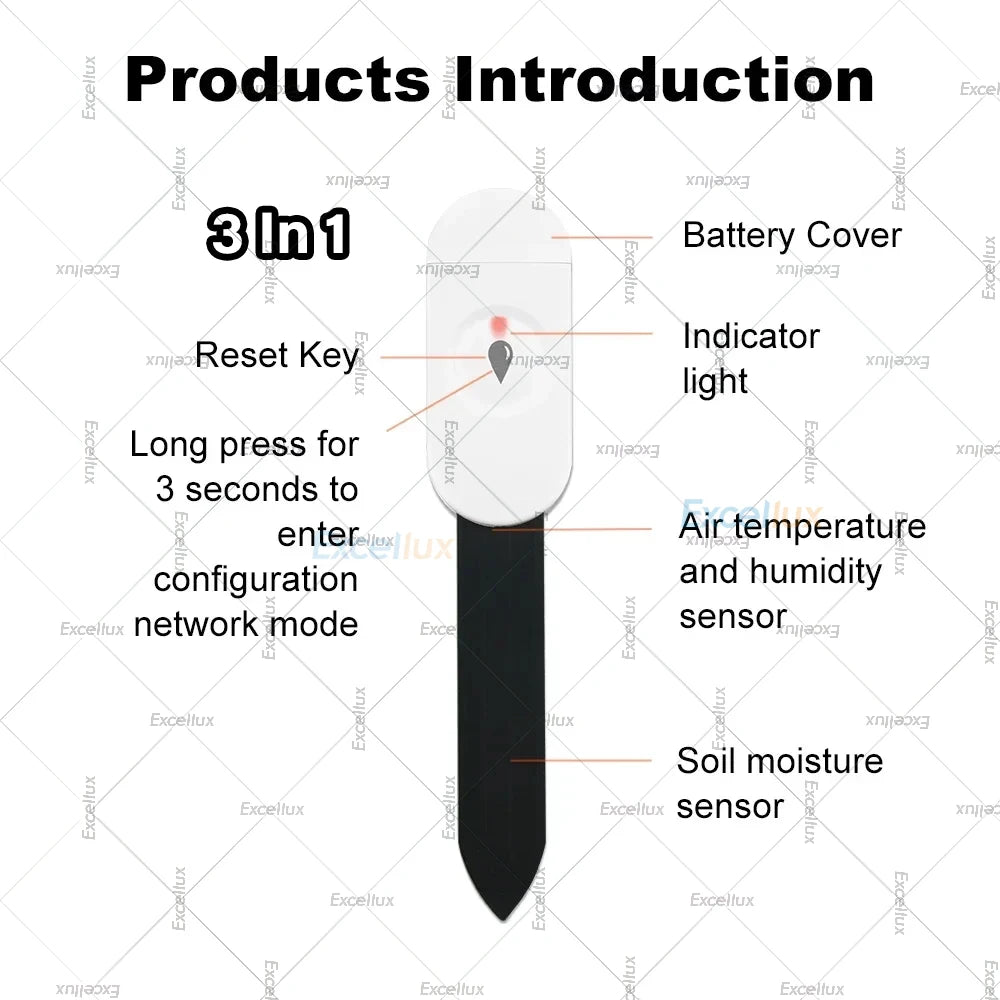

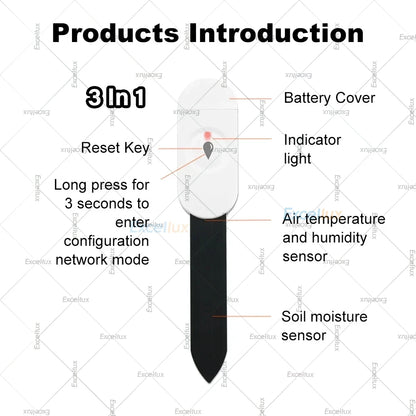

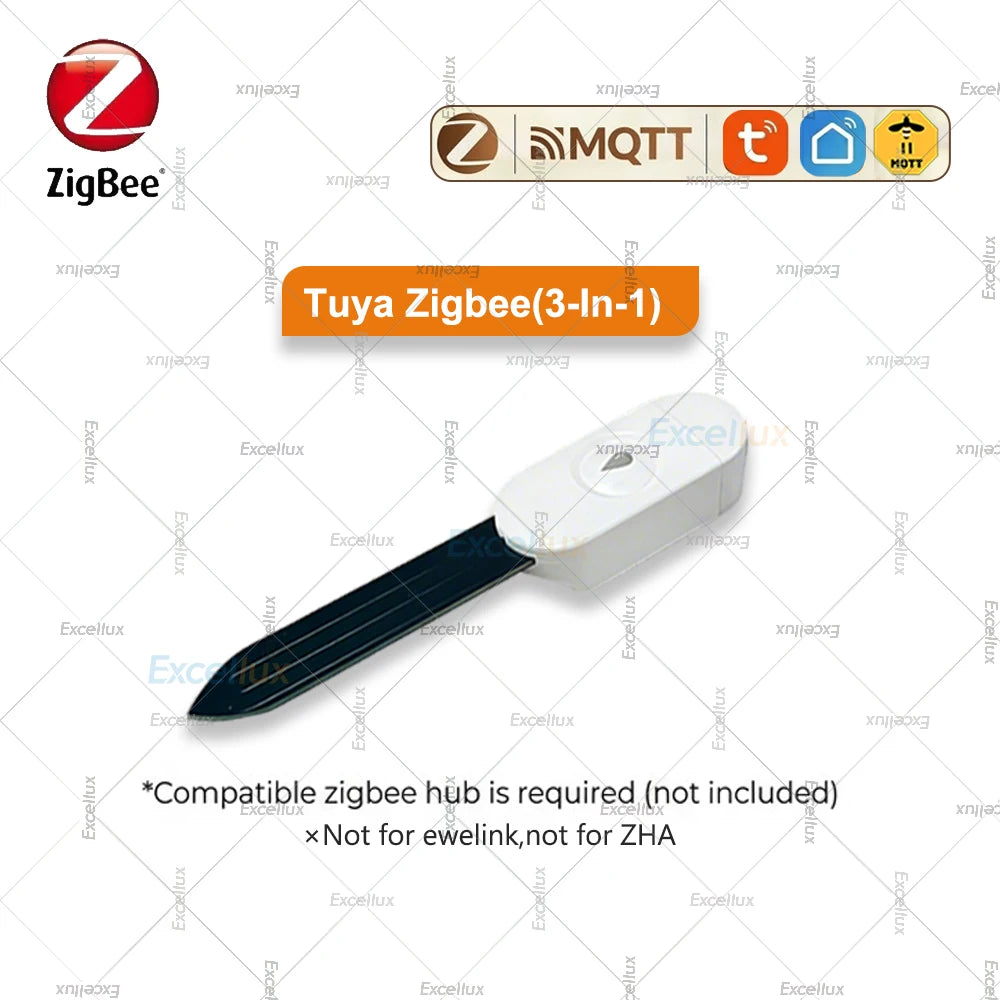

**Tuya zigbee(3-In-1):

Soil moisture detection +Air temperature + Air Humidity ,

Need to work with tuya zigbee gateway,Also compatible with zigbee2mqtt on home assistant via related gateway..

Not support for ZHA(zigbee home automation ).

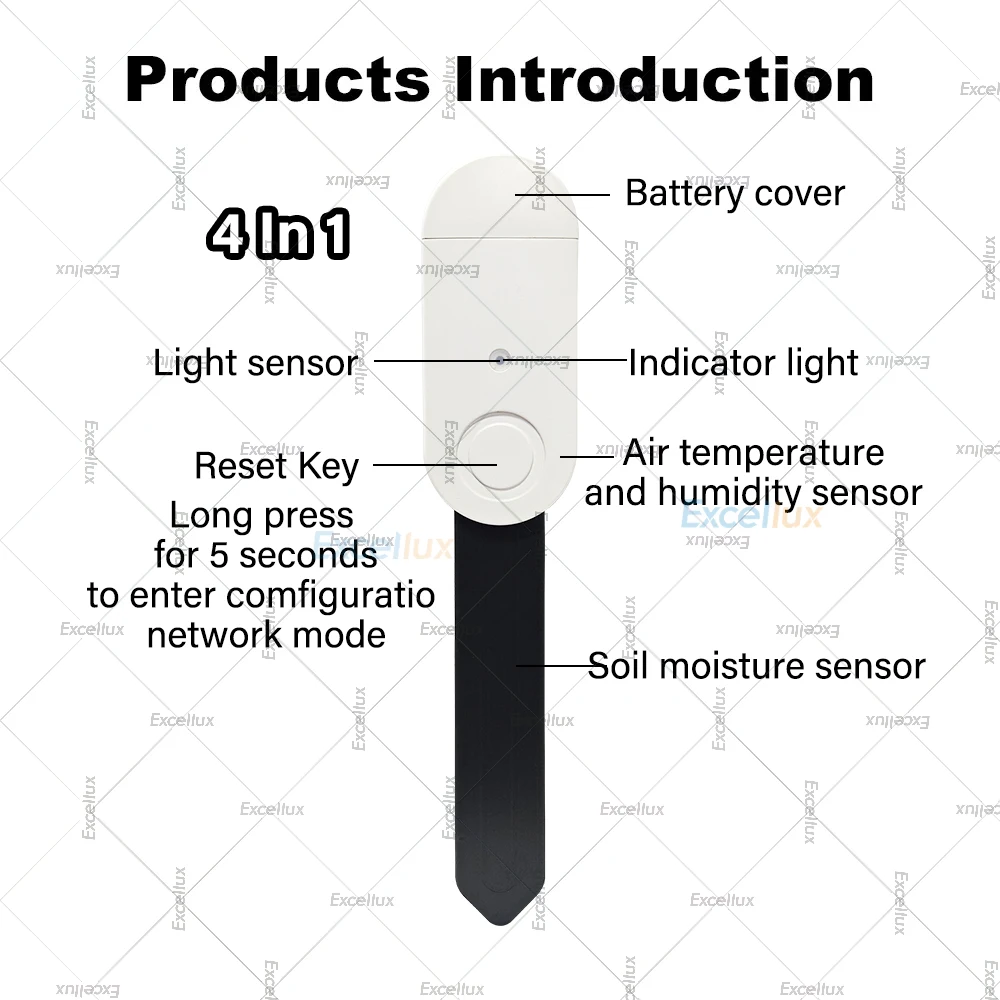

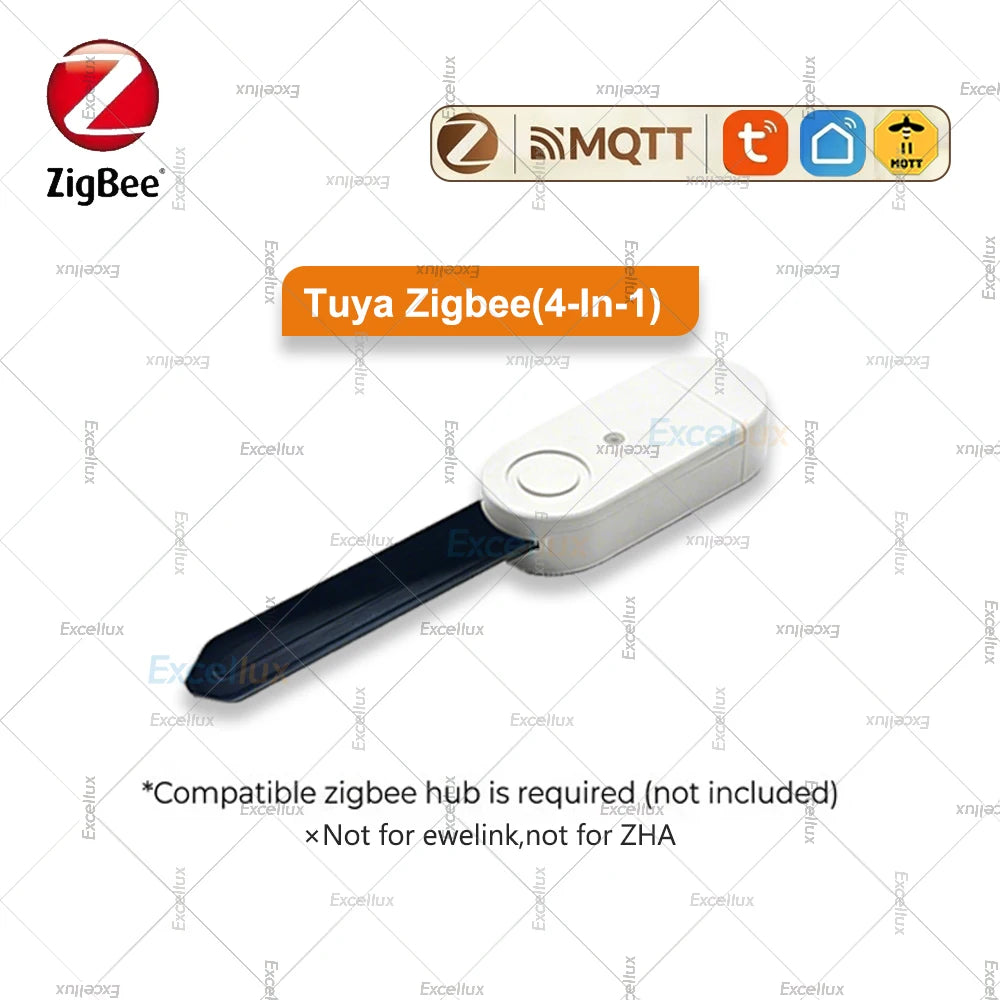

**Tuya zigbee(4-In-1):

Soil moisture detection +Air temperature + Air Humidity + Luminance Detection ,

Need to work with tuya zigbee gateway,Also compatible with zigbee2mqtt on home assistant via related gateway..

Not support for ZHA(zigbee home automation ).

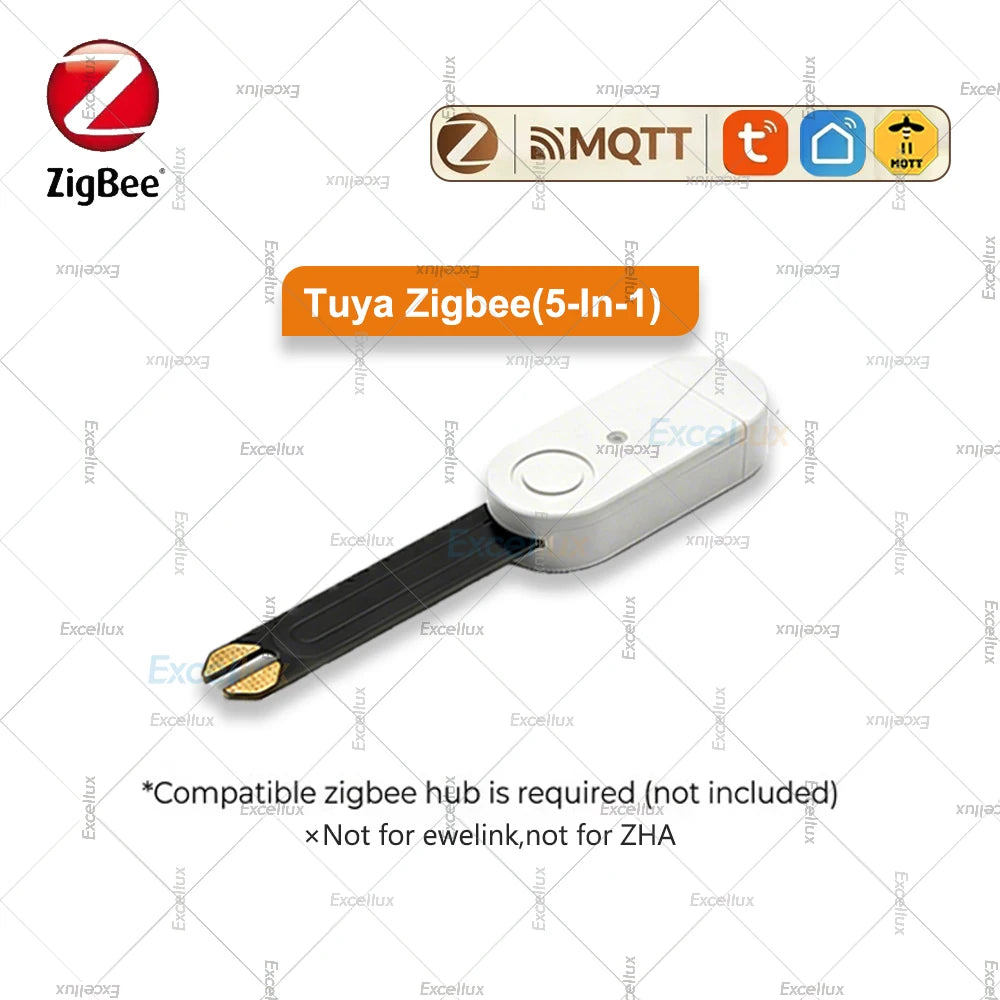

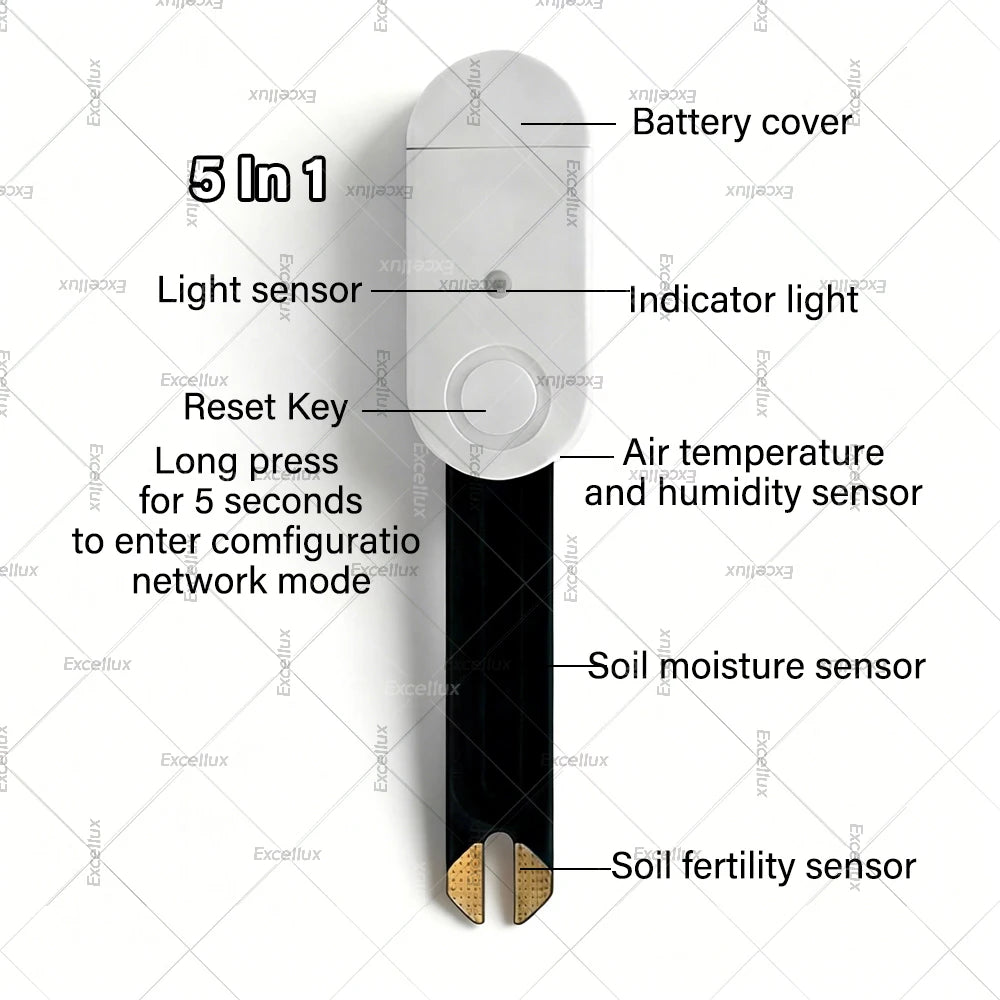

**Tuya zigbee(5-In-1):

Soil moisture detection +Air temperature + Air Humidity + Luminance Detection +soil fertility,

Need to work with tuya zigbee gateway,Also compatible with zigbee2mqtt on home assistant via related gateway..

Not support for ZHA(zigbee home automation ).

Parameters

Item: Zigbee 3.0 Soil moistureTester

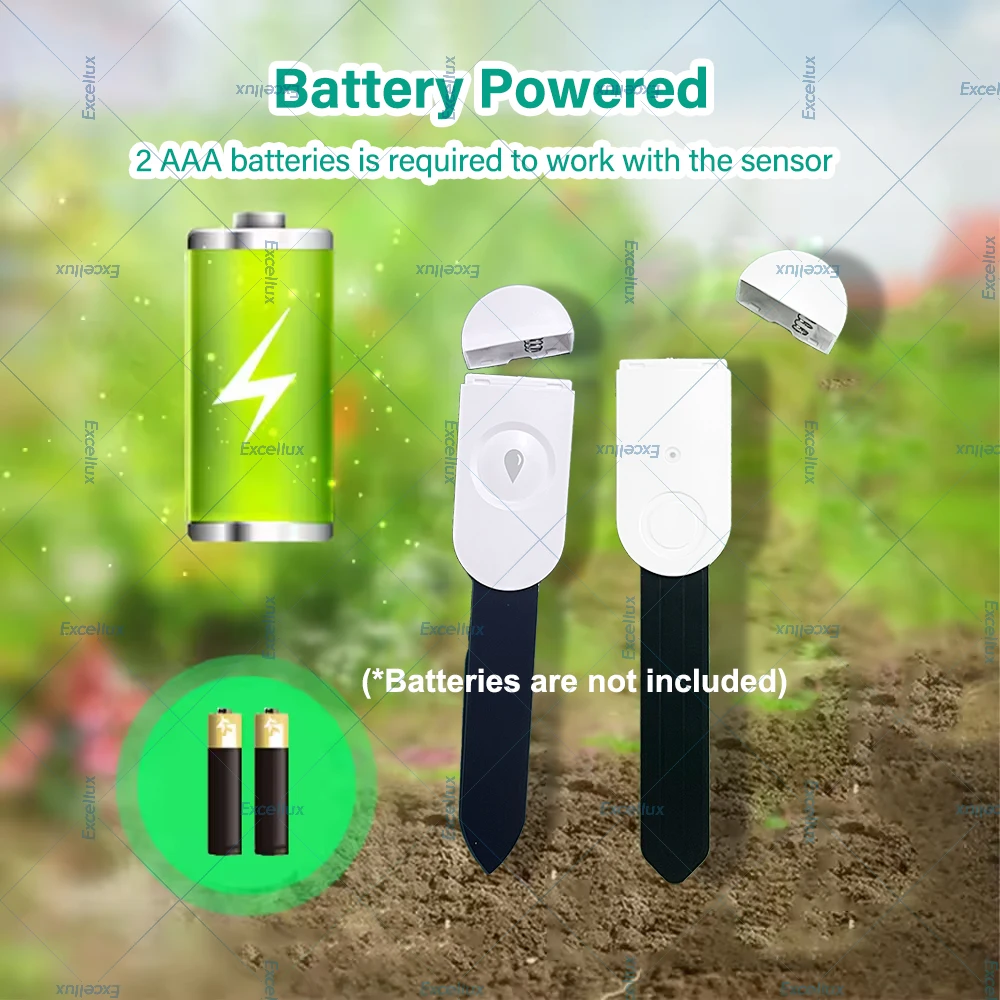

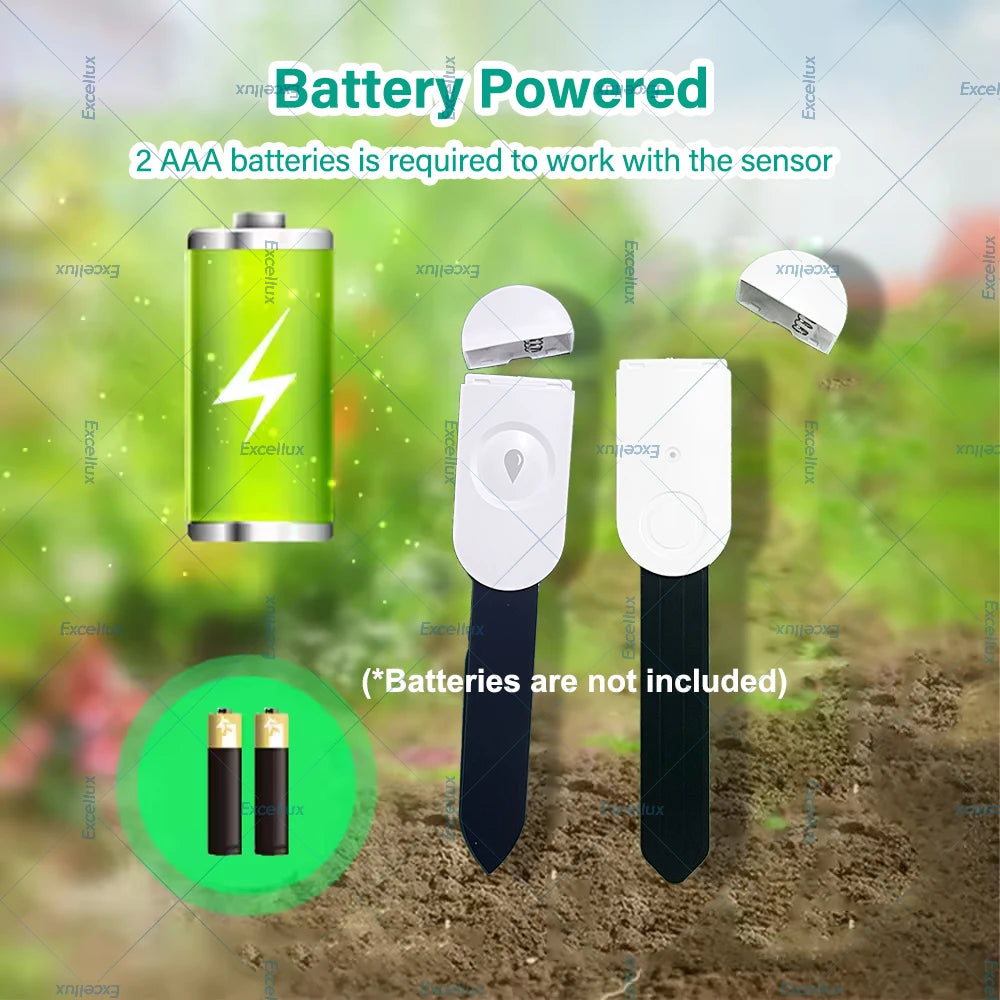

Battery Type: 2 x LR03 AAA(not included)
Wireless Protocol: Zigbee 3.0(need zigbee gateway)
Soil Moisture resolution: 3%
Temperature Resolution: 0.1℃
Humidity Resolution: 3%

Light intensity Resolution: 1lux (only 4 in 1 version or only 5 in 1 version)
Temperature Measurement Accuracy: ±0.5℃
Humidity Measurement Accuracy: ±5%
Working Voltage: DC3V
Standby Current: ≤20uA
App: for Smart Life,for tuya app

Do not support for alexa or google assistant voice ,no voice control .

Installation Instructions
1. Before inserting the sensor into the soil,please ensure that the surface of the "soil moisture sensor" is clean.

2.Insert the sensor into the soil for no less than 2/3. Ensure that the sensing surface of the moisture sensor is in contact with the soil.

3. After insertion, wait for about 30 seconds~ 1 minute to detect the moisture level.

4. When the moisture value differs by 3%, the air temperature value differs by 0.3°C, and the air humidity value differs by 5%, the data will be uploaded to the APP.

5. Support create smart scene with other related zigbee products.

Question: Can't add device to zigbee2mqtt?
Answer :It has something to do with the Zigbee2MQTT version,your z2m is old version and have not been updated.

Please update the version to newest Zigbee2MQTT version , then reset and add device on Zigbee2mqtt.

After add device ,you can install all sensors to soil and put some water ,wait for a while ,then press the button on sensor ,then the data will update .
Please test it ,if you have more question ,tell seller first.
